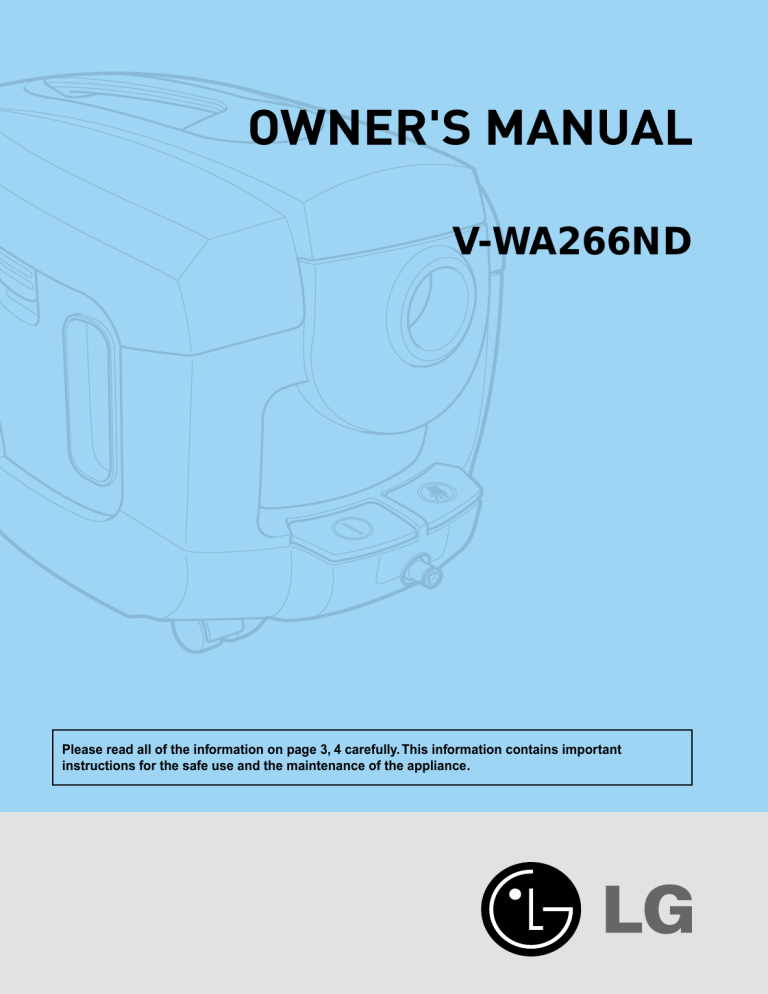

V-WA266ND
Please read all of the information on page 3, 4 carefully. This information contains important
instructions for the safe use and the maintenance of the appliance.
Table of contents
Important safety instructions ...................................................................... 3~4
How to Use ...................................................................................................... 5
Assembling cleaner .......................................................................................... 5
Using Carpet/Floor Nozzle and Carpet Master ....................................................... 6
Using Accessory Nozzles ................................................................................... 6
Dry Vacuuming ................................................................................................ 7
Wet Cleaning .................................................................................................. 10
Carpet Cleaning ............................................................................................. 13
Tile Cleaning.................................................................................................. 14
Window Cleaning ............................................................................................ 14
Sofa Cleaning ................................................................................................ 15
Blow Cleaning ................................................................................................. 16
Dust Tank Cleaning ........................................................................................ 17
Clean Filter Cleaning ....................................................................................... 17
Exhaust Filter Cleaning .................................................................................... 18
Carpet Master Cleaning ................................................................................... 18
Shampoo Tank Net Cleaning ............................................................................ 19
Storage ........................................................................................................ 19
2
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire,electric shock, personal injury,or
damage when using the vacuum cleaner.This guide do not cover all possible conditions that may occur.Always contact your
service agent or manufacturer about problems that you do not understand. This appliance complies with the following EC
Directives :2006/95/EC Low Voltage Directive 2004/108/EC EMC Directive.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “WARNING” or “CAUTION.”
These words mean:
WARNING
This symbol will alert you to hazards or unsafe practices which could cause serious
bodily harm or death.
CAUTION
This symbol will alert you to hazards or unsafe practices which could
cause bodily injury or property damage.
WARNING
• Do not plug in if control knob is not in OFF position.
Personal injury or product damage could result.
• Keep children away and beware of obstructions
when rewinding the cord to prevent personal injury
The cord moves rapidly when rewinding.
• Disconnect electrical supply before servicing or
cleaning the unit or when cleaner is not in use.
Failure to do so could result in electrical shock or personal
injury.
• Do not use vacuum cleaner to pick up anything that
is burning or smoking such as cigarettes, or hot
ashes.
Doing so could result in death, fire or electrical shock.
• Do not vacuum flammable or explosive substances
such as gasoline, benzene, thinners, propane
(liquids or gases).
The fumes from these substances can create a fire hazard
or explosion. Doing so could result in death or personal
injury.
• Do not handle plug or vacuum cleaner with wet
hands.
Doing so could result in death or electrical shock.
• Do not unplug by pulling on cord.
Doing so could result in product damage or electrical shock.
To unplug, grasp the plug, not the cord.
• Keep hair, loose clothing, fingers, and all parts of
the body away from openings and moving parts.
Failure to do so could result in electrical shock or personal
injury.
• Do not pull or carry by cord, use cord as a handle,
close a door on cord, or pull cord around sharp
edges or corners. Do not run vacuum cleaner over
cord. Keep cord away from heated surfaces.
Failure to do so could result in electrical shock or personal
injury or fire or product damage.
• Do not allow to be used as toy. Close attention is
necessary when used by or near children.
Personal injury or product damage could result.
• Do not use the vacuum cleaner if the power cord or
plug is damaged or faulty.
Personal injury or product damage could result. In these
cases, contact LG Electronics Service Agent to avoid
hazard.
• Do not use vacuum cleaner if it has been under water.
Personal injury or product damage could result. In these
cases, contact LG Electronics Service Agent to avoid
hazard.
• Do not continue to vacuum if any parts appear
missing or damaged.
Personal injury or product damage could result. In these
cases, contact LG Electronics Service Agent to avoid
hazard.
• Do not use an extension cord with this vacuum
cleaner
Fire hazard or product damage could result.
• Using proper voltage.
Using improper voltage may result in damage to the motor
and possible injury to the user. Proper voltage is listed on
the bottom of vacuum cleaner.
• Turn off all controls before unplugging.
Failure to do so could result in electrical shock or personal injury.
• Do not change the plug in any way.
Failure to do so could result in electrical shock or personal
injury or product damage. Doing so result in death. If plug
does not fit, contact a qualified electrician to install the
proper outlet.
• Repairs to electrical appliances may only be
performed by qualified service engineers.
Improper repairs may lead to serious hazards for the user.
• The hose contains electrical wires. Do not use it if it
is damaged, cut or punctured.
Failure to do so could result in death,or electrical shock.
3
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
• Do not put any objects into openings.
Failure to do so could result in product damage.
• Do not use with any opening blocked: keep free of
dust, lint, hair, and anything that may reduce air
flow.
Failure to do so could result in product damage.
• Do not use vacuum cleaner without dust tank and/or
filters in place.
Failure to do so could result in product damage.
• Always clean the dust bin after vacuuming carpet
cleaners or fresheners, powders and fine dust.
These products clog the filters,reduce airflow and can cause
damage to the cleaner. Failure to clean the dust bin could
cause permanent damage to the cleaner.
• Do not use vacuum cleaner to pick up sharp hard
objects, small toys, pins, paper clips, etc.
They may damage the cleaner or dust bin.
• Store the vacuum cleaner indoors.
Put the vacuum cleaner away after use to prevent tripping
over it.
• The vacuum cleaner is not intended to use by young
children or infirm people without supervision.
Failure to do so could result in personal injury or product
damage.
• Only use parts produced or recommended by LG
Electronics Service Agents.
Failure to do so could result in product damage.
• Use only as described in this manual. Use only with
LG recommended or approved attachments and
accessories.
Failure to do so could result in personal injury or product
damage.
• Use accessory nozzles in sofa mode.
Failure to do so could result in product damage.
• Don ’t grasp the tank handle when you are moving
the vacuum cleaner.
The vacuum cleaner’s body may fall when separating tank
and body. Personal injury or product damage could result.
You should grasp the carrier handle when you are
moving the vacuum cleaner.
• If after emptying the dust tank the indicator light is
on(red), clean the dust tank.
Failure to do so could result in product damage.
• Make sure the filters (exhaust filter and motor safety
filter) are completely dry before replacing in the
machine.
Failure to do so could result in product damage.
• Do not dry the filter in an oven or microwave.
Failure to do so could result in fire hazard.
• Do not dry the filter in a clothes dryer.
Failure to do so could result in fire hazard.
• Do not dry near an open flame.
Failure to do so could result in fire hazard.
• If the power cord is damaged, it must be replaced by an
approved LG Electronics Service Agent to avoid a
hazard
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance
• To avoid personal injury and to prevent the machine
from falling when cleaning stairs, always place it at
the bottom of stairs.
Failure to do so could result in personal injury or product
damage.
Thermal protector :
This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor
overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum
cleaner.
Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or
clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to
use the vacuum cleaner. After the 30 minute period, plug the vacuum cleaner back in and turn on the
switch.
If the vacuum cleaner still does not run, contact a qualified electrician.
4
How to Use
Assembling Cleaner
Handle
Cover
Shampoo
Lever
Clamp
Hose
Dust Tank
Hose Handle
Shampoo
Tank Cap
Pipe
Shampoo Tank
Inlet Dust
Cord Reel Button
Yellow Mark
Red Mark
Pipe
Switch Button
Shampoo Button
Power Cord
Tips
If you can see red mark on power cord when you pull the cord out of the appliance,
you must stop pulling out the cord immediately.
Optional
Spray Nozzle
Carpet Master
Carpet/Floor Nozzle
Window Master
Spray Nozzle
Frame Brush
Brush
Shampoo Bottle
Upholstery Nozzle
Dusting Brush
Crevice Tool
Small Shampoo Nozzle
5
How to Use
How to Use
6
How to Use
4
Dry Vacuuming
The Air Flow Regulator allows you to change the vacuum suction for different fabric and carpet
weight. Adjust the suction power with Air Flow Regulator in the handle.
1
2
3
Connecting the Air Filter
Closing the Top Cover Assy
1
2
4
5
Assembling Hose and Pipes
6
Connecting the Hose
Turning on the Power Switch
Air Flow Regulator
Open
Close
1
ON
2
7
After Cleaning
7
Opening the Top Cover Assy
8
Pouring the Cleaning Liquid
9
Separating the Air Filter
2
1
9
Separating the Air Filter
2
1
8
10
WARNING!
Gently rinse air filter separately under a cold running water until the water runs clear. Do not use detergent or a
washing machine or dishwasher. Shake off excess water from the filter. Do not tumble/spindry, microwave
or place in oven or on direct heat. Ensure the filter is completely dry. Re-assemble and place it back in your
machine, filter frame. If the filter is damaged, do not place them in the machine. Please call the Helpline.
10
11
Washing & Drying the Air Filter
12
Connecting the Air Filter
Closing the Top Cover Assy
1
2
Reuse the Air Filter after drying
sufficiently.
10
Brushing the Air Filter
9
How to Use
Wet Cleaning
If there is a strange sound in the pump, put the cleaning fluids into the shampoo tank.
Because it indicates that there is no cleaning fluid in the shampoo tank.
7
1
2
Connecting the Air Filter
3
Opening the Tank Ca p
Pouring Water & Shampoo
Standard spot 1:120
Heavy spot 1:60
Tank Cap
1
2
4
5
Closing the Tank Cap and the Top Cover Assy
6
Connecting the Hose
1
1
2
2
3
7
8
Turning on the Power & Shampoo Switch
ON
ON
10
Pulling the lever
Assembling Hose & Pipes
MAX
2
1
11
WARNING!
Gently rinse both parts separately under a cold running water until the water runs clear. Do not use detergent or a washing machine
or dishwasher. Shake off excess water from the filter. Do not tumble/spindry, microwave or place in oven or on direct heat.
Ensure the filter is completely dry. Re-assemble and place it back in your machine, filter frame. If the filter is damaged, do not place
them in the machine. Please call the Helpline.
15
16
17
Disassembling the Air Filter
18
Drying the Air Filter
19
Washing the Air Filter
20
Assembling the Air Filter
Connecting the Air Filter
1
2
Rib
Reuse the Air Filter after drying
sufficiently.
21
Closing the Top Cover Assy
12
Push the Air Filter until reaching the rib.
How to Use
1
13
How to Use
Button
How to Use
14
How to Use
15
How to Use
2
1
16
How to Use
Dust Tank Cleaning
1
2
Separating Plates
Cleaning the Dust Tank
How to Use
3
Pouring the Wate r
4
Connecting Plates
Clean Filter Cleaning
CAUTION!
Remove the moisture and dry the filter sufficiently in shade about a day.
1
2
Separating the Clean Filter
Cleaning the Clean Filter
3
Connecting the Cleaning Filter
Cleaning Filter
17
How to Use
How to Use
2
1
18
How to Use
Net
How to Use
19
Memo
20
Download PDF

advertising
