LG | D8A0375EDF0 | Owner's Manual | LG D8A0375EDF0 Owner’s Manual

LG D8A0375EDF0 Owner’s Manual
Installation
Make sure to turn off the main power switch off the installation space before connection.
Connect so that the colors of the 3 power cables match.
(LIVE: BROWN, NEUTRAL: BLUE, P.E.: GREEN/YELLOW)
MFL67404601
LED DOWNLIGHT
Wire connectors
Wire connectors
Wire connectors
Wire connectors
Wire
connectors
Wire
connectors

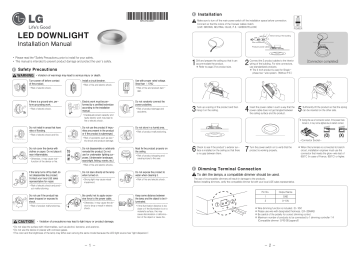

Installation Manual
Product’s power cables
• Please read the「Safety Precautions」prior to install for your safety.
• This manual is intended to prevent product damage and protect the user’s safety.
1
Drill and prepare the ceiling so that it can
accommodate the product.
※ Refer to page 3 for product size.
2
Connect the 3 product cables to the interior
wiring of the building. For wire connectors,
use standardized products.
※ The 4 Inch product is used for Singlephase two-wire system. (Without P.E.)
3
Tuck up a spring of the product and then
hang it on the ceiling.
4
Insert the power cable in such a way that the
power cable does not get tangled between
the ceiling surface and the product.
Safety Precautions
warning
power
1(875$/
1(875$/
/,9(
/,9(
1(875$/
1(875$/
/,9(
Interior wiring of the building
1(875
1(87
5 $/
1(875$/ 1(875$/
/,9(
Wire
connectors
Wire
connectors
/,9(1(875$/
/,9(
/,9(
1(875$/
/,9(
3(
/,9(
{cŽŽ…ƒ”‰Ž@ƒŒ…”…„}
•Violation of warnings may lead to serious injury or death.
Turn power off before contact
of the product.
Install a circuit breaker.
•Risk of fire and electric shock.
•Risk of electric shock.
If there is a ground wire, perform grounding work.
•Risk of electric shock.
Use with proper rated voltage.
(less than ±10%)
•Risk of fire and product damage.
logy
Techno
d
standar
tric
about elecs
facilitie
Electric work must be performed by a certified technician
according to the installation
manual.
Do not randomly connect the
power polarities.
•Risk of product damage and
accidents.
•Inadequate power capacity and
faulty electric work may lead to
fire or electric shock.
Do not install in areas that have
risks of flooding.
•Risk of electric shock and fire.
Do not use the product if impurities are present in the product
or if the product is submerged.
•Otherwise, it may cause malfunction of the device or fire.
Do not disassemble or arbitrarily
remodel the product. Do not
use for underwater lighting purposes. (Underwater landscape,
searchlight, fishing, events, etc.)
Sufficiently lift the product so that the spring
can be inserted on the other side.
※ During the use of connector socket, if the power lineis
forced in, it may not be lighted due to defect contact.
Do not store in a humid area.
•Risk of product malfunctioning.
•Risk of accidents such as electric shock and product damage.
Do not cover the device with
clothes or paper. Do not place it
near inflammables.
5
-Connector SocketMust fix the product properly on
the ceiling.
6
Check to see if the product’s exterior surface is installed on the ceiling so that there
is no gap between them.
7
Turn the power switch on to verify that the
product is working properly.
•Risk of product dropping and
causing injury to the user.
※ When this luminaire is connected to branch
circuit, installation engineer must use the
connector that meets the glow-wire test of
650°C (in case of France, 850°C) or higher.
•Risk of fire and electric shocks.
Dimming Terminal Connection
If the lamp turns off by itself, do
not disassemble the product.
Contact your local LGE sales
representative for repair.
Do not stare directly at the lamp
when turned on.
Do not expose the product to
water when cleaning it.
•Strong light may cause visual
impairment.
•Risk of fire and electric shock.
Be careful not to apply excessive force to the power cable.
Keep some distance between
the lamp and the object to be illuminated.
To dim the lamps, a compatible dimmer should be used.
The use of incompatible dimmers will result in damage to the products.
Before installing dimmers, verify the compatible dimmer list with your local LGE sales representative.
•Risk of electric shock and product malfunctioning.
Pin No.
Do not use if the product has
been dropped or exposed to
shock.
•Risk of product malfunctioning.
caution
•Otherwise, it may cause the device to drop or result in electric
shock.
•If the illumination distance is too
close or if the illumination is on a
material's surface, this may
cause discoloration or deformation of the object or cause fire.
• Violation of precautions may lead to light injury or product damage.
1
2
GND
2
0~10V
※ Wire dimming function is included. (0-10V)
※ Please use wire with designated thickness. (24-20AWG)
※ Be careful of the polarity for correct dimming control.
※ Maximum number of products to be connected to 1 dimming controller: 14
(Compatible dimmer: 5743 09(Legrand))
•Do not wipe the surface with inflammables, such as alcohol, benzene, and acetone.
•Do not use the device in places with corrosive gases.
•The color and the brightness of the lamp may differ even among the same model because the LED light source has "light dispersion".
-1-
Output Name
1
-2-
Things to check before Requesting Repair Service
Symptom
Limited Warranty
Check
It won’tturn on.
Check to see if the power is connected or if the switch is off.
It flickers.
Turn the power off. Turn it back on after a moment.
(If the flickering problem still exists, make a service request.)
Make a service request.
A certain area is dark.
It may blink momentarily
at first lighting.
Blinking 1 time at first lighting is not a disorder.
Sequential Lighting
When it is lighted after connecting several lamps, the time of lighting
may be different.
Product Size
“B”
The limited warranty set forth below is given by LG Electronics, Inc. “LGE”
(
) with respect
to the lighting product packaged with this limited warranty. (the“ Product”). Your
Product ,when delivered to you in new condition in its original packaging, is warranted
against defects in materials or workmanship as follows: for a period of two (2) years from
the date of original purchase, defective parts or a defective Product returned to LGE, or its
authorized service providers, as applicable, and proven to be defective upon inspection,
will be repaired, or exchanged for a new Product, as determine by LGE, or the authorized
service provider. This limited warranty is conditioned upon proper storage, installation, use
and maintenance complying with their respective published specifications, and does not
apply in the following cases: (a) Loss of or damage to the Product due to abuse, mishandling, alteration, accident, electrical current fluctuations failure to follow operating,
maintenance or environmental instructions prescribed by LGE in writing or services performed by someone other than LGE or an authorized service provider. To make a warranty
claim, contact your local LGE sales representative. After contacting your local LGE sales
representative, you will receive instructions regarding if, when and where to ship nonconforming Product. Failed Product must be returned for inspection and verification of
non-conformance by LGE. Failure to follow this procedure shall void this warranty. WARRANTY IS VOID IF PRODUCT IS NOT USED FOR THE PURPOSE FOR WHICH THIS
PRODUCT IS MANUFACTURED. NO IMPLIED WARRANTY, INCLUDING ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, APPLIES TO THE PRODUCT AFTER THE APPLICABLE PERIOD OF THE EXPRESS LIMITED
WARRANTY STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY,
EXCEPT AS MENTIONED ABOVE, GIVEN BY ANY PERSON OR ENTITY WITH RESPECT
TO THE PRODUCT SHALL BIND LGE. (SOME STATES AND PROVINCES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.)
(Unit: mm)
“C”
“A”
Division
4 inch
6 inch
8 inch
Ceiling Cut-out
Ø 100±5
Ø 155±5
Ø 200±5
“A”
Ø 120
Ø 180
Ø 223
“B”
90
145
187
“C”
88
100
111
WEEE
http://www.lg.com/global/sustainability/environment/
P/No.: MFL67404601(REV04)
-3-
-4-
