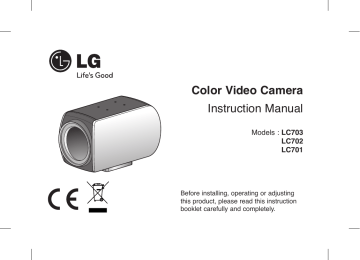

Color Video Camera
Instruction Manual
Models : LC703
LC702
LC701
Before installing, operating or adjusting
this product, please read this instruction
booklet carefully and completely.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
dangerous voltage within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.
FCC WARNING: This equipment may generate or
use radio frequency energy. Changes or modifications
to this equipment may cause harmful interference
unless the modifications are expressly approved in the
instruction manual. The user could lose the authority
to operate this equipment if an unauthorized change or
modification is made.
REGULATORY INFORMATION: FCC Part 15
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may
cause harmful interference to radio communications.
Operation of this equipment in a residential area is
likely to cause harmful interference in which case the
user will be required to correct the interference at his
own expense.
• A suitable conduit entries, knock-outs or glands
shall be provided in the cable entries of this product in the end user.
• Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with the same or
equivalent type recommended by the manufacturer. Dispose of used batteries according to the
manufacturer’s instructions.
•
Holes in metal, through which insulated wires pass,
shall have smooth well rounded surfaces or shall
be provided with brushings.
Warning: Do not install this equipment in a confined
space such as a bookcase or similar unit.
Warning: Wiring methods shall be in accordance with
the National Electric Code, ANSI/NFPA 70.
Warning: This is a class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate
measures.
Warning: To reduce a risk of fire or electric shock, do
not expose this product to rain or moisture.
Caution: This installation should be made by a qualified service person and should conform to all local
codes.
Caution: To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified personnel only.
Caution: The apparatus shall not be exposed to water
(dripping or splashing) and no objects filled with liquids,
such as vases, shall be placed on the apparatus.
To disconnect power from the mains, pull out the
mains cord plug. When install the product, ensure
that the plug is easily accessible.
Disposal of your old appliance
1.When this crossed-out wheeled bin symbol is
attached to a product it means the product is
covered by the European Directive 2002/96/
EC.
2.All electrical and electronic products should
be disposed of separately from the municipal
waste stream via designated collection facilities appointed by the government or the local
authorities.
3. The correct disposal of your old appliance will
help prevent potential negative consequences
for the environment and human health.
4. For more detailed information about disposal
of your old appliance, please contact your
city office, waste disposal service or the shop
where you purchased the product.
This product is manufactured to comply
with EMC Directive 2004/108/EC and Low
Voltage Directive 2006/95/EC.
European representative :
LG Electronics Service Europe B.V.
Veluwezoom 15, 1327 AE Almere,
The Netherlands (Tel : +31-036-547-8940)
Important Safety Instructions
1.
2.
3.
4.
5.
6.
7.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install
in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete
outlet.
10.Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11.Only use attachments/accessories specified by
the manufacturer.
12.Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13.Unplug this apparatus during lightning storms
or when unused for long periods of time.
14.Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
Contents
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Privacy Mask setting . . . . . . . . . . . . . . . . . . . 30
Cautions for Safe Operation . . . . . . . . . . . . . . 7
3D-DNR setting . . . . . . . . . . . . . . . . . . . . . . . 32
Part Names and Functions . . . . . . . . . . . . . . . 8
Special menu settings . . . . . . . . . . . . . . . . . . 33
Connections . . . . . . . . . . . . . . . . . . . . . . . . . .11
Reset settings . . . . . . . . . . . . . . . . . . . . . . . . 39
Installation of Camera . . . . . . . . . . . . . . . . . . 15
On Screen Display . . . . . . . . . . . . . . . . . . . . 40
Menu Operation . . . . . . . . . . . . . . . . . . . . . . . 16
RS-485 Protocol . . . . . . . . . . . . . . . . . . . . . . 43
Focus settings . . . . . . . . . . . . . . . . . . . . . . . . 19
Specification . . . . . . . . . . . . . . . . . . . . . . . . . 45
Exposure settings . . . . . . . . . . . . . . . . . . . . . 22
White Balance setting . . . . . . . . . . . . . . . . . . 26
Day/Night setting . . . . . . . . . . . . . . . . . . . . . . 28
Motion Detection setting . . . . . . . . . . . . . . . . 29
Features
This color video camera is designed for use in monitoring system.
•
High resolution and high sensitivity with a 1/ 4 inch EX-View CCD (Charge Coupled Device).
•
High magnitude of zoom lens with optical x27, Digital x12 (MAX x324)
•
Auto Focus
•
Auto White Balance
•
Auto exposure with DC Iris control
•
Day & Night function
•
WDR(Wide Dynamic Range) is available
Features Chart
This table shows the differences between the models.
Use LC703 is used for the description, operations and details provided in this operating guide.
Models
LC703P
LC703N
LC702P
LC702N
LC701P
LC701N
Resolution
High
High
High
High
High
High
Sens-Up
Yes
Yes
No
No
Yes
Yes
WDR
Yes
Yes
Yes
Yes
No
No
Day & Night
Yes
Yes
Yes
Yes
Yes
Yes
Communication
RS-485
RS-485
RS-485
RS-485
RS-485
RS-485
HSBLC
Yes
Yes
No
No
Yes
Yes
Cautions for Safe Operation
Power Supply
Operating and storage location
This camera must be operated DC 12V Certified/Listed,
class 2 power supply only.
Avoid viewing a very bright object (such as light fittings)
during an extended period. Avoid operating or storing
the unit in the following locations.
Handling of the unit
• Extremely hot or cold places (operating temperature
-10 °C - 50 °C, however, we recommend that the unit
be used within a temperature range of 0 °C - 45 °C)
• Damp or dust place
• Places exposed to rain
• Places subject to strong vibration
• Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.
Be careful not to spill water or other liquids on the unit.
Be cautions not to get combustible or metallic material
inside the body. If used with foreign matter inside, the
camera is liable to fail or to get cause of fire or electric
shock.
• Remove dust or dirt on the surface of the lens with a
blower.
• Use a dry soft cloth to clean the body. If it is very
dirty,use a cloth dampened with a small quantity of
neutral detergent,then wipe dry.
• Avoid the use of volatile solvents such as thinners,al
cohol,benzene,and insecticides.
They may damage the surface finish and/or impair
the operation of the camera.
Part Names and Functions
a
a Lens mount cap
The cap is installed to protect the lens
mount section. Remove the lens mount cap
before install the camera. (sold separately) .
b Camera installation bracket
The bracket can be fixed at the top or bottom of the camera.
b
Part Names and Functions
c
d
e
d Control buttons
•
T(TELE) button
When push, picture is telephoto.
•
N(NEAR) button
In a manual situation, focus get near.
•
M(MENU) button.
If you want to set up a diverse function, you
can push this button.
•
W(WIDE) button
When push, picture is wide angle.
•
F(FAR) button
In a manual situation, focus get far.
•
H(HOT) button
When you set the DAY/NIGHT mode to EXT,
you can change the Day/Night mode using
this button.
e Video output connector (BNC type)
c Power indicator
Comes on when the power to the camera is on.
Connect this connector to a device such as a VCR
or monitor with a VIDEO IN connector.
Part Names and Functions
g External Device Connectors
•
TRX -/+
Connect to an external controller of RS-485
format.
•
GND
Common GND.
•
Alarm Output Terminal (ALARM)
Connect to the alarm input of an external
device.
•
COM (Common)
•
OSD/D&N
- OSD: Connect the external controller to
control the OSD function manually.
f
f Power input terminal
g
Connect to an external power supply of DC 12V.
10
- D&N: Connect the external controller to set
the D&N function manually. If you use the
external D&N function, you should set the
DAY/NIGHT option to EXT on the camera
setup menu.
•
FOCUS/ZOOM
Connect the external controller to control the
Focus and Zoom function manually.
Connections
Power connection
1. Remove the insulation on the power cable as illustrated.
2. Attach the terminal tips.
Connecting Monitor
The video signal connection between the camera and
the monitor or DVR.
3. Connect to the 12V DC UL Listed, Class 2 Power
Supply only on the camera.
11
Connections
Connecting RS-485 Controller
Connect to an external controller of RS-485 format.
RS-485
Controller
TRX TRX +
5~7 mm
Contact Ratings
• Maximum load current is ±130mA.
•
Alarm Connection
Connect an external device such as a buzzer or lamp
to the ALARM terminal. When the camera detects
motion, the alarm output signal is supplied to the connected external device.
12
Do not connect any system or device that has over
40 Vp-p (DC 30 V) bias voltage on the contact terminal.
Note:
Use a relay unit if the voltage or current of the connected device exceeds the ratings.
Connections
Day&Night function settings
OSD function settings
If you set the DAY/NIGHT option to EXT on the
[CAMERA SET] menu, you can set the D&N function
manually.
When you connect the "-5V" signal to the OSD/D&N
terminal, the menu is displayed or the sub menu is displayed or the selected menu option is activated according to current conditions.
In case that current D&N mode is set to Day mode
When you input the "+5V" signal to the OSD/D&N terminal and the COM is connected to grounds, the D&N
mode is set to Night mode.
In case that current D&N mode is set to Night mode
When you input the "+5V" signal to the OSD/D&N terminal andCOMMON
the COM is connected to ground, the D&N
mode
set to~ the
Day mode.
D&Nis(+5V
+12V)
COMMON
D&N (+5V ~ +12V)
COMMON
OSD (-5V ~ -12V)
COMMON
OSD (-5V ~ -12V)
13
COMMON
FOCUS (+: Near, -: Far)
Connections
FOCUS and ZOOM Function Settings
ZOOM function
You can set the FOCUS and ZOOM function manually.
Using the external controller or receiver unit to control
the FOCUS and ZOOM functions.
FOCUS function
COMMON
ZOOM (+: Tele, -: Wide)
COMMON
FOCUS (+: Near, -: Far)
14
COMMON
ZOOM (+: Tele, -: Wide)
Installation of Camera
The bracket can be installed to either the top of the
camera as desired. When changing the position of the
camera mounting bracket, you should always reuse the
screws that have been removed.
Note:
If using a camera mounting bracket, select a location
that is strong enough to bear the full weight of the
camera and the mounting bracket for long periods, and
install the camera and mounting bracket securely.
15
Menu Operation
The following table shows the list of menu items and
options. You can adapt the camera to your requirements by setting up the respective items in these
menus.
Main Menu
FOCUS
EXPOSURE
Sub Menu
FOCUS
MODE
FOCUS DIST
ZOOM START
ZOOM END
ZOOM
SPEED
ZTRK MODE
INITIAL SET
EXIT
IRIS
AGC
WDR/BLC
BRIGHTNESS
SHUTTER
SENS-UP
INITIAL SET
EXIT
16
Contents
AUTO/ ONE PUSH/ ZOOM TRIG/
MANUAL
50CM, 1M, 3M, 5M
x1~x26
x2~x324
Main Menu
WHITE
BALANCE
Sub Menu
ATW
AUTO
ONE PUSH
COLOR TEMP
MANUAL
AUTO/ MANUAL/ AUTO ONLY
0~100
X512, ~, x2, AUTO, OFF, A.FLK,
1/160, ~, 1/90000
OFF, AUTO x2 ~ AUTO x128
RET/TOP/END
RED
BLUE
INITIAL SET
EXIT
D/N LEVEL
SLOW/ MIDDLE/ QUICK
RET/TOP/END
AUTO/MANUAL
OFF/LOW/MIDDLE/HIGH
OFF/WDR/BLC/HSBLC
Contents
AUTO
DAY/NIGHT
DAY
NIGHT
EXT
DWELL TIME
INITIAL SET
EXIT
INDOOR,
OUTDOOR
-100 ~ 100
-100 ~ 100
RET/TOP/END
LOW/ MIDDLE/
HIGH
5, 10, 15, 30,
60 sec
RET/TOP/END
Menu Operation
Main Menu
MOTION DET
Sub Menu
OFF
ON
OFF
PRIVACY
MASK
Contents
ZONE
NUMBER
ZONE STATE
WIDTH
HEIGHT
MOVE X
MOVE Y
SENSITIVITY
MOTION
ZOOM
INITIAL SET
EXIT
ZONE1 ~
ZONE4
OFF, ON
MASK
NUMBER
MASK STATE
MASK1 ~
MASK8
OFF, ON
BLACK, GRAY,
WHITE
MASK COLOR
ON
WIDTH
HEIGHT
MOVE X
MOVE Y
RESET MASK
INITIAL SET
EXIT
Main Menu
3D-DNR
Sub Menu
OFF
LOW
MIDDLE
HIGH
CAMERA ID
D-EFFECT
COLOR
FREEZE
SHARPNESS
STABILIZER
OFF, X1~X27
RET/TOP/END
SPECIAL
OSD
LANGUAGE
RESET
RET/TOP/END
EXIT
INITIAL SET
EXIT
FACTORY
RESET
S/W VERSION
REBOOT
PROTOCOL
EXIT
Contents
0~255
OFF/ V-FLIP/ MIRROR/ ROTATE
OFF
ON
COLOR LEVEL
OFF/ ON
0~68
OFF/ ON
OFF
USER TITLE
ZOOM MAG
ON
FUNCTION
CAMERA ID
ENG (The supported language can be
different depending on the model.)
RET/TOP/END
LG/PELCO-D/PELCO-P
RET/TOP/END
17
Menu Operation
General Operation
•
•
1. Press [M] button on the rear of the camera.
The setup menu screen appears on the monitor.
•
RET: Return to the previous.
TOP: Return to the CAMERA SETTING menu
screen.
END: Exit the setup menu.
Notes:
•
•
•
2. Use [T] or [W] button to select an option then
press [M] button on the rear of the camera.
Submenu appears on the monitor.
3. Use [T] or [W] button to select a submenu option.
4. Use [N] or [F] button to select a value.
5. Select [EXIT] option then press [M] to exit the
setup menu. In the submenu, use [T] or [W] button to select the [EXIT] then use [N] or [F] button
to select a mode and press [M] to exit the setup
menu.
18
•
•
[T] button: Use to move upper direction on the
menu screen.
[W] button: Use to move lower direction on the
menu screen.
[N] button: Use for increase the value of the
option.
[F] button: Use for decrease the value of the
option.
[M] button: Executes selections and displays a
submenu for an item with the mark.
Focus settings
Focus Mode setting
Automatically and then the focus mode is automatically changed to manual mode.
•
MANUAL: Focus is activated only when the N
(NEAR) or F (FAR) keys on the camera is pressed.
Focus Distance setting
The camera adjusts the focus automatically by sensing
the center of the picture.
Select [FOCUS MODE] option on the [FOCUS] menu,
then select the following mode.
•
AUTO: Auto-focus is activated automatically.
•
ONE PUSH: The focus is activated manually. If
the camera is received auto-focus command, the
camera is activated Auto-focus mode and the focus
is set automatically and then the focus mode is
automatically changed to manual mode.
•
ZOOM TRIG: The focus is activated manually.
If you change the zoom, the focus is activated
Selects the minimum shooting distance for the focus.
Select [FOCUS DISTANCE] option on the [FOCUS]
menu, then select a focus distance value (50CM, 1M,
3M, 5M).
19
Focus settings
Zoom Start setting
Zoom End setting
You can set the zoom start position of the camera.
When the zoom function is operated, the zoom always
will start at the selected zoom start position.
Select [ZOOM START] option on the [FOCUS] menu,
then set a zoom start position (x1 - x26).
You can set the zoom end position of the camera. If
you set the zoom end position, the zoom is operated up
to the selected zoom end position.
Select [ZOOM END] option on the [FOCUS] menu, then
set the zoom end position ("Zoom Start position+1" ~
x324).
20
Focus settings
Zoom Speed setting
Zoom Tracking Mode setting
Selects a zoom speed.
Select [ZOOM SPEED] option on the [FOCUS] menu,
then select a zoom speed (SLOW, MIDDLE or QUICK).
Selects a zoom tracking mode. Zoom tracking means
focused zooming state.
Select [ZTRK MODE] option on the [FOCUS] menu,
then select a zoom tracking mode (AUTO or MANUAL).
If the FOCUS MODE is set to [ATUO], the ZTRK
MODE is set to [AUTO ONLY] and you can not change
the ZTRK MODE.
21
Exposure settings
Iris setting
AGC (Automatic Gain Control) setting
If the images are too dark, change the maximum [AGC]
value to make the images lighter.
1. Select [AGC] option on the [EXPOSURE] menu.
Select the desired lens iris value for camera exposure.
Select [IRIS] option on the [EXPOSURE] menu, then
select a value. (AUTO or MANUAL).
•
AUTO: The lens iris is set automatically.
MANUAL: Use [N] or [F] button to select the DC
Iris level.
•
22
2. Use [N] or [F] button to select a mode.
(OFFy LOWyMIDDLEyHIGH)
Exposure settings
WDR/BLC setting
•
Use WDR/BLC option to set the options for BLC or
WDR camera.
1. Select [WDR/BLC] option on the [EXPOSURE]
menu.
HSBLC: Use for adjusting brightness the
specific area of picture. The HSBLC mode is
automatically activated only in low illuminance
scene.
- AREA SETTING: Use [N] or [F] button to
select a area then use [T] or [W] button to
select a ON or OFF. Press [M] to exit the
area setting menu.
- GRAY SCALE: Use [N] or [F] button to
select a gray scale.
(GRAYyD.GRAYyBLACK).
- HS LEVEL: Use [N] or [F] button to select a
bright level. (5 level)
- MASK STATE: Use [N] or [F] button to
select [ON] or [OFF].
If you set the MASK STATE to ON, the
mask function is activate only when the
HSBLC is activated by auto mode.
2. Use [N] or [F] button to select a mode then press
[M].
•
WDR: Set the WDR limit.
- WDR LEVEL: LOW y MIDDLE y HIGH
•
BLC: Set the BLC limit.
•
OFF: Not used.
- BLC LEVEL: LOW y MIDDLE y HIGH
23
Exposure settings
BRIGHTNESS setting
SHUTTER (Shutter Speed) setting
You can increase the brightness of the darkened video.
If you set the brightness to lower value, the image is
darkened. If you set the brightness to higher value, the
image gets bright.
1. Select [BRIGHTNESS] option on the [EXPOSURE]
menu.
Select the desired shutter speed for camera exposure.
You can change the shutter speed to higher speed
to capture fast-moving subjects, though the image
becomes darker.
1. Select [SHUTTER] option on the [EXPOSURE]
menu.
2. Use [N] or [F] button to set the bright level.
24
2. Use [N] or [F] button to set shutter speed.
(x512~x2 y AUTOy OFF y A.FLK y
1/160 ~ 1/90000)
Exposure settings
SENS-UP setting
If pictures are not clear due to darkness, use for
increase the sensitivity of picture.
1. Select [SENS-UP] option on the [EXPOSURE]
menu.
2. Use [N] or [F] button to set the SENS-UP limit
(OFF, AUTO x2 ~ AUTO x128).
To setting the SENS-UP function, select the
[AUTO] on the [SHUTTER].
Note:
If you set to one of the SHUTTER options except AUTO
on the [SHUTTER] menu, the [SENS-UP] setting is not
available and [---] mark is displayed.
25
White Balance setting
Select the method by which the camera shifts its output
colors to compensate for the color of a light source.
1. Select [WHITE BALANCE] option on the [CAMERA
SET] menu.
- When the scene contains mostly high color
temperature objects, such as a blue sky or
sunset.
- When the scene is dim.
•
AUTO: In this mode, the color temperature
range for the proper white balance is approximately 2,700 - 5,400°K. Proper white balance
may not be obtained under the following
conditions:
- When the color temperature is out of the
2,700 - 5,400°K range.
- When the scene contains mostly high color
temperature objects, such as a blue sky or
sunset.
2. Use [N] or [F] button to select a mode then press
[M].
•
ATW (Auto-Tracing White Balance): In this
mode, the color temperature range for the
proper white balance is approximately 1,800
- 10,500°K. Proper white balance may not be
obtained under the following conditions:
- When the color temperature is out of the
1,800 - 10,500°K range.
26
- When the scene is dim.
•
ONE PUSH: If you select the ONE PUSH
mode, you will be able to set up the White
Balance automatically using [M] button.
White Balance setting
•
MANUAL: You can set the white balance
options manually.
- COLOR TEMP: Use [N] or [F] button to
select a function.
>
INDOOR: The color temperature
range for the proper white balance is
approximately 3,200°K.
>
OUTDOOR: The color temperature
range for the proper white balance is
approximately 5,100°K.
- RED: Set the desired red value. (-100~100)
- BLUE: Set the desired blue value.
(-100~100)
27
Day/Night setting
1. Select [DAY/NIGHT] option on the [CAMERA SET]
menu.
- D/N LEVEL: Use [N] or [F] button to select
a level.
(LOWyMIDDLEyHIGH)
2. Use [N] or [F] button to select mode for day/night
function.
•
Note:
If you set the AGC to [OFF] or the SHUTTER
is set to one of the SHUTTER options except
AUTO on the [EXPOSURE] menu, the AUTO
mode of the DAY/NIGHT function is not available and [---] mark is displayed.
28
- DWELL TIME: Use [N] or [F] button to
select a dwell time. (5, 10, 15, 30 or 60
sec.)
AUTO: You will be able to change the Day/
Night mode automatically.
•
DAY: Color mode enabled.
•
NIGHT: Black-and-white mode enabled.
•
EXT : Switches between color picture and
black-and-white picture when an external day/
night switching signal is received.
Motion Detection setting
The motion detection detects the moving objects in the
scene by monitoring changes in brightness level. You
can select the level of sensitivity for motion detection
to 4 zone.
5. Use [T] or [W] to select an option then use [N] or
[F] button to adjust the option
•
1. Select [MOTION DET] option on the [CAMERA
SET] menu.
WIDTH: Enlarge or decrease the horizontal
size of the zone frame.
•
2. Use [N] or [F] button to select a [ON] and press
[M]. The MOTION DETECTION menu appears.
HEIGHT: Enlarge or decrease the vertical size
of the zone frame.
•
MOVE X: Moves horizontal position of the
zone frame.
•
MOVE Y: Moves vertical position of the zone
frame.
6. Use [SENSITIVITY] option to obtain the optimum
detection level.
3. Use [N] or [F] button to select a zone number
(ZONE1 ~ ZONE4) on the [ZONE NUMBER]
option.
4. Use [N] or [F] button to set up the ON or OFF on
the [ZONE STATE] option. If you set to ON, the
zone frame appears on the center of the monitor.
7. Select the motion zoom level. If you set the motion
zoom, the camera is activated according to the
selected motion zoom level and after some time
passes, it returns to the previous zoom level when
the motion is detected.
29
Privacy Mask setting
This function is aiming at the protection of personal privacy, selecting a screen part black not to be displayed
in the screen. Up to 8 zones can be registered.
1. Select [PRIVACY MASK] option on the [CAMERA
SET] menu.
2. Use [N] or [F] button to select a [ON] and press
[M]. The PRIVACY MASK menu appears.
5. Select [RESET MASK] and press [M]. If you register the mask zone for the first time, the mask zone
box appears on the center of the monitor. If you
already registered mask zone, it will be returned
to its initial state and appear on the center of the
monitor.
6. Use [N] or [F] button to select the color of the
mask zone box on the [MASK COLOR] option.
7. Use [T] or [W] to select an option then use [N] or
[F] button to adjust the option
3. Use [N] or [F] button to select a zone number
(MASK1 ~ MASK8) on the [MASK NUMBER]
option.
4. Use [N] or [F] button to set up the ON or OFF on
the [MASK STATE] option. If you already registered
the mask zone and set to ON, the mask zone box
appears on the monitor.
30
•
WIDTH: Enlarge or decrease the horizontal
size of the mask zone box.
•
HEIGHT: Enlarge or decrease the vertical size
of the mask zone box.
•
MOVE X: Moves horizontal position of the
mask zone box.
•
MOVE Y: Moves vertical position of the mask
zone box.
Notes:
•
If you want to reset the mask zone position, select
RESET MASK option and press [M] button.
Privacy Mask setting
•
The parts with the registered mask numbers from
MASK1 to MASK4 have the same color. (So do the
parts with the numbers from MASK5 to MASK8).
If you change the mask color, the registered mask
color will be changed automatically with the same
color for each of group (MASK1~4, MASK5~8).
31
3D-DNR setting
1. Select [3D-DNR] option.
If pictures are not clear due to brightness, use for
reduce the noise of picture.
2. Use [N] or [F] button to select a option.
(OFFyLOWyMIDDLEyHIGH)
Notes:
•
If you set the AGC to [OFF] on the [EXPOSURE]
menu, the [3D-DNR] function is not available.
•
When you use this function, the afterimage may
occur.
32
Special menu settings
Camera Identification setting
D-EFFECT (Digital effect) setting
You can use the camera identification (CAMERA ID) to
assign a number to the camera.
You can select the digital effect.
1. Select [CAMERA ID] option on the [SPECIAL]
menu.
1. Select [D-EFFECT] option on the [SPECIAL] menu.
2. Use [N] or [F] button to select a digital effect.
2. Use [N] or [F] to select a CAMERA ID (0~255).
•
V-FLIP: Flip the picture vertically.
•
MIRROR: Turn on the mirror effect.
•
ROTATE: Rotate the picture. (180°)
•
OFF: Turn off the digital effect.
33
Special menu settings
Color setting
Freeze setting
You can switch the displayed picture to grayscale or
color.
1. Select [FREEZE] option on the [SPECIAL] menu.
1. Select [COLOR] option on the [SPECIAL] menu.
2. Use [N] or [F] button to set up the ON or OFF.
2. Use [N] or [F] button to change a color effect.
34
•
ON: To display the picture with color.
Select ON and Press [M] to display the submenu.
You can adjust the color level using the [N] or
[F] button.
•
OFF: To display the picture with grayscale.
Special menu settings
Sharpness setting
Stabilizer setting
Sharpens the image outline.
1. Select [SHARPNESS] option on the [SPECIAL]
menu.
The image stabilizer function minimizes the appearance
of shaky images caused by low-frequency vibration.
2. Use [N] or [F] button to change a adjust the option.
If you set the sharpness value to higher, the image
outline becomes sharp. If you set to lower value,
the image outline becomes dim.
This function is useful for outdoor surveillance.
Select [STABILIZER] option and set to ON or OFF.
Note:
If you set the [STABILIZER] to ON, the Digital zoom is
set to [x1.1] automatically.
35
Special menu settings
OSD setting
You can set the Function On-Screen Display options
using the [OSD] menu.
The Function On-Screen Display of this camera can be
turned on or off.
1. Select [OSD] option on the [SPECIAL] menu.
2. Use [N] or [F] button to select a [ON] and press
[M]. The OSD menu appears.
36
3. Use [T] or [W] to select an option then use [N] or
[F] button to set the option.
•
•
ON: Displays the Function OSD on the screen.
OFF: The Function OSD does not appear on
the screen.
Special menu settings
User title setting
You can use the camera identification to assign a number and character to the camera (0 - 9, A-Z, a-z).
The USER TITLE is displayed on the upper left of the
screen.
To disappear the user title, select [OFF].
1. Select [USER TITLE] option on the [SPECIAL]
screen.
-
CLR: If you enter the wrong code, select CLR
then press [M].
-
POS: Use [N] or [F] button to move position of
USER TITLE on the screen.
-
END: Confirm your selection.
-
A(Blank): Insert a space at the cursor position.
-
/
: Moves cursor to left or right.
2. Use [N] or [F] button to select a [ON] then press
[M]. The USER TITLE menu appears.
A
3. Use [T], [W], [N] or [F] button to select a character
or number.
37
Special menu settings
Language setting
Select a language for setup menu and information
display.
38
Reset settings
1. Select [RESET] option.
2. Press [M] button and the RESET menu appears.
3. Use [T] or [W] to select option.
•
FACTORY RESET: Clear certain settings and
information and return to factory default settings.
•
S/W VERSION: Displays the software version
on the monitor.
•
REBOOT: Reboot the camera system.
•
PROTOCOL: Select the protocol for the camera communication among the LG, PELCO-D
and PELCO-P.
4. Press [M] to confirm your selection.
39
On Screen Display
1
Some of these functions will be displayed every
time the camera is operated.
ab
c
d
e
f
g h
1
X20
X20
X20
X20
35
35
35
35
Function
OSD
Format
Description
None Display Zoom Trigger Mode
i
j
k
l
TITLE
TITLE
Auto Mode
Focus
a Mode
35
X20
Manual Mode
One Push Mode
Displays when the
Auto focus is operating.
Camera
b ID
X20
35
m
40
n
o
0~255
Displays the camera
ID.
Manual
Focus Near
Action
Focus Far
c Focus
X20
X20
35
35
TITLE
TITLE
TITLE
11
1
1
TITLE
1
TITLE
On Screen
DisplayX20
X20
35
35
X20
35
Function
35
35
White
d Balance
Mode
OSD
Format
Manual Mode
Mode
TITLE
TITLE
35
X20
35
X20
35
35
Function
g 3D-DNR
One Push Mode
None Display
Backlight
Compen-
TITLE
1
1
None Display AutoX20
or ATW Mode
White
Balance
e Manual
Mode
f sation
Description
X20
1
OSD
Format
None Display
Text: A~Z,
h User Title 0~9, ‘-’, ‘.’, ‘ ‘
Outdoor
i Night
Backlight Compensation is turned off.
WDR On
BLC On
HSBLC On
Mode
3D-DNR is turned
off.
3D-DNR is turned
on.
Indoor
Day &
X20
X20 Description
User Title
None Display Day Mode
Night Mode
None Display D-Effect Off
D-Effect
j Status
V-Flip
Mirror
Rotate
41
1
TITLE
1
35
TITLE
35
35
X20
X20
X20
X20
On Screen Display
35
Function
Color
k On/Off
Status
OSD
Format
Color Off
Freeze
None Display Freeze Off
Status
Freeze On
l On/Off
Preset
m Status
Displays when "Set
preset" or "Go to
+ Number preset" function is
operating.
Motion
Displays when the
motion is detected.
n Detection
Status
Zoom
o Display
42
Description
None Display Color On
X1~X324
Optical Zoom: 27X,
Digital Zoom: 12X
RS-485 Protocol
Data Communication Format
•
Data Length: 1 Byte (8 Bit)
•
Start/Stop Bit: 1 Bit
•
Parity Bit: None
•
Baud rate: 9,600 bps
Format
Byte 1
Byte 2
Byte 3
Byte 4
Byte 5
Byte 6
Byte 7
0xE5
0x87
Camera ID
0x60
Key In or Key Out
Key Code
*C.S.
*C.S. = Check Sum
•
The data of total 7 bytes is transmitted from the external RS-485 device to the camera.
•
Byte 7 : The value of Check Sum from ‘Byte 1 ’ to ‘Byte 6 ’.
43
RS-485 Protocol
Commands
Function
Menu
Tele (Menu Up)
Wide (Menu Down)
Near (Menu Right)
Far (Menu Left)
Command
Key In
E5 87 ID 60 00 14 CS
Key Out
E5 87 ID 60 FF 14 CS
Key In
E5 87 ID 60 00 08 CS
Key Out
E5 87 ID 60 FF 08 CS
Key In
E5 87 ID 60 00 04 CS
Key Out
E5 87 ID 60 FF 04 CS
Key In
E5 87 ID 60 00 02 CS
Key Out
E5 87 ID 60 FF 02 CS
Key In
E5 87 ID 60 00 01 CS
Key Out
E5 87 ID 60 FF 01 CS
Note:
You must enter the Key out command after the Key input commend.
44
Description
1) OSD On Key Action
2) When OSD is being displayed, Enter into
the submenu or execute the menu item.
1) Menu Defined Speed Tele Key Action
2) When OSD is being displayed, select
upper menu item.
1) Menu Defined Speed Wide Key Action
2) When OSD is being displayed, select
lower menu item.
1) Menu Defined Speed Near Key Action
2) When OSD is being displayed, select
option item in the right side.
1) Menu Defined Speed Far Key Action
2) When OSD is being displayed, select
option item in the left side.
Specification
Model
LC701N
LC702N
Signal System
NTSC
Total Pixels No.
811(H) X 508(V)
LC701P
LC702P
LC703P
PAL
Image Device
795(H) X 596(V)
1/4" EX-View CCD
x27 Zoom ( F1.5(Wide End) , F3.6(Tele End)
Lens
( f = 3.25mm ~ 88 mm )
IRIS Control
DC IRIS
Sync. System
Internal
Scanning Frequency (H)
15.734 KHz
Scanning Frequency (V)
59.94 Hz
Horizontal Resolution
15.625 KHz
50 Hz
More than 540 TV Lines
S/N Ratio
Minimum
Illumination
LC703N
More Than 50dB (AGC Off)
Color Mode
0.003 (0.6) Lux
(Sens-up OFF)
0.6 Lux
0.003 (0.6) Lux
(Sens-up OFF)
0.003 (0.6) Lux
(Sens-up OFF)
0.6 Lux
0.003 (0.6) Lux
(Sens-up OFF)
B/W Mode
0.0001 (0.1) Lux
(Sens-up OFF)
0.1 Lux
0.0001 (0.1)
Lux
(Sens-up OFF)
0.0001 (0.1) Lux
(Sens-up OFF)
0.1 Lux
0.0001 (0.1) Lux
(Sens-up OFF)
Video Output Signal
1Vp-p Composite (75Ω)
45
Specification
Model
LC701N
LC702N
LC703N
LC701P
Control Method
RS485
Auto Gain Control
Off / Low / Medium / High
Day & Night
1/60 ~1/90,000
White Balance
1/50 ~1/90,000
Auto / ATW/ ONE PUSH / Manual
Electronic Sensitivity
OFF /Auto
OFF / BLC /
HSBLC
OFF/WDR /
BLC
OFF/WDR /
BLC / HSBLC
OFF / BLC /
HSBLC
Motion Detection
On / Off
Privacy Zone Masking
8 Zones
Power Source
DC12V ± 20%
Power Consumption
3.6 W
Operation Temp. / Humidity
-10 ºC ~ 50 ºC / 0%RH ~ 80%RH
Storage Temp. / Humidity
-20 ºC ~ 60 ºC / 0%RH ~ 85%RH
Weight
520 g
Dimension (H x V x D)
64 X 78.6 X 118.2mm
46
LC703P
Day / Night / Auto / Ext
Electronic Shutter
WDR (BLC)
LC702P
OFF/WDR /
BLC
OFF/WDR /
BLC / HSBLC
P/NO : MFL62034738
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
