LG | DH7520TW | LG DH7520TW Owner’s Manual

ENGLISH
FRANÇAIS
PORTUGUÊS

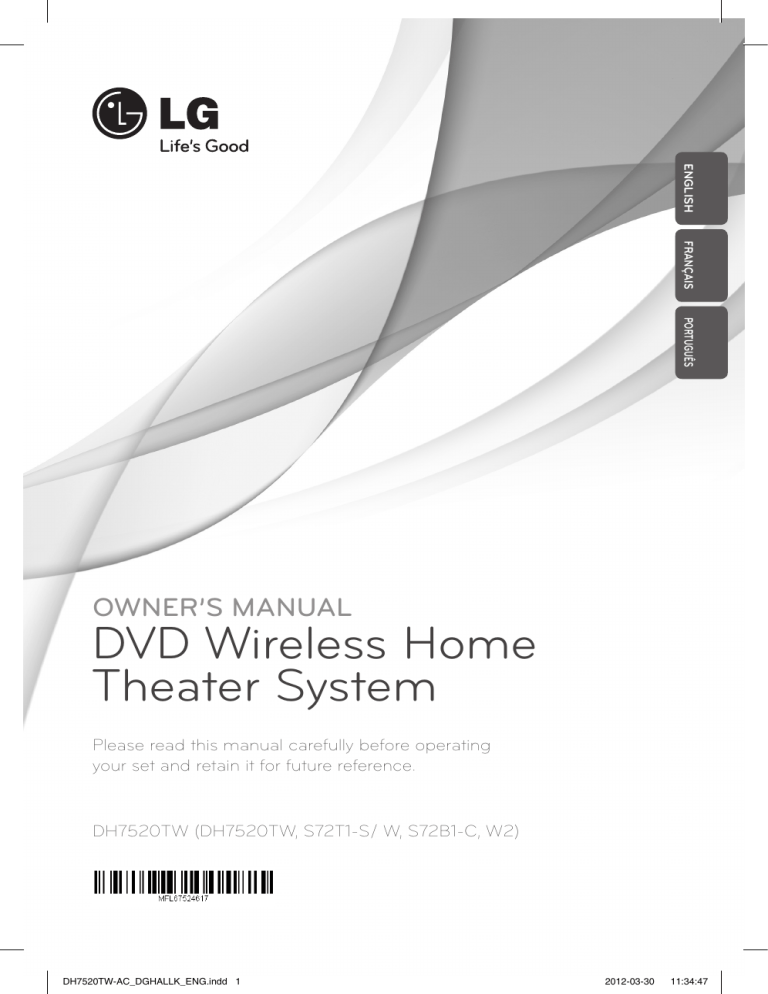

OWNER’S MANUAL
DVD Wireless Home
Theater System
Please read this manual carefully before operating
your set and retain it for future reference.
DH7520TW (DH7520TW, S72T1-S/ W, S72B1-C, W2)
DH7520TW-AC_DGHALLK_ENG.indd 1
2012-03-30
11:34:47
2
Getting Started
Safety Information
1
CAUTION
Getting Started
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with
arrowhead symbol within an
equilateral triangle is intended to
alert the user to the presence of
uninsulated dangerous voltage
within the product’s enclosure that
may be of sufficient magnitude to
constitute a risk of electric shock
to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
confined space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
DH7520TW-AC_DGHALLK_ENG.indd 2
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not
try to open the enclosure.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specification page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.
This device is equipped with a portable battery or
accumulator.
2012-03-30
11:34:47
Getting Started
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects filled
with liquids, such as vases, shall be placed on the
apparatus.
Copyrights
It is forbidden by law to copy, broadcast, show,
broadcast via cable, play in public, or rent
copyrighted material without permission. This
product features the copy protection function
developed by Macrovision. Copy protection signals
are recorded on some discs. When recording and
playing the pictures of these discs picture noise
will appear. This product incorporates copyright
protection technology that is protected by U.S.
patents and other intellectual property rights. Use
of this copyright protection technology must be
authorized by Macrovision, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
1
Getting Started
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, fire or the like.
3
CONSUMERS SHOULD NOTE THAT NOT ALL
HIGH DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE
ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN
CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER
SWITCH THE CONNECTION TO THE ‘STANDARD
DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS
REGARDING OUR TV SET COMPATIBILITY WITH THIS
MODEL 525p AND 625p UNIT, PLEASE CONTACT
OUR CUSTOMER SERVICE CENTER.
You have to set the disc format option to [Mastered]
in order to make the discs compatible with the LG
players when formatting rewritable discs. When
setting the option to Live File System, you cannot
use it on LG players.
(Mastered/ Live File System : Disc format system for
Windows Vista)
DH7520TW-AC_DGHALLK_ENG.indd 3
2012-03-30
11:34:47
4
Table of Contents
Table of Contents
1
Getting Started
2
6
6
6
6
6
6
7
7
7
7
7
8
9
10
11
Safety Information
Unique Features
– Portable In
– USB Direct Recording
– Full HD up-scaling
– Home Theater Speaker ez Setup
Accessories
Introduction
– Playable Discs
– About the “&” Symbol Display
– Symbols Used in this Manual
– Regional Codes
Playable file Requirement
Remote control
Front panel
Rear panel
2 Connecting
12
14
15
16
18
18
19
20
21
21
22
22
22
22
23
24
24
25
Assembling the speaker
Attaching the speakers to the unit
Positioning the system
– Wireless speakers connection
Connections to Your TV
– Component Video Connection
– HDMI Out Connection
– Video Connection
– Resolution Setting
Video Output Resolution
Optional Equipment Connection
– AUX In Connection
– PORT. IN (PORTABLE) Connection
– Listening to music from your portable
player or external device
– USB Connection
– OPTICAL In connection
– Home theater speaker ez setup
Antenna Connection
DH7520TW-AC_DGHALLK_ENG.indd 4
3 System Setting
26 Adjust the setup settings
26 – OSD Initial language settings Optional
26 – To display and exit the Setup menu
27 – Language
27 – Display
28 – Audio
29 – Lock (Parental Control)
30 – Others
4 Operating
31
31
32
32
33
33
33
33
33
33
33
34
35
36
36
36
36
36
36
36
37
37
37
37
37
37
38
38
39
39
40
40
Using the Home Menu
Basic Operations
Other Operations
– Displaying Disc Information on-screen
– To display the DVD Menu
– To display the DVD title
– 1.5 times speed playback
– Screen Saver
– Starting play from selected time
– Resume playback
– Changing subtitle code page
– Marked Playback
– Viewing a PHOTO file
– Sleep Timer Setting
– Dimmer
– Turn off the sound temporarily
– Last Scene Memory
– System Select - Optional
– Adjust the speaker level settings
– VOCAL FADER
Radio Operations
– Listening to the radio
– Presetting the Radio Stations
– Deleting all the saved stations
– Deleting a saved station
– Improving poor FM reception
Sound adjustment
– Setting the surround mode
Advanced Operations
– Recording to USB
Using a Bluetooth wireless technology
– Listening to music of a Bluetooth
device
2012-03-30
11:34:47
Table of Contents
41
5
– Listening to music on this unit using
Bluetooth device
5 Troubleshooting
1
43 Troubleshooting
6 Appendix
44
44
44
45
46
47
48
2
Maintenance
– Handling the Unit
– Notes on Discs
Area Code List
Language code List
Trademarks and Licenses
Specifications
3
4
5
6
DH7520TW-AC_DGHALLK_ENG.indd 5
2012-03-30
11:34:47
6
Getting Started
Unique Features
1
Portable In
Accessories
Please check and identify the supplied accessories.
Getting Started
Listens to music from your portable device. (MP3,
Notebook, etc)
USB Direct Recording
Records music from CD to your USB device.
Remote control (1)
Battery (1)
FM antenna (1)
Speaker cables (6)
AM antenna (1)
Video cable (1)
HDMI Cable (1)
Wireless TX (1)
Full HD up-scaling
Views Full HD picture quality with simple setup.
Home Theater Speaker ez
Setup
Listens to sounds from TV, DVD and Digital device
with vivid 5.1 (2.1 or 2.0) ch mode.
DH7520TW-AC_DGHALLK_ENG.indd 6
2012-03-30
11:34:48
Getting Started
Introduction
Playable Discs
DVD-VIDEO (12 cm disc)
Discs such as movies that can be
purchased or rented.
DVD±R (12 cm disc)
Video mode and finalized only.
DVD-RW (12 cm disc)
Video mode and finalized only.
DVD+R: Video mode only
Supports the double layer disc also.
DVD+RW (12 cm disc)
Symbols Used in this Manual
r
DVD-Video, DVD±R/RW in Video
mode or VR mode and finalized
t
Audio CDs
y
Video files contained in the
USB/Disc
u
Audio files contained in the
USB/Disc
i
Photo files contained in the
USB/Disc
,,Note
Indicates special notes and operating features.
,,Tip
Indicates tip and hints for making the task easier.
>>Caution
Indicates cautions for preventing possible damages
from abuse.
Video mode and finalized only.
Regional Codes
Audio CD: Music CDs or CD-R/CDRW in music CD format that can be
purchased.
This unit has a regional code printed on the rear of
the unit. This unit can play only DVD discs labeled
same as the rear of the unit or “ALL”.
About the “&” Symbol
Display
“&” may appear on your TV display during
operation and indicates that the function explained
in this owner’s manual is not available on that
specific media.
DH7520TW-AC_DGHALLK_ENG.indd 7
1
Getting Started
This unit plays DVD±R/RW and CD-R/RW that
contains audio titles, DivX, MP3, WMA and/or
JPEG files. Some DVD±RW/DVD±R or CD-RW/
CD-R cannot be played on this unit due to the
recording quality or physical condition of the disc,
or the characteristics of the recording device and
authoring software.
7
yy Most DVD discs have a globe with one or more
numbers in it clearly visible on the cover. This
number must match your unit’s regional code or
the disc cannot play.
yy If you try to play a DVD with a different regional
code from your unit, the message “Check
Regional Code” appears on the TV screen.
2012-03-30
11:34:49
8
Getting Started
Playable file
Requirement
1
Getting Started
MP3/ WMA music file requirement
MP3/ WMA file compatibility with this unit is limited
as follows :
yy Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
yy Bit rate : within 32 to 320 kbps (MP3),
40 to 192 kbps (WMA)
yy Support Version : v2, v7, v8, v9
yy Maximum files : Under 999
yy File extensions : “.mp3”/ “.wma”
DivX file requirement
DivX file compatibility with this unit is limited as
follows:
yy Available resolution: within 720 x 576 (W x H)
pixels.
yy The file name of the DivX subtitle should be
entered within 45 characters.
yy If there is impossible code to express in the
DivX file, it may be displayed as “ _ “ mark on the
display.
yy Frame rate : less than 30 fps.
yy If the video and audio structure of recorded
files is not interleaved, either video or audio is
outputted.
yy Playable DivX file : “.avi”, “.mpg”, “.mpeg”, “.divx”
yy We recommend that you use Easy-CD Creator,
which creates an ISO9660 file system.
yy Playable Subtitle format : SubRip (*.srt/ *.txt),
SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt),
MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/
*.txt), Vobsub (*.sub)
Photo file requirement
yy Playable Codec format : “DIVX3.xx”, “DIVX4.xx”,
“DIVX5.xx”, “MP4V3”, “3IVX”.
Photo file compatibility with this unit is limited as
follows :
yy Playable Audio format : “AC3”, “PCM”, “MP3”, “WMA”,
“DTS”.
yy Max pixel in width : 2 760 x 2 048 pixel
yy Maximum files : Under 999
yy Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
yy Some discs may not operate due to a different
recording format or the condition of disc.
yy Bit rate : within 32 to 320 kbps (MP3), 40 to 192
kbps (WMA)
yy File extensions: “.jpg”
yy For Discs formatted in Live file system, you can
not it on this unit.
yy CD-ROM file format : ISO9660/ JOLIET
yy CD-ROM file format : ISO9660/ JOLIET
yy If the name of movie file is different from that of
the subtitle file, during playback of a DivX file,
subtitle may not be display.
yy If you play a DivX file differ from DivXspec, it may
not operate normally.
DH7520TW-AC_DGHALLK_ENG.indd 8
2012-03-30
11:34:49
Getting Started
9
Remote control
m INFO/DISPLAY: Accesses OnScreen Display.
n HOME: Displays the [Home
Menu].
DISC MENU: Accesses the menu
on a DVD disc.
• • • • • • b • • • • • •
W/S/A/D (up/ down/ left/
right): Used to navigate on-screen
displays.
PRESET +/-: Selects programme
of Radio.
Remove the battery cover on the
rear of the Remote Control, and
insert one (size AAA) battery with
4 and 5 matched correctly.
VOL +/- (Volume): Adjusts
speaker volume.
OPTICAL: Changes input source
to optical directly.
MUTE: Mutes the sound.
0-9 numerical buttons: Selects
numbered options in a menu.
h REPEAT: Selects a play
mode. (Repeat/ Random)
• • • • • • f • • • • • •
x RETURN: Moves backwards
in the menu or exits the setup
menu.
-- You can control the sound
level, input source, and power
switching of LG TVs as well.
Hold POWER (TV) and press PR/
CH (W/S) button repeatedly
until the TV turns on or off.
• • • • • • c • • • • • •
Z STOP: Stops playback.
d PLAY, MONO/STEREO: Starts
playback. Selects Mono/ Stereo.
M PAUSE/STEP: Pauses playback.
P RADIO&INPUT: Changes
input sources.
c/v SCAN: Searches
backward or forward.
1
• • • • • • e • • • • • •
b ENTER: Acknowledges menu
selection.
Presetting the radio stations.
C/V SKIP: Goes to the next
or previous chapter / track / file.
1 POWER: Switches the unit ON
or OFF.
SOUND EFFECT: Selects a sound
effect mode.
CLEAR: Removes a number when
setting the password.
• • • • • • a • • • • • •
MARKER: Marks play list.
SPEAKER LEVEL: Sets the sound
level of desired speaker.
TUNING +/-: Tunes in the desired
radio station.
TITLE: If the current DVD title has
a menu, the title menu appears
on the screen. Otherwise, the disc
menu may not appear.
Battery Installation
• • • • • • d • • • • • •
Getting Started
SLEEP: Sets the System to turn off
automatically at a specified time.
(Dimmer : The display window will
be darken by half.)
TV Control buttons: Controls the
TV. (LG TV only)
X REC: USB Direct Recording.
BLUETOOTH: Pairing, Connecting
and disconnecting your unit and
Bluetooth device in function other
than the Bluetooth.
MIC VOL -/+ : Adjusts microphone
volume.
ECHO VOL -/+ : Adjusts echo
volume.
VOCAL FADER : You can enjoy
the function as karaoke, by
reducing singer vocal of music in
the various source.
B OPEN/CLOSE: Ejects or inserts
the disc from slot loader.
DH7520TW-AC_DGHALLK_ENG.indd 9
2012-03-30
11:34:50
10
Getting Started
Front panel
1
Getting Started
1
3
4
5
a Disc Slot
b Display window
Shows the current status of the unit.
c Microphone jacks 1/2
d PORT. IN
Connects to a portable player with audio
outputs.
e USB Port
Connects a USB device.
2
6 7 8 9
10
h I (STOP)
Stops playback.
i F (FUNCTION)
Changes the input source or function.
j VOL(-/ +)
Adjusts speaker volume.
k 1 (POWER)
Switches the unit ON or OFF.
f R (OPEN/CLOSE)
Ejects or insert the disc from slot loader.
g T (PLAY/PAUSE)
Starts playback.
Pauses playback temporarily, press again to exit
pause mode.
DH7520TW-AC_DGHALLK_ENG.indd 10
2012-03-30
11:34:50
Getting Started
11
Rear panel
1
2
3
4
5
6 7
8
a Power cord
b Speakers connectors
Connects the speaker cables.
c Cooling Fan
Getting Started
1
9
f VIDEO OUT
Connects to a TV with video inputs.
g COMPONENT VIDEO (Y PB PR)OUTPUT
Connects to a TV with Y PB PR inputs.
d Antenna Connector
FM- Connects the FM wired antenna.
AM- Connects the AM loop antenna
h AUX (L/R) INPUT
Connects to an external source with 2 channel
audio outputs.
e WIRELESS
i OPTICAL IN
Connects to optical audio equipment.
j HDMI OUT
Connects to TV with HDMI inputs.
(Interface for digital audio and video)
DH7520TW-AC_DGHALLK_ENG.indd 11
2012-03-30
11:34:50
12
Connecting
Assembling the
speaker
2. Secure the connection with a supplied screw.
When assembling, be careful that the pole and
base do not fall down.
Preparation
Pole
2
Connecting
Base
Screw
Speaker
3. Attach the speaker to the pole, then secure the
connection with a supplied screw.
Speaker cables
1. Attach the base to the pole. Be careful with
the orientation of the pole and base, as in the
illustration.
DH7520TW-AC_DGHALLK_ENG.indd 12
2012-03-30
11:34:51
Connecting
4. Thread the speaker wire through the hole in the
bottom of the base.
13
>>Caution
Be careful that the speaker
does not fall down.
Otherwise it may result in
the speaker malfunctioning
and causing personal injury
and/ or property damage.
2
Connecting
Bottom of base
5. Connect the speaker wire to the connector on
the speaker.
DH7520TW-AC_DGHALLK_ENG.indd 13
2012-03-30
11:34:51
Connecting
14
2
Connecting
Attaching the speakers
to the unit
To connect the cable to the speakers, press each
plastic finger pad to open the connection terminals
on the base of each speaker. Insert the wire and
release the finger pad.
1. Connect the wires to the unit.
Match each wire’s colored band to the same
colored connection terminal on the rear of the
unit. To connect the cable to the unit, press
each plastic finger pad to open the connection
terminal. Insert the wire and release the finger
pad.
yy Be careful to make sure children do not put
their hands or any objects into the *speaker
duct.
*Speaker duct : A hole for plentiful bass
sound on speaker cabinet (enclosure).
>>Caution
yy The speakers contain magnet parts, so color
irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.
Connect the black stripe of each wire to the
terminals marked -(minus) and the other end
to the terminals marked + (plus).
2. Connect the wires to the speakers.
Connect the other end of each wire to the
correct speaker according to the color coding:
Color
Speaker
Position
Green
Center
Center
Orange
Sub woofer
Any front position
Red
Front
Front right
White
Front
Front left
DH7520TW-AC_DGHALLK_ENG.indd 14
2012-03-30
11:34:51
Connecting
Positioning the system
The following illustration shows an example of
positioning the system. Note that the illustrations
in these instructions differ from the actual unit for
explanation purposes.
For the best possible surround sound, all the
speakers other than the subwoofer should be
placed at the same distance from the listening
B
G
A
A
A
D
Surround left speaker (L)/ Surround right
speaker (R):
Place these speakers behind your listening
position, facing slightly inwards.
2
Unit
F
A
Center speaker: Place the center speaker above
or below the monitor or screen.
S ubwoofer: The position of the subwoofer is
not so critical, because low bass sounds are not
highly directional. But it is better to place the
subwoofer near the front speakers. Turn it slightly
toward the center of the room to reduce the wall
reflections.
C
A
Front left speaker (L)/ Front right speaker (R):
Place the front speakers to the sides of the
monitor or screen and as flush with the screen
surface as possible.
Connecting
position ( ).
15
E
A
A ABCD E F G
DH7520TW-AC_DGHALLK_ENG.indd 15
2012-03-30
11:34:53
16
Connecting
Wireless speakers connection
LED indicator of wireless receiver
2
Connecting
LED Color
Operation
Blue or yellow
The wireless receiver is receiving
the signal of the wireless TX.
Red
The Wireless Receiver is in
standby mode.
Off (No
display)
The power cord of wireless
receiver is disconnected.
Setting up the wireless receiver for
the first time
1. Connect the Wireless Receiver and the rear
speaker (right, left) with the speaker cables.
4. Turn on the main unit: The main unit and
wireless receiver will be automatically
connected.
>>Caution
yy Insert the Wireless TX with the marked
“Wireless TX" facing upwards to rear on the
unit.
yy Insert the Wireless TX to the line on the
Wireless TX into the WIRELESS connector
on the rear of the unit.
yy Do not insert a wireless dongle other than
the Wireless TX dongle dedicated for the
product. The product might be damaged
or it may not be removed easily.
Manually pairing wireless receiver
When your connection is not completed, you can
see the red LED on the wireless receiver and rear
speakers are not made sound. To solve the problem,
follow the below steps.
1. Press and hold I STOP button on the unit
and MUTE button on the remote control
simultaneously.
- Displays the “REMATE”.
Color
Speaker
Position
2. Press PAIRING on back of the wireless receiver.
- The blue or yellow LED will flicker
Grey
Rear
Rear right
Blue
Rear
Rear left
3. Turn off and on the unit.
- If you see “blue or yellow” LED, it’ s successful.
2. Connect the power cord of the Wireless
Receiver to the outlet.
4. If you don’t see “blue or yellow” LED, try again
Step 1 - Step 3.
3. Turn off the unit and insert the Wireless TX into
the WIRELESS connector on the rear of the unit.
Line
DH7520TW-AC_DGHALLK_ENG.indd 16
2012-03-30
11:34:53
2
Connecting
Connecting
About Ferrite Core (for EMI only)
Be sure toFerrite
attach theCore
ferrite(for
core to
the power
About
EMI
only) cord
(for connecting to this unit and wireless receiver).
Besuretoattachtheferritecoretothespeaker
This ferrite core can reduce noises.
cable.Thisferritecorecanreducenoises.
How to attach the ferrite core
1. Pressthestopper[a]oftheferritecoretoopen.
Press the stopper [a] of the ferrite core to open.
1.
2. Windthepower
Wind the power code
cord on
wireless
2.
of the unit
oncereceiver
on
once on thecore.
ferrite core.
theferrite
,,Note
yy If there is a strong electromagnetic wave
product nearby, interference may occur.
Put the unit (Wireless Receiver and main
unit) away from there.
yy If there is no audio signal for longer than
10 minutes, the Wireless Receiver will
automatically switch to standby mode. In
power saving mode, both LEDs will turn
red. LEDs will turn blue or yellow when
there is any audio signal back.
yy If you operate main unit then wireless
speakers (rear speakers) sound within a few
seconds in standby mode.
yy Set the distance between this unit and
Wireless Receiver within 10 m (32 ft.).
2
Connecting
3. Closetheferritecoreuntilitclicks.
Close the ferrite core until it clicks.
3.
Refer to the fig.3 and comment.
Refertothefig.3andcomment.
17
yy Optimum performance can be
implemented only when the Wireless TX
and the Wireless Receiver within distance
of 2 m (6 ft.) to 10 m (32 ft.) is used since
communication failure may occur if longer
distance is used.
(fig.3)
yy Be sure to match the speaker cable to the
appropriate terminal on the components:
+ to + and – to –. If the cables are reversed,
the sound will be distorted and will lack
bass.
yy It takes a few seconds (and may take
longer) for the Wireless TX and Wireless
Receiver to communicate with each other.
yy Use the rear speaker at least 30 cm (11 inch)
away from either TV screen or PC monitor.
DH7520TW-AC_DGHALLK_ENG.indd 17
2012-03-30
11:34:54
18
Connecting
Connections to Your
TV
Make one of the following connections, depending
on the capabilities of your existing equipment.
2
,,Note
Component Video Connection
Connect the COMPONENT VIDEO OUTPUT
(PROGRESSIVE SCAN) jacks on the unit to the
corresponding input jacks on the TV using
component cables.
You can hear the sound through the system’s
speakers.
Connecting
yy Depending on your TV and other
equipment you wish to connect, there are
various ways you could connect the player.
Use only one of the connections described
in this manual.
Unit
yy Please refer to the manuals of your TV,
Stereo System or other devices as necessary
to make the best connections.
>>Caution
yy Make sure the unit is connected directly
to the TV. Tune the TV to the correct video
input channel.
yy Do not connect your player via your VCR.
The image could be distorted by the copy
protection system.
TV
DH7520TW-AC_DGHALLK_ENG.indd 18
Green
Blue
Red
2012-03-30
11:34:55
Connecting
19
,,Note
HDMI Out Connection
If you have a HDMI TV or monitor, you can connect
it to this unit using a HDMI cable (Type A, High
Speed HDMI™ Cable).
Connect the HDMI OUT jack on the unit to the
HDMI IN jack on a HDMI compatible TV or monitor.
Set the TV’s source to HDMI (refer to TV’s Owner’s
manual).
yy If a connected HDMI device does not accept
the audio output of the unit, the HDMI
device’s audio sound may be distorted or
may not output.
yy When you connect a HDMI or DVI
compatible device make sure of the
following:
- Try switching off the HDMI/DVI device
and this unit. Next, switch on the HDMI/
DVI device and leave it for around 30
seconds, then switch on this unit.
- The connected device’s video input is set
correctly for this unit.
- The connected device is compatible with
720 x 480i (or 576i), 720 x 480p (or 576p),
1 280 x 720p, 1920 x 1080i or 1920 x 1080p
video input.
Unit
TV
,,Tip
yy You can fully enjoy digital audio and video
signals together with this HDMI connection.
yy When you use HDMI connection, you can
change the resolution for the HDMI output.
(Refer to “Resolution Setting” on page 21.)
2
Connecting
yy Not all HDCP-compatible HDMI or DVI
devices will work with this unit.
- The picture will not be displayed properly
with non-HDCP device.
- This unit does not playback and TV screen
is changed to black or green screen or the
snow noise may occur on the screen.
yy If there is noise or lines on the screen, please
check the HDMI cable and use a higher
version cable than High Speed HDMI™
Cable.
>>Caution
yy Changing the resolution when the
connection has already been established
may result in malfunctions. To solve the
problem, turn off the unit and then turn it
on again.
yy When the HDMI connection with HDCP is
not verified, TV screen is changed to black
or green screen or the snow noise may
occur on the screen. In this case, check the
the HDMI connection, or disconnect the
HDMI cable.
DH7520TW-AC_DGHALLK_ENG.indd 19
2012-03-30
11:34:55
20 Connecting
Video Connection
Connect the VIDEO OUT jack on the unit to the
video in jack on the TV using a video cable.
You can hear the sound through the system’s
speakers.
2
Unit
Connecting
TV
Yellow
DH7520TW-AC_DGHALLK_ENG.indd 20
2012-03-30
11:34:56
Connecting
Resolution Setting
The unit provides several output resolutions for
HDMI OUT and COMPONENT VIDEO OUT jacks. You
can change the resolution using [Setup] menu.
1. Press n HOME.
2. Use A/D to select the [Setup] and press b
ENTER. The [Setup] menu appears.
21
Video Output
Resolution
Displayed resolution in display window and
outputted resolution may different according to
connection type.
[HDMI OUT]: 1080p, 1080i, 720p and 480p (or 576p)
and 480i (or 576i)
[VIDEO OUT]: 480i (or 576i)
2
Connecting
[COMPONENT VIDEO OUT]: 480p (or 576p) and 480i
(or 576i)
3. Use W/S to select [Display] option then press
D to move to the second level.
4. Use W/S to select the [Resolution] option
then press D to move to the third level.
5. Use W/S to select the desired resolution then
press b ENTER to confirm your selection.
,,Note
If your TV does not accept the resolution you
have set on the player, you can set resolution
to 480p (or 576p) as follows:
Press Z STOP for more than 5 seconds.
DH7520TW-AC_DGHALLK_ENG.indd 21
2012-03-30
11:34:56
22 Connecting
Optional Equipment
Connection
PORT. IN (PORTABLE)
Connection
Connect an output of portable device (MP3 or PMP
etc) to the AUDIO (PORT. IN) input connector.
AUX In Connection
Connect an Output of auxiliary device to the AUX
(L/R) INPUT Connector.
2
Connecting
Unit
MP3 player, etc...
Listening to music from your
portable player or external
device
The unit can be used to play the music from many
types of portable player or external devices.
To the audio output jacks
of your component
(TV, VCR, etc.)
Red
White
,,Note
If your TV has only one output for audio
(mono), connect it to the left (white) audio jack
on the unit.
DH7520TW-AC_DGHALLK_ENG.indd 22
1. Connect the portable player to the
PORT. IN (PORTABLE IN) connector of the unit.
Or
Connect the external device to the AUX
connector of the unit.
2. Turn the power on by pressing 1 (POWER).
3. Select the PORTABLE or AUX (L/R) INPUT
function by pressing P RADIO&INPUT.
4. Turn on the portable player or external device
and start it playing.
2012-03-30
11:34:57
Connecting 23
USB Connection
Compatible USB Devices
Connect the USB port of USB Memory (or MP3
player, etc.) to the USB port on the front of the unit.
yy MP3 Player : Flash type MP3 player.
yy USB Flash Drive :Devices that support USB2.0 or
USB1.1.
yy The USB function of this unit does not support
some USB devices.
USB device requirement
yy Do not extract the USB device while in operation.
Removing the USB Device from the unit
1. Choose a different function mode or press Z
STOP twice in a row.
2. Remove the USB device from the unit.
yy For a large capacity USB, it may take longer than
a few minute to be searched.
2
Connecting
yy Devices which require additional program
installation connected to a computer, are not
supported.
yy To prevent data loss, back up all data.
yy If you use a USB extension cable or USB hub, the
USB device is not recognized.
yy Using NTFS file system is not supported. (Only
FAT(16/32) file system is supported.)
yy This unit is not supported when the total
number of files is 1 000 or more.
yy External HDD, Card readers, Locked devices, or hard type usb devices are not supported.
yy USB port of the unit cannot be connected to PC.
The unit can not be used as a storage device.
DH7520TW-AC_DGHALLK_ENG.indd 23
2012-03-30
11:34:57
24 Connecting
OPTICAL In connection
Connect an optical output of Unit (or Digital Device
etc) to the OPTICAL IN connector.
Home theater speaker ez
setup
Listen to sound from TV, DVD and Digital Device
with 5.1(2.1 or 2)ch mode. Even in power off
mode, if you press OPTICAL, then power is on and
automatically changed to AUX OPT mode.
1. Connect the unit’s OPTICAL IN jack to jack on
optical out of your TV (or Digital Device etc.).
2
Connecting
2. Select the AUX OPT by using the OPTICAL.
To select the AUX OPT directly.
3. Listen sound with 5.1(2.1 or 2)ch speaker.
To the digital
optical output jack
of your component
DH7520TW-AC_DGHALLK_ENG.indd 24
4. To escape from AUX OPT by using the OPTICAL.
Function is retuned to previous one.
2012-03-30
11:34:57
Connecting 25
Antenna Connection
Connect the supplied FM/AM antenna for listening
to the radio.
Connect the AM Loop antenna to the AM antenna
connector.
Connect the FM Wire antenna to the FM antenna
connector.
2
Connecting
,,Note
yy To prevent noise pickup, keep the AM Loop
antenna away from the unit and other
components.
yy Be sure to fully extend the FM wire antenna.
After connecting the FM wire antenna, keep
it as horizontal as possible.
DH7520TW-AC_DGHALLK_ENG.indd 25
2012-03-30
11:34:58
26 System Setting
Adjust the setup
settings
By using the Setup menu, you can make various
adjustments to items such as picture and sound.
To display and exit the Setup
menu
1. Press n HOME.
Displays the [Home Menu].
You can also set a language for the subtitles and
the Setup menu, among other things. For details on
each Setup menu item, see pages 26 to 30.
OSD Initial language settings
- Optional
3
System Setting
During the first use of this unit, the initial language
setup menu appears on your TV screen. You must
complete initial language selection before using
the unit. English will be selected as the initial
language.
1. Press 1 (POWER) to turn the unit on. The
language setup menu will appear on the screen.
2. Select an [Setup] by using AD.
3. Press b ENTER.
Displays the [Setup].
4. Press n HOME or x RETURN to exit in the
[Setup] Menu.
About help menu for Setup
Menu
Buttons
Operation
WS
Moving to another
menu.
a
Move
A
Moving to previous
level.
d
Move
D
Moving to next
level or selecting
menu.
x RETURN
To exit the [Setup]
menu or [ 5.1
Speaker Setup].
b ENTER
To confirm menu.
ws
Move
x
2. Use WSAD to select a language then press
b ENTER.
The confirm menu will appear.
Close
b
Select
3. Use AD to select the [Enter] then press b
ENTER to finish the language setup.
DH7520TW-AC_DGHALLK_ENG.indd 26
2012-03-30
11:34:58
System Setting 27
Language
Menu Language
Select a language for the Setup menu and then on
screen display.
Disc Audio/ Disc Subtitle/ Disc
Menu
Select the language you prefer for the audio track
(disc audio), subtitles, and the disc menu.
[Original]
Refers to the original language in which the
disc was recorded.
To select another language, press numeric
buttons and then b ENTER to enter the
corresponding 4-digit number according to
the language code list on the page 46. If you
enter the wrong language code, press CLEAR.
[Off (for Disc Subtitle)]
Turn off Subtitle.
Automatically displays the wide picture on the
entire screen and cuts off the portions that do
not fit. (If the disc/file is not compatible with
Pan Scan, the picture is displayed at Letterbox
ratio.)
Resolution
Sets the output resolution of the Component and
HDMI video signal. Refer to “Resolution Setting” for
details about the resolution (page 21).
[Auto]
If the HDMI OUT jack is connected to
TVs providing display information (EDID),
automatically selects the resolution best suited
to the connected TV. If the COMPONENT
VIDEO OUT is only connected, this changes the
resolution to 480i (or 576i) as default resolution.
[1080p]
Outputs 1080 lines of progressive video.
[1080i]
Outputs 1080 lines of interlaced video.
Display
[720p]
TV Aspect
[480p (or 576p)]
Select which screen aspect to use based on the
shape of your TV screen.
Outputs 480 (or 576) lines of progressive video.
[4:3]
3
System Setting
[Other]
[Panscan]
Outputs 720 lines of progressive video.
[480i (or 576i)]
Outputs 480 (or (576) lines of interlaced video.
Select when a standard 4:3 TV is connected.
[16:9]
Select when a 16:9 wide TV is connected.
Display Mode
The Display Mode setting works only when the TV
Aspect mode is set to 4:3.
[Letterbox]
Displays a wide picture with bands on the
upper and lower portions of the screen.
DH7520TW-AC_DGHALLK_ENG.indd 27
2012-03-30
11:34:58
28 System Setting
Audio
5.1 Speaker Setup
Make the following settings for the built-in 5.1
channel surround decoder.
[Speaker]
Select a speaker that you want to adjust.
,,Note
Certain speaker settings are prohibited by the
Dolby Digital licensing agreement.
1. Select [5.1 Speaker Setup] on the [Audio] menu.
2. Press b ENTER.
The [5.1 SPEAKER] appears.
[Size]
Since the speaker settings are fixed, you cannot
change the settings.
[Volume]
Adjust the output level of each speaker.
[Distance]
Adjust the distance between each speaker and
the listening position.
3
System Setting
3. Use AD to select the desired speaker.
4. Adjust options using WSAD buttons.
5. Returns to the previous menu by pressing x
RETURN.
DH7520TW-AC_DGHALLK_ENG.indd 28
[Test]
Select [Speaker Test Start] by using the WS
and press b ENTER. Press b ENTER again to
stop. Adjust the volume to match the volume
of test signals memorized in the system.
2012-03-30
11:34:58
System Setting 29
DRC (Dynamic Range Control)
Lock (Parental Control)
Make the sound clear when the volume is turned
down (Dolby Digital only). Set to [On] for this effect.
Initial Setting the Area Code:
Vocal
When you use this unit for the first time, you have
to set the Area Code.
Select [On] to mix karaoke channels into normal
stereo.
1. Select the [Lock] menu and then press D.
This function is effective for multi-channel karaoke
DVDs only.
HD AV Sync
Semi Karaoke
When a chapter/ title/ track is fully finished, this
function shows the score in the screen with a
fanfare sound.
[On]
When you finished singing. A score will appear
on the screen.
[Off]
Fanfare and score do not appears on the
screen.
,,Note
VD, DVD Karaoke discs with more than
yy D
2 tracks are available discs for the this
function.
3. Select the first character using WS buttons.
4. Press b ENTER and select the second character
using WS buttons.
5. Press b ENTER to confirm your Area code
selection.
Rating
Blocks playback of rated DVDs based on their
contents. Not all discs are rated.
3
System Setting
Sometimes Digital TV encounters a delay between
picture and sound. If this happens you can
compensate by setting a delay on the sound so
that it effectively ‘waits’ for the picture to arrive:
this is called HD AV Sync. Use WS (on the remote
control) to scroll up and down through the delay
amount, which you can set at anything between 0
and 300m sec.
2. Press D.
To access the [Lock] options, you must input the
password you have created. Input a password
and press b ENTER. Enter it again and press b
ENTER to verify. If you make a mistake before
pressing b ENTER, press CLEAR.
1. Select [Rating] on the [Lock] menu then press
D.
2. Input a password and press b ENTER.
3. Select a rating from 1 to 8 using the WS
buttons.
[Rating 1-8]
Rating one (1) has the most restrictions and
rating eight (8) is the least restrictive.
[Unlock]
If you select unlock, parental control is not
active and the disc plays in full.
4. Press b ENTER to confirm your rating selection.
hen you watch movies, “off ” the Semi
yy W
Karaoke at the SETUP menu or enjoy it
without connecting the MIC. If the fanfare
or score appears during changing a chapter.
yy This function operate on the DVD/CD mode.
yy T he Semi Karaoke function is available only
when a microphone is connected.
DH7520TW-AC_DGHALLK_ENG.indd 29
2012-03-30
11:34:58
30 System Setting
Password
Others
You can enter or change password.
1. Select [Password] on the [Lock] menu and then
press D.
2. Press b ENTER.
3. Input a password and press b ENTER.
To change the password, press b ENTER when
the [Change] option is highlighted. Input a
password and press b ENTER. Enter it again
and press b ENTER to verify.
4. Press n HOME to exit the menu.
,,Note
3
If you forget your password, you can clear it
using the following steps:
System Setting
1. Select the [Setup] menu on the [Home
Menu].
2. Input the 6-digit number “210499” and
press b ENTER. The password is cleared.
Area Code
Enter the code of the area whose standards were
used to rate the DVD video disc, based on the list
on page 45.
DivX VOD
ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, LLC, a subsidiary of Rovi
Corporation. This is an official DivX Certified® device
that plays DivX video. Visit divx.com for more
information and software tools to convert your files
into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certified® device must be registered in order to play
purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX
VOD section in your device setup menu. Go to vod.
divx.com for more information on how to complete
your registration.
[Register]
Displays the registration code of your player.
[Deregister]
Deactivate your player and display the
deactivation code.
,,Note
All the downloaded videos from DivX VOD can
only be played back on this unit.
1. Select [Area Code] on the [Lock] menu then
press D.
2. Input a password and press b ENTER.
3. Select the first character using WS buttons.
4. Press b ENTER and select the second character
using WS buttons.
5. Press b ENTER to confirm your Area code
selection.
DH7520TW-AC_DGHALLK_ENG.indd 30
2012-03-30
11:34:58
Operating
31
Using the Home Menu
Basic Operations
1. Press n HOME.
Displays the [Home Menu].
1. Insert the disc by using the B OPEN/CLOSE or
Connect the USB device to the USB port.
2. Press n HOME.
Displays the [Home Menu].
2. Select an option by using AD.
3. Press b ENTER then selected option menu.
3. Select an option by using AD.
If you select the [Movie], [Photo] or [Music]
option when you connect up to two devices,
it appears as belows. Select a media then press
b ENTER.
[Music] – Displays [MUSIC] menu.
[Movie] – Start video media’s playback or displays
the [MOVIE] menu.
[Photo] – Displays [PHOTO] menu.
[Setup] – Displays the [Setup] menu.
,,Note
DH7520TW-AC_DGHALLK_ENG.indd 31
,,Note
yy For the most Audio CD and DVD-ROM discs,
playback starts automatically.
yy The unit plays only music file contained in
the USB storage device or disc automatically.
4
Operating
You can not select the [Music], [Movie] or
[Photo] option when the USB device is not
connected and a disc is not inserted.
4. Press b ENTER then selected option menu.
2012-03-30
11:34:59
32 Operating
To
Stop
Do this
Playback
Press d PLAY, MONO/
STEREO.
Pause
Press M PAUSE/STEP.
Press M PAUSE/STEP
Frame-byrepeatedly to play title FrameFrame playback
by-Frame. (DVD, DivX only)
During playback, press C/
V SKIP to go to the next
Skipping to the chapter/ track/ file or to
next/ previous return to the beginning of the
chapter/ track/ current chapter/ track/ file.
file
Press C SKIP twice briefly
to step back to the previous
chapter/ track/ file.
4
Operating
Locating a
point quickly by
playing a file in
fast forward or
fast reverse
Playing
repeatedly or
randomly
Other Operations
Press Z STOP.
During playback, press c/
v SCAN repeatedly to
select the required scan speed.
To return to normal speed,
press d PLAY, MONO/
STEREO.
Press h REPEAT repeatedly,
and the current title/ chapter
/ track will be played back
repeatedly or randomly.
Displaying Disc Information
on-screen
You can display various information about the disc
loaded on-screen.
1. Press m INFO/DISPLAY to show various
playback information.
The displayed items differ depending on the
disc type or playing status.
2. You can select an item by pressing WS and
change or select the setting by pressing AD.
Title – Current title number/ total number of titles.
Chapter – Current chapter number/ total number
of chapters.
Time – Elapsed playing time.
Audio – S elected audio language or channel.
Subtitle – Selected subtitle.
Angle – Selected angle/ total number of angles.
,,Note
If any button is not pressed for a few seconds,
the on-screen display disappears.
- DVD : Chapter/ Title/ Off
- DivX : Title/ All/ Off
- Audio CD/ MP3/ WMA : Track/
All/ Random/ Off
Slowing down
the playing
speed
In the pause mode, press
SLOW (c or v) to select
the required speed. (DVD, DivX
only) The DivX file cannot be
slow down reverse playback.
DH7520TW-AC_DGHALLK_ENG.indd 32
2012-03-30
11:34:59
Operating 33
To display the DVD Menu
r
When you play a DVD which contains several menu,
you can select the menu you want using the Menu.
1. Press DISC MENU.
The disc’s menu appears.
2. Select the menu by using WSAD.
3. Press d PLAY, MONO/STEREO to confirm.
To display the DVD title
r
When you play a DVD which contains several title,
you can select the title you want using the Menu.
1. Press TITLE.
The disc’s title appears.
2. Select the menu by pressing WSAD.
3. Press d PLAY, MONO/STEREO to confirm.
r
The 1.5 speed allows you to watch the pictures and
listen to the sound quicker than playing at a normal
speed.
1. During playback, press d PLAY, MONO/
STEREO to play at 1.5 times speed. “dX1.5”
appears on the screen.
4. Press b ENTER to confirm. Playback starts from
the selected time.
Resume playback
ryut
The unit records the point where you pressed the
Z STOP depending on the disc.
If “MZ (Resume Stop)” appears on the screen briefly,
press d PLAY, MONO/STEREO to resume playback
(from the scene point).
If you press Z STOP twice or unload the disc,
“Z”(Complete Stop) appears on the screen. The
unit will clear the stopped point.
,,Note
The resume point may be cleared when a
button is pressed (for example; 1 POWER, B
OPEN/CLOSE, etc).
Changing subtitle code page
y
2. Press d PLAY, MONO/STEREO again to exit.
If the subtitle is not displayed properly, you can
change the subtitle code page to view the subtitle
file properly.
Screen Saver
1. During playback, press m INFO/DISPLAY to
display the On-Screen display.
The screen saver appears when you leave the unit
in Stop mode for about five minutes.
Starting play from selected
time
4
Operating
1.5 times speed playback
numbers you entered. Then input the correct
numbers.
For example, to find a scene at 1 hour, 10
minutes, and 20 seconds, enter “11020” by using
numerical buttons.
2. Use WS to select the [Code Page] option.
3. Use AD to select desired code option.
4. Press x RETURN to exit the On-Screen display.
ry
To start playing at any chosen time on the file or
title.
1. Press m INFO/DISPLAY during playback.
2. Press WS to select the time clock icon and
“--:--:--” appears.
3. Input the required start time in hours, minutes,
and seconds from left to right. If you enter the
wrong numbers, press CLEAR to remove the
DH7520TW-AC_DGHALLK_ENG.indd 33
2012-03-30
11:34:59
34 Operating
Marked Playback
ut
The mark function enables you to store your
favourite files from any disc or USB device in the
unit memory.
1. Select [Music] on the [Home Menu].
Returning to the upper folder.
(MP3/ WMA only)
File information will be displayed
according to the ID3TAG information
on the appropriate music file. (MP3
only)
To delete a Marker
1. Use WS to select the track that you wish to erase
from the marked file.
2. Press MARKER.
To delete all Markers
Use WSAD to select [Deselect All] then press b
ENTER in program edit mode.
,,Note
The markers are also cleared when the disc or
USB device is removed, the unit is switched to
power off or the function is switched to others.
4
Operating
Selecting all tracks/ files.
Deselecting all tracks/files.
Moving to the previous or
next file list.
2. Select a desired music on the [List] by using the
WS then press MARKER to appears the mark on
the list.
3. Press b ENTER or d PLAY, MONO/STEREO.
Displays the play mode.
4. Select the play mode by using the WS and press
b ENTER.
[Mark Play]
Marked playback.
[Current Play]
Normal playback.
,,Note
If you want to select all files on the list, select
[Select All] and press b ENTER.
DH7520TW-AC_DGHALLK_ENG.indd 34
2012-03-30
11:34:59
Operating 35
Viewing a PHOTO file
About help menu in the full screen
Menu
Buttons
Operation
Menu
m
INFO/
DISPLAY
Displaying the Option
menu.
a/d
Prev./ Next
A/D
Moving to another file.
i
This unit can play discs with photo files.
1. Select [Photo] on the [Home Menu] and press
b ENTER.
Moving to the previous or
next file list.
x
List
x
RETURN
Returning to the
[Photo] menu.
Options while viewing a photo
You can use various options during viewing a
photo in full screen.
1. While viewing a photo in full screen, press
m INFO/DISPLAY to display the option menu.
2. Select an option using WSAD.
Returning to the upper
folder.
4
3. If you want to view a slide show, press WS
to highlight a file and press d PLAY, MONO/
STEREO.
About help menu in the [Photo] menu
Menu
Buttons
d Slide
Show
d
PLAY, MONO/
STEREO
wsad
Move
WSAD
Moving to another
file or content.
b
Select
b ENTER
Viewing a particular
file.
x
Close
x RETURN
DH7520TW-AC_DGHALLK_ENG.indd 35
Operation
Viewing a slide
show.
Returning to the
[Home Menu].
Operating
2. Press WS to select a folder, and then press b
ENTER.
a
b
c
d
e
a Current photo/ Total number of photos –
Use AD to view previous/next photo.
b Slide Show z/M– Press  ENTER to start
or pause slide show.
c Speed x3/ x2/ x1 – Use  ENTER to select
a delaying speed between photos in a slide
show.
d Rotate – Press  ENTER to rotate the photo.
e Go to list – Press  ENTER to return [Photo]
menu.
2012-03-30
11:35:00
36 Operating
Sleep Timer Setting
System Select - Optional
Press SLEEP one or more times to select delay time
between 10 and 180 minutes, after the unit will
turn off.
You must select the appropriate system mode for
your TV system. Press and hold M PAUSE/STEP
for more than five seconds to be able to select a
system in the [Home Menu].
To check the remaining time, press SLEEP.
To cancel the sleep function, press SLEEP
repeatedly until “SLEEP 10” appears, and then press
SLEEP once again while “SLEEP 10” is displayed.
,,Note
You can check the remaining time before the
unit turns off.
Press SLEEP The remaining time appears in the
display window.
Dimmer
4
Press SLEEP once. The display window will
be darkened by half. To cancel it, press SLEEP
repeatedly until dim off.
Operating
Turn off the sound temporarily
Press
MUTE to mute your unit.
,,Note
If the USB device is connected or a disc is
inserted, this function is not operated.
Adjust the speaker level
settings
You can adjust the sound level of each speaker.
1. Press SPEAKER LEVEL repeatedly to select a
desired speaker to set.
2. Press VOL -/+ to adjust the sound level of the
selected speaker while the level setting memu
is displayed on the display window.
3. Repeat and adjust the sound level of the other
speakers.
VOCAL FADER
You can mute your unit in order, for example, to
answer the telephone, appears the “MUTE” in the
display window.
You can enjoy the function as karaoke, by reducing
singer vocal of music in the various source. (MP3/
WMA/ CD/ etc.) Press the VOCAL FADER, and
“FADE ON” will appear in display window.
Last Scene Memory
To cancel it, press VOCAL FADER again.
r
This unit memorizes last scene from the last disc
that is viewed. The last scene remains in memory
even if you remove the disc from the unit or switch
off the unit. If you load a disc that has the scene
memorized, the scene is automatically recalled.
DH7520TW-AC_DGHALLK_ENG.indd 36
The quality of the VOCAL FADER may be different
depending on the recording conditions of music
files.
,,Note
yy This function is available to use only when a
microphone is connected.
yy It is not available on the MONO source.
2012-03-30
11:35:00
Operating 37
Radio Operations
Be sure that both FM/AM aerials are connected.
(Refer to the page 25.)
Listening to the radio
1. Press P RADIO&INPUT until FM/AM appears
in the display window.
The last received station is tuned in.
2. Press and hold TUNING (-/+) for about two
seconds until the frequency indication starts to
change, then release. Scanning stops when the
unit tunes in a station.
Deleting a saved station
1. Press PRESET - / + to Select a preset number
you want to delete.
2. Press CLEAR, the preset number will blink in the
display window.
3. Press CLEAR again, to delete the selectd preset
number.
Improving poor FM reception
Press d PLAY, MONO/STEREO on the remote
control. This will change the tuner from stereo to
mono and usually improve the reception.
or
Press TUNING (-/+) repeatedly.
3. Adjust the volume by pressing VOL(-/+) on
the front panel or by pressing VOL (+/-)on the
remote control repeatedly.
4
Operating
Presetting the Radio Stations
You can preset 50 stations for FM/AM.
Before tuning, make sure that you have turned
down the volume.
1. Press P RADIO&INPUT until FM/AM appears
in the display window.
2. Select the desired frequency by using TUNING
(-/+).
3. Press b ENTER a preset number will flash in
the display window.
4. Press PRESET (-/+) to select the preset number
you want.
5. Press b ENTER.
The station is stored.
6. Repeat the steps 2 to 5 to store other stations.
Deleting all the saved stations
1. Press and hold CLEAR for two seconds.
“ERASE ALL” will flash up on the unit display.
2. Press CLEAR to erase all saved of the radio
stations.
DH7520TW-AC_DGHALLK_ENG.indd 37
2012-03-30
11:35:00
38 Operating
Sound adjustment
Setting the surround mode
This system has a number of pre-set surround
sound fields. You can select a desired sound mode
by using SOUND EFFECT.
You can change the SOUND EFFECT using AD
arrow key while the sound effect information is
displayed on.
The displayed items for the equalizer maybe
different depending on sound sources and effects.
4
Operating
On Display
Description
NAT PLUS
The NAT PLUS is Natural Plus
sound effect. You can enjoy
the natural sound effect same
as a 5.1-channel. (Optional)
NATURAL
You can enjoy comfortable
and natural sound. (Optional)
POP
CLASSIC
JAZZ
ROCK
This program lends an
enthusiastic atmosphere to
the sound, giving you the
feeling you are at an actual
rock pop, jazz or classic
concert.
BASS
The BASS is Bass Blast. During
playback, reinforce the treble,
bass and surround sound
effect.
LOUDNESS
Improves the bass and treble
sound.
BYPASS
You can enjoy the sound
without equalizer effect.
,,Note
yy In some of surround modes, some speakers,
there’s no sound or low sound. It depends
on the mode of surround and the source of
audio, it is not defective.
yy You may need to reset the surround mode,
after switching the input, sometimes even
after the sound track changed.
yy This function is not operated when the
microphone is connected to the unit.
DH7520TW-AC_DGHALLK_ENG.indd 38
2012-03-30
11:35:00
Operating 39
Advanced Operations
Recording to USB
You can record music or sound source to USB
device by connecting the USB to the port on the
unit.
1. Connect the USB device to the unit.
2. Select a mode in which you want to record.
Play back a sound source first.
3. Start the recording by pressing X REC.
4. To stop recording, press Z STOP.
[All tracks/ files recording]
Record to USB in stop or play mode.
[Program list recording]
After marking desired file(s) and you can record
it to USB (Refer to the page 34).
Audio CD
yy During recording MP3/WMA, there is no
sound.
yy When you stop recording during playback,
the file that has been recorded at that time
will be stored. (Except MP3/ WMA files.)
yy Do not remove the USB device or turn
off the unit during USB recording. If not,
an incomplete file may be made and not
deleted on PC.
yy Recording through microphones is not
available.
yy If USB recording does not work, the
message like “NO USB”, “ERROR”, “USB FULL”
or “NO REC” is displayed on the display
window.
yy Multi card reader device or external HDD
can not be used for USB recording.
yy A file is recorded by 128 Mbyte (about 2
hours) when you record for a long term.
There are recorded less than 4 files.
4
Operating
It’ll be stored as follows.
,,Note
yy You can check the recording percentage
rate for the USB record on the screen during
the recording. (Audio CD or MP3/ WMA CD
only)
yy In the state CD-G, DTS disc USB record is not
operated.
MP3/ WMA
yy The files in the sub-folders are not recorded
during all track recording.
yy You may not record more than 999 files.
The other
sources (Tuner,
AUX, Portable)
yy The numbering of the recording file is
entered from the lowest number. So if you
delete some of the recording files, the next
recording file could be the lowest number
among them.
The making of unauthorized copies of copyprotected material, including computer programs,
files, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a
criminal offense. This equipment should not be
used for such purposes.
Be responsible
Respect copyrights.
DH7520TW-AC_DGHALLK_ENG.indd 39
2012-03-30
11:35:01
40 Operating
Using a Bluetooth
wireless technology
About Bluetooth
Bluetooth® is wireless communication technology
for short range connection.
The available range is within 10 meters.
4
(The sound may be interrupted when the
connection interfered by the other electronic wave
or you connect the bluetooth in the other rooms.)
Connecting individual devices under
Bluetooth® wireless technology does not incur any
charges. A mobile phone with
Bluetooth® wireless technology can be operated
via the Cascade if the connection was made via
Bluetooth® wireless technology.
Available Devices : Mobile phone, MP3, Laptop,
PDA (This units be supported the Stereo Headset.)
Operating
Bluetooth Profiles
In order to use Bluetooth wireless technology,
devices must be able to interpret certain profiles.
This unit is compatible with following profile.
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/ Video Distribution Remote Control
Profile)
Listening to music of a
Bluetooth device
Pairing your unit and Bluetooth device
Before you start the pairing procedure, make
sure the Bluetooth feature is turned on in to your
Bluetooth device. Refer to your Bluetooth device’s
user guide. Once a pairing operation is performed,
it does not need to be performed again.
1. Select the Bluetooth function by using the P
RADIO&INPUT.
Appears “BT” and then “BT READY” in display
window.
2. Operate the Bluetooth device and perform the
pairing operation. When searching for this unit
with the Bluetooth device, a list of the devices
found may appear in the Bluetooth device
display depending on the type of Bluetooth
device.Your unit appears as “LG Audio”.
3. Enter the PIN code.
PIN code : 0000
4. When this unit successfully paired with your
Bluetooth device, Bluetooth LED of this unit
lights up and appears “PAIRED”.
,,Note
Depending on the Bluetooth device type,
some device have a different pairing way.
5. Listening to music.
To play a music stored on your Bluetooth device,
refer to your Bluetooth device’s user guide.
,,Note
yy If you change the function of the unit, the
Bluetooth function is disconnected, operate
pairing again.
(Bluetooth
Function other than the
Bluetooth)
yy AVRCP cannot be available in this mode.
DH7520TW-AC_DGHALLK_ENG.indd 40
2012-03-30
11:35:01
Operating
Listening to music on this unit
using Bluetooth device
Pairing your unit and Bluetooth
device
Before you start the pairing procedure, make
sure the Bluetooth feature is turned on in to your
Bluetooth device. Refer to your Bluetooth device’s
user guide. Once a pairing operation is performed,
it does not need to be performed again.
1. Select a function other than the Bluetooth
function by using the P RADIO&INPUT.
2. Place the Bluetooth device to be connected to
this unit within 1 meter of the unit.
3. Put the Bluetooth device in pairing mode.
Refer to your Bluetooth device’s user guide.
5. Appears depending on type of Bluetooth
devices in display window .
6. Select a Bluetooth device you want to connect
by using W S and press b ENTER.
7. Enter the PIN code by using numberical
buttons.
PIN code : 0000
8. Press b ENTER to confirm.
When this unit successfully paired with your
Bluetooth device, Bluetooth icon of this unit
lights up and appears “BT SRC”.
You can listen to music played on this unit using
your Bluetooth device.
Sound output from the speakers is stopped.
,,Note
yy You cannot use VOL (volume), SOUND
EFFECT, SPEAKER LEVEL in this mode.
DH7520TW-AC_DGHALLK_ENG.indd 41
Operating with Bluetooth device
You can operate a unit by connecting a Bluetooth
device using AVRCP. For details about operation,
refer to the Bluetooth device’s User Guide.
,,Note
These operations may not be vailable for
certain Bluetooth device. In addition, the
actual operations may differ depending on the
connected Bluetooth device.
Connecting and disconnecting with a
Bluetooth device
This function is operated after pairing.
Press BLUETOOTH to connect or disconnect with a
Bluetooth device.
Appears belows in display window.
4
Connection : BT CONN
Disconnection : DISCONN
,,Note
If you change the function of the unit, the
Bluetooth function is disconnected, press
BLUETOOTH pairing again.
Function other than the
(Bluetooth
Bluetooth)
Operating
4. Press and hold BLUETOOTH.
Appears “INQUIRY”.
If searched Bluetooth is only one, pairing the
unit. Refer the step 7.
41
Checking the information of
connected Bluetooth device
This function is operated after pairing. You can
check the Bluetooth information.
Press and hold m INFO/DISPLAY repeatedly.
Bluetooth information is changed as follows.
Local Bluetooth Device Address
None
...
Device Name
2012-03-30
11:35:01
42 Operating
,,Note
yy This units dose not be supported the Mono
Headset Profile (Hands Free Profile)
yy The sound may be interrupted when
the connection interfered by the other
electronic wave.
yy You cannot control the Bluetooth device
with this unit.
yy Pairing is limited one Bluetooth device per
one unit and multi-pairing is not supported.
yy Although the distance between your
Bluetooth and the set is less than 10m, there
are obstacles between both, your Bluetooth
device cannot be connected.
yy Depending on the type of the device,
you may not be able to use the Bluetooth
function.
4
yy You can enjoy wireless system using phone,
MP3, Notebook, headset, etc..
Operating
yy When not connected the Bluetooth, “BT
READY” appears on the display window.
yy The Electrical malfunction due to devices
using same frequency such as Medical
equipment, Microwaves or wireless
LAN devices, the connection will be
disconnected.
yy When someone stands and interrupts
communication between Bluetooth device
and the player, the connection will be
disconnected.
yy If the gotten away of the distance between
Bluetooth and the unit, the sound quality
is lower and lower the connection will
disconnect when the space between the
Bluetooth and the unit gets out of the
operating range of Bluetooth.
yy The device with Bluetooth wireless
technology is disconnected, if you turn off
the main unit or put the device away from
the main unit more than 10m.
DH7520TW-AC_DGHALLK_ENG.indd 42
2012-03-30
11:35:01
Troubleshooting 43
Troubleshooting
PROBLEM
No power
No picture
CORRECTION
Plug the power cord into the wall outlet securely.
Select the appropriate video input mode on the TV so the picture
from the unit appears on the TV screen.
Connect the video cables securely to both the TV and unit.
Select the correct input mode of the unit so you can hear the sound
from the unit.
There is little or no sound
Connect the audio cables into the connection terminals correctly.
Replace with a new audio cable.
The DVD picture quality is poor
Clean the disc using a soft cloth with outward strokes.
Insert a disc.
A DVD/CD will not play
Insert a playable disc (check the disc type, colour system and
regional code).
Place the disc with the label or printed side facing upwards.
Enter your password or change the rating level.
5
Clean the disc using a soft cloth with outward strokes.
Move unit and audio components further away from your TV.
Check the antenna connection and adjust its position.
Radio stations can’t be tuned in
properly
Attach an external aerial if necessary.
Tune to the station manually.
Troubleshooting
Humming noise heard while a DVD
or CD is playing
Preset some radio stations, see page 37 for details.
The remote is not pointed directly at the unit.
Point the remote directly at the unit.
The remote is too far from the unit.
Use the remote within 23 feet (7m) of the unit.
The remote control doesn’t work
well / at all
There is an obstacle in the path between the remote control and
the unit.
Remove the obstacle.
The battery in the remote control are flat.
Replace the battery with new ones.
DH7520TW-AC_DGHALLK_ENG.indd 43
2012-03-30
11:35:01
44 Appendix
Maintenance
Handling the Unit
When shipping the unit
Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.
Keeping the exterior surfaces clean
yy Do not use volatile liquids such as insecticide
spray near the unit.
yy Wiping with strong pressure may damage the
surface.
yy Do not leave rubber or plastic products in
contact with the unit for a long period of time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
unit.
Notes on Discs
Handling Discs
Do not touch the playback side of the disc. Hold
the disc by the edges so that fingerprints do not
get on the surface. Never stick paper or tape on the
disc.
Storing Discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center to out.
Do not use strong solvents such as alcohol,
benzine, thinner, commercially available cleaners,
or anti-static spray intended for old vinyl records.
Maintaining the Unit
6
Appendix
The unit is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty
or worn, the picture quality could be diminished.
For details, please contact your nearest authorized
service center.
DH7520TW-AC_DGHALLK_ENG.indd 44
2012-03-30
11:35:01
Appendix 45
Area Code List
Choose an area code from this list.
Area
Afghanistan Code Area
AF Fiji Code Area
Code Area
Code
FJ Monaco MC Singapore SG
SK
Argentina AR Finland FI Mongolia MN Slovak Republic Australia AU France FR Morocco MA Slovenia Austria AT Germany DE Nepal NP South Africa ZA
Belgium BE Great Britain GB Netherlands NL South Korea KR
Bhutan BT Greece GR Antilles AN Spain ES
Bolivia BO Greenland GL New Zealand NZ Sri Lanka LK
SI
Brazil BR Hong Kong HK Nigeria NG Sweden SE
Cambodia KH Hungary HU Norway NO Switzerland CH
Canada CA India IN Oman OM Taiwan TW
Chile CL Indonesia ID Pakistan PK Thailand China CN Israel IL Panama PA Turkey TR
Colombia CO Italy IT Paraguay PY Uganda UG
Congo CG Jamaica JM Philippines PH Ukraine UA
Costa Rica CR Japan JP Poland PL United States US
Croatia HR Kenya KE Portugal PT Uruguay UY
Czech Republic CZ Kuwait KW Romania RO Uzbekistan UZ
Denmark DK Libya Ecuador EC Luxembourg Egypt EG Malaysia El Salvador SV Maldives MY Saudi Arabia MV Senegal Ethiopia ET Mexico MX
Vietnam RU Zimbabwe SA
VN
ZW
6
SN
Appendix
DH7520TW-AC_DGHALLK_ENG.indd 45
LY Russian
LU Federation TH
2012-03-30
11:35:01
46 Appendix
Language code List
Use this list to input your desired language for the following initial settings: [Disc Audio],
[Disc Subtitle] and [Disc Menu].
6
Appendix
Language
Code
Language
Code
Language
Code
Language
Code
Afar 6565
French 7082
Lithuanian 7684
Sindhi 8368
Afrikaans 6570
Frisian 7089
Macedonian 7775
Singhalese 8373
Albanian 8381
Galician 7176
Malagasy 7771
Slovak 8375
Ameharic 6577
Georgian 7565
Malay 7783
Slovenian 8376
Arabic 6582
German 6869
Malayalam 7776
Spanish 6983
Armenian 7289
Greek 6976
Maori 7773
Sudanese 8385
Assamese 6583
Greenlandic 7576
Marathi 7782
Swahili 8387
Aymara 6588
Guarani 7178
Moldavian 7779
Swedish 8386
Azerbaijani 6590
Gujarati 7185
Mongolian 7778
Tagalog 8476
Bashkir 6665
Hausa 7265
Nauru
7865
Tajik 8471
Basque 6985
Hebrew 7387
Nepali 7869
Tamil 8465
Bengali; Bangla 6678
Hindi 7273
Norwegian 7879
Telugu 8469
Bhutani 6890
Hungarian 7285
Oriya 7982
Thai 8472
Bihari 6672
Icelandic 7383
Panjabi 8065
Tonga 8479
Breton 6682
Indonesian 7378
Pashto, Pushto 8083
Turkish 8482
Bulgarian 6671
Interlingua 7365
Persian 7065
Turkmen 8475
Burmese 7789
Irish 7165
Polish 8076
Twi 8487
Byelorussian 6669
Italian 7384
Portuguese 8084
Ukrainian 8575
Chinese 9072
Japanese 7465
Quechua 8185
Urdu 8582
Croatian 7282
Kannada 7578
Rhaeto-Romance 8277
Uzbek 8590
Czech 6783
Kashmiri 7583
Rumanian 8279
Vietnamese 8673
Danish 6865
Kazakh 7575
Russian 8285
Volapük 8679
Dutch 7876
Kirghiz 7589
Samoan 8377
Welsh 6789
English 6978
Korean 7579
Sanskrit 8365
Wolof 8779
Esperanto 6979
Kurdish 7585
Scots Gaelic 7168
Xhosa 8872
Estonian 6984
Laothian 7679
Serbian 8382
Yiddish 7473
Faroese 7079
Latin 7665
Serbo-Croatian 8372
Yoruba 8979
Fiji 7074
Latvian, Lettish 7686
Shona 8378
Zulu 9085
Finnish 7073
Lingala 7678
DH7520TW-AC_DGHALLK_ENG.indd 46
2012-03-30
11:35:01
Appendix 47
Trademarks and
Licenses
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
Bluetooth® wireless technology is a system which
allows radio contact between electronic devices
within a max. range of 10 meters.
Connecting individual devices under Bluetooth®
wireless technology does not incur any charges.
A mobile phone with Bluetooth® wireless
technology can be operated via the Cascade if
the connection was made via Bluetooth® wireless
technology.
The Bluetooth® word mark and logos are owned
by the Bluetooth® SIG, Inc. and any use of such
marks by LG Electronics is under license.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI licensing LLC.
Other trademarks and trade names are those of
their respective owners.
What is SIMPLINK?
“DVD Logo” is a trademark of DVD Format/Logo
Licensing Corporation.
yy Refer to the TV owner’s manual for the details
of SIMPLINK function.
yy LG TV with SIMPLINK function has the logo as
shown above.
yy Use a higher version cable than High Speed
HDMI™ Cable.
6
Appendix
DivX®, DivX Certified® and associated logos are
trademarks of Rovi Corporation or its subsidiaries
and are used under license.
Some functions of this unit are controlled by
TV’s remote control when this unit and LG TV
with SIMPLINK are connected through HDMI
connection. Controllable functions by LG TV’s
remote control; Play, Pause, Scan, Skip, Stop,
Power Off, etc.
Manufactured under license under U.S. Patent
Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S.
and worldwide patents issued & pending. DTS,
the Symbol, & DTS and the Symbol together are
registered trademarks & DTS Digital Surround
and the DTS logos are trademarks of DTS, Inc.
Product includes software. © DTS, Inc. All Rights
Reserved.
DH7520TW-AC_DGHALLK_ENG.indd 47
2012-03-30
11:35:02
48 Appendix
Specifications
General
Power requirements
Refer to main label.
Power consumption
Refer to main label.
Dimensions (W x H x D)
440 X 65 X 297 mm without foot
Net Weight (Approx.)
3.3 kg
Operating temperature
41 °F to 95 °F (5 °C to 35 °C)
Operating humidity
5 % to 90 %
Bus Power Supply (USB)
DC 5 V 0 500 mA
Inputs/ Outputs
VIDEO OUT
1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1
COMPONENT VIDEO OUT
(Y) 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1
(Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2
HDMI OUT (video/audio)
19 pin (Type A, HDMI™ Connector )
ANALOG AUDIO IN
2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1
DIGITAL IN (OPTICAL)
3 V (p-p), Optical jack x 1
PORT. IN
0.5Vrms (3.5 mm stereo jack)
Amplifier
Stereo mode
6
Surround mode
180 W + 180 W (4 Ω at 1kHz)
Appendix
Front
180 W + 180 W (4 Ω at 1 kHz)
Center
180 W (4 Ω at 1 kHz)
Surround
180 W + 180 W (4 Ω at 1 kHz)
Subwoofer
200 W (3 Ω at 60 Hz)
Tuner
FM Tuning Range
87.5 to 108.0 MHz or 87.50 to 108.00 MHz
AM Tuning Range
522 to 1 620 kHz, 520 to 1 710 kHz or 522 to 1 710 kHz
Wireless receiver
Power requirements
Refer to main label on the wireless receiver
Power consumption
Refer to main label on the wireless receiver
External dimensions (WxHxD)
60 X 220 X 175 mm
Net Weight
0.9 kg
DH7520TW-AC_DGHALLK_ENG.indd 48
2012-03-30
11:35:02
Appendix 49
Front Speaker
Type
2 Way 3 speaker
Impedance Rated
4Ω
Input Power
180 W
Max. Input Power
360 W
Net Dimensions (W x H x D)
250 x 1200 x 250 mm
Net Weight
4.1 kg
Rear Speaker
Type
2 Way 3 speaker
Impedance Rated
4Ω
Input Power
180 W
Max. Input Power
360 W
Net Dimensions (W x H x D)
250 x 1200 x 250 mm
Net Weight
4.1 kg
Centre Speaker
Type
2 Way 3 speaker
Impedance Rated
4Ω
Input Power
180 W
Max. Input Power
360 W
Net Dimensions (W x H x D)
330 x 93 x 74 mm
Net Weight
1.3 kg
6
Passive Subwoofer
1 Way 1 Speaker
Impedance Rated
3Ω
Input Power
200 W
Max. Input Power
400 W
Net Dimensions (W x H x D)
251 x 336 x 347 mm
Net Weight
6.3 kg
Appendix
Type
Design and specifications are subject to change without notice.
DH7520TW-AC_DGHALLK_ENG.indd 49
2012-03-30
11:35:02
DH7520TW-AC_DGHALLK_ENG.indd 50
2012-03-30
11:35:02
