LG VF-4901ND Owner's manual

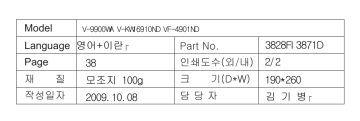

Model
V-9900WA V-KW16910ND VF-4901ND
Language 영어+이란
Part No.
3828FI3871D
Page
38
인쇄도수(외/내)
2/2
모조지 100g
크
190*260
2009.10.08
담당자
재
질
작성일자
기(D*W)
김 기 병
V-9900WA
V-KW16910ND
VF-4901ND
Please read all of the information on page 3,4 carefully. This information contains important
instructions for the safe use and the maintenance of the appliance.
P/No.: 3828FI3871D
Made in KOREA
Table of contents
Important Safety Instructions .......................................................................... 3
How to Use ...................................................................................................... 5
Assembling cleaner .......................................................................................... 5
Using Carpet/Floor Nozzle and Carpet Master .......................................................
Plus
6
Using Accessory Nozzles .................................................................................. 6
Dry Vacuuming ................................................................................................ 7
Wet Cleaning ................................................................................................. 10
Carpet Cleaning ............................................................................................. 13
Window Cleaning ........................................................................................... 14
Tile Cleaning ................................................................................................. 15
Sofa Cleaning ................................................................................................ 15
Dust Tank Cleaning ........................................................................................ 16
Clean Filter Cleaning ........................................................................................16
Exhaust Filter Cleaning ................................................................................... 17
Carpet Master Plus Cleaning ............................................................................ 17
Shampoo Tank Net Cleaning ............................................................................ 18
Storage......................................................................................................... 18
2
Important Safety Instructions
Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire,electric shock, personal injury,or
damage when using the vacuum cleaner.This guide do not cover all possible conditions that may occur.Always contact your
service agent or manufacturer about problems that you do not understand. This appliance complies with the following EC
Directives :-2006/95/EC Low Voltage Directive 2004/108/EC EMC Directive.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “WARNING” or “CAUTION.”
These words mean:
WARNING
This symbol will alert you to hazards or unsafe practices which could cause serious
bodily harm or death.
CAUTION
This symbol will alert you to hazards or unsafe practices which could
cause bodily injury or property damage.
WARNING
• Do not plug in if control knob is not in OFF position.
Personal injury or product damage could result.
• Keep children away and beware of obstructions when
rewinding the cord to prevent personal injury
The cord moves rapidly when rewinding.
• Disconnect electrical supply before servicing or cleaning
the unit or when cleaner is not in use.
Failure to do so could result in electrical shock or personal
injury.
• Do not use vacuum cleaner to pick up anything that is
burning or smoking such as cigarettes, or hot ashes.
Doing so could result in death, fire or electrical shock.
• Do not vacuum flammable or explosive substances such
as gasoline, benzene, thinners, propane (liquids or
gases).
The fumes from these substances can create a fire hazard or
explosion. Doing so could result in death or personal injury.
• Do not handle plug or vacuum cleaner with wet hands.
Doing so could result in death or electrical shock.
• Do not unplug by pulling on cord.
Doing so could result in product damage or electrical shock.
To unplug, grasp the plug, not the cord.
• Keep hair, loose clothing, fingers, and all parts of the
body away from openings and moving parts.
Failure to do so could result in electrical shock or personal
injury.
• Do not pull or carry by cord, use cord as a handle, close
a door on cord, or pull cord around sharp edges or
corners. Do not run vacuum cleaner over cord. Keep
cord away from heated surfaces.
Failure to do so could result in electrical shock or personal
injury or fire or product damage.
• Do not use the vacuum cleaner if the power cord or plug
is damaged or faulty.
Personal injury or product damage could result. In these
cases, contact LG Electronics Service Agent to avoid hazard.
• Do not use vacuum cleaner if it has been under water.
Personal injury or product damage could result. In these
cases, contact LG Electronics Service Agent to avoid hazard.
• Do not continue to vacuum if any parts appear missing
or damaged.
Personal injury or product damage could result. In these
cases, contact LG Electronics Service Agent to avoid hazard.
• Do not use an extension cord with this vacuum cleaner
Fire hazard or product damage could result.
• Using proper voltage.
Using improper voltage may result in damage to the motor
and possible injury to the user. Proper voltage is listed on the
bottom of vacuum cleaner.
• Turn off all controls before unplugging.
Failure to do so could result in electrical shock or personal
injury.
• Do not change the plug in any way.
Failure to do so could result in electrical shock or personal
injury or product damage. Doing so result in death. If plug
does not fit, contact a qualified electrician to install the proper
outlet.
• Repairs to electrical appliances may only be performed
by qualified service engineers.
Improper repairs may lead to serious hazards for the user.
• The hose contains electrical wires. Do not use it if it is
damaged, cut or punctured.
Failure to do so could result in death,or electrical shock.
• Do not allow to be used as toy. Close attention is
necessary when used by or near children.
Personal injury or product damage could result.
3
Important Safety Instructions
CAUTION
• Do not put any objects into openings.
Failure to do so could result in product damage.
• Do not use with any opening blocked: keep free of dust,
lint, hair, and anything that may reduce air flow.
Failure to do so could result in product damage.
• Do not use vacuum cleaner without dust tank and/or
filters in place.
Failure to do so could result in product damage.
• Always clean the dust bin after vacuuming carpet
cleaners or fresheners, powders and fine dust.
These products clog the filters,reduce airflow and can cause
damage to the cleaner. Failure to clean the dust bin could
cause permanent damage to the cleaner.
• Do not use vacuum cleaner to pick up sharp hard
objects, small toys, pins, paper clips, etc.
They may damage the cleaner or dust bin.
• Store the vacuum cleaner indoors.
Put the vacuum cleaner away after use to prevent tripping
over it.
• The vacuum cleaner is not intended to use by young
children or infirm people without supervision.
Failure to do so could result in personal injury or product
damage.
• Only use parts produced or recommended by LG
Electronics Service Agents.
Failure to do so could result in product damage.
• Use only as described in this manual. Use only with LG
recommended or approved attachments and
accessories.
Failure to do so could result in personal injury or product
damage.
• Don ’t grasp the tank handle when you are moving the
vacuum cleaner.
The vacuum cleaner’s body may fall when separating tank
and body. Personal injury or product damage could result.
You should grasp the carrier handle when you are moving
the vacuum cleaner.
• If after emptying the dust tank the indicator light is
on(red), clean the dust tank.
Failure to do so could result in product damage.
• Make sure the filters (exhaust filter and motor safety
filter) are completely dry before replacing in the
machine.
Failure to do so could result in product damage.
• Do not dry the filter in an oven or microwave.
Failure to do so could result in fire hazard.
• Do not dry the filter in a clothes dryer.
Failure to do so could result in fire hazard.
• Do not dry near an open flame.
Failure to do so could result in fire hazard.
• If the power cord is damaged, it must be replaced by an
approved LG Electronics Service Agent to avoid a
hazard
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance
• To avoid personal injury and to prevent the machine
from falling when cleaning stairs, always place it at the
bottom of stairs.
Failure to do so could result in personal injury or product
damage.
• Use accessory nozzles in sofa mode.
Failure to do so could result in product damage.
Thermal protector :
This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating.
If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner.
Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or clogged filter.
If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner.
After the 30 minute period, plug the vacuum cleaner back in and turn on the switch.
If the vacuum cleaner still does not run, contact a qualified electrician.
4
How to Use Assembling Cleaner
Cover
Hose Handle
Shampoo
Lever
Hose
Clamp
Dust Tank
Tube
Shampoo
Tank Cap
Pipe
Shampoo Tank
Handle
Switch Button
Cord Reel Button
Inlet Dust
Pipe
Power Cord
Shampoo Button
Optional
Carpet Master Plus
Carpet/Floor Nozzle
Window Master
Spray Nozzle
Shampoo Bottle
Upholstery Nozzle
Small Shampoo
Nozzle
Frame Brush
Dusting Brush
Crevice Tool
Accessory Bag
Spray Nozzle
5
How to Use Using Carpet/Floor Nozzle and Carpet Master Plus
Carpet/Floor Nozzle
Floor
Carpet
Carpet Master Plus
Carpet
Long type Carpet
Hard Floor & Short type Carpet
: Floor
: Long type Carpet
: Carpet
: Hard Floor &
Short type Carpet
Floor
Long type Carpet
Hard Floor & Short type Carpet
How to Use Using Accessory Nozzles
Upholstery Nozzle
6
Dusting Brush
Crevice Tool
How to Use Dry Vacuuming
3
The Air Flow Regulator allows you to change the vacuum suction for different fabric and carpet
weight. Adjust the suction power with Air Flow Regulator in the handle.
1
2
Connecting the dust tank.
3
Closing the Top Cover Assy
Assembling Hose and Pipes
Air Flow Regulator
Open
Close
4
5
Connecting the Hose
6
Turning on the Power Switch
Cleaning the Floor/Carpet.
ON
1
2
7
9
WARNING!
Gently rinse guide buoy separately under a cold running water until the water runs clear.
Do not use detergent or a washing machine or dishwasher. Shake off excess water from the guide buoy.
Re-assemble and place it back in your machine.
After Cleaning
7
Opening the Top Cover Assy
and Lifting the Dust Tank.
8
8
Separating the Dust Cover and
Pouring the cleaning Dust.
9
Washing the Guide Buoy.
10
11
12
Removing the Cleaning Water &
Connecting the Dust Cover.
Connecting the Dust Tank.
Closing the Top Cover Assy.
9
How to Use Wet Cleaning
7
If there is a strange sound in the pump, put the cleaning fluids into the shampoo tank.
Because it indicates that there is no cleaning fluid in the shampoo tank.
1
2
Opening the Top Cover Assy
3
Opening the Tank Cap
Pouring Water & Shampoo
Standard spot 1 Cup
Heavy spot 2 Cup
Tank Cap
4
5
Closing the Tank Cap and
the Top Cover Assy
6
Connecting the Hose & Tube
Assembling Hose & Pipes and
Connecting Tube
2
1
3
7
8
Turning on the Power & Shampoo Switch
Pulling the lever
ON
ON
10
Carpet
Tile
Window
Sofa
10
When you hear the big noise from the main body during the operation, empty the dust tank. Because it indicates that the
safety float automatically closes the suction inlet and you will notice that no more liquid is sucked up.
9
Wet Cleaning
10
11
Checking the Cleaning Liquid
Opening the Top Cover Assy
MAX
12
13
Lifting the Dust Tank
Pouring the Cleaning Liquid
11
14
WARNING!
Gently rinse guide buoy separately under a cold running water until the water runs clear.
Do not use detergent or a washing machine or dishwasher. Shake off excess water from the guide buoy.
Re-assemble and place it back in your machine.
14
Washing the Guide Buoy.
17
Closing the Top Cover Assy
12
15
16
Removing the Cleaning Water &
Connecting the Dust Cover.
Connecting the Dust Tank.
How to Use Carpet Cleaning
3
It is possible that the pump's thermal security mechanism has been acticated to protect the pump from overheating
in case that the shampoo tank is empty or the shampoo button has remained in the (ON) position without any
operation of the trigger. To check that the pump has not broken down, put the button at the (OFF) position and wait
about 20 to 30 minutes until the pump cools down, then start it again. If your appliance still does not work in spite of
following these instructions, contact the nearest authorized service center.
1
2
Turn on the Power(➀) & Shampoo Switch(➁) and Pull the Lever(➂)
Wet Cleaning the Carpet
1
2
3
4
3
4
Turn off the Shampoo Switch(➁) and Release the Lever(➀)
Dry Cleaning the Carpet
OFF
2
1
13
How to Use Window Cleaning
1
2
Connecting the Window Master
3
Turning on the Power & Shampoo
Switch
Cleaning the Window
ON
ON
2
3
1
4
Rotating the Frame
5
6
Turning off Shampoo Switch
OFF
14
Cleaning Window
How to Use Tile Cleaning
1
2
Connecting the Frame Brush
3
Tube Connecting/Disconnecting
Cleaning the Tile
Button
Connecting
1
2
Disconnecting
How to Use Sofa Cleaning
1
2
Connecting the Small Shompoo Nozzle
1
Cleaning the Sofa
3
Cleaning the Tile
2
15
How to Use Dust Tank Cleaning
1
2
Separating Plates
3
Cleaning the Dust Tank
4
Pouring the Water
Connecting Plates
How to Use Clean Filter Cleaning
CAUTION!
Remove the moisture and dry the filter sufficiently in shade about a day.
The cycle of the cleaning
When dusts are full by the position indicated as "MAX" in the dust tank.
When suction power suddenly weakens.
1
Separating the Clean Filter
2
3
Cleaning the Clean Filter
Cleaning Filter
Reuse the Sponge after drying
16
Connecting the Cleaning Filter
How to Use Exhaust Filter Cleaning
CAUTION!
Remove the moisture and dry the filter sufficiently in shade about a day.
The cycle of the cleaning
When dusts are full by the position indicated as "MAX" in the dust tank.
When suction power suddenly weakens.
1
2
Separating the Exhaust Cover
3
Separating the Sponge
Sponge
Washing & Drying the
Sponge.
4
Connecting the
Exhaust Cover
Reuse the Sponge after drying
How to Use Carpet Master Plus Cleaning
1
Separating the Viewing
Window
2
Opening the Air Cover
3
Cleaning the Dusting Brush
17
How to Use Shampoo Tank Net Cleaning
1
2
Separating the Net
Washing the Net
Net
ëÂÚ͇
How to Use Storage
18
3
Putting the Net into the
Shampoo Tank
Net
Memo
19
V-9900WA
V-KW16910ND
VF-4901ND
4,3
3828FI3871D
3
3 ...............................................................................
5 ...................................................................................................
5 .....................................................................
6 ................................
6 .....................................................................
7 .....................................................................................
10 .....................................................................
13 ....................................................................................
14 ...................................................................................
15 ................................................................................
15 ....................................................................................
16 .........................................................................
16 .....................................................................................
17 ..................................................................
17 .................................................................
18 .................................................................
18 ....................................................................................
2
5
4
3
3
2
1
6
5
4
1
7
2
6
12
9
11
10
9
9
8
7
8
10
11
11
10
9
13
12
7
3
2
1
1
¯‡Ï
ÔÛÌ
¸
2
6
1
5
4
8
7
2
3
10
3
30
20
2
1
2
1
3
1
2
3
4
4
3
1
2
2
1
13
14
16
15
14
17
12
3
2
1
2
1
1
2
3
1
15
2
3
2
1
2
3
1
6
5
4
14
4
3
3
17
2
1
2
1
4
3
3
2
2
1
1
16
Memo
19
17
3
2
1
18
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
