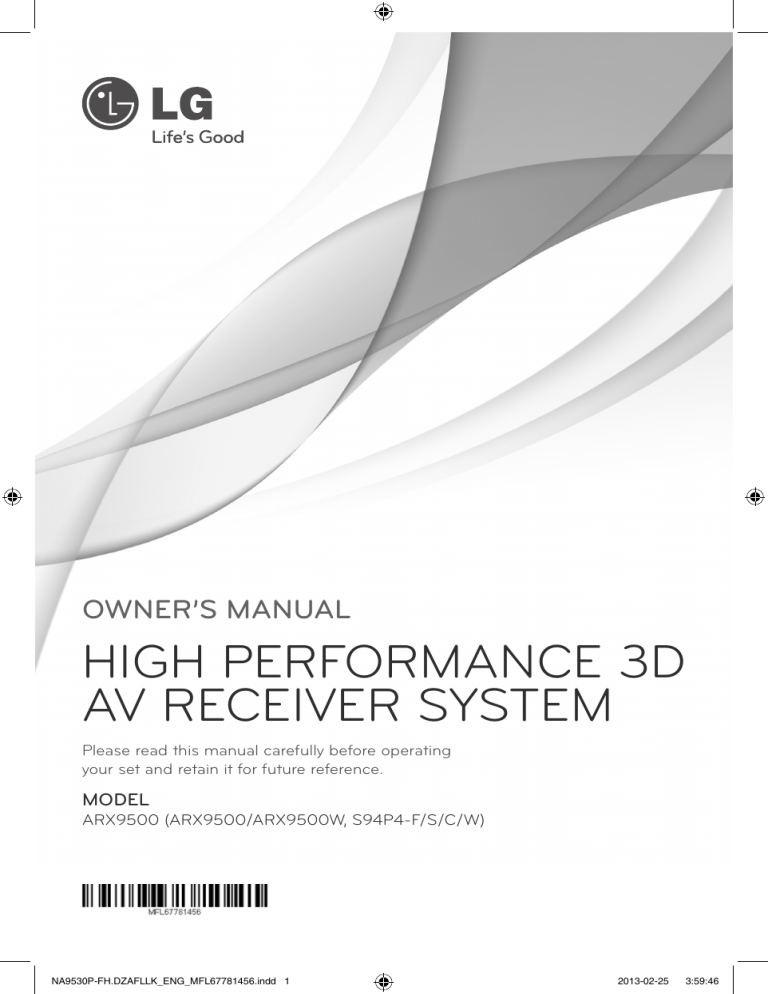

OWNER’S MANUAL
HIGH PERFORMANCE 3D
AV RECEIVER SYSTEM
Please read this manual carefully before operating
your set and retain it for future reference.
MODEL
ARX9500 (ARX9500/ARX9500W, S94P4-F/S/C/W)
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 1
2013-02-25
3:59:46
2
1
Safety Information
Safety Information
1
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK) NO USERSERVICEABLE PARTS INSIDE REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead
symbol within an equilateral triangle is
intended to alert the user to the presence
of uninsulated dangerous voltage within
the product’s enclosure that may be of
sufficient magnitude to constitute a risk
of electric shock to persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
Cautions and Warnings
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
confined space such as a book case or similar unit.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects filled
with liquids, such as vases, shall be placed on the
apparatus.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 2
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a
dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specification page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an exact
replacement part by an authorized service center.
Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed
in a door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where the cord
exits the appliance. To disconnect power from the
mains, pull out the mains cord plug. When installing
the product, ensure that the plug is easily accessible.
2013-02-25
3:59:46
Safety Information
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the battery
from the equipment:
Copyrights
It is forbidden by law to copy, broadcast, show,
broadcast via cable, play in public, or rent
copyrighted material without permission. This
product features the copy protection function
developed by Macrovision. Copy protection signals
are recorded on some discs. When recording and
playing the pictures of these discs picture noise
will appear. This product incorporates copyright
protection technology that is protected by U.S.
patents and other intellectual property rights. Use
of this copyright protection technology must be
authorized by Macrovision, and is intended for home
and other limited viewing uses only unless otherwise
authorized by Macrovision. Reverse engineering or
disassembly is prohibited.
1
Safety Information
Remove the old battery or battery pack, follow the
steps in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do not
dispose of batteries or battery together with other
waste. It is recommended that you use local, free
reimbursement systems batteries and accumulators.
The battery shall not be exposed to excessive heat
such as sunshine, fire or the like.
3
CONSUMERS SHOULD NOTE THAT NOT ALL HIGH
DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE
WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS
TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525
OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS,
IT IS RECOMMENDED THAT THE USER SWITCH THE
CONNECTION TO THE ‘STANDARD DEFINITION’
OUTPUT. IF THERE ARE QUESTIONS REGARDING
OUR TV SET COMPATIBILITY WITH THIS MODEL 525p
AND 625p UNIT, PLEASE CONTACT OUR CUSTOMER
SERVICE CENTER.
You have to set the disc format option to [Mastered]
in order to make the discs compatible with the LG
players when formatting rewritable discs. When
setting the option to Live File System, you cannot
use it on LG players.
(Mastered/ Live File System : Disc format system for
Windows Vista)
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 3
2013-02-25
3:59:46
4
Contents
Contents
3
Installation
1
Safety Information
2
3
12
Connecting the system cable
12
Installing speakers
13
Connecting speakers
15
Connecting
video devices
Cautions and Warnings
15
Using an HDMI cable
Copyrights
17
Using a composite video
cable
18
Connecting
audio devices
19
Connecting
other devices
20
About the “ ” Symbol
Display
Connecting
the antennas
20
6
Symbols Used in this
Manual
Connecting
a portable device
21
6
Accessories
Connecting
headphones
7
Required cables
21
Settings
2
Preparation
6
6
Introduction
8
Remote control
10
Front panel
11
Rear panel
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 4
21
Adjusting the Setup
Settings
22
[Language] Menu
22
[Display] Menu
23
[Audio] Menu
24
[Others] Menu
2013-02-25
3:59:46
Contents
4
5
Operation
Maintenance
25
Turning On the unit
38
25
Selecting the input source
26
Adjusting the speaker levels
27
Enjoying various sound mode
6
Sound effect
Troubleshooting
28
Bass Blast
39
28
Setting the USER EQ
Listening to FM radio
2
Troubleshooting
28
Automatic tuning
7
28
Manual tuning
Appendix
29
Presetting radio stations
29
Tuning to preset stations
29
Deleting the preset stations
29
Deleting all the preset
stations
30
1
Handling the Unit
27
28
5
41
Trademarks and Licenses
42
Specifications
3
4
Playing the USB device
30
Basic operations
32
Listening to music
33
Playing a movie file
35
Viewing a photo
36
Dimmer
36
Screen Saver
37
Using the Sleep Timer
5
6
7
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 5
2013-02-25
3:59:46
6
Preparation
2
Preparation
2
Introduction
Accessories
Preparation
Please check and identify the supplied
accessories.
About the “ ” Symbol Display
“ ” may appear on your TV display during
operation and indicates that the function
explained in this owner’s manual is not
available on that specific media.
System cable (1)
Speaker cables (7)
HDMI cable (1)
Coaxial cable (1)
Analog audio cable
(1)
Composite video
cable (1)
Remote control (1)
Batteries (2)
Symbols Used in this Manual
NOTE
Indicates special notes and operating features.
CAUTION
Indicates cautions for preventing possible
damages from abuse.
A section whose title has one of the following
symbols are applicable only to the disc
represented by the symbol.
MOVIE
Movie files contained in
the USB
MUSIC
Music files contained in
the USB
Photo files contained in
the USB
FM antenna (1)
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 6
2013-02-25
3:59:46
Preparation
7
Required cables
The hookup diagrams on the subsequent
pages assume the use of the following
connection cables.
You must purchase the connection cables
separately if necessary.
•
Coaxial digital audio cable
•
•
USB cable
•
HDMI cable
•
Portable cable ( 3.5 mm Stereo plug)
Analog audio cable
2
Preparation
White (L)
Red (R)
•
Composite video cable
Yellow
•
Analog audio/Composite video cable
Yellow (Video)
White (L/audio)
Red (R/audio)
•
Optical digital audio cable
, Note
• Turn off the power to all components before
making any connections.
• When connecting an audio/video cable, be
sure to match the color-coded pins to the
appropriate jacks on the components:
yellow (video) to yellow; white (left, audio) to
white; and red (right, audio) to red.
• When connecting optical digital cables, insert
the cable plugs straight in until they click into
place.
• Do not bend or tie optical digital audio
cables.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 7
2013-02-25
3:59:46
8
Preparation
Remote control
• • • • • • • • • a • • • • • • • •
POWER (1): Switches the unit ON or OFF.
TV control buttons: Controls the TV. (LG TV
only)
- 1: Turns the TV on or off.
- AV/INPUT: Switches the TV’s input source
between the TV and other input sources.
2
Preparation
INPUT buttons: Selects the input source you
want to use. (Page 26)
- AV: Selects the input source connected to
AV IN 1/2 jack.
- PORTABLE: Selects the input source
connected to PORT. IN jack.
- OPTICAL: Selects the input source
connected to OPTICAL IN 1/2 jack.
- COAXIAL: Selects the input source
connected to COAXIAL IN 1/2 jack.
- HDMI IN: Selects the input source
connected to HDMI IN 1/2/3 jack.
- RADIO: Selects the FM.
- USB: Selects the input source connected to
USB port.
CLEAR: Deletes a preset stations. (Page 29)
REPEAT: Selects a play mode. (Repeat
playback/ Random playback) (Page 33)
AUTO DJ: Selects the AUTO DJ mode.
(Page 33)
DIMMER: The display window is darken by half
and the Backlightings will be turned off.
(Page 36)
SLEEP: Sets the system to turn off
automatically at a specified time. (Page 37)
Remove the battery cover on the rear of the Remote
Control, and insert two batteries (size AAA) with
and matched correctly.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 8
2013-02-25
3:59:46
Preparation
• • • • • • • • • b • • • • • • • •
• • • • • • • • • d • • • • • • • •
C/V (SKIP): Goes to the next or previous
chapter / track / file.
SETUP: Displays or exits the [SETUP] menu.
c/v (SCAN): Searches backward or
forward.
RETURN (x): Moves backwards in the menu
or exits the setup menu.
INFO/DISPLAY ( ): Displays or exits On-screen
Display. (Page 33,34,36)
z(PLAY): Starts playback.
ENTER ( ): Acknowledges menu selection.
M (PAUSE): Pauses playback.
MARKER: Marks music files on the [MUSIC]
menu. (Page 32)
PRESET (-/+): Selects a preset stations.
SPEAKER LEVEL: Sets the sound level of
desired speaker. (page 26)
TUNING (-/+): Tunes in the desired radio
station.
SOUND EFFECT: Selects a sound effect mode.
(Page 27)
W/S/A/D (up/ down/ left/ right): Selects an
option in the menu.
VOL (-/+): Adjusts speaker volume.
MONO/STEREO: Selects mono/stereo in FM
mode. (Page 28)
MUTE ( ): Turns off the sound temporarily.
Press the button again to restore the sound.
BASS BLAST: Selects the BASS BLAST sound
mode directly. (Page 28)
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 9
2
Preparation
Z (STOP): Stops playback.
• • • • • • • • • c • • • • • • • •
9
• • • • • • • • • e • • • • • • • •
0 to 9 numerical buttons: Selects numbered
options in a menu.
2013-02-25
3:59:47
10
Preparation
Front panel
AV RECEIVER SYSTEM
a
b
c
f
e
g h ij k
SUBWOOFER AMPLIFIER
d e
2
Preparation
l m
n
a STANDBY/ON (1/!)
Switches the unit ON or OFF.
o
p
q
Moves to the BASS mode if you press
PLAY/PAUSE on the front panel while
the “USER EQ” is displayed in the display
window.
b INPUT SELECTION
Selects the input source. Rotate this knob
until the input source you want appears on
the display window.
j STOP
Stops playback.
c Display window
Shows the current status of the unit.
k MULTI CONTROL
Adjusts the various options.
d MASTER VOLUME
Adjusts the speaker volume.
l PORT. IN
Connects a portable device (MP3 player,
etc) to PORT. IN jack.
e Backlighting
Turns on the unit, the backlightings light
up.
f PHONES connector
Connects a stereo headphone plug (
3.5 mm) to PHONES connector for private
listening. (Page 21)
g USER EQ
Sets the USER EQ mode (BASS, MIDDLE
and TREBLE). (Page 28)
h ENTER
Acknowledges menu selection.
i PLAY / PAUSE
Starts playback.
Pauses playback, press it again to exit
pauses status.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 10
m AV IN 2 (L-AUDIO-R, VIDEO)
Connects the components with analog
audio/video output jacks (camcorder,
video game console, etc).
n USB port (5 V 500 mA)
Connects an USB device to USB port.
o SOUND EFFECT
Selects a sound effect mode. (Page 27)
p BASS BLAST
Selects the BASS BLAST sound mode
directly. (Page 28)
q SUBWOOFER VOLUME
Adjusts the subwoofer level.
2013-02-25
3:59:47
Preparation
11
Rear panel
AV RECEIVER SYSTEM
a
SUBWOOFER AMPLIFIER
b
2
h
i
a Speakers connectors
Connects the speaker cables.
b COAXIAL IN 1/2
(DIGITAL AUDIO IN 1/2)
Connects other components with a
coaxial digital audio output.
c SYSTEM Connector
Connects the system cable.
d ANTENNA connectors
FM – Connects the FM wired antenna.
e AV IN 1 (VIDEO IN, L-AUDIO-R)
Connects the components with analog
audio/video output jacks.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 11
a
Preparation
c d ef g
c
f OUTPUT (VIDEO OUT, L-AUDIO-R)
Connects the components with analog
audio/video input jacks.
g OPTICAL IN 1/2
(DIGITAL AUDIO IN 1/2)
Connects other components with an
optical digital audio output.
h HDMI IN 1/2/3
Connects the component with HDMI
output.
i HDMI OUT
Connects a TV or component with HDMI
input.
2013-02-25
3:59:47
12
Installation
3
Installation
Connecting the
system cable
3
Installation
You can enjoy 7.2 channel surround sound by
using this unit.
It is necessary to connect the system cable
before using this unit. If the system cable is
not connected, ‘CHECK CABLE’ appears on the
display window every 10 seconds.
Before connecting the system cable, be sure to
disconnect the AC power cord.
Installing speakers
The unit allows you to use 7.2 channel system.
The following illustration shows an example
of positioning the system. Note that the
illustrations in these instructions differ from the
actual unit for explanation purposes. For the
best possible rear sound, all the speakers other
than the subwoofer should be placed at the
same distance from the listening position ( ).
AV Receiver System
F
Subwoofer Amplifier
System cable
Connect the SYSTEM jack on the AV Receiver
System and Subwoofer Amplifier using a
system cable.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 12
2013-02-25
3:59:47
Installation
Front speaker (left)
Front speaker (right)
Place the front speakers to the sides of the
monitor or screen and as flush with the screen
surface as possible.
13
Connecting speakers
Before connecting the cables, be sure to
disconnect the AC power cord.
Center speaker
Place the center speaker above or below the
monitor or screen.
/ Surround speaker (left) 1, 2
/ Surround speaker (right) 1, 2
Place these speakers behind your listening
position, facing slightly inwards.
3
AV Receiver System
Installation
/ Subwoofer 1, 2
The position of the subwoofer is not so
critical, because low bass sounds are not
highly directional. But it is better to place
the subwoofer near the front speakers. Turn
it slightly toward the center of the room to
reduce the wall reflections.
Speaker
Cable
Unit
> Caution
• Do not stack the speakers
and be careful that the
speaker should not fall
down. Otherwise it may
result in the speaker
malfunctioning and
causing personal injury
and/or property damage.
Subwoofer Amplifier
• Make sure to install the speaker with other
people in order to prevent it from falling and
causing injuries to the installer.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 13
2013-02-25
3:59:47
14
Installation
1. Connect the wires to the unit. To connect
the cable to the unit, press each plastic
finger pad to open the connection terminal.
Insert the wire and release the finger pad.
> Caution
• Be careful to make sure children not to put
their hands or any objects into the *speaker
duct.
*Speaker duct : A hall for plentiful bass sound
on speaker cabinet (enclosure).
• Place the center speaker at a safe distance
from the child’s reach. Otherwise it may result
in the speaker falling down and causing
personal injury and/or property damage.
3
Connect the black end of each wire to the
terminals marked - (minus) and the other
end to the terminals marked + (plus).
• The speakers contain magnet parts, so color
irregularity may occur on the TV screen or PC
monitor screen. Please use the speakers far
away from either TV screen or PC monitor.
Subwoofer Amplifier
AV Receiver
System
Installation
2. Connect the wires to the speakers. Connect
the other end of each wire to the correct
speaker according to the color coding:
Color
Speaker
Position
Green
Center
Center
Red
Front
Front right
White
Front
Front left
Yellow
Surr. R2
Surr. right
Grey
Surr. R1
Surr. right
Orange
Subwoofer Any front
1, 2
position
Blue
Surr. L1
Surr. left
Purple
Surr. L2
Surr. left
To connect the cable to the speakers,
press each plastic finger pad to open the
connection terminals on the base of each
speaker. Insert the wire and release the
finger pad.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 14
2013-02-25
3:59:47
Installation
15
1. Connect the HDMI IN 1/2/3 jack on AV
Receiver System to your video device with
HDMI OUT jack using a HDMI cable.
Connecting
video devices
2. Connect the HDMI OUT jack on AV Receiver
System to the HDMI IN jack on your TV.
You can watch the input image from your
video device. There are two ways of connecting
your video device to AV Receiver System.
3. Set the input source to HDMI (Pages 25-26).
, Note
• Before connecting the cables, be sure to
disconnect the AC power cord.
• Turn off the power to all components before
making any connections.
Using an HDMI cable
since HDMI offers both audio and video signal
over one cable, you can enjoy them without
additional audio cable.
3
Installation
Blu-ray disc player,
DVD player, etc
HDMI
Cable
AV Receiver
System
HDMI
Cable
TV
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 15
2013-02-25
3:59:47
16
Installation
, Note
• HDMI is the abbreviated name for High
Definition Multimedia Interface. It is an
interface which transmits video and audio
signals in digital format. If a connected HDMI
device does not accept the audio output of
the unit, the HDMI device’s audio sound may
be distorted or may not output.
Resolution Setting
The unit provides several output resolutions for
HDMI OUT jack. You can change the resolution
using [Setup] menu.
1. Press SETUP.
The [Setup] menu appears.
• When you use HDMI connection, you can
change the resolution for the HDMI output.
(Refer to “Resolution Setting” on page 16.)
•
3
Installation
•
When you connect a HDMI or DVI
compatible device make sure of the
following:
- Try switching off the HDMI/DVI device
and this unit. Next, switch on the HDMI/
DVI device and leave it for around 30
seconds, then switch on this unit.
- The connected device’s video input is set
correctly for this unit.
- The connected device is compatible with
720 x 576i (or 480i), 720 x 576p (or 480p),
1280 x 720p, 1920 x 1080i or 1920 x 1080p
video input.
Not all HDCP-compatible HDMI or DVI
devices will work with this unit.
- The picture will not be displayed properly
with non-HDCP device.
- This unit does not playback and TV screen
is changed to black screen.
2. Use W/S to select [Display] option then
press D to move to the second level.
3. Use W/S to select the [Resolution] option
then press D to move to the third level.
• If there is noise or lines on the screen, please
check the HDMI cable and use a higher
version cable than 1.2A HDMI cable.
• Changing the resolution when the
connection has already been established may
result in malfunctions. To solve the problem,
turn off the unit and then turn it on again.
• When the HDMI connection with HDCP is not
verified, TV screen is changed to black screen.
In this case, check the HDMI connection, or
disconnect the HDMI cable.
4. Use W/S to select the desired resolution
then press ENTER ( ) to confirm your
selection.
, Note
If your TV does not accept the resolution you
have to set on the unit, you can set resolution to
576p (or 480p) as follows:
Press Z (STOP) for more than 5 seconds.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 16
2013-02-25
3:59:47
Installation
Using a composite video cable
To enjoy both sounds and images from your
device, you have to connect analog audio
cable as well as composite video cable.
Audio cable
17
1. Connect the VIDEO IN jack on AV Receiver
System to the VIDEO OUT jack on your
video device using a composite video
cable.
2. Connect the left and right AUDIO IN jacks
of AV Receiver System to the left and right
AUDIO OUT jacks on your video device
using an audio cables.
3. Connect the VIDEO OUT jack on your AV
Receiver System to the VIDEO IN jack on
your TV.
4. Set the input source to AV 1(Pages 25-26).
Video
cable
, Note
AV Receiver
System
3
• Turn off the power to all components before
making any connections.
• When connecting an audio/video cable, be
sure to match the color-coded pins to the
appropriate jacks on the components: yellow
(video) to yellow; white (left, audio) to white;
and red (right, audio) to red.
Installation
Blu-ray disc player,
DVD player, etc
Video cable
TV
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 17
2013-02-25
3:59:47
18
Installation
1. Connect AV IN 1, COAXIAL 1/2 or OPTICAL
1/2 jack on AV Receiver System to your
audio device’s OUTPUT jack you want.
Connecting
audio devices
2. Set the input source to AV IN 1, COAXIAL
1/2 or OPTICAL 1/2 you connect.(Pages 2526).
You can hear the sound from your TV, DVD
player, Blu-ray player, CD player, etc.
It is not necessary to connect all the cables.
Connect AV Receiver System to an AV IN, a
COAXIAL or an OPTICAL jack on your device
you want to connect.
3
Installation
AV Receiver
System
Audio
cable
Optical
cable
, Note
• Before connecting the cables, be sure to
disconnect the AC power cord.
• When connecting an audio cable, be sure
to match the color-coded pins to the
appropriate jacks on the components: white
(left, audio) to white; and red (right, audio) to
red.
Coaxial
cable
Blu-ray disc player,
DVD player, etc
TV
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 18
2013-02-25
3:59:47
Installation
19
1. Connect the VIDEO IN jack on the front
panel of AV Receiver System to the VIDEO
OUT jack on your device using a video
cable.
Connecting
other devices
You can easily connect other devices
(camcorder, game console, etc) to the jacks on
the front panel of AV Receiver System.
2. Connect the left and right AUDIO IN jacks
on the front of AV Receiver System to the
audio left and right OUT jacks on your
device using an audio cables.
3. Connect the VIDEO OUT jack on the back
panel of AV Receiver System to the VIDEO
IN jack on your TV.
4. Set the input source to AV 2 (Pages 25-26).
TV
, Note
3
• Before connecting the cables, be sure to
disconnect the AC power cord.
• When connecting an audio/video cable, be
sure to match the color-coded pins to the
appropriate jacks on the components: yellow
(video) to yellow; white (left, audio) to white;
and red (right, audio) to red.
AV Receiver
System
Installation
Video
cable
Audio cable
Video
cable
Camcorder, game
console, etc
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 19
2013-02-25
3:59:47
20
Installation
Connecting
the antennas
Connect the supplied FM wire antenna.
Before connecting the antenna, be sure to
disconnect the AC power cord.
FM wire antenna
3
Connecting
a portable device
1. Connect the PORT. IN jack on AV Receiver
System to the head phone or LINE OUT jack
on your Portable device (MP3 player, etc.)
using a portable cable ( 3.5 mm stereo
plug).
AV Receiver
System
Installation
, Note
Be sure to fully extend the FM wire antenna.
After connecting the FM wire antenna, keep it
as horizontal as possible.
Portable device
(MP3 player, etc...)
2. Set the input source to PORTABLE (Pages
25-26).
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 20
2013-02-25
3:59:47
Installation
Connecting
headphones
21
Settings
Adjusting the Setup Settings
Connect a pair of stereo headphones ( 3.5
mm phone plug) to AV Receiver System’s
PHONES jack for private listening.
AV Receiver
System
You can change the settings of the unit in the
[Setup] menu.
1. Press SETUP.
The [Setup] menu appears.
3
Installation
Headphones
2. Use W/S to select the first setup option,
and press D to move to the second level.
, Note
• Always turn down the volume before
connecting your headphones.
• You can’t hear any sound from speakers,
while the headphones plug is inserted in the
PHONES jack.
3. Use W/S to select a second setup option,
and press D to move to the third level.
4. Use W/S to select a desired setting, and
press ENTER ( ) to confirm your selection.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 21
2013-02-25
3:59:47
22
Installation
[Language] Menu
Menu Language
Select a language for the [Setup] menu and
on-screen display.
[Display] Menu
TV Aspect
Select which screen aspect to use based on
the shape of your TV screen.
3
Installation
[4:3]
Select when a standard 4:3 TV is connected.
[16:9]
Select when a 16:9 wide TV is connected.
Display Mode
The Display Mode setting works only when the
TV Aspect mode is set to 4:3.
Resolution
Sets the output resolution of the HDMI video
signal. Refer to “Resolution Setting” for details
about the resolution (page 16).
[Auto]
If the HDMI OUT jack is connected to
TVs providing display information (EDID),
automatically selects the resolution best
suited to the connected TV.
[576i]
Outputs 576 lines of interlaced video.
[576p]
Outputs 576 lines of progressive video.
[720p]
Outputs 720 lines of progressive video.
[1080i]
Outputs 1080 lines of interlaced video.
[1080p]
Outputs 1080 lines of progressive video.
[Letterbox]
Displays a wide picture with bands on the
upper and lower portions of the screen.
[Panscan]
Automatically displays the wide picture on
the entire screen and cuts off the portions
that do not fit.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 22
2013-02-25
3:59:47
Installation
[Audio] Menu
Speaker Setup
Make the following settings for the built-in 7.2
channel surround speaker.
1. Select [Speaker Setup] on the [Audio]
menu.
2. Press ENTER ( )
The [SPEAKER] menu appears.
[Speaker]
Select a speaker that you want to adjust.
, Note
Certain speaker settings are prohibited by the
Dolby Digital licensing agreement.
[Size]
Since the speaker settings are fixed, you
cannot change the settings.
There is the other way to adjust the speaker
levels. Refer to page 26.
3
Installation
[Volume]
Press A/D to adjust the output level of the
selected speaker.
- Front L/R : 0 to -5
- SubWoofer 1/2, Rear L/R(1/2),
Center : 5 to -5
, Note
3. Use A/D to select the desired speaker.
23
4. Adjust options using W/S/A/D buttons.
5. After adjusting the desired options, press
RETURN (x). The menu moves to the
previous screen.
[Distance]
After you connected speakers to your unit,
set the Distance between the speakers and
your listening point if the distance of Center
or Rear speakers is bigger than the distance
of Front speakers. This allows the sound
from each speaker to reach the listener
at the same time. Press A/D to adjust
the distance of the selected speaker. This
distance is equivalent to a difference of the
distance between Center or Rear speaker
and Front speakers.
[Speaker Test Start] / [Speaker Test Stop]
Select [Speaker Test Start] by using
the W/S and press ENTER ( ).
Press ENTER ( ) again to stop. Adjust the
volume to match the volume of test signals
memorized in the system.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 23
2013-02-25
3:59:47
24
Installation
DRC (Dynamic Range Control)
When a title encoded in Dolby Digital or Dolby
Digital Plus is playing back, you may wish to
compress the dynamic range of the audio
output (the difference between the loudest
sounds and the quietest ones). This allows you
to listen to a movie at a lower volume without
losing clarity of sound. Set [DRC] to [On] for
this effect.
HD AV Sync
3
Installation
Sometimes Digital TV encounters a delay
between picture and sound. If this happens
you can compensate by setting a delay on the
sound so that it effectively ‘waits’ for the picture
to arrive: this is called HD AV Sync. Use W/S
(on the remote control) to scroll up and down
through the delay amount, which you can set
at anything between 0 ms and 300 ms.
, Note
This function is operated only on the sources of
USB.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 24
[Others] Menu
DivX(R) VOD
ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, LLC, a subsidiary of
Rovi Corporantion. This is an official DivX
Certified® device that plays DivX video. Visit
divx.com for more information and software
tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND:This DivX
Certified® device must be registered in order
to play purchased DivX Video-on-Demand
(VOD) movies. To obtain your registration
code, locate the DivX VOD section in your
device setup menu. Go to vod.divx.com for
more information on how to complete your
registration.
[Register]
Displays the registration code of your unit.
[Deregister]
Deactivate your unit and display the
deactivation code.
2013-02-25
3:59:47
Operation
25
4
Operation
Turning On the unit
To select the
Display
Component connected to
AV IN 1 jack
AV 1
Before connecting the power cord, connect all
your speakers and AV components.
Component connected to
AV IN 2 jack
AV 2
1. Plug the power cord into an AC wall outlet.
Portable device connected
to PORT. IN jack
PORTABLE
Component connected to
OPTICAL IN 1 jack
OPTICAL 1
Component connected to
OPTICAL IN 2 jack
OPTICAL 2
Component connected to
COAXIAL IN 1 jack
COAXIAL 1
Component connected to
COAXIAL IN 2 jack
COAXIAL 2
Component connected to
HDMI IN 1 jack
HDMI IN - 1
Component connected to
HDMI IN 2 jack
HDMI IN - 2
Component connected to
HDMI IN 3 jack
HDMI IN - 3
FM frequency
FM
USB device connected to
USB port
USB
2. Press POWER (1 or 1/!) button.
The unit turns on, the display window lights
up.
Selecting the input
source
This section explains how to select the input
source (i.e., the AV component that you want
to listen to or watch).
1. Press POWER (1 or 1/!) to turn the unit
on.
2. Select a source by rotating the INPUT
SELECTION on the front panel.
The selected source appears on the display
window.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 25
4
2013-02-25
Operation
To turn off the unit, press POWER (1 or
1/!) button.
3:59:47
26
Operation
To select the required input source using
the remote control, use the INPUT buttons.
4
To select the
Button
Component connected to
AV IN 1/2 jack
AV
Portable device connected
to PORT. IN jack
PORTABLE
Component connected to
OPTICAL IN 1/2 jack
OPTICAL
Component connected to
COAXIAL IN 1/2 jack
COAXIAL
Component connected to
HDMI 1/2/3 jack
HDMI IN
Built-in tuner
RADIO
USB device connected to
USB port
USB
Adjusting the speaker
levels
You can adjust the level of each speaker. These
settings are applied to all sound fields. You can
adjust from -5 to +5 in 1 step.
1. Press SPEAKER LEVEL on the remote
control repeatedly to select a desired
speaker to set.
The indicator changes cyclically in the
display window as follows.
SW : FL : C : FR : RR : RL
2. Press VOL (-/+) to adjust the sound level of
the selected speaker while the indicator is
displayed in the display window.
Operation
Display
Description
3. Turn on the component and start playback.
SW
Subwoofer 1,2 (-5 to +5)
4. To adjust the volume, rotate the MASTER
VOLUME on the front panel, or press VOL
(-/+) on remote control.
FL
Front speaker (left) (-5 to 0)
C
Center speaker (-5 to +5)
FR
Front speaker (right) (-5 to
0)
RR
Rear speaker 1,2 (right) (-5
to +5)
RL
Rear speaker 1,2 (left) (-5 to
+5)
To activate the muting function
Press MUTE ( ) on the remote control.
‘ ’ appears on the display window.
To cancel, press MUTE ( ) on the remote
control again or change the volume level.
3. Repeat and adjust the sound level of the
other speakers.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 26
2013-02-25
3:59:47
Operation
Enjoying various
sound mode
You can enjoy various sound mode. For details,
refer to the Sound effect, Bass Blast and USER
EQ. (Pages 27-28)
Sound effect
You can select a suitable sound mode. Rotate
SOUND EFFECT repeatedly until the desired
mode appears on the display window.
Description
NAT PLUS
You can enjoy the natural
sound effect same as a 5.1
channel.
NATURAL
You can enjoy comfortable
and natural sound.
Local
specialization
equalizer
Regionally optimized
sound effect. (DANGDUT/
ARABIC/ PERSIAN/ INDIA/
REGUETON/ MERENGUE/
SAMBA/ SALSA/ CUMBIA/
AFRO HIP HOP)
AUTO EQ
Sets the sound equalizer to
the mode that is the most
similar to the genre which
is included in the MP3 ID3
tag of song files.
POP
CLASSIC
JAZZ
ROCK
This program lends an
enthusiastic atmosphere to
the sound, giving you the
feeling you are at an actual
rock, pop, jazz or classic
concert.
MP3-OPT
This function is optimized
for compressible MP3 file. It
improves the treble sound.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 27
During playback, reinforces
the bass sound.
LOUDNESS
Improves the bass and
treble sound.
BYPASS
You can enjoy the sound
without equalizer effect.
, Note
• In some of surround modes, some speakers,
there’s no sound or low sound. It depends
on the mode of surround and the source of
audio, it is not defective.
• You may need to reset the surround mode,
after switching the input, sometimes even
after the sound track changed.
• Depending on region, specific Local
specialization equalizer is selected.
4
Operation
Display
BASS BLAST
27
2013-02-25
3:59:47
28
Operation
Bass Blast
Listening to FM radio
You can set the BASS BLAST sound mode
directly.
Press BASS BLAST repeatedly.
Display
Description
BASS BLAST
During playback, reinforces
the bass sound.
BYPASS
You can enjoy the sound
without equalizer effect.
Setting the USER EQ
4
You can listen to music with desired sound
effect by adjusting the BASS, MIDDLE and
TREBLE.
Operation
1. Press USER EQ on the front panel.
“USER EQ” appears on the display window.
2. Press PLAY / PAUSE on the front panel
while the “USER EQ” is displayed in the
display window.
3. Select the BASS, MIDDLE or TREBLE by
pressing ENTER on the front panel.
4. Rotate MULTI CONTROL on the front panel
to set sound level.
5. Press PLAY / PAUSE on the front panel to
finish the settings.
You can listen to FM broadcast through the
built-in tuner. Before operation, make sure you
have connected the FM antenna to the unit.
(Page 20)
Automatic tuning
1. Rotate INPUT SELECTION to select tuner
(FM). Or press RADIO with the remote
control to select tuner (FM).
2. Press TUNING - or TUNING + for more than
2 seconds.
Press TUNING - for more than 2 seconds to
scan from high to low.
Press TUNING + for more than 2 seconds to
scan from low to high.
The unit stops scanning whenever a station
is received.
In case of poor FM stereo reception
If the FM stereo reception is poor and “ST.”
flashes in the display window, select monaural
audio so that the sound will be less distorted
by pressing the MONO/STEREO.
The “ST.” indicator disappears in the display
window. There will be no stereo effect, but the
reception will improve. Press the button again
to restore the stereo effect.
Manual tuning
Press TUNING - or TUNING + briefly and
repeatedly on the FM mode to select a station
you want. Or rotate MULTI CONTROL on the
unit.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 28
2013-02-25
3:59:47
Operation
Presetting radio stations
Tuning to preset stations
You can preset up to 50 FM stations.Then you
can easily tune in the stations you often listen
to.
Before tuning to preset stations, make sure you
preset radio stations. (Page29)
1. Rotate INPUT SELECTION to select tuner
(FM). Or press RADIO with the remote
control to select tuner (FM).
2. Tune in the station that you want to preset
using Automatic tuning or Manual tuning.
3. Press ENTER ( ).
A preset number flashes in the display
window for a few seconds. When a preset
number flashes, do the step 4.
4. Press PRESET - or PRESET+ to select a
preset number you want.
If a preset number is not flashed before you
select the preset number, start again from
the step 3.
6. Repeat the steps 2 to 5 to preset another
station.
1. Rotate INPUT SELECTION to select tuner
(FM). Or press RADIO with the remote
control to select tuner (FM).
2. Press PRESET - or PRESET+ repeatedly to
select the preset station you want.
Each time you press the button, you can
select a preset station.
Deleting the preset stations
You can delete a preset station you want.
1. Rotate INPUT SELECTION to select tuner
(FM). Or press RADIO with the remote
control to select tuner (FM).
2. Select the preset station to delete by
pressing PRESET - or PRESET+.
3. Press CLEAR.
4
Operation
5. Press ENTER ( ) again.
The station is stored to the selected preset
number. If a preset number is not flashed
before you press ENTER ( ), start again
from the step 3.
29
4. Press CLEAR again while the preset number
flashes in the display window for a few
seconds.
The preset station is deleted.
5. Repeat the steps 2 to 4 to delete another
preset station.
Deleting all the preset stations
1. Press and hold CLEAR for about two
seconds.
“ERASE ALL” appears on the display window.
2. Press CLEAR again while “ERASE ALL” is
displayed.
All the preset stations are cleared.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 29
2013-02-25
3:59:47
30
Operation
Playing the USB
device
This unit can play movie, music and photo files
contained in the USB device.
To stop playback
MUSIC MOVIE PHOTO
Press Z (STOP) during playback.
To pause playback
MUSIC MOVIE
Press M (PAUSE) during playback.
Press d (PLAY) to resume playback.
Basic operations
1. Insert an USB device to the USB port until it
fits into place.
AV Receiver
System
4
Operation
USB device
2. Rotate INPUT SELECTION on the front
panel to select until the “USB” appears on
the display window. Or press USB on the
remote control.
When you connect the USB device
contained music files only in the USB device,
the unit plays music files automatically.
If the USB device is containing various types
of files, the [USB] menu for the file type
selection will appear.
To scan forward or backward
MUSIC MOVIE
Press c or v to play fast forward or fast
reverse during playback.
You can change the various playback speeds
by pressing c or v repeatedly.
Press d (PLAY) to return to normal speed.
To skip to the next/previous chapter/
track/file
MUSIC MOVIE
During playback, press C or V to go to
the next chapter/track/file or to return to the
beginning of the current chapter/track/file.
Press C twice briefly to step back to the
previous chapter/track/file.
During playback, press C or V to go to
the previous/next file.
[USB] menu
3. Select [Music], [Movie] or [Photo] using
A/D, and press ENTER ( ) to play the file.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 30
2013-02-25
3:59:48
Operation
To slow down the playing speed
MOVIE
While the playback is paused, press v
repeatedly to play various speeds of slow
motion.
Resume playback
31
, Note
• Devices which require additional program
installation connected to a computer, are not
supported.
• Do not extract the USB device while in
operation.
• For a large capacity USB, it may take longer
than a few minute to be searched.
MUSIC MOVIE
• Regular back up is recommended to prevent
data loss.
The unit records the point where you pressed
the Z (STOP) depending on the file.
If “MZ (Resume Stop)” appears on the screen
briefly, press d (PLAY) to resume playback
(from the scene point).
If you press Z (STOP) twice, “Z (Complete
Stop)” appears on the screen. The unit will clear
the stopped point.
• If you use a USB extension cable or USB hub,
the USB device is not recognized.
Removing the USB device from the
unit
• USB Port of the unit cannot be connected
to PC. The unit cannot be used as a storage
device.
1. Choose a different function mode or press
Z (STOP) twice in a row.
• USB device: USB device that supports USB 1.1
and USB 2.0.
2. Remove the USB device from the unit.
• Digital camera and mobile phone are not
supported.
• Using NTFS file system is not supported.
(Only FAT(16/32) file system is supported.)
• This unit is not supported when the total
number of files is 1000 or more.
• External HDD, Multi Media Card readers,
Locked devices, or hard type usb devices are
not supported.
4
Operation
Compatible USB Devices
- MP3 Player : Flash type MP3 player.
- USB Flash Drive : Devices that support USB
2.0 or USB 1.1.
- Some USB device may not work with this
unit.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 31
2013-02-25
3:59:48
32
Operation
, Note
Listening to music
You can play music files contained in a USB
device.
1. Select [Music] using A/D on the [USB]
menu.
• The file requirements are described on page
33.
• You can use various playback functions. Refer
to pages 30-31.
2. Press ENTER ( ).
The unit plays music files automatically.
Playing your favorite music
Using the [MUSIC] menu
This enables you to play the marked music in
order by marking your favorite files.
1. During playback, select your favorite files
using W/S.
2. Press MARKER.
The [ indicator appears on the [MUSIC]
menu.
3. Repeat steps 1-2.
4
Operation
Options
Buttons
Returning to the
upper folder.
UP
FOLDER
;/.
Select All
Select a
desired
option
using W/
S/A/D.
Deselect
All
[ Mark
Description
Moving to the
previous or next
page.
Marking all the
files.
Deselecting all
the marked files.
MARKER
Marking the
selected files.
wsad
Move
W/S/A/
D
Moving to
another file.
Select
ENTER ( )
Activating a file.
x Close RETURN
(x)
4. Press d (PLAY) or ENTER ( ).
The play mode is displayed on the [MUSIC]
menu.
Mark Play
Current Play
5. Select the desired play mode using W/S.
[Mark Play]: Plays the marked files in order.
[Current Play]: Plays the files in order from
the highlighted position.
6. Press ENTER ( ).
, Note
• If you want to delete a marker, select the
marked file and then press MARKER.
• The markers are also cleared when the USB
device is removed, the unit is switched to
power off or the function is switched to
others.
Returning to
the [USB]
menu.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 32
2013-02-25
3:59:48
Operation
Playing repeatedly or randomly
Music file requirement
During playback, press
REPEAT repeatedly
to select a desired mode.
Music file compatibility with this unit is limited
as follows :
•
Sampling frequency : within 32 to 48 kHz
(MP3), within 32 to 48 kHz (WMA)
The current file will be
played repeatedly.
•
Bit rate : within 32 to 320 kbps (MP3),
40 to 192 kbps (WMA)
All the files will be played
repeatedly.
•
Support Version : v2, v7, v8, v9
•
Maximum files : Under 999
RANDOM
The files will be played in
random order.
•
File extensions : “.mp3”/ “.wma”
Off
(No display)
Returns to normal playback.
Playing a movie file
Display
Description
REPEAT
REPEAT ALL
33
You can play movie files contained in a USB
device.
AUTO DJ playback
AUTO DJ blends the end of one song into the
beginning of another for seamless playback.
2. Select a file using W/S/A/D, and press d
(PLAY) or ENTER ( ) to play the file.
Display
Description
Displaying content information onscreen
AUTO DJ
RANDOM
The music is played
randomly on this mode.
You can display and adjust various information
and settings about the content.
AUTO DJ
SEQUENTIAL
The music is played
repeatedly on this mode.
1. During playback, press INFO/DISPLAY ( )
to show various playback information.
AUTO DJ OFF
Returns to normal playback.
4
Operation
During playback, press AUTO DJ repeatedly to
select a desired mode.
1. Select [Movie] using A/D on the [USB]
menu.
a
b
c
d
e
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 33
2013-02-25
3:59:48
34
Operation
a Title – current title number/total number
of titles
b Time – elapsed playing time/total
playback time
c Audio – selected audio language or
channel
d Subtitle – selected subtitle
e Code Page – selected subtitle code page
2. Select an option using W/S.
1. During playback, press INFO/DISPLAY ( )
to display the On-Screen display.
2. Use W/S to select the [Audio] option.
3. Use A/D to select desired audio language,
audio track or audio channel.
Selecting a subtitle language
1. During playback, press INFO/DISPLAY ( )
to display the On-Screen display.
3. Use A/D to adjust the selected option
value.
2. Use W/S to select the [Subtitle] option.
4. Press INFO/DISPLAY ( ) or RETURN (x)
to exit the On-Screen display.
3. Use A/D to select desired subtitle
language.
, Note
4
Hearing different audio
If no button is pressed for a few seconds, the
on-screen display disappears.
4. Press RETURN (x) to exit the On-Screen
display.
Operation
Changing subtitle code page
Playing from selected time
1. Press INFO/DISPLAY ( ) during playback.
The time search box shows the elapsed
playing time.
2. Select the [Time] option and then input the
required start time in hours, minutes, and
seconds from left to right.
For example, to find a scene at 2 hours, 10
minutes, and 20 seconds, enter “21020”.
If the subtitle is not displayed properly, you
can change the subtitle code page to view the
subtitle file properly.
1. During playback, press INFO/DISPLAY ( )
to display the On-Screen display.
2. Use W/S to select the [Code Page] option.
3. Use A/D to select desired code option.
4. Press RETURN (x) to exit the On-Screen
display.
3. Press ENTER ( ) to start playback from
selected time.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 34
2013-02-25
3:59:48
Operation
Movie file requirement
Movie file compatibility with this unit is limited
as follows :
•
Available resolution: within 720 x 576
(W x H) pixels.
The file name of the DivX subtitle should be
entered within 45 characters.
•
If there is impossible code to express in the
DivX file, it may be displayed as “ _ “ mark on
the display.
•
Frame rate : less than 30 fps.
•
If the video and audio structure of recorded
files is not interleaved, either video or audio
is outputted.
•
Playable movie file : “.avi”, “.mpg”, “.mpeg”,
“.divx”
•
Playable Subtitle format : SubRip (*.srt/
*.txt), SAMI (*.smi), SubStation Alpha (*.ssa/
*.txt), MicroDVD (*.sub/ *.txt), SubViewer 2.0
(*.sub/ *.txt), Vobsub (*.sub)
 Playable Codec format :
“DIVX3.11”, “DIVX4”, “DIVX5”, “DIVX6”,
“MP4V3”, “3IVX”
•
Playable Audio format : “AC3”, “PCM”, “MP3”,
“WMA”. (The DTS is not supported. In case
of DTS audio format, audio is not output.)
•
Sampling frequency : within 32 to 48 kHz
(MP3), within 32 to 48 kHz (WMA)
•
Bit rate : within 32 to 320 kbps (MP3), 40 to
192 kbps (WMA)
•
If the name of movie file is different from
that of the subtitle file, during playback of a
DivX file, subtitle may not be display.
•
If you play a DivX file differ from DivXspec, it
may not operate normally.
Viewing a photo
You can view photo files contained in a USB
device.
1. Select [Photo] using A/D on the [USB]
menu.
The [PHOTO] menu appears.
Options
Buttons
Description
UP
FOLDER
Select a
desired
option
using W/
S/A/D.
Returning to the
upper folder.
d Slide
Show
d (PLAY)
Viewing a slide
show.
wsad
Move
W/S/A/
D
Moving to
another file or
content.
Select
ENTER ( )
Viewing a
particular file.
RETURN
(x)
Returning to the
[USB] menu.
;/.
xClose
4
2. Select a file using W/S/A/D, and press d
(PLAY) or ENTER ( ) to play the file.
Options
Buttons
Description
d Slide
Show
d (PLAY)
Viewing a slide
show.
ENTER ( )
Viewing a
particular file.
Select
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 35
Moving to the
previous or next
page.
Operation
•
35
2013-02-25
3:59:48
36
Operation
To stop a slide show
Photo file requirement
Press Z (STOP) during slide show.
Photo file compatibility with this unit is limited
as follows :
To pause a slide show
•
Max pixel in width : 2760 x 2048 pixel
Press M (PAUSE) during slide show.
Press d (PLAY) or M (PAUSE) to re-start the
slide show.
•
Maximum files : Under 999
•
Some files may not operate due to a
different recording format or the condition
of file.
To skip to the next/previous photo
•
File extensions: “.jpg”, “.jpeg”
While viewing a photo in full screen, press
A or D to go to the previous or next photo.
Dimmer
Options while viewing a photo
You can use various options while viewing
a photo in full screen.
4
1. While viewing a photo in full screen, press
INFO/DISPLAY ( ) to display the option
menu.
Operation
2. Select an option using W/S/A/D.
a
b
c
d
e
Press DIMMER once. The display window will
be darken by half and the Backlightings will be
turned off. To cancel it, press DIMMER again.
Screen Saver
The screen saver is available only on the USB
device mode. The screen saver appears when
you leave the unit in Stop mode for about five
minutes.
a Current photo/Total number of photos
– Use A/D to view previous/next photo.
b Slide Show – Press ENTER ( ) to start or
pause slide show.
c Speed – Use ENTER ( ) to select a delay
time between photos in a slide show.
d Rotate – Press ENTER ( ) to rotate the
photo clockwise/counterclockwise.
e Go to list– Press ENTER ( ) to return
[Photo] menu.
3. Press RETURN (x) or INFO/DISPLAY ( )
to exit the option menu.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 36
2013-02-25
3:59:48
Operation
37
Using the Sleep Timer
You can set the unit to turn off automatically at
a specified time.
Press SLEEP repeatedly.
The indicator changes cyclically in the display
window as follows.
SLEEP 180 : 150 : 120 : 90 : 80 : 70
: 60 : 50 : 40 : 30 : 20 : 10 : Off
(No display)
To check the remaining time, press SLEEP.
The remaining time appears on the display
window.
To cancel the sleep function, press SLEEP
repeatedly until “SLEEP 10” appears, and then
press SLEEP once again while “SLEEP 10” is
displayed.
Operation
,
4
Note
When the sleep timer is activated, the display
window dims and the Backlightings are turned
off.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 37
2013-02-25
3:59:48
38
Maintenance
5
Maintenance
Handling the Unit
When shipping the unit
Cleaning the unit
Please save the original shipping carton and
packing materials. If you need to ship the unit,
for maximum protection, re-pack the unit as it
was originally packed at the factory.
To clean the unit, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth
lightly moistened with a mild detergent
solution. Do not use strong solvents such as
alcohol, benzine or thinner, as these might
damage the surface of the unit.
Keeping the exterior surfaces clean
•
5
Do not use volatile liquids such as
insecticide spray near the unit.
Maintenance
•
Wiping with strong pressure may damage
the surface.
•
Do not leave rubber or plastic products in
contact with the unit for a long period of
time.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 38
Maintaining the Unit
The unit is a high-tech, precision device. If
the optical pick-up lens and disc drive parts
are dirty or worn, the picture quality could be
diminished. For details, please contact your
nearest authorized service center.
2013-02-25
3:59:48
Troubleshooting
39
6
Troubleshooting
Troubleshooting
PROBLEM
No power.
No sound.
CAUSE & SOLUTION
•
The power cord is disconnected. Plug the power cord into the wall
outlet securely.
•
The system cable is disconnected. Connect the system cable.
•
The speaker wires are disconnected. Check the speaker connections.
•
The MASTER VOLUME is adjusted too low. Adjust the MASTER
VOLUME.
• MUTE button is pressed to ON. Press MUTE button to cancel the
muting effect.
The selected decoding mode is not matched to the input signal
format. Select the available decoding mode.
•
Incorrect selection of input source. Select the desired input source
correctly.
•
Incorrect connections between the components. Make connections
correctly.
• DIMMER is pressed to ON. Press DIMMER again to cancel the
dimmer effect.
•
The sleep timer is set. Check the sleep timer. Press SLEEP on the
remote control to check the sleep timer. To cancel the sleep timer,
press SLEEP until the backlightings light up.
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 39
2013-02-25
6
Troubleshooting
No backlighting.
•
3:59:48
40
Troubleshooting
Radio stations can’t
be tuned in properly.
•
The antenna is positioned or connected poorly. Check the antenna
connection and adjust its position.
•
The signal strength of the radio station is too weak. Tune to the
station manually.
•
No stations have been preset or preset stations have been cleared
(when tuning by scanning preset channels). Preset some radio
stations, see page 29 for details.
Preset stations cannot •
be received.
•
The memorized stations are cleared. Memorize the stations again.
•
No antenna is connected. Connect the antenna.
•
The antenna is not positioned for the best reception. Change the
position of the antenna.
•
The remote control is not pointed directly at the unit. Point the
remote directly at the unit.
•
The remote control is too far from the unit. Use the remote within 23
feet (7 m) of the unit.
•
There is an obstacle in the path between the remote control and the
unit. Remove the obstacle.
•
The batteries in the remote control are flat. Replace the batteries
with new ones.
‘CHECK CABLE’
appears on the
display window.
•
Subwoofer Amplifier’s power cord is not connected. Check and
connect it correctly.
•
System cable is disconnected or connected incorrectly. Check and
connect it correctly.
‘M-PROTECTION’
or ‘S-PROTECTION’
appears on the
display window.
•
Improper connections may damage the system due to short-circuit.
Ensure that the speaker cables are connected correctly.
Poor FM reception.
The remote control
doesn’t work well / at
all.
6
An incorrect station frequency has been memorized. Memorize the
correct station frequency.
Troubleshooting
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 40
2013-02-25
3:59:48
Appendix
41
7
Appendix
Trademarks and Licenses
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI licensing LLC.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
DivX®, DivX Certified® and associated logos are
trademarks of Rovi Corporation or its subsidiaries
and are used under license.
7
Appendix
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 41
2013-02-25
3:59:48
42
Appendix
Specifications
General
Tuner
• Power requirements: Refer to main label.
• FM Tuning Range:
87.50 to 108.00 MHz or 87.5 to 108.0 MHz
• Power consumption: Refer to main label.
• Dimensions (W x H x D): 430 x 150 x 312 mm
Amplifier
• Net Weight (Approx.): 8.55 kg
(AV Receiver System : 4.52 kg,
Subwoofer Amplifier: 4.03 kg)
• Stereo mode: 220 W x 2 (6 Ω at 1 kHz)
• Surround mode:
Front: 220 W x 2 (6 Ω at 1 kHz)
Center: 220 W (6 Ω at 1 kHz)
Surround 1,2: 120 W x 4 (12 Ω at 1 kHz)
Subwoofer: 220 W x 2 (6 Ω at 1 kHz)
• Operating temperature:
41 °F to 95 °F (5 °C to 35 °C)
• Operating humidity: 5 % to 90 %
• Bus Power supply (USB): DC 5 V
500 mA
Inputs/ Outputs
• AUDIO OUT:
2.0 Vrms (1 kHz, 0 dB), 600 Ω,
RCA jack (L, R) x 1
• VIDEO OUT:
1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1
• HDMI IN 1/2/3, HDMI OUT (video/audio):
19 pin (HDMI standard, Type A)
• OPTICAL IN 1/2: 3 V (p-p), Optical jack x 2
• COAXIAL IN 1/2: 3 V (p-p), Coaxial jack x 2
• AV IN 1/2:
AUDIO: 2.0 Vrms (1 kHz, 0 dB), 600 Ω,
RCA jack (L, R) x 2
VIDEO: 1.0 V (p-p), 75 Ω,
sync negative, RCA jack x 2
7
• PORT. IN: 0.5 Vrms ( 3.5 mm stereo jack)
Appendix
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 42
2013-02-25
3:59:48
Appendix
43
Speakers
• Front speaker
• Center speaker
Type: 2 Way 3 speaker
Type: 2 Way 3 speaker
Impedance: 6 Ω
Impedance: 6 Ω
Rated Input Power: 220 W
Rated Input Power: 220 W
Max. Input power: 440 W
Max. Input power: 440 W
Net Dimensions (W x H x D):
255 x 1014 x 314 mm
Net Dimensions (W x H x D):
545 x 206 x 194 mm
Net Weight: 19.3 kg
Net Weight: 5.8 kg
• Surround speaker
• Subwoofer
Type: 1 Way 1 speaker
Type: 1 Way 1 speaker
Impedance: 12 Ω
Impedance: 6 Ω
Rated Input Power: 120 W
Rated Input Power: 220 W
Max. Input power: 240 W
Max. Input power: 440 W
Net Dimensions (W x H x D):
193 x 256 x 200 mm
Net Dimensions (W x H x D):
386 x 482 x 344 mm
Net Weight: 2.7 kg
Net Weight: 11.4 kg
Designs and specifications are subject to change without prior notice.
7
Appendix
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 43
2013-02-25
3:59:48
NA9530P-FH.DZAFLLK_ENG_MFL67781456.indd 44
2013-02-25
3:59:48
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
