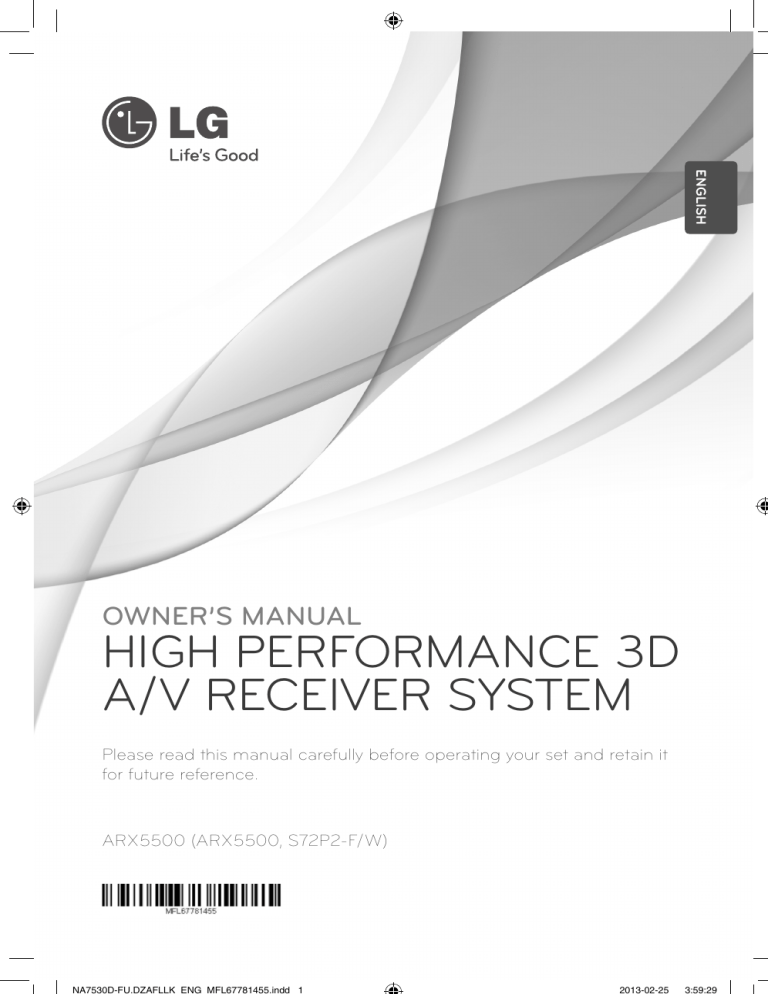

OWNER’S MANUAL
HIGH PERFORMANCE 3D
A/V RECEIVER SYSTEM
Please read this manual carefully before operating your set and retain it
for future reference.
ARX5500 (ARX5500, S72P2-F/W)
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 1
2013-02-25
3:59:29
2
Getting Started
Safety information
1
CAUTION
Getting Started
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with
arrowhead symbol within an
equilateral triangle is intended to
alert the user to the presence of
uninsulated dangerous voltage
within the product’s enclosure
that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
confined space such as a book case or similar unit.
CAUTION: The apparatus should not be exposed to
water (dripping or splashing) and no objects filled
with liquids, such as vases, shall be placed on the
apparatus.
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 2
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing the
product on a bed, sofa, rug or other similar surface.
This product should not be placed in a builtin installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specification page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. hen installing the product, ensure
that the plug is easily accessible.
2013-02-25
3:59:29
Getting Started
This device is equipped with a portable battery or
accumulator.
Copyrights
It is forbidden by law to copy, broadcast, show,
broadcast via cable, play in public, or rent
copyrighted material without permission. This
product features the copy protection function
developed by Macrovision. Copy protection signals
are recorded on some discs. When recording and
playing the pictures of these discs picture noise
will appear. This product incorporates copyright
protection technology that is protected by U.S.
patents and other intellectual property rights. Use
of this copyright protection technology must be
authorized by Macrovision, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
1
Getting Started
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, fire or the like.
3
CONSUMERS SHOULD NOTE THAT NOT ALL
HIGH DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE
ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN
CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER
SWITCH THE CONNECTION TO THE ‘STANDARD
DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS
REGARDING OUR TV SET COMPATIBILITY WITH THIS
MODEL 525p AND 625p UNIT, PLEASE CONTACT
OUR CUSTOMER SERVICE CENTER.
You have to set the disc format option to [Mastered]
in order to make the discs compatible with the LG
players when formatting rewritable discs. When
setting the option to Live File System, you cannot
use it on LG players.
(Mastered/ Live File System : Disc format system for
Windows Vista)
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 3
2013-02-25
3:59:29
4
Table of Contents
Table of Contents
1
Getting Started
2
Connecting
2
6
6
6
6
6
7
8
10
11
Safety information
Unique features
Accessories
Introduction
– Symbols Used in this Manual
– About the “ ” Symbol Display
– Required cables
Remote control
Front panel
Rear panel
12
12
13
14
14
16
17
18
19
19
Before connecting
Positioning the system
Connecting speakers
Connecting video devices
– Using an HDMI cable
– Using a composite video cable
Connecting audio devices
Connecting other devices
Connecting the antenna
Connecting portable devices
3
System Setting
20
20
20
20
21
22
Settings
– Adjusting the Setup Settings
– [Language] Menu
– [Display] Menu
– [Audio] Menu
– [Others] Menu
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 4
2013-02-25
3:59:29
Table of Contents
5
1
4
Operating
5
Troubleshooting
23
23
24
24
26
26
26
26
26
27
27
28
28
29
30
32
33
33
33
33
Basic operations
– Selecting the input source
– Adjusting the speaker levels
– Enjoying various sound mode
Radio Operations
– Listening to FM radio
– Improving poor FM reception
– Presetting the Radio Stations
– Deleting the saved stations
Playing the USB device
– Basic operation
– MP3/WMA music file requirement
– Compatible USB Devices
– Listening to music
– Playing a movie file
– Viewing a photo
Other Operations
– Dimmer
– Screen Saver
– Using the Sleep Timer
34
Troubleshooting
6
Appendix
2
35
35
35
36
Trademarks and licenses
Maintenance
– Handling the unit
Specifications
3
4
5
6
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 5
2013-02-25
3:59:29
6
1
Getting Started
Unique features
Introduction
Full HD up-scaling
Symbols Used in this Manual
Getting Started
Views Full HD picture quality with simple setup.
, Note
Indicates special notes and operating features.
3D pass through
Enjoys 3D contents such as 3D movie, game, etc.
> Caution
Indicates cautions for preventing possible damages
from abuse.
Accessories
About the “ ” Symbol Display
Please check and identify the supplied accessories.
“ ” may appear on your TV display during
operation and indicates that the function explained
in this owner’s manual is not available on that
specific media.
A section whose title has one of the following
symbols is applicable only to the disc represented
by the symbol.
Remote control (1)
Batteries (2)
HDMI cable (1)
Coaxial cable (1)
Analog audio cable (1)
Composite video cable
(1)
FM antenna (1)
Speaker cables (2)
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 6
MOVIE
Movie files contained in the
USB
MUSIC
Music files contained in the
USB
Photo files contained in the
USB
2013-02-25
3:59:29
Getting Started
Required cables
7
 Coaxial digital audio cable
The hookup diagrams on the subsequent pages
assume the use of the following connection cables.
1
 USB cable
Getting Started
You must purchase the connection cables
separately if necessary.
 Analog audio cable
White (L)
Red (R)
 HDMI cable
 Composite video cable
Yellow
 Portable cable (
3.5 mm Stereo plug)
 Analog audio/Composite video cable
Yellow (Video)
White (L/audio)
Red (R/audio)
 Optical digital audio cable
, Note
 Turn off the power to all components
before making any connections.
 When connecting an audio/video cable, be
sure to match the color-coded pins to the
appropriate jacks on the components:
yellow (video) to yellow; white (left, audio)
to white; and red (right, audio) to red.
 When connecting optical digital cables,
insert the cable plugs straight in until they
click into place.
 Do not bend or tie optical digital audio
cables.
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 7
2013-02-25
3:59:29
8
Getting Started
Remote control
• • • • • • • • • • a • • • • • • • • •
1 : Switches the unit ON or OFF.
TV control buttons : Controls the TV. (LG TV only)
- 1 : Turns the TV on or off.
1
Getting Started
- AV/INPUT : Switches the TV’s input source
between the TV and other input sources.
INPUT buttons : Selects the input source you want
to use. (page 23)
- AV : Selects the input source connected to AV IN
1/2 jack.
- PORTABLE : Selects the input source connected
to PORT. IN jack.
- OPTICAL : Selects the input source connected
to OPTICAL IN 1/2 jack.
- COAXIAL : Selects the input source connected
to COAXIAL IN 1/2 jack.
- HDMI IN : Selects the input source connected to
HDMI IN 1/2 jack.
- RADIO : Selects the FM tuner.
- USB : Selects the input source connected to USB
port.
CLEAR : Deletes preset stations. (page 26)
REPEAT : Selects a play mode. (Repeat
playback/ Random playback) (page 30)
AUTO DJ : Selects the AUTO DJ mode.
(page 30)
DIMMER : The display window is darkened by half
and the lighting is turned off.
(page 33)
SLEEP : Sets the system to turn off automatically at
a specified time. (page 33)
Battery Installation
Remove the battery cover on the rear of the
Remote Control, and insert two (size AAA) batteries
with 4 and 5 matched correctly.
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 8
2013-02-25
3:59:29
Getting Started
9
• • • • • • • • • • b • • • • • • • • •
• • • • • • • • • • d • • • • • • • • •
C/V (SKIP) : Goes to the next or previous
chapter / track / file.
SETUP : Displays or exits the [SETUP] menu.
c/v (SCAN) : Searches backward or forward.
Z (Stop) : Stops playback.
RETURN (x) : Moves backwards in the menu or
exits the setup menu.
M (Pause) : Pauses playback.
ENTER (
• • • • • • • • • • c • • • • • • • • •
MARKER : Marks music files on the [MUSIC] menu.
(page 29)
SPEAKER LEVEL : Sets the sound level of desired
speaker. (page 24)
PRESET (-/+) : Selects a preset stations.
SOUND EFFECT : Selects a sound effect mode.
(page 25)
VOL (-/+) : Adjusts speaker volume.
MUTE ( ) : Turns off the sound temporarily. Press
the button again to restore the sound.
BASS BLAST : Selects the BASS BLAST sound mode
directly. (page 25)
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 9
) : Acknowledges menu selection.
1
Getting Started
d(Play) : Starts playback.
INFO/DISPLAY ( ) : Displays or exits On-screen
Display. (Page 30, 31, 32)
TUNING (-/+) : Tunes in the desired radio station.
W/S/A/D (up/ down/ left/ right): Selects an
option in the menu.
MONO/STEREO : Selects mono/stereo in FM mode.
(page 26)
• • • • • • • • • • e • • • • • • • • •
0 to 9 numerical buttons : Selects numbered
options in a menu.
2013-02-25
3:59:29
10
Getting Started
Front panel
1
A
B
C
D
E
F
Getting Started
G
H
I
J
A STANDBY/ON (1/!)
Switches the unit ON or OFF.
STOP
Stops playback.
B INPUT SELECTION
Selects the input source.
USER EQ
Sets the USER EQ mode (BASS, MIDDLE and
TREBLE). (page 24)
C Display window
Shows the current status of the unit.
D Lighting
The lighting turns on when the unit is switched
on.
E Remote sensor
F MASTER VOLUME
Adjusts the speaker volume.
Turn MASTER VOLUME clockwise or
counterclockwise.
G MULTI CONTROL
Adjusts the various options.
H USER CONTROL
Sets up USER EQ by using ENTER and PLAY/
PAUSE.
SOUND EFFECT
Selects a sound effect mode. (page 25)
BASS BLAST
Selects the BASS BLAST sound mode directly.
(page 25)
I PORT. IN
Connects a portable device (MP3 player, etc) to
PORT. IN jack.
AV IN 2 (L-AUDIO-R, VIDEO)
Connects the components with analog audio/
video output jacks. (camcorder, video game
console, etc)
J USB port (5 V 0 500 mA)
Connects an USB device to USB port.
ENTER
Acknowledges menu selection.
Switches among sound modes.
PLAY/PAUSE
Starts playback.
Pauses playback, press it again to exit pauses
status.
Moves to the BASS mode if you press PLAY/
PAUSE on the front panel while the “USER EQ” is
displayed in the display window.
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 10
2013-02-25
3:59:29
Getting Started
11
Rear panel
A
B
C
D
1
Getting Started
E
F G H I
A Speakers connectors
Connects the speaker cables.
E HDMI IN 1/2
Connects the component with HDMI output.
B DIGITAL AUDIO IN 1/2
F HDMI OUT TO TV
COAXIAL 1/2
Connects other components with a coaxial
digital audio output.
G AV IN 1 (VIDEO IN, L-AUDIO-R)
Connects the components with analog audio/
video output jacks.
OPTICAL 1/2
Connects other components with an optical
digital audio output.
H OUTPUT (VIDEO OUT, L-AUDIO-R)
Connects the components with analog audio/
video input jacks.
C Cooling fan
D Power cord
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 11
I ANTENNA
FM – Connects the FM wired antenna.
2013-02-25
3:59:30
12
Connecting
Before connecting
Please make sure to disconnect the AC power cord
before making any connection between the unit
and any other device.
Positioning the system
2
Connecting
The following illustration shows an example of
positioning the system. Note that the illustrations
in these instructions differ from the actual unit for
explanation purposes.
B
A
F
D
C
E
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 12
/
Front speaker (L/R)
Place the front speakers to the sides of the monitor
or screen and as flush with the screen surface as
possible.
/ Subwoofer
The position of the subwoofer is not so critical,
because low bass sounds are not highly directional.
But it is better to place the subwoofer near the
front speakers. Turn it slightly toward the center of
the room to reduce the wall reflections.
Unit
> Caution
 Do not stack the speakers
and be careful that the
speaker should not fall down.
Otherwise it may result in the
speaker malfunction and
causing personal injury and/
or property damage.
 Make sure to install the speaker with other
people in order to prevent it from falling
and causing injuries to the installer.
2013-02-25
3:59:30
Connecting
13
2. Connect the wires to the speakers. Connect the
other end of each wire to the correct speaker
according to the color coding.
Connecting speakers
Front speaker (L)
Color
Speaker
Position
Black
Orange
Subwoofer
Any front position
Red
Front
Front right
White
Front
Front left
Red
White
2
Orange
> Caution
Red
Black
Subwoofer
Subwoofer
Red
Front speaker (R)
1. Connect the wires to the unit. To connect the
cable to the unit, press each plastic finger pad
to open the connection terminal. Insert the wire
and release the finger pad.
Connecting
To connect the cable to the speakers, press
each plastic finger pad to open the connection
terminals on the base of each speaker. Insert
the wire and release the finger pad.
 Be careful to make sure children not to put
their hands or any objects into the *speaker
duct.
*Speaker duct : A hall for plentiful bass
sound on speaker cabinet (enclosure).
 The speakers contain magnet parts, so color
irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.
Connect the black end of each wire to the
terminals marked -(minus) and the other end to
the terminals marked + (plus).
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 13
2013-02-25
3:59:30
14
2
Connecting
Connecting video
devices
1. Connect the HDMI IN 1/2 jack on AV Receiver
System to your video device with HDMI OUT
jack using HDMI cable.
You can watch the input image from your video
device. There are two ways of connecting your
video device to AV Receiver System.
3. Set the input source to HDMI (page 23).
2. Connect the HDMI OUT TO TV jack on AV
Receiver System to the HDMI IN jack on your TV.
Using an HDMI cable
Connecting
Since HDMI offers both audio and video signal over
one cable, you can enjoy them without additional
audio cable.
DVD, Blu-ray disc player etc.
HDMI cable
HDMI cable
TV
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 14
2013-02-25
3:59:30
Connecting
, Note
 HDMI is the abbreviated name for High
Definition Multimedia Interface. It is an
interface which transmits video and audio
signals in digital format. If a connected
HDMI device does not accept the audio
output of the unit, the HDMI device’s audio
sound may be distorted or may not output.
15
Resolution Setting
The unit provides several display resolutions
for HDMI OUT TO TV jack. You can change the
resolution by using [Setup] menu.
1. Press SETUP.
The [Setup] menu appears.
 When you use HDMI connection, you can
change the resolution for the HDMI output.
(Refer to “Resolution Setting”)
2
- Try switching off the HDMI/DVI device and
this unit. Next, switch on the HDMI/DVI
device and leave it for around 30 seconds,
then switch on this unit.
2. Use W/S to select [Display] option then press
D to move to the second level.
Connecting
 When you connect a HDMI or DVI
compatible device make sure of the
followings :
- The connected device’s video input is set
correctly for this unit.
- The connected device is compatible with
720 x 576i (or 480i), 720 x 576p (or 480p),
1280 x 720p, 1920 x 1080i or 1920 x 1080p
video input.
 Not all HDCP-compatible HDMI or DVI
devices will work with this unit.
3. Use W/S to select the [Resolution] option then
press D to move to the third level.
 The picture will not be displayed properly
with non-HDCP device.
 This unit does not playback and TV screen is
changed to black screen.
 If there are noises or lines on the screen,
please check the HDMI cable (length is
generally limited to 4.5 m(15 ft).
 Changing the resolution when the
connection has already been established
may result in malfunctions. To solve the
problem, turn off the unit and then turn it
on again.
 When the HDMI connection with HDCP
is not verified, TV screen is changed to
black screen. In this case, check the HDMI
connection, or disconnect the HDMI cable.
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 15
4. Use W/S to select the desired resolution then
press ENTER ( ) to confirm your selection.
, Note
If your TV does not accept the resolution you
have to set on the unit, you can set resolution
to 576p (or 480p) as follows :
Press Z for more than 5 seconds.
2013-02-25
3:59:30
16
Connecting
Using a composite video cable
To enjoy both sounds and pictures from your
device, you have to connect analog audio cable as
well as composite video cable.
Audio cable
1. Connect the VIDEO IN jack on AV Receiver
System to the VIDEO OUT jack on your video
device using a composite video cable.
2. Connect the left and right AUDIO IN jacks of
AV Receiver System to the left and right AUDIO
OUT jacks on your video device using an audio
cables.
3. Connect the VIDEO OUT jack on your AV
Receiver System to the VIDEO IN jack on your
TV.
2
Connecting
4. Set the input source to AV 1(page 23).
, Note
Video cable
DVD, Blu-ray
disc player
etc
When connecting an audio/video cable, be
sure to match the color-coded pins to the
appropriate jacks on the components: yellow
(video) to yellow; white (left, audio) to white;
and red (right, audio) to red.
Video
cable
TV
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 16
2013-02-25
3:59:30
Connecting
17
1. Connect AV IN 1, COAXIAL 1/2 or OPTICAL
1/2 jack on AV Receiver System to your audio
device’s OUTPUT jack you want.
Connecting audio
devices
You can hear the sound from your TV, DVD player,
Blu-ray player, CD player, etc.
It is not necessary to connect all the cables.
Connect AV Receiver System to an AV IN, a COAXIAL
or an OPTICAL jack on your device you want to
connect.
2. Set the input source to AV IN 1, COAXIAL 1/2 or
OPTICAL 1/2 you connect (page 23).
, Note
2
Connecting
When connecting an audio/video cable, be
sure to match the color-coded pins to the
appropriate jacks on the components: yellow
(video) to yellow; white (left, audio) to white;
and red (right, audio) to red.
Optical cable
Audio
cable
Coaxial
cable
or
DVD, Blu-ray disc player
etc.
or
TV
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 17
2013-02-25
3:59:30
18
Connecting
Connecting other
devices
You can easily connect other devices (camcorder,
game console, etc) to the jacks on the front panel
of AV Receiver System.
Video cable
2
1. Connect the VIDEO IN jack on the front panel of
AV Receiver System to the VIDEO OUT jack on
your device using a video cable.
2. Connect the left and right AUDIO IN jacks on
the front of AV Receiver System to the audio left
and right OUT jacks on your device using an
audio cables.
3. Connect the VIDEO OUT jack on the back panel
of AV Receiver System to the VIDEO IN jack on
your TV.
Connecting
4. Set the input source to AV 2 (page 23).
TV
, Note
When connecting an audio/video cable, be
sure to match the color-coded pins to the
appropriate jacks on the components: yellow
(video) to yellow; white (left, audio) to white;
and red (right, audio) to red.
Audio cable
Video cable
Camcorder, game console, etc.
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 18
2013-02-25
3:59:30
Connecting
19
Connecting the
antenna
Connecting portable
devices
1. Connect the FM wire antenna to the FM
antenna connector.
1. Connect the PORT. IN jack on AV Receiver
System to the head phone or LINE OUT jack on
your portable device (MP3 player, etc.) using a
portable cable ( 3.5 mm stereo plug).
2
Connecting
FM wire antenna
2. Set the input source to FM tuner (page 23).
, Note
MP3 player etc.
Portable cable
Be sure to fully extend the FM wire antenna.
After connecting the FM wire antenna, keep it
horizontal.
2. Set the input source to PORTABLE (page 23).
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 19
2013-02-25
3:59:30
20 System Setting
Settings
[Language] Menu
Menu Language
Adjusting the Setup Settings
You can change the settings of the unit in the
[Setup] menu.
1. Press SETUP.
The [Setup] menu appears.
Select a language for the [Setup] menu and onscreen display.
[Display] Menu
TV Aspect
Select which screen aspect to use based on the
shape of your TV screen.
[4:3]
3
Select when a standard 4:3 TV is connected.
System Setting
2. Use W/S to select the first setup option, and
press D to move to the second level.
[16:9]
Select when a 16:9 wide TV is connected.
Display Mode
The Display Mode setting works only when the TV
Aspect mode is set to 4:3.
[Letterbox]
3. Use W/S to select a second setup option, and
press D to move to the third level.
Displays a wide picture with bands on the
upper and lower portions of the screen.
[Panscan]
Automatically displays the wide picture on
the entire screen and cuts off the portions
that do not fit.
4. Use W/S to select a desired setting, and press
ENTER ( ) to confirm your selection.
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 20
2013-02-25
3:59:30
System Setting
Resolution
[Audio] Menu
Sets the output resolution of the HDMI video signal.
Refer to “Resolution Setting” for details about the
resolution (page 15).
Speaker Setup
[Auto]
If the HDMI OUT jack is connected to
TVs providing display information (EDID),
automatically selects the resolution best
suited to the connected TV.
21
Make the following settings for the built-in 2.2
channel surround speaker.
1. Select [Speaker Setup] on the [Audio] menu.
2. Press ENTER ( )
The [SPEAKER] menu appears.
[576i] or [480i]
Outputs 576 (or 480) lines of interlaced video.
[576p] or [480p]
3
[720p]
Outputs 720 lines of progressive video.
[1080i]
Outputs 1080 lines of interlaced video.
3. Use A/D to select the desired speaker.
4. Adjust options using W/S/A/D buttons.
5. After adjusting the desired options, press
RETURN(x). The menu moves to the previous
screen.
[1080p]
[Speaker]
Outputs 1080 lines of progressive video.
Select a speaker that you want to adjust.
System Setting
Outputs 576 (or 480) lines of progressive
video.
, Note
Certain speaker settings are prohibited by the
Dolby Digital licensing agreement.
[Size]
Since the speaker settings are fixed, you
cannot change the settings.
[Volume]
Press A/D to adjust the output level of the
selected speaker.
- Front L/R : 0 to -5
- SubWoofer 1/2: 5 to -5
, Note
There is the other way to adjust the speaker
levels. Refer to page 24.
[Distance]
Adjust the distance between each speaker
and the listening position.
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 21
2013-02-25
3:59:30
22 System Setting
[Speaker Test Start] / [Speaker Test Stop]
Select [Speaker Test Start] by using
the W/S and press ENTER ( ).
Press ENTER ( ) again to stop. Adjust the
volume to match the volume of test signals
memorized in the system.
DRC (Dynamic Range Control)
3
When a title encoded in Dolby Digital or Dolby
Digital Plus is playing back, you may wish to
compress the dynamic range of the audio output
(the difference between the loudest sounds and
the quietest ones). This allows you to listen to a
movie at a lower volume without losing clarity of
sound. Set [DRC] to [On] for this effect.
[Others] Menu
DivX(R) VOD
ABOUT DIVX VIDEO : DivX® is a digital video
format created by DivX, LLC, a subsidiary of Rovi
Corporation. This is an official DivX Certified® device
that plays DivX video. Visit divx.com for more
information and software tools to convert your files
into DivX video.
System Setting
ABOUT DIVX VIDEO-ON-DEMAND :This DivX
Certified® device must be registered in order to play
purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX
VOD section in your device setup menu. Go to vod.
divx.com for more information on how to complete
your registration.
HD AV Sync
[Register]
Sometimes Digital TV encounters a delay between
picture and sound. If this happens you can
compensate by setting a delay on the sound so
that it effectively ‘waits’ for the picture to arrive: this
is called HD AV Sync. Use W/S (on the remote
control) to scroll up and down through the delay
amount, which you can set at anything between 0
ms and 300 ms.
Displays the registration code of your unit.
[Deregister]
Deactivate your unit and display the
deactivation code.
, Note
This function is operated only on the source of
USB.
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 22
2013-02-25
3:59:30
Operating 23
Basic operations
Selecting the input source
This section explains how to select the input source
(i.e., the AV component that you want to listen to or
watch).
It is necessary to connect the equipment you want
to enjoy such as DVD, Blu-ray disc player, USB etc.
By using the knob on the unit
1. Press 1/! (STANDBY/ON) on the unit.
2. Select a source by using INPUT SELECTION on
the unit. The selected source appears on the
display window.
By using the remote control
1. Press 1 on the remote control.
2. Select a source by pressing the button on the
remote control once or twice.
To select
Button
Component connected to AV
IN 1/2 jack
AV
Portable device connected to
PORT. IN jack
PORTABLE
Component connected to
OPTICAL IN 1/2 jack
OPTICAL
Component connected to
COAXIAL IN 1/2 jack
COAXIAL
Component connected to AV
IN 1 jack
AV 1
FM radio
RADIO
Component connected to AV
IN 2 jack
AV 2
USB device connected to USB
port
USB
Portable device connected to
PORT. IN jack
PORTABLE
Component connected to
OPTICAL IN 1 jack
OPTICAL 1
Component connected to
OPTICAL IN 2 jack
OPTICAL 2
Component connected to
COAXIAL IN 1 jack
COAXIAL 1
Component connected to
COAXIAL IN 2 jack
COAXIAL 2
Component connected to
HDMI IN 1 jack
HDMI IN - 1
Component connected to
HDMI IN 2 jack
HDMI IN - 2
FM radio
FM
USB device connected to USB
port
USB
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 23
4
Operating
Display
Component connected to
HDMI 1/2 jack
HDMI IN
To select
2013-02-25
3:59:30
24 Operating
Adjusting the speaker levels
Enjoying various sound mode
You can adjust the level of each speaker. These
settings are applied to all sound fields. You can
adjust from -5 to +5 in 1 step.
You can enjoy various sound mode. For details, refer
to Setting the USER EQ, Sound effect and Bass Blast.
1. Press SPEAKER LEVEL on the remote control
repeatedly to select a desired speaker to set.
Setting the USER EQ
The indicator changes cyclically in the display
window as follows.
SW -> FL -> FR
2. Press VOL -/+ to adjust the sound level of the
selected speaker while the indicator is displayed
in the display window.
4
You can listen to music with desired sound effect
by adjusting the BASS, MIDDLE and TREBLE.
1. Press USER EQ on the front panel.
“USER EQ” appears on the display window.
2. Press PLAY/PAUSE on the front panel while the
“USER EQ” is displayed in the display window.
3. Select the BASS, MIDDLE or TREBLE by pressing
ENTER on the front panel.
Display
Description
SW
Subwoofer 1,2 (-5 to +5)
4. Rotate MULTI CONTROL on the front panel to
set sound level.
FL
Front speaker (left) (-5 to 0)
5. Press PLAY/PAUSE on the front panel to finish
the settings.
FR
Front speaker (right) (-5 to 0)
Operating
3. Repeat and adjust the sound level of the other
speakers.
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 24
2013-02-25
3:59:30
Operating 25
, Note
Sound effect
This system has a number of preset sound effects.
You can select a suitable sound effect. Press
SOUND EFFECT on the remote control repeatedly
until the desired sound effect appears on the
display window.
 In some of surround modes, some speakers,
there’s no sound or low sound. It depends
on the mode of surround and the source of
audio, it is not defective.
Display
Description
 You may need to reset the surround mode,
after switching the input, sometimes even
after the sound track changed.
NATURAL
You can enjoy comfortable
and natural sound.
 Depending on region, specific Local
specialization equalizer is selected.
Local
Regionally optimized sound
effect. (DANGDUT/ ARABIC/
PERSIAN/ INDIA/ REGUETON/
MERENGUE/ SAMBA/ SALSA/
CUMBIA/ AFRO HIP HOP)
specialization
equalizer
AUTO EQ
CLASSIC
JAZZ
ROCK
This program lends an
enthusiastic atmosphere to
the sound, giving you the
feeling you are at an actual
rock, pop, jazz or classic
concert.
MP3-OPT
This function is optimized
for compressible MP3 file. It
improves the treble sound.
BASS BLAST
During playback, reinforces
the bass sound.
LOUDNESS
Improves the bass and treble
sound.
3D SOUND
3D Sound features deliver
sound creating a wider
spot so you can enjoy more
immersive and cinematic
surround sound.
BYPASS
You can enjoy the sound
without equalizer effect.
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 25
You can set the BASS BLAST sound mode directly.
Press BASS BLAST repeatedly.
Display
Description
BASS BLAST
During playback, reinforces
the bass sound.
BYPASS
You can enjoy the sound
without equalizer effect.
To activate the mute function
4
Operating
POP
Sets the sound equalizer to
the mode that is the most
similar to the genre which is
included in the MP3 ID3 tag
of song files.
Bass Blast
Press MUTE ( ) on the remote control. "MUTE"
appears on the display window.
To cancel, press MUTE ( ) on the remote control
again or change the volume level.
2013-02-25
3:59:30
26 Operating
Radio Operations
Presetting the Radio Stations
You can preset 50 stations for FM.
Be sure that FM aerial is connected.
Before tuning, make sure to turn down the volume.
1. Tune in to a radio station.
Listening to FM radio
1. Press RADIO on the remote control or turn
INPUT SELECTION on the unit until FM appears
on the display window.
The last received station is tuned in.
2. Automatically :
Press and hold TUNING. -/+ for about 2
seconds until the frequency indication starts to
change, then release. Scanning stops when the
unit tunes in a station.
Manually :
4
Press TUNING. -/+ on the remote control
repeatedly or turn MULTI CONTROL on the
unit.
Operating
3. Adjust the volume by pressing VOL+/- on the
remote control or turn MASTER VOLUME on
the unit.
Improving poor FM reception
Press MONO/STEREO on the remote control. This
will change the tuner from stereo to mono and
usually improve the reception.
2. Press ENTER ( ). A preset number will blink in
the display window.
3. Press PRESET +/- to select the preset number
you want.
4. Press ENTER (
). The station is stored.
5. Repeat steps 1 to 4 to store the other stations.
6. To listen to a preset station, press PRESET +/- or
0 to 9 numerical buttons.
Deleting the saved stations
Each of the saved stations
1. Select the saved station you want to delete.
2. Press CLEAR. A preset number will blink on the
display window.
3. Press CLEAR again while the preset number is
displayed.
all the saved stations
1. Press and hold CLEAR on the remote control for
about two seconds. “ERASE ALL” will blink on the
display window.
2. Press CLEAR again while “ERASE ALL” is
displayed. All the saved stations are cleared.
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 26
2013-02-25
3:59:30
Operating 27
Playing the USB
device
This unit can play movie, music and photo files
contained in the USB device.
To stop playback
MUSIC MOVIE PHOTO
Press Z during playback.
To pause playback
MUSIC MOVIE
Basic operation
1. Connect the USB device to the USB port until it
fits into the port.
Press M during playback.
Press d to resume playback.
To scan forward or backward
MUSIC MOVIE
Press c or v to play fast forward or fast reverse
during playback.
You can change the various playback speeds by
pressing c or v repeatedly.
Press d to return to normal speed.
MUSIC MOVIE
2. Select the USB function by pressing USB
on the remote control or by turning INPUT
SELECTION until "USB" appears on the display
window.
The music files start playing automatically if there
are only music files in the USB device.
If there are different types of files in the USB, you
should select one from [USB] menu.
During playback, press C or V to go to the
next chapter/track/file or to return to the beginning
of the current chapter/track/file.
4
Operating
To skip to the next/previous chapter/
track/file
Press C twice briefly to step back to the previous
chapter/track/file.
During playback, press C or V to go to the
previous/next file.
[USB] menu
3. Select [Music], [Movie] or [Photo] by using A/
D and press ENTER ( ).
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 27
2013-02-25
3:59:30
28 Operating
To slow down the playing speed
MOVIE
While the playback is paused, press v repeatedly
to play various speeds of slow motion.
Compatible USB Devices
 MP3 Player : Flash type MP3 player.
 USB Flash Drive : Devices that support USB 2.0 or
USB 1.1.
 Some USB device may not work with this unit.
Resume playback
MUSIC MOVIE
The unit records the point where you pressed the
Z depending on the file.
If “MZ” appears on the screen briefly, press d to
resume playback (from the scene point).
If you press Z twice, “Z” appears on the screen. The
unit will clear the stopped point.
Removing the USB device from the
unit
4
1. Choose a different function/mode or press Z
twice in a row.
2. Remove the USB device from the unit.
Operating
MP3/WMA music file
requirement
Music file compatibility with this unit is limited as
follows :
 Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
 Bit rate : within 32 to 320 kbps (MP3),40 to 192
kbps (WMA)
USB device requirement
 Devices which require additional program
installation connected to a computer, are not
supported.
 Do not extract the USB device while in operation.
 For a large capacity USB, it may take longer than
a few minute to be searched.
 Regular back up is recommended to prevent
data loss.
 If you use a USB extension cable or USB hub, the
USB device is not recognized.
 Using NTFS file system is not supported.
(Only FAT(16/32) file system is supported.)
 This unit is not supported when the total
number of files is 1000 or more.
 External HDD, Multi Media Card readers, Locked
devices, or hard type usb devices are not
supported.
 USB Port of the unit cannot be connected to PC.
The unit cannot be used as a storage device.
 Digital camera and mobile phone are not
supported.
 Support Version : v2, v7, v8, v9
 Maximum files : Under 999
 File extensions : “.mp3”/ “.wma”
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 28
2013-02-25
3:59:31
Operating 29
Listening to music
Playing your favorite music
You can play music files contained in a USB device.
It enables you to listen to music by marking your
favorite files.
1. Select [Music] by using A/D on the [USB]
menu.
2. Press ENTER( ). The music files start playing
automatically.
1. During playback, select your favorite files by
using W/S.
2. Press MARKER. The [ indicator appears on the
[MUSIC] menu.
3. Repeat steps 1-2.
Using the [Music] menu
4. Press d or ENTER(
).
The play mode is displayed on the [MUSIC]
menu.
Mark Play
Current Play
5. Select the desired play mode by using W/S.
[Mark Play] : Plays the marked files in order.
Options
Description
[Current Play] : Plays all the files in a folder in
order.
Buttons
UP FOLDER
Select All
Returning to the
upper folder.
Marking all the
files.
Deselect All
Deselecting all
the marked files.
;/.
Moving to the
previous or next
page.
).
, Note
Select a
desired
option by
using
W/S/A/D.
[ Mark
Marking the
selected files.
MARKER
wsad
Move
Moving to
another file.
W/S/A/D
Select
Activating a file.
ENTER (
x Close
Returning to the
[USB] menu.
 If you want to delete a marker, select the
marked file, and then press MARKER again.
4
Operating
6. Press ENTER(
 The markers are also cleared when the USB
device is removed, the unit is switched to
power off or the function is switched to the
others.
)
RETURN
(x)
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 29
2013-02-25
3:59:31
30 Operating
Playing repeatedly or randomly
Playing a movie file
During playback, press
select a desired mode.
You can play movie files contained in a USB device.
Display
REPEAT
REPEAT repeatedly to
1. Select [Movie] using A/D on the [USB] menu.
Description
The current file will be played
repeatedly.
REPEAT ALL
All the files will be played
repeatedly.
RANDOM
The files will be played in
random order.
Off
(No display)
2. Select a file using W/S/A/D, and press d
or ENTER ( ) to play the file.
Displaying content information onscreen
You can display and adjust various information and
settings about the content.
Returns to normal playback.
AUTO DJ playback
AUTO DJ blends the end of one song into the
beginning of another for seamless playback.
4
Operating
During playback, press AUTO DJ repeatedly to
select a desired mode.
Display
Description
AUTO DJ
RANDOM
The music is played randomly
on this mode.
AUTO DJ
SEQUENTIAL
The music is played repeatedly
on this mode.
AUTO DJ OFF
Returns to normal playback.
1. During playback, press INFO/DISPLAY ( ) to
show various playback information.
a Title – Current title number /
Total number of titles
b Time – Elapsed playing time /
Total playback time
c Audio – Selected audio language or channel
d Subtitle – Selected subtitle
e Code Page – Selected subtitle code page
2. Select an option using W/S.
3. Use A/D to adjust the selected option value.
4. Press INFO/DISPLAY ( ) or RETURN (x) to
exit the On-Screen display.
, Note
If no button is pressed for a few seconds, the
on-screen display disappears.
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 30
2013-02-25
3:59:31
Operating
31
Playing from selected time
Movie file requirement
1. Press INFO/DISPLAY ( ) during playback. The
time search box shows the elapsed playing
time.
Movie file compatibility with this unit is limited as
follows.
2. Select the [Time] option and then input the
required start time in hours, minutes, and
seconds from left to right.
For example, to find a scene at 2 hours, 10
minutes, and 20 seconds, enter “21020”.
3. Press ENTER (
selected time.
) to start playback from
Hearing different audio
1. During playback, press INFO/DISPLAY ( ) to
display the On-Screen display.
2. Use W/S to select the [Audio] option.
3. Use A/D to select desired audio language,
audio track or audio channel.
1. During playback, press INFO/DISPLAY ( ) to
display the On-Screen display.
 The file name of the DivX subtitle should be
entered within 45 characters.
 If there is impossible code to express in the
DivX file, it may be displayed as “ _ “ mark on the
display.
 Frame rate : less than 30 fps.
 If the video and audio structure of recorded
files is not interleaved, either video or audio is
outputted.
 Playable movie file : “.avi”, “.mpg”, “.mpeg”, “.divx”
 Playable Subtitle format : SubRip (*.srt/ *.txt),
SAMI (*.smi), SubStation Alpha (*.ssa/ *.txt),
MicroDVD (*.sub/ *.txt), SubViewer 2.0 (*.sub/
*.txt), Vobsub (*.sub)
 Playable Codec format :
“DIVX3.11”, “DIVX4”, “DIVX5”, “DIVX6”,
“MP4V3”, “3IVX”
3. Use A/D to select desired subtitle language.
 Playable Audio format : “AC3”, “PCM”, “MP3”, “WMA”.
(The DTS is not supported. In case of DTS audio
format, audio is not output.)
4. Press RETURN (x) to exit the On-Screen
display.
 Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
Changing subtitle code page
 Bit rate : within 32 to 320 kbps (MP3), 40 to 192
kbps (WMA)
If the subtitle is not displayed properly, you can
change the subtitle code page to view the
subtitle file properly.
 If the name of movie file is different from that of
the subtitle file, during playback of a DivX file,
subtitle may not be display.
1. During playback, press INFO/DISPLAY ( ) to
display the On-Screen display.
 If you play a DivX file differ from DivX spec, it
may not operate normally.
2. Use W/S to select the [Subtitle] option.
4
Operating
Selecting a subtitle language
 Available resolution: within 720 x 576 (W x H)
pixels.
2. Use W/S to select the [Code Page] option.
3. Use A/D to select desired code option.
4. Press RETURN (x) to exit the On-Screen
display.
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 31
2013-02-25
3:59:31
32 Operating
Viewing a photo
To stop a slide show
You can view photo files contained in a USB device.
Press Z during slide show.
1. Select [Photo] using A/D on the [USB] menu.
The [PHOTO] menu appears.
To pause a slide show
Press M during slide show. Press d or M to re-start
the slide show.
To skip to the next/previous photo
While viewing a photo in full screen, press A or D
to go to the previous or next photo.
Options while viewing a photo
4
You can use various options while viewing
a photo in full screen.
Operating
Options
Description
Buttons
UP FOLDER
Returning to the
upper folder.
;/.
Moving to the
previous or next
page.
Select a
desired
option by
using
W/S/A/D.
d Slide
Show
Viewing a slide
show.
d
wsad
Move
Moving to
another file or
content.
W/S/A/D
Select
Viewing a
particular file.
ENTER (
x Close
Returning to the
[USB] menu.
Description
d Slide
Show
Viewing a slide
show.
Select
Viewing a
particular file.
2. Select an option using W/S/A/D.
)
RETURN
(x)
a Current photo/Total number of photos –
Use A/D to view previous/next photo.
2. Select a file using W/S/A/D, and press d
or ENTER ( ) to play the file.
Options
1. While viewing a photo in full screen, press
INFO/DISPLAY ( ) to display the option menu.
b Slide Show – Press ENTER ( ) to start or
pause slide show.
Buttons
c Speed – Use ENTER ( ) to select a delay
time between photos in a slide show.
d
d Rotate – Press ENTER ( ) to rotate the photo
clockwise/counterclockwise.
ENTER (
)
e Go to list – Press ENTER (
menu.
) to return [Photo]
3. Press RETURN (x) or INFO/DISPLAY ( ) to
exit the option menu.
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 32
2013-02-25
3:59:31
Operating 33
Photo file requirement
Using the Sleep Timer
Photo file compatibility with this unit is limited as
follows :
You can set the unit to turn off automatically at a
specified time. Press SLEEP repeatedly.
 Max pixel in width : 2760 x 2048 pixel
 Maximum files : Under 999
The indicator changes cyclically in the display
window as follows.
 Some files may not operate due to a different
recording format or the condition of file.
SLEEP 180 -> 150 -> 120 -> 90 -> 80 -> 70 -> 60 ->
50 -> 40 -> 30 -> 20 -> 10 -> Off (No display)
 File extensions: “.jpg”, “.jpeg”
To check the remaining time, press SLEEP. The
remaining time appears on the display window.
Other Operations
Dimmer
To cancel the sleep function, press SLEEP
repeatedly until “SLEEP 10” appears, and then press
SLEEP once again while “SLEEP 10” is displayed.
, Note
When the sleep timer is activated, the display
window dims and the lighting is turned off.
Press DIMMER once. The display window is
darkened by half and the lighting is turned off.
To cancel it, press DIMMER again.
4
Operating
Screen Saver
The screen saver is available only on the USB device
mode. The screen saver appears when you leave
the unit in Stop mode for about five minutes.
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 33
2013-02-25
3:59:31
34 Troubleshooting
Troubleshooting
PROBLEM
No Power
CAUSE & CORRECTION
 The power cord is unpluged.
Plug in the power cord.
 Check the condition by operating other electronic devices.
 The speaker wires are disconnected. Check the speaker connections.
 The volume is set to minimum. Adjust the volume level.
No sound
 Incorrect input source is selected.
Check the input source and select the correct input source.
 The mute function is activated.
Press @MUTE or adjust the volume level to cancel the mute function.
No lighting
 The Dimmer or the Sleep function is activated.
Press DIMMER or SLEEP to cancel the function.
 The antenna is positioned poorly. Adjust its position.
 The signal strength of the radio station is too weak.
Tune to the station manually.
Radio stations cannot
be tuned in properly.  No stations have been preset or preset stations have been cleared (when tuning
by scanning preset channels).
Preset some radio stations, see page 26 for details.
5
Troubleshooting
 The remote control is too far from the unit.
Operate the remote control within about 23 ft (7m).
The remote control
does not work
properly.
 There is an obstacle in the path of the remote control and the unit.
Remove the obstacle.
 The batteries in the remote control are exhausted.
Replace the batteries with new one.
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 34
2013-02-25
3:59:31
Appendix 35
Trademarks and
licenses
Maintenance
Handling the unit
When shipping the unit
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI licensing LLC.
Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.
Keeping the exterior surfaces clean
DivX®, DivX Certified® and associated logos are
trademarks of Rovi Corporation or its subsidiaries
and are used under license.
 Do not use volatile liquids such as insecticide
spray near the unit.
 Wiping with strong pressure may damage the
surface.
 Do not leave rubber or plastic products in
contact with the unit for a long period of time.
Cleaning the unit
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
unit.
6
Appendix
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 35
2013-02-25
3:59:31
36 Appendix
Specifications
General
Power requirements
AC 200 - 240 V, 50 / 60 Hz
Power consumption
70 W
Dimensions (W x H x D)
430 x 144.5 x 330 mm
Net Weight (Approx.)
4.2 kg
Operating temperature
41 °F to 95 °F (5 °C to 35 °C)
Operating humidity
5 % to 90 %
Bus Power Supply
DC 5 V 0 500 mA
Input/Output
ANALOG AUDIO IN
2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 2
ANALOG VIDEO IN
1.0 Vrms (p-p), 75 Ω, sync negative, RCA jack x 2
OPTICAL IN
3.0 Vrms (p-p), Optical jack x 2
COAXIAL IN
3.0 Vrms (p-p), Coaxial jack x 2
PORT. IN
0.5Vrms ( 3.5 mm stereo jack) x 1
HDMI IN/OUT
19 pin (Type A, HDMI™ connector)
AUDIO OUT
2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1
VIDEO OUT
1.0 Vrms (p-p), 75 Ω, sync negative, RCA jack x 1
Tuner
FM Tuning Range
87.5 to 108.0 MHz or 87.50 to 108.00 MHz
6
Appendix
Amplifier
Stereo mode
Surround mode
185 W +185 W (4 Ω at 1 kHz)
Front
185 W x 2 (4 Ω at 1 kHz)
Subwoofer
215 W x 2 (3 Ω at 1 kHz)
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 36
2013-02-25
3:59:31
Appendix 37
Front speakers
Type
2 Way 2 Speaker
Impedance
4Ω
Rated Input Power
185 W
Max. Input Power
370 W
Net Dimensions (WxHxD)
274 x 941 x 277 mm
Net Weight(1EA)
13.8 kg
Subwoofer
Type
1 Way 1 Speaker
Impedance
3Ω
Rated Input Power
215 W
Max. Input Power
430 W
Net Dimensions (WxHxD)
273 x 390 x 364 mm
Net Weight(1EA)
7.4 kg
Designs and specifications are subject to change without prior notice.
6
Appendix
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 37
2013-02-25
3:59:31
NA7530D-FU.DZAFLLK_ENG_MFL67781455.indd
NA7530D-FU.DZAFLLK
ENG MFL67781455.indd 38
2013-02-25
3:59:31
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
