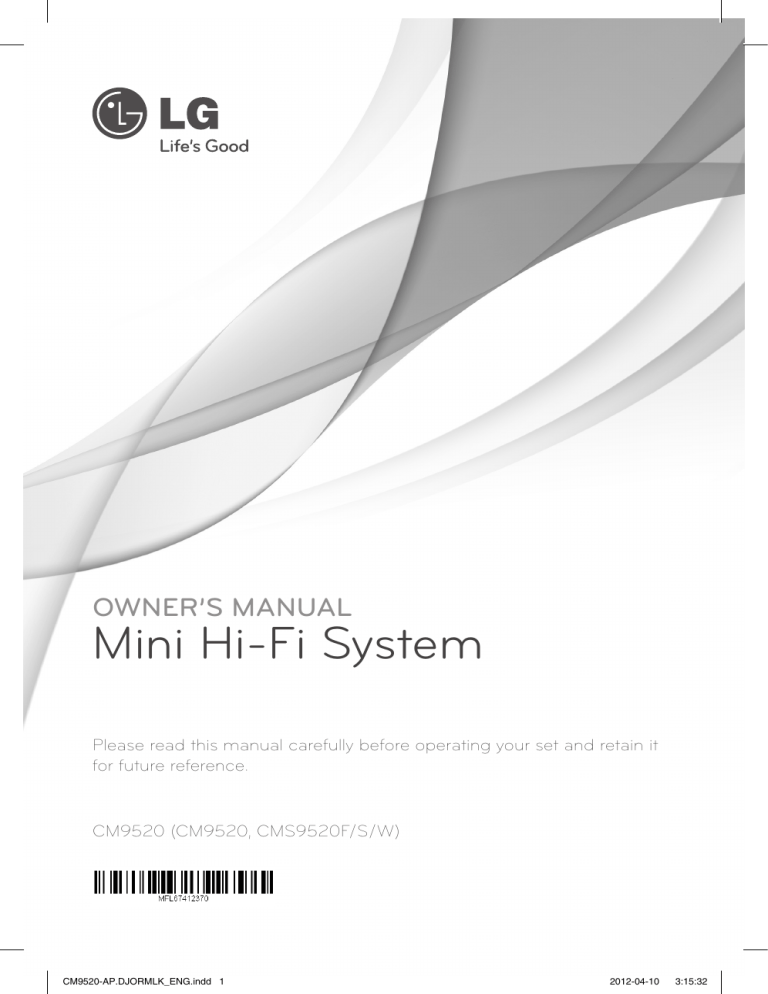

OWNER’S MANUAL
Mini Hi-Fi System
Please read this manual carefully before operating your set and retain it
for future reference.
CM9520 (CM9520, CMS9520F/S/W)
CM9520-AP.DJORMLK_ENG.indd 1
2012-04-10
3:15:32
1
Getting Started
2
Getting Started
Safety Information
1
CAUTION
Getting Started
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing) instructions
in the literature accompanying the
product.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
confined space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CM9520-AP.DJORMLK_ENG.indd 2
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service center.
Use of controls, adjustments or the performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not
try to open the enclosure.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specification page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.
2012-04-10
3:15:32
Getting Started
3
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, fire or the like.
1
Getting Started
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects filled
with liquids, such as vases, shall be placed on the
apparatus.
You have to set the disc format option to [Mastered]
in order to make the discs compatible with the LG
players when formatting rewritable discs. When
setting the option to Live File System, you cannot
use it on LG players.
(Mastered/Live File System : Disc format system for
Windows Vista)
CM9520-AP.DJORMLK_ENG.indd 3
2012-04-10
3:15:32
4
Table of Contents
Table of Contents
1
Getting Started
2
Safety Information
6
Unique Features
6Accesories
6
Playable file Requirement
6
– MP3/WMA music file requirement
6
– Compatible USB Devices
6
– USB device requirement
7
Remote control
8
Front panel
10 Rear panel
2Connecting
11
11
12
12
13
13
13
14
14
Connecting to speakers
– Before connecting
– Attaching the speakers to the unit
– Attaching the woofer cables to the
unit
Optional Equipment Connection
– AUX IN Connection
– PORT. IN Connection
– USB Connection
– Antenna Connection
3Operating
15
15
16
16
17
17
17
17
17
18
18
18
19
19
19
19
19
20
20
20
21
21
22
22
22
22
23
24
24
24
24
25
CM9520-AP.DJORMLK_ENG.indd 4
Basic Operations
– CD/USB Operations
– Selecting a folder and
an MP3/WMA file
– Deleting an MP3/WMA file
Other Operations
– Programmed Playback
– Turn off the sound temporarily
– Displaying file information (ID3 TAG)
– AUTO DJ playback
– Listening to music with latin beat
– DEMO
– Using Microphone
Radio Operations
– Listening to the radio
– Improving poor FM reception
– Presetting the Radio Stations
– Deleting all the saved stations
Sound adjustment
– Setting the surround mode
– Setting the USER EQ
Setting the Clock
– Using your player as an alarm clock
– Sleep Timer Setting
– Dimmer
Advanced Operations
– Playing the iPod/iPhone
– Compatible iPod/iPhone
– Listening to music from your portable
player or external device
– Changing the lighting effect
– Changing the woofer lighting
– Woofer ON/OFF
– Recording to USB
2012-04-10
3:15:32
Table of Contents
5
4Troubleshooting
27Troubleshooting
27 – General
1
5Appendix
28 Trademarks and Licenses
29 General specifications
30 Speaker specifications
31Maintenance
31 – Notes on Discs
31 – Handling the Unit
2
3
4
5
CM9520-AP.DJORMLK_ENG.indd 5
2012-04-10
3:15:32
6
Getting Started
Unique Features
1
Playable file
Requirement
Portable In
Getting Started
Listens to music from your portable device. (MP3,
Notebook, etc)
USB Direct Recording
MP3/WMA music file
requirement
Records music to your USB device.
MP3/WMA file compatibility with this unit is limited
as follows.
Latin beat box
yy Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
Listens to music with locally special beat box.
yy Bit rate : within 32 to 320 kbps (MP3),
40 to 192 kbps (WMA)
Beat lighting
yy Maximum files : Under 999
Listens to music with special lighting effect.
yy File extensions : “.mp3”/ “.wma”
yy CD-ROM file format : ISO 9660/JOLIET
Accesories
yy We recommend that you use Easy-CD Creator,
which creates an ISO 9660 file system.
Please check and identify the supplied accessories.
Compatible USB Devices
yy MP3 Player : Flash type MP3 player.
yy USB Flash Drive :
Devices that support USB2.0 or USB1.1.
FM Antenna (1)
AM Antenna (1)
yy The USB function of this unit does not support
all USB devices.
USB device requirement
yy Devices which require additional program
installation when you have connected it to a
computer, are not supported.
Remote Control (1)
Batteries (2)
yy Do not extract the USB device while in operation.
yy For a large capacity USB, it may take longer than
a few minute to be searched.
yy To prevent data loss, back up all data.
Stacking board (2)
Non-skid pads (1)
yy If you use a USB extension cable or USB hub, the
USB device is not recognized.
yy Using NTFS file system is not supported. (Only
FAT(16/ 32) file system is supported.)
yy This unit is not supported when the total
number of files is 1 000 or more.
yy External HDD, Card readers, Locked devices, or
hard type USB devices are not supported.
yy USB port of the unit cannot be connected to PC.
The unit cannot be used as a storage device.
CM9520-AP.DJORMLK_ENG.indd 6
2012-04-10
3:15:33
Getting Started
Remote
control
• • • • • • a • • • • • • Z ENTER :
1 (Power) : Switches the unit ON
or OFF.
-- Stops playback or recording.
B (Open/Close) : Opens and
closes the disc tray.
-- Chooses an item on IPOD
mode.
-- Searches for a folder of MP3/
WMA files. When a CD/USB
containing MP3/WMA files in
several folders is being played,
press PRESET.FOLDER W/S
to select the folder you want
to play.
-- Chooses a preset number for a
radio station.
FUNCTION : Selects the function
and input source.
MUTE @ : Mutes the sound.
VOL +/- : Adjusts speaker volume.
• • • • • • b • • • • • • PROGRAM/MEMORY :
-- Stores radio stations.
-- Creates a playlist you want to
listen to.
USB REC : USB direct recording.
DISC/USB SKIP : Chooses a
desired CD or USB.
REPEAT (MENU) :
-- Listens to your tracks/files
repeatedly or randomly.
Battery Installation
Remove the battery cover on the
rear of the Remote Control, and
insert two (size AAA) batteries
with 4 and 5 matched
correctly.
CM9520-AP.DJORMLK_ENG.indd 7
-- Moves to the previous menu
on IPOD mode.
TUNING-/+ : Selects the radio
stations.
-- Cancels DELETE function.
d/M (Play/Pause) :
-- Starts or pauses playback.
-- Selects STEREO/MONO.
SOUND EFFECT : Chooses sound
impressions.
1
Getting Started
PRESET.FOLDER W/S :
7
AUTO DJ : Selects the AUTO DJ
mode. (For more information refer
to the page 17)
DELETE : Deletes MP3/WMA files.
• • • • • • c • • • • • • 0 to 9 numerical buttons : Selects
numbered tracks, files, or preset
number.
INFO : Sees informations about
your music. An MP3 file often
come with ID3 tag. The tag gives
the Title, Artist, Album or Time
information.
SLEEP : Sets the system to turn
off automatically at a specified
time.
(Dimmer : The display window
will be darkened by half.)
• • • • • • d • • • • • • REGION EQ : Chooses region
equalizer.
BEAT BOX : Turns beat box on or
off.
C/V (Skip/Search) :
BEAT VOL +/- : Adjusts beat box
volume.
-- Skips Fast backward or
Forward.
TEMPO +/- : Changes beat box’s
tempo.
-- Searches for a section within a
track/file.
: The button is not available for
any function.
2012-04-10
3:15:33
8
Getting Started
Front panel
1
Getting Started
CM9520-AP.DJORMLK_ENG.indd 8
2012-04-10
3:15:33
Getting Started
a TIMER
With the TIMER function you can turn CD, USB
play and TUNER reception on or off at a desired
time.
CLOCK
For setting the clock and checking the time.
SET
Confirms the setting.
j Display window
k Volume knob
Adjusts speaker volume.
l iPod DOCKING SYSTEM
m ENTER
- Selects a folder when searching a file.
- Selects the BASS, MIDDLE, AND TREBLE when
setting USER EQ.
FOLDER
Moves to folder and file selection mode.
b 1/!(POWER)
c DISC/USB SKIP
Chooses a desired CD or USB.
DELETE
Deletes MP3/WMA files. (USB only)
USER EQ
Controls sound register.
Remote control sensor
d LIGHTING EFFECT
Changes lighting effects.
eCD
Selects the CD function.
n FILE SEARCH
Moves to the another file/track.
o USB 1/2 Port
You can play or record sound files by connecting
the USB device.
I
Stops playback or cancels DELETE function.
Y
Prev./Scan
AUX/PORT. IN/IPOD
Selects the AUX, PORT. IN, or iPod function.
p WOOFER LIGHTING/DEMO
- Changes subwoofer’s lighting effect
- Shows demo.
f BASS BLAST
Selects the BASS BLAST or BYPASS sound
directly.
g LG EQ
Chooses locally special equalizer.
hBEAT VOL./SELECT
- Adjusts beat box volume level by rotating the
button.
- Chooses latin beat box.
USB REC
Records to USB.
q WOOFER ON/OFF
rUSB
Selects the USB function.
T ST./MONO
Starts or pauses playback.
Selects Stereo/Mono.
U
Next/Scan
AUTO DJ
Selects the AUTO DJ mode. (For more informaion
refer to the page 17)
TUNER
Selects the TUNER function.
BEAT BOX
Turns beat box on or off.
t Backlightings
BEAT TEMPO./AUTO BPM
- Changes beat box tempo by rotating the
button.
- Selects the AUTO BPM of beat box by pressing
the button.
1
Getting Started
9
s B (Open/Close)
u SOUND EQ
Chooses sound impressions.
v Disc tray
i PORT. IN jack
MIC jack
MIC VOL.
CM9520-AP.DJORMLK_ENG.indd 9
2012-04-10
3:15:33
10
Getting Started
Rear panel
1
Getting Started
a Cooling fan
d AUX IN connectors (L/R)
b SPEAKERS terminal
e ANTENNA (FM, AM)
c WOOFER SYSTEM connectors
(Woofer Light Cable)
f Power cord
CM9520-AP.DJORMLK_ENG.indd 10
2012-04-10
3:15:34
Connecting
Connecting to speakers
11
Positioning the main unit and the
speakers
Rear speaker
Front speaker
Before connecting
You have to position the unit and the speakers
before connecting the speakers. Note that the
illustrations below are differ from the actual unit.
The following illustrations show an example of the
positioning which is the left side of the main unit.
2
Speaker duct
Speaker duct
Connecting
Positioning the speakers
yy The speaker ducts of subwoofer have to be faced
opposite the main unit. Otherwise it may result
in a malfunction of the main unit.
yy The subwoofer have to be placed at a distance
of about 20 mm from the main unit.
Non-skid pad
1. Attach the non-skid pads to the right side of
subwoofer.
2. Lay the subwoofer down as the illustration
above.
Rear
speaker
Front
speaker
Stacking
board
Subwoofer
Non-skid pad
3. Put the stacking board on the subwoofer.
4. Place the front and the rear speakers on the
stacking board firmly.
5. Attach the non-skid pads between the front
and the rear speakers for preventing scratchs.
CM9520-AP.DJORMLK_ENG.indd 11
2012-04-10
3:15:34
12
Connecting
Attaching the speakers to the
unit
To connect the cable to the unit, press each plastic
finger pad to open the connection terminals on the
unit. Insert the wire and release the finger pad.
Connect the black stripe of each wire to the
terminals marked - (minus) and the other end to
the terminals marked + (plus).
2
>>Caution
yy Be careful to make sure children not to put
their hands or any objects into the *speaker
duct.
*Speaker duct: A hole for plentiful bass
sound on speaker cabinet (enclosure).
yy The speakers contain magnet parts, so color
irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.
Connecting
yy Make sure to install the speaker with other
people in order to prevent it from falling
and causing injuries to the installer.
Attaching the woofer cables to
the unit
To connect the woofer cable (Woofer Light Cable)
to the unit, insert the cable to WOOFER SYSTEM
connectors on the unit.
Color
Speaker
Grey
Rear R
Blue
Rear L
Orange
Sub woofer 1
Orange
Sub woofer 2
Red
Front R
White
Front L
>>Caution
yy Make sure arrows on the ends of cables
should be toward the to upper side.
yy Make sure to connect the cables to
connectors tightly on the unit.
CM9520-AP.DJORMLK_ENG.indd 12
2012-04-10
3:15:34
Connecting
Optional Equipment
Connection
13
PORT. IN Connection
Connect an output (earphone or line out) of
portable device (MP3 or PMP etc) to the
PORT. IN connector.
AUX IN Connection
Connect an output of auxiliary device(Camcoder,
TV, Player, etc) to the AUX IN (L/R) connector.
2
CM9520-AP.DJORMLK_ENG.indd 13
Connecting
If your device has only one output for audio(mono),
connect it to the left (white) audio jack on the unit.
2012-04-10
3:15:34
14
Connecting
USB Connection
Antenna Connection
Connect the USB port of USB Memory (or MP3
player, etc.) to the USB port on the front of the unit.
Connect the supplied FM/AM antenna for listening
to the radio.
Connect the AM loop antenna to the AM antenna
connector.
Connect the FM wire antenna to the FM antenna
connector.
2
Connecting
,,Note
yy Removing the USB Device from the unit :
1. Choose a different function/mode or
press Z ENTER on the remote control
or I on the unit twice in a row.
2. Remove the USB device from the unit.
yy You can only recharge your iPod/iPhone
through USB port. To listen to music on
iPod/iPhone, refer to the page 22.
,,Note
yy To prevent noise pickup, keep the AM Loop
antenna away from the unit and other
components.
yy Be sure to fully extend the FM wire antenna.
After connecting the FM wire antenna, keep
it horizontal.
CM9520-AP.DJORMLK_ENG.indd 14
2012-04-10
3:15:35
3Operating
Operating
Basic Operations
,,Note
yy The display changes in the following order.
USB
MP3/WMA CD
Audio CD
1. Insert the disc by pressing B(Open/Close) or
connect the USB device to the USB port.
REPEAT TRK
REPEAT TRK
REPEAT TRK
REPEAT *DIR
REPEAT DIR
-
2. Select the CD or USB function by pressing CD or
USB on the unit or FUNCTION on the remote
control.
-
REPEAT CD
REPEAT CD
REPEAT ALL
REPEAT ALL
REPEAT ALL
RANDOM
RANDOM
RANDOM
OFF
OFF
OFF
CD/USB Operations
3. Select the desired CD/USB by pressing
DISC/USB SKIP.
To
*DIR : Directory
yy press DISC/USB SKIP to rotate the disc tray.
yy The next file name is displayed every 30
seconds. (Except RANDOM play, AUTO DJ
RANDOM play, the last file of playlist, etc.)
yy If you leave the disc tray open for 5 minutes,
it will close automatically.
3
Operating
Do this
Press Z ENTER on the remote
Stop
control or I on the unit.
Press d/M on the remote control
Playback
or T on the unit.
Press d/M on the remote control
Pause
or T on the unit during playback.
Search for Press C/V on the remote
a section control or Y/U on the unit
within a track/ during playback and release it at
file
the point you want to listen to.
Select
Press 0 to 9 numerical buttons on
a track/file the remote control to go to the
directly
desired file or track directly.
During playback,
15
(1) By using C/V buttons :
Skip to
the next/
previous
track/file
Press C/V to go to the
next track/file or to return to the
beginning of the current track/file.
Press C twice briefly to step
back to the previous track/file.
(2) By using FILE SEARCH knob :
Rotate FILE SEARCH on the unit
and press d/M to play the track/
file.
Press REPEAT(MENU) on the
Play
remote control repeatedly. Refer
repeatedly or
to the note for details about the
randomly
display change.
CM9520-AP.DJORMLK_ENG.indd 15
2012-04-10
3:15:35
16
Operating
Selecting a folder and
an MP3/WMA file
On the unit
1.Press FOLDER and rotate FILE SEARCH until a
desired folder appears.
You can delete file, folder or format by pressing
DELETE. This function is supported only in stop
status. (USB only)
1. -Select the file you want to delete and press
DELETE.
2.Press ENTER and Rotate FILE SEARCH until a
desired file appears. Press T to play it.
-Select the folder you want to delete by
pressing FOLDER and rotating FILE SEARCH
and press DELETE.
On the remote control
-Press and hold DELETE to format the USB
device.
1.Press PRESET.FOLDER W/S repeatedly until a
desired folder appears.
3
Deleting an MP3/WMA file
2.Press d/M to play it. The first file of folder will
play.
Or
Press DELETE repeatedly during selecting the
MP3/WMA file.
Operating
The display changes in the following order.
- DEL FILE? : Deletes file
- DEL FOLDER : Deletes folder
- FORMAT? : Formats USB
2. To delete file/folder or format, press d/M on the
remote control or press T on the unit.
3. If you want to exit the current mode, press
Z ENTER on the remote control or press I on
the unit.
>>Caution
yy Do not extract the USB device during
operation. (play, delete, etc.)
yy Regular back up is recommended to
prevent data loss.
yy The delete function may not be supported
according to the USB status. (lock, etc.)
CM9520-AP.DJORMLK_ENG.indd 16
2012-04-10
3:15:35
Operating
Other Operations
Programmed Playback
The program function enables you to store your
favorite files from any disc or USB device.
A program can contain 20 tracks/files.
1. Insert a CD or a USB and wait for it to be
ordered.
AUTO DJ playback
Auto DJ blends the end of one song into the
beginning of another for seamless playback.
It equalizes volume across tracks/files for
uninterrupted playback.
Press AUTO DJ on the remote control or unit
repeatedly, the display changes as followings.
RANDOM (AUTO DJ RANDOM) -> REPEAT ALL
(AUTO DJ SEQUENTIAL) -> (AUTO DJ OFF)
2.Press PROGRAM/MEMORY on the remote
control in stop status.
Mode
3.Press C/V on the remote control or
Y/U on the unit to select a track/file.
OFF
5.Press d/M to play the programmed music
tracks/files.
6. To clear your selection, press Z ENTER twice.
,,Note
The programs are also cleared when the disc
or USB device is removed, the unit is powered
off or the function is switched to others.
Turn off the sound temporarily
Press [email protected] to mute your unit.
You can mute your unit, for example, to answer
the telephone, the mute icon "Q” is blinked in the
display window.
Displaying file information
(ID3 TAG)
While playing an MP3 file containing file
information, you can display the information by
pressing INFO.
Display
Window
(AUTO DJ OFF)
Description
-
RANDOM
RANDOM
(AUTO DJ
RANDOM)
The music is
played randomly
on this mode.
REPEAT
REPEAT ALL
(AUTO DJ
SEQUENTIAL)
The music is
played repeatedly
on this mode.
3
Operating
4.Press PROGRAM/MEMORY again to save and
select a next track/file.
17
,,Note
yy Searching for a section within a track/file
or playing repeatedly or randomly is not
supported on the AUTO DJ mode.
yy During AUTO DJ mode, pressing
PRESET.FOLDER W/S on the remote
control or FOLDER on the unit is not
available.
yy If you move to other functions or stop the
music using I on the unit (or Z ENTER on
the remote control) on AUTO DJ mode,
AUTO DJ function will be disable.
yy AUTO DJ function is not supported in the
music file whose length is less than 60
seconds.
yy During recording, AUTO DJ function is not
available.
yy If you change a disc while the AUTO DJ
function is activated, the function is
deactivated.
CM9520-AP.DJORMLK_ENG.indd 17
2012-04-10
3:15:35
18
Operating
Listening to music with latin
beat
You can listen to music with latin beat on beat box
mode by pressing BEAT BOX. (CD/USB/iPod/AUX/
PORTABLE)
You can select various beat box mode. Press
BEAT VOL./SELECT repeatedly, then beat sound
will be locally optimized as follows.
(REGUETON/MERENGUE/SMABA/SALSA/FORRO/
FUNK/SERTANEJO/CUMBIA/ELECTRONIC/HIPHOP)
You can adjust the volume level by rotating
BEAT VOL./SELECT.
3
On Display
Description
Operating
BEAT BOX
AUTO BPM
You can enjoy the sound with auto
beat box sound by pressing BEAT
TEMPO./AUTO BPM
during playback.
BEAT BOX
MANUAL
BPM
You can change beat sound tempo
by rotating
BEAT TEMPO./AUTO BPM in beat
box mode.
BEAT BOX
OFF
You can enjoy original sound by
pressing BEATBOX in beat box
mode.
,,Note
yy If you change beat sound tempo in AUTO
BPM mode, it will be changed to MANUAL
BPM mode automatically.
yy According to the original sound, LATIN BEAT
may not be outputted in AUTO BPM mode.
CM9520-AP.DJORMLK_ENG.indd 18
DEMO
In the power off state, it demonstrates the function
on display window with a demo sound and a
display by pressing WOOFER LIGHTING/DEMO.
To cancel the DEMO, press it again.
,,Note
yy While DEMO, this unit will keep DEMO
status even if you unplug the power cord
connection.
yy You can enjoy other functions during
the DEMO. Then the DEMO will pause to
temporary.
- Without input key in 10 sec, the DEMO will
play back automatically.
Using Microphone
1. Connect your microphone to the MIC jack.
2. Play the music you want.
3. Sing along with the accompaniment. Adjust
the microphone volume by rotating MIC VOL.
clockwise or unclockwise on the unit.
,,Note
yy When not using the microphone, set the
MIC VOL. to minimum or turn off the MIC
and remove the microphone from the
MIC jack.
yy If the microphone is set too near the
speaker, a howling sound may be produced.
In this case, move the microphone away
from the speaker or decrease the sound
level by using the MIC VOL..
yy If sound through the microphone is
extremely loud, it may be distorted. In this
case, rotate MIC VOL. to minimum.
2012-04-10
3:15:35
Operating
19
Radio Operations
Presetting the Radio Stations
Be sure that both FM and AM aerials are connected.
(Refer to the page 14)
Before tuning, make sure to turn down the volume.
Listening to the radio
1.Press TUNER on the unit or FUNCTION on the
remote control until FM or AM appears in the
display window.
The last received station is tuned in.
2. Press and hold TUNING-/+ for about two
seconds until the frequency indication starts to
change, then release. Scanning stops when the
unit tunes in a station.
1.Press TUNER on the unit or FUNCTION on the
remote control until FM or AM appears in the
display window.
2.Press TUNING-/+ on the remote control or
Y/U on the unit to select a desired
frequency.
3.Press PROGRAM/MEMORY. A preset number
will blink in the display window.
4.Press PRESET.FOLDER W/S to select the
preset number you want.
5.Press PROGRAM/MEMORY. The station is
stored.
Press TUNING-/+ repeatedly.
6. Repeat steps 2 to 5 to store other stations.
3. Adjust the volume by rotating volume knob on
the unit or by pressing VOL +/- on the remote
control repeatedly.
7. To listen a preset station, press
PRESET.FOLDER W/S or 0 to 9 numerical
buttons.
Improving poor FM reception
Deleting all the saved stations
Press T ST./MONO on the unit or d/M on the
remote control. This will change the tuner from
stereo to mono and usually improve the reception.
1. Press and hold PROGRAM/MEMORY for two
seconds.
“ERASE ALL” will flash up on the unit display.
3
Operating
Or
You can preset 50 stations for FM and AM.
2.Press PROGRAM/MEMORY to erase all saved
radio stations.
CM9520-AP.DJORMLK_ENG.indd 19
2012-04-10
3:15:35
20 Operating
Sound adjustment
Setting the surround mode
This system has a number of pre-set surround
sound fields. You can select a desired sound mode
by using SOUND EQ on the unit or
SOUND EFFECT on the remote control.
The displayed items for the Equalizer may be
different depending on sound sources and effects.
3
Operating
On Display
Description
NATURAL
You can enjoy comfortable and
natural sound.
Local
Specialization
equalizer
Regionally optimized sound
effect. (FORRO/FUNK/
SERTANEJO/DANGDUT/ARABIC/
PERSIAN/INDIA/REGUETON/
MERENGUE/SALSA/SAMBA/
CUMBIA/AFRO HIP HOP)
AUTO EQ
Realizes the sound equalizer that
is the most similar to the genre
of which is included in the MP3
ID3 tag of song files.
POP
CLASSIC
JAZZ
ROCK
This program lends an
enthusiastic atmosphere to the
sound, giving you the feeling
you are at an actual rock pop,
jazz or classic concert.
MP3 - OPT
This function is optimized
for compressible MP3 file. It
improves the treble sound.
BASS BLAST
Reinforces the treble, bass and
surround sound effect.
LOUDNESS
Improves the bass and treble
sound.
BYPASS
,,Note
yy On some speakers, sound may not be heard
or heard in low sound depending on the
sound mode.
yy Maybe you need to reset the surround
mode, after switching the input, sometimes
even after the sound track/file changed.
yy By pressing BASS BLAST on the unit you
can directly select the BYPASS or
BASS BLAST sound.
Setting the USER EQ
You can listen to music with the desired sound
effect by adjusting the BASS, MIDDLE and TREBLE.
1.Press USER EQ. “USER EQ” is displayed.
2.Press SET to enter USER EQ.
3. Select the BASS, MIDDLE or TREBLE sound effect
you want by pressing ENTER.
4.Press Y/U or ratate FILE SEARCH to adjust
the sound level you want.
5. To finish the setting, press SET.
You can enjoy the sound
without equalizer effect.
CM9520-AP.DJORMLK_ENG.indd 20
2012-04-10
3:15:35
Operating
21
Setting the Clock
Using your player as an alarm
clock
1. Turn the unit on.
1. Turn the unit on.
2.Press CLOCK for at least 2 seconds.
2.Press TIMER. Each of functions flashes.
3. Choose time mode by pressing Y/U.
3.Press SET when the function you want to be
woken by is showing.
- AM 12:00 (for an AM and PM display) or 0:00
(for a 24 hour display)
4.Press SET to confirm your selection.
5. Select the hours by pressing Y/U.
6.Press SET.
7. Select the minutes by pressing Y/U.
8.Press SET.
4. “ON TIME” will be displayed. Press Y/U to
change the hours and minutes and press SET to
save.
5. The “OFF TIME” will be displayed. Press Y/U
to change the hours and minutes and press SET
to save.
7.Press TIMER button 2 times. You can check the
setting status.
,,Note
3
Operating
6.Press Y/U to change the volume and
press SET to save. The clock icon "(“ shows
that the alarm is set.
yy If you set the clock time, you can check the
time by pressing CLOCK even when the
player is turned off.
yy If you set the clock time and alarm, you
can check the alarm icon “(“ by pressing
CLOCK even when the player is turned off.
yy If you set the clock time and alarm, you
can check the alarm icon “(“ and setting
informaiton by pressing TIMER even when
the unit is turned off.
CM9520-AP.DJORMLK_ENG.indd 21
2012-04-10
3:15:35
22 Operating
Sleep Timer Setting
Press SLEEP repeatedly to select delay time
between 10 and 180 minutes. After the delay time,
the unit will be turned off.
To cancel the sleep function, press SLEEP
repeatedly until “SLEEP 10” appears, and then press
SLEEP once again while “SLEEP 10” is displayed.
,,Note
yy You can check the remaining time before
the unit is turned off.
Advanced Operations
Playing the iPod/iPhone
You can enjoy the sound with your iPod/iPhone. For
details about iPod/iPhone, refer to the iPod/iPhone
User Guide.
1. Connect the iPod/iPhone firmly.
yy Press SLEEP. The remaining time appears in
the display window.
3
Operating
Dimmer
Press SLEEP once. The display window will
be darkened by half. To cancel it, press SLEEP
repeatedly until dim off.
If you turn this unit on, your iPod/iPhone will be
automatically turned on and start recharging.
2.Press AUX/PORT. IN/IPOD on the unit or
FUNCTION on the remote control to select iPod
function. You can operate your iPod/iPhone
through an iPod/iPhone’s display by using the
supplied remote control and also control on
your iPod/iPhone.
CM9520-AP.DJORMLK_ENG.indd 22
2012-04-10
3:15:36
Operating 23
,,Note
Do this
To
ON REMOTE
Pauses or
restart
T
d/M
Skip
Y/U
C/V
Search
Press and hold
Y/U
Press and hold
C/V
Move to the
previous
menu
-
REPEAT
(MENU)
Move to the
desired item
-
PRESET.
FOLDER
W/S
Chooses an
item
I
Z ENTER
Compatible iPod/iPhone
We recommend installing the latest software
version.
The unit supports the models as follows.
yy iPod touch 1 G, 2 G, 3 G, 4 G
- Your iPod/iPhone is not connected firmly.
-This unit recognizes your iPod/iPhone as
an unknown device.
- Your iPod/iPhone is exceptionally low in
power.
/ The battery needs to be charged.
/If you charge the battery while iPod/
iPhone is extremely low in power,
it may take longer to be charged.
yy iPod/iPhone does not support recording
function when connected.
yy Depending on your iPod/iPhone’s software
version, it may not be possible to control
your iPod/iPhone from this unit. We
recommed installing the latest software
version.
3
Operating
ON UNIT
yy If this unit displays an error message, follow
the message. An error message “ERROR”.
yy If you use an application, make a call, or
send and receive SMS text message, etc. on
iPod touch or iPhone, disconnect it from
iPod/iPhone dock of this unit and then use
it.
yy If you have a problem with your iPod/
iPhone, please visit www.apple.com/
support.
yy iPod classic
yy iPod with video
yy iPod nano 1 G, 2 G, 3 G, 4 G, 5 G, 6 G
yy iPod mini
yy iPod with click wheel
yy iPhone 4S
yy iPhone 4
yy iPhone 3GS
yy iPhone 3G
Depending on your iPod/iPhone’s software version,
you may not control your iPod/iPhone from the
unit.
CM9520-AP.DJORMLK_ENG.indd 23
2012-04-10
3:15:36
24 Operating
Listening to music from your
portable player or external
device
The unit can be used to play the music from many
types of portable player or external device.
(Refer to the page 13)
1. Connect the portable player to the PORT. IN
connector of the unit.
Or
Connect the external device to the AUX IN
connector of the unit.
2. Turn the power on by pressing 1/!.
3
Changing the lighting effect
You can change the unit’s lighting effects by
pressing LIGHTING EFFECT on the unit in 5 types.
(Forward Level Mode -> Peak Level Mode -> Center
Level Mode -> Reverse Level Mode -> Shower Level
Mode)
Changing the woofer lighting
You can change the woofer’s lighting effects in 8
types by pressing WOOFER LIGHTING/DEMO.
(Default Mode -> Level Mode -> Level Reverse
Mode -> Power Mode -> Always On Mode ->
X Cross A Mode -> X Cross B Mode -> OFF)
Operating
3. Select the PORTABLE or AUX function by
pressing FUNCTION on the remote control or
AUX/PORT. IN/IPOD on the unit.
Press WOOFER LIGHTING/DEMO to turn woofer
lighting off if you want.
4. Turn the portable player or external device and
start it playing.
Woofer ON/OFF
You can power on or off the woofer by pressing
WOOFER ON/OFF on the unit.
,,Note
Woofer sound is not outputted in AM function.
And WOOFER ON/OFF button’s light is turned
off.
CM9520-AP.DJORMLK_ENG.indd 24
2012-04-10
3:15:36
Operating 25
Recording to USB
You can record a various sound source to USB.
(CD, USB, AUX, PORTABLE, FM, AM)
1. Connect the USB device to the unit.
2. Select a function in which you want to record
by using CD, USB, TUNER, or AUX/PORT. IN/
IPOD on the unit or FUNCTION on the remote
control.
One track/file recording - You can record to USB
after playing a track/file you want.
All tracks/files recording - You can record to USB
after stop.
3.Press
USB REC on the unit or USB REC on
the remote control.
- If you connect both of USB1 and USB2, press
T to record to USB1 or press I to record to
USB2.
1.Press
USB REC on the unit or USB REC on
the remote control for longer than 3 seconds.
2.Press C/V on the remote control or
Y/U on the unit to select a bit rate.
3.Press
USB REC on the unit or USB REC on
the remote control again to select the recording
speed.
4.Press C/V on the remote control or
Y/U on the unit to select a desired
recording speed. (AUDIO CD only)
X1 SPEED
- You can listen to music while recording it.
X2 SPEED
- You can just record the music file.
5.Press
USB REC on the unit or USB REC on
the remote control to finish the setting.
Dubbing USB to USB
4. To stop recording, press I on the unit or
Z ENTER on the remote control.
You can do dubbing a various sound source in
USB1 to USB2 on USB function.
Pausing recording
1. Connect a USB device including desired sound
files to USB1.
During recording, press
USB REC on the
unit or USB REC on the remote control to pause
recording. Press it again to restart recording.
(TUNER/AUX/PORTABLE only)
CM9520-AP.DJORMLK_ENG.indd 25
3
Operating
Program list recording - After showing the
programmed list, you can record it to USB.
(Refer to the page 17)
To select recording bit rate and
speed
2. Connect another USB device to USB2.
3.Press
USB REC on the unit or USB REC on
the remote control.
4. To stop recording, press I on the unit or
Z ENTER on the remote control.
2012-04-10
3:15:36
26 Operating
,,Note
yy You can check the recording percentage
rate for the USB record on the display
window during the recording. (MP3/WMA,
CD Only)
yy During recording MP3/WMA, there is no
sound.
yy When you stop recording during playback,
the file that has been recorded at that time
will be stored. (Except MP3/WMA files)
yy Do not remove the USB device or turn
off the unit during USB recording. If not,
an incomplete file may be made and not
deleted on PC.
3
Operating
yy If USB recording does not work, the
message like “NO USB”, “ERROR”, “USB FULL”
or “NO REC” is displayed on the display
window.
yy Multi card reader device or External HDD
can not be used for USB recording.
yy A file is recorded by about 512 Mbyte when
you record for a long term.
yy You may not store more than 999 files.
yy It’ll be stored as follows.
AUDIO CD
MP3/WMA
The other
source*
* : TUNER, AUX and the like.
The making of unauthorized copies of copyprotected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offense.
This equipment should not be used for such
purposes.
Be responsible
Respect copyrights
CM9520-AP.DJORMLK_ENG.indd 26
2012-04-10
3:15:36
4Troubleshooting
Troubleshooting 27
Troubleshooting
General
Problem
Cause & Solution
yy The power cord is not plugged in. Plug in the power cord.
No Power.
No sound.
No beat box sound
yy Check whether electricity failed.
Check the condition by operating other electronic devices.
yy Check whether you select right function.
Press FUNCTION and check the selected function.
yy If not, connect speaker cables correctly.
Speaker cables connected correctly.
yy Check the beat box volume level by rotating BEAT VOL./SELECT.
yy An unplayable disc is inserted. Check the playable disc.
yy No disc is inserted. Insert a disc.
4
yy The disc is dirty. Clean the disc. (Refer to the 31 page)
Troubleshooting
The unit does not start
playback.
yy The disc is inserted upside down.
Place the disc with the label or printed side facing upwards.
yy The antenna is positioned or connected poorly.
Connect the antenna securely.
Radio stations cannot
be tuned in properly.
yy The signal strength of the radio station is too weak.
Tune to the station manually.
yy No stations have been preset or preset stations have been cleared (when
tuning by scanning preset channels).
Preset some radio stations, see page 19 for details.
yy The remote control is too far from the unit.
Operate the remote control within about 23 ft (7 m).
yy There is an obstacle in the path of the remote control and the unit.
The remote control
Remove the obstacle.
does not work properly.
yy The batteries in the remote control are exhausted.
Replace the batteries with new ones.
iPod/iPhone does not
work.
Sub woofer does not
work.
No woofer lighting
CM9520-AP.DJORMLK_ENG.indd 27
yy Check whether the player is connected to the unit correctly.
Connect it to the unit correctly.
yy Check whether the woofer is connected to the unit correctly.
Connect cables to the unit correctly. (Refer to the 12 page)
yy Check the woofer status and press WOOFER ON/OFF.
yy Check whether the woofer cables are connected to the unit correctly.
Connect the woofer cables to the unit correctly.
yy Check the woofer lighting effects by pressing WOOFER LIGHTING/DEMO.
2012-04-10
3:15:36
5Appendix
28 Appendix
Trademarks and
Licenses
“Made for iPod,” and “Made for iPhone” mean
that an electronic accessory has been designed
to connect specifically to iPod or iPhone,
respectively, and has been certified by the
developer to meet Apple performance standards.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards.
Please note that the use of this accessory with
iPod or iPhone may affect wireless performance.
5
Appendix
CM9520-AP.DJORMLK_ENG.indd 28
2012-04-10
3:15:36
Appendix 29
General specifications
General
Power requirements
Refer to main label
Power consumption
Refer to main label
Dimensions (W x H x D)
285 x 395 x 381
Net Weight (Approx.)
6.2 kg
Operating temperature
5 °C to 35 °C (41 °F to 95 °F)
Operating humidity
5 % to 90 %
Bus Power supply
DC 5 V 0 500 mA
iPod/iPhone Power supply
DC 5 V 0 1 A
Inputs
AUX IN
2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x 1
PORT. IN
1.2 Vrms (3.5 mm stereo jack)
Tuner
FM Tuning Range
87.5 to 108,0 MHz or 87.50 to 108.00 MHz
AM Tuning Range
522 to 1 620 kHz, 520 to 1 710 kHz or 522 to 1 710 kHz
5
Stereo mode
Surround mode
Appendix
Amplifier
350 W + 350 W (4 Ω at 1 KHz)
Front
350 W + 350 W (4 Ω at 1 KHz, THD 15 %)
Rear
200 W + 200 W (8 Ω at 1 KHz, THD 15 %)
Subwoofer
350 W + 350 W (4 Ω at 60 Hz, THD 15 %)
CD
Frequency Response
40 to 20 000 Hz
Signal-to-noise ratio
75 dB
Dynamic range
80 dB
CM9520-AP.DJORMLK_ENG.indd 29
2012-04-10
3:15:36
30 Appendix
Speaker specifications
Front speaker
Type
2 Way 2 speaker
Impedance
4Ω
Rated Input Power
350 W
Max. Input power
700 W
Net Dimensions (W x H x D)
264 x 478 x 332 mm
Net Weight
8.8 kg
Rear speaker
Type
2 Way 2 speaker
Impedance
8Ω
Rated Input Power
200 W
Max. Input power
400 W
Net Dimensions (W x H x D)
228 x 473 x 292 mm
Net Weight
5.7 kg
subwoofer
5
Type
1 Way 1 speaker
Appendix
Impedance
4Ω
Rated Input Power
350 W
Max. Input power
700 W
Net Dimensions (W x H x D)
375 x 502 x 478 mm
Net Weight
15.3 kg
yy Design and specifications are subject to change without notice.
CM9520-AP.DJORMLK_ENG.indd 30
2012-04-10
3:15:37
Appendix
Maintenance
Notes on Discs
Handling Discs
Never stick paper or tape on the disc.
Storing Discs
31
Handling the Unit
When shipping the unit
Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.
Keeping the exterior surfaces clean
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of heat
and never leave it in a parked car exposed to direct
sunlight.
Do not use volatile liquids such as insecticide spray
near the unit. Wiping with strong pressure may
damage the surface. Do not leave rubber or plastic
products in contact with the unit for a long period
of time.
Cleaning Discs
Cleaning the unit
Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before playing,
clean the disc with a clean cloth. Wipe the disc from
the center to out.
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
unit.
Do not use strong solvents such as alcohol,
benzine, thinner, commercially available cleaners,
or anti-static spray intended for old vinyl records.
Maintaining the Unit
CM9520-AP.DJORMLK_ENG.indd 31
2012-04-10
5
Appendix
The unit is a high-tech, precision device. If the
optical pick-up lens and disc drive parts are dirty
or worn, the picture quality could be diminished.
For details, please contact your nearest authorized
service center.
3:15:37
CM9520-AP.DJORMLK_ENG.indd 32
2012-04-10
3:15:37
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
