R

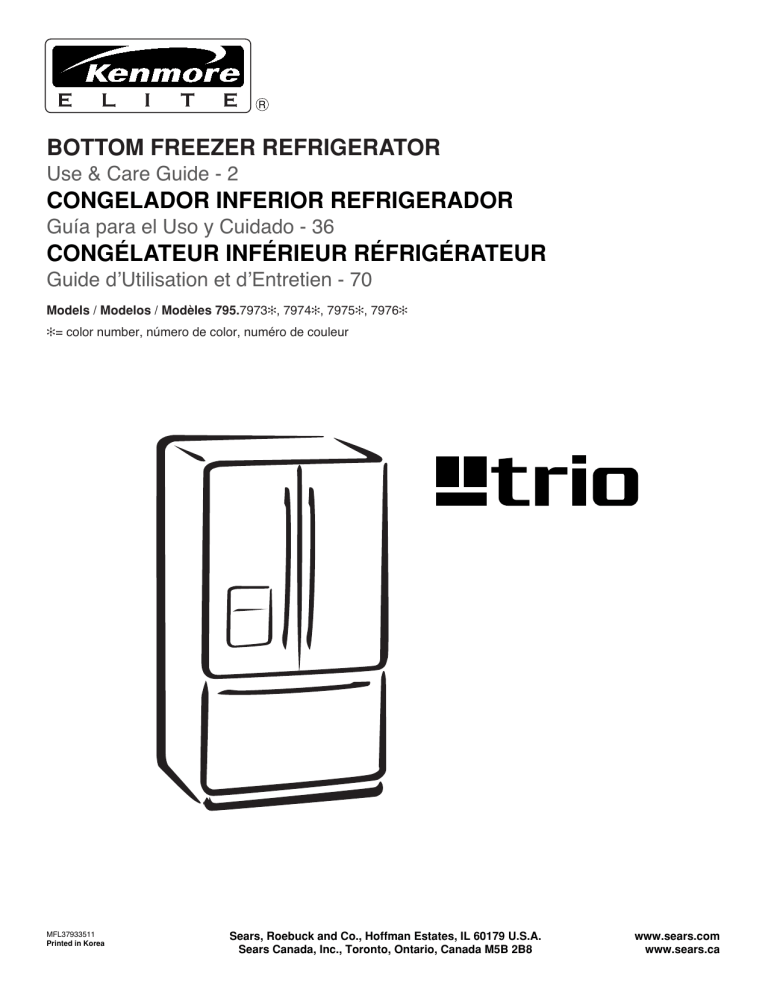

BOTTOM FREEZER REFRIGERATOR
Use & Care Guide - 2
CONGELADOR INFERIOR REFRIGERADOR
Guía para el Uso y Cuidado - 36
CONGÉLATEUR INFÉRIEUR RÉFRIGÉRATEUR
Guide d’Utilisation et d’Entretien - 70
Models / Modelos / Modèles 795.7973✻, 7974✻, 7975✻, 7976✻
✻= color number, número de color, numéro de couleur
MFL37933511
Printed in Korea
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Sears Canada, Inc., Toronto, Ontario, Canada M5B 2B8
www.sears.com
www.sears.ca
TABLE OF CONTENTS
Removing Humidity Controlled Crisper
21
36
Glide‘N’Serve
21
70
Modular Door Bin
21
21
English Version
2
Spanish Version
French Version
Warranty
3
Dairy Bin
Protection Agreements
4
❿Freezer Section
Safety Instructions
5–6
Tilting Door
22
Grounding Requirements
6
Tilt-Out Door Basket
22
Parts And Features
7
Extra Ice Bin
22
Durabase
23
Refrigerator Installation
8–15
Unpacking Your Refrigerator
8
Durabase Divider
23
Installation
8
PullOut Drawer
23
Filter
24
Removing And Replacing
Your Refrigerator Handles And Doors
9–14
Leveling And Door Alignment
15
Base Cover
15
Using Your Refrigerator
Care And Cleaning
16–24
Setting The Controls
16
Ensuring Proper Air Circulation
16
In-Door Ice Bank
17
Adjusting Control Settings
18
Food Storage Guide
18
Storing Frozen Food
19
Water Dispenser
19
Refrigerator Shelves
20
Bottle Holder (Option)
20
Humidity Controlled Crisper
21
General Cleaning Tips
25
Outside
25
Inside Walls
25
Door Liner And Gaskets
25
Plastic Parts
25
Condenser Coils
25
Light Bulb Replacement
❿Refrigerator Section
2
25–26
25–26
Power Interruptions
26
When You Go On Vacation
26
When You Move
26
About The Automatic Icemaker
27-28
Connecting The Water Line
29–31
Troubleshooting Guide
32–35
WARRANTY
BOTTOM FREEZER REFRIGERATOR WARRANTY
R
Kenmore Elite Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product,
if this appliance fails due to a defect in material and workmanship within one year from the date of purchase,
call 1-800-4-MY-HOME® to arrange for free repair.
If the sealed refrigerant system is defective within five years from the purchase date, call 1-800-4-MY-HOME®
to arrange for free repair.
This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than
private family purposes.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs,
and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.
3. A service technician to clean or maintain this product.
4. Damage to or failure of this product if it is not installed, operated or maintained according to the all
instructions supplied with the product.
5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended
purpose.
6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other
than those recommended in all instructions supplied with the product.
7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer’s sole and exclusive remedy under this limited warranty shall be product repair as provided herein.
Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one
year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or
limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations
may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8
3
PROTECTION AGREEMENTS
Once you purchase the Agreement, a simple phone call is
all that it takes for you to schedule service. You can call
anytime day or night, or schedule a service appointment
online.
Master Protection Agreements
Congratulations on making a smart purchase. Your new
Kenmore ® product is designed and manufactured for
years of dependable opera-tion. But like all products, it
may require preventive maintenance or repair from time to
time. That’s when having a Master Protection Agreement
can save you money and aggravation.
The Master Protection Agreement is a risk free purchase.
If you can-cel for any reason during the product warranty
period, we will provide a full refund. Or, a prorated refund
anytime after the product warranty period expires.
Purchase your Master Protection Agreement today!
The Master Protection Agreement also helps extend the
life of your new product. Here’s what the Agreement*
includes:
Some limitations and exclusions apply.
✓ Parts and labor needed to help keep products operating
properly under normal use, not just defects.
Our coverage goes well beyond the product warranty.
No deductibles, no functional failure excluded from
coverage— real protection.
✓ Expert service by a force of more than 10,000
authorized Sears service technicians, which means
someone you can trust will be working on your product.
For prices and additional information in the U.S.A. call
1-800-827-6655
* Coverage in Canada varies on some items. For full
details call Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances,
garage door openers, water heaters, and other major
home items, in the U.S.A. or Canada call 1-800-4-MYHOME® .
✓ Unlimited service calls and nationwide service, as
often as you want us, whenever you want us.
✓ “No-lemon” guarantee – replacement of your covered
product if four or more product failures occur within
twelve months.
✓ Product replacement if your covered product can’t be fixed.
✓ Annual Preventive Maintenance Check at your
request – no extra charge.
✓ Fast help by phone – we call it Rapid Resolution –
phone sup-port from a Sears representative on all
products. Think of us as a “talking owner’s manual.”
✓ Power surge protection against electrical damage due
to power fluctuations.
✓ $250 Food Loss Protection annually for any food
spoilage that is the result of mechanical failure of any
covered refrigerator or freezer.
✓ Rental reimbursement if repair of your covered
product takes longer than promised.
✓ 10% discount off the regular price of any non-covered
repair service and related installed parts.
PRODUCT RECORD
In the space below, record the date of purchase, model and serial number of your product. You will find the model and
serial number printed on an identification label located on the right-hand side of the refrigerator compartment. Have these
items of information available whenever you contact Sears concerning your product.
Model No.
Date of Purchase
Serial No.
Dealer
Save these instructions and attach your sales receipt for future reference.
4
IMPORTANT SAFETY INSTRUCTIONS
BASIC SAFETY PRECAUTIONS
This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you
of hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word DANGER, WARNING, CAUTION. These words mean:
DANGER
WARNING
CAUTION
You will be killed or seriously injured if you don’t follow instructions.
You can be killed or seriously injured if you don’t follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
may result in minor or moderate injury, or product damage only.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if
the instructions are not followed.
w WARNING
NOTE: Setting either or both controls to the OFF position
does not remove power to the light circuit.
• When you are finished, reconnect the refrigerator to the
electrical source and reset the controls. (Thermostat,
Refrigerator Control, and or Freezer Control, depending on
the model) to the desired setting.
• This refrigerator must be properly installed in accordance
with the Attention Installer Instructions that were taped to
the front of the refrigerator.
• After your refrigerator is in operation, do not touch the cold
surfaces in the freezer compartment when hands are damp
or wet. Skin may adhere to the extremely cold surfaces.
• In refrigerators with automatic icemakers, avoid contact with
the moving parts of the ejector mechanism, or with the
heating element that releases the cubes. DO NOT place
fingers or hands on the automatic icemaking mechanism
while the refrigerator is plugged in.
• DO NOT refreeze frozen foods which have thawed
completely. The United States Department of Agriculture in
Home and Garden Bulletin No. 69 says:
…You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still cold—below
4°C.
…Thawed ground meats, poultry or fish that have any offodor or off-color should not be refrozen and should not be
eaten. Thawed ice cream should be discarded. If the odor
or color of any food is poor or questionable, dispose of it.
The food may be dangerous to eat.
Even partial thawing and refreezing reduces the eating
quality of foods, particularly fruits, vegetables and prepared
foods. The eating quality of red meats is affected less than
that of many other foods. Use refrozen foods as soon as
possible to save as much of their quality as you can.
To reduce the risk of fire, electric shock, or injury to
persons when using your product, basic safety
precautions should be followed, including the following.
Read all instructions before using this appliance.
• NEVER unplug your refrigerator by pulling on the power
cord. Always grip the plug firmly and pull it straight out from
the outlet.
• Repair or replace immediately all electric service cords that
have become frayed or otherwise damaged. Do not use a
cord that shows cracks or abrasion damage along its length
or at either the plug or connector end.
• Do not modify or extend the power cord length. It could
cause electric shock or fire.
• When moving your refrigerator away from the wall, be
careful not to roll over or damage the power cord.
• DO NOT store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
• DO NOT allow children to climb, stand, or hang on the
refrigerator doors or shelves in the refrigerator. They could
damage the refrigerator and seriously injure themselves.
• Keep fingers out of pinch point areas; clearances between
the doors and cabinet are necessarily small. Be careful
closing doors when children are in the area.
• Unplug your refrigerator before cleaning or making any
repairs.
NOTE:We strongly recommend that any servicing be
performed by a qualified individual.
• Before replacing a burned-out light bulb, unplug the
refrigerator or turn off power at the circuit breaker or fuse
box in order to avoid contact with a live wire filament. (A
burned-out light bulb may break when being replaced.)
NOTE: Some models have LED interior lighting and service
should be performed by a qualified technician.
SAVE THESE INSTRUCTIONS
5
w DANGER: RISK OF CHILD ENTRAPMENT
Junked or abandoned refrigerators are dangerous…even
if they will sit for just a few days. If you are getting rid of
your old refrigerator, please follow the instructions at right
to help prevent accidents (Child entrapment and
suffocation).
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER
• Take off the doors.
• Leave the shelves in place so that
children may not easily climb inside.
CFC DISPOSAL
Your old refrigerator may have a cooling system that used
CFCs (chlorofluorocarbons). CFCs are believed to harm
stratospheric ozone.
If you are throwing away your old refrigerator, make sure
the CFC refrigerant is removed for proper disposal by a
qualified servicer. If you intentionally release this CFC
refrigerant, you can be subject to fines and imprisonment
under provisions of environmental legislation.
GROUNDING REQUIREMENTS
Use a receptacle which cannot be turned off with a switch
or pull chain. Do not use an extension cord.
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
Where a standard two-prong wall outlet is encountered,
it is your personal responsibility and obligation to have it
replaced with a properly grounded three-prong wall outlet.
w WARNING
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must be
properly grounded. Have the wall outlet and the circuit
checked by a qualified electrician to make sure the
outlet is properly grounded.
Do not use an adapter plug.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, disconnect the
refrigerator from the electrical source.
NOTE: Some models have LED interior lighting and
service should be performed by a qualified technician.
3-prong
grounding type
wall receptacle
When you are are finished, reconnect the refrigerator to
the electrical source and reset the control (Thermostat,
Refrigerator Control, or Freezer Control, depending on the
model) to the desired setting.
3-prong
grounding
plug
Ensure proper
ground exists
before use.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, we strongly recommend against the use
of an extension cord. However, if you still elect to use
an extension cord, it is absolutely necessary that it be a
UL-listed (USA), 3-wire grounding type appliance
extension cord having a grounding type plug and outlet,
and that the electrical rating of the cord be 15 amperes
(minimum) and 120 volts.
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires. It is recommended that a
separate circuit serving only this appliance be provided.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator.
6
PARTS AND FEATURES
A
B
O
F
P
G
C
E
D
K
Q
L
H
M
I
N
J
Use this page to become more familiar with the parts and features. Page references are included for your convenience.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the
items listed below. The locations of the features shown below may not match your model.
A
B
C
D
E
F
G
Refrigerator Light (p. 25)
Filter (Inside) (p. 24)
Modular Door Bins (p. 21)
Fixed door bin
Fixed door bin
Refrigerator Shelves (p. 20)
Ice Room (p. 17)
(Ice Maker and Ice Bucket)
H Humidity Controlled Crisper (p. 21)
I Glide‘N’Serve (p. 21)
J
K
L
M
N
O
P
Extra Ice Bin (p. 22)
Pullout Drawer (p. 23)
Durabase (p. 23)
Divider (p. 23)
Tilt-Out Door Basket (p. 22)
Dairy Bin (p. 21)
Bottle Holder (p. 20)
(795.7974*, 7976* Model Only)
Q Water Tank Cover
7
Ice Bucket
Ice Room
Door
REFRIGERATOR INSTALLATION
INSTALLATION
w WARNING
• To minimize noise and vibration, the refrigerator MUST
be installed on a solidly constructed floor.
Excessive Weight Hazard
• Carpeting and soft tile surfaces are not recommended.
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
• Never install the refrigerator on a platform or weakly
supported structure.
1. To avoid vibration, the unit must be leveled. If required,
adjust the leveling legs to compensate for unevenness
of the floor. The front should be slightly higher than the
rear to aid in door closing. Leveling legs can be turned
easily by tipping the cabinet slightly. Turn the leveling
legs clockwise (
) to raise the unit,
counterclockwise (
) to lower it.
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning-type
labels, the model and serial number label, or the
TechSheet that is attached to back wall of the refrigerator.
2. Install this appliance in an area where the temperature
is between 55°F (13°C) and 110°F (43°C.) If the
temperature around the appliance is too low or high,
cooling ability may be adversely affected.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also be
easily removed by rubbing a small amount of liquid dish
soap over the adhesive with your fingers. Wipe with warm
water and dry.
3. Too small a distance from adjacent items may result in
lowered freezing capability and increased electricity
consumption charges. Allow at least 24 in. (61 cm) in
front of the refrigerator to open the doors.
Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see the Important Safety Instructions
section.
Refrigerator shelves are installed in the shipping position.
Please reinstall shelves according to your individual
storage needs.
w WARNING
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to protect
the floor. Always pull the refrigerator straight out
when moving it. Do not wiggle or walk the refrigerator
when trying to move it, as floor damage could occur.
1" (2.54 cm)
NEXT
1. Clean your refrigerator thoroughly and wipe off all dust
accumulated during shipping.
w WARNING
2. Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
3. Let your refrigerator run for at least 2 or 3 hours before
putting food in it. Check the flow of cold air in the
freezer compartment to ensure proper cooling. Your
refrigerator is now ready for use.
Failure to do so can result in death, explosion, or fire.
• To reduce the risk of electric shock, do not install the
refrigerator in a wet or damp area.
• Select a place where a water supply can be easily
connected for the automatic icemaker.
w CAUTION: Avoid placing the unit near heat sources,
direct sunlight or moisture.
8
REFRIGERATOR INSTALLATION
NOTE: It is ALWAYS recommended to remove the refrigerator doors when it is necessary to move the refrigerator
through a narrow opening. If necessary, follow the directions below to remove the door handles.
HOW TO REMOVE DOOR HANDLES
NOTE: Handle appearance may vary from
illustrations on this page.
1. Removing Refrigerator Handle
• Loosen the set screws with a 3/32"
(2.5mm) Allen wrench and remove the
handle.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use a
1/4" Allen wrench.
Mounting
Fasteners
Set Screw
Allen
Wrench
2. Removing Freezer Drawer Handle
• Loosen the set screws located on the
lower side of the handle with a 3/32"
(2.5mm) Allen wrench and remove the
handle.
NOTE: If the handle mounting fasteners
need to be tightened or removed, use a
1/4" Allen wrench.
9
REFRIGERATOR INSTALLATION
HOW TO REPLACE DOOR HANDLES
NOTE: Handle appearance may vary from
illustrations on this page.
1. Replacing Refrigerator Door Handle
• Place the handle on the door by adjusting handle
footprints to fit mounting fastners and tighten the
set screws with a 3/32" (2.5mm) Allen wrench.
NOTE: If the handle mounting fasteners need to be
tightened or removed use a 1/4" Allen wrench.
Mounting
Fasteners
2. Replacing Freezer Drawer Handle
• Place the handle on the door by adjusting handle
footprints to fit mounting fastners and tighten the
set screws on the bottom of the handle with a
3/32" (2.5mm) Allen wrench.
NOTE: If the handle mounting fasteners need to be
tightened or removed use a 1/4" Allen wrench.
10
REFRIGERATOR INSTALLATION
6. Rotate hinge lever (6) counterclockwise. Lift the top
hinge (7) free of the hinge lever latch (8).
REMOVING AND REPLACING
REFRIGERATOR DOORS
w CAUTION: When lifting the hinge free of the latch, be
careful that the door does not fall forward.
7. Lift the door from the middle hinge pin and remove the
door.
8. Place the door, inside facing up, on a nonscratching
surface.
To remove the left refrigerator door:
Before attempting to remove the left door, locate the water
connection at the back of the refrigerator. Pull the water
tubing that comes out of the refrigerator by pushing in on
the release ring while pulling on the water line as shown in
the illustration below.
To remove the right refrigerator door:
(2)
(1)
3
(4)
(5)
(6)
(3)
w CAUTION: Before you begin, remove food and bins
from the doors.
(2)
1. Open the door. Remove the top hinge cover screw (1).
Lift up the cover (2).
2. Remove the cover.
3. Disconnect the wire harness (3).
4. Rotate the hinge lever (4) clockwise. Lift the top hinge
(5) free of the hinge lever latch (6).
(1)
w CAUTION: When lifting the hinge free of the latch, be
careful that the door does not fall forward.
(3)
(5)
(4)
w WARNING
(6)
(7)
Electrical Shock Hazard
(8)
• Disconnect electrical supply to the refrigerator before
installing. Failure to do so could result in death or
serious injury.
1. Open the door. Remove the top hinge cover screw (1).
2. Use a flat-head screwdriver to pry back the hooks
(not shown) on the front underside of the cover (2).
Lift up the cover.
3. Remove the cover. Pull out the tube (3).
4. Disconnect all the wire harnesses (4).
5. Remove the grounding screw(5).
• Do not put hands or feet or other objects into the air
vents, base grille, or bottom of the refrigerator. You
may be injured or receive an electrical shock.
• Be careful when you work with the hinge, base grille,
and stopper. You may be injured.
11
REFRIGERATOR INSTALLATION
Reinstalling the Refrigerator Door
❿ Left Door
❿ Right Door
1. Lower the door onto middle hinge pin (10).
2. Fit top hinge (7) over hinge lever latch (8) and into place.
Rotate lever (6) clockwise to secure hinge.
3. Install the grounding screw (5) and connect the three
wire harnesses (4).
4. Push the water supply tube into the hole on the top case
and pull it out on the backplate.
5. Insert the water supply tube (3) into the connector tube
until you see only one scale mark. (Fully insert the tube
over 5/8" (15 mm)).
6. Hook tab on door switch side of cover (2) under edge of
wire opening in cabinet top. Position cover into place.
Insert and tighten cover screw (1).
1. Lower the door onto middle hinge pin (9).
2. Fit top hinge (5) over hinge lever latch (6) and into place.
Rotate lever (4) counterclockwise to secure hinge.
3. Connect wire harnesses (3).
4. Hook tab on switch side of coner under edge of wire
opening in cabinet top. Position cover (2) into place.
Insert and tighten cover screw (1).
(2)
(1)
(4)
(5)
(1)
(2)
(6)
(3)
(3)
(4)
(5)
(6)
(7)
(8)
10
9
w CAUTION
Collet
After inserting, pull the tube to
make sure that it is secure and
reinsert the clip.
Tube
Insert Line
Clip
12
REFRIGERATOR INSTALLATION
• With both hands, hold both sides of the door and pull it
up to separate it from the rails.
HOW TO REMOVE AND INSTALL THE
FREEZER DRAWER
IMPORTANT: To avoid possible injury or product or
property damage, you will need two people to perform the
following instructions.
1. Removing Freezer Drawer
• Pull the drawer open to full extension. Remove the
lower basket (1) by lifting basket from rail system.
1
w CAUTION: When you remove the drawer, do not hold
the handle. If it may come off and it could cause
personal injury.
• Press both hangers with your thumbs to lift it up.
• Separate the left and right rail cover.
• With both hands hold the center bar and push it in to
allow both rails to slide in simultaneously.
w CAUTION: When laying the drawer down, be careful
not to damage the floor or hurt your feet by the sharp
edges on hinge side.
• Remove the screws(2) of the rail on both sides.
2
13
REFRIGERATOR INSTALLATION
• Make sure you have a right rail cover for each side.
HOW TO REMOVE AND INSTALL THE
FREEZER DRAWER
Right
Rail Cover
IMPORTANT: To avoid possible injury or product or
property damage, you will need two people to perform the
following instructions.
Left
Rail Cover
2. Installing Freezer Drawer
• Hold the center bar with both hands and pull it out until
both rails are fully extended.
• Align the top holes of the rail cover with the top holes of
the door supports to assemble the rail covers.
Assembly Hole
• Hook door supports (1) into rail tabs (2).
1
• With the drawer pulled out to full extension, insert the
lower basket (4) in the rail assembly.
2
4
• Lower door into final position and tighten the screws (3).
3
w WARNING: To prevent accidental child and pet
entrapment or suffocation risk. DO NOT allow them to
play inside of drawer.
w WARNING: DO NOT step or sit down on freezer door.
14
REFRIGERATOR INSTALLATION
3. Open both doors again and check to make sure that
they close easily. If not, tilt the refrigerator slightly more
to the rear by turning both leveling legs clockwise. It
may take several more turns, and you should turn both
leveling legs the same amount.
LEVELING AND DOOR ALIGNMENT
Leveling
Your refrigerator has two front leveling legs—one on the
right and one on the left. Adjust legs to alter tilt from frontto-back or side-to-side. If your refrigerator seems
unsteady or you want the doors to close easier, adjust the
refrigerator’s tilt using the instructions below:
4. Re-adjust if necessary.
5. Replace the base cover.
NOTE: Your new refrigerator is uniquely designed with
two fresh food doors. Either door can be opened or
closed independently of one another. You may have to
exert slight pressure on doors to get them to close
completely.
1. Plug the refrigerator’s power cord into a 3-prong
grounded outlet. Move the refrigerator into its final
position. Remove the base cover.
To remove the base cover
1. Open the Freezer Drawer. (Drawer not shown for
clarity.)
2. Once drawer is open there is sufficient clearance to
remove screws on top of cover.
Door Alignment
If the space between your doors is uneven, follow the
instructions below to align the doors:
To replace base cover:
• Place cover into position and insert and tighten
screws.
1. With one hand, lift up the door you want to raise at
middle hinge.
2. With other hand, use pliers to insert snap ring as
shown.
3. Insert additional snap rings until the doors are aligned.
(Three snap rings are provided with the refrigerator in
the Use & Care Guide packet.)
2. Turn the leveling leg clockwise to raise that side of the
refrigerator or counterclockwise to lower it. It may take
several turns of the leveling leg to adjust the tilt of the
refrigerator.
NOTE: Having someone push backward against the
top of the refrigerator takes some weight off the leveling
legs. This makes it easier to adjust the legs.
795.7975*,
795.7976*
Level the refrigerator by using an 11/32 inch (8mm),
11/16 inch (18mm) wrench or a flat blade screw driver.
Turn the leveling legs (CCW) to raise or (CW) to lower
the height of the front of the refrigerator.
NOTE: The front of the refrigerator should be slightly
higher than the back.
795.7973*,
795.7974*
15
USING YOUR REFRIGERATOR
Filter
SETTING THE CONTROLS
• Filter Reset : When the FILTER RESET indicator light
turns on, you have to change the water filter. Press the
FILTER RESET button for 3 seconds to turn the
indicator light off. You need to change the water filter
approximately every 6 months.
Temperature
• Your refrigerator has a control pad on the dispenser that
lets you regulate the temperature in the freezer and
refrigerator compartments.
• Initially set the refrigerator control at 37°F (3°C) and the
freezer control at 0°F (–18°C). Leave it at these settings
for 24 hours (one day) to stabilize. Then adjust the
compartment temperature as desired.
Light / Light Sensor
• If the light is set “Auto” mode, dispenser light will
automatically turn on and off according to the brightness
of room detected by light sensor.
Alarm
• When the power is connected to the refrigerator, door
alarm is initially set off and door alarm display will show
. When you touch
button, the display will change
to
and door alram function is now activated.
• Refrigerator Temp Control: 33°F to 46°F (0°C to 8°C)
The lower the number setting, the colder the refrigerator
compartment will become.
• Freezer Temp Control: -6°F to 8°F (-21°C to -13°C)
When the setting is at a lower number, the freezer
compartment becomes colder. The refrigerator
compartment becomes warmer because less cold air
flows into the refrigerator.
• When either refrigerator or the freezer door is left open
for more than 60 seconds, the alarm will ding to let you
know the door is open.
• When you close the door, the door alarm will stop
dinging.
• If you want to disable the door alarm function, touch
button then the door alarm display will switched to .
UltraIce
Lock
• When you touch the UltraIce button, the graphic
[
] will light up in the display and it continues for
24 hours. It will automatically shut off after 24 hours
have passed.
Or you can stop this function manually by touching the
button one more time.
• When the power is initially connected to the refrigerator,
Lock function is off.
• If you want to activate Lock function to lock other
buttons, press and hold
button for 3 seconds or
more.
sign will be displayed and the Lock function is
now enabled.
• This function increases both icemaking and freezing
capabilities.
• No buttons other than
button will work even
including dispenser button while Lock function is
enabled.
Dispenser
• To disable the Lock function, press and hold
for 3 seconds or more.
• You can select water, crushed ice, or cubed
ice by touching
button as you desire.
button
• There could be some dripping after
dispensing.
Temperature Mode Switch Function(°F <->°C)
• Hold your cup below the dispenser after
dispensing to catch all drops.
• If you want to convert °F to °C or vice versa, press and
hold
button and
button simultaneously for 5
seconds or more.
w CAUTION: The control display is operated
by touch. Excessive moisture on the display may cause
a malfunction. Please keep display clean and dry.
ENSURING PROPER AIR CIRCULATION
Do not block air channels with any objects or food for air
circulation to prevent food loss due to the lack of cooling air.
w WARNING: If a door is open, the dispenser does not
work.
16
USING YOUR REFRIGERATOR
2. To remove the in-door ice bank, grip the front handle,
slightly lift the lower part, and slowly pull out the bin as
shown.
IN-DOOR ICE BANK
w CAUTION
• Keep hands and tools out of the ice bank door and
dispenser chute. You could break something or injure
yourself.
The icemaker will stop producing ice when the ice bank is
full. If you need more ice, empty the ice bank into the
extra ice bin in the freezer compartment so the icemaker
can keep producing ice.
Shake the ice bank occasionally to level the ice in it.
Sometimes the ice piles up near the icemaker, causing
the icemaker to misread the amount of ice cubes and stop
producing ice.
NOTE: Storing cans or other items in the ice bank may
damage the icemaker.
Keep the ice bank door closed tightly. If the ice bank door
is not closed tightly, the cold air in the ice bank will freeze
food in the refrigerator compartment. This could also
cause the icemaker to not produce ice.
3. To reinstall the in-door ice bank, slightly slant the bin
during replacement to avoid contact with the icemaker.
NOTE: To prevent ice cubes from melting and leaking
from the dispenser, ALWAYS empty the ice bin when the
icemaker is set to Off for more than a few hours.
1. Push on the latch firmly where noted to close the ice
bank door; it will make a clicking sound when it is
closed completely.
4. Avoid touching the automatic shutoff arm when
replacing the ice bank. See the label on the ice bank
door for details.
Automatic
shutoff Arm
17
USING YOUR REFRIGERATOR
ADJUSTING CONTROL SETTINGS
FOOD STORAGE GUIDE
Give the refrigerator time to cool down completely before
making final adjustments. It is best to wait 24 hours
before doing this. The initial settings mentioned in
SETTING THE CONTROLS section should be correct for
normal household refrigerator use. The controls are set
correctly when milk or juice is as cold as you like and
when ice cream is firm.
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to
ensure freshness.
The refrigerator control functions as the thermostat for the
entire appliance (refrigerator and freezer sections). The
higher the number setting, the longer the compressor will
run to keep the temperature colder. The freezer control
adjusts the cold air flow from the freezer to the
refrigerator. Setting the freezer control to a lower
temperature keeps more cold air in the Freezer
compartment to make it colder.
If you need to adjust temperatures in the refrigerator or
freezer, start by adjusting the refrigerator. Then wait 24
hours before checking the freezer temperature. If it is too
warm or too cold, then adjust the freezer control.
Use the settings listed in the chart below as a guide.
Always remember to wait at least 24 hours between
adjustments.
CONDITION/
REASON:
RECOMMENDED
ADJUSTMENT:
REFRIGERATOR section too
warm
– Door opened often
– Large amount of food added
– Room temperature very warm
Set REFRIGERATOR
control one degree lower
C or two degrees lower F,
wait 24 hours, then recheck
FREEZER section too
warm/ice not made fast enough
– Door opened often
– Large amount of food added
– Very cold room temperature
(Compressor doesn't cycle
often enough)
– Heavy ice usage
– Air vents blocked by items
Set FREEZER control
one degree lower C or two
degrees lower F, wait 24
hours, then re-check
Items
How to
Butter or
margarine
❿ Keep opened butter in a covered
dish or closed compartment.
When storing an extra supply,
wrap in freezer packaging and
freeze.
Cheese
❿ Store in the original wrapping until
you are ready to use it. Once
opened, rewrap tightly in plastic
wrap or aluminum foil.
Milk
❿ Wipe milk cartons. For best
storage, place milk on interior
shelf, not on door shelf.
Eggs
❿ Store in original carton on interior
shelf, not on door shelf.
Fruit
❿ Wash, let dry, and store in
refrigerator in plastic bags or in
the crisper. Do not wash or hull
berries until you are ready to use
them. Sort and keep berries in
their original container in a
crisper, or store in a sloosely
closed paper bag on a refrigerator
shelf.
Leafy vegetables ❿ Remove store wrapping and trim
or tear off bruised and discolored
areas. Wash in cold water and
drain. Place in plastic bag or
plastic container and store in
crisper.
Move items out of
airstream
REFRIGERATOR section too
cold
– Controls not set correctly for
your conditions
Set REFRIGERATOR
control one degree higher
C or two degrees higher F,
wait 24 hours, then re-check
FREEZER section too cold
– Controls not set correctly for
your conditions
Set FREEZER control
one degree higher C or two
degrees higher F, wait 24
hours, then re-check
18
Vegetables with ❿ Place in plastic bags or plastic
skins (carrots,
container and store in crisper.
peppers)
Fish
❿ Use fresh fish and shellfish the
same day purchased.
Leftovers
❿ Cover leftovers with plastic wrap
or aluminum foil. Plastic
containers with tight lids can
also be used.
USING YOUR REFRIGERATOR
STORING FROZEN FOOD
REFRIGERATOR SECTION
NOTE: For further information about preparing food for
freezing or food storage times, check a freezer guide or a
reliable cookbook.
WATER DISPENSER
Tray can be easily removed by pressing down and pulling
out it.
Packaging
Successful freezing depends on correct packaging. When
you close and seal the package, it must not allow air or
moisture in or out. If it does, you could have food odor
and taste transfer throughout the refrigerator and also dry
out frozen food.
Packaging recommendations:
• Rigid plastic containers with tight-fitting lids
• Straight-sided canning/freezing jars
• Heavy-duty aluminum foil
• Plastic-coated paper
Tilt up the front of tray slightly and snap the tabs into the
holes to reinstall the tray.
• Non-permeable plastic wraps
• Specified freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Do not use
• Bread wrappers
Holes
• Non-polyethylene plastic containers
Tabs
• Containers without tight lids
• Wax paper or wax-coated freezer wrap
• Thin, semi-permeable wrap
w CAUTION: Do not keep beverage cans or plastic food
containers in the freezer compartment. They may be
break if they freeze.
Freezing
Your freezer will not quick-freeze any large quantity of
food. Do not put more unfrozen food into the freezer than
will freeze within 24 hours (no more than 2 to 3 lbs of food
per cubic foot of freezer space). Leave enough space in
the freezer for air to circulate around packages. Be careful
to leave enough room at the front so the door can close
tightly.
Storage times will vary according to the quality and type
of food, the type of packaging or wrap used (airtight and
moisture-proof) and the storage temperature. Ice crystals
inside a sealed package are normal. This simply means
that moisture in the food and air inside the package have
condensed, creating ice crystals.
w WARNING: Do not put your fingers up the ice chute
opening. Doing so can result in severe injury.
w CAUTION: Do not dispense ice into fine china or
crystal glasses. China or crystal can break.
NOTE: Allow hot foods to cool at room temperature for
30 minutes, then package and freeze. Cooling hot foods
before freezing saves energy.
19
USING YOUR REFRIGERATOR
REFRIGERATOR SHELVES
w CAUTION: Make sure that shelves are level from one
side to the other. Failure to do so may result in the shelf
falling or spilling food.
The shelves in your refrigerator are adjustable to meet
your individual storage needs. Your model may have
glass or wire shelves.
Folding Shelf
Storing similar food items together in your refrigerator and
adjusting the shelves to fit different heights of items will
make finding the exact item you want easier; it will also
reduce the amount of time the refrigerator door is open,
saving energy.
You can store taller items such as a gallon container or
bottles by simply pushing the front half of shelf
underneath back half of shelf. Pull toward you to returm to
a full shelf.
IMPORTANT: Do not clean glass shelves with warm
water when they are cold. Shelves may break if exposed
to sudden temperature changes or impact, such as
bumping. For your protection, glass shelves are made
with tempered glass, which will shatter into small pebblesized pieces.
NOTE: Glass shelves are heavy. Use special care when
removing them to avoid dropping them.
Adjusting Shelves
BOTTLE HOLDER
(795.7974*, 7976* Model Only)
Remove shelves from the shipping position and replace
shelves in the position you want.
Bottles can be stored laterally with this bottle holder.
It can be attached to any shelf.
• To remove a shelf—Tilt up the front of the shelf in the
direction of (1) and lift it in the direction of (2). Pull the
shelf out.
Bottle holder can be removed by pulling it straight out and
installed by placing it at the end of the shelf you want and
pushing it inward.
• To reinstall a shelf—Tilt the front of the shelf up and
guide the shelf hooks into the slots at a desired height.
Then lower the front of the shelf so that the hooks drop
into the slots.
20
USING YOUR REFRIGERATOR
HUMIDITY CONTROLLED CRISPER
GLIDE‘N’SERVE
The crispers provide fresher-tasting fruit and vegetables
by letting you easily control humidity inside the drawer.
The crispers include:
The Glide‘N’Serve provides storage space with a variable
temperature control that keeps the compartment colder
than refrigerator. This drawer can be used for large party
trays, deli items, or beverages. (but this drawer can't be
used for vegetable.)
A crisper drawer humidity control switch.
You can control the amount of humidity in
the moisture-sealed crispers. Adjust the control
to any setting between
and
.
•
COLD
TEMP CONTROL
COLDER
keeps moist air in the crisper for best storage
of fresh, leafy vegetables.
•
lets moist air out of the crisper for best storage of
fruits.
R
DE
COL
OL
TR
ON
PC
TEM
D
COL
Controls
The control regulates the air temperature in the drawer.
Set control level to COLD (print on surface) to provide
normal refrigerator temperature. Use the COLDER
(print on surface) setting for meats or other deli items.
NOTE: Cold air directed to the Glide‘N’Serve can
decrease refrigerator temperature. Refrigerator control
may need to be adjusted.
REMOVING HUMIDITY CONTROLLED CRISPER
1. To remove, pull the drawer out to full extension.
MODULAR DOOR BIN
2. Lift the front of the crisper up, then pull it straight out.
The door bins are
removable for easy
cleaning and adjusting.
Simply lift the bin and
pull it straight out to
remove it. To replace
the bin, slide it in above
the desired support button and push down until it stops.
3. To install, slightly tilt up the front and insert the drawer
into the frame and push it back into place.
DAIRY BIN
To remove the dairy bin,
simply lift it and pull
straight out. To replace
the dairy bin, slide it into
place and push down until
it stops.
To remove the glass
1. Lift up the glass under the crisper cover.
2. Pull the glass up and out.
NOTE: The dairy bin will only fit in the top space on the
right-hand door.
21
USING YOUR REFRIGERATOR
FREEZER SECTION
EXTRA ICE BIN
TILTING DOOR
1. To remove the ice bin from the upper drawer, pull out the
drawer as far as possible.
The tilting door provides easy access for stored foods.
2. Gently lift and pull out the ice bin.
How to use
Tilt the door down and pull it out.
3. To install, pull out the drawer as much as possible and set
the ice bin in its correct position, then push in the drawer.
w WARNING: Be careful when you open tilting door so
that you do not injure your foot!
DRAWER
Extra Ice Bin
TILT-OUT DOOR BASKET
To remove basket
1. Pull one of the brackets upward.
2. Remove basket from both brackets.
To replace basket
1. Insert bracket into one side. Hook end of basket into
bracket.
2. Hook other basket end into other bracket. Push bracket
down into place.
3. Be sure back of basket goes behind retention tab on
each bracket.
1
2
22
USING YOUR REFRIGERATOR
DURABASE
PULLOUT DRAWER
1. To remove the Durabase, push it back to the end as
much as possible. Tilt up the front of the Durabase and
pull straight out.
To separate the drawer, push the front left and right hooks
in direction to pull up and remove.
Then gently lift the gear part of rear left and right side of
the drawer and pull it out in direction.
2. To install, insert the Durabase in rail assembly.
1
1
3
2
2
To install, reposition the gear part of rear left and right
side of the drawer after pulling out both rails as much as
possible, and gently push down both left and right side
while checking the hook on the front part.
Hook
DURABASE DIVIDER
The Durabase divider allows you to organize the
Durabase area into sections.
w WARNING: If the Durabase divider is removed, there is
enough open space for children or pets to crawl inside.
To prevent accidental child and pet entrapment or
suffocation risk, DO NOT allow them to play inside of
drawer.
23
USING YOUR REFRIGERATOR
2. Replace with a new cartridge.
FILTER
Take the new cartridge out of its packaging and
remove protective cover from the o-rings.
With cartridge knob in the vertical position, push the
new filter cartridge into the cover until it stops.
Replace the water filter when the refrigerator control pad
Filter Reset indicator light turns on, or when your water
dispenser or icemaker performance decreases noticeably.
After changing the water filter cartridge, press and hold
the Filter Reset button for 3 seconds; indicator light will go
out.
Push it in firmly until you can turn it. Using its handle,
twist cartridge about 1/4 turn.
You will hear a snap when it clicks into place.
1. Remove the old cartridge.
Place a container under
the hole of filter holder.
NOTE: When filter is being removed, the water drains
through the hole.
3. Flush the water system after replacing filter. Dispense
water through the water dispenser for three minutes to
flush the system.
Rotate the knob of the
cartridge counter
clockwise.
NOTE: To purchase replacement water filter cartridges,
call 1-800-4-MY-HOME®. Ask for part number 9990.
Pull out the filter cartridge.
24
CARE AND CLEANING
CONDENSER COILS
w WARNING
Remove Back cover.
Use a vacuum cleaner with an
extended attachment to clean
condenser coils. Vacuum coils
when dusty or dirty. Coils may
need to be cleaned as often as
every other month.
Explosion Hazard
LIGHT BULB REPLACEMENT
Use non-flammable cleaner.
Failure to do so can result in death, explosion, or fire.
w WARNING
Both the refrigerator and freezer sections defrost
automatically. However, clean both sections about once
a month to prevent odors. Wipe up spills immediately.
Electrical Shock Hazard
Before replacing a Compartment Lamp, either unplug
the refrigerator or turn off power at the circuit breaker
or fuse box.
GENERAL CLEANING TIPS
NOTE: Moving the control to the OFF position
does not remove power to the light circuit.
• Unplug refrigerator or disconnect power.
• Remove all removable parts, such as shelves,
crispers, etc. Refer to sections in Using Your
Refrigerator for removal instructions.
• Use a clean sponge or soft cloth and a mild detergent in
warm water. Do not use abrasive or harsh cleaners.
• Hand wash, rinse and dry all surfaces thoroughly.
• Plug in refrigerator or reconnect power.
NOTE: Some models have LED interior lighting and service
should be performed by a qualified technician.
To change Refrigerator Compartment Lamp
1. Unplug Refrigerator, or disconnect power at the circuit
breaker.
2. Release 2 screws.
3. Hold both ends with your both hands and pull it downward
to remove it.
OUTSIDE
Waxing external painted metal surfaces helps provide rust
protection. Do not wax plastic parts. Wax painted metal
surfaces at least twice a year using appliance wax (or
auto paste wax). Apply wax with a clean, soft cloth.
For products with a stainless steel exterior, use a clean
sponge or soft cloth and a mild detergent in warm water.
Do not use abrasive or harsh cleaners. Dry thoroughly
with a soft cloth.
INSIDE WALLS (allow freezer to warm up so
cloth won’t stick)
To help remove odors, you can wash the inside of the
refrigerator with a mixture of baking soda and warm water.
Mix 2 tablespoons baking soda to 1 quart of water (26 g
soda to 1 liter water.) Be sure the baking soda is
completely dissolved so it does not scratch the surfaces of
the refrigerator.
w CAUTION: While cleaning the inside, do not spray water.
• When you are finished, reconnect the refrigerator to the
electrical source and reset the controls. (Thermostat,
Refrigerator Control, and or Freezer Control, depending on
the model) to the desired setting.
DOOR LINERS AND GASKETS
Do not use cleaning waxes, concentrated detergents,
bleaches, or cleaners containing petroleum on plastic
refrigerator parts.
PLASTIC PARTS (covers and panels)
Do not use window sprays, abrasive cleansers, or flammable
fluids. These can scratch or damage the material.
25
CARE AND CLEANING
To change freezer Compartment Lamp
WHEN YOU GO ON VACATION
NOTE: Some models have LED interior lighting and
service should be performed by a qualified technician.
1. Unplug refrigerator power cord form outlet.
If you choose to leave the refrigerator on while you
are away, follow these steps to prepare your refrigerator
before you leave.
2. Remove screw with direver.
1. Use up any perishables and freeze other items.
3. Grasp the cover Lamp, pull the cover downward.
2. Empty the ice bin.
3. Turn off the Icemaker.
If you choose to turn the refrigerator off before you
leave, follow these steps.
1. Remove all food from the refrigerator.
2. Depending on your model, set the thermostat control
(refrigerator control) to OFF. See the Setting the
Controls section.
3. Clean refrigerator, wipe it and dry well.
4. Tape rubber or wood blocks to the tops of both doors to
prop them open far enough for air to get in. This stops
odor and mold from building up.
WHEN YOU MOVE
When you are moving your refrigerator to a new home,
follow these steps to prepare it for the move.
• When you are finished, reconnect the refrigerator to the
electrical source and reset the controls. (Thermostat,
Refrigerator Control, and or Freezer Control, depending
on the model) to the desired setting.
1. Remove all food from the refrigerator and pack all
frozen food in dry ice.
POWER INTERRUPTIONS
3. Unplug the refrigerator.
1. If the power will be out for 24 hours or less, keep
all refrigerator doors closed to help foods stay
cold and frozen.
4. Clean, wipe and dry thoroughly.
2. Depending on your model, turn the thermostat control
(refrigerator control) to OFF. See the Setting the
Controls section.
5. Take out all removable parts, wrap them well and tape
them together so they don’t shift and rattle during the
move. Refer to sections in Using your Refrigerator for
removable instructions.
2. If the power will be out for more than 24 hours:
a) Remove all frozen food and store it in a frozen
food locker.
6. Depending on the model, raise the front of the
refrigerator so it rolls more easily OR screw in the
leveling legs all the way so they don’t scrape the floor.
See the Door Closing section.
7. Tape the doors shut and tape the power cord to the
refrigerator cabinet.
When you get to your new home, put everything back
and refer to the Installing Your Refrigerator section for
preparation instructions.
26
ABOUT THE AUTOMATIC ICEMAKER
AUTOMATIC ICEMAKER
w WARNING
Ice is made in the automatic icemaker and sent to the
dispenser. The automatic icemaker can make 6 ice cubes
at a time, 80–130 cubes per 24-hour period. This quantity
may vary by circumstance, including freezer compartment
temperature, room temperature, number of door
openings, freezer load, and other operating conditions.
Personal Injury Hazard
Avoid contact with the moving parts of the ejector
mechanism, or with the heating element that releases
the cubes. DO NOT place fingers or hands on the
automatic icemaking mechanism while the refrigerator
is plugged in.
• It takes about 12 to 24 hours for a newly installed
refrigerator to make ice.
• Icemaking stops when the ice storage bin is full.
Icemaker
• To turn off the automatic icemaker, set the icemaker
switch to OFF(O). To turn on the automatic icemaker,
set the switch to ON(I).
• You can regulate the cube size by pressing the Water
Amount Selection Button.
• The cube size will vary depending on the Water Amount
Selection Setting, as well as the water pressure of the
connected water line.
Cube Size
Indicator Light
NOTE: It is normal that a noise is produced when ice
drops into the ice storage bin.
• Even when the water pipe is not connected and the Ice
Maker is turned on, the water valve operates. The noise
is generated because the water pipe is not connected,
which does not mean the icemaker is defective.
Automatic
Shut off Arm
Cube Size
Select Button
Power
Switch
NOTE: Raising the automatic shutoff arm does not turn
off the icemaker.
27
ABOUT THE AUTOMATIC ICEMAKER
WHEN YOU SHOULD SET THE ICEMAKER
POWER SWITCH TO O (OFF)
w CAUTIONS
• The first ice and water may include particles or odor from
the water supply line or the water tank.
• When the water supply will be shut off for several hours.
• When the ice storage bin is removed for more than a
minute or two.
• Throw away the first few batches of ice (about 20
pieces) and purge for 2 minutes that are dispensed after
refrigerator installation.
• When the refrigerator will not be used for several days.
• This is also necessary if the refrigerator has not been
used for a long time.
NOTE: Ice Bin should be emptied the icemaker on/off
switch is turned to the OFF position.
• Never store beverage cans or other foods in the ice bank
for the purpose of rapid cooling.
Doing so may damage the icemaker or the containers
may burst.
NORMAL SOUNDS YOU MAY HEAR
• The icemaker water valve will buzz as the icemaker fills
with water. If the power switch is in the I (on) position, it
will buzz even if it has not yet been hooked up to water.
To stop the buzzing, move the power switch to O (off).
• If discolored ice is dispensed, check the water filter and
water supply. If the problem continues, contact an
Authorized Service Center. Do not use the ice or water
until the problem is corrected.
NOTE: Ice Bin should be emptied the icemaker on/off
switch is turned to the OFF position.
• Keep children away from the dispenser. Children may
play with or damage the controls.
NOTE: Keeping the power switch in the I (on) position
before the water line is connected can damage the
icemaker.
• The ice passage may also become blocked with frost if
only crushed ice is used. Remove the frost that
accumulates.
• You will hear the sound of cubes dropping into the bin
and water running in the pipes as the icemaker refills.
• Never use thin crystal glass or crockery to collect ice.
Such glasses or containers may break, and glass
fragments could be in the ice.
PREPARING FOR VACATION
• Dispense ice into a glass before filling it with water or
other beverages. Splashing may occur if ice is
dispensed into a glass that already contains liquid.
Set the icemaker power switch to O (off) and shut off the
water supply to the refrigerator.
NOTE: Ice Bin should be emptied anytime the icemaker
on/off switch is turned to the OFF position.
• Never use a glass that is exceptionally narrow or deep.
Ice may jam in the ice passage and refrigerator
performance may be affected.
If the ambient temperature will drop below freezing, have
a qualified servicer drain the water supply system to
prevent serious property damage due to flooding from
ruptured water lines or connections.
• Keep the glass at a proper distance from the ice outlet.
A glass held too close to the outlet may prevent ice from
dispensing.
• To avoid personal injury, keep hands out of the ice door
and passage.
• Never remove the icemaker cover.
• If you find ice or water dispensed unexpectedly, turn
off the water supply and contact an Authorized Service
Center. Call 1-800-243-0000 (24 hours a day, 365
days a year) and select the option to locate an
authorized servicer.
28
CONNECTING THE WATER LINE
• If your existing copper water
line has a flared fitting at the
end, you will need an
adapter (available at
plumbing supply stores) to
connect the water line to the
refrigerator OR you can
cut off the flared fitting with a tube cutter and then use
a compression fitting.
BEFORE YOU BEGIN
This water line installation is not warranted by the
refrigerator or icemaker manufacturer. Follow these
instructions carefully to minimize the risk of expensive
water damage.
Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts and lead
to water leakage or flooding. Call a qualified plumber to
correct water hammer before installing the water supply
line to the refrigerator.
To prevent burns and product damage, do not hook up
the water line to the hot water line.
If you use your refrigerator before connecting the water
line, make sure the icemaker power switch is in the O (off)
position.
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
When using any electrical device (such as a power drill)
during installation, be sure the device is double-insulated
or grounded in a manner to prevent the hazard of electric
shock, or is battery-powered.
All installations must be in accordance with local plumbing
code requirements.
• Shutoff valve to connect to
the cold water line. The
shutoff valve should have a
water inlet with a minimum
inside diameter of 5/32" at
the point of connection to the
COLD WATER LINE. Saddle-type shutoff valves are
included in many water supply kits. Before purchasing,
make sure a saddle-type valve complies with your local
plumbing codes.
NOTE: Self Piercing Saddle Type Water Valve should
not be used.
INSTALLATION INSTRUCTIONS
NOTE: Wear eye protection.
Install the shutoff valve on the nearest frequently used
drinking water line.
WHAT YOU WILL NEED
1. SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the pressure on
the line.
• Copper Tubing, 1/4" outer
diameter to connect the refrigerator
to the water supply. Be sure both
ends of the tubing are cut square.
2. CHOOSE THE VALVE LOCATION
Choose a location for the valve that
is easily accessible. It is best to
connect into the side of a vertical
water pipe. When it is necessary to
connect into a horizontal water pipe,
make the connection to the top or
side, rather than at the bottom, to
avoid drawing off any sediment from the water pipe.
To determine how much tubing you need: measure
the distance from the water valve on the back of the
refrigerator to the water supply pipe. Then add 8 feet
(2.4 m). Be sure there is sufficient extra tubing (about
8 feet [2.4 m] coiled into 3 turns of about 10" [25 cm]
diameter) to allow the refrigerator to move out from the
wall after installation.
• A cold water supply. The water pressure must be
between 20 and 120 p.s.i. on models without a water
filter and between 40 and 120 p.s.i. on models with a
water filter.
3. DRILL THE HOLE FOR THE VALVE
Drill a 1/4" hole in the water
pipe using a sharp bit. Remove
any burrs resulting from drilling
the hole in the pipe. Take care
not to allow water to drain into
the drill. Failure to drill a 1/4"
hole may result in reduced ice
production or smaller cubes.
NOTE: The hookup line cannot be white, plastic
tubing. Licensed plumbers must use only copper
tubing NDA tubing #49595 or 49599 or Cross Link
Polyethylene(PEX) tubing.
• Power drill.
• 1/2" or adjustable wrench.
• Straight- and Phillipsblade screwdriver.
• Two 1/4" outer diameter
compression nuts and
2 ferrules (sleeves) to
connect the copper tubing to
the shutoff valve and the
refrigerator water valve.
29
CONNECTING THE WATER LINE
7. CONNECT THE TUBING TO THE VALVE
INSTALLATION INSTRUCTIONS
(CONTINUED)
Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing and
connect it to the shutoff valve. Make sure the tubing is
fully inserted into the valve. Tighten the compression
nut securely.
4. FASTEN THE SHUTOFF VALVE
Fasten the shutoff valve to the cold water pipe with
the pipe clamp.
Pipe Clamp
Saddle-Type
Shutoff Valve
Saddle-Type
Shutoff Valve
Packing Nut
Vertical Cold
Water Pipe
Outlet Valve
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
Ferrule (sleeve)
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
5. TIGHTEN THE PIPE CLAMP
8. FLUSH OUT THE TUBING
Tighten the clamp screws until the sealing washer
begins to swell.
Turn the main water supply on
and flush out the tubing until the
water is clear.
NOTE: Do not overtighten or you may crush the tubing.
Washer
Pipe Clamp
Compression Nut
Shut the water off at the water
valve after about one quart of
water has been flushed through
the tubing.
Inlet End
Clamp Screw
6. ROUTE THE TUBING
Route the tubing between the cold water line and the
refrigerator.
Route the tubing through a hole drilled in the wall or
floor (behind the refrigerator or adjacent base cabinet)
as close to the wall as possible.
NOTE: Be sure there is sufficient extra tubing (about
8 feet coiled into 3 turns of about 10" diameter) to
allow the refrigerator to move out from the wall after
installation.
30
CONNECTING THE WATER LINE
9. CONNECT THE TUBING TO THE
REFRIGERATOR
10. TURN THE WATER ON AT THE
SHUTOFF VALVE
NOTE:
• Before making the connection to the refrigerator, be
sure the refrigerator power cord is not plugged into
the wall outlet.
Tighten any connections that leak.
Reattach the compressor compartment access cover.
1. Remove the plastic flexible cap from the water valve.
2. Place the compression nut and ferrule (sleeve) onto
the end of the tubing as shown.
3. lnsert the end of the copper tubing into the
connection as far as possible. While holding the
tubing, tighten the fitting.
w CAUTION: Check to see if leaks occurs at water line
connections.
Tubing Clamp
11. PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so that it does not vibrate
against the back of the refrigerator or against the
wall. Push the refrigerator back to the wall.
1/4 " Tubing
1/4 "
Compression
Nut
Ferrule
(sleeve)
Refrigerator
Connection
12. START THE ICEMAKER
w CAUTION: Check to see if water dripping occurs at
water line connections.
Set the icemaker power switch to the ON position.
The icemaker will not begin to operate until it reaches
its operating temperature of 15°F (–9°C) or below. It
will then begin operation automatically if the
icemaker power switch is in the I (on) position.
31
TROUBLESHOOTING GUIDE
• The defrost timer will click when the automatic defrost
cycle begins and ends. The thermostat control (or
refrigerator control, depending on the model) will also
click when cycling on and off.
UNDERSTANDING SOUNDS YOU MAY HEAR
Your new refrigerator may make sounds that your old one
didn’t make. Because the sounds are new to you, you
might be concerned about them. Most of the new sounds
are normal. Hard surfaces, like the floor, walls and
cabinets, can make the sounds seem louder than they
actually are. The following describes the kinds of sounds
and what may be making them.
• Rattling noises may come from the flow of refrigerant,
the water line, or items stored on top of the refrigerator.
• Your refrigerator is designed to run more efficiently to
keep your food items at the desired temperature.
The high efficiency compressor may cause your new
refrigerator to run longer than your old one, and you may
hear a pulsating or high-pitched sound.
• You may hear the evaporator fan motor circulating the
air through the refrigerator and freezer compartments.
• As each cycle ends, you may hear a gurgling sound due
to the refrigerant flowing in your refrigerator.
• Contraction and expansion of the inside walls may cause
a popping noise.
• Water dripping on the defrost heater during a defrost
cycle may cause a sizzling sound.
• You may hear air being forced over the condenser by
the condenser fan.
• You may hear water running into the drain pan during
the defrost cycle.
• You can hear the noise occurred from the icing fan at the
freezer or the left side of the refrigerator when doors are
open.
REFRIGERATOR DOES NOT OPERATE
Check if…
Then…
The power supply cord is unplugged.
Firmly plug the cord into a live outlet with proper voltage.
A household fuse has blown or circuit breaker
tripped.
Replace the fuse or reset the circuit breaker.
The refrigerator control is set to the OFF position.
Refer to the Setting the Controls section on page 16.
Refrigerator is in the defrost cycle.
Wait about 30 minutes for defrost cycle to end.
VIBRATION OR RATTLING NOISE
Check if…
The refrigerator is not resting solidly on
the floor.
Then…
Floor is weak or uneven or leveling legs need adjusting.
See Installation section on page 8 and 15.
LIGHTS DO NOT WORK
Check if…
Then…
The power supply cord is unplugged.
Firmly plug the cord into a live outlet with proper voltage.
Light bulb is loose in the socket.
Turn the refrigerator control to the OFF position and unplug
the refrigerator. Gently remove the bulb and reinsert. Then
plug in refrigerator and reset the refrigerator control.
Light bulb has burned out.
Replace with an appliance bulb of the same wattage, size and
shape available at your local hardware store. (See the
Changing the Light Bulb(s) section on pages 25-26.) Turn
the temperature control to the OFF position and unplug the
refrigerator prior to replacement.
32
TROUBLESHOOTING GUIDE
COMPRESSOR MOTOR SEEMS TO RUN TOO MUCH
Check if…
Then…
The refrigerator that was replaced was an older
model.
Modern refrigerators with more storage space require more
operating time.
The room temperature is hotter than normal.
The motor will run longer under warm conditions. At normal
room temperatures, expect your motor to run about 40% to
80% of the time. Under warmer conditions, expect it to run
even more often.
The door is opened often or a large amount of food
has just been added.
Adding food and opening the door warms the refrigerator.
It is normal for the refrigerator to run longer in order to cool the
refrigerator back down. Adding a large amount of food warms
the refrigerator. See the Food Storage Guide section on page
18. In order to conserve energy, try to get everything you need
out of the refrigerator at once, keep food organized so it is
easy to find and close the door as soon as the food is
removed.
The refrigerator was recently plugged in and the
refrigerator control was set correctly.
The refrigerator will take up to 24 hours to cool completely.
The refrigerator control is not set correctly for the
surrounding conditions.
See the Adjusting Control Settings section on page 18.
The doors are not closed completely.
Push the doors firmly shut. If they will not shut all the way, see
Doors will not close completely below.
The condenser coils are dirty.
This prevents air transfer and makes the motor work harder.
Clean the condenser coils. Refer to the Care and Cleaning
section on pages 25-26.
DOORS WILL NOT CLOSE COMPLETELY
Check if…
Then…
The refrigerator is not level.
See Leveling and Door Alignment section on page 15.
Food packages are blocking the door open.
Rearrange food containers to clear door and door shelves.
The ice bin, crisper cover, pans, shelves, door bins
or baskets are out of position.
Push bins all the way in and put crisper cover, pans, shelves
and baskets into their correct positions. See the Using Your
Refrigerator section on pages 16–24.
The gaskets are sticking.
Clean gaskets and the surface that they touch. Rub a thin coat
of paraffin wax on the gaskets after cleaning.
The refrigerator wobbles or seems unstable.
Level the refrigerator. Refer to the Leveling and Door
Alignment section on page 15.
The doors were removed during product
installation and not properly replaced.
Remove and replace the doors according to the Removing
and Replacing Refrigerator handles and doors section on
pages 9–14, or call a qualified service technician.
FROST OR ICE CRYSTALS ON FROZEN FOOD
Check if…
Then…
The door is not closing properly.
See Doors will not close completely above.
The door is opened often.
When the door is opened, warm, humid air is allowed in the
freezer, resulting in frost.
33
TROUBLESHOOTING GUIDE
ICE HAS OFF-TASTE OR ODOR
Check if…
Then…
The icemaker was recently installed.
Discard first few batches of ice to avoid discolored or offflavored ice.
The ice has been stored for too long.
Throw away old ice and make new supply.
The food has not been wrapped tightly in either
compartment.
Rewrap foods since odors may migrate to the ice if food is not
wrapped properly.
The water supply contains minerals such as sulfur.
A filter may need to be installed to eliminate taste and odor
problems.
The interior of refrigerator needs cleaning.
See Care and Cleaning section on pages 25-26.
Ice storage bin needs cleaning.
Empty and wash bin. Discard old cubes.
THERE IS WATER IN THE DEFROST DRAIN PAN
Check if…
Then…
The refrigerator is defrosting.
The water will evaporate. It is normal for water to drip into the
defrost pan.
It is more humid than normal.
Expect that the water in the defrost pan will take longer to
evaporate. This is normal when it is hot or humid.
THE REFRIGERATOR SEEMS TO MAKE TOO MUCH NOISE
Check if…
The sounds may be normal for your refrigerator.
Then…
Refer to the Understanding Sounds You May Hear section
on page 32.
THE ICEMAKER IS NOT PRODUCING ICE OR ICE CUBES ARE FREEZING TOO SLOWLY
Check if…
Then…
The freezer temperature is cold enough to produce
ice.
Wait 24 hours after hook-up for ice production. See the
Setting the Controls section on page 16.
Door left open.
Check to see if something is holding the door open.
CUBES PRODUCED BY ICEMAKER ARE TOO SMALL
Check if…
Then…
Smaller cube size level is selected.
Select larger cube size using cube size selector.
Water shutoff valve connecting refrigerator to
water line may be clogged.
Call a plumber to clear the valve.
34
TROUBLESHOOTING GUIDE
THE DOORS ARE DIFFICULT TO OPEN
Check if…
Then…
The gaskets are dirty or sticky.
Clean gaskets and the surfaces that they touch. Rub a thin
coat of appliance polish or kitchen wax on the gaskets after
cleaning.
The door is reopened within a short time after
having been opened.
When you open the door, warmer air enters the refrigerator.
As the warm air cools, it can create a vacuum. If the door is
hard to open, wait 5 minutes to allow the air pressure to
equalize, then see if it opens more easily.
TEMPERATURE IS TOO WARM OR THERE IS INTERIOR MOISTURE BUILDUP
Check if…
Then…
The air vents are blocked. Cold air circulates from
the freezer to the fresh food section and back
again through air vents in the wall dividing the two
sections.
Locate air vents by using your hand to sense airflow and move
all packages that block vents and restrict airflow.
The doors are opened often.
When the door is opened, warm humid air is allowed into the
refrigerator. The more the door is opened, the faster the
humidity builds up, and the more warm air the refrigerator must
cool. In order to keep the refrigerator cool, try to get everything
you need out of the refrigerator at once, keep food organized
so it is easy to find and close the door as soon as the food is
removed.
The control is not set correctly for the surrounding
conditions.
Refer to the Setting the Controls section on page 16.
Wait 24 hours for temperatures to stabilize or even out. If the
temperature is too cold or too warm, move the dial one
number at a time.
A large amount of food has just been added to the
refrigerator or freezer.
Adding food warms the refrigerator. It can take a few hours for
the refrigerator to return to normal temperature.
The food is not packaged correctly.
Wrap food tightly and wipe off damp containers prior to storing
in the refrigerator to avoid moisture accumulation. If
necessary, repackage food according to the guidelines in the
Food Storage Guide section on page 18.
The doors are not closing completely.
See Doors will not close completely on page 33.
The weather is humid.
In humid weather, air carries moisture into refrigerator when
doors are opened.
A self-defrost cycle was completed.
It is normal for droplets to form on the back wall after the
refrigerator self-defrosts.
35
Was this manual useful for you? yes no
