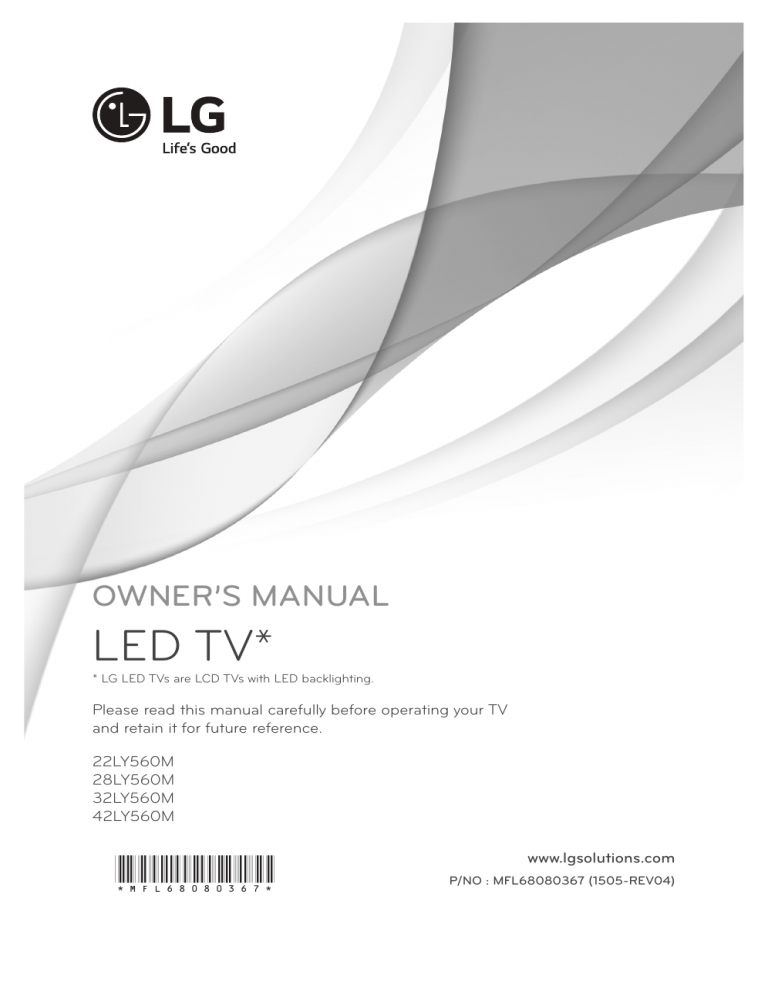

OWNER’S MANUAL
LED TV*
* LG LED TVs are LCD TVs with LED backlighting.
Please read this manual carefully before operating your TV
and retain it for future reference.
22LY560M
28LY560M
32LY560M
42LY560M
*MFL68080367*
www.lgsolutions.com
P/NO : MFL68080367 (1505-REV04)
2
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak
performance of your product.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE
PERSONNEL.
ENGLISH
The lightning flash with arrowhead
symbol within an equilateral triangle is
intended to alert the user to the presence
of uninsulated dangerous voltage within the
product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying
the appliance.
WARNING/CAUTION
- TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
••Do not use this apparatus near water.
••Clean only with dry cloth.
••Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
••Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
WARNING
If you ignore the warning message, you
may be seriously injured or there is a
possibility of accident or death.
CAUTION
If you ignore the caution message, you may
be slightly injured or the product may be
damaged.
NOTE
The note helps you understand and use
the product safely. Please read the note
carefully before using the product.
WARNING: This product contains chemicals
known to the State of California to cause
cancer and birth defects or other reproductive
harm. Wash hands after handling.
••Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than
the other. A grounding type plug has two
blades and a third grounding prong. The
wide blade or the third prong are provided
for your safety. If the provided plug does not
fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
••Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
IMPORTANT SAFETY INSTRUCTIONS
••Only use attachments/accessories specified
by the manufacturer.
••Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
••Unplug this apparatus during lightning storms
or when unused for long periods of time.
••Do not press strongly upon the panel with a
hand or a sharp object such as a nail, pencil,
or pen, or make a scratch on it.
••Do not stick metal objects or any other
conductive material into the power cord. Do
not touch the end of the power cord while it
is plugged in.
••Keep the packing anti-moisture material or
vinyl packing out of the reach of children.
Anti-moisture material is harmful if
swallowed. If swallowed, induce vomiting
and go to the nearest hospital. Additionally,
vinyl packing can cause suffocation. Keep it
out of the reach of children.
••CAUTION concerning the Power Cord
(Can differ by country):
Check the specification page of this owner’s
manual to be certain. Do not connect too
many appliances to the same AC power
outlet as this could result in fire or electric
shock. Do not overload wall outlets.
Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could
result in electric shock or fire.
Periodically examine the cord of your
appliance, and if its appearance indicates
damage or deterioration, unplug it,
discontinue use of the appliance, and have
the cord replaced with an exact replacement
part by an authorized service. Protect the
power cord from physical or mechanical
abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon.
Pay particular attention to plugs, wall
outlets, and the point where the cord exits
the appliance. Do not move the TV with
the power cord plugged in. Do not use a
damaged or loose power cord. Be sure do
grasp the plug when unplugging the power
cord. Do not pull on the power cord to unplug
the TV.
••Warning - To reduce the risk of fire or
electrical shock, do not expose this product
to rain, moisture or other liquids. Do not
touch the TV with wet hands. Do not install
this product near flammable objects such
as gasoline or candles, or expose the TV to
direct air conditioning.
••Do not expose to dripping or splashing and
do not place objects filled with liquids, such
as vases, cups, etc. on or over the apparatus
(e.g., on shelves above the unit).
ENGLISH
••Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
3
4
IMPORTANT SAFETY INSTRUCTIONS
••Grounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground
wire to prevent possible electric shock
(i.e., a TV with a three-prong grounded AC
plug must be connected to a three-prong
grounded AC outlet). If grounding methods
are not possible, have a qualified electrician
install a separate circuit breaker. Do not try to
ground the unit by connecting it to telephone
wires, lightning rods, or gas pipes.
Circuit
Breaker
Power
Supply
ENGLISH
••As long as this unit is connected to the AC
wall outlet, it is not disconnected from the AC
power source even if the unit is turned off.
••Do not attempt to modify this product in
any way without written authorization from
LG Electronics. Unauthorized modification
could void the user’s authority to operate this
product.
••Outdoor Antenna Grounding
(Can differ by country):
If an outdoor antenna is installed, follow
the precautions below. An outdoor antenna
system should not be located in the vicinity
of overhead power lines or other electric light
or power circuits, or where it can come in
contact with such power lines or circuits as
death or serious injury can occur. Be sure the
antenna system is grounded to provide some
protection against voltage surges and built-up
static charges. Section 810 of the National
Electrical Code (NEC) in the U.S.A. provides
information with respect to proper grounding
of the mast and supporting structure,
grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors,
location of antenna discharge unit, connection
to grounding electrodes and requirements for
the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Ground Clamp
Electric Service
Equipment
Grounding Conductor
(NEC Section 810-21)
Ground Clamp
NEC: National Electrical Code
Power Service Grounding
Electrode System
(NEC Art 250, Part H)
••Cleaning
When cleaning, unplug the power cord and
wipe gently with a soft cloth to prevent
scratching. Do not spray water or other
liquids directly on the TV as electric shock
may occur. Do not clean with chemicals such
as alcohol, thinners, or benzene.
••Moving
Make sure the product is turned off,
unplugged, and all cables have been
removed. It may take 2 or more people to
carry larger TVs. Do not press or put stress
on the front panel of the TV.
••Ventilation
Install your TV where there is proper
ventilation. Do not install in a confined space
such as a bookcase. Do not cover the product
with cloth or other materials while plugged.
Do not install in excessively dusty places.
••If you smell smoke or other odors coming
from the TV, unplug the power cord and
contact an authorized service center.
••If water or another substance enters the
product (like an AC adapter, power cord, or
TV), disconnect the power cord and contact
the service center immediately. Otherwise,
this may result in fire or electric shock.
••Use only an authorized AC adapter and power
cord approved by LG Electronics.
Otherwise, this may result in fire, electric
shock, malfunction, or product deformation.
••Never disassemble the AC adapter or power
cord. This may result in fire or electric shock.
IMPORTANT SAFETY INSTRUCTIONS
••Take care not to touch the ventilation
openings. When watching the TV for a long
period, the ventilation openings may become
hot. This does not affect the performance of
the product or cause defects in the product.
••Do not install this product on a wall if it
could be exposed to oil or oil mist. This may
damage the product and cause it to fall.
••If the TV feels cold to the touch, there may
be a small flicker when it is turned on. This
is normal; there is nothing wrong with TV.
Some minute dot defects may be visible on
the screen, appearing as tiny red, green, or
blue spots. However, they have no adverse
effect on the TV’s performance. Avoid
touching the LCD screen or holding your
finger(s) against it for long periods of time.
Doing so may produce some temporary
distortion effects on the screen.
Preventing image burn or burn-in on your
TV screen
ENGLISH
••Keep the product away from direct sunlight.
••Never touch this apparatus or antenna during
a lightning storm.
••When mounting a TV on the wall, make sure
not to install the TV by hanging the power
and signal cables on the back of the TV.
••Do not allow an impact shock, any objects to
fall into the product, and do not drop anything
onto the screen.
••DISCONNECTING THE DEVICE FROM THE
MAIN POWER
The power plug is the disconnecting device.
In case of an emergency, the power plug
must remain readily accessible.
••Batteries
Store the accessories (battery, etc.) in a safe
location out of the reach of children.
••This apparatus uses batteries. In your
community there might be regulations that
require you to dispose of these batteries
properly due to environmental considerations.
Please contact your local authorities for
disposal or recycling information.
••Do not dispose of batteries in a fire.
••Do not short circuit, disassemble, or allow
the batteries to overheat.
••Do not use high voltage electrical equipment
near the TV. (e.g., a bug zapper.)
This may result in product malfunction.
••Dot Defect
The panel is a high technology product with
resolution of two million to six million pixels.
In a very few cases, you could see fine dots
on the screen while you’re viewing the TV.
Those dots are deactivated pixels and do not
affect the performance and reliability of the
TV.
••Generated Sound
Cracking noise A cracking noise that occurs
when watching or turning off the TV is
generated by plastic thermal contraction
due to temperature and humidity. This noise
is common for products where thermal
deformation is required.
Electrical circuit humming/panel buzzing
A low level noise is generated from a highspeed switching circuit, which supplies a
large amount of current to operate a product.
It varies depending upon the product.
This generated sound does not affect the
performance and reliability of the product.
5
••If a fixed image displays on the TV screen for
a long period of time, it will be imprinted and
become a permanent disfigurement on the
screen. This is image burn or burn-in and not
covered by the warranty.
••If the aspect ratio of the TV is set to 4:3 for a
long period of time, image burn may occur on
the letterboxed area of the screen.
••Avoid displaying a fixed image on the TV
screen for a long period of time to prevent
image burn.
6
IMPORTANT SAFETY INSTRUCTIONS
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired operation of the device.
Any changes or modifications in construction of this device which are not expressly approved by
the party responsible for compliance could void the user’s authority to operate the equipment.
ENGLISH
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of
the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be connected to the grounding system of the
building, as close to the point of the cable entry as practical.
LG RECYCLING POLICY
LG Electronics offers a customized e-waste take-back and recycling service that meets local
needs and requirements in the countries where e-waste regulations are in place, and also provides
product and packaging take-back and recycling service voluntarily in some countries. LG Electronics
evaluates products’ recyclability at the design step using LG’s recyclability evaluation tool, with the
goal of improving recyclability where practicable. Through these activities, LG seeks to contribute
to conserving natural resources and protecting the environment.
For more information about the LG Recycling Policy, please visit our global site at
http://www.lg.com/global/sustainability/environment/take-back-recycling.
LICENSES / OPEN SOURCE SOFTWARE NOTICE INFORMATION
7
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.
This DivX Certified® device has passed rigorous testing to ensure it plays DivX®
video. To play purchased DivX movies, first register your device at vod.divx.com.
Find your registration code in the DivX VOD section of your device setup menu.
DivX Certified® to play DivX® video up to HD 1080p, including premium content.
DivX®, DivX Certified® and associated logos are trademarks of DivX, LLC and are
used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274.
To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in
this product, please visit http://opensource.lge.com. In addition to the source code, all referred license
terms, warranty disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of media, shipping, and handling) upon email request to
[email protected] This offer is valid for three (3) years from the date on which you purchased the
product.
NOTE
•Image
•
shown may differ from your TV.
•Your
•
TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
•The
•
available menus and options may differ from the input source or product model that you are
using.
•New
•
features may be added to this TV in the future.
ENGLISH
OPEN SOURCE SOFTWARE NOTICE INFORMATION
8
TABLE OF CONTENTS
TABLE OF CONTENTS
2
IMPORTANT SAFETY
INSTRUCTIONS
7LICENSES
7
OPEN SOURCE SOFTWARE
NOTICE INFORMATION
8
TABLE OF CONTENTS
9
ASSEMBLING AND PREPARING
ENGLISH
9Unpacking
10
Parts and Buttons
10
- Using the Joystick Button
12
Lifting and Moving the TV
12
Mounting on a Wall
14
MAKING CONNECTIONS
14
15
Connecting to an Antenna or Cable
Other Connections
19SETTINGS
20MAINTENANCE
20
20
20
Cleaning your TV
- Screen, Frame, Cabinet, and Stand
- Power Cord
21TROUBLESHOOTING
22SPECIFICATIONS
NGLISH
ENG
ASSEMBLING AND PREPARING
9
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
(For 22/28LY560M)
Owner’s Manual
Wall Mount Spacers
6 EA
A/V Adapter Cable
Cable Holder
1 EA
Power Cord
ENGLISH
(For 42LY560M)
CAUTION
••Do not use any unapproved items to ensure the safety and lifespan of the product.
••Any damages or injuries by using unapproved items are not covered by the warranty.
••Some models appear to have a thin film on the screen. It is actually part of the screen; do not
remove it.
NOTE
••The items supplied with your product may vary depending upon the
model.
B
B
••Product specifications or contents of this manual may be changed
without prior notice due to upgrade of product functions.
••For an optimal connection, HDMI cables and USB devices should
A
A
have bezels less than 10 mm (0.39 inches) thick and 18 mm
(0.7 inches) width.
*A 10 mm (0.39 inches)
*B 18 mm (0.7 inches)
••Use an extension cable that supports USB 2.0 if the USB cable or
USB flash drive does not fit into your TV’s USB port.
•Use
•
a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the
screen may not display or a connection error may occur.
••Recommended HDMI cable types
- High-Speed HDMI®/ TM cable
- High-Speed HDMI®/ TM cable with Ethernet
10
ASSEMBLING AND PREPARING
Parts and Buttons
Using the Joystick Button
Screen
NOTE
Speakers
Remote Control Sensor
Power Indicator
••Joystick button is located
below the screen of TV.
Joystick Button
ENGLISH
NOTE
••You can set the power indicator light to on or off by selecting OPTION in the main menus.
(Depending upon model)
ASSEMBLING AND PREPARING
11
Basic functions
Power On
When the TV is turned off, place your finger on the joystick button, press it once,
and release it.
Power Off
When the TV is turned on, place your finger on the joystick button, press it once
for a few seconds, and release it. (However, if the menu button is on the screen,
pressing and holding the joystick button will let you exit the menu.)
Volume Control
If you place your finger over the joystick button and move it left or right, you can
adjust the volume level.
Channels Control
If you place your finger over the joystick button and move it up or down, you can
scroll through the saved channels.
NOTE
••With your finger over the joystick button and move it up, down, left, or right. Be careful not to press
the joystick button. If you press the joystick button first, you may not be able to adjust the volume
level and/or scroll through saved channels.
Adjusting the menu
When the TV is turned on, press the joystick button one time.
You can adjust the menu items ( , , ,
) moving the joystick button up, down, left, or right.
Close
Input List
NOTE
Turns the power off.
Accesses the main menu.
Clears on-screen displays and returns to TV viewing.
Changes the input source.
••Menu item 11 (Key Defeat) must be set to 0 (zero) for the menu to work. Because the default value
is 1 (one), the menu does not work.
ENGLISH
TV off
Settings
12
ASSEMBLING AND PREPARING
Lifting and Moving the TV
When moving or lifting the TV, read the
following to prevent the TV from being
scratched or damaged and for safe
transportation regardless of its type and size.
CAUTION
••When handling the TV, be careful not to
damage the protruding joystick button.
(Depending on model)
CAUTION
••Avoid touching or applying pressure to the
screen at all times, as this may result in
damage to the screen.
••Do not place the product on the floor with its
front facing down without padding. Failure to
do so may result in damage to the screen.
••It is recommended to move the TV in the
box or packing material that the TV originally
came in.
••Before moving or lifting the TV, disconnect
the power cord and all cables.
ENGLISH
••When holding the TV, the
screen should face away from
you to avoid damage.
••Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grille area.
••Use at least two people to
move a large TV.
••When transporting the TV by
hand, hold the TV as shown in
the following illustration.
••When transporting the TV, do not expose the
TV to jolts or excessive vibration.
••When transporting the TV, keep the TV
upright; never turn the TV on its side or tilt
towards the left or right.
Mounting on a Wall
An optional wall mount can be used with your
LG Television. Consult with your local dealer for
a wall mount that supports the VESA standard
used by your TV model. Carefully attach the
wall mount bracket at the rear of the TV.
Install the wall mount bracket on a solid wall
perpendicular to the floor. If you are attaching
the TV to other building materials, please
contact qualified personnel to install the wall
mount. Detailed instructions will be included
with the wall mount. We recommend that you
use an LG brand wall mount. When you do not
use LG’s wall mount bracket, please use a wall
mount bracket where the device is adequately
secured to the wall with enough space to allow
connectivity to external devices.
10 cm
(4 inches)
10 cm
10 cm
10 cm
Make sure to use screws and wall mounts that
meet the VESA standard. Standard dimensions
for the wall mount kits are described in the
following table.
ASSEMBLING AND PREPARING
Model
22LY560M
28LY560M
VESA (A x B)
75 x 75
100 x 100
Standard screw
M4
M4
Number of screws
4
4
Wall mount bracket
LSW140
(optional)
LSW140
Model
32LY560M
42LY560M
VESA (A x B)
200 x 200
400 x 400
Standard screw
M6
M6
Number of screws
4
4
Wall mount bracket LSW240B
(optional)
MSW240
LSW440B
MSW240
A
B
13
NOTE
••Use the screws that are listed in the VESA
standard screw specifications.
••The wall mount kit includes an installation
manual and necessary parts.
••The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
••The length of screws may differ depending
upon the wall mount. Make sure to use the
proper length.
••For more information, refer to the manual
supplied with the wall mount.
••When attaching a wall mounting bracket to
the TV, insert the wall mount inner spacers
into the TV wall mount holes to adjust the
vertical angle of the TV. (For 42LY560M)
Wall Mount
Spacers
CAUTION
Back Cover
Wall Mount Pad
Back Cover
Standard screw
M4 x L10
Max. 8 mm
ENGLISH
••Disconnect the power before moving or
installing the TV. Otherwise electric shock
may occur.
••If you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorized LG wall mount and contact
the local dealer or qualified personnel. When
using a third-party wall mount, it is not
covered by the warranty.
••Do not overtighten the screws as this may
cause damage to the TV and void your
warranty.
••Use the screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
••Screw length from outer surface of back
cover should be under 8 mm.
(For 22/28LY560M)
Wall Mount Pad
••If it is difficult to connect cables (antenna,
power, etc.) to the back of the TV, use the
provided Wall Mount Spacers with the TV
wall mount holes. (For 42LY560M, use 6
spacers.)
••Please contact your dealer or mount vendor
for other wall mounting options.
14
MAKING CONNECTIONS
MAKING CONNECTIONS
••Image shown may differ from your TV.
You can connect various external devices to the TV. Supported external devices are HD receivers, DVD
players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.
For more information on external device’s connection, refer to the manual provided with each device.
NOTE
•If
• you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the
manual provided with the connected device.
•The
•
external device connections shown may differ slightly from illustrations in this manual.
•Connect
•
external devices to the TV regardless about the order of the TV port.
•If
• you connect a gaming device to the TV, use the cable supplied with the gaming device.
•Refer
•
to the external equipment’s manual for operating instructions.
•Using
•
a DVI to HDMI cable may cause compatibility issues.
Connecting to an Antenna or Cable
Connect an antenna, cable, or cable box to watch TV. The illustrations may differ from the actual items
and an RF cable is optional.
ENGLISH
Coaxial (75Ω)
(*Not provided)
CAUTION
Terminal
VHF Antenna
UHF Antenna
Antenna
•Make
•
sure not to bend the copper wire of
the RF cable.
Copper wire
NOTE
•Complete
•
all connections between devices,
and then connect the power cord to the
power outlet to prevent damage to your TV.
•Use
•
a signal splitter to use 2 TVs or more.
•DTV
•
Audio Supported Codec: MPEG, Dolby
Digital
MAKING CONNECTIONS
15
Other Connections
Connect your TV to external devices. For the best picture and audio quality, connect the external device
and the TV with the HDMI cable as shown. Any separate cable is not provided.
For 22/28LY560M
SI Box
M.P.I
Pillow Speaker
LAN
OPTICAL
AUDIO OUT
RGB IN (PC)
IN 2
(MHL)
1
SPEAKER OUT
LINE OUT
ANTENNA/
CABLE IN
Red
Digital Audio System
SPEAKER IN
Red
Pro:Centric
Server
OPTICAL AUDIO IN
White White
ETHERNET
ENGLISH
SERVICE ONLY
AV IN/
AUDIO IN
(RGB DVI)
M.P.I
PILLOW SPEAKER
UPDATE
USB IN
RESET
Speaker
AUDIO OUT
RGB OUT (PC)
PC
16
MAKING CONNECTIONS
Blu-Ray / HD Cable Box / HD STB / DVD / PC
HDMI
RESET
M.P.I
PILLOW SPEAKER
UPDATE
USB IN
DVI OUT
SERVICE ONLY
OPTICAL
AUDIO OUT
RGB IN (PC)
IN 2
(MHL)
ENGLISH
1
LAN
USB
SPEAKER OUT
LINE OUT
MHL Cable
ANTENNA/
CABLE IN
AV IN/
AUDIO IN
(RGB DVI)
AUDIO OUT
Mobile
phone
Yellow
White
Red
Yellow
White
Red
Yellow
White
Red
VIDEO L/MONO AUDIO R
Blu-Ray / HD Cable Box / DVD / VCR
NOTE
••USB port supports 0.5A electric current. If you need more electric current in the case of an HDD, use
a separate power adaptor.
MAKING CONNECTIONS
17
For 32/42LY560M
Speaker
Digital Audio System
OPTICAL AUDIO IN
SPEAKER IN
Pillow
Speaker
RESET
UPDATE
ENGLISH
1
SPEAKER OUT OPTICAL
LINE OUT AUDIO OUT
PILLOW SPEAKER
ANTENNA/
CABLE IN
R
L
LAN
M.P.I
RGB IN (PC)
VIDEO L/MONO -AUDIO - R
AV IN/AUDIO IN(RGB DVI)
Red
White
Red
Red
White
Yellow
White
Yellow
ETHERNET
VIDEO L/MONO AUDIO R
Pro:Centric
Server
Blu-Ray / HD Cable Box /
DVD / VCR
AUDIO OUT
RGB OUT (PC)
M.P.I
SI Box
PC
18
MAKING CONNECTIONS
Blu-Ray / HD Cable Box / HD STB / DVD / PC
AUDIO OUT
HDMI
DVI OUT
Red
White
RESET
UPDATE
OPTICAL
AUDIO OUT
RGB IN ((PC)
PILLOW SPEAKER
L
LAN
M.P.I
R
ANTENNA/
CABLE IN
USB
IN 2
(MHL)
ENGLISH
1
SPEAKER OUT
LINE OUT
USB IN
SERVICE ONLY
VIDEO L/MONO -AUDIO - R
AV IN/AUDIO IN(RGB DVI)
MHL Cable
Mobile
phone
SETTINGS
SETTINGS
To select Picture Mode
To set Motion Eye Care
SETTINGS ➾ PICTURE ➙ Picture Mode ➙
Picture Option
••Motion Eye Care Automatically adjusts
brightness and reduces image blur based on
image data to reduce eyestrain.
To use Energy Saving feature
SETTINGS ➾ PICTURE ➙ Energy Saving
[Depending upon model]
Reduces power consumption by adjusting peak
screen brightness.
••Off Turns off the Energy Saving.
••Minimum / Medium / Maximum Applies the
pre-set Energy Saving.
••Screen Off Screen is turned off and only
sound is played. Press any button on the
remote control to turn the screen back on.
ENGLISH
SETTINGS ➾ PICTURE ➙ Picture Mode
Select the picture mode optimized for the
viewing environment or the program.
••Vivid Heightens contrast, brightness, and
sharpness to display vivid images.
••Standard Displays images in standard levels
of contrast, brightness and sharpness.
••APS APS (Auto power saving) mode reduces
power consumption by dimming control.
••Cinema / Game Displays the optimum picture
for movie or game.
••Sport Optimized picture mode for football
matches. The pitch and kits are presented in
vibrant colors, with crystal-clear images even
for fast movements.
••Expert [Depending upon model]
Menu for adjusting picture quality that
allows experts and amateurs to enjoy the
best TV viewing. This menu for adjustment
is provided for ISF-certified picture tuning
professionals. (ISF logo can be used only on
ISF-certified TVs.)
ISFccc: Imaging Science Foundation Certified
Calibration Control
••Depending upon the input signal, the
available range of picture modes may differ.
••Expert mode is for picture tuning
professionals to control and fine-tune using
a specific image. For normal images, the
effects may not be drastic.
19
20
MAINTENANCE
MAINTENANCE
Cleaning your TV
Clean your TV regularly to keep it at peak performance and to extend the product’s lifespan.
CAUTION
••Before cleaning, turn the power off and disconnect the power cord and all other cables.
••When the TV is left unattended or unused for a long time, disconnect the power cord from the wall
outlet to prevent possible damage from lightning or power surges.
Screen, Frame, Cabinet, and Stand
To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild
detergent. Then wipe immediately with a dry cloth.
ENGLISH
CAUTION
••Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in
scratches on the screen and image distortions.
••Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, or
lubricants, as these may damage the screen’s finish and cause discoloration.
••Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or
malfunction.
Power Cord
Remove the accumulated dust or dirt on the power cord regularly.
TROUBLESHOOTING
21
TROUBLESHOOTING
The software may be updated for improvement in performance. The customer is responsible to ensure
the compatibility of their equipment with any LG Electronics software. If needed, please consult
with LG Electronics and update new software versions according to the guidance provided by LG
Electronics.
Problem
Solution
ENGLISH
••Check if anything such as tape has been placed over the receiver.
Cannot control the TV with ••Check if there is any obstacle between the product and the remote
the remote control.
control.
••Replace the batteries with new fresh ones.
••Check if the product is turned on.
No image display and no
••Check if the power cord is connected to a wall outlet.
sound is produced.
••Check if there is a problem in the wall outlet by connecting other
products.
••Check the power control settings. The power supply may be interrupted.
The TV turns off suddenly.
••Check if the auto off feature is activated in the TIME settings.
When connecting to the
••Turn the TV off/on using the remote control.
PC (RGB/HDMI DVI), No
••Reconnect the RGB/HDMI DVI cable.
signal or Invalid Format is
••Restart the PC with the TV on.
displayed.
••Refrain from using electronic devices, such as cordless telephones,
Vertical and horizontal lines
hair dryers, or electrical drills near the product. The problem is a result
with net patterns appear
of high-frequencies and strong electro-magnetic fields caused by these
on the screen momentarily
devices. The product may power off if you continue to use it near these
that are shaking.
devices.
22
SPECIFICATIONS
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
Power Requirement
AC 120 V ~ 50 / 60 Hz
Television System
ATSC, NTSC-M, 64 & 256 QAM
Program Coverage
VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
75 Ω
External Antenna Impedance
Operating Temperature
Environment
condition
0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity
Less than 80 %
Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Storage Humidity
Less than 85 %
22LY560M
(22LY560M-UA)
28LY560M
(28LY560M-UA)
507.6 x 315.7 x 53.1 (mm)
641.5 x 395.8 x 57.6 (mm)
19.9 x 12.4 x 2.0 (inches)
25.2 x 15.5 x 2.2 (inches)
3.2 kg (7.0 lbs)
4.7 kg (10.3 lbs)
1.0 A / 60 W
1.0 A / 60 W
32LY560M
(32LY560M-UA)
42LY560M
(42LY560M-UA)
MODELS
Dimensions (W x H x D)
Weight
Current Value / Power Consumption
ENGLISH
MODELS
Dimensions (W x H x D)
732 x 437 x 55.5 (mm)
961 x 567 x 55.5 (mm)
28.8 x 17.2 x 2.1 (inches)
37.8 x 22.3 x 2.1 (inches)
6.0 kg (13.2 lbs)
9.2 kg (20.2 lbs)
1.1 A / 65 W
1.0 A / 100 W
Weight
Current Value / Power Consumption
RGB (PC), HDMI (PC) supported mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
640 x 350
31.468
70.09
720 x 400
31.469
70.08
640 x 480
31.469
59.94
800 x 600
37.879
60.31
1024 x 768
48.363
60.00
1152 x 864
54.348
60.053
1360 x 768
47.712
60.015
1280 x 1024
(FHD only)
1920 x 1080
(FHD only)
For 42LY560M
63.981
HDMI (DTV) supported mode
Resolution
720 x 480p
1280 x 720p
1920 x 1080i
60.02
1920 x 1080p
67.50
60.00
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
31.47
59.94
31.50
60.00
44.96
59.94
45.00
60.00
33.72
59.94
33.75
60.00
26.97
23.976
27.00
24.00
33.71
29.97
33.75
30.00
67.432
59.94
67.50
60.00
CHILD SAFETY:
PROPER TELEVISION PLACEMENT MATTERS
THE CONSUMER ELECTRONICS INDUSTRY CARES
• Manufacturers, retailers and the rest of the consumer electronics industry are committed to
making home entertainment safe and enjoyable.
• As you enjoy your television, please note that all televisions – new and old- must be supported on
proper stands or installed according to the manufacturer’s recommendations. Televisions that
are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc.,
may fall over, resulting in injury.
TUNE IN TO SAFETY
• ALWAYS follow the manufacturer’s recommendations for the safe installation of your television.
• ALWAYS read and follow all instructions for proper use of your television.
• NEVER allow children to climb on or play on the television or the furniture on which the television
is placed.
• NEVER place the television on furniture that can easily be used as steps, such as a chest of
drawers.
• ALWAYS install the television where it cannot be pushed, pulled over or knocked down.
• ALWAYS route cords and cables connected to the television so that they cannot be tripped
over, pulled or grabbed.
WALL OR CEILING MOUNT YOUR TELEVISION
• ALWAYS contact your retailer about professional installation if you have any doubts about your
ability to safely mount your television.
• ALWAYS use a mount that has been recommended by the television manufacturer and has a
safety certification by an independent laboratory (such as UL, CSA, ETL).
• ALWAYS follow all instructions supplied by the television and mount manufacturers.
• ALWAYS make sure that the wall or ceiling where you are mounting the television is appropriate.
Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder
block construction. If you are unsure, contact a professional installer.
• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount
installation.
MOVING AN OLDER TELEVISION TO A NEW PLACE IN
YOUR HOME
• Many new television buyers move their older CRT televisions into a secondary room after the
purchase of a flat-panel television. Special care should be made in the placement of older CRT
televisions.
• ALWAYS place your older CRT television on furniture that is sturdy and appropriate for its size
and weight.
• NEVER place your older CRT television on a dresser where children may be tempted to use the
drawers to climb.
• ALWAYS make sure your older CRT television does not hang over the edge of your furniture.
CE.org/safety
Declaration of Conformity
Trade Name: LG
Model: 22LY560M-UA, 28LY560M-UA,
32LY560M-UA, 42LY560M-UA
Responsible Party: LG Electronics Inc.
Address: 1000 Sylvan Ave. Englewood Cliffs NJ
07632 U.S.A
TEL: 201-266-2534
The model and serial numbers of the TV are
located on the back and on one side of the
TV. Record them below should you ever need
service.
MODEL
SERIAL
LG Customer Information Center
For inquires or comments, visit www.lg.com or call;
1-888-865-3026
USA, Commercial User
1-888-542-2623
CANADA
This product qualifies for ENERGY
STAR in the factory default
(Home configuration) setting.
Changing the factory default settings
or enabling other features may increase power
consumption that could exceed the limits
necessary to quality for ENERGY STAR.
Refer to ENERGYSTAR.gov for more
information on the ENERGY STAR program.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
