LG HBS-920 Owner’s Manual
繁體中文
ENGLISH

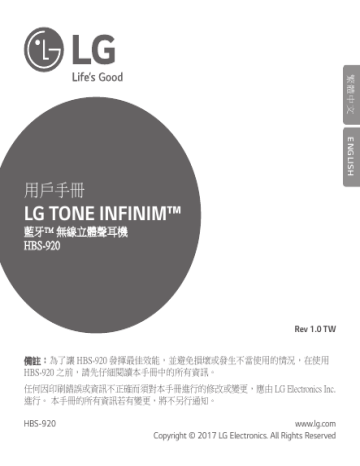

用戶手冊
LG TONE INFINIM™
藍牙™ 無線立體聲耳機
HBS-920
Rev 1.0 TW
備註:為了讓 HBS-920 發揮最佳效能,並避免損壞或發生不當使用的情況,在使用
HBS-920 之前,請先仔細閱讀本手冊中的所有資訊。
任何因印刷錯誤或資訊不正確而須對本手冊進行的修改或變更,應由 LG Electronics Inc.
進行。 本手冊的所有資訊若有變更,將不另行通知。
HBS-920
www.lg.com
Copyright © 2017 LG Electronics. All Rights Reserved
目錄
安全注意事項���������������������������������������������������������������������������������������������� 1
繁體中文
HD 喇叭�������������������������������������������������������������������������������������������������������� 2
Qualcomm® aptX™ Audio���������������������������������������������������������������������������� 2
產品元件������������������������������������������������������������������������������������������������������ 2
產品說明������������������������������������������������������������������������������������������������������ 3
HBS-920 配對與連線���������������������������������������������������������������������������������� 4
指示燈����������������������������������������������������������������������������������������������������������� 5
行動撥號功能���������������������������������������������������������������������������������������������� 6
播放音樂������������������������������������������������������������������������������������������������������ 7
電池充電與提示������������������������������������������������������������������������������������������ 8
震動提示設定���������������������������������������������������������������������������������������������� 9
不在涵蓋範圍內������������������������������������������������������������������������������������������ 9
LG Tone & Talk™���������������������������������������������������������������������������������������� 9
疑難排解���������������������������������������������������������������������������������������������������� 11
規格與功能������������������������������������������������������������������������������������������������ 11
確認宣告���������������������������������������������������������������������������������������������������� 12
其他資訊���������������������������������������������������������������������������������������������������� 13
有限保固���������������������������������������������������������������������������������������������������� 14
重要的安全資訊���������������������������������������������������������������������������������������� 14
LG TONE INFINIM (HBS-920) 為使用藍牙技術的輕量型無線立體聲耳機。
本產品可搭配支援 A2DP 或免持藍牙操作模式的裝置,作為音訊配件使用。
繁體中文
安全注意事項
! 注意
請勿任意拆解、調整或修復本產品。
請勿將本產品靠近高溫 (環境) 或易燃材質。
請勿任意更換電池,因為電池可能會爆炸。
使用不相容的充電器可能會損壞本產品。
切勿讓嬰兒或幼童吞食磁鐵或產品的小型元件。
請確保沒有異物進入充電器接頭 (充電連接埠和電源插頭),否則可能會導致火災或觸電。
為確保安全,產品充電時請勿配戴。
若您體內有植入醫療裝置,在使用本裝置前請先聯繫醫師。
請勿過度用力拉扯耳機線。
為了您的安全,請勿移除產品配備的電池。
鋰離子聚合物電池是可能造成人身傷害的危險元件。
由非合格專業人員更換電池可能會造成裝置損壞。
! 警告
請勿讓本產品從高處掉落。
切勿讓本產品接觸水、酒精或苯。
請勿將本產品存放在潮溼或佈滿灰塵的地方。
請勿在本產品上放置重物。
本產品不防水。請避免濕氣或水。
備註
如果本產品曝露在汗水過多的情況下,請先清潔產品。
請保持耳塞式耳機的清潔。
1
HD 喇叭
如果所連線裝置的通訊網路支援「HD 語音通話」,您就能享受撥打高音質語音通話的樂趣。
繁體中文
Qualcomm® aptX™ Audio
LG HBS-920 採用 Qualcomm aptX audio 技術。Qualcomm aptX audio 是藍牙無線技術,可為使用
者在聆聽音樂和觀賞電影時提供更清晰的音訊。
只要行動電話或音訊裝置支援 Qualcomm aptX audio,Qualcomm aptX audio 就會自動啟用。
產品元件
LG TONE INFINIM HBS-920
(已安裝中型耳塞套)
額外的耳塞套
(小型與大型)
LG TONE INFINIMTM
Micro USB 充電連接線
用户手册
備註:實際產品設計可能與手冊所顯示的圖片不同。
! 注意
請務必使用正版的 LG Electronics 元件。使用非正版的元件可能會損壞本產品,而使
保固失效。
2
產品說明
繁體中文
充電連接埠
電源開關
ON
OFF
收線式按鈕
rdon
harman/ka
指示燈
音量易控開關
麥克風
通話按鈕
上一個/下一個易控開關
收線式耳塞 (左)
播放/暫停按鈕
收線式耳塞 (右)
備註:每次按壓音量易控開關都會發出聲音 (視音量而定):嗶一聲 (音量小或中等) 或一聲
長音 (音量最大)。
3
HBS-920 配對與連線
戴上耳塞式耳機即可按照語音提示,輕鬆進行配對和連線。
如果聽到電池電量不足的訊息,請重新充電後再進行配對。
harman/kardon
快速連線
3
2
ON
LG HBS920
ON
ON
OFF
OFF
ON
OFF
OFF
1 從行動電話的設定功能表開啟藍牙。
2 在 HBS-920 上,將電源開關滑到 [開] 的位置來開啟電源。
3 藍色指示燈會亮起,同時 HBS-920 會進入搜尋模式。
4 從行動電話中選取 LG HBS920 以便連線。
5 連線完成後,會有語音訊息通知您。
手動連線 (與其他手機配對或重新配對)
1 從行動電話的設定功能表開啟藍牙。
ON
OFF
harman/kardon
繁體中文
如果配對未在三分鐘內完成,電源會自動關閉。若發生這種情況,
請將電源開關從 [關] 滑到 [開] 的位置,即可開啟電源。
2 在 HBS-920 關機的狀態下,按住通話按鈕,並將電源開關
滑到 [開] 的位置來開啟電源。
3 藍色指示燈會亮起,同時 HBS-920 會進入搜尋模式。
4 從行動電話中選取 LG HBS920 以便連線。
5 連線完成後,會有語音訊息通知您。
4
多重連線
HBS-920 可以同時連線到行動電話和電腦。
即使 HBS-920 已經連線到一個裝置,還是可以再連線到另一個裝置。
2 藍色指示燈會亮起,同時 HBS-920 會進入搜尋模式。
3 從行動電話或裝置清單中,選取 LG HBS920 以便連線。
4 連線完成後,會有語音訊息通知您。這個裝置會成為「主要連線裝置」。
5 嘗試使用之前連線的裝置,連線到 HBS-920。這個裝置會成為「次要連線裝置」。
備註:若 HBS-920 同時連線到兩個裝置,最近連線的那個裝置即為「主要連線裝置」。
主要功能是以主要連線裝置為主而運作。
自動重新連線
如果同時連線到兩個裝置,它會自動連線到最近連線的 (主要或次要連線裝置) 裝置。
(如果找不到裝置,就會啟動搜尋模式。)
如果產品沒有自動連線到您要的裝置,請在您要連線的裝置上搜尋產品,然後手動連線。
指示燈
HBS-920 狀態
說明
開機
藍色指示燈會閃爍四次。
關機
藍色指示燈會閃爍四次。
搜尋模式
亮起藍色指示燈。
已與裝置連線
每五秒會閃爍一次藍色指示燈。
已連接通話或正在播放音樂
每五秒會閃爍一次藍色指示燈。
5
繁體中文
1 在 HBS-920 關機的狀態下,按住通話按鈕,並將電源開關滑到 [開] 的位置來開啟電源。
行動撥號功能
rdon
harman/ka
繁體中文
功能
狀態
接聽來電
鈴聲響起
說明
撥打電話
閒置
如果您是使用行動電話撥打電話,通話會自動連線到 HBS-920。
切換通話
通話中
短按播放/暫停按鈕兩次。
重撥
閒置
按住通話按鈕超過一秒鐘,可撥打您最後撥打的號碼。
語音撥號
閒置
短按通話按鈕可啟動耳機的語音功能。
在通話中接聽電話
通話中
拒接來電
鈴聲響起
按住通話按鈕兩秒鐘。
啟用/停用靜音
通話中
通話時,將音量易控開關滑向音量調高 ( ) 方向並按住,
同時將上一個/下一個易控開關滑向 (
) 位置一秒鐘並按住。
短按通話按鈕。
備註:如果關閉震動功能,HBS-920 將不會震動。
只要按住通話按鈕一秒鐘,即可在通話中接聽另一通電話。
目前的通話則會切換到通話保留狀態。如果要切回前一通電話,
只要再次按住通話按鈕一秒鐘即可。
短按通話按鈕即可結束目前的通話;再次短按即可結束第二通
電話。(性能可能因行動電話設定而異。)
注意:請勿在開車時停用/啟用靜音功能,因為開車需要使用雙手。
備註:語音撥號與重撥功能適用於主要連線裝置,或是您用於撥打上一通電話的裝置。
(語音撥號與重撥功能的運作方式,可能會因使用的行動電話而異。)
6
播放音樂
ardon
harman/k
繁體中文
功能
狀態
說明
播放
閒置
短按播放/暫停按鈕。
暫停
音樂播放中
短按播放/暫停按鈕。
播放上一首/
下一首歌曲
音樂播放中
將上一個/下一個易控開關滑到上一個 (
快速倒轉/快轉
音樂播放中
將上一個/下一個易控開關滑向 (
達您要的部分為止。
等化器
音樂播放中
短按播放/暫停按鈕兩次,可在 [低音] (預設)、[標準]、
[高音] 之間切換。
)或(
) 或下一個 (
) 位置。
) 位置,直到到
7
Tone Bass™
旋轉耳塞式耳機的背面以開啟或關閉 [低音強化] 模式。
若要享受更豐富且更強勁的低音,請開啟該功能並將
等化器 (EQ) 設為 [低音]。
OFF
繁體中文
ON
OFF
ON
切換音樂播放器
在連線多個裝置的情況下,若要切換到其他音樂播放裝置,請先停止目前播放的音樂,再從
您所選擇的裝置播放音樂。
電池充電與提示
打開充電連接埠外蓋,將充電器連接到充電連接埠。
指示燈
紅色燈
紫色燈
藍色燈
電池狀態
充電中
電量達 80%
充電完畢
將音量易控開關滑向音量調低 ( ) 方向並按住一秒鐘,以指示燈和聲音檢查電池電量。
8
電池狀態
充足
一般
不足
指示燈
閃爍藍色燈
三次
閃爍紫色燈
三次
閃爍紅色燈
三次
震動提示設定
開啟電源時,震動提示會自動設為 [開]。
備註:若關閉震動功能,HBS-920 在接到來電時,就不會震動。
不在涵蓋範圍內
如果與本產品連線的裝置不在有效通訊範圍內 (33 英呎/10 公尺),通訊訊號就會變弱,
且通訊會中斷。
如果裝置又回到有效通訊範圍內,產品會自動與裝置重新連線。如果裝置沒有自動重新連
線,請按本產品上的通話按鈕,手動連線。
在連線多部裝置的情況下,如果非使用中的裝置超出通訊範圍,會有語音訊息通知您失去連
線了。如果是這種情形,就不支援自動重新連線功能。
LG Tone & Talk™
Tone & Talk 支援各種功能,包括文字與語音指示,以及通話。
若要安裝 Tone & Talk,請掃描右側的 QR 碼,或前往 Google Play™
商店並搜尋「LG Tone & Talk」。
備註:Tone & Talk 可用於 Android™ 智慧型手機。
功能
按鈕/說明
讀取最近的訊息
上一個/下一個易控開關
使用「快速撥號」
功能來撥打電話
在 Tone & Talk 中選取快速撥號聯絡人。
通話按鈕 (撥打電話)
HBS-920 動作
滑向(
) 位置並按住
一秒鐘。
短按兩次。
9
繁體中文
若要啟動或停用震動設定,請將音量易控開關滑向音量調高
( ) 方向並按住兩秒鐘。
在 Tone & Talk 中選取我的最愛聯絡人。
-
通話按鈕 (叫出我的最愛聯絡人)
繁體中文
使用「我的最愛」
功能來撥打電話
短按兩次。
使用上一個/下一個易控開關選取聯絡人。
滑向(
)或(
) 位置並
按住一秒鐘。
通話按鈕 (撥打電話)
短按兩次。
在 Tone & Talk 中選取通話記錄。
-
通話按鈕 (叫出通話記錄)
從 [通話記錄]
撥打電話
短按兩次。
滑向上一個/下一個易控開關並按住,以選取一
個通話記錄號碼。
滑向(
)或(
) 位置並
按住一秒鐘。
通話按鈕 (撥打電話)
目前時間提示/
語音備忘錄
短按兩次。
上一個/下一個易控開關
滑向(
(此功能在部分裝置上可能不受支援。)
在 Tone & Talk 中選取耳機設定。
) 位置並按住
一秒鐘。
-
變更語音提示語言
選取語音提示語言功能表。
尋找我
(尋找我的電話)
-
音量 (
) 易控開關及上一個 (
) 易控開關 /
音量 (
) 易控開關及下一個 (
) 易控開關
同時滑向同一個方向並按
住一秒鐘。
備註:[目前時間提示] 與 [語音備忘錄] 功能無法同時使用。
在 Tone & Talk 應用程式中進行選取時,一次只能使用一種功能。
10
疑難排解
解決方案
電源沒有開啟
請檢查電池電量並充電。
無法使用 HBS-920
撥打電話
如果行動電話不支援耳機和免持聽筒功能,就無法使用通話功能。
繁體中文
問題
請檢查電池電量並充電。
檢查 HBS-920 是否開啟。
無法將 HBS-920 連線至
行動電話
檢查 HBS-920 是否處於搜尋模式。
音量太小
控制與 HBS-920 連線之裝置的音量。
- 按住通話按鈕,同時將電源開關滑到 [開] 的位置,並將 HBS-920 切
換到搜尋模式。
規格與功能
項目
註解
藍牙規格
V 4.2 (耳機/免持聽筒/A2DP/AVRCP)
電池
電池 3.7 V / 220 mAh,鋰離子聚合物
待機時間
長達 600 小時*
通話時間
長達 15 小時*
音樂播放時間
長達 12 小時*
充電時間
少於 2 小時
額定輸入功率
DC 4.75 V ~ 5.3 V,400 mA
操作溫度
-10°C (+14°F) ~ +50°C (+122°F)
尺寸/重量
160 mm (寬) X 180 mm (長) X 14.2 mm (高) / 54 g
操作頻率
2,402 MHz 到 2,480 MHz
目標功率
4 dBm
*使用持續時間可能會依連線的行動裝置、使用的功能、設定、訊號強度、操作溫度、頻寬
和其他使用方式而異。
11
確認宣告
使用者 FCC 聲明:
本裝置符合 FCC 規則第 15 節。
繁體中文
必須遵守下列兩個操作條件:
(1) 本裝置不得引起有害干擾,且
(2) 本裝置必須可承受接收到的干擾,包括可能導致預期外操作之干擾。
如果所做的變更或修改未經過製造商 (或負責的一方) 明確核准為合法,使用者可能會喪失
設備的使用權益。
FCC 第 15.105 節聲明
本設備已經過測試並符合 FCC 規範第 15 節對於 B 級數位裝置的限制。
這些限制的目的在於針對住宅區裝設的有害干擾,提供合理的保護。本設備會產生、使用並
發射無線電頻率能量,如未依據指示安裝及使用,可能會對無線電通訊導致有害干擾。
然而,無法保證在特定安裝下就不會發生干擾。如果本設備的確對無線電或電視接收造成有
害干擾 (可經由開關設備電源判定),則建議使用者嘗試下列一或多種方式來更正干擾情形:
- 重新調整接收天線的方向或位置。
- 增加設備與接收器之間的距離。
- 將設備連接至插座,且該插座所在線路與接收器連接之插座所在線路不同。
- 洽詢業者或有經驗的無線電/電視技術人員以取得協助。
依據低功率電波輻射性電機管理辦法
經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅自變更頻率、
加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象時,應立即停
用,並改善至無干擾時方得繼續使用。 前項合法通信,指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
重要注意事項:
為了符合 FCC RF 放射物需求,不得對天線或裝置進行變更。 若對天線或裝置進行任何變
更,可能導致裝置超出 RF 放射物要求,並中止使用者操作裝置之授權。
12
符合性聲明 :
LG Electronics 謹此宣告此 HBS-920 產品符合基本要求 2014/53/EU 的其他相關條款。 可於下
列連結取得符合性聲明的副本:http://www.lg.com/global/declaration
Bluetooth® 是 Bluetooth SIG, Inc. 的全球註冊商標。
繁體中文
Qualcomm® aptX™ audio 是 Qualcomm Technologies International, Ltd. 的產品。
FCC ID: ZNFHBS920
其他資訊
1. 無線電頻率放射
HBS-920 這款 Bluetooth® 耳機是一種無線電傳輸器及接收器。 操作中的耳機會接收與傳輸
頻率範圍在 2.4 至 2.4835 GHz 的無線電頻率 (RF) 電磁場 (微波),藉此與配備 Bluetooth 的行
動裝置通訊。 當您的 Bluetooth 耳機與任何相容的行動電話搭配使用時,必須遵守國家機構
和國際健康機構所制定的 RF 放射線指導方針與限制。
2. 藍牙連線注意事項
下列環境會影響藍牙訊號的範圍與接收:
- 在藍牙裝置與相連裝置之間有牆壁、金屬、人體或其他障礙物存在
- 當使用 2.4 GHz 頻率訊號的設備 (無線區域網路、無線電話、微波爐等) 置於目前所用裝
置的附近時
3. 具有潛在爆炸危險的環境
當您身在具有潛在爆炸性風險的任何區域時,請關閉您的電子裝置。 您的電子裝置可能會
產生火花,雖然這種現象非常罕見。 在這類區域產生火花可能造成爆炸或火災,從而導致
身體受傷,甚至死亡。 具有潛在爆炸性的區域經常、但並非總是會有明確的標示。
4. 電池資訊
適當使用的充電電池使用期限較長。 全新的電池或長時間未使用的電池,前幾次的使用容量
可能會降低。 請勿將電池曝露在超過 +50° C (+122° F) 或低於 -10° C (+14° F) 的極端溫度下。
為了使用最大的電池容量,請在室溫下使用電池。 如在低溫下使用電池,電池容量會降低。
電池只能在 +10° C (+50° F) 至 +45° C (+113° F) 之間的溫度充電。
警告 : 本電池如果更換不正確會有爆炸的危險。
請依製造商說明書處理用過之電池。
13
5. 回收 Bluetooth 耳機的電池
Bluetooth 耳機的電池必須適當處置,絕對不能隨一般廢棄物一起處理。 取出電池的
LG Electronics 服務夥伴將依據當地法規處置電池。
繁體中文
6. 條件
- 唯有當業者提供給原始購買者的原始收據有指定購買日期和序號,且在維修或更換產品
出示該收據時,保固才會生效。 若向業者初次購買產品後,此資訊已移除或變更,
LG Electronics 將保留拒絕保固服務之權利。
- 此保固不包含下列因素所導致的任何產品故障:正常損壞或撕裂,或者不當使用,包括
但不限於異常及不依慣例使用、不依照指示來使用和維護產品。 此保固亦不涵蓋下列原
因所導致的任何產品故障:意外、修改或調整、天災,或者液體潑灑所導致的損壞。
- 此保固不涵蓋非 LG Electronics 授權人員所執行之不當維修安裝、修改或服務所造成的產
品故障。 損毀產品的任何封條將中止保固。
有限保固
在此有限保固條款中,LG Electronics 保證消費者在原始購買本產品時,產品之設計、材料與
製作上並無瑕疵,並在該日起一年內亦享有同等保固。 如果您的產品需要保固服務,請將產
品送回出售之業者,或聯絡您當地的 LG Electronics 聯絡中心以取得進一步資訊。
重要的安全資訊
避免損害聽力:如果您在高音量下使用耳機,可能會對聽力造成永久性的損害。
請設定安全等級的音量。 過了一段時間,您可能會習慣較大的音量並將其視為正常音量,
但此音量可能會使您的聽力受損。 如果您聽到嗡嗡聲或聽不清楚話語,請停止聆聽並檢查
聽力。 音量越大,越可能加速聽力受損的時間。 聽力專家提出了下列保護聽力的建議:
• 限制在高音量下使用耳機的時間。
• 避免調大音量來阻絕周圍噪音。
• 如果您聽不到周遭他人的談話聲,請調低音量。
請參閱手機使用者指南,瞭解更多關於如何在手機上調整音量的資訊。
安全地使用耳機:不建議您在開車時使用耳機聽音樂,且這種行為在某些地區是違法的。
開車時請小心並集中注意力。 駕駛任何類型的車輛或執行需要全神貫注的其他任何活動時,
若發現使用此裝置可能會分神或產生混亂,請停止使用。
14
ENGLISH
User Manual
LG TONE INFINIM™
Bluetooth® Wireless Stereo Headset
HBS-920
NOTE: For the best performance and to prevent any damage to, or misuse of the HBS-920, please
read all of the information carefully prior to using the HBS-920.
Any modifications or changes to this manual due to typographical errors or inaccuracies of stated
information shall only be made by LG Electronics Inc.
HBS-920
www.lg.com
Copyright © 2017 LG Electronics. All Rights Reserved
Contents
Safety Cautions.......................................................................................................................................1
HD Speaker................................................................................................................................................2
Qualcomm® aptX™ Audio..................................................................................................................2
Product Components...........................................................................................................................2
ENGLISH
Product Description..............................................................................................................................3
HBS-920 Pairing and Connecting.................................................................................................4
Indicator Lamp.........................................................................................................................................5
Mobile Calling Functions....................................................................................................................6
Playing Music............................................................................................................................................7
Battery Charging and Alerts............................................................................................................8
Vibration Alert Settings......................................................................................................................9
Out of Range.............................................................................................................................................9
LG Tone & Talk™......................................................................................................................................9
Troubleshooting.................................................................................................................................... 11
Specifications and Features........................................................................................................... 11
Declaration of Confirmation.......................................................................................................... 12
Additional Information...................................................................................................................... 13
Limited Warranty................................................................................................................................ 15
Important Safety Information...................................................................................................... 15
The LG TONE INFINIM (HBS-920) is a lightweight wireless stereo headset that uses Bluetooth technology.
This product can be used as an audio accessory for devices supporting either the A2DP or Hands-Free
Bluetooth profile.
Safety Cautions
! CAUTION
Do not disassemble, adjust, or repair the product arbitrarily.
ENGLISH
Do not place the product near excessive heat or flammable material.
Do not arbitrarily replace the battery, as it may explode.
The product may be damaged if an incompatible recharger is used.
Make sure that an infant or child does not swallow a magnet or a small component of the product.
Make sure that foreign objects do not enter the charger’s connectors (charging port and power plug).
Failure to do so may result in fire or electric shock.
For your safety, do not wear the product while it is being charged.
If you have a medical device implanted, contact your doctor before using this device.
Do not pull the earphone cable with excessive force.
For your safety, do not remove the battery incorporated in the product.
The lithium-ion polymer battery is a hazardous component which can cause injury.
Battery replacement by an unqualified professional can cause damage to your device.
! WARNING
Do not drop the product from a high place.
Make sure there is no water, alcohol, or benzene in contact with the product.
Do not store the product in a wet or dusty place.
Do not place heavy objects on the product.
This product is not waterproof. Avoid humidity and water.
NOTE
If the product is exposed to excessive sweat, clean the product.
Keep the earbuds clean.
1
HD Speaker
If the communication network of the device you are connecting to supports HD Voice Calling,
you can enjoy making voice calls in high definition.
Qualcomm® aptX™ Audio
LG HBS-920 is powered by Qualcomm aptX audio. Qualcomm aptX audio is Bluetooth wireless
technology that provides clearer audio for listening to music and watching movies.
ENGLISH
Qualcomm aptX audio is automatically enabled when a mobile phone or audio device supports it.
Product Components
LG TONE INFINIM HBS-920
(medium ear gels installed)
Extra Ear Gels
(small & large)
LG TONE INFINIMTM
Micro USB Charging Cable
User Manual
NOTE: Actual product design may differ from images shown in manual.
! CAUTION
Make sure authentic LG Electronics components are used. Using a non-authentic component
may damage the product and thus void the warranty.
2
Product Description
Charging port
Power switch
OFF
Volume jog switch
ENGLISH
ON
Retractable button
rdon
harman/ka
Indicator lamp
Microphone
Call button
Previous/Next jog switch
Retractable earbud (left)
Play/Pause button
Retractable earbud (right)
NOTE: You will hear a sound with each press of the Volume jog switch, depending on the volume level:
one beep (lower/middle levels) or a long tone (max levels).
3
HBS-920 Pairing and Connecting
Put in your earbuds to easily pair and connect by following the voice prompts.
harman/kardon
If you hear that the battery is insufficient, recharge the battery before
proceeding with pairing.
If pairing is not completed within three minutes, the power automatically
turns off. If this happens, slide the Power switch from the OFF to the ON
position to turn the power on.
1
3
2
ON
LG HBS920
ON
1
2
3
4
5
ON
OFF
OFF
4
OFF
ON
OFF
From the mobile phone’s Settings menu, turn on Bluetooth.
On the HBS-920, slide the Power switch towards the ON position to turn on the power.
The blue Indicator lamp turns on, and the HBS-920 enters Search mode.
From the mobile phone, select LG HBS920 to connect.
A voice message will indicate that the connection is completed.
Connecting Manually (pairing with another phone or re-pairing)
ON
OFF
harman/kardon
ENGLISH
Connecting Quickly
4
1 From the mobile phone’s Settings menu, turn on Bluetooth.
2 With the HBS-920’s power off, press and hold the Call button
and slide the Power switch to the ON position to turn it on.
3 The blue Indicator lamp turns on, and the HBS-920 enters
Search mode.
4 From the mobile phone, select LG HBS920 to connect.
5 A voice message will indicate that the connection is completed.
Multiple Connections
The HBS-920 can be connected to a mobile phone and a PC simultaneously.
The HBS-920 can be connected to an additional device while it is already connected to a device.
ENGLISH
1 With the HBS-920’s power off, press and hold the Call button and slide the Power switch to
the ON position to turn it on.
2 The blue Indicator lamp turns on, and the HBS-920 enters Search mode.
3 From the mobile phone or device list, select LG HBS920 to connect.
4 A voice message will indicate that the connection is completed. This device becomes the
“Main Connected Device.”
5 Try to connect to HBS-920 using a previously connected device. This device becomes the
“Sub Connected Device.”
NOTE: If the HBS-920 is simultaneously connected to two devices, the device that was connected
most recently is the Main Connected Device. The main functions work based on the Main
Connected Device.
Automatic Reconnection
If simultaneously connected to two devices, it will automatically connect to the most recent (Main
or Sub Connected Device) device it was connected to. (If a device cannot be found, Search mode
will be activated.)
If the product does not automatically connect to the device you want, search for your product on the
device you want to connect to and connect it manually.
Indicator Lamp
HBS-920 Status
Description
Power On
The blue Indicator lamp flashes four times.
Power Off
The blue Indicator lamp flashes four times.
Search Mode
The blue Indicator lamp is on.
Connected to a Device
The Indicator lamp will flash blue once every five seconds.
Call Connected or Playing Music
The Indicator lamp will flash blue once every five seconds.
5
harman/ka
rdon
Mobile Calling Functions
ENGLISH
Function
Status
Description
Answering Call
Ringing
Making a Call
Idle
If you make a call using a mobile phone, the call is automatically
connected to the HBS-920.
Switching Calls
Talking
Briefly press the Play/Pause button twice.
Redial
Idle
Press and hold the Call button for more than one second to place a
call to the last number dialed.
Voice Dial
Idle
Briefly press the Call button to active your headset’s voice.
Briefly press the Call button.
NOTE: The HBS-920 will not vibrate if the Vibration function
has been turned off.
You can receive another call while on the phone by pressing and
holding the Call button for one second.
6
The existing call switches to a call waiting status. Press and hold the
Call button again for one second to switch back to the previous call.
Receiving a Call
While on the Phone
Talking
Rejecting a Call
Ringing
Press and hold the Call button for two seconds.
Enabling/Disabling
Mute
Talking
During a call, slide and hold the Volume jog switch to the volume up
( ) direction, and slide and hold the Previous/Next jog switch to
the (
) position for one second.
Briefly press the Call button to end the existing call; briefly press it
again to end the second call. (Performance may differ depending on
the mobile phone settings.)
CAUTION: Do not disable/enable the mute funtion while driving, as you need to use both hands.
NOTE: The Voice Dial and Redial functions work on the Main Connected Device or on the device
on which you made the last call. (The Voice Dial and Redial functions may work differently
depending on the mobile phone being used.)
Playing Music
ardon
harman/k
ENGLISH
Function
Status
Description
Play
Idle
Briefly press the Play/Pause button.
Pause
Music on
Briefly press the Play/Pause button.
Play Previous/Next Song
Music on
Slide the Previous/Next jog switch to the Previous (
Next (
) position.
Fast Rewind/Forward
Music on
Slide the Previous/Next jog switch to the (
until you reach the desired part.
Equalizer
Music on
Briefly press the Play/Pause button twice to switch between
Bass (Default), Normal, and Treble.
) or (
) or
) position
7
Tone Bass™
Rotate the back of the earbuds to turn Bass Boost mode
on or off.
OFF
To enjoy richer, more powerful bass, turn the feature on
with the Equalizer (EQ) set to “Bass”.
ON
OFF
ON
ENGLISH
Switching Music Players
To switch to a different music playback device when multiple devices are connected, stop the
currently playing music and then play music from the device of your choice.
Battery Charging and Alerts
Open the Charging port cover and connect the charger to the Charging port.
Indicator Lamp
Red
Purple
Blue
Battery Status
Charging
80%
Completed
Slide and hold the Volume jog switch in the volume down ( ) direction for one second to check the
Indicator lamp and battery level by voice.
8
Battery Status
Sufficient
Normal
Insufficient
Indicator Lamp
Blue flashes
three times
Purple flashes
three times
Red flashes
three times
Vibration Alert Settings
The vibration alert is automatically set to the ON position when you
turn on the power.
To activate or deactivate the vibration setting, slide and hold the
Volume jog switch in the volume up ( ) direction for two seconds.
NOTE: When vibration is turned off, the HBS-920 will not vibrate
when receiving an incoming call.
If the device connected to the product is out of effective communication range (33 feet/10 meters),
the communication signal becomes weak and the communication is lost.
If the device comes back within effective communication range, the product automatically reconnects
to the device. If the device is not automatically reconnected, press the Call button on the product to
connect to it manually.
If a device that is not in use goes out of communication range when multiple devices are connected,
a voice message will indicate that the connection is lost. In this case, the automatic reconnection
function is not supported.
LG Tone & Talk™
Tone & Talk supports various functions, including text & voice directions
and calling. To install Tone & Talk, scan the QR code to the right or
go to the Google Play™ store and search for “LG Tone & Talk.”
NOTE: Tone & Talk can be used on Android™ smartphones.
Function
Button/Description
Reading Recent
Messages
Previous/Next jog switch
Using Speed Dial to
Make a Call
Select a speed dial contact in Tone & Talk.
Call button (Making a call)
HBS-920 Action
(
Slide to and hold in the
) position for one second.
Briefly press twice.
9
ENGLISH
Out of Range
Select a favorite contact in Tone & Talk.
-
Call button (Bringing up a favorite contact)
Using Favorites to
Make a Call
Briefly press twice.
Select a contact with the Previous/Next jog switch.
(
Call button (Making a call)
Briefly press twice.
Select call history in Tone & Talk.
-
ENGLISH
Call button (Bringing up Call history)
Making a Call From
Call History
Slide to and hold in the
) or (
) position
for one second.
Briefly press twice.
Slide and hold the Previous/Next jog switch
to select a Call History number.
(
Call button (Making a call)
Slide to and hold in the
) or (
) position
for one second.
Briefly press twice.
Current Time Alert/
Voice Memo
Previous/Next jog switch
Changing the Voice
Prompt Language
Select Headset settings in Tone & Talk.
Find Me
(Find My Phone)
Volume (
) jog switch and Previous (
Volume (
) jog switch and Next (
(This feature may not be supported on some devices.)
(
Slide to and hold in the
) position for one second.
-
Select Voice prompt language menu.
) jog switch/
) jog switch
Simultaneously slide to and
hold in the same direction
for one second.
NOTE: The Current Time Alert and the Voice Memo functions cannot be used at the same time.
You can only use one function at a time when you make selections in the Tone & Talk app.
10
Troubleshooting
Problem
Solution
The power does not turn on
Check the battery level and charge it.
Cannot make a call with
the HBS-920
If the mobile phone does not support headset and hands-free functions,
you cannot use the calling features.
Check the battery level and charge it.
Check whether the HBS-920 is turned on.
Check whether the HBS-920 is in Search mode.
The sound is low
Control the sound level of the device connected to the HBS-920.
ENGLISH
Cannot connect the
HBS-920 to mobile phone
- Simultaneously press and hold the Call button and slide the Power switch
to the ON position and the HBS-920 switches to Search mode.
Specifications and Features
Item
Comments
Bluetooth Specifications
V 4.2 (Headset/Hands-Free/A2DP/AVRCP)
Battery
Battery 3.7 V / 220 mAh, lithium-ion polymer
Standby Time
Up to 600 hours*
Talk Time
Up to 15 hours*
Music Play Time
Up to 12 hours*
Charging Time
Less than 2 hours
Rated Input Voltage
DC 4.75 V ~ 5.3 V, 400 mA
Operating Temperature
-10°C (+14°F) ~ +50°C (+122°F)
Dimensions/Weight
160 mm (W) X 180 mm (L) X 14.2 mm (H) / 54 g
Operating Frequency
2402 MHz to 2480 MHz
Target Power
4 dBm
*Duration of use may vary depending on the connected mobile device, features being used, settings,
signal strength, operating temperature, frequency band, and other methods of use.
11
Declaration of Confirmation
FCC NOTICE TO USERS:
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
ENGLISH
Changes or modifications not expressly approved by the manufacturer (or party responsible) for
compliance could void the user’s authority to operate the equipment.
FCC Part 15.105 statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
As per Administrative Regulations on Low Power Radio Waves Radiated Devices:
Without permission, no company, firm or user may change the frequency, increase the power, or alter
features or functions of the original design of type-approved low power radio-frequency devices.
The use of low power radio-frequency devices shall not affect aircraft security or interfere with legal
communications. If found to be interfering, the device shall cease operation immediately. Use of the
device can be resumed only after the device has been improved to the point that it will not cause any
interference. The legal communications mentioned above refer to radio communications operated in
12
compliance with the Telecommunications Act. Low power radio-frequency devices must accept any
interference from legal communications or ISM radio wave radiation-emitting devices.
IMPORTANT NOTE:
To comply with the FCC RF exposure compliance requirements, no change to the antenna or the
device is permitted. Any change to the antenna or the device could result in the device exceeding the
RF exposure requirements and void the user’s authority to operate the device.
DECLARATION OF CONFORMITY:
Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
Qualcomm® aptX™ audio is a product of Qualcomm Technologies International, Ltd.
FCC ID: ZNFHBS920
Additional Information
1. Radio frequency exposure
This Bluetooth Stereo Headset HBS-920 is a radio transmitter and receiver. When in operation,
it communicates with a Bluetooth equipped mobile device by receiving and transmitting radio
frequency (RF) electromagnetic fields (microwaves) in the frequency range 2.4 to 2.4835 GHz.
Your Bluetooth Headset is designed to operate in compliance with the RF exposure guidelines and
limits set by national authorities and international health agencies when used with any compatible
LG Electronics mobile phone.
2. Bluetooth Connection Precautions
The following environments affect the range and reception of Bluetooth signals:
- When walls, metal, human bodies, or other obstacles exist between the Bluetooth device and
the connected device
13
ENGLISH
Hereby, LG Electronics declares that this HBS-920 is in compliance with the essential requirements
and other relevant provisions of Directive 2014/53/EU. A copy of the Declaration of Conformity can
be found at http://www.lg.com/global/declaration
- When equipment that uses 2.4 GHz frequency signals (Wireless LANs, wireless phones,
microwave ovens, etc.) is placed near the devices being used
3. Potentially explosive atmosphere
Turn off your electronic device when in any area with a potentially explosive atmosphere. It is rare,
but your electronic device could generate sparks. Sparks in such areas could cause an explosion or
fire resulting in bodily injury or even death. Areas with a potentially explosive atmosphere are often,
but not always, clearly marked.
ENGLISH
4. Battery information
A rechargeable battery has a long service life if treated properly. A new battery or one that has not
been used for a long period of time could have reduced capacity the first few times it is used. Do not
expose the battery to extreme temperatures, never above +50° or below -10°. For maximum battery
capacity, use the battery in room temperature. If the battery is used in low temperatures, the battery
capacity will be reduced. The battery can only be charged in temperatures between +10° and +45°.
5. Recycling the battery in your Bluetooth Headset
The battery in your Bluetooth Headset must be disposed of properly and should never be placed
in municipal waste.
6. Conditions
- The warranty is valid only if the original receipt issued to the original purchaser by the dealer,
specifying the date of purchase and serial number, is presented with the product to be repaired or
replaced. LG Electronics reserves the right to refuse warranty service if this information has been
removed or changed after the original purchase of the product from the dealer.
- If LG Electronics repairs or replaces the product, the repaired or replaced product shall be warranted
for the remaining time of the original warranty period or for ninety (90) days from the date of
repair, whichever is longer. Repair or replacement may involve the use of functionally equivalent
reconditioned units. Replaced parts or components will become the property of LG Electronics.
- This Warranty does not cover any failure of the product due to normal wear and tear, or due
to misuse, including but not limited to use in other than the normal and customary manner, in
accordance with instructions for use and maintenance of the product. Nor does this warranty
cover any failure of the product due to accident, modification or adjustment, acts of God or
damage resulting from liquid.
14
- This warranty does not cover product failures due to improper repair installations, modifications
or service performed by a non-LG Electronics authorized person. Tampering with any of the seals
on the product will void the warranty.
Limited Warranty
Important Safety Information
Avoiding hearing damage
Permanent hearing loss may occur if you use your Handsfree car kit at a high volume. Set the volume
to a safe level. You can adapt over time to a higher volume of sound that may sound normal but can
be damaging to your hearing.
If you experience ringing in your ears or muffled speech, stop listening and have your hearing
checked. The louder the volume, the less time is required before your hearing could be affected.
Hearing experts suggest that to protect your hearing:
• Limit the amount of time you use Headset at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can’t hear people speaking near you.
Please refer to your handset user guide for more information on how to adjust listening levels on
your handset.
Using headsets safely
Use of Headset to listen to music while operating a vehicle is not recommended and is illegal in
some areas. Be careful and attentive while driving. Stop using this device if you find it disruptive or
distracting while operating any type of vehicle or performing any other activity that requires your
full attention.
15
ENGLISH
SUBJECT TO THE CONDITIONS OF THIS LIMITED WARRANTY, LG ELECTRONICS WARRANTS THIS
PRODUCT TO BE FREE FROM DEFECTS IN DESIGN, MATERIAL AND WORKMANSHIP AT THE TIME OF
ITS ORIGINAL PURCHASE BY A CONSUMER, AND FOR A SUBSEQUENT PERIOD OF ONE (1) YEAR.
SHOULD YOUR PRODUCT NEED WARRANTY SERVICE, PLEASE RETURN IT TO THE DEALER FROM
WHOM IT WAS PURCHASED OR CONTACT YOUR LOCAL LG ELECTRONICS CONTACT CENTER TO
GET FURTHER INFORMATION.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
