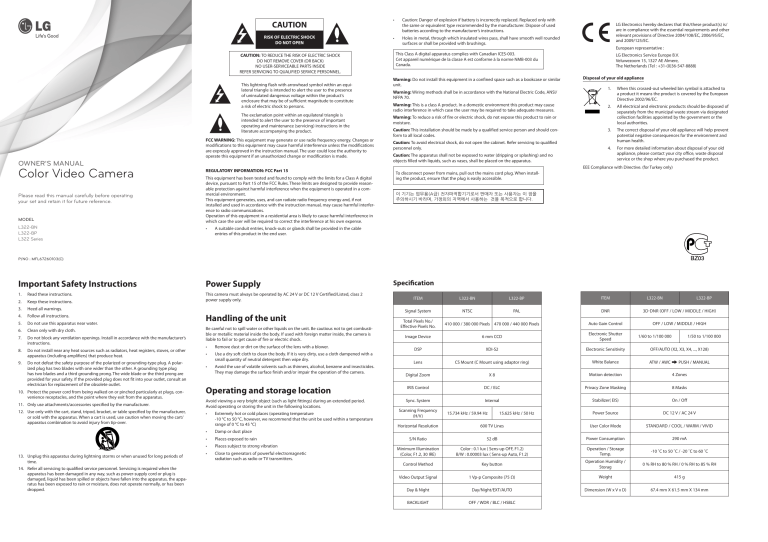

CAUTION
•
Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with
the same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
•
Holes in metal, through which insulated wires pass, shall have smooth well rounded
surfaces or shall be provided with brushings.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence
of uninsulated dangerous voltage within the product’s
enclosure that may be of sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
FCC WARNING: This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the modifications
are expressly approved in the instruction manual. The user could lose the authority to
operate this equipment if an unauthorized change or modification is made.
OWNER'S MANUAL
Color Video Camera
Please read this manual carefully before operating
your set and retain it for future reference.
MODEL
L322-BN
L322-BP
L322 Series
REGULATORY INFORMATION: FCC Part 15
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
•
LG Electronics hereby declares that this/these product(s) is/
are in compliance with the essential requirements and other
relevant provisions of Directive 2004/108/EC, 2006/95/EC,
and 2009/125/EC.
European representative :
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du
Canada.
Warning: Do not install this equipment in a confined space such as a bookcase or similar
unit.
Warning: Wiring methods shall be in accordance with the National Electric Code, ANSI/
NFPA 70.
Warning: This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate measures.
LG Electronics Service Europe B.V.
Veluwezoom 15, 1327 AE Almere,
The Netherlands (Tel : +31-(0)36-547-8888)
Disposal of your old appliance
1.
When this crossed-out wheeled bin symbol is attached to
a product it means the product is covered by the European
Directive 2002/96/EC.
2.
All electrical and electronic products should be disposed of
separately from the municipal waste stream via designated
collection facilities appointed by the government or the
local authorities.
3.
The correct disposal of your old appliance will help prevent
potential negative consequences for the environment and
human health.
4.
For more detailed information about disposal of your old
appliance, please contact your city office, waste disposal
service or the shop where you purchased the product.
Warning: To reduce a risk of fire or electric shock, do not expose this product to rain or
moisture.
Caution: This installation should be made by a qualified service person and should conform to all local codes.
Caution: To avoid electrical shock, do not open the cabinet. Refer servicing to qualified
personnel only.
Caution: The apparatus shall not be exposed to water (dripping or splashing) and no
objects filled with liquids, such as vases, shall be placed on the apparatus.
EEE Compliance with Directive. (for Turkey only)
To disconnect power from mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.
이 기기는 업무용(A급) 전자파적합기기로서 판매자 또는 사용자는 이 점을
주의하시기 바라며, 가정외의 지역에서 사용하는 것을 목적으로 합니다.
A suitable conduit entries, knock-outs or glands shall be provided in the cable
entries of this product in the end user.
P/NO : MFL67260103(C)
Important Safety Instructions
Power Supply
1.
Read these instructions.
2.
Keep these instructions.
This camera must always be operated by AC 24 V or DC 12 V Certified/Listed, class 2
power supply only.
3.
Heed all warnings.
4.
Follow all instructions.
5.
Do not use this apparatus near water.
6.
Clean only with dry cloth.
7.
Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8.
Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of
time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
Handling of the unit
Specification
ITEM
L322-BN
L322-BP
ITEM
L322-BN
L322-BP
Signal System
NTSC
PAL
DNR
3D-DNR (Off / Low / Middle / High)
Off / Low / Middle / High
Total Pixels No./
Effective Pixels No.
410 000 / 380 000 Pixels 470 000 / 440 000 Pixels
Auto Gain Control
Image Device
6 mm CCD
Electronic Shutter
Speed
DSP
XDI-S2
Electronic Sensitivity
OFF/AUTO (X2, X3, X4, ..., X128)
Lens
CS Mount (C Mount using adaptor ring)
White Balance
ATW / AWC / PUSH / MANUAL
Digital Zoom
X8
Motion detection
4 Zones
Operating and storage location
IRIS Control
DC / ELC
Privacy Zone Masking
8 Masks
Avoid viewing a very bright object (such as light fittings) during an extended period.
Avoid operating or storing the unit in the following locations.
Sync. System
Internal
Stabilizer( EIS)
On / Off
Power Source
DC 12 V / AC 24 V
Be careful not to spill water or other liquids on the unit. Be cautious not to get combustible or metallic material inside the body. If used with foreign matter inside, the camera is
liable to fail or to get cause of fire or electric shock.
•
Remove dust or dirt on the surface of the lens with a blower.
•
Use a dry soft cloth to clean the body. If it is very dirty, use a cloth dampened with a
small quantity of neutral detergent then wipe dry.
•
Avoid the use of volatile solvents such as thinners, alcohol, benzene and insecticides.
They may damage the surface finish and/or impair the operation of the camera.
•
Extremely hot or cold places (operating temperature
-10 °C to 50 °C, however, we recommend that the unit be used within a temperature
range of 0 °C to 45 °C)
•
Damp or dust place
•
Places exposed to rain
•
Places subject to strong vibration
•
Close to generators of powerful electromagnetic
radiation such as radio or TV transmitters.
Scanning Frequency
(H/V)
15.734 kHz / 59.94 Hz
15.625 kHz / 50 Hz
1/60 to 1/100 000
1/50 to 1/100 000
Horizontal Resolution
600 TV Lines
User Color Mode
Standard / Cool / Warm / Vivid
S/N Ratio
52 dB
Power Consumption
290 mA
Minimum Illumination
(Color, F1.2, 30 IRE)
Color : 0.1 lux ( Sens-up OFF, F1.2)
B/W : 0.00003 lux ( Sens-up Auto, F1.2)
Operation / Storage
Temp.
-10 ˚C to 50 ˚C / -20 ˚C to 60 ˚C
Control Method
Key button
Operation Humidity /
Storag
0 % RH to 80 % RH / 0 % RH to 85 % RH
Video Output Signal
1 Vp-p Composite (75 Ω)
Weight
415 g
Day & Night
Day/Night/EXT/AUTO
Dimension (W x V x D)
67.4 mm X 61.5 mm X 134 mm
BACKLIGHT
OFF / WDR / BLC / HSBLC
d
TRX -
TRX +
TRX +
TRX -
<To loosen the lever.>
<To adjust the focus.>
TRX -
TRX -
C mount type
Loosen the flange-back fixing lever. Up and
down the flange-back adjusting lever to obtain
a focused point.
TRX -
Install the camera and mounting arm.
TRX +
c
Install the C or CS mount type lens.
TRX +
b
TRX +
TRX -
TRX -
Install the camera and mounting bracket
securely.
TRX +
a
TRX +
Installation Guide
CS mount type
<日本語>
カメラと取付け金具を確実に設置します。
<日本語>
C マウントレンズまたは CS マウントレンズを取り付けます。
<日本語>
カメラとマウントアームを設置します。
<日本語>
<한국어>
카메라에 설치 브래킷을 설치하세요.
<한국어>
C 마운트 또는 CS 마운트 형식의 렌즈를 설치하세요.
<한국어>
카메라를 벽면에 설치하세요.
<한국어>
<‫>فارسي‬
.‫دوربین و پایه نگه دارنده آن را محکم نصب نمایید‬
<‫>فارسي‬
.‫لنز های سی و یا سی اس را نصب نمایید‬
<‫>فارسي‬
.‫دوربین و بازوی نگه دارنده آن را نصب نمایید‬
<‫>فارسي‬
<‫>عربي‬
.‫ركب الكاميرا مع دعامة التثبيت بإحكام‬
<‫>عربي‬
.CS ‫ أو‬C ‫ركب عدسات من نوع‬
<‫>عربي‬
.‫ركب الكاميرا وذراع التثبيت‬
<‫>عربي‬
<简体中文>
牢固安装摄像机和安装架。
<简体中文>
安装 C 或 CS 型镜头。
<简体中文>
安装摄像机和安装臂。
<简体中文>
フランジバック固定ネジを緩めます。フランジバック調整リング でピ
ントを調整してください。
Flange-back 고정나사를 풀어주세요. 영상을 보면서 Flange-back
조절링을 이용하여 초점을 맞추세요.
.‫ واستخدم حلقة ضبط المفصلة للحصول على نقطة التركيز‬.‫فك مسمار تثبيت المفصلة‬
.‫شل فلنج پشت پیچ ثابت‬
.‫استفاده از حلقه فلنج عقب تنظیم یک نقطه متمرکز شده است برای به دست آوردن‬
松开法兰距固定螺丝。 使用法兰距调节环以获得焦点。
Connection Guide
Data Length: 1 Byte (8 Bit)
•
Start/Stop Bit: 1 Bit
•
Parity Bit: None
•
Baud rate: 9 600 bps
TRX -
•
Format
Night Mode
BYTE1
BYTE2
0xE5
0x86
*C.S. = Check Sum
S/W Close
External D&N
Switch
BYTE3
BYTE4
BYTE5
BYTE6
Camera ID
CODE1
CODE2
*C.S.
•
The data of total 6 bytes is transmitted from the external RS-485 device to the
camera.
•
BYTE 6 : The value of Check Sum from ‘BYTE 1 ’ to ‘BYTE 5 ’.
ex) In case of transmission, 0xC5, 0x5F, 0x02, 0x00, 0x0A”
<日本語>
<한국어>
ディスプレイ装置を接続します。
<日本語>
디스플레이 장치를 연결하세요.
<한국어>
C.S. = 0xC5 +0x5F +0x02 +0x00 +0x0A = 0x0130
外部装置と接続します。
외부 장치와 연결하세요.
.‫قم بتوصيل جهاز العرض‬
<‫>فارسي‬
.‫وصل الجهاز الخارجي‬
<‫>عربي‬
.‫اتصال صفحه نمایش دستگاه‬
<‫>عربي‬
.‫اتصال دستگاه های خارجی‬
连接显示设备。
<简体中文>
连接外部装置。
<日本語>
カメラ側のみ、ULリスト・クラス2のDC12Vまたは AC12V 電源コー
ドに接続します。
<한국어>
카메라에 극성에 맞게 전원선을 연결하세요.
therefore, C.S. = 0x30
Commands
<‫>فارسي‬
<简体中文>
Connect to the DC 12 V / AC 24 V UL Listed,
Class 2 Power Supply only on the unit.
TRX +
RS-485 Unit
TRX -
S/W Open
c
RS-485 Protocol
Data Communication Format
Alarm (Relay)
Device
Day Mode
TRX +
TRX -
b
Connect the external device.
TRX +
a
Connect the display device.
Function
Command
OSD Menu ON/OFF
E5, 86, ID, 41, 02, C.S.
LEFT Button
E5, 86, ID, 12, 80, C.S.
Right Button
E5, 86, ID, 12, 90, C.S.
Up Button
E5, 86, ID, 11, 80, C.S.
Down Button
E5, 86, ID, 11, 90, C.S.
Menu Button
E5, 86, ID, 41, 01, C.S.
<‫>فارسي‬
،‫ فولت من التيار المتردد‬24 ‫ أو‬/ ‫ فولت من التيار المباشر‬12 ‫قم بالتوصيل بمصدر طاقة بجهد‬
.2 ‫من الفئة‬
<‫>عربي‬
.‫ تنها منبع تغذیه در واحد‬2 ‫ کالس‬،‫ فهرست‬UL ‫ ولت برق مستقیم‬24 / ‫ ولت‬12 ‫اتصال به دی سی‬
<简体中文>
装置仅可连接至 DC 12 V / AC 24 V UL 安全认证、等级 2 的电源。
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
