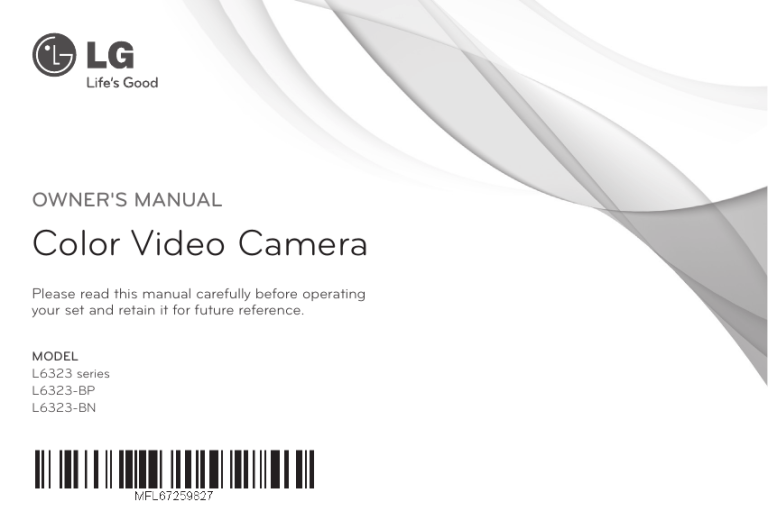

OWNER'S MANUAL
Color Video Camera
Please read this manual carefully before operating
your set and retain it for future reference.
MODEL
L6323 series
L6323-BP
L6323-BN
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead symbol
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
dangerous voltage within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the product.
2
FCC WARNING: This equipment may generate or use radio
frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The
user could lose the authority to operate this equipment if
an unauthorized change or modification is made.
REGULATORY INFORMATION: FCC Part 15
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
t
A suitable conduit entries, knock-outs or glands shall
be provided in the cable entries of this product in the
end user.
t
t
Caution: Danger of explosion if battery is incorrectly
replaced. Replaced only with the same or equivalent
type recommended by the manufacturer. Dispose
of used batteries according to the manufacturer’s
instructions.
Holes in metal, through which insulated wires pass,
shall have smooth well rounded surfaces or shall be
provided with brushings.
This Class A digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe A est conforme à la
norme NMB-003 du Canada.
Caution: This installation should be made by a qualified
service person and should conform to all local codes.
Caution: To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
Caution: The apparatus shall not be exposed to water
(dripping or splashing) and no objects filled with liquids,
such as vases, shall be placed on the apparatus.
To disconnect power from mains, pull out the mains
cord plug. When installing the product, ensure that the
plug is easily accessible.
Warning: Do not install this equipment in a confined space
such as a bookcase or similar unit.
Warning: Wiring methods shall be in accordance with the
National Electric Code, ANSI/NFPA 70.
Warning: This is a class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Warning: To reduce a risk of fire or electric shock, do not
expose this product to rain or moisture.
3
Disposal of your old appliance
1.
When this crossed-out wheeled bin
symbol is attached to a product it means
the product is covered by the European
Directive 2002/96/EC.
2.
All electrical and electronic products
should be disposed of separately from
the municipal waste stream via designated collection facilities appointed by
the government or the local authorities.
3.
The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and
human health.
4.
For more detailed information about
disposal of your old appliance, please
contact your city office, waste disposal
service or the shop where you purchased the product.
EEE Compliance with Directive. (for Turkey only)
4
LG Electronics hereby declares that this/these
product(s) is/are in compliance with the essential requirements and other relevant provisions
of Directive 2004/108/EC, 2006/95/EC, and
2009/125/EC.
European representative :
LG Electronics Service Europe B.V.
Veluwezoom 15, 1327 AE Almere,
The Netherlands (Tel : +31-(0)36-547-8888)
Important Safety Instructions
1.
Read these instructions.
and the point where they exit from the apparatus.
2.
Keep these instructions.
3.
Heed all warnings.
11. Only use attachments/accessories specified by the
manufacturer.
4.
Follow all instructions.
5.
Do not use this apparatus near water.
6.
Clean only with dry cloth.
7.
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8.
Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving
the cart/apparatus combination to avoid injury from
tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
5
Cautions for Safe Operation
Power Supply
t
This camera must always be operated a AC 24 V or DC 12 V
Certified/Listed, class 2 power supply only.
Avoid the use of volatile solvents such as thinners,
alcohol, benzene and insecticides. They may damage
the surface finish and/or impair the operation of the
camera.
Operating and storage location
Handling of the unit
Be careful not to spill water or other liquids on the unit. Be
cautious not to get combustible or metallic material inside
the body. If used with foreign matter inside, the camera is
liable to fail or to get cause of fire or electric shock.
t
Remove dust or dirt on the surface of the lens with a
blower.
t
Use a dry soft cloth to clean the body. If it is very dirty,
use a cloth dampened with a small quantity of neutral
detergent then wipe dry.
6
Avoid viewing a very bright object (such as light fittings)
during an extended period. Avoid operating or storing the
unit in the following locations.
t
Extremely hot or cold places (operating temperature
-10 °C to 50 °C, however, we recommend that the unit
be used within a temperature range of 0 °C to 45 °C)
t
Damp or dust place
t
Places exposed to rain
t
Places subject to strong vibration
t
Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.
Contents
Features ............................................................................. 8
Accessories.................................................................................. 8
Part Names and Functions ............................................... 9
Connections .................................................................... 11
Basic connection .....................................................................11
Connecting RS-485 device ..................................................11
Installation ...................................................................... 12
Mounting the Camera...........................................................12
Wall mount (Optional) ..........................................................16
Pendant mount (Optional) ..................................................18
Image Adjustment .................................................................20
Menu Operation.............................................................. 23
OSD Menu Overview .............................................................24
General Operation..................................................................27
Camera Identification Settings ..........................................28
Exposure Settings ...................................................................28
WDR/BLC setting ...........................................................29
Brightness setting.........................................................30
AGC (Automatic Gain Control) setting ..................30
SHUTTER (Shutter Speed) setting ...........................31
SENS-UP setting ............................................................31
White Balance settings .........................................................32
Day/Night Setting ..................................................................34
Motion Detection Setting....................................................35
3D-DNR Setting .......................................................................36
Privacy Setting .........................................................................37
Special Menu Settings ..........................................................39
Setting the D-ZOOM (Digital Zoom ) level .........39
Setting the D-EFFECT (Digital effect) ....................40
Setting the SHARPNESS effect .................................40
Setting the COLOR effect ..........................................41
STABILIZER setting........................................................41
Setting the SYNC (Synchronization) ......................42
Setting the USER TITLE ................................................42
Language Setting .........................................................43
Reset Settings.................................................................44
RS-485 Protocol .............................................................. 45
Specification ................................................................... 46
7
Features
This Color Video Camera is designed for installation in a
video surveillance system.
This manual contains instructions on how to install and
manage the Color Video Camera in your video surveillance
system.
Should you require any technical assistance, please contact
authorized service center.
t
High resolution and high sensitivity with a 6 mm CCD.
t
Day & Night function.
t
BLC covers various light conditions.
t
Excellent signal-to-noise ratio of 50 dB.
t
Weather Proof: IP66 Rating.
t
Dome Cover : Vandal -Proof.
Accessories
Installation sticker
Camera mounting
bracket
Wrench
M4 Fixing screws
8
Part Names and Functions
a Dome Cover Ring
a
b Dome Cover
c Lens Cover
d Focus lock lever
Fixes the focus position after adjusting.
b
e Azimuth adjuster
Adjusts the azimuth angle to obtain a level image.
f Zoom lock lever
Fixes the zoom position after adjusting.
g Tilting lock screw
c
d
e
f
g
h
i
j
Fixes the tilting position after adjusting.
h Azimuth lock screw
Fixes the azimuth angle after adjusting.
i Video Out connector (RCA type)
Use this jack for checking the picture with portable
monitor when install the camera.
j Setup menu control buttons
9
Part Names and Functions
k Pan lock screw
k
l
Fixes the panning position after adjusting.
l Pan adjuster
Adjusts the pan position.
m
n
o
m Power input connector
Supplies AC 24 V or DC 12 V from an external power
source.
p
n Video output connector (BNC type)
o RS-485 Communication cable
<Bottom of the camera>
Connect this cable to an external controller of RS-485
format.
p Camera mounting bracket
This bracket is supplied for ceiling installation.
q
q GORETM protective sticker / Air vent system
Do not remove the GORETM protection sticker. It helps
the flow of air to prevent moisture and condensation
inside of the camera. This air vent system helps the
product's reliability and stability so it increases the
life cycle.
10
Connections
Basic connection
Connecting RS-485 device
The peripheral devices (DVR, monitor, etc.), AC/DC adapter
and cables are not supplied.
Use these cables to connect an external controller of
RS-485 format.
1.
Make the video signal connection between the camera and the monitor or DVR.
2.
Connect an external power source to the power input
jack of the camera.
Cable Color
Description
White
TRX-: Data Transmission/Reception
Black
TRX+: Data Transmission/Reception
11
Installation
Mounting the Camera
You can mount the camera on a ceiling or wall.
Surface mount
Follow the instructions below to mount the camera on a
surface with supplied camera mounting bracket.
1.
12
Use the installation guide template to check the
mounting location. Face the front of the label toward
the area of interest. Using the template as a guide,
make a hole through the ceiling.
2.
Pass the connection cable through the inner side of
the ceiling.
Installation
3.
Install the camera mounting bracket to the ceiling.
4.
Connect the cables to the cable jacks of the camera
body.
13
Installation
5.
Assemble the camera and mounting bracket. Connect
the unit by following step a and b.
Wall mount with optional mounting
bracket housing
Follow the instructions below to mount the camera on a
surface with optional mounting bracket housing.
1.
14
Install the mounting bracket housing to the ceiling.
Installation
2.
Fasten the camera mounting bracket to the mounting
bracket housing.
3.
Connect the cables and assemble the camera and
mounting bracket housing. Connect the unit by
following step a and b.
15
Installation
Wall mount (Optional)
Follow the instructions below to install the camera with a
wall mount.
1. Drill holes in the wall where you want to install the
wall mount.
2.
16
Install the wall mount installation bracket.
3.
Install the wall mount assembly as shown below.
Installation
4.
Connect the cables to the camera jacks.
5.
Attach the camera to the wall mount assembly.
17
Pendant mount (Optional)
Follow the instructions below to install the camera with a
pendant mount.
1. Drill holes in the wall where you want to install the
pendant mount.
2.
18
Pass the connection cable through the pendant
mount assembly so that they hang down.
3.
Install the pendant mount assembly.
4.
Connect the cables to the camera jacks.
5.
Attach the camera to the pendant mount assembly.
19
Installation
Image Adjustment
You can manually adjust the pan/tilt/azimuth angles, focus,
and zoom while observing the connected monitor.
Notes:
t
Do not hold the camera by lens unit to adjust panning,
tilting, or azimuth.
t
The video output to the BNC will be interrupted while
a portable monitor is connected to the video jack.
1.
Disassemble the dome cover ring. Use the supplied
wrench to loosen the screws and then remove the
dome cover and lens cover.
20
2.
Connect a portable monitor to the video jack.
Installation
3.
Adjust the pan/tilt position of the camera.
4.
Adjust the azimuth angle.
3-1. Loosen the pan/tilt lock screw.
4-1. Loosen the azimuth angle lock screw.
3-2. Lock the pan/tilt lock screw after adjusting.
4-2. Lock the azimuth angle lock screw after adjusting.
21
Installation
5.
Adjust the zoom.
6.
Adjust the focus.
5-1. Unlock the zoom lever.
6-1. Unlock the focus lever.
5-2. Move the lever to adjust the zoom.
6-2. Move the lever to adjust the focus.
5-3. Lock the lever.
6-3. Lock the lever.
FAR
TELE
WIDE
7.
22
Attach the lens cover and dome cover.
NEAR
Menu Operation
This camera utilizes an on-screen user MENU. To set items
on the menu, use the following buttons.
t
UP button:
Used to move upper direction on the menu screen.
Use this button to select an item or adjust the parameters.
t
DOWN button:
Used to move lower direction on the menu screen. Use
this button to select an item or adjust the parameters.
t
RIGHT button:
Moves the cursor to the right. Used to increment the
value selected in the menu. The parameter changes
each time this button is pressed.
t
Moves the cursor to the left. Used to decrement the
value selected in the menu. The parameter changes
each time this button is pressed.
DOWN
RIGHT
SET
LEFT
t
UP
LEFT button:
SET button:
Executes selections and displays a submenu for an
item with the mark.
23
Menu Operation
OSD Menu Overview
Main Menu
The following table shows the list of menu items and options. You can adapt the camera to your requirements by
setting up the respective items in these menus.
Sub Menu
Contents
CAMERA ID
-
OFF, 1 to 255
ALC2/ALC/ELC
OFF/WDR/BLC/
HSBLC
BRIGHTNESS
0 to 100
AGC
OFF/LOW/
MIDDLE/HIGH
EXIT
24
NATURAL/COOL/
WARM/VIVID
AUTO
USER MODE
NATURAL/COOL/
WARM/VIVID
COLOR TEMP
INDOOR,
OUTDOOR
RED
-100 to 100
MANUAL
x512,…,x2,AUTO,OFF,A.
FLK,1/160,…,1/120 000
(for ALC/ELC mode)
1/160,…,1/120 000
(for ALC2 mode)
OFF
SENS-UP
USER MODE
WHITE BAL
WDR/BLC
SHUTTER
Contents
ATW
AWC / PUSH
Main Menu
EXPOSURE
Sub Menu
AUTO
(X2 , ... , X128)
RET/TOP/END
AUTO
DAY/NIGHT
DAY
NIGHT
BLUE
-100 to 100
EXIT
RET/TOP/END
LEVEL
LOW/ MIDDLE/
HIGH
DWELL TIME
5, 10, 15 SEC.
EXIT
RET/TOP/END
Menu Operation
Main Menu
Sub Menu
SMART MD
Contents
ON/OFF
ZONE
NUMBER
Main Menu Sub Menu
AREA1 to
AREA4
ZONE STATE ON/OFF
HEIGHT
Contents
OFF
COLOR
RED, GREEN,
BLUE
TRANSPARENCY
0 to 16
2 to 6
MASK NUMBER
REGIONAL
MD
ON
WIDTH
2 to 8
MOVE Y
1 to 5
RECTANGLE
ON
MOTION DET
MOVE X
1 to 7
EXIT
RET/TOP/
END
OFF
TAMPERING
MD
PRIVACY
MASK NUMBER
ON
ON/OFF
CIRCLE
SENSITIVITY
0 to 100
EXIT
RET/TOP/END
OFF
OFF
-
LOW
-
MIDDLE
-
HIGH
-
3D-DNR
RECT. DISPLAY
HEIGHT
WIDTH
MOVE Y
MOVE X
CIR. DISPLAY
HEIGHT
WIDTH
MOVE Y
MOVE X
RADIUS SIZE
MASK NUMBER
POLYGON
POLY. DISPLAY
POLYGON DRAW
POLYGON MOVE
0 to 255
AREA1 to
AREA8
ON/OFF
4 to 100
4 to 100
2 to 98
2 to 98
AREA1 to
AREA2
ON/OFF
1 to 15
1 to 15
0 to 100
0 to 100
0 to 100
AREA1 to
AREA2
ON/OFF
-
25
Menu Operation
Main Menu
Sub Menu
Contents
Main Menu
OFF
D-ZOOM
ZOOM
X1.20 to X10.00
PAN
-100 to 100
RESET
Sub Menu
Contents
CAMERA REBOOT
-
FACTORY RESET
-
EXIT
RET/TOP/END
ON
TILT
-100 to 100
EXIT
D-EFFECT
SPECIAL
26
OFF/ MIRROR/ ROTATE/ V-FLIP
SHARPNESS
0 to 68
COLOR
OFF/ ON
STABILIZER
OFF/ ON
SYNC
INT / LL
USER TITLE
OFF/ ON
LANGUAGE
The option depends on the model.
EXIT
RET/TOP/END
EXIT
-
Menu Operation
General Operation
1.
Press [SET] button.
The setup menu screen appears on the monitor.
5.
Select [EXIT] option then press [SET] to exit the setup
menu. In the submenu, use [UP] or [DOWN] button to
select the [EXIT] then use [LEFT] or [RIGHT] button to
select a mode and press [SET] to exit the setup menu.
t
t
t
2.
Use [UP] or [DOWN] button to select an option then
press [SET] button.
Submenu appears on the monitor.
3.
Use [UP] or [DOWN] button to select a submenu
option.
4.
Use [LEFT] or [RIGHT] button to select a value.
RET: Return to the previous.
TOP: Return to the CAMERA SETTING menu
screen.
END: Exit the setup menu.
27
Menu Operation
Camera Identification Settings
Exposure Settings
You can use the camera identification (CAMERA ID) to
assign a number to the camera.
You can set the exposure options using the EXPOSURE
menu.
1.
Select [CAMERA ID] option on the [CAMERA SETTING]
menu.
2.
Use [LEFT] or [RIGHT] to select a CAMERA ID.
28
1.
Select [EXPOSURE] option on the [CAMERA SETTING]
menu.
2.
Use [LEFT] or [RIGHT] button to select a mode.
(ALC2yALyELC)
3.
Press [SET] button and the EXPOSURE menu appears.
Menu Operation
>
WDR/BLC setting
Use WDR/BLC option to view the object clearly in backlight
conditions.
t
t
ACE (Adaptive Contrast Enhancement) : This
function is used when you want to display
dark areas of WDR brightly.
BLC: Camera's backlight compensation feature
helps alleviate issues of visibility in high contrast
areas. Set the BLC limit.
HSBLC: Use for masking brightness of the specific
area to view the subject more clearly. The HSBLC
mode is automatically activated only in low
luminance scene.
>
1.
Select [WDR/BLC] option.
2.
Use [LEFT] or [RIGHT] button to select a mode then
press [SET].
t
WDR: WDR (Wide dynamic range) feature can be
very helpful to cope with very challenging lighting conditions. It is capable of capturing both of
the dark part and bright part and combining the
differences into a scene to generate a highly realistic image as original scene. Set the WDR limit.
>
>
AREA SETTING: Use [LEFT] or [RIGHT] button to select a area then use [UP] or [DOWN]
button to select ON or OFF. Press [SET] to
exit the Area setting menu.
GRAY SCALE: Use [LEFT] or [RIGHT] button
to select a gray scale.
USER SCALE: Use [LEFT] or [RIGHT] button
to select a bright level.(5 level)
29
Menu Operation
>
t
MASK: Use [LEFT] or [RIGHT] button to
select [ON] or [OFF].
If you set the MASK to ON, the mask function
is activate only when the HSBLC is automatically activated in low luminance scene.
OFF: Not used.
AGC (Automatic Gain Control) setting
If the images are too dark, change the maximum [AGC]
value to make the images brighter.
Brightness setting
You can increase the brightness of the darkened video. If
you set the brightness to lower value, the image is
darkened. If you set the brightness to higher value, the
image gets bright.
1.
Select [BRIGHTNESS] option.
2.
Use [LEFT] or [RIGHT] button to set the bright level.
30
1.
Select [AGC] option.
2.
Use [LEFT] or [RIGHT] button to select a mode.
Menu Operation
SHUTTER (Shutter Speed) setting
SENS-UP setting
Select the desired shutter speed for camera exposure. You
can change the shutter speed to higher speed to capture
fast-moving subjects, though the image becomes darker.
If pictures are not clear due to darkness, this SENS-UP
operation would increase the sensitivity of picture.
1.
1.
Select [SHUTTER] option.
2.
Use [LEFT] or [RIGHT] button to set shutter speed.
Note:
If you set the shutter speed value in ALC2 mode, it is maximum value. When the camera is activated with ALC2 mode,
the shutter speed is arrived maximum value and then the
camera is change to iris control mode automatically for the
camera exposure. ALC2 mode doesn't support anti-flicker
shutter so If you want to use it, use it in ALC mode.
2.
Use [UP] or [DOWN] button to select [SENS-UP]
option.
Use [LEFT] or [RIGHT] button to select mode.
t
AUTO: Adjust the sensitivity of the picture
automatically.
>
t
SENS-UP LIMIT: Use [LEFT] or [RIGHT]
button to set the SENS-UP limit.
> EXIT: Select a mode and press [SET] to exit
the menu.
OFF: Not used.
31
Menu Operation
Note:
White Balance settings
If you set to one of the SHUTTER options except AUTO on
the [SHUTTER] menu the [SENS-UP] setting is not available
and [---] mark is displayed.
Select the method by which the camera shifts its output
colors to compensate for the color of a light source.
1.
2.
32
Select [WHITE BAL] option.
Use [LEFT] or [RIGHT] button to select a mode then
press [SET].
t
ATW (Auto-Tracing White Balance): The color
temperature range for the proper white balance
is approximately 1 700 K to 11 000 K.
> USER MODE: Use [LEFT] or [RIGHT] button to
select an option to get a different view.
Menu Operation
Note:
-
Proper white balance may not be obtained under
the following conditions.
t
-
The color temperature is out of the 1 700 K
to 11 000 K range.
-
When the scene contains mostly high color
temperature objects, such as a blue sky or
sunset.
-
When the scene is dim.
AUTO: You can set the white balance options
automatically.
>
t
t
>
>
INDOOR: The color temperature range
for the proper white balance is approximately 3 200 K.
OUTDOOR: The color temperature range
for the proper white balance is approximately 5 100 K.
RED: Obtains the optimum amount of red gain.
BLUE: Obtains the optimum amount of blue
gain.
USER MODE: Use [LEFT] or [RIGHT] button to
select an option to get a different view.
AWCbPUSH: If you select the AWCbPUSH mode,
you will be able to set up the White Balance automatically using [SET] button.
MANUAL: You can set the white balance options
manually.
> COLOR TEMP: Use [LEFT] or [RIGHT] button
to select a function.
33
Menu Operation
>
t
DWELL TIME: Use [LEFT] or [RIGHT] button
to select a dwell time.
DAY: Color mode enabled.
t
NIGHT: Black-and-white mode enabled.
Day/Night Setting
1.
Select [DAY/NIGHT] option.
2.
Use [LEFT] or [RIGHT] button to select mode for day/
night function.
t
AUTO: You will be able to change the Day/Night
mode automatically.
Note:
If you set the AGC to [OFF] on the [EXPOSURE]
menu, the AUTO mode of the DAY/NIGHT function is not available and [---] mark is displayed.
>
34
LEVEL: Use [LEFT] or [RIGHT] button to
select a level.
Menu Operation
>
Motion Detection Setting
The motion detection detects the moving objects in the
scene by monitoring changes in brightness level. You can
select the level of sensitivity for motion detection.
1.
Select [MOTION DET] option.
2.
Use [LEFT] or [RIGHT] button to select [ON] and press
[SET].
The MOTION DETECTION menu appears.
t
SMART MD : You can detect the movement of
objects easily by displaying motion mask.
t
REGIONAL MD : Use [LEFT] or [RIGHT] button to
select [ON] then press [SET] button.
t
3.
Use [LEFT] or [RIGHT] button to select a
zone number on the [ZONE NUMBER].
> Use [LEFT] or [RIGHT] button to set up the
ON or OFF on the ZONE STATE.
> Use [UP] or [DOWN] to select an option
then use [LEFT] or [RIGHT] button to adjust
the option.
HEIGHT: Enlarge or decrease the vertical
size of the mask.
WIDTH: Enlarge or decrease the horizontal size of the mask.
MOVE Y: Moves vertical position of the
mask.
MOVE X: Moves horizontal position of
the mask.
TAMPERING MD : You can detect that the camera
is polluted or damaged by spray or dust.
Use [SENSITIVITY] option to obtain the optimum
detection level.
35
Menu Operation
3D-DNR Setting
1.
Select [3D-DNR] option.
If pictures are not clear due to brightness, this option
would reduce the noise of picture.
2.
Use [LEFT] or [RIGHT] button to select a option.
36
Notes:
t
If you set the AGC to [OFF] on the [EXPOSURE] menu,
the [3D-DNR] function is not available and [---] mark
is displayed.
t
When you use this function, the afterimage may occur.
Menu Operation
Privacy Setting
t
>
This function is aiming at the protection of personal privacy, selecting a screen part black not to be displayed in
the screen.
1.
Select [PRIVACY] option.
2.
Use [LEFT] or [RIGHT] button to select a [ON] and
press [SET]. The PRIVACY SETUP menu appears.
t
COLOR : You can make any color by adjusting
R.G.B LEVEL.
t
TRANSPARENCY : You can adjust the transparency
of MASK.
RECTANGLE :
t
Use [LEFT] or [RIGHT] button to select a
mask on the [MASK NUMBER].
> Use [LEFT] or [RIGHT] button to set up the
[ON] or [OFF] on the RECT. DISPLAY option.
> Use [UP] or [DOWN] to select an option
then use [LEFT] or [RIGHT] button to adjust
the option.
HEIGHT: Enlarge or decrease the vertical
size of the mask.
WIDTH: Enlarge or decrease the horizontal size of the mask.
MOVE Y: Moves vertical position of the
mask.
MOVE X: Moves horizontal position of
the mask.
CIRCLE :
>
>
Use [LEFT] or [RIGHT] button to select a
mask on the [MASK NUMBER].
Use [LEFT] or [RIGHT] button to set up the
[ON] or [OFF] on the CIR. DISPLAY option.
37
Menu Operation
>
38
Use [UP] or [DOWN] to select an option
then use [LEFT] or [RIGHT] button to adjust
the option.
HEIGHT: Enlarge or decrease the vertical
size of the mask.
WIDTH: Enlarge or decrease the horizontal size of the mask.
MOVE Y: Moves vertical position of the
mask.
MOVE X: Moves horizontal position of
the mask.
RADIUS SIZE : You can adjust the
RADIUS SIZE.
t
POLYGON :
>
>
>
>
Use [LEFT] or [RIGHT] button to select a
mask on the [MASK NUMBER].
Use [LEFT] or [RIGHT] button to set up the
[ON] or [OFF] on the POLY. DISPLAY option.
Use the [LEFT], [RIGHT], [UP], [DOWN] and
[SET] buttons to draw the polygon by moving each vertex on the [POLYGON DRAW].
Each movable vertex will be displayed as a
black square spot each time you click the
[SET] button.
Use the [LEFT], [RIGHT], [UP], [DOWN] and
[SET] buttons to move the polygon on the
[POLYGON MOVE].
Menu Operation
Special Menu Settings
This menu lets you adjust and set up D-ZOOM, D-EFFECT,
SHARPNESS, COLOR, STABILIZER, SYNC, USER TITLE,
LANGUAGE function by yourself in the SPECIAL menu.
1.
Select [SPECIAL] option.
2.
Press [SET] button and the SPECIAL menu appears.
Setting the D-ZOOM (Digital Zoom ) level
You can select the digital zoom level.
1.
Select [D-ZOOM] option on the [SPECIAL] menu.
2.
Use [LEFT] or [RIGHT] button to select a [ON] then
press [SET] the DIGITAL ZOOM menu appears. When
you set to [ON], the displayed image can be shaking.
3.
Use [UP] or [DOWN] to select an option then use
[LEFT] or [RIGHT] button to select a level.
t
ZOOM: Use [LEFT] or [RIGHT] button to zoom in
or zoom out the screen.
t
PAN: Use [LEFT] or [RIGHT] button to move the
screen. (left or right)
39
Menu Operation
t
TILT: Use [LEFT] or [RIGHT] button to move the
screen. (up or down)
Setting the SHARPNESS effect
The degree to which the boundary of the two portions is
clearly distinguished.
Setting the D-EFFECT (Digital effect)
You can select the digital effect.
1.
2.
40
Select [D-EFFECT] option on the [SPECIAL] menu.
Use [LEFT] or [RIGHT] button to select a digital effect.
t
V-FLIP: Flip the picture vertically.
t
ROTATE: Rotate the picture. (180°)
t
MIRROR: Turn on the mirror effect.
t
OFF: Turn off the digital effect.
1.
Select [SHARPNESS] option on the [SPECIAL] menu.
2.
Use [LEFT] or [RIGHT] button to change a adjust
the option. If you set the sharpness value to higher,
the image outline becomes sharp. If you set to lower
value, the image outline becomes dim.
Menu Operation
Setting the COLOR effect
STABILIZER setting
You can switch the displayed picture to gray scale or color.
The image stabilizer function minimizes the appearance of
shaky images caused by low-frequency vibration.
This function is useful for outdoor surveillance.
Select [STABILIZER] option and set to ON or OFF.
1.
2.
Select [COLOR] option on the [SPECIAL] menu.
Use [LEFT] or [RIGHT] button to change a color effect.
t
ON: To display the picture with color.
t
OFF: To display the picture with grayscale.
Note:
If you set the [STABILIZER] to ON, the Digital zoom is set to
[x1.2] automatically.
41
Menu Operation
Setting the SYNC (Synchronization)
The SYNC function is available only with AC power source.
1.
Select [SYNC] option on the [SPECIAL] menu.
2.
Use [LEFT] or [RIGHT] button to select [INT] or [LL]
(Line Lock).
t
INT: Selects for using the internal synchronization.
2-1. Select [LL] mode and press [SET].
2-2. Select a desired phase using the [LEFT] or
[RIGHT] button.
Note:
When you use the DC 12 V power, the [SYNC]
option is fixed to [INT] mode only.
Setting the USER TITLE
t
LL (Line Lock): Selects for the operation of multi
cameras because it synchronizes the camera
phase by using the external signal (AC power
signal).
You can use the camera identification to assign a number
and character to the camera (0 to 9, A to Z, a to z).
The USER TITLE is displayed on the upper left of the screen.
To disappear the user title, select [OFF].
1.
42
Select [USER TITLE] option on the [SPECIAL] screen.
Menu Operation
2.
Use [LEFT] or [RIGHT] button to select a [ON] then
press [SET]. The USER TITLE menu appears.
Language Setting
Select the viewer language for the camera setup menu and
OSD information display.
A
3.
Use [UP], [DOWN], [LEFT] or [RIGHT] button to select
a character or number then press [SET] button.
t
CLR: Clear all entered characters and numbers.
t
POS: Move the USER TITLE position on the screen
using the arrow buttons.
t
END: Confirm your selection or exit the setting.
t
A (Blank): Inserts a space at the cursor position.
t
/
1.
Select [LANGUAGE] option on the [SPECIAL] screen.
2.
Press [LEFT] or [RIGHT] button to select a language.
: Moves cursor to left or right.
43
Menu Operation
Reset Settings
4.
1.
Select [RESET] option.
2.
Press [SET] button and the RESET menu appears.
3.
Use [UP] or [DOWN] to select option.
44
t
CAMERA REBOOT: To reboot the camera system.
t
FACTORY RESET: To reset the camera setting to
factory setting, select [FACTORY RESET] option.
Press [SET] button to confirm your selection.
RS-485 Protocol
Data Communication Format
t
Data Length: 1 Byte (8 Bit)
t
Start/Stop Bit: 1 Bit
t
Parity Bit: None
t
Commands
Function
Baud rate: 9,600 bps
Format
BYTE 1 BYTE 2
BYTE 3
BYTE 4
BYTE 5
BYTE 6
0xE5
0x86
Camera ID CODE1 CODE2 *C.S.
*C.S. = Check Sum
t
The data of total 6 bytes is transmitted from the
external RS-485 device to the camera.
t
Command
OSD Menu ON/OFF
E5, 86, ID, 41, 02, C.S.
LEFT Button
E5, 86, ID, 12, 80, C.S.
Right Button
E5, 86, ID, 12, 90, C.S.
Up Button
E5, 86, ID, 11, 80, C.S.
Down Button
E5, 86, ID, 11, 90, C.S.
Menu Button
E5, 86, ID, 41, 01, C.S.
BYTE 6 : The value of Check Sum from ‘BYTE 1’ to ‘BYTE
5’.
ex) In case of transmission, 0xC5, 0x5F, 0x02, 0x00,
0x0A”
C.S. = 0xC5 +0x5F +0x02 +0x00 +0x0A = 0x0130
therefore, C.S. = 0x30
45
Specification
Item
Signal System
Total/Effective Pixels
Image Device
DSP
Lens
Digital Zoom
Sync. System
Scanning Frequency (H/V)
Horizontal Resolution
S/N Ratio
Minimum
Color mode
Illumination
B/W mode
(30 IRE)
Control Method
Video Output Signal
Day & Night
BACKLIGHT
3D-DNR
Auto Gain Control
Electronic Shutter Speed
46
L6323-BP
PAL
1028 X 596 / 976 X 582
L6323-BN
NTSC
1028 X 508 / 976 X 494
6 mm CCD
XDI-II
2.8 mm to 10 mm Vari-focal lens
X10
Internal / Line Lock
15.625 kHz / 50 Hz
15.734 kHz / 59.94 Hz
650 TV Lines
50 dB
0.0003 lx (Sens-up Auto, F1.2)
0.000 03 lx (Sens-up Auto, F1.2)
Key Button / RS485
1 Vp-p Composite (75 Ω)
DAY / NIGHT / AUTO
OFF / WDR(ACE) / BLC / HSBLC
OFF / LOW / MIDDLE / HIGH
OFF / LOW / MIDDLE / HIGH
1/50 to 1/120 000
1/60 to 1/120 000
Specification
Item
Sens-Up
White Balance
Motion Detection
RECTANGLE
Privacy Zone
CIRCLE
Masking
POLYGON
Stabilizer( EIS)
User Color Mode
Power Source
Power Consumption
Operation Temp.
Storage Temp.
Operation Humidity
Storage Humidity
Weight
Dimension (Ø x H)
L6323-BP
L6323-BN
OFF / AUTO
ATW / AUTO / AWC b PUSH / MANUAL
REGIONAL MD / SMART MD / TAMPERING MD
8 AREAS
2 AREAS
2 AREAS
On / Off
NATURAL / COOL / WARM / VIVID
DC 12 V / AC 24 V
2.8 W
-10 ºC to 50 ºC
-20 ºC to 60 ºC
0 % RH to 80 % RH
0 % RH to 85 % RH
840 g
165 mm x 100.3 mm
47
Download PDF
