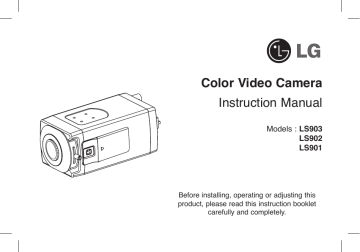

Color Video Camera

Instruction Manual

Models :

LS903

LS902

LS901

Before installing, operating or adjusting this product, please read this instruction booklet carefully and completely.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

FCC WARNING:

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

REGULATORY INFORMATION: FCC Part 15

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

• A suitable conduit entries, knock-outs or glands shall be provided in the cable entries of this product in the end user.

• Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

• Holes in metal, through which insulated wires pass, shall have smooth well rounded surfaces or shall be provided with brushings.

Warning:

Do not install this equipment in a confined space such as a bookcase or similar unit.

Warning:

Wiring methods shall be in accordance with the National Electric Code, ANSI/NFPA 70.

Warning:

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Warning:

To reduce a risk of fire or electric shock, do not expose this product to rain or moisture.

Caution:

This installation should be made by a qualified service person and should conform to all local codes.

Caution:

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Caution:

The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

To disconnect power from the mains, pull out the mains cord plug. When install the product, ensure that the plug is easily accessible.

Important Safety Instructions

1. Read these instructions. -

All these safety and operating instructions should be read before the product is operated.

2. Keep these instructions. -

The safety, operating and use instructions should be retained for future reference.

3. Heed all warnings. -

All warnings on the product and in the operating instructions should be adhered to.

4. Follow all instructions. -

All operating and use instructions should be followed.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. -

Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the product, and to protect it from over- heating. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer’s instructions have been adhered to.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 5. Do not use this apparatus near water. -

For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; near a swimming pool; etc.

6. Clean only with dry cloth. -

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.

Important Safety Instructions

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

5

Contents

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Cautions for Safe Operation. . . . . . . . . . . . . . . .8

Part Names and Functions. . . . . . . . . . . . . . . . .9

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Mounting the Lens . . . . . . . . . . . . . . . . . . . . . .1

Concerning Auto-Iris Lenses . . . . . . . . . . . . . .15

External Device Connections . . . . . . . . . . . . . .17

Day&Night Function Settings . . . . . . . . . . . . . .18

Flange-back Adjustment. . . . . . . . . . . . . . . . . .19

Installation of Camera . . . . . . . . . . . . . . . . . . .0

Menu Operation . . . . . . . . . . . . . . . . . . . . . . . .1

Camera Identification Settings . . . . . . . . . . . . .

Exposure Settings . . . . . . . . . . . . . . . . . . . . . .

White Balance Settings . . . . . . . . . . . . . . . . . .7

Day/Night Setting . . . . . . . . . . . . . . . . . . . . . . .9

Motion Detection Setting . . . . . . . . . . . . . . . . .0

D-DNR Setting . . . . . . . . . . . . . . . . . . . . . . . .1

Privacy Setting . . . . . . . . . . . . . . . . . . . . . . . . .

Special Menu Settings . . . . . . . . . . . . . . . . . . .

Reset Settings . . . . . . . . . . . . . . . . . . . . . . . . .8

RS-C TTL/RS-85 Protocol(Optional) . . . .9

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . .0

Features

This color video camera is designed for use in monitoring system.

• High resolution and high sensitivity with a 1/ inch Super HAD CCD (Charge Coupled Device).

• Line Lock when using AC V.

• C/CS Mount.

Features Chart

This table shows the differences between the models.

Use LS90 is used for the description, operation and details provided in this operating guide.

Models

LS90P-B

LS90P-B

LS90P-B1

LS901P-B

LS901P-B1

LS90N-B

LS90N-B

LS90N-B1

LS901N-B

LS901N-B1

WDR

Yes

Yes

Yes

No

No

Yes

Yes

Yes

No

No

Sense-up

Yes

No

No

Yes

Yes

Yes

No

No

Yes

Yes

Day & Night

Filter change

Filter change

Digital

Filter change

Digital

Filter change

Filter change

Digital

Filter change

Digital

7

Cautions for Safe Operation

Power Supply

This camera must always be operated a AC V or

DC 1V Certified/Listed, class power supply only.

Note

:

Be careful of AC frequency when the camera is operated with Line lock mode.

• Extremely hot or cold places (operating temperature -10 °C - 50 °C, however, we recommend that the unit be used within a temperature range of 0 °C

- 5 °C)

• Damp or dust place

• Places exposed to rain

• Places subject to strong vibration

• Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.

Handling of the unit

Be careful not to spill water or other liquids on the unit. Be cautions not to get combustible or metallic material inside the body. If used with foreign matter inside, the camera is liable to fail or to get cause of fire or electric shock.

Operating and storage location

Avoid viewing a very bright object (such as light fittings) during an extended period. Avoid operating or storing the unit in the following locations.

Handling of the unit

• Remove dust or dirt on the surface of the lens with a blower.

• Use a dry soft cloth to clean the body.If it is very dirty,use a cloth dampened with a small quantity of neutral detergent,then wipe dry.

• Avoid the use of volatile solvents such as thinners, alcohol,benzene,and insecticides.

They may damage the surface finish and/or impair the operation of the camera.

8

Part Names and Functions

a b c a

Lens mount cap

The cap is installed to protect the lens mount section. Remove the lens mount cap before installing a lens (sold separately) .

b

Flange-back adjustment lever

c

Camera installation bracket

The bracket can be fixed at the top or bottom of the camera. (page 0)

9

Part Names and Functions

de d

Power input terminal

AC V or DC 1 V input terminal e

External Device Connectors

• D&N

Connect the external switch to set the D&N function manually.

• Alarm Output Terminal (ALARM OUT/COM)

Connect to the alarm input of an external device.

• COMMUNICATION (COM)

Connect to an external controller of RS-C

TTL/RS-85(optional) format.

f

GND

g

Power indicator

Comes on when the power to the camera is on.

h

Video output connector (BNC type)

Connect this connector to a device such as a VCR or monitor with a VIDEO IN connector.

10

Part Names and Functions

i

Lens iris output connector (LENS)

This - pin connector is used to send the Iris control signal and power supply to an auto-iris type lens.

j

Buttons for menu

To set items on the MEMU, use the these buttons on the side panel. (page 1) k

ALC Lens Setting Switch

• DC: When you attach an Auto Iris lens requiring the DC control signal, please put this switch in the DC position.

• ELC: When you attach a manual or fixed lens, please put this switch in the ELC position.

• VIDEO: When you attach an Auto Iris lens requiring the video control signal, please put this switch in the VIDEO position.

11

Connections

2

3

1

1

To monitor's Video Input or Camera Input

Basic connection

The peripheral devices (VCR, monitor, lens, etc.), AC/

DC adaptor and cables are not supplied.

1. Connecting the monitor.

Make the video signal connection between the camera and the monitor or time lapse VCR.

2. Use a commercially available AC 24 V / DC 12

V adaptor.

Connect an AC V / DC 1 V power source to the AC V / DC 1 V input terminal on the back of the camera.

3. Insert the plug of this power cord into a wall outlet.

The POWER indicator will light. Adjust the picture on the monitor using the Brightness and Contrast controls etc.

Mounting the Lens

1

2-2

2-1

3

1. Remove the lens mount cap from the camera.

2. Install the auto-iris lens.

2-1. CS mount type lens

Carefully align the lens mount with the camera opening, then turn the lens slowly to install it.

2-2. C mount type lens

To allow for flange- back adjustment, install the C-mount adaptor (option) on the lens mount, then carefully align the lens mount with the camera opening and turn the lens slowly to install it.

3. Connect the lens plug to the lens iris output connector (LENS) on the side of the camera.

When using lenses from other makers, the plug shape may not correspond to the terminal on the camera.

In such a case, remove the original plug and using a soldering iron, connect a lens iris plug according to the diagram. (Refer to next page.)

1

Mounting the Lens

Pin layout for the lens iris output connector

No.

DC type lenses

1 Damping -

Damping +

Drive +

Drive -

VIDEO type lenses

Vcc (+9V)

Not used

Video

Ground

1

Rewire the lens iris plug

1. Cut off the plug of the lens cable, cut off approximately 8mm of the insulation, and then strip approximately mm of the ends of the cable sheaths.

8mm

2mm

. Solder the ends of the cable wires to the ends of the pins, and then attach the cover of the lens iris plug.

Concerning Auto-Iris Lenses

DC type auto-iris lens ELC type auto-iris lens

A lens without driver circuit that operates only on a DC power source. In general, this type of lens is referred to as DC type coil lens. (Set the ALC Lens Setting

Switch to the DC position.)

CAUTION:

Depending on the type of lens used, the lens may not perform properly.

Use a manual or fixed iris lens (Set the ALC Lens

Setting Switch to the ELC position.)

15

Concerning Auto-Iris Lenses

VIDEO type auto-iris lens

A lens with amplifier circuit that operates on video signal and DC power source. In general, this type of lens is referred to as EE amplifier type lens.

ALC and LEVEL volume level controls are available on the lens for iris adjustments. (Set the ALC Lens

Setting Switch to the VIDEO position.)

CAUTION:

Be cautions not to use Auto Iris Lens with over 5mA.

1

External Device Connections

Contact Ratings

• Maximum load current is

±10mA.

• Do not connect any system or device that has over 0 Vp-p

(DC 0 V) bias voltage on the contact terminal.

ALARM

COM

Equivalent Diagram

Note :

Use a relay unit if the voltage or current of the connected device exceeds the ratings.

COMMUNICATION

Connect to an external controller of RS-C TTL/RS-

85(optional) format.

Alarm Connection

Connect an external device such as a buzzer or lamp to the ALARM terminal. When the camera detects motion, the alarm output signal is supplied to the connected external device.

17

Day&Night Function Settings

You can set the D&N function manually.

Night function

Day function

When you open the external S/W, the D&N funciton is set to Day mode.

When you close the external S/W, the D&N function is set to night mode.

Open

External S/W

Open

External S/W

Close

Close

External S/W

If you use the external D&N function, you should set the DAY/NIGHT option to EXT on the setup menu.

18

Flange-back Adjustment

The adjustment is required only when a lens without focus-adjusting mechanism is mounted, or when a lens with adjusting mechanism is mounted and focus that is more accurate is needed.

1. Loosen the flange-back fixing lever.

. Up and down the flange-back adjusting lever to obtain a focused point while watching the monitor screen.

. Tighten the flange-back fixing lever on the flangeback adjusting ring.

Note:

The object may be out of focus when using a source of near-infrared light than using the visible light.

flange-back adjusting or fixing lever

19

Installation of Camera

The bracket can be installed to either the top of the camera as desired. When changing the position of the camera mounting bracket, you should always reuse the screws that have been removed.

Note:

If using a camera mounting bracket, select a location that is strong enough to bear the full weight of the camera and the mounting bracket for long periods, and install the camera and mounting bracket securely.

0

Menu Operation

This camera utilizes an on-screen user MENU. To set items on the menu, use the following buttons on the side panel.

Up button: Moves the cursor upwards. Use this button to select an item or adjust the parameters.

Down button: Moves the cursor downwards. Use this button to select an item or adjust the parameters.

Right button: Moves the cursor to the right. Use this button to select or adjust the parameters of the selected item. The parameter changes each time this button is pressed.

Left button: Moves the cursor to the left. Use this button to select or adjust the parameters of the selected item. The parameter changes each time this button is pressed.

Set button: Executes selections and displays a submenu for an item with the mark.

1

Menu Operation

To Open and Exit the Menu screen

1. Press .

The MENU screen appears on the monitor.

Check the current settings on the menu.

. Use or button to select the [EXIT] then use or button to select a mode.

• RET: Return to the previous.

• TOP: Return to the CAMERA SETTING menu screen.

• END: Exit the setup menu.

Note:

The setup menu will be disappear after save the current setting value.

Camera Identification Settings

Camera Identification Setting

You can use the camera identification (CAMERA ID) to assign a number to the camera.

1. Select [CAMERA ID] option on the [CAMERA SETTING] menu.

. Use or to select a CAMERA ID (OFF, 1-55).

Exposure Settings

You can set the exposure options using the EXPOSURE menu.

Select [EXPOSURE] option on the [CAMERA SETTING] menu.

Press button and the EXPOSURE menu appears.

WDR/BLC setting

Use WDR/BLC option to set the options for BLC or WDR camera.

1. Select [WDR/BLC] option.

. Use or button to select a mode then press .

• WDR: Set the WDR limit.

- WDR LIMIT: LOW y MIDDLE y HIGH

• BLC: Set the BLC limit.

- BLC LIMIT: LOW y

MIDDLE y

HIGH

• HSBLC: Use for adjusting brightness the specific area of picture. The HSBLC mode is automatically activated only in low illuminance scene.

- AREA SETTING: Use or button to select a area then use or button to select a ON or OFF. Press to exit the Area setting menu.

Exposure Settings

- GRAY SCALE: Use or button to select a gray scale.

(GRAY y D.GRAY

y BLACK).

- USER SCALE: Use or button to select a bright level.(5 level)

- MASK: Use or button to select [ON] or [OFF].

If you set the MASK to ON, the mask function is activate only when the HSBLC is activated by auto mode.

Brightness setting

You can set the brightness level. (0-100)

1. Select [BRIGHTNESS] option.

. Use or button to set the bright level.

AGC (Automatic Gain Control) setting

If the images are too dark, change the maximum [AGC] value to make the images lighter.

1. Select [AGC] option.

. Use or button to select a mode.

(OFF y

LOW y

MIDDLE y

HIGH)

5

Exposure Settings

SHUTTER (Shutter Speed) setting

1. Select [SHUTTER] option.

. Use or button to set shutter speed.

(AUTO y OFF y A.FLK y 1/10 ~ 1/90000 y x51~x)

SENS-UP setting

If pictures are not clear due to darkness, use for increase the sensitivity of picture.

1. Use or button to select [SENS-UP] option.

. Use or button to select a [AUTO].

To setting the [AUTO] funtion, select the [AUTO] on the [SHUTTER].

. Press and use or button to set the SENS-UP limit

(x~x18).

Note:

If you set to one of the SHUTTER options except AUTO on the

[SHUTTER] menu, the [SENS-UP] setting is not available and [---] mark is displayed.

White Balance Settings

Setting the WB (White Balance) Mode

You can select one of three modes for white balance adjustment.

1. Select [WHITE BAL] option.

. Use or button to select one of three modes for white balance then press .

• ATW (Auto-Tracing White Balance): The color temperature range for the proper white balance is approximately 1700 -

11000K. Proper white balance may not be obtained under the following conditions:

1) The color temperature is out of the 1700 - 11000K range.

) When the scene contains mostly high color temperature objects, such as a blue sky or sunset.

) When the scene is dim.

• AWC b

PUSH: If you select the AWC b

PUSH mode, you will be able to set up the White Balance automatically using button.

7

White Balance Settings

• MANUAL: You can set the white balance options manually.

- COLOR TEMP: Use or button to select a funtion.

(INDOOR: 00, OUTDOOR: 5100)

- RED: Obtains the optimum amount of red gain.

- BLUE: Obtains the optimum amount of blue gain.It is a function of a color camera to delete the filter with the IR

Cut function in an illumination below the standard value so that it has a better sensitivity.

8

Day/Night Setting

1. Select [DAY/NIGHT] option.

. Use or button to select mode for day/night function.

• AUTO: You will be able to change the Day/Night mode automatically.

- LEVEL: Use or button to select a level.

(LOW y

MIDDLE y

HIGH)

- DWELL TIME: Use or button to select a dwell time.

(5, 10, 15 sec.)

Note:

If you set the AGC to [OFF] or the SHUTTER is set to one of the SHUTTER options except AUTO on the [EXPOSURE] menu, the AUTO mode of the DAY/NIGHT function is not available and [---] mark is displayed.

• EXT : Switches between color picture and black-and-white picture when an external day/night switching signal is received.

• DAY: Color mode enabled.

• NIGHT: Black-and-white mode enabled.

9

Motion Detection Setting

The motion detection detects the moving objects in the scene by monitoring changes in brightness level. You can select the level of sensitivity for motion detection to zone.

1. Select [MOTION DET] option.

. Use or button to select a [ON] and press .

The MOTION DETECTION menu appears.

. Use or button to select a zone number (AREA1~AREA) on the [ZONE NUMBER].

. Use or button to set up the ON or OFF on the ZONE STATE.

5. Use or to select an option then use or button to adjust the option.

• HEIGHT: Enlarge or decrease the vertical size of the mask.

• WIDTH: Enlarge or decrease the horizontal size of the mask.

• MOVE X: Moves horizontal position of the mask.

• MOVE Y: Moves vertical position of the mask.

. Use [SENSITIVITY] option to obtain the optimum detection level.

0

3D-DNR Setting

1. Select [D-DNR] option.

If pictures are not clear due to bightness, use for reduce the noise of picture.

. Use or button to select a option.

(OFF y

LOW y

MIDDLE y

HIGH)

Notes:

• If you set the AGC to [OFF] on the [EXPOSURE] menu, the [D-

DNR] function is not available and [---] mark is displayed.

• When you use this function, the afterimage may occur.

1

Privacy Setting

This function is aiming at the protection of personal privacy, selecting a screen part black not to be displayed in the screen. This function permits the control of the strength level in 8 levels. You may setup the size and location of the area.

1. Select [PRIVACY] option.

. Use or button to select a [ON] and press . The PRIVACY

SETUP menu appears.

. Use or button to select a mask (AREA1~AREA8) on the

[MASK NUMBER].

. Use or button to set up the ON or OFF on the DISPLAY option.

5. Use or button to set up the GRAY, WHITE or BLACK on the

COLOR option.

. Use or to select an option then use or button to adjust the option.

• HEIGHT: Enlarge or decrease the vertical size of the mask.

• WIDTH: Enlarge or decrease the horizontal size of the mask.

• MOVE X: Moves horizontal position of the mask.

• MOVE Y: Moves vertical position of the mask.

Special Menu Settings

This menu lets you adjust and set up D-ZOOM, D-EFFECT,

SHARPNESS, COLOR, SYNC, USER TITLE, LANGUAGE function by yourself in the SPECIAL menu.

1. Select [SPECIAL] option.

. Press button and the SPECIAL menu appears.

Setting the D-ZOOM (Digital Zoom ) level

You can select the digital zoom level.

1. Select [D-ZOOM] option on the [SPECIAL] menu.

. Use or button to select a [ON] then press the DIGITAL

ZOOM menu appears.

. Use or to select a option then use or button to select a level.

- ZOOM: Use or button to enlarge the screen.

- PAN: Use or button to move the screen.(left or right)

- TILT: Use or button to move the screen.(up or down)

Special Menu Settings

Setting the D-EFFECT (Digital effect)

You can select the digital effect.

1. Select [D-EFFECT] option on the [SPECIAL] menu.

. Use or button to select a digital effect.

• V-FLIP: Flip the picture vertically.

• MIRROR: Turn on the mirror effect.

• ROTATE: Rotate the picture. (180°)

• OFF: Turn off the digital effect.

Setting the SHARPNESS effect

You can select the sharpness effect.

1. Select [SHARPNESS] option on the [SPECIAL] menu.

. Use or button to change a adjust the option.

Special Menu Settings

Setting the COLOR effect

You can select the color effect.

1. Select [COLOR] option on the [SPECIAL] menu.

. Use or button to change a color effect.

• ON: Color screen

• OFF: B/W (Black and White) screen

Setting the SYNC (Synchronization)

You can select internal sync (INT) mode or line-lock (LINE) mode.

The SYNC function is available only with AC power source.

1. Select [SYNC] option on the [SPECIAL] menu.

. Use or button to select [INT] or [LL] (Line Lock).

• INT: Selects for using the internal synchronization.

• LL (Line Lock): Selects for the operation of multi cameras because it synchronizes the camera phase by using the external signal (AC Signal). A little phase deviation for some sets may be aligned.

5

Special Menu Settings

Setting the USER TITLE

A

You can use the camera identification to assign a number and character to the camera (0 - 9, A-Z, a-z).

The USER TITLE is displayed on the upper left of the screen.

To disappear the user title, select [OFF].

1. Select [USER TITLE] option on the [SPECIAL] screen.

. Use or button to select a [ON] then press .

The USER TITLE menu appears.

. Use , , or button to select a character or number.

- CLR: If you enter the wrong code, select CLR then press .

- POS: Use , , or button to move position of USER

TITLE on the screen.

- END: Confirm your selection.

-

A

(Blank): Inserts a space at the cursor position.

- / : Moves cursor to left or right.

Special Menu Settings

Language Setting

Select a language for the Setup menu and on-screen display.

1. Select [LANGUAGE] option on the [SPECIAL] screen.

. Press or button to select a language.

7

Reset Settings

1. Select [RESET] option.

. Press button and the RESET menu appears.

. Use or to select option.

• CAMERA REBOOT: To reboot the camera system.

• FACTORY RESET: To reset the camera setting to factory setting, select [FACTORY RESET] option.

8

RS-232C TTL/RS-485 Protocol(Optional)

Data Communication Format Commands

• Data Length: 1 Byte (8 Bit)

• Start/Stop Bit: 1 Bit

• Parity Bit: None

• Baud rate: 9,00 bps

Format

Function Command

OSD Menu ON/OFF E5, 8, ID, 1, 0, C.S.

LEFT Button

Right Button

E5, 8, ID, 1, 80, C.S.

E5, 8, ID, 1, 90, C.S.

Up Button

Down Button

Menu Button

E5, 8, ID, 11, 80, C.S.

E5, 8, ID, 11, 90, C.S.

E5, 8, ID, 1, 01, C.S.

BYTE 1 BYTE BYTE BYTE BYTE 5 BYTE

0xE5 0x8 Camera ID CODE1 CODE *C.S.

*C.S. = Check Sum

• The data of total bytes is transmitted from the external RS-85 device to the camera.

• BYTE : The value of Check Sum from ‘BYTE 1 ’ to ‘BYTE 5 ’.

ex) In case of transmission, 0xC5, 0x5F, 0x0,

0x00, 0x0A”

C.S. = 0xC5 +0x5F +0x0 +0x00 +0x0A = 0x010 therefore, C.S. = 0x0

9

Specifications

Model

Total/Effective

Pixels

Pick-up Device

Lens

Iris

Signal Process

Scanning System

Synchronization

System

Scanning

Frequency

Resolution

S/N Ratio

LS90P

70K/0K

Pixels

LS90N

10K/80K

Pixels

LS90P

70K/0K

LS90N

10K/80K

Pixels Pixels

1/” Interline Color CCD

C/CS Mount

DC/ELC/VIDEO Selectable

Digital Signal Process

:1 Interlace

Internal/Line Lock

LS901P

70K/0K

Pixels

LS901N

10K/80K

Pixels

50 Hz (VD) 59.9 Hz(VD) 50 Hz (VD) 59.9 Hz(VD) 50 Hz (VD) 59.9 Hz(VD)

570 Lines

More than 5 dB (AGC Off, F 1.0)

Minimum

Illuminance

Day

Night

0.000 Lux

(Sens-Up Auto, F1.)

(0.1 Lux : Sens-Up Off)

0.0000 Lux

(Sens-Up Auto, F1.)

(0.01 Lux : Sens-Up Off)

0.1 Lux (F1.)

0.01 Lux (F1.)

0.000 Lux

(Sens-Up Auto, F1.)

(0.1 Lux : Sens-Up Off)

0.0000 Lux

(Sens-Up Auto, F1.)

(0.01 Lux : Sens-Up Off)

0

Specifications

Model

Video Output Signal

Auto Gain Control

Exposure

Electric Shutter

White Balance

Back Light

WDR

MOTION DET.

Power Consumption

Operation

Temperature

Storage Temperature

Weight

Dimension

(H x V x D)

LS90P

1/50 -

1/90,000

(Auto Mode)

OFF/WDR/BLC/HSBLC

0dB

LS90N

1/0 -

1/90,000

(Auto Mode)

LS90P LS90N

1.0 Vp-p Composite Signal (75 Ω)

OFF/LOW/MIDDLE/HIGH

ALC/ELC

1/50 -

1/90,000

(Auto Mode)

1/0 -

1/90,000

(Auto Mode)

ATW / AWC->PUSH / MANUAL

OFF/WDR/BLC

0dB

OFF/ON

.W

LS901P

1/50 -

1/90,000

(Auto Mode)

LS901N

1/0 -

1/90,000

(Auto Mode)

OFF/BLC/HSBLC

-

-10ºC - 50ºC (Humidity: 0%RH - 80%RH)

-0ºC - 0ºC (Humidity: 0%RH - 85%RH)

0g

8 x 1.5 x 1 mm

1

P/NO : MFL508708

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
