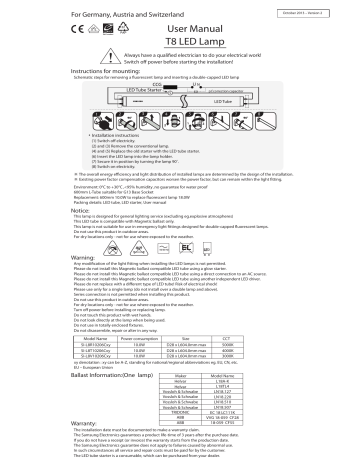

For Germany, Austria and Switzerland
October 2013 – Version 2
User Manual
T8 LED Lamp
Always have a qualified electrician to do your electrical work!
Switch off power before starting the installation!
Instructions for mounting:
Schematic steps for removing a fluorescent lamp and inserting a double-capped LED lamp
p.f.correction capacitor
S
1
3
2
4
5
7
6
8
•Installation instructions
(1) Switch off electricity.
(2) and (3) Remove the conventional lamp.
(4) and (5) Replace the old starter with the LED tube starter.
(6) Insert the LED lamp into the lamp holder.
(7) Secure it in position by turning the lamp 90˚.
(8) Switch on electricity.
※ The overall energy efficiency and light distribution of installed lamps are determined by the design of the installation.
※ Existing power factor compensation capacitors worsen the power factor, but can remain within the light fitting.
Environment: 0°C to +30°C ,<95% humidity ,no guarantee for water proof
600mm L-Tube suitable for G13 Base Socket
Replacement: 600mm 10.0W to replace fluorescent lamp 18.0W
Packing details: LED tube, LED starter, User manual
Notice:
This lamp is designed for general lighting service (excluding eg.explosive atmospheres)
This LED tube is compatible with Magnetic ballast only.
This lamp is not suitable for use in emergency light fittings designed for double-capped fluorescent lamps.
Do not use this product in outdoor areas.
For dry locations only - not for use where exposed to the weather.
50/60 Hz
EL
Warning:
Any modification of the light fitting when installing the LED lamps is not permitted.
Please do not install this Magnetic ballast compatible LED tube using a glow starter.
Please do not install this Magnetic ballast compatible LED tube using a direct connection to an AC source.
Please do not install this Magnetic ballast compatible LED tube using another independent LED driver.
Please do not replace with a different type of LED tube! Risk of electrical shock!
Please use only for a single lamp (do not install over a double lamp and above).
Series connection is not permitted when installing this product.
Do not use this product in outdoor areas.
For dry locations only - not for use where exposed to the weather.
Turn off power before installing or replacing lamp.
Do not touch this product with wet hands.
Do not look directly at the lamp when being used.
Do not use in totally enclosed fixtures.
Do not disassemble, repair or alter in any way.
Model Name
Power consumption
Size
SI-L8R10206Cxy
SI-L8T10206Cxy
SI-L8V10206Cxy
10.0W
10.0W
10.0W
D28 x L604.0mm max
D28 x L604.0mm max
D28 x L604.0mm max
CCT
5000K
4000K
3000K
xy denotation : xy can be A-Z, standing for national/regional abbreviations eg. EU, CN, etc.
EU – European Union
Ballast Information:(One lamp)
Warranty:
Maker
Helvar
Helvar
Vossloh & Schwabe
Vossloh & Schwabe
Vossloh & Schwabe
Vossloh & Schwabe
TRIDONIC
ABB
ABB
Model Name
L18A-K
L18TL4
LN18.127
LN18.220
LN18.510
LN18.507
EC 18 LC111K
VVG 18-059 CF28
18-059 CF55
The installation date must be documented to make a warranty claim.
The Samsung Electronics guarantees a product life-time of 3 years after the purchase date.
If you do not have a receipt (or invoice) the warranty starts from the production date.
The Samsung Electronics guarantee does not apply to failures caused by abnormal use.
In such circumstances all service and repair costs must be paid for by the customer.
The LED tube starter is a consumable, which can be purchased from your dealer.
