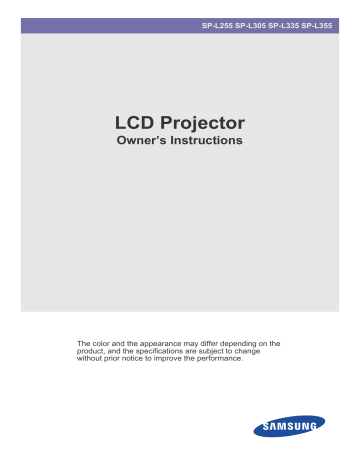

SP-L255 SP-L305 SP-L335 SP-L355
LCD Projector
Owner’s Instructions
The color and the appearance may differ depending on the
product, and the specifications are subject to change
without prior notice to improve the performance.
Table Of Contents
MAJOR SAFETY PRECAUTIONS
Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
INSTALLATION AND CONNECTION
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Installing the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Leveling with Adjustable Feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Zoom and Focus Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Screen Size and Projection Distance
. . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Lamp Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Rear Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Setting up the PC Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Supported Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Connecting the Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Connecting with a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
Connecting a PC using an HDMI/DVI cable . . . . . . . . . . . . . . . . . . . . 2-12
Connecting an External Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13
Connecting an HDMI-Compatible Device . . . . . . . . . . . . . . . . . . . . . . 2-14
Connecting an AV device using a D-Sub cable . . . . . . . . . . . . . . . . . 2-15
Connecting an AV device with component output . . . . . . . . . . . . . . 2-16
Connecting using a Video/S-Video cable . . . . . . . . . . . . . . . . . . . . . . 2-17
Connecting an External Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18
Connecting to a Network
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
Kensington Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20
USING
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Front, Upper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
LED Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Using the Screen Adjustment Menu (OSD: On Screen Display) . . . . 3-5
Network Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
MEDIA PLAY FUNCTION
Connecting a USB Storage Device and Precautions . . . . . . . . . . . . . 4-1
Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Music
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Supported File Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
TROUBLESHOOTING
Before Requesting Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
MORE INFORMATION
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
RS-232C Command Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Contact SAMSUNG WORLDWIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Correct Disposal - Europe only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
1
Major Safety Precautions
1-1
Before You Start
Icons used in this manual
ICON
NAME
Caution
Note
MEANING
Indicates cases where the function may not work or the setting may be canceled.
Indicates a hint or tip to operate a function.
Using this Manual
•
Make yourself fully aware of the safety precautions before using this product.
•
If a problem occurs, refer to the 'Troubleshooting' section.
•
The contents of this manual are subject to change without prior notice for performance improvement.
Copyright Notice
Copyright © 2010 Samsung Electronics Co., Ltd. All rights reserved.
The copyright of this manual is reserved by Samsung Electronics, Co., Ltd.
The contents of this manual may not be partially or in whole reproduced, distributed or used in any form without the written
permission of Samsung Electronics, Co., Ltd.
An administration fee may be charged if either.
(a) An engineer is called out at your request and there is no defect in the product.
(i.e. where you have failed to read this user manual).
(b) You bring the unit to a repair centre and there is no defect in the product.
(i.e. where you have failed to read this user manual).
The amount of such administration charge will be advised to you before any work or home visit is carried out.
Major Safety Precautions
1-1
1-2
Care and Maintenance
Cleaning the Surface and the Lens
Clean the projector using a soft dry cloth.
•
Avoid cleaning the product with a flammable substance such as
benzene or thinner.
•
Avoid scratching the lense with your fingernails or a sharp
object.
This may result in scratches or damage to the product.
•
Avoid cleaning the product with a wet cloth or by directly
spraying water onto the product.
If water enters the product, it may result in fire, electric shock, or
a problem with the product.
•
A white stain may appear on the surface of the projector if water
gets on it.
The appearance and the color may differ depending on
models.
Cleaning Inside the Projector
For cleaning the interior of the projector, contact an authorized
Samsung Service Center.
•
1-2
Contact a Service Center if dust or other substances are inside
the projector.
Major Safety Precautions
1-3
Safety Precautions
Icons used for safety precautions
ICON
NAME
MEANING
Warning
Failing to follow the precautions marked with this sign may result in a serious injury or even
a fatality.
Caution
Failing to follow the precautions marked with this sign may result in a personal injury or
property damage.
Meaning of Signs
Do not perform.
Must be followed.
Do not disassemble.
The power plug must be unplugged from the
wall outlet.
Do not touch.
Must be grounded to prevent electric shock.
Power Related
The following images are for your reference and may differ depending on models and countries.
Warning
Plug the power plug in firmly.
•
Otherwise, it may result in fire.
Avoid connecting multiple electric appliances to a single wall outlet.
•
Avoid using a damaged power cord or plug
or a loose power outlet.
•
Otherwise, it may result in electric
shock or fire.
Avoid plugging in or unplugging the power
supply with wet hands.
•
Otherwise, it may result in electric
shock.
Otherwise, it may result in fire due to
overheating of the wall outlet.
Avoid bending or twisting the power cord
excessively and avoid placing heavy
objects on the cord.
•
Otherwise, it may result in electric
shock or fire due to a damaged power
cord.
To move the product, turn the power off
and unplug the power cord and any other
wires connected to the product.
•
Otherwise, it may result in electric
shock or fire due to the damaged
power cord.
Make sure to connect the power cord to a
grounded wall outlet (for insulation class 1
equipment only).
•
Otherwise, it may result in electric
shock or injury.
Major Safety Precautions
1-3
Caution
When unplugging the power plug from the
wall outlet, make sure to hold the power
plug by the plug and not by the cord.
•
Failing to do so may result in electric
shock or fire.
Unplug the power plug before cleaning the
product.
•
Do not turn the product on or off by plugging or unplugging the power plug. (Do not
use the power plug as a power switch.)
Keep the power cord away from sources of
heat.
There is a danger of electric shock or
fire.
Connect the power plug to a wall outlet
that can be easily reached.
•
When a problem occurs with the
product, you must unplug the power
plug to cut the power off completely.
You cannot cut the power off
completely using only the power button
on the product.
Installation Related
Warning
Avoid installing the product in a location
exposed to direct sunlight and installing
the product near a heat source such as a
fire or heater.
•
Avoid installing the product in a badly-ventilated location such as inside a bookshelf
or closet.
•
This may shorten the product life cycle
or cause fire.
Otherwise, it may result in fire due to
internal overheating.
When installing the product in a cabinet or
shelf, take care so that the front end of the
product is completely supported by the
cabinet or shelf.
When installing the product on a console
or shelf, make sure that the front of the
product does not protrude out of the console or shelf.
•
Failing to do so may result in the
product falling and resulting in damage
to the product or injury.
•
•
Make sure to use a cabinet or shelf
suitable to the size of the product.
Otherwise, this may cause the product
to fall off and result in a malfunction or
injury.
Keep the power cord away from heaters.
When thunder or lighting occurs, unplug
•
the power cord.
The coating of the power cord may
melt and cause electric shock or fire.
Do not install the product in a location
exposed to dust, moisture (sauna), oil,
•
Failing to do so may result in electric
shock or fire.
Do not install the product in areas with
heavy dust.
smoke or water (rain drops) and do not
install it in a vehicle.
•
1-3
This may result in electric shock or fire.
Major Safety Precautions
Caution
Take care not to block the vent with a table
cloth or curtain.
•
Do not let the product drop while moving it.
•
Otherwise, it may result in fire due to
internal overheating.
This may result in a problem with the
product or injury.
When putting the product down, place it
gently.
Do not install the product at a height where
children may reach it.
•
•
Failing to do so may result in a problem
with the product or injury.
If a child touches the product, the
product may fall and this may result in
injury.
Usage Related
Avoid inserting metal objects such as a
chopsticks, coins or hairpins, or inflammable objects into the product (the vents,
ports, etc).
•
If water or an alien substance enters
the product, turn the power off, unplug
the power cord and contact a service
center.
•
Otherwise, it may result in a problem
with the product, electric shock or fire.
Do not disassemble, or attempt to fix or
modify the product.
•
When the product requires repairs,
contact a Service Center.
Avoid using or placing inflammable spray
or objects near the product.
•
This may result in an explosion or fire.
Do not let children place objects such as
toys or cookies on the product.
•
If a child tries to reach for any of these
objects, the product may fall and cause
harm.
Do not look directly at the light of the lamp
nor project the picture into someone's
eyes.
•
This is dangerous, especially for
children.
When you remove batteries from the
remote, be careful that they are not swallowed by children. Keep batteries out of
the reach of children.
•
If swallowed, see a doctor immediately.
Avoid placing a liquid container such as a
vase, flowerpot, beverage, cosmetics or
drugs, or a metal object over the product.
•
If water or an alien substance enters
the product, turn the power off, unplug
the power cord and contact a service
center.
•
Otherwise, it may result in a problem
with the product, electric shock or fire.
Major Safety Precautions
1-3
Caution
If the product generates a strange noise, a
burning smell, or smoke, unplug the power
plug immediately and contact a service
center.
•
Failing to do so may result in electric
shock or fire.
If the power plug pin or jack is exposed to
dust, water or alien substances, clean it
thoroughly.
Do not use the product while it indicates a
malfunction, such as no sound or no picture.
•
•
There is a danger of electric shock or
fire.
Turn the product off immediately,
unplug the power cord from a wall
outlet, and contact a Service Center.
When cleaning the product, disconnect the
power cord and clean the product with a
soft dry cloth.
When a gas leak occurs, do not touch the
product or the power plug and ventilate
immediately.
•
•
A spark may result in an explosion or
fire.
•
During a thunder or lighting storm, do
not touch the power cord or antenna
cable
Avoid using chemicals such as wax,
benzene, alcohol, thinner, mosquitorepellent, fragrance, lubrication or
cleansing agent when cleaning the
product.
This may result in the exterior being
deformed or the print being removed.
When not using the product for a long
time, such as leaving your home, unplug
the power cord from the wall outlet.
•
•
This may cause damage to the lens.
Do not touch any outer part of the product
with tools such as a knife or a hammer.
To clean dirt or stains on the front projection lens, use spray or a wet cloth dampened with neutral detergent and water.
Failing to do so may result in fire or
electric shock.
Make sure to place your remote control on
a table or desk.
•
•
Places exposed to microscopic dust,
chemicals, too high or low temperature,
high humidity, such as airports or
stations where the product is
continuously used for a long time etc.
If you drop the product or the case is damaged, turn the power off and unplug the
power cord. Contact a service center.
•
Do not touch the lens on the product.
Otherwise, it may cause dust
accumulation and result in fire caused
by overheating or a short circuit or
result in an electric shock.
If the product is installed in a location
where the operating conditions vary considerably, a serious quality problem may
occur due to the surrounding environment.
In this case, install the product only after
consulting our Call Center.
1-3
If water or a foreign substance enters the
product, turn the product off, unplug the
power cord from a wall outlet, and contact
a Service Center.
Ask a Service Center to clean the interior
of the projector at least once per year.
If you step on the remote control, you
may fall and hurt yourself or the
product may be damaged.
Major Safety Precautions
To avoid burning yourself, do not touch the
vents or lamp cover while operating or
right after turning off the product.
Do not clean the product using water spray
or a wet cloth. Avoid using any chemicals
such as detergents, industrial or automotive polish, abrasive, wax, benzene, alcohol on any plastic part of the product such
as projector case, since this may cause
damage.
Do not open any cover on the product.
Do not use any undesignated battery.
•
This would prove hazardous because
of high-voltage current inside the
product.
Be careful not to touch the ventilation hole
while the projector is on as hot air comes
out.
The ventilation hole is hot for some time
though the projector is turned off. Keep
you hands or body off the ventilation hole.
Do not place objects vulnerable to heat
near the projector.
Be careful to keep your body away from
the projector lamp. The lamp is hot.
(Children and those who have sensitive
skin should be more careful.)
Major Safety Precautions
1-3
2
Installation and Connection
2-1
Package Contents
•
Unpack the product and check if all of the contents listed below have been included.
•
Store the packaging box in case you need to move the product at a later date.
Projector
CONTENTS
Quick Setup Guide
Product Warranty
User Manual
Power Cord
D-Sub Cable
4 Screws
(Not available in all locations)
Remote Control / 2 Battery
(Not available in all locations)
Cleaning Cloth
(For bracket of ceiling
mount.)
A ceiling mount is not included and must be purchased separately. Use the included screws to attach the projector to the
ceiling mount bracket.
2-1
Installation and Connection
2-2
Installing the Projector
Install the projector so that the beam from the projector is perpendicular to the screen.
•
Place the projector so that the lens aims at the center of the screen. If the screen is not vertical, the picture on the
screen may not appear rectangular.
•
Do not install the screen in bright surroundings. If the surroundings are too bright, the picture on the screen will be
washed out and not display clearly.
•
When using the projector in bright surroundings, use curtains to block the light.
•
You can install the projector in the following locations relative to the screen: Front-Floor / Front-Ceiling / Rear-Floor /
Rear-Ceiling. To view the installation position settings, see below.
To adjust the picture when you install the projector behind the screen
Installing behind a semi-transparent screen.
When you install the projector behind a semi-transparent screen,
you can use the menu to adjust the picture so that it displays correctly, depending on where you've located the projector, rearfloor
(or low) or rear-ceiling.
1. For rear-floor, press :
Menu > Setup > Install > Rear-Floor
2. For rear-ceiling, press :
Menu > Setup > Install > Rear-Ceiling
To adjust the picture when you install the projector in the front of the screen
Installing the projector in front of the screen.
When you install the projector in front of a screen, you can use
the menu to adjust the picture so that it displays correctly,
depending on where you’ve located the projector, front-floor (or
low) or front-ceiling.
1. For front-floor, press :
Menu > Setup > Install > Front-Floor
2. For front-ceiling, press :
Menu > Setup > Install > Front-Ceiling
Installation and Connection
2-2
2-3
Leveling with Adjustable Feet
To level the projector, turn the Adjustable Feet of the projector.
The projector can be adjusted to a height of up to 30 mm (about 12 °) from the reference point.
Depending on the position of the projector, Keystone distortion of the image may appear.
If <Auto Keystone> is set to <On>, any keystone will be automatically adjusted. If fine tuning is required after autoadjustment, tune using <V-Keystone>.
2-3
Installation and Connection
2-4
Zoom and Focus Adjustment
Zoom Knob : You can adjust the size of the image within the
zoom range by manipulating the Zoom Knob.
Focus Ring : Focus the picture on the screen using the Focus
Ring.
The size of your screen determines the distance you set your projector from the screen.
If you do not install your projector at the projection distance specified in the Screen Size and Projection Distance table in
Section 2-5, you will not be able to adjust the focus correctly.
Installation and Connection
2-4
2-5
Screen Size and Projection Distance
A. Screen / Z. Throw Distance / Y’. Distance from Lens Center to Image Bottom
Install the projector on a flat, even surface and level the projector using the adjustable feet to obtain optimal picture quality. If
images are not clear, adjust them using the Zoom Knob or Focus Ring, or move the projector forward and backward.
SCREEN SIZE
M (DIAGONAL)
X (HORIZONTAL)
THROW DISTANCE
Y (VERTICAL)
Z (TELE)
OFFSET
Z (WIDE)
Y'
INCHES
CM
INCHES
CM
INCHES
CM
INCHES
CM
INCHES
CM
INCHES
CM
40
101.6
32
81.3
24
61.0
54.2
137.6
44.9
114.0
4.0
10.2
50
127.0
40
101.6
30
76.2
68.0
172.7
56.4
143.3
5.0
12.7
60
152.4
48
121.9
36
91.4
81.8
207.8
68.0
172.6
6.0
15.2
70
177.8
56
142.2
42
106.7
95.7
243.0
79.5
202.0
7.0
17.8
80
203.2
64
162.6
48
121.9
109.5
278.1
91.1
231.3
8.0
20.3
90
228.6
72
182.9
54
137.2
123.4
313.3
102.6
260.6
9.0
22.9
100
254.0
80
203.2
60
152.4
137.2
348.4
114.1
289.9
10.0
25.4
110
279.4
88
223.5
66
167.6
151.0
383.5
125.7
319.2
11.0
27.9
120
304.8
96
243.8
72
182.9
164.8
418.7
137.2
348.5
12.0
30.5
130
330.2
104
264.2
78
198.1
178.7
453.8
148.7
377.8
13.0
33.0
140
355.6
112
284.5
84
213.4
192.5
488.9
160.3
407.1
14.0
35.6
150
381.0
120
304.8
90
228.6
206.3
524.1
171.8
436.4
15.0
38.1
160
406.4
128
325.1
96
243.8
220.2
559.2
183.4
465.7
16.0
40.6
170
431.8
136
345.4
102
259.1
234.0
594.4
194.9
495.0
17.0
43.2
180
457.2
144
365.8
108
274.3
247.8
629.5
206.4
524.3
18.0
45.7
190
482.6
152
386.1
114
289.6
261.7
664.6
218.0
553.6
19.0
48.3
200
508.0
160
406.4
120
304.8
275.5
699.8
229.5
582.9
20.0
50.8
210
533.4
168
426.7
126
320.0
289.3
734.9
241.0
612.2
21.0
53.3
220
558.8
176
447.0
132
335.3
303.2
770.1
252.6
641.5
22.0
55.9
230
584.2
184
467.4
138
350.5
317.0
805.2
264.1
670.8
23.0
58.4
240
609.6
192
487.7
144
365.8
330.8
840.3
275.6
700.1
24.0
61.0
250
635.0
200
508.0
150
381.0
344.7
875.5
287.2
729.4
25.0
63.5
260
660.4
208
528.3
156
396.2
358.5
910.6
298.7
758.7
26.0
66.0
2-5
Installation and Connection
SCREEN SIZE
M (DIAGONAL)
X (HORIZONTAL)
THROW DISTANCE
Y (VERTICAL)
Z (TELE)
OFFSET
Z (WIDE)
Y'
INCHES
CM
INCHES
CM
INCHES
CM
INCHES
CM
INCHES
CM
INCHES
CM
270
685.8
216
548.6
162
411.5
372.3
945.7
310.2
788.0
27.0
68.6
280
711.2
224
569.0
168
426.7
386.2
980.9
321.8
817.3
28.0
71.1
290
736.6
232
589.3
174
442.0
400.0
1016.0
333.3
846.6
29.0
73.7
300
762.0
240
609.6
180
457.2
413.9
1051.2
344.9
875.9
30.0
76.2
This projector is designed to show images optimally on a 80 ~ 120 inches sized screen.
Installation and Connection
2-5
2-6
Lamp Replacement
Cautions on Lamp Replacement
•
The projector lamp is an expendable item. For best operating performance, replace the lamp according to the usage time.
You can view the lamp usage time in the Information Display ([INFO] button).
•
Use the recommended lamp when replacing. Replace the lamp with the one specified below.
MODEL
SP-L255
Lamp Model Name
DPL3201U
SP-L305
SP-L335
SP-L355
DPL3292P
DPL3293P
- For inquiries on lamp purchase, please see 'Contact SAMSUNG WORLDWIDE' in section 6-3.
•
Check that the power cord is unplugged before replacing the lamp.
•
Because the lamp is a high temperature and high voltage product, wait at least one hour from the time you disconnect the
power cord before replacing the lamp.
•
The lamp is located on the left side of the projector (when looking from the front).
•
Do not leave the old lamp near inflammables or in reach of children. There is a danger of fire, burns, or injury.
•
Remove dirt or foreign material around or inside the lamp unit using a proper vacuum device.
•
When handling the lamp, avoid touching any part of it except for the handles. If you handle the lamp incorrectly, you can
shorten the lamp’s lifetime and affect picture quality.
•
When you turn the projector over to change the lamp, put the projector on a soft cloth on a flat surface.
•
The projector has been designed so that the projector does not work if the lamp cover is not completely assembled after a
lamp replacement. If the projector does not work properly, please check the operating status of the indicator LED.
Lamp contains Mercury. Dispose According to Local, State or Federal Laws.
Lamp Replacement Procedure
Because the lamp is a high temperature and high voltage product, wait at least one hour from the time that the power cord
is disconnected before replacing it.
The lamp is located on the left side of the projector (when looking from the front).
1. Remove the screw shown in the figure below, and then open the cover.
2. Remove the two (2) screws shown in the figure below.
2-6
Installation and Connection
3. To remove the lamp, hold and then pull the lamp handle as shown in the figure below.
Install a new lamp in the reverse order of removal.
Replacing and Cleaning the Filter
Precautions when replacing the projector filter:
•
The filter is located at the bottom of the projector.
•
Turn off the power of the projector, and then disconnect the power cord after the projector has cooled sufficiently.
Otherwise, its parts may be damaged due to internal heat.
•
When you replace the filter, you may release some dust.
•
For inquiries on replacement filter purchase, please see 'Contact SAMSUNG WORLDWIDE' in Chapter 6.
To replace or clean the filter, follow these steps:
1. Turn off the power of the projector, and then disconnect the power cord after the projector has cooled sufficiently.
2. Turn the projector over so that its bottom points upward, and then push and remove the filter cover in the direction of the
arrow in the illustration below.
* When placing the projector with the bottom facing up, make sure to place a soft cloth under the projector to prevent
scratching.
3. Replace or clean the filter.
•
When cleaning the filter, use a small vacuum cleaner designed for computers and small electronics products, or wash it under
Installation and Connection
2-6
running water.
•
After washing the filter under running water, make sure to dry it completely. The moisture may cause the filter to corrode.
•
If dust cannot be separated from the filter or the filter is torn, it must be replaced.
•
After cleaning or replacing the filter, and then run <Reset>→<Reset Filter Time> in the <Setup> menu.
Ventilation openings
The location of the ventilation openings:
•
2-6
The ventilation openings are located on the right and left sides and at the bottom of the projector.
Installation and Connection
2-7
Rear Side
1. PC IN port
8. PC OUT port
2. PC/DVI AUDIO IN port
9. AUDIO OUT port
3. USB port
10. [AV IN] R-AUDIO-L port
4. HDMI/DVI IN port
11. [AV IN] VIDEO port
5. LAN port
12. [AV IN] S-VIDEO port
6. Remote Control Signal Receiver
13. Kensington Lock slot
7. RS-232C port
14. Power port
Installation and Connection
2-7
2-8
Setting up the PC Environment
Check the following items before connecting your PC to your projector.
1. Click the right mouse button on the Windows desktop, and then click [Properties].
The <Display Properties> dialog appears.
2. Click the [Settings] tab, and then set the <Screen resolution>. The optimal resolution for the projector is 1024 x 768. For other
resolutions supported by the projector, see the PC Timing Display Mode table in section 2-9.
You do not have to change the <Color quality> setup.
3. Press the [Advanced] button. Another property window appears.
4. Click the [Monitor] tab and set the <Screen refresh rate>. For the refresh rate that matches the resolution you’ve chosen, see
the refresh rate (60 Hz, 70 Hz, etc.) next to your selected resolution in the PC Timing Display Mode table in section 2-9.
Setting the refresh rate sets both the vertical and horizontal frequencies.
2-8
Installation and Connection
5. Click the [OK] button to close the window, and then click the [OK] button on the <Display Properties> window to close that
window. The computer may restart automatically.
6. Shut down the PC and connect it to the projector.
The setup process might vary depending on your type of computer or version of Windows.
(For example, [Properties] appears instead of [Properties (R)] as shown in 1.)
This projector supports 32 bit color quality (per pixel) when it is used as a PC monitor.
Projected images may differ from the images on your monitor depending on the monitor manufacturer or Windows version.
When connecting the projector to a PC, make sure that the PC setup complies with the display settings supported by this
projector. If it does not, you may have signal problems.
Installation and Connection
2-8
2-9
Supported Display Modes
PC Timing (D-Sub/HDMI)
FORMAT
2-9
RESOLUTION
HORIZONTAL
FREQUENCY
(KHZ)
VERTICAL
FREQUENCY
(HZ)
PIXEL
FREQUENCY
(MHZ)
IBM
640 x 350
70Hz
31.469
70.086
25.175
IBM
640 x 480
60Hz
31.469
59.940
25.175
IBM
720 x 400
70Hz
31.469
70.087
28.322
VESA
640 x 480
60Hz
31.469
59.940
25.175
MAC
640 x 480
67Hz
35.000
66.667
30.240
VESA
640 x 480
70Hz
35.000
70.000
28.560
VESA
640 x 480
72Hz
37.861
72.809
31.500
VESA
640 x 480
75Hz
37.500
75.000
31.500
VESA
720 x 576
60Hz
35.910
59.950
32.750
VESA
800 x 600
56Hz
35.156
56.250
36.000
VESA
800 x 600
60Hz
37.879
60.317
40.000
VESA
800 x 600
70Hz
43.750
70.000
45.500
VESA
800 x 600
72Hz
48.077
72.188
50.000
VESA
800 x 600
75Hz
46.875
75.000
49.500
MAC
832 x 624
75Hz
49.726
74.551
57.284
VESA
1024 x 768
60Hz
48.363
60.004
65.000
VESA
1024 x 768
70Hz
56.476
70.069
75.000
VESA
1024 x 768
72Hz
57.672
72.000
78.434
VESA
1024 x 768
75Hz
60.023
75.029
78.750
VESA
1152 x 864
60Hz
53.783
59.959
81.750
VESA
1152 x 864
70Hz
63.000
70.000
96.768
VESA
1152 x 864
72Hz
64.872
72.000
99.643
VESA
1152 x 864
75Hz
67.500
75.000
108.000
VESA
1280 x 720
60Hz
44.772
59.855
74.500
VESA
1280 x 720
70Hz
52.500
70.000
89.040
VESA
1280 x 720
72Hz
54.072
72.000
91.706
VESA
1280 x 720
75Hz
56.456
74.777
95.750
VESA
1280 x 768
60Hz
47.776
59.870
79.500
VESA
1280 x 768
75Hz
60.289
74.893
102.250
VESA
1280 x 800
60Hz
49.702
59.810
83.500
VESA
1280 x 800
75Hz
62.795
74.934
106.500
VESA
1280 x 960
60Hz
60.000
60.000
108.000
VESA
1280 x 960
70Hz
69.930
70.000
120.839
Installation and Connection
FORMAT
RESOLUTION
HORIZONTAL
FREQUENCY
(KHZ)
VERTICAL
FREQUENCY
(HZ)
PIXEL
FREQUENCY
(MHZ)
VESA
1280 x 960
72Hz
72.072
72.000
124.540
VESA
1280 x 960
75Hz
75.231
74.857
130.000
VESA
1280 x 1024
60Hz
63.981
60.020
108.000
VESA
1280 x 1024
70Hz
74.620
70.000
128.943
VESA
1280 x 1024
72Hz
76.824
72.000
132.752
VESA
1280 x 1024
75Hz
79.976
75.025
135.000
VESA
1400 x 1050
60Hz
65.317
59.978
121.750
VESA
1440 x 900
60Hz
55.935
59.887
106.500
VESA
1440 x 900
75Hz
70.635
74.984
136.750
VESA
1600 x 1200
60Hz
75.000
60.000
162.000
All resolutions higher or lower than 1024x768 are converted to 1024x768 by the Scaler chip inside the projector.
If the resolution of the signal output by the PC matches the real resolution (1024x768) of the projector, the screen quality is
optimal.
AV Timing (D-Sub)
FORMAT
RESOLUTION
SCAN
BT.601 SMPTE 267M
480i
59.94Hz
Interlaced
BT.1358 SMPTE 293M
480p
59.94Hz
Progressive
BT.601
576i
50Hz
Interlaced
BT.1358
576p
50Hz
Progressive
SMPTE 296M
720p
59.94Hz/60Hz
Progressive
720p
50Hz
Progressive
1080i
59.94Hz/60Hz
Interlaced
1080i
50Hz
Interlaced
BT.709 SMPTE 274M
AV Timing (HDMI)
FORMAT
RESOLUTION
SCAN
HORIZONTAL
FREQUENCY
(KHZ)
VERTICAL
FREQUENCY
(HZ)
PIXEL
FREQUENCY
(MHZ)
EIA-861
Format1
640 x 480
Progressive
59.940
31.469
25.175
EIA-861
Format1
640 x 480
Progressive
60.000
31.500
25.200
EIA-861
Format2,3
720 x 480
Progressive
59.940
31.469
27.000
EIA-861
Format2,3
720 x 480
Progressive
60.000
31.500
27.027
EIA-861
Format4
1280 x 720
Progressive
59.939
44.955
74.175
EIA-861
Format4
1280 x 720
Progressive
60.000
45.000
74.250
EIA-861
Format5
1920 x 1080
Interlaced
59.939
33.716
74.175
Installation and Connection
2-9
FORMAT
RESOLUTION
SCAN
HORIZONTAL
FREQUENCY
(KHZ)
VERTICAL
FREQUENCY
(HZ)
PIXEL
FREQUENCY
(MHZ)
EIA-861
Format5
1920 x 1080
Interlaced
60.000
33.750
74.250
EIA-861
Format17,18
720 x 576
Progressive
50.000
31.250
27.000
EIA-861
Format19
1280 x 720
Progressive
50.000
37.500
74.250
EIA-861
Format20
1920 x 1080
Interlaced
50.000
28.125
74.250
AV Timing (VIDEO/S-VIDEO)
NTSC, NTSC 4.43, PAL, PAL60, PAL-N, PAL-M, SECAM
Your projector supports the standard video formats listed above through its video and s-video inputs. No adjustments are
necessary.
2-9
Installation and Connection
2-10 Connecting the Power
1. Plug the power cord into the power terminal on the rear side of the projector.
Installation and Connection
2-10
2-11 Connecting with a PC
1. Connect the [PC IN] port on the rear side of the projector to the PC video out (D-sub) port of the PC using a PC video cable.
2. Plug in the power cords of the projector and the PC.
3. Connect the [PC/DVI AUDIO IN] input port of the projector to the speaker output ports of the PC using an audio cable.
This product supports Plug and Play. If you use Windows XP, you do not need to set up the driver on your PC.
Using the Projector
1. Turn on the projector, and then press the [SOURCE] button to select <PC>.
If the <PC> Mode is not available, make sure the PC video cable is properly connected.
2. Turn on the PC, and then set the PC Environment (screen resolution, etc.) if necessary.
3. Adjust the screen. (<Auto Adjustment>).
2-11
Installation and Connection
2-12 Connecting a PC using an HDMI/DVI cable
2-12-1. Connecting a PC using an HDMI/DVI cable
Make sure that your PC and projector are turned off.
1. Connect the [HDMI/DVI IN] terminal of the projector to the HDMI or DVI terminal of your PC using a HDMI/HDMI or HDMI/DVI
cable (Not supplied).
For the input signals supported, see "PC Timing (D-Sub/HDMI)" in section 2-9, "Supported Display Modes."
2. If you connected using a HDMI/DVI cable, connect the [PC/DVI AUDIO IN] terminal of the projector to the Audio out terminal
of your PC using an audio cable (Not supplied).
- If you connected with a HDMI/HDMI cable, you do not need an audio cable.
2-12-2. Configuring the Audio Settings for Your PC
When the projector is connected to the PC via an HDMI cable, you can change the audio settings as follows:
1. In Category View of Windows XP : Go to Control Panel - [Sounds, Speech and Audio Devices], and select <Speaker
Settings>.
Installation and Connection
2-12
In Classic View of Windows XP : Go to Control Panel - [Sound and Audio Devices], and select the <Audio> tab.
On Windows 7 : Go to Control Panel - [Sound], and select the <Playback> tab.
2. Specify the default device for sound playback:
You can select the PC speakers or projector speaker.
The aforementioned information may slightly differ from some PCs or versions of Windows.
2-12
Installation and Connection
2-13 Connecting an External Monitor
You can view an image on both your projector and a separate monitor at the same time.
Make sure that your PC and projector are turned off.
1. Connect the [PC IN] terminal at the back of the projector to the D-Sub (PC, VGA) terminal of your PC using a D-Sub cable.
2. Connect the [PC OUT] terminal of the projector to the D-Sub terminal of a monitor using a D-Sub cable.
- When connecting a monitor using the [PC OUT] function, make sure to connect your PC to the [PC IN] terminal.
- The picture will display normally on the monitor connected via [PC OUT] even if the projector does not display the picture
when you press [Blank] on the remote.
- The [PC OUT] function will not operate in standby mode.
Installation and Connection
2-13
2-14 Connecting an HDMI-Compatible Device
Make sure that the AV device and your projector are turned off.
1. Connect the [HDMI/DVI IN] terminal at the back of the projector to the HDMI or HDMI/DVI output terminal of the digital output
device using an HDMI/DVI or HDMI/HDMI cable.
- If you are connecting to the HDMI output terminal on the digital output device, use an HDMI/HDMI cable.
- For supported input signal formats, resolutions, and frequencies, see AV Timing(HDMI) in Section 2-9, “Supported Display
Modes”.
2. If you connected using a HDMI/DVI cable, connect the [PC/DVI AUDIO IN] terminal on the projector to the Audio out terminal
on your digital output device using an audio cable (Not supplied).
- If you connected with a HDMI/HDMI cable, you do not need an audio cable.
2-14
Installation and Connection
2-15 Connecting an AV device using a D-Sub cable
Make sure that the AV device and your projector are turned off.
1. Connect the [PC IN] terminal at the back of the projector to the D-Sub terminal of your AV device using a D-Sub cable.
- For supported input signal formats, resolutions, and frequencies, see AV Timing (D-Sub) in Section 2-9, “Supported Display
Modes”.
2. Connect the [PC/DVI AUDIO IN] terminal at the back of the projector to the Audio out terminal of your AV device using an
audio cable (Not supplied).
Installation and Connection
2-15
2-16 Connecting an AV device with component output
Make sure that the AV device and your projector are turned off.
1. Connect the [PC IN] terminal on the back of the projector to the Component terminal on your AV device using a D-Sub to
Component cable (Not supplied). This cable has a D-Sub connector on one end and three RCA jacks on the other.
- For supported input signal formats, resolutions, and frequencies, see AV Timing (D-Sub) in Section 2-9, “Supported Display
Modes”.
2. Connect the [PC/DVI AUDIO IN] terminal on the back of the projector and the Audio out terminal on your AV device using an
audio cable (Not supplied).
2-16
Installation and Connection
2-17 Connecting using a Video/S-Video cable
Make sure that the AV device and your projector are turned off.
1. Connect the [VIDEO] or [S-VIDEO] terminal and the AV device using a Video cable (Not supplied) or S-Video cable (Not
supplied).
- For supported input signal formats, see AV Timing (VIDEO/S-VIDEO) in Section 2-9, "Supported Display Modes”.
2. Connect the [AV IN R-AUDIO-L] terminal on the back of the projector and the Audio out terminal on your AV device using an
audio cable (Not supplied).
Installation and Connection
2-17
2-18 Connecting an External Speaker
You can hear sound through an external speaker instead of the internal speakers built into the projector.
1. Obtain an audio cable (Not supplied) suitable for your external speaker.
2. Connect the [AUDIO OUT] terminal of the projector to the external speaker using an audio cable.
- When using an external speaker, the internal speaker does not operate but you can adjust the volume of the external
speaker using the Volume button or the remote control of the projector.
- The [AUDIO OUT] terminal can output all audio signals.
2-18
Installation and Connection
2-19 Connecting to a Network
This product can use network functions. Refer to the following Network connection method.
2-19-1. Connecting to a Dynamic IP (DHCP) Network
You can attach the projector to your network through a modem that uses DHCP (Dynamic Host Configuration Protocol). When
you use a DHCP modem, the modem automatically provides the IP address, subnet mask, gateway, and DNS server values that
the projector needs to access the network.
To connect to a DHCP network, follow these steps :
1. Connect the modem cable between the modem port on the wall and the external modem.
2. Connect a LAN cable between the external modem and the wired or wireless IP router.
3. Connect a LAN cable between the [LAN] port on the back of the projector and the wired or wireless IP router.
4. Turn the projector on and press the [MENU] button.
5. Select <Setup> → <Network> → <IP Setting> → <Automatic>.
6. The projector automatically acquires the IP address, Subnet mask and Gateway.
To use the network function, <Network> must be set to <On>.
If the IP address allotment from the DHCP server fails, turn off the external modem for more than 10
seconds, restart the modem, and then retry the connection.
For instructions on the setup and connection of the external modem and router, refer to the user manual for each product.
You can connect the LAN cable from the modem directly to the projector, You do not need a router.
You can not use a manual connection-type ADSL modem because it is not a DHCP-type device. Make sure to use an automatic
connection DHCP ADSL modem.
Installation and Connection
2-19
2-19-2. Connecting to a Static IP Network
You can attach the projector to a network that uses a Static IP address, which corresponds to using a dedicated lease line. If your
network uses Static IP addresses, you must get the IP address, subnet mask, gateway, and DNS server values from your Internet
Service Provider (ISP), turn on the Network function in the projector's Menu, and then enter the values into the Network function
manually.
To connect to a Static IP address network, follow these steps :
1. Connect a LAN cable between the LAN port on the wall and a wired or wireless IP router.
2. Connect a LAN cable between the [LAN] port on the back of the projector and the wired or wireless IP router.
3. Turn on the projector, and then press the [MENU] button.
4. Select <Setup> → <Network> → <IP Setting> → <Manual>.
5. Select <IP Address> and press the [
/ buttons to enter values.
] button. Use the
/
buttons to navigate between each IP Address entry field and the
6. When done entering all the values for IP Address, press the [
Gateway.
] button and then repeat the steps for Subnet mask and
7. When all values have been filled in, press the [MENU] or [RETURN] button to exit the setup menu.
To use the network function, <Network> must be set to <On>.
If you use a static IP, your ISP will inform you of your IP address, subnet mask, gateway and DNS values. These values must be
entered to complete your network setup. If you do not know your static IP address, consult your network administrator.
For instructions on the setup and connection of the router, refer to the router’s user manual.
You can connect the LAN cable directly to the projector without using a router.
If you use an IP Router which supports the DHCP function, you can set the router to either DHCP or static IP.
For instructions on the use of a static IP, consult your Internet service provider.
2-19
Installation and Connection
2-20 Kensington Lock
The Kensington Lock slot allows you to lock your projector, providing a sense of security when you use it in a public place.
Because the shape and usage of the lock may differ depending on the model and the manufacturer, see the User Manual
supplied with the locking device for more information.
Locking the product
1. Loop the Kensington lock cable around an immovable part of desk or heavy object as directed in the Kensington lock user
manual.
2. Insert the locking part of the locking device into the Kensington lock hole in the projector.
3. Insert the Kensington lock key into the locking mechanism and turn it in the locking direction.
You can purchase a locking device from an electronics store or an online shop.
Installation and Connection
2-20
3
Using
3-1
Product Features
1. An optical engine adopting new LCD technology
•
1024 x 768 resolution.
•
3P-LCD panel.
•
SP-L255 : Provides a bright, 2500 ANSI lumen screen.
SP-L305 : Provides a bright, 3000 ANSI lumen screen.
SP-L335 : Provides a bright, 3300 ANSI lumen screen.
SP-L355 : Provides a bright, 3500 ANSI lumen screen.
2. Minimized fan noise
•
Minimizes fan noise through optimized internal air flow and the fan installation structure.
3. Multiple input terminals
•
Increases the connectivity to peripheral devices such as D-Sub 15P, S-Video, Video, HDMI(DVI PC signal, supported),
etc.
4. Audio Output
•
Includes stereo speakers on the right and left and a 5-band equalizer.
5. User adjustments
•
Allows adjustment of each input port.
•
Has a test pattern you can use for positioning and adjustment.
•
Compact size, lightweight, and portable.
6. Convenient Network Function
•
The projector can be monitored and controlled from a PC using the network function.
7. Multimedia Function
•
You can enjoy video, photos, and music, and view documents stored on a USB device, without connecting to a PC.
8. Security Function
•
3-1
Security password can be set to prevent unauthorized adjustments and access to the projector.
Using
3-2
Front, Upper
NAME
DESCRIPTION
- STAND BY (Blue LED)
1.Indicators
- LAMP (Blue LED)
- TEMP (Red LED)
Refer to the LED Indications.
2. Move
Volume
/ Select
/
/
button
: Use to move or to select an item within a menu.
: Use to adjust the volume.
3. MENU button
Use to display the Menu Screen.
4. SOURCE button
Use to select the external device signal.
5.
Button
Use to turn the projector on or off.
6. Lens
-
7. Remote Control Signal
Receiver
-
8. Focus Ring
Use for Focus Adjustment.
9. Zoom Knob
Use to enlarge or reduce image size.
10. Lens cover
-
Using
3-2
3-3
Remote Control
Using your projector with another remote control device nearby may result in improper functioning due to remote control
code (frequency) interference.
POWER ( ) Button
Use this button for turning the product
on and off.
QUICK Button
Use to return to the last menu used
quickly.
P.MODE Button
Use to select Picture Mode.
AUTO Button
Automatically adjust the screen. (Only
enabled in <PC> mode.)
P.SIZE Button
Use to adjust the size of picture
screen.
BLANK Button
Use to turn off the screen and sound
temporarily.
The video and audio will come back
on when any button other than the
[POWER] button is pressed.
Rewind Button
Rewind video in <Media Play> mode.
Fastforward button
Fastforward video in <Media Play>
mode.
Play button
Play video in <Media Play> mode.
Stop button
Stop video in <Media Play> mode.
KEYSTONE button
Correct a tilted image.
DOCU. ZOOM button
Enlarge or reduce a document in the
<Document> menu under <Media
Play> mode.
Pause button
Pause video in <Media Play> mode.
MUTE ( ) Button
Press to mute the sound temporarily.
Press the MUTE button again or the
[VOL] button (
) when the sound is
muted to hear sound again.
VOL (
) Button
Use to control the volume.
PAGE Button (
)
Use to move to the previous or next
page, one page at a time.
MENU (
) Button
Use to display the Menu Screen.
SOURCE Button
Switch the external input signal.
MEDIA.P Button
Go directly to <Media Play> mode.
Display the menu items while in <Media Play> mode.
USB SAFELY REMOVE Button
Use to remove a [USB] device safely.
HELP Button
Display the button information menu at the bottom of the screen when a
document is being viewed in <Media Play> mode.
RETURN ( ) Button
Returns to the previous menu.
Move (
)/ ( ) Buttons
Used to move to or select each menu item.
EXIT ( ) Button
Use to make the Menu Screen disappear.
INFO Button
Use to check source signals, picture setup, PC screen adjustment, and
lamp lifespan.
STILL Button
Use to see still images.
Colored buttons (Only available in <Media Play>)
Red : Use to set subtitle while playing a video file.
Green : Use to set <SlideShow Settings> while playing a photo file.
Yellow : Use to set <Zoom> in document view.
Blue : Use to move pages using <Page Navigation> Menu in document
view.
INSTALL Button
Use to adjust the image so that it is
appropriate for the projector's installation location (In front of the screen
and hanging from the ceiling, behind
the screen and hanging from the ceiling, etc.)
Make sure to place your remote control on a table or desk.
3-3
Using
If you step on the remote control, you may fall and hurt yourself or damage the remote.
You can use the remote control up to a distance of about 32.8 feet (10 m) from the product.
Installing Batteries in the Remote Control
1. Lift the cover at the back of the remote control upward as shown in the figure.
2. Insert two AAA size batteries.
3. Close the cover.
Using
3-3
3-4
LED Indications
LED Indications
:Light is On
STAND BY
:Light is Blinking
LAMP
:Light is Off
TEMP
STATUS
If you press the [POWER] button on the remote control or projector, the screen
appears within 30 seconds.
The projector is operating normally.
The projector is preparing an operation after the [POWER] button on the projector or the remote control has been pressed.
The [POWER] button has been pressed to turn off the projector, and the cooling system is in operation to cool off the inside of the projector. (Operates for
about 3 seconds.)
The cooling fan inside the projector is not operating normally. Refer to Action 1
in Clearing Indicator Problems below.
The lamp cover protecting the lamp unit is not closed properly. Refer to Action 2
in Clearing Indicator Problems below.
The lens cover has not opened completely. Refer to Action 3 in Clearing Indicator Problems below.
The projector has changed to Cooling mode because its internal temperature
has increased beyond the maintenance limit.
Refer to Action 4 in Clearing Indicator Problems below.
The projector has turned itself off automatically because its internal temperature has increased beyond the maintenance limit. Refer to Action 5 in Clearing
Indicator Problems below.
A problem has occurred with the operation of the lamp. Refer to Action 6 below.
The lifetime of the lamp has expired. Refer to Action 7.
The power for the product is not operating normally. Contact a service center.
3-4
Using
Clearing Indicator Problems
CLASSIFICA
TION
STATE
MEASURES
Action 1
The cooling fan system is not
operating normally.
If the symptom remains even after disconnecting and then reconnecting
the power cord and turning the projector on again, contact your product
provider or our service center.
Action 2
The lamp cover protecting the
lamp unit is not properly closed
or the sensor system is not
operating normally.
Check if the screws on the side of the projector are securely tightened. If
they are and the indicators are still lit, contact your product distributor or a
service center.
Open the lens cover completely.
Action 3
The lens cover has not opened
completely.
If the lens cover does not open completely when the projector is operating,
both the video and audio turn off automatically.
If this status persists for ten minutes, the projector turns off automatically.
If the internal temperature of the projector has increased beyond the maintenance limit, the projector changes to the Cooling mode before turning off
automatically.
Action 4
The projector has changed to
the Cooling mode because the
internal temperature of the projector has increased beyond
the maintenance limit.
In Cooling mode, the fan speed is increased and the projector’s lamp is
changed to <ECO> mode.
Check whether the ventilation hole of the projector is blocked.
Check the air filter and clean if blocked.
Check whether the surrounding temperature of the projector is higher than
the standard temperature range of the projector.
Cool the projector sufficiently and operate it again.
Check whether the ventilation hole of the projector is blocked.
Action 5
The internal temperature of the
projector has risen higher than
the limit, and the projector has
turned off automatically.
Check the air filter and clean if blocked.
Check whether the surrounding temperature of the projector is higher than
the standard temperature range of the projector.
Cool the projector sufficiently and operate it again.
If the same problem occurs continually, contact your product distributor or
service center.
Action 6
The lamp has malfunctioned
after power turns off abnormally
or after the projector is powered
on right after turning off.
Turn the power off, wait for a sufficient amount of cooling time and then
turn the power on to operate. If the same problem occurs continually, contact your product distributor or service center.
Action 7
When the screen becomes
darker
Check the lamp usage time on the Information Display screen.If you need
to replace the lamp, contact your product distributor or service center.
This Projector uses a cooling fan system to keep the unit from overheating. Operation of the cooling fan may produce noise.
This does not affect product performance and is part of normal operation.
Using
3-4
3-5
Using the Screen Adjustment Menu (OSD: On Screen Display)
The Screen Adjustment Menu (OSD: On Screen Display) Structure
To access the Menu, press the Menu button on the product or on the remote. To move in the menu, press the arrow buttons.
Menu selections with an arrow on the far right have sub-menus. Press the right arrow button to access the sub-menu. Directions
for navigating and selecting items in a menu are at the bottom of each menu screen.
MENU
SUB-MENU
Input
Source List
Edit Name
Mode
Size
Position
Digital NR
Overscan
Film Mode
PC
Zoom
Install
Lamp Mode
Auto Keystone
V-Keystone
Background
Test Pattern
Video Type
Caption
Network
Reset
Language
Menu Option
Sound
Filter Check
Time
Auto Power On
Sleep Timer
Security
Panel Lock
Information
Setup
Option
Black Level
3-5-1. Input
MENU
Source List
DESCRIPTION
You can select a device connected to the projector to display.
•
Edit Name
<PC> - <AV> - <S-Video> - <HDMI> - <Media Play>
You can edit the names of devices connected to the projector.
•
<VCR> - <DVD> - <Cable STB> - <Satellite STB> - <PVR STB> - <AV Receiver> - <Game> <Camcorder> - <PC> - <DVI Devices> - <TV> - <IPTV> - <Blu-ray> - <HD DVD> - <DMA>
3-5-2. Picture
3-5
Using
MENU
Mode
DESCRIPTION
Select a screen mode to match the environment, the kind of images you are projecting, or select a
customized mode you have created based on your requirements.
<Mode>
•
<Dynamic> : Selects the picture for increased definition in a bright room.
•
<Standard> : Selects the picture for the optimum display in a normal environment.
•
<Presentation> : This mode is suitable for presentations.
•
<Text> : This mode is suitable for text work.
•
<Movie> : This mode is suitable for viewing a movie.
•
<Game> : This picture mode is optimized for playing games.
In <Game> mode, the text in still pictures will appear unnatural.
•
<User> : This is a customized mode you create using the <Mode>→<Save> function.
Presentation and Text modes are only enabled if the input signal is a PC Timing (D-Sub/HDMI)
signal.
<Contrast> : Used to adjust the contrast between the object and the background.
<Brightness> : Used to adjust the brightness of the entire picture.
<Sharpness> : Used to adjust the sharpness of the picture.
When the input signal is a PC Timing (D-Sub/HDMI) signal, the <Sharpness> cannot be
adjusted.
<Color> : Used to adjust color lighter or darker.
When the input signal is a PC Timing (D-Sub/HDMI) signal, the <Color> cannot be adjusted.
<Tint> : Used to obtain more natural color by enhancing the amount of green or red in images.
When the input signal is a PC Timing (D-Sub/HDMI) signal or PAL and SECAM signal in the [SVideo] or [AV] modes, the <Tint> cannot be adjusted.
<Color Tone> : You can select the color temperature according to your preferences.
•
Factory defaults: <COOL2> - <COOL1> - <WARM1> - <WARM2>
•
You can select the color temperature for the items below according to your preferences.
<R-Gain>, <G-Gain>, <B-Gain> : Adjusts the color temperature of the White level.
<R-Offset>, <G-Offset>, <B-Offset> : Adjusts the color temperature of the Black level.
•
<Color Temperature> - <R-Gain> - <G-Gain> - <B-Gain> - <R-Offset> - <G-Offset> - <B-Offset>
<Gamma> : Changes the brightness characteristic for each color tone of an image.
•
The larger (+) the value, the greater the contrast of the bright and dark parts.
The smaller (-) the value, the darker the dark parts.
•
Adjustable range: -3 to +3
<Save> : You can save the status of a screen you adjusted according to your preferences using the
<Mode>→<User> OSD.
<Reset> : Restores the mode settings to the factory defaults.
Size
Using this function, you select a screen size.
When the input signal is a PC Timing (D-Sub/HDMI) signal, <Zoom1>/<Zoom2> is not
supported.
•
Position
Using
<Normal> - <Zoom1> - <Zoom2> - <16 : 9>
Using this function, you can adjust the screen position if it is not aligned.
3-5
MENU
Digital NR
DESCRIPTION
If dotted lines appear in an image or the screen shakes, enabling Digital NR (Noise Reduction) can
improve the quality of the picture.
When the input signal is a PC Timing (D-Sub/HDMI) signal, <Digital NR> does not operate.
Black Level
If the black level is unsuitable for the input signal, the dark parts of an image may look unclear or dim.
Using this function, you can select a black level that can improve the visibility of the dark parts.
<Black level> can be enabled only for
- [AV] or [S-Video] mode;
- 480i or 576i signals (YPbPr signal) in [AV Timing (D-Sub)] mode;
- RGB signals in [HDMI] mode.
For [AV], [S-Video], and the 480i and 576i signals of AV Timing (D-Sub).
•
<0 IRE> : Sets the black level to <0 IRE>.
•
<7.5 IRE> : Sets the black level to <7.5 IRE>.
For the RGB signal of <HDMI> mode.
Overscan
•
<Normal> : Used in a normal environment.
•
<Low> : Used when the dark parts of an image are too bright.
Using this function, you can cut off the edge of a picture when unnecessary information or images
appear on the edge of the picture.
Overscan is not supported in [AV] and [S-Video] modes.
Overscan is supported only when the input signal is an AV Timing (D-Sub) or AV Timing (HDMI)
signal.
If <Overscan> is turned off, unnecessary extra parts at the edges of an image may be shown.
In this case, turn <Overscan> on.
Film Mode
Using this function, you can set the display mode so that it is optimized for playing movies.
•
<Off> - <Auto>
<Film Mode> is only be supported for the [AV], [S-Video], 480i, and 576i of AV Timing (D-Sub)
signals.
PC
For PC signals, the four PC functions eliminate or reduce noise that causes unstable screen quality
such as screen shaking. If the noise is not removed using Fine Adjustment, adjust the frequency to
the maximum and then perform Fine Adjustment again.
These functions are only enabled for the PC Timing (D-Sub/HDMI) input of the D-Sub terminal.
Refer to PC Timing (D-Sub/HDMI).
Zoom
•
<Auto Adjustment> : Used to adjust the frequency and phase of PC screen automatically.
•
<Coarse> : Used to adjust the frequency when vertical lines appear on the PC screen.
•
<Fine> : Used to fine tune the PC screen.
•
<Reset> : Using this function, you can reset the PC menu settings to the factory default settings.
You can magnify the screen to a size you want.
•
<X1> - <X2> - <X4> - <X8>
This function is only enabled when the input signal is a PC Timing (D-Sub/HDMI) signal.
3-5
Using
3-5-3. Setup
MENU
Install
DESCRIPTION
To tailor the picture to the installation location (In front of the screen and hanging from the ceiling,
behind the screen and hanging from the ceiling, etc,). You can invert the projected images vertically /
horizontally.
•
Lamp Mode
Auto Keystone
•
<Front-Ceiling> : Horizontal/Vertical Reversed Image
•
<Rear-Floor> : Horizontally Reversed Image
•
<Rear-Ceiling> : Vertically Reversed Image
Using this function, you can set the image brightness by adjusting the amount of light generated by
the lamp.
•
<Eco> : This mode is optimized for screens smaller than 100 inches.
This mode decreases the lamp brightness and power consumption in order to extend the lamp
lifetime and reduce noise and power consumption.
•
<Normal> :This mode is a general mode and works well in most situations.
•
<Bright> : This mode maximizes the lamp brightness when the ambient illumination is bright. As
the brightness of the lamp increases, the lamp lifetime can be reduced and noise and power
consumption may increase.
If video scenes are distorted or tilted, you can compensate for this by setting the <Auto Keystone>
function to <On> so that the <V-Keystone> function automatically starts.
•
V-Keystone
<Front-Floor> : Normal Image
<Off> - <On>
If video scenes are distorted or tilted, you can compensate for this using the vertical/horizontal Keystone function.
The sound output of your projector is temporarily stopped while the keystone is being changed.
<Keystone> does not compensate for distorition in the On Screen Display (OSD) menu.
Background
You can select a screen which appears when there is no signal from the external device connected
with a projector.
•
Test Pattern
Using
<Logo> - <Blue> - <Black>
A default test pattern built into the projector. You can use it as a reference picture to optimize the
installation of the projector and to optimize images.
•
<Crosshatch> : You can check whether the picture is distorted or not.
•
<Screen Size> : You can reference and display picture format sizes such as 1.33 : 1 or 1.78 : 1.
3-5
MENU
Video Type
DESCRIPTION
If the screen quality is abnormal as a result of the projector not identifying the input signal type automatically in <PC> or <HDMI> mode, <Video Type> lets you manually set the input signal.
•
In <PC> mode, the menu is only enabled for AV Timing (D-Sub) input signals. For separate H/V
sync, it is only enabled for a 1280 x 720p 59.94Hz/60Hz signal.
•
•
<Auto> - <RGB(PC)> - <RGB(AV)> - <YPbPr(AV)>
In <HDMI> mode, the menu is only enabled for 640x480p 59.94Hz/60Hz and 1280x720p
59.94Hz/60Hz among AV Timing(HDMI) signals.
•
<Auto> - <PC> - <AV>
Usage
PC menu
zoom
yniOwjP
~Œ•GŠ–••ŒŠ›•ŽG›ŒGyniG–œ›—œ›G–GˆG
wjG›–G›ŒGkTzœ‰G›Œ™”•ˆ“G
kšˆ‰“Œ‹
l•ˆ‰“Œ‹
l•ˆ‰“Œ‹
yniOh}P
~Œ•GŠ–••ŒŠ›•ŽG›ŒGyniG–œ›—œ›G–G
ˆ•Gh}G‹ŒŠŒGOz{iSGk}kSGŒ›ŠˎPG›–G›ŒG
kTzœ‰G›Œ™”•ˆ“G
l•ˆ‰“Œ‹
kšˆ‰“Œ‹
kšˆ‰“Œ‹
~Œ•GŠ–••ŒŠ›•ŽG›ŒG€w‰w™G–œ›—œ›G–G
€w‰w™Oh}P ˆ•Gh}G‹ŒŠŒGOz{iSGk}kSGŒ›ŠˎPG›–G›ŒG
kTzœ‰G›Œ™”•ˆ“G
l•ˆ‰“Œ‹
kšˆ‰“Œ‹
kšˆ‰“Œ‹
~Œ•GŠ–••ŒŠ›•ŽGˆGwjG›–G›ŒGoktpG
›Œ™”•ˆ“G
kšˆ‰“Œ‹
kšˆ‰“Œ‹
l•ˆ‰“Œ‹
~Œ•GŠ–••ŒŠ›•ŽGˆ•Gh}G‹ŒŠŒGOz{iSG
k}kSGŒ›ŠˎPG›–G›ŒGoktpG›Œ™”•ˆ“G
l•ˆ‰“Œ‹
kšˆ‰“Œ‹
kšˆ‰“Œ‹
T
T
T
wj
h}
hœ›–
Caption
Color,
Sharpness,
Tint
hœ›–GšŒ››•Žš
The <Caption> function is supported when the external analog signal (from either the Video or SVideo terminal) contains subtitles.
•
<Caption> : <Off> - <On>
•
<Mode> : <Caption> - <Text>
•
<Channel> : <1> - <2>
•
<Field> : <1> - <2>
The <Caption> function will not operate in <PC> (including components) or <HDMI> mode.
Depending on the external signal, a change to the <Channel> or <Field> settings may be
required.
Each <Channel> and <Field> contains different information. <Field><2> carries additional
information to supplement information contained in <Field><1>.
(e.g. If English subtitles are provided on <Channel><1>, Spanish subtitles will be provided on
<Channel><2>.)
3-5
Using
MENU
Network
DESCRIPTION
By connecting a LAN cable between the PC and projector, you can use the following supplementary
functions on your PC.
On your PC, you can check the projector's conditions (lifespan of the lamp, operation error,
temperature) and remotely control the projector's power On/Off, brightness, and sound On/Off .
<Network> : <On> - <Off>
<IP Setting>
•
<Automatic> : Automatically allots the IP address, Subnet mask and Gateway.
•
<Manual> : Allows you to manually enter the IP address, Subnet mask and Gateway manually.
After pressing the [
move using the /
] button to enter values, change the values using the / buttons and
buttons. Once the values are filled in, press the[ ] button.
<Server IP Setting> : Allows you to enter the server PC's IP address.
To use the network function, <Network> must be set to <On>.
If the network connection fails, enter the IP address of the server PC under <Server IP Setting>.
Reset
Using this function, you can reset various settings to the factory default settings or recover from a
<Media Play> mode failure.
•
<Factory Default> : Changes the settings to the factory defaults.
•
<Reset Filter Time> : Resets the filter time.
•
<Media Play> : The following functions are activated only when the projector fails to enter the
<Media Play> mode due to a <Media Play> mode error.
Activated only in <Media Play> Mode.
•
<Recovery Mode>: When the projector is turned off during a firmware update, use this function to
continue the update.
•
<OK> - <Cancel>
Under normal usage, update by selecting <Setup>→<Update/Reset>→<Firmware
Update> in the <Media Play> menu.
•
<System Reset>: When the <Media Play> operation suddenly freezes, use this function to restart
<Media Play>.
•
<OK> - <Cancel>
3-5-4. Option
Using
3-5
MENU
DESCRIPTION
Language
Using this function, you can select the language used for the menu screen.
Menu Option
•
<Position> : You can move Menu Position up/down/left/right.
•
<Transparency> : You can set the translucency of the menu.
•
•
<Display Time> : You can set the display time of the menu.
•
Sound
<5 sec> - <10 sec> - <30 sec> - <60 sec> - <90 sec> - <120 sec> - <Stay On>
Adjusts the right and left audio balance and equalizer of the 3W stereo speakers embedded in the
projector.
•
Filter Check Time
<High> - <Medium> - <Low> - <Opaque>
<Balance> - <100Hz> - <300Hz> - <1kHz> - <3kHz> - <10kHz>
Sets the check period for the filter. (Unit: hours)
•
<Off> - <100> - <200> - <400> - <800>
If the filter usage time is larger than the filter check period, the filter check message is
displayed for 1 minute whenever the projector is turned on. Filter check message: <Check
the filter, and if necessary, clean or replace it.>.
Auto Power On
With <Auto Power On>, if power is supplied to the projector, it turns on automatically without your
pressing the Power button.
•
Sleep Timer
<Off> - <On>
With <Sleep Timer> on, if there is no input signal for the specified time, the projector turns off automatically.
(There must be no button input from the remote control or the top of the projector for the specified
time)
•
<Off> - <10 min> - <20 min> - <30 min>
This function does not work in <Media Play> mode.
Security
To deter theft, a password is required once the project powers on. The projector will not be enabled
without this password.
•
•
<Power On Protection>
•
<Off> : Enter your current password and set the protection function to off.
•
<On> : Enter a new password and set the protection function to on.
<Change Password> : Change your current password.
Use the displayed number keys to enter or change the password.
Panel Lock
You can disable the buttons on the projector body so that the projector is only operated by the remote
control.
•
Information
3-5
<Off> - <On>
You can check external source signals, picture setup, and PC picture adjustment.
Using
3-6
Network Management
3-6-1. Management using the Web Browser
The Web Browser lets you monitor and control one projector from a PC without installing any software. Before you
can use the Web Browser, you must connect your projector to your local area network. For directions explaining how
to connect to a network, see section 2-19, Connecting to a Network.
To control multiple projectors from a single PC, install and run Samsung Projector Manager.
For information about Samsung Projector Manager, go to 3-6-2.
Check the network connection between the PC and projector before connecting the Web Browser. If the network
connection has failed, the Web browser window may not be available for use.
•
To use the Web Browser, your PC must meet the following minimum system requirement :
•
RAM: More than 10MB
•
Hard Disk capacity: More than 10MB
•
Display resolution: More than 640 x 480
•
Supported OS : Microsoft Windows XP, Windows Vista
•
Web browser : Microsoft Internet Explorer 6 or later version, Netscape Navigator 9 or later version, Mozilla FireFox 3.0.x or later
version, Google Chrome.
1. Connecting
•
Enter the projector's IP address into the web browser address bar.
Find the projector's IP address by pressing the [MENU] button and selecting <Setup> -> <Network> -> <IP Setting>.
•
The Network Projector window appears. For information about control items in the Network Projector window, refer to the
items under Section 3-5, Using the Screen Adjustment Menu.
•
Some functions listed in 'Using the Screen Adjustment Menu' cannot be used in the web browser because of limitations in
remote control by the network.
Using
3-6
3-6-2. Projector Management using PC Software
You can monitor and control more than one projector using Samsung Projector Manager.
•
To use Samsung Projector Manager, your PC must meet the following minimum system requirement :
•
RAM: More than 10MB
•
Hard Disk capacity: More than 10MB
•
Display resolution: More than 640 x 480
•
Supported OS : Microsoft Windows XP, Windows Vista
1. Installing the Samsung Projector Manager
•
Click 'Samsung Projector Manager' on the CD supplied.
•
Install according to the instructions displayed on the PC screen.
2. Running the Samsung Projector Manager
When the installation of Samsung Projector Manager and the network setup for the projector have been completed, the
Samsung Projector Manager will be available for use.
3.
•
Click Start > Samsung Projector > Samsung Projector Manager
•
The<Projector Remote Controller>window appears.
Using the Samsung Projector Manager
•
3-6
Projector Grouping and Registering
•
To browse projectors connected to the PC automatically, press Tool > Auto Search
•
To group or directly register the projectors, select List>Projector, right-click over Network Projector under Projector List. and
Using
then select Add Projector.
•
Specify the Projector Name, IP Address and Group Name to register, and then press ADD.
Any group whose name is not specified will automatically be named 'Default Group.' To remove and / or rename
a registered projector, right-click and then select Delete and / or Rename respectively.
If a projector is not displayed on the Projector List after registration, check if the network connection and the
network settings are properly configured. See section 2-19, Connecting to a Network and section 3-5-3, Setup
>Network for information and instructions.
To save or load the registered projecter's information, select File → Export Config.
Using
3-6
•
Projector Management
•
You can check a projector's lamp condition, temperature, operation, errors, etc in real time.
: You can view a projector's Name, IP Address, Group, Power On/Off status, LAMP lifespan, operation errors
(represented by icons), etc. in real time.
Samsung Projector Manager displays icons that indicate a projector's status. The icons are listed in the tables
below. If the icons indicate a problem with your projector, see "Clearing Indicator Problems" in secton 3-4, LED
Indications.
Warning and Error status icons
ICONS
STATUS
ACTION
The lens cover has not opened completely.
Refer to Action 3 in Clearing Indicator
Problems.
Error
The lamp cover protecting the lamp unit is not
properly closed.
Refer to Action 2 in Clearing Indicator
Problems.
Error
The lamp is not operating normally.
Refer to Action 6 in Clearing Indicator
Problems.
Error
The lamp has reached the end of its life.
The lamp needs to be replaced.
Warning
3-6
STATE
Using
ICONS
STATUS
STATE
ACTION
Error
The cooling fan 1 is not operating normally.
Error
The cooling fan 2 is not operating normally.
Error
The cooling fan 3 is not operating normally.
Refer to Action 1 in Clearing Indicator
Problems.
Error
The cooling fan 4 is not operating normally.
Error
The cooling fan 5 is not operating normally.
Error
The cooling fan 6 is not operating normally.
Warning
The internal temperature of the projector has
risen higher than the limit.
Refer to Action 5 in Clearing Indicator
Problems.
Error
The internal temperature of the projector has
risen higher than the limit.
Refer to Action 5 in Clearing Indicator
Problems.
Error
The internal temperature of the projector has
risen higher than the limit.
Refer to Action 5 in Clearing Indicator
Problems.
Warning
The air filter has reached the end of its life.
The air filter needs to be replaced.
Warning
The air filter has been blocked by dust.
The air filter needs to be cleaned.
Error
The air filter has been blocked by dust.
The air filter needs to be cleaned.
Temperature Level Status Icons
ICONS
Using
STATUS
STATE
ACTION
Temperature status
The projector's internal temperature is
normal.(standby mode)
None. It's normal.
Temperature status
The projector's internal temperature is
normal.(low)
None. It's normal.
Temperature status
The projector's internal temperature is
normal.(medium)
None. It's normal.
Temperature status
The projector's internal temperature is
normal.(little bit high)
None. It's normal.
Temperature status
The projector's internal temperature is
higher than the limit.
Refer to Action 4 in Clearing Indicator Problems.
Temperature status
The projector's internal temperature is too
high. The projector is turned off automatically.
Refer to Action 5 in Clearing Indicator Problems.
3-6
•
Managing the Projectors
: Using the icons in the Projector List (only applicable to 'V'-marked projectors in the monitoring window)
(Refresh): Updates the status of the projector.
(Power On): Turns on the power of the projector.
(Power Off): Turns off the power of the projector.
(Switch Source): Selects a source from HDMI, S-VIDEO, AV, PC, MP.
However, if products do not provide Media Play, MP source is not available.
(Blank On/Off): Turns the screen of the projector on or off.
(Mute On/Off): Mutes on/ off the sound of a projector.
(Adjust Aspect Ratio): Adjusts the aspect ratio of the projector to either 16:9 or 4:3.
: Connecting the Web browser from Samsung Projector Manager
By connecting the Web Browser in Samsung Projector Manager, you can use more diverse functions. To perform the
Web browser connection, select a Projector to connect to, and then right-click to select "Web browser."
If the Web browser connection fails, check whether the network connection (see section 2-19, Connecting to a
Network) and network settings (see 3-5-3, Setup > Network) are correctly configured.
Operating one projector using both Samsung Projector Manager and the Web browser at the same time may
cause a slowdown in PC operation or an error.
3-6
Using
•
Using the Schedule Function
Using the Schedule function, you can manage your projectors more efficiently.
If you select List>Schedule, the following window appears.
The screen has four buttons:
• New : Adds a projector to make a Schedule for.
• Delete : Deletes the Schedule for a selected projector.
• Delete All : Deletes the Schedule for all of the projectors.
• Edit : Edits the Schedule for a selected projector.
•
Registering a New Schedule
To register a new schedule, follow these steps:
1. Press the New button. The New Schedule screen appears.
2. Select the projectors to apply the new schedule to from the Select Projectors field. When you select a projector, a
check mark appears in the check box to its left.
3. Set the new schedule Title, Repeat, Time, and Work, and enter a Description of the Schedule. Explanations for each
of these terms is below.
-Title : Sets the name of a Schedule
-Repeat : Sets the schedule repetition (Once- Executes only once, Every - Specifies a repetition date)
-Time : Determines the time at which a schedule will be executed
-Work : Sets Source switch or Power On/Off
-Description : Shows a detailed description of a Schedule
4. After you have entered all the information, press ADD.
You can view the registration history of a Schedule. You can also view the status of a Schedule. The Status codes
are below:
-Complete: Schedule complete.
Using
3-6
-Waiting: Schedule still awaiting execution.
-Running: Repetitive schedule is running.
•
3-6
•
To save or load the registered schedule, select File → Export Config.
•
If you want to operate a Schedule loaded by Import Config, load the projector's information in advance.
Other settings
The Tools selection in the Menu Bar contains two menu items, Configure monitor items and Option.
- Configure monitor items
Configure monitor items lets you select an item to be displayed in the monitoring window display. After you select the
item, you set the display priority of the item by moving it up or down in the list of items you have selected for display.
- Options
Automatically Run – When a PC is turned on, Samsung Projector Manager will be turned on automatically.
Minimize to system tray – Samsung Projector Manager will be minimized to system tray.
File contains two selections.
- File> Export Config : Saves all of the configured settings under Samsung Projector Manager in the desired file names to
the corresponding folders.
- File> Import Config : Imports a saved Configuration file. Sets the Samsung Projector Manager to the saved settings.
Using
4
Media Play Function
4-1
Connecting a USB Storage Device and Precautions
4-1-1. Connecting a USB Device
1. Connect your USB storage device to the USB port on the back of the projector.
- The main page of the <Media Play> menu appears.
The main page of <Media Play> can also be opened by pressing the [MENU] button and selecting <Input>→<Source
List>→<Media Play>
•
Supported file systems: FAT, FAT32 (NTFS is not supported.)
•
Multi Partition is not supported.
•
This projector is not compatible with a multi-card reader or USB hub.
[Selecting a Device]
2. Move to the kind of media you want to view using the ▲/▼ buttons, press the [
] button.
3. Move to <Internal Memory> or <USB> using the ▲/▼ buttons, and then press the [
] button.
[Selecting a File]
4. Move to the file or folder you want to view or open using the ▲/▼ buttons, and then press the [
] button.
For Document, Music, and Movie folders, a number appears next to each folder, indicating the number of document,
music, or movie files in the folder. For Photo folders, the screen displays the number of photo files when you move to the
folder.
5. Move to the file you want to view using the ▲/▼ buttons, and then press the [
] button.
4-1-2. Precautions for using a USB storage device
•This product does not support multi-card readers.
•This product does not work if the USB storage device is connected by a USB HUB.
Media Play Function
4-1
•Some products which do not comply with standard USB specifications might not operate normally.
•A USB storage device with automatic recognition application or its own driver might not operate normally.
•A USB storage device that uses only a designated driver might not be recognized.
•Recognition speed for USB storage device may vary by device.
•Do not turn off the product or pull a connected USB storage device out while a USB storage device is in use. Doing so may
result in damage to the USB storage device or stored file.
•Use a USB storage device which contains normal files. Abnormal files can cause a malfunction or the files may not play.
•USB storage devices must be formatted with the FAT or FAT32 (recommended) file systems supported by Windows.
<Media Play> may not work normally if the USB storage device is formatted with another file system.
•If the USB storage device uses external power, please connect the USB storage device to its external power source.
•Use the USB cable provided with the USB device when connecting to the projector. (For more information on purchasing
cable and external devices, contact the respective manufacturer.)
•We do not guarantee <Media Play> will operate if a malfunction occurs in any external device caused by your using a cable
that does not comply with designated standards.
•As the data in USB storage device can be damaged, please back up important data to avoid loss.
•When using a USB storage device with the projector, subfolders with a maximum depth of 4 from the top folder are
supported. Also, if the number of files (including folders) in the same folder exceeds 2,900, it will not be recognized. In
addition, if there are a large number of files on a USB device, individual files may take a long time to display.
•Multi Partition is not supported.
•If an external memory device does not operate after you've connected it to the projector, try to connect it to a PC. If it still
does not operate normally, contact the memory device's manufacturer service center or related customer center.
4-1
Media Play Function
4-2
Documents
You can view document files in various formats saved on a USB memory device or in the projector's internal memory.
Menu displayed from the Documents screen
The Documents screen.
The Menu below appears when you press the [MEDIA.P] button while displaying the Documents screen.
•
If you are displaying a screen or item, and then press the [MEDIA.P] button, the menu corresponding to the selected
item appears.
•
Depending on the current language setting, folder names, file names, or text in a document may appear corrupted.
If that is the case, press the [MENU] button and change the language setting in <Language> under <Option>.
MENU ITEM
DESCRIPTION
View
View a document.
Copy
If an external memory device (USB memory device) is connected, files on the external memory
device can be copied to the projector's internal memory and vice versa.
Copy All Files
Delete
Delete All Files
Copy all files to internal and external memory.
Delete the selected file.
Delete all files in a folder.
Menu displayed when you are viewing a document
Select the file you want using the ▲/▼ buttons on the projector or remote control.
Using the remote control while viewing a document
•
MEDIA.P : Open the document menu
•
∧ PAGE ∨ :
Move to the previous or next page
Move to the previous or next sheet in a Excel file
•
•
▲/▼/ /
: Direction buttons
: Enlarge a document
•
: Return to the previous stage
•
: View information about the available buttons
If you press the [MEDIA.P] button when viewing a document, the following menu appears.
Media Play Function
4-2
MENU ITEM
Zoom
DESCRIPTION
Enlarge or reduce a document.
•
<Zoom In> : Enlarge a document (25% basis within the range of 100% ~ 500%).
•
<Zoom Out> : Reduce a document.
•
<Custom> : Enlarge or reduce the screen by a specific percentage.
•
<100%> - <200%> - <300%> - <400%> - <500%>
Enlarge or reduce a document view using the
Page Navigation
Rotate
Enter a page number using the / and / buttons, check the page number in the preview
window on the upper right corner of the screen, and then select <Go> to move to that page.
Display the zoom area.
•
Aspect Ratio
button on the remote control.
Go directly to a specific page.
•
Page Map
or
<Off> - <On>
•
If a page is zoomed in, the enlarged area is displayed in the <Page Map> window on the
upper right corner.
•
If a page is not zoomed in, the <Page Map> window does not appear.
•
<Fit to Screen> : Display a document to fit the screen size.
•
<Original Fit> : Display a document at its original size.
•
<Fit to Width> : Display a document to fit the screen width.
•
<Fit to Height> : Display a document to fit the screen height.
Rotate a document by a specified angle.
Select the angle you want using the
•
/
buttons, and then press the [
] button.
<0°> - <90°> - <180°> - <270°>
Supported in PDF format only.
Encoding
To view a text (.TXT) file without any character corruption, you must select the original language that
was used to create the file.
Select the language using the direction keys.
•
<Korean> - <Central Europe> - <Cyrillic> - <Baltic> - <Greek> - <Turkish> - <Hebrew> - <Arabic>
- <Latin> - <Vietnam> - <Germany> - <Français> - <Norway> - <Thai> - <Japanese> <Simplified Chinese GBK> - <Traditional Chinese Big5>
(e.g.: To view a text file created in German, select <Germany>)
For some of the European countries whose languages are not found on the list, select <Central
Europe>.
•
Video Clip
4-2
Files created in English do not require encoding.
This feature is used to play a video linked to a PowerPoint document (.ppt). Select the video file you
want to play from the presentation slide.
•
Only enabled for presentation slides with a video clip linked to them.
•
The linked video file must be in the same folder as the corresponding document file.
•
For supported file formats, refer to the '4-7 Supported File Formats' section.
•
Loading time may be longer for large files.
•
This product may not work properly when the file does not comply with the standards or it is damaged.
•
This product may not work when a file has too much data to display on a screen.
Media Play Function
For example, too much data on one sheet in a Excel file.
•
This product supports only one font. If a screen uses other fonts, the image Media Play displays may be different than the original
screen.
(Ex)
•
The position of line breaks in a sentence might be dissimilar.
•
The position of page breaks in a MS Word document might be changed.
- In this case, the document might be shown incompletely according to the Layout properties for <Picture> or
<Shapes> or <Object> in MS word . (Please refer to the manual of MS Word for more information on the Layout
properties.)
•
This product does not support some funtions of the original file. For example, the animation function in a PowerPoint file,
3D, Smart Art, Hyper Link, transparency, Gradation (Color depth : up to 16bit), etc.
•
This product does not support encrypted files (DRM).
Media Play Function
4-2
4-3
Enjoy a slideshow of photos saved on a USB memory device or in the projector's internal memory.
Menu displayed from the Photo Thumbnails screen
The Photo Thumbnails screen.
The Menu below appears when you press the [MEDIA.P] while displaying the Photo Thumbnails screen.
•
If you are displaying a screen or item, and then press the [MEDIA.P] button, the menu corresponding to that screen or
item appears.
•
Depending on the current language setting, folder or file names may appear corrupted.
If that is the case, press the [MENU] button and change the language setting in <Language> under <Option>.
MENU ITEM
Start Slideshow
Play Mode
Copy
Copy All Files
Delete
Delete All Files
Set as Background
DESCRIPTION
Start a slideshow.
•
<All Photos>: Play photos in order of file name.
•
<Photo in Folder>: Play photos in a specific folder in order of file name.
•
<Shuffle All Photos>: Play photos found in a specific memory device randomly.
•
<Shuffle Photo in Folder>: Play photos in a specific folder randomly.
•
<Repeat One Photo>: Play only one specific photo repeatedly.
If a USB memory device is connected to the projector, you can copy files from the USB device to the
projector's internal memory and from the internal memory to the USB device.
Copy all files to internal memory or to a USB device.
Deletes a selected image.
Deletes all image files in a USB storage device.
Set a specific picture as the background image of the main page of <Media Play>.
To use this function in your presentation, convert general word processor files to image files before saving them to a USB storage
device.
For example, convert .ppt (Microsoft Powerpoint) files to → .jpg /.bmp /.gif
Convert .pdf (Adobe Acrobat) files to → .jpg
Caution: Make sure to save image files to your USB storage device in the order of presentation.
Slideshow
Select the file you want using the ▲/▼ buttons on the projector or remote control.
4-3
Media Play Function
Using the remote control during a slideshow:
•
MEDIA.P : Open the photo menu.
•
/
: View the previous or next photo.
•
: Pause or resume a slideshow.
•
: Return to the previous stage.
•
: Only enabled in the document and movie menu.
If you press the [MEDIA.P] button when viewing a slideshow, the following menu appears.
MENU ITEM
Stop Slideshow / Start
Slideshow
Slideshow Setting
DESCRIPTION
Stop or start a slideshow.
<Transition> : Selects the slideshow mode.
•
<No Effect> - <Wipe> - <Blind> - <Box In/Out> - <Silk> - <Circle> - <Plus> - <Random>
<Speed> : Adjusts the slideshow playback rate.
•
<Fast> - <Normal> - <Slow>
<Mode> : Selects manual (view one by one) or auto (slideshow) play.
•
<Auto> - <Manual>
If you selected <Manual>, move between photos using the </> buttons on the projector or
the / buttons on the remote control.
Play Mode
Rotate
•
<All photos> : Plays all available image files.
•
<Photo in Folder> : Plays all image files in a selected folder.
•
<Shuffle all photos> : Randomly plays all available image files in a USB storage device.
•
<Shuffle photo in Folder> : Randomly plays all image files in a selected folder.
•
<Repeat one photo> : Displays an image file repeatedly.
Rotate a photo by a specified angle.
Select the angle you want using the [
Aspect Ratio
Delete
] button.
•
<90°> - <180°> - <270°> - <Original>
•
<Original Fit> : Display a photo smaller than the screen at the original size or reduce a photo larger
than the screen in direct proportion to the screen size.
•
<Auto Fit> : Resize a photo to fit the screen, maintaining the original aspect ratio of the photo (the
image may be cut off horizontally or vertically).
•
<Fit to Width> : Resize a photo to fit the screen width.
•
<Fit to Screen> : Enlarge or reduce the size of a photo, regardless of the aspect ratio of the photo,
to fit the full screen.
Delete the selected file.
Set as Background
Set a specific picture as the background image of the main page of <Media Play>.
Background Music
•
<On> : Play music defined as background music in file name order.
•
<Off> : Stop the background music that is being played.
•
<Music Setting> : Define background music for a slideshow.
Media Play Function
4-3
4-4
Music
Enjoy music files saved on a USB memory device or the projector's internal memory.
Menu displayed from the Music List screen.
The Music List screen.
The Menu below appears when you press the [MEDIA.P] button while displaying the Music List screen.
•
If you are displaying a screen or item, and then press the [MEDIA.P] button, the menu corresponding to that screen or
item appears.
•
Depending on the current language setting, folder or file names may appear corrupted.
If that is the case, press the [MENU] button and change the language setting in <Language> under <Option>.
MENU ITEM
DESCRIPTION
Play Music
Plays music files.
Play Mode
•
<All musics> : Play music in file name order.
•
<Music in Folder> : Play music in a specific folder in file name order.
•
<Shuffle all musics> : Play music in a specific memory device randomly.
•
<Shuffle music in Folder> : Play music in a specific folder randomly.
•
<Repeat one music> : Play only one specific music file repeatedly.
Copy
Copy All Files
Delete
Delete All Files
If an external USB memory device is connected to the projector, files on the external memory device
can be copied to the projector's internal memory and vice versa.
Copy all files to internal or external memory.
Deletes a selected music file.
Deletes all music files in a USB storage device.
Menu displayed when playing music.
Select the file you want using the ▲/▼ buttons on the projector or remote control.
Using the remote control while playing music:
•
•
MEDIA.P : Open the music menu.
/
: Play the previous or next music file.
•
: Pause or resume playing music.
•
: Return to the previous stage.
•
: Only enabled in the document and movie menu.
If you press the [MEDIA.P] button when playing music, the following menu appears.
4-4
Media Play Function
Depending on the current language setting, the music file information [
] may appear corrupted. If that is the case,
press the [MENU] button and change the language in <Language> under <Option>.
MENU ITEM
Play Mode
Media Play Function
DESCRIPTION
•
<All musics> : Plays all available music files.
•
<Music in Folder> : Plays all music files in a selected folder.
•
<Shuffle all musics> : Randomly plays all available music files.
•
<Shuffle music in Folder> : Randomly plays all music files in a selected folder.
•
<Repeat one music> : Plays a selected music file repeatedly.
4-4
4-5
Movie
Enjoy video files saved on a USB memory device or in the projector's internal memory.
Menu displayed from the Movie List screen
The Movie File screen.
The Menu below appears when you press the [MEDIA.P] button while displaying the Movie List screen.
•
If you are displaying a screen or item, and then press the [MEDIA.P] button, the menu corresponding to that screen or
item appears.
•
Depending on the current language setting, folder or file names may appear corrupted.
If that is the case, press the [MENU] button and change the language setting in <Language> under <Option>.
MENU ITEM
DESCRIPTION
Play Movie
Plays video files.
Play Mode
•
<All Movies> : Play video files in order of file name.
•
<Movie in Folder> : Play video files in a specific folder in order of file name.
•
<Shuffle All Movies> : Play video files in a specific memory device randomly.
•
<Shuffle Movie in Folder> : Play video files in a specific folder randomly.
•
<Repeat One movie> : Play only one specific video file repeatedly.
Copy
Copy All Files
Delete
Delete All Files
If an external USB memory device is connected to the projector, files on the external memory device
can be copied to the projector's internal memory and vice versa.
Copy all files to internal or external memory.
Delete the selected file.
Delete all files in a folder.
Menu displayed when playing a movie
Select the file you want using the ▲/▼ buttons on the projector or remote control.
4-5
Media Play Function
Using the remote control while playing video
•
MEDIA.P :Open the video menu
•
/
: Play the previous or next video file
•
: Pause or resume playing video
•
: Return to the previous stage
•
: View information about the available buttons
If you press the [MEDIA.P] button when playing a movie, the following menu appears.
MENU ITEM
Play Mode
Subtitle Setting
DESCRIPTION
•
<All Movies> : Plays all available video files.
•
<Movie in Folder> : Plays all video files in a selected folder.
•
<Shuffle all movies> : Randomly plays all available video files.
•
<Shuffle movie in Folder> : Randomly plays all video files in a selected folder.
•
<Repeat one movie> : Plays a selected video file repeatedly.
•
<Subtitle Setting>: Switch the subtitle function <On> or <Off>
•
<Language> : Select the subtitle language.
•
<Background> : Change the subtitle background settings.
•
•
<Position> : Change the subtitle location settings.
•
•
•
<On> - <Off>
<Down> - <Up> - <Reset>
•
The video must have external subtitles in order to view them with the Caption feature
turned on.
•
See the table for supported subtitle file types. Refer to the "4-7 Supported File Formats".
•
Subtitle files must be in same directory as the video file.
<Font> : Change the <Font Size>, <Font Color> and <Shadow Effect> settings for subtitles.
•
<Font Size> : <Small> - < Middle> - <Large>
•
<Font Color> : <White> - <Black> - <Red> - <Green> - <Blue> - <Yellow>
•
<Shadow Effect> : <Off> - <On>
<Sync> : Use in the occurrence of a mismatch between a video and subtitles.
•
<- 0.5Sec> - <Reset> - <+0.5Sec>
Not supported for video files with internal subtitles.
Aspect Ratio
Change the screen aspect ratio settings.
•
Media Play Function
<4:3> - <16:9> - <Original Ratio>
4-5
4-6
Settings
Use the ▲/▼/
4-6
buttons to move to and access the Setting menus listed below.
Media Play Function
MENU ITEM
Options
DESCRIPTION
<Button Sound> : Change the button control sound settings for the <Media Play> menu.
•
<Off> - <On>
<Internal Memory Copy> : Change the size of photos you want to copy to internal memory.
•
<Original Size> : Copy photos at the original size to internal memory.
•
<Resized> : Reduce the size of photos according to the optimal screen resolution and then copy.
<Open Source License> : To send inquiries and requests for questions regarding open sources, contact Samsung via Email (vdswmanager@samsung.com).
Preference
<Home Background> : Select the image that will be displayed on the main page of the <Media Play>.
•
<Default> : Display the default image provided by the projector.
•
<Custom> : Display the image you selected as background image.
<DivX(R)VOD> : You can view the certified registration code for the projector when you use the VOD
(Video on Demand) service provided by DivX.
DivX®VOD
ABOUT DIVX VIDEO:
•
DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified
device that plays DivX video.
Visit www.divx.com for more information and software tools to convert your files into
DivX video.
DivX Certified® to play DivX® video up to 320x240
May play DivX® video up to 720x480
ABOUT DIVX VIDEO-ON-DEMAND:
•
This DivX Certified® device must be registered in order to play DivX Video-on-Demand
(VOD) content. To generate the registration code, locate the DivX VOD section in the
device setup menu. Go to vod.divx.com with this code to complete the registration
process and learn more about DivX VOD.
Pat. 7,295,673
Update/Reset
•
<Firmware Update> : Update the firmware.
Please see the '4-6-1 Firmware Update' section.
Safely Remove USB
•
<Reset Settings> : Initialize the settings customized by the user
•
<Product Information> : Display the firmware version and copyright information of the projector.
Remove your USB device safely.
If the <You can remove the USB.> message appears, remove the USB device.
Media Play Function
4-6
4-6-1. Firmware Update
Download the latest firmware version from the Samsung Electronics website (http://www.samsung.com) and install.
•
As data saved in the internal memory can be deleted during an update, always back up your data.
•
Do not remove the external memory (USB) device during the update.
•
Do not operate any buttons during the update.
•
Do not turn the projector off during the update.
•
Once the update is complete, turn the projector off, remove the external memory (USB) device and turn the projector on again.
•
Select <Settings>→<Update/Reset>→<Product Information> and see if the software version has been updated
successfully.
Before Software Upgrade!
1. Prepare a USB memory device.
2. Download the latest firmware version from the Samsung Electronics website onto your PC.
3. Connect the USB memory device to the PC.
4. Copy the downloaded software to the USB memory device.
To upgrade software
1. Connect the USB memory device to the projector.
2. Open the main page of <Media Play>.
3. Move to <Settings> using the [▲/▼] buttons, and then press the [
] button.
4. Move to <Update/Reset> using the [▲/▼] buttons, and then press the [
5. Select <Firmware Update> using the [
•
4-6
] button.
] button.
The update will start automatically.
Media Play Function
4-7
Supported File Formats
Supported File Formats
ITEM
Document
FILE EXTENSION
MS Word 97 ~ 2007 ( doc, docx )
Adobe PDF 1.2 ~1.7 ( pdf )
MS PowerPoint 97 ~ 2007 ( ppt, pptx )
MS Excel 95 ~2007 ( xls, xlsx )
Text ( txt )
Music
JPEG
•
Resolution : up to 6M pixels
•
The Progressive format is not supported.
•
The CMYK format is displayed in black and white.
•
crop (images with a resolution larger than 1024 x 768 cannot be viewed at the original size)
MP3 (sample rate: 8~320Khz)
WMA (sample rate: 8~384Khz)
ITEM
Movie
FILE EXTENSION
CODEC
REMARKS
(MAXIMUM
RESOLUTION/BIT
RATE ETC.)
AUDIO CODEC
AVI
Divx 3.11
Resolution: 720 X 480
MP3
ASF(WMV)
Divx 4.x
Frame/sec: 30
AC3
Mbps: 2
ADPCM
MP4
(MPEG, MPG)
Divx 5.1
(MULAW,ALAW)
Divx 6.0
HE_AAC(AAC+)
XviD
WMA
MPEG-4 SP
Sampling rate:
MPEG-4 ASP
8000
11025
Windows Media Video 9
MPEG1
Resolution: 720 X 480
Frame/sec: 30
Mbps: 8
12000
16000
22050
32000
44100
48000
Caption
.smi (SAMI)
HTML
.srt (SubRip)
String-based
.sub (SUB Viewer)
String-based
.sub or .txt (Micro DVD)
String-based
Media Play Function
4-7
5
Troubleshooting
5-1
Before Requesting Service
Please check the following before requesting After-Sales service. If the problem continues, please contact your nearest
Samsung Electronics Service Center.
Symptoms
Installation and
Connection
Menu and
Remote
Control
Troubleshooting
No Power.
Check the power cable connections.
I want to install my projector on the ceiling.
The ceiling installation support is sold separately. Contact your
local product distributor.
Can't select an External Source.
Be sure that the video connection cable or cables are properlyconnected to the proper port. If the device is not connected
properly, it can not be selected.
Remote control does not work.
Be sure that the proper external source is selected.
Check the battery in the remote. If there is something wrong
with it, replace it with a new battery of the recommended size.
Be sure to aim the remote at sensor on the back of the unit and
at a distance of no more than approximately 32.8 feet(10 m).
Remove any obstacles between your remote control and the
product.
Direct light from 3-way light bulbs or other lighting devices on
the remote sensor of the projector may affect its sensitivity and
cause the remote control to malfunction.
Check if the remote control battery compartment is empty.
Check whether the LED indicator on the top of the projector is
turned on.
I cannot select a menu.
5-1
Check if the menu is displayed in gray. A gray-colored menu is
unavailable.
Troubleshooting
Symptoms
Screen and
External
Source
Cannot see picture images.
Troubleshooting
Be sure that the power cord of the projector is connected.
Be sure that the proper input source is selected.
Check that the connectors are properly connected to the ports
at the back of the projector.
Check the Remote Control batteries.
Be sure that the <Color> and<Brightness> settings are not at
their lower limit.
Poor color.
Adjust the <Tint> and <Contrast>.
Images are not clear.
Adjust the focus.
Check if the projector is too far from or too near to the screen.
Strange noise.
If a strange sound continues, contact our service center.
An operating LED is lit up.
Refer to Corrective Actions According to LED Indications(3-4).
Lines appear on screen.
On screen noise may occur when using your PC. Adjust the
frequency (refresh rate) of the screen.
No external device screen is displayed.
Check the operating status for the external device and check
whether the adjustable menu items, such as <Brightness> and
<Contrast> have been changed correctly in the <Mode> command screen of the Projector menu.
Only a blue screen appears.
Be sure to connect the external devices properly. Check the
connection cables again.
Screen appears in black and white or in an
odd color or screen is too dark or bright.
As mentioned above, check the adjustable items such as
<Brightness>, <Contrast>, or <Color> in the menu.
If you want to restore various settings to their factory defaults,
run <Factory Default> from the menu.
Troubleshooting
5-1
Symptoms
Network
Troubleshooting
The Web browser will not start up.
Check the system requirements for the PC to connect to the Web
browser.
The Web browser will not connect to the
projector.
1. Check whether the power cable is connected to the projector
(See Section 2-10, Connecting the Power).
2. Check if the network environments for the PC and projector are
correct (See Section 2-19, Connecting to a Network).
3. Check whether the correct network card in the PC has been
selected when the PC (server) has more than two network cards.
Installation of Samsung Projector Manager has
failed.
Check Samsung Projector Manager's system requirements for
PCs.
The projector will not connect to Samsung Projector Manager.
1. Check if the <IP Setting> and network connection between
the PC and projector are correct.
2. If <IP Setting> for the projector is set to <Automatic>, check
whether the PC and projector share the same network. If it is
not the same network, configure the IP of the server PC using
the <Server IP Setting> option.
3. Check if the projector's network access is blocked by the
PC's Windows firewall.
4. If Samsung Projector Manager connection's failure persists,
remove and retry installation.
I want to remove Samsung Projector Manager.
Samsung Projector Manager can be removed using the [Add
or Remove Programs] option. To remove Samsung Projector
Manager in Windows XP, follow these steps :
1. Select [Control Panel] from the [Start] menu. (Windows XP)
2. Run [Add or Remove Programs].
3. Select Samsung Projector Manager under [Add or Remove
Programs], and then click [Change/Remove].
4. Select "Yes" to start the removal.
5. Follow additional directions as they appear on your screen.
Other versions of Windows have a similar removal
process.
5-1
Troubleshooting
Symptoms
Media Play
Function
I hear no sound when playing a video file from
my USB storage device.
Troubleshooting
Check the audio format of the video file.
Sound is not available for non-supported formats such as AC3,
etc.
Convert the audio format into a supported format using a video
converter.
The subtitle is not displayed for video that is
being played.
Press the [MEDIA.P] button on the screen where video is
being played and check if <Subtitle Setting> is set to <On>.
To view video with the subtitle function on, the video file must
contain an external subtitle file.
For the subtitle file formats supported, please refer to the "4-7
Supported File Formats" section.
The subtitle file must be located in the same folder as the video
file.
The <Media Play> function doesn't work.
Reset the <Media Play> mode by pressing the [MENU] button
and selecting <Setup>→<Reset>→<Media Play>→<Recovery
Mode>.
If the problem persists, download the latest version of firmware
onto your USB device, connect the USB device to the projector
and run <Setup>→<Reset>→<Media Play>→<System
Reset>.
The latest version of firmware can be downloaded from
"http://www.samsung.com/".
Name of a folder or a file and document contents are distorted.
This can happen when the language of the folder or file differs
from the language you selected as the display language for the
product.
Change to the proper language in <Option>→<Language> on
the Screen Adjustment menu by pressing [MENU] button.
A file can not be opened.
Files that have a format not supported by the product or that
have security settings might not open. Check the file format in
"4-7. Supported File Formats" or release the security settings.
The font of documents look different from the
original one.
This product supports one font. Documents written in other
fonts are converted into the supported font and displayed.
The connected USB doesn't work.
Check that USB is connected to USB jack properly. If the connection is good, the USB icon appears at the right upper part of
<Media Play> screen.
Damaged USB devices can not connect and will malfunction.
Try the USB again after formatting or other USB device.
Refer to "4-1. USB Connecting a USB Storage Device and
Precautions" before operating the USB.
Files are not copied even though there is
enough space in the internal memory.
Troubleshooting
Available space could be smaller than the files you intend to
copy, delete other files and try to copy.(Available storage
capacity is 59MB)
5-1
6
More Information
6-1
Specifications
SP-L255
SP-L305
0.63 inches 3P
LCD
0.63 inches 3P
LCD
0.63 inches 3P
LCD with MLA
0.63 inches 3P
LCD with MLA
265W
290W
290W
290W
(Standby :
under 1W)
(Standby :
under 1W)
(Standby :
under 1W)
(Standby :
under 1W)
MODEL
Panel
Size
Resolution
Aspect ratio
Power
Power Consumption
Power Consumption
Life Time
Dimension (Width x Height x Depth)
Weight
Contrast
Screen Size (Diagonal)
Projection Range
100~240V AC, 50/60Hz
202W
220W
220W
220W
(Eco :172W)
(Eco : 152W)
(Eco : 152W)
(Eco : 152W)
3,000 Hours
(Eco : 5,000
Hours)
2,000 Hours (Eco : 2,500 Hours)
291 mm x 289 mm x 127 mm / 11.46 x 11.38 x 5 inches
2500 ANSI
3000 ANSI
3300 ANSI
3500 ANSI
500:1
500:1
400:1
400:1
Diagonal 40 inches ~ 300 inches
1 ~ 10 m
Keystone
Auto : Vertical(±20°) / Manual: Vertical (±20°)
Network
RJ 45, 10Mbps
Zoom Adjustment
Manual
Focus Adjustment
Manual
Lens
Zoom Ratio
Input signal
D-Sub 15p
HDMI
Mini DIN x 1
RCA x 1
Media Play
User
Environment
XGA (1024 x 768)
3.8 Kg / 8.4 lbs
Brightness
Key Features
SP-L355
4:3
Voltage
Lamp
SP-L335
F=1.65~1.93, f=18.5mm~22.5mm
1:1.2
Analog RGB, analog YPbPr
Digital RGB, digital YCbCr
S-Video
Composite video
USB supports
Speaker
3W x 2 (Stereo)
Temperature and Humidity
Operating : Temperature 41 °F ~ 95 °F (5 °C ~ 35 °C), Humidity 20 % ~
80 % (Non-condensing)
Storage : Temperature 14 °F~140 °F (-10 °C ~ 60 °C),Humidity 10 % ~
90 % (Non-condensing)
Noise
6-1
Eco : 30dB, Normal : 32dB, Bright : 35dB
More Information
Class B (Information Communication equipment for residential use)
This device is registered for EMC requirements for home use (Class B). It can be used in all areas.
(Class B equipment emits less electromagnetic waves than Class A equipment.)
The LCD panel used in the LCD projector consists of hundreds of thousands of fine pixels. Like other video display devices,
the LCD panel may contain bad pixels which do not operate. When shipping a product, the conditions for identifying bad
pixels and the number of bad pixels that a LCD panel is allowed to contain are strictly managed in accordance with the
relevant specified standards by the LCD panel manufacturer and our company. Though a screen may have some dead
pixels, this does not affect the overall screen quality and the lifetime of the product.
(USA ONLY)
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website,
www.samsung.com/recyclingdirect, or call (877) 278 - 0799
More Information
6-1
6-2
RS-232C Command Table
Communication Format (Complies with the RS232C Standard)
•
Baud rate : 9,600 bps
•
parity : None
•
Data bits : 8, stop bit : 1
•
Flow Control : None
Serial Communication Protocol
1. Command Packet Structure [7bytes]
0x08
0x22
cmd1
cmd2
•
A command packet consists of 7 bytes in total.
cmd3
value
•
The two bytes 0x08 and 0x22 signify that the packet is for serial communication.
•
The following 4 bytes represent a pre-defined command that can be defined by the user.
•
The last byte is the checksum which checks the validity of the current packet.
•
Header [2 Byte]: Pre-defined values fixed to 0x08 and 0x22.
•
Cmd1 [1 Byte]: The first value of the code defined in the command list (Hexadecimal)
•
Cmd2 [1 Byte]: The second value of the code defined in the command list (Hexadecimal)
•
Cmd3 [1 Byte]: The third value of the code defined in the command list (Hexadecimal)
•
Value [1 Byte]: Input parameter for the command (Default: 0) (Decimal)
•
CS [1 Byte]: Checksum (the 2’s complement of the sum of all the values except for the CS value.)
CS
2. Response Packet Structure [3 Bytes]
1. Success
0x03
0x0C
0xF1
0x0C
0xFF
2. Fail
0x03
•
When the received packet from an external device has a valid value, a Success packet is sent. Otherwise, a Fail
packet is sent.
•
A Fail packet is sent if:
•
The received packet length is not equal to 7 bytes.
•
The 2 byte packet header value is not equal to 0x08, 0x22.
•
The check sum is incorrect.
•
•
6-2
Failure detection by an external device
An external device classifies the packet as Fail if it does not receive a Success packet within 100ms.
More Information
Command Table
CONTROL ITEM
General
Power
Volume
Power
CMD1
Display OSD
/ Power On
Mute
0x00
CMD3
0x00
Cancel
2
Direct Power
Off
3
0x01
0x00
(0~100)
Up
0x01
0
Down
0x02
0
0x00
0
0x02
0x00
0x00
Off
On
1
0x03
0x00
0x00
Off
Still
On
Input
More Information
Source List
Mode
0
1
0x04
0x00
0x00
Off
Power On
Protection
0
1
On
Blank
VALUE
OK
Direct
Continuous
0x00
CMD2
0
1
(0~9) Keypad
0x05
0x00
0x00
(0-9)
AV
AV
0x0A
0x00
0x01
0
S-Video
S-Video
0x02
0
PC
PC
0x03
0
HDMI
HDMI
0x04
0
Media Play
Media Play
0x05
0
0x00
0
Dynamic
0x0B
0X00
Standard
1
Presentation
2
Text
3
Movie
4
Game
5
User
6
Contrast
0~100
0X02
0x00
(0~100)
Brightness
0~100
0X03
0x00
(0~100)
Sharpness
0~100
0X04
0x00
(0~100)
Color
0~100
0X05
0x00
(0~100)
Tint (G/R)
G50 / R50
0x06
0x00
(0~100)
Color Tone
Cool2
0x0A
0x00
1
Cool1
2
Warm1
3
Warm2
4
6-2
CONTROL ITEM
WB
CMD1
R offset
0x0B
CMD2
0x0B
CMD3
0x00
(0~100)
G offset
0x01
(0~100)
B offset
0x02
(0~100)
R gain
0x03
(0~100)
G gain
0x04
(0~100)
B gain
0x05
(0~100)
Gamma
-3~3
0x0C
0x00
(0~6)
Save
Display OSD
0x0D
0x00
0
OK
1
Cancel
2
Direct Save
3
Reset
Size
Digital NR
Normal
0x0E
0x00
0
0x0F
0x00
0
Zoom1
1
Zoom2
2
16:9
3
Off
0x10
0x00
On
Black Level
Overscan
0 IRE/NORMAL
0x11
0x00
Off
0x12
0x00
Off
0x13
0x00
UP
0x14
0x00
0
0x15
0x00
0
DOWN
fine
Up
1
0x16
0x00
DOWN
Reset
0
1
Auto adjustment
Coarse
0
1
Auto
PC
0
1
On
Film Mode
0
1
7.5 IRE/LOW
6-2
VALUE
Display OSD
0
1
0x17
0x00
0
OK
1
Cancel
2
Direct Reset
3
More Information
CONTROL ITEM
Zoom
CMD1
x1
0x0B
2
x8
3
More Information
2
Down
3
Front-Floor
Reset
0
Up
Install
Video Type
0x00
1
Continuous
Test Pattern
0x19
RIGHT
Vertical Position
Background
0
x4
Continuous
Keystone
0x00
VALUE
1
Horizontal
Position
Lamp Mode
0x18
CMD3
x2
LEFT
Setup
CMD2
LEFT
0x1A
0x00
RIGHT
0
1
DOWN
0x1B
0x00
Up
0
1
0x0C
0x00
0x00
0
Front-Ceiling
1
Rear-Floor
2
Rear-Ceiling
3
ECO
0x01
0x00
0
Normal
1
Bright
2
V-Keystone
-50~50
Auto Keystone
Off
0x02
0x00
(0~100)
0x02
0
On
Logo
1
0x03
0x00
0
Blue
1
Black
2
Crosshatch
0x04
0x00
0
Screen size
1
Pattern Off
2
Auto
0x05
0x00
0
RGB(PC)
1
RGB(AV)
2
YPbPr(AV)
3
PC
4
AV
5
Factory
Default
Display OSD
0x06
0x00
0
OK
1
Cancel
2
Direct Factory Reset
3
6-2
CONTROL ITEM
Setup
Reset Filter
Time
Recovery
Mode
System
Reset
Caption
Caption
CMD1
Display OSD
0x0C
CMD2
0x06
CMD3
0x01
1
Cancel
2
Direct Reset
Filter Time
3
Display OSD
0x02
1
Cancel
2
Direct Reset
Recovery
Mode
3
Display OSD
0x03
1
Cancel
2
Direct Reset
System
Reset
3
Off
Caption
1
1
2
6-2
0
OK
0x07
0x00
0
1
0x01
0
1
0x02
2
Field
0
OK
Text
Channel
0
OK
On
Mode
VALUE
0
1
0x03
0
1
More Information
CONTROL ITEM
Setup
Network
Network
CMD1
Off
0x0E
CMD2
0x01
CMD3
0x00
On
IP Setting
Automatic
Subnet Mask
Gateway
Server IP
Setting
More Information
Server IP
0
1
0x02
0x00
Manual
IP Address
VALUE
0
1
0x03
0x04
0x05
0x06
0x00
0~255
0x01
0~255
0x02
0~255
0x03
0~255
0x00
0~255
0x01
0~255
0x02
0~255
0x03
0~255
0x00
0~255
0x01
0~255
0x02
0~255
0x03
0~255
0x00
0~255
0x01
0~255
0x02
0~255
0x03
0~255
6-2
CONTROL ITEM
Option
Language
Menu Option
English
0x0D
CMD2
0x00
CMD3
0x00
VALUE
0
Deutsch
1
Nederlands
2
Español
3
Français
4
Italiano
5
Svenska
6
Português
7
Русский
8
中国语
9
한국어
10
Türkçe
11
ไทย
12
Position
Transparency
Display Time
6-2
CMD1
LEFT
0x01
0x00
0
RIGHT
1
UP
2
DOWN
3
High
0x02
0x00
0
Medium
1
Low
2
Opaque
3
5 sec
0x03
0x00
0
10 sec
1
30 sec
2
60 sec
3
90 sec
4
120 sec
5
Stay On
6
More Information
CONTROL ITEM
Option
SOUND
Balance
CMD1
Up
0x0D
CMD2
0x04
CMD3
0x00
Down
100Hz
Up
0x01
Up
0x02
Up
0x03
Up
0x04
off
Up
0x05
1
0x05
0x00
0
1
200
2
400
3
800
4
Off
Sleep Timer
Off
0x06
0x00
On
0
1
0x07
0x00
0
10 min
1
20 min
2
30 min
3
Information
Off
On
More Information
0
100
Auto Power
ON
Panel Lock
0
1
Down
Filter Check
Time
0
1
Down
10KHz
0
1
Down
3KHz
0
1
Down
1KHz
0
1
Down
300Hz
VALUE
0x08
0x00
0
0x0A
0x00
0
1
6-2
6-3
Contact SAMSUNG WORLDWIDE
•
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care
center.
NORTH AMERICA
U.S.A
1-800-SAMSUNG (726-7864)
http://www.samsung.com
CANADA
1-800-SAMSUNG (726-7864)
http://www.samsung.com
MEXICO
01-800-SAMSUNG (726-7864)
http://www.samsung.com
LATIN AMERICA
ARGENTINA
0800-333-3733
http://www.samsung.com
BRAZIL
0800-124-421
http://www.samsung.com
4004-0000
CHILE
800-SAMSUNG (726-7864)
http://www.samsung.com
COLOMBIA
01-8000112112
http://www.samsung.com
COSTA RICA
0-800-507-7267
http://www.samsung.com
ECUADOR
1-800-10-7267
http://www.samsung.com
EL SALVADOR
800-6225
http://www.samsung.com
GUATEMALA
1-800-299-0013
http://www.samsung.com
HONDURAS
800-27919267
http://www.samsung.com
JAMAICA
1-800-234-7267
http://www.samsung.com
NICARAGUA
00-1800-5077267
http://www.samsung.com
PANAMA
800-7267
http://www.samsung.com
PERU
0-800-777-08
http://www.samsung.com
PUERTO RICO
1-800-682-3180
http://www.samsung.com
REP. DOMINICA
1-800-751-2676
http://www.samsung.com
TRINIDAD & TOBAGO
1-800-SAMSUNG (726-7864)
http://www.samsung.com
VENEZUELA
0-800-100-5303
http://www.samsung.com
EUROPE
ALBANIA
42 27 5755
-
AUSTRIA
0810 - SAMSUNG (7267864,€ 0.07/
min)
http://www.samsung.com
BELGIUM
02-201-24-18
http://www.samsung.com/be (Dutch)
http://www.samsung.com/be_fr
(French)
BOSNIA
05 133 1999
-
BULGARIA
07001 33 11
http://www.samsung.com
CROATIA
062 SAMSUNG (062 726 7864)
http://www.samsung.com
CZECH
800 - SAMSUNG (800-726786)
http://www.samsung.com
Samsung Zrt., česká organizační složka, Oasis Florenc,
Sokolovská394/17, 180 00, Praha 8
6-3
More Information
EUROPE
DENMARK
70 70 19 70
http://www.samsung.com
EIRE
0818 717100
http://www.samsung.com
ESTONIA
800-7267
http://www.samsung.com
FINLAND
030 - 6227 515
http://www.samsung.com
FRANCE
01 48 63 00 00
http://www.samsung.com
GERMANY
01805 - SAMSUNG (726-7864,€ 0,14/
Min)
http://www.samsung.com
GREECE
2106293100
http://www.samsung.com
HUNGARY
06-80-SAMSUNG (726-7864)
http://www.samsung.com
ITALIA
800-SAMSUNG (726-7864)
http://www.samsung.com
KOSOVO
+381 0113216899
-
LATVIA
8000-7267
http://www.samsung.com
LITHUANIA
8-800-77777
http://www.samsung.com
LUXEMBURG
261 03 710
http://www.samsung.com
MACEDONIA
023 207 777
-
MONTENEGRO
020 405 888
-
NETHERLANDS
0900 - SAMSUNG (0900-7267864) (€
0,10/Min)
http://www.samsung.com
NORWAY
815-56 480
http://www.samsung.com
POLAND
0 801 1SAMSUNG (172678)
http://www.samsung.com
022 - 607 - 93 - 33
PORTUGAL
80820 - SAMSUNG (726-7864)
http://www.samsung.com
RUMANIA
08010 SAMSUNG (08010 7267864) –
doar din reţeaua Romtelecom, tarif
local;
http://www.samsung.com
021.206.01.10 – din orice reţea, tarif
normal
SERBIA
0700 Samsung (0700 726 7864)
http://www.samsung.com
SLOVAKIA
0800-SAMSUNG (0800-726 786)
http://www.samsung.com/sk
SPAIN
902 - 1 - SAMSUNG (902 172 678)
http://www.samsung.com
SWEDEN
0771 726 7864 (SAMSUNG)
http://www.samsung.com
SWITZERLAND
0848-SAMSUNG (7267864, CHF 0.08/
min)
http://www.samsung.com/ch
Turkey
444 77 11
http://www.samsung.com
U.K
0330 SAMSUNG (7267864)
http://www.samsung.com
http://www.samsung.com/ch_fr (French)
CIS
ARMENIA
0-800-05-555
-
AZERBAIJAN
088-55-55-555
-
BELARUS
810-800-500-55-500
-
GEORGIA
8-800-555-555
-
More Information
6-3
CIS
KAZAKHSTAN
8-10-800-500-55-500
(GSM: 7799)
http://www.samsung.com
KYRGYZSTAN
00-800-500-55-500
http://www.samsung.com
MOLDOVA
00-800-500-55-500
-
RUSSIA
8-800-555-55-55
http://www.samsung.com
TADJIKISTAN
8-10-800-500-55-500
http://www.samsung.com
UKRAINE
0-800-502-000
http://www.samsung.com/ua
http://www.samsung.com/ua_ru
UZBEKISTAN
8-10-800-500-55-500
http://www.samsung.com
ASIA PACIFIC
AUSTRALIA
1300 362 603
http://www.samsung.com
NEW ZEALAND
0800 SAMSUNG (0800 726 786)
http://www.samsung.com
CHINA
400-810-5858
http://www.samsung.com
010-6475 1880
HONG KONG
(852) 3698 - 4698
http://www.samsung.com/hk
http://www.samsung.com/hk_en/
INDIA
3030 8282
http://www.samsung.com
1800 3000 8282
INDONESIA
0800-112-8888
http://www.samsung.com
021-5699-7777
JAPAN
0120-327-527
http://www.samsung.com
MALAYSIA
1800-88-9999
http://www.samsung.com
PHILIPPINES
1-800-10-SAMSUNG (726-7864)
http://www.samsung.com
1-800-3-SAMSUNG (726-7864)
1-800-8-SAMSUNG (726-7864)
02-5805777
SINGAPORE
1800-SAMSUNG (726-7864)
http://www.samsung.com
TAIWAN
0800-329-999
http://www.samsung.com
THAILAND
1800-29-3232
http://www.samsung.com
02-689-3232
VIETNAM
1 800 588 889
http://www.samsung.com
MIDDLE EAST
BAHRAIN
8000-4726
http://www.samsung.com
EGYPT
021-8255
http://www.samsung.com
IRAN
08000-726786
http://www.samsung.com
JORDAN
800-22273
http://www.samsung.com
KUWAIT
183-2255
http://www.samsung.com
MOROCCO
080 100 2255
http://www.samsung.com
OMAN
800-SAMSUNG (726-7864)
http://www.samsung.com
6-3
More Information
MIDDLE EAST
SAUDI ARABIA
9200-21230
http://www.samsung.com
U.A.E
800-SAMSUNG (726-7864)
http://www.samsung.com
AFRICA
NIGERIA
0800 - SAMSUNG (726-7864)
http://www.samsung.com
SOUTH AFRICA
0860 - SAMSUNG (726-7864)
http://www.samsung.com
More Information
6-3
6-4
Correct Disposal - Europe only
Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their
working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
please separate these items from other types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product and its electronic accessories should not be mixed with other commercial wastes for disposal.
Correct disposal of batteries in this product - Europe only
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg,
Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive
2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the
environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste
and recycle them through your local, free battery return system.
6-4
More Information
Download PDF
