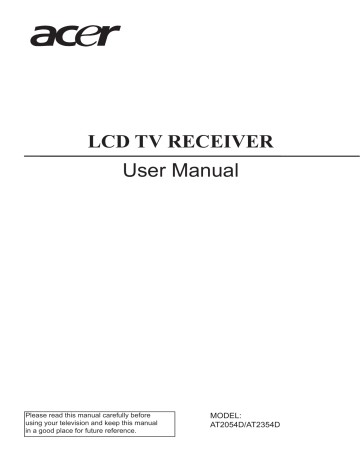

LCD TV RECEIVER
User Manual
Please read this manual carefully before
using your television and keep this manual
in a good place for future reference.
MODEL:
AT2054D/AT2354D
TABLE OF CONTENT
FOR YOUR SAFETY......................................................................................... 2
PRECAUTIONS AND REMINDERS............................................................ 3
IMPORTANT SAFETY INSTRUCTIONS.................................................... 4
PACKAGE CONTENTS.................................................................................. 5
PREPARATION.................................................................................................. 6
ATTACHING THE BASE..........................................................................................................6
PREPARING YOUR LCD TV FOR WALL MOUNTING..................................................6
PERIPHERAL CONNECTION GUIDE....................................................... 8
OPERATING INSTRUCTIONS..................................................................... 9
USING THE FRONT PANEL CONTROLS..........................................................................9
USING THE REMOTE CONTROL..................................................................................... 10
VIEWING MODE ILLUSTRATIONS.................................................................................. 12
CONNECTING EQUIPMENT............................................................................................ 13
USING THE MENUS.............................................................................................................. 19
PICTURE MENU..................................................................................................................... 19
SOUND MENU...................................................................................................................... 20
TV MENU................................................................................................................................. 20
FEATURES MENU.................................................................................................................. 21
PARENTAL MENU................................................................................................................. 22
COMMON INTERFACE MODULE................................................................................... 23
OAD OPERATION................................................................................................................ 24
TIPS............................................................................................................................................ 25
PRODUCT SPECIFICATION.......................................................................26
BEFORE CALLING SERVICE.......................................................................28
GLOSSARY.......................................................................................................29
APPENDIX.......................................................................................................30
INFORMATION..............................................................................................32
1
SYMBOL
SA 1965
SA 1966
SYMBOL DEFINITION
DANGEROUS VOLTAGE: The lightning flash with arrowhead
symbol, within an equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a risk of
electrical shock to persons.
INSTRUCTIONS: The exclamation point within on
equilateral triangle to alert the user to the presence of
important operating and maintenance (servicing)
instruction in the literature accompanying the appliance.
Batteries installed warning
Caution - Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.
The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as
sunshine, fire or the like.
FOR YOUR SAFETY
Before operating the TV please read this manual thoroughly. This manual should be retained for future
reference.
NOTICE
1.Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
2.Shielded interface cables and AC power cord, if any, must be used in order to comply with emission
limits.
3.The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modification to this equipment. It is the responsability of the user to correct such interference.
WARNING:
To prevent fire or shock hazard, do not expose the TV to rain or moisture. Dangerously high voltages
are present inside the TV. Do not open the cabinet. Refer servicing to qualified personnel only.
2
PRECAUTIONS AND REMINDERS
Place unit on an even
surface.
Unplug immediately if
foreign materials fall inside
the TV cabinet or if the TV
falls.
Do not cover or block
any vents and openings.
Inadequate ventilation may
shorten the life of the unit
and cause overheating.
Do not open the TV
cabinet.
Avoid direct sunlight, dusty,
high humidity and smoky
areas.
Do not put any object
inside the TV cabinet, such
as metals or flammable
materials.
Remember to unplug the
AC cord from the AC outlet
before cleaning. Do not use
liquid cleaners or aerosol
cleaners to clean the screen.
Call service personnel to
clean inside the TV once a
year.
Do not place the TV in
confined spaces or in a box
when using it.
Make sure to unplug the
unit when not in use for a
long period of time (days).
Do not place the display
near water, such as bathtub,
washbasin, kitchen sink,
laundry tub, swimming pool
or in a damp basement.
Unplug immediately if there
is a malfunction such as no
picture, no video/audio,
smoke or an odor from the
TV.
Notice for Remote Controller
Avoid Falls
7
7
0
Avoid Sprays Cleaners
6
5
4
9
8
3
2
1
6
5
4
Avoid Liquids
3
2
1
3
2
1
9
8
6
5
4
0
7
9
8
0
3
IMPORTANT SAFETY INSTRUCTIONS
Read before operating equipment
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7.Do not block any of the ventilation openings. Install in accordance with the manufacturers
instructions.
8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9.Do not defeat the safety purpose of the polarized or grounded plug. A polarized plug has two blades
with one wider than the other. A grounded plug has two blades and third grounding prong. The wide
blade or third prong is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at plugs, extension cables, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12.Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury should the unit tip-over.
13.The TV should be operated only from the type of power source indicated on the label. If you are not
sure of the type of power supplied to your home, consult your dealer or local power company.
14.Unplug this apparatus during lightning storms or when unused for long periods of time.
15.Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
16.The Class I apparatus shall be connected to a mains socket outlet with a protective earthing
connection.
17.The mains plug or extension cable must be used to disconnect the device from mains power, and so
should be easily accessible.
18.CAUTION – These servicing instructions are for use by qualified service personnel only. To reduce
the risk of electric shock, do not perform any servicing other than that contained in the operating
instructions unless you are qualified to do so.
19.For use only with Listed Wall Mount Bracket with minimum weight/load: Please see page.26
20.Tilt/Stability – All televisions must comply with recommended international global safety standards
for tilt and stability properties of the cabinet design.
●● Do not compromise these design standards by applying excessive force to the front, or top, of
the cabinet, which could ultimately overturn the product
●● Also, do not endanger yourself, or children, by placing electronic equipment/toys on the top of
the cabinet. Such items could unexpectedly fall from the top of the set and cause product damage
and/or personal injury.
4
21.Wall or Ceiling Mounting – The appliance should be mounted to a wall or ceiling only as
recommended by the manufacturer.
22.Power Lines – An outdoor antenna should be located away from power lines.
23.Outdoor Antenna Grounding – If an outside antenna is connected to the receiver, be sure the
antenna system is grounded to provide some protection against voltage surges and built up static
charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information
with respect to proper grounding of the mats and supporting structure grounding of the lead-in
wire to an antenna-discharge unit, size of grounding connectors, location of antenna discharge unit,
connection to grounding electrodes and requirements for the grounding electrode. See Figure below.
ANTENNA
GROUND CLAMP
ANTENNA DISCHARGE UNIT
ELECTRIC SERVICE EQUIPMENT
GROUND CLAMPS
GROUNDING CONDUCTORS
POWER SERVICE GROUNDING ELECTRODE SYSTEM
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE Note to the
CATV system installer: This reminder is provided to call the CATV system installer’s attention to
Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies
that the cable ground shall be connected to the 6 English grounding system of the building, as close
to the point of cable entry as practical. Please, make sure to connect the power plug to the wall
outlet socket after connecting the TV to the adapter!
24.Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as
vases, shall be placed on the apparatus.
25. Excessive sound pressure from earphones and headphones can cause hearing loss.
Adjustment of the equalizer to maximum increases the earphones and headphones output
voltage and therefore the sound pressure level.
PACKAGE CONTENTS
●● TV unit
●● Remote Control
●● Two (AA) Batteries for the Remote Control
●● Power Cord
●● User Manual
●● Quick Start Guide
●● CE Document
5
PREPARATION
2Secure the wall mount bracket to the
back of your TV using four screws, as
indicated in the illustration.
IMPORTANT: Do not apply pressure to the
screen display area which may compromise
the integrity of the display. The manufacturer’s
warranty does not cover user abuse or
improper installations.
ATTACHING THE BASE
IMPORTANT: The Base of the TV must be
assembled prior to usage.
1.Place TV unit face down on a soft and
flat surface (blanket, foam, cloth, etc.) to
prevent any damage to the TV.
2.Carefully align and insert the Base to
the stand.
NOTE
 Wall mount bracket & screws are not
included.
3.Gently push the Base towards the TV
until the locking mechanism locks into
place.
Please make sure to connect the power plug
to the wall outlet socket after connecting the
TV to the power cord!
1.Install the base stand; place the TV
on a solid surface.
Min
1m
PREPARING YOUR LCD TV FOR
WALL MOUNTING
Ensure that the TV is placed in a position
to allow free flow of air. Do not cover the
ventilation openings on the back cover.
To prevent unsafe situations, no naked
flame sources, such as lighted candles,
should be placed on or in the vicinity.
Avoid heat, direct sunlight and exposure
to rain or water. The equipment shall not
be exposed to drips or splashes.
We suggest that you keep your TV at least 2.36
inches (60 mm) from the wall to prevent cable
interference.
Before mounting your TV on the wall, you need
to remove the base.
For your safety, please use listed wall mount
bracket with minimum weight of the TV
without stand. (Please see page.26)
To attach a wall mount bracket to your TV:
1Loosen the screws holding your TV to
the stand and remove the stand base
from the TV.
6
2.Connect the antenna cable or CATV cable
to the aerial socket TV ANTENNA at
the back of the TV set.
3. Remote control:
Remove the cover of the battery
compartment. Insert the 2 batteries
supplied (Type AA 1.5V).
4. Power:
Insert the power cord in the AC power
wall socket. The power-state LED is on
the front of the TV. If it is blue, the TV set
is powered on. If it is red, the TV set is in
standby.
5. Turn the TV on:
Press the POWER key on the Remote
control or the side panel control buttons.
The TV will be turned on in a minute with
display on the screen.
Power Key
7
PERIPHERAL CONNECTION GUIDE
AC POWER
཰
ླྀ
SERVICE PORT
ོᇫ
ཻ
ཹ ེ ཷ
ྲྀ
ཱ
ི
ཱི
ུ
ཱུ
① COMMON INTERFACE (CI) – Conditional Access Module (CAM) use only. Please
contact your service provider for details.
②、③、④ AV IN – Connect the primary source for composite video devices, such as a
VCR or video game. Use the white and red connectors to connect the external audio from
the same source.
⑤ SERVICE PORT – Technician service use only.
⑥ Earphone Output – Connect to the headphones. When the headphone is inserted to the
plug, all the speakers will be muted.
⑦TV ANTENNA – Connect to an antenna or digital cable (out-of-the-wall, not from Cable
Box) for Digital TV.
⑧ SCART – Connect the video recorder or decoder to the television. Full SCART transmits
RGB, CVBS video in/out, and audio in/ out; HALF SCART transmits S-Video, CVBS video in/
out, and audio in/ out.
Note: SCART has monitor out. (CVBS/YPbPr/ATV/DTV)
⑨ PC IN – Connect the video and audio cables from a computer here.
⑩COMPONENT (Y/Pb/Pr with Audio L/R) – Connect the primary source for
component video devices such as a DVD Player or set top box here.
⑪SPDIF (Digital Audio Out) – When a digital audio signal is associated with the input
selected for viewing, the digital audio will be available on this SPDIF connection to your
home theatre system.
⑫、⑬ HDMI – Connect the primary source for digital video such as a DVD multimedia
player or set top box through this all digital connector.
Once your equipment is connected, use the following procedure to view the input signal:
Press the SOURCE button on the remote controller to select the relevant source to view. (ex: Press
YPbPr button to select “YPbPr” if you have connected a video recorder to Component socket.)
8
OPERATING INSTRUCTIONS
USING THE SIDE PANEL CONTROLS
1
2
3
4
5
6
7
1
VOL +
VOL +: Press to increase the sound volume level.
2.
VOL -
VOL - : Press to decrease the sound volume level.
3.
CH ▲
CH ▲: Press to select the next higher Programme number.
4.
CH ▼
CH ▼: Press to select the next lower Programme number.
5.
MENU
Menu key: Press to open or exit the OSD (on-screen display) menu.
6.
INPUT
Input key: Press to select the input source.
7.
i
POWER
Power key: Press to turn on / off (standby) the TV set.
9
USING THE REMOTE CONTROL
Power
Display
Guide
Source
Wide
MPX
MENU
Back
up
left
right
down
POWER
Press to turn ON/OFF (standby) the TV.
111 In digital TV/ analog TV, press DISPLAY key to
show channel information banner and detail
channel information banner in loop
222 In other input source, Press Display show the
Input Source
Press to display the Electronic Programme
Guide.
Press to toggle through input sources
Scaling Mode ( Wide /auto/normal/zoom1 /
1zoom2)
NICAM
STEREO Broadcast : Stereo/Mono
BILIGUAL Broadcast : Dual 1 / Dual 2
MONAURAL Broadcast: Mono
FM-FM
STEREO Broadcast: Stereo/Mono
BILINGUAL Broadcast : Dual 1 / Dual 2
DVB-T
Switching available audio track in a program
Open/Exit Menu
Return to the previous page of OSD meau,the
exit of EPG or the exit of Channel list/input list/
OSD/the display information
Press to adjust or confirm the various function
items on the menu.
Selection Confirm, in TV mode, if no active OSD
OK
is displayed, OK key is also defined as Channel
List.
Mute
Mute on/off
FAV
Favorite
Display the Favourite Channel List.
CH+
Press or
to browse through the TV
channels.
CHVol+
Vol-
Press + or - to adjust the volume.
10
1
Number key 1
2
Number key 2
3
Number key 3
4
Number key 4
5
Number key 5
6
Number key 6
7
Number key 7
8
Number key 8
9
Number key 9
0
Number key 0
Teletext Press to display or close Teletext.
•• In TV mode: It works only for turning on the
subtitle and change to the next page marked as
subtitle
subtitle.
•• In Text mode: Select the next page marked as a
subtitle page and request it as the display page.
Red color button to do teletext operation In
R
teletext mode,
Green color button to do teletext operation In
G
teletext mode
Yellow color button to do teletext operation In
Y
teletext mode
Blue color button to do teletext operation In
B
teletext mode
INDEX
Index
Press to return to page 100 or the index page.
SIZE
Size
Press to change the font size: Full screen, Top half
and Bottom half.
Hold
Press to stop changing pages. The text decoder
stops receiving data.
Reveal
Reveal hidden information such as answers to a
quiz.
11
VIEWING MODE ILLUSTRATIONS
Normal Mode
The original content would be at the centre of the screen.
16:9 Content
4:3 Content
Wide Mode
The original content in this mode has to fill the entire screen of the display.
16:9 Content
4:3 Content
ZOOM Mode
For those wide format images which are originally programmed into 4:3 frames with black
bars around, this mode would stretch the image in both width and height for full display with
active data.
Same image in ZOOM mode
12
Using the Antenna or Cable for your
VCR
CONNECTING EQUIPMENT
Coaxial (RF)
Using Your Antenna or Digital Cable for
DTV.
1. Turn off the TV and VCR.
2.Connect the “Output to TV”, “RF Out” or
“Antenna Out” connector on the rear of
your VCR to the TV ANTENNA connector
at the rear of the TV.
1. Turn off the TV.
2.Connect the coaxial (RF) connector from
your antenna or digital cable (out-of-thewall, not from the Cable Box) to the TV
ANTENNA connector.
3. Turn on the TV and VCR.
4.Select ATV/DTV using the SOURCE button
on the remote control or the control key
on the side of the TV.
3. Turn on the TV.
4.Select ATV/DTV using the SOURCE button
on the remote control or the control key
on the side of the TV.
NOTE
 If you have an off-air antenna or cable TV,
connect it to the “Antenna In” connector
on the rear of your VCR.
Using Your Antenna or Cable for DTV.
1. Turn off the TV.
2.Connect the coaxial (RF) connector from
your antenna or cable (out-of-the-wall, not
from the Cable Box) to the TV ANTENNA
connector at the rear of the TV
3. Turn on the TV.
4.Select ATV/DTV using the SOURCE button
on the remote control or the control key
on the side of the TV.
13
Connecting Your TV Set-Top Box
For TV Set-Top Boxes with DVI
Using HDMI
1.Turn off the TV and TV Set-Top Box.
TV Set-Top Boxes that have a HDMI digital
interface should be connected to the HDMI
input of the LCD TV for optimal results.
2.Using a HDMI-DVI cable, connect the DVI
end to your TV Set-Top Box and the HDMI
end to the HDMI Input at the rear of the
TV.
Connecting your TV Set-Top Box
3.Turn on the TV and TV Set-Top Box.
4.Select HDMI using the SOURCE button on
the remote, side of the TV, or directly by
pressing the HDMI button on the Remote
Control.
NOTE
 The HDMI input on the TV supports Highbandwidth Digital Content Protection
(HDCP). HDCP encrypts the transmission
between the video source and the digital
display for added security and protection.
1.Turn off the TV and TV Set-Top Box.
2.Connect a HDMI cable to the HDMI
output of your TV Set-Top Box and the
other end to the HDMI Input at the rear
of the TV.
3.Turn on the TV and TV Set-Top Box.
 Refer to your TV Set-Top Box user manual
for more information about the video
output requirements of the product or
consult your cable or satellite operator.
4.Select HDMI using the SOURCE button on
the remote, side of the TV, or directly by
pressing the HDMI button on the Remote
Control.
 The DVI to HDMI connection provides
video only. Connection to an alternate
audio player is required for audio.
NOTE
 The HDMI input on the TV supports Highbandwidth Digital Content Protection
(HDCP). HDCP encrypts the transmission
between the video source and the digital
display for added security and protection.
 Refer to your TV Set-Top Box user manual
for more information about the video
output requirements of the product or
consult your cable or satellite operator.
14
Using Component Video
Connecting Your Basic Set-Top Box
Connecting your TV Set-Top Box :
Using Composite Video
1.Turn off the TV and TV Set-Top Box.
1.Turn off the TV and Set-Top Box.
2.Connect the Pr (red colour) connector on
your TV Set-Top Box to the corresponding
Pr (red colour) connector in the
Component group.
2.Using an AV Cable, connect the Video
(yellow colour) connector on your Set-Top
Box to the corresponding Video (yellow
colour) connector in the AV group at the
side of the TV.
3.Connect the Pb (blue colour) connector
on your TV Set-Top Box to the
corresponding Pb (blue colour) connector
in the Component group.
3.Using the red and white connectors,
connect the cable to the audio output
connectors associated with the Video
output on your Set-Top Box and connect
the other end to the audio connectors
associated with the AV input at the side of
the TV.
4.Connect the Y (green colour) connector
on your TV Set-Top Box to the
corresponding Y (green colour) connector
in the Component group.
5.Using an audio cable (red and white
connectors), connect the cable to the
audio output connectors associated with
the Component output on your TV SetTop Box and connect the other end to
the audio connectors associated with the
Component.
4.Turn on the TV and Set-Top Box.
5.Select AV using the SOURCE button on
the remote, side of the TV or directly by
pressing the VIDEO button on the Remote
Control.
6.Turn on the TV and TV Set-Top Box.
7.Select YPbPr using the SOURCE button on
the remote, side of the TV or directly by
pressing the YPbPr button on the Remote
Control.
NOTE
 Refer to your TV Set-Top Box user manual
for more information about the video
output requirements of the product or
consult your cable or satellite operator.
15
Using Coax (RF)
Connecting your DVD Player
1.Turn off the TV and Set-Top Box.
1.Turn off the TV and DVD player.
2.Using a Coax (RF) cable, connect one end
to the TV OUT (RF) on your Set Top Box
and the other end to the TV input at the
rear of the TV.
2.Connect a HDMI cable to the HDMI output
of your DVD player and the other end to
the HDMI Input at the rear of the TV.
3.Turn on the TV and Set-Top Box.
4.Select HDMI using the SOURCE button on
the remote, side of the TV or directly by
pressing the HDMI button on the Remote
Control.
3.Turn on the TV and DVD player.
4.Select ATV/DTV using the SOURCE button
on the remote control or the control key
on the side of the TV.
For DVD Players with DVI:
1. Turn off the TV and DVD player.
2.Using a HDMI-DVI cable, connect the DVI
end to your DVD player and the HDMI end
to the HDMI Input at the rear of the TV.
3.Turn on the TV and your DVD player.
4.Select HDMI using the SOURCE button on
the remote, side of the TV, or directly by
pressing the HDMI button on the Remote
Control.
NOTE
 Refer to your Set Top Box user manual
for more information about selecting the
video or RF output of the product.
Connecting Your DVD Player
Using HDMI
DVD players that have a digital interface
such as HDMI (High Definition Multimedia
Interface) should be connected to the HDMI
input of the LCD TV for optimal results.
NOTE
 Refer to your DVD player user manual for
more information about the video output
requirements of the product.
 The DVI to HDMI connection provides
video only. Connection to an alternate
audio player is required for audio output.
16
Using Component Video
Using SCART
Connecting your DVD Player
Connecting your DVD Player:
1.Turn off the TV and DVD player.
1.Turn off the TV and DVD player.
2.Connect the SCART socket of your DVD
player to the SCART socket of the TV.
3.Turn on the TV and DVD player.
4.Select AV using the SOURCE button on
the remote, side of the TV, or directly by
pressing the VIDEO button on the Remote
Control.
2.Connect the Pr (red colour) connector on
your DVD player to the corresponding Pr
(red colour) connector in the Component
at the rear of the TV.
3.Connect the Pb (blue colour) connector
on your DVD player to the corresponding
Pb (blue colour) connector in the
Component group at the rear of the TV.
4.Connect the Y (green colour) connector
on your DVD player to the corresponding
Y (green colour) connector in the
Component group at the rear of the TV.
5.Using an audio cable (red and white
connectors), connect the cable to the
audio output connectors associated with
the Component output on your DVD
player and connect the other end to the
audio connectors associated with the
Component input at the rear of the TV.
6.Turn on the TV and DVD player.
7.Select YPbPr using the SOURCE button on
the remote, side of the TV or directly by
pressing the YPbPr button on the Remote
Control.
NOTE
 Refer to your DVD player user manual for
more information about the video output
requirements of the product.
17
Using Composite (AV) Video
NOTE
 Refer to your VCR or Video Camera user
manual for more information about the
video output requirements of the product.
Connecting your DVD Player
Connecting to a PC
1.Turn off the TV and DVD player.
2.Connect the Video (yellow colour)
connector on your DVD player to the Video
(yellow colour) connector in the AV group.
3.Connect the R (red colour) and L (white
colour) audio connectors on your DVD
player to the corresponding R (red
colour) and L (white colour) audio input
connectors in the AV group.
4.Turn on the TV and DVD Player.
5.Select AV using the SOURCE button on
the remote, side of the TV or directly by
pressing the VIDEO button on the Remote
Control.
1.Turn off the TV and PC.
2.Connect a 15-pin D-Sub RGB (VGA) cable
to the RGB output of your PC and the
other end to the VGA input at the rear of
the TV.
3.Connect the Audio Out on your computer to
the AUDIO input at the rear of the TV.
4. Turn on the TV and PC.
5.Select VGA using the SOURCE button on
the remote, side of the TV or directly by
pressing the PC button on the Remote.
Using SCART
Connecting Your VCR or Video Camera
NOTE
 For the best picture quality when
connecting a computer through VGA, set
your computer timing mode to native
resolution of panel. Please refer to the PC
or graphic card’s user guide for additional
information on how to set the timing
mode and the video output requirements
of the product.
1.Turn off the TV and VCR or Video Camera.
2.Connect the SCART socket of your VCR
or Video Camera to the SCART socket of
the TV.
3.Turn on the TV and VCR or Video Camera.
4.Select AV using the SOURCE button on
the remote, side of the TV or directly by
pressing the VIDEO button on the Remote
Control.
18
USING THE MENUS
8. Advanced Control:
[Noise Reduction] - To filter out and
reduces the image noise and improve
picture quality. Select the effect degrees
from Off, Low, Medium, High, or Auto.
1.Press the MENU/BACK button to display
or close the main menu
2.Use the Navigation Ring to move around
to select, adjust or confirm an item in the
OSD (On Screen Display) menu.
[Flesh Tone] - To adjust the skin colour
to be more natural.
Press the MENU/BACK button to enter the
main OSD. Adjust the items including Picture,
Sound,TV, Features, and Parental.
However, some function items in the menus
may only be enabled in the particular source
modes.
[Back Light] - To make the background
colour brighter or darker.
[ACM] - Adaptive Contrast
Management(ACM),auto adjusts the
brightness of the screen to show more
depths in the darker areas.
PICTURE MENU
[Viewing Distance] - Select the viewing
distance for the NICE mode.
The Picture menu in most source modes
shows as below. It provides several video
adjustment items for user fine tuning the video
display.
OSD
item
View
Distance
1. Scenario Mode: To set the best picture
appearance to a predefined picture setting
from Standard, Movie, Sport,Concert,
Game, NICE or User.
2. Brightness: To brighten the dark parts of
the picture.
3. Contrast: To sharpen the picture quality.
4. Colour: To add or reduce colour.
5. Tint: To adjust the picture tint.
6. Sharpness: To improve detail.
7. Colour Temperature: To choose
between Normal (neutral), Warm (redder),
and Cool (bluer).
19
Option
Remark
Normal distance
between viewer and TV.
Close Viewer is close to TV.
Far
SOUND MENU
TV MENU
The Sound menu provides audio adjustment
for user to modify the audio setting.
1. Country: To select the relevant country.
This is the country you are in, or the
country whose channels you want to
receive if you live near its borders.
1. Sound Mode: To set the TV to a
predefined sound setting from User, Music,
or Speech.
2. Audio Carrier (ATV only): Select
Stereo, Dual 1, Dual 2, or Mono for ATV
channel.
2. Balance: To adjust the balance between
left and right channels.
3. Sound Effect: Advanced sound mode with
virtual audio effects.
3. 1st and 2nd Audio: Use this function
when two or more audio languages are
broadcast. This is the language to be used
for digital channels if it is available.
4. Steady Sound: Choose On or Off to
adjust volume to be consistent across
programmes and channels automatically.
4. Channels: Enter the channels submenu,
and choose from Channel Scan, Update
Scan, Single RF Scan, Analog Manual Scan,
Channel Skip, Channel Sort, Channel Edit,
Decoder, and Analog CH Fine Tune.
5. Type: This function enables you to choose
the type of the additional narration during
the TV watching from Normal, Hard of
Hearing, or Audio Description.
Hard of Hearing: This function provides
narration to deaf and hard of hearing
viewers.
[Channel scan] - Channel Scan will retune the television automatically. It is
recommended to run the Channel Scan
periodically to ensure that all new services
are added.
6. Audio description: When the Type is set
to “Audio Description”, you can adjust the
volume of the audio description.
[Update scan] - Search the new channels
automatically that are not in the channel list.
20
[Single RF Scan (Digital Only)] Enter the Single RF Scan in the Channels
submenu to scan digital channels.
Note: The following RC number-mapping
table will not be shown on the TV screen.
RC
Available characters
0
1
2
3
4
5
6
7
8
9
.
@
_
A B
D E
G H
J K
M N
P Q
T U
W X
0
C
F
I
L
O
R
V
Y
1
a
d
g
j
m
S
t
Z
b
e
H
k
n
p
u
w
c
f
i
l
o
q
v
x
2
3
4
5
6
r
8
y
s
7
z
9
[Decoder (Analog only)] - Channel
Decode support the Canal+ (paid television
channel); however, the channel also
broadcast some un-encrypted programs.
These programs without encryption can be
viewed free of charge.
[Analog Manual Scan] - The television
can be tuned-in manually using Analog
Manual Scan. Use the number keys to enter
the Start Frequency to scan up or scan
down.
[Analog CH Fine Tune] - Select Analog
CH Fine Tune in the Channels submenu to
adjust the frequency.
5. Intelligent Zapping: Intelligent Zapping
is a channel switch method. Here attaching
this function into Recall key. The recall
key function can be switched exclusively
between intelligent zapping and the original
recall function. Referring to the following
table, the main menu of OSD includes two
items for this function.
[Channel skip] - To prevent certain
programs from being viewed by pressing
CH + / - buttons on the remote control,
the program position can be skipped.
OSD item Option
Intelligem Off
Zapping
15
seconds
30
seconds
45
seconds
60
seconds
2
minutes
3
minutes
5
minutes
Tip: The skipped program may not be found
by pressing CH + / - buttons but can be
access by pressing number buttons directly.
Tip: The skipped program may not be found
by pressing CH Λ / V but can be accessed by
pressing number buttons directly.
[Channel sort] - Change the order of
the Channel List.
[Channel Edit] - Enter the Channel
Edit in the channels submenu to edit the
channel number and channel name by using
the number buttons 0~9.
21
Remark
Pressing Recall key will
return to last TV channel.
Remembering current
channel after 15 seconds
Remembering current
channel after 30 seconds
Remembering current
channel after 45 seconds
Remembering current
channel after 60 seconds
Remembering current
channel after 2 minutes
Remembering current
channel after 3 minutes
Remembering current
channel after 5 minutes
FEATURES MENU
will be displayed.
The Features menu in TV mode shows
as below. This menu gives users the most
flexibilities to satisfy their generally demands.
According to the various requirements in
different source modes, certain features should
be hidden (disable) on the menu. The details
footnotes will be described clearly below.
[1st Subtitle 2nd Subtitle] - To select
your primary subtitle language and your
secondary subtitle language.
[Subtitle Type] - To choose the subtitle
type from normal or hearing impaired.
5. Teletext Language:
[Digital Teletext Language] - To select
the teletext language.
[Decode Page Language] - To set the
teletext language to the regional location.
6. Common Interface: This menu appears
with your CI supplier information.
7. HDMI Scan Info (HDMI only):
[Automatic] - Set to underscan or
overscan automatically when the video
signal is detected.
1. Menu Language: To select the on-screen
display menu language.
[Underscan] - When the video signal
is detected, all active pixels and lines are
displayed with or without border.
2. Picture Format: To select the available
display format from Auto, Normal, Native
(HDMI only), Zoom 1, Zoom2, or Wide.
[Overscan] - When the video signal is
detected, some active pixels and lines at
the edges are not displayed.
3. Time:
[Time Zone] - To select the time zone
you are in.
8. ON Screen Help:
An information block describes detailed
usage of focus OSD item. This function can
be enable/diable on the main menu.
[Time] - To set the time and date or
select auto synchronization.
Tip: Before you want to set the time and
date by your own, please make sure Auto
synchronization is Off.
9. Reset Default: To reset all TV settings to
the original factory values.
[Sleep Timer] - To set the TV to turn
itself off within a certain time.
4. Subtitle:
[Analog Subtitle] - To display the
transmitted subtitle on the screen. Either
this text can be permanently displayed
(assuming that the service is available in
the broadcast) or only when mute is active.
[Digital Subtitle] - Use the Digital
Subtitle function when two or more
subtitle languages are broadcasted. If
subtitle data in a selected language is not
broadcasted, the default language subtitle
22
PARENTAL MENU
COMMON INTERFACE MODULE
Enable you to control special functions for the
TV channels.
-
The Common Interface CI Slot, is designed
to accept the Conditional Access CA
Module coupled with a Smart card, in order
to view pay TV programmes and additional
services. Contact your Common Interface
service provider for further information
about modules and subscription options.
Please note that CA modules and smart
cards are not included.
Smart Card
1. Channel Block: To block certain TV
channels.
CA Module
2. Parental Guidance: To control access
programs based on their age ratings. All
settings apply to digital channels.
Note: This function operates according to
information from the broadcasting station.
Therefore if the signal has no information,
this function does not operate.
WARNING: Switch off your TV before
any module is inserted into the Common
Interface slot.
3. Input Block: To disable the specific
external input signals.
1. Correctly insert the CA Module and then
the Smart Card into the CI slot located at
the side of the TV.
4. Set Password: To set or change your
password. Please follow the instructions to
set it. All number combinations from 0000
to 9999 are valid.
2. Turn on the TV and press MENU and
select the TV submenu.
Tip: Remember that 5351 is the default
Change Password code. If your access code
has been changed or you have forgotten
the code, you can always get in by inputting
the default code.
“Common interface” will be displayed if
the CA module is detected. Wait for few
moments until the card is activated.
5. Clear All: To clear all the settings in the
parental submenu.
3. Select Common Interface to view the
menu options and information on the
inserted CI card.
23
4. Press OK to access the card menu,
for more details refer to the module’s
instruction manual.
OAD OPERATION
OAD for Software Update function:
1. If you receive a message about updating
your TV, you will find the software update
in the Download menu. The update is
transfered over a special receiving channel.
2. You must search for a channel with the
update information. Additional information
is available from the TV shop or the
Internet.
Operation
1. When you find the channel a message will
be displayed.
Over Air Download
Software ID : XXXXXXXX
A New Version of software is detected.Do you want to upgrade
it?
Accept
Remind me Later
Select
Next
2. Use ▲ or ▼ to accept or postpone the
update, then press the ► button to select
to action.
Over Air Download
Software ID : XXXXXXXX
Searching
0%
5. When module is removed, the “Common
Interface” menu will disappear from the
screen.
Back
24
TIPS
Over Air Download
Software ID : XXXXXXXX
Care of the screen
Do not rub or strike the screen with
anything hard as this may scratch or damage
the screen permanently.
Unplug the power cord before cleaning the
screen. Dust the TV by wiping the screen
and the cabinet with a soft, clean cloth. If
the screen requires additional cleaning, use a
clean, damp cloth. Do not use liquid cleaners
or aerosol cleaners.
Searching... This process may take up to 25 minutes
12%
Back
Over Air Download
Software ID : XXXXXXXX
Seraching.
Mobile telephone warning
To avoid disturbances in picture and sound,
malfunctioning of your TV or even damage
to the TV, keep away your mobile telephone
from the TV.
Accept
Reject
Select
Next
Over Air Download
End of life directives
We take care to produce environmentally
friendly products.
Your new TV contains materials that can be
recycled and reused.
At the end of its life, specialized companies
can dismantle the TV to recover reusable
materials an minimise waste.
Please ensure you dispose of your previous
TV according to local regulations.
Software ID : XXXXXXXX
Programming...
69%
Warring : During the process. Please do not unplug the TV Set
power code as this lead to defective TV Set.
3. After the update has finished, use ▲ or ▼
to select Accept and restart the TV. The
software update will be completed when
the TV restarts.
Over Air Download
Software ID : XXXXXXXX
Software upgrades successfully! Restart the TV now?
Accept
Reject
Select
Next
OK
Exit
NOTE:You must not switch off the TV during
this process!
25
PRODUCT SPECIFICATION
NOTE
* This model complies with the specifications listed below.
* Designs and specifications are subject to change without notice.
* These models may not be compatible with features and/or specifications that may be added
in the future.
Model No.
AT2054D
AT2354D
DISPLAY
Viewable
20"
23"
Television System
PAL, SECAM standard, DVB-T standard
CONNECTIONS
Tuner input (75Ω)
PC IN: D-SUB and PC Audio (Headphone mini-jack)
Recommended: 1600x900@60Hz(20")
1080x1920@60Hz(23")
Component Video and L/R Audio input
Supported resolution: 480i, 576i/p, 720p, 1080i
Rear Connectors
HDMI input
Supported scan rates: 480p, 480i, 576p, 576i, 720p, 1080i, 1080p
SCART 1
SPDIF
HDMI 1
SCART 1: RGB + CVBS in/out + audio in/out
Side Connectors
COMMON INTERFACE
AV In (Composite Audio/ Video)
Earphone Output
WEIGHT & DIMENSIOIN
Dimensions
with Stand
(W x H x D)
502.5x381.6x189.3 mm
569.5x419.5x189.5 mm
Weight with Stand
4.92 kg
5.53 kg
Weight without Stand
4.7 kg
and Base
5.31 kg
26
WALL MOUNTING
VESA-compatible
wall bracket
(W x H)
100 x 100 mm
Screw type
Metric 4x10 mm
POWER
Power Consumption 65 W
Standby
< 1.0 W
Mains Power
AC 100-240 V~,
50 / 60Hz
Audio Power
5W + 5W
Ambient Temperature 5°C - 35°C
PACKAGE CONTENTS
Supplied Accessories TV unit x1
Power cord x1
Remote control x1 (with two size AA alkaline batteries)
User manual x1
Quick Start Guide x1
CE Document x1
27
BEFORE CALLING SERVICE
Please make these simple checks before calling service. These tips may save you time and money
since charges for receiver installation and adjustments of customer controls are not covered
under your warranty.
Symptoms
Items to Check and Actions to follow
“Ghost ” or double image
*This may be caused by obstruction to the antenna
due to high rise buildings or hills. Using a highly
directional antenna may improve the picture.
No power
*Check if the TV’s AC power cord is plugged into
the mains socket.
*Unplug the TV, wait for 60 seconds. Then reinsert
plug into the mains socket and turn on the TV
again.
No picture
*Check antenna connections at the rear of the TV
to see if it is properly connected to the TV.
*Possible broadcast station trouble.
Try another channel.
*Adjust the contrast and brightness settings.
*Check the Closed Captions control. Some TEXT
modes could block the screen,
Good picture but no sound
*Increase the VOLUME.
*Check if the TV is muted; press the MUTE button
on the remote control.
Good sound but poor colour
*Adjust the contrast, colour and brightness
settings.
Poor picture
*Poor picture quality may occur when an activated
S-VHS camera or camcorder is connected to
your TV and the other peripheral at the same
time. Switch off one of the peripherals.
Snowy picture and noise
*Check the antenna connection
Horizontal dotted line
*This may be caused by electrical interference (e.g.
hairdryer, nearby neon lights, etc.)
*Turn off the equipment.
Television not responding to remote control
*Check whether the batteries are working.
Replace if necessary
*Clean the remote control sensor lens on the TV.
*You can still use the buttons at the front of your
TV.
*Select the TV mode to ensure your remote
control is set in the TV mode.
28
GLOSSARY
TV
TV displays are technically defined as being capable of displaying a minimum of 720p or
1080i active scan lines.
HDMI Inputs
High-Definition Multimedia Interface
Audio / Video Inputs
Located on the rear of the receiver, these connectors (RCA phono type plug) are
used for the input of audio and video signals. Designed for use with VCRs (or other
accessories) in order to receive higher picture resolution and offer sound connection
options.
Menu
An on-screen listing of features shown on the TV screen is made available for user
adjustments.
RF
Radio Frequency or modulated signal design used as the carrier for television broadcasts.
Sleep Timer
You can set a time period after which the TV will turn off automatically.
29
APPENDIX
Appendix 1
VGA Timing table
Item
H.Freq.(KHz)
Mode
Resolution
V.Freq.(KHz)
20"
23"
1
31.469
IBM VGA
640x350
2
31.469
IBM VGA
720x400
70.087


3
31.469
IBM VGA
640x480
59.94


4
35
MACINTOSH
640x480
67


5
37.861
VESA
640x480
72.809


6
37.5
VESA
640x480
75


7
35.156
VESA
800x600
56.25


8
37.879
VESA
800x600
60.317


9
48.077
VESA
800x600
72.188


10
46.875
VESA
800x600
75


11
49.7
MACINTOSH
832x624
75


12
48.363
VESA
1024x768
60.004


13
56.476
VESA
1024x768
70.069


14
60.023
VESA
1024x768
75.029


15
61.08
IBM XGA-2
1024x768
16
44.772
VESA CVT
1280x720
59.855


17
47.776
VESA
1280x768
59.87
18
60.289
VESA
1280x768
75
19
49.702
VESA
1280x800
59.81


20
47.72
VESA CVT
1360x768
59.799
21
63.981
VESA
1280x1024
60.02
22
79.976
VESA
1280x1024
75.025
23
55.935
VESA
1440x900
59.887
24
70.635
VESA
1440x900
74.984
25
65.29
CVT1.76MW
1680x1050
59.954
26
64.674
CVT1.76MW-R
1680x1050
59.883
27
66.587
CVT2.3MA-R
1920x1080
60
28
55.990
VESA
1600x900
60
29
67.500
VESA
1152x864
75
30





Appendix 2
HDMI (High Definition Multimedia Interface) support format
1. Support 480i/480p, 576i/576p, 720p, 1080i, 1080p format with HDCP.
2. Digital interface with 4 channels TMDS signal.
Scart input/output description
TV Source
ATV
DTV
Screen Display Source
SCART1 Out
ATV
ATV
CVBS
CVBS
HDMI / VGA / Component
-- / -- / Component
DTV
DTV
CVBS
CVBS
HDMI / VGA / Component
-- / -- / Component
31
INFORMATION
Connecting to Power
Check that the voltage marked on the product corresponds with your supply voltage.
This product is fitted with a 16A plug (or 10 A plug). If this plug is unsuitable or needs
to be replaced, please note the following :
Plug Replacement
If you need to replace the fitted plug.
WARNING :
Never connect live or neutral wires to the earth terminal of the plug.
Only fit an approved 16A plug. If in doubt, consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured as follows:
Blue-Neutral
Brown-Live
As the colors of the wires in the mains lead of this
apparatus may not correspond with the coloured
markings identifying the terminals in your plug,
proceed as follows:
The wire which is coloured blue must be connected
to the terminal which is marked with N or coloured blue. The wire which is
coloured brown must be connected to the terminal which is marked L or
coloured brown. Always ensure that the plug cord grip is fastened correctly.
CE marking
The shipped version of this device complies with the requirements of
EEC directives 2004/108/EC "Electromagnetic compatibility" and
2006/95/EC "Low voltage directive"
WASTE ELECTRICAL PRODUCTS SHOULD NOT BE DISPOSED OF
WITH HOUSEHOLD WASTE. PLEASE RECYCLE WHERE FACILITIES
EXIST. CHECK WITH YOUR LOCAL AUTHORITY FOR RECYCLING
ADVICE.
32
Download PDF
