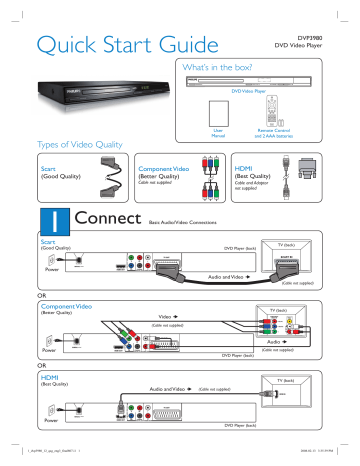

Quick Start Guide
DVP3980
DVD Video Player
What’s in the box?
DVD Video Player
User
Manual
Remote Control
and 2 AAA batteries
Types of Video Quality
Scart
Component Video
HDMI
(Good Quality)
(Better Quality)
(Best Quality)
Cable not supplied
Cable and Adaptor
not supplied
1
Connect
Basic Audio/Video Connections
Scart
(Good Quality)
DVD Player (back)
TV (back)
TV OUT
Pr
Y
Power
Pb
HDMI OUT
Audio and Video
x
(Cable not supplied)
OR
Component Video
TV (back)
(Better Quality)
Video
x
COMPONENT
VIDEO IN
VIDEO IN
(CVBS)
V (Pr/Cr)
(Cable not supplied)
U (Pb/Cb)
Y
TV OUT
Power
HDMI OUT
Audio
Pr
Y
x
(Cable not supplied)
Pb
DVD Player (back)
OR
HDMI
TV (back)
(Best Quality)
Audio and Video
x
(Cable not supplied)
HDMI IN
TV OUT
Y
Power
HDMI OUT
Pr
Pb
DVD Player (back)
1_dvp3980_12_qsg_eng3_final807.i1 1
2008-02-13 3:35:39 PM
Set up
3
Finding the viewing channel
A
2
A
A Press STANDBY ON on this unit to turn it on.
Enjoy
Start disc playback
A Playback may start automatically when a disc has
been loaded in the disc tray.
Note If a disc menu appears on the TV, use
STW X keys to navigate in the DVD menu.
B Press u to start playback.
C To stop playback, press „.
B Turn on the TV. Use the TVs remote control to
select the correct viewing channel.
Note To search for the correct viewing channel,
press the Channel Down button on the TVs remote
control repeatedly (or AV, SELECT, ° button) until
you see the Video In channel.
Troubleshooting
For more troubleshooting tips,
see the user manual.
B
Select the display language on the
screen
A Press SETUP.
The { General Setup Page } appears.
General Setup Page
Disc Lock
Auto (ENG)
OSD Language
ENGLISH
Sleep
DEUTSCH
Lip Sync
NEDERLANDS
Volume
FRANÇAIS
Auto Standby
ITALIANO
DivX(R) VOD Code
B Use ST keys to select { OSD Language } and press
X.
C Use ST keys to select a language and press OK to
confirm. (For Philips ‘EasyLink’ TV, { Auto } must be
selected.)
D Press SETUP to exit.
Note The language set here is only for the menus
that are shown on the TV while operating this unit, not
for the DVD disc menu.
No power
• Check if the AC power cord is properly connected.
• Press the STANDBY-ON on the front panel of this
unit to turn on the power.
No picture
• Check connection to TV and ensure the plugs are
firmly in place.
No sound or distorted sound
• Check audio connections and make sure that the
connected audio device is turned on.
• For HDMI connection, check if your TVs HDMI or
Digital setting is set to ON. Contact your TV
manufacturer for detailed information.
Remote control does not work
• Check the batteries are loaded correctly or replace
the batteries with new ones.
• Reduce the distance between the remote control
and this unit.
• Point the remote control directly toward the IR
sensor.
There are various setup options (Audio Setup, Video Setup,
Preference Setup) available on this unit. Refer to the user
manual for more information.
Need help?
User Manual
See the user manual that came with your Philips DVD Player.
Online
Register your product and get support at www.philips.com/welcome.
1_dvp3980_12_qsg_eng3_final807.i2 2
2008 © Koninklijke Philips N.V.
All rights reserved.
www.philips.com
sgpjy_0807/12_14
2008-02-13 3:35:40 PM
