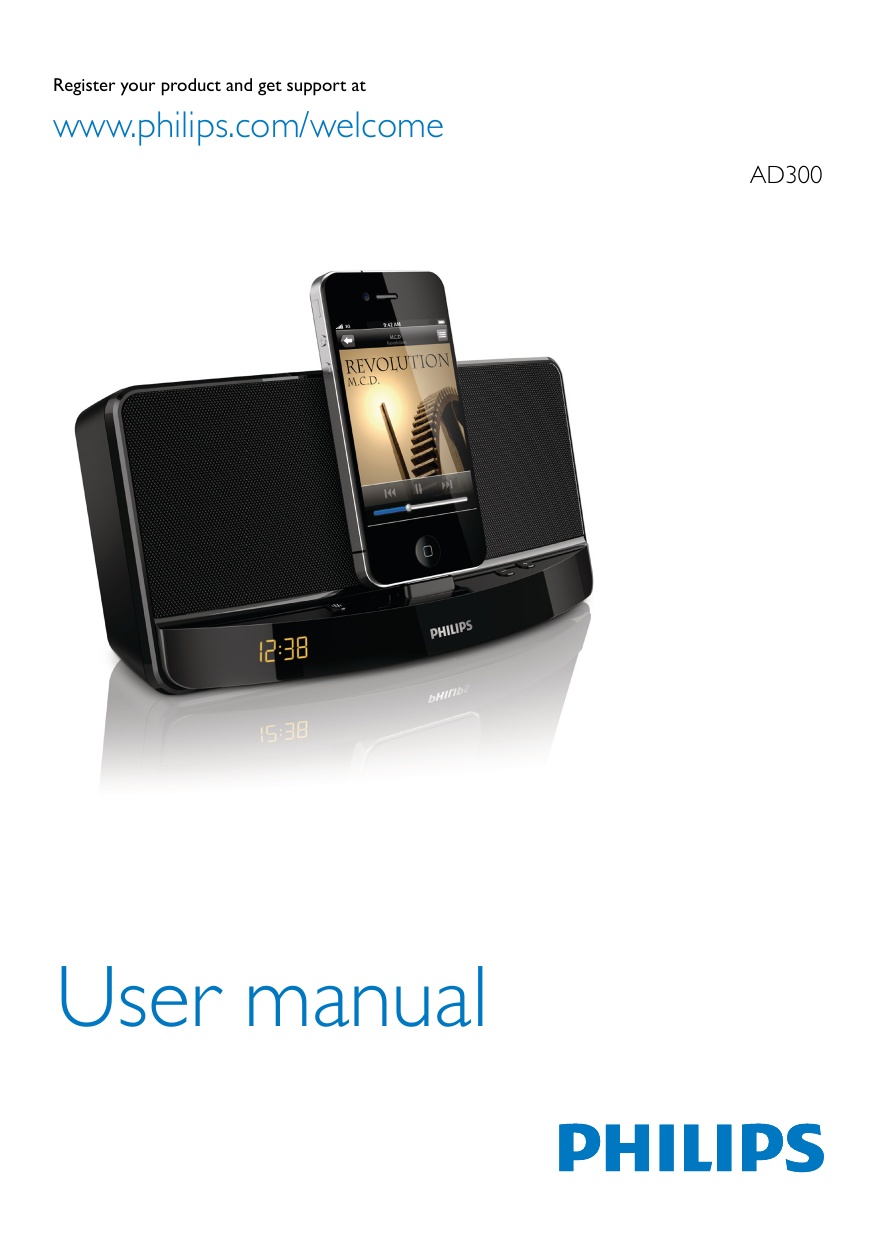

Philips docking speaker AD300/12 User manual

Register your product and get support at
www.philips.com/welcome
AD300
User manual
Contents
1Important
4
Safety4
2 Your docking speaker
5
Introduction5
What's in the box
5
Overview5
3Prepare
6
6
4Play
7
7
7
8
8
5 Specifications
9
9
9
Connect power
Use your iPod/iPhone
Play from an external device
Adjust volume
Adjust brightness of LCD screen
Amplifier
General information
6Troubleshooting
10
7Notice
11
Compliance11
Care of the environment
11
Copyright11
Trademark notice
11
EN
3
1Important
Safety
Read and understand all instructions before you
use this docking speaker. If damage is caused by
failure to follow the instructions, the warranty
does not apply.
•
•
•
The product shall not be exposed to
dripping or splashing.
Do not place any sources of danger on
the product (e.g. liquid filledobjects, lighted
candles).
Where the plug of the direct plug-in
adaptor is used as the disconnect device,
the disconnect device shall remain readily
operable.
Warning
•• Never remove the casing of this apparatus.
•• Never lubricate any part of this apparatus.
•• Never place this apparatus on other electrical
equipment.
•• Keep this apparatus away from direct sunlight, naked
flames or heat.
•• Ensure that you always have easy access to the power
This 'bolt of lightning' indicates uninsulated
material within your unit may cause an electrical
shock. For the safety of everyone in your
household, please do not remove product
covering.
The 'exclamation mark' calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.
WARNING: To reduce the risk of fire or electric
shock, this apparatus should not be exposed to
rain or moisture and objects filled with liquids,
such as vases, should not be placed on this
apparatus.
CAUTION: To prevent electric shock, fully
insert the plug. (For regions with polarized
plugs: To prevent electric shock, match wide
blade to wide slot.)
• Only use attachments/accessories specified
by the manufacturer.
• Refer all servicing to qualified service
personnel. Servicing is requiredwhen the
product has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the product, the product
has been exposed to rain or moisture,
does not operate normally, or has been
dropped.
4
EN
cord, plug or adaptor to disconnect the apparatus from
the power.
Note
•• The type plate is located on the bottom of the product.
2 Your docking
speaker
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
If you contact Philips, you will be asked for
the model number and serial number of this
product. The model number and serial number
are on its bottom. Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Introduction
With this docking speaker, you can:
• enjoy music from your iPod/iPhone,
• charge your iPod/iPhone,
• enjoy music from an external audio player,
and
• know the time.
What's in the box
Check and identify the contents of your
package:
• Docking speaker
• AC power adaptor
• Quick start guide
Overview
a
f
b
c
e
d
a Dock for iPod/iPhone
b
• Adjust the brightness of LCD screen.
c LCD screen
• Display the clock after the clock is
automatically synchronized with a
connected compatible iPhone/iPod.
d AUX IN
• Connect to an external audio player by
MP3 link cable.
e Power socket
• Connect to the power adaptor.
f +/• Adjust volume.
EN
5
3Prepare
Always follow the instructions in this chapter in
sequence.
Connect power
Caution
•• Risk of product damage! Make sure that the power
supply voltage matches the voltage printed on the
bottom of the unit.
•• Risk of electric shock! When you unplug the AC power
adaptor, always pull the plug from the socket. Never pull
the power cord.
•• Before you connect the AC power adaptor, make sure
that you have completed all the other connections.
Connect the AC power adaptor to
• the power socket on the back of the
docking speaker, and
• the power supply.
»» The docking speaker is ready for use.
6
EN
4Play
2
Play a file on your iPod/iPhone.
»» Music comes out through this device.
Note
Use your iPod/iPhone
Compatible iPod/iPhone models
This docking speaker supports the following
iPod and iPhone models.
• iPhone 4S
• iPhone 4
• iPhone 3GS
• iPhone 3G
• iPhone
• iPod touch (1st, 2nd, 3rd, and 4th
generations)
• iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th
generations)
• iPod classic
• iPod with video
• iPod with color display
• iPod mini
•• If power is interrupted, the clock on this device is reset.
Charge the iPod/iPhone
When this product is connected to power, the
docked iPod/iPhone begins to charge.
Play from an external device
You can also listen to an external audio player
through this product.
Note
•• When an iPod/iPhone is docked and playing music,
the docking speaker plays the audio input transferred
through the dock. To play audio input that is transferred
through the AUX IN socket, pause/stop the music play
on the docked iPod/iPhone, or remove the iPod/iPhone.
Listen to iPod/iPhone playlist
1
Dock your iPod/iPhone securely.
1
»» Once the iPod/iPhone is recognized,
the clock on your device is
synchronized with your iPod/iPhone
automatically.
2
Connect the MP3 link cable to
• the AUX IN socket on the back panel
of this product, and
• the audio output socket (usually the
headphone socket) of the external
audio player.
Play the external audio player (refer to its
user manual for details).
EN
7
Adjust volume
Press +/- repeatedly.
• +: Increase the volume
• -: Decrease the volume
Adjust brightness of LCD
screen
To adjust the brightness of LCD screen, press
repeatedly.
8
EN
5Specifications
Note
•• Specifications are subject to change without notice.
Amplifier
Rated output power
Signal-to-noise ratio
AUX IN
2 X 2 W RMS
65 dB
0.6 V RMS 10 kohm
General information
AC power adaptor
Operation power
consumption
Standby power
consumption
Dimensions of main
unit (W x H x D)
Weight of main unit
Input: 100-240 V ~,
50/60Hz, 0.35 A;
Output: 5.0V , 2,000
mA
Model No.: Y12FE-0502000G
Brand name: Philips
< 10 W
< 1W
216 x 102 x 112 mm
0.68 kg
EN
9
6Troubleshooting
Warning
•• Never remove the casing of this product.
To keep the warranty valid, never try to repair
the product yourself.
If you encounter problems when using this
product, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page (www.
philips.com/support). When you contact Philips,
make sure that the product is nearby and the
model number and serial number are available.
No power
•• Make sure that the AC power adaptor of
this product is connected properly.
•• Make sure that there is power at the AC
outlet.
No sound
•• Adjust the volume.
Docked iPod/iPhone can't be charged.
•• Make sure that the iPod/iPhone is
compatible with this product.
•• Make sure that the iPod/iPhone is securely
docked.
•• Remove the protective case of your iPod/
iPhone.
•• Make sure that the power supply is
available.
Clock is reset.
• If power is interrupted, the clock on this
device is reset.
• To synchronize the clock with your iPod/
iPhone, make sure that the power is
available, and then dock your iPod/iPhone
again.
10
EN
7Notice
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Compliance
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Copyright
This product complies with the radio
interference requirements of the European
Community.
Care of the environment
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC. Please inform yourself about the local
separate collection system for electrical and
electronic products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste.
Correct disposal of your old product helps to
prevent potential negative consequences for the
environment and human health.
2012 © Koninklijke Philips Electronics N.V.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
Trademark notice
“Made for iPod” and “Made for iPhone”
mean that an electronic accessory has been
designed to connect specifically to iPod or
iPhone respectively, and has been certified by
the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod or iPhone
may affect wireless performance.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
EN
11
Specifications are subject to change without notice
© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
AD300_12_UM_V2.0
