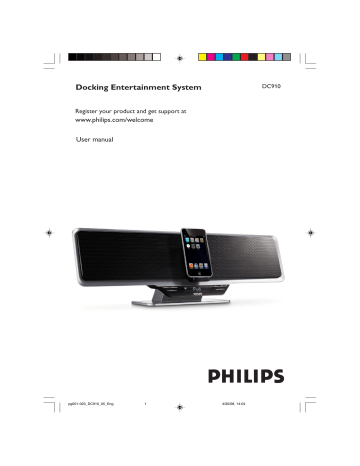

DC910
Docking Entertainment System
Register your product and get support at
www.philips.com/welcome
User manual
Manuel d'utilisation
Manual de usuario
Benutzerhandbuch
Gebruikershandleiding
Manuale dell'utente
Användarhandbok
Brugervejledning
pg001-023_DC910_05_Eng
1
4/30/08, 14:04
Important notes for users in the
U.K.
Mains plug
This apparatus is fitted with an approved 13
Amp plug. To change a fuse in this type of plug
proceed as follows:
1
2
Remove fuse cover and fuse.
3
Refit the fuse cover.
Fix new fuse which should be a BS1362 3 Amp,
A.S.T.A. or BSI approved type.
If the fitted plug is not suitable for your socket
outlets, it should be cut off and an appropriate
plug fitted in its place.
If the mains plug contains a fuse, this should
have a value of 3 Amp. If a plug without a fuse
is used, the fuse at the distribution board
should not be greater than 3 Amp.
Note: The severed plug must be disposed of to
avoid a possible shock hazard should it be
inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with
the following code: blue = neutral (N),
brown = live (L).
¶ As these colours may not correspond with the
colour markings identifying the terminals in
your plug, proceed as follows:
– Connect the blue wire to the terminal
marked N or coloured black.
– Connect the brown wire to the terminal
marked L or coloured red.
– Do not connect either wire to the earth
terminal in the plug, marked E (or e) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain
that the cord grip is clamped over the sheath
of the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may
require consent. See Copyright Act 1956 and
The Performer’s Protection Acts 1958 to 1972.
CAUTION
Use of controls or adjustments or
performance of procedures other than
herein may result in hazardous
radiation exposure or other unsafe
operation.
2
pg001-023_DC910_05_Eng
2
4/30/08, 14:04
General Information
USB/Card
Supplied accessories ............................................ 4
Environmental information ................................ 4
Safety Information ............................................ 4~5
Hearing Safety ....................................................... 5
Using a USB mass storage device/SD/MMC
memory card ................................................ 12~13
Using playback features .............................. 13~14
Basic playback controls
Different play modes: SHUFFLE and REPEAT
Programming audio files
Preparations
Connections ...................................................... 6~7
Power
Antenna connection
Optional connection
Dock for iPod
Playing Apple iPod using DC910 ..................... 15
Compatible iPod player
Dock adaptor
Playing Apple iPod
Mounting the set onto wall ................................ 7
Using Remote Control ....................................... 7
Charging iPod battery using the dock ........... 15
Controls
AUX
Controls on the system ...................................... 8
Controls on the remote control ...................... 9
Listening to an external source ...................... 16
Clock/Timer
Basic Functions
Switching the system on ................................... 10
Switching the system to standby mode ........ 10
Switching the system to Eco Power Standby
mode ..................................................................... 10
Power Saving Automatic Standby .................... 10
Adjusting volume and sound ............................ 10
Clock setting ....................................................... 17
Timer setting ....................................................... 17
Sleep timer setting ............................................. 18
Specifications ........................................... 19
Maintenance .............................................. 19
Radio Reception
Tuning to radio stations .................................... 11
Programming radio stations ............................. 11
Troubleshooting .................................... 20
Automatic programming
Manual programming
Tuning to preset radio stations ....................... 11
3
pg001-023_DC910_05_Eng
3
4/30/08, 14:04
English
Contents
General Information
English
Congratulations on your purchase and
welcome to Philips!
To fully benefit from the support that Philips
offers, register your product at
www.philips.com/welcome.
This product complies with the radio
interference requirements of the European
Community.
Supplied accessories
– remote control with 1 CR2025 battery
– 3 X iPod dock adaptors
– 1 X certified AC/DC adapter
(Input: 100- 240V~, 50/60Hz 1.4 A,
2.5A; manufacturer : Philips;
Output: 24V
model No.: GFP651DA-2425/
OH-1065A2402500U)
– 1 x AUX cable
– Mounting kit (2 dowels and 2 screws)
Environmental information
All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialised company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old equipment.
Disposal of your old product
Your product is designed and
manufactured with high quality
materials and components,
which can be recycled and
reused.
When this crossed-out wheeled
bin symbol is attached to a
product it means the product is covered by the
European Directive 2002/96/EC
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and do
not dispose of your old products with your
normal household waste. The correct disposal of
your old product will help prevent potential
negative consequences for the environment and
human health.
Safety Information
● Before operating the system, check that the
operating voltage indicated on the typeplate of
your system is identical with the voltage of your
local power supply. If not, please consult your
dealer.
● Where the MAINS plug or an appliance coupler
is used as the disconnet device, the disconnect
device shall remain readily operable.
● Place the system on a flat, hard and stable
surface.
● Place the system in a location with adequate
ventilation to prevent internal heat build-up in
your system. Allow at least 10 cm (4 inches)
clearance from the rear and the top of the unit
and 5 cm (2 inches) from each side.
● The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers, table-cloths, cur tains, etc.
● Do not expose the system, batteries or discs to
excessive moisture, rain, sand or heat sources
caused by heating equipment or direct sunlight.
● No naked flame sources, such as lighted candles,
should be placed on the apparatus.
● No objects filled with liquids, such as vases, shall
be placed on the apparatus.
● Install this unit near the AC outlet and where the
AC power plug can be reached easily.
● The apparatus shall not be exposed to dripping
or splashing.
● Excessive sound pressure from earphones and
headphones can cause hearing loss.
● Battery shall not be exposed to excessive heat
such as sunshine, fire or the like.
● If the system is brought directly from a cold to a
warm location, or is placed in a very damp room,
moisture may condense on the lens of the disc
unit inside the system. Should this occur, the CD
player would not operate normally. Leave the
power on for about one hour with no disc in the
system until normal playback is possible.
4
pg001-023_DC910_05_Eng
4
4/30/08, 14:04
● The mechanical parts of the set contain selflubricating bearings and must not be oiled or
lubricated.
● Batteries (battery pack or batteries installed)
shall not be exposed to excessive heat such as
sunshine, fire or the like.
● When the system is switched to Standby
mode, it is still consuming some power.
Listen for reasonable periods of time:
● Prolonged exposure to sound, even at normally
"safe" levels, can also cause hearing loss.
● Be sure to use your equipment reasonably and
take appropriate breaks.
Be sure to observe the following
guidelines when using your headphones.
To disconnect the system from the
power supply completely, remove the AC
power plug from the wall socket.
● Listen at reasonable volumes for reasonable
periods of time.
Hearing Safety
● Do not turn up the volume so high that you
can't hear what's around you.
Listen at a moderate volume.
● Using headphones at a high volume can impair
your hearing. This product can produce sounds
in decibel ranges that may cause hearing loss for
a normal person, even for exposure less than a
minute. The higher decibel ranges are offered
for those that may have already experienced
some hearing loss.
English
General Information
● Be careful not to adjust the volume as your
hearing adapts.
● You should use caution or temporarily
discontinue use in potentially hazardous
situations.
● Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it
may create a traffic hazard and is illegal in many
areas.
● Sound can be deceiving. Over time your hearing
"comfort level" adapts to higher volumes of
sound. So after prolonged listening, what sounds
"normal" can actually be loud and harmful to
your hearing. To guard against this, set your
volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
● Set your volume control at a low setting.
● Slowly increase the sound until you can hear it
comfortably and clearly, without distortion.
5
pg001-023_DC910_05_Eng
5
4/30/08, 14:04
Preparations
English
POWERFUL BASS
POWERFUL BASS
Connections
B Antenna Connection
The type plate is located at the bottom of
the system.
For users in the U.K.: please follow the
instructions on page 2.
A Power
● Before connecting the AC power adaptor to the
wall outlet, ensure that all other connections
have been made.
● DC jack is located at the bottom panel of the
set.
WARNING!
– Use the supplied AC power adaptor only!
Using any other power connection device
may damage your main set!
– For optimal performance, use only the
original AC power adaptor.
– Never make or change connections with
the power switched on.
FM Antenna
It is unnecessary to connect the FM pigtail
antenna since it is fixed to the main unit.
● Adjust the FM antenna for optimal FM stereo
reception.
C Optional connection
The optional equipment and connecting cords are
not supplied. Refer to the operating instructions
of the connected equipment for details.
Connecting a USB mass storage device
or SD/MMC memory card
By connecting a USB mass storage device or SD/
MMC memory card to the Hi-Fi system, you can
enjoy the device's or card’s stored music through
the powerful speakers of the Hi-Fi system.
● Insert the USB device's USB plug into the
socket on the set.
To avoid overheating of the system, a safety
circuit has been built in. Therefore, your
system may switch to Standby mode
automatically under extreme conditions. If
this happens, let the system cool down
before reusing it (not available for all versions).
6
pg001-023_DC910_05_Eng
6
4/30/08, 14:04
1
2
OR
for the devices with USB cables:
Insert one plug of the USB cable (not supplied)
to the
socket on the set.
Using Remote Control
IMPORTANT!
– Before using the remote control,
remove the insulation plastic tab as
shown in the picture below.
– If the remote control does not
function correctly or the operating range
is reduced, replace the battery with a
new (CR2025) battery.
Insert the other plug of the USB cable to the
USB output terminal of the USB device.
OR
for the memory card:
● Fully insert the memory card (metal contact
facing left) into the SD / MMC slot on the top
of the system.
Connecting other equipment to your
system
This feature allows you to listen to music from
the external equipment through the powerful
speakers of the Hi-Fi system.
● Use an Aux-in cable (supplied) to connect the
AUX IN-1 or AUX-2 jack (3.5mm, located on
the bottom panel) to an AUDIO OUT or
headphone jack on an external device (such as
TV, Laser Disc player, DVD player or CD
recorder).
Note:
– Refer to the operating instructions for the
connected equipment for details.
1
2
Push to open the battery tray.
Mounting the set onto wall
3
Push the battery tray back to close it.
See the separate sheet of Wall Mounting
instructions on how to mount the set onto wall.
Note:
– To secure the mounting on wall, cement wall is
required.
Replace a new battery according to the
indicated polarity.
Using the Remote Control to operate
the Player
1
Aim the Remote Control directly at the remote
sensor (IR) on the front panel.
2
Select the source you wish to control by
pressing one of the source select buttons on the
remote.
3
Then select the desired function (for example,
ÉÅ, ¡ or ™).
CAUTION!
– Remove the battery if it is exhausted
or if the Remote Control is not being
used for a long time.
– Batteries contain chemical substances,
so they should be disposed of properly.
7
pg001-023_DC910_05_Eng
7
4/30/08, 14:04
English
Preparations
Controls
English
3
2
1
98
4
5
6
7
Controls on the system
1 SD / MMC
–
is the slot used to insert an SD/MMC memory
card.
2 USB port
–
jack for the external USB mass storage device.
3 iPod dock
–
is used to dock your iPod player for playback or
recharging through this system.
–
7 VOLUME +/–
–
–
for USB/CARD/iPod
................................. fast searches back and forward
within a track (press and hold).
................................. skips to the beginning of a
current/previous/subsequent
track.
for TUNER ........ tunes to radio stations
(down/up).
switches the system on or to Eco Power
standby/normal standby with clock display.
5 SOURCE
–
selects the respective sound source for TUNER
(FM)/iPod/USB/CARD (SD/MMC)/AUX.
6 PRESET +/–
–
–
(for USB/CARD) skips to the beginning of a
current/previous/subsequent album.
selects a preset radio station.
adjusts the volume level.
adjusts the hours and minutes for the clock/timer
function.
switches between 12 hour and 24 hour dispaly.
8 S/T
4 POWER
–
DSC (Digital Sound Control)
selects different types of preset sound equalizer
settings. (in USB/Tuner mode, hold down then
release to select)
9
–
ÉÅ
starts or interrupts playback.
DBB (Dynamic Bass Boost)
enables or disables bass enhancement. (in USB/
Tuner mode, hold down then release to select)
8
pg001-023_DC910_05_Eng
8
4/30/08, 14:04
9 VOL +/$
1
#
–
–
–
adjusts the volume level.
adjusts the hours and minutes for the clock/timer
function.
switches between 12 hour and 24 hour dispaly.
0 PROG/SET TIME
@
–
–
–
(for USB/CARD) programs tracks.
(for TUNER) programs radio stations.
sets the clock function.
! AUX
2
3
4
!
0
5
9
6
7
8
–
selects AUX mode.
@ ÉÅ
–
–
starts or interrupts playback.
confirms a selection (for iPod menu operation
only).
TUNING +/for TUNER ........ tunes to radio stations
(down/up).
................................. navigates the iPod menu.
S/T
for USB/CARD/iPod
................................. fast searches back and forward
within a track (press and hold).
................................. skips to the beginning of a
current/previous/subsequent
track.
Controls on the remote control
1 POWER
–
switches the system on or to Eco Power
standby/normal standby with clock display.
2 MENU
–
# TUNER
–
is equivalent to the MENU button on your iPod
player.
selects the tuner source
$ iPod
–
selects the iPod source.
3 USB/SD
–
swicthes between USB and SD mode.
4 SHUFFLE/REPEAT
for USB/CARD
................................. plays USB/CARD tracks
randomly.
................................. selects a repeat playback mode.
5 ALBUM/PRESET 3 / 4
–
–
(for USB/CARD) skips to the beginning of a
current/previous/subsequent album.
selects a preset radio station.
6 SLEEP
–
selects the sleeper time.
7 TIMER
–
sets the timer function.
8 MUTE
–
interrupts and resumes sound production.
Notes for remote control:
– First select the source you wish to
control by pressing one of the source select
keys on the remote control (for example
iPod, TUNER).
– Then select the desired function (for
example ÉÅ, S , T ).
9
pg001-023_DC910_05_Eng
9
4/30/08, 14:04
English
Controls
Basic Functions
English
➜ The display displays clock time, or --: -- is
displayed if clock time is not set.
➜ The volume level (up to a maximum volume
level of 12), interactive sound settings, last
selected mode (ECO Power Standby or normal
standby), source and tuner presets will be
retained in the player's memory.
Switching the system to Eco
Power Standby mode
● Press and hold POWER for more than 2
seconds.
➜ The backlight will go blank.
Power Saving Automatic Standby
As a power-saving feature, the system
automatically switches to Eco Power/ Standby 15
minutes after playback has reached the end and
no control is operated.
Adjusting volume and sound
1
Press VOLUME +/- on the system (or VOL +/on the remote control) to decrease or increase
the volume.
➜ Display shows the volume level VOL and a
number from 0, 1, 2, ...32.
2
IMPORTANT:
Before you operate the system, complete
the preparation procedures.
Switching the system on
● Press POWER.
➜ The system will switch to the last selected
source.
● Press SOURCE on the set or iPod, TUNER,
USB/CARD or AUX on the remote control.
➜ The system will switch to the selected source.
Switching the system to standby
mode
● Press POWER.
➜ The backlight for clock display is off in standby.
In USB/Tuner mode, press and hold DSC on the
set, then release to select a sound effect: ROCK/
POP/JAZZ/CLASSIC.
● In iPod /AUX mode, simply press DSC on the
set to select the desired sound effect.
3
In USB/Tuner mode, press and hold DBB on the
set, then release to switch bass enhancement on
or off.
● In iPod /AUX mode, simply press DBB on the
set to switch bass enhancement on or off.
➜ If the DBB is activated, DBB ON is shown.
➜ If the DBB is deactivated, DBB OFF is shown.
4
Press MUTE on the remote control to
interrupt sound reproduction instantly.
➜ Playback will continue without sound and
MUTE will flash on the display.
● To activate sound reproduction you can:
– press MUTE on the remote control again;
– adjust the volume controls;
– change source.
10
pg001-023_DC910_05_Eng
10
4/30/08, 14:04
Programming radio stations
You can store up to a total of 40 radio stations
(40 FM) in the memory.
Automatic programming
Autostore automatically starts programming
radio stations from preset 1. Any previous
presets e.g. manually programmed will be erased.
● Press PROG on the remote control for more
than two seconds to activate programming.
➜ All available stations are programmed.
Manual programming
Tuning to radio stations
1
Press SOURCE repeatedly (or TUNER on the
remote control) to select the tuner source (FM).
2
Hold S / T on the system (or TUNING
+/- on the remote control) and then release the
button.
➜ The system will start searching for a radio
station with sufficient signal strength.
3
Repeat step 2 if necessary until you find the
desired station.
1
Tune to your desired station (refer to “Tuning to
radio stations”).
2
Press PROG on the remote control to activate
programming.
➜ PROG appears in the display.
3
Press PRESET +/- on the system (or ALBUM/
PRESET 3 / 4 on the remote control) to
allocate a number from 1 to 40 to this station.
4
Press PROG on the remote control again to
confirm the setting.
➜ PROG disappears, the preset number and
the frequency of the preset station are shown.
5
Repeat the above four steps to store other
stations.
● You can override a preset station by storing
another frequency in its place.
Tuning to preset radio stations
● Press PRESET +/- on the system (or ALBUM/
PRESET 3 / 4 on the remote control) until
the desired preset station is displayed.
● To tune to a weak station, press S / T on
the system (or TUNING +/- on the remote
control) briefly and repeatedly until you have
found optimal reception.
11
pg001-023_DC910_05_Eng
11
4/30/08, 14:49
English
Radio Reception
USB/Card
English
Using a USB mass storage
device/SD/MMC memory card
By connecting a USB mass storage device or SD/
MMC memory card to the Hi-Fi system, you can
enjoy the device's or card’s stored music through
the powerful speakers of Hi-Fi system.
Playing a USB mass storage device/SD/
MMC memory card
Compatible mass storage devices/cards
With the Hi-Fi system, you can use:
– USB flash memory (USB 2.0 or USB1.1)
– USB flash players (USB 2.0 or USB1.1)
– SD/MMC memory cards
Notes:
– In some USB flash players (or memory devices),
the stored contents are recorded using copyright
protection technology. Such protected contents will
be unplayable on any other devices (such as this
Hi-Fi system).
– Compatibility of the USB connection on this
product:
a) This product supports most USB Mass storage
devices (MSD) that are compliant to the USB
MSD standards.
i) Most common Mass storage class devices are
flash drives, memory sticks, jump drives and etc.
ii) If you see a "Disc Drive" show up on your
computer after you plugged the mass storage
device into your computer, most likely it is MSD
compliant and it will work with this product.
b) If your Mass storage device required a battery/
power source. Please make sure you have a fresh
battery in it or charge the USB device first and
then plug it into the product again.
– Supported Music type:
a) This device only supports unprotected music
with the following file extension:
.mp3
.wma
b) Music bought from on-line music stores are not
supported because they are secured by Digital
Rights Management protection (DRM).
c) File name extensions that end with the
following are not supported:
.wav; .m4a; .m4p; mp4; .aac and etc.
– No Direct connection can be made from
Computer USB port to the product even you have
either or both mp3 or wma files in your computer.
Supported formats:
– USB or memory file format FAT12, FAT16,
FAT32 (sector size: 512 bytes)
– MP3 bit rate (data rate): 32-320 Kbps and
variable bit rate
– WMA v9 or earlier
– Directory nesting up to a maximum of 8
levels
– Number of albums/ folders: maximum 99
– Number of tracks/titles: maximum 400
– ID3 tag v2.0 or later
– File name in Unicode UTF8 (maximum length:
128 bytes)
The system will not play or support the
following:
– Empty albums: an empty album is an album
that does not contain MP3/WMA files, and
will not be shown in the display.
– Non-supported file formats are skipped. This
means that e.g.: Word documents .doc or
MP3 files with extension .dlf are ignored and
will not be played.
– AAC, WAV, PCM audio files
– DRM protected WMA files
– WMA files in Lossless format
12
pg001-023_DC910_05_Eng
12
4/30/08, 14:04
– For DRM protected WMA files, use Windows
Media Player 10 (or later) for conversion. Visit
www.microsoft.com for details about Windows
Media Player and WM DRM (Windows Media
Digital Rights Management).
How to transfer music files from PC to a
USB mass storage device/SD/MMC
memory card
By dragging and dropping music files, you can
easily transfer your favorite music from PC to a
USB mass storage device/SD/MMC memory
card.
For a flash player, you can also use its music
management software for the music transfer.
However, those WMA files may be
unplayable for compatibility reasons.
How to organize your MP3/WMA files on
the USB mass storage device/SD/MMC
memory card
This Hi-Fi system will browse the MP3/WMA
files in the folders/sub-folders/titles order.
Example:
Root
English
USB/Card
1
Check the USB device/SD/MMC memory card
has been properly connected. (See
”Preparations: Connecting a USB mass storage
device or SD/MMC memory card”).
2
Press SOURCE on the system (USB/CARD
on the remote) once or more to select USB/
CARD.
➜ NO AUDIO appears if no audio file is found
in the USB device/SD/MMC memory card.
3
Play the available audio files using playback
buttons on the set or remote control (such as
2;, S / T).
Using playback features
Title 001
Title 002
Title 003
Basic playback controls
To play audio file
● Press ÉÅ to start playback.
Album 01
Title 001
Title 002
Title 003
To interrupt playback
● Press 2; during playback.
➜ To resume, press 2; again.
Album 02
To select a different track
Title 001
Title 002
Title 003
Album 03
Title 001
Title 002
Title 003
Organize your MP3/WMA files in different
folders or subfolders as required.
● Press S / T once or repeatedly until the
desired track number appears in the display.
● For MP3/WMA, you may press PRESET +/- on
the system (or ALBUM/PRESET 3 / 4 on the
remote control) to select a desired album, then
select your desired track.
To find a passage within a track
● Press and hold down on S / T .
➜ The file is played at high speed and low
volume.
Notes:
– If you have not organized MP3/WMA files into
any albums on your disc, an album "01" will be
automatically assigned for all those files.
– Make sure that the file names of MP3 files end
with .mp3. and the file names of WMA files end
with .wma.
13
pg001-023_DC910_05_Eng
13
4/30/08, 14:04
USB/Card
English
Different play modes: SHUFFLE and
REPEAT
You can select and change the various play
modes before or during playback. The REPEAT
modes can also be combined with
PROGRAMME.
SHUF ................ all the audio files are played in
random order
REP ALL ........... repeats all the audio files/
programme
REP ................... plays the current audio file
continuously
1
To select your play mode, press SHUFFLE/
REPEAT on the remote control before or
during playback until the display shows the
desired function.
2
Press 2; to start playback if in the STOP
position.
3
To return to normal playback, press SHUFFLE/
REPEAT on the remote control until the
various SHUFFLE/ REPEAT modes are no longer
displayed.
Note:
– The SHUFFLE and REPEAT functions cannot be
used simultaneously.
Programming audio files
You may store up to 40 audio files in the desired
sequence. If you like, store any track more than
once.
1
Press and hold PROG on the remote control to
store.
➜ PROG flashes, and PR 01 is displayed.
2
Press S / T to select your desired track
number.
● For MP3/WMA, you may press PRESET +/- on
the system (or ALBUM/PRESET 3 / 4 on the
remote control) to select a desired album, then
select your desired track.
3
Repeat steps 1-2 to select and store all desired
tracks.
➜ PROGRAM FULL is displayed if you attempt
to programme more than 40 tracks.
4
5
To start playback of your programme, press 2;.
To stop playback, press and hold PROG.
To review the programme
● Press and hold PROG to stop playback, then
press S / T.
To delete the programme
● Press and hold PROG once in the STOP mode;
● Press PROG twice during playback.
➜ PROG disappears from the display.
Note:
– For compatibility reasons, the album/track
information may differ from what it is displayed
through flash players' music management software.
14
pg001-023_DC910_05_Eng
14
4/30/08, 14:57
Playing Apple iPod using DC910
The set is equipped with a dock for iPod. By
connecting Apple iPod to the set, you can listen
to the sound of the docked iPod through the
powerful speakers of the Hi-Fi system and view
the iPod video (if available).
English
DOCK for iPod
Playing Apple iPod
1
Correctly place the iPod in the dock.
2
Press repeatedly SOURCE on the main unit to
select iPod mode (or iPod on the remote
control) .
3
4
Power on your iPod.
Compatible iPod player
● Apple iPod models with 30-pin dock connector
as follows:
20GB, 40GB, 20/30GB Photo, 40/60GB Photo,
30GB Video, 60GB/80 Video, Mini, Nano 1st /
2nd/3rd generation, iPod 5th generation (video),
iPod touch and iPod classic.
● iPod Shuffle is not supported.
Dock adaptor
Before plugging your player in the dock, snap the
suitable dock adaptor (supplied) into the dock to
provide a snug fit for the player to be docked.
Selecting the correct dock adaptor
● 3 iPod dock adaptors are included. Each adaptor
has indication to match different iPod types.
Installing the dock adaptor
● As shown below, align the slots of the dock and
latches of the adaptor, then slide in the adaptor.
Select and playback your favourite song/video/
photo on the iPod.
Notes:
– Using the following buttons only ( 2;, S / T ,
VOLUME and MUTE ) on the DC910 and its
remote control, you can control some iPod playback
features, such as, Play/Pause, selecting next/
previous track, fast forwarding/rewinding and
changing volume.
– You may also use TUNING +/- and ÉÅon
the remote control to navigate the iPod menu and
confirm a selection.
Charging iPod battery using the
dock
In normal standby or power-on mode, you can
charge the iPod while docking.
Note:
– iPod charging is not available in ECO power
standby mode.
Removing the dock adaptor
● As shown, slide the adaptor up to take it out.
15
pg001-023_DC910_05_Eng
15
4/30/08, 14:04
AUX
English
Listening to an external source
This feature allows you to listen to music from
the external equipment through the powerful
speakers of the Hi-Fi system.
1
Use an Aux-in cable (supplied) to connect the
AUX 1 or AUX 2 jack (3.5mm, located on the
bottom panel) to an AUDIO OUT or
headphone jack on an external device (such as
TV, Laser Disc player, DVD player or CD
recorder).
2
Press SOURCE on the system repeatedly (or
AUX on the remote control) to select “AUX 1”
or “AUX 2”.
Note:
– Refer to the operating instructions for the
connected equipment for details.
16
pg001-023_DC910_05_Eng
16
4/30/08, 14:04
6
Press VOLUME +/- on the system (or
VOL +/- on the remote control) to set the
minutes.
7
Press PROG/SET TIME on the remote
control to confirm the time.
English
Clock/Timer
Timer setting
● The system can be used as an alarm clock,
whereby the TUNER (FM)/iPod/USB/CARD
(SD/MMC) is switched on at a set time (one
time operation). The clock time needs to be set
first before the timer can be used.
● During setting, if no button is pressed within 30
seconds, the system will exit timer setting mode
automatically.
Clock setting
The clock can be set in either 12-hour or
24-hour mode (12HR or 24HR for example).
1
In standby mode, press and hold
PROG/SET TIME on the remote control.
2
Press VOLUME +/- on the system (or VOL +/on the remote control) to switch between 12
hour and 24 hour display.
3
Press PROG/SET TIME on the remote
control again to confirm.
➜ The clock digits flash on the display panel.
4
Press VOLUME +/- on the system (or VOL +/on the remote control) to set the hours.
5
Press PROG/SET TIME on the remote
control again.
➜ The clock digits for the minutes flash.
1
In standby mode, press TIMER for more than
two seconds.
2
Press SOURCE on the system repeatedly (or
the respective source keys on the remote
control) to select the sound source.
3
Press TIMER to confirm your desired mode.
➜ The clock digits for the hours flash.
4
Press VOLUME +/- on the system (or
VOL +/- on the remote control) to set the
hours.
5
Press TIMER again.
➜ The clock digits for the minutes flash.
6
Press VOLUME +/- on the system (or
VOL +/- on the remote control) to set the
minutes.
7
Press TIMER to confirm the time.
➜ The timer is now set and activated.
Activating and deactivating timer
● In standby or during playback, press TIMER
once on the remote control.
➜ Display shows if activated, and disappears if
deactivated.
Notes:
– Timer is not available in AUX mode.
– If USB/SD/MMC source is selected and no
compatible USB/SD/MMC device is plugged,
TUNER will be selected automatically.
17
pg001-023_DC910_05_Eng
17
4/30/08, 14:04
Clock/Timer
English
Sleep timer setting
The sleep timer enables the system to switch off
by itself after a set period of time.
1
In power on mode, press SLEEP on the remote
control repeatedly to select a preset time.
➜ The selections are as follows (time in
minutes):
120 ™ 90 ™ 60 ™ 45 ™ 30 ™ 15 ™ OFF ™
120 …
➜ "SLEEP XX" is displayed. "XX" is the time in
minutes.
➜ "SLEEP" is displayed if the sleep time you
have selected is not 0FF.
2
When you reach the desired length of time, stop
pressing the SLEEP button.
To deactivate the sleep timer
● Press SLEEP repeatedly until "0FF" is displayed,
or press POWER.
18
pg001-023_DC910_05_Eng
18
4/30/08, 14:04
AMPLIFIER
Output power ....................................... 2 x 15 W RMS
Signal-to-noise ratio ....................................... ≥ 70 dBA
Frequency response ...... 20 Hz – 20 KHz, ± 3 dB
Input sensitivity AUX ....................... 0.5 V (max. 2 V)
Impedance loudspeakers ......................................... 4 Ω
GENERAL INFORMATION
AC Power ................................. 100 – 240 V, 50/60 Hz
Dimensions (w x h x d)...500 x 165 x 120.7 (mm)
Weight .............................................................................. 3 kg
Standby power consumption ............................ <2 W
Eco power standby ................................................. <1 W
TUNER
FM wave range ................................... 87.5 – 108 MHz
Antenna
FM ....................................................................... 75 Ω wire
USB PLAYER/SD/MMC CARD
USB ................................................................... 12Mb/s, V1.1
......................................... support MP3 and WMA files
Number of albums/folders ................. maximum 99
Number of tracks/titles ...................... maximum 400
Specifications and external appearance are
subject to change without notice.
Maintenance
Cleaning the Cabinet
● Use a soft cloth slightly moistened with a mild
detergent solution. Do not use a solution
containing alcohol, spirits, ammonia or abrasives.
19
pg001-023_DC910_05_Eng
19
4/30/08, 14:04
English
Specifications
Troubleshooting
English
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the
warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you
are unable to remedy a problem by following these hints, consult your dealer or Philips for
help.
Problem
Solution
✔ If the signal is too weak, adjust the antenna.
✔ Increase the distance between the Micro HiFi
Radio reception is poor.
System and your TV or VCR.
The system does not react when buttons
are pressed.
✔ Remove and reconnect the AC power plug and
Sound cannot be heard or is of poor
quality.
✔ Adjust the volume.
The remote control does not function
properly.
✔ Select the source (iPod or TUNER, for example)
switch on the system again.
✔
✔
✔
✔
before pressing the function button
(ÉÅ, 5 / 6).
Reduce the distance between the remote
control and the system.
Insert the battery with its polarities
(+/– signs) aligned as indicated.
Replace the battery.
Point the remote control directly toward
IR sensor on the front of the system.
The timer is not working.
✔ Set the clock correctly.
✔ Switch on the timer.
The Clock/Timer setting is erased.
✔ Power has been interrupted or the power cord
has been disconnected. Reset the clock/timer.
Some files on the USB device are not
displayed.
✔ Check if the number of folders exceeds 99 or
“DEVICE NOT SUPPORTED” scrolls on the
display.
✔ Remove the USB mass storage device or select
the number of titles exceeds 400.
another source.
20
pg001-023_DC910_05_Eng
20
4/30/08, 14:04
21
pg001-023_DC910_05_Eng
21
4/30/08, 14:04
English
Meet Philips at the Internet
http://www.philips.com
DC910
CLASS 1
LASER PRODUCT
PDCC-ZYL-0818
Printed in China
pg001-023_DC910_05_Eng
22
4/30/08, 14:04
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
