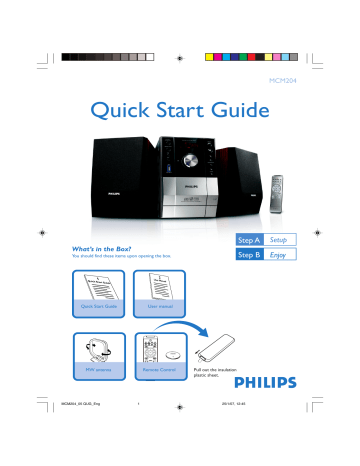

MCM204
Quick Start Guide
What’s in the Box?
You should find these items upon opening the box.
Step A
Setup
Step B
Enjoy
2
1
User Man
Quick Start
Guide
ual
Quick Start Guide
User manual
CR2025
MW antenna
MCM204_05 QUG_Eng
Remote Control
1
Pull out the insulation
plastic sheet.
25/1/07, 12:45
Step A
Setup
Connection
1
2
3
For radio reception, connect the supplied MW antenna to the
MW aerial terminal.
Tip:
It is unnecessary to
connect the FM pigtail
antenna since it is
fixed to the main unit.
Connect the speaker wires to the SPEAKERS terminals.
Connect the power cord of the system to the
AC power outlet.
FM wire antenna
MW loop
antenna
1
FM
AERIAL
speaker
(right)
AM
AERIAL
speaker
(left)
AUX
HEADPHONE
2
3
AC power cord
MICRO SYSTEM MCM204
Setting the clock
1
In standby mode, press and hold DISPLAY/CLOCK
(CLOCK on the remote control) for 2 seconds.
The clock digits for the hours flash.
2
3
Press TUNING
ALBUM/
¡1 / 2™ to set the hours.
Press DISPLAY/CLOCK again. The clock digits for the minutes flash.
4
Press TUNING ¡1 /
5
Press DISPLAY/CLOCK to confirm the time.
MCM204_05 QUG_Eng
2™ to set the minutes.
2
25/1/07, 12:45
Step B
Enjoy
Playing a disc
1 Select CD source.
2 Press OPEN/CLOSE on the top of the system to open the CD door.
3 Insert a disc with the printed side facing up and press down
on OPEN/CLOSE to close the CD door.
4 PressÉÅto start playback.
5 Press 9 to stop playback.
Programming and tuning to radio stations
1 Select TUNER source.
2 Press PROG on the remote control for more than two seconds to program all available stations
in order of waveband.
3 Press ALBUM/PRESET 4
3 until the desired preset station is displayed
Tip:
Detailed playback features and
additional functions are described in
the accompanied owner's manual.
MCM204_05 QUG_Eng
3
Notes for the remote control:
– First, select the source you wish to
control by pressing one of the source select
keys on the remote control (DISC or AUX,
for example).
– Then select the desired function ( 2;,
í, ë for example).
25/1/07, 12:45
Step B
Enjoy
Playing a USB mass storage device
1 Make sure that your MCM204 is being powered on.
2 Press SOURCE repeatedly (or USB on the remote) to enter USB mode.
The LCD display shows - - - with USB DIRECT.
3 Plug a compatible USB mass storage device to MCM204’s USB port marked
.
If needed, use a suitable USB cable to connect between the device and MCM204’s USB port.
The device will automatically power on.
4 PressÉÅon your MCM204 to start playback.
5 Press 9 to stop playback.
Tip:
Refer to the user manual supplied for
the description about compatibility of
USB mass storage device, and
playability of the files stored on the
USB device.
INFORMATION REGARDING USB DIRECT:
1. Compatibility of the USB connection on this micro system:
a) This micro system supports most USB Mass storage devices (MSD) that these devices are compliant
to the USB MSD standards.
i) Most common Mass storage class devices are flash drives, memory sticks, jump drives and etc.
ii) If you see a "Disc Drive" showing up on your computer after you have plugged the mass storage
device into your computer, most likely it is MSD compliant and it will work with this micro system.
b) If your Mass storage device requires a battery/power source, please make sure you have a fresh
battery in it or charge the USB device first and then plug it into the micro system again.
2) Supported Music type:
a) This device only supports unprotected music with file extension: .mp3 .wma
b) Music bought from on-line music stores are not supported because they are secured by Digital Rights
Management protection (DRM).
c) File name extensions that ended with the following are not supported: .wav; .m4a; .m4p; .mp4; .aac and
etc.
3) No Direct connection can be made from a Computer USB port to the micro system even you have either
or both mp3 or wma file in your computer.
2007 C Koninklijie Philips Electronics
N.V. All rights reserved.
http://www.philips.com
MCM204_05 QUG_Eng
4
PDCC-JH-0704
25/1/07, 12:45
