Philips FWM352/05 Quick start guide

Philips FWM352/05 Quick start guide

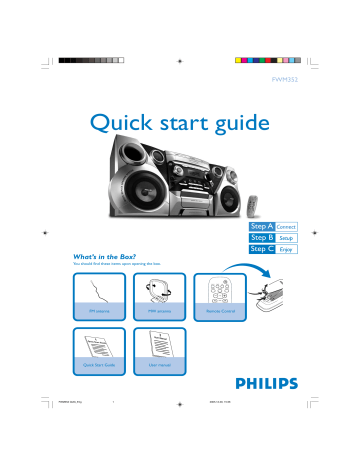

FWM352
Quick start guide
What’s in the Box?
You should find these items upon opening the box.
y
CD1/2/3
REPEAT
TUNER
AUX
PROGRAM
MUTE
SHUFFLE
VOL
TITLE
FM antenna
MW antenna
Remote Control
ALBUM
DISPLAY
SLEEP
DIM
TIMER
ON/OFF
DSC
DBB
2
User Man
ual
1
Quick Star
t Guide
Quick Start Guide
FWM352 QUG_Eng
1
User manual
2005.12.29, 15:36
1
Connect the speaker cables.
Tip
2
See the User Manual for how to
connect other equipment to this
system.
Connect the MW and FM antennas.
3
Connect the power cable of the system.
MW loop
antenna
FM wire antenna
2
AM ANTENNA
Speaker
(right)
Speaker
(left)
FM ANTENNA
AUX/CDR
R L
1
R
L
+
SPEAKERS 6Ω
3
AC power cord
Setup
Setting the clock
1
In standby or view clock mode, press CLOCK•TIMER once. In other
source mode, press CLOCK•TIMER twice.
2
Press à or á repeatedly to set the hour.
3
Press í or ë repeatedly to set the minute.
4
Press CLOCK•TIMER again to store the setting.
FWM352 QUG_Eng
2
2005.12.29, 15:36
C
Enjoy
Playing a disc
2
Press OPEN•CLOSE to open the disc tray and load up to two
discs on the individual disc trays. To load the third disc, press DISC
CHANGE.
➜ Make sure the label side of each loaded disc is facing up.
1
1
2
1
2
Press OPEN•CLOSE again to close the disc tray.
3
Use DSC 1/2/3 (or CD 1/2/3 on the remote control) to select a
disc for playback and then press PLAY•PAUSEÉÅ to start
playback.
4
To stop playback, press STOP9 .
Programming and tuning to
radio stations
1
Press TUNER to select the tuner source.
2
Press PROGRAM for more than two seconds to program all
available stations in order of waveband.
3
Press í or ë until the desired preset station is displayed.
Tip
Detailed playback features and additional functions are described in the
accompany owner's manual.
PDCC-JS/JW-0544
FWM352 QUG_Eng
3
2005.12.29, 15:36
