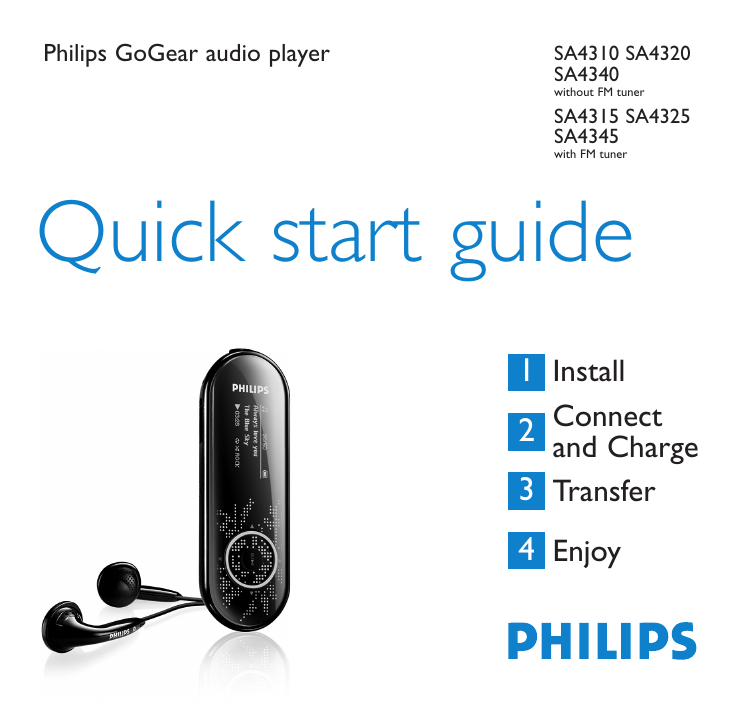

Philips GoGear audio player
SA4310 SA4320
SA4340
without FM tuner
SA4315 SA4325
SA4345
with FM tuner
Quick start guide
1 Install
2 Connect
and Charge
3 Transfer
4 Enjoy
Need help?
Please visit
www.philips.com/welcome
where you can access to a full set of supporting materials
such as user manual, flash tutorial, the latest software
upgrades and answers to frequently asked questions.
Contents
2
2
2
3
4
5
6
6
6
7
7
8
8
8
8
9
9
9
10
EN
Is there a manual?
Register your product
Don’t forget about upgrades
What’s in the box
Overview of controls and connections
Install
Connect and Charge
Connect to PC
Read the battery level indication of your player
Transfer
Transfer music and pictures with Windows Media Player 11
Enjoy
Power on and play
Main menu
Navigate the menu
Music mode
Radio*
Auto tune
Play a preset radio station and tune the station
10 Recordings
10
10
Make recordings
Play back recordings
11 Troubleshooting
11
11
How do I recover my player?
How do I reset my player?
12 Need help?
12 Disposal of your old product
* FM radio is only available to some regional versions.
1
Is there a manual?
You have a detailed user manual and FAQ on the CD by-packed with your player. You can also
download the same file from this website: www.philips.com/support
Register your product
Since it is possible for you to upgrade your product, we recommend that you register your
product on www.philips.com/welcome so we can inform you as soon as new free upgrades
become available.
Don’t forget about upgrades
We know you will enjoy your product for a long time. For best performance, we recommend that
you regularly check in to www.philips.com/support for free upgrades of the latest software and
Firmware Manager for your product. These downloads will help you to optimize your product’s
performance and to take advantage of our future support of new audio formats.
Enjoy your new music experience.
2
Headphones
EN
What’s in the box
Neck strap
USB cable
Philips GoGear audio video player
SA4310 SA4320
SA4340
without FM tuner
SA4315 SA4325
SA4345
with FM tuner
Quick start guide
1 Install
2 Connect
and Charge
3 Transfer
4 Enjoy
CD-ROM
Quick start guide
What else you'll need?
Computer
A computer with:
Windows XP (SP2 or above) or Vista
Pentium III 800MHz processor or higher
256MB RAM
200MB Hard Disk space
Internet connection (preferable)
Microsoft Internet Explorer 6.0 or later
CD-ROM drive
USB Port
3
Overview of controls and connections
B
A
Press and slide to
extend USB
connector.
C
D
Press and slide to
retract USB
connector.
E
F
K J
A - Vol +
B p
C Microphone
D
slider
E RESET
F USB
slider
G
H REC
I MENU
4
IH
G
Control volume
Headphones jack
For voice recordings
Lock all keys except volume
keys
Reset hole
Press and slide for USB
USB connector
Start or stop voice recording
Press to access the menu /
return to previous menu
J 1
Navigate back one menu level or exit
a function
During songs / recordings playback,
press to go to previous songs /
recordings, or press and hold to
rewind
2
Navigate forward one menu level or
select a function
During songs / recordings playback,
press to go to next songs /
recordings, or press and hold to fast
forward
3
Scroll up in the list
4
Scroll down in the list
K y / 2; Short press to play/pause songs, long
press to power on/off
Install
EN
1
Important You need Windows XP Service Pack 2 to install and run this software.
In case you do not have this on your PC, you will be asked to install the Service Pack.
Please do install this, complete the rest of your software installation and only then
connect your device.
This is critical to ensure the proper working of your player when connected to the PC.
1 Insert the CD supplied with your product into the CD ROM drive of your PC.
2 Follow the onscreen instructions to complete the installation of Windows Media
Player and Philips Device Manager.
3 If the installation program does not start automatically, browse the CD contents via
Windows Explorer and run the program by double clicking on the file ending with
.exe.
5
2
Connect and Charge
A Connect to PC
1 Turn on the player.
2 Connect the player to PC as shown.
> The screen of the player indicates the connection with PC.
B Read the battery level indication of your player
The approximate power levels of your battery are indicated as follows:
Full
Two-thirds full
Half full
Low
Empty
TIP When the batteries are almost empty, the low battery screen
blinks. Your
player will power down in less than 60 seconds. Your player will save all settings and
un-finished recordings before it powers down.
6
3
EN
Transfer
Transfer music and pictures with Windows Media Player 11
Download Windows Media Player11:
http://www.microsoft.com/windows/windowsmedia/player/11/default.aspx
3
4
1 Start Windows Media Player 11.
2 Connect the player to your computer using the supplied USB cable.
3 Once the player is connected, the sync tab changes as shown (
) and the device and
its contents become visible in Windows Media Player 11(see figure above).
4 Windows Media Player 11will automatically start synchronizing the contents of your
music library to your player.
For details on how to set synchronization options in Windows Media Player 11,
pls refer to the user manual.
7
4
Enjoy
A Power on and play
To power on, press 2; until the PHILIPS welcome screen appears.
To power off, press and hold 2; until there is no display on the screen.
B Main menu
Music
Play your digital music tracks
Radio*
Listen to FM radio
Recording
Create or listen to recordings
Folder view
Browse your music tracks or recordings by folders
Settings
Customize the settings of your player
C Navigate the menu
Your player has an intuitive menu navigation system to guide you through various
settings and operations. Use 1, 2, 3, 4 to browse through menus. Press 2; to confirm
your selection.
To
Return to previous menu
Return to main menu
Browse through menus
Scroll through a list
Superscroll™
Select an option
Confirm a selection
8
Do this
Press 1 or MENU
Press and hold MENU
Press 1 or 2
Press 3 or 4
Press and hold 3 or 4
Press 2
Press 2;
* FM radio is only available to some regional versions.
(also applicable to playback of recordings)
EN
Music mode
You can do the following actions during music playback:
To
Play / Pause music
Skip to next song
Return to previous song
Fast forward
Do this
Press 2;
Press 2
Press 1
Press and hold 2
To
Fast rewind
Return to browsing
Increase volume
Decrease volume
Do this
Press and hold 1
Press MENU key
Press Vol +
Press Vol -
From the main menu, select
to enter music mode.
You can search from the following music options:
All songs
Alphabetically listed tracks
Artists
Alphabetically listed artists
Alphabetically listed albums
Albums
Alphabetically listed albums
Tracks listed in album order
Radio*
From the main menu, select
to enter radio mode.
Connect the headphones
The supplied pair of headphones serves as a radio antenna. Make sure that it is properly
connected to ensure optimal reception.
Auto tune
1 Select Auto tune under Radio menu .
> The player will search for the stations with the strongest signals and automatically save up to 20
stations in the preset memory.
* FM radio is only available to some regional versions.
9
Play a preset radio station and tune the station
1
2
3
4
5
From the Radio menu , select Presets.
Press 3 or 4 to browse and select the preset stations.
After you select a preset station, short press 1 / 2 can change to another preset stations.
You can also tune the frequency of selected preset station by long pressing 3 / 4.
Short press 3 or 4 to move one tuning step, long press 3 or 4 to search next nearest
strongest signal.
Recordings
Your player allows you to make voice recordings and play back your recordings.
Make recordings
1
>
2
>
Press and hold REC to start voice recording.
Your player displays the recording progress.
Press 1 to stop and save the voice recording.
Your player displays the saving progress. Your voice recording will be saved on your player. (Filename
format: VOICEXXX.WAV where XXX is the recording number which will be automatically generated.)
Tip You can pause and resume a recording anytime with 2; key.
Play back recordings
You can find your recordings in the Recordings mode.
1 From the root menu, select
to enter the Recordings mode. Your player will play all your
recordings alphabetically and playback will start with the last recording made.
2 Press 2; to pause the recording on playback.
3 Press 1 or 2 to play the next or previous recordings.
4 Press and hold 1 or 2 to fast forward or fast rewind the current recording on playback.
10
EN
Troubleshooting
How do I recover my player?
In the event of a device error, please follow the below procedures:
1 Make sure the player is disconnected from PC and turned off.
2 Launch the Philips Device Manager at Start > Programs > Philips Device Manager >
Philips Device Manager on your PC and click Repair tab.
3 Press and hold the 2; button while your player is connecting to the PC.
4 Keep holding the key until the Philips Device Manager acknowledges your player and goes
into recovery mode.
5 Click the Repair button and follow the instructions given by the Device Manager.
6 After the player has been repaired, disconnect it from your PC and re-start.
Important When the first time you connect the device to PC in recovery mode, a
hardware wizard will be popped up to install the software. Please select install the
software automatically and click Next, and then click Finish to complete the installation.
During the installation, a warning message stating "The Software you are installing for this
hardware has not passed Windows Logo testing.", please select Continue Anyway, this
installation will not affect your PC.
How do I reset my player?
Insert a pin or a sharp object into the reset hole located at the bottom of the player to reset it.
You will need to power on the player after resetting it.
Please refer to the user manual for more troubleshooting advice.
11
Need help?
User Manual
See the user manual that came with your player.
Online
Go to www.philips.com/welcome
Disposal of your old product
Your product is designed and manufactured with high quality materials and components, which can be recycled and
reused.
When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European
Directive 2002/96/EC
Please inform yourself about the local separate collection system for electrical and electronic products.
Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct
disposal of your old product will help prevent potential negative consequences for the environment and human health.
12
ABC
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V. or
their respective owners
© 2007 Koninklijke Philips Electronics N.V.
All rights reserved.
www.philips.com
Printed in China
