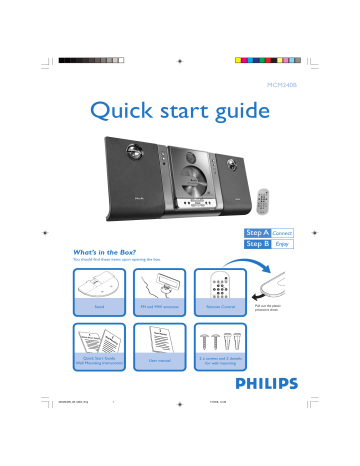

MCM240B
Quick start guide
What’s in the Box?
You should find these items upon opening the box.
Stand
FM and MW antennas
Remote Control
2
User Man
1
Quick Star
t Guide
W
all
ual
3
Mo
un
tin
g
Quick Start Guide
Wall Mounting Instructions
MCM240B_98_QSG_Eng
1
User manual
2 x screws and 2 dowels
for wall mounting
1/18/08, 14:39
Pull out the plastic
protective sheet.
1 For radio reception, connect the supplied MW loop antenna and FM antenna to the respective terminals.
2 Connect the speaker wires to the SPEAKERS terminals, right speaker to "RIGHT" and left speaker to "LEFT",
colored (marked) wire to "+" and black (unmarked) wire to "–".
3 After ensuring all the above connections have been made, connect the AC power cord to the wall outlet.
FM wire antenna
MW loop antenna
Speaker
(left)
Speaker
(right)
2
VOLTAGE
SELECTOR
110V127V
220V240V
NOT FOR ALL
VERSIONS
1
3
AC power cord
Loading a CD
1 Press SOURCE on the front panel of the system to select CD or press
CD on the remote.
2 Press OPEN•CLOSE 0 to open the CD compartment.
3 Insert a CD with the printed side facing up. Press OPEN•CLOSE 0 again to
close the compartment.
Tip
See the User Manual for playback of MP3-CDs.
Playback
1 After the system successfully reads the inserted CD, press PRESET ¡ / ™ once
or repeatedly until the desired track number appears in the display.
2 Press ÉÅ to start playback.
3 Press 9 to stop playback.
MCM240B_98_QSG_Eng
2
1
1/18/08, 14:39
