Philips HSB4383/98 User manual

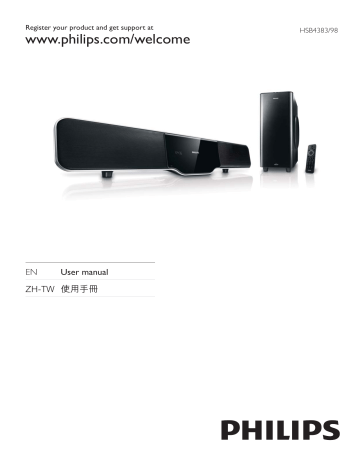

Register your product and get support at www.philips.com/welcome EN User manual =+7: Ԛ͂ʹ˫ HSB4383/98 1 Important Safety Notice 2 Your DVD Home Theater System Introduction What’s in the box Overview of the main unit Overview of the remote control 3 Connect Place the unit Attach speakers to the main unit Connect TV Connect video cables Option 1: Connect through HDMI Option 2: Connect through component video Option 3: Connect through composite video Connect audio cables Connect FM antenna Connect power 5 5 6 8 8 8 9 10 12 12 12 12 12 13 13 14 14 14 14 4 Get started 16 Prepare the remote control 16 Turn on 16 Set up wireless connection manually 16 Find the correct viewing channel 17 Select the correct TV system 17 Select menu display language 17 Turn on Progressive Scan 17 Turn off progressive scan manually 18 Use Philips EasyLink 18 5 Play Play discs Use the disc menu Select an audio language Select a subtitle language Sync audio output with video play 19 19 19 19 19 19 Play from USB 20 Play DivX video 20 Play MP3/WMA/picture ﬁles 20 Play control 21 Select repeat/shufﬂe play options 21 Repeat A-B (DVD/VCD/CD/MP3/ WMA) 21 Search forward/backward 21 Resume video play from last stopped point 21 Play options 21 Display play information 21 Zoom in/out image 21 Change the audio channel 21 Picture view options 22 Start slideshow of pictures 22 Rotate picture 22 Start musical slideshow 22 6 Adjust settings 23 23 23 24 24 25 General setup Switch to standby mode Audio setup Video setup Preference setup 7 Tune to FM radio stations Program radio stations automatically Program radio stations manually Tune to a preset radio station 27 27 27 27 8 Adjust volume level and sound effect 28 28 28 28 28 28 28 Adjust volume level Select a sound effect Select a preset sound effect Select surround sound effect Adjust treble/bass level Mute sound 9 Other features 29 29 29 29 Set the sleep timer Connect other devices Listen to an audio player EN 3 E n gl i sh Contents 10 Product information Speciﬁcations Ampliﬁer Disc Tuner (FM) Speakers General information Supported disc formats USB playability information 11 Troubleshooting 12 Appendix 30 30 30 30 30 30 31 31 31 32 34 Mount to a wall 34 What’s in the supplied mounting kit 34 What else you’ll need 34 Mount the main unit and speakers 34 4 EN Know these safety symbols This ‘bolt of lightning’ indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The ‘exclamation point’ calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems. WARNING: To reduce the risk of ﬁre or electric shock, this apparatus should not be exposed to rain or moisture and objects ﬁlled with liquids, such as vases, should not be placed on this apparatus. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert. Safety a Read these instructions. g Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. h Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat. i For countries with a polarized mains, do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet. Caution: To prevent electric shock, match the wide blade of the plug to the wide slot, fully insert. j Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. k Only use attachments/accessories speciﬁed by the manufacturer. l Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. b Keep these instructions. c Heed all warnings. d Follow all instructions. e Do not use this apparatus near water. f Clean only with dry cloth. m Unplug this apparatus during lightning storms or when unused for long periods of time. EN 5 E n gl i sh 1 Important n Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. o Battery usage CAUTION – To prevent battery leakage which may result in bodily injury, property damage, or damage to the apparatus: • Install all batteries correctly, + and - as marked on the apparatus. • Do not mix batteries (old and new or carbon and alkaline, etc.). • Remove batteries when the unit is not used for a long time. • The batteries shall not be exposed to excessive heat such as sunshine, ﬁre or the like. p Apparatus shall not be exposed to dripping or splashing. q Do not place any sources of danger on the apparatus (e.g. liquid ﬁlled objects, lighted candles). r This product may contain lead and mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org. Warning • • • • • • • 6 Never remove the casing of this unit. Never lubricate any part of this unit. Place this unit on a ﬂat, hard and stable surface. Never place this unit on other electrical equipment. Only use this unit indoors. Keep this unit away from water, moisture and liquid-ﬁlled objects. Keep this unit away from direct sunlight, naked ﬂames or heat. Never look into the laser beam inside the unit. EN Warning • Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. Wall mounting of the unit should only be performed by qualiﬁed personnel. The unit must only be mounted on an appropriate wall bracket and on a wall that can safely hold the weight of the unit. Improper wall mounting can result in severe injury or damage. Do not attempt to wall mount the unit yourself. Notice Any changes or modiﬁcations made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. Environmental information All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. The making of unauthorized copies of copyprotected material, including computer programs, ﬁles, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes. E n gl i sh Dolby and the double-D symbol are trademarks of Dolby Laboratories. HDMI, and HDMI logo and High-Deﬁnition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC. ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. DivX, DivX Certiﬁed, and associated logos are trademarks of DivX, Inc. and are used under license. Ofﬁcial DivX® Ultra Certiﬁed product. Plays all versions of DivX® video (including DivX® 6) with enhanced playback of DivX® media ﬁles and the DivX® Media Format. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved. The USB-IF Logos are trademarks of Universal Serial Bus Implementers Forum, inc. Note • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This apparatus includes this label: Manufactured under license from Dolby Laboratories. Dolby, Pro Logic and the double-D symbol are trademarks of Dolby Laboratories. Note Manufactured under license from Dolby Laboratories. • The type plate is located on the bottom of the apparatus. EN 7 2 Your DVD Home Theater System Congratulations on your purchase, and welcome to Philips! To fully beneﬁt from the support that Philips offers, register your product at www.Philips.com/welcome. This DVD Home Theater System is designed to complement your home perfectly. Enjoy the DVD Home Theater System with multi-channel surround sound and excellent picture quality. Introduction With this unit, you can: • watch video from DVD/VCD/SVCD or USB devices • enjoy audio from discs or USB devices • view pictures from discs or USB devices • listen to FM radio • Control EasyLink-compliant devices through a single remote control • Sync audio output with the video output You can enrich sound output with these sound effects: • Surround sound exprience • Preset sound modes The unit supports these media/disc formats: Recordable ReWritable You can play DVD discs with the following region codes: DVD region code Countries Asia Paciﬁc, Taiwan, Korea Australia, New Zealand What’s in the box Check and identify the contents of your package: • Main unit • Speakers (x 2) • Digital wireless subwoofer • Power adapter for the main unit • Remote control (with batteries) • FM wire antenna • AV cable (red/white/yellow) • USB extension cable • Wall mount bracket and screws (x4) 8 EN E n gl i sh Overview of the main unit HSB4383 a b c d ef g h iR l kj Caution • Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation. i g • Open the disc compartment. • Start or pause play. h i Disc compartment a SOURCE • Select a source. b MP3 LINK • Jack for an external audio device. c j Remote control sensor k Display panel • Display current status. l • • Turn on the unit or switch to standby mode. • • Stop play. Erase a preset radio station. USB socket. d e VOL -/+ • Adjust volume. f / • • Skip to the previous/next title/ chapter/track. Select a preset radio station. EN 9 b Source selection keys • Select a source. Overview of the remote control c OPTIONS Access or exit the system setup menu. • a b w d • • • c d f • • • • f g h g i j u s / • k / ( / ) For menus, navigate left/right. Search within a track or disc. Move an enlarged picture left/right. Tune to a radio station. INFO • For video/audio play, display information about the current status or the disc. • For pictures, display a thumbnail view of picture ﬁles. h t For menus: navigate up/down. Move an enlarged picture up/down. Rotate or invert pictures. e OK • Conﬁrms an entry or selection. e v / • Skip to the previous/next title/ chapter/track. Select a preset radio station. • Start or pause play. • • Stop play. Erase a preset radio station. i l r m q n p o j k TREBLE / BASS • Selects treble or bass mode. Press +/- to set the level for treble or bass. l Numeric keypad • Select a title/chapter/track directly. • Select a preset radio station directly. m AUDIO SYNC • Access audio delay setting. a • 10 EN Turn on the unit or switch to standby mode. n SOUND • Selects a predeﬁned sound effect. E n gl i sh o ZOOM • For pictures or video: zoom in/out. p REPEAT A-B • Repeat a speciﬁc section within a track/disc. q REPEAT/PROGRAM • Selects or turns off repeat or shufﬂe mode. • Program radio stations. r SUBTITLE • Select DVD or DivX subtitle language. s SURROUND • Enable/disable Dolby Virtual Speakers (DVS) sound effect. t +/• Adjust volume. u • Mute or restore volume. v MENU/BACK • Return to the previous screen. • For video discs: access or exit the disc menu. • For video discs with playback control(PBC): turn on/off PBC. w AUDIO • For VCD, select stereo, mono-left or mono-right channel. • For DVD/DivX video, select an audio language. EN 11 3 Connect Place the unit 1 2 3 2 Attach the left speaker to the left side of the main unit. 3 4 Repeat step 2 to attach the right speaker. Place the unit near to the TV. Keep the speakers at the normal listening ear-level and directly parallel to the listening area. Place the subwoofer at the corner of the room or at least one meter away from the TV. Insert the supplied studs into the holes. Note • To avoid magnetic interference or unwanted noise, • • never place this apparatus and speakers too close to any radiation devices. Never place this unit in an enclosed cabinet. Install this unit near the AC outlet where the AC power plug can be easily reached. Attach speakers to the main unit 1 Place the main unit on a soft and ﬂat surface. • Ensure that the rear side faces upwards. 12 EN Connect TV Connect video cables With this connection, you can watch video from the unit on the TV screen. You can select the best video connection that your TV supports. • Option 1: Connect through HDMI (for a HDMI, DVI or HDCP-compliant TV). • • Option 2: Connect through SCART (for a standard TV). Option 3: connect through component video (for a standard TV or Progressive Scan TV). Option 4: connect through composite video (CVBS) (for a standard TV). Option 1: Connect through HDMI Note • This unit is HDMI CEC compatible. It enables the connected TV/device to control each other over HDMI. • If your TV has only a DVI connection, connect through a HDMI/DVI adaptor. An extra audio connection is needed to complete this connection. Option 2: Connect through component video Connect a progressive scan TV through component video for higher quality video. TV HDMI IN Connect HDMI (High Deﬁnition Multimedia Interface), DVI (Digital Visual Interface), or HDCP (High-bandwidth Digital Contents Protection)-compliant TVs through HDMI for the best picture quality. This connection transmits both video and audio signals. Through this connection, you can watch DVDs that contain HD (High-Deﬁnition) content. Note • Some TVs do not support HDMI audio transmission. • This connection provides the best video quality. 1 Pr/Cr Pb/Cb Y COMPONENT VIDEO IN PUT 1 TV Connect component video cables (red/ blue/green - not supplied) to: • the COMPONENT VIDEO OUT (Pr/ Cr Pb/Cb Y) sockets on this unit. • the component input sockets on the TV. Connect an HDMI cable (not supplied) to: • the “HDMI” socket on this unit. • the HDMI input socket on the TV. EN 13 E n gl i sh • Option 3: Connect through composite video Connect FM antenna Tip • This unit does not support MW radio reception. TV FM ANT 1 Connect the yellow plugs of the supplied AV cable to: • the VIDEO OUT socket on this unit. • the video input socket on the TV. 1 Connect audio cables Connect the supplied FM antenna to the FM ANT socket on the unit. Connect power Caution TV • Risk of product damage! Ensure that the power supply • L AUDIO OUT R • 1 To play sound from the TV through this unit, connect audio cables (red/white - not supplied) to: • the AUX L/R sockets on this unit. • the audio output sockets on the TV. 14 EN 1 voltage corresponds to the voltage printed on the back or the underside of the unit. Risk of electric shock! When you unplug the AC power, always pull the plug from the socket. Never pull the cord. Before you connect the AC power, ensure you have completed all other connections. Connect the power plug of the main unit to the wall outlet. E n gl i sh c b 2 Connect the power plug of the digital wireless subwoofer to the wall outlet. EN 15 Turn on 4 Get started 1 Press . » The unit switches to the last selected source. 2 Wait for automatic setup of wireless connection between the main unit and subwoofer. » [PAIRING] (pairing) ﬂashes. Caution • Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation. Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the bottom of the apparatus. Write the numbers here: Model No. __________________________ Serial No. ___________________________ Prepare the remote control » If the connection succeeds, [PAIR OK] (pair OK) is displayed and the blue indicator on the subwoofer lights up. » If the connection fails, [PAIR FAIL] (pair fail) is displayed and the green indicator on the subwoofer lights up. » If the wireless connection fails, set up the connection manually. Set up wireless connection manually 1 In Normal Standby mode (see “Adjust Settings - General Setup - [Standby Mode]”), press and hold on the main unit for 3 seconds. » [PAIRING] (pairing) ﬂashes. 2 Press and hold PAIR on the subwoofer for 3 seconds. » The blue and green indicators on the subwoofer ﬂash alternately. Caution • Risk of explosion! Keep batteries away from heat, sunshine or ﬁre. Never discard batteries in ﬁre. • Risk of decreased battery life! Never mix different brands or types of batteries. • Risk of product damage! When the remote control is not used for long periods, remove the batteries. » If wireless connection succeeds, [PAIR OK] (pair OK) is displayed and the blue indicators on the subwoofer lights up. 1 2 1 2 3 Open the battery compartment. Insert two R03 or AAA batteries with correct polarity (+/-) as indicated. 3 Close the battery compartment. 16 EN 3 Turn on the main unit again. Note • If the wireless connection fails again, check whether there is any conﬂict or strong interference (for example, interference from other electronic devices) around your location. After removal of the conﬂict or strong interference, repeat the above procedures. Find the correct viewing channel 1 2 3 Press To exit the menu, press OPTIONS. Select menu display language 1 2 3 4 5 Press OPTIONS. Select [General Setup]. Select [OSD Language] and then press . Select a setting and then press OK. To exit the menu, press OPTIONS. to turn on the unit. Press DISC to switch to disc mode. Turn on the TV and switch to the correct video-in channel in one of the following ways: • Go to the lowest channel on your TV, then press the Channel Down button until you see the Philips screen. • Press the source button repeatedly on the remote control of your TV. Tip • The video-in channel is between the lowest and highest channels and may be called FRONT, A/V IN, VIDEO, HDMI etc. See the TV user manual on how to select the correct input on the TV. Select the correct TV system Change this setting if the video does not appear correctly. By default, this setting matches the most common setting for TVs in your country. 1 2 3 4 5 [Multi] - For TV that is compatible with both PAL and NTSC. E n gl i sh • Press OPTIONS. Turn on Progressive Scan Progressive scan displays twice the number of frames per seconds than interlaced scanning (ordinary TV system). With nearly double the number of lines, progressive scan offers higher picture resolution and quality. Before you turn on this feature, ensure that: • The TV supports progressive scan signals. • You have connected this unit with the TV through component video. 1 2 Select a setting and then press OK. • [PAL] - For TV with PAL color system. • [NTSC] - For TV with NTSC color system. Ensure that the TV progressive scan mode is deactivated (see the TV user manual). 3 Switch the TV to the correct viewing channel for this unit. 4 5 6 Press DISC. Press OPTIONS. Press / to select [Video Setup] in the menu, then press . 7 Select [Progressive] > [On], then press OK. » A warning message is displayed. 8 To proceed, select [Ok] and press OK. » The progressive setup is complete. Select [Video Setup]. Select [TV Type] and then press . Turn on the TV. EN 17 Note • If a blank/distorted screen is displayed, wait for 15 seconds for auto recovery or turn off progressive scan manually. 9 Turn on the progressive scan mode on the TV. Turn off progressive scan manually 1 Turn off the progressive scan mode on the TV. 2 3 Press OPTIONS. Press / to select [Video Setup] in the menu, then press . 4 Select [Progressive] > [Off], then press OK. 5 To exit the menu, press OPTIONS. Use Philips EasyLink This unit supports Philips EasyLink, which uses the HDMI CEC (Consumer Electronics Control) protocol. EasyLink-compliant devices that are connected through HDMI connectors can be controlled by a single remote control. Note • Philips does not guarantee 100% interoperability with all HDMI CEC devices. 1 Turn on the HDMI CEC operations on the TV or other connected devices. See TVs/ devices manual for details. 2 You can now enjoy the following Philips EasyLink controls. 18 EN One touch play[Auto Wakeup TV] When you press , this unit will wake up from standby mode and start disc play (if a video disc is found in the disc compartment). At the same time, your TV will also be turned on and be switched to the correct viewing channel. One touch power-off[System Standby] When you connect this unit to devices that support standby mode, you can use the remote control of this unit to switch this unit and all connected HDMI devices to standby mode. You can also use the remote control from any of the connected HDMI devices to perform one-touch standby . One touch audio play[System Audio Control] When you connect this unit to HDMI CEC compliant devices, the unit can switch automatically to play audio from the connected device. To return to the menu during play: 1 Press MENU/BACK. E n gl i sh 5 Play Note Note • To see the disc menu of a VCD disc, you must turn on • With some disc/ﬁle types, play may differ. PlayBack Control (PBC) feature of the disc. Select an audio language Play discs Caution You can select an audio language on DVDs, DiVx video or VCDs. 1 • Never look at the laser beam inside the unit. • Risk of product damage! Never play discs with • 1 2 3 4 • accessories such as disc stabilizer rings or disc treatment sheets. Never put any objects other than discs into the disc compartment. During disc play, press AUDIO. » The language options appear. If the selected audio channels is unavailable, the default disc audio channel is used. Note • For some DVDs, the language can only be changed Press DISC to select the DISC source. from the disc menu. Press MENU/BACK to access the menu. Press on the main set to open the disc compartment. Place a disc into the disc compartment and press . » Ensure that the label faces outwards. Play starts automatically. • To stop play, press . • To pause or resume play, press . • To skip to the previous/next title/ chapter/track, press / . If play does not start automatically: Select a title/chapter/track and then press . Tip • To play a locked DVD, enter the 4-digit parental control password. Use the disc menu When you load a DVD/(S)VCD disc, a menu may be displayed on the TV screen. Select a subtitle language You can select a subtitle language on DVDs or DivX® Ultra discs. • During play, press SUBTITLE. Tip • For some DVDs, the language can only be changed from the disc menu. Press MENU/BACK to access the menu. Sync audio output with video play If the video play is slower than the audio output (sound does not match with the pictures), you can delay the audio output to match the video. 1 Press and hold AUDIO SYNC until ‘AUDIO SYNC XXX’ is displayed. » ‘XXX’ denotes the delay time. EN 19 2 Within ﬁve seconds, press +/- to set the delay time for audio output. 3 4 Play from USB Note • Ensure that the USB device contains playable music, Select a folder, then press OK. Select a ﬁle to play, then press . • To return to the main menu, press until the ‘Previous’ folder is selected, then press OK. • To stop play, press . • To pause or resume play, press . • To skip to the previous/next ﬁle, press / . pictures or video. 1 Connect the supplied USB extension cable to: • the USB device • the socket Play DivX video You can play DivX ﬁles copied onto a CD-R/ RW, recordable DVD or USB device. 1 2 3 Insert a disc or connect a USB device. Select a source: • For discs, press DISC. • For USB devices, press USB. Select a title to play, then press . • To stop play, press . • To pause or resume play, press . • To change a subtitle language, press SUBTITLE. Note • You can only play DivX videos rented or purchased through the DivX registration code of this unit. • Subtitle ﬁles with the following ﬁlename extensions (.srt, • .smi, .sub, .ssa, .ass) are supported but do not appear on the ﬁle navigation menu. The subtitle ﬁlename has to be the same as the ﬁle name of the video. Play MP3/WMA/picture ﬁles You can play MP3/WMA/picture ﬁles copied onto a CD-R/RW, recordable DVD or USB device. 2 Press USB to select the USB source. » A contents menu is displayed. 20 EN 1 2 Insert a disc or connect a USB device. Select a source: • For discs, press DISC. 3 4 For USB devices, press USB. A contents menu is displayed. To resume play at normal speed, press . Select a folder, then press OK. Select a ﬁle to play, then press . • To return to the main menu, press until the ‘Previous’ folder is selected, then press OK. • To stop play, press . • To pause or resume play, press . • To skip to the previous/next ﬁle, press / . Resume video play from last stopped point Note • This feature is only available for video play. 1 In stop mode and when the disc has not been removed, press OK. To cancel resume mode and stop play completely: Play control Select repeat/shufﬂe play options 1 • During play, press REPEAT/PROGRAM repeatedly to select a repeat option or the shufﬂe play mode. • To resume normal play, press REPEAT/PROGRAM repeatedly until [Repeat Off] is displayed. 1 In stop mode, press Play options Display play information 1 During play, press INFO repeatedly to display play information. Repeat A-B (DVD/VCD/CD/MP3/ WMA) Zoom in/out image 1 During music or video play, press REPEAT A-B at the start point. 1 2 Press REPEAT A-B at the end point. » The selected section starts to play repeatedly. • To cancel repeat play, press REPEAT A-B again. . During video/picture play, press ZOOM repeatedly to zoom in/out the image. • When the image is zoomed in, you can press / / / to pan through the image. Change the audio channel Note Note • The section A and B can be set only within the same • This feature is only available for VCD/DivX play. track/title. 1 Search forward/backward 1 During play, press / ( / to select a search speed. ) repeatedly During play, press AUDIO repeatedly to select an audio channel available on the disc: • Mono Left • Mono Right • Stereo EN 21 E n gl i sh • • Picture view options Start slideshow of pictures 1 During play, press OPTIONS. » The thumbnails of 12 pictures are displayed. 2 Select a ﬁle, then press to start slideshow play. • To go to previous or next screen display, press / . • To select a picture, press the cursor buttons. • To display the selected photo only, press OK. Rotate picture 1 During play, press / to rotate the picture anti-clockwise/clockwise. Start musical slideshow You can play MP3/WMA music ﬁles and JPEG photo ﬁles simultaneously to create musical slideshow. The MP3/WMA and JPEG ﬁles must be stored on the same disc or USB device. 1 2 Play MP3/WMA music. Navigate to the photo folder/album and press to start slideshow play. » Slideshow begins and continues till the end of the photo folder or album. » Audio continues to play till the end of the disc. » To return to the menu, press MENU/ BACK. 3 4 To stop slideshow play, press 22 EN To stop music play, press . again. 1 2 3 4 Press OPTIONS. Select a setup page. Select an option and then press . Select a setting and then press OK. • To return to the previous menu, press . • To exit the menu, press OPTIONS. [EasyLink] If this unit is connected to HDMI CEC compliant TV/devices, all connected devices can respond to the following commands simultaneously: Option [One Touch Play] [System Standby] General setup On [General Setup Page], you can set the following options: [Disc Lock] Set play restriction for speciﬁc discs. Before you start, place the disc in the disc compartment (maximum 40 discs can be locked). • [Lock] – Restrict access to the current disc. You need to enter a password to unlock and play the disc. • [Unlock] – Play all discs. [System Audio Control] [Audio Input Mapping] Tip E n gl i sh 6 Adjust settings Description , the TV and When you press this unit are turned on. Disc play starts if there is a disc in the unit. When you press and hold , connected HDMI CEC devices simultaneously switch to standby. To disable this feature, select [Decline]. When you play audio that is routed from the connected devices, this unit switches to the corresponding audio source automatically. To enable this feature, select [On]. Then proceed to [Audio Input Mapping] to scan and map all the connected devices. When you map the audio input correctly, this unit switches to the audio from the played device automatically. • To set or change the password, go to [Preference Setup] > [Password]. [OSD Language] Select the preferred language for on-screen display. Switch to standby mode [Standby Mode] Set the standby mode. • [Normal] - power consumption <4W. • [Low Power] - power consumption <1W. However, it requires longer time to power up. Note • You must turn on the HDMI CEC operations on the TV/devices before you can enjoy the EasyLink controls. See the TV/devices manual for details. Philips does not guarantee 100% interoperability with all HDMI CEC compliant devices. [Display Dim] Turn on or off adjustment of display brightness level. [Screen Saver] The screen saver protects the TV screen damage due to prolonged exposure to a static image. • [On] – Enable the screen saver. • [Off] – Disable the screen saver. EN 23 • [Sleep Timer] Switches to standby automatically after the preset time. • [15 mins], [30 mins], [45 mins], [60 mins] – select the count down time before the apparatus switches to standby. • [Off] – disable sleep mode. [DivX(R) VOD Code] Display the DivX® registration code. Tip • Enter this DivX registration code when you rent or purchase video from www.divx.com/vod. The DivX videos rented or purchased through the DivX® VOD (Video On Demand) service can be played only on the device to which it is registered. Audio setup On [Audio Setup Page], you can set the following options: [HDMI Audio] When you connect this apparatus and TV with an HDMI cable, select the audio output setting for this connection. • [On] – the sound is output through both your TV and this apparatus. If the audio format on the disc is not supported, it is downmixed to twochannel sound (Linear-PCM). • [Off] – disable audio output from the TV. The sound is only output through this apparatus. [Night Mode] Make loud sound level softer and soft sound level louder so that you can watch the DVD movies at a low volume, without disturbing others. 24 EN • [Off] – enjoy surround sound with its full dynamic range. [On] – enjoy quiet viewing at night (DVDs only). Video setup On [Video Setup Page], you can set the following options: [TV Type] Change this setting if the video does not appear correctly. By default, this setting matches the most common setting for TVs in your country. • [PAL] – For TV with PAL color system. • [NTSC] – For TV with NTSC color system. • [Multi] – For TV that is compatible with both PAL and NTSC. [TV Display] The TV format determines the aspect ratio of display according to the type of TV you have connected. 4:3 Pan Scan (PS) • • • 4:3 Letter Box (LB) 16:9 (Wide Screen) [4:3 Pan Scan] – For 4:3 screen TV: full-height display with the trimmed sides. [4:3 Letter Box] – For 4:3 screen TV: wide-screen display with black bars on the top and bottom of the screen. [16:9 Wide Screen] – For widescreen TV: display ratio 16:9. [Progressive] Turn on or off progressive scan mode. [Picture Settings] Select a predeﬁned set of picture color settings or customize your personal setting. • [Standard] – original color setting. • [Bright] – vibrant color setting. [Soft] – warm color setting. [Personal] – customize the color setting. Adjust the level of brightness, contrast, sharpness/tint and color saturation. Note • If the language you have set is not available on the disc, the disc uses its own default language. • For some discs, the subtitle/audio language can only be changed from the disc menu. • To select the languages that are not listed in the menu, [HDMI Video] – Select the HDMI video output resolution that is compatible with your TV display capability. Option Description [Auto] Detect and select the best supported video resolution automatically. Select a video resolution that is best supported by your TV. See your TV manual for details. [480p], [576p], [720p], [1080i], [1080p] select [Others]. Then check the Language Code list at the back of this user manual and enter the respective 4-digit language code. [Parental] Restricts access to discs that are unsuitable for children. These types of discs must be recorded with ratings. 1) Press OK. 2) Select a rating level, then press OK. 3) Press the numeric keys to enter the password. Note [Closed Caption] Turn off or on display captions. • [On] – show the sound effects in subtitles. Applicable only to discs with Closed Caption information included and the TV that supports this feature. • [Off] – turn off closed caption. • Rated discs above the level you set in [Parental] require a password to be played. • The ratings are country-dependent. To allow all discs to play, select ‘8’. • Some discs have ratings printed on them but are not recorded with ratings. This function has no effect on such discs. Tip Preference setup On [Preference Page], you can set the following options: [Audio] Select the preferred audio language for disc play. [Subtitle] Select the preferred subtitle language for disc play. [Disc Menu] Select the preferred disc menu language. • You can set or change the password (see [Preference Setup] > [Password]). [PBC] Turns on or off the content menu of VCDs/ SVCDs with PBC (playback control) feature. • [On] - display index menu when you load a disc for play. • [Off] - skip the menu and start play from the ﬁrst title. [MP3/JPEG Nav] Select to display the folders or display all the ﬁles. EN 25 E n gl i sh • • • • [With Menu] – display the folders of MP3/ WMA ﬁles. [Without Menu] – display all the ﬁles. [Password] Set or change the password for locked discs and play restricted DVDs. 1) Press the numeric keys to enter ‘0000’ or your last set password at [Old Password] ﬁeld. 2) Enter the new password at [New Password] ﬁeld. 3) Enter the new password again at [Conﬁrm PWD] ﬁeld. 4) Press OK to exit the menu. Note • If you forget the password, enter ‘0000’ before you set a new password. [DivX Subtitle] Select a character set that supports the DivX subtitle. [Standard] English, Irish, Danish, Estonian, Finnish, French, German, Italian, Portuguese, Luxembourgish, Norwegian (Bokmål and Nynorsk), Spanish, Swedish, Turkish Polish, Czech, Slovak, Albanian, [Central Europe] Hungarian, Slovene, Croatian, Serbian (Latin script), Romanian [Cyrillic] Belarusian, Bulgarian, Ukrainian, Macedonian, Russian, Serbian [Greek] Greek [Hebrew] Hebrew 26 EN Note • Ensure that the subtitle ﬁle has the exact same ﬁle name as the movie ﬁle. If for example the ﬁle name of the movie is ‘Movie.avi’, then you will need to name the text ﬁle ‘Movie.sub’ or ‘Movie.srt’. [Version Info] Display the software version of this apparatus. Tip • This information is required when you want to ﬁnd out if a newest software version is available at the Philips website that you may download and install on this apparatus. [Default] Resets all the settings of this apparatus to factory default, except for [Disc Lock], [Password] and [Parental] settings. Program radio stations manually E n gl i sh 7 Tune to FM radio stations Note 1 Ensure that you have connected and fully extended the supplied FM antenna. 2 3 4 Press RADIO. Press and hold / ( / ). When the frequency indication starts to change, release the button. » The FM tuner tunes to a station with strong reception automatically. • You can program a maximum of 20 preset radio stations. 1 2 Program radio stations automatically Press REPEAT/PROGRAM to activate programming. 3 Press / to allocate a number from 1 to 20 to this radio station, then press REPEAT/PROGRAM to conﬁrm. » The preset number and the frequency of the preset station are displayed. 4 Repeat the above steps to program other stations. 5 Repeat steps 3-4 to tune to more stations. To tune to a weak station: Press / ( / ) repeatedly until you ﬁnd optimal reception. Tune to a radio station. Note • To overwrite a programmed station, store another station in its place. Note • You can program a maximum of 20 preset radio stations. 1 Press / to select a preset number to start programing. 2 Press and hold REPEAT/PROGRAM for 2 seconds to activate automatic programming. » [AUTO] (auto) is displayed brieﬂy. » All available stations are programmed in the order of waveband reception strength. Tune to a preset radio station 1 Press / to select a preset number that you want. Tip • You can also use the numerical keypad to select a preset station directly. » The last programed radio station is broadcast automatically. EN 27 8 Adjust volume level and sound effect 2 Adjust volume level 1 1 During play, press +/- to increase/ decrease the volume level. Select a sound effect Note • You cannot use different sound effects at the same time. Select a preset sound effect 1 During play, press SOUND repeatedly to select: • [CLASSIC] (Concert) • [ROCK] (Action) • [Sports] (Gaming) • [Lounge] (Drama) • [Night] Select surround sound effect DVS (Dolby Virtual Speaker) technology creates a highly compelling 5.1-channel listening experience from as few as two speakers. It is an ideal entertainment solution for locations where space for multiple speaker setup is limited. 1 During play, press SURROUND to turn on/off surround sound effect. Adjust treble/bass level 1 Press TREBLE or BASS. 28 EN Within 5 seconds, press +/- to set the level for high tones (treble) or low tones (bass). Mute sound During play, press sound. to mute/unmute E n gl i sh 9 Other features Set the sleep timer 1 When the unit is turned on, press SLEEP repeatedly to select a set period of time (in minutes). » The unit turns off automatically after the set period of time. Tip • You can also set the sleep timer in the system setup menu. Connect other devices Listen to an audio player You can listen to an audio player through this unit. 1 Connect the audio player. • For audio players with red/white audio output sockets: Connect a red/white audio cable (not supplied) to the AUX IN L/R sockets and to the audio output sockets on the audio player. • For audio players with headphone sockets: Connect a 3.5mm audio cable (not supplied) to the MP3 LINK socket and to the headphone socket on the audio player. • For audio players with optical sockets: Connect an optical cable (not supplied) to the OPTICAL IN socket and to the optical output socket on the audio player. 2 Select the AUDIO SOURCE or MP3 LINK source. 3 Start play on the audio player. EN 29 10 Product information Note • Product information is subject to change without prior Tuner (FM) Tuning Range Tuning grid Sensitivity - Mono, 26dB S/N Ratio Search Selectivity Total Harmonic Distortion Signal to Noise Ratio 87.5 - 108MHz 50KHz <22 dBf >28dBf <3% >50dB notice. Speakers Speciﬁcations Ampliﬁer Rated Output Power Frequency Response Signal to Noise Ratio Aux Input 2X60+120WRMS 20 -20000 Hz, ± 3dB >67dB 500mV RMS 20kohm Speaker Impedance Speaker Driver, subwoofer Speaker Driver, woofer Speaker Driver, tweeter Sensitivity - Subwoofer - Woofer/Tweeter Disc Laser Type Disc Diameter Video Decoding Video DAC Signal System Video Format Video S/N Audio DAC Total Harmonic Distortion Frequency Response S/N Ratio 30 EN Semiconductor 12cm/8cm MPEG-1 / MPEG-2 / DivX 12Bits PAL / NTSC 4:3 / 16:9 >48dB 24Bits / 96kHz <1% (1 kHz) 4Hz - 20kHz (44.1kHz) 4Hz - 22kHz (48kHz) 4Hz - 24kHz (96kHz) >67dBA 2x8ohm+8ohm 8” subwoofer 3” woofer 19mm tweeter >84dB/m/W ± 4dB/m/W >82dB/m/W ± 4dB/m/W AC power 110 - 127 V / 220 - 240 V, ~50/60 Hz Main unit: 50W; Subwoofer: 100W <4W Operation Power Consumption Normal standby Power Consumption Low Standby Power <1W Consumption Composite Video Output 1.0Vp-p, 75ohm Optical Input 0.5Vpp ± 0.1Vpp 75ohm HDMI (CEC) Output 1.3a USB Direct Version 2.0 Dimensions - Main Unit (W x H x D) 260 x 140 x 95 mm 310 x 120 x 95 - Speakers mm - Wireless Subwoofer Box 170 x 430 x 340 mm (W x H x D) Weight 13 kg - With Packing 1 kg - Main Unit 2 x 0.8 kg - Speaker Box - Wireless Subwoofer Box 6 kg • • Supported sampling frequencies for MP3 disc: 32 kHz, 44.1 kHz, 48 kHz. Supported Bit-rates of MP3 disc are: 32, 64, 96, 128, 192, 256 (kbps). The following formats are not supported: • Files like *.VMA, *.AAC, *.DLF, *.M3U, • *.PLS, *.WAV • Non-English Album/Title name • Discs recorded in Joliet format • MP3 Pro and MP3 with ID3 tag USB playability information Compatible USB devices: • USB ﬂash memory (USB 2.0 or USB1.1) • USB ﬂash players (USB 2.0 or USB1.1) • memory cards (requires an additional card reader to work with this apparatus) • • • • • Supported disc formats • • • • Digital Video Discs (DVDs) Video CDs (VCDs) Super Video CDs (SVCDs) Digital Video Discs + Rewritable (DVD+RW) • Compact Discs (CDs) • Picture (Kodak, JPEG) ﬁles on CDR(W) • DivX(R) disc on CD-R(W): • DivX 3.11, 4.x and 5.x • WMA Supported MP3-CD formats: • ISO 9660 • Max. title/album name: 12 characters • Max. title number plus album: 255. • Max. nested directory: 8 levels. • Max. album number: 32. • Max. MP3 track number: 999. • • • • • • • • Supported formats: USB or memory ﬁle format FAT12, FAT16, FAT32 (sector size: 512 bytes) MP3 bit rate (data rate): 32-320 Kbps and variable bit rate WMA v9 or earlier Directory nesting up to a maximum of 8 levels Number of albums/ folders: maximum 99 Number of tracks/titles: maximum 999 ID3 tag v2.0 or later File name in Unicode UTF8 (maximum length: 128 bytes) Unsupported formats: Empty albums: an empty album is an album that does not contain MP3/ WMA ﬁles, and is not be shown in the display. Unsupported ﬁle formats are skipped. For example, Word documents (.doc) or MP3 ﬁles with extension .dlf are ignored and not played. AAC, WAV, PCM audio ﬁles DRM protected WMA ﬁles (.wav, .m4a, .m4p, .mp4, .aac) WMA ﬁles in Lossless format EN 31 E n gl i sh • General information 11 Troubleshooting Caution • Never remove the casing of this unit. To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this unit, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.Philips.com/support). When you contact Philips, ensure that your unit is nearby and the model number and serial number are available. No power • Ensure that the AC cord of the unit is connected properly. • Ensure that there is power at the AC outlet. • As a power-saving feature, the system switches off automatically 15 minutes after track play reaches the end and no control is operated. No picture • Check the video connection. • Turn on the TV to the correct Video-In channel. • Progressive scan is activated but the TV does not support progressive scan. USB device not supported • The USB device is incompatible with the unit. Try another one. Cannot display some ﬁles in USB device • The number of folders or ﬁles in the USB device has exceeded a certain limit. This phenomenon is not a malfunction. • The formats of these ﬁles are not supported. No picture on HDMI connection. • Check if the HDMI cable is faulty. Replace a new HDMI cable. 32 EN • If this happens when you change the HDMI video resolution, select the correct resolution until the picture appears. No disc detected • Insert a disc. • Check if the label side of the disc faces outwards. • Wait until the moisture condensation at the lens has cleared. • Replace or clean the disc. • Use a ﬁnalized CD or correct format disc. Black and white or distorted picture • The disc does not match the TV color system standard (PAL/NTSC). • Sometimes a slight picture distortion may appear. This is not a malfunction. • Clean the disc. • A distorted picture may appear during progressive scan setup. The aspect ratio of the TV screen cannot be changed even though you have set the TV display format. • The aspect ratio if ﬁxed on the loaded DVD disc. • The aspect ratio may not be changed for some TV systems. No sound or poor sound • Adjust the volume. • Ensure that the wireless subwoofer is connected. Remote control does not work • Before you press any function button, ﬁrst select the correct source with the remote control. • Reduce the distance between the remote control and the unit. • Insert the battery with its polarities (+/– signs) aligned as indicated. • Replace the batteries. • Aim the remote control directly at the sensor on the front of the unit. Disc does not play • Insert a readable disc and ensure that the label side faces outwards. Check the disc type, color system and regional code. Check for any scratches or smudges on the disc. • Press OPTIONS to exit the system setup menu. • Disable the password for parental control or change the rating level. • Moisture has condensed inside the system. Remove the disc and leave the system turned on for about an hour. Disconnect and reconnect the AC power plug, and then turn on the system again. • As a power-saving feature, the system turns off automatically 15 minutes after disc play reaches the end and no control is operated. Poor radio reception • Increase the distance between the unit and your TV or VCR. • Fully extend the FM antenna. • Connect an outdoor FM antenna instead. Wireless connection fails. • Set up wireless connection manually. Unable to select Progressive Scan • Ensure the component video mode is set to [YUV]. No sound on HDMI connection. • You may not hear any sound if the connected device is non-HDCP compliant or only DVI-compatible. Audio or subtitle languages cannot be set • The disc is not recorded with sound or subtitles in multiple languages. • The audio or subtitle language setting is prohibited on the disc. E n gl i sh • EN 33 12 Appendix Mount the main unit and speakers Caution Mount to a wall • To ﬁnd a suitable mounting location, make the necessary physical and wireless connections. • Mount the main unit and speakers to a solid concrete wall or plaster board wall only! Caution • Risk of product damage! Always consult professional • personnel to safely mount the product to a wall. Risk of injury! Ensure that no supply ducts such as gas, water or electricity are harmed when you drill the holes. You can use the supplied bracket to mount the main unit and speakers to the wall. 1 Align the bracket in the chosen location on a wall. Use a pencil to mark the drilling positions. 2 Drill holes as marked. 3 Secure the wall mount bracket onto the wall with 4 supplied screws. What’s in the supplied mounting kit 1 x wall mount bracket for the main unit and speakers 4 x screws What else you’ll need • • • 34 Electric drill Screwdriver Pencil EN E n gl i sh 4 Hook the main unit and speakers in place. EN 35 © 2009 Koninklijke Philips Electronics N.V. All rights reserved.
