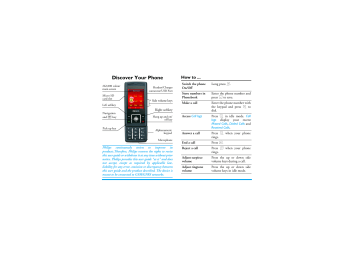

Discover Your Phone
262,000 colour
main screen
Micro SD
card slot
Left softkey
Navigation
and , key
Pick up key
Headset/Charger
connector/USB Port
+ Side volume keys
Right softkey
Hang up and on/
off key
Alphanumeric
keypad
Microphone
Philips continuously strives to improve its
products.Therefore, Philips reserves the rights to revise
this user guide or withdraw it at any time without prior
notice. Philips provides this user guide “as is” and does
not accept, except as required by applicable law,
liability for any error, omission or discrepancy between
this user guide and the product described. The device is
meant to be connected to GSM/GPRS networks.
How to ...
Switch the phone
On/Off
Long press ).
Store numbers in
Phonebook
Enter the phone number and
press L to save.
Make a call
Enter the phone number with
the keypad and press ( to
dial.
Access Call logs
Press ( in idle mode. Call
logs display your recent
Missed Calls, Dialed Calls and
Received Calls.
Answer a call
Press ( when your phone
rings.
End a call
Press ).
Reject a call
Press ) when your phone
rings.
Adjust earpiece
volume
Press the up or down side
volume keys during a call.
Adjust ringtone
volume
Press the up or down side
volume keys in idle mode.
Access Main Menu
Press L Menu or press , in
idle mode.
Switch to silent
mode
Long press # key in idle
mode.
Access camera
Press R in idle mode.
Access Phone Book
List
Press - in idle mode.
Turn Audio Player
on/off
Press < in idle mode.
Access SMS
Press > in idle mode.
Access Organizer
Press + in idle mode.
Return to previous
menu
Press R.
Quickly return to
idle mode
Press ).
according to the current context.
Main Menu
Fun & Games
Call History
User Profiles
Multimedia
Messages
Settings
Services
Phone book
Organizer
Presented in the form of a grid, the Main Menu
enables access to the various features available in your
mobile phone. The table above summarises the
arrangement of the Main Menu.
Press L in idle mode to access the Main Menu and
use the navigation keys of which the directions are
represented in this user guide as -, +, < or > to browse
the icons and lists. Within lists, press L to access the
options associated with the selected item, press R
Back to go back one level.
Softkeys
The left and right soft keys L and R located at the
top of the keypad allow you to select the
corresponding options that appear on the screen
immediately above them, including in-call options.
The functions associated with these keys may vary
1
Table of contents
1. Getting Started ................................. 4
Insert the SIM card and Battery .................... 4
Switch on the phone ....................................... 5
Charge the battery .......................................... 5
Shortcuts function ........................................... 6
2. Calling ................................................. 7
Make a call ......................................................... 7
Answer and end a call ..................................... 7
Call handsfree ................................................... 7
Options during a call ....................................... 7
Adjust earpiece volume .................................. 8
Speed Dial .......................................................... 8
Make an emergency call .................................. 8
Handle multiple calls ....................................... 9
3. Text or number Entry ................... 10
Input Method .................................................. 10
Function keys .................................................. 10
Multitap ABC/abc Input ................................ 10
Smart ABC/abc Input .................................... 11
Symbol Input ................................................... 11
4. Phone Book ..................................... 12
Search for a contact in the phonebook .... 12
Manage contacts ............................................. 12
2
Add new entry ................................................ 12
Copy all ............................................................ 13
Copy or move a phonebook entry ............ 13
Delete ............................................................... 13
Caller Group ................................................... 13
Extra Number ................................................. 14
Settings ............................................................. 14
Caller Picture .................................................. 15
Caller Ring Tone ............................................ 15
Caller Video .................................................... 15
5. Messages .......................................... 16
SMS .................................................................... 16
MMS .................................................................. 19
Chat .................................................................. 22
Voice Mail Server ........................................... 22
Broadcast Message ........................................ 22
6. Call History ..................................... 23
Missed Calls ..................................................... 23
Dialed Calls ..................................................... 23
Received Calls ................................................ 23
Delete Call Log .............................................. 23
Call Time ......................................................... 23
Call Cost .......................................................... 24
SMS Counter ................................................... 24
GPRS Counter ................................................ 24
7. Settings ..............................................25
Phone Setup .................................................... 25
Display Characteristics ................................ 26
Call Setup ......................................................... 27
Network Setup ............................................... 29
Security Setup ................................................. 29
Restore Factory Settings .............................. 31
Sound Effect .................................................... 31
8. Multimedia ........................................32
Camera ............................................................. 32
ImageViewer .................................................... 33
eBook ............................................................... 33
Video Recorder .............................................. 34
Video Player .................................................... 35
Photo Artist .................................................... 35
Audio Player .................................................... 36
Sound Recorder ............................................. 37
Melody Compose ........................................... 37
Key operations when composing a melody .. 38
File Manager .................................................... 38
9. Fun & Games ...................................40
Games ............................................................... 40
Stopwatch ........................................................ 40
Game Setting ................................................... 40
10. User Profiles ..................................41
11. Organizer .......................................42
Calendar ........................................................... 42
To Do List ....................................................... 42
Alarm ................................................................ 43
Calculator ........................................................ 43
Currency Converter ..................................... 43
World Clock ................................................... 44
Shortcuts ......................................................... 44
12. Services ...........................................45
STK ................................................................... 45
WAP ................................................................. 45
Data Account ................................................. 46
Icons & symbols ...................................47
Precautions ...........................................48
Troubleshooting ..................................53
Philips Authentic Accessories ..........55
Specific Absorption Rate
Information ...........................................57
Limited warranty .................................58
Declaration of conformity ................61
3
1. Getting Started
Please read the safety instructions in the “Precautions”
section before using your phone.
To use your phone, you must insert a valid SIM card
supplied by your network operator or retailer. The
SIM card contains your subscription information,
your mobile phone number and a memory in which
you can store phone numbers and messages. For more
information, see “Phone Book” on page 12.
Insert the SIM card and Battery
Follow the steps below to insert your new SIM card.
Insert the SIM card
Slide the SIM card into the SIM card slot, making
sure that the clipped corner of the card is pointing the
right direction and that the gold contacts are facing
downwards.
Remember to switch off your mobile phone before
removing the battery.
Remove the battery
To insert the SIM card, you must first remove the
battery. Lift up the battery from the bottom to
remove it.
4
Getting Started
Place the battery back into its slot, with the gold
contacts of the battery facing the corresponding gold
contacts on the side of the phone. The gold contacts
on the phone are positioned on the right hand side of
the phone, besides the SIM card slot.
Plug in the charger connector as shown below. Then
plug the other end into a mains AC power socket.
Switch on the phone
To switch on the phone, long press ) key. Enter the
PIN code if required. The PIN code is a 4- to 8-digit
secret code of your SIM card. It is preconfigured and
communicated to you by your network operator or
retailer. For more information on PIN codes, see
“Security Setup” on page 29.
If you enter an incorrect PIN code three times in
succession, your SIM card will be locked. To unlock it, you
must obtain the PUK code from your network operator.
Charge the battery
Your phone is powered by a rechargeable battery. A
new battery is partially charged and a sound alert will
warn you when the battery reaches low. Once you
have installed the battery, you can start charging the
phone.
Getting Started
The battery symbol indicates the state of charge.
During charging, the charge indicators will scroll.
When all the scroll bars are steady, the battery is fully
charged. You can then disconnect the charger.
Keeping the charger plugged to the mobile phone
when the battery is fully charged will not damage the
battery.
The only way to turn off the charger is to unplug it, so use
an easily accessible AC power socket.If the mobile
phone automatically shuts down, or indicates Battery is
low, you should immediately charge the battery. If the
battery power has not been entirely used up before
recharging, the recharging duration will be
automatically reduced.
5
Shortcuts function
Your phone provides 10 quick access to the functions
on your phone. You can modify the shortcuts
according to your needs. For more information, see
“Shortcuts” on page 44.
6
Getting Started
2. Calling
From idle screen
• To answer the call: press ( or ,.
• To reject the call: press ). If you have activated Call
Divert, the call will be diverted to another number or
your voice mail.
• To hang up: press ) or close the slider of the phone.
1.
The phone will not ring when it is in silent mode.
Make a call
In idle mode, enter the phone number with the
keypad. To correct an error, press R.
2. Press ( to dial the number.
3. Press ) to hang up.
To make an international call, quickly press * twice
to insert the international prefix “+”.
Using the phonebook
1.
2.
3.
Press - in idle mode.
Select a contact from the list, press L and select
Dial or press ( to dial the selected number. To
select a different number, press + or - (see
“Phone Book” for more information).
Press ) to hang up.
Answer and end a call
When there is an incoming call, the number of the
caller may be displayed if the caller has chosen to
display his or her identity. If the number is stored in
the phonebook, the corresponding name will be
displayed instead of the number.
Calling
If you have selected Any Key, you can answer a call by
pressing any key, except ) and R.
Call handsfree
For your own comfort and safety, ensure that you
move the phone away from your ear when calling
handsfree, especially when increasing the volume.
Press L Option and select H-Free during a call to
activate handsfree mode. To deactivate handsfree,
press L again and select H-Free to switch off
handsfree mode.
Options during a call
During a call, press L Option to access the following
options:
7
Mute (On/Off)
Speed Dial
This option allows you to mute or unmute the
microphone so that your correspondent cannot hear you.
Speed dial via SIM phonebook
Sound Recorder
In most countries, recording of telephone conversation
is subject to legislation. We advise you to notify the
caller if you intend to record the conversation and only
do so if they agree. You should also ensure confidentiality
of the recordings.
To record a conversation during a call, press L and
select Sound Recorder. Recorded sound is saved in
*.amr or *.wav formats and stored in Sound Recorder of
Multimedia menu.
Other options during a call
Press L Option to carry out the following operations
during a call.
Put the call on Hold, make a New call, access Phone
Book to search for an entry, send or read SMS.
Adjust earpiece volume
If you know the memory location number of the
contact you wish to call (for example: memory
location 5), you can simply enter 5# in idle mode to
automatically dial the pre-set contact.
Speed dial via call logs
In idle mode, press ( to access Call Logs. Select a number
you wish to call and press ( to dial the number.
Make an emergency call
Without SIM card
When you switch on your phone, the screen will
prompt you to insert the SIM card. To dial the
emergency number, simply press R SOS.
With SIM card
In idle mode, enter 112 with the keypad and press (
to dial.
During a call, press the volume up or down side keys
to increase or decrease the volume.
8
Calling
Handle multiple calls
Press L Option
You can handle two or more calls at the same time, as
well as make conference calls with your phone. The
availability of this feature is dependent on your
network operator and/or your subscription.
To receive a second call, you must first deactivate Call
Divert and activate Call Waiting.
Make a second call
To access the options list. You
can select End to end the current
call and answer the incoming call.
You can make a second call when there is an active call
or with a call on hold. While on the phone, dial the
number (or select a contact from the phonebook) and
press (. The first call is put on hold and the second
number is dialled. You can then press L to access the
following options:
• Swap to toggle between 2 calls.
• Conference to introduce the caller into a conference
call.
Answer a second call
When you receive a second call while already in
communication, the phone will emit a beep tone and
the screen displays information about the incoming
call. You can then:
Press (
To answer the call (the first one is
put on hold).
Press R or )
To reject the call.
Calling
9
3. Text or number Entry
Input Method
Your phone supports 4 types of input methods:
Multitap ABC/abc
Smart ABC/abc
Numeric
Symbols
You can select in the option list the appropriate input
method to enter English letters, words, symbols and
numbers. Icons appearing on the screen indicate the
active input mode.
Function keys
R
Delete the characters on the left of the
cursor or exit from editing mode.
+/-/</> Move the cursor, select a letter, word or
symbol from the list, or scroll down a list.
)
Return to idle mode.
L
Select the highlighted word from the list or
enter Options menu.
*
Enter symbols.
#
Switch input mode.
10
Multitap ABC/abc Input
1.
2.
Press once on the numeric key (2 to 9) to
enter the first letter on the key, press twice to
enter the second letter on the key, so on and so
forth. If the letter you wish to enter and the one
you have just entered are on the same key, just
wait for a few seconds for the cursor to re-appear.
Press R to delete the characters on the left of
the cursor.
You can press key 0 to insert a space in ABC/abc
Multitap input mode.
The letters located on each key are as follows:
Key Characters in the order displayed
1 .,[email protected]:#$/_1
2 abc2
3 def3
4 ghi4
5 jkl5
6 mno6
7 pqrs7
8 tuv8
9 wxyz9
0
0
Text or number Entry
Smart ABC/abc Input
Smart English input method offers a faster way for
you to enter English words.
1. You only need to press once on the numeric key
(2 to 9) corresponding to each letter needed to
spell a word. As you enter the letters, the words
displayed on the screen will be updated accordingly.
2. Press R to delete the entries on the left of the
cursor.
3. Use the navigation key to select the desired word
and press L to enter it.
Numeric input
1.
2.
Press the numeric keys (0 to 9) to enter the
numbers corresponding to the keys.
To delete a number, press R.
Symbol Input
Select Input Symbols from the input method list or
press * to enter punctuation or symbols. Use the
navigation keys to select the desired punctuation or
symbol and press L to enter it. Press - to scroll down
the list of punctuation or symbols.
Text or number Entry
11
4. Phone Book
Contacts are stored in one of the two available
phonebooks: SIM phonebook (located on your SIM
card, by which the number of entries you can store
depends on the card capacity) or the Smart
Phonebook (located on your phone, which allows you
to store up to 500 names). When adding new
contacts, the contacts will only be added to the
phonebook you have selected.
Search for a contact in the
phonebook
Quick Search option
1.
2.
Enter Phone Book in idle mode and select Quick
Search.
Enter the name of the contact.
Search Entry option
1.
2.
12
Enter Phone Book in idle mode and select Search
Entry.
Enter the name of the contact, press L Option
and press L.
Phone Book List
Press - in idle mode to access phone book list and
press the key that corresponds to the letter you wish to
search (e.g. press 8 key three times to access the
letter U). The first record starting with this letter in
the list will be selected.
Manage contacts
Select a name from the phone book list and press L
Option to access the following options:
Dial
Send SMS
IP Dial
Send MMS
Edit
View
Copy
Delete
Duplicate
Move
Add new entry
1.
2.
Enter Phone Book in idle mode and select Add New
Entry. Select the storage location and press L.
If you select To SIM, you need to enter the Name
and Number. After you have entered the name,
press L. Then enter the phone number and
press L. You can enter the telephone numbers
saved in the SIM phone book into different
groups according to your relation to the people.
Phone Book
3.
If you select To Phone, the procedures will be the
same as above. You can enter the contact’s Name,
Number, Home Number, Company Name, E-mail
Address, Office Number, Fax Number and
Birthday. You can also Associate Picture, Associate
Sound, Associate video as well as Associate Caller
Group to the contact. Press L to confirm. The
phone will display a notification to confirm that
the contact has been saved.
Copy or move a phonebook entry
1.
Select a contact from the Phone Book List and
press L Option.
2. Select Copy/ Move/ Duplicate and press L.
Copy
Copy the contact to another phonebook.
Move
Move the contact to another phonebook.
Duplicate Duplicate the contact within the same
phonebook.
Copy all
Delete
You can copy all the contacts in your phone to your
SIM card and vice-versa.
1. Enter Phone Book in idle mode, select Copy All
and press L.
2. Select From SIM or From Phone, and press L.
3. Confirmation prompts will be displayed on the
screen. Select L Yes to confirm the operation or
select R No to cancel the operation.
You can select From SIM or From Phone to delete all
the entries in the SIM card or mobile phone
phonebook respectively. You can select One By One to
delete a telephone number.
When you copy telephone number entries from your
mobile phone onto your SIM card, only the names and
telephone numbers will be copied.
Caller Group
Phone Book
Delete all the entries from SIM card or phone. You
need to input a password for the delete all feature. The
default password is "0000".
This option allows you to group the contacts in the
phonebook for more efficient management of your
contacts.
13
Enter Phone Book in idle mode and select Caller
Group.
2. Select a group and press L.
3. Select the option for which you wish to modify
its settings.
You can set the following options:
Group name Set group name.
1.
Service Dial Number
This service is provided by your network operator. For
more information regarding the corresponding
function, please contact your network operator.
SOS Number
Ring type
Set the ring tone for incoming calls
from the contacts in the caller group.
This SOS number will call the emergency services
number in your country. In most cases, you can call
this number even if you have not yet inserted a SIM
card or entered your PIN.
Set the icon to be displayed on the
screen when there is an incoming call
from the contacts in the caller group.
Depending on your network operator, you may be able
to dial the emergency number even without inserting
the SIM card.
Video
Set the video to be played on the
screen when there is an incoming call
from the contacts in the caller group.
Settings
Member List
Add or delete members of the caller
group.
Displays the total number of contacts you have stored
in each phonebook and the total memory used.
Extra Number
Owner Number
Memory Status
Preferred Storage
Allows you to set the default phonebook in which you
save your contacts.
The Owner Number option should contain your own
phone number. If not, we recommend that you enter
your own mobile phone number and other relevant
information.
14
Phone Book
Fields
Allows you to select the items such as Home Number,
Company Name, Email Address, Office Number, Fax
Number, Birthday, Associate Picture/Video/Sound and
Caller Group to be displayed in the Smart Phonebook.
My vcard
Allows you to edit or send your personal details.
Caller Picture
Allows you to assign a picture from the picture folder
in File Manager menu as the caller picture.
Caller Ring Tone
Allows you to assign a ring tone saved in the mobile
phone or delivered to you and saved in the User
Profiles menu as the caller ring tone.
Caller Video
Allows you to assign a video from the video folder in
File Manager menu as the caller video.
Phone Book
15
5. Messages
SMS
This menu allows you to send text messages using
Short Messaging Service (SMS), as well as manage the
messages you have sent and received.
When writing messages, you can toggle between smart
input multitap and numeric by pressing #.
Inbox
This menu allows you to read the SMS messages
which you have received. The messages are displayed
in a list.
When a message is displayed, press L to read it, then
press L Option to access the following options:
Reply
Reply to the sender.
Delete
Delete the selected message.
Edit
Edit, modify and re-send the SMS
to another recipient.
Forward
Forward the selected message.
Delete Same
Number
Delete messages received from the
same phone number.
16
Copy to Phone/ Copy the selected message stored in
SIM
SIM/phone to phone/SIM.
Move to Phone/ Move the selected message stored in
SIM
SIM/phone to phone/SIM.
Chat
Chat with the sender.
Copy All
Copy all the messages stored in
SIM/phone to phone/SIM.
Move All
Move all the messages stored in
SIM/phone to phone/SIM.
Use Number
Extract and save the number of the
sender or the number displayed in
the message to the SIM card or
phone, or dial the number.
Use URL
Extract the URL displayed in the
message to connect the website.
Save Objects
Store multimedia items in the
message to your phone.
Outbox
If you select Save and Send or Save before you send a
message, the messages will be stored in the Outbox.
When a message is displayed, press L to read it, then
press L Option to access the following options:
Messages
Send
Send the selected message.
Edit
Send the message to other recipients
or edit before sending.
Delete
Delete the selected message.
Delete Same
Number
Delete messages sent to the same
phone number.
Write Message
Move to
Phone/SIM
Move the selected message stored in
SIM/phone to phone/SIM.
To compose and send an SMS, follow the steps below:
1. Select Write Message, enter your text and press
L to access the following options:
Done
Send the message.
Use Template Insert a preset message.
Insert Object Insert picture, animation and sound
to your message.
Format Text
Set Text Style, Text Size (for English
text, numbers and symbols only),
text Alignment and the alignment of
New Paragraph.
Copy All
Copy all the messages stored in
SIM/phone to phone/SIM.
This feature only works if the settings
are put in before the text is entered.
Move All
Move all the messages stored in
SIM/phone to phone/SIM.
Use Number
Extract and save the number of the
recipient or the number displayed in
the message to the SIM card or
phone, or dial the number.
Input Method Select the input method.
2. Select Done, then press L to access the next
option:
Send Only
Send the message to one recipient.
Copy to Phone/ Copy the selected message stored in
SIM
SIM/phone to phone/SIM.
Use URL
Messages
Extract the URL displayed in the
message to connect the website.
Save and Send Save the message to Outbox and
send the message.
Save
Save the message to Outbox.
17
Send To Many Send the message to multiple recipients.
Message Settings
Send By Group Send the message to all the contacts
in a caller group.
3. Enter the phone number.
Press L, enter the phone number or select a contact
and press L.
SC Address
Select your default SMS centre. If not
available on your SIM card, you must
enter your SMS centre number.
Valid Period
Select the length of time your
messages will be stored in the SMS
centre. This is useful when the
recipient is not connected to the
network (and thus cannot receive
your message immediately).
This feature is subscription
dependent.
When you send a message via the SMS network, your
phone may display “Sent”. This means the message has
been sent to the SMS center which you have set in your
SIM card. However, this does not imply that the
message has been sent to its destination.
Delete
This menu allows you to delete all the messages in Inbox,
Outbox and all storage locations where the messages are
saved.
Template
This menu allows you to preset up to 10 messages that
you use most frequently. Select a template and press
L to access the following options:
Edit
Enter a new message or edit the
selected preset message.
Erase
18
Delete the selected preset message.
This menu allows you to configure the SMS settings.
The options include:
Profile Setting
Profile Name Edit the name of the current profile.
Message Type Select the format of your sent messages.
This option is network dependent.
Common Setting
Delivery Report When On, this option will notify
you via SMS whether your recipient
has received your SMS. This feature
is subscription dependent.
Messages
Memory Status
Displays the memory status of the messages saved in
the SIM card and the phone.
Pref. Bearer
This option allows you to set the preferred
transmission mode. For further details, please contact
your network operator.
Bcc
Set the number or E-mail of the recipients
you wish to send a copy of the message
to, by which the recipients in the Bcc
list will be invisible to other recipients.
Subject
Set the subject of the MMS.
MMS
Attachments Insert text, image or sound to the
message.
2. Press R to access the following options when
you have finished editing:
Send Only
Send the MMS only.
Your mobile phone can also send and receive MMS
(Multimedia Messaging Service) messages. With
MMS, you can send messages that contain pictures,
sound and text.
When sending MMS messages, your recipient must
also have an MMS-enabled phone in order to view
your messages.
Write Message
Follow the steps described below to compose and send
an MMS:
1. Select Write Message and enter the following:
To
Set the number or E-mail of the
recipient.
Cc
Messages
Edit content Edit the MMS content.
Save and Send Save and Send the MMS.
Save
Save the MMS to the drafts folder
for later sending.
Save to Drafts Save the MMS to Drafts.
Send Options
Set Validity period, Delivery
report, Read report, Priority.
Exit
Exit
Set the number or E-mail of other
recipients you wish to send a copy of
the message to.
19
Inbox
This menu allows you to read the MMS messages you
have received. Select a message and press L to access
the following options:
View
View the MMS. When viewing the
MMS, you can press L to access the
options menu and select Play/Save
image As/Save audio As to play or save
the multimedia items.
View
Properties
Send to others
Resend
Delete
Delete All
Use Number
View the MMS.
View the recipient, subject, date and
size.
Send the MMS to others.
Resend the MMS.
If the MMS is not sent successfully,
the item will be displayed.
Delete the selected MMS.
Delete all the MMS in the Outbox.
Extract the number in the MMS.
Properties
View the sender, subject, date and size.
Reply
Reply to the sender.
Reply to all
Reply to the sender and all recipients
in the “To” and “Cc” list.
Forward
Send the MMS to other recipients.
Delete
Delete the selected MMS.
If you select Save to Draft after you have created your
MMS, the MMS will be stored in the Drafts box. You
can carry out the following operations:
View
View the MMS.
Delete All
Delete all the MMS in the Inbox.
Properties
View the recipient, subject, date and
size of the MMS.
Send
Send the selected MMS.
Edit
message
Edit the selected MMS.
Delete
Delete the selected MMS.
Delete All
Delete all the MMS in the Draft box.
Use Number Extract the number in the MMS.
Outbox
If you select Save and Send before you send your
MMS or the MMS is not sent successfully, the MMS
will be stored in the Outbox. You can carry out the
following operations:
20
Draft
Messages
If you have not set the message recipient in the draft
box, then Send option will not be available in the
options menu.
Properties
View the from, subject and size of
the MMS.
Write Message
Edit the template.
Sent
Settings
When you send a message, the messages will be stored
in Sent.
When you are in the Sent message list, press L
Option to access the following options:
Delete
Delete the selected message.
Forward
Forward the selected message.
Move to my
Move the selected message to My
folder
folder.
Delete all
Delete all messages in the Outbox.
When a message is displayed, press L Option to
access the following options:
Delete
Delete the selected message.
Forward
Forward the selected message.
Template
This menu allows you to preset up to 4 messages that
you use most frequently. Select a template and press
L to access the following options:
View
View the template.
Messages
This menu allows you to carry out the following
configurations for sending or receiving MMS:
Compose
Set Creation Mode, Image Resizing
and Auto Signature.
Send
Set Validity period, Delivery Report,
Read Report, Priority, Slide Timing
and Delivery time options for
sending an MMS.
Retrieve
Set Home network, Roaming, Read
Report and Delivery Report options
for receiving an MMS.
Filter
Set Anonymous, Max Size (KB) and
Advertisement from whom you want
to filter MMS or email messages.
Server Profile
Set network configuration. Please
contact your network provider for
more information.
Memory Status View the memory status of your MMS.
21
Chat
Broadcast Message
This menu allows you to chat with your contact via
SMS.
1. Select a chat room and press L.
2. Select Chat Room Info, enter My Nickname and
Remote Number and press L.
3. Select Start New, enter the message, then send
the message to start chatting with your contact.
Broadcast messages are public messages broadcasted to
a group of mobile users. The messages are broadcasted
on coded channels. Generally, one broadcast channel
can transmit one type of message. Please contact your
network operator for a list of channel numbers and
their respective broadcast information.
Voice Mail Server
This menu allows you to set the reception of broadcast
messages. When On, you can receive broadcast messages.
When Off, you cannot receive broadcast messages.
This menu allows you to set your voice mail server
number, as well as retrieve your voice mails. When
you receive a voice mail, your network operator will
send a notification to your phone.
You can enter two sets of voice mail server numbers
which are supplied by your network operator.
Select a voice mail box and press L to access the
following options:
Edit
Edit voice mail server number.
Connect to Voice Retrieve your voice mail.
Receive Mode
Read Message
To read broadcast messages after you have activated
receive mode.
Languages
To set the language of the broadcast messages that can
be received.
Channel Setting
Press L to access channel settings. You can Select,
Add, Edit or Delete channels.
You can quickly access your voice mail server by long
pressing 1 key in idle mode.
22
Messages
6. Call History
Your mobile phone can provide you with a list of
outgoing and incoming calls, attempts at auto redialling, as well as call details. The different types of
calls (Dialed Calls, Missed Calls and Received Calls) are
represented by different icons. They are displayed in
chronological order with the most recent call on top.
If the correspondent is stored in your phonebook, the
corresponding name is displayed.
Send SMS
Edit
Send an SMS to the missed
number.
Edit the missed number.
Dialed Calls
This menu allows you to view the recent dialled calls,
including dialling attempts or calls that were successfully
connected.
Received Calls
Missed Calls
This menu allows you to view the recent calls received.
This menu allows you to view the recent unanswered
calls. You can view the date, time and the number of
times you have missed each call.
Select an item and press L to view the date, time and
number. Press L Option to access the following options:
Delete
Delete the number.
Save to Phone book Save the number.
Dial
Dial the number.
IP Dial
If the IP number has been set,
select IP Dial will automatically
add the IP number before the
number and dial it.
Delete Call Log
Call History
This menu allows you to delete Missed Calls, Dialed
Calls, Received Calls or Delete All.
Call Time
This menu allows you to view Last Call Time, Total
Sent and Total Received (displayed in hours, minutes,
seconds). You can select Reset All Time to reset all the
call timers.
Depending on your network, rounding-off for billing
purposes, taxes etc, the actual time invoiced for calls
and services by your service provider may vary.
23
Call Cost
GPRS Counter
Last Call Cost
Tabulates the amount of data sent and received via
GPRS. You can also reset the counter. The unit of
measurement is Byte.
Displays the cost of the last call.
Total Cost
Displays the total cost of all calls since the cost counter
was last reset. If the total cost exceeds the maximum
cost set in the Max Cost option, you will not be able
to make any more calls until you reset the counter.
Reset Cost
Reset the cost counter. You need to enter your PIN2
code and confirm.
Max Cost
Set the maximum cost of your calls (PIN2 code is
required).
Price Per Unit
Allows you to set the unit price for the call cost. This
unit price shall be used for calculating the cost of your
calls (PIN2 code is required).
SMS Counter
Displays the number of messages that have been sent
and received.
24
Call History
7. Settings
This menu allows you to change the settings associated
with each available option in your phone (time and
date, security, call divert, etc.).
Phone Setup
Time and Date
Language
This menu allows you to select a language for all the
menu texts. Press + or - to browse the list of languages
and press L to select.
Preferred Input Methods
This menu allows you to set the default input method.
Default Encoding Type
Allows you to set the time and date with the keypad
or navigation keys. You can set the following:
Set Home City Select the city you are currently situated.
You can select "BIG5" or "GB2312". Select "BIG5",
traditional Chinese encode type; Select "GB2312",
simple Chinese encode type. If some Chinese can’t be
displayed, please convert the encoding type, then view it.
Set Time/Date Enter the time/date with the keypad
or navigation keys.
Note: When traditional Chinese and simple Chinese
both can be displayed, you need to select the encoding type
Set Format
Set Time Format and Date Format.
Schedule Power On/Off
This menu allows you to set the time to power on or
off your phone automatically. Select an item and press
L to access the following options:
Status
You can select Enable (Activate the
setting) or Disable (Deactivate the
setting).
Power On/Off Select whether to power on or off
your phone at the specified time.
Time
Settings
Greeting Text
Turn On or Off, and edit the greeting text of the phone.
Speed Dial
This menu allows you to quickly dial the number
stored in your phonebook. You can set a maximum of
8 speed dial numbers, so that a long press on the
numeric key will dial the number associated with that
numeric key. You need to set Enable Speed Dial and
Set Number.
Enter the time with the keypad.
25
Shortcuts
Flight Mode
This menu allows you to quickly enter the 10 preset
menu items. You can also modify the preset menu
items according to your needs.
To access the shortcuts menu, select Main Menu >
Settings > Phone Setup > Shortcuts in idle mode. Press
L Option to access the following options:
Add
To add a new shortcut.
This menu allows you to set your menu to Normal
Mode or Flight Mode. You can also select Query When
Power On so that you will be asked which mode you
prefer when the phone is powered on. If Flight Mode
is activated, network function will be closed and all
related network operations will be prohibited.
Edit
To edit an existing shortcut.
Delete
To delete an existing shortcut.
This menu allows you to set the Brightness and Time
of the LCD Backlight.
Delete All
To delete all the shortcuts.
Disable
To disable the shortcut. You can press
this option a second time to enable the
shortcut.
Themes
Select menu colour: Blue, Green or Red
then activate the current theme, and
change the menu colour.
Change
Order
To change the order of the shortcuts. For
example, you can change the first shortcut
to become the third shortcut in the list.
Wallpaper
Set the background image of the main
screen displayed in idle mode: Choose
System to select a predefined image or
choose User Define to select a
downloaded image.
Dedicated key
In idle mode, you can quickly access certain preset
functions by pressing the navigation keys. This menu
allows you to modify the preset functions according to
your needs.
26
Misc. Setting
Display Characteristics
Settings
Screen Saver
Select Setting to set the status and
waiting time of the screen saver. Enter
Select to choose System or User Define.
The operation of this function is
similar to Wallpaper.
Show
Operator
Name
Set whether or not to display the
network operator’s name by turning this
option On or Off.
Call Setup
Power On
Display
Allows you to set the image displayed
during power on: Choose System to
select a predefined image or choose User
Define to select a downloaded image.
Caller ID
Power Off
Display
The operation is the same as Power On
Display.
Call Waiting
Main Menu
Style
Allows you to set the Main Menu style
to Matrix or Page.
Show Date
and Time
Set whether or not to display the date
and time in idle mode by turning this
option On or Off.
Show
Owner
Number
If you have set the name and number in
Phone Book > Extra Number > Owner
Number menu, then the name will be
displayed in idle mode. (Note: When
the wallpaper is set as Analog Clock and
Digital Clock, show owner number will
not be displayed). You can turn this
option On or Off.
Settings
Depending on your network, you may choose to show
or hide your identity from your correspondent by
selecting Set By Network, Hide ID or Send ID.
This option allows you to Activate or Deactivate call
waiting. When this option is active, you will hear a
beep tone when someone tries to call you while you
are already on the phone. If this option is inactive,
your phone will not emit any alert and the caller will
hear a busy tone. If you have activated Divert If Busy
option, the call will be diverted to another phone.
Select Query Status to check the status of the call
waiting option.
Call Divert
To divert incoming calls to your voice mailbox or to
another phone number (regardless of whether or not
the number is in your phonebook).
27
Divert All
Voice Calls
Divert all incoming calls. If you select
this option, you will not receive any
calls until you deactivate it.
Divert If Busy
Divert when you are already on the
phone.
Divert If No
Answer
Divert when you did not answer the
call.
Divert If
Unreachable
Divert when your phone is switched
off or out of the service area.
Divert All Data Divert all data calls.
Calls
Cancel All
Cancel all call divert options.
Divert
Select Activate and enter the number to foward your
calls to. Select Query Status to check the status of the
corresponding call divert options.
Before diverting your calls to your voice mailbox, you
must enter your voice mailbox number. This feature
is subscription dependent.
Call Barring
Allows you to limit the use of your phone to specific
calls. This can be applied to Outgoing Calls (All Calls,
International Calls or International Except Home) and/or
to Incoming Calls (All Calls or When Roaming). In both
28
cases, Cancel All option applies to all calls at once.
Change Barring PW allows you to change the call
barring password. Query Status allows you to check
whether or not a particular type of call has been barred.
This feature is network dependent and requires a
specific call barring password supplied by your service
provider.
Call Time Reminder
This menu allows you to set whether or not the phone
will emit a beep tone after a certain call duration. You
can select Off (does not emit a beep tone), Single
(select a value from 1 to 3000 seconds, which is the
duration after which the phone will emit a beep tone)
or Periodic (select a value from 30 to 60 seconds,
which is the periodic time after which the phone will
emit a beep tone. The phone will emit a beep tone
after each periodic time during a call).
Call Time Display
This menu allows you to set whether or not to display
the call time during a call.
Auto Redial
If the call you have dialled is not answered, your
phone will automatically redial this number at
intervals. Press ) or R to cancel auto redial.
Settings
IP Number
This menu allows you to store 3 groups of IP number
so that you need not enter the number before you
make an IP call. Press L Option to Activate or Edit the
IP Number.
The IP number has to be supported by your network
operator before you can make an IP call. When you
change a new SIM card, the IP number you have
stored will be cleared. The phone does not validate the
IP number you have entered. Therefore, please ensure
that the numbers are correct.
Network Setup
Network Selection
This menu allows you to select the service network
(we recommend that you select Automatic).
Automatic Your phone will automatically select and
register to an available network.
Manual
Settings
Provides you with a list of available
network in the area. Select the network
you wish to register with and press L to
confirm.
You can select a network other than your home network
only if it has a valid roaming agreement with your
home network. If you change the network, some
problems may arise during the operation of your phone.
Preferred Networks
Allows you to build a network list in order of
preference. Once defined, the phone will try to register
to the network according to your preference.
GPRS Connection
This menu allows you to set the GPRS connection
mode. You can select Always or When Needed.
Security Setup
SIM Lock
When SIM Lock is activated, you must enter the PIN
code (PIN code is supplied by your network operator
together with the SIM card). If you enter an incorrect
PIN code three times in succession, you need to enter
the PUK code (PIN unlocking code). The PUK code
is used to unlock or change the locked PIN code. If
you are not supplied with the PUK code or have lost
the number, please contact your network operator.
Enter the PIN code and press L. If SIM Lock is
currently Off, the status will change to On and vice-versa.
29
Phone Lock
This menu allows you to set a password for your
phone. The default setting is Off. Once you have set
Phone Lock, you must enter the password each time
you switch on your phone.
Enter the password and press L. If Phone Lock is
currently Off, the status will change to On and vice-versa.
The default phone lock code is 0000.
Auto Keypad Lock
This menu allows you to lock your keypad
automatically. The default setting is Off.
Select the time interval after which the keypad will be
locked and press L to confirm.
The keypad will be locked/unlocked automatically
when you close/open the slider.
Fixed Dial
This menu allows you to restrict your outgoing calls.
You need to enter PIN2 code, which has to be
supplied / supported by your network operator.
Mode
There are two modes: On (you only dial the
numbers stored in the Fixed Dial List) and
Off (you can dial any number).
30
Fixed Dial Displays the fixed dial list. Press L Add,
List
enter the name and phone number, then
press L, enter PIN2 code and press L.
Not all SIM cards support PIN2 code. If your SIM card
does not have a PIN2 code, this option is not available.
Barred Dial
This menu allows you to restrict different types of
outgoing calls.You can activate or deactivate this
feature if your SIM card supports it.
Change Password
This menu allows you to change the PIN code, PIN2
code and Phone Lock Password.
PIN
It is supplied together with the SIM card. The default
PIN code is supplied by your network operator.
If you enter an incorrect PIN code three times in
succession, the PIN code of your SIM card will be
locked automatically and you will be prompted to enter
the PUK code to unlock it. You can obtain the PUK
code from your network operator. If you enter an
incorrect PUK code ten times in succession, the SIM
card will be locked permanently. When this happens,
please contact your network operator or retailer.
Settings
PIN2
It is used to access certain network functions such as
call charges or fixed dial, etc. If you enter an incorrect
PIN2 code three times in succession, the PIN2 code
of your SIM card will be locked. To unlock PIN2
code, you need to obtain the PUK2 code from your
network operator. If you enter an incorrect PUK2
code ten times in succession, the SIM card will be
locked permanently. When this happens, contact
your network operator or retailer.
Phone Lock Password
It protects your phone against unauthorised use by
other parties. To protect your data, you need to enter
the phone lock password before you restore factory
settings. The default phone lock password is 0000.
Sound Effect
Equalizer
This menu allows you to set the audio frequency when
playing music.
Restore Factory Settings
This menu allows you to reset your phone to its
factory settings.
Enter the phone lock password and press L to confirm.
Once you have entered the correct password (same as
your Phone Lock Password, default value is 0000),
your phone will be restored to its factory settings.
Settings
31
8. Multimedia
3
Set Delay Timer
Camera
4
Activate / deactivate Continuous shot
Your phone features a built-in digital camera. You can
take pictures, store them in your phone or transfer
them to your PC via a data cable, use them as
wallpaper or send them to your friends via MMS.
5
Set Scene Mode
6
Set Image Quality
7
Set Image Size
Activate the camera
You can go to the Camera by selecting Main menu >
Multimedia > Camera or by pressing the L in idle
mode.
The following table describes the operations of the
various keys in camera mode.
+ / - Zoom in / out
Take a picture
1.
2.
Frame your picture and press , to take the
picture.
Once the picture is taken, the image will be
displayed. Press L to save the picture or press
R to clear the picture.
Options menu of the Camera
This section describes the Option menu of the
Camera.
Album
Access ImageViewer.
</>
Increase / decrease exposure compensation
,
Take a picture
)
Exit Camera mode and return to main screen
L
Access Option menu
Camera Setting Set Shutter Sound, EV, Banding,
Delay Timer, and Cont Shot.
R
Return to previous screen
Image Setting
1
Effects Setting
2
Set White Balance
32
Set Image Size (176x220, 160x120,
320x240, 648x480 or 1280x1024)
and Image Quality (Normal, High,
Fine or Low).
Multimedia
White Balance Select the appropriate White Balance
for different locations: Auto, Daylight,
Tungsten, Fluorescent, Cloud or
Incandescence.
Scene Mode
Set the Scene mode to Auto or Night.
Effect Setting
Set special effects for the picture.
Add Frame
Add a frame to the picture. Some
frames are available only to certain
picture sizes.
Storage
Set the storage location to Phone or
Memory Card.
Restore
Default
Reset the camera settings to their
default values.
ImageViewer
When you take a picture and save it, the picture is
stored in the ImageViewer folder. When you access the
menu, your photos will be displayed as thumbnails.
Use + and - navigation keys to browse through the list.
Press L Option to access the following options:
View
Display the picture.
Browse Style
Multimedia
Set the browse style as List Style or
Matrix Style.
Forward
Apply the selected picture to other
options such as To Wallpaper, To
Phonebook, To Screen Saver, To
Power On Display, To Power Off
Display, To MMS and To EMS.
Rename
Rename the selected picture.
Delete
Delete the selected picture.
Delete All Files Delete all pictures.
Sort
Sort all pictures according to name,
type, time or size.
Storage
Set the storage location to Phone or
Card.
eBook
This menu allows you to view the text file saved in the
phone or micro SD card (make sure that you have
already inserted the micro SD card into the card slot).
You need to copy and save the selected text file into a
ebook folder so that you can read the text when you
enter the eBook menu. If there are existing text files, a
text file list will display on the screen. Press L Option
to access the following options:
33
Read
Read the selected file.
Rename
Rename the selected file.
Delete
Delete the selected file.
Delete All
Files
Delete all files under eBook.
Sort
Storage
Select to sort the files by type, by time, by
size or none (no sorting or random sorting).
Set the storage location to Phone or
Card.
This function only supports text file saved in the folder
under the ebook menu with file size less than 2MB.
Video Recorder
This menu allows you to record videos in MP4 format.
Activate Video Recorder
Select Video Recorder and press L to activate it.
The following table describes the operations of the
various keys in video recording mode.
+ / - Zoom in / out
</>
Increase / decrease exposure compensation
,
Start / Pause recording
34
)
Exit video recording mode and return to
home screen
L
Access Option menu
R
Return to previous screen
1
Effect Setting
2
Set White Balance
Record a video
Frame your image and press , to start recording.
While recording, you can press , Pause/Resume. Press
R to stop the recording and save the video.
Option menu of the Video Recorder
This section describes the Option menu of the Video
Recorder:
To Player
Access Video Player
CamCorder
Set White Balance, EV, Night Mode
Setting
and Banding
Video Setting
Set Video Quality, File Size Limit, Rec
Time Limit, Record Audio and
Encode Format
Effect Setting Set special effects for the video
Multimedia
Storage
Set the storage location to Phone or
Memory Card
Restore Default Reset the video recorder settings to
their default values
Video Player
This option allows you to view the videos you have
recorded or pre-installed in your phone.
Select a video and press L Option to access the
following options:
Play
Play the selected video.
Forward
Apply the selected video to other
options such as To Phonebook, To
Screen Saver, To Power On Display
and To Power Off Display.
Rename
Rename the selected video.
Delete
Delete the selected video.
Delete All Files Delete all videos.
Sort
Sort all videos according to name,
type, time or size.
Storage
Set the storage location to Phone or
Memory Card.
Multimedia
When the movie is playing, you can adjust the speed by
pressing the +/- key. Press # key to snatch the image
in the movies. The snatched images will be saved in the
photos in the File Manager. Press * key to play the
movie in full screen/landscape mode.
Photo Artist
This menu will link you to the File manager which
allows you to manage the pictures in Images and
Photos folders in your phone. Select a picture and
press L to access the following functions:
Auto Resize Resize the selected picture automatically
to fit the screen size (i.e. 176x220).
Main LCD
Clip
Resize the selected picture manually.
Press the navigation keys to select the
area that needs to be clipped. Press *
to enlarge and press # to reduce the
clipped area.
When you have finished the picture editing, press L
to access the following options:
Save As
Save the picture to a new file.
Add Effect
Apply the effect provided by the phone.
35
Add Frame
Add a frame provided by the phone to
the picture. You can use the same
frame repeatedly for the picture.
Add Icon
Add an icon provided by the phone to
the picture. Use the navigation keys to
move the selected icon. Then press ,
and L Done.
Add Text
Activate Audio Player
Press < in idle mode or select Audio Player.
The following table describes the operations of the
various keys when playing music.
Play/Pause
+
Use the navigation keys to move to the
location where the text will be added.
Press , and press L Done.
Adjustment
Adjust the image and colour of the
picture.
Flip
Use the navigation keys to flip the picture.
Expand
Canvas
Help
-
Stop
<
Skip to the previous music track
>
Skip to the next music track
Volume keys Adjust music volume
)
Exit Audio Player and return to home
screen
Adjust the size of the picture if it is not
displayed in full screen (i.e. 176 x 220).
L
Access play List and press L again to
access Option menu.
Obtain information on Add Effect, Add
Frame, Add Icon and Add Text.
R
Return to previous screen
Option menu of the Audio Player
Audio Player
Play
Play the selected music track.
This menu allows you to play music. The music
stored in the audio player folder will be automatically
detected and added to the play list. When the music is
playing, you can dial or answer an incoming call. The
player will pause once the connection is established.
Details
Display details of the music track.
Add To Rings
Set the music track as ring tone.
Refresh List
Refresh the play list in Audio Player.
36
Multimedia
Settings
Include Play List, List Auto Gen,
Repeat (Repeat mode), Shuffle (Play
order), Background Play (Whether
or not to continue playing when you
exit from the audio player),
Equalizer and Spectrum Display Style
(Display a complete range of styles).
Record
Press L to start recording, press L to
Pause or Cont. recording. To finish
recording, press R Stop. Enter a
filename for the recording and press L.
Play
Play the recording.
Append
Append sound to the recording.
Add/Delete music
Rename
Rename the recording.
1.
2.
Delete
Delete the recording.
Delete All
Delete all recordings.
Settings
Set the format of the recording.
Forward
Apply the recording to other options.
Switch off your phone.
Connect your phone to the computer using the
USB data cable. After the computer has
identified your phone, you can copy music
tracks to your phone or delete music tracks from
your phone.
All music tracks must be stored in the root directory.
This is the location specified by the phone and you
cannot change it.
Sound Recorder
This menu allows you to record sound. You can also
play, rename and delete the sound you have recorded.
Select a recording and press L, or press L directly to
access Option menu.
Multimedia
Melody Compose
This menu allows you to edit a melody and set it as
ring tone.
If there is no melody, you can press L Add to create
a melody and press L to access Option menu when
composing the melody. If you have selected an
existing melody, you can press L to access Option
menu.
37
Key operations when composing a
melody
Option menu of a melody
Play
Play the selected melody.
0
Insert a rest.
Edit
Edit the selected melody.
1 - 7 Enter Do-Si.
Add
Create a new melody.
8
Insert vibra effect (vibrating note).
Rename
Rename the selected melody.
9
Insert backlight effect.
Delete
Delete the selected melody.
+-
Change pitch of the note to high, middle
or low.
Delete All Files
Delete all melodies.
Forward
Apply the melody to other
options such as To User Profile, To
MMS and To EMS.
Settings
Set the preferred storage location
to Phone or Card.
#
Switch the status of the note to high,
normal or low.
*
Change the tempo.
Press the navigation keys to select vibra or back light,
and press + or - keys to turn the effect on or off.
Option menu when composing a melody
Play
Play the melody.
Play Speed
Select playback speed.
File Manager
This menu allows you to manage the pictures,
recorded sound, ring tone and music files in your
phone.
Select Instrument Select a musical instrument.
Save
38
Save the melody.
Multimedia
Press L Option to access the following:
Open
Open the folder. You can select a file
or folder to carry out the following
operations:
• File operations
Play (for music file), View (for image
file), Forward, Detail, Rename, Copy,
Move, Delete, Delete All Files and Sort.
• Folder operations
Open, Create Folder, Rename, Delete
and Sort.
Create Folder Create a new folder.
Format
Format the folder. (Available for root
directory only).
The top right corner of the file manager screen displays
the storage memory utilised. When you select a folder
or file in file manager, the top right corner of the
screen will also display the date and size of the file/
folder.
Multimedia
39
9. Fun & Games
Games
Select a game and press L. For details regarding a
certain game, please refer to the onscreen instructions.
Game Setting
Stopwatch
Your phone provides the stopwatch function. There
are two types of stopwatches available: Typical
Stopwatch and nWay Stopwatch. When you select
Typical Stopwatch, you can access the following
options:
Split Timing
Press L Start/Stop/Resume to start/
stop/resume counting and press R
Split to split the time. When you
select Split, the stopwatch still
counts continously.
Lap Timing
Press L Start/Stop/Resume to start/
stop/resume counting and press R
Lap to lap the time. When you press
R Lap, the stopwatch will count
from the beginning.
View record
View the saved record.
40
When you select nWay Stopwatch, you can press L
Start to record your time. There are four time displays
available. They are indicated by the +, -, < and >
navigation keys. The selected time will display in red
colour.
This menu allows you to turn the audio and vibration
effect of the games on or off.
Select BGM (Background music), Sound Effect or
Game Vibration, then press the </> to select On or Off
and press L to confirm.
Fun & Games
10. User Profiles
This menu allows you to set the ring tone, alert type,
ring volume, answer mode and backlight, etc when
you receive an incoming call or a new message so that
you can adapt the use of your phone to different types
of call environments.
Select General, Meeting, Outdoor, Indoor or Headset
and press L Option to access the following options:
Activate
Activate the selected profile.
Customize
User Profiles
The “Auto” option in Answer Mode is available only
when the phone is in Headset Mode. Headset mode
need not be activated. The phone will switch to
headset mode automatically when you plug the headset
into your phone.
Allows you to set the selected mode
including Tone Setup (Incoming Call,
Alarm, Power On, Power Off, Cover
Open, Cover Close, Message Tone
and Keypad Tone), Volume (Ring
Tone and Key Tone), Alert Type
(Ring, Vibration Only, Vibra and Ring
or Vibra Then Ring), Ring Type
(Single, Repeat or Ascending), Extra
Tone (Warning, Error, Camp on and
Connect), Answer Mode (Cover
answer or Any Key).
41
11. Organizer
This menu contains features and options that are
designed to help you get organised and be kept
informed at all times.
Calendar
This menu allows you to view the calendar, and add
tasks in the To Do List.
You can press the navigation keys to view the
calendar.
Select a date that you wish to view and press L
Option to access the following options:
Task List
Allows you to set date, time, notes
and alarm for the task. Press L to
add new tasks, or edit and view
existing task (for details, please refer
to “To Do List”).
To Do List
This menu helps you manage the different types of
task in your daily work or life. You can add task
description, a specific timing and an alarm for your
To Do List.
If there is no task in your phone, the screen displays
Empty. You can press L Add to create a new task.
After you have edited the task, press R Done.
If you have selected an existing task, you can press L
Option to access the option menu.
Add a task
Date
Allows you to enter the date of the task.
Time
Allows you to enter the time of the task.
The time you enter must be in 24-hour
format.
Note
Allows you to enter task description. Press
L Edit, enter the description and press L
to save.
Alarm
Use the navigation keys to set alarm status.
Repeat
Set task frequency: Once, Every Day, Day,
Weekly or Monthly.
Jump To Date Allows you to view a specific day
quickly. Enter the date and press L.
When there is a scheduled task for a particular day,
the date will be highlighted in red.
42
Organizer
Option menu of an existing task
Calculator
View
View the settings of the selected task.
Add
Add a new task.
Edit Task
Edit the selected task.
Delete Task
Delete the selected task.
Your phone has a built-in calculator which you can
use to perform basic calculations. Enter numbers
using the keypad and insert operators with the
navigation keys as indicated in the following table:
+
Add or M+
Delete All
Delete all tasks in To Do List.
Send
vCalendar
Send the calender to the desired
recipient.
Alarm
Your mobile phone has a built-in alarm clock. You
can set a maximum of 3 separate alarms.
To set an alarm, follow the steps below:
1. Select an alarm and press L Edit.
2. Set the status to On.
3. Enter the time.
4. Select Repeat: Once, Everyday or Days. When
you have finished the settings, press R Done.
If you select “Days” mode, you can select the week line,
then set the alarm clock for each day of the week
individually. You can switch between On and Off by
pressing the L.
Organizer
-
Subtract or M-
<
Multiply or MC
>
Divide or MR
R
Clear number
#
Decimal point
L
Result
The result of the calculator is indicative only. The
calculation accuracy is 10 decimal places. The result is
then truncated after the 10th decimal digit for the
next operation.
Currency Converter
This menu allows you to convert a sum from one
currency into another using the exchange rate of your
choice. You can convert from Local to Foreign currency
or vice versa. Enter a rate in the Rate field, press L, and
43
enter an amount in either the Local or Foreign field,
then press L to obtain the conversion value.
Press # key to enter decimal point.
World Clock
This menu allows you to check the time of the main
cities around the world.
Press the navigation keys to select the city. The local date
and time will be displayed at the bottom of the screen.
Shortcuts
This menu allows you to quickly enter the 10 preset
menu items. You can also modify the preset menu
items according to your needs.
For more information, please refer to the section
“Shortcuts” on page 26.
44
Organizer
12. Services
Goto
This menu contains Wap and Data Account.
Access the web page of the selected
bookmark.
Edit
STK
Edit the selected bookmark.
Delete
Delete the selected bookmark.
The availability of the features in this menu depends
on whether or not your SIM card supports STK. If
your SIM card supports STK function, the STK
menu will be displayed on the screen.
Delete all
Delete all bookmarks
WAP
This option allows you to access the internet. Your
phone has been pre-configured with a number of
internet access modes. You can start browsing the
internet once you have activated an access mode.
Homepage
Add Bookmark Enter the title and URL to create a
new bookmark.
Recent pages
This menu allows you to view the websites which you
have visited recently.
Enter address
Enter a web address and confirm connection to the
website.
Service Inbox
You can store a homepage for each access mode.
When you access the internet with the WAP browser,
the homepage of the access mode which you have
selected will be displayed first.
The WAP push messages you have received are saved
in the Pushbox. WAP push messages are sent to your
phone by your network operator.
Bookmarks
This menu allows you to set the properties of all WAP
access mode. Please contact your network operator to
obtain the correct settings.
You can save the URL as a bookmark in your phone.
Select a bookmark and press L Option to access the
following options:
Services
Settings
45
Network Setting
This option allows you to set Homepage, Gateway,
Port and Data Account.
Color Setting
This option allows you to set the colour of Normal
Text, Link Text, Link Background, Active Text and
Active Background.
Advanced Setting
This option allows you to manage your Cache Setting,
Cookie Setting and Display Setting.
Data Account
This menu allows you to set your account information.
The existing account information is supplied by the
manufacturer.
GSM Data
You can set: Account Name, Number, User Name,
Password, Line Type, Speed and DNS.
GPRS
You can set: Account Name, APN, User Name, Password,
Auth. Type.
46
Services
Icons & symbols
In idle mode, several symbols can be displayed
simultaneously on the main screen.
If the network symbol is not displayed, the network is
currently not available. You may be in a bad reception
area; moving to a different location may help.
Vibra then ring - The phone will vibrate then
ring when there is an incoming call.
Roaming - Displayed when your phone is
registered to a network other than your own
(especially when you’re abroad).
GPRS attach - Your phone is connected to the
GPRS network.
Battery - The bars indicate the battery level
(4 bars=full, 1 bar=low).
Voice mail - You have received a new voice
mail.
GSM Network - your phone is connected to
the GSM network.
Reception quality - the more bars are shown
the better the reception is.
Call divert - Your phone is in call divert state.
Keypad lock - The keypad has been locked.
Alarm - The alarm clock has been activated.
Ring - The phone will ring when there is an
incoming call.
Vibration only - The phone will vibrate when
there is an incoming call.
Vibra and ring - The phone will vibrate and
ring when there is an incoming call.
Icons & symbols
Missed call - You have a missed call.
SMS message - You have received a new SMS
message.
Headset - The headset is plugged into the
phone.
MMS message - You have received a new
MMS message.
Wap message - You have received a Wap
message.
Recording - Sound recording mode is activated
during a call.
47
Precautions
Radio Waves
Your cellular mobile phone is a low power
radio transmitter and receiver. When it is
operating, it sends and receives radio waves.
The radio waves carry your voice or data
signal to a base station that is connected to the
telephone network. The network controls the power
at which the phone transmits.
• Your phone transmits/receives radio waves in the
GSM frequency (900 / 1800 MHz).
• The GSM network controls transmission power
(0.01 to 2 watts).
• Your phone complies with all relevant safety
standards.
• The CE mark on your phone shows compliancy
with European electromagnetic compatibility (Ref.
89/336/EEC) and low voltage directives (Ref. 73/
23/EEC).
Your cellular mobile phone is your responsibility. To
avoid damage to yourself, to others or to the phone
itself, read and follow all the safety instructions and
make them known to anyone borrowing your phone.
Furthermore to prevent unauthorised use of your
phone:
48
Keep your phone in a safe place and keep it
out of small children's reach.
Avoid writing down your PIN code. Try to
remember it instead.
Switch off the phone and remove the battery if you are
going to leave it unused for a long time.
Change your PIN code after purchasing the phone
and to activate call restriction options.
The design of your phone complies with all
applicable laws and regulations. However
your phone may cause interference with
other electronic devices. Consequently you
should follow all local recommendations and
regulations when using your cellular phone both at
home and when away. Regulations on the use of
cellular phones in vehicles and aircraft are
particularly stringent.
Public concern has been focused for some time on the
possible health risks for users of cellular phones. The
current research on radio wave technology, including
the GSM technology, has been reviewed and safety
standards have been drawn up to ensure protection
from exposure to radio wave energy. Your cellular
telephone complies with all applicable safety
standards and the Radio Equipment and
Telecommunications Terminal Equipment Directive
1999/5/EC.
Always switch off your phone...
Inadequately protected or sensitive electronic
equipment may be affected by radio energy. This
interference can lead to accidents.
Before boarding an aircraft and/or when
packing the phone in your luggage: the use
of mobile phones in an aircraft may be
dangerous for the operation of the aircraft, disrupt the
mobile phones network and may be illegal.
In hospitals, clinics, other health care
centres and anywhere else where you may be
in the close vicinity of medical equipment.
In areas with a potentially explosive
atmosphere (e.g. petrol stations and also
areas where the air contains dust particles,
such as metal powders).
In a vehicle transporting flammable products (even if
the vehicle is parked) or a vehicle powered by liquefied
petroleum gas (LPG), check first that the vehicle
complies with the applicable safety rules.
In areas where you are requested to turn off radio
transmitting devices, such as quarries or other areas
where blasting operations are in progress.
Check with the vehicle manufacturer that
electronic equipment used in your vehicle
will not be affected by radio energy.
Pacemakers
If you have a pacemaker:
• Always keep the phone more than 15 cm from your
pacemaker when the phone is switched on, in order
to avoid potential interference.
• Do not carry the phone in a breastpocket.
• Use the ear opposite to the pacemaker to minimise
the potential interference.
• Switch off your phone if you suspect that
interference is taking place.
Hearing aids
If you are a user of a hearing aid, consult your
physician and hearing aid manufacturer to learn
whether your particular device is susceptible to
cellular phone interference.
Improved performance
In order to improve the performance of your phone,
reduce radio energy emission, reduce battery
consumption and ensure safe operation adhere to the
following guidelines:
49
•
•
•
•
•
For the optimal and satisfactory operation of
the phone you are recommended to use the
phone in the normal operating position
(when not using in hands-free mode or with
a hands-free accessory).
Do not expose your phone to extreme temperatures.
Treat the phone with care. Any misuse will void the
International Guarantee.
Do not immerse the phone in any liquid; if your
phone is damp, switch it off, remove the battery
and let them dry for 24hrs before using them again.
To clean the phone, wipe it with a soft cloth.
Placing and receiving calls consumes the same
amount of battery energy. However, the mobile
consumes less energy in idle screen when kept in the
same place. When in idle screen and while you are
moving, your phone consumes energy to transmit
updated location information to the network.
Setting the backlight for a shorter period of time as
well as avoiding unnecessary navigating in the menus
will also help to save the battery’s energy for longer
phoning and stand-by performances.
50
Battery information
•
•
•
•
•
Your phone is powered by a rechargeable battery.
Use specified charger only.
Do not incinerate.
Do not deform or open the battery.
Do not allow metal objects (such as keys in your
pocket) to short circuit the battery contacts.
• Avoid exposure to excessive heat (>60° C or
140° F), moisture or caustic environments.
You should only use Philips Authentic
battery and accessories, as the use of any
other accessories may damage your phone
and may be dangerous, and will make all
guarantees for your Philips phone null and
void. The use of an incorrect type of battery may also
cause an explosion.
Make sure damaged parts are replaced immediately by
a qualified technician and that they are replaced with
genuine Philips replacement parts.
Your mobile phone and your car
Studies have shown that speaking on the
telephone while driving lowers your
concentration, which can be dangerous.
Adhere to the following guidelines:
• Give your full attention to driving. Pull off the road
and park before using the phone.
• Respect the local regulations in countries where you
drive and use your GSM phone.
• If you want to use your phone in a vehicle, install
the hands-free car kit which is designed for that
purpose.
• Ensure that your phone and car kit do not block any
air bags or other security devices fitted in your car.
The use of an alarm system to operate a vehicle's light
or horn to indicate incoming phone calls is prohibited
on public roads in some countries. Check local
regulations.
EN 60950 Norm
In hot weather or after prolonged exposure to the sun
(e.g., behind a window or a windscreen), the
temperature of your phone's casing might increase,
especially when featuring a metallic finish. Be very
careful in this case when picking up your phone and
also avoid using it with an ambient temperature over
40° C or below 5° C.
Environmental care
Remember to observe the local regulations
regarding the disposal of the packaging
materials, exhausted batteries and old phone
and please promote their recycling.
Philips has marked the battery and packaging with
standard symbols designed to promote the recycling
and appropriate disposal of your eventual waste.
The labelled packaging material is
recyclable.
A financial contribution has been made
to the associated national packaging
recovery and recycling system.
The plastic material is recyclable (also
identifies the type of plastic).
WEEE Marking in the DFU:
“Information to the Consumer”
Disposal of your old product
Your product is designed and manufactured with high
quality materials and components, which can be
recycled and reused.
51
When this crossed-out wheeled bin
symbol is attached to a product it means
the product is covered by the European
Directive 2002/96/EC
Please inform yourself about the local
separate collection system for electrical
and electronic products.
Please act according to your local rules and do not
dispose of your old products with your normal
household waste. The correct disposal of your old
product will help prevent potential negative
consequences for the environment and human health.
52
Troubleshooting
The phone does not switch on
Remove/reinstall the battery. Then charge the phone
until the battery icon stops scrolling. Unplug the
charger and try to switch on the phone.
Your phone doesn’t return to idle screen
Your battery seems to over heat
You might be using a charger that was not intended
for your phone. Make sure you always use the Philips
authentic accessory shipped with your phone.
Your phone doesn’t display the phone
numbers of incoming calls
Long press the hangup key or switch off the phone,
check that the SIM card and the battery are installed
correctly and switch it on again.
This feature is network and subscription dependent.
If the network doesn’t send the caller’s number, the
phone will display Call 1 or Withheld instead. Contact
your network operator for more information.
The network symbol is not displayed
You can’t send text messages
The network connection is lost. Either you are in a
radio shadow (in a tunnel or between tall buildings) or
you are outside the network coverage area. Try from
another place, try to reconnect to the network
(especially when abroad), check that the antenna is in
place if your mobile phone has an external antenna, or
contact your network operator for assistance/
information.
The display doesn’t respond (or the
display responds slowly) to key presses
The display responds more slowly at very low
temperatures. This is normal and does not affect the
operation of the phone. Take the phone to a warmer
place and try again. In other cases, please contact your
phone supplier.
Some networks don’t allow message exchanges with
other networks. First check that you have entered the
number of your SMS centre, or contact your operator
for more information.
You can’t display pictures
A picture may not be accepted by your mobile phone
if it is too large, if its name is too long, or if it doesn’t
have the correct file format.
You have the feeling that you missed
some calls
Check your call divert options.
53
The display shows INSERT SIM
Check that the SIM card has been inserted correctly.
If the problem remains, your SIM card may be
damaged. Contact your network operator.
When attempting to use a feature in the
menu, the mobile displays NOT
ALLOWED
Some features are network and subscription
dependent. They are only available, therefore, if the
network or your subscription supports them. Contact
your network operator for more information.
Your phone is not charging
If your battery is completely flat, it might take several
minutes of pre-charge (up to 5 minutes in some cases)
before the charging icon is displayed on the screen.
54
Philips Authentic
Accessories
Some accessories, such as battery and charger, are
included as standard accessories in your mobile phone
package. Additional accessories may also be provided
or sold separately. Package contents may therefore
vary.
To maximise the performance of your Philips mobile
phone and not to void the warranty, always purchase
Philips Authentic Accessories that are specially
designed for use with your phone. Philips Consumer
Electronics cannot be held liable for any damage due
to use with non-authorised accessories.
Charger
Charges your battery in any AC outlet. Small enough
to carry in a briefcase/handbag.
Headset
Your phone will activate headset mode automatically
when you plug in the headset. And you can select
"auto" option in answer mode. If this option’s status
is "on", your phone will automatically answer the
incoming call in 5 or 10 seconds.
USB cable
The USB cable enables high speed communication
between your phone and your computer. You can
then manage the information stored in your phone
such as image, animation, photo, video and music.
You can also use the cable to connect your phone to a
Webcam or charge the battery (this charging mode is
compatible with most computers).
Webcam
To use the webcam function, make sure that your
computer supports the following:
• Windows XP or above operation system;
• Chat Tools such as MSN, QQ; and
• Internet Connection
To start using the webcam, you need to:
• Make sure that the power is on.
• Make sure that the USB cable is connected to the
phone.
• Select Webcam and press LOK to confirm.
• Now you can start chatting with your friends via a
chat tool such MSN or QQ.
55
Webcam features
•
•
•
•
•
•
Simple plug-n-play operation
Resolution: 640 x 480 (VGA)
Frequency of display: 30 f/s (CIF): 15 f/s (VGA)
Auto exposure
Auto control voltage
Improve the view effect by adjusting the option
menu in the computer such as brightness, contrast,
colour effects, saturation, sharpness, gamma, white
balance and backlight contrast.
The actual refresh rate is dependent on the connection
speed of your computer, and not your phone.
Data connect kit
Provides easy data connection to your Philips mobile
phone. The USB cable enables high-speed
communication between your phone and your
computer. The software provided allows you to copy,
move and delete pictures and melodies.
Please note that the operation system of your computer
must be Windows 98 or above.
56
Specific Absorption Rate Information
International standards
THIS MOBILE PHONE MEETS THE INTERNATIONAL RECOMMENDATIONS FOR EXPOSURE TO
RADIO WAVES
Your mobile phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for
exposure to radio frequency (RF) energy defined by the international standards. These recommendations have been
established by the International Commission on Non-Ionizing Radiation Protection (ICNIRP) and, the Institute
of Electrical and Electronics Engineers - Standards Associations (IEEE-SA) that forcast a substantial safety margin
for assuring the protection of all persons, regardless of age and health.
The exposure recommendations for mobile phones use a measurement unit known as the Specific Absorption Rate
(SAR). The SAR limit recommended by the ICNIRP for the mobile phones used by the general public is 2,0 W/
kg in 10g of tissue and, is 1,6W/kg in 1g of tissue by IEEE-SA (IEEE Std 1528) for the head.
Tests for SAR have been conducted using recommended operating positions with the mobile phone transmitting
at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest
certified power level, the actual SAR levels of the mobile phone while operating are generally below the maximum
SAR value. This is because the phone is designed to operate at multiple power levels so as to use only the power
required to reach the network. In general, the closer you are to a base station antenna, the lower the power output.
While there may be differences between the SAR levels of various phones and at various positions, they all meet
the international protection standards for exposure to radio waves.
The highest SAR value for this Philips 390 model phone when tested for compliance against the standard was
0,147W/kg for ICNIRP recommendation and 0.186W/kg for IEEE Standard.
For limiting the radio waves exposure, it is recommended to reduce the mobile phone call duration or to use a
headset. The purpose of those precautions is to take the mobile phone away from the head and the body.
Specific Absorption Rate Information
57
Limited warranty
1.
Workmanship During The Limited Warranty
Period?
What Does This Limited Warranty Cover?
During the limited warranty period, Philips or its
authorized service representative will, at its
option either repair or replace, without charge for
parts or labour, a materially defective Product
with new or refurbished parts or Product and
return such repaired or replaced Product to the
Consumer in working condition. Philips will
retain defective parts, modules or equipment.
Philips warrants to the original retail purchaser
(“Consumer” or “You”) that this Philips cellular
product and all accessories originally provided by
Philips in the sales package (“Product”) are free
from defects in materials, design and
workmanship under normal use in accordance
with the operating instructions and pursuant to
the following terms and conditions. This limited
warranty extends only to the Consumer for
Products purchased and used in the original
country of purchase. The limited warranty is
valid only in Philips’ intended country of sales of
the product.
2.
How Long is The Limited Warranty Period?
The limited warranty period for the Product
extends for ONE (1) YEAR from the date of
purchase of the Product, documented by valid
proof of purchase. The limited warranty for
original Philips rechargeable battery extends for
six (6) months from the date of purchase.
3.
58
Repaired or replaced Product will be covered by
this limited warranty for the balance of the
original limited warranty period or ninety (90)
days from the date of repair or replacement
whichever is longer. Repair or replacement of
Product, at Philips’ option is your exclusive
remedy.
What Will Philips Do if The Product is Not Free
From Material Defects in Materials and
4.
What is Not Covered By This Limited Warranty?
This limited warranty does not cover:
a)
Product that has been subjected to misuse,
accident, shipping or other physical damage,
improper installation, abnormal operation
handling, neglect, inundation, fire, water or
other liquid intrusion; or
b) Product that has been damaged due to
repair, alteration, or modification by anyone
not authorized by Philips; or
c) Product that has reception or operation
problems caused by signal conditions,
network reliability or cable or antenna
systems; or
d) Product defects or problems caused by uses
with non-Philips products or accessories; or
e) Product which warranty/quality stickers,
product serial number or electronic serial
number has been removed, altered or
rendered illegible; or
f) Product purchased, used, serviced, or
shipped for repair from outside the original
country of purchase, or used for commercial
or institutional purposes (including but not
limited to Products used for rental
purposes); or
g) Product returned without valid proof of
purchase or which proof of purchase has
been altered or is illegible.
h) Normal wear and tear or Force Majeure.
5.
How Do You Get Warranty Service?
a)
Return the Product to an authorized service
center of Philips. You may contact the local
Philips office for the location of the nearest
authorized service center.
b) The SIM card must be removed from the
Product before it is given to Philips. Philips
assumes no liability for damaged or loss of
the SIM card or the data contained therein.
c) If the Product failure is not covered by this
limited warranty, or this limited warranty is
inapplicable, void or invalid due to any
terms and conditions stated herein, the
Consumer will be charged for the cost of
repair or replacement of the Product and all
other related cost incurred in repairing or
replacing the Product.
d) IMPORTANT - you are required to return
the Product together with a valid proof of
purchase which must identify the point of
purchase, date of purchase, Product model
and Product serial number clearly.
6. Other Limitation: This Warranty is The Entire
Agreement.
EXCEPT
FOR
THE
EXPRESS
WARRANTIES SET FORTH ABOVE AND
THOSE IMPLIED BY LAW AND WHICH
CANNOT BE EXCLUDED OR MODIFIED
BY AGREEMENT, PHILIPS PROVIDES NO
OTHER WARRANTY WHETHER EXPRESS
OR IMPLIED (WHETHER BY STATUTE,
UNDER THE OPERATION OF LAW OR
OTHERWISE) AND SPECIALLY DISCLAIMS
59
ANY WARRANTY OF SATISFACTORY
QUALITY
MERCHANTABILITY
OR
FITNESS FOR A PARTICULAR PURPOSE.
PHILIPS’
TOTAL
LIABILITY
FOR
DAMAGES RELATING TO OR ARISING
OUT OF THE PURCHASE OR USE OF THE
PRODUCT, REGARDLESS OF THE TYPE
OR CAUSE OF SUCH DAMAGE OR THE
FORM OR CHARACTERISATION OF THE
CLAIM ASSERTED (E.G. CONTRACT OR
TOPIT), SHALL NOT EXCEED THE
ORIGINAL PURCHASE PRICE PAID FOR
THE PRODUCT.
HOWEVER IN NO EVENT SHALL PHILIPS
BE LIABLE FOR ANY PUNITIVE, SPECIAL,
INCIDENTAL,
INDIRECT
OR
CONSEQUENTIAL DAMAGES (INCLUDING
BUT NOT LIMITED TO THE LOSS OF
USE, LOSS OF TIME, INCONVENIENCE,
COMMERIAL LOSS, LOST PROFITS, LOST
BUSINESS OPPORTUNITIES, COST OF
SUBSTITUTION
OF
GOODS
OR
SERVICES, INVESTMENTS, DAMAGE TO
GOODWILL OR REPUTATION, OR LOSS
OF DATA AND CLAIMS BY THIRD
PARTIES) RESULTING FROM PURCHASE
OR USE OF THE PRODUCT, TO THE
FULLEST EXTENT ALLOWED BY LAW,
WHETHER OR NOT PHILIPS HAS BEEN
60
ADVISED OF THE POSSIBILTY OF SUCH
DAMAGES. THESE LIMITATIONS SHALL
APPLY
NOTWITHSTANDING
THE
FAILURE OF THE ESSENTIAL PURPOSE
OF ANY LIMITED REMEDY.
This limited warranty represents the complete
and exclusive agreement between the Consumer
and Philips with respect to this cellular Product
and it supercedes all prior agreements between
the parties, oral or written, and all other
communications between the parties relating to
the subject matter of this limited warranty. No
carrier, retailer, agent, dealer, employee, thereof,
or employee of Philips is authorized to make
modifications to this limited warranty and you
should not rely on any such representation.
This limited warranty does not affect the
Consumer’s statutory rights under applicable
national laws in force.
Declaration of
conformity
We,
Philips (China) Investment Co., Ltd.
BU Wireless China
21F, Tower 1 Kerry Euerbright City
218 Tian Mu Xi Road
Shanghai, P.R.C200010
declare under our sole responsibility that the product
Philips 390
GSM/GPRS Dualband Digital Mobile Phone
TAC: 352422 01
to which this declaration relates, is in conformity with
the following Standards:
Safety: ETSI EN 60950-1:2001
EMC: ETSI EN 301 489-1 V1.6.1 and
ETSI EN 301 489-7 V1.3.1
Radio: ETSI EN 301 511 V9.0.2
Health: EN 50361:2001; IEC 62209-1:2005
We hereby declare that all essential radio test suites
have been carried out and that the above named
product is in conformity to all the essential
requirements of Directive 1999/5/EC.
The conformity assessment procedure referred to in
Article 10 and detailed in Annex III or IV of Directive
1999/5/EC has been followed with the involvement
of the following Notified Body:
CETECOM
Identification mark: 0682
Dec 31st, 2006
Quality Manager
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
