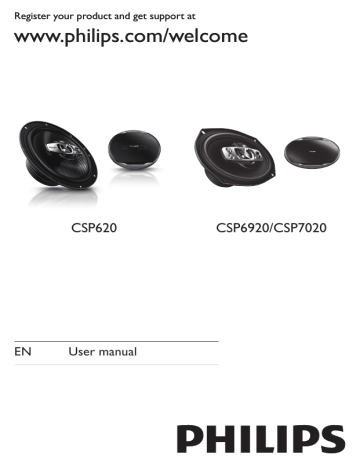

Register your product and get support at
www.philips.com/welcome
CSP620
EN
User manual
CSP6920/CSP7020
A
a
b
d
e
c
B
a
b
c
d
e
Right
Derecha
Direita
Правый
Ⴛ
White lined
Con línea blanca
Revestimento branco
С белым покрытием
Ϧ೨์໙
White lined
Con línea blanca
Revestimento branco
С белым покрытием
Ϧ೨์໙
Amplifier
Amplificador
Amplificador
Усилитель
ঘၿచ
CSP620
CSP6920
Left
Izquierda
Esquerda
Левый
ቔ
f
C
Right
Derecha
Direita
Правый
Ⴛ
Black
Negro
Preto
Черный
‫ޕ‬೨
Left
Izquierda
Esquerda
Левый
ቔ
Black
Negro
Preto
Черный
‫ޕ‬೨
g
English
1. Important
Safety
•
•
•
•
•
Read and understand all instructions before you use the apparatus.
If damage is caused by failure to follow instructions, the warranty does
not apply.
Use only the supplied mounting hardware for a safe and secure
installation.
Do not continuously use the speaker system beyond the peak power
handling capacity.
Keep credit cards, watches, recorded tapes etc. with magnetic coding
away from the speaker system to prevent damage caused by the magnets
in the speakers.
Clean the apparatus with soft, damp cloth. Never use substances such
as alcohol, chemicals or household cleaners on the apparatus.
Notice
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if
disassembled by a specialized company. Please observe the local regulations
regarding the disposal of packaging materials, exhausted batteries and old
equipment.
Any changes or modifications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
2009 © Koninklijke Philips Electronics N.V. All rights reserved.
Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners. Philips reserves the right to change products at any time
without being obliged to adjust earlier supplies accordingly.
2.Your car stereo speakers
Congratulations on your purchase, and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
Introduction
With the speakers, you can enjoy high power music with vivid sound.
What’s in the box A
Check and identify the contents of your package:
a Speakers (x2)
b Grille net + Frame (x2)
c Speaker wire (x2)
d Screw (x8)
e Shrapnel (x8)
3. Installation
A depth of at least 46mm is required to mount the speaker. Measure the
depth of the area where you are to mount the speaker, and ensure that
the speaker does not obstruct any other components of the car.
Option 1: Mount on door (front or rear) B
You can mount the speakers on the front/rear door of your car. a
Note
•• Make sure that nothing obstructs around the mounting location of the door.
•• A hole for mounting may already be cut out of the inner panel of the door
(front or rear). In this case, you need to modify the board only.
•• Ensure that the speaker terminals, frame or magnet do not interfere with any
inner parts, such as the window mechanism in the door (when you open or
close the window), etc. Also ensure that the speaker grille does not touch any
inner fittings, such as the window cranks, door handles, arm rests etc.
1 Turn off the car ignition key.
•
If the power is on, the click noise generated by the connection
may damage the speakers.
2 Cut out the mounting template from the packing box.
3 Paste the template on the location selected for mounting the
4
5
6
7
speaker.
Mark the cut-off hole and the 4 bolt holes. b
Cut out the marked area and drill the bolt holes. c
Remove the grille net. d
Strip the speaker wires and connect them to the amplifier. e
•
•
Black wire: connect to “-“ (negative) terminal
Black (white lined): connect to “+“ (positive) terminal
Note
•• Match the “left”, “right”, “+” and “-” terminals correctly. Revised polarity may
degrade sound quality.
•• Two 4-ohm speakers, wired in stereo, present a 8 ohm load to each channel
of the amplifier. Most two channel amplifiers work well in this configuration.
However, if two 4-ohm speakers, wired in parallel to a bridged two -channel
amplifier, present a 2-ohm mono load to the amplifier. Most 2-channel
amplifiers do not support 2-ohm mono operation! Amplifier damage may
result!
8 Mount on the speaker as shown below. f
9 Press and insert the edges of the grille net. g
Tip
•• The speaker grille can be mounted without the grille net, if you like.
Option 2: Mount on rear tray C
You can also mount the speakers into the surface of the rear tray.
Follow the steps in section “Option 1: Mount in door” to mount the
speakers into the rear tray:
4. Product information
Note
•• Product information is subject to change without prior notice.
Model
Speaker type
RMS power (Watts)
Peak music power (Watts)
Sensitivity (dB/W/m)
Frequency response (Hz)
Impedance (ohms)
Magnet mass (Oz)
Mounting depth (mm)
CSP620
16.5cm, 3-way
triaxial speaker
80W
400W
90dB
35-32kHz
4 ohms
8.6Oz
59mm
CSP6920
16x24cm, 5-way
coaxial speaker
80W
480W
91dB
27-33kHz
4 ohms
22Oz
88.1 mm
CSP7020
18x26cm, 5-way
coaxial speaker
85W
550W
91dB
26-33kHz
4 ohms
22Oz
85 mm
5.Troubleshooting
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, go to the Philips
web site (www.philips.com/welcome). When you contact Philips, ensure
that the apparatus is nearby and the model number and serial number
are available.
© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
CSP620_6920_7020_00_UM_V1.0
