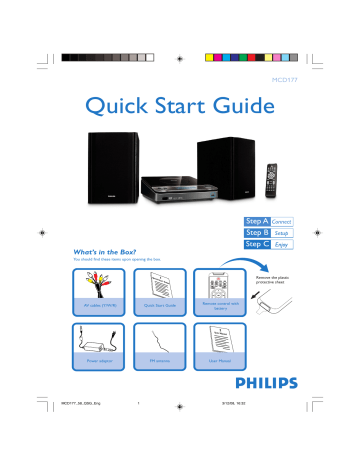

MCD177
Quick Start Guide
What’s in the Box?
You should find these items upon opening the box.
Quic
Remove the plastic
protective sheet
1
k St
art
Guid
e
AV cables (Y/W/R)
Quick Start Guide
Remote control with
battery
2
User Man
ual
Power adaptor
MCD177_58_QSG_Eng
FM antenna
1
User Manual
3/12/08, 16:32
1
Connect the speaker cables.
2
Tip
Connect the FM antenna.
See the User Manual for other TV
connection options.
3
Connect the composite video cable (yellow, supplied) to a TV.
Notes for the remote control:
– First, select the source you wish to control by
pressing one of the source select keys on the
remote control (DISC or FM for example).
– Then select the desired function ( 2;, í,
ë for example).
4
Connect the power cords of the system and TV.
A
Y
PB
PR
FM wire antenna
speaker
(left)
speaker
(right)
Y
PB
A To hear the sound of this DVD Player
through your TV, use the audio cables (white/
red, supplied) to connect LINE OUT (L/R)
jacks of the DVD Player to the
corresponding AUDIO IN jacks on the TV.
PR
Power adaptor
Y
PB
PR
B To listen to TV through this system, use a
cinch cable (not supplied) to connect AUX
IN jack (3.5mm) to the corresponding
AUDIO OUT jacks on the TV set.
Setting up the TV
1
Press SOURCE (DISC on the remote control) to select disc source.
2
Turn on the TV and set it to the correct Video In channel.
MCD177_58_QSG_Eng
2
3/12/08, 16:32
Setting the clock
1
2
3
In standby mode, press and hold DISPLAY/CLOCK. The clock digits flash on
the display panel.
Press TUNING à / á (or à / á on the remote control) to set the
hours.
Press í/ ë to set the minutes.
4
Press PROG to select between 12 hour and 24 hour display.
5
Press DISPLAY/CLOCK agian to store the setting.
Setting DVD menu options
IMPORTANT!
If the progressive scan feature is activated but the connected TV does not support
progressive signals or the video cables are not connected accordingly, see the user manual
for proper progressive scan setup or deactivate the progressive scan feature as below:
1) Turn off your TV progressive scan mode then turn on to interlaced mode.
2) Select “OFF” in PROGRESSIVE menu of the system setup menu to turn off progressive
scan, then press SYSTEM MENU on the remote to exit the system menu.
– – Audio Setup Page – –
NIGHT MODE
DIGITAL Output
Dolby Digital Setup
– – Preference Page – –
Audio
Subtile
Disc Menu
Parental
Password
Divx Subtitle
Default
Tip
See chapters "Preparations" and "System Menu Options" in the User
Manual for detailed descriptions.
MCD177_58_QSG_Eng
3
3/12/08, 16:32
Playing a disc
1
Press OPEN•CLOSE 0 to open the disc door and load in a disc, then press
the same button again to close the disc door.
➜ Make sure the label side of the disc is facing up.
2
Playback will start automatically. If not pressÉÅ.
3
To stop playback, press 9.
Programming and tuning to radio stations
1
Press SOURCE (FM on the remote control) to select tuner source.
2
Press PROG for more than two seconds to program all available stations in order of
waveband.
3
Press í/ ë until the desired preset station is displayed.
Tip
Detailed playback features and additional functions are described in the
accompany owner's manual.
Playing a USB mass storage device
With the Hi-Fi system, you can use USB flash memory (USB 2.0 or USB1.1),
USB flash players (USB 2.0 or USB1.1), memory cards (requires an additional card reader to
work with this Hi-Fi system).
1
Insert the USB device’s USB plug into the socket
on the front panel of the main set.
2
Press SOURCE (or USB on the remote control) once or more to select USB.
3
Play the USB’s audio files as you do with the albums/tracks on a CD.
C Royal Philips Electronics N.V. 2008
All rights reserved.
PDCC-JH-0811
http://www.philips.com
MCD177_58_QSG_Eng
4
3/12/08, 16:32
