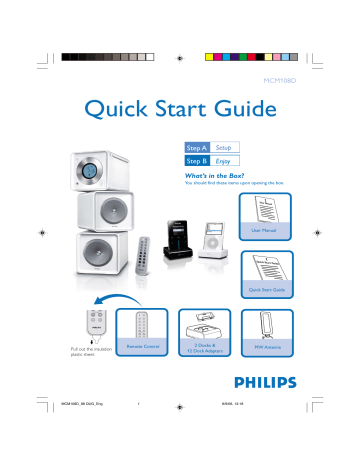

MCM108D
Quick Start Guide
Step A
Setup
Step B
Enjoy
What’s in the Box?
You should find these items upon opening the box.
2
User Man
ual
User Manual
1
Quick Star
t Guide
Quick Start Guide
VOLUME
MUTE
CD
DBB
TUNER
DSC
AUX
PROG
REPEAT
SHUFF
SLEEP
TIMER
ALBUM
VOLUME
DBB
Pull out the insulation
plastic sheet.
MCM108D_98 QUG_Eng
DSC
Remote Control
1
2 Docks &
12 Dock Adapters
8/9/06, 13:18
MW Antenna
Step A
Setup
Connection
1
2
3
For radio reception, connect the supplied MW antenna to the
MW aerial terminal.
Tip
It is unnecessary to
connect the FM pigtail
antenna since it is
fixed to the main unit.
Connect the speaker wires to the SPEAKERS terminals.
Connect the power cord of the system to the
AC power outlet.
MW loop antenna
1
FM wire antenna
Speaker
(left)
Speaker
(right)
2
2
3
AC power cord
PROG/CLOCK
Setting the clock
1
MICRO SYSTEM MCM108D
In standby mode, press PROG/CLOCK button.
The clock digits for the hours flash.
2
Press ¡1 /
3
Press PROG/CLOCK again. The clock digits for the minutes flash.
4
Press ¡1 /
5
Press PROG/CLOCK to confirm the time.
MCM108D_98 QUG_Eng
iR
2™ to set the hours.
2™ to set the minutes.
2
8/9/06, 13:18
Step B
Enjoy
MUTE
CD
CD
TUNER
AUX
PROG
REPEAT
SHUFF
SLEEP
TIMER
Playing a disc
1 Select CD source.
2 Press OPEN•CLOSE on the top of the system to open the CD door.
3 Insert a disc with the printed side facing up and press down
ALBUM
on OPEN•CLOSE to close the CD door.
4 PressÉÅto start playback.
5 Press 9 to stop playback.
OP
E N / C LO S E
Listening to radio
STANDBY-ON
1 Select TUNER source.
SOURCE
SOURCE
BAND
PROG/CLOCK
-
BAND
VOLUME
+
TUNING
TUNING
2 Press BAND (TUNER on the remote control) once or more to select your waveband.
3 Turn TUNING 0 to tune to a station.
Tip
Detailed playback features and
additional functions are described in
the accompanied owner's manual.
MCM108D_98 QUG_Eng
3
Notes for the remote control:
– First, select the source you wish to
control by pressing one of the source select
keys on the remote control (CD or TUNER,
for example).
– Then select the desired function ( 2;,
í, ë for example).
8/9/06, 13:18
Step B
Enjoy
Playing iPod / Philips GoGear using the dock
1
2
3
4
5
Select the correct dock supplied, as indicated on the bottom panel of the dock,
to work with either your Apple iPod or Philips GoGear.
Select the correct dock adaptor supplied, then snap the adaptor into the dock
to provide a snug fit for the player.
● For the iPod adaptors, the indication on the adaptor’s back fits specific iPod player.
● For the Philips adaptors, a number marked on the adaptor’s back fits specific Philips GoGear player.
Correctly place your iPod or Philips GoGear in the dock.
Using the docking cable supplied, connect the DOCKING OUT jack and Mini-USB port
on the dock to DOCKING IN jacks (L and R) and Mini-USB port on the main set,
marked-red to R jack, and marked-white to L jack.
Press SOURCE repeatedly or on the set (or DOCK on the remote) to select DOCK source.
● For Philips GoGear player, make sure that you have powered it on before selecting DOCK source.
● The connected player will play automatically.
● The iPod/Philips GoGear battery will be charged in either standby mode or power-on mode.
Portable player
Speaker
(right)
Speaker
(left)
Dock
sd
Tip
Refer to the user manual supplied for
detailed descriptions of “Compatible
portable player”, “Selecting the correct dock
adaptor”, “Installing the dock adaptor”, and
the important notes for dock operation.
MCM108D_98 QUG_Eng
4
8/9/06, 13:18
