Philips MCM298/37 Quick start guide

Philips MCM298/37 Quick start guide

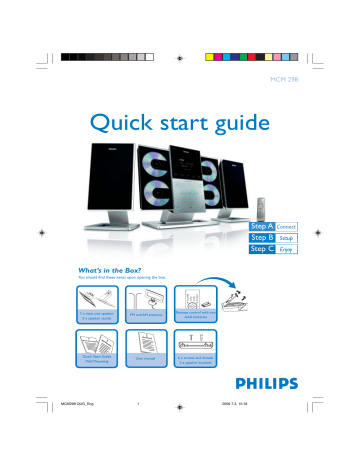

MCM 298
Quick start guide
What’s in the Box?
You should find these items upon opening the box.
1 x main unit speaker
2 x speaker stands
FM and AM antennas
Remote control with two
AAA batteries
2
1
Quick Sta
rt Guide
User Ma
nual
W
all
3
Mo
un
tin
g
Quick Start Guide
Wall Mounting
MCM298 QUG_Eng
User manual
1
6 x screws and dowels
2 x speaker brackets
2006.7.3, 15:18
1
Attach the supplied stands to the main unit
and speakers respectively so that they can
stand firmly on a desktop.
Tip
– See the User Manual for how to
connect other equipment to this
system.
– See Wall Mounting for detailed
instructions if you want to mount
the system on the wall.
2
Connect the speaker cables.
3
Connect the AM and FM antennas.
4
Connect the power cable of the system.
FM antenna
AM antenna
3
Speaker
(right)
Speaker
(left)
2
1
4
AC power cord
Setting the clock
1
In active mode, press CLOCK•TIMER (CLOCK on the remote) repeatedly
until the time digits flash.
/ / /
2
Press ALBUM-/+ 5 6 (5 6 on the remote) repeatedly to set the hour.
3
Press TITLE -/+ í / ë (ALBUM/PRESET +/- on the remote) repeatedly to
set the minute.
4
Press CLOCK•TIMER (CLOCK on the remote) again to store the setting.
MCM298 QUG_Eng
2
2006.7.3, 15:18
C
Enjoy
Playing a disc
1
Press LEFT OPEN • CLOSE or RIGHT OPEN • CLOSE on the front panel (L
ç or R çon the remote) to open the left or right CD door respectively.
2
Insert one or more discs with the printed side facing you. Press LEFT OPEN •
CLOSE or RIGHT OPEN • CLOSE on the front panel (L ç or R çon the
remote) again to close the CD door.
/ / /
3
Use DISC 1/2/3/4 (or CD 1/2/3/4 on the remote control) to select a disc for
playback.
➜ Playback will start automatically. If not press ÉÅ.
4
To stop playback, press 9 .
Programming and tuning to
radio stations
1
Press SOURCE on the front panel of the system repeatedly or
TUNER on the remote to select the tuner source.
2
Press PROGRAM for more than two seconds to program all
available stations in order of waveband.
3
Press TITLE -/+ í / ë (ALBUM/PRESET +/- on the remote)
until the desired preset station is displayed.
Tip
Detailed playback features and additional functions are described in the
accompany owner's manual.
PDCC-JS/JW-0627
MCM298 QUG_Eng
3
2006.7.3, 15:18
