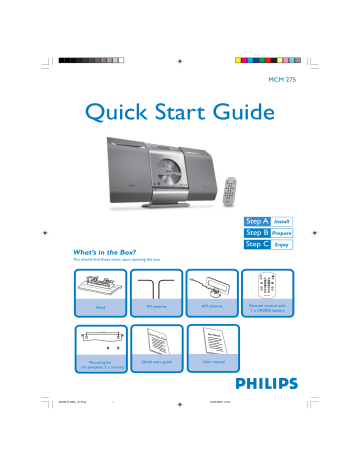

MCM 275
Quick Start Guide
Install
Prepare
Enjoy
What’s in the Box?
You should find these items upon opening the box.
/
USB
FM antenna
Stand
AM antenna
210 mm (8.26")
Quic
k St
art
User Man
ual
Guid
e
Mounting kit
(1x template, 2 x screws)
MCM275 QSG_-37-Eng
1
Quick start guide
User manual
12/20/2005, 10:44
Remote control with
1 x CR2025 battery
Install
Mounting stand onto the set
PRESS
FRONT
PRESS
FRONT
1
Put MCM275 on a flat and firm surface, rear side facing up
2
As shown, align the stand to the slots at set’s bottom, 4 FRONT facing
down
3
Push the stand down into the slots
Helpful hints:
- For wall mounting, please refer to the User Manual, Appendix: How to mount
your MCM275 onto Walls. You may need assistance from the qualified service
personnel.
Rear connections
FM wire
antenna
AM loop
antenna
Speaker
(right)
Speaker
(left)
AC power cord
1
Connect the cable of the left speaker to LEFT (red and black) and the cable
of the right speaker to RIGHT (red and black)
2
Extend the wire antenna and fit it to FM ANTENNA
3
4
a. Assemble the loop antenna
b. Fit the plug of the loop antenna to AM ANTENNA
AM
ANTENNA
Connect the AC power cord to the wall socket
MCM275 QSG_-37-Eng
2
12/20/2005, 10:45
Prepare
Setting the clock
1
/
Press and hold STANDBY-ON y to switch the set to Standby mode
➜ The display shows the set time
➜ -- --:-- -- flashes by default if you have not set the clock
USB
2
In the standby mode, press and hold DISPLAY/CLOCK on the remote control
➜ 12 HR or 24 HR appears for the initial clock setting. To select 24-hour clock or
12-hour clock,
a. Press VOLUME +/- once or more
b. Press DISPLAY/CLOCK to confirm
➜ The hours digits start flashing
3
Hold down or press VOLUME +/- repeatedly to set the hours
4
IMPORTANT!
– Remove the
protective
plastic tab
before using
the remote
control
Press DISPLAY/CLOCK to confirm
5
Notes for remote control:
– First, select the source you wish to
control by pressing one of the source
select keys on the remote control (DISC
or TUNER, for example).
– Then select the desired function
( 2;, í, ë for example).
Hold down or press VOLUME +/- repeatedly to set the minutes
6
Press DISPLAY/CLOCK to confirm
Enjoy
Playing discs
With this system, you can play all pre-recorded audio CDs (CDDA), all finalized audio CD-Rs
and CD-RWs, MP3/WMA-CDs (CD-Rs/CD-RWs with MP3/WMA files)
1
Press SOURCE once or more to select CD (or CD on the remote control)
2
Press CD OPEN•CLOSEç to open the CD compartment
3
Insert a disc with the printed side facing up. Press CD OPEN•CLOSEç again
to close the compartment
/
USB
4
Press ÉÅ to start playback
5
To stop playback, press STOPÇ
MCM275 QSG_-37-Eng
3
12/20/2005, 10:45
Enjoy
Tuning to radio stations
/
1
USB
Press SOURCE once or more to select TUNER (or TUNER on the remote control)
2
3
Press and hold PROGRAM until AUTO appears
➜ flashes. Available stations are programmed: FM stations followed by AM stations
Press the ALBUM/ PRESET buttons once or more until the desired preset station is
displayed
Playing a USB mass storage device
With the Hi-Fi system, you can use USB flash memory (USB 2.0 or USB1.1),
USB flash players (USB 2.0 or USB1.1), memory cards (requires an additional card reader to
work with this Hi-Fi system).
1
Check you have unfolded the control panel
2
Insert the USB device’s USB plug into the socket
on the set ‘s foldable control panel
3
Press SOURCE once or more to select USB (or USB on the remote control)
/
4
USB
Play the USB’s audio files as you do with the albums/tracks on a CD
5
Press STANDBY-ON y to switch off the set
Detailed playback features and additional functions are described in the accompanied
owner's manual.
2005 C Koninklijie Philips Electronics N.V. All rights reserved.
PHILIPS CONSUMER ELECTRONICS NORTH AMERICA
P.O. Box 671539, Marietta, GA. 30006-0026
http://www.philips.com
MCM275 QSG_-37-Eng
4
PDCC-AL-0550
12/20/2005, 10:45
