www.philips.com/welcome

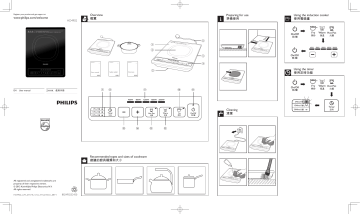

HD4902
Overview
概覽
Preparing for use
準備使用
Using the induction cooker
使用電磁爐
10cm
f
10
cm
Register your product and get support at
a
b
e
www.philips.com/welcome
www.philips.com/welcome
HD4902
Safety leaflet
User manual
EN User manual
ZH-HK 使用手冊
www.philips.com/welcome
HD4902
g
d
HD4902
Using the timer
使用定時功能
c
Warranty
h
i
j
k
Cleaning
清潔
o
n
Recommended types and sizes of cookware
建議的廚具種類和大小
All registered and unregistered trademarks are
property of their respective owners.
© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
HD4902_UM_ZH-HK_V1.0_371x270mm_0814
882490252450
m
l
Cooking power
English
1
Refer to below table for the cooking power of different cooking modes.
Your induction cooker
Congratulations on your purchase and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
2
What’s in the box
Induction cooker main unit
Important information leaflet
Warranty card
Pot
User manual
Overview
Cooking plate
Cooking zone
Air inlet
a
b
c
d
e
f
Control panel
Air outlets
Power cord
Controls overview
Timer indicator
Timer button
Cooking power
Fry mode
On/Off button
g
h
i
j
k
3
l
m
n
o
Warm mode
Hot pot mode
Increase button
Decrease button
Remove all packaging materials from the induction cooker.
Preparing for use
1 Place the appliance on a dry, stable and level surface.
2 Make sure there is at least 10cm free space around the appliance to
prevent overheating.
3 Always place the cookware on the cooking zone during cooking.
4 Make sure you use cookware of the correct types and sizes (see the
table below).
Recommended types and sizes of cookware
Material Cookware with a bottom made of iron or magnetic
stainless steel
Shape
Cookware with a flat bottom
Size
Cookware with a bottom diameter of 10-23cm, depending
on the cooking mode
Using the induction cooker
There are three cooking modes: Hot pot ( ), Warm ( ), and Fry ( ).
1 Follow the steps in “Preparing for use”.
2 Press the On/Off button ( ) to switch on the appliance, and the
On/Off indicator lights up.
3 Press the desired cooking mode button, the corresponding indicator
lights up and the induction cooker starts working in the selected
mode.
4 When the cooking is finished, press the On/Off button ( ) to
switch off the appliance.
5 Unplug the induction cooker after the fan stops working.
Note
•• During cooking, you can change the power level by pressing the Increase
(
) or Decrease (
Cooking Power
Fry (
400W - 2000W
)
Hot pot (
Warm (
)
400W - 2000W
)
400W - 2000W
Using the timer
You can use the Timer button ( ) to decide how much time you want
the appliance to work at different cooking modes.
1 Follow the steps in “Preparing for use”.
2 Press the On/Off button ( ) to switch on the appliance, and the
On/Off indicator lights up.
3 Press the desired cooking mode button, the corresponding indicator
lights up and the induction cooker starts working in the selected
mode.
4 Press the Timer button once or more times to select the desired
cooking time.
5 When the time has elapsed, the induction cooker turns off
automatically.
Note
•• After the timer is set, you can press the Timer button (
the timer indicator is off to cancel the timer.
Before first use
4
Cooking mode
) button.
) repeatedly until
5Cleaning
The cookware
does not heat up
to the required
temperature.
The bottom of the cookware may not be
flat. Use cookware with a flat bottom. If the
problem still exists, take the appliance to your
Philips dealer or a service center authorised
by Philips.
The appliance stops
working suddenly.
The temperature of the cookware is too high.
Let the cookware cool down for a while.
The cooking
temperature of the
preset modes are
too high or too low.
When the induction cooker is working in
one of the preset modes, you may adjust the
cooking temperature using the Increase ( )
or Decrease ( ) button.
When I press one
of the cooking
mode buttons, the
light of the selected
mode does not
go on.
The light is defective. Take the appliance to your
Philips dealer or a service centre authorised
by Philips.
The fan works but
You have to press a cooking mode button after
the appliance has
you have pressed the On/Off ( ) button.
not started working. If you do not press a cooking mode button
within one minute, the induction cooker will
switch off and the fan continues to work for a
while to cool down the appliance.
The 1600W
The voltage is either too high or too low.
indicator blinks and Check if the voltage in your home is suitable
the appliance beeps. for the induction cooker.
The 2000W
The inner temperature of the appliance is too
indicator blinks and high. The appliance will start working again
the appliance beeps. when it cools down.
Unplug the appliance after the fan stops working and let it cool down.
Clean the appliance with a damp cloth and, if necessary, with some mild
cleaning agent.
The 800W indicator IGBT sensor is in open circuit or short circuit
blinks and the
state. Take the appliance to your Philips dealer
appliance beeps.
or a service center authorised by Philips.
6Environment
The 1200W
The main sensor is in open circuit or short
indicator blinks and circuit state. Take the appliance to your Philips
the appliance beeps. dealer or a service center authorised by Philips.
Do not throw away the appliance with the normal household waste
at the end of its life, but hand it in at an official collection point for
recycling. By doing this, you help to preserve the environment.
7
Guarantee and service
If you need service or information or if you have a problem, please visit
the Philips website at www.philips.com or contact the Philips Consumer
Care Centre in your country (you will find its phone number in the
worldwide guarantee leaflet). If there is no Consumer Care Centre in
your country, go to your local Philips dealer.
The 400W and
1200W indicators
blink at the same
time and the
appliance beeps.
The main sensor has malfunction. Take the
appliance to your Philips dealer or a service
center authorised by Philips.
Problem
Solution
The On/Off button
( ) does not
respond.
There is a connection problem. Check if the
induction cooker is connected to the mains and
if the plug is inserted firmly into the wall socket
The appliance beeps You may have put unsuitable cookware on
continuously and
the cooking plate or you may have removed
then stops working. the cookware from the cooking plate during
cooking. Make sure the cookware is made of
steel, iron or aluminium with stainless steel
cladding base and has a base diameter larger
than 12cm.
You may have placed the cookware outside of
the cooking zone.
恭喜你購買 Philips 產品, 歡迎來到 Philips 世界!要享受 Philips
為您提供的全面支援, 請在以下網站
www.philips.com/welcome 註冊您的產品。
包裝盒內含物件
電磁爐主裝置
重要資訊手冊
保用證
鍋子
用戶手冊
b
c
電磁爐板
烹飪區
進氣口
j
k
3
m
n
o
d
e
f
控制板面
排氣口
電源線
清潔
6
環境
7
保障及服務
8
疑難排解
請勿在本產品使用壽命結束後當作一般家庭垃圾廢棄, 應交給
官方回收站作循環再用。 這樣做有助保護環境。
首次使用前
拆去電磁爐的所有包裝材料。
準備使用
1
2
3
4
5
風扇停止運轉後, 拔除本產品的插頭, 讓產品冷卻。
用濕布清潔本產品, 必要時請使用溫和的清潔劑。
保溫模式
火鍋模式
增加按鈕
減少按鈕
將電磁爐放置於穩固、 平坦的水平表面上。
確保機器周圍 10 公分內沒有其他物體, 以防機器過熱。
烹飪時請將廚具放置在烹飪區內。
確保您使用的廚具種類和大小正確。 (請見下表)
建議的廚具種類和大小
如果您需要資料或有疑問, 請前往 Philips 網站
www.philips.com, 或聯絡您的國家的 Philips 顧客服務中心
(您會在全球保障小冊子上找到其電話號碼)。 如果您的國家
沒有顧客服務中心, 請前往當地的 Philips 經銷商。
若電磁爐無法正確運作, 或電磁爐烹飪效率不佳, 請參照下表。
若您無法解決問題, 請聯絡飛利浦服務中心或您所在國家的顧
客服務中心。
材質
底部使用鐵或電磁不銹鋼製做的廚具
問題
外形
有平底的廚具
大小
底部直徑介於10至23公分的廚具,依烹飪模式而定。
開/關按鈕(
反應。
4
使用電磁爐
烹飪模式有三種:火鍋 ( )、保溫 ( ) 和煎炒 ( )。
1 遵照 「準備使用」 裡的步驟。
2 按開 / 關按鈕 ( ) 開啟產品, 開 / 關指示燈便會亮起。
3 按所需的烹飪模式按鈕, 相應的指示燈便會亮起, 而電磁爐
開始以所選模式運作。
4 烹飪完畢後, 按開 / 關按鈕 ( ) 關閉本產品。
5 等風扇停止運轉後, 拔除電磁爐的插頭。
提示
•• 烹飪時,您可以按增加按鈕(
)或減少按鈕(
),更改火力等
級。
烹飪火力
烹飪模式
烹飪火力
解決方案
)沒有
產品持續發出嗶聲,然
後停止運作。
連接有誤。檢查電磁爐是否有連接主
電源,插頭和插座是否有鬆脫。
您可能在電磁爐板上放置不適合的廚
具,或者您在烹飪期間從電磁爐板移
走了廚具。確保廚具使用鋼、鐵或鋁
製成,備有不銹鋼電鍍的底部,而底
部直徑超過12公分。
您或許將廚具放在烹飪區之外。
廚具沒有加熱到所需
溫度。
廚具底部或許並不平坦。使用有平底
的廚具。如果問題仍然持續,請將產
品拿至飛利浦經銷商或飛利浦認可的
服務中心。
產品突然停止運作。
廚具溫度過高。讓廚具冷卻一會。
預設模式的烹飪溫度過
高或過低。
電磁爐在其中一種預設模式下運作
時,您可使用增加( )或減少
( )按鈕調整烹飪溫度。
按下其中一個烹飪模式
按鈕後,已選模式的燈
沒有亮起。
指示燈損壞。請將產品拿至飛利浦經
銷商或飛利浦認可的服務中心。
風扇有運作,但產品沒
有開始運作。
煎炒模式(
)
400瓦 - 2000瓦
火鍋模式(
)
400瓦 - 2000瓦
按開/關( )按鈕後,需要按烹飪模
式按鈕。如果一分鐘內沒有按烹飪模
式按鈕,電磁爐將會關閉,而風扇會
繼續運作一會以冷卻產品。
400瓦 - 2000瓦
1600瓦指示燈閃爍,而 電壓過高或過低。檢查家中的電壓是
)
產品發出嗶聲。
您可以使用定時功能按鈕 ( ), 選擇您想產品在不同烹飪模
式下的運作時間。
1 遵照 「準備使用」 裡的步驟。
2 按開 / 關按鈕 ( ) 開啟產品, 開 / 關指示燈便會亮起。
3 按所需的烹飪模式按鈕, 相應的指示燈便會亮起, 而電磁爐
開始以所選模式運作。
4 按定時功能按鈕一次或多次以選擇所需的烹飪時間。
5 時間過去之後, 電磁爐會自動關閉。
•• 設定定時功能後,您可重複按定時功能按鈕(
示燈熄滅以取消定時功能。
否適合電磁爐。
2000瓦指示燈閃爍,而 產品的內部溫度過高。產品冷卻後,
提示
概覽
a
i
l
使用定時功能
屬於您的電磁爐
2
h
定時功能指示燈
定時功能按鈕
烹飪火力
煎炒模式
開 / 關按鈕
保溫(
繁體中文
1
g
請參閱下表, 查看不同烹飪模式的烹飪火力。
All power indicators The buttons have malfunction. Take the
blink at the same
appliance to your Philips dealer or a service
time and the
center authorised by Philips.
appliance beeps.
8Troubleshooting
If your induction cooker does not function properly or if the cooking
quality is insufficient, consult the table below. If you are unable to solve
the problem, contact a Philips service centre or the Consumer Care
Centre in your country.
控制鍵概覽
),直至定時功能指
產品發出嗶聲。
將會重新開始運作。
800瓦指示燈閃爍,而
IGBT感應器處於開放電路或斷路狀
產品發出嗶聲。
態。請將產品拿至飛利浦經銷商或飛
利浦認可的服務中心。
1200瓦指示燈閃爍,而 主感應器處於開放電路或斷路狀態。
產品發出嗶聲。
請將產品拿至飛利浦經銷商或飛利浦
認可的服務中心。
400瓦及1200瓦指示燈
同時閃爍,而產品發出
嗶聲。
主感應器出現故障。請將產品拿至
飛利浦經銷商或飛利浦認可的服務
中心。
所有電源指示燈同時閃
爍,而產品發出嗶聲。
按鈕出現故障。請將產品拿至飛利浦
經銷商或飛利浦認可的服務中心。
