Philips SCB3055NB/93, SCB3065NB/93 User manual

Philips SCB3055NB/93, SCB3065NB/93 User manual
SCB3055_3065NB_Chinese
04-04-2007
14:14
SCB3055NB
SCB3065NB
User manual
EN
用戶手冊
CH
O

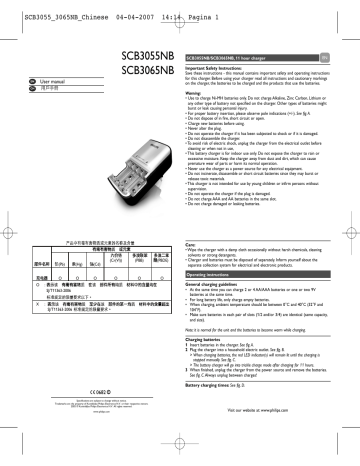

SCB3055NB/SCB3065NB, 11 hour charger
EN
Important Safety Instructions:
Save these instructions - this manual contains important safety and operating instructions
for this charger. Before using your charger read all instructions and cautionary markings
on the charger, the batteries to be charged and the products that use the batteries.
Warning:
• Use to charge Ni-MH batteries only. Do not charge Alkaline, Zinc Carbon, Lithium or
any other type of battery not specified on the charger. Other types of batteries might
burst or leak causing personal injury.
• For proper battery insertion, please observe pole indications (+/-). See fig. A.
• Do not dispose of in fire, short circuit or open.
• Charge new batteries before using.
• Never alter the plug.
• Do not operate the charger if it has been subjected to shock or if it is damaged.
• Do not disassemble the charger.
• To avoid risk of electric shock, unplug the charger from the electrical outlet before
cleaning or when not in use,
• This battery charger is for indoor use only. Do not expose the charger to rain or
excessive moisture. Keep the charger away from dust and dirt, which can cause
premature wear of parts or harm its normal operation.
• Never use the charger as a power source for any electrical equipment.
• Do not incinerate, disassemble or short circuit batteries since they may burst or
release toxic materials.
• This charger is not intended for use by young children or infirm persons without
supervision.
• Do not operate the charger if the plug is damaged.
• Do not charge AAA and AA batteries in the same slot.
• Do not charge damaged or leaking batteries.
(Pb)
(Hg)
(Cd)
O
O
O
(Cr(VI))
(PBB)
(PBDE)
O
O
O
Care:
• Wipe the charger with a damp cloth occasionally without harsh chemicals, cleaning
solvents or strong detergents.
• Charger and batteries must be disposed of separately. Inform yourself about the
separate collection system for electrical and electronic products.
Operating instructions
General charging guidelines
• At the same time you can charge 2 or 4 AA/AAA batteries or one or two 9V
batteries at the same time.
• For long battery life, only charge empty batteries.
• When charging, ambient temperature should be between 0°C and 40°C (32°F and
104°F).
• Make sure batteries in each pair of slots (1/2 and/or 3/4) are identical (same capacity,
and size).
:
SJ/T11363-2006
X
Pagina 1
:
SJ/T11363-2006
Note: it is normal for the unit and the batteries to become warm while charging.
Charging batteries
1 Insert batteries in the charger. See fig. A.
2 Plug the charger into a household electric outlet. See fig. B.
> When charging batteries, the red LED indicator(s) will remain lit until the charging is
stopped manually. See fig. C.
> The battery charger will go into trickle charge mode after charging for 11 hours.
3 When finished, unplug the charger from the power source and remove the batteries.
See fig. C. Always unplug between charges!
Battery charging times: See fig. D.
0682
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
2005 © Koninklijke Philips Electronics N.V. All rights reserved.
www.philips.com
Visit our website at: www.philips.com
SCB3055_3065NB_Chinese
04-04-2007
A)
14:14
Pagina 2
SCB3055NB/SCB3065NB, 11 小時充電器
CH
重要安全說明:
保存好這些說明−本手冊包含此充電器的重要安全操作說明。使用充電器前,請閱讀充電
器、充電電池和使用這些電池的產品上標明的所有說明。
警告:
• 只能用於為 Ni-MH 電池充電。切勿為?性電池、䷔䲘電池、?電池以及充電器上沒有標明
的其他類型的電池充電。為其他類型的電池充電可能爆炸或洩漏,導致人身傷害。
B)
• 為了能?正確插入電池,請遵守極性指示( +/-)。參見圖 A。
• 切勿投入火中,切勿短路使用,切勿打開電池。
• 使用新電池前為其充電。
• 切勿改變交流電源線和插頭。
• 充電器遭受電擊或損壞後切勿再使用。
• 切勿拆卸充電器。
• 為避免電擊風險,清潔充電器前或不用時將其從插座上拔出。
• 此電池充電器只能在室內使用。切勿使充電器置於雨水中或過於潮濕的之處。勿使泥土和
C)
灰塵進入充電器,否則會使零件過早磨損或妨害正常操作。
• 切勿將充電器用作任何電器的電源。
• 切勿燒棄、拆解或短路使用電池,否則電池可能爆炸或釋放出有毒物質。
• 此充電器不能在無人監護的情況下由兒童或體弱的人使用。
• 如果電線或插頭損壞切勿使用充電器。
• 不能在相同的槽內為 7 號和 5 號電池充電。
• 切勿為已壞或洩漏的電池充電。
保養:
D)
• 使用不帶腐蝕性化學製品、清潔溶劑或強力清潔劑的濕布偶爾擦拭充電器。
• 必須分別處理充電器和電池。請䓟熟悉關於電氣和電子產品的本地分類收集系統。
Battery charging times/
操作說明
Battery
type
Battery
Approx.
capacity (mAh) charging time
(mAh)
常規充電指導
• 䓟可以同時為兩節或四節 5 號/7 號電池充電或者為兩節 9V 電池充電。
• 為延長電池壽命,請耗盡電池的電量後充電。
• 充電時,環境溫度應該在 0°C 到 40°C 之間(32°F 到 104°F)。
• 確保每對槽(1/2 和/或 3/4)中電池相同(容量和型號相同)。
說明:充電時,裝置和電池發熱屬於正常現象。
5
5
5
5
7
Ni-MH
Ni-MH
Ni-MH
Ni-MH
Ni-MH
9V
2600 mAh
2300 mAh
1800 mAh
1600 mAh
700 mAh
170 mAh
10 ½ hrs/
9 ½ hrs/
7 ¼ hrs/
6 ½ hrs/
6 ½ hrs/
12 ¾ hrs/
Visit our website at: www.philips.com
Philips Consumer Electronics
P.O. Box 80002
5600 JB Eindhoven
The Netherlands
為電池充電
1 將電池插入充電器內。參見圖 A。
2 將充電器插入家用插座。見圖 B。
> 充電時,紅色充電 LED 指示燈亮起,直至手動停止充電。參見圖 C。
> 充電 11 個小時後,電池充電器將進入補充充電模式。
3 充電完成後,斷開充電器電源並取出電池。參見圖 C。充電期間切勿拔出插頭。
電池充電時間:參見圖 D
請訪問我們的網站:www.philips.com
