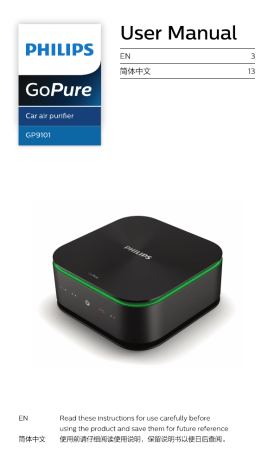

User Manual
PHILIPS =
BAEZ 13
ar air puriner
EN Read these instructions for use carefully before
using the product and save them for future reference.
BARN (EFERNSFRIRERRE, RERBBLERRER.
English
Before you start
Thank you for buying Philips
GoPure Car air purifier. Before
you install GoPure in your car,
take time to read this guide.
The GoPure Car air purifier will
help you protect your health
by improving the quality
of the air you breathe in
your car. It is known that air
pollution levels inside cars
are often much higher than
outside.
The GoPure Car air purifier
removes harmful gases
and fine particles such
as particulate matter,
cigarette tar, pet hairs, and
microorganisms. It also
reduces bad odors to make the
time in
your car more pleasant
and healthier.
Warranty and service
The Lumileds warranty applies,
provided:
- The product is handled properly
for its intended use only.
- The product is used in
accordance with its operating
instructions.
- You present the original invoice
with the product.
The Lumileds warranty does not
apply if the product is damaged
due to accident, error, or misuse.
For more information
and assistance, or if you have
a problem with the product,
you can visit the Philips website
at www.philips.com/automotive,
or contact the retail outlet
where you purchased the
product.
Or for the users in China, please
call the customer service hotline:
8008 201201
4009 201 201
Lumileds (Shanghai)
Management Co., Ltd
No. 19-20, Lane 299,
Wenshui Road, JiangAn
District, Shanghai
1 A Important information
A Danger
Do not clean or spill any
liquids such as water,
detergents, or flammable
solvents on the device.
A Warning
Keep Philips GoPure
car air purifier free of
any obstruction. Do
not cover!
A EN Important
To clean the GoPure
car air purifier:
- Disconnect GoPure
car air purifier
- Use soft cloth only.
A Warning
Philips GoPure car air
purifier is not a toy!
Do not let children
play with it.
A Warning
For your safety, do
not manually operate
the device while
driving. Always stop
your car first!
A Warning
Philips GoPure car air
purifier device contains
high-precision
technology.
Handle with care.
Do not drop or tamper!
N
Environment Co
A Important
Help to preserve the
environment. Do not
discard the device
with household
waste. Bring it to
the official waste
recycling service near
by you. Filters may
be disposed of with
household waste.
Cautions:
- this appliance can
be used by children
aged from 8 years and
above and persons
with reduced physical,
sensory or mental
capabilities or lack
of experience and
knowledge if they have
been given supervision
or instruction
concerning use of the
appliance in a safe way
and understand the
hazards involved
- children shall not play
with the appliance
- cleaning and user
maintenance shall
not be done by the
children
without supervision
- the appliance is only
to be used with the
detachable power
supply provided
- must only be supplied
at SELV
2 Discover GoPure car air purifier
SelectFilter Plu
(unpack first)
Air outlet .
( Air quality
Air inlet eo) indicator
Bluetooth
Fan indicator
Filter
replacement
reminder
indicator
Auto speed Boost speed On/Off/
indicator indicator Control
Button
2.1 Discover the content of Philips GoPure car air purifier package
power adaptor OBD adaptor
A Warning For your safety, use only the
Make sure the device is installed ¡items delivered in this package
according to the instructions to install the device. In case of
in this guide. incorrect installation, Lumileds
declines all responsability for
any harm or accident.
3 How to install Philips GoPure car air
purifier in your car
3.1 Installation-using the
headrest or armrest
1 Place the safety belt
over the device as
shown, with the furry
surface facing the device.
NN == N 2h
Zu
Cl ZN BE
Depending on your car
model, you may install
the device at various
positions in your car,
such as the armrest
and headrest. Philips
GoPure car air purifier
may be installed in
various positions:
* horizontal
- vertical (90°)
2 You may install
Philips GoPure car
air purifier on any
headrest or armrest
of your car.
Notice:
1 The safety harness
may not be suitable
to the armrest of all
car models.
2 Unpack the filter
before using.
A Warning
For your safety, only
use the equipment
delivered in your
package. Never use
other equipment,
such as tape, cord,
or other.
2 Connect the power
adapter to a 12V
outlet in your car.
3.2 Connection and
operation
1 Connect the power
cable to the device
as shown.
3.3 Connection to OBD
You can also connect
Philips car air purifier to
the OBD port in your car,
to obtain continuous
power connection and
clean your car during
parking time.
1 Connect the power cable
to the device as shown.
2 Plug the OBD
cable to the OBD
socket of your car.
3 Using “Air Matters”
App, you can set
user mode to clean
your car during
parking time.
A Important
When using Philips
GoPure car air
puriñer
- Keep your car
ventilation in low
speed
- Keep car
windows closed.
A Warning
For your safety, do
not try to switch
off or operate the
device manually or
by using smartphone
app while driving.
Always park your
car first!
4 Using GoPure car air purifier functions
When the vehicle power supply is on, the device starts automatically in
auto mode.
1 To turn on the device, hold down the power
button until it emits a sound; the purifier will
start running at a low speed.
2 Press the power button to switch between auto
and boost mode. The button will emit a “ding”
when pressed.
3 To turn off the device, hold down the power
button for 1.5 seconds until it emits a sound.
Notes:
Understanding GoPure healthy-air indicator
The healthy-air indicator shows the air quality inside your car at all times.
| Maroon >250 ug/m3 Severely polluted
Purple 151-250 ug/m3 Heavily polluted
Red 116-150 ug/m3 Moderately polluted
Orange 76-115 ug/m3 Lightly polluted
Yellow 36-75 ug/m3 Good
Green 0-35 ug/m3 Excellent
After the device is turned on,
filter replacement reminder Replace filter now
indicator will flash in red
You can also use “Air Matters” App to start/stop or change the
operation mode.
\
5 Philips GoPure car air purifier-How
filter works
Philips GoPure Car air When the filter
purifier is composed needs to be 51 How to replace
of a multi-layer filtration replaced, the the filter
system that guarantees filter replacement
the most effective air- indicator will flash
purification. All filter red for 30 seconds
layers are assembledin then remain red
one single simple-to- each time the
replace filter. device is turned on.
Replace the filter 1 Disconnect GoPure
A Important immediately using car air purifier device.
Philips GoPure car only genuine
air purifier indicates Philips GoPure
automatically when you SelectFilter Plus.
must change the filter. With the right
filter, the GoPure
car air puriñer
will continue to
perform optimally 2 Push the front
and provide the side of cover. Take
purest air quality off top cover .
inside your car.
High air purification power
Product air cleaning performance
Clean air delivery Cleaning
rate
Particles 30m?
11m?
Target pollutant”
Toluene 15m?
TVOC 12.8m?
NO: 28m3
SO, 25m;
Noise”
| (Sound power level) | 55dB(A) |
Birch pollen removal™ 90%
| p | |
* Complying with GB/T18801-2015, tested in 3m* chamber
**Airmid certified SelectFilter removes upto 90% airborne birch pollens
3 Remove the old
filter as shown.
4 Using the groove,
insert a new original
GoPure filter.
A Important
The filter slides in
only one way, do
not force it in. See
above.
5.2 How to restart GoPure car air purifier
after a filter replacement
A Important
You must reset
the Philips GoPure
device after every
filter replacement.
3 Car air purifier
operates in the
normal mode once
top cover is locked.
To reset your device
after replacing
the filter:
1 Plug the device
into the power
supply and ensure
that it is turned off.
4 Repeat the above
steps if the filter
reset fails.
A Important
For you safety,
GoPure car air
purifier will shut
down automatically
whenever you open
the top cover.
2 Touch and hold
the power button for
3s. until “ding ding”
sound. The filter
replacement indicator
is blinking in red for
15s. The filter reset
is completed when
indicator turns off.
6 Initiating Bluetooth connection
1 Connect GoPure
car air purifier to a
power source and
turn on the machine.
2 Turn on Bluetooth
on the mobile
phone. For an
Android device,
open Settings
app and turn on
Bluetooth. Look for
“GoPure” in the list
of devices. Click to
initiate pairing.
3 Scan the QR code
below to download
and install “Air
Matters” app.
4 Open app. Click on
Add Device on the
main page to access
a list of Philips
models. Refer to
the app instructions
to add the car air
purifier “GoPure 9101”.
5 Return to the
main page and see
“Philips GoPure” has
been added. When
the app is connected
with GoPure car
air purifier, the
Bluetooth indicator
$ on GoPure car air
purifier will show a
solid white light. The
app interface will
show “GoPure 9101”
and real-time PM2.5
concentration.
6 If you encounter
any problem, please
refer to Help or the
troubleshooting
information
page for a wide
range of updated
troubleshooting tips.
A Warning
- These instructions
apply only when
GoPure car air
purifier is being
initiated or the
Bluetooth on the
smartphone has
been reset to
factory settings.
- You cannot set up
two air purifiers at
the same time. The
only way to set up
multiple air purifiers
is to repeat the
procedure for
each machine.
- Please ensure a
distance of less than
5 meters without any
obstacle between
the smartphone
and GoPure car
air purifier. It is
recommended to set
up pairing in the car.
7 Philips GoPure car air puriñer
troubleshooting
Problem 1
Philips GoPure car air
purifier does not start.
Solution 1
- Verify that the 12V
power supply is on.
- Check the power
connection and make
sure the socket is
properly inserted.
- Make sure the top
cover is pushed down
to lock properly.
- Press the power
button again. If your
device still does not
restart, please contact
your retailer.
Problem 2
Some cars continue
to power the 12V
outlet when the
engine is off.
Solution 2
To avoid draining the
battery, if no vibration
detected Philips GoPure
car air purifier will
automatically power
off after half an hour of
continuous running.
- To restart your
device, press the
power button.
Problem 3
After filter
replacement,
Philips GoPure filter
replacement indicator
remains red at restart.
Solution 3
The power button
was not properly
pressed.
- Repeat the reset
steps section 5.2.
- If filter replacement
indicator turns off, the
device has been reset
properly.
Problem 4
The Philips GoPure
motor stops running
for a short while.
Solution 4
This is normal: the
device has a voltage
protection.
At times, the
voltage supply from
vehicles may vary.
In such case, the
device will turn off
automatically.
Problem 5
Philips GoPure
healthy-air indicator
does not change
for a very long time.
Solution 5
It may simply indicate
stable air quality.
It may also indicate
that the air intake
slots are obstructed
or polluted.
- Make sure the air
circulation around the
device is free.
- Restart the device. If
the problem remains,
please contact your
retailer.
Problem 6
Philips GoPure
healthy-air indicator
changes frequently.
Solution 6
This is normal and
the device is working
properly. When the
air quality is poor,
the device performs
its cleaning process.
However,
the healthy-air
indicator reflects the
air quality near the
device. At times, this
may bring a frequent
air quality display
11
change. Let the
GoPure car air purifier
perform its cleaning
process.
When the air reaches
good quality, the
healthy-air indicator
will turn green
as described.
Problem 7
Philips GoPure
healthy-air indicator
shows a green light,
but some odor
remains in the car.
Solution 7
Philips GoPure
healthy-air indicator
only reflects dust-
related pollution in
the air.
It does not indicate
chemical pollution.
However, Philips
GoPure car air puriñer
still removes dust and
chemical pollutants
while running.
- Let the device
perform its cleaning
process and the air
quality will improve
rapidly.
Problem 8
Philips GoPure car
air purifier has been
running for a long
time, yet my new car
continues to produce
unpleasant odor.
Solution 8
Some unpleasant
odor in new cars may
appear continuously.
The GoPure car air
purifier also purifies
the air continuously to
reduce the odors.
- To speed up the air
cleaning process in
a new car, you may
run GoPure car air
purifier in Boost mode
(section 4 in page 5).
Problem 9
App on smartphone
fails to connect the
GoPure car air purifier.
Solution 9
Make sure GoPure
car air purifier is
connected to power
normally, the distance
between the device
and the smart phone
must be less than
5m, the device has
been successfully
paired with Android
device in its Bluetooth
Setting. But due to a
great variety of phone
models with Android
system, we can’t
guarantee all models
can use every APP
function.
BAR
На ВЕРА!
REESE CALA EEE
[FEE EFE
(CEE Z BI, ¡516—s NB)
ERIN
REE, ENE SEE
ESTIRAR, ¡AN KA
RZ UMS Е
RSE, RIFEHIER
EFE MCRL ARR
EAE, WK, ERRES
o EDAD 56, HEEE
AEREA,
Se
RSE AE:
* EZ ARIES E PARE;
© PER;
* O7 RINA о
TRENT. Xx
BERR SE [BAY пож о
MENESES, 207 mS%É
1a], 51519) ANAYA:
www.philips.com/automotive,
MIRES MEET о
EEE FIRS HE:
8008 201 201
4009 201 201
=i (£8) SEARLE Es
HERR XDUKEE2997% 19-205
вв: 200072
13
Te
1 A EEES
A ek
УЛУД АВИА СНЫ,
POR, 407K,
TEENS ZANE о
A FE
RIT CHEERED
FHT MER
EEE
DE!
A EEK
im СЛАВЫ)
DUMME:
‚EA И
fosse) FEAT ©
° (XfERFIRT
Bi o
A FEE
“ARE
FUERA EIA!
pes) LET
7
CA
NEN
q /
A +
DT ZE, DA
TERE
UE. BEE
A FEE
CHERRIES
FRE TREE
AM, EOS À
TAN
A EEE
DMA 107).
DIT HLESEE
MIRA
CEST MPA
ERE
УЛЕБ СЕЛ
АПК Ko
2 VREM FERRE VES
гк Е res
“> ЕВ
E
EE
TR
SP SEA
TEA
EXER SD RIVER
DIENTE
2.1 ZE CABE EHS EERE
UNER OBDEEIRZ
AEE ATIENZE, BREASTS
ATGAIZE, ¡MERMA ZEN ZA ©
ZE EIA
SECAR EEN ISE.
15
3 UMIEFEFNZE CANE ERE MLS
3.1 ZEPA
1 SETE Nm
Ebay, E
НИНЕ о
=.
es ED ъ <
EN <a
=
ON
MISA, MULA
FEAR ESR
ET UMCE,
SRF. Wo
ANA ER TT
MEET LUFT
BETA:
e 7KF
- EY (905)
2 FEF ARS
> TSE E12EBR
2 «ПЕ Вт, “EE
1 ALAN FRE
‘важ ВСЕ
(БРИК.
BEA:
1 Z ERA
SP FAA.
2 HER, 1576
PCE EAN
POSE o
A felis
ATENZE, 7
TE TEIN a
ВЕРНЕЕ о
DERE ERE,
UB. FEEL
3.2 ¡ERE
16
1 KER, Rises
JE ERR o
TEE o
3.3 SESCOBD
SERTLAJS SAFE)
FEMENINA
NOBDIZ.E, LK
1555 SRI REA
MISE ZERIT
PUENTE
1 KE, ES
J&_FOBDFEIBEX ©
2 SOBDEB RE —
NOD
mOo
3 BEY "ERENT
FAME, Ko
LIXET FRAIS
TUE (SEA) FUMÉE
MNAE, SEMA
E EZ SANTANA
Az
A EEE A ¡ES
ER ABEL ATENZE, 55
250: SETZE
RS FÆPNEXUR EFE RE REF
7K3F © Wu FRE KA aki
‚EZ, EME. FIL
SEBD, 1570155!
4 (EPA FR E UMCREDIRÉ
Zr, ME RESTE.
1 RRS, EEE, VIAS
INE ER Lao
2 MEESINENE, FE IT” — 7A,
RX, BEER.
HANSE
3 HAAR DE 1.0771 SR
FAME AN
HEIN:
| EROS Si
ERE TE SEN E ENE A
>] 5816 >250 ug/m3 Eis
><] Le 151-250 ug/m3 SES
>= JE 116-150 ug/m3 Hs
== Be 76-115 ug/m3 BES
>=] 56 36-75 ug/m3 e
>] 56 0-35 ug/m3
| FE, ERS DF EER
J
TV FILE SERENA MRIC
5 CANO ERE ARE MOTE
GEARS SEEN, _
PUARASELE SRF, BNE 51 MUERTE
WEEE, HERES ETATIIEI0R,
MES. НИЕ.
ANEMIA
E— SEBA BSR FH
ES. HAZ) SelectFilter —— |
Plus Same - 16 GAETE
A SEEM E, sea SZ UM
CALSAMERSS Mamen - MET
SCENE SUSE, 18
ie. (REESE ALE
ARE.
2 METI
Tao EN No
RFA
FRA
Haras ss
EA E SHEER
RU 30m°/h SR
НЕЕ TImn°/h aux
HA 15m3/h SR
SERAN 12.8m”/h ER
CAE 28m°/h aux
SEA 25m°/h ER
ВР”
AA) SABIA
ROSE” 90%
* ЯСНОЕ ОВЛ 18801-20155, E3325 Gilli
*Airmid BUSTA LESS, AURAI S1A90%
18
4 XI RIES,
ENEE AS
pre
А ЕВЕ
EM RÉF
BA, 119517
Zo SUE
5.2 MEERES ME
À ESS 2 FEAR AE
BRET ER PEEITEN “WTI”
<a, COME MESTRE,
AFTOSA TENERIFE TELE
16550 ARIS,
ENE EEEN
1 VES ERASE
PF, КИК.
305, FE
MOSS EIES
TPR.
4 EME,
¡BESA EME,
A BEEN
HITZE, SH
FINE, EM
BER
19
6 BEXRERTER
1 E MURE
RB, FREER.
2 7 AF IE
VIE. ХОРЫ Е АВНОхЕ
ZAPF,
BREA FI ERE
FRI, A
ER} “GoPure”
RE, FREE
TAN
ЗВ ВЕ НН
19 СО ES
TT NH.
20
4 ¡22iZN7 EF,
EEE SR
REN Kalle
HER, SNA
ERR DIES
H “GoPure 9101”
NERVIOS o
5 ¡ZONE E
E, JA “Philips
СоРиге” Я
DI. SNE
FERRI, BL
SETHE 2
HERES. FEE
7x “GoPure 9101”
ASAJSLAJPM2.5 ЖЖ
ЕН.
6 UR ЭНЕ
IE, BSR
EN ERE HA
HENO, LAKE
2 AU ETA AFA
15,
A FE
« NEBRERETS
RY EET TEBE FAL
ETRE CHE
SE, HEA
BY.
* AREA EPA
TE VHMLES o VISE
ERES)
{ВЕ AR » WR N BEMOREN,
1 TIRE
RSS
LIE AIRES
INF 5K, HAE
BEES. EX
RANCE Oo
7 REMERA
[Ля 1
TREE CREE]
FD UM
ВЕ |
° ЛЕЕВ 12\
FEA o
OST, FAIR
RCA о
* MARIE KIA
Jo
« BX IRIE
URI TRE
Ves, RAEE,
¡ER 2
RECETA
KES, 137226
НН12УНУЕВ АБ о
mE 2
NRA, LI
REFEREE
5), "MOSES:
121730 EZ)
RA).
* UNER aDhaa)
YEE, TERRE
HE
¡JE 3
EDEMA, Al
¡ESTADIO EE
NEEANEE,
EZ 3
ASLE BRAS fes GE -
85515278
ER.
«EPA ETAT
KH, BERTH]
EB,
EE 4
CRIA FER,
SINS,
BE 4
IES: HM
NBER. BYE
EEx EM, €
DAM NP, CE
XS, BE
SIE IL. EE
EI
¡EJER 5
ALBA RE
Jam TRATEN а
To
MES 5
ARE DE
Eo PREETE VEN
ARENA,
° FRAMES ЕН
WE o
- BREUER, WE
[RRR SAFE o
URETA
НВ 320, BER
5 6
ALBO ER TT
TENER
ES 6
ТЕНИ, НОВО
FER, EE
AMER, FUERTE
Frise ESE
DIRE. RELL, an
RETO ED
NY, ERE
TENA НИ
SEN Vas,
XPRESS [ECR ES
SIE EI o
POSE MUSEE
E, BLE
WIRE, FILER
HERTZ,
21
Нд 7
AENA ES
ET, {BE
PARES.
MES 7
Пе АЛ ЕЛЕ,
EINER ER
PIMIENTA. EA
REC
RE, ALA
MRS
NARRO AS
Fo
LORETTA EF
WIRE, RIFLES
SEE.
22
JE 8
CREAR ES
¡UBEDA ВНК
—ЕНЫИ), (828498
ZEAE SK
RE 8
PAIE EE
EFSHRE.
15D CRM
256, RELE, #
ZB BES NWT FER
HISD. TENE
MUERO
RDA.
phone SE
iS, ELSE
MRS SAME
EEE (8157
#84),
118 9
BEEFY ARENT
REEF.
EZ 9
FR MOREIRA CE
HIER, e
SEIFE
THK, REESE
ACE Pcia
ВЛ.
AZERAFNES
ZZ, HARUES—
A ELBE
EFIIEE,
PHILIPS
Lumileds is the warrantor of this product.
Philips and the Philips Shield Emblem are registered
trademarks of Koninklijke Philips NV. and are used
under license.
2018 O Lumileds Holding BV. All rights reserved.
(Lumileds) Skate A EUR ©
KHE(Philips) LAK KR BEEE AER HBEERAT]
(Koninklijke Philips NV.)BY FIER,
EX ABRA SFE,
2018 O =tXNEJ(Lumileds Holding BV )IR*XATÉS -
REPTAMF. 3211 008 23262
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
