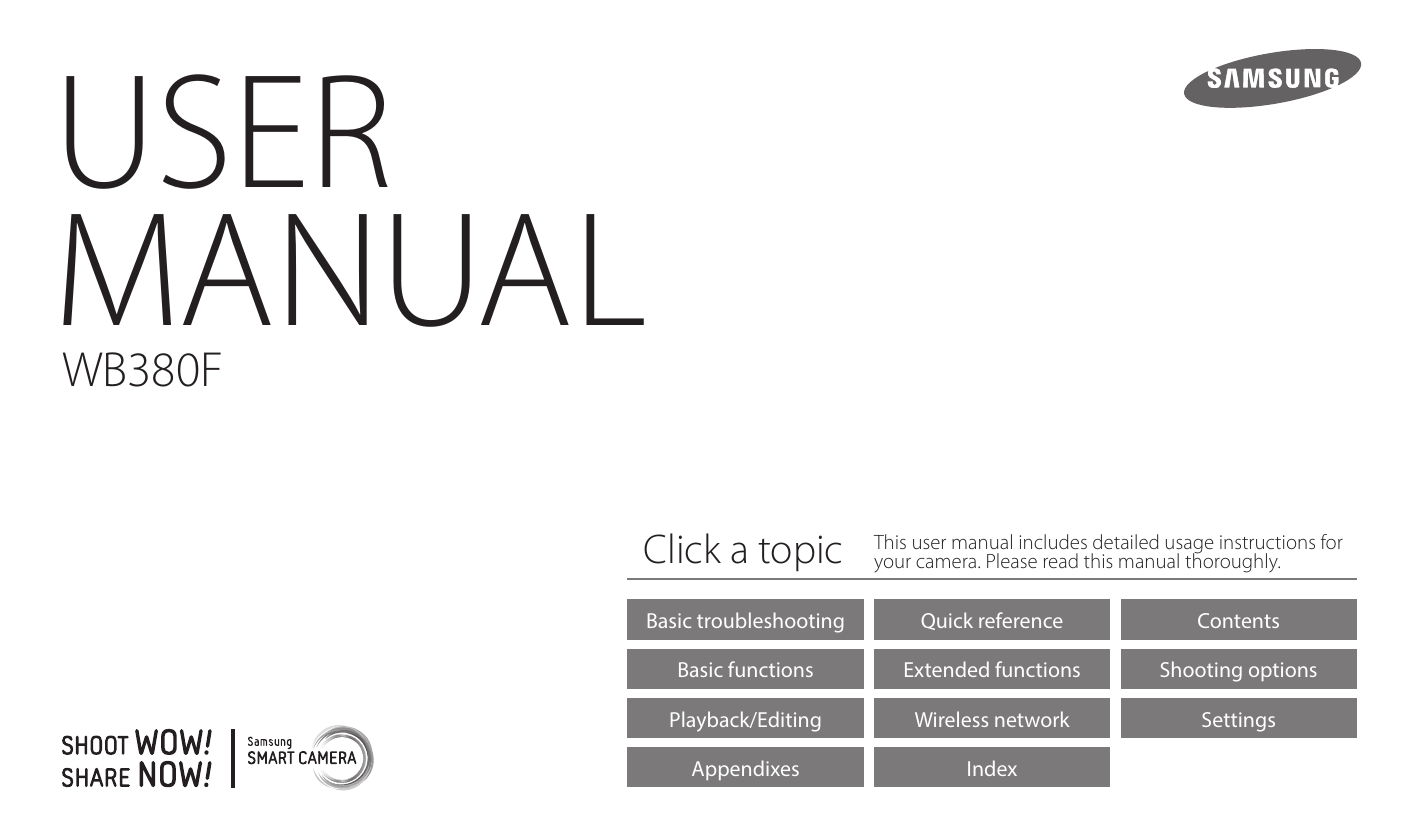

USER
MANUAL
WB380F
Click a topic
This user manual includes detailed usage instructions for
your camera. Please read this manual thoroughly.
Basic troubleshooting
Quick reference
Contents
Basic functions
Extended functions
Shooting options
Playback/Editing
Wireless network
Settings
Appendixes
Index
Health and safety information
Always comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your camera.
Prevent damage to subjects’ eyesight.
Do not use the flash in close proximity (closer than 1 m/3 ft) to people or animals.
If you use the flash too close to your subject’s eyes, this can cause temporary or
permanent eyesight damage.
Warning—situations that could cause injury to yourself or others
Do not disassemble or attempt to repair your camera.
You can damage the camera and expose yourself to the risk of an electric shock.
Keep your camera away from small children and pets.
Keep your camera and all accessories out of the reach of small children and animals.
Small parts may cause choking or serious injury if swallowed. Moving parts and
accessories may present physical dangers as well.
Do not use your camera near flammable or explosive gases and liquids.
This may cause a fire or explosion.
Do not insert flammable materials into the camera or store these materials
near the camera.
This may cause a fire or electric shock.
Do not expose the camera to direct sunlight or high temperatures for an
extended period of time.
Prolonged exposure to sunlight or extreme temperatures can cause permanent
damage to your camera’s internal components.
Do not handle your camera with wet hands.
This may result in an electric shock.
1
Health and safety information
Avoid covering the camera or charger with blankets or clothes.
The camera may overheat, which may distort the camera or cause a fire.
Avoid interference with pacemakers.
Maintain a safe distance between this camera and all pacemakers to avoid potential
interference, as recommended by the manufacturer and research groups. If you
have any reason to suspect that your camera is interfering with a pacemaker
or other medical device, turn off the camera immediately and contact the
manufacturer of the pacemaker or medical device for guidance.
Do not handle the power supply cord or the charger during a thunderstorm.
This may result in electric shock.
If liquid or foreign objects enter your camera, immediately disconnect all
power sources, such as the battery or charger, and then contact a Samsung
service center.
Comply with any regulations that restrict the use of a camera in a certain area.
• Avoid interference with other electronic devices.
• Turn off the camera when in an aircraft. Your camera can cause interference with
aircraft equipment. Follow all airline regulations and turn off your camera when
directed by airline personnel.
• Turn off the camera near medical equipment. Your camera can interfere with
medical equipment in hospitals or health care facilities. Follow all regulations,
posted warnings, and directions from medical personnel.
2
Health and safety information
Caution—situations that could cause damage to your camera or other
equipment
Use the battery only for its intended purpose.
Misusing the battery may cause a fire or electric shock.
Remove the batteries from your camera when storing it for an extended period
of time.
Installed batteries may leak or corrode over time and cause serious damage to your
camera.
Do not touch the flash while it fires.
The flash is very hot when fired and may burn your skin.
When you use the AC charger, turn off the camera before you disconnect the
power to the AC charger.
Failing to do so may result in fire or electric shock.
Use only authentic, manufacturer-recommended, Lithium-ion replacement
batteries. Do not damage or heat the battery.
Inauthentic, damaged, or heated batteries may cause a fire or personal injury.
Disconnect the charger from the wall socket when not in use.
Failing to do so may result in fire or electric shock.
Use only Samsung-approved batteries, chargers, cables, and accessories.
• Using unauthorized batteries, chargers, cables, or accessories can cause batteries
to explode, damage your camera, or cause injury.
• Samsung is not responsible for damage or injuries caused by unapproved
batteries, chargers, cables, or accessories.
Do not use a damaged power supply cord, plug, or loose outlet when you
charge batteries.
This may cause a fire or electric shock.
Do not allow the AC charger to come in contact with the +/- terminals on the
battery.
This may cause a fire or electric shock.
3
Health and safety information
Do not drop or subject the camera to strong impacts.
Doing so may damage the screen or external or internal components.
You must plug the small end of the USB cable into your camera.
If the cable is reversed, it may damage your files. The manufacturer is not
responsible for any loss of data.
Exercise caution when you connect cables or adapters and install batteries and
memory cards.
If you force the connectors, improperly connect cables, or improperly install
batteries and memory cards, you can damage ports, connectors, and accessories.
Avoid interference with other electronic devices.
Your camera emits radio frequency (RF) signals that may interfere with unshielded
or improperly shielded electronic equipment, such as pacemakers, hearing aids,
medical devices, and other electronic devices in homes or vehicles. Consult the
manufacturers of your electronic devices to solve any interference problems you
experience. To prevent unwanted interference, use only Samsung-approved devices
or accessories.
Keep cards with magnetic strips away from the camera case.
Information stored on the card may be damaged or erased.
Never use a damaged charger, battery, or memory card.
This may result in electric shock or camera malfunction or cause a fire.
Use your camera in the normal position.
Avoid contact with your camera’s internal antenna.
Do not place the camera in or near magnetic fields.
Doing so may cause the camera to malfunction.
Data transference and your responsibilities
• Data transferred via WLAN can be hacked, so avoid transferring sensitive data in
Do not use the camera if the screen is damaged.
If the glass or acrylic parts are broken, visit a Samsung Electronics Service Center to
have the camera repaired.
public areas or on open networks.
• The camera manufacturer is not liable for any data transfers that infringe on
copyrights, trademarks, intellectual property laws, or public decency ordinances.
Check that the camera is operating properly before use.
The manufacturer takes no responsibility for any loss of files or damage that may
result from camera malfunction or improper use.
4
Outline of the User Manual
Copyright information
Basic functions
• Microsoft Windows and the Windows logo are registered trademarks of the
Learn about what is in the product box, the camera’s layout, what the
icons mean, and basic shooting functions.
Microsoft Corporation.
• Mac and Apple App Store are registered trademarks of the Apple Corporation.
• Google Play Store is a registered trademark of Google, Inc.
• microSD™, microSDHC™, and microSDXC™ are registered trademarks of the SD
Extended functions
14
38
Learn how to capture a photo and record a video by selecting a
mode.
Association.
• Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of
Shooting options
the Wi-Fi Alliance.
• Trademarks and trade names used in this manual are the property of their
respective owners.
62
Learn how to set the options in Shooting mode.
Playback/Editing
86
Learn how to play back photos or videos, and edit photos. Also, learn
how to connect your camera to your computer or TV.
• Camera specifications or contents of this manual may be changed without
Wireless network
prior notice due to an upgrade of the camera’s functions.
• We recommend using your camera within the country where you purchased it.
• Use this camera responsibly and adhere to all laws and regulations concerning
its use.
• You are not allowed to reuse or distribute any part of this manual without prior
permission.
110
Learn how to connect to wireless local area networks (WLANs) and
use functions.
Settings
133
Refer to options to configure your camera’s settings.
Appendixes
Get information about error messages, specifications, and
maintenance.
5
140
Indicators used in this manual
Mode
Smart Auto
Icons used in this manual
Indicator
T
Magic Plus
p
G
s
i
g
Settings
n
Wireless Network
w
Program
Aperture Priority, Shutter Priority, Manual
Smart Mode
Selfie Alarm
Icon
Function
Additional information
Safety warnings and precautions
[]
()
→
*
Shooting mode icons
These icons appear in the text when a function is available in a mode. See the
example below.
Note: The s Smart Mode or g Magic Plus mode may not support functions for
all scenes or modes.
For example:
Available in Program,
Aperture Priority, and
Shutter Priority modes
6
Camera buttons. For example, [Shutter] represents the shutter button.
Page number of related information
The order of options or menus you must select to perform a step; for
example: Select Face Detection → Normal (represents Select Face
Detection, and then select Normal).
Annotation
Expressions used in this manual
Exposure (Brightness)
The amount of light that enters your camera determines the exposure. You can alter
the exposure by changing the shutter speed, aperture value, or ISO sensitivity.
By altering the exposure, your photos will be darker or lighter.
Pressing the shutter
• Half-press [Shutter]: Press the shutter halfway down
• Press [Shutter]: Press the shutter all the way down
Half-press [Shutter]
Press [Shutter]
S Normal exposure
Subject, background, and composition
• Subject: The main object in a scene, such as a person, animal, or still life
• Background: The objects around the subject
• Composition: The combination of a subject and background
Background
Composition
Subject
7
S Overexposure (too bright)
Basic troubleshooting
Learn to solve common problems by setting shooting options.
The subject’s eyes
appear red.
Red eye occurs when the subject’s eyes reflect light from the camera flash. Set the flash option to
Photos have dust spots.
If dust particles are present in the air, you may capture them in photos when you use the flash.
• Turn off the flash or avoid capturing photos in a dusty place.
• Set ISO sensitivity options. (p. 68)
Photos are blurred.
Blurring can occur if you capture photos in low light conditions or hold the camera incorrectly.
Use the OIS function or half-press [Shutter] to ensure the subject is in focus. (p. 36)
Photos are blurred when
shooting at night.
As the camera tries to let in more light, the shutter speed slows. This can make it difficult to hold the camera steady long
enough to capture a clear photo and may result in camera shake.
• Select Low Light Shot in s Smart Mode. (p. 46)
• Turn on the flash. (p. 66)
• Set ISO sensitivity options. (p. 68)
• Use a tripod to prevent your camera from shaking.
When the light source is behind the subject or when there is a high contrast between light and dark areas, the subject may
appear too dark.
• Avoid shooting toward the sun.
• Set the flash option to Fill in. (p. 66)
• Adjust the exposure. (p. 76)
• Set the Auto Contrast Balance (ACB) option. (p. 77)
• Set the metering option to
Spot if a subject is in the center of the frame. (p. 77)
Subjects come out
too dark because of
backlighting.
8
Red-eye. (p. 65)
Quick reference
Capturing photos of people
•
•
•
•
•
•
s Smart mode > Beauty Face f 46
s Smart mode > Best Face f 47
i Selfie Alarm mode f 50
Red-eye f 65
Face Detection/Self-Portrait f 74
Smile Shot f 75
Capturing photos at night or in the dark
Adjusting the exposure (brightness)
•
•
•
•
s Smart mode > Rich Tones f 46
ISO sensitivity (to adjust the sensitivity to light) f 68
EV (to adjust exposure) f 76
ACB (to compensate for subjects against bright
backgrounds) f 77
• Metering f 77
• AE Bracket (to capture 3 photos of the same scene with
different exposures) f 82
Capturing photos of scenery
• s Smart mode > Sunset, Silhouette, Fireworks,
Light Trace, Low Light Shot f 46
• Flash options f 66
• ISO sensitivity (to adjust the sensitivity to light) f 68
• s Smart mode > Landscape, Waterfall f 46
• s Smart mode > Panorama f 48
Applying effects to photos
Capturing action photos
• Shutter Priority mode f 44
• sSmart mode > Action Freeze, Continuous Shot f 46
• Continuous f 81
Capturing photos of text, insects, or
flowers
• s Smart mode > Macro f 46
• Macro f 69
•
•
•
•
•
•
g Magic Plus mode > My Magic Frame f 51
g Magic Plus mode > Motion Photo f 53
g Magic Plus mode > Photo Filter f 54
g Magic Plus mode > Effect Artist f 56
g Magic Plus mode > Color Brushf 58
Image Adjust (to adjust Sharpness, Contrast, or
Saturation) f 83
9
Applying effects to videos
• g Magic Plus mode > Movie Filter f 55
Reducing camera shake
• Optical Image Stabilization (OIS) f 35
Transferring and sharing files
•
•
•
•
Sending photos or videos to a smart phone f 117
Sending photos or videos via email f 127
Using photo or video sharing services f 128
Uploading photos to an online storage f 130
•
•
•
•
•
•
•
•
•
•
•
Viewing files as thumbnails f 89
Viewing files by category f 89
Deleting all files on the memory f 91
Viewing files as a slide show f 93
Viewing files on a TV f 100
Connecting your camera to a computer f 101
Adjusting sound and volume f 135
Adjusting the brightness of the display f 136
Changing the display language f 137
Setting the date and time f 137
Before contacting a service center f 151
Contents
Basic functions................................................................................................................. 14
Extended functions ....................................................................................................... 38
Unpacking ................................................................................................................... 15
Using the Smart Auto mode ................................................................................. 39
Camera layout ............................................................................................................ 16
Using the Program mode ...................................................................................... 41
Using the DIRECT LINK button ............................................................................. 18
Using the Aperture Priority, Shutter Priority, or Manual mode ............... 42
Inserting the battery and memory card .......................................................... 19
Using the Aperture Priority mode ....................................................................... 43
Using the Shutter Priority mode .......................................................................... 44
Using the Manual mode ........................................................................................ 45
Charging the battery and turning on your camera ..................................... 20
Charging the battery ............................................................................................. 20
Turning on your camera ........................................................................................ 20
Using the Smart mode ............................................................................................ 46
Using the Best Face mode ..................................................................................... 47
Using the Panorama mode ................................................................................... 48
Performing the initial setup ................................................................................. 21
Learning icons ........................................................................................................... 23
Using the Selfie Alarm mode ............................................................................... 50
Selecting modes ....................................................................................................... 24
Using the Magic Plus mode .................................................................................. 51
Icons on the Mode screen ..................................................................................... 24
Using the My Magic Frame mode ........................................................................
Using the Motion Photo mode ............................................................................
Using the Photo Filter mode ................................................................................
Using the Movie Filter mode ................................................................................
Using the Effect Artist mode ................................................................................
Using the Color Brush mode ................................................................................
Editing a photo ......................................................................................................
Selecting options or menus .................................................................................. 26
Selecting with buttons .......................................................................................... 26
Selecting by touch ................................................................................................. 27
Using Smart Panel .................................................................................................. 29
Setting the display and sound ............................................................................. 30
Setting the display type ........................................................................................ 30
Setting the sound ................................................................................................... 31
51
53
54
55
56
58
59
Recording a video .................................................................................................... 60
Capturing photos ..................................................................................................... 32
Recording a video with the Smart Scene Detection function ........................ 61
Zooming .................................................................................................................. 33
Reducing camera shake (OIS) ............................................................................... 35
Tips for getting a clearer photo ........................................................................... 36
10
Contents
Using Face Detection .............................................................................................. 74
Shooting options............................................................................................................ 62
Detecting faces .......................................................................................................
Capturing a self portrait shot ...............................................................................
Capturing a smile shot ...........................................................................................
Tips for detecting faces .........................................................................................
Selecting a resolution and quality ..................................................................... 63
Selecting a resolution ............................................................................................ 63
Selecting a photo quality ...................................................................................... 64
Shooting in the dark ................................................................................................ 65
Preventing red-eye .................................................................................................
Using the flash ........................................................................................................
Setting a flash option .............................................................................................
Adjusting the ISO sensitivity .................................................................................
Adjusting brightness and color ........................................................................... 76
65
65
66
68
Adjusting the exposure manually (EV) ...............................................................
Compensating for backlighting (ACB) ................................................................
Changing the metering option ............................................................................
Selecting a White Balance setting .......................................................................
Changing the camera’s focus ............................................................................... 69
Using macro ............................................................................................................
Using auto focus .....................................................................................................
Adjusting the focus area .......................................................................................
Adjusting the focus by touch ...............................................................................
74
74
75
75
76
77
77
78
Using burst modes ................................................................................................... 81
69
69
71
71
Capturing continuous photos .............................................................................. 81
Using the timer ....................................................................................................... 82
Capturing bracketed photos ................................................................................ 82
Adjusting images ..................................................................................................... 83
Setting the sound of the zoom ............................................................................ 84
Capturing still images while recording a video ............................................. 85
11
Contents
Playback/Editing............................................................................................................. 86
Wireless network .......................................................................................................... 110
Viewing photos or videos in Playback mode ................................................. 87
Connecting to a WLAN and configuring network settings ..................... 111
Starting Playback mode ........................................................................................ 87
Viewing photos ....................................................................................................... 92
Playing a video ........................................................................................................ 94
Connecting to a WLAN ........................................................................................
Using the login browser ......................................................................................
Network connection tips ....................................................................................
Entering text ..........................................................................................................
Editing a photo .......................................................................................................... 95
Resizing photos ......................................................................................................
Rotating a photo ....................................................................................................
Cropping a photo ...................................................................................................
Applying Smart Filter effects ................................................................................
Adjusting dark subjects, brightness, contrast, or saturation ...........................
Adjusting portrait photos ....................................................................................
111
112
113
114
Using the NFC Feature (Tag & Go) .................................................................... 115
95
95
96
96
97
98
Using NFC features in Shooting mode ............................................................. 115
Using NFC features in Playback mode (Photo Beam) ..................................... 115
Using NFC features in Wi-Fi mode ..................................................................... 115
Saving files to a smart phone automatically ................................................ 116
Sending photos or videos to a smart phone ................................................ 117
Editing a video ........................................................................................................... 99
Using a smart phone as a remote shutter release ...................................... 119
Trimming a video ................................................................................................... 99
Capturing an image from video ........................................................................... 99
Using the Baby Monitor ....................................................................................... 121
Adjusting the noise level for alarm activation ................................................. 122
Viewing files on a TV ............................................................................................. 100
Using Auto Backup to send photos or videos .............................................. 123
Transferring files to a computer ........................................................................ 101
Installing the program for Auto Backup on your PC ....................................... 123
Sending photos or videos to a PC ..................................................................... 123
Transferring files to your Windows OS computer ........................................... 101
Transferring files to your Mac OS computer .................................................... 102
Sending photos or videos via email ................................................................ 125
Using programs on a computer ........................................................................ 104
Changing email settings ..................................................................................... 125
Sending photos or videos via email .................................................................. 127
Installing i-Launcher ............................................................................................ 104
Using i-Launcher .................................................................................................. 105
12
Contents
Using photo or video sharing services ........................................................... 128
Appendixes ..................................................................................................................... 140
Accessing a sharing service ................................................................................ 128
Uploading photos or videos ............................................................................... 128
Error messages ........................................................................................................ 141
Camera maintenance ............................................................................................ 142
Using Samsung Link to send files ..................................................................... 130
Cleaning your camera ..........................................................................................
Using or storing the camera ...............................................................................
About memory cards ...........................................................................................
About the battery .................................................................................................
Uploading photos to an online storage ........................................................... 130
Viewing photos or videos on devices that support Samsung Link .............. 131
Settings ............................................................................................................................. 133
Before contacting a service center ................................................................... 151
Settings menu ......................................................................................................... 134
Accessing the settings menu .............................................................................
Sound .....................................................................................................................
Display ....................................................................................................................
Connectivity ..........................................................................................................
General ...................................................................................................................
142
143
144
147
Camera specifications ........................................................................................... 154
134
135
135
136
137
Glossary ..................................................................................................................... 158
Index ........................................................................................................................... 163
13
Basic functions
Learn about what is in the product box, the camera’s layout, what the icons mean, and basic shooting functions.
Unpacking ……………………………………… 15
Camera layout …………………………………… 16
Using the DIRECT LINK button ………………… 18
Selecting options or menus …………………… 26
Selecting with buttons ………………………… 26
Selecting by touch ……………………………… 27
Using Smart Panel ……………………………… 29
Inserting the battery and memory card ……… 19
Charging the battery and turning on
your camera ……………………………………… 20
Setting the display and sound ………………… 30
Charging the battery …………………………… 20
Turning on your camera ……………………… 20
Capturing photos ……………………………… 32
Performing the initial setup …………………… 21
Learning icons …………………………………… 23
Selecting modes ………………………………… 24
Icons on the Mode screen ……………………… 24
Setting the display type ………………………… 30
Setting the sound ……………………………… 31
Zooming ……………………………………… 33
Reducing camera shake (OIS) ………………… 35
Tips for getting a clearer photo ………………… 36
Unpacking
The following items are included in your product box.
Optional accessories
Camera
AC adapter/USB cable
Camera case
Rechargeable battery
Strap
A/V cable
G
Battery charger
Memory card/Memory card adapter
• The illustrations may differ slightly from the items shipped with your product.
• The items included in the box may differ depending on the model.
• You can purchase optional accessories at a retailer or a Samsung service center.
Quick Start Guide
Samsung is not responsible for any problems caused by using unauthorized
accessories.
Basic functions 15
Camera layout
Before you start, familiarize yourself with your camera’s parts and their functions.
Shutter button
Microphone
Flash*
Mode dial
(p. 24)
* While not in use, keep the flash unit closed to prevent damage.
Forcing the flash unit open may cause damage to your camera.
Power button
Internal antenna*
AF-assist light/Timer lamp
* Avoid contact with the internal
antenna while using a wireless
network.
Lens
USB and A/V port
Accept USB cable and A/V cable.
Speaker
Attaching the strap
Tripod mount
x
Battery chamber cover
Insert a memory card and battery.
y
Basic functions 16
Camera layout
DIRECT LINK button
Start a preset Wi-Fi function.
Zoom button
• In Shooting mode: Zoom in or out.
• In Playback mode: Zoom in on part of a photo or view
files as thumbnails, or adjust the volume.
NFC tag
Launch an NFC feature by reading a tag
from an NFC-enabled device. (p. 115)
NFC
Flash pop-up button
Status lamp
• Blinking: When the camera is saving a photo or video,
being read by a computer, when the image is out of focus,
there is a problem charging the battery, or when the
camera is connecting to WLAN or sending a photo.
• Steady: When the camera is connected to a computer,
charging the battery, or when the image is in focus.
Display
Buttons
(p. 18)
Basic functions 17
Camera layout
Buttons
Button
Using the DIRECT LINK button
Description
You can turn on the Wi-Fi feature conveniently with [DIRECT LINK].
Press [DIRECT LINK] to activate the Wi-Fi function that you have designated.
Press [DIRECT LINK] again to return to the previous mode.
Start recording a video.
Access options or menus.
Go back.
D
c
F
t
Basic functions
Change the display option.
Other functions
Move up
Change the macro option.
Change the flash option.
Change the timer and burst options.
Move down
Move left
Move right
Confirm the highlighted option or menu.
Enter Playback mode.
• Open Smart Panel in Shooting mode.
• Delete files in Playback mode.
Setting a DIRECT LINK button option
You can select a Wi-Fi function to launch when you press [DIRECT LINK].
1
2
3
Rotate the mode dial to n.
Select General → DIRECT LINK (Wi-Fi Button).
Select a Wi-Fi feature. (p. 138)
Basic functions 18
Inserting the battery and memory card
Learn how to insert the battery and an optional memory card into the camera.
Removing the battery and memory card
Slide the lock down to release
the battery.
Battery lock
Rechargeable battery
Insert a memory card with the goldcolored contacts facing up.
Insert the battery with the Samsung
logo facing up.
Push the card gently until it disengages
from the camera, and then pull it out of
the slot.
Memory card
You can use the internal memory for temporary storage if a memory card is not
inserted.
Basic functions 19
Charging the battery and turning on your camera
Charging the battery
Turning on your camera
Before using the camera for the first time, you must fully charge the battery. Plug
the small end of the USB cable into your camera, and then plug the other end of the
USB cable into the AC adapter.
Press [X] to turn your camera on or off.
• The initial setup screen appears when you turn on
the camera for the first time. (p. 21)
Turning on your camera in Playback mode
Status lamp
• Red light on: Charging
• Red light off: Fully charged
• Red light blinking: Error
Press [P]. The camera turns on and immediately
accesses Playback mode.
Use only the AC adapter and USB cable supplied with your camera. If you use
another AC adapter (such as SAC-48), the camera battery may not charge or work
properly.
Basic functions 20
Performing the initial setup
When you turn on your camera for the first time, the initial setup screen appears. Follow the steps below to configure the camera’s basic settings. The language is preset for the
country or region where the camera is sold. You can change the language as desired. You can also select an item by touching it on the screen.
1
2
5
Press [c] to select Time Zone, and then press [t] or [o].
Press [c] to select Date/Time Set, and then press [t] or [o].
Press [D/c] to select Home, and then press [o].
Date/Time Set
• When you travel to another country, select Visit, and then select a new time
zone.
3
Month Day
Year Hour Min
DST
Press [D/c] to select a time zone, and then press [o].
Time Zone
[GMT +00:00] London
Cancel
Set
[GMT +01:00] Berlin, Paris, Rome
[GMT +02:00] Athens, Helsinki
[GMT +03:00] Moscow
Back
4
Set
• The screen may differ depending on the language you selected.
6
7
Press [F/t] to select an item.
Press [D/c] to set the date, time, and daylight-saving time, and
then press [o].
Press [b].
Basic functions 21
Performing the initial setup
8
9
10
11
12
Press [c] to select Date Type, and then press [t] or [o].
Press [D/c] to select a date type, and then press [o].
Press [c] to select Time Type, and then press [t] or [o].
Press [D/c] to select a time type, and then press [o].
Press [b] to finish the initial setup.
Basic functions 22
Learning icons
The icons the camera displays on the screen change according to the mode you select or the options you set. If you change a shooting option, the corresponding icon will blink
briefly in yellow.
1
Icon
Description
Icon
Memory card inserted
•
•
•
•
2
: Fully charged
: Partially charged
: Empty (Recharge)
: Charging (Connected with
the charger)
Description
Sound Alive on
Intelli zoom on
Optical Image Stabilization (OIS)
Metering
Burst option
Auto focus frame
Timer
Camera shake
White balance
Zoom indicator
White Balance micro adjustment
1 Shooting information
Photo resolution when the
Intelli zoom is on
Image adjustment (sharpness, contrast,
and saturation)
Icon
Description
Zoom ratio
Focus area
Shooting mode
Histogram (p. 30)
Focus option
3
Aperture value
Shutter speed
Current recording time/
Available recording time
Exposure value
Current date
Current time
Face detection
2 Shooting option
Icon
Description
3 Shooting option (touch)
ISO sensitivity
Icon
Flash
Flash intensity adjustment
Photo resolution
Continuous auto focus activated
Video resolution
Available number of photos
Frame rate (per second)
Basic functions 23
Description
AutoShare On
Touch AF option
Shooting options
Open Smart Panel
Selecting modes
Use the mode dial to select a shooting mode or function. Rotate the mode dial to a desired mode. You can also select an icon on the Mode screen in some modes.
1
Icons on the Mode screen
Icon
T
My Magic
Ma
Frame
Fram
Motion
Filter
Effect
Artist
Color
Brush
Editor
Movie
Filter
p
2
Ÿ For example: When you select My Magic Frame in Magic Plus mode.
No.
G
1
Description
Current Mode screen
• Rotate the mode dial to go to another mode screen.
2
Mode icons
• Press [D/c/F/t] to scroll to a desired mode, and then press [o]
to access the mode.
• Touch an icon to access a mode or function.
s
i
Basic functions 24
Description
Smart Auto: Capture a photo with a Scene mode selected
automatically by the camera. (p. 39)
Program: Capture a photo with settings you have adjusted manually.
(p. 41)
Aperture Priority: Set the aperture value manually. The
camera automatically selects an appropriate shutter speed.
(p. 43)
Shutter Priority: Set the shutter speed manually. The camera
automatically selects an appropriate aperture value. (p. 44)
Manual: Adjust both the aperture value and the shutter
speed manually. (p. 45)
Smart Mode: Capture a photo with options that are preset for a specific
scene. (p. 46)
Selfie Alarm: Set an area to automatically capture a photo when a face
is detected. (p. 50)
Selecting modes
Icon
g
Description
Icon
My Magic Frame: Capture a photo and select an area to
make it transparent. Overlay a newly captured photo onto the
area. (p. 51)
Motion Photo: Capture and combine a series of photos, and
then select an area to be animated to create a GIF animation.
(p. 53)
Photo Filter: Capture a photo with various filter effects.
(p. 54)
MobileLink: Send photos or videos to a smart phone. (p. 117)
w
Movie Filter: Record a video with various filter effects. (p. 55)
Effect Artist: Capture a photo with various filters or texture
effects, and then add brush or pen effects to it. (p. 56)
Color Brush: Capture a photo with filter effects, and then
make an area clearer or more colorful by drawing a line on it.
(p. 58)
Photo Editor: Edit photos with various effects. (p. 95)
n
Description
Settings: Adjust settings to match your preferences. (p. 133)
Basic functions 25
Remote Viewfinder: Use a smart phone as a remote shutter
release and see a preview of an image from your camera on
your smart phone. (p. 119)
Baby Monitor: Connect the camera to a smart phone and
monitor a location. (p. 121)
Auto Backup: Send photos or videos that you captured with
the camera to a PC wirelessly. (p. 123)
Email: Send photos or videos stored on the camera via email.
(p. 125)
SNS & Cloud: Upload photos or videos to file sharing services.
(p. 128)
Samsung Link: Upload files to the Samsung Link online
storage or view files on other Samsung Link supported
devices. (p. 130)
Selecting options or menus
Press [m] or [ /f] to select an option or a menu. You can also touch the screen to select an option or a menu.
Selecting with buttons
Press [m], and then press [D/c/F/t] or [o] to select an option or a
menu.
1
2
For example, to select a White Balance option in Program mode:
1
Rotate the mode dial to p.
2
Press [m].
In Shooting or Playback mode, press [m].
Scroll to an option or a menu.
• To move up or down, press [D] or [c].
• To move left or right, press [F] or [t].
EV
White Balance
3
ISO
Press [o] to confirm the highlighted option or menu.
Flash
Press [b] to go back to the previous menu. Half-press [Shutter] to return to
Shooting mode.
Focus
Exit
Basic functions 26
Select
Selecting options or menus
3
Press [D/c] to select White Balance, and then press [t] or
[o].
EV
Touch
on the screen, drag the option list up or down, and then touch an
option to select it.
1
2
White Balance
ISO
In Shooting or Playback mode, touch
ACB
Focus
Metering
Drive/Timer
Select
AE Bracket Settings
Press [F/t] to select an option.
Image Adjust
White Balance : Daylight
Back
5
on the screen.
Drag the option list up or down, and then touch an option.
Flash
Exit
4
Selecting by touch
Exit
Adjust
Press [o] to save your settings.
Basic functions 27
Select
Selecting options or menus
Learning touch gestures
• When you touch or drag the screen, discolorations may occur. This is not a
Do not use sharp objects, such as pens or pencils, to touch the screen. You can
damage the screen.
Dragging: Touch and hold an area on
the screen, and then drag your finger.
Touching: Touch an icon to select
a menu or option.
Flicking: Gently flick your finger
across the screen.
Basic functions 28
malfunction, but a characteristic of the touch screen. Touch or drag lightly to
minimize the discolorations.
• The touch screen may not work properly if you use the camera in extremely
humid environments.
• The touch screen may not work properly if you apply screen protection film or
other accessories to the screen.
• Depending on the viewing angle, the screen may appear dim. Adjust the
brightness or viewing angle to improve the resolution.
Selecting options or menus
4
Using Smart Panel
Press [ /f] or touch
on the screen to select an option or a menu. Some
options are not available depending on the menu you select.
For example, to select a White Balance option in Program mode:
1
Rotate the mode dial to p.
2
3
Press [ /f] or touch
Press [o].
• For some items, you can select an option directly by rotating [Zoom] to the
left or right without having to press [o].
5
Press [F/t] to select a White Balance option.
White Balance : Daylight
Back
Press [D/c/F/t] to scroll to
.
6
Press [o] to save your settings.
White Balance : Auto WB
0.7
0.3
Exit
0.3
Adjust
on the screen.
0.7
Adjust
Basic functions 29
Setting the display and sound
Learn how to change the basic display information and sound settings.
About histograms
Setting the display type
You can select a display type for the Shooting or Playback mode. Each type displays
different shooting or playback information. See the table below.
A histogram is a graph that illustrates how light is distributed in your photo. If the
histogram has a high peak on the left, the photo is underexposed and will appear
dark. A peak on the right of the graph means that the photo is overexposed and
will appear washed out. The height of the peaks is related to color information. The
more of a particular color, the taller the peak.
S Under-exposed
Press [D] repeatedly to change the display type.
Mode
Display type
• Hide all information about shooting options.
Shooting
• Show all information about shooting options.
• Show all information about shooting options and a histogram.
Playback
• Show information except shooting information and histogram.
• Show all information about the current file.
Basic functions 30
S Well-exposed
S Over-exposed
Setting the display and sound
Setting the option display view
Setting the sound
You can hide or show the option display appearing in some modes.
Turn the sound your camera emits when you perform functions on or off.
Press [o] repeatedly.
1
2
3
• Hide the option display.
• Show the option display.
Rotate the mode dial to n.
Select Sound → Beep Sound.
Select an option.
Option
Option display
OK: Panel Off
▲ For example, in Photo Filter mode
Basic functions 31
Off
Description
The camera does not emit any sounds.
On
The camera emits sounds.
Capturing photos
Learn how to capture photos easily and quickly in Smart Auto mode.
1
Rotate the mode dial to T.
2
Align your subject in the frame.
3
Half-press [Shutter] to focus.
4
5
Press [Shutter] to capture a photo.
6
Press [P] to return to Shooting mode.
• A green frame means the subject is in focus.
• A red frame means the subject is out of focus.
Press [P] to view the captured photo.
• To delete the photo, press [ /f], and then select Yes.
See page 36 for tips to get clearer photos.
Basic functions 32
Capturing photos
Digital zoom
Zooming
You can capture close-up photos by adjusting the zoom.
pAhM
Digital zoom is supported by default in Shooting mode. If you zoom in on a subject
in Shooting mode and the zoom indicator is in the digital range, your camera is
using Digital zoom. By using both the 21X Optical zoom and 5X Digital zoom, you
can zoom in up to 105 times.
Optical range
Zoom indicator
Zoom ratio
Zoom out
Digital range
Zoom in
If you capture a photo with Digital zoom, the photo quality may be lower than
normal.
When you rotate the zoom button, the zoom ratio shown on the screen may
change inconsistently.
Basic functions 33
Capturing photos
Intelli zoom
TpAhM
Setting Intelli zoom
If the zoom indicator is in the Intelli range, your camera is using Intelli zoom. Photo
resolution varies according to the zoom rate if you use Intelli zoom. By using both
Optical zoom and Intelli zoom, you can zoom in up to 42 times.
Optical range
1
2
3
In Shooting mode, press [m].
Select Intelli Zoom.
Select an option.
Photo resolution
when the Intelli
zoom is on
Zoom indicator
Intelli range
• Intelli zoom helps you capture a photo with less quality deterioration than
Digital zoom. However, the photo quality may be lower than when you use
Optical zoom.
• Intelli zoom is available only when you set a 4:3 resolution ratio. If you set
another resolution ratio with Intelli zoom on, Intelli zoom will be turned off
automatically.
• Intelli zoom is always on in Smart Auto mode.
Basic functions 34
Icon
Description
Off: The Intelli zoom is deactivated.
On: The Intelli zoom is activated.
Capturing photos
Reducing camera shake (OIS)
pAhM
• OIS may not function properly when:
- you move your camera to follow a moving subject
- you use Digital zoom
- there is too much camera shake
- the shutter speed is slow (for example, when you capture night scenes)
- the battery is low
- you capture a close-up shot
• If you use the OIS function with a tripod, your images may be blurred by the
Reduce camera shake optically in Shooting mode.
vibration of the OIS sensor. Deactivate the OIS function when you use a tripod.
• If the camera is hit or dropped, the display will be blurry. If this occurs, turn off
S Before correction
1
2
3
the camera, and then turn it on again.
S After correction
In Shooting mode, press [m].
Select OIS.
Select an option.
Icon
Description
Off: OIS is deactivated.
On: OIS is activated.
Basic functions 35
Tips for getting a clearer photo
Holding your camera correctly
Reducing camera shake
Ensure nothing is blocking the lens,
flash, or microphone.
Set the Optical Image Stabilization option to reduce camera
shake optically. (p. 35)
When
Half-pressing the shutter button
is displayed
Half-press [Shutter] and adjust the focus. The camera
adjusts the focus and exposure automatically.
Camera shake
The camera sets the aperture value and shutter
speed automatically.
Focus frame
• Press [Shutter] to capture the photo if the
focus frame appears in green.
When you shoot in the dark, avoid setting the flash option to Slow Sync or Off.
The aperture remains open longer and it may be harder to hold the camera steady
long enough to capture a clear photo.
• Use a tripod or set the flash option to Fill in. (p. 66)
• Set ISO sensitivity options. (p. 68)
• Change the composition and half-press
[Shutter] again if the focus frame appears in
red.
Basic functions 36
Preventing your subject from being out of focus
It may be difficult to get your subject in focus when:
- there is little contrast between the subject and background (for example,
when your subject is wearing clothing that is similar in color to the
background)
- the light source behind the subject is too bright
- the subject is shiny or reflective
- the subject includes horizontal patterns, such as blinds
- the subject is not positioned in the center of the frame
• When you capture photos in low light
Turn on the flash.
(p. 66)
• When subjects are moving rapidly
Use the Continuous
shooting function.
(p. 46, 81)
Using the focus lock
Half-press [Shutter] to focus. When the subject is in focus, you can
reposition the frame to change the composition. When you are ready,
press [Shutter] to capture your photo.
Basic functions 37
Extended functions
Learn how to capture a photo and record a video by selecting a mode.
Using the Smart Auto mode …………………… 39
Using the Program mode ……………………… 41
Using the Aperture Priority, Shutter Priority, or
Manual mode …………………………………… 42
Using the Aperture Priority mode ……………… 43
Using the Shutter Priority mode ……………… 44
Using the Manual mode ……………………… 45
Using the Smart mode ………………………… 46
Using the Best Face mode ……………………… 47
Using the Panorama mode …………………… 48
Using the Selfie Alarm mode …………………… 50
Using the Magic Plus mode …………………… 51
Using the My Magic Frame mode ………………
Using the Motion Photo mode …………………
Using the Photo Filter mode ……………………
Using the Movie Filter mode ……………………
Using the Effect Artist mode ……………………
Using the Color Brush mode ……………………
Editing a photo …………………………………
51
53
54
55
56
58
59
Recording a video ……………………………… 60
Recording a video with the Smart Scene
Detection function …………………………… 61
Using the Smart Auto mode
In Smart Auto mode, your camera automatically chooses the appropriate camera settings based on the type of scene it detects. The Smart Auto mode is helpful if you are not
familiar with the camera settings for various scenes.
1
2
Rotate the mode dial to T.
Icon
Description
Portraits with backlighting
Align your subject in the frame.
• The camera automatically selects a scene. An appropriate scene icon appears
Portraits
at the top left of the screen. The icons are listed below.
Close-up photos of objects
Close-up photos of text
Sunsets
Indoors, dark
Partially lit
Close-up with spot lighting
Portraits with spot lighting
Blue skies
Forested areas
Icon
Description
Landscapes
Close-up photos of colorful subjects
Scenes with bright white backgrounds
Camera is stabilized or on a tripod (when shooting in the dark)*
Fireworks (when using a tripod)
Landscapes at night
Portraits at night
Actively moving subjects*
* This icon appears next to the scene icon.
Landscapes with backlighting
Extended functions 39
Using the Smart Auto mode
3
4
Half-press [Shutter] to focus.
Press [Shutter] to capture the photo.
• If the camera does not recognize an appropriate scene mode, it uses the default
settings for the Smart Auto mode.
• Even if it detects a face, the camera may not select a portrait mode depending
on the subject’s position or lighting.
• The camera may not select the correct scene depending on the shooting
conditions, such as camera shake, lighting, or distance to the subject.
mode if the subject
is moving.
• The camera consumes more battery power, because it changes settings often to
select appropriate scenes.
• Even if you use a tripod, the camera may not detect the
Extended functions 40
Using the Program mode
In Program mode, you can set most options, except the shutter speed and aperture value, which the camera sets automatically.
1
2
Rotate the mode dial to p.
3
Align your subject in the frame, and then half-press [Shutter] to
focus.
4
Press [Shutter] to capture the photo.
Set the desired options.
• For a list of options, refer to "Shooting options". (p. 62)
Extended functions 41
Using the Aperture Priority, Shutter Priority, or Manual mode
Adjust the aperture value or shutter speed to control the exposure of your photos. You can use these options in the Aperture Priority, Shutter Priority, and Manual modes.
Aperture value
The aperture is a hole that lets light into the camera. The aperture housing contains
thin, metal plates that open and close, widening or narrowing the aperture, and
controlling the amount of light that enters the camera. The size of the aperture is
closely related to the brightness of a photo: the larger the aperture, the brighter
the photo; the smaller the aperture, the darker the photo. Note that the larger the
aperture value, the smaller the aperture size. For example, an aperture set to 5.6 is
larger than an aperture set to 11.
Shutter speed
Shutter speed, which is an important factor in the brightness of a photo, refers to
the amount of time it takes to open and close the shutter. A slow shutter speed
allows more time to let light in. All things being equal, photos are brighter, but fast
moving objects tend to blur. On the other hand, a fast shutter speed allows less time
to let light in. Photos are darker, but objects in motion are captured more clearly.
S Slow shutter speed
S Small aperture value (The size of the
aperture is large.)
S Large aperture value (The size of the
aperture is small.)
Extended functions 42
S Fast shutter speed
Using the Aperture Priority, Shutter Priority, or Manual mode
Using the Aperture Priority mode
The Aperture Priority mode allows you to set the aperture value manually while the
camera automatically selects an appropriate shutter speed.
1
2
Rotate the mode dial to G.
Select
3
Press [o] to save the setting.
6
Align your subject in the frame, and then half-press [Shutter] to
focus.
7
Press [Shutter] to capture the photo.
.
• To select another mode when the mode dial is set to G, press [b] or
touch
4
5
, and then select a mode.
Set options.
• For a list of options, refer to "Shooting options". (p. 62)
When you set the ISO option to Auto, the shutter speed may not change
automatically to match the aperture value. In this case, the camera finds an
appropriate exposure value by changing the ISO option automatically when you
capture a photo. To set the ISO option manually, press [m], and then select ISO
→ an option.
Press [o] → [F/t] to adjust the aperture value.
• You can also touch the aperture value on the screen to view the dial.
• You can also drag the dial on the screen to the left or right.
• See page 42 for more information about the aperture value.
OK: Change aperture
Extended functions 43
Using the Aperture Priority, Shutter Priority, or Manual mode
Using the Shutter Priority mode
The Shutter Priority mode allows you to set the shutter speed manually while the
camera automatically selects an appropriate aperture value.
1
2
Rotate the mode dial to G.
Select
3
Press [o] to save the setting.
6
Align your subject in the frame, and then half-press [Shutter] to
focus.
7
Press [Shutter] to capture the photo.
.
• To select another mode when the mode dial is set to G, press [b] or
touch
4
5
, and then select a mode.
Set options.
• For a list of options, refer to "Shooting options". (p. 62)
When you set the ISO option to Auto, the aperture value may not change
automatically to match the shutter speed. In this case, the camera finds an
appropriate exposure value by changing the ISO option automatically when you
capture a photo. To set the ISO option manually, press [m], and then select ISO
→ an option.
Press [o] → [F/t] to adjust the shutter speed.
• You can also touch the shutter speed on the screen to view the dial.
• You can also drag the dial on the screen to the left or right.
• See page 42 for more information about the shutter speed.
OK: Change shutter speed
Extended functions 44
Using the Aperture Priority, Shutter Priority, or Manual mode
Using the Manual mode
The Manual mode allows you to adjust both the aperture value and the shutter
speed manually.
1
2
Rotate the mode dial to G.
Select
3
Press [F/t] to adjust the aperture value or shutter speed.
5
6
Press [o] to save the setting.
7
Align your subject in the frame, and then half-press [Shutter] to
focus.
8
Press [Shutter] to capture the photo.
.
• To select another mode when the mode dial is set to G, press [b] or
touch
4
, and then select a mode.
Press [o] → [D/c] to select the aperture value or shutter
speed.
• You can also drag the dials on the screen to the left or right.
Set options.
• For a list of options, refer to "Shooting options". (p. 62)
• You can also touch the aperture value or shutter speed on the screen to view
the dial.
OK: Change aperture/
shutter speed
Extended functions 45
Using the Smart mode
In Smart mode, you can capture a photo with options that are preset for a specific scene.
1
2
Rotate the mode dial to s.
Option
Macro
Select a scene.
• To select another mode when the mode dial is set to s, press [b] or touch
Action Freeze
, and then select a mode. You can also select another mode by pressing
[m] and selecting a mode.
Rich Tones
Smart Mode : Beauty Face
Panorama
Waterfall
Silhouette
Sunset
Low Light
Shot
Set
Option
Best Face
Description
Capture multiple photos and replace faces to create the best
possible image.
Beauty Face
Capture a portrait with options to hide facial imperfections.
Continuous
Shot
Capture photos continuously.
Landscape
Capture still-life scenes and landscapes.
Fireworks
Light Trace
Description
Capture small or close-up subjects.
Capture subjects moving at high speed.
Capture multiple photos of the same subject with different
exposure values, and then synthesize them to create a vibrant
photo.
Capture a wide panoramic scene in a single photo.
Capture scenes with waterfalls.
Capture subjects as dark shapes against a light background.
Capture scenes at sunset, with natural-looking reds and
yellows.
Capture multiple photos in low light conditions without a
flash. The camera combines them to create a single image
that is brighter and has less blurring.
Capture scenes with fireworks.
Capture scenes with the light trailing in low-light conditions.
3
Align your subject in the frame, and then half-press [Shutter] to
focus.
4
Press [Shutter] to capture the photo.
Extended functions 46
Using the Smart mode
Using the Best Face mode
6
Touch the best image from the 5 faces that were captured.
7
Touch
In Best Face mode, you can capture multiple photos and replace faces to create
the best possible image. Use this mode to select the best image for each individual
when capturing group photos.
1
2
3
Rotate the mode dial to s.
4
Press [Shutter] to capture the photo.
5
Touch a face to replace.
• Repeat steps 5 and 6 to replace the rest of the faces in the photo.
• The
icon will appear on the image that the camera recommends.
Select Best Face.
Align your subject in the frame, and then half-press [Shutter] to
focus.
• The camera captures 5 photos consecutively.
• The first photo is set as the background image.
• The camera automatically detects faces after shooting.
to save the photo.
• Use a tripod to prevent your camera from shaking.
• The resolution is set to
or less.
Extended functions 47
Using the Smart mode
5
Using the Panorama mode
In Panorama mode, you can capture a wide panoramic scene in a single photo.
Panorama mode captures and combines a series of photos to create a panoramic
image.
With [Shutter] pressed, slowly move the camera in the direction that
will let it capture the rest of the panorama.
• Arrows pointing in the direction of motion are displayed, and the entire
shooting image is displayed in the preview box.
• When the scenes are aligned, the camera captures the next photo
automatically.
S Shooting example
1
2
3
Rotate the mode dial to s.
Select Panorama.
• Align the camera with the far left or the far right, or very top or bottom, of the
scene you want to capture.
4
Stability: A flatter line represents
less camera shake.
Align your subject in the frame, and then half-press [Shutter] to
focus.
Press and hold [Shutter] to start shooting.
6
When you are finished, release [Shutter].
• When you have captured all the necessary shots, the camera combines them
into one panoramic photo.
Extended functions 48
Using the Smart mode
• For best results when capturing panoramic photos, avoid the following:
- moving the camera too quickly or too slowly
- moving the camera too little to capture the next image
- moving the camera at irregular speeds
- shaking the camera
- shooting in dark places
- capturing moving subjects nearby
- shooting conditions where the brightness or color of light is changing
• Photos taken are automatically saved, and shooting is stopped under the
•
•
•
•
following conditions:
- if you change the shooting direction while shooting
- if you move the camera too rapidly
- if you don’t move the camera
Selecting Panorama mode will disable the digital and optical zoom functions.
If you select Panorama mode while the lens is zoomed in, the camera
automatically zooms out to the default position.
Some shooting options are not available.
The camera may stop shooting due to the shooting composition or movement
within the scene.
Your camera may not capture the last scene in its entirety if you stop moving the
camera exactly where you want the scene to end. To capture the entire scene,
move your camera slightly beyond the point where you want the scene to end.
Extended functions 49
Using the Selfie Alarm mode
In the Selfie Alarm mode, the camera automatically releases the shutter when it detects a face in an area that you set.
1
2
Rotate the mode dial to i.
Drag the selected frame to place it to a desired location.
4
Compose your shot with the lens facing you.
• When the face is detected in the frame, the camera beeps faster and
automatically captures a photo.
• You can also press [Shutter] to capture a photo.
Face Detection may not be effective when:
• the subject is far from the camera
• it is too bright or too dark
• the subject is not facing the camera
• the subject is wearing sunglasses or a mask
• the subject’s facial expression changes drastically
• the subject is backlit or the lighting conditions are unstable
3
Drag the corner of the box to adjust the size.
Extended functions 50
Using the Magic Plus mode
In the Magic Plus mode, you can capture a photo with various effects.
4
Using the My Magic Frame mode
In My Magic Frame mode, you can make part of the photo transparent, and then
capture a new photo within the transparent area.
1
2
Touch Use.
• To recapture a background photo, touch Retake.
Rotate the mode dial to g.
Select
.
• To select another mode when the mode dial is set to g, press [b] or touch
, and then select a mode. You can also select another mode by pressing
[m] and selecting a mode.
3
Half-press [Shutter] to focus, and then press [Shutter] to capture a
background photo.
• To select a background photo from your saved photos, press [m] and
then select Open Image → an image. You cannot select a video file, GIF file,
or a photo captured in Panorama mode.
Retake
5
Use
Select a frame.
• To draw a new frame and set the thickness of the pen, touch
Extended functions 51
.
Using the Magic Plus mode
6
Drag the corner of the box to adjust the size.
9
Adjust the transparency by moving the sliders or touching the +/icons to adjust.
Transparency
7
Drag the selected frame to place it to a desired location.
10
Align your subject in the frame, and then half-press [Shutter] to
focus.
• To recapture a background photo, touch
8
11
Press [Shutter] to capture a photo.
12
Touch
.
• Press [b] to return to the previous screen.
to save the photo.
• Some shooting options are not available.
• The focus is set to the transparent area in the frame.
• The resolution is fixed at .
Press [o].
Extended functions 52
Using the Magic Plus mode
5
Using the Motion Photo mode
On the screen, draw an area to be animated.
In Motion Photo mode, you can capture and combine a series of photos, and then
select an area to be animated to create a GIF animation.
1
2
Rotate the mode dial to g.
Select
.
• To select another mode when the mode dial is set to g, press [b] or touch
, and then select a mode. You can also select another mode by pressing
[m] and selecting a mode.
3
Align your subject in the frame, and then half-press [Shutter] to
focus.
4
Press [Shutter] to capture the photo.
• You can select multiple areas.
Icon
• The camera captures multiple photos while the status lamp is blinking.
+/-
Description
Adjust the thickness of the brush.
Adjust the motion speed.
Recapture a photo.
Return to the previous screen.
6
Touch
to save the photo.
• The resolution is set to
.
• Use a tripod to prevent your camera from shaking.
• It may take longer to save the file.
Extended functions 53
Using the Magic Plus mode
3
Using the Photo Filter mode
Apply various filter effects to your photos to create unique images.
Select an effect.
Option
Miniature
Vignetting
Ink Painting
Oil Painting
Miniature
Cartoon
Vignetting
Cross Filter
Sketch
Soft Focus
Fish-eye
Classic
Fish-eye
1
2
Sketch
Retro
Zooming Shot
Rotate the mode dial to g.
Select
.
• To select another mode when the mode dial is set to g, press [b] or touch
, and then select a mode. You can also select another mode by pressing
[m] and selecting a mode.
Extended functions 54
Description
Apply a tilt-shift effect to make the subject appear in
miniature.
Apply the retro-looking colors, high contrast, and strong
vignette effect of Lomo cameras.
Apply ink sketching effect.
Apply an oil painting effect.
Apply a cartoon painting effect.
Add lines that radiate outward from bright objects to
imitate the visual effect of a cross filter.
Apply a pen sketch effect.
Hide facial imperfections or apply dreamy effects.
Blacken the edges of the frame and distort objects to
imitate the visual effect of a fisheye lens.
Apply a black and white effect.
Apply a sepia tone effect.
Blur the edges of a photo to emphasize the subjects in
the center.
Using the Magic Plus mode
4
5
Align your subject in the frame, and then half-press [Shutter] to
focus.
Option
Vignetting
Press [Shutter] to capture a photo.
• Depending on the option you select, the resolution may change to
Description
Sketch
or less
automatically.
Fish-eye
→ an image. You cannot select a video file, GIF file, or a photo captured in
Panorama mode.
Classic
• To apply filter effects to saved photos, press [m] and then select Open Image
Retro
Palette Effect 1
Palette Effect 2
Palette Effect 3
Palette Effect 4
Using the Movie Filter mode
Apply various filter effects to your videos to create unique images.
1
2
4
5
Rotate the mode dial to g.
Select
.
Press
(Video recording) to start recording.
Press
(Video recording) again to stop recording.
• To select another mode when the mode dial is set to g, press [b] or touch
, and then select a mode. You can also select another mode by pressing
[m] and selecting a mode.
3
Select an effect.
Option
Miniature
Apply the retro-looking colors, high contrast, and strong
vignette effect of Lomo cameras.
Apply a pen sketch effect.
Blacken the edges of the frame and distort objects to
imitate the visual effect of a fisheye lens.
Apply a black and white effect.
Apply a sepia tone effect.
Create a vivid look with sharp contrast and strong color.
Make scenes clean and clear.
Apply a soft brown tone.
Create a cold and monotone effect.
Description
Apply a tilt-shift effect to make the subject appear in
miniature.
Extended functions 55
• If you select Miniature, playback speed will increase.
• If you select Miniature, you cannot record the sound in the video.
• Depending on the option you select, the recording resolution may change to
or less automatically.
Using the Magic Plus mode
Using the Effect Artist mode
Option
Crumpled paper
In Effect Artist mode, you can capture a photo with various filters or texture effects,
and then add brush or pen effects to it.
1
2
Watercolor
Rotate the mode dial to g.
Select
Wave
Cartoon
.
Sand
• To select another mode when the mode dial is set to g, press [b] or touch
Half Tone Dot
, and then select a mode. You can also select another mode by pressing
[m] and selecting a mode.
3
Bumpy Wall
Sketch
Select an effect.
Option
Light
Description
Create a light diffusion effect.
Lomo
Mimic the lens effect of a Lomo camera.
Create a cracked ground effect.
Apply a brown sepia tone.
Create a textile effect.
Create the feeling of a photo taken with old film.
Crack
Sepia
Textile
Old film
Sepia-Cartoon
4
Description
Create a crumpled paper effect.
Apply a watercolor painting effect.
Create a wave effect.
Apply a cartoon effect.
Create a sand effect.
Create a halftone dot effect.
Create a bumpy wall effect.
Apply a pen sketch effect.
Create a brownish cartoon effect.
Half-press [Shutter] to focus, and then press [Shutter] to capture a
background photo.
• To select a background photo from your saved photos, press [m] and
then select Open Image → an image. You cannot select a video file, GIF file,
or a photo captured in Panorama mode.
5
Touch Use.
• To recapture a background photo, touch Retake.
Extended functions 56
Using the Magic Plus mode
6
Touch
or
, and then draw an area to apply an effect.
Icon
Description
Delete a brush effect.
Delete a pen effect.
Delete all applied effects.
Return to the editing mode.
Drag the screen to magnify other parts of the photo.
8
7
Touch
.
• The camera will save edited photos as new files.
• The resolution is fixed at .
Touch an editing icon to edit the selected area.
• Rotate [Zoom] to the right to enlarge a portion of the photo.
Icon
to save the photo.
• To recapture a background photo, touch
Description
Switch the applied option.
Select a brush effect.
Select a pen effect.
Adjust the thickness of the brush or the pen.
Extended functions 57
Using the Magic Plus mode
Using the Color Brush mode
Option
Description
In Color Brush mode, you can capture a photo with filter effects, and then make an
area clearer or more colorful by drawing a line on it.
Sepia
1
2
Rotate the mode dial to g.
Old film
Select
Sketch
Apply a brown sepia tone.
Create a softened and blurred effect.
Create the feeling of a photo taken with old film.
Apply a pen sketch effect.
.
• To select another mode when the mode dial is set to g, press [b] or touch
, and then select a mode. You can also select another mode by pressing
[m] and selecting a mode.
3
Blur
Half-press [Shutter] to focus, and then press [Shutter] to capture a
background photo.
• To select a background photo from your saved photos, press [m] and
6
Draw a line with your finger to select an area.
• Areas of the same color as the area you select will appear more colorful or
clearer.
• You can also drag the slider or touch +/- to adjust the color range.
• Areas with similar colors can be selected at the same time. If an unwanted
area is selected, touch
then select Open Image → an image. You cannot select a video file, GIF file,
or a photo captured in Panorama mode.
4
Touch Use.
5
Select an option →
• To recapture a background photo, touch Back.
Option
Classic
.
Description
Apply a black and white effect.
Scope : 50
Extended functions 58
or
to exclude the area.
Using the Magic Plus mode
7
Editing a photo
Touch an editing icon to edit the selected area.
• Rotate [Zoom] to the right to enlarge a portion of the photo.
Icon
You can edit a photo in multiple ways.
Rotate the mode dial to g, and then select
Refer to "Editing a photo". (p. 95)
Description
Switch the applied option.
Select an area automatically.
De-emphasize areas with the same color as the selected area.
De-emphasize the selected area only.
Return to the previous screen.
View the original image.
Return to the editing mode.
Drag the screen to magnify other parts of the photo.
8
Touch
to save the photo.
• To recapture a background photo, touch
.
• The camera will save edited photos as new files.
• The resolution is fixed at .
Extended functions 59
.
Recording a video
Record Full HD videos (1920X1080) of up to 20 minutes. The camera saves recorded videos as MP4 (H.264) files.
•
•
•
•
•
1
H.264 (MPEG-4 part10/AVC) is a high-compression video format established by the international standards organizations ISO-IEC and ITU-T.
If you use memory cards with slow write speeds, the camera may not save videos properly. Video recordings may be corrupted or fail to play back correctly.
Memory cards with slow writing speeds will not support high-resolution videos. To record high-resolution videos, use memory cards with faster write speeds.
If you activate the Image Stabilization function while recording a video, the camera may record the sound of it operating.
If you use the zoom function when recording a video, the camera may record the noise of the zoom operating. To decrease zoom noise, use the Sound Alive function. (p. 84)
Rotate the mode dial to p, G, s, i, g or T.
Pause recording
• This feature may not be supported in some modes.
2
Set desired options.
3
Press
The camera allows you to temporarily pause a video while recording. With this
function, you can record separate scenes as a single video.
• For a list of options, refer to "Shooting options". (p. 62)
(Video recording) to start recording.
• While recording a video, press [c] once to cancel the continuous auto focus
function and once again to activate the function.
4
Press
(Video recording) again to stop recording.
• Press [o] to pause while recording.
• Press [o] to resume.
Extended functions 60
Recording a video
Recording a video with the Smart Scene Detection function
In Smart Auto mode, your camera automatically chooses the appropriate camera
settings based on the scene it has detected.
4
5
Press
(Video recording) to start recording.
Press
(Video recording) again to stop recording.
1
2
Rotate the mode dial to T.
• If the camera does not recognize an appropriate scene mode, it uses the default
Set the desired options.
• The camera may not select the correct scene depending on the shooting
3
Align your subject in the frame.
settings for the Smart Scene Detection mode.
conditions, such as camera shake, lighting, or distance to the subject.
• For a list of options, refer to "Shooting options". (p. 62)
• The camera automatically selects a scene. An appropriate scene icon will
appear at the top left of the screen.
Icon
Description
Landscapes
Sunsets
Blue skies
Forested areas
Extended functions 61
Shooting options
Learn how to set the options in Shooting mode.
Selecting a resolution and quality …………… 63
Selecting a resolution ………………………… 63
Selecting a photo quality ……………………… 64
Shooting in the dark …………………………… 65
Preventing red-eye ……………………………
Using the flash …………………………………
Setting a flash option ……………………………
Adjusting the ISO sensitivity ……………………
65
65
66
68
Changing the camera’s focus …………………… 69
Using macro ……………………………………
Using auto focus ………………………………
Adjusting the focus area ………………………
Adjusting the focus by touch …………………
69
69
71
71
Using Face Detection …………………………… 74
Detecting faces …………………………………
Capturing a self portrait shot …………………
Capturing a smile shot …………………………
Tips for detecting faces …………………………
74
74
75
75
Adjusting brightness and color ………………… 76
Adjusting the exposure manually (EV) …………
Compensating for backlighting (ACB) …………
Changing the metering option …………………
Selecting a White Balance setting ………………
76
77
77
78
Using burst modes ……………………………… 81
Capturing continuous photos ………………… 81
Using the timer ………………………………… 82
Capturing bracketed photos …………………… 82
Adjusting images ………………………………… 83
Setting the sound of the zoom ………………… 84
Capturing still images while recording
a video …………………………………………… 85
Selecting a resolution and quality
Learn how to change the image resolution and quality settings.
Selecting a resolution
TpAhMsig
Setting the video resolution
As you increase the resolution, your photo or video will include more pixels, so it
can be printed on larger paper or displayed on a larger screen. When you use a high
resolution, the file size will also increase.
Setting the photo resolution
1
2
3
1
2
3
In Shooting mode, press [m].
Select Movie Size.
Select an option.
Icon
In Shooting mode, press [m].
Description
1920 X 1080: High-quality HD files to play back on an HDTV.
Select Photo Size.
1280 X 720: HD files to play back on an HDTV.
Select an option.
640 X 480: SD files to play back on an analog TV.
Icon
For Sharing: Post to a sharing service via a wireless network
(30 seconds maximum).
Description
4608 X 3456: Print on A1 paper.
4608 X 3072: Print on A1 paper in wide ratio (3:2).
4608 X 2592: Print on A1 paper in panorama ratio (16:9) or play
back on an HDTV.
3648 X 2736: Print on A2 paper.
2832 X 2832: Print on A3 paper in 1:1 ratio.
2592 X 1944: Print on A4 paper.
1984 X 1488: Print on A5 paper.
1920 X 1080: Print on A5 paper in panorama ratio (16:9) or play
back on an HDTV.
1024 X 768: Attach to an email.
Shooting options 63
Selecting a resolution and quality
Selecting a photo quality
pAhMig
Set a photo quality setting. Higher image quality settings will result in larger file
sizes. The camera compresses and saves the photos you capture in the JPEG format.
1
2
3
In Shooting mode, press [m].
Select Quality.
Select an option.
Icon
Description
Super Fine: Capture photos in super high quality.
Fine: Capture photos in high quality.
Normal: Capture photos in normal quality.
Shooting options 64
Shooting in the dark
Learn how to capture photos at night or in low light conditions.
Preventing red-eye
Using the flash
psi
If the flash fires when you capture a photo of a person in the dark, a red glow may
appear in the person’s eyes. Set the flash option to Red-eye. Refer to flash options in
"Setting a flash option." (p. 66)
S Before correction
Press the flash pop-up button to pop the flash
up. When the flash unit pops up, the flash
fires in accordance with the option you have
selected. If you select Off, the flash does not
fire even when it is popped up.
S After correction
• While not in use, keep the flash unit closed to prevent damage.
• Forcing open the flash unit may cause damage to your camera. Press down
gently to close it.
Shooting options 65
Shooting in the dark
Setting a flash option
3
TpAhMsig
Use the flash when you capture photos in the dark or when you need more light in
your photos.
1
2
Select an option.
Icon
Press the flash pop-up button to open the flash.
In Shooting mode, press [F].
Shooting options 66
Description
Off:
• The flash will not fire.
• The camera will display the shake warning
when you are
shooting in low light.
Auto: The camera will select a proper flash setting for the scene it
detects in Smart Auto mode.
Auto: The flash will fire automatically when the subject or
background is dark.
Red-eye:
• The flash will fire twice when the subject or background is dark to
reduce the red-eye effect.
• There is an interval between the 2 bursts of the flash. Do not move
until the flash fires a second time.
Fill in:
• The flash always fires.
• The camera automatically adjusts the intensity of the flash.
Shooting in the dark
Icon
Adjusting the flash intensity
Description
Adjust the flash intensity to avoid over-exposed or under-exposed photos.
Slow Sync:
• The flash fires and the shutter stays open longer.
• This option is recommended when you want to capture more
ambient light to reveal more details in the background.
• Use a tripod to prevent your photos from blurring.
• The camera will display the shake warning
when you are
shooting in low light.
1
2
3
4
Available options may differ depending on the shooting conditions.
In Shooting mode, press [F].
Scroll to an option.
Press [D].
Press [F/t] to adjust the intensity.
• You can also drag the slider or touch +/- to adjust the intensity.
• Flash options are not available if you set Burst options or select Self-Portrait.
• Make sure that your subjects are within the recommended distance from the
Auto : 0
flash. (p. 155)
• If light from the flash is reflected or there is a substantial amount of dust in the
air, tiny spots may appear in your photo.
• In some modes, you can also set the flash option by pressing [m], and then
selecting Flash.
Back
Shooting options 67
Set
Shooting in the dark
5
Press [o] to save your settings.
• Adjusting the flash intensity may not be effective if:
- the subject is too close to the camera
- you set a high ISO sensitivity
- the exposure value is too big or too small
• In some shooting modes, you cannot use this function.
Adjusting the ISO sensitivity
pAhM
The ISO sensitivity is the measure of a film’s sensitivity to light as defined by the
International Organization for Standardization (ISO). The higher ISO sensitivity you
select, the more sensitive to light your camera becomes. Use a higher ISO sensitivity
to capture better photos and reduce camera shake when not using the flash.
1
2
3
In Shooting mode, press [m].
Select ISO.
Select an option.
• Select
to use an appropriate ISO sensitivity based on the brightness of
the subject and lighting.
Higher ISO sensitivities may result in more image noise.
Shooting options 68
Changing the camera’s focus
Learn how to adjust the camera’s focus to suit the subject and the shooting conditions.
Using macro
TpAhMsg
Use macro to capture close-up photos of subjects, such as flowers or insects.
Refer to "Using auto focus".
Using auto focus
TpAhMsg
To capture sharp photos, select the appropriate focus option according to your
distance from the subject.
1
In Shooting mode, press [c].
Focus : Normal (AF)
Exit
• Try to hold the camera firmly to prevent blurry photos.
• Turn off the flash if the distance to the subject is less than 15.7 in. (40 cm).
Shooting options 69
Set
Changing the camera’s focus
2
Adjusting the focus manually
Select an option.
Icon
Description
Normal (AF): Focus on a subject farther than 31 in. (80 cm) away.
Farther than 138 in. (350 cm) away when you use the zoom.
Manual Focus: Focus on a subject by adjusting the focus manually.
(p. 70)
Macro: Focus on a subject that is 4–31 in. (10–80 cm) from the
camera. 59–138 in. (150–350 cm) when you use the zoom.
Auto Macro:
• Focus on a subject farther than 4 in. (10 cm) away. Farther than
59 in. (150 cm) away when you use the zoom.
• Auto Macro is set automatically in some shooting modes.
1
2
3
pAhM
In Shooting mode, press [c].
Select Manual Focus.
Press [F/t] to adjust the focus.
• You can also drag the slider or touch +/- to adjust the focus.
Manual Focus : 50
Available options may differ depending on the shooting conditions.
In some modes, you can also set the focus option by pressing [m], and then
selecting Focus.
Back
4
Set
Press [o] to save your settings.
When you adjust the focus manually and the subject is out of focus, the photo may
be blurry.
Shooting options 70
Changing the camera’s focus
Adjusting the focus area
pAhM
Adjusting the focus by touch
You can get clearer photos by selecting an appropriate focus area according to your
subject’s location in the scene.
1
2
3
In Shooting mode, press [m].
Select Focus Area.
Select an option.
Icon
TpAhMs
Focus on the subject or capture a photo by touching the screen.
1
2
3
In Shooting mode, press [m].
Select Touch AF.
Select an option.
Icon
Description
Center AF: Focus on the center of the frame (suitable when subjects
are located at or near the center).
Description
Off: Do not use the touch AF function.
Touch AF: Focus on the subject that you touch on the screen.
Tracking AF: Focus on and track the subject that you touch on the
screen. (p. 72)
One touch shot: Focus on the subject and capture a photo by
touching the image on the screen. (p. 73)
Multi AF: Focus on one or more of 9 possible areas.
Available shooting options may differ depending on the shooting mode.
Available options may differ depending on the shooting conditions.
The focus will reset when you perform no operations for 5 seconds or press
[Shutter] while the touch AF function is on.
Shooting options 71
Changing the camera’s focus
4
Using tracking auto focus
Press [Shutter] to capture the photo.
Tracking AF allows you to track and automatically focus on your subject, even when
you are moving.
• If you do not select a focus area, the focus frame will appear in the center of the
1
2
3
• Tracking a subject may fail when:
- the subject is too small
- the subject moves excessively
- the subject is backlit or you are shooting in a dark place
- colors or patterns on the subject and the background are the same
- the subject includes horizontal patterns, such as blinds
- the camera shakes excessively
• When tracking fails, the feature will be reset.
• If the camera fails to track the subject, you must reselect the subject to track.
• If the camera fails to focus, the focus frame will change to red and the focus will
In Shooting mode, press [m].
Select Touch AF → Tracking AF.
Touch the subject you want to track in the touch area.
• A focus frame appears on the subject and follows the subject as you move
the camera.
screen.
be reset.
• The white frame means that your camera is tracking the subject.
• When you half-press [Shutter], the green frame means that your subject is in
focus.
• The red frame means that your camera failed to focus.
Shooting options 72
Changing the camera’s focus
Using One Touch Shot
You can capture a photo with the touch of your finger. As you touch a subject, the
camera focuses on the subject automatically and captures a photo.
1
2
3
In Shooting mode, press [m].
Select Touch AF → One touch shot.
Touch the subject to capture a photo.
If you use this function, you cannot set Timer, Intelli zoom, and Burst options.
Shooting options 73
Using Face Detection
pAhMs
If you use Face Detection options, your camera can automatically detect a human face. When you focus on a human face, the camera adjusts the exposure automatically. Use
Smile Shot to capture a smiling face.
Detecting faces
Capturing a self portrait shot
Your camera automatically detects up to 10 human faces in one scene.
Capture photos of yourself. The camera sets the focus distance to close-up, and then
emits a beep when ready.
1
2
In Shooting mode, press [m].
Select Face Detection → Normal.
The face nearest the camera or nearest
the center of the scene appears in a
white focus frame and the rest of the
faces appear in gray focus frames.
1
2
3
4
In Shooting mode, press [m].
Select Face Detection → Self-Portrait.
Compose your shot with the lens facing you.
When you hear a quick beep, press [Shutter].
The closer you are to the subjects, the quicker your camera will detect faces.
When faces are located in the center,
the camera beeps rapidly.
If you turn Volume off in the sound settings, the camera will not emit a beep.
(p. 135)
Shooting options 74
Using Face Detection
Capturing a smile shot
Tips for detecting faces
• When your camera detects a face, it tracks the detected face automatically.
• Face Detection may not be effective when:
- the subject is far from the camera (The focus frame will appear orange
The camera automatically releases the shutter when it detects a smiling face.
1
2
3
In Shooting mode, press [m].
Select Face Detection → Smile Shot.
Compose your shot.
• The camera automatically releases the shutter when it detects a smiling face.
for Smile Shot.)
it is too bright or too dark
the subject is not facing the camera
the subject is wearing sunglasses or a mask
the subject’s facial expression changes drastically
the subject is backlit or the lighting conditions are unstable
• When you set Face Detection options, the AF area is automatically set to Multi AF.
• Depending on the Face Detection options you selected, some shooting options
may not be available.
-
When your subject smiles
broadly, your camera can detect
the smile more easily.
Shooting options 75
Adjusting brightness and color
Learn how to adjust the brightness and color for better image quality.
Adjusting the exposure manually (EV)
3
pAh
Depending on the intensity of the ambient light, your photos may be too bright or
dark. In these cases, you can adjust the exposure to get a better photo.
Press [F/t] to adjust the exposure.
• You can also drag the dial on the screen to adjust the exposure.
• The photo will be brighter as the exposure value increases.
EV : 0
S Darker (-)
1
2
S Neutral (0)
Back
S Brighter (+)
4
In Shooting mode, press [m].
Set
Press [o] to save your settings.
• Once you adjust the exposure, the setting will be stored automatically. You
Select EV.
• You can also touch the exposure value on the screen to open the adjustment
window.
Shooting options 76
may need to change the exposure value later to avoid overexposure or
underexposure.
• If you cannot decide on an appropriate exposure, select the AE Bracket (Auto
Exposure Bracket) option. The camera will capture 3 consecutive photos, each
with a different exposure: normal, underexposed, and overexposed. (p. 82)
Adjusting brightness and color
Compensating for backlighting (ACB)
pAhM
Changing the metering option
When the light source is behind your subject or there is high contrast between your
subject and the background, your subject is likely to appear dark in the photo. In
this case, set the Auto Contrast Balance (ACB) option.
The metering mode refers to the way in which a camera measures the quantity
of light. The brightness and lighting of your photos will vary depending on the
metering mode you select.
1
2
3
In Shooting mode, press [m].
Select Metering.
Select an option.
Icon
▲ Without ACB
1
2
3
▲ With ACB
In Shooting mode, press [m].
Select ACB.
Select an option.
Icon
pAhM
Description
Off: ACB (Auto Contrast Balance) is deactivated.
On: ACB (Auto Contrast Balance) is activated.
The ACB feature is always on in Smart Auto mode.
Shooting options 77
Description
Multi:
• Your camera divides the frame into several areas, and then
measures the light intensity of each area.
• Suitable for general photos.
Spot:
• Your camera measures only the light intensity at the very center of
the frame.
• If a subject is not in the center of the frame, your photo may be
improperly exposed.
• Suitable for a subject with backlighting.
Center-weighted:
• Your camera averages the meter reading of the entire frame with
emphasis placed on the center.
• Suitable for photos with subjects in the center of the frame.
Adjusting brightness and color
Selecting a White Balance setting
pAhM
The color of your photo depends on the type and quality of the light source. If you
want the color of your photo to be realistic, select a White Balance setting that
is appropriate for the lighting conditions, such as Auto WB, Daylight, Cloudy, or
Tungsten.
1
2
3
In Shooting mode, press [m].
Select White Balance.
Select an option.
Icon
Description
Auto WB: Automatically set the White Balance based on the lighting
conditions.
Daylight: For outdoor photos on a sunny day.
Cloudy: For outdoor photos on a cloudy day or in shadows.
Fluorescent_H: For shooting under a daylight fluorescent or 3-way
fluorescent light.
Auto WB
Fluorescent_L: For shooting under white fluorescent light.
Daylight
Tungsten: For shooting indoor photos under incandescent bulbs or
halogen lamps.
Color Temp.: To adjust the color temperature of the light source.
(p. 79)
Custom Set: To use White Balance settings that you define. (p. 80)
Cloudy
Tungsten
Shooting options 78
Adjusting brightness and color
Customizing preset White Balance options
Adjusting color temperature
You can customize preset White Balance options except Auto WB and Custom Set.
1
2
3
4
5
In Shooting mode, press [m].
Select White Balance.
Scroll to a desired option.
Press [D].
1
2
3
4
In Shooting mode, press [m].
Select White Balance → Color Temp..
Press [D].
Press [F/t] to adjust the color temperature to match your light
source.
• You can also drag the slider or touch +/- to adjust the color temperature.
• You can get a warmer photo with a higher value, and a cooler photo with a
Press [D/c/F/t] to adjust the value on the coordinates.
• You can also touch an area on the screen.
lower value.
White Balance : Daylight
Back
6
Set
Press [o] to save your settings.
Color Temperature : 6500 K
•
•
•
•
G: Green
A: Amber
M: Magenta
B: Blue
Back
5
Set
Press [o] to save your settings.
Shooting options 79
Adjusting brightness and color
Defining your own White Balance
You can customize the White Balance by capturing a photo of a white surface, such
as a piece of paper, under the lighting conditions in which you intend to capture a
photo. The White Balance feature will help you to match the colors in your photo
with the actual scene.
1
2
3
In Shooting mode, press [m].
Select White Balance → Custom Set.
Aim the lens at a piece of white paper, and then press [Shutter].
A piece of white paper
Shooting options 80
Using burst modes
pAhMsg
It can be difficult to capture photos of fast-moving subjects or capture natural facial expressions and gestures of your subjects in photos. Also, it can be difficult to adjust the
exposure correctly and select a proper light source. In these cases, select one of the burst modes. You can also set the timer to delay shooting.
3
Align your subject in the frame, and then half-press [Shutter] to
focus.
4
Press and hold [Shutter].
• While you are pressing [Shutter], the camera captures photos continuously.
• Available options may differ depending on the shooting conditions.
• Depending on the Face Detection options you selected, some shooting options
may not be available.
Capturing continuous photos
• It may take longer to save the photos depending on the memory card capacity
1
2
• In some modes, you can also set the shooting option by pressing [m], and
and performance.
In Shooting mode, press [t].
then selecting Drive/Timer.
Select an option.
Icon
Description
Continuous High: Capture 7.1 photos per second continuously.
(You can capture up to 6 photos in one burst.)
Continuous Normal: Capture 3 photos per second continuously.
(You can capture up to 6 photos in one burst.)
Single: Capture a single photo. (Single is not a burst option.)
Shooting options 81
Using burst modes
Using the timer
Capturing bracketed photos
1
2
You can use the automatic exposure bracketing feature to capture multiple photos
of the same subject with different exposure values.
In Shooting mode, press [t].
1
2
Select an option.
Icon
Option
2 sec: Capture a photo after a 2-second delay.
In Shooting mode, press [t].
Select AE Bracket.
• When you press [Shutter], the camera captures 3 consecutive photos, each with
10 sec: Capture a photo after a 10-second delay.
a different exposure: normal, underexposed, and overexposed.
• Press [Shutter] to cancel the timer.
• In some modes, you can also set the shooting option by pressing [m], and
then selecting Drive/Timer or Timer.
Shooting options 82
• Press [m], and then select AE Bracket Settings to set exposure values.
• It may take longer to capture a photo. Use a tripod for best results.
Adjusting images
pAhM
Adjust the sharpness, contrast, or saturation of your photos.
1
2
3
In Shooting mode, press [m].
4
Select Image Adjust.
Press [F/t] to adjust each value.
• You can also drag the sliders or touch +/- to adjust the values.
Sharpness
Select an option.
–
• Sharpness
• Contrast
• Saturation
+
Contrast
–
Image Adjust : Sharpness
+
Sharpness
Contrast
Saturation
–
Saturation
+
Back
Description
Soften the edges on your photos (suitable for editing the
photos on your computer).
Sharpen the edges to improve the clarity of your photos.
(This may also increase the noise in your photos.)
Description
Decrease the color and brightness.
Increase the color and brightness.
Description
Decrease the saturation.
Increase the saturation.
Set
5
Press [o] to save your settings.
Select 0 if you do not want to apply any effects (suitable for printing).
Shooting options 83
Setting the sound of the zoom
TpAhMsig
When you use the zoom while recording videos, the camera can record the sound of the zoom. Use the Sound Alive function to reduce the zoom noise.
1
2
3
In Shooting mode, press [m].
Select Voice.
Select an option.
Icon
Description
Sound Alive On: Turn on the Sound Alive function to reduce the
zoom noise.
Sound Alive Off: Turn off the Sound Alive function. The camera can
record the zoom noise.
• Do not block the microphone when you use the Sound Alive function.
• Recordings made with Sound Alive may differ from actual sounds.
Shooting options 84
Capturing still images while recording a video
TpAhMsig
You can capture still images while recording a video without switching to the photo shooting modes (up to 6 photos).
1
2
3
Rotate the mode dial to p, G, s, i, g or T.
• Captured images will be automatically resized, depending on the size of the
Press
• The quality of images captured while recording a video may be lower than those
recorded video.
(Video recording) to start recording.
captured normally.
Press [Shutter] to capture images.
• When you pause video recording, you cannot capture still images by pressing
[Shutter].
• Captured images will be saved automatically.
Images captured while recording
a video
4
Press
(Video recording) again to stop recording.
Shooting options 85
• This feature may not be supported in some modes.
Playback/Editing
Learn how to play back photos or videos, and edit photos. Also, learn how to connect your camera to your
computer or TV.
Viewing photos or videos in Playback mode … 87
Editing a video …………………………………… 99
Starting Playback mode ……………………… 87
Viewing photos ………………………………… 92
Playing a video ………………………………… 94
Trimming a video ……………………………… 99
Capturing an image from video ……………… 99
Editing a photo ………………………………… 95
Resizing photos …………………………………
Rotating a photo ………………………………
Cropping a photo ………………………………
Applying Smart Filter effects ……………………
Adjusting dark subjects, brightness, contrast, or
saturation ………………………………………
Adjusting portrait photos ………………………
95
95
96
96
97
98
Viewing files on a TV …………………………… 100
Transferring files to a computer ……………… 101
Transferring files to your Windows
OS computer …………………………………… 101
Transferring files to your Mac OS computer …… 102
Using programs on a computer ……………… 104
Installing i-Launcher …………………………… 104
Using i-Launcher ……………………………… 105
Viewing photos or videos in Playback mode
Learn how to play back photos or videos and how to manage files.
Photo file information
Starting Playback mode
View photos or play videos stored in your camera.
1
2
Memory in use
Press [P].
• The most recent file will be displayed.
• If the camera is off, it will turn on and display the most recent file.
Histogram
Press [F/t] to scroll through files.
File Information
• You can also drag the image left or right to move to another file.
• Press and hold [F/t] to scroll through files quickly.
2015
• If you want to view files stored in the internal memory, remove your memory
card.
Icon
• You may not be able to edit or play back files that were captured with other
cameras, due to unsupported sizes (image size, etc) or codecs. Use a computer or
another device to edit or play back these files.
• Photos or videos captured in portrait orientation do not rotate automatically and
are displayed in landscape orientation by the camera and other devices.
Description
Current file/Total files
Folder name-File name
Photo captured continuously (See "Viewing files as a folder", p. 88)
Protected file
Transfer or share the file
View files as thumbnails (p. 89)
To display file information on the screen, press [D].
Playback/Editing 87
Viewing photos or videos in Playback mode
Video file information
Viewing files as a folder
Photos captured continuously appear as a folder.
1
5
Icon
In Playback mode, press [F/t] or drag the image left or right to
move to a desired folder.
• The camera will automatically play back photos in the folder.
File Information
Description
Current file/Total files
Single View
Folder name-File name
Video file
GIF file: The file captured in Motion Photo mode
Protected file
Play videos
Transfer or share the file
View files as thumbnails (p. 89)
2
3
4
Press [o] or rotate [Zoom] to the right to open the folder.
• You can also touch
Single View on the screen to open the folder.
Press [F/t] or drag the image left or right to move to another file.
Press [o] or rotate [Zoom] to the left to return to Playback mode.
• You can also touch
To display file information on the screen, press [D].
Playback/Editing 88
to return to Playback mode.
Viewing photos or videos in Playback mode
Viewing files as thumbnails
Viewing files by category
Scan thumbnails of files.
View files by category, such as date or file type.
In Playback mode, rotate [Zoom] to the left to view thumbnails
(12 at a time). Rotate [Zoom] to the left once more to display more
thumbnails (24 at a time). Rotate [Zoom] to the right to return to
the previous view.
1
2
In Playback mode, rotate [Zoom] to the left.
Press [m], and then select Filter → a category.
• You can also touch
to select a category.
Filter
All
Date
Touch a file to display it in full screen
view.
File Type
Back
Icon
• Press [D/c/F/t] or drag the screen up or down to move to the previous or
next page of thumbnails.
• In thumbnail view, touch and hold files or press [m] to select them, and then
delete or transfer them.
Set
Description
All: View files normally.
Date: View files by the date they were saved.
File Type: View files by the file type.
Playback/Editing 89
Viewing photos or videos in Playback mode
3
4
5
Deleting files
Select a list to open it.
Select files to delete in Playback mode.
Select a file to view it.
Deleting a single file
You can select one file, and then delete it.
Rotate [Zoom] to the left to return to the previous view.
• You can also touch
to return to the previous view.
If you change the category, it may take some time for the camera to reorganize
files depending on the number of files.
1
2
In Playback mode, select a file, and then press [ /f].
When the pop-up message appears, select Yes.
• You can also delete files in Playback mode by pressing [m], and then
selecting Delete → Delete → Yes.
• You can also delete files in thumbnail view by touching and holding the file, and
Protecting a file
then selecting
Protect a file from accidental deletion.
1
2
3
In Playback mode, select a file to protect.
Press [m], and then select Protect → On.
Repeat steps 1 and 2 to protect additional files.
You cannot delete or rotate a protected file.
Playback/Editing 90
→ OK.
Viewing photos or videos in Playback mode
Deleting multiple files
You can select multiple files, and then delete them at once.
Deleting all files
You can select all files, and then delete them at once.
1
1
In Playback mode, press [m].
• When in thumbnails view, press [m], select Delete → Select, and then
In Playback mode, press [m].
• When in thumbnails view, press [m], select Delete → Delete All, and
skip to step 3, or press [ /f], select Select, and then skip to step 3.
2
3
Select Delete → Multiple Delete.
4
5
Press [ /f].
Scroll to each file you want to delete, and then press [o].
• Press [o] again to cancel your selection.
then skip to step 3, or press [ /f], select Delete All, and then skip to step 3.
2
3
Select Delete → Delete All.
When the pop-up message appears, select Yes.
• All unprotected files are deleted.
When the pop-up message appears, select Yes.
Playback/Editing 91
Viewing photos or videos in Playback mode
Viewing photos
To
Enlarge part of a photo or view photos as a slide show.
Move the enlarged area
Enlarging a photo
Trim the enlarged photo
In Playback mode, rotate [Zoom] to the right to enlarge a portion of
the photo. Rotate [Zoom] to the left to zoom out.
Description
• Press [D/c/F/t].
• Drag the screen to see another part of the photo.
Press [o], and then select Yes. (The trimmed photo
will be saved as a new file. The original photo is
retained in its original form.)
• You can also pinch your fingers together or spread them apart on the screen to
reduce or enlarge a photo.
• When you view photos that were captured by another camera, the zoom ratio
may differ.
Enlarged area
Back
Crop
Playback/Editing 92
Viewing photos or videos in Playback mode
Viewing panoramic photos
Playing a slide show
View photos captured in Panorama mode.
1
In Playback mode, scroll to a panoramic photo.
2
Press [o] or touch
Apply effects to a slide show of your photos. The slide show function does not work
for videos and GIF files.
• The entire panoramic photo appears on the screen.
.
• The camera automatically scrolls through the photo from left to right for a
horizontal panoramic photo and from top to bottom for a vertical panoramic
photo. The camera then switches to Playback mode.
• While playing back a panoramic photo, press [o] to pause or resume.
• After you have paused the playback of a panoramic photo, press
[D/c/F/t] or drag the image to move the photo horizontally or
vertically, depending on the direction you moved when capturing the photo.
3
1
2
3
In Playback mode, press [m].
Select Slide Show Options.
Select a slide show effect option.
• Skip to step 4 to start a slide show with no effects.
* Default
Option
Description
Play Mode Set whether or not to repeat the slide show. (One Play*, Repeat)
Interval
Press [b] to return to Playback mode.
• Set the interval between photos. (1 sec*, 3 sec, 5 sec, 10 sec)
• You must set the Effect option to Off to set the interval.
• Set a scene change effect between photos. (Off, Calm*, Shine,
Relax, Lively, Sweet)
You can play the panoramic photo by pressing [o] or touching
only if the
longest side of the photo is two or more times longer than the shortest side.
Effect
• Select Off to cancel effects.
• When you use the Effect option, the interval between photos
will be set to 1 second.
4
Press [b].
Playback/Editing 93
Viewing photos or videos in Playback mode
5
6
Select Start Slide Show.
Icon
View the slide show.
/
• Press [o] to pause the slide show.
• Press [o] again to resume the slide show.
/
Press [b] to stop the slide show and return to Playback mode.
/
Description
Move to the previous file/Scan backward. (Each time you touch the
scan backward icon, you change the scan speed in this order: 2X,
4X, 8X.)
Pause or resume playback.
Move to the next file/Scan forward. (Each time you touch the scan
forward icon, you change the scan speed in this order: 2X, 4X, 8X.)
Adjust the volume or mute the sound.
• You can also rotate [Zoom] to the left or right to adjust the volume level.
• When playing a movie, you can begin using features such a scanning backward
Playing a video
or scanning forward after the video has run for 2 seconds.
In Playback mode, you can view a video and an animated photo.
1
2
In Playback mode, select a video, and then press [o] or touch
View the video.
.
Viewing animated photos
View animated GIF files repeatedly that were captured in Motion Photo mode.
Current playback time/
Video length
1
2
3
In Playback mode, scroll to a GIF file.
Press [o] or touch
.
Press [b] to return to Playback mode.
Stop
Playback/Editing 94
Editing a photo
Learn how to edit photos.
•
•
•
•
The camera will save edited photos as new files.
Edited photos may be converted to a lower resolution.
You cannot edit photos while viewing files as a folder. Open the folder and select a photo to edit each photo.
Photos captured in some modes cannot be edited.
Resizing photos
Rotating a photo
Change the size of a photo and save it as a new file.
1
Rotate the mode dial to g, and then select
2
3
Rotate [Zoom] to the left or touch
.
• You can also press [m], and then select Edit Image.
Touch
to select a photo.
, and then touch an option.
1
Rotate the mode dial to g, and then select
2
3
Rotate [Zoom] to the left or touch
Touch , and then touch an option.
Rotate : Right 90˚
Resize : 2592 X 1944
4
Touch
to save.
4
.
• You can also press [m], and then select Edit Image.
Touch
to save.
The camera will overwrite the original file.
Available resize options differ depending on the original size of the photo.
Playback/Editing 95
to select a photo.
Editing a photo
Cropping a photo
1
2
3
4
5
Applying Smart Filter effects
Rotate the mode dial to g, and then select
.
• You can also press [m], and then select Edit Image.
Rotate [Zoom] to the left or touch
Touch
to select a photo.
, and then drag the frame to a desired location.
Adjust the size of the area by dragging the corners of the box.
Touch
to save.
Apply special effects to your photos.
1
Rotate the mode dial to g, and then select
2
3
4
Rotate [Zoom] to the left or touch
.
• You can also press [m], and then select Edit Image.
Touch
to select a photo.
, and then touch an option.
Touch
.
Smart Filter : Miniature
Option
Off
Miniature
Playback/Editing 96
Description
No effect
Apply a tilt-shift effect to make the subject appear in
miniature. (The top and bottom of the photo will be blurred.)
Editing a photo
Option
Adjusting dark subjects, brightness, contrast, or saturation
Description
Apply the retro-looking colors, high contrast, and strong
vignette effect of Lomo cameras.
Apply ink sketching effect.
Ink Painting
Apply an oil painting effect.
Oil Painting
Apply a cartoon effect.
Cartoon
Add lines that radiate outward from bright objects to imitate
Cross Filter
the visual effect of a cross filter.
Apply a pen sketch effect.
Sketch
Hide facial imperfections or apply dreamy effects.
Soft Focus
Distort close objects to imitate the visual effect of a fisheye
Fish-eye
lens.
Apply a black and white effect.
Classic
Apply a sepia tone effect.
Retro
Blur the edges of a photo to emphasize the subjects in the
Zooming Shot
center.
Vignetting
5
Touch
Learn how to adjust the brightness, contrast, or saturation. If the center of a photo is
dark, you can adjust it to be brighter. The camera will save an edited photo as a new
file, but may convert it to a lower resolution.
• You can adjust brightness, contrast, and saturation and apply Smart Filter effects
at the same time.
• If you have applied the ACB effect, you cannot adjust brightness, contrast, or
saturation. If you have adjusted brightness, contrast, or saturation, you cannot
apply the ACB effect.
1
Rotate the mode dial to g, and then select
2
3
Rotate [Zoom] to the left or touch
.
• You can also press [m], and then select Edit Image.
Touch
Icon
, and then select an adjusting option.
Description
ACB (Adjust dark subjects)
Brightness
to save.
Contrast
Saturation
• If you selected
Playback/Editing 97
to select a photo.
, skip to step 6.
Editing a photo
4
Press [F/t] to adjust the option.
5
6
Touch
→
Touch
to save.
• You can also drag the slider or touch +/- to adjust the option.
.
Adjusting portrait photos
The camera will save an edited photo as a new file, but may convert it to a lower
resolution.
1
Rotate the mode dial to g, and then select
2
3
4
Rotate [Zoom] to the left or touch
5
Touch
.
• You can also press [m], and then select Edit Image.
Touch
to select a photo.
, and then touch Face Retouch.
Press [F/t] to adjust the option.
• You can also drag the slider or touch +/- to adjust the option.
• As the number increases, the skin tone becomes brighter and smoother.
to save.
Playback/Editing 98
Editing a video
While playing back a video, you can trim the video or capture an image from the video.
10
Trimming a video
1
2
3
4
5
6
7
8
9
When the pop-up message appears, select Yes.
• The original video should be at least 10 seconds long.
• You can trim videos anywhere between 2 seconds from the beginning and
In Playback mode, select a video, and then press [m].
Select Trim video.
2 seconds from the end of the video.
• The camera will save the edited video as a new file and leave the original video
Press [o] or touch to start playing the video.
Press [o] or touch
begin.
intact.
at the point where you want the trimming to
Press [c] or touch Start Point.
Capturing an image from video
Press [o] or touch to resume playing the video.
Press [o] or touch
end.
at the point where you want the trimming to
Press [c] or touch End Point.
1
While viewing a video, press [o] or touch
want to capture an image.
2
Press [c] or touch Capture.
Press [c] or touch Trim to trim a video.
• You can adjust the scene to be cropped by dragging the handles that appear
on the progress bar.
Playback/Editing 99
at the point where you
• The resolution of the captured image will be the same as the original video.
• The captured image is saved as a new file.
Viewing files on a TV
Play back photos or videos by connecting your camera to a TV with the A/V cable.
1
2
3
4
5
Rotate the mode dial to n.
Select Connectivity → Video Out.
Select the video signal output for your country or region. (p. 136)
Turn off your camera and TV.
Connect your camera to your TV with the A/V cable.
Audio
6
Turn on your TV, and then select the A/V video source with the TV
remote control.
7
Turn on your camera.
8
View photos or play videos using the camera buttons.
• The camera automatically enters Playback mode when you connect it to a TV.
• Depending on the TV model, you may see some digital noise or part of an image
may not appear.
Video
• Images may not be centered on the TV screen depending on your TV settings.
Playback/Editing 100
Transferring files to a computer
Connect the camera to a computer to transfer files from the camera’s memory card to the computer.
Transferring files to your Windows OS computer
5
Turn on the camera.
6
On your computer, select My Computer → Removable Disk →
DCIM → 100PHOTO.
7
Drag or save files to your computer.
Connect the camera to your computer as a removable disk.
Your computer must be running Windows 7 or Windows 8 for you to connect the
camera as a removable disk.
1
2
3
4
Rotate the mode dial to n.
• The computer recognizes the camera automatically.
Select Connectivity → i-Launcher → Off.
Turn off the camera.
Connect the camera to your computer with the USB cable.
You must plug the small end of the USB cable into your camera. If the cable is
reversed, it may damage your files. The manufacturer is not responsible for any
loss of data.
Playback/Editing 101
Transferring files to a computer
Disconnecting the camera (for Windows 7)
Transferring files to your Mac OS computer
With Windows 8, the methods for disconnecting the camera are similar.
1
2
If the status lamp on your camera is blinking, wait until it stops.
3
4
Click the pop-up message.
5
Click
When you connect the camera to your Mac OS computer, the computer will
automatically recognize the device. You can transfer files directly from the camera to
the computer without installing any programs.
on the tool bar at the bottom right of your computer screen.
Click the message box that indicates the camera can be removed
safely.
Mac OS 10.7 or later is supported.
1
2
Turn off the camera.
Connect your camera to your Mac OS computer with the USB cable.
Remove the USB cable.
Playback/Editing 102
You must plug the small end of the USB cable into your camera. If the cable is
reversed, it may damage your files. The manufacturer is not responsible for any
loss of data.
Transferring files to a computer
3
Turn on the camera.
• The computer recognizes the camera automatically and displays a removable
disk icon.
4
5
On your computer, open the removable disk.
Drag or save files to your computer.
Playback/Editing 103
Using programs on a computer
i-Launcher allows you to play back files with Multimedia Viewer and provides links so that you can download useful programs.
5
6
Installing i-Launcher
1
2
3
4
Rotate the mode dial to n.
Turn on the camera.
Install i-Launcher on the PC.
OS
Select Connectivity → i-Launcher → On.
Turn off the camera.
Connect the camera to your computer with the USB cable.
Windows
You must plug the small end of the USB cable into your camera. If the cable is
reversed, it may damage your files. The manufacturer is not responsible for any
loss of data.
Mac
7
How to Install
When the pop-up window prompts you to install i-Launcher,
select Yes.
• If the pop-up window does not appear, select My Computer
→ i-Launcher → iLinker.exe.
• If a pop-up window prompting you to run iLinker.exe appears,
run it first.
• When you connect the camera to a computer with i-Launcher
installed, the program will launch automatically.
Click Devices → i-Launcher → Mac → iLinker.
Follow the on-screen instructions to complete the installation.
Before installing the program, ensure that the PC is connected to a network.
Playback/Editing 104
Using programs on a computer
Available programs when using i-Launcher
Using i-Launcher
Option
Multimedia Viewer
Description
You can view files with Multimedia Viewer.
i-Launcher allows you to play back files with Multimedia Viewer and provides a link
to download the PC Auto Backup program.
Software Update
You can update the firmware of your camera.
i-Launcher provides a link for downloading the PC
Auto Backup program when you connect the camera
to a computer. You can send photos or videos that you
captured with the camera to a PC wirelessly.
PC Auto Backup
• The requirements on the following page are recommendations only. i-Launcher
may not work properly even when the computer meets the requirements,
depending on the condition of your computer.
• If your computer does not meet the requirements, videos may not play correctly.
The manufacturer is not responsible for any damage that results from using
unqualified computers such as a computer you assembled yourself.
If you use a Mac OS computer, only Software Update and PC Auto Backup are
available.
Playback/Editing 105
Using programs on a computer
Windows OS Requirements
Mac OS requirements
Item
Requirements
Intel® Core™ 2 Duo 1.66 GHz or higher/
AMD Athlon X2 Dual-Core 2.2 GHz or higher
Item
OS
Requirements
Mac OS 10.7 or higher
RAM
Minimum 256 MB RAM (512 MB or more recommended)
Minimum 512 MB RAM (1 GB or more recommended)
Windows 7 or Windows 8
Hard disk
capacity
Minimum 110 MB
Others
USB 2.0 port
CPU
RAM
OS*
Hard disk
capacity
250 MB or more (1 GB and above recommended)
• 1024X768 pixels, 16-bit color display compatible monitor
(1280X1024 pixels, 32-bit color display recommended)
Others
Opening i-Launcher
• USB 2.0 port
• nVIDIA Geforce 7600GT or higher/
On your computer, select Start → All Programs → Samsung → i-Launcher →
Samsung i-Launcher. On your Mac, click Applications → Samsung → i-Launcher.
ATI X1600 series or higher
• Microsoft DirectX 9.0c or higher
* A 32-bit version of i-Launcher will be installed—even on 64-bit editions of Windows 7 and
Windows 8.
Playback/Editing 106
Using programs on a computer
Using Multimedia Viewer
Multimedia Viewer allows you to play back files. On the Samsung i-Launcher screen, click Multimedia Viewer.
• Multimedia Viewer supports the following formats:
- Videos: MP4 (Video: H.264, Audio: AAC), WMV (WMV 7/8/9), AVI (MJPEG)
- Photos: JPG, GIF, BMP, PNG, TIFF, MPO
• Files that have been recorded with other manufacturers’ devices may not play back smoothly.
Viewing photos
1
No.
1
2
3
!
0
9 8
7
6
2
3
4
5
6
7
8
9
0
!
5 4
Playback/Editing 107
Description
File name
Enlarged area
Histogram
Open the selected file.
Histogram button
Rotate to the left/Rotate to the right.
Move to the previous file/Move to the next file.
Fit the photo to the screen.
View the photo in its original size.
Zoom in/Zoom out
Switch between 2D and 3D mode.
Using programs on a computer
Viewing videos
1
No.
1
2
3
4
5
6
7
8
2
8
7 6 5 4
3
Playback/Editing 108
Description
File name
Adjust the volume.
Open the selected file.
Move to the next file.
Stop
Pause
Move to the previous file.
Progress bar
Using programs on a computer
Updating the firmware
On the Samsung i-Launcher screen, click Software Update.
Downloading the PC Auto Backup program
On the Samsung i-Launcher screen, click PC Auto Backup. For information about
installing the PC Auto Backup program, refer to page 123.
Playback/Editing 109
Wireless network
Learn how to connect to wireless local area networks (WLANs) and use functions.
Connecting to a WLAN and configuring
network settings ………………………………… 111
Connecting to a WLAN ………………………… 111
Using the login browser ……………………… 112
Network connection tips ……………………… 113
Entering text …………………………………… 114
Using the NFC Feature (Tag & Go) ……………… 115
Using NFC features in Shooting mode ………… 115
Using NFC features in Playback mode
(Photo Beam) …………………………………… 115
Using NFC features in Wi-Fi mode ……………… 115
Saving files to a smart phone automatically …
Sending photos or videos to a smart phone …
Using a smart phone as a remote
shutter release ……………………………………
Using the Baby Monitor …………………………
116
117
119
121
Adjusting the noise level for alarm activation … 122
Using Auto Backup to send photos or videos … 123
Installing the program for Auto Backup
on your PC ……………………………………… 123
Sending photos or videos to a PC ……………… 123
Sending photos or videos via email …………… 125
Changing email settings ……………………… 125
Sending photos or videos via email …………… 127
Using photo or video sharing services ………… 128
Accessing a sharing service …………………… 128
Uploading photos or videos …………………… 128
Using Samsung Link to send files ……………… 130
Uploading photos to an online storage ……… 130
Viewing photos or videos on devices
that support Samsung Link …………………… 131
Connecting to a WLAN and configuring network settings
Learn to connect via an access point (AP) when you are in a range of a WLAN. You can also configure network settings.
Connecting to a WLAN
Icon
1 Rotate the mode dial to w.
2 Select , , , , or .
3 Follow the on-screen instructions until the Wi-Fi Setting screen
Description
Ad hoc AP
Secured AP
WPS AP
Signal strength
appears.
Press [t] or touch
• The camera automatically searches for available AP devices.
• In some modes, press [m], and then select Wi-Fi Setting.
to open AP setting options.
• When you select a secured AP, a pop-up window appears. Enter the required
passwords to connect to the WLAN. For information about entering text, refer
to "Entering text". (p. 114)
• When a login page appears, refer to "Using the login browser". (p. 112)
• When you select an unsecured AP, the camera will automatically connect to
the WLAN.
• If you select a WPS profile supported AP, select → WPS PIN connection,
and then enter a PIN on the AP device. You can also connect to a WPS profile
supported AP by selecting → WPS button connection on the camera, and
then pushing the WPS button on the AP device.
• If a pop-up message about data collection regulations appears, read and
agree to it.
4 Select an AP.
Refresh
Back
• Select Refresh to refresh the list of connectable APs.
• Select Add wireless network to add an AP manually. The AP name must be
in English to add the AP manually.
Wireless network 111
Connecting to a WLAN and configuring network settings
Setting network options
1
In the Wi-Fi Setting screen, move to an AP, and then press
[t] or touch .
2
Select each option, and then enter the required information.
Option
Network Password
Description
Enter the network password.
IP Setting
Set the IP address automatically or manually.
Using the login browser
You can enter your login information in the browser when connecting to some APs,
sharing sites, or cloud servers.
Button/Icon
[D/c/F/t]
[o]
/
Description
Move to an item or scroll the page.
Select an item.
Close the login browser.
Move to the previous page.
Move to the next page.
Stop loading the page.
Manually setting the IP address
1
2
3
Reload the page.
In the Wi-Fi Setting screen, move to an AP, and then press
[t] or touch .
• You may not be able to select some items depending on the page you connected
Select IP Setting → Manual.
• The login browser may not close automatically after you log into some pages. If
to. This does not indicate a malfunction.
or
,
this occurs, close the login browser by pressing [b] or touching
and then proceed with the desired operation.
• It may take longer to load the login page due to the page size or network speed.
If this occurs, wait until the login information input window appears.
Select each option, and then enter the required information.
Option
IP
Description
Enter the static IP address.
Subnet Mask
Enter the subnet mask.
Enter the gateway.
Enter the DNS address.
Gateway
DNS Server
Wireless network 112
Connecting to a WLAN and configuring network settings
Network connection tips
• Some Wi-Fi features are not available if you do not insert a memory card.
• The quality of the network connection will be determined by the AP.
• The further the distance between your camera and the AP, the longer it will take
to connect to the network.
• If a nearby device is using the same radio frequency signal as your camera, it may
• If you cannot connect to a WLAN, try another AP from the available AP list.
• A login page may appear when you select free WLANs provided by some
•
interrupt your connection.
• If your AP name is not in English, the camera may not be able to locate the device
•
•
•
•
•
•
•
or the name may appear incorrectly.
For network settings or a password, contact your network administrator or
network service provider.
If a WLAN requires authentication from the service provider, you may not be able
to connect to it. To connect to the WLAN, contact your network service provider.
Depending on the encryption type, the number of digits in the password may
differ.
A WLAN connection may not be possible in all surroundings.
The camera may display a WLAN enabled printer on the AP List. You cannot
connect to a network via a printer.
You cannot connect your camera to a network and a TV simultaneously.
Connecting to a network may incur additional charges. Costs will vary based on
the conditions of your contract.
•
•
•
•
•
•
•
network service providers. Enter your ID and password to connect to the WLAN.
For information about registering or the service, contact the network service
providers.
Be cautious when you enter personal information for an AP connection. Do not
enter any payment or credit card information on your camera. The manufacturer
is not liable for any problem caused by entering such information.
Available network connections may differ by country.
The WLAN feature of your camera must comply with radio transmission laws in
your region. To ensure compliance, use the WLAN feature only in the country
where you purchased the camera.
The process for adjusting network settings may differ, depending on network
conditions.
Do not access a network that you are not authorized to use.
Before you connect to a network, ensure your battery is fully charged.
You cannot upload or send files captured in some modes.
Files that you transfer to another device may not be supported by the device. In
this case, use a computer to play back the files.
Wireless network 113
Connecting to a WLAN and configuring network settings
Entering text
Icon
Learn how to enter text. The icons in the table below let you move the cursor,
change the case, etc. Press [D/c/F/t] to move to a desired key, and then press
[o] to enter the key. You can also touch a key to enter it.
Description
Switch between Symbol mode and ABC mode.
Enter a space.
Done
Save the displayed text.
• You can use only the English alphabets in some modes, regardless of the display
language.
• To move to Done directly, press [P].
• You can enter up to 64 characters.
• The screen may differ depending on the input mode.
X
Cancel
Icon
Done
Description
Move the cursor.
In ABC mode, change the case.
X
Cancel
Delete the last letter.
Stop entering text and return to the previous page.
Wireless network 114
Using the NFC Feature (Tag & Go)
Place a smart phone’s NFC antenna near the camera’s NFC tag to launch the feature for saving photos to a smart phone automatically or the feature for using a smart phone as a
remote shutter. You can also transfer files to an NFC-enabled device in Playback mode.
• This feature is supported by NFC-enabled smart phones running Android OS. It is recommended that you use the latest version. This feature is not available for iOS devices.
• You should install Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from the Google Play Store.
Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.
• To read an NFC tag, place the NFC-enabled device near the camera’s NFC tag for more than 2 seconds.
• Do not modify the tag information in any way.
Using NFC features in Shooting mode
Using NFC features in Wi-Fi mode
Launch AutoShare or Remote Viewfinder by reading a tag from an NFC-enabled
device. (p. 116, 119)
Preset to launch the Wi-Fi function by reading a tag on an NFC-enabled device.
(p. 138)
Select MobileLink or Remote Viewfinder from the pop-up window that appears by
reading a tag from an NFC-enabled device. (p. 117, 119)
Using NFC features in Playback mode (Photo Beam)
In Playback mode, the camera transfers the current file to the smart phone
automatically when you read a tag from an NFC-enabled device.
• To transfer multiple files, select files from the thumbnail view, and then read a tag
from an NFC-enabled device.
Wireless network 115
Saving files to a smart phone automatically
The camera connects to a smart phone that supports the AutoShare feature via a WLAN. When you capture a photo with your camera, the photo is saved to the smart phone
automatically.
• The AutoShare feature is supported by smart phones or tablets running Android OS or iOS. Some features may not be supported by some models. Before using this feature, update
the device’s firmware to the latest version. If the firmware version is not the most recent, this function may not perform properly.
• You should install Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from the Google Play Store or the Apple App
Store. Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.
• This feature is not available with the internal memory in some Shooting modes.
• If you set this function, the setting is maintained even when you change the Shooting mode.
• This feature may not be supported in some modes.
1
2
5
On the camera, in Shooting mode, press [m].
On the camera, select AutoShare → On.
On the smart phone, turn on Samsung SMART CAMERA App.
• For iOS devices, turn on the Wi-Fi feature before turning on the application.
• To start the application automatically on an NFC-enabled smart phone, turn
on the function and place the smart phone near the NFC tag (p. 17) on the
camera.
4
• If the smart phone has been connected to your camera before, it is connected
automatically.
• If the pop-up message that prompts you to download the application
appears, select Next.
• To require PIN verification when connecting the smart phone to the camera,
select Security Settings. (p. 139)
3
On the camera, allow the smart phone to connect to your camera.
Select the camera from the list and connect the smart phone to the
camera.
• An icon that shows the connection status (
) will appear on the camera’s
screen.
6
On the camera, capture a photo.
• The captured photo is saved to the camera, and then transferred to the smart
phone.
• If you recorded a video, it is saved only to the camera.
• A GIF file captured in Motion Photo mode is not saved on the smart phone.
• The image file captured while recording a video is not saved on the smart
phone.
• If the GPS feature is activated on the smart phone, the GPS information will
• The smart phone can connect to only one camera at a time.
• If the Wi-Fi Privacy lock is enabled, enter the PIN displayed on the camera to
the smart phone.
Wireless network 116
be saved with the captured photo.
Sending photos or videos to a smart phone
The camera connects to a smart phone that supports the MobileLink feature via a WLAN. You can easily send photos or videos to your smart phone.
• The MobileLink feature is supported by smart phones or tablets running Android OS or iOS. Some features may not be supported by some models. Before using this feature, update
the device’s firmware to the latest version. If the firmware version is not the most recent, this function may not perform properly.
• You should install Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from the Google Play Store or the Apple App
Store. Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.
• When there are no files in the camera memory, you cannot use this feature.
• If you select files from the smart phone, you can view up to 1,000 recent files and send up to 1,000 files at a time. If you select files from the camera, you can view files that were
selected from the camera. The maximum number of files you can send varies depending on the storage space of the smart phone.
• When you send Full HD videos using MobileLink feature, you may not be able to play back files on some devices.
• When using this feature on an iOS device, the device may lose its Wi-Fi connection.
• The camera screen turns off if you perform no operations on the camera for 30 seconds.
1
2
On the camera, rotate the mode dial to w.
On the camera, select
• If you select Select Files from Camera (Connect to multiple smartphones),
you can connect to up to 4 smart phones, and then select files to send from
the camera. Transferring files to multiple smart phones may take longer than
transferring files to one device.
.
• If the pop-up message that prompts you to download the application
appears, select Next.
• To require PIN verification when connecting the smart phone to the camera,
4
select Security Settings. (p. 139)
3
On the camera, select a sending option.
On the smart phone, turn on Samsung SMART CAMERA App.
• For iOS devices, turn on the Wi-Fi feature before turning on the application.
• To start the application automatically on an NFC-enabled smart phone, turn
on the function and place the smart phone near the NFC tag (p. 17) on the
camera.
• If you select Select Files from Smartphone, you can use your smart phone
to view and share files stored on the camera. The screen turns off if you
perform no operations on the smart phone for 30 seconds.
• If you select Select Files from Camera (Connect to one smartphone),
you can select files to send from the camera.
5
Select the camera from the list and connect the smart phone to the
camera.
• The smart phone can connect to only one camera at a time.
• If the Wi-Fi Privacy lock is enabled, enter the PIN displayed on the camera to
the smart phone.
Wireless network 117
Sending photos or videos to a smart phone
6
On the camera, allow the smart phone to connect to your camera.
• If the smart phone has been connected to your camera before, it is connected
automatically.
• If you select Select Files from Camera (Connect to multiple smartphones),
touch Connect next to the smart phone listed on the camera.
7
To connect to multiple smart phones, repeat steps 4, 5, and 6, and
then touch Next.
8
On the smart phone or camera, select files to transfer from the
camera.
9
On the smart phone, touch the copy button or on the camera, select
Send.
• The camera will send the files.
• When you connect to multiple smart phones, the camera will send the files to
all devices at the same time.
Wireless network 118
Using a smart phone as a remote shutter release
The camera connects to a smart phone that supports the Remote Viewfinder feature via a WLAN. Use the smart phone as a remote shutter release with the Remote Viewfinder
feature. The captured photo will display on the smart phone.
• The Remote Viewfinder feature is supported by smart phones or tablets running Android OS or iOS. Some features may not be supported by some models. Before using this feature,
update the device’s firmware to the latest version. If the firmware version is not the most recent, this function may not perform properly.
• You should install Samsung SMART CAMERA App on your smart phone or device before using this feature. You can download the application from the Google Play Store or the Apple
App Store. Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.
• The camera screen turns off if you perform no operations on the camera for 30 seconds.
1
2
5
On the camera, rotate the mode dial to w.
On the camera, select
.
• If the smart phone has been connected to your camera before, it is connected
automatically.
• If the pop-up message that prompts you to download the application
appears, select Next.
• To require PIN verification when connecting the smart phone to the camera,
select Security Settings. (p. 139)
3
On the camera, allow the smart phone to connect to your camera.
6
On the smart phone, set the following shooting options.
Icon
Flash option
On the smart phone, turn on Samsung SMART CAMERA App.
Timer option
• For iOS devices, turn on the Wi-Fi feature before turning on the application.
• To start the application automatically on an NFC-enabled smart phone, turn
Photo size
Saving location
on the function and place the smart phone near the NFC tag (p. 17) on the
camera.
4
Select the camera from the list and connect the smart phone to the
camera.
• The smart phone can connect to only one camera at a time.
• If the Wi-Fi Privacy lock is enabled, enter the PIN displayed on the camera to
the smart phone.
Description
Zoom ratio
• While using this feature, some buttons are not available on your camera.
• With the smart phone, you can operate the camera only by touching the
screen.
• Remote Viewfinder mode supports the
Wireless network 119
and
photo sizes only.
Using a smart phone as a remote shutter release
7
On the smart phone, touch and hold
8
Release
• The focus is automatically set to Multi AF.
to focus.
to capture the photo.
• The photo will be stored on the smart phone in its original size.
• If the GPS feature is activated on the smart phone, the GPS information will
be saved with the captured photo.
• When you use this feature, the ideal distance between the camera and the smart
phone may vary, depending on your surroundings.
• We recommend you keep the distance between the smart phone and the
camera within 23 ft (7 m) when you use this feature.
• It will take some time to capture the photo after you release
on the smart
phone.
• The Remote Viewfinder function will deactivate when:
- either the camera or the smart phone turns off
- either device loses its connection to the WLAN
- the Wi-Fi connection is poor or unstable
- you perform no operations for approximately 3 minutes while connected
Wireless network 120
Using the Baby Monitor
Use the Baby Monitor feature to connect the camera to a smart phone and monitor a location.
• The Baby Monitor feature is supported by smart phones that support WVGA (800X480) or higher resolution and run the Android OS or iOS. Some features may not be supported by
some models. Before using this feature, update the device’s firmware to the latest version. If the firmware version is not the most recent, this function may not perform properly.
• You should install the Samsung Home Monitor application on your smart phone before using this feature. You can download the application from the Google Play Store or the Apple
App Store.
• Use this feature indoors only.
1
2
6
On the camera, rotate the mode dial to w.
On the camera, select
.
Start live video or sound monitoring.
• Watch live video from the camera on your smart phone. During video
monitoring, touch the Sound Monitoring Mode button on the smart phone
to stop the video stream. If the camera detects noise, an alarm will notify you
on the smart phone.
• If the pop-up message that prompts you to download the application
appears, select Next.
3
On the camera, select an AP from the list, and then position the
camera.
• During live video monitoring via the smart phone, video is not saved on the
camera.
• If the monitored location is dark, touch to turn on the AF-assist light.
• During sound monitoring, alarms will sound on the smart phone if the
• Place the camera in a safe location where children or pets cannot reach it.
• Point the camera lens at the subject.
• We recommend you connect the camera to a power outlet with the AC
camera detects noise for a short period at a volume that is higher than the
designated level.
• During live video monitoring, alarms will not sound on the smart phone
even if the camera detects noise.
adapter.
4
On the smart phone, select the AP that the camera is connected to.
5
On the smart phone, turn on the Samsung Home Monitor
application.
• For iOS devices, turn on the Wi-Fi feature before turning on the application.
7
Touch
Wireless network 121
to exit the Samsung Home Monitor application.
Using the Baby Monitor
Adjusting the noise level for alarm activation
You can set the level of noise that will activate an alarm while using sound
monitoring. Press [D/c] to adjust the noise level.
Noise level for alarm
activation:
When the camera
detects noise
that exceeds the
designated level for a
short period, an alarm
will sound.
▲▼: Sensor sensitivity
Do not use this feature for illegal purposes.
Wireless network 122
Using Auto Backup to send photos or videos
You can send photos or videos that you captured with the camera to a PC wirelessly.
Installing the program for Auto Backup on your PC
Sending photos or videos to a PC
1
2
3
1
2
Install i-Launcher on the PC. (p. 104)
Connect the camera to the PC with the USB cable.
When the Auto Backup program icon appears, click it.
• The Auto Backup program is installed on the PC. Follow the on-screen
instructions to complete the installation.
4
Remove the USB cable.
Rotate the mode dial to w.
Select
.
• If the pop-up message that prompts you to download the application
appears, select Next.
• The camera will automatically attempt to connect to a WLAN via the most
recently connected AP device.
• If the camera has not previously been connected to a WLAN, it will search for
available AP devices. (p. 111)
Before installing the program, ensure that the PC is connected to a network.
Wireless network 123
Using Auto Backup to send photos or videos
3
4
Select a backup PC.
• When you connect the camera to the WLAN, select the AP that is connected to
Select OK.
• The camera will search for available access points even if you are connecting to
the PC.
• To cancel sending, select Cancel.
• You cannot select individual files to back up. This function backs up only new
files on the camera.
• The backup’s progress will be shown on both the PC monitor and the camera
screen.
• When the transfer is completed, the camera will turn off automatically in
approximately 30 seconds. Select Cancel to return to the previous screen and
prevent the camera from turning off automatically.
• To turn off your PC automatically after the transfer is complete, select
Shut down PC after backup.
• To change the backup PC, select
.
Wireless network 124
the same access point again.
• If you turn off the camera or remove the battery while sending files, the file
transfer will be interrupted.
While you are using this feature, the shutter control is disabled on your camera.
You can connect only one camera to the PC at a time for sending files.
The backup may be canceled due to network conditions.
When there are no files in the camera memory, you cannot use this feature.
You must turn off Windows Firewall and any other firewalls before using this
feature.
• You can send up to 1,000 recent files.
• On the PC software, the server name must be entered in the Latin alphabet and
can contain no more than 48 characters.
• When multiple file types are created at once, only the image files (JPG) will be
sent to the PC with this feature.
•
•
•
•
•
Sending photos or videos via email
You can change settings in the email menu and send photos or videos stored on the camera via email.
5
Changing email settings
In the email menu, you can change settings for storing your information. You can
also set or change the email password. For information about entering text, refer to
"Entering text". (p. 114)
Select the Name box, enter your name, and then select Done.
Sender Setting
Name
Storing your information
1
2
3
4
Email
Rotate the mode dial to w.
Select
.
Save
Press [m].
Select Sender Setting.
Reset
6
Select the Email box, enter your email address, and then select
Done.
7
Select Save to save your changes.
• To delete your information, select Reset.
Wireless network 125
Sending photos or videos via email
Setting an email password
1
2
3
4
Rotate the mode dial to w.
5
When the pop-up appears, select OK.
6
7
8
Select
Changing the email password
1
2
3
4
5
6
7
8
.
Press [m].
Select Setting Password → On.
• To deactivate the password, select Off.
• The pop-up disappears automatically even if you do not select OK.
Enter a 4-digit password.
Enter the password again.
Rotate the mode dial to w.
Select
.
Press [m].
Select Change Password.
Enter your current 4-digit password.
Enter a new 4-digit password.
Enter the new password again.
When the pop-up appears, select OK.
When the pop-up appears, select OK.
If you forget your password, you can reset it by selecting Reset on the password
setting screen. When you reset the information, the previously saved user’s setting
information, email address, and recently sent email list will be deleted.
Wireless network 126
Sending photos or videos via email
Sending photos or videos via email
You can send photos or videos stored on the camera via email. For information
about entering text, refer to "Entering text". (p. 114)
1
2
3
4
Rotate the mode dial to w.
Select
7
Select files to send.
8
9
Select Next.
10
Select Send.
.
Connect to a WLAN. (p. 111)
Select the Sender box, enter your email address, and then select
Done.
• You can select up to 20 files. The total size must be 7 MB or less.
Select the comment box, enter your comments, and then select
Done.
• The camera will send the email.
• If an email fails to send, a message prompting you to send it again appears.
• If you have previously saved your information, it will be inserted
automatically. (p. 125)
• To use an address from the list of previous senders, select
5
→ an address.
Select the Receiver box, enter an email address, and then select
Done.
• To use an address from the list of previous recipients, select → an address.
• Select to add additional recipients. You can input up to 30 recipients.
• Select to delete an address from the list.
6
Select Next.
• Even if a photo appears to have transferred successfully, errors with the
•
•
•
•
•
Wireless network 127
recipient’s email account may cause the photo to be rejected or recognized as
spam.
You may not be able to send an email if no network connection is available or if
your email account settings are incorrect.
You cannot send an email if the combined file sizes exceed the 7 MB.
The maximum resolution of photos you can send is 2M. The maximum resolution
. If the selected photo has a resolution higher than
of videos you can send is
2M, it will be automatically resized to a lower resolution.
If you cannot send an email because of firewall or user authentication settings,
contact your network administrator or network service provider.
When there are no files in the camera memory, you cannot use this feature.
You can also send an email in Playback mode by pressing [m], and then
→ Email.
selecting Share(Wi-Fi) → Email or by selecting
Using photo or video sharing services
Upload your photos or videos to file sharing services. Available sharing services will be displayed on your camera. To upload files to some websites, you must visit the website
and register before connecting your camera.
Accessing a sharing service
Uploading photos or videos
1 Rotate the mode dial to w.
2 Select .
3 Select a sharing service.
1 Access the sharing service with your camera.
2 Select files to upload.
• You can select up to 20 files. The total size must be 10 MB or less. (On some
• If the pop-up message that prompts you to create an account appears, select
OK.
sharing services, the total size or number of files may vary.)
3 Select Upload.
• The camera will upload photos or videos.
• On some sharing services, you can enter your comments by selecting the
4 Connect to a WLAN. (p. 111)
5 Enter your ID and password to log in.
• For information about entering text, refer to "Entering text". (p. 114)
• To select an ID from the list, select → an ID.
• If you have previously logged in to the sharing service, you may be logged in
automatically.
You must have an existing account with the file sharing service to use this feature.
Wireless network 128
comment box. For information about entering text, refer to "Entering text".
(p. 114)
Using photo or video sharing services
• You can set an upload folder for Facebook by pressing [m], and then
selecting Upload Folder (Facebook) on the sharing service’s list screen.
• You cannot upload files if the file size exceeds the limit. The maximum resolution
•
•
•
•
•
•
•
of photos you can upload is 2M. The maximum resolution of videos you can
. If the selected photo has a resolution higher than 2M, it will be
upload is
automatically resized to a lower resolution. (On some sharing services, the
maximum photo resolution may vary.)
The method of uploading photos or videos may differ depending on the
selected sharing service.
If you cannot access a sharing service because of firewall or user authentication
settings, contact your network administrator or network service provider.
Uploaded photos or videos may be automatically titled with the date they were
captured.
The speed of your internet connection may affect how quickly photos upload or
web pages open.
When there are no files in the camera memory, you cannot use this feature.
You can also upload photos or videos to file sharing services in Playback mode
by pressing [m], and then selecting Share(Wi-Fi) → a sharing service or by
selecting
→ a sharing service.
You cannot upload videos to some sharing services.
Wireless network 129
Using Samsung Link to send files
You can upload files from your camera to the Samsung Link online storage or view files on a Samsung Link device connected to the same AP.
3 Enter your ID and password, and then select Login → OK.
Uploading photos to an online storage
• For information about entering text, refer to "Entering text". (p. 114)
• To select an ID from the list, select → an ID.
• If you have previously logged in to the website, you may be logged in
1 Rotate the mode dial to w.
2 Select → Web storage.
automatically.
• If the guide message appears, select OK.
• The camera will automatically attempt to connect to a WLAN via the most
recently connected AP device.
• If the camera has not previously been connected to a WLAN, it will search for
available AP devices. (p. 111)
• To change the size for uploaded photos, press [m], and then select
Upload Image Size.
To use this feature, you must create a Samsung Link account and an account
with an affiliated online storage service using your PC. After you have finished
creating the accounts, add your online storage account to Samsung Link.
4 Select an online storage.
• Before you use this feature, you must visit the Samsung Link website with
your PC and register an online storage.
5 Select files to upload, and then select Upload.
• You cannot upload video files to Samsung Link online storage.
• When there are no files in the camera memory, you cannot use this feature.
• You can upload up to 20 files.
• You can also upload photos in Playback mode by pressing [m], and then
selecting Share(Wi-Fi) → Samsung Link or by selecting
Wireless network 130
→ Samsung Link.
Using Samsung Link to send files
Viewing photos or videos on devices that support Samsung
Link
1 Rotate the mode dial to w.
2 Select → Nearby devices.
6 On the Samsung Link device, browse the shared photos or videos.
• For information about searching for the camera and browsing the photos or
videos on the Samsung Link device, refer to the device’s user manual.
• Videos may not play smoothly depending on the type of Samsung Link
device or the network condition. If this happens, re-record the video in
640X480 or smaller quality and play it again. If videos do not play smoothly
on your device over the wireless connection, try connecting the camera to
the device with an A/V cable.
• If the guide message appears, select OK.
• The camera will automatically attempt to connect to a WLAN via the most
recently connected AP device.
• If the camera has not previously been connected to a WLAN, it will search for
available AP devices. (p. 111)
• You can set to allow only selected devices or all devices to connect by
pressing [m], and then selecting DLNA Access Control on the screen.
• A sharing file list is created. Wait until other devices can find your camera.
3 Connect the Samsung Link device to a network, and then turn on
the Samsung Link feature.
• Refer to your device’s user manual for more information.
4 On the camera, allow the Samsung Link device to connect to your
camera.
5 On the Samsung Link device, select a camera to connect to.
AP
▲ The camera is connected to a TV that supports Samsung Link via WLAN.
Wireless network 131
Using Samsung Link to send files
• You can share up to 1,000 recent files.
• On a Samsung Link device, you can view only photos or videos captured with
•
•
•
•
•
•
•
•
your camera.
The range of the wireless connection between your camera and a Samsung Link
device may vary depending on the specifications of the AP.
If the camera is connected to 2 Samsung Link devices, playback may be slower.
Photos or videos will be shared in their original sizes.
You can use this feature only with devices that support Samsung Link.
Shared photos or videos will not be stored on the Samsung Link device, but they
can be stored in the camera to meet the device’s specifications.
Transferring photos or videos to the Samsung Link device may take some time
depending on the network connection, the number of files to be shared, or the
sizes of the files.
If you power off the camera abnormally while viewing photos or videos on
a Samsung Link device (for example, by removing the battery), the device
considers the camera to still be connected.
The order of photos or videos on the camera may be different than on the
Samsung Link device.
Wireless network 132
• Depending on the number of photos or videos you want to share, it may take
some time to load your photos or videos and complete the initial set-up process.
• While viewing photos or videos on the Samsung Link device, continuously using
•
•
•
•
the device’s remote or performing additional operations on the device may
prevent this feature from working properly.
If you reorder or sort files on the camera while viewing them on a Samsung Link
device, you must repeat the initial set-up process to update the list of files on the
device.
When there are no files in the camera memory, you cannot use this feature.
We recommend you use a network cable to connect your Samsung Link device
to your AP. This will minimize any video ’Stuttering’ you may experience when
streaming content.
To view files on a Samsung Link device using the Nearby devices feature, enable
multicast mode on your AP.
Settings
Refer to options to configure your camera’s settings.
Settings menu …………………………………………………… 134
Accessing the settings menu ………………………………
Sound …………………………………………………………
Display ………………………………………………………
Connectivity …………………………………………………
General ………………………………………………………
134
135
135
136
137
Settings menu
Learn to configure your camera’s settings.
Accessing the settings menu
1
2
3
Select an item.
Rotate the mode dial to n.
Sound
Select a menu.
Volume
Medium
Beep Sound
Settings
Shutter Sound
Sound
On
Sound 1
AF Sound
Display
Back
Connectivity
4
General
On
Select
Select an option.
Volume
Option
Sound
Description
Set various camera sounds and the volume. (p. 135)
Display
Customize the display settings. (p. 135)
Set the connection options. (p. 136)
Change the settings for the camera system such as memory
format and default file name. (p. 137)
Connectivity
General
Off
Low
Medium
High
Back
5
Settings 134
Set
Press [b] to return to the previous screen.
Settings menu
Sound
Display
* Default
Item
Volume
Beep Sound
Shutter
Sound
AF Sound
* Default
Description
Set the volume of all sounds. (Off, Low, Medium*, High)
Item
Set the sound the camera emits when you press the buttons,
switch modes, or touch the screen on or off. (Off, On*)
Set the sound the camera emits when you press the shutter
button. (Off, Sound 1*, Sound 2, Sound 3)
Set the sound the camera emits when you half-press the shutter
button on or off. (Off, On*)
Start Image
Guide Line
Date/Time
Display
Help Guide
Display
Settings 135
Description
Set a start image to display when the camera turns on.
• Off*: Display no start image.
• Logo: Display a default image stored in the internal memory.
Select a guide to help you compose a scene.
(Off*, 3 X 3, 2 X 2, Cross, Diagonal)
Set whether or not to display the date and time on the camera’s
display. (Off*, On)
Display a brief description of an option or menu.
• Mode Help Guide (Off, On*)
• Function Help Guide (Off, On*)
Settings menu
* Default
Item
Brightness
Quick View
Description
Adjust the brightness of the screen.
(Auto*, Dark, Normal, Bright)
Connectivity
* Default
Item
Normal is fixed in Playback mode even if you have selected
Auto.
Set whether or not to review a captured image before returning
to the Shooting mode. (Off, On*)
Video Out
This feature does not work in some modes.
Power Save
If you perform no operations for 30 seconds, the camera
automatically switches to Power save mode. (Off*, On)
i-Launcher
In Power save mode, press any button other than [X] to resume
using the camera.
Settings 136
Description
Set the video signal output for your region.
• NTSC: USA, Canada, Japan, Korea, Taiwan, Mexico, etc
• PAL (supports only BDGHI): Australia, Austria, Belgium, China,
Denmark, England, Finland, France, Germany, Italy, Kuwait,
Malaysia, Netherlands, New Zealand, Norway, Singapore, Spain,
Sweden, Switzerland, Thailand, etc
Set i-Launcher to launch automatically when you connect your
camera to your computer. (Off, On*)
Settings menu
* Default
General
* Default
Item
Network
Information
Description
View the Mac address and network certification number of
your camera.
Language
Set a language for the display text.
Set the time zone for your location. When you travel to
another country, select Visit, and then select the appropriate
time zone. (Home*, Visit)
Set the date and time.
Set a date format. (YYYY/MM/DD, MM/DD/YYYY,
DD/MM/YYYY)
Time Zone
Date/Time Set
Date Type
Item
Specify how to name files.
• Reset: Set the file number to start from 0001 when you
insert a new memory card, format a memory card, or
delete all files.
• Series*: Set the file number to resume from the previous
file number when you insert a new memory card, format a
memory card, or delete all files.
• The default name of the first folder is 100PHOTO and the
default name of the first file is SAM_0001.
File No.
The default date type may differ depending on the
language selected.
Set the time format. (12 Hr, 24 Hr)
Time Type
Description
The default time type may differ depending on the
language selected.
Settings 137
• The file number increases by one, from SAM_0001 to
SAM_9999, each time you capture a photo or record a
video.
• The folder number increases by one, from 100PHOTO to
999PHOTO, each time a folder is full.
• The maximum number of files that can be stored in one
folder is 9,999.
• The camera defines file names according to the Design
rule for Camera File system (DCF) standard. If you
intentionally change file names, the camera may not play
back the files.
Settings menu
* Default
Item
Item
Set whether or not to display the date and time on captured
photos. (Off*, Date, Date & Time)
Set the Wi-Fi function to launch by pressing [DIRECT LINK].
DIRECT LINK (Wi-Fi (AutoShare, MobileLink*, Remote Viewfinder,
Button)
Baby Monitor, Auto Backup, Email, SNS & Cloud,
Samsung Link)
• The date and time will be displayed on the bottom right
corner of the photo.
Imprint
• Some printer models may not print the date and time
properly.
• The photo will not display the date and time if:
- you select Best Face or Panorama in s Smart mode
- you select My Magic Frame, Motion Photo or
Effect Artist in g Magic Plus mode
Live view NFC
AF Lamp
Set the camera to turn off automatically when you perform
no operations for a specified period.
(Off, 1 min, 3 min*, 5 min, 10 min)
Auto Power Off
* Default
Description
Format
• Your settings will not change when you replace the
battery.
• The camera will not turn off automatically when the
camera is connected to a computer or WLAN or when you
are playing a slide show or videos.
Settings 138
Description
Set a Wi-Fi function to launch by reading a tag from an
NFC-enabled device in Shooting mode. (AutoShare,
Remote Viewfinder*)
Set a light to turn on automatically in dark places to help you
focus. (Off, On*)
Format the memory. Formatting will delete all files, including
protected files. (Yes, No*)
Errors can occur if you use a memory card formatted by
another brand of camera, a memory card reader, or a
computer. Please format memory cards in the camera
before using them to capture photos.
Settings menu
* Default
Item
Description
Set to require a PIN when connecting the camera and a
smart phone.
• PIN: Enter a PIN before connecting.
• None*: Allow a connection without requiring a PIN.
Wi-Fi Privacy lock
• Connections will automatically be made without
requiring a PIN when using the NFC function.
• PINs are automatically generated and renewed only when
you reset the camera settings or update the firmware.
• If you have previously connected your camera to a smart
phone via a PIN, they will connect automatically.
Reset
Reset menus and shooting options. Date, time, language,
and video output settings will not be reset. (Yes, No*)
Open Source
License
View open source licenses.
Settings 139
Appendixes
Get information about error messages, specifications, and maintenance.
Error messages …………………………………………………… 141
Camera maintenance …………………………………………… 142
Cleaning your camera ………………………………………
Using or storing the camera …………………………………
About memory cards …………………………………………
About the battery ……………………………………………
142
143
144
147
Before contacting a service center …………………………… 151
Camera specifications …………………………………………… 154
Glossary ………………………………………………………… 158
Index ……………………………………………………………… 163
Error messages
When the following error messages appear, try these remedies.
Error message
Suggested remedies
Error message
Cannot read file
content
Delete the damaged file or contact a service center.
Card Error
• Turn off the camera, and then turn it on again.
• Remove the memory card, and then insert it again.
• Format the memory card.
File system not
supported.
Card not supported.
Connection failed.
DCF Full Error
Device disconnected.
Initialization failed.
The inserted memory card is not supported by your
camera. Insert a microSD, microSDHC, or microSDXC
memory card.
• The camera cannot connect to the network using the
selected access point. Select another AP and try again.
• The camera has failed to connect to the other devices.
Try connecting again.
File names do not match the DCF standard. Transfer the
files from the memory card to your computer and format
the card. Then, open the Settings menu and select
File No. → Reset. (p. 137)
Network connection disconnected while photos are
being transferred to supported devices. Re-select a
supported device.
Suggested remedies
Your camera does not support the FAT file structure of
the inserted memory card. Format the memory card on
the camera.
The camera has failed to locate a device that supports
Samsung Link. Turn on devices on the network that
support Samsung Link.
Low Battery
Insert a charged battery or recharge the battery.
Memory Full
Delete unnecessary files or insert a new memory card.
Capture photos or insert a memory card that contains
some photos.
The password for transferring files to another camera is
wrong. Enter the correct password.
• The camera has failed to send e-mails or files to other
devices. Try sending again.
• Check the network connection and try again.
No Image File
Password Incorrect
Transfer failed.
Appendixes 141
Camera maintenance
Camera body
Cleaning your camera
Wipe gently with a soft, dry cloth.
Camera lens and display
Use a blower brush to remove dust and wipe the lens gently with a soft cloth. If any
dust remains, apply lens cleaning liquid to a piece of lens cleaning paper and wipe
gently.
• Never use benzene, thinners, or alcohol to clean the device. These solutions can
damage the camera or cause it to malfunction.
• Do not press on or use a blower brush on the lens cover. This can damage the
camera.
Appendixes 142
Camera maintenance
Storing for extended period of time
• When you store the camera for an extended period, place it in a sealed container
Using or storing the camera
with an absorbent material, such as silica gel.
Inappropriate places to use or store the camera
• Over time, unused batteries will discharge and must be recharged before use.
• You must reset the date and time when you turn the camera on after the camera
• Avoid exposing the camera to very cold or very hot temperatures.
• Avoid using your camera in areas with extremely high humidity, or where the
and battery have been separated for a prolonged period.
humidity changes drastically.
• Avoid exposing the camera to direct sunlight and storing it in hot, poorly
ventilated areas, such as in a car during summer time.
• Protect your camera and the display from impact, rough handling, and excessive
Using the camera with caution in humid environments
When you transfer the camera from a cold environment to a warm one,
condensation can form on the lens or internal components of the camera. In this
situation, turn off the camera and wait for at least 1 hour. If condensation forms
on the memory card, remove the memory card from the camera and wait until all
moisture has evaporated before reinserting it.
vibration to avoid serious damage.
• Avoid using or storing your camera in dusty, dirty, humid, or poorly ventilated
areas to prevent damage to moving parts and internal components.
• Do not use your camera near fuels, combustibles, or flammable chemicals. Do
not store or carry flammable liquids, gases, or explosive materials in the same
compartment as the camera or its accessories.
• Do not store the camera where there are mothballs.
Other cautions
• Do not swing your camera by the strap. This may cause injury to yourself or others
or damage to your camera.
Using on beaches or shores
• Protect your camera from sand and dirt when you use it on beaches or in similar
areas.
• Your camera is not waterproof. Do not handle the battery, adapter, or memory
card with wet hands. Operating the camera with wet hands may cause damage to
your camera.
• Do not paint your camera, as paint can clog moving parts and prevent proper
operation.
• Turn off the camera when not using it.
Appendixes 143
Camera maintenance
• Your camera contains delicate parts. Avoid impacts to the camera.
• Protect the display from external force by keeping it in the case when not in
•
•
•
•
•
•
•
• Paint or metal on the outside of the camera may cause allergies, itchy skin,
use. Protect the camera from scratches by keeping it away from sand, sharp
implements, or loose change.
Do not use the camera if the screen is cracked or broken. Broken glass or acrylic
could cause injury to your hands and face. Take the camera to a Samsung service
center to have it repaired.
Never place cameras, batteries, chargers, or accessories near, on, or in heating
devices, such as microwave ovens, stoves, or radiators. Heat can deform or
overheat these devices, which can cause a fire or explosion.
Do not expose the lens to direct sunlight, as this may discolor the image sensor or
cause it to malfunction.
Protect the lens from fingerprints and scratches. Clean the lens with a soft, clean,
debris-free lens cloth.
The camera may turn off if struck or dropped. This is to protect the memory card.
Turn on the camera to use it again.
While you use the camera, it may heat up. This is normal and should not affect
your camera’s lifespan or performance.
When you use the camera in low temperatures, it may take some time to turn on,
the color of the display may be changed temporarily, or after-images may appear.
These conditions are not malfunctions and they will correct themselves when the
camera is returned to milder temperatures.
eczema, or swelling for people with sensitive skin. If you experience any of these
symptoms, stop using the camera immediately and consult a doctor.
• Do not insert foreign objects into any of your camera’s compartments, slots, or
access points. Damage due to improper use may not be covered by your warranty.
• Do not allow unqualified personnel to service the camera or attempt to service
the camera yourself. Any damage that results from unqualified service is not
covered by your warranty.
About memory cards
Supported memory cards
Your camera supports microSD (Secure Digital), microSDHC (Secure Digital High
Capacity), or microSDXC (Secure Digital eXtended Capacity) memory cards.
Memory card adapter
Memory card
To read data with a PC or memory card reader, insert the memory card into a
memory card adapter.
Appendixes 144
Camera maintenance
Video
Memory card capacity
The memory capacity may differ depending on the scenes you shoot or shooting
conditions. These capacities are based on a 2 GB microSD card:
Size
1920 X 1080
Size
Super Fine
Fine
Normal
219
432
640
245
483
715
288
567
836
341
669
984
418
817
1,196
638
1,228
1,777
1,006
1,897
2,692
1,329
2,461
3,437
2,508
4,359
5,780
1280 X 720
640 X 480
For Sharing
30 fps
Approx. 18' 03"
Approx. 25' 53"
Approx. 46' 12"
Approx. 257' 31"
The figures above are measured without using the zoom function. Available recording time
may vary if you use the zoom. Several videos were recorded in succession to determine the
total recording time.
Appendixes 145
Camera maintenance
• Prevent memory cards from making contact with liquids, dirt, or foreign
Cautions when using memory cards
• Avoid exposing memory cards to very cold or very hot temperatures (below
•
•
•
•
•
•
•
•
0 °C/32 °F or above 40 °C/104 °F). Extreme temperatures can cause memory cards
to malfunction.
Insert a memory card in the correct direction. Inserting a memory card in the
wrong direction may damage your camera and memory card.
Do not use memory cards that have been formatted by other cameras or by a
computer. Reformat the memory card with your camera.
Turn off the camera before you insert or remove the memory card.
Do not remove the memory card or turn off your camera while the lamp is
blinking, as this may damage your data.
When the lifespan of a memory card has expired, you cannot store any more
photos on the card. Use a new memory card.
Do not bend, drop, or subject memory cards to heavy impact or pressure.
Avoid using or storing memory cards near strong magnetic fields.
Avoid using or keeping memory cards in areas with high temperature, high
humidity, or corrosive substances.
•
•
•
•
substances. If dirty, wipe the memory card clean with a soft cloth before you
insert the memory card into your camera.
Do not allow liquids, dirt, or foreign substances to come in contact with memory
cards or the memory card slot. Doing so may cause memory cards or the camera
to malfunction.
When you carry a memory card, use a case to protect the card from electrostatic
discharges.
Transfer important data to other media, such as a hard disk, CD, or DVD.
When you use the camera for an extended period, the memory card may become
warm. This is normal and does not indicate a malfunction.
Appendixes 146
The manufacturer is not responsible for any loss of data.
Camera maintenance
About the battery
Battery life
Use only Samsung-approved batteries.
Average shooting time/
Number of photos
Battery specifications
Specification
Model
Description
SLB-10A
Type
Lithium-ion battery
1,030 mAh
3.7 V
Cell capacity
Voltage
Charging time* (when the camera is
switched off)
Test conditions
(when the battery is fully charged)
Photos
Approximately
155 min./
Approximately
310 photos
The battery life was measured under the
following conditions: in p Program mode, in
resolution, Fine quality, OIS on.
darkness,
1. Set the flash option to Fill in, take a single shot,
and zoom in or out.
2. Set the flash option to Off, take a single shot,
and zoom in or out.
3. Perform steps 1 and 2, waiting 30 seconds
between each step. Repeat the process for
5 minutes, and then turn off the camera for
1 minute.
4. Repeat steps 1 to 3.
Videos
Approximately
120 min.
Record videos at
Approximately 240 min.
* Charging the battery by connecting it to a computer may take longer.
resolution and 30 fps.
• The figures above are based on the CIPA test standards. Your results may differ depending
on your actual usage.
• Several videos were recorded in succession to determine the total recording time.
• When using network functions, the battery will be depleted more quickly.
Appendixes 147
Camera maintenance
Low battery message
Cautions about using the battery
When the battery has fully discharged, the battery icon will turn red and the
"Low Battery" message will appear.
Protect batteries, chargers, and memory cards from damage.
Prevent batteries from making contact with metal objects, as this can create a
connection between the + and – terminals of your battery and lead to temporary or
permanent battery damage and may cause a fire or electric shock.
Notes about using the battery
• Avoid exposing batteries to very cold or very hot temperatures (below 0 °C/32 °F
•
•
•
•
•
•
or above 40 °C/104 °F). Extreme temperatures can reduce the charging capacity of
your batteries.
When you use the camera for an extended period, the area around the battery
chamber may become warm. This does not affect the normal use of the camera.
Do not pull the power supply cord to disconnect the plug from the power outlet,
as this may cause a fire or electric shock.
In temperatures below 0 °C/32 °F, battery capacity and battery life may decrease.
Battery capacity may decrease in low temperatures, but will return to normal in
milder temperatures.
Remove the batteries from your camera when storing it for an extended period.
Installed batteries may leak or corrode over time and cause serious damage
to your camera. Storing the camera for extended periods with the battery
installed causes the battery to discharge. You may not be able to recharge a fully
discharged battery.
When you do not use the camera for an extended period (3 months or more),
check the battery and recharge it regularly. If you let the battery discharge
continually, its capacity and life may decrease, which can lead to a malfunction,
fire, or explosion.
Notes about charging the battery
• If the status lamp blinks in red, ensure that the battery is inserted correctly.
• If the camera is on while charging, the battery may not fully charge. Turn off the
camera before charging the battery.
• Do not use your camera when you are charging the battery. This may cause a fire
or electric shock.
• Do not pull the power supply cord to disconnect the plug from the power outlet,
as this may cause a fire or electric shock.
• When the battery is fully discharged, allow it to charge for a while before turning
the camera on. Let the battery charge for at least 10 minutes before turning on
the camera.
• If you connect the camera to an external power source when the battery is
depleted, using high energy-consuming functions will cause the camera to turn
off. To use the camera normally, recharge the battery.
Appendixes 148
Camera maintenance
• If you reconnect the power cable when the battery is fully charged, the status
•
•
•
•
•
lamp turns on for approximately 30 minutes.
Using the flash or recording videos depletes the battery quickly. Charge the
battery until the red status lamp turns off.
If the status lamp blinks in red, reconnect the cable, or remove the battery and
insert it again.
If you charge the battery when the cable is overheated or the temperature is too
high, the status lamp may blink in red. Charging will start when the battery cools
down.
Overcharging batteries may shorten battery life. After charging is finished,
disconnect the cable from your camera.
Do not bend or place heavy objects on the AC cable. Doing so may damage the
cable.
Notes about charging with a computer connected
• Use only the provided USB cable.
• The battery may not charge when:
- you use a USB hub
- other USB devices are connected to your computer
- you connect the cable to the port on the front side of your computer
- the USB port of your computer does not support the power output standard
(5 V, 500 mA)
Handle and dispose of batteries and chargers with care
• Never dispose of batteries in a fire. Follow all local regulations when you dispose
of used batteries.
• Never place batteries or cameras on or in heating devices, such as microwave
ovens, stoves, or radiators. Batteries may explode when they are overheated.
Appendixes 149
Camera maintenance
Personal injury or death can occur if the battery is handled carelessly
or improperly. For your safety, follow these instructions for proper
battery handling:
• The battery can ignite or explode if not handled properly.
If you notice any deformities, cracks, or other abnormalities in the
battery, immediately discontinue use of the battery and contact a
service center.
• Use only authentic, manufacturer-recommend battery chargers and
adapters and charge the battery only by the methods described in this
user manual.
• Do not place the battery near heating devices or expose it to
excessively warm environments, such as the inside of an enclosed car in
the summertime.
• Do not place the battery in a microwave oven.
• Avoid storing or using the battery in hot, humid places, such as spas or
shower enclosures.
• Do not rest the camera on flammable surfaces, such as bedding,
carpets, or electric blankets for a prolonged period.
• When the camera is switched on, do not leave it in any confined space
for a prolonged period.
• Do not allow battery terminals to come in contact with metallic objects,
such as necklaces, coins, keys, or watches.
• Use only authentic, manufacturer-recommended, Lithium-ion
replacement batteries.
Appendixes 150
• Do not disassemble the battery or puncture it with any sharp object.
• Avoid exposing the battery to high pressure or crushing forces.
• Avoid exposing the battery to major impacts, such as dropping it from
high places.
• Do not expose the battery to temperatures of 60 °C (140 °F) or above.
• Do not allow the battery to come in contact with moisture or liquids.
• Do not expose the battery to sources of excessive heat such as
sunshine, fire, or the like.
Disposal guidelines
• Dispose of the battery with care.
• Do not dispose of the battery in a fire.
• Disposal regulations may differ by country or region. Dispose of the
battery in accordance with all local and federal regulations.
Guidelines for charging the battery
Charge the battery only by the methods described in this user manual.
The battery can ignite or explode if not charged properly.
Before contacting a service center
If you are having trouble with your camera, try these troubleshooting procedures before you contact a service center. If you have attempted the suggested remedy and are still
having problems with your device, contact your local dealer or service center.
When you leave your camera at a service center, be sure to also leave the other components that may have contributed to the malfunction, such as the memory card and battery.
Situation
Cannot turn on the camera
Suggested remedies
•
•
•
The power turns off suddenly
•
•
The camera is losing battery
power quickly
Situation
• Ensure that the battery is inserted.
• Ensure that the battery is inserted correctly.
•
•
Suggested remedies
• There is no space on the memory card. Delete
unnecessary files or insert a new card.
(p. 19)
Charge the battery.
Charge the battery.
Your camera may be in Auto Power Off mode.
(p. 138)
The camera may turn off to prevent the
memory card from being damaged due to an
impact. Turn on your camera again.
The battery may lose power more quickly in
low temperatures (below 0 °C/32 °F). Keep the
battery warm by putting it into your pocket.
Using the flash or recording videos depletes the
battery quickly. Recharge if needed.
Batteries are consumable parts that must be
replaced over time. Get a new battery if the
battery life is diminishing quickly.
• The memory card is not initialized. Format the
memory card.
Cannot capture photos
• The memory card is defective. Get a new
memory card.
• Make sure that the camera is switched on.
• Charge the battery.
• Ensure that the battery is inserted correctly.
The camera freezes
The camera heats up
The flash does not work
Appendixes 151
The camera may freeze unexpectedly if it
malfunctions. Remove the battery and insert it
again.
While you use the camera, it may heat up. This
is normal and should not affect your camera’s
lifespan or performance.
• The flash option may be set to Off. (p. 66)
• You cannot use the flash in some modes.
Before contacting a service center
Situation
The flash fires unexpectedly
The date and time are
incorrect
The display or buttons do not
work
Suggested remedies
Situation
The flash may fire due to static electricity. The
camera is not malfunctioning.
Set the date and time in the display settings.
(p. 137)
If you change the name of a file, your camera may
not play the file (the name of the file should meet
Cannot play back files
the DCF standard). If you encounter this situation,
play back the files on your computer.
• Make sure that the focus option you set is
suitable for close-up shots. (p. 69)
• Make sure that the lens is clean. If not, clean the
The photo is blurry
lens. (p. 142)
• Make sure that the subject is within range of
the flash. (p. 155)
An incorrect White Balance can create unrealistic
The colors in the photo do not
color. Select the proper White Balance option to
match the actual scene
suit the light source. (p. 78)
Your photo is overexposed or underexposed.
The photo is too bright or too • Turn the flash off or on. (p. 66)
dark
• Adjust the ISO sensitivity. (p. 68)
• Adjust the exposure value. (p. 76)
Remove the battery and insert it again.
If you use your camera at very low temperatures,
it may cause the camera screen to malfunction
The camera display responds
or discolor. For better performance of your
poorly
camera screen, use your camera in moderate
temperatures.
• Turn off your camera, and then turn it on again.
• Remove your memory card, and then insert it
again.
The memory card has an error
• Format the memory card.
See "Cautions when using memory cards" for
more detail. (p. 146)
Appendixes 152
Suggested remedies
Before contacting a service center
Situation
Suggested remedies
Situation
• Make sure that the camera is correctly
The TV does not display your
photos
Your computer does not
recognize your camera
Your computer disconnects
the camera while transferring
files
Your computer cannot play
videos
connected to the TV with the A/V cable.
• Make sure that your memory card contains
photos.
• Make sure that the USB cable is connected
correctly.
• Make sure that the camera is switched on.
• Make sure that you are using a supported
operating system.
The file transmission may be interrupted by static
electricity. Disconnect the USB cable and connect
it again.
Videos may not play on some video player
programs. To play video files captured with your
camera, use the Multimedia Viewer program that
you can install with the i-Launcher program on
your computer.
Suggested remedies
• End i-Launcher and restart the program.
• Make sure that i-Launcher is set to On in the
settings menu. (p. 136)
• Depending on your computer’s specifications
i-Launcher is not functioning
properly
Your TV or computer
cannot display photos and
videos that are stored on a
microSDXC memory card.
Your computer does not
recognize a microSDXC
memory card.
Appendixes 153
and environment, the program may not launch
automatically. In this case, click Start →
All Programs → Samsung → i-Launcher →
Samsung i-Launcher on your Windows
computer. (For Windows 8, open Start
screen, and then select All apps → Samsung
i-Launcher.) Or, click Applications →
Samsung → i-Launcher on your Mac OS
computer.
microSDXC memory cards use the exFAT file
system. Ensure that the external device is
compatible with the exFAT file system before
connecting the camera to the device.
microSDXC memory cards use the exFAT file
system. To use microSDXC memory cards on a
Windows XP computer, download and update
the exFAT file system driver from the Microsoft
website.
Camera specifications
Image sensor
Type
1/2.3" (Approximately 7.77 mm) BSI CMOS
Effective pixels
Approximately 16.3 mega-pixels
Total pixels
Lens
Approximately 16.7 mega-pixels
Focal length
Samsung Lens 21x Zoom Lens f = 4.1–86.1 mm
(35 mm film equivalent: 23–483 mm)
F-stop range
F2.8 (W)–F5.9 (T)
Digital zoom
• Still image mode: 1.0–5.0X
• Playback mode: 1.0–9.4X (depending on image size)
• Intelli zoom: 2.0X
Display
Type
TFT LCD
Feature
Focusing
3.0" (75.0 mm) 460 K
Type
TTL auto focus (Center AF, Multi AF, Tracking AF,
Face Detection AF, Touch AF), Manual Focus,
Video continuous auto focus (CAF)
Normal (AF)
Range
Wide (W)
31 in. (80 cm)infinity
Macro
4–31 in. (10–80 cm)
Auto Macro
4 in. (10 cm)-infinity
Manual Focus
4 in. (10 cm)-infinity
Tele (T)
138 in. (350 cm)infinity
59–138 in.
(150–350 cm)
59 in. (150 cm)infinity
59 in. (150 cm)infinity
Shutter speed
•
•
•
•
Auto: 1/8–1/2,000 sec.
Program: 1–1/2,000 sec.
Night: 8–1/2,000 sec.
Manual: 16–1/2,000 sec.
Exposure
Control
Program AE, Aperture Priority AE, Shutter Priority AE,
Manual Exposure
Metering
Multi, Spot, Center-weighted, Face Detection
Metering range
EV 1–17 (Wide, ISO Auto), EV 3–17 (Tele, ISO Auto)
Compensation
±2EV (1/3 EV Step)
ISO equivalent
Auto, ISO 80, ISO 100, ISO 200, ISO 400, ISO 800, ISO 1600,
ISO 3200
Appendixes 154
Camera specifications
• Modes: Smart Scene Detection (Landscape, Blue Sky,
Flash
Mode
Auto, Red-eye, Fill in, Slow Sync, Off
Range
• Wide: 11.81–161.42 in. (0.3–4.1 m) (ISO Auto)
• Tele: 19.69–114.17 in. (0.5–2.9 m) (ISO Auto)
Recharging time
Approximately 4 sec.
Natural Green, Sunset), Magic Plus (Movie Filter)
• Size: 1920 X 1080 (30 fps), 1280 X 720 (30 fps),
Videos
Fish-eye, Classic, Retro, Palette Effect 1, Palette Effect 2,
Palette Effect 3, Palette Effect 4
Shake reduction
Playback
Optical Image Stabilization (OIS)
• Type: Single image, Thumbnails, Multi Slide Show with Effect
• Edit: Resize, Rotate, Smart Filter, Crop, Color (Image Adjust),
White Balance
Auto WB, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Color Temp.,
Custom Set
Portrait
Photos
Date Imprinting
Shooting
Photos
• Effect: Color (Image Adjust) (ACB, Brightness, Contrast,
Saturation), Portrait (Face Retouch), Smart Filter (Miniature,
Vignetting, Ink Painting, Oil Painting, Cartoon, Cross Filter,
Sketch, Soft Focus, Fish-eye, Classic, Retro, Zooming Shot)
Date & Time, Date, Off
• Modes: Smart Auto, Program, Aperture Priority, Shutter
640 X 480 (30 fps), 240 Web
• Movie Filter (Smart Filter): Miniature, Vignetting, Sketch,
Videos
Priority, Manual, Smart Mode, Selfie Alarm, Magic Plus
• Burst: Single, Continuous (3 fps, 7.1 fps), AE Bracket
• Timer: Off, 2 sec., 10 sec.
Appendixes 155
Video editing: Pause during recording, Still image capture,
Time trimming
Camera specifications
Storage
Wireless network
• Internal memory: Approximately 9.5 MB
• External memory (Optional): microSD card (2 GB
Media
File format
guaranteed), microSDHC card (up to 32 GB guaranteed),
microSDXC card (up to 64 GB guaranteed)
- Class 6 and above recommended
Internal memory capacity may not match these specifications.
• Still Image: JPEG (DCF), EXIF 2.21
• Movie Clip: MP4 (Video: MPEG-4.AVC/H.264, Audio: AAC)
Icon
Image size
MobileLink, Remote Viewfinder, Baby Monitor, SNS & Cloud, Email,
S/W Upgrade Notifier, Samsung Link, Auto Backup, AutoShare
Interface
Digital output
connector
USB 2.0
Audio input/
output
Internal speaker (Mono), Microphone (Mono)
Video output
A/V: NTSC, PAL (selectable)
Size
4608 X 3456
DC power input
connector
5.0 V
4608 X 3072
Power source
4608 X 2592
3648 X 2736
Rechargeable
battery
2832 X 2832
The power source may differ depending on your region.
2592 X 1944
1984 X 1488
1920 X 1080
1024 X 768
Appendixes 156
Lithium-ion battery (SLB-10A, 1,030 mAh)
Camera specifications
Dimensions (W X H X D)
4.47 X 2.56 X 1.42 in. (113.6 X 65.1 X 36 mm)
Weight
Approx. 7.62 oz (216 g)
Operating Temperature
0–40 °C (32–104 °F)
Operating Humidity
5–85 %
Software
i-Launcher
Specifications may change without notice to improve performance.
Appendixes 157
Glossary
ACB (Auto Contrast Balance)
This feature automatically improves the contrast of your images when the subject is
backlit or when there is a high contrast between your subject and the background.
Composition
Composition in photography means arranging objects in a photo. Usually, abiding
by the rule of thirds leads to a good composition.
AEB (Auto Exposure Bracket)
This feature automatically captures several images at different exposures to help
you capture a properly-exposed image.
DCF (Design rule for Camera File system)
A specification to define a file format and file system for digital cameras created by
the Japan Electronics and Information Technology Industries Association (JEITA).
AF (Auto Focus)
A system that automatically focuses the camera lens on the subject. Your camera
uses the contrast to focus automatically.
Depth of field
The distance between the nearest and farthest points that can be acceptably
focused in a photograph. Depth of field varies with lens aperture, focal length, and
distance from the camera to the subject. For example, using a smaller f-number will
create a large depth of field and blur the background in the composition.
Aperture
The aperture controls the amount of light that reaches the camera’s sensor.
Camera shake (Blur)
If the camera is moved while the shutter is open, the entire image may appear
blurred. This occurs more often when the shutter speed is slow. Prevent camera
shake by raising the sensitivity, using the flash, or using a faster shutter speed.
Alternately, use a tripod, the DIS or OIS function to stabilize the camera.
Digital zoom
A feature that artificially increases the amount of zoom available with a zoom lens
(Optical zoom). When using the Digital zoom, the image quality will deteriorate as
the magnification increases.
Appendixes 158
Glossary
EV Compensation
This feature allows you to quickly adjust the exposure value measured by the
camera, in limited increments, to improve the exposure of your photos. Set the EV
compensation to -1.0 EV to adjust the value one step darker and 1.0 EV to one step
brighter.
EV (Exposure Value)
All the combinations of the camera’s shutter speed and lens aperture that result in
the same exposure.
Exif (Exchangeable Image File Format)
A specification to define an image file format for digital cameras created by the
Japan Electronic Industries Development Association (JEIDA).
Exposure
The amount of light allowed to reach the camera’s sensor. Exposure is controlled by
a combination of the shutter speed, the aperture value, and ISO sensitivity.
Flash
A speed light that helps to create adequate exposure in low-light conditions.
Focal length
The distance from the middle of the lens to its focal point (in millimeters). Longer
focal lengths result in narrower angles of view and the subject is magnified. Shorter
focal lengths result in wider angles of view.
Histogram
A graphical representation of the brightness of an image. The horizontal axis
represents the brightness and the vertical axis represents the number of pixels. High
points at the left (too dark) and right (too bright) on the histogram indicate a photo
that is improperly exposed.
H.264/MPEG-4
A high-compression video format established by international standard
organizations ISO-IEC and ITU-T and developed by the Joint Video Team (JVT). This
codec is capable of providing good video quality at low bit rates.
Appendixes 159
Glossary
Image sensor
The physical part of a digital camera that contains a photosite for each pixel in
the image. Each photosite records the brightness of the light that strikes it during
an exposure. Common sensor types are CCD (Charge-coupled Device) and CMOS
(Complementary Metal Oxide Semiconductor).
ISO sensitivity
The sensitivity of the camera to light, based on the equivalent film speed used in
a film camera. At higher ISO sensitivity settings, the camera uses a higher shutter
speed, which can reduce blur caused by camera shake and low light. However,
images with high sensitivity are more susceptible to noise.
JPEG (Joint Photographic Experts Group)
A lossy method of compression for digital images. JPEG images are compressed to
reduce their overall file size with minimal deterioration of the image resolution.
LCD (Liquid Crystal Display)
A visual display commonly used in consumer electronics. This display needs a
separate backlight, such as CCFL or LED, to reproduce colors.
Macro
This feature allows you to capture close-up photos of very small objects. When
using the macro feature, the camera can maintain a sharp focus on small objects at
a near life-size ratio (1:1).
Metering
The metering refers to the way in which the camera measures the quantity of light
to set the exposure.
MJPEG (Motion JPEG)
A video format which is compressed as a JPEG image.
NFC (Near Field Communication)
NFC is a set of standards for radio communication at very close proximity.
You can use NFC-enabled devices to activate features or exchange data with other
devices.
Noise
Misinterpreted pixels in a digital image that may appear as misplaced or random,
bright pixels. Noise usually occurs when photos are shot with a high sensitivity or
when a sensitivity is automatically set in a dark place.
OIS (Optical Image Stabilization)
This feature compensates in real time for shaking and vibrating while shooting.
There is no image degradation compared to Digital Image Stabilization feature.
Appendixes 160
Glossary
Optical zoom
This is a general zoom which can enlarge images with a lens and does not degrade
the quality of images.
Quality
An expression of the rate of compression used in a digital image. Higher quality
images have a lower rate of compression, which usually results in a larger file size.
Resolution
The number of pixels present in a digital image. High resolution images contain
more pixels and typically show more detail than low resolution images.
Vignetting
A reduction of an image’s brightness or saturation at the periphery (outer edges)
compared to the center of the image. Vignetting can draw interest to subjects
positioned in the center of an image.
White balance (color balance)
An adjustment of the intensities of colors (typically the primary colors red, green,
and blue) in an image. The goal of adjusting the white balance, or color balance, is
to correctly render the colors in an image.
Shutter speed
Shutter speed refers to the amount of time it takes to open and close the shutter,
and it is an important factor in the brightness of a photo, as it controls the amount
of light which passes through the aperture before it reaches the image sensor. A
fast shutter speed allows less time to let light in and the photo becomes darker and
more easily freezes subjects in motion.
Appendixes 161
Correct disposal of batteries in this product
(Applicable in countries with separate collection systems)
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories, or literature indicates that the product
and its electronic accessories (e.g. charger, headset, USB cable) should not be
disposed of with other household waste at the end of their working life. To prevent
possible harm to the environment or human health from uncontrolled waste
disposal, please separate these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product or their local government office for details of where and how they can take
these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product and its electronic accessories should not be
mixed with other commercial wastes for disposal.
This marking on the battery, manual, or packaging indicates that the batteries in
this product should not be disposed of with other household waste at the end of
their working life. Where marked, the chemical symbols Hg, Cd, or Pb indicate that
the battery contains mercury, cadmium, or lead above the reference levels in EC
Directive 2006/66. If batteries are not properly disposed of, these substances can
cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate
batteries from other types of waste and recycle them through your local, free
battery return system.
This product is RoHS compliant.
PlanetFirst represents Samsung Electronics’ commitment to
sustainable development and social responsibility through ecodriven business and management activities.
Appendixes 162
Index
Cleaning
A
B
AF-assist light
Baby Monitor 121
Location 16
Settings 138
Battery
Caution 148
Charging 20
Inserting 19
AF Sound 135
Aperture Priority mode 43
Aperture value 42
Playback mode 97
Shooting mode 77
AutoShare 116
A/V port 16
Editing photos 95
Editing videos
Capturing 99
Trimming 99
102
Contrast
Playback mode 97
Shooting mode 83
Playback mode 97
Shooting mode 76
D
C
Date/Time Set 137
Camera maintenance 142
Deleting files 90
Camera specifications 154
Capturing an image from video 99
Charging 20
E
Connecting to your Mac computer
Brightness
Auto Backup 123
Auto Contrast Balance (ACB)
Camera body 142
Display 142
Lens 142
Digital zoom 33
DIRECT LINK button 18
Disconnecting the camera 102
Display brightness 136
Display type 30
Appendixes 163
Enlarging 92
Error messages 141
Exposure 76
F
Face Detection 74
Flash
Auto 66
Fill in 66
Off 66
Red-eye 66
Slow Sync 67
Index
Focus area
Center AF 71
Multi AF 71
Formatting 138
Function button 18
L
Icons
Language settings 137
Playback mode 87
Shooting mode 23
Image Adjustment
Brightness
G
Memory card
I
Playback mode 97
Shooting mode 76
Guide Line 135
Contrast
H
Saturation
Half-press shutter 36
Playback mode 97
Shooting mode 83
Sharpness 83
Playback mode 97
Shooting mode 83
Imprint 138
Intelli zoom 34
ISO sensitivity 68
M
Macro
Auto Macro 70
Macro 70
Manual Focus 70
Normal (AF) 70
Magic Plus mode
Color Brush 58
Effect Artist 56
Motion Photo 53
Movie Filter 55
My Magic Frame 51
Photo Filter 54
Manual mode 45
Appendixes 164
Caution 146
Insert 19
Menu button 18
Metering
Center-weighted 77
Multi 77
Spot 77
MobileLink 117
Mode dial 16
Movie mode 60
N
NFC (Tag & Go) 115
Index
O
Q
S
Shutter button 16
One touch shooting 73
Quick view 136
Samsung Link 130
Shutter Priority mode 44
Saturation
Slide show 93
Open source license 139
Optical Image Stabilization (OIS) 35
Optional accessories 15
P
Panorama mode 48
Playback button 18
Playback mode 87
Power button 16
R
Remote Viewfinder 119
Playback mode 97
Shooting mode 83
Reset 139
Selfie Alarm mode 50
Resolution
Self portrait 74
Playback mode 95
Shooting mode 63
Retouching faces 98
Rotating 95
Service center 151
Settings 137
Sharing service
Accessing 128
Uploading photos or videos 128
Smart Auto mode 39
Smart Filter
Photo shooting mode 54
Playback mode 96
Video recording mode 55
Smart mode 46
Smart Scene Detection mode 61
Smile Shot 75
Sound settings 31
Power save mode 136
Sharpness 83
Start image 135
Program mode 41
Shooting portraits
Status lamp 17
Protecting files 90
Face Detection 74
Self portrait 74
Smile Shot 75
Appendixes 165
Index
T
U
W
Thumbnails 89
Unpacking 15
White Balance 78
Timer 82
USB port 16
Wireless network 111
V
Z
Time settings 21, 137
Time zone settings 21, 137
Touch screen
Dragging 28
Flicking 28
Touching 28
Tracking AF 72
Transferring files
Auto Backup 123
Email 125
Mac 102
Windows 101
Tripod mount 16
Video
Playback mode 94
Shooting mode 60
Video out 136
Zoom
Using the zoom 33
Zoom button 17
Zoom sound settings 84
Viewing files
Animated photos 94
Category 89
Folder 88
Panoramic photos 93
Slide show 93
Thumbnails 89
TV 100
Appendixes 166
Please refer to the warranty that came with your product or
visit our website, www.samsung.com, for after-sales service or inquiries.

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
