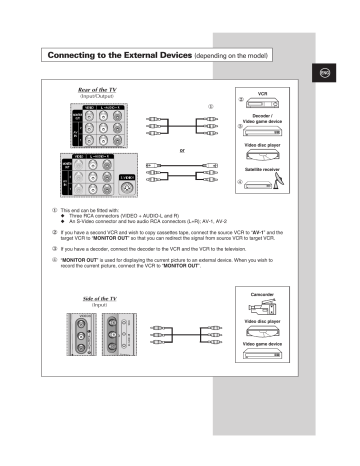

Connecting to the External Devices (depending on the model)
ENG
Rear of the TV
(Input/Output)
①
VCR
②
Decoder /
Video game device
③
Video disc player
or
Satellite receiver
➃
① This end can be fitted with:
◆ Three RCA connectors (VIDEO + AUDIO-L and R)
◆ An S-Video connector and two audio RCA connectors (L+R); AV-1, AV-2
② If you have a second VCR and wish to copy cassettes tape, connect the source VCR to “AV-1” and the
target VCR to “MONITOR OUT” so that you can redirect the signal from source VCR to target VCR.
③ If you have a decoder, connect the decoder to the VCR and the VCR to the television.
➃ “MONITOR OUT” is used for displaying the current picture to an external device. When you wish to
record the current picture, connect the VCR to “MONITOR OUT”.
Side of the TV
(Input)
Camcorder
Video disc player
Video game device
Connecting to the S-Video Input (depending on the model)
ENG
The “S-VIDEO” and RCA (AUDIO-L/R) connectors are used for equipment with an S-Video output, such as
a camcorder or VCR.
Rear of the TV
①
and
Camcorder
Side of the TV
VCR
and
① To play pictures and sound, both the S-VIDEO and RCA connectors must be used.
Connecting to the Audio Outputs
ENG
The “AUDIO OUT” connectors are used for equipment, such as an audio system or external amplifier
(to take full advantage of the Surround sound effect).
Rear of the TV
Audio System/
External Amplifier
Connecting to the Component Input
ENG
Rear of the TV
DVD
①
②
DTV receiver
① The “COMPONENT 1” connectors are used for equipment with a DVD output.
(480i, 480p, 576i, 576p, 720p,1080i)
② The “COMPONENT 2” connectors are used for DTV receiver. (480p, 576p, 720p, 1080i)
Connecting to the DVI Input (depending on the model)
ENG
The DVI IN and RCA (AUDIO-L/R) connectors are used for equipment with a DVI output.
Rear of the TV
DTV receiver
and
Personal Computer
Connecting to the PC Input
ENG
Rear of the TV
The “PC IN” and “AUDIO-L/R” (PC IN-RCA) connectors are
used for interfacing with your PC.
Personal Computer
and
①
①
① The “PC OUT” and “AUDIO-L/R” (PC OUT-RCA) connectors are used for some other computer
device, such as a multi-media PC monitor.
Setting up Your PC Software (Windows only)
The Windows display-settings for a typical computer are shown below. But the actual screens on your PC will
probably be different, depending upon your particular version of Windows and your particular video card.
But even if your actual screens look different, the same, basic set-up information will apply in almost all cases.
(If not, contact your computer manufacturer or Samsung Dealer.)
First, click on Settings on the Windows start menu.
While Settings is highlighted, move the cursor so that Control
Panel is highlighted.
When the control panel screen appears, click on Display and a
display dialog-box will appear.
Navigate to the Settings tab on the display dialog-box.
The correct setting of size (resolution) is 1024 x 768 pixels.
If a vertical-frequency option exists on your display settings
dialog box, the correct value is 60 Hz. Otherwise, just click OK
and exit the dialog box.
PC Input Mode
ENG
Both screen position and size will vary depending on the type of PC monitor and its resolution.
The table below shows all of the display modes that are supported:
Mode
VGA
SVGA
XGA
Resolution
Vertical frequency (Hz)
640 x 480
60.00
640 x 480
75.00
800 x 600
60.00
800 x 600
75.00
1024 x 768
60.00
1024 x 768
75.00
◆ The interlace mode is not supported.
◆ The television might operate abnormally if a non-standard video format is selected.
Notes
◆ When this television is used as a PC display, 32-bit color is supported (over 16 million colors).
◆ Your PC display screen might appear different depending on the manufacturer (and your particular version of
Windows). Check your PC instruction book for information about connecting your PC to a television.
◆ If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5kHz (horizontal).
In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned
off (or if the PC is disconnected). If so, press the SOURCE (
) button to enter the Video mode. Also, make
sure that the PC is connected.
◆ When horizontal synchronous signals seem irregular in PC mode, check PC power saving mode or cable
connections.
◆ Same modes as PC are supported for the signal input to the DVI jack. Only a separate sync signal is
supported.
