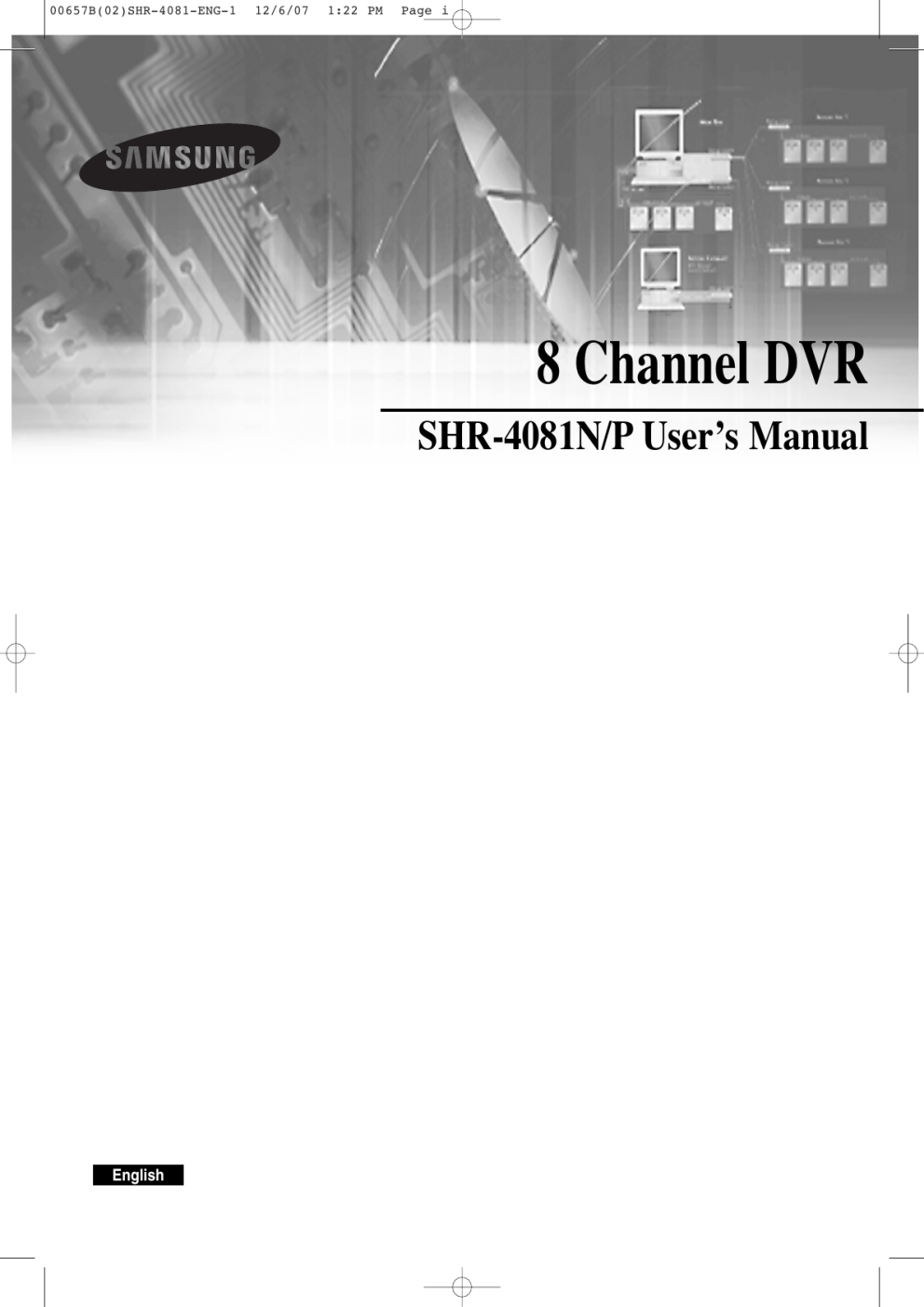

8 Channel DVR
SHR-4081N/P User’s Manual
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page ii
SHR-4081N/P USER’S MANUAL
Safety Regulations
Please be sure to keep the following in mind for the right use of the product to
pre-vent proprietary risk or damage.
■
Do not use multiple plugs at once.
●
■
Do not put a vase, flowerpot, cup, cosmetics, medicine, or vessel
with water around you.
●
■
This may cause fire.
Do not disassemble, repair, or remodel the product.
●
■
This may cause abnormal operation due to high temperature.
Keep the product off direct ray of light or heat from the heating
device
●
■
This may cause breakdown.
Secure sufficient ventilation.
●
■
This may cause fire.
Keep the surrounding temperature between 0˚C to 40˚C and keep the
product off humidity.
●
■
This may cause fire or electric shock.
Do not put metals(coin, hair pin, metal piece, etc.) or inflammable
materials(match, paper, etc.) in the ventilation hole.
●
■
This imperfect connection may cause fire.
Keep the product off humidity, dust, or soot.
●
■
This may cause electric shock.
Insert the power plug firmly enough not to shake.
●
■
This may cause fire.
Do not touch the power plug with wet hands.
●
■
This may cause fire.
Do not bend the power cord forcibly nor put a heavy material on it.
●
■
This may cause abnormal heat generation or fire
This may cause fire, electric shock, or injury due to abnormal operation.
Do not pull out the power cord.
This may destroy the power cord, eventually, cause fire or
electric shock.
●
■
Plug out in the event of thunder or lightning.
●
■
Keep your children off the battery after you take it out of the product.
They tend to swallow it unconsciously.
●
■
English
If your children swallow it, please see the doctor immediately.
Install the product at a safe place or attach the product to the wall or
ceiling with a stand firmly enough not to fall to the ground.
●
ii
This may cause fire.
This may injure people.
00657B(02)SHR-4081-ENG-1
7/4/07
9:19 AM
Page iii
Before we start
This User’s Manual describes the basic usage of SHR-4081N/P. This Manual contains all the matters
necessary for using SHR-4081N/P such as brief instruction, part name, function, connecting other
equipment, and menu setup of SHR-4081N/P.
- SEC retains the copyright on this User’s Manual.
- This User’s Manual cannot be copied without SEC’s prior written approval.
- We are not liable for any or all losses to the product incurred by your use of non-standard
product or violation of User’s Manual.
- If you want to open the system case to touch the inside, please consult with an expert who works
for the shop where you bought the product.
- You may download open source codes from the following website.
(See CCTV Part of http://www.samsung.com)
- Before installing any external device such as external memory or HDD, please check the
compatibility of the device with Samsung DVR. The list of the compatible devices with
Samsung DVR can be obtained from your vendor.
- Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such
as vases, shall be placed on the apparatus.
- The Mains plug is used as a disconnect device and shall stay readily operable at any time.
WARNING
[Battery]
If the batteries for the SHR-4081N/P products are replaced incorrectly, there will be explosion
risks. Please use the same batteries used in the SHR-4081N/P products.
The battery specification is as follows.
-Normal Voltage : 3V
CALIFORNIA USA ONLY
-Normal Capacity : 170mAh
This Perchlorate warning applies only to primary CR (Manganese Dioxide)
-Continuous Standard Load : 0.2mA Lithium coin cells in the product sold or distributed ONLY in California USA
-Operating Temperature : -20˚C ~ +85˚C “Perchlorate Material - special handling may apply,
(-4˚F ~ +185˚F) See www.dtsc.ca.gov/hazardouswaste/perchlorate.”
[System Shutdown]
- Power-off without terminating the system in the System Shutdown menu may incur improper
motion like data loss and disk failure. Power-off shall be done in the System Shutdown menu.
Abruptly disconnecting the power supply during a normal operation of this product may
damage the HDD and the product. Also it can cause a dysfunction to the hard disk while
using the product.
The safest way to disconnect the power is to end the power by running the “Power Exit”
from the system menu. To prevent the product from any damage caused by a sudden power
shortage and so forth, install a separate UPS system for a stable operation.
(Please contact your UPS vendor for questions related to UPS.)
[Operation Temperature]
The guaranteed operation temperature of the device is from 0˚C ~ 40˚C (32˚F ~ 104˚F).
The device may not operate when it is used immediately after having been stored below the
guaranteed temperature for a long period of time When the device has been stored under a low
temperature for a long time, please store it under an ambient temperature for a certain period of
time before operating it. Especially since the guaranteed temperature for the HDD installed
inside is from 5˚C ~ 55˚C (41˚F ~ 131˚F), it might not operate under a low temperature.
Standards Approvals
Note : This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance whit the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
English
iii
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page iv
Contents
ii
Safety Regulations
iii
Before we start
1
Chapter 1 Overview
1-1
1. Introduction
1-2
2. Features
1-3
3. Part Names and Functions
2
Chapter 2 Installation
2-1
1. Installation Environment Setup
2-3
2. Checking Product & Accessories
2-4
3. Additional HDD Installation
3
Chapter 3 Connecting with Other
Equipment
3-1
1. Connecting Video, Audio, & Monitor
3-2
2. Connecting Network
3-3
3. Connecting IEEE1394 Device
3-5
4. Connecting USB Device
3-6
5. Connecting Alarm Input/Output
3-8
6. Connecting RS-485 Device
4
Chapter 4 Live
4-1
1. System Motion
4-2
2. Live Screen Mode
4-5
3. Live Channel Selection and Audio On/Off
Setup
iv
English
4-6
4. Freeze and Zoom
4-7
5. Event Monitoring
4-8
6. Spot-out Monitoring
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
5
Page v
Chapter 5 Menu Setup
5-1
Before Use
5-2
1. System
5-12
2. Camera
5-16
3. Monitoring
5-18
4. Record Mode
5-19
5. Event Record Mode
5-24
6. Record Schedule
5-26
7. Backup
5-28
8. Network
5-32
9. Network Setup
6
Chapter 6 PTZ Device Control
6-1
1. PTZ Device Control Mode
6-3
2. Basic Operation of PAN, TILT, & ZOOM
6-4
3. PRESET Setup
6-6
4. Camera Menu Setup
6-7
5. Preset View
6-8
6. Other Views
7
Chapter 7 Recording
7-1
1. PANIC (Emergency Recording)
7-2
2. REC (Normal Recording)
7-3
3. Record Schedule
7-4
4. Event Recording
8
Chapter 8 Search & Play
8-1
Before Use
8-2
1. Calendar Search
8-3
2. Event Search
8-4
3. Date/Time Search
8-5
4. Go to First Search
8-6
5. Go to Last Search
8-7
6. Play
English
v
00657B(02)SHR-4081-ENG-1
7/4/07
9:30 AM
9
Page vi
Chapter 9 Backup and Backup Search
9-1
1. Backup
9-4
2. Backup Search
10
Chapter 10 Smart Viewer
10-1
1. Introduction
10-2
2. Feature
10-3
3. PC Specification(Recommendation)
10-4
4. Smart Viewer Installation
10-7
5. Smart Viewer Program Execution
10-8
6. Smart Viewer Initial Screen
10-9
7. Monitoring Mode
10-23
8. Search Mode
10-30
9. SETUP MODE
11
Chapter 11 Smart Backup Viewer
11-1
1. Introduction
11-2
2. Features
11-3
3. PC Specification(Recommendation)
11-4
4. Smart Backup Viewer Installation
11-8
5. Executing Smart Backup Viewer Program
11-9
6. Initial Screen of Smart Backup Viewer
11-10
12
7. Using Smart Backup Viewer
Appendix
12-1
1. Product Specification
12-4
2. Outline Drawing
12-5
3. Factory Default
12-8
4. SHR-4081N/P Smart Viewer Play Frame Specification
12-10
5. Troubleshooting(FAQ)
12-13
6. OPEN SOURCE LICENSE REPORT ON THE
PRODUCT
vi
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 1
Chapter 1
Overview
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 1-1
SHR-4081N/P USER’S MANUAL
1
Introduction
The Digital Video Recorder(DVR) compresses the camera input data from 8
channels into a MPEG4 video file and the voice input data into a G.726 audio file
respectively to record them in the Hard Disk or retrieve them from the Hard Disk
simultaneously.
In addition, it transmits the video or audio file out through a network on real time basis
so that you can monitor either file remotely by your PC.
1-1
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 1-2
2
Features
■
8 CH Composite Input Connectors
■
NTSC/PAL Video Source Compatible
■
Able to record the CIF size (NTSC : 352 x 240 / PAL : 352 x 288) video image at
the speed of 240ips(NTSC) / 300ips(PAL)
■
8 CH Loop Through Video Connectors
■
Hard Disk Overwrite Mode
■
Large quantity HDD backup function by using IEEE1394 and USB2.0, USB2.0
Memory, Backup function by using an external CD/DVD writer.
■
Able to record, play, and transmit both audio and video files to Windows Network
Viewer(Smart Viewer) simultaneously
■
Able to reacord and replay 8 channels of Audio
■
Variable Search Mode (Time/Date, Event, Camera)
■
Variable Recording Mode (Time Lapse, Event, Schedule, Emergency)
■
Extended Hard Disk Connection (IEEE1394, USB2.0)
■
Alarm Interface (Input : 8, Output : 4, Reset : 1)
■
Remote Monitoring by Windows Network Viewer(Smart Viewer)
English
1-2
00657B(02)SHR-4081-ENG-1
8/8/07
10:12 AM
Page 1-3
SHR-4081N/P USER’S MANUAL
3
Part Names and Functions
Cover image is not shown for button description.
Name
No
Power LED
Network LED
Displays both network connection and data transmission conditions.
Backup LED
Displays Backup Mode.
HDD Access
LED
Indicates Normal Access to HDD.
Upon Access to HDD, LED repeats on and off.
...
Channel Button
Selects Single Channel in the Display Mode.
Used for Number Input Button in the Number Input Mode.
9
Audio Setup
Button
1
1
2
Function
Displays power on/off condition.
8
3
Audio On/Off setup during play mode.
9 Displays Split Screen.
4 Displays Split Screen.
6 Displays Split Screen.
MODE
4
MODE
5
Split Screen
Selection
Button
Display
Mode
7 Displays Split Screen.
8 Displays Split Screen.
Displays PIP(Picture In Picture)
Screen.
Screen change Mode :
Enters Single Channel Screen
by the time set in MENU.
Mode Selection
Search
Button
4 Displays Split Screen.
Displays the selected channel
in Full Screen.
Displays both LIVE Channel and
Play Channel in PIP Screen
simultaneously.
9 Displays Split Screen.
REC Button
6
REC
1-3
English
Recording starts as set in the Normal Record Mode
while LED is on.
00657B(02)SHR-4081-ENG-1
12/6/07
8:22 PM
No
Page 1-4
Name
PANIC Button
7
PANIC
8
REC LOCK KEY
9
REC LOCK
Button
ZOOM Button
Function
Video/Audio, set to the system, is recorded to 15
ips(NTSC)/ 12.5 ips(PAL).
The image quality of video recording is very high and
its size is CIF.
Locks the REC key motion.
Sets up Digital Zoom(x2).
ZOOM
PTZ
PTZ Button
10
Performs the TELE, WIDE, PRESET, and VIEW function by pressing the PTZ button.
FREEZE
11
TELE
FREEZE(TELE)
Button
Performs the FREEZE function in the DISPLAY Mode.
Performs the TELE function by pressing the PTZ.
ALARM(WIDE)
Button
Turns off the alarm LED and stops the sound when an alarm is
issued. Alarm icon disappears when the alarm button is used.
Performs the WIDE function by pressing the PTZ.
SEARCH (VIEW)
Button
Indicates the Search method.
Performs the VIEW setup function by pressing the PTZ.
ALARM
12
WIDE
SEARCH
13
VIEW
MENU
14
PRESET
MENU(PRESET)
Button
Direction
Control Button
15
Displays the system setup menu or enters an upper menu.
Performs the PRESET setup function by pressing the PTZ.
➛
œ
❿
❷
Changes or edits the left setup value for the
detailed menu item setup.
Moves the cursor up in a menu or increases the
setup value for the detailed menu item setup.
Changes or edits the right setup value for the
detailed menu item setup.
Moves the cursor down in a menu or decreases
the setup value for the detailed menu item
setup.
➛
Acts as the Enter key for the menu setup.
16
Fast
Reverse
17
STOP
18
Search
Function Key
19
20
JOG
21
SHUTTLE
USB Port
PLAY/PAUSE
Views the fast rewinding search screen.
Stops file searching.
Toggles during playback to activate
PLAY/PAUSE or PLAY.
Fast
Forward
Views the fast forwarding search screen.
Jog/
Shuttle
Jog : Used for the Forward/Reverse
Frame search.
Shuttle : Performs the Play/Reverse Play
/FF/REW function.
A port to connect the USB type device.
English
1-4
00657B(02)SHR-4081-ENG-1
8/7/07
1:56 PM
Page 1-5
SHR-4081N/P USER’S MANUAL
Caution
Do not play DVR on the carpet or other soft material to prevent clogging of the air
ventilator.
To play DVR on the cabinet or rack, be sure to check the ventilation condition.
1-5
English
No
Name
Function
1
VIDEO IN
2
THROUGH
You may use THROUGH port to transmit a video
signal to the other video equipment.
3
AUDIO IN
Audio Signal Input Port (RCA Jack)
4
SPOT
5
VIDEO OUT
Composite Video Signal Output Port (BNC Style
Connector)
6
AUDIO OUT
Audio Signal Output Port (RCA Jack)
7
VGA
8
S-VIDEO
9
NETWORK
10
IEEE1394
11
ALARM
- ALARM IN 1~8 : Alarm Input Port
- ALARM RESET IN : Alarm Reset Port
- ALARM OUT1~4 : Alarm Output Port
- TX+, TX-, RX+, RX- : RS-485 Communication
Port
12
AC-IN
Supports the AC110-220V(NTSC) power socket.
13
USB
Composite Video Signal Input Port (BNC Style
Connector)
SPOT Out Output Port (BNC Style Connector)
VGA Video Signal Output Port
S-VIDEO Video Signal Output Port
Network Connection Port
IEEE1394 Type Device Connection Port
A port to connect the USB type device.
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 1-6
Chapter 2
Installation
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 2-1
SHR-4081N/P USER’S MANUAL
1
Installation Environment Setup
Do not play DVR on the carpet or other soft material to prevent clogging of the air
ventilator. To play DVR on the cabinet or rack, be sure to check the ventilation
condition.
You shall pay attention to the following before you use the product.
1. Do not use it outdoor.
2. Do not let water or liquid in the connection part or the product itself.
3. Do not impose excessive shock or force.
4. Do not pull out the power plug unreasonably.
5. Do not disassemble the product on your own.
6. Do not exceed the rated input or output range.
7. Use certified power cord only.
8. Match a product with an input ground with a power cord with a ground.
Samsung Digital Video Recorder (hereafter “DVR”) is a high-tech security equipment
that contains a high-capacity HDD and top-notch circuits. High temperature inside or
outside of the product may cause reduced life and deteriorated performance
(see graph 1 below), leading to a malfunction. So please follow the instructions below
to proceed with the installation.
Temperature
(Unit:°C)
One Year:24 HR X 365 DAY = 8,760 HR
Life (Unit:HOURS)
<Graph 1 : Correlation between temperature and product life>
2-1
English
00657B(02)SHR-4081-ENG-1
7/4/07
9:32 AM
Page 2-2
<Instructions for the rack mounting of Samsung DVR>
1. The rack on which the DVR is mounted should not be sealed off.
2. And it also can allow air circulation through the vent.
3. As in the figure to the right, we recommend the product should be stacked up with other
DVRs or rack-mounting devices at a certain space or you install a vent system to
accommodate airflow.
4. For forming a natural convection, the air intake hole should be positioned at the bottom and
the emission at the top.
5. We recommend you install each of the air intake and emission holes with a fan motor for
sufficient airflow.
(The air intake fan should be equipped with a filter to block dust and other impurities from
inflow.)
6. The temperature inside the rack and around the DVR should stay between 0°C ~ 40°C
(32°F ~ 104°F).
English
2-2
00657B(02)SHR-4081-ENG-1
8/7/07
1:59 PM
Page 2-3
SHR-4081N/P USER’S MANUAL
2
Checking Product & Accessories
Upon delivery of a product, you shall unwrap the product and put it on the even floor
or where you want to use it. Then you shall check if the following items are in it.
Main Body
■ User’s Manual
■ One Power Cord
■ Two Brackets
- Brackets are used to attach the product to the rack.
■ Smart Viewer Software CD (Incl. PDF Manual)
■ 12 Screw Specials
- Please keep screw specials well to be used for HDD addition.
■ 2 EA of RS-485/Alarm Terminal Block
■
Main Body
CD
Bracket
Screw
RS-485/Alarm
Terminal Block
Power Cord
User’s Manual
2-3
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 2-4
SHR-4081N/P USER’S MANUAL
3
Additional HDD Installation
Caution
[Checking HDD Data]
Please, pay attention to Following information to minimize the chance of losing HDD data.
- Remember that you should protect HDD from any impact or misuse as this may cause damaged.
- The Manufacturer is not responsible for missing data or defects caused by the user’s mishandling.
Note: Adding Extra HDD. Check in advance that the HDD is compatible with the manufacturer’s DVR.
Examples that can cause loss of data or damage HDD.
- Any outside Impact on the case which could happen whilst disassembling or setting up the DVR.
- Power cut or incorrect shutdown whilst the DVR is operating.
- Refer to page 5-11 : how to turn off DVR
- Moving or causing any impact on the DVR during operation. Please, back up events as soon as possible to minimize
disappointment should HDD data be lost.
You may add up to 3 more HDDs to the product.
However, since the product contains has many parts which may incur electric shock,
accident, or product breakdown and improper installation or setup may disturb HDD
recognition or normal product operation, you shall consult with an expert of the
agency where you bought the product.
[Caution for HDD Addition]
■
■
■
■
Do not let the cable stuck improperly nor uncoated. (This may cause breakdown or fire.)
Be careful not to cut yourself by sharp edges of the product.
Be careful not to miss the disassembled screws or parts. Imperfect assembly due
to short of screws or parts may cause breakdown or malfunctioning.
Check the compatibility list of HDDs before installing additional HDDs. The list of
the compatible devices with Samsung DVR can be obtained from your vendor.
[Setting the Jumper]
The jumper setting method is illustrated on the surface of the purchased HDD.
Using SAMSUNG hard disk, the jumper setting method is as follows:
• HDD jumper for Primary Master
and Primary Slave.
• Jumper setting for Secondary Master
and Sencondary Slave.
English
2-4
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 2-5
SHR-4081N/P USER’S MANUAL
[HDD Addition Procedure]
1. Loosen screws on both sides(5 points) and back(1 point) to detach the product cover.
2.Detach the cover from the product. (Pull out the cover slightly and lift from the back
side to detach.)
3. A bracket is fixed to each side of HDD. Please loosen the screw of the bracket to
which you want to fix HDD.
BRACKET-HDD
2-5
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 2-6
SHR-4081N/P USER’S MANUAL
4.Pull BRACKET-HDD to the product center to detach the fixed part at the bottom to
detach BRACKET-HDD from the product.
5.Tighten 4 SCREW-SPECIALs(BWH,6-32UNC,L10.5), supplied as an accessory to
fix HDD to BRACKET-HDD. (Screw tighten force shall be strong enough to resist
vibration.)
English
2-6
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 2-7
SHR-4081N/P USER’S MANUAL
6. Restore HDD installed BRACKET-HDD.
(Assembly shall be done in the reverse procedure of disassembly as follows. Align
the 5 fixing points at the bottom with the BRACKET-HDD fixing holes respectively
and push BRACKET-HDD out of the product to align the screw fixing holes. Then,
tighten the screws firmly.)
7. Check if BRACKET-HDD has been fixed to the product and connect both the power
supply cable and the signal transmission cable (IDE CABLE) to the HDD.
Signal Transmission
Cable (IDE Cable)
2-7
English
Power Supply Cable
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 2-8
SHR-4081N/P USER’S MANUAL
8. Check the connector, wiring, and cable fixing condition inside the product and close
the cover.
9. Tighten cover-fixing screws. (5 points on both sides and 1 point in the back side)
✻ You can apply 2 HDDs to each BRACKET-HDD as shown in the figure.
Attention
For HDD addition, please select the same HDD with the existing HDD fixed to the
product as far as possible. This product can accept 4 more HDDs, 2 at Primary Slot
and 2 at Secondary Slot respectively. Both HDDs attached to Primary Slot and
Secondary Slot shall be set to Master and Slave respectively. Refer to User’s Manual
for Master or Slave Jumper Setting.
In the event of only one HDD installation, it shall be inserted into the Primary slot.
English
2-8
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 2-9
SHR-4081N/P USER’S MANUAL
Attention
! Regarding the sub fan, you need additional brackets and sub fans as follows.
The sub fan is shaped like this when viewed from the front and back. Please pay
attention to the fan direction to let wind go through the fan.
@ Fix the fan as follows.
2-9
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 2-10
# Please install the fan to be seen from the front view of the set.
$ Fixing the fan to the left.
English
2-10
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 2-11
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 3
Chapter 3
Connecting with Other
Equipment
00657B(02)SHR-4081-ENG-1
8/7/07
2:02 PM
Page 3-1
SHR-4081N/P USER’S MANUAL
1
Connecting Video, Audio, & Monitor
3-1
English
00657B(02)SHR-4081-ENG-1
8/7/07
2:02 PM
Page 3-2
2
Connecting Network
●
Connecting to Internet through Ethernet(10/100BaseT)
●
Connecting Internet through ADSL
English
3-2
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 3-3
SHR-4081N/P USER’S MANUAL
3
Connecting IEEE1394 Device
●
●
●
Connect the IEEE1394 hard disk through the back port of SHR-4081N/P.
You can connect up to 6 IEEE1394 armored hard disks by the Daisy-Chain
method.
After connection, Menu - System - HDD Setup is necessary for recognition and
setup for use.
Caution
The IEEE1394 Device hard disk shall be set to Master.
●
●
It acts as HOT PLUG to connect or disconnect the IEEE1394 device while the
system is running.
If you press Connect/Disconnect in Menu - System - HDD Setup, HOT PLUG will
be recognized or deleted.
Note
See 5-8 System (HDD Setup) of User’s Manual.
Caution
- Wait until the HOT PLUG connected hard disk is stabilized enough (approx. 2 seconds
per each hard disk) and click CONNECT in SHR-4081N/P MENU before use.
- Be sure to click DISCONNECT in SHR-4081N/P MENU to delete IEEE1394 Device
safely. Failure of clicking DISCONNECT may cause improper operation of IEEE1394
Device.
3-3
English
00657B(02)SHR-4081-ENG-1
8/7/07
2:03 PM
Page 3-4
English
3-4
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 3-5
SHR-4081N/P USER’S MANUAL
4
Connecting USB Device
1. A total of 2 USB connecting terminals are placed in front of and behind SHR4081N/P each.
2. Connect USB HDD, USB CD/DVD, and USB Memory through the ports in front and
behind SHR-4081N/P respectively.
3. Only one USB device can be assigned to each USB connection port.
4. To recognize/ignore USB HDD, follow the procedure of Menu - System - HDD
Setup upon connecting.
5. Supply the HOT PLUG function to connect/disconnect the USB device.
6. To recognize/ignore the HOT PLUG function, press Connect/Disconnect from Menu
- System - HDD Setup.
Note
Refer to User’s Manual 5-8, SYSTEM(HDD Setup).
Caution
- After enough time is given to the stabilization of the USB device connected by
HOT PLUG, press Connect from SHR-4081N/P Menu.
- To disconnect the USB device, be sure to click Disconnect from SHR-4081N/P
Menu. Otherwise, the USB device may be in trouble.
- Available to use with connecting the same kinds of USB device to the USB terminal
on the front and back of SHR-4081N/P. (For example, 2 CD-RW or 2 USB
memories can be connected to the front and back of SHR-4081N/P.)
- If the USB memory is used, it should be set to the format supported by
SHR-4081N/P. Although it is formatted with FAT32 in the PC, it is re-formatted
when it is connected to SHR-4081N/P.
Caution
- The USB device HDD shall be set to Master.
3-5
English
00657B(02)SHR-4081-ENG-1
8/7/07
2:04 PM
Page 3-6
5
Connecting Alarm Input/Output
The Alarm IN/OUT port in the back of SHR-4081N/P is composed of the following
elements.
●
ALARM IN/OUT Connection
Name
1
- ALARM
- ALARM
- ALARM
- ALARM
- ALARM
- ALARM
- ALARM
- ALARM
IN1
IN2
IN3
IN4
IN5
IN6
IN7
IN8
Function
ALARM Input Port
2
- ALARM RESET IN
On receiving an ALARM RESET signal, the
system cancels the current ALARM input or
output signal and resumes sensing.
3
- ALARM
- ALARM
- ALARM
- ALARM
ALARM Output Port
OUT1
OUT2
OUT3
OUT4
English
3-6
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 3-7
SHR-4081N/P USER’S MANUAL
●
3-7
English
ALARM IN/OUT Connection
00657B(02)SHR-4081-ENG-1
8/7/07
2:05 PM
Page 3-8
6
Connecting RS-485 Device
●
Connect RS-485 Device through the back port of SHR-4081N/P.
●
You can install and control the PTZ device supporting RS-485 communication.
●
You can adopt either Half Duplex or Full Duplex method for the connection.
PTZ device
SHR-4081N/P
Rear
Half Duplex Type
Data (–)
Tx(–)
Data (+)
Tx(+)
Full Duplex Type
Rx(+)
Rx(–)
Tx(–)
Rx(–)
Rx(+)
Tx(+)
●
Baud Rate covers 600, 1200, 2400, 4800, 9600, 19200, and 38400.
Caution
Check if RS-485 Device is compatible with SHR-4081N/P first. Then pay attention to
the polarity of RS-485 which has two poles, + and -.
English
3-8
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 4
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 5
Chapter 4
Live
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 4-1
SHR-4081N/P USER’S MANUAL
1
System Motion
●
Turn the power on and the following LOGO screen pops up.
●
After the LOGO screen appears, the button in front of SHR-4081N/P blinks 6 times
to initialize the system for operation.
●
When the initialization is complete, the live video appears along with a beep
sound.
●
It requires 30 to 40 seconds until the Live screen appears.
Note
A new HDD may require more time for the initialization until the Live screen
appears due to the initialization period of the new HDD.
If the Live screen does not appear at all or the button in front of SHR-4081N/P
repeats blinking, please check the connection across the product body. If you find
any error, please ask the shop where you bought the product.
●
The Live screen does not affect the earlier MENU setup. If you reboot the system
after power-off during recording, the Live screen will appear, accompanying
recording.
Note
If you see no more Live screen, you shall check if video data comes out in Composite
mode or VGA mode.
If you whish to change the video output mode, you shall hold on to the MODE
button in front of SHR-4081N/P and keep pressing the 0 button for 5 seconds. Press
‘0’ button for 5 seconds with pressing the front mode button to change video output
mode. After 3 times flickering of PTZ LED on the front left, it reboots.
4-1
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 4-2
2
Live screen Mode
Definition of Live Screen Icon
The Live screen icons of SHR-4081N/P display the current setup and function status of each screen.
N
V.Loss
CAM_01
PTZ
CAM_01
P
E
S : Recording Icon
Each icon represents Normal / Panic / Event(Alarm+Motion) /
Schedule Recording.
: Recording Video Size Icon
Each icon represents the recording size of Large/ Normal/ CIF
Large : Full D1(NTSC : 720 x 480 / PAL : 720 x 576)
Normal : Half D1(NTSC : 720 x 240 / PAL : 720 x 288)
CIF : CIF(NTSC : 352 x 240 / PAL : 352 x 288)
PTZ
: PTZ Icon
This icon appears when you set up PTZ device with the PTZ icon and
turns yellow when you execute PTZ.
: Audio Icon
This icon represents Audio On/Off status and turns yellow for On.
It does not appear for Video or Audio Disable.
: Sensor In Event Icon
This icon appears in the channel synchronized with the external sensor signal
input with Sensor On.
: Motion Event Icon
This icon appears in the Motion Event channel with Motion Detection On.
: Zoom Icon
This icon appears with Zoom On or Zoom In and disappears when you cancel
Zoom On.
: Freeze Icon
This icon appears in the Freeze mode and disappears when you cancel
Freeze.
: Insufficient Disk Space Icon in CH
More than one channel has insufficient recording space.
: Insufficient Disk Space Icon in all CHs
All the channels have insufficient recording space.
English
4-2
00657B(02)SHR-4081-ENG-1
7/4/07
9:35 AM
Page 4-3
SHR-4081N/P USER’S MANUAL
: Auto sequence Icon
This icon appears in the Screen change mode.
: Backup playback icon
It is displayed when the backup data plays.
: Fan fail Icon
It is displayed when the fan stops.
: It is displayed when there is no HDD.
V.Loss / V.Off : Video Input Status
If there is no more video data input with Video On, [V.Loss] appears in the channel.
If you set Video On/Off to Off, [V.Off] will appear.
Definition of Live Screen Mode
SHR-4081N/P receives 8 live images and displays them in the following 8 modes.
CAM_02
CAM_01
CAM_01
CAM_02
CAM_02
CAM_03
CAM_01
CAM_04 CAM_05
CAM_03
CAM_01
CAM_04
4 Split Mode
Single Mode
CAM_04
CAM_05
CAM_06
6 Split Mode
CAM_03
CAM_06 CAM_07
7 Split Mode
CAM_02
CAM_01
CAM_02
CAM_03
CAM_04
CAM_05
CAM_06
CAM_07
CAM_08
CAM_03
CAM_01
CAM_04
CAM_05 CAM_06 CAM_07 CAM_08
8 Split Mode
●
9 Split Mode
CAM_01
CAM_02
PIP Mode
CAM_01
Auto sequence Mode
Full Screen(Single) Mode:
Displays the selected channel in a full screen. Then, the channel LED concerned
will be turned on.
●
4,6,7,8 Split Mode:
Displays 4, 6, 7, 8, and image channels in the respective split screen and the CH
LED lights on to indicate the channel no. You may match channel numbers with
split screens on your own.
The 4CH Split mode has the function of screen change. Refer to (4-4) Live Screen
Mode Setup. Press the [Direction Control] button in the 8CH Split mode and the
main screen(CAM_01 in the figure) will move.
●
PIP(Picture in picture) Mode:
Displays a one-ninth sized screen in the full screen and the channel LED
concerned is turned on. You are able to choose a channel as you want to, which is
displayed in the full screen or reduced screen area. You may move the PIP screen
at 5 stages in the Full screen with the œ or ƒkey.
●
Auto sequence Mode:
Displays the time when FULL SCREEN has been set to each channel in sequence
and the channel LED concerned is turned on.
4-3
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 4-4
Selecting Live Screen Mode
Each mode may be selected by [MODE Button] and [CH1 ~ CH8 Button]
The following figure shows Live Mode of SHR-4081N/P after converted.
●
The default is 9 Split Screen Mode.
●
[1 CH ~ 8 CH] are displayed in the 9 split mode.
●
Whenever the LEFT/RIGHT button is pressed, [4 Split 1 . 4 Split 2 .] in order in the
4 split mode.
●
Other modes than Full Screen may be selected by pressing the [Mode] button and
[ , ➝] button in sequence.
Every time you press the [Mode] button, the mode changes in the following
procedure, [16Split] ➝ [9Split 1] ➝ [4Split 1] ➝ [6Split] ➝ [7Split] ➝ [8Split] ➝
[PIP] ➝ [Screen Mode] ➝ [16Split].
Every time you press the [ , ➝] button, the mode changes in the following
procedure, [9Split 1, 2, Screen Mode], [4Split 1, 2, 3, 4, Screen Mode].
●
Press the [CH1~CH8] button to see the full screen of each channel.
●
Press the Mode button after you convert to a full screen in the Split Screen mode
to returns to the previous Split mode screen.
➝
➝
English
4-4
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 4-5
SHR-4081N/P USER’S MANUAL
3
Live Channel Selection and Audio On/Off Setup
In other split modes than Full Screen Mode, 9 Split Mode, and Screen change Mode,
you may choose a channel to be displayed in each split area on your own. Meanwhile,
the channel whose MENU is set to Audio On can set up Audio On/Off in all Live Modes.
Selecting Audio On/Off from the Full Screen mode
In the Full Screen mode, the selected CH Audio is automatically turned on and you
can toggle the CH button to turn Audio on/off. The Audio icon turns yellow/white
depending on Audio On or Off.
9 Selecting Audio On/Off in the Split mode
9 If you press [Enter] in the Split mode, the following cursor will appear and the
channel will be selected. Press the CH button with a channel selected to set Audio
on/off. Now, the Audio icon turns yellow/white depending on Audio On or Off.
16 You may not choose a channel in the Split mode on your own.
CAM_01
CAM_02
CAM_03
CAM_04
CAM_05
CAM_06
CAM_07
CAM_08
CH Selection and Audio On/Off Setup in the 4, 6, 7, 8 Split
mode and PIP mode
As in the 9 Split mode, if you press [Enter] in the 4,6,7,8 Split mode and PIP mode, the
selected cursor will appear and the channel will be selected.
With a channel selected, press [CH1 ~ CH9] to select the channel in the screen. As in
the 9 Split mode, use the CH button LED to make Audio on/off setup. Now, the Audio
icon turns yellow/white depending on Audio On or Off.
4-5
English
00657B(02)SHR-4081-ENG-1
12/6/07
8:23 PM
Page 4-6
4
Freeze and Zoom
Freeze Function
Freeze pauses the video image in Live Screen, only available in Live Mode. You can set
up Freeze On/Off with [FREEZE] button and [FREEZE LED] is turned on or off
depending on the Freeze On/Off setup condition.
Zoom Function
Zoom enlarges the selected area twice, only available in Full Screen Mode.
If you press [ZOOM] button in Full Screen Mode, the zoomed area will appear now you
are able to adjust the selected area position. If you select an area and press [ENTER]
button, the area will be displayed in double size. If you press [ENTER] button again, the
previous screen to select Zoom area will appear again and you will be capable of Zoom
Off with [ZOOM] button after the screen is enlarged. Depending on the Zoom On/Off
setup condition [ZOOM LED] is turned on or off.
English
4-6
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 4-7
SHR-4081N/P USER’S MANUAL
5
Event Monitoring
Event Monitoring displays the channel synchronized with a specific event
(Sensor/Motion/Video Loss) on the screen when it occurs. Event Monitoring On/Off
and Event Duration setup is available in [Menu]➝[Monitoring].
If you set the Event Monitoring interval to 5 seconds and an event occurs at CH2 in
the beginning as in the following figure, the system will display CH2 in the whole
screen for 5 second. Another event within 5 seconds will be displayed together with
the existing event. In the following figure, both CH1 and CH3 events occur within 5
seconds (for example, in 4 seconds) after the CH2 event, the three events are split
into 4 screens.
Likewise, CH2, CH5, and CH7 events within 5 seconds after both CH1 and CH3
events are integrated with the existing 2 events and all the 5 events are split into 9
screens. Without further event during Event Duration, the system will return to the
previous Live Mode.
If you press [ALARM] button during Event Duration, Event Monitoring will stop.
On sensing an event, [ALARM LED] is turned on. If you press [ALARM] button now,
[ALARM LED] will go out.
Press [ALARM] to reset the Alarm setting. The Event icon will disappear and this
function will be cancelled during Event monitoring. When the Event recording time,
Pre-Alarm time, and Post-Alarm time were already set after an alarm had been given,
Event recording will be done for the set period.
4-7
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 4-8
6
Spot-out Monitoring
Spot-out Monitoring has nothing to do with Live Screen Output, monitoring the full
screen of a certain channel. If you select Monitoring in the MENU screen, you can
make a channel among CH1 to CH8 spot out or you can output channels one by one
at an interval as Screen change Mode of Live Mode. The interval is as same as the
forwarding time of Screen change Mode of Live Mode. If you set Spot-out Event
Monitoring to On, you will be able to spot out the event channel. In case of
simultaneous event occurrence at more than one channel, the lowest numbered event
channel has the first priority to be spotted out.
Caution
If the built-in HDD is not connected, or it operates with power applying in error,
(
) indicating "built-in HDD error" is displayed at the top of left.
At this time,
(1) Live screen mode
(2) Monitoring mode by Smart Viewer
operate only and the other functions including recording, search, playback, menu
setup, and PTZ do not operate.
If the above problem is occurred, Be sure to contact a service center to settle the
problem.
Caution
If the fan of set is not operated or occurs an error, the following error message is
popped up in the live screen. And the fan error icon is displayed at the left upper.
Check the fan of set in this time. The left upper icon is disappeared automatically if
the fan operates normally.
Fan Information
Fan is in trouble.
Refer to the Manual.
English
4-8
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 4-9
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 5
Chapter 5
Menu Setup
00657B(02)SHR-4081-ENG-1
8/7/07
2:18 PM
Page 5-1
SHR-4081N/P USER’S MANUAL
Before Use
5-1
English
●
Selection
The yellow cursor shows the current window.
Use the œ,ƒ,¦, ‹ button in the front to move the cursor on your desirous menu.
If you press the “Enter” key with the cursor clicking on your desirable menu, the
system will enter the new mode.
Press the “Enter” key to finish selection.
On seeing Drop Down Menu, use the œ or ƒ button to move the cursor on your
desirable menu.
●
“OK” or “Cancel” in Menu Setup Window
Once changed, the new menu setup procedure will be finalized by pressing “OK”.
Pressing “Cancel” will cancel the previous setup and return to the upper menu.
●
Front “MENU” and “SEARCH” Button
The “MENU” button or “SEARCH” button, if pressed first, acts as an entrance
button. Once entering, it reverses the page to the previous one.
When the “MENU” button is pressed in any of the Setup menus, it changes to the
upper menu. If you press the “MENU” button in Live mode, the password window
appears for user validation.
●
The “>” or “V” mark beside the title copies the line in the arrow direction to the
value of the first line.
●
The first page of the menu is structured as follows.
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 5-2
1
System
●
System Menu has the following items in detail.
Date/Time/Language Setup
●
Date
●
Time
Press the “Enter” button and the ➛ or ❿ button to move to Y/M/D.
Use the œ or ❷ button to change the date.
Press the “Enter” button to come out of the mode.
Press the “Enter” button and the ➛ or ❿ button to move to H/M/S.
Use the œ or ❷ button to change the time.
Press the “Enter” button to come out of the mode. Once changed, the date and
time will remain unchanged until you press “OK” or “Cancel”.
English
5-2
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 5-3
SHR-4081N/P USER’S MANUAL
Note
[Date/Time Change]
Pressing “OK” after you change date and time, you will be asked by a pop-up
window if you really confirm the change. Here, press “Yes” to change the time.
Since Date/Time does not change in backup process, be sure to stop the
backup process before you change Date/Time.
Caution
[Date/Time Change]
If you restore Date/Time to the original value, the data recorded before the
restoration may be deleted. For example, if you restore 8 am to 7 am, all the data
recorded between the times will be deleted.
●
Date Format
This supplies 3 formats, Year-Month-Date / Date-Month-Year / Month-Date-Year.
●
Time Format
This supplies 2 formats, 24 Hour / 12 Hour(AM/PM).
●
Language
After you select a language, OSD is expressed in the selected language.
The available languages are added in the list.
●
DST (Daylight Saving Time)
DST sets the clock one hour ahead the local standard time. This setting enables
the system to display the time adjusted for DST. If the DST is set to Off, it does not
apply. To set the DST, enter the start time and end time on the right. It allows you
to set month, week (e.g. 1st, 2nd, 3rd, 4th, last), day, and time.
Note
[When the DST is operated]
The proceeding backup is cancelled. Recording in progress will be suspended for a
moment until rebooting.
Caution
[Ending DST]
As the system goes one hour earlier, the data recorded since an hour ago will be
deleted. As DST activates at the preset time, you are recommended to take the
utmost care of preventing any trouble incurred by data deletion or rebooting.
5-3
English
00657B(02)SHR-4081-ENG-1
8/7/07
3:55 PM
Page 5-4
Password
●
The Default Password is 4321.
●
New Password
This is used to change the system password inside SHR-4081N/P. You are
allowed to create a password up to 8 digits. Press the “Enter” button and then a
channel button from 0 ~ 9 on your left to finish input. If you press the “Enter”
button after change, the system will automatically turn to “New Password Confirm”.
●
New Password Confirm
This confirms a new password. You shall be obliged to input New Password in the
above row first. Without New Password input, New Password Confirm input has no
effect.
●
Password Lock
Pressing the “Menu” button while it is set to On, you will be asked by a pop-up
window of the password. Pressing the “Menu” button while it is set to Off, you will
enter Menu Mode immediately, not being asked of the password.
●
All Key Lock On
If you select this, the system will enter Live Mode immediately. If you press a
button in the front, the Password window will pop up. Succeeding in Password
input will be followed by Key Lock cancellation after such a message window pops up.
Note
[All Key Lock On]
If you select this, the system will enter Live Mode immediately and keys will be
locked.
English
5-4
00657B(02)SHR-4081-ENG-1
8/7/07
3:55 PM
Page 5-5
SHR-4081N/P USER’S MANUAL
Load Factory Default
●
This initializes all the menu preset values.
The recorded data will not be deleted. Press “OK” in the confirmation window to
start initializing.
System Log
5-5
English
●
System Log is used by a controller to check crucial records.
●
This displays such contents of a system related log and its execution date/time as
System Start, System Termination, and Menu Setup Change.
●
First : Returns to the first page.
●
Prev : Back to the previous page.
●
Next : Forwards to the next page.
●
Last : Moves to the recent.
00657B(02)SHR-4081-ENG-1
12/6/07
●
1:22 PM
Page 5-6
System Log List
System Start
Login(Admin)
Logout(Admin)
Login(User)
Logout(User)
Setup Start (Local)
System Start
Viewer Login (Admin)
Viewer Logout (Admin)
Viewer Login (User)
Viewer Logout (User)
Set: Menu Entering
Time Change
Load Factory Default
System Upgrade
Disk Full
Backup Start
Backup End
Date/Time Change
System Initialization
System S/W Change
No Space for HDD
Backup Start
Backup End
Setup End (Local)
Setup (Remote)
Play Back Start
Play Back End
Set: Menu Escape
Viewer:Menu Setup
Play Start
Play End
Backup Stop
Backup Fail
ATA HDD Erase
IEEE1394 HDD Erase
Backup Stop
Backup Failure
ATA HDD Data Deleted
Power Failure Recovery
Panic Record Start
Panic Record End
System Restoration after Power Failure USB HDD Erase
Panic Recording Start Overwrite Playback Stop
Panic Recording End Backup Stop(Overwrite)
IEEE1394 HDD Data Deleted
USB HDD Data Deleted
Replay stop due to overwriting
Backup stop due to overwriting
Event Log
●
Checks the record regarding Event like Alarm / Motion / Video Loss
●
This displays the contents of a log regarding Event its execution date/time.
●
First : Returns to the first page.
●
Prev : Back to the previous page.
●
Next : Forwards to the next page.
●
Last : Moves to the recent.
●
Event Log List
Video Loss CH[N]
Channel N Video loss
Alarm Detection CH[N]
Channel N Alarming
Motion Detection CH[N]
Sensing Channel N Motion
English
5-6
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 5-7
SHR-4081N/P USER’S MANUAL
System Information and Setup
●
Software Version : Displays the current version. Setup is not available.
Broadcast Format : Displays the current Format(NTSC/PAL). Setup is not available.
Mac Address : 6 Byte hardware address. Setup is not available.
Device Erase
●
USB S/W Upgrade
●
●
●
Erases the data in the ATA / IEEE1394 / USB / USB memory.
Check the box that you want to delete and press “OK”.
Data is undeletable during Backup.
When there is no device, USB S/W Upgrade is failed.
Note 1
Being a physical hard disk inside the SHR-4081N/P main body connected by an IDE cable, this
stores data.
[External HDD]
Being a physical hard disk connected with the port and terminal in the back of the
SHR-4081N/P main body, this stores data.
This can be used as Extended HDD or Backup HDD.
- Extended HDD : Supplements Internal HDD quantity. Connected, it takes the place of Internal
HDD.
- Backup HDD : Backs up the data recorded in the set.
Note 2
[ATA]
Usage : Internal HDD
This is a physical hard disk connected with SHR-4081N/P through the IDE cable.
[USB]
Usage : External HDD (Extended HDD or Backup HDD)
A physical hard disk connected with the USB port in the back of the SHR-4081N/P main body
[IEEE1394]
Usage : External HDD (Extended HDD or Backup HDD)
A physical hard disk connected with the IEEE1394 port in the back of the SHR-4081N/P main
body
Note 3
[USB S/W upgrade]
1. You can download the data(tgz file) for upgrade from www.samsung.com, CCTV Part.
2. The USB memory should have only one tgz file for upgrade.
3. In case of other memory format than supported by SHR-4081 model, please delete the
memory and set it up according to the set format.
5-7
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 5-8
Caution
[HDD Erase]
Data will not be deleted in backup or recording process.
Please be sure to suspend backup or recording before you delete any data.
If the recording is in progress, stop the recording to delete a data.
[USB S/W Upgrade]
You may download the software for upgrade from CCTV Part of http://www.samsung.com.
If the USB memory to be upgraded is not in a format supported by the DVR set, the upgrade
cannot be done. In this case, please use “Remove Devices” from “System Information and
Settings” in Menu 5-7. There should be only one file for upgrade in the USB memory.
HDD/External Device Setup
●
HDD Information
Displays the number, quantity, and status of ATA, IEEE1394, and USB.
Setup is not available.
Status : Internal HDD, External HDD, Backup HDD
●
External HDD setup
1. Backup/External
You are able to determine the usage of IEEE1394 and USB.
Not Defined ➝ When the connected HDD usage is not defined.
Expressed in External or Backup.
No Device ➝ When no HDD is connected. You are able to press right TAB after you
connect HDD.
External ➝ When the connected HDD is set to External. It may used as a back
up HDD if you press the “Enter” button and turn to Backup.
Backup ➝ When the connected HDD is set to Backup. It may used as an
External HDD if you press the “Enter” button and turn to External.
2. Hot Plug - Connect/Disconnect
You may connect or disconnect IEEE1394 Hard Disk while power is supplied to the
SHR-4081N/P main body.
① As for connecting, connect IEEE1394 Hard Disk with the SHR-4081N/P main
body and press “Connect”. Pressing “Connect” makes the SHR-4081N/P
main body recognize all connected IEEE1394 Hard Disks.
➁ As for disconnecting, be sure to press “Disconnect” and detach IEEE1394
Hard Disk from the SHR-4081N/P main body safely.(Be sure to pause recording
or backup process.) Pressing “Disconnect” cancels and detaches all connected
IEEE1394 Hard Disk.
English
5-8
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 5-9
SHR-4081N/P USER’S MANUAL
Caution
[ IEEE-1394 Hot-Plug Connect/Disconnect Function ]
Both IEEE1394 and USB support Hot-Plug.
[Backup HDD]
You may set both the USB and IEEE1394 device as the Backup HDD.
HDD Mode Setup
●
Disk End Mode
Stop : Stops recording when HDD is full during recording.
Overwrite : Deletes the original data and save a new data when HDD is full
during recording.
●
Disk End Beep
On : Beeps when HDD is full during recording.
Off : When HDD is full, the beep sound is not heard.
5-9
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 5-10
Caution
[Disk End Mode Overwrite]
In the Overwrite mode, delete the old Event data in advance.
Remote control Device
●
MENU for Samsung Integrated Remote Control(SSC-2000)
●
Device
A Remote Control Device, being connected to the RS485 port.
●
ID
Unique ID of SHR-4081N/P
This unique ID is essential as SSC-2000 can control multi SHR-4081N/P DVRs.
●
Baudrate
Baudrate to communicate with SSC-2000
Be sure to be identical to SSC-2000 Baudrate for communication.
●
Parity
Sets up one of None / Even / Odd.
●
Date
Sets up either 7 or 8.
●
Stop
Sets up either 1 or 2.
●
Duplex
Sets up either Half Duplex or Full Duplex.
Note
If you select Remote Control Device, you may not PTZ device with SHR-4081N/P.
The PTZ button in front of SHR-4081N/P becomes inactivated.
Press the PTZ button and the PTZ ban icon(
) will appear.
It’s because the RS-485 port setup was done for Romote Control Device.
English
5-10
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 5-11
SHR-4081N/P USER’S MANUAL
System Shutdown
●
Terminates the work in action safely and turns the power off.
Press “OK” in the confirmation window and plug out when you see “Safe to Power
Off”.
Caution
[System Shutdown]
Power-off without terminating the system in the System Shutdown menu may incur
improper motion like data loss and disk failure. Power-off shall be done in the
System Shutdown menu.
5-11
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:22 PM
Page 5-12
2
Camera
●
The detailed Camera Menu items are as follows.
Camera Configuration
●
Video
On : Camera images from a selected channel appear.
Off : Camera images from a selected channel disappear.
Covert1 : Displays other information than the image information on the selected channel.
Covert2 : Hides all the information on the selected channel.
In this case, you are not allowed to set Audio/Title/Screen change.
●
Audio
On : You can hear voices from a selected channel.
Off : You cannot hear voices from a selected channel.
English
5-12
00657B(02)SHR-4081-ENG-1
7/4/07
9:45 AM
Page 5-13
SHR-4081N/P USER’S MANUAL
5-13
English
●
Title
You can name the camera of a selected channel.
If you press the [Enter] button, the Virtual keyboard will come out.
‹Virtual Keyboard
If you move the cursor, you can type text by text.
Up to 15 texts can be typed.
Keyboard cannot be composed of all spaces.
Pressing Caps Lock changes the keyboard that can be selected. (2 Modes)
●
Auto Seq.
You may define the duration of each channel at the Screen change channel in Live
Mode. A channel, set of Off, does not operate in Screen change Mode.
00657B(02)SHR-4081-ENG-1
7/4/07
9:45 AM
Page 5-14
PTZ Device
●
ID
PTZ device ID from 0 to 255
●
Protocol
A protocol supported by PTZ device
The following protocols are now being supported.
Samsung / Vic. / Pan. / AD / Phi. / Ern. / Pel-D / Pel-P / Vcl. / Dia. / Kal. / Tech.
●
Baudrate
Baudrate supported by PTZ device , 600 / 1200 / 2400 / 4800 / 9600 / 19200 /
38400
●
Parity
Defines one among None, Even, and Odd.
●
Data
Defines either 7 or 8.
●
Stop
Defines either 1 or 2.
●
Serial Mode
Defines either Half Duplex or Full Duplex.
Caution
The above items shall be aligned with the PTZ device setup condition.
For the details, please refer to User’s Manual of the PTZ device manufacturer.
English
5-14
00657B(02)SHR-4081-ENG-1
7/4/07
9:45 AM
Page 5-15
SHR-4081N/P USER’S MANUAL
Screen Setup
5-15
English
●
This is a window to adjust Brightness/Contrast/Color for the camera image of each
channel. Put the cursor on the channel that you want to adjust and set up
Brightness/Contrast/Color. Once selected, the channel appear in the PIP area on
the right. Press the œ or ƒ button to adjust the value from 0 to 100.
●
If you select CH >, all the channel values will become the same as the finally
selected channel value.
●
“Default” resets the current channel to the basis value of 50.
00657B(02)SHR-4081-ENG-1
8/7/07
2:25 PM
Page 5-16
3
Monitoring
●
Event Monitoring
You are able to set to Off / 3sec / 5sec / 10sec / 20sec / 30sec / Continuous.
① Off : Event Monitoring does not operate to turn to the screen where an event
occurs.
➁ 3sec / 5sec / 10sec / 20sec / 30sec : For the period, the screen is seen before
the next screen appears.
➂ Continuous : The Event Monitoring screen remains alive until you press the front
“Alarm” button to cancel the screen manually.
●
OSG Display
① Date : The date is displayed on the screen or not depending Date remains On or Off.
➁ Time : The time is displayed on the screen or not depending Time remains On or Off.
➂ Title : The title is displayed on the screen or not depending Title remains On or Off.
➃ Status : Audio/Ptz is displayed on the screen or not depending Status remains
On or Off.
●
Spot Out Channel
Spot Out channel is used to let one of two monitors monitor a channel, focusing on
it. Spot Out channel supplies two functions, continuous monitoring of only one
channel and Screen change to display all the channels one by one.
① Screen change setup ranges from CH1 to CH8.
➁ Set to Screen change, Spot Out channels are displayed in turn.
➂ Screen change Duration is as same as determined for Camera Configuration.
●
Spot Out Event Monitor
Determines if event monitoring will be executed for Spot Out channels.
① Off : dose not event monitoring in Spot out channel.
➁ 3sec / 5sec / 10sec / 20sec / 30sec : Duration options on the screen before it
scrolls down.
➂ Continuous : Once scrolled down, the screen remains displayed until you delete
“Alarm” LED in front manually.
English
5-16
00657B(02)SHR-4081-ENG-1
12/6/07
1:23 PM
Page 5-17
SHR-4081N/P USER’S MANUAL
●
Monitor Out
You may not use both VGA Output and Composite/S-Video Output at the same time.
Accordingly, the user shall choose either one.
① Composite : The output will come out from the “Composite / S-Video Output” port.
➁ VGA : Output comes out of the “VGA Out” port.
Any change from Composite to VGA or vice versa reboots the system
automatically.
●
PB( Playback ) Channel Position
Designates the position of a channel to be played back in Play Back 9 Split Mode.
Right Down : Designates a location on the bottom right corner.
Center : Designates a location in the center.
●
Multi-channel Seq.
The change of split screen is available to be set.
It can be set to Off ,3 Sec,5 Sec, 10 Sec, 20 Sec, 30 Sec.
Caution
[Monitor Out]
Set to Composite Output, VGA does not come out.
Set to VGA, Composite Output does not come out.
If you hold on to the MODE button in Live Mode and keep pressing the 0 button for
5 seconds, the status will change from VGA to COMPOSITE or vice versa
accompanying rebooting.
5-17
English
00657B(02)SHR-4081-ENG-1
4
8/7/07
2:41 PM
Page 5-18
Record Mode
NTSC
PAL
If you press the front “REC” button, the mode to be recorded will be determined.
☛ For Event Recording Mode value setup, refer to 5-19. Event Record
Mode Setup Menu.
● Mode
On : Pressing the REC button starts recording the current channel.
Off : Even pressing the REC button does not affect current channel recording.
The default is set to “On”.
●
Video Size
Determines the size of a screen to be recorded.
Full D1 : 720 x 480(NTSC) / 720 x 576(PAL) ➝ Large(L)
Half D1 : 720 x 240(NTSC) / 720 x 288(PAL) ➝ Normal(N)
CIF : 352 x 240(NTSC) / 352 x 288(PAL) ➝ CIF(C)
Note
[Video Output]
"Full D1" setup for the resolution is available from the recording sheet number of
7.5ips(NTSC)/6.25ips(PAL)
"Half D1" setup for the resolution is available from the recording sheet number of
15ips(NTSC)/12.5ips(PAL)
Resolution “CIF” can be set from Recording page number “30.”
●
Recording Resolution
Selects the recording resolution. VH(Very High) / H(High) / S(Standard) / L(Low).
●
Rate
Determines Frame Rate to be recorded. Frame Rate means the number of screen
recorded every second.
Set to 30ips(NTSC)/25ips(PAL), the system records too many screens per
second and play continues intermittently since recording is more detailed.
This is appropriate for concentrated monitoring zone setup.
Set to the one of 30ips / 15ips / 10ips / 7.5ips / 5ips / 3ips / 1ips (NTSC)
Set to the one of 25ips / 12.5ips / 8.33ips / 6.25ips / 5ips / 2.5ips / 1ips (PAL)
●
Auto Deletion
Click [Off] button at the left bottom to select Off/On.
Select On to limit the search date by moving to the date selecting button.
Select Off not to limit the search date.
The date is limited from 1 to 99.
English
5-18
00657B(02)SHR-4081-ENG-1
8/7/07
3:58 PM
Page 5-19
SHR-4081N/P USER’S MANUAL
5
Event Record Mode
●
The detailed items of Event Record Menu are as follows.
Evnet Record Mode
NTSC
PAL
Determines a mode to be recorded when an event occurs.
●
V. Size (Video Size )
Determines the size of a screen to be recorded.
Full D1 : 720 x 480(NTSC) / 720 x 576(PAL) ➝ Large(L)
Half D1 : 720 x 240(NTSC) / 720 x 288(PAL) ➝ Normal(N)
CIF : 352 x 240(NTSC) / 352 x 288(PAL) ➝ CIF(C)
5-19
English
00657B(02)SHR-4081-ENG-1
12/6/07
●
1:23 PM
Page 5-20
Quality
Recording resolution will be determined.
VH(Very High) / H(High) / S(Standard) / L(Low).
Note
"Full D1" setup for the resolution is available from the recording sheet number of
7.5ips(NTSC)/6.25ips(PAL)
"Half D1" setup for the resolution is available from the recording sheet number of
15ips(NTSC)/12.5ips(PAL)
Resolution “CIF” can be set from Recording page number “30.”
●
Rate
Determines Frame Rate to be recorded. Frame Rate means the number of screen
recorded every second.
Set to 30ips(NTSC)/25ips(PAL), the system records too many screens per second
and play continues intermittently since recording is more detailed. This is appropriate for concentrated monitoring zone setup.
Set to the one of 30ips / 15ips / 10ips / 7.5ips / 5ips / 3ips / 1ips(NTSC)
Set to the one of 25ips / 12.5ips / 8.33ips / 6.25ips / 5ips / 2.5 ips / 1ips(PAL)
●
Pre-Event (PreEve.)
Pre-Event Section
Event occurred point of time
Records the situation until Event is issued.
Off : No recording
5sec / 10sec / 20sec / 30sec : The recording time options before Alarm issue
●
Post-Event (PostEve.)
Post-Event Section
Event occurred point of time
Records the situation since Event is issued.
Off : No recording
5sec / 10sec / 20sec / 30sec / 1min / 3min / 5min / 10min / 20min :
To this, the recording time after Alarm issue is set.
English
5-20
00657B(02)SHR-4081-ENG-1
8/7/07
2:43 PM
Page 5-21
SHR-4081N/P USER’S MANUAL
Alarm Detection Setup
●
Sensor State
Off : Sensor does not operate.
① N.O(Normal Open) Sensor : Sensor remains open all the time and if closed,
an alarm will be issued. (A Contact)
➁ N.C(Normal Close) Sensor : Sensor remains closed all the time and if open,
an alarm will be issued. ( B Contact)
●
Cam
Determines a camera which will synchronize with the current sensor.
The default is currently set to the sensor number. A sensor shall be synchronized
with at least a camera. Multi-synchronization is possible.
●
Alarm-Out
Arranges Alarm-Out when Alarm Sensor sounds.
At this moment, this supports 5 Alarm Outs. Choose an alarm-out that you want to
synchronize with the current sensor. Multi-choice is possible.
●
Duration
Determines Alarm-Out Duration. Alarm-Out continues for the determined duration.
Off / 3sec / 5sec / 10sec / 20sec / 30sec
5-21
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:23 PM
Page 5-22
Motion Detection Setup
●
M.D State
Off : Motion Detection does not operate
On : Motion Detection starts operation.
●
Area
Select the Motion Detection zone. It is composed of 45x40(NTSC) / 45x48(PAL)
sized Block. You are forbidden to determine 4 block rows(Up/Down/Left/Right) to
allow them to be
displayed in all monitors.
❿ Select All : Selects the whole area.
❿ Select One : Selects a block every time. Selection is done by a toggle system.
❿ Select Quarter : Split the whole area into 4 pieces, which enables selecting a
fourth of the whole area.
❿ Clear All : Cancels the whole area.
❿ Save & Exit : Saves and exits.
❿ Exit : Exits without saving.
English
5-22
00657B(02)SHR-4081-ENG-1
12/6/07
1:23 PM
Page 5-23
SHR-4081N/P USER’S MANUAL
●
Sensitivity
Determines Motion sensing sensitivity. Sensitivity grade consists of Low ➝
Medium ➝ Very High in the ascending order.
●
Alarm-Out
Selects Alarm-Out scope when Motion occurs.
At this moment, this supports 5 Alarm Outs. Choose an alarm-out that you want to
synchronize with the current motion channel. Multi-choice is possible.
●
Duration
Determines Alarm-Out Duration. Alarm-Out continues for the determined duration.
Off / 3sec / 5sec / 10sec / 20sec / 30sec
Video Loss Detection Setup
●
Video Loss State
Off : Image Loss Sensing does not operate.
On : Image Loss Sensing starts operation.
●
Alarm-Out
Selects Alarm-Out scope when the current Image Loss occurs.
At this moment, this supports 5 Alarm Outs. Choose an alarm-out that you want to
synchronize with the current motion channel. Multi-choice is possible.
●
Duration
Determines Alarm-Out Duration. Alarm-Out continues for the determined duration.
Off / 3sec / 5sec / 10sec / 20sec / 30sec
5-23
English
00657B(02)SHR-4081-ENG-1
12/6/07
8:25 PM
Page 5-24
6
Record Schedule
You may select a time when recording starts automatically.
Setup by the weekday or time.
The default is set to “None”.
●
Pressing “CH > “ copies the value of Channel 1 to all the channels.
●
The horizontal axis numbered from 0 to 23 represents the time value.
The vertical axis numbered from S to H represents the day value.
(H : Holiday)
Setup by the weekday or time.
●
Pressing “ALL” converts the overall setting of the selection window into
Continuous ➝ Event ➝ Both ➝ None.
●
Continuous Recording
Recording starts automatically on the preset time.
Recording follows the condition established in 5-18.Record Mode of MENU.
☛ Refer to 7-3 Record Schedule of MENU.
●
Event Recording
Recording starts automatically when Event occurs to Alarm/Motion Detection/Video
Loss within a designated time.
Recording follows the condition established in 5-19.Event Record Mode Setup of MENU.
☛ Refer to 7-4 Event Recording of MENU.
●
Each recording mode has its unique color, Yellow for Sleeping, Blue for
Event, and Red for Sleeping/Event.
●
Reserved Recording On/Off
The reserved recording will progress when it’s set to “On,” and the reserved
recording will not progress when it’s set to “Off.”
English
5-24
00657B(02)SHR-4081-ENG-1
8/7/07
3:59 PM
Page 5-25
SHR-4081N/P USER’S MANUAL
●
Both(Continuous, Event)
On occurrence of Event, Continuous Recording is replaced with Event Recording
Mode.
●
Holiday
If you press "Holiday", a calendar window appears for you to designate holidays.
Place the cursor to a date and press the "ENTER" button, then you can set the
date or Nth day of the month as a holiday. (You can also set both options as
holidays.)
5-25
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:23 PM
Page 5-26
7
Backup
●
The detailed items of Backup Menu are as follows.
HDD Backup Settings
●
●
●
●
●
●
●
In the presence of the device, the free space and backup device will be
displayed.
Select the backup date and time and the camera number, then press "Start".
Whenever you change the start date/time, the end date/time, the free space is
updated and displayed.
In case that two devices are connected, select the backup device by
clicking the USB HDD box at the left bottom.
In the absence of the backup device, a warning message appears.
Select and connect the backup device in Menu 5-8, HDD Setup before the backup
process.
Press "Stop" to suspend backup.
Press "Cancel" during backup to return to the upper menu but the process
continues nevertheless.
Caution
[In the Backup process]
Press "Cancel" to return to the upper menu but the process continues nevertheless.
Press "Stop" to suspend backup
Backup may retard the normal set speed.
Note
In case of back-up devices, please check the compatibility list of the storage devices.
The list of the compatible devices with Samsung DVR can be obtained from your
vendor.
English
5-26
00657B(02)SHR-4081-ENG-1
8/7/07
2:49 PM
Page 5-27
SHR-4081N/P USER’S MANUAL
USB Device Backup Settings
●
●
●
In the presence of the device, the free space and backup device will be displayed.
Select the backup date and time and the camera number, then press "Start".
Whenever you change the start date/time, the end date/time, the free space is updated
and displayed.
●
In case that two devices are connected, select the backup device by
clicking the USB CD/DVD box at the left bottom.
●
In the absence of the backup device, a warning message appears.
Select and connect the backup device in Menu 5-8, HDD Setup before the backup process.
Press "Start" to suspend backup.
●
●
Press "Cancel" during backup to return to the upper menu but the process
continues nevertheless.
Caution
[In the Backup process]
Press "Cancel" to return to the upper menu but the process continues nevertheless.
Press "Stop" to suspend backup
Backup may retard the normal set speed.
5-27
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:23 PM
Page 5-28
8
Network
IP Settings
●
Connection Mode
Designates the kind of the network connected to the main body of SHR-4081N/P.
Static IP : When the main body is connected to the network with Static IP.
Dynamic IP : When the main body is connected to the network with Dynamic IP
supplied by DHCP.
ADSL(PPPoE) : When the main body is connected to the ADSL network with PPPoE.
●
Bandwidth
Designate the speed of the network to which the SHR-4081N/P main body is connected.
Unlimited/2Mbps/1Mbps/600Kbps/300Kbps
Caution
If the main frame is connected to a network that uses a high speed LAN, set the
bandwidth to 1Mbps or 2Mbps. If the main frame is connected to a network that
supports ADSL or lower bandwidth, set the bandwidth below 600Mbps, and set the
Record Mode below CIF (STANDARD).
If you set a higher bandwidth or Record Mode in a network that only supports lower
bandwidth, the network will be overloaded and the connection to the SmartViewer
or video monitoring may not operate properly.
Note
If the Connection Mode is set to ADSL, the bandwidth of IP settings page will be
locked to 300Kbps, and the protocol type of the transfer protocol settings page will
be locked to TCP.
●
Admin Password
The password for the connection between Smart Viewer and the set with the authority
of Admin. The password can be as long as 8 digits.
Press "Enter" and the left number keys from 0 to 9 for setup.
●
User Password
The password for Smart Viewer’s access to the set with the authority of general user.
●
IP
Set up the IP address to connect the SHR-4081N/P main body to the network.
In case of a fixed IP, you must input IP yourself.
In case of a flexible IP or ADSL(PPPoE), the IP allocated from the DHCP server or
ADSL company. If you fail to connect DHCP or ADSL, 000.000.000.000 is displayed.
Then, press "OK" to receive IP. If you repeatedly fail to connect DHCP or ADSL, turn the
SHR-4081N/P main body power off and turn it on again before you retry connecting.
English
5-28
00657B(02)SHR-4081-ENG-1
12/6/07
1:23 PM
Page 5-29
SHR-4081N/P USER’S MANUAL
●
Gateway
Determines Gateway Address in the SHR-4081N/P main body.
●
Subnet Mask
Determines Subnet Mask Address in the SHR-4081N/P main body.
●
DNS
Sets up DNS Address in the main body of SHR-4081N/P. The default of DNS is
168.126.63.1. Generally, you don’t have to alter the DNS default but you may be hard to
connect to the network sometimes if you use DHCP or ADSL. In this case, call the
network manager or ADSL company to set up a new DNS address.
●
ADSL User ID
If the main body of SHR-4081N/P is connected with the ADSL(PPPoE) network, input
User ID subscribed to the ADSL company. You may input User ID with a Virtual
key-board as long as 40 digits irrespective of alphabets, numbers, or symbols.
●
Password
If the main body of SHR-4081N/P is connected to the ADSL(PPPoE) network, input the
user password subscribed to the ADSL company. You may input the password with a
Virtual keyboard as long as 40 digits irrespective of alphabets, numbers, or symbols.
Caution
Be sure to set up IP/SubnetMask/Gateway/DNS to let Smart Viewer connect with the
main body of SHR-4081N/P.
Wrong IP/Gateway/SubnetMask/DNS may prevent Smart Viewer from being
connected to the main body of SHR-4081N/P.
Please call the network manager or ADSL company to get each setting value.
Caution
IIn the ADSL connection mode, SmartViewer does not support Audio replay.
5-29
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:23 PM
Page 5-30
Transfer Protocol Settings
●
●
●
●
●
●
●
You may choose the protocol type, either TCP or UDP.
ADSL setup in the IP setup page can be made only to TCP.
Port(TCP) can be selected from 554 to 998, increasing by 4.
Once the first digit is chosen, the rest 3 digits will follow the first digit.
Port(UDP) can be selected from 8000 to 9760, increasing by 160.
Once the front port is chosen, the rest ports will change accordingly.
Unicast/Multicast has the default of Unicast and you may choose Multicast.
Multicast IP shall be set to Multicast from Multicast/Unicast to be activated and for IP
setup.
Sets up the D-Class IP address from 224.0.0.0 to 239.255.255.255.
TTl shall be also set to Multicast from Multicast/Unicast to be activated and to
choose a value from 1-255. The default is 5.
DDNS Site
- You may select the DDNS Site as Off, Samsung DDNS, dyndns.com, no-ip.com, or
changeip.com.
- If you select Off, the IP will not be registered in DDNS.
- If you select Samsung DDNS, the IP will be registered in the DDNS operated by
Samsung.
Select MAC Address as the Address Type in the Setup ➝ Site Setup ➝ DVR regis
tration window of the SmartViewer, and enter the MAC Address of DVR
(SHR-4081N/P), then you can connect remotely using the Samsung DDNS.
- dyndns.com, no-ip.com, and changeip.com are free Public DDNS websites that a URL
can be allocated by registering a Dynamic IP.
Become a member of the desired website, register the URL, and then set up your
Host Name, User Name, and User Password.
Select URL as the Address Type in the Setup ➝ Site Setup ➝ DVR registration
window of SmartViewer, and enter the Host Name (URL) that is allocated by the
Public DDNS website, then you can connect remotely using the URL.
Note
If you set up the Public DDNS (dyndns.com, no-ip.com, or changeip.com), it will take
approximately 30-60 seconds for the IP address of the Host Name (URL) to be updated
in the DNS.
English
5-30
00657B(02)SHR-4081-ENG-1
12/6/07
1:23 PM
Page 5-31
SHR-4081N/P USER’S MANUAL
Note
If you want to connect IP Router with the main body of SHR-4081N/P, you shall
designate a port for SHR-4081N/P in the IP Router setup menu.
The SHR-4081N/P main body uses 4 ports for TCP communication and further 160
UDP ports when the procotol type is set to UDP. In addition, if you want to use the
DHCP function backed by IP Router to allocate Dynamic IP to the main body of
SHR-4081N/P, you shall designate a port for the IP which SHR-4081N/P has been allocated by the IP Router setup menu.
If you use IP Router, you are recommended to rather determine IP and Port numbers to
be allocated to the main body of SHR-4081N/P from the IP Router setup menu, set the
connection mode to Static IP for the main body of SHR-4081N/P, and input the
determined IP and Port number in IP Router than use the DHCP function.
Please refer to the IP Router User’s Manual or call the manufacturer to set up IP Router.
Callback Settings
●
Callback delivers a callback message to the IP where SmartViewer is already running when
an event corresponding to Alarm, Motion Detection, or Video Loss occurs from the set.
●
On/Off : Off is the default and On is optional.
●
IP Address : IP setup is available only when On/Off is set to On. Sets up the IP
address of a PC where SmartViewer is already running.
●
Port(UDP) : You may choose a value from 7900 to 7999, increasing by 1. Sets
up the port value of Callback Connection set by SmartViewer.
●
Retry : You may choose a value from 1 to 20, increasing by 1.
Caution
- Though Callback is set to ON, there will be no Callback message unless Alarm,
Motion Detection, or Video Loss is set by Event Record.
- Unless you click the Callback button of SmartViewer, SmartViewer does not receive
any Callback message.
5-31
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:23 PM
Page 5-32
9
Network Setup
Port setup for SmartViewer connection.
●
The port value shall be the same as the Port(TCP/IP) value of the set to
register DVR(Setup ➝ Site Setup) with SmartViewer.
●
When you use an IP router, you shall forward the activated port by the current
setting value.
- In case of TCP/IP, set 4 ports(TCP/IP) in the IP router.
- In case of UDP, set 4 ports(TCP/IP) and 160ports(UDP) in the IP router.
When you set to TCP/IP from the Transfer Protocol Setttings page
●
The ports set in Port(TCP/IP) shall be used to control SmartViewer connection
and transmit Stream.
When you set to UDP from the Transfer Protocol Setttings page
●
The ports set in Port(TCP/IP) shall be used to control SmartViewer connection
and those set in Port(UDP) shall be used to transmit Stream.
●
In case of Multicast
- The MultiCast IP and TTL Setup menu will be activated.
- MultiCast IP indicates the group address for Multicast transmission(D-Class IP Address :
224.0.0.0 ~239.255.255.255).
- TTL(Time To Live) indicates how many routers Multicast shall get through.
- If you are unable to Multicast due to the network(LAN or ADSL) characteristics as both
the set and SmartViewer are installed, SmartViewer displays "Not Connected" in the
screen. In this case, reset to TCP/IP or UDP(Unicast).
●
In case of abnormal screen replay from SmartViewer
- This may happen when the network bandwidth of the set is smaller than the packet
quantity of Transmission Stream. Then, reduce the IP setup bandwidth(to 300Kbps or
600Kbps when installed to the ADSL network).
- If this does not work, reset the protocol type to TCP/IP.
English
5-32
00657B(02)SHR-4081-ENG-1
12/6/07
1:23 PM
Page 6
00657B(02)SHR-4081-ENG-1
12/6/07
1:23 PM
Page 7
Chapter 6
PTZ Device Control
00657B(02)SHR-4081-ENG-1
7/4/07
10:08 AM
Page 6-1
SHR-4081N/P USER’S MANUAL
1
PTZ Device Control Mode
●
Select a proper PTZ Device Configuration value in MENU to enter PTZ Control
Mode.
●
Selected in MENU, the symbol(
screen.
●
If you press the Enter( ¦ ) button among direction keys in front of Split Screen,
a blue bar will appear in the monitor screen. Use direction keys to move this bar
until you reach the channel with the PTZ symbol and press the PTZ button in front
of SHR-4081N/P to enter PTZ device Control Mode.
If you succeed in entering PTZ device Control Mode, the PTZ symbol on the
monitor screen will turn yellow from white while the PTZ button in front of
SHR-4081N/P will turn blue. PTZ device Control Mode supports Pan, Tilt, and
Zoom operation.
PTZ
6-1
English
TELE
PTZ
WIDE
) of PTZ is displayed on the channel in the
VIEW
PRESET
00657B(02)SHR-4081-ENG-1
8/7/07
2:53 PM
Page 6-2
●
Other PTZ device Control Modes perform its control in a single screen. Press the
channel selection button in the left front to select the channel whose Menu
selected PTZ and then press the PTZ button. If you succeed in entering Single
Screen PTZ device Control Mode, the PTZ symbol on the screen will turn yellow
from white while the PTZ button will turn blue. Single Screen PTZ device Control
Mode supports Pan, Tilt, and Zoom operation basically and Preset, Camera Menu,
and other functions additionally.
●
Press the PTZ button in Live Mode to cancel PTZ device Control Mode. After
cancellation, the PTZ symbol on the screen will turn white from yellow while the
PTZ button will lose its blue light.
Note
If you select Remote Control Device, you may not control PTZ device with SHR4081N/P. It’s because the PTZ button in front of SHR-4081N/P remains inactivated.
Press the PTZ button and the PTZ ban icon(
) will appear. It’s because the
RS-485 port setup was done for Romote Control Device.
Some functions of PTZ camera may not be used for SHR-4081N/P.
●
When using a remote control device (SCC2000), you may perform camera control
from the remote control device (limited to Samsung Protocol). (Refer to SCC2000
User’s Manual.)
The PTZ Mode will be automatically when there is no PTZ control in the DVR for
up to 5 minutes. This is to enable the PTZ control from the remote Viewer when
there is no PTZ control.
English
6-2
00657B(02)SHR-4081-ENG-1
12/6/07
1:24 PM
Page 6-3
SHR-4081N/P USER’S MANUAL
2
Basic Operation of PAN, TILT, & ZOOM
●
PAN
Press the LEFT or RIGHT button in front SHR-4081N/P in PTZ device Control
Mode to control PTZ device horizontally.
PTZ
●
TELE
WIDE
VIEW
PRESET
TILT
Press the UP or DOWN button in front SHR-4081N/P in PTZ device Control Mode
to control PTZ device vertically.
PTZ
●
TELE
WIDE
VIEW
PRESET
ZOOM
Press the TELE/WIDE button in front SHR-4081N/P in PTZ device Control Mode
to zoom in or out PTZ device.
PTZ
6-3
English
TELE
WIDE
VIEW
PRESET
00657B(02)SHR-4081-ENG-1
8/7/07
3:05 PM
Page 6-4
3
PRESET Setup
●
Records a certain position of PTZ device.
●
Memorizes up to 20 PTZ device positions at the moment.
Note
For AD Protocol PTZ device , this memorizes only 7 positions.
●
Press the SET button in front of SHR-4081N/P in Single Screen PTZ device
Control Mode to set up Preset.
PTZ
●
TELE
WIDE
VIEW
PRESET
After PRESET setup, press ENTER.
English
6-4
00657B(02)SHR-4081-ENG-1
8/7/07
3:05 PM
Page 6-5
SHR-4081N/P USER’S MANUAL
6-5
English
●
Move the cursor right and press ENTER in PTZ Control Mode first. Then, press
Enter to run P/T/Z/ Motion Mode in the PIP screen and press Enter again to cancel
P/T/Z/ Motion Mode.
●
Press Enter at the Position Name position to see Virtual Keyboard. Type Position
Name and press OK to save Position and Position Name.
●
Press Del to delete both Position and Position Name with the number.
●
Press Del ✓ on the top to delete all Positions and Position Names in memory.
00657B(02)SHR-4081-ENG-1
12/6/07
1:25 PM
Page 6-6
4
Camera Menu Setup
●
Camera Menu is a menu supplied by PTZ device itself. This Menu sets up several
conditions of PTZ device.
Note
Either Pan. or Samsung Protocol Camera only is authorized for Camera Menu setup.
●
Press the SET button in front of SHR-4081N/P in Single Screen PTZ device
Control Mode to select Camera Menu.
PTZ
●
TELE
WIDE
VIEW
PRESET
Press the SET button in front of SHR-4081N/P to return to the upper menu from
SET button Camera Menu.
English
6-6
00657B(02)SHR-4081-ENG-1
7/4/07
10:22 AM
Page 6-7
SHR-4081N/P USER’S MANUAL
5
Preset View
●
Preset setup allows your movement to a certain saved position of PTZ device.
●
Press the VIEW button in front of SHR-4081N/P in Single Screen PTZ device
Control Mode to select Preset.
PTZ
TELE
WIDE
VIEW
PRESET
(For example, Samsung Protocol)
●
6-7
English
Control the cursor until it reaches a Preset position number that you want to move
to and you can check the right movement through in PIP Screen on your right.
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 6-8
6
Other View
●
Press the VIEW button in front of SHR-4081N/P in Single Screen PTZ device
Control Mode to supply PTZ device. This is a very special function.
Note
Samsung, Pan., Pel.-P, or Pel.-D Protocol PTZ device supplies this function.
Samsung : Auto Pan / Scan / Pattern
Pan. : Auto Pan / Sequence / Sort
Pel.(P,D) : Auto Scan / Frame Scan / Pattern
PTZ
Preset
Auto Pan
Scan
Pattern
Samsung
EXIT
TELE
Preset
Auto Pan
WIDE
Sequence
VIEW
Sort
PRESET
EXIT
Preset Auto Scan
Pan.
Frame Scan
Pattern
EXIT
Pel.
●
After you select a function, press Enter. Then the function will be checked and
start running.
●
If you select other function while this function is in action, the previous function will
be unchecked and the current function will be checked.
(For example, Samsung Protocol)
●
If you put P/T/Z/ in operation or enter Preset Setup or Camera Menu Setup Menu
while this function is in action, the function in action will be suspended and
unchecked.
●
Restart of SHR-4081N/P System in action has no effect. The function continues its
duty and remains checked.
English
6-8
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 6-9
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 7
Chapter 7
Recording
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 7-1
SHR-4081N USER’S MANUAL
1
PANIC (Emergency Recording)
●
Pressing the button records all the images input so far.
Emergency Record has the characteristics of CIF size, Very High resolution, and
15ips(NTSC)/12.5ips(PAL). During PANIC Recording, LED lights on and a recording
icon appears on the screen. During recording in HDD, HDD LED in front blinks.
●
During PANIC Recording, you may stop PANIC Recoding by pressing the button
then LED lights out.
Warning
If you carry out the functions necessary to stop recording(Time Change, File Delete,
HDD Connect/Disconnect, etc.), recording will be paused.
7-1
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 7-2
2
REC (Normal Recording)
●
Pressing REC the button starts recording as set in Record Mode of MENU.
Then, REC LED lights on and a recording icon appears on the screen. During
recording in HDD, HDD LED in front blinks.
●
During REC Recording, you may stop REC Recoding by pressing the REC button
then REC LED lights out.
●
If you press the REC LOCK button during REC Recording, REC LOCK LED will
light on and the REC button will be locked. Cancel REC LOCK first and press the
REC button to cancel REC.
Warning
If you carry out the functions necessary to stop recording(Time Change, File Delete,
HDD Connect/Disconnect, etc.), recording will be paused.
English
7-2
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 7-3
SHR-4081N USER’S MANUAL
3
Record Schedule
●
While “Continuous Recording” or “Both” is selected for Record Schedule in MENU,
Timer Recording automatically starts. Otherwise, Timer Recording remains
inactivated. During Timer Recording, Recording Icon appear on the screen. During
recording in HDD, HDD LED in front blinks.
●
During the event recording, the auto recording is operated when the event occurs.
In this case, the event recording is saved according to the related channel setup
within the event recording items(Resolution, Frame, Pre-alarm, Post-alarm) of
recording menu.
Note
Even in case of an event, Event Recording will not start unless Event Recording or
Both is selected in Record Schedule.
Warning
If you carry out the functions necessary to stop recording(Time Change, File Delete,
HDD Connect/Disconnect, etc.), recording will be paused.
7-3
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 7-4
4
Event Recording
●
Alarm Detection Setup
Sensor State in Event Record Alarm of MENU shall be set to N.O (Normal Open)
or N.C (Normal Close)
●
Motion Detection Setup
M.D State in Event Record Motion Detection of MENU shall be set to On.
●
Video Loss Detection
Image Loss State in Event Record Image Loss of MENU shall be set to On.
●
Event Record Mode Setup
When Event occurs, it designates recording type. In particular, depending on
Pre-Event Off or Post-Event Off, Pre-Event or Post-Event Recording is
disabled respectively.
Warning
If you carry out the functions necessary to stop recording(Time Change, File Delete,
HDD Connect/Disconnect, etc.), recording will be paused.
English
7-4
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 8
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 9
Chapter 8
Search & Play
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 8-1
SHR-4081N USER’S MANUAL
Before Use
8-1
English
●
Pressing the SEARCH button shows Search Menu on the screen as seen above.
●
CALENDAR uses a calendar to search video files at the preset time.
●
Event Search searches video files recorded by Event.
●
Date/Time inputs a day and time on which the system searches video files.
●
Go To First searches video files from the oldest one.
●
Go To Last searches video files from the latest one.
●
Backup Search searches backed-up video files.
- If you select the external HDD, you are able to search IEEE1394 HDD and USB
HDD.
- If you select the external USB device, you are able to search Memory Device
and USD CD/DVD.
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 8-2
1
Calendar Search
●
Be sure to designate both the channel and the date first. Then press [OK] button
to initiate search.
●
Uses a calendar to search video files at the preset time. Four channels as a
maximum are in the range of search.
●
Press [Enter] ➛,and ❿to choose 4 channels as a maximum and the date column
with recorded video image will turn blue.
●
Use ❷to move to the row where you are able to choose a year/month and press
[Enter] ➛, and ❿ to select a year/month as you wish.
●
Press [Enter] to select a date with a recorded image and the box on the right of
the number indicating the date will appear after checked.
●
Press ❷to move to Time Bar and press ➛, and ❿ to move to the time that you
want and press [Enter] to select the time.
●
Press [OK] to start search and press [Cancel] to move to the previous menu.
●
The Time bar appears every 30 minutes.
English
8-2
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 8-3
SHR-4081N/P USER’S MANUAL
2
Event Search
8-3
English
●
Searches Normal Recording, Panic Recording, Sched.(Schedule) Recording,
Alarm Recording, Motion Recording, and Image Loss Recording by the time.
●
You shall select a channel to search to see the Event information of the channel.
●
On the basis of the Event information for each channel, the system searches the
video file for the event. Only one channel is allowed for video search.
●
Press [Enter] ➛, and ❿to select a channel and the event list for the selected
channel only will be displayed.
●
After channel selection, press œ, ❷, and [Enter] to select a channel from the
event list. The box on the left of the selected event number will be checked.
●
Press ❷to move to [Start] and press [Enter] to start search and move to [Cancel]
and press [Enter] to cancel search. Press [Next] followed by [Enter] to see the
event list in the next screen and press [Prev] followed by [Enter] to see the event
list in the previous screen.
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 8-4
3
Date/Time Search
●
Use the Date/Time information to search video files at the time as you desire.
Up to 4 channels can be searched at once.
●
Press œ, ❷, and [Enter] to select a channel and the box on the right of the
channel will be checked.
●
After channel selection, press ❷to move to the row where you can choose the
search time. To change the search time, press [Enter]. The search time can be
controlled by years/months/days/hours/minutes/seconds and each value can be
changed by pressing œ, ❷For your convenience, keep pressing the button to
change the value continuously.
●
Press ❷to move to [Start] and enter [Enter] to initiate search and move to
[Cancel] and press [Enter] to cancel search.
●
The time information in the bottom left corner, 2007-03-10 08:38:58 indicates the
time when play starts.
English
8-4
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 8-5
SHR-4081N/P USER’S MANUAL
4
Go to First Search
8-5
English
●
Searches the oldest one among recorded video files. Up to 4 channels can be
searched at once.
●
œ, ❷, Press [Enter] to select a channel and the box on the right of the channel
will be checked.
●
Press [Start] to start searching and press [Cancel] to return to the previous menu.
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 8-6
5
Go to Last Search
●
Searches the latest one among recorded video files. Up to 4 channels can be
searched at once.
●
œ, ❷, Press [Enter] to select a channel and the box on the right of the channel
will be checked.
●
Press [Start] to start searching and press [Cancel] to return to the previous menu.
●
Recent Search is used to search the image at the moment that you start searching.
English
8-6
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 8-7
SHR-4081N/P USER’S MANUAL
6
Play
❿ II
●
Press the PLAY/PAUSE button(
●
This chooses out a channel with the oldest data among recorded channels and
plays the data from the first part of the channel. If you used the SEARCH button
for play just before, the system would remember the information of the played
channel until you click the PLAY/PAUSE button( ❿ II ) again, then the system
plays the previous channel.
If you press the PLAY/PAUSE button(
as you never tried Play.
) to play the data recorded in HDD.
❿ II
), the Search Menu will appear as far
Note
- Pressing the PLAY button( ❿ II ) does not affect play as far as the user stays in
MENU. Be sure to escape from MENU to start play.
●
8-7
English
■
Press the STOP button(
) to stop play. If you press the Playback/PAUSE
button( ❿ II ), recording will resume from the point where the previous recording
stops. When the data position reaches the end of HDD during play, play will be
paused.
00657B(02)SHR-4081-ENG-1
12/6/07
●
1:26 PM
Page 8-8
Play Screen Mode Definition
4 Split Screen
Single Screen
PIP Screen
9 Split Screen
PIP Screen Single Screen 4 Split Screen 9 Split Screen Whenever
you press [Mode], the Play screen becomes 4Split, Single, PIP, 9Split in turn.
If you select only one channel from Searh, the 4 Split screen will not appear.
① 4 Split Screen : If you select more than one channel from Search, the 4 Split screen will appear.
➁ Single Screen : This screen appears when you choose only one channel from Search.
If you press [Enter] in the 4 Split screen, a blue bar will appear.
Place the bar in the position that you wish to and press [Mode],
the selected channel will become the Single screen. Press the
[ZOOM] button to enlarge the selected area twice.(Refer to 4-6,
Zoom Function.)
➂ PIP Screen : Press [Mode] during Single screen play and it will be displayed in
the PIP screen.(The larger screen displays the channel in play and
the smaller screen in the bottom right corner displays Live CH in
the form of PIP.) Use œ, ❷ to move the smaller PIP screen(Live
CH) vertically. Press [Enter] and a blue bar will appear in Live CH.
Press the CH button and the Live screen will become the selected
channel.
➃ 9 Split Screen : Press [Mode] in the PIP screen and the 9 Split screen(Live 8CH
+ Play 1CH) will appear. You may set the Play screen position to
"Center" or "Bottom Right" by pressing Menu ➝ Monitoring
Menu ➝ PB CH Position.(9 Split only)
Press the [Enter] button and a blue bar will appear in Live CH.
Press the CH button that you wish and the Live screen will be
converted into the selected channel.
Press [Mode] button to move to the 16 split screen again.
English
8-8
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 8-9
SHR-4081N/P USER’S MANUAL
●
Play at Faster Speed
If you press the LEFT or RIGHT button( ➛➛ / ❿❿ ) or use the Shuttle during
play, you will be able to see the screen at the x2, x4, x8, x16, x32, and x64 speed
either forwardly or reversely.
●
Viewing Still Screen
If you press the LEFT or RIGHT button( ➛➛ / ❿❿ ) or use the Jog shuttle with
the system paused, you will be able to see still screens forwardly or reversely.
During reverse search, the interval between cuts varies depending on the recording specification.
●
Audio On/Off
If you press the “16” button in other screen than 4 Split Screen(i.e. Single Screen,
PIP Screen, and 9 Split Screen), you will be able to turn Audio of the channel in
play on or off. In 4 Split Screen, Audio is not activated.
8-9
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 9
Chapter 9
Backup and
Backup Search
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 9-1
SHR-4081N/P USER’S MANUAL
1
Backup
1. IEEE1394 HDD and USB HDD
1.1 Backup Start
Before backup, HDD(IEEE1394, USB) shall be connected for such purposes.
① Choose either IEEE1394 HDD and USB HDD as a backup device.
➁ Select a backup channel and change the tiem when back starts and ends.
➂ The backup video file size shall be maintained below the free space of the
external HDD.
➃ Press “OK” button to back up the video data of the selected channel at the
designated time in the external HDD.
Note
Pressing "Cancel" does not cancel nor stop backup but move to the upper menu
while back continues.
Pressing "Stop" stops backup.
1.2 Backup Stop
① Select Stop in the backup process to stop backup.
➁ Then, the Backup menu will be displayed in the screen.
➂ If you change the system time or terminate the system, the current backup
process will be paused.
1.3 Backup Play
① Press the SEARCH button in front of SHR-4081N/P and press the Backup
Search menu to play backup.
➁ To search backup, select the device.
➂ Select a channel and time in the Backup Search menu and press the time for play.
Note
Backup can not be played during backup.
Refer to the User’s Manual 8-7, Backup Search.
9-1
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 9-2
2. CD/DVD and USB Memory
1.1 Backup Start
① Choose USB Memory or USB CD/DVD as a backup device.
➁ Select a backup channel and change the tiem when back starts and ends.
➂ The backup video file size shall be maintained below the free space of USB
Memory and USB CD/DVD.
➃ Press "OK" to back up the video data of the selected channel at the designated
time in USB Memory and USB CD/DVD.
Note
1. Pressing "Cancel" Button does not cancel nor stop backup but move to the upper
menu while backup contines.
2. Pressing "Stop" stops backup.
3. Both USB CD/DVDs are not allowed in the USB connection port in front of and
behind SHR-4081N/P.
4. Both Memory Devices are not allowed in the USB connection port in front of and
behind SHR-4081N/P.
1.2 Backup Stop
① Select Stop in the backup process to stop backup.
➁ Then, the Backup menu will be displayed in the screen.
➂ If you change the system time or terminate the system, the current backup
process will be paused.
1.3 Backup Play
① Press the SEARCH button in front of SHR-4081N/P and press the Backup
Search menu to play backup.
➁ To search backup, select the device.
➂ Select a channel and time in the Backup Search menu and press the time for play.
Note
Backup can not be played during backup.
Refer to the User’s Manual 8-7, Backup Search.
English
9-2
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 9-3
SHR-4081N/P USER’S MANUAL
Caution
1. During backup, you shall not separate the backup device from SHR-4081N/P.
2. During backup search, you shall not separate the backup device from
SHR-4081N/P.
3. Be sure to detach the device before you separate the backup device from
SHR-4081N/P(refer to User’s Manual 5-8, HDD and External Device Setup.).
4. In case of backup by using a USB memory, be sure to format with FAT32 and use
a USB memory device with one partition. In addition delete the USB memory at
SHR-4081N/P for safe backup(refer to 5-7, System Information and Setup.).
5. When you connect the backup device to SHR-4081N/P, it takes some time for
SHR-4081N/P to recognize the backup device. Consequently, connecting the
backup device to SHR-4081N/P and executing backup may not result in the
connection of the device. In such a case, please retry shortly later.
9-3
English
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 9-4
2
Backup Search
1. Backup search menu
1-1. External HDD Search
● If
you select an external HDD, you may search the data by using Date, Event,
Origin, or Late.
Refer to p8.2~p8.5 for this purpose.
English
9-4
00657B(02)SHR-4081-ENG-1
12/6/07
1:26 PM
Page 9-5
SHR-4081N/P USER’S MANUAL
1-2. USB Device Search
●
Select an external USB device to search a date.
● Use
the weekday/time information in the backup image to search images
contained in as many as 4 channels.
œ, ❷, [Enter] to select a channel and the box on the right of CH No.
shall be checked.
● Click
channel selection, click the ❷button to move to the time search line.
Click [Enter] to change the search time. The search time may be changed by
Year/Month/Day/Hour/Minute/Second by clicking œ or ❷. For your convenience,
just keep pressing a button and the value will continue to change.
● After
●
Click [Start] to start searching and [Cancel] to return to the previous menu.
● The
time information in the bottom left corner, 2007-03-06 17:47:27 indicates
when to start replay.
9-5
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10
Chapter 10
Smart Viewer
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-1
SHR-4081N/P USER’S MANUAL
1
Introduction
Smart Viewer is a program that a general PC user is able to install SHR-4081N/P to
his PC to monitor the search video and audio data through Network without going to
the site where SHR-4081N/P is installed by himself.
10-1
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-2
2
Feature
●
Thanks to the transmission of video data compressed by the MPEG-4 Video
Compression method, this plays video images of good quality.
●
Thanks to the G.726 Voice Compression method, this supplies voice data of good
quality. Use of armored MIC improves the quality of remote voice.
●
Thanks to the transmission of video/audio stream through RTP(Real-Time
Transport Protocol), real-time video play capacity is excellent and multi-users’
simultaneous connection does not affect the transmission speed in whole abruptly.
●
Command & Control by RTSP(Real-Time Streaming Protocol) enables safety
control through Network.
●
Supports various transmission protocols (TCP/IP, UDP(Unicast, Multicast)).
●
Connection is open to you at any time to monitor video and audio data by inputting
IP Address only.
●
You can not only perform real-time recording (*.dvr format) whereas necessary
during monitoring but also convert recorded video files (*.dvr format) into frame
unit images((JPEG format).
●
One DVR set allows 3 Smart Viewer users(or 6 with Multicast) at the same time.
●
With a Smart Viewer, you are allowed to connect to as many as 9 SHR-4081N/P
to monitor them simultaneously.
●
Smart Viewer is optimized in the resolution of 1024X768
English
10-2
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-3
SHR-4081N/P USER’S MANUAL
3
PC Specification(Recommendation)
●
OS : Win2000, WinXP
●
Recommendation :
CPU Pentium3 1GHz or higher
RAM 256 Mb or higher
VGA RAM 32Mb or higher
DirectX 8.1 or higher
Note
Depending on Recording Rate, Video Size, and user’s PC specification set to
SHR-4081N/P, the number of Smart Viewer play frame varies.
For the detailed specification, refer to Appendix 4.
10-3
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-4
4
Smart Viewer Installation
Smart Viewer Installation
●
Put a Smart Viewer Program CD in and open the “Smart Viewer” folder in CD.
●
Run the “Setup.exe” file.
English
10-4
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-5
SHR-4081N/P USER’S MANUAL
10-5
English
●
Click the “Next” button.
●
If you agree with Smart Viewer License, click “Yes”.
●
Designate a folder to install Smart Viewer in it and click “Next”.
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-6
●
The system proceeds with setup file installation and system setup.
●
Installation is complete. Press “Finish” to terminate installation.
English
10-6
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-7
SHR-4081N/P USER’S MANUAL
5
Smart Viewer Program Execution
●
10-7
English
Double-click the Smart Viewer icon in the background screen to run the program.
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-8
6
Smart Viewer Initial Screen
●
Screen Description
2
1
3
4
6
5
7
8
9
10
11
12 13 14
! Pressing this button enters Search Mode in which you can search and play the
video data recorded both in Monitoring Mode for real-time video data monitoring
and in SHR-4081N/P.
@ This button terminates or minimizes the program.
# It displays the current date, day, and time.
$ This button is used for the connection with the preset DVR(SHR-4081N/P) or site.
% This screen shows the monitoring video image.
^ These buttons are used to select the window to display event messages and came
connection condition.
& This window displays the event message from SHR-4081N/P real-time.
* These buttons display the status of channel being played in the present .
( This button adjusts Audio Volume and Video Brightness/Contrast or records video
data.
) This button is used for PTZ related functions.
1 This button is used for screen split and Sequence Mode.
2 This button is used for Callback connection.
3 This button is used for the Favorite function to contact a site.
4 This button puts up the Setup Mode window to change Smart Viewer or
SHR-4081N/P setup. (Refer to 10-30. Setup Mode.)
English
10-8
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-9
SHR-4081N/P USER’S MANUAL
7
Monitoring Mode
●
DVR(SHR-4081N/P)/SITE Connection
- Select the name of DVR(SHR-4081N/P) or site for connection and click the
connection button.
Note
You can determine the name, IP, and password of DVR(SHR-4081N/P) for
connection in Setup Mode. Also, setup of a site which permits simultaneous
connection to multi-DVRs(SHR-4081N/P) is available in Setup Mode.
When you connect to the SITE, you may connect to a maximum number of 16 DVRs
(SHR-4081N/P) simultaneously.
Connection Failure Cases
1. Password Certification Failure
- In case of discord between the Network password set to SHR-4081N/P and the
connection password set to Smart Viewer, a window pops up to induce retry of
password input.
2. Admin User Connection Failure
- Where SHR-4081N/P that you wish to connect to has been already occupied by
other user in an Admin. Capacity, you are authorized with access to
SHR-4081N/P concerned in a User capacity.
10-9
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-10
Note
No more than 3 users, one Admin. authorized user and 2 User authorized users are allowed to
access SHR-4081N/P simultaneously. One SHR-4081N/P allows as many as 3 users, 1 Admin
and 2 Users for simultaneous connection(or as many as 6 users including 5 Users for
Multicast).
Caution
Only 3 users can be connected to the SHR-4081N/P( 6 Users in Multicast).
●
Monitoring Mode Connection Screen
Caution
If you alter “Resolution” or “Color Quality” from the setup tab of [Display
Registration Information] while Smart Viewer is running, Smart Viewer will fall into
an unexpected condition.
You shall terminate Smart Viewer first to recover the condition.
●
Mode Conversion Button
- This button changes Monitoring Mode or Search Mode.
English
10-10
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-11
SHR-4081N/P USER’S MANUAL
●
Time Information
- As soon as you are Connected to SHR-4081N/P, the date, weekday, and time of the
set to which the selected channel is connected.
- If SHR-4081N/P is not connected, the present date, weekday, and time of the user's
PC are displayed.
●
Connection Information
- As soon as you are connected to SHR-4081N/P, the connection button will
display connection status.
- If you click the connection button here, connection will be cancelled.
●
Play Screen OSD Information
2
1
4
5
3
6
! Channel no., camera name, and video size will be displayed.
Video Size (C) CIF / (N) Normal / (L) Large
@ The Video data of the current channel are recorded in your PC with REC mark
displayed.
# Audio ON/OFF Button is marked.
$ Displays the name, IP address, and play time of the current SHR-4081N/P.
% The current channel alarm status is displayed.
^ Possibility of the current channel PTZ controllability is displayed.
10-11
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-12
Note
# Clicking the speaker icon turns Audio of a channel on or off.
: Audio OFF
: Audio ON
If you turn Audio of a SHR-4081N/P channel off, Disable will be displayed.
: Audio Disabled
✴ For the channel with Audio turned on now, use the following Audio relate button
to control Audio volume and set up MUTE.
✴ Once TCP/IP is selected, Audio will be turned off.
Note
% Where Alarm or Motion Detection occurs at a channel of SHR-4081N/P with
Alarm or Motion Detection established, an icon pops up on the screen real-time.
: Motion Detection
: Alarm Event
Note
^ If you connect and set up PTZ device in SHR-4081N/P, PTZ controllability of the
channel will be displayed.
✴ Select a channel capable of PTZ and use the PTZ related buttons at the bottom to
control PTZ. (Refer to the description of PTZ Related Button.)
English
10-12
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-13
SHR-4081N/P USER’S MANUAL
●
Event Log Display Window
- Click the Log button to activate the Log Display window.
- Displays the event(alarm, user connection, and setup change) occurring at
SHR-4081N/P real time.
Note
[Event Message]
‹ Connecting.. : Trying to connect to SHR-4081N/P.
‹ Connected.. : Succeeded connecting to SHR-4081N/P.
‹ Connection Failed : Failed in connecting to SHR-4081N/P.
‹ Disconnected.. : Finished connecting to SHR-4081N/P.
‹ Setup(Remote) : SHR-4081N/P at DVR Setup of Viewer changed.
‹ Setup Start / End (Local) : Start/Finish the Menu screen at SHR-4081N/P.
‹ Video Loss CH[N] : Video Loss at the N channel of SHR-4081N/P encountered.
‹ Time Change : Date/Time of SHR-4081N/P changed.
‹ Load Factory Default : SHR-4081N/P System initialized.
‹ Network Change : SHR-4081N/P Network setup changed.
‹ System Shutdown : SHR-4081N/P System terminated.
‹ Hdd Format : SHR-4081N/P HDD initialized.
‹ Disk Full : No more space in SHR-4081N/P HDD.
‹ Power Failure Recovery : SHR-4081N/P resumed after power failure.
‹ Backup Start/End/Fail/Stop : Backup at SHR-4081N/P
started/finished/failed/stopped.
‹ Network Traffic Busy : When the data is not transferred smoothly
‹ Access Denied(Limit Over) : When user can be connected are exceeded
10-13
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-14
Caution
When Time Change, Load Factory Default, Network Change, System Shutdown,
or Hdd Format event occurs, Smart Viewer terminates automatically.
●
Camera Connecting Indication Window
- List displays the connection condition of DVR and CAMERA.
Note
[DVR Icon Mark]
‹ If you succeed in SHR-4081N/P connection, the icon will be turned yellow,
otherwise black.
[DVR Icon Mark]
‹ During monitoring by connecting with CAMERA, it will turn yellow.
‹ Depending on the availability of connection, it turns blue(Able) or black(Disable).
English
10-14
00657B(02)SHR-4081-ENG-2
8/7/07
3:35 PM
Page 10-15
SHR-4081N/P USER’S MANUAL
●
Screen Split Selection Button
- Full Screen / Single / Quad / Nine-Split Mode
- You may change the Split Mode of the screen under monitoring.
●
Sequence Mode Button
- Changes the channel to be played at the preset interval.
- The sequence time interval setup follows the procedure of Setup Mode ➝
Viewer Setup.
- In Single Mode : 1 ➝ 2 ➝ 3 ➝ 4 ➝ 5 ➝ 6 ➝ 7 ➝ 8 ➝ 1 (CH)
- In Quad Mode : 1,2,3,4 ➝ 5,6,7,8 ➝ 1,2,3,4 (CH)
- In Nine-Split Mode : 1,2,3,4,5,6,7,8 ➝ 1,2,3,4,5,6,7,8(CH)
Note
If you connected with multi-DVRs(SHR-4081N/P) through a site, Sequence will operate as
follows.
- In Single Mode : DVR1:1CH ➝...➝ DVR1:8CH ➝ DVR2:1CH ➝...➝ DVR1:1CH
- In Quad Mode : DVR1:1,2,3,4CH ➝...➝ DVR1:1,2,3,4CH ➝ ...
- In Nine-Split Mode : DVR1:1,2,3,4,5,6,7,8CH ➝DVR2:1,2,3,4,5,6,7,8CH ➝...
●
Monitoring Screen Condition Information / Selection Button
- Displays the Split or Monitoring condition of the screen in play.
: During monitoring in Nine-split Mode
10-15
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-16
: During monitoring in Quad Mode
: During monitoring in Single Mode
: Camera Off
Note
The figure in a screen icon indicates the screen position in SmartViewer.
: The orange icon indicates the current channel is connected to a camera.
: The gray icon indicates the channel is connected to a camera but not displayed
on the screen.
: The black icon with a diagonal line indicates no camera is connected.
English
10-16
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-17
SHR-4081N/P USER’S MANUAL
●
NEXT Button
-
Click NEXT(Mouse Left Button) to see the channel next to the current monitoring channel.
In Single Mode : 1 ➝ 2 ➝ 3 ➝ 4 ➝ 5 ➝ 6 ➝ 7 ➝ 8 ➝ 1 (CH)
In Quad Mode : 1,2,3,4 ➝ 5,6,7,8 ➝ 1,2,3,4 (CH)
In Nine-Split Mode : 1,2,3,4,5,6,7,8 ➝ 1,2,3,4,5,6,7,8 (CH)
Note
If you connected with multi-DVRs(SHR-4081N/P) through a site, Sequence will
operate as follows.
- In Single Mode : DVR1:1CH ➝...➝ DVR1:8CH ➝ DVR2:1CH ➝...➝ DVR1:1CH
- In Quad Mode : DVR1:1,2,3,4CH ➝ DVR1:1,2,3,4CH ➝ ...
- In Nine-Split Mode : DVR1:1,2,3,4,5,6,7,8CH ➝ DVR2:1,2,3,4,5,6,7,8CH ➝...
●
CALLBACK Button
- Click the CALLBACK button to activate the CALLBACK window and it is ready to
receive a message.
- Upon receiving a message, Smart Viewer will automatically try to connect the DVR.
- A message is received at the time of Video Loss, Alarm, and Motion Detection.Mode.
- You can select if the alarm is set to ON when it receives an event message.
10-17
English
00657B(02)SHR-4081-ENG-2
7/4/07
●
3:00 PM
Page 10-18
FAVORITE Button
- Click the FAVORITE button to activate the FAVORITE window.
a
a
b
b
c
c
d
d
Click the current FAVORITE to display all the cameras
recorded in the settting.
You may delete all the selected FAVORITE settings or all
the FAVORITE settings.
You can select a new FAVORITE number and name.
Alters FAVORITE at the selected intervals.
Note
- The FAVORITE button can be activated for use only when the site is contacted.
- The FAVORITE setup information will remain in the Config file even after the site
contact is cancelled.
- If you revise the DVR list composing the site in the Setup menu, the FAVORITE value
will be initialized.
English
10-18
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-19
SHR-4081N/P USER’S MANUAL
●
Video Recording Button
- If you select a channel in play and click the REC button, the image will be saved
in a file format with the extension of *.dvr in a designated folder of your PC.
- The name of the directory in which an image will be saved, the file name, and the
image save length shall be set up by Setup Mode ➝ Viewer Setup.
- The length of an image to be saved ranges from one minute to 10 minutes.
- The saved image can be played in Local Mode of Search Mode.
- Click the button again to stop recording. However, manual suspension is
prohibited for 10 seconds after recording started.
●
Audio Volume Control Button
- You may control Audio volume of the channel in play or set up Mute for it.
- You can increase or decrease Audio volume by 1 between 0 and +10.
●
Video Brightness/Contrast Control Button
- Select the channel in play and use the control button(+,–) to adjust brightness or
contrast of the image.
- The default is set to +5.
- You can increase or decrease brightness or contrast by 1 between 0 and +10.
Press the Button to recover the default.
Note
The adjusted Audio volume, brightness, and contrast values will be saved in your PC
and remain unchanged even if you terminate Smart Viewer and restart it.
10-19
English
00657B(02)SHR-4081-ENG-2
7/4/07
●
3:00 PM
Page 10-20
PTZ device Control Buttons
- Select a channel connected to PTZ device to control PTZ related functions.
- PAN Left / Right
- TILT Up / Down
- Diagonal Control
- The channel under PTZ control will be displayed in the center of the button.
3
1
2
!@ ZOOM IN / OUT
# POWER ZOOM : Click P to activate POWER ZOOM.
- POWER ZOOM is a function to enlarge or reduce a video screen by touching the
screen itself.
- After POWER ZOOM is dominant, ZOOM IN / OUT will zoom in or out the video
screen.
- POWER ZOOM Operation Procedure : Click POWER ZOOM ➝ Select ZOOM IN or
OUT ➝ Click ZOOM IN or OUT in the video screen ➝ ZOOM IN / OUT will be
activated in the clicked part.
Note
The PAN / TILT / ZOOM function is supplied to all camera.
But, POWER ZOOM is supported only by Samsung Smart Dome Camera, with TILT
below 45°.
1
2
3
4
English
10-20
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-21
SHR-4081N/P USER’S MANUAL
! PRESET
- If you press the PRESET button, a window for PRESET setup pops up.
a If you click the current PRESET number and
a
name, the camera will move accordingly.
b
b You can delete the selected or all PRESET
setup values.
c
c You can set up a new PRESET number and
name.
Note
! The PRESET function is supplied to all camera.
You are allowed to set up no more than 20 PRESET items.
But, the AD Protocol camera supports up to 7 PRESET items.
@ AUTOPAN : The camera executes this function, reciprocating between Start and End.
# SCAN : The camera executes this function, circulating the PRESET setup positions.
$ PATTERN : The camera executes this function, following user defined route.
Note
The name of @,#, and $ functions varies depending on the camera and some
cameras does not support any of those functions.
- The Samsung camera supports all the functions and names.
- The Panasonic camera supports all the functions, but with different names.
@ SEQUENCE # AUTOPAN $ SORT
- The PELCO camera supports all the functions, but with different names.
@ FRAME SCAN # AUTO SCAN $ PATTERN
- Other cameras do not support the @AUTOPAN, #SCAN, and $PATTERN
functions.
10-21
English
00657B(02)SHR-4081-ENG-2
7/5/07
●
1:48 PM
Page 10-22
Self Menu Setup of PTZ device
1
! You may set up the Function Menu in PTZ device.
1
2
3
! This is a Menu screen supplied by the camera itself, seen from Viewer.
@ Use the /// button for the movement between menus.
# This is a button for the role of Enter.
Note
The Camera Menu Setup function is supported by Samsung and Panasonic.
Caution
As far as SHR-4081N/P uses the PTZ device control related functions, Smart Viewer
can not control PTZ device.
The PTZ device control related functions are authorized with the user with Admin
authority.
English
10-22
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-23
SHR-4081N/P USER’S MANUAL
8
Search Mode
●
The initial screen of search mode
- The search mode is divided into the remote mode to search and play the
SHR-4081N/P video and the local mode to play *.dvr file saved in the directory
designated by your PC.
1
3
4
2
5
6
7
8
10
11
9
12
! To change to the search mode for the remote control of video recorded in
SHR-4081N/P.
@ To show the playback video.
# To change to the remote mode for the transmission of video recorded in
SHR-4081N/P through network.
$ To change to the local mode for the playback of *.dvr files recorded in your PC.
% Calendar window to select “Year/Month/Day” for search.
^ To control the audio volume and video brightness/contrast.
& To change the screen split.
* Button for the Record / Convert File / Print / Setup functions.
( To control the playback of searched video.
) To display the next channel in order.
1 To change the channel and DVR or renew the calendar window
and Time Line.
2 Timeline to display the time information of search date recorded in
SHR-4081N/P.
Note
- When connecting to the site, select a DVR to search in the camera connection list.
- When connecting as a user, you are denied to access the search mode.
10-23
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-24
●
DVR(SHR-4081N/P) Selection/Change by contacting SITE
- Same as “DVR(SHR-4081N/P)/SITE Connection” of the monitoring mode.
●
DVR(SHR-4081N/P) Selection/Change by contacting SITE
- Select SHR-4081N/P from the Contact list.
- SHR-4081N/P turns black if contacted with the ADMIN authority and turns gray if
contacted with the USER authority.
- Without the ADMIN authority, search is not accessible.
●
Remote Mode
- This mode transfers the video data recorded in SHR-4081N/P by network for the
playback.
- Up to 4 channels are allowed for simultaneous search and playback.
- The video information at the time indicated by the timebar will be displayed in the
playback screen.
When clicking, it changes to the remote mode.
English
10-24
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-25
SHR-4081N/P USER’S MANUAL
●
Calendar Window
- If the video data in on-line SHR-4081N/P was recorded, the date turns red.
- If you click the date in red, the saved video information is displayed.
- The currently selected date will be marked with a thick red box.
- ¦: Moves to the previous month.
- ‹: Moves to the next month.
●
Audio Volume Control, Video Brightness/Contrast Control Buttons
- Same as the control function of Monitoring Mode
●
Screen Split Selection Button
- Full Screen / Single / Quad / Nine-split / Sixteen split mode
Note
9 partition and 16 partition modes cannot be used in the Remote Mode. And 4 partition, 9 partition, and 16 partition modes cannot be used in the Local Mode.
●
Video Save(Backup) / Video Conversion / Print / Setup
1
2
3
4
! Video save button
:During the playback(Play/Reverse Play/Fast Forward/Fast Backward),
- If you select a channel in the playback and click the SAVE button, the video is
saved in a file format with the extension of *.dvr in a designated folder of your PC.
- The directory in which an image will be saved, the file name, and
the video length to be saved can be set at the Setup Mode ➝ Viewer Setup.
- The video length to be saved can be set from one minute to 10 minutes.
- Click the button again to stop recording. However, manual suspension is
prohibited for 10 seconds after recording started.
10-25
English
00657B(02)SHR-4081-ENG-2
8/7/07
4:02 PM
Page 10-26
@ Backup Button
- If not playback(Stop), the video save button performs the backup function.
- If the save button is pressed, the window for backup pops up.
- Set a Start/End tome for backup and select a file format to save.
- The backup starts when the “Start” button is clicked. The backup file is saved
according to the setting route; Setup ➞ Viewer Setup ➞ Video Recording ➞
Video Location.
- To stop the backup, click the “Stop” button.
Note
Video saving in the remote mode is available only when the Play/Reverse
Play/Fast Forward/Fast Backward button remains pressed down.
The backup function in the remote mode is available at the Stop status.
# File Converting Button
- This function converts * .dvr files into “*.jpg” files.
- Click the “Open” button to select a *.dvr file to be converted.
- Select the JPEG Frame or AVI Video.
- If the JPEG Frame is selected, the file is converted into the “*.jpg” file by
clicking the “Start” button. The converted “*.jpg” file is saved according to the
setting route Setup ➞ Viewer Setup ➞ File Converting ➞ Jpeg Location.
- I f the AVI Video is selected, the file is converted into the “*.avi” file by clicking
the “Start” button. The converted “*.avi” file is saved according to the setting
route Setup ➞ Viewer Setup ➞ File Converting ➞ AVI Location
- Press the “Start” button to convert it to a *.Jpg file. Press Setup ➞ Viewer
Setup ➞ File Converting to save the converted *.jpg file.
- Click the Stop button to pause the file conversion.
English
10-26
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-27
SHR-4081N/P USER’S MANUAL
$ Print
- This function outputs the screen zone of the playback video which is now
being displayed.
% Setup Mode Button
- This button pops up the setup mode window.
●
Play Buttons
2
1
5
9
3
7
4
6
8
! Play : Play
@ Reverse Play : Reverse Play
# Stop : Stop
$ Fast Forward : Faster Play
% Fast Backward : Faster Reverse Play
^ Step Forward : Forward playback per second.
& Step Backward : Reverse playback per second.
* Go to First : Playback of the first image in the time Line
( Go to Last : Playback of the latest(last) image in the time Line
10-27
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-28
Note
During play(Play/RevPlay/FF/FB), disconnection or entering both Monitoring Mode
and Local Mode is not permitted. Click the Stop button first before conversion.
●
Time Line
- Displays the time information on the video data in SHR-4081N/P on the calendar
window for the selected day.
- The General mode indicates the 24 hour information from 0 o’clock to 24 o’clock
while the Zoom mode indicates the time information every 2 hours.
2
1
3
[ General Mode ]
! The channels being displayed in Play Screen will be activated in a white
background.
@ Time Line : The time information on the video data recorded in SHR-4081N/P.
# Time Bar : Displays the current time of the video image being displayed in Play Screen.
Note
Double-clicking the neighborhood of Time Bar enters Zoom In Mode.
One column of Time Line represents an hour.
Time Line turns Green(Normal), Red(Panic), Orange(Alarm), Blue(Motion),
Yellow(Schedule), or Purple(Video Loss) depending on the recording condition.
1
2
[ Zoom In Mode ]
! Displays the time line one hour ago.
@ Displays the time line one hour later.
Note
Double-clicking the neighborhood of Time Bar again enters General Mode.
One column of Time Line represents 5 minutes.
Time Line turns Green(Normal), Red(Panic), Orange(Alarm), Blue(Motion),
Yellow(Schedule), or Purple(Video Loss) depending on the recording condition.
English
10-28
00657B(02)SHR-4081-ENG-2
8/7/07
3:39 PM
Page 10-29
SHR-4081N/P USER’S MANUAL
●
Next Button
- Changes a channel as the Next button does in Monitoring Mode.
Note
During Video play(Play/RevPlay/FF/FB), channel change is not available.
●
Reload Button
- Clicking updates the time information on the video data recorded in the calendar
window and Time Line.
●
Local Mode
- This mode plays *.dvr files recorded in the directory of your PC by the Record
function.
- You can search and play only one channel.
- You are free for access to the user being connected to SHR-4081N/P
- Other functions than the calendar display function are as same as those of
Remote Mode.
- The time information on Local File will be displayed at the first channel position in
Time Line together with the file name.
: Clicking selects a file to be played in the file selection window and
enters Local Mode.
Note
Only the* .dvr files saved by Audio activation can be played in Local Mode.
10-29
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-30
9
SETUP MODE
●
Description of Initial Screen
3
1
2
4
! This button is used to select items for DVR Setup, Viewer Setup, Site Setup, and
S/W Version setup.
@ Shows what the selected Setup item can set up in detail.
# This button terminates the Setup window.
$ This button saves the information revised in the Setup window, remarks the
information prior to such a revision, or terminates the Setup window.
English
10-30
00657B(02)SHR-4081-ENG-2
8/8/07
5:34 PM
Page 10-31
SHR-4081N/P USER’S MANUAL
●
Setup Item Selection Button
- This button is used for the selection of each Setup item.
- This is composed of 4 items, DVR Setup, Viewer Setup, Site Setup, and S/W
Version.
- DVR Setup : DVR Setup allows you to change the remote Menu setup items of
SHR-4081N/P.
- Viewer Setup : Viewer Setup allows you to set up various kinds of items concerning operations of Smart Viewer.
- Site Setup : Site Setup allows you to set up SHR-4081N/P information, that is
SHR-4081N/P name, IP Address, ID, and Password that you contact through
Smart Viewer or register all the registered SHR-4081Ns at a site for control.
- S/W Version : S/W Version shows the current version of Smart Viewer, system
requirement, and the System S/W version of on-line SHR-4081N/P and upgrades
SHR-4081N/P System S/W remotely.
●
Save/Cancellation of Revised Information
- Click the [Apply] button to save the information revised in the Setup window click
the [Cancel] button to display the information before such a revision.
●
Closing Setup Window
- Click the [X] icon on the top right corner of the Setup window or the [Close]
button to close the Setup window.
- If more than one Setup item have been revised before you close the Setup
window, the following message box pops up. If you press OK, the revised
information will be saved, closing the Setup window but if you press CANCEL,
the revised information will be flown away, closing the Setup window.
10-31
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-32
DVR Setup
- Click the [DVR Setup] button for DVR Setup.
- You can change the setup items of SHR-4081N/P Menu, being connected with
Smart Viewer remotely.
- DVR Setup is composed of 5 items, System, Camera/Audio, Monitoring,
Recording, and Network.
Note
DVR Setup is for only ADMIN.
1
2
! Among more than one on-line SHR-4081N/P, the name of SHR-4081N/P connected in the Admin capacity will be listed. Depending on you are connected to a
SHR-4081N/P or the site, the name of SHR-4081N/P or the name of
SHR-4081N/P connected in the Admin. capacity among those composing the site
will be listed. You may choose one to set up SHR-4081N/P Menu.
@ The setup menu for selected SHR-4081N/P will be displayed.
English
10-32
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-33
SHR-4081N/P USER’S MANUAL
●
Detailed DVR Setup Items
! System
- Information
Information shows the information on on-line SHR-4081N/P.
Note
For the detailed items of DVR Setup, refer to Chapter 5, MENU.
- Password
Password determines the password for the control of SHR-4081N/P Menu or
SHR-4081N/P key input.
10-33
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-34
Caution
System Password shall be composed of number only, up to 8 digits.
Note
- The Delete key and the combination of Ctrl+C or Ctrl+V in the keyboard are not
supplied to System Password input.
- Use the BACKSPACE key to delete content.
Note
Default System Password is set to 4321.
- Date/Time
Date/Time is used to set up the information on Date, Time, Form, and Summer
Time of on-line SHR-4081N/P.
Note
- If you change the Date/Time value, SHR-4081N/P will automatically cut the
connection with Smart Viewer to apply a new time setup.
- Upon completion of new time setup of SHR-4081N/P, you are permitted to resume
connection with Smart Viewer.
- But, Display Format or DST can be set up without disconnection.
English
10-34
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-35
SHR-4081N/P USER’S MANUAL
- Language
Language sets up the language in which on-line SHR-4081N/P will be expressed
Note
Language change by SYSTEM LANGUAGE results in change of language expression
setup of SHR-4081N/P. In short, the language setup of Smart Viewer does not
change. Language specification to be supported is subject to change later.
- HDD Mode
In HDD Mode, you may set up Writing Mode of HDD attached to SHR-4081N/P.
10-35
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-36
- Remocon (Remote Control Device)
Remocon can set up Remote Control Device fixed to SHR-4081N/P.
Note
If you fix Remote Control Device to the main body of SHR-4081N/P and activate the
setting values, Viewer will be disabled to control PTZ.
English
10-36
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-37
SHR-4081N/P USER’S MANUAL
@ Camera
- Config.
Config. sets up Video, Audio On/Off, Camera Title, and Screen change Time
for each channel of on-line SHR-4081N/P.
Caution
- Title supports English only. If you type in and apply Title in your native language,
Warning message will pop up to ask your retyping.
- Title shall be composed of no more than 15 texts.
- If you leave Title blank and apply it, Warning message will pop up to ask your
retyping.
Note
- The Delete key and the combination of Ctrl+C or Ctrl+V in the keyboard are not
supplied to Title input.
- Use the BACKSPACE key to delete content.
10-37
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-38
- PTZ device
If a dome camera is connected to all channels, sets up Camera ID, Protocol,
Baud Rate, Parity, Data Bit, Stop Bit, and Serial Mode.
# Monitoring
- Monitoring
Monitoring sets up both Event Monitoring and OSG Display of Live Mode.
English
10-38
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-39
SHR-4081N/P USER’S MANUAL
$ Recording
- Rec. Mode
Rec. Mode sets up Live Mode decision, Video Size during recording, Quality,
and Rate.
NTSC
PAL
Note
Full D1(L) Video Size does not support 15ips, 10ips(NTSC) / 12.5ips, 8.33 ips(PAL)
- Event Rec.
Event Rec. sets up Video Size, Quality, Rate, Pre Alarm, and Post Alarm
values to be recorded when Event occurs.
NTSC
PAL
12.5
Note
Full D1(L) Video Size does not support 15ips, 10ips(NTSC) / 12.5ips, 8.33 ips(PAL)
10-39
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-40
- Alarm Rec.
Alarm Rec. sets up the information necessary for Alarm Recording.
Note
At least one camera should be selected in advance to be coupled with Alarm.
- Motion Rec.
Motion Rec. sets up the information necessary for recording by Motion
Detection.
English
10-40
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-41
SHR-4081N/P USER’S MANUAL
- Video Loss
Video Loss sets up the information on how to inform the user of Video Loss of
SHR-4081N/P.
% Network
- Password
This sets up the password for Admin and User to let you connect with
SHR-4081N/P through Network in Smart Viewer.
Caution
- Network Password shall be composed of no more than 8 texts.
- If you leave Password blank and apply it, Warning message will pop up to ask your
retyping.
10-41
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-42
Note
- The Delete key and the combination of Ctrl+C or Ctrl+V in the keyboard are not
supplied to Network Password input.
- Use the BACKSPACE key to delete content.
Note
- Default Admin Password is set to 654321.
- Default User Password is set to 654321.
- Configuration
Sets up the network connection method of SHR-4081N/P.
SHR-4081N/P supports the connection with Static IP, Dynamic IP, and ADSL(PPPoE).
Sets up the network Bandwidth. Please adjust the bandwidth to the network con
dition in which SHR-4081N/P is connected. Sets up IP Address, Gateway, Subnet
Mask, and DNS. Please input both ID and password of the sub scriber in the event
of ADSL.
Caution
- Be sure to inquire the network manager before you input Network IP, Gateway,
Subnet Mask, or DNS.
- Both ADSL ID and Password can be input in alphabets, numbers, and symbols without discrimination as long as 40 digits and 40 digits respectively.
English
10-42
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-43
SHR-4081N/P USER’S MANUAL
● Callback
- Sets up the Callback functions of SHR- 4081N/P.
- Sets up the IP address and port to which SmartViewer was installed to deliver
the Callback message in the event of Alarm, Motion Detection, or Video Loss.
Sets up the value for retrial in the event of message delivery failure.
● Translation Protocol
- Changes the Transmission Protocol setting values. The protocol supports TCP/IP
and UDP(Unicast, Multicast). Control Port(TCP/IP) and Port(UDP) to change the
connection port. Multicast IP or TTL will be used for UDP(Multicast).
10-43
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-44
Note
- SHR-4081N/P uses 4 PORTs for TCP connection.
- A PORT number is flexible and 4 numbers in a row will be changed in all.
(554,555,556,557 ➝ 558,559,560,561)
- You shall allocate the above ports for SHR-4081N/P if you want to compose a
network by IP Router.
Viewer Setup
- Click the [Viewer Setup] for Viewer Setup.
- Viewer Setup sets up various kinds of items related to Smart Viewer motions.
- Viewer Setup is consisted of 7 items : Video Recording, File Converting,
Sequence Time, OSD Display, Auto Connection, Callback Connection, and
Language.
1
2
3
5
7
4
6
8
! This is used for the setup of information necessary for saving the video data in
display in *.dvr file format while you are connected to SHR-4081N/P.
@ This is used for the setup of information necessary for converting the file saved
in your PC in *.dvr file format into JPEG.
# This is used for the setup of information necessary for Screen change Mode.
$ This is used for the setup of information on OSD display for Smart Viewer.
% This determines whether Smart Viewer shall be automatically connected to
DVR(SHR-4081N/P) or Site when it begins running.
^ This is a menu item that is designed to set the alarming time when it receives
an event message such as an alarm, motion and/or Video loss.
& Selects the port to allow the connection of Callback.
* This item is for the language setup.
English
10-44
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-45
SHR-4081N/P USER’S MANUAL
●
Video Recording
! Naming
- Being connected to SHR-4081N/P in Monitoring or Search Mode, you can save
the video data in display in *.dvr file format. This determines how to name *.dvr
file format.
- The file name depends on camera number and serial number, set to “Camera
No. + Serial No.” or camera number, current date, and time, set to “Camera No.
+ Date”.
@ Location
- As long as you are connected to SHR-4081N/P in Monitoring or Search Mode
while recording the video data in display, this sets up a directory where *.dvr file
format will be saved.
- The current default directory is “Smart Viewer Program Installed Directory
\video\dvr”.
# Recording Time
- As long as you are connected to SHR-4081N/P in Monitoring or Search Mode
while recording the video data in display, this sets up the longest recording time.
- Time setup ranges from 1 to 10 minutes. If recording exceeds the preset time at
Recording Time, recording will be automatically stopped.
●
File Converting
[JPEG]
! Location
- You can convert the files saved in your PC in *.dvr file format into JPEG format
files then the frames composing *.dvr file format will be converted into JPEG
format files. Now, this designates a directory in which the converted JPEG files
will be saved.
- The current default directory is “Smart Viewer Program Installed Directory
\frame”.
10-45
English
00657B(02)SHR-4081-ENG-2
7/4/07
●
3:00 PM
Page 10-46
Sequence Time
- As long as you are connected to SHR-4081N/P in Monitoring Mode while
Screen change is dominant, this sets up Screen change Time. The scope of
setup ranges from 5 to 30seconds.
●
OSD Display
- Determines if OSD shall be displayed on each channel of Smart Viewer.
- Whether you check “Enable” or not, OSD will appear or not. However, Audio
icon, PTZ icon, REC icon, and Alarm/Motion event icon will not be affected by
the OSD Display condition.
●
Auto Connection
- Determines if Smart Viewer shall be automatically connected to SHR-4081N/P
or Site as soon as it starts running.
- If you check “Auto Connection On”, the name of SHR-4081N/P and Sites that
are currently registered in DVR/Site List will be listed as follows and if you select
one, it will be automatically connected to the selected SHR-4081N/P or Site as
soon as Smart Viewer starts running.
●
Callback Connection
- Selects the port to allow the connection of Callback.
●
Event Sound
- This is a menu item that is designed to set the alarming time when it receives
an event message such as an alarm, motion and/or Video loss.
●
Language
- This sets a language for SmartViewer.
English
10-46
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-47
SHR-4081N/P USER’S MANUAL
Site Setup
- Click the [Site Setup] button for Site Setup.
- Site Setup sets up the information on DVR(SHR-4081N/P) or Site that you want to
contact by Smart Viewer.
- Smart Viewer allows you to contact DVR(SHR-4081N/P) or Site registered here.
1
3
5
2
4
! User registered DVR(SHR-4081N/P) list will be displayed here.
@ This button adds a new DVR(SHR-4081N/P) or deletes or revises the
already-registered DVR(SHR-4081N/P).
# User registered Site list will be displayed here.
$ This button adds a new site or deletes or revises the already-registered Site.
% This button adds DVR(SHR-4081N/P) selected from DVR List to the Site
selected from Site List.
10-47
English
00657B(02)SHR-4081-ENG-2
7/4/07
●
3:00 PM
Page 10-48
DVR List
- DVR List sets up the information on DVR(SHR-4081N/P) that you want to contact
by Smart Viewer.
- You can register a new DVR (SHR-4081N/P), delete or modify a selected DVR
(SHR-4081N/P) from the registered list. In DVR list, the name of the registered
DVR (SHR-4081N/P) and IP/MAC Address/URL are shown in the list.
English
10-48
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-49
SHR-4081N/P USER’S MANUAL
- If your DVR (SHR-4081N/P) uses a static IP, select “Static IP” for Address
Type and type in the name of the DVR (SHR-4081N/P) and the IP address.
- Select “Port” so that it matches the port number that you’ve set in the network
menu of DVR (SHR-4081N/P).
- If your DVR (SHR-4081N/P) uses a dynamic IP such as in a cable modem or
VDSL, or PPPoE for ADSL, select “MAC Address” for Address Type and type
in the MAC address of the DVR (SHR-4081N/P).
- Select “Port” so that it matches the port number that you’ve set in the network
menu of DVR (SHR-4081N/P).
10-49
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-50
- If you select “Use DDNS” in the network settings menu of DVR
(SHR-4081N/P) or use an IP splitter to register an URL using DDNS, you can
make connection via the URL.
- If you want to make connection via the an URL, select “URL” for Address Type
and type in the URL set for the DVR or IP splitter in the URL menu item.
- Select “Port” so that it matches the port number that you’ve set in the network
menu of DVR (SHR-4081N/P).
English
10-50
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-51
SHR-4081N/P USER’S MANUAL
Note
- DVR MAC Address is written in the side label of the product.
It is also found in System Information of DVR Menu.
@ Deletion of Already-Registered DVR(SHR-4081N/P)
- If you select one DVR(SHR-4081N/P) in DVR List for deletion and press the
[Delete] button, the following message box will pop up. If you press [OK] button
then, DVR(SHR-4081N/P) will be deleted.
- As long as DVR(SHR-4081N/P) for deletion is connected with the current Smart
Viewer, the following message box will pop up and DVR(SHR-4081N/P) will not
be deleted. Be sure to cut the connection between DVR(SHR-4081N/P) and
Smart Viewer before you delete it.
10-51
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-52
# Modification of Already-Registered DVR(SHR-4081N/P)
- If you select one DVR(SHR-4081N/P) in DVR List for modification and press the
[Modify] button, the following message box will pop up. If you press [OK] button
then, DVR(SHR-4081N/P) will be modified.
- As long as DVR(SHR-4081N/P) for modification is connected with the current
Smart Viewer, the following message box will pop up and DVR(SHR-4081N/P)
will not be modified. Be sure to cut the connection between DVR(SHR-4081N/P)
and Smart Viewer before you modify it.
English
10-52
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-53
SHR-4081N/P USER’S MANUAL
●
Site List
- Site List registers multi- DVRs(SHR-4081N/P) that you want to contact at once
by Smart Viewer at one site for control. You are allowed to register a new Site or
delete or modify the selected Site from the registered list and add DVR
(SHR-4081N/P) to the Site selected from Site List or delete it
- In Site List, both the name of a registered Site and the name of DVR
(SHR-4081N/P) composing the Site will be listed. In addition, a Site can be
configured with up to 16 DVRs (SHR-4081N/P).
! Site Addition
- If you press the [New] button, the following window will pop up where you can
input the information on the new Site.
- The information to be typed in is the Site name.
Note
Site may be named in both English and Korean with no more than 10 texts.
10-53
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-54
@ Deletion of Already-Registered Site or DVR(SHR-4081N/P)
- If you select one Site or DVR(SHR-4081N/P) in Site List for deletion and
press the [Delete] button, the following message box will pop up. If you press
[OK] button then, either Site or DVR(SHR-4081N/P) will be deleted.
- After being deleted, DVR(SHR-4081N/P) is still left alive in the Site composition and so is the information on DVR(SHR-4081N/P).
- As long as Site or DVR(SHR-4081N/P) for deletion is connected with the
current Smart Viewer, the following message box will pop up and Site or
DVR(SHR-4081N/P) will not be deleted. Be sure to cut the connection
between both Site and DVR(SHR-4081N/P) and Smart Viewer before you
delete it.
# Modification of Already-Registered Site
- If you select one Site in Site List for modification and press the [Modify]
button, the following message box will pop up where you can modify the Site
information.
English
10-54
00657B(02)SHR-4081-ENG-2
8/7/07
5:14 PM
Page 10-55
SHR-4081N/P USER’S MANUAL
- As long as Site for modification is connected with the current Smart Viewer,
the following message box will pop up and Site will not be modified. Be sure to
cut the connection between Site and Smart Viewer before you modify it.
- If you select one DVR(SHR-4081N/P) and press the [Modify] button, the following message box will pop up and modification to DVR(SHR-4081N/P) is
prohibited. Modification to DVR(SHR-4081N/P) shall be done only in DVR List.
●
DVR(SHR-4081N/P) Addition to Site
- If you press the [Add] button, DVR(SHR-4081N/P) selected from DVR List will be
added to the Site selected from Site List. Site addition to DVR(SHR-4081N/P) set
to ADSL is prohibited.
- A Site can be configured with up to 16 DVRs (SHR-4081N/P), and the DVR
(SHR-4081N/P) that configures the Site can be deleted from the Site List.
- If you press the [Add] button unless a Site is registered in Site List, a new Site
naming “Site [0]” as a default will be created to which DVR(SHR-4081N/P) will be
added.
- As long as Site for DVR(SHR-4081N/P) addition is connected with the current
Smart Viewer, the following message box will pop up and DVR(SHR-4081N/P)
will not be added to the Site. Be sure to cut the connection between Site and
Smart Viewer before the addition
10-55
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-56
S/W Version
- If you press the [S/W Version] button, Smart Viewer version, system requirements,
and the version of DVR(SHR-4081N/P) System S/W, being connected to Smart
Viewer, if ever will be displayed.
- You can upgrade the on-line DVR(SHR-4081N/P) System S/W remotely. You are
authorized with S/W upgrade in an Admin capacity only. In the capacity of user or if
you are isolated with DVR(SHR-4081N/P), your access will be denied.
1
2
! Smart Viewer Version and system requirements will be displayed.
@ Here displays the version and name of DVR if any DVR(SHR-4081N/P) is being
connected with Smart Viewer. You are also able to upgrade DVR
(SHR-4081N/P) S/W by transmitting it to on-line DVR(SHR-4081N/P).
Note
DVR(SHR-4081N/P) is not supported [Import] and [Export] functions.
English
10-56
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-57
SHR-4081N/P USER’S MANUAL
●
Smart Viewer Version
- Smart Viewer Version and system requirements will be displayed.
●
DVR Version
- DVR Version not only displays the connected DVR(SHR-4081N/P) name if any
DVR(SHR-4081N/P) is being connected with Smart Viewer or the name of
DVR(SHR-4081N/P) composing a site if any DVR(SHR-4081N/P) is being
connected with the site but also displays DVR(SHR-4081N/P) S/W version.
- Smart Viewer will be expressed in gray when disconnected from
DVR(SHR-4081N/P) and Status will be marked as “Not Connected”.
- Each DVR Version has a check box, which is used for S/W Upgrade.
●
DVR(SHR-4081N/P) S/W Upgrade
- Smart Viewer upgrades on-line DVR(SHR-4081N/P) S/W remotely.
! Check a DVR(SHR-4081N/P) to be upgreaded among DVRs(SHR-4081N/P)
on line.
10-57
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-58
@ Click the following button to open the “SHR-4081N/P Firmware” file in tgz
format.
SHR-4081N/P Smart Viewer
SHR-4081N/P
# Press the [Upgrade] button to transmit a file to the selected DVR
(SHR-4081N/P) and start upgrade of DVR(SHR-4081N/P) S/W.
$ The progress of file transmission and upgrade will be displayed at the bottom.
Caution
Be sure to suspend all the DVR system functions in action such as recording, MENU,
backup, and play before you upgrade DVR(SHR-4081N/P) S/W.
Never try to turn the DVR(SHR-4081N/P) power off during such S/W upgrade.
S/W upgrade requires about 5 minutes.
If S/W upgrade is suspended accidentally, the previous S/W will be left intact.
Note
The new Firmware necessary for DVR(SHR-4081N/P) S/W upgrade shall be downloaded from
CCTV Part in Products Section at http://www.samsung.com
English
10-58
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 10-59
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 11
Chapter 11
Smart Backup Viewer
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 11-1
SHR-4081N/P USER’S MANUAL
1
Introduction
In SHR-4081N/P, you can back up the video data by using External HDD, USB
Memory, and CD. In the Smart Backup Viewer, the backup image data can be
searched or played in the PC through the CD/DVD or connecting the external HDD,
USB Memory to the user’s PC.
11-1
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 11-2
2
Features
■
The video data backed up in any method among External HDD, USB Memory, and
CD can be searched or played in your PC.
■
Smart Backup Viewer is optimized in the resolution of 1024 x 768.
English
11-2
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 11-3
SHR-4081N/P USER’S MANUAL
3
PC Specification(Recommendation)
●
OS: Windows 2000, Windows XP
●
Recommendation :
- CPU Pentium 3 1GHz or higher
- RAM 256Mb or higher
- VGA RAM 32Mb or higher
- Direct X 8.1 or higher
11-3
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 11-4
4
Smart Backup Viewer Installation
●
Put the Smart Viewer Program CD in CD-ROM and open the "Smart Backup
Viewer" folder in the CD.
●
Run the “Setup.exe" file.
English 11-4
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 11-5
SHR-4081N/P USER’S MANUAL
11-5
English
●
Click "Next".
●
If you agree with the Smart Backup Viewer license, click "Yes".
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 11-6
●
Select a folder to install Smart Backup Viewer and click "Next".
●
Install the execution file and set up the system as necessary.
English
11-6
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 11-7
SHR-4081N/P USER’S MANUAL
●
11-7
English
Installation is complete. Click "Finish" to terminate the whole installation process.
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 11-8
5
Executing Smart Backup Viewer Program
●
Double-click the Smart Backup Viewer icon in the background screen to execute
the program.
English
11-8
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 11-9
SHR-4081N/P USER’S MANUAL
6
Initial Screen of Smart Backup Viewer
●
Description
!
@
#
$
%
^
&
(
*
)
!
@
#
$
%
^
&
*
(
Terminates or minimizes the program.
Displays the current date, weekday, and time.
Selects a device(External HDD, USB Memory, or CD/DVD) for connection.
Displays the image in play.
Selects the “Year/Month/Date” that you wish to search.
Controls Audio volume and Video brightness/contrast.
These are buttons for saving, opening and printing backup data.
Plays the searched images.
These are buttons for CH change and update of the Calendar window and
Timeline.
) Displays the time when a video file was recorded in External HDD, USB
Memory, and CD/DVD for the search date.
11-9
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 11-10
7
Using Smart Backup Viewer
●
Connecting
Connecting means you may access and search the video data recorded in
External HDD, USB Memory, or CD/DVD installed in your PC. Select a device that
you wish to connect and click the Connecting button.
●
Connecting Screen
●
Display of Time
- Displays the date, weekday, and time of your PC.
●
Display of Connection
- When connected to the device installed in your PC, the Connecting button
indicates the connecting condition.
- Click the Connecting button for disconnection.
English
11-10
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 11-11
SHR-4081N/P USER’S MANUAL
●
Display of Play Screen OSD
!
!
Displays the CH number and replay time.
@
Displays the Audio On/Off button.
@
Note
If the video file in play has an audio image, the Audio icon will be enabled to turn
Audio on/off.
: Audio Off
: Audio On
If the video file in play has no audio image, the Audio icon will be disabled.
: Audio Disable
If Audio is turned on, you can control the volume or select Mute.
●
Calendar Window
- The date when the video data was recorded in the current device is displayed in red.
- Click the red colored date to display the video information in Timeline.
- A thick red box will be displayed in the current date.
- ¦ : Moves to the previous month.
- ‹ : Goes on to the next month.
11-11
English
00657B(02)SHR-4081-ENG-2
7/4/07
●
3:00 PM
Page 11-12
Audio Volume Control
- If you play a video file with audio recorded in, you can control the autio volume or
select Mute.
- The audio volume can be controlled by 10 steps from 0 to +10.
●
Brightness / Contrast
- You can control the brightness and constrast of the file in play.
- The default is +5.
- The brightness and constrast can be controlled by 10 steps from 0 to +10.
- Press the button to return to the default.
!
@
#
! Save Button
This function converts backup data into “*.jpg” files.
- Click the save button to convert the file.
- Select “Current Frame” or “Interval” to choose the conversion type.
Current Frame : Saves the current image as a jpg file.
Interval : Saves all frames from start time to end time as jpg files.
- Click “Start” to convert the file. To stop conversion, click “Stop”
Note
The file is automatically named that includes Camera Index, Date, time, serial number.
English
11-12
00657B(02)SHR-4081-ENG-2
8/7/07
3:46 PM
Page 11-13
SHR-4081N/P USER’S MANUAL
When conversion is complete, the jpg files are created in designated folder.
@ File Open Button
Click the file open button to open backup data in db format.
# Print Button
This function outputs the screen of the image in play which is now being displayed.
11-13
English
00657B(02)SHR-4081-ENG-2
7/4/07
●
3:00 PM
Page 11-14
Play Buttons
2
1
5
3
9
!
@
#
$
%
^
&
*
(
7
4
6
8
Play
Reverse Play
Stop
Fast Forward
Fast Backward
Step Forward : Forward by 1 second
Step Backward : Backward by 1 second
Go to Last : Plays the first image of Timeline.
Go to First: Plays the recent(last) image of Timeline.
Note
Disconnect is not available during (Play/Reverse Play/Fast Forward/Fast Backward).
In this case, click the Stop button.
●
Timeline
- Displays the time when the video image was recorded in the current device for
the date selected from the Calendar window.
- The General mode displays the information for 24 hours from 0 to 24 o’clock and
the Zoom mode displays the time information every 2 hours.
#
!
@
[General Mode]
! This mode is displayed in the Play screen and the CH will be activated in the
white background.
@ Timeline: Displays the time information on the video data recorded in the current device.
# Time Bar: Displays the current time of the video image in play.
English
11-14
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 11-15
SHR-4081N/P USER’S MANUAL
Note
Double-click the Time Bar surrounding area to return to the Zoom mode.
Each column of Timeline corresponds to one hour.
The Timeline color changes according to the recording condition, Green(Normal),
Red(Panic), Orange(Alarm), Blue(Motion), Yellow(Schedule), or Purple(Video Loss).
@
!
[Enlargement Mode]
! Displays the timeline one hour earlier.
@ Displays the timeline one hour later.
Note
Double-click the Time Bar surrounding area to return to the General mode.
Each column of Timeline corresponds to 5 minutes.
The Timeline color changes according to the recording condition, Green(Normal),
Red(Panic), Orange(Alarm), Blue(Motion), Yellow(Schedule), or Purple(Video Loss).
●
Next Button
- Displays the next channel.
Note
Channel change is not available in the process of (Play/Reverse Play/Fast
Forward/Fast Backward).
11-15
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 11-16
Appendix
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-1
SHR-4081N/P USER’S MANUAL
1
Product Specification
Item
Specification
Operation System
Broadcasting
Input Voltage
Power Comsumption
Video Input
Video
Video Output
Audio Input
Audio
Audio Output
Resolution &
Frame Rate
Live
Monitoring
12-1
English
Display Mode
Embedded OS
NTSC/PAL System
AC 110-220V(NTSC) / 100-230V(PAL)
85 Watt Max
Composite 8 Channel
- 1.0Vp-p
- 75Ω Hi Z Termination
BNC Type
Loop Through Out 8 Channel
- Auto Termination
Composite 2 Channel
- Normal Video Output 1 Channel
- Spot Output 1 Channel
- BNC Type
S-Video 1 Channel
- 1.0Vp-p
VGA 1 Channel
Mono 8 Channel
- -5dBm, 600Ω
RCA Type
Mono 1 Channel
- -6dBm
RCA Type
Resolution Frame Rate (1Ch/8Ch)
720X480(NTSC)
30fps/240fps(NTSC)
/25fps/200fps(PAL)
/720X576(PAL)
Single
Quad
Multi Screen : 6, 7, 8, 9
PIP
Sequence Mode
Freeze
2x Zoom
Change the channel location
(4, 6, 7, 8 PIP Division)
Remark
00657B(02)SHR-4081-ENG-2
8/7/07
4:55 PM
Page 12-2
Item
Specification
Compression
Resolution &
Performance
Remark
Video : MPEG4
Audio : G.726
Resolution
Quality Level
Max Image Rate
CIF(C)
352X240(NTSC)
/352X288(PAL)
Very High
High
Standard
Low
30ips(NTSC)/
25ips(PAL)
Half D1(N)
720X240(NTSC)
/720X288(PAL)
Very High
High
Standard
Low
15ips(NTSC)/
12.5ips(PAL)
Full D1(L)
352X240(NTSC)
/352X288(PAL)
Very High
High
Standard
Low
7.5ips(NTSC)/
6.25ips(PAL)
*ips (image
per sec)
Recording
Recording
Mode
Normal ➝ REC Key
Emergency ➝ PANIC Key
Schedule ➝ Schedule Table
Event
-Alarm Detection
-Motion Detection
-Video Loss
-Pre & Post Recording
Time Laps
NTSC : 1ips/3ips/5ips/7.5ips/10ips/15ips/30ips
PAL : 1ips/2.5ips/5ips/6.25ips/8.33ips/12.5ips/25ips
Internal
ATA HDD x 4(MAX)
-Primary/Secondary IDE Connector
-MAX HDD Size : 500GB x 4 = 2Tera Byte
External
IEEE1394 HDD
-MAX 6 (Daisy chain connection)
-MAX HDD Size : 500GB x 6 = 3Tera Byte
USB HDD
-MAX 1 (Not support USB Hub)
-MAX HDD Size : 500GB
Storage
Capacity
English
12-2
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-3
SHR-4081N/P USER’S MANUAL
Item
Search Mode
Play Back
Resolution &
Performance
Display Mode
Play Mode
Backup
Alarm
Network
Serial I/F
Remote
Viewer
PC Spec.
Support OS
Function
Backup
Viewer
PC Spec.
Support OS
Function
Input Voltage
Input Current
Max Power Consumption
Operation Temp.
Preservation Temp.
Operation Humidity
Preservation Humidity
Size
Weight
12-3
English
Specification
Calendar
Event
- Normal, Panic, Schedule, Alarm, Motion,
Video Loss
Date/Time
Go to First
Go to Last
Backup Data
Resolution
Decoding Performance
1Ch
4Ch
CIF
30ips(NTSC)/25(PAL) 30 ips/1Ch
Half D1
15ips(NTSC)/12.5(PAL) 15 ips/1Ch
Full D1
7.5ips(NTSC)/6.25(PAL) 7.5 ips/1Ch
Single ➝ 1Channel Decoding
Quad ➝ 4Channel Decoding
➝ 1Channel Decoding + 1Channel Live
PIP
- Change the live channel.
Multi Screen ➝ 8 Channel live + 1Channel Decording
Play, Pause, Stop, 2x Digital Zoom
Fast Forward/Fast Reverse
- 2x, 4x, 8x, 16x, 32x, 64x
Still
Jog ➝ Still
Shuttle ➝ Fast Forward/Fast Reverse
IEEE1394 External HDD
USB External HDD
USB CD/DVD Writer
USB Flash Memory
Input : 8 Input
- 5mA
Output : 4 Relay Output
- 2A/30VDC, 0.5A/125VAC
Reset : 1 Input
- 5mA
Ethernet : 10/100 Base T, ADSL(PPPoE), DHCP
RS-485 ➝ PTZ Device Control, Remote Control Device
CPU : Pentium III, 1GHz or higher
RAM : SDRAM 256MB or higher
Graphic Accelerator : Graphic Memory
32MB or higher DirectX : 8.1 or higher
Win2000, WinXP
Live Image Monitoring Mode
Local File Search & Play Back Mode
Remote File Search & Play Back Mode
Same as Remote Viewer
Win2000, WinXP
Backup device(External HDD, USB Memory, CD/DVD)
search and replay mode
SHR-4081N
: AC 120V (60Hz)
SHR-4081N(SHR-4081N/JPN) : AC 100~230V (50/60Hz)
SHR-4081P
: AC 100~230V (50/60Hz)
SHR-4081N
: 4A
SHR-4081N(SHR-4081N/JPN) : 4 ~ 2A
SHR-4081P
: 4 ~ 2A
MAX 200W
0°C ~ 40°C (32°F ~ 104°F)
-20°C ~ +60°C (-4°F ~ +140°F)
20% ~ 85% RH
20% ~ 85% RH
430(W) X 88(H) X 400(D)
About 7.0Kg
Remark
00657B(02)SHR-4081-ENG-2
8/7/07
3:50 PM
Page 12-4
SHR-4081N/P USER’S MANUAL
2
Outline Drawing
English
12-4
00657B(02)SHR-4081-ENG-2
8/7/07
3:50 PM
Page 12-5
SHR-4081N/P USER’S MANUAL
3
Factory Default
This restores the Network information and preset values in SHR-4081N/P to the
original state at the time of factory shipment.
Factory Default will be done if you;
- Use System / Load Factory Default in MENU or,
- If you hold on to the Mode button in Live Mode and keep pressing the CH5
button for 5 seconds, the system will return to the Factory default condition.
Classification
Detailed Items
Time/Date/Language
System Setup
Password
HDD Mode Setup
Camera Config
Camera Setup
PTZ Device
Screen Setup
12-5
English
Factory Setup
Date Format
YYYY-MM-DD
Time Format
24 Hours
Language
English
DST
Off
Password
4321
Password Lock
On
Disk End Mode
Overwrite
Disk End Beep
Off
Video
On
Audio
Off
Title
CAM_01 ~ CAM_08
Auto Seq.
5 sec
ID
Camera No.
Protocol
None
Baudrate
9600
Parity
None
Data
8
Stop
1
Serial Mode
Half Duplex
Brightness
50
Contrast
50
Color
50
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-6
SHR-4081N/P USER’S MANUAL
Classification
Detailed Items
Event Monitoring
OSG Display
Monitoring Setup
Factory Setup
Duration
Off
Date
On
Time
On
Title
On
Status
On
Spot Out Channel
CH1
Spot Out Event Monitor
Off
Monitor Out
Composite Out
PB Channel Position
Right Down
Multi Channel Seq.
5 Sec
Mode
On
Video Size
CIF
Record Mode
Setup
Quality
Very High
15ips(NTSC)/12.5ips(PAL)
Rate
Record Schedule
Setup
Continuous Recording
Off
Event Recording
On
Event Record Mode
Alarm
Event Record
Setup
Motion Detection
Video Loss
Video Size
CIF
Quality
Very High
Rate
15ips(NTSC)/12.5ips(PAL)
PreEvent
Off
PostEvent
1 min
Sensor State
Off
Camera
Camera No.
Alarm-Out
None
A.O Dwell Time
10 sec
M.D State
Off
Area
All Area
Sensitivity
Medium
Alarm-Out
None
A.O Dwell Time
10 sec
Video Loss State
Off
Alarm-Out
None
A.O Dwell Time
10 sec
English
12-6
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-7
SHR-4081N/P USER’S MANUAL
Classification
Detailed Items
IP Settings
Network
Transfer Protocol
Settings
Callback Settings
12-7
English
Factory Setup
Connection Mode
Static IP
Bandwidth
2Mbps
Admin Password
4321
User Password
4321
IP
192.168.001.200
Gateway
192.168.001.001
Subnet Mask
255.255.255.000
DNS
168.126.063.001
ADSL User ID
ID
Password
-
Protocol type
UDP
Port(TCP)
554.555.556.557
Port(UDP)
8000-8159
Unicast / Multicast
Unicast
Multicast IP
224.126.063.001
TTL
005
DDNS Site
Off
Host Name
-
User Name
-
User Password
-
On / Off
Off
IP Address
192.168.001.010
Port(UDP)
7900
Retry
05
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-8
4
SHR-4081N/P Smart Viewer Play
Frame Specification
NTSC
FRAME
RATE
15
10
7.5
5
3
Viewer Screen
Split Mode
Half D1(N)
CIF (C)
Nine-split
1 frame/sec
15 frame/sec
Quad
15 frame/sec
15 frame/sec
Single
15 frame/sec
15 frame/sec
Half D1(N)
CIF (C)
Nine-split
10 frame/sec
10 frame/sec
Quad
10 frame/sec
10 frame/sec
Single
10 frame/sec
10 frame/sec
Half D1(N)
CIF (C)
Nine-split
7.5 frame/sec
7.5 frame/sec
Quad
7.5 frame/sec
7.5 frame/sec
Single
7.5 frame/sec
7.5 frame/sec
Half D1(N)
CIF (C)
Nine-split
5 frame/sec
5 frame/sec
Quad
5 frame/sec
5 frame/sec
Single
5 frame/sec
5 frame/sec
Half D1(N)
CIF (C)
3 frame/sec
3 frame/sec
Nine-split
Quad
3 frame/sec
3 frame/sec
Single
3 frame/sec
3 frame/sec
Half D1(N)
CIF (C)
1 frame/sec
1 frame/sec
Nine-split
1
VIDEO SIZE
Quad
1 frame/sec
1 frame/sec
Single
1 frame/sec
1 frame/sec
Note
The play frame specification of Smart Viewer varies on the setup of SHR-4081N/P
Recording Rate and Video Size or the screen split mode of Smart Viewer. The above
specification is applicable only when the main body of SHR-4081N/P is connected
with a fast network like LAN. When the main body of SHR-4081N/P is connected
with a slow network like ADSL, the play speed will be 0.5 Frame/sec. In addition,
the above specification has been defined to the recommended specification of your
PC. If your PC specification is lower than the recommended, the number of frame to
played may diminish.
English
12-8
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-9
SHR-4081N/P USER’S MANUAL
PAL
FRAME
RATE
12.5
8.33
6.25
5
2.5
1
12-9
English
Viewer Screen
Split Mode
VIDEO SIZE
Half D1(N)
CIF (C)
Nine-split
1 frame/sec
15 frame/sec
Quad
15 frame/sec
15 frame/sec
Single
15 frame/sec
15 frame/sec
Half D1(N)
CIF (C)
Nine-split
10 frame/sec
10 frame/sec
Quad
10 frame/sec
10 frame/sec
Single
10 frame/sec
10 frame/sec
Half D1(N)
CIF (C)
Nine-split
7.5 frame/sec
7.5 frame/sec
Quad
7.5 frame/sec
7.5 frame/sec
Single
7.5 frame/sec
7.5 frame/sec
Half D1(N)
CIF (C)
Nine-split
5 frame/sec
5 frame/sec
Quad
5 frame/sec
5 frame/sec
Single
5 frame/sec
5 frame/sec
Half D1(N)
CIF (C)
3 frame/sec
3 frame/sec
Nine-split
Quad
3 frame/sec
3 frame/sec
Single
3 frame/sec
3 frame/sec
Half D1(N)
CIF (C)
1 frame/sec
1 frame/sec
Nine-split
Quad
1 frame/sec
1 frame/sec
Single
1 frame/sec
1 frame/sec
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-10
5
Troubleshooting(FAQ)
1. The system power is dead and LED in front of the system does not operate at all.
- Please check the power connection.
- Check the power voltage.
- If all your efforts like above end up with nothing, check or exchange the power supply.
2. Video data remains in the system but some channels displays no video data but turns
all blue.
- Check the image of the camera connected to the system. Improper input of camera
input may cause this symptom.
- Check the camera power supply.
- Sometimes, you see this symptom when the video data is connected with multisystems and the video signal from the video data distributor in use feels weak.
If it’s the case, you shall connect the camera images with SHR-4081N/P DVR
directly to check or improve such a symptom.
3. The REC button in front has no effect on turning on REC LED or recording process.
- Please check the HDD space.
- Please check the Record Mode setup in MENU. It should be On.
4.
All the front LEDs are in operation but the monitor remains black.
- Video out may come out differently with the connected monitor. In short, Video Out
is set to Composite Output but connected to VGA Input Monitor or vice versa.
Press the "MODE" button and "0" button of front left at the same time for 5 seconds,
and press them to the time that the LED is On in sequence to change the Video Out
mode.
5. The front LED blinks and the logo screen repeatedly appears.
- This symptom may be resulted from failure of HDD connection inside SHR-4081N/P
DVR. Take off the cover and check HDD connection status. If HDD connection has
no problem, please consult with the shop where you bought SHR-4081N/P DVR.
6. You cannot enter MENU by forgotten password.
- If you forget the password, you shall reset SHR-4081N/P DVR to the values set at
the factory. Keep pressing both the "MODE" button and the "5" button on the left for
5 seconds until LED lights on in the order of 1➝ 2➝ 3➝ 4➝ 5. The password
default is "4321".
7. The channel button does not operate in Live.
- If the current screen is Event Monitoring, the channel button does not operate.
Then, press the Alarm button to terminate the current screen and select a channel.
English
12-10
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-11
SHR-4081N/P USER’S MANUAL
8. The cursor cannot reach Start during Calendar Search.
- Please check both the channel and the date for play are left checked. Both shall be
checked for play with Start. The cursor cannot reach the unrecorded date.
9. Alarm, once issued, keeps being issued though you press the front Alarm button for
cancellation.
- Press the front Menu button to cancel Alarm as follows.
1) To cancel Event Monitoring Screen : Monitoring - Event Monitoring Duration Off
2) To cancel Buzzer : Event Record - Alarm (Motion Detection/Video Loss) Alarm-Out.
3) To cancel Event : Event Record - Alarm (Motion Detection/Video Loss) State Off.
10. No Response from the Live screen by pushing the PTZ button.
- Press Menu ➝ Camera ➝ PTZ Device to check if the protocol and other items were
set to PTZ Camera.
11. When you connect several IEEE1394 armored HDDs to SHR-4081N/P DVR through
Menu, SHR-4081N/P DVR cannot recognize all the HDDs.
- It requires time to recognize several armored HDDs. Please try again in a few
minutes. If retrial makes no improvement, HDD could be abnormal. Please exchange
the HDD.
12. “CLOCK BATTERY HAS FAILED” appears on the screen.
It appears when there is an error in the time settings of the DVR built-in clock or any
problem related to the built-in clock happens.
In addition, it prohibits the DVR operation to prevent loss of the data saved in the HDD.
Please contact the product A/S department and the vendor for examination.
13. You cannot connect to SHR-4081N/P DVR through Smart View.
- Check if 3 Smart Viewer users are in connection with SHR-4081N/P DVR.
SHR-4081N/P DVR allows no more than 3 users’ connection with Smart Viewer at
a time.
- Check the Network setup of SHR-4081N/P DVR.
- Check Network cable connection.
- When you use DHCP/ADSL(PPPoE) for connection, please check if you get the right
SHR-4081N/P DVR MAC Address.
- If SHR-4081N/P DVR is connected to the ADSL network, please check if Bandwidth
is set below 600 Kbps. If the Bandwidth for ADSL is set to high, the connection with
Smart Viewer may be instable due to the heavy network load as the ADSL speed is
low.
12-11
English
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-12
14. Smart Viewer in operation is disconnected.
- If you change time, network setup, HDD format, Default Setup, or HDD attachment
or detachment for SHR-4081N/P DVR, the current Smart Viewer will be automatically
disconnected.
- Check network connection. Smart Viewer, if disconnected from Network, will try
reconnection up to 5 times. If it remains unconnected after 5 time trial, it will
automatically give up connection.
- As far as SHR-4081N/P DVR is connected to the ADSL network, you may be
disconnected from Smart Viewer when the network conditions goes bad.
15. The Audio icon of Smart Viewer is left inactivated in the Live mode. Setting Audio
to On in the Camera menu of SHR-4081N/P DVR will make no difference.
- If your PC has no Audio driver or has some problem with Audio play of an Audio
driver, the Audio icon will be inactivated. Please check Audio driver installation status.
16. When I select the channel which PTZ device is connected to in the Live mode of
Smart Viewer, click the "Menu Control" button among PTZ setup buttons to enter the
Function Menu mode in PTZ device, and return from the other channel, the PTZ
related buttons have been initialized.
- PTZ control is available in both Smart Viewer and SHR-4081N/P DVR. Other user
might control PTZ for SHR-4081N/P DVR to terminate the PTZ device Menu or Auto
Pan/Scan/Pattern motions while you select the other channel. This may cause the
initialization.
17. No Time Bar in the Search
- Time Line can be converted into 2 modes, General(24 Hour Display) and Extension
(2 Hour Display). In the Extension mode, Time Bar may not be seen in the current
time. Please enter the General mode or click the LEFT or RIGHT button to search
Time Bar.
18. “NO HDD” icon and error message pops up.
- Please check the HDD connection status. If this problem persist without connection
failure, contact the technical support for checking hard disk.
19. DVR device does not show what has been upgraded after adding a hard disk.
- Make sure that the additional external HDD installed is one of the devices listed on
the compatibility list of HDDs. The list of the compatible devices with Samsung DVR
can be obtained from your vendor.
20. The connection status is not shown after connecting the external storage device,
USB memory, USB HDD and such.
- Make sure that the external storage device installed is one of the storage devices
listed on the compatibility list of storage devices. The list of the compatible devices
with Samsung DVR can be obtained from your vendor.
English
12-12
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-13
SHR-4081N/P USER’S MANUAL
6
OPEN SOURCE LICENSE REPORT
ON THE PRODUCT
This product uses software provided under the name of GPL and LGPL.
You can receive the following GPL and LGPL source codes by email request to
www.sec.co.kr.
- GPL Software
Kernel, Busybox, Sysvinit, dvd+rw-tools, cdrtools, dosfstools
- LGPL Software
gLibc, Inetutils
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free
Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston,
MA 02110-1301, USA
Everyone is permitted to copy and distribute verbatim copies of this license
document, but changing it is not
allowed.
Preamble
The licenses for most software are
designed to take away your freedom to
share and change it. By contrast, the
GNU General Public License is intended to guarantee your freedom to share
and change free software--to make
sure the software is free for all its
users. This General Public License
applies to most of the Free Software
Foundation's software and to any other
program whose authors commit to
using it. (Some other Free Software
Foundation software is covered by the
GNU Lesser General Public License
instead.) You can apply it to your programs, too.
When we speak of free software, we
are referring to freedom, not price. Our
General Public Licenses are designed
to make sure that you have the freedom to distribute copies of free software (and charge for this service if you
wish), that you receive source code or
can get it if you want it, that you can
change the software or use pieces of it
in new free programs; and that you
know you can do these things.
To protect your rights, we need to
make restrictions that forbid anyone to
deny you these rights or to ask you to
surrender the rights. These restrictions
translate to certain responsibilities for
you if you distribute copies of the software, or if you modify it.
For example, if you distribute copies of
12-13
English
such a program, whether gratis or for a
fee, you must give the recipients all the
rights that you have. You must make
sure that they, too, receive or can get
the source code. And you must show
them these terms so they know their
rights.
We protect your rights with two steps:
(1) copyright the software, and (2) offer
you this license which gives you legal
permission to copy, distribute and/or
modify the software.
Also, for each author's protection and
ours, we want to make certain that
everyone understands that there is no
warranty for this free software. If the
software is modified by someone else
and passed on, we want its recipients
to know that what they have is not the
original, so that any problems introduced by others will not reflect on the
original authors' reputations.
Finally, any free program is threatened
constantly by software patents. We
wish to avoid the danger that redistributors of a free program will individually
obtain patent licenses, in effect making
the program proprietary. To prevent
this, we have made it clear that any
patent must be licensed for everyone's
free use or not licensed at all.
The precise terms and conditions for
copying, distribution and modification
follow.
TERMS AND CONDITIONS FOR
COPYING, DISTRIBUTION AND
MODIFICATION
0. This License applies to any program
or other work which contains a notice
placed by the copyright holder saying it
may be distributed under the terms of
this General Public License. The
"Program", below, refers to any such
program or work, and a "work based on
the Program" means either the
Program or any derivative work under
copyright law: that is to say, a work
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-14
containing the Program or a portion of
it, either verbatim or with modifications
and/or translated into another language. (Hereinafter, translation is
included without limitation in the term
"modification".) Each licensee is
addressed as "you".
Activities other than copying, distribution and modification are not covered
by this License; they are outside its
scope. The act of running the Program
is not restricted, and the output from
the Program is covered only if its contents constitute a work based on the
Program (independent of having been
made by running the Program).
Whether that is true depends on what
the Program does.
1. You may copy and distribute verbatim copies of the Program's source
code as you receive it, in any medium,
provided that you conspicuously and
appropriately publish on each copy an
appropriate copyright notice and disclaimer of warranty; keep intact all the
notices that refer to this License and to
the absence of any warranty; and give
any other recipients of the Program a
copy of this License along with the
Program.
You may charge a fee for the physical
act of transferring a copy, and you may
at your option offer warranty protection
in exchange for a fee.
2. You may modify your copy or copies
of the Program or any portion of it, thus
forming a work based on the Program,
and copy and distribute such modifications or work under the terms of
Section 1 above, provided that you also
meet all of these conditions:
a) You must cause the modified files to
carry prominent notices stating that you
changed the files and the date of any
change.
b) You must cause any work that you
distribute or publish, that in whole or in
part contains or is derived from the
Program or any part thereof, to be
licensed as a whole at no charge to all
third parties under the terms of this
License.
c) If the modified program normally
reads commands interactively when
run, you must cause it, when started
running for such interactive use in the
most ordinary way, to print or display
an announcement including an appropriate copyright notice and a notice that
there is no warranty (or else, saying
that you provide a warranty) and that
users may redistribute the program
under these conditions, and telling the
user how to view a copy of this
License. (Exception: if the Program
itself is interactive but does not normally print such an announcement, your
work based on the Program is not
required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from
the Program, and can be reasonably
considered independent and separate
works in themselves, then this License,
and its terms, do not apply to those
sections when you distribute them as
separate works. But when you distribute the same sections as part of a
whole which is a work based on the
Program, the distribution of the whole
must be on the terms of this License,
whose permissions for other licensees
extend to the entire whole, and thus to
each and every part regardless of who
wrote it.
Thus, it is not the intent of this section
to claim rights or contest your rights to
work written entirely by you; rather, the
intent is to exercise the right to control
the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with
the Program (or with a work based on
the Program) on a volume of a storage
or distribution medium does not bring
the other work under the scope of this
License.
3. You may copy and distribute the
Program (or a work based on it, under
Section 2) in object code or executable
form under the terms of Sections 1 and
2 above provided that you also do one
of the following:
a) Accompany it with the complete corresponding machine-readable source
code, which must be distributed under
English
12-14
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-15
SHR-4081N/P USER’S MANUAL
the terms of Sections 1 and 2 above on
a medium customarily used for software interchange; or,
b) Accompany it with a written offer,
valid for at least three years, to give
any third party, for a charge no more
than your cost of physically performing
source distribution, a complete
machine-readable copy of the corresponding source code, to be distributed
under the terms of Sections 1 and 2
above on a medium customarily used
for software interchange; or,
c) Accompany it with the information
you received as to the offer to distribute corresponding source code. (This
alternative is allowed only for noncommercial distribution and only if you
received the program in object code or
executable form with such an offer, in
accord with Subsection b above.)
The source code for a work means the
preferred form of the work for making
modifications to it. For an executable
work, complete source code means all
the source code for all modules it contains, plus any associated interface
definition files, plus the scripts used to
control compilation and installation of
the executable. However, as a special
exception, the source code distributed
need not include anything that is normally distributed (in either source or
binary form) with the major components (compiler, kernel, and so on) of
the operating system on which the executable runs, unless that component
itself accompanies the executable.
If distribution of executable or object
code is made by offering access to
copy from a designated place, then
offering equivalent access to copy the
source code from the same place
counts as distribution of the source
code, even though third parties are not
compelled to copy the source along
with the object code.
4. You may not copy, modify, sublicense, or distribute the Program except
as expressly provided under this
License. Any attempt otherwise to
copy, modify, sublicense or distribute
the Program is void, and will automatically terminate your rights under this
12-15
English
License. However, parties who have
received copies, or rights, from you
under this License will not have their
licenses terminated so long as such
parties remain in full compliance.
5. You are not required to accept this
License, since you have not signed it.
However, nothing else grants you permission to modify or distribute the
Program or its derivative works. These
actions are prohibited by law if you do
not accept this License. Therefore, by
modifying or distributing the Program
(or any work based on the Program),
you indicate your acceptance of this
License to do so, and all its terms and
conditions for copying, distributing or
modifying the Program or works based
on it.
6. Each time you redistribute the
Program (or any work based on the
Program), the recipient automatically
receives a license from the original
licensor to copy, distribute or modify
the Program subject to these terms and
conditions. You may not impose any
further restrictions on the recipients'
exercise of the rights granted herein.
You are not responsible for enforcing
compliance by third parties to this
License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are
imposed on you (whether by court
order, agreement or otherwise) that
contradict the conditions of this
License, they do not excuse you from
the conditions of this License. If you
cannot distribute so as to satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as a consequence you may
not distribute the Program at all. For
example, if a patent license would not
permit royalty-free redistribution of the
Program by all those who receive
copies directly or indirectly through
you, then the only way you could satisfy both it and this License would be to
refrain entirely from distribution of the
Program.
If any portion of this section is held
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-16
invalid or unenforceable under any particular circumstance, the balance of the
section is intended to apply and the
section as a whole is intended to apply
in other circumstances.
It is not the purpose of this section to
induce you to infringe any patents or
other property right claims or to contest
validity of any such claims; this section
has the sole purpose of protecting the
integrity of the free software distribution
system, which is implemented by public
license practices. Many people have
made generous contributions to the
wide range of software distributed
through that system in reliance on consistent application of that system; it is
up to the author/donor to decide if he
or she is willing to distribute software
through any other system and a
licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a
consequence of the rest of this
License.
8. If the distribution and/or use of the
Program is restricted in certain countries either by patents or by copyrighted
interfaces, the original copyright holder
who places the Program under this
License may add an explicit geographical distribution limitation excluding
those countries, so that distribution is
permitted only in or among countries
not thus excluded. In such case, this
License incorporates the limitation as if
written in the body of this License.
9. The Free Software Foundation may
publish revised and/or new versions of
the General Public License from time to
time. Such new versions will be similar
in spirit to the present version, but may
differ in detail to address new problems
or concerns.
Each version is given a distinguishing
version number. If the Program specifies a version number of this License
which applies to it and "any later version", you have the option of following
the terms and conditions either of that
version or of any later version published by the Free Software
Foundation. If the Program does not
specify a version number of this
License, you may choose any version
ever published by the Free Software
Foundation.
10. If you wish to incorporate parts of
the Program into other free programs
whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software
Foundation, write to the Free Software
Foundation; we sometimes make
exceptions for this. Our decision will be
guided by the two goals of preserving
the free status of all derivatives of our
free software and of promoting the
sharing and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS
LICENSED FREE OF CHARGE,
THERE IS NO WARRANTY FOR THE
PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW.
EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT
HOLDERS AND/OR OTHER PARTIES
PROVIDE THE PROGRAM "AS IS"
WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESSED OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. THE
ENTIRE RISK AS TO THE QUALITY
AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE
PROGRAM PROVE DEFECTIVE, YOU
ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS
REQUIRED BY APPLICABLE LAW OR
AGREED TO IN WRITING WILL ANY
COPYRIGHT HOLDER, OR ANY
OTHER PARTY WHO MAY MODIFY
AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE
LIABLE TO YOU FOR DAMAGES,
INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF
THE USE OR INABILITY TO USE THE
PROGRAM (INCLUDING BUT NOT
LIMITED TO LOSS OF DATA OR DATA
English
12-16
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-17
SHR-4081N/P USER’S MANUAL
BEING RENDERED INACCURATE OR
LOSSES SUSTAINED BY YOU OR
THIRD PARTIES OR A FAILURE OF
THE PROGRAM TO OPERATE WITH
ANY OTHER PROGRAMS), EVEN IF
SUCH HOLDER OR OTHER PARTY
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your
New Programs
If you develop a new program, and you
want it to be of the greatest possible
use to the public, the best way to
achieve this is to make it free software
which everyone can redistribute and
change under these terms.
To do so, attach the following notices to
the program. It is safest to attach them
to the start of each source file to most
effectively convey the exclusion of warranty; and each file should have at
least the "copyright" line and a pointer
to where the full notice is found.
one line to give the program's name
and an idea of what it does.
Copyright (C) yyyy name of author
This program is free software; you can
redistribute it and/or modify it under the
terms of the GNU General Public
License
as published by the Free Software
Foundation; either version 2 of the
License, or (at your option) any later
version.
This program is distributed in the hope
that it will be useful, but WITHOUT
ANY WARRANTY; without even the
implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR
PURPOSE. See the GNU General
Public License for more details.
You should have received a copy of the
GNU General Public License along
with this program; if not, write to the
Free Software Foundation, Inc., 51
Franklin Street, Fifth Floor, Boston, MA
02110-1301, USA.
Also add information on how to contact
you by electronic and paper mail.
If the program is interactive, make it
12-17
English
output a short notice like this when it
starts in an interactive mode:
Gnomovision version 69, Copyright (C)
year name of author Gnomovision
comes with ABSOLUTELY NO WARRANTY; for details type `show w'. This
is free software, and you are welcome
to redistribute it under certain conditions; type `show c' for details.
The hypothetical commands `show w'
and `show c' should show the appropriate parts of the General Public License.
Of course, the commands you use may
be called something other than `show
w' and `show c'; they could even be
mouse-clicks or menu items--whatever
suits your program.
You should also get your employer (if
you work as a programmer) or your
school, if any, to sign a "copyright disclaimer" for the program, if necessary.
Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all
copyright interest in the program
`Gnomovision' (which makes passes at
compilers) written by James Hacker.
signature of Ty Coon, 1 April 1989
Ty Coon, President of Vice
This General Public License does not
permit incorporating your program into
proprietary programs. If your program
is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If
this is what you want to do, use the
GNU Lesser General Public License
instead of this License.
GNU LESSER GENERAL PUBLIC
LICENSE
Version 2.1, February 1999
Copyright (C) 1991, 1999 Free
Software Foundation, Inc.
51 Franklin Street, Fifth Floor, Boston,
MA 02110-1301 USA
Everyone is permitted to copy and distribute verbatim copies of this license
document, but changing it is not
allowed.
[This is the first released version of the
Lesser GPL. It also counts as the successor of the GNU Library Public
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-18
License, version 2, hence the version
number 2.1.]
Preamble
The licenses for most software are
designed to take away your freedom to
share and change it. By contrast, the
GNU General Public Licenses are
intended to guarantee your freedom to
share and change free software--to
make sure the software is free for all its
users.
This license, the Lesser General Public
License, applies to some specially designated software packages--typically
libraries--of the Free Software
Foundation and other authors who
decide to use it. You can use it too, but
we suggest you first think carefully
about whether this license or the ordinary General Public License is the better strategy to use in any particular
case, based on the explanations below.
When we speak of free software, we
are referring to freedom of use, not
price. Our General Public Licenses are
designed to make sure that you have
the freedom to distribute copies of free
software (and charge for this service if
you wish); that you receive source
code or can get it if you want it; that
you can change the software and use
pieces of it in new free programs; and
that you are informed that you can do
these things.
To protect your rights, we need to
make restrictions that forbid distributors
to deny you these rights or to ask you
to surrender these rights. These restrictions translate to certain responsibilities
for you if you distribute copies of the
library or if you modify it.
For example, if you distribute copies of
the library, whether gratis or for a fee,
you must give the recipients all the
rights that we gave you. You must
make sure that they, too, receive or
can get the source code. If you link
other code with the library, you must
provide complete object files to the
recipients, so that they can relink them
with the library after making changes to
the library and recompiling it. And you
must show them these terms so they
know their rights.
We protect your rights with a two-step
method: (1) we copyright the library,
and (2) we offer you this license, which
gives you legal permission to copy, distribute and/or modify the library.
To protect each distributor, we want to
make it very clear that there is no warranty for the free library. Also, if the
library is modified by someone else
and passed on, the recipients should
know that what they have is not the
original version, so that the original
author's reputation will not be affected
by problems that might be introduced
by others.
Finally, software patents pose a constant threat to the existence of any free
program. We wish to make sure that a
company cannot effectively restrict the
users of a free program by obtaining a
restrictive license from a patent holder.
Therefore, we insist that any patent
license obtained for a version of the
library must be consistent with the full
freedom of use specified in this license.
Most GNU software, including some
libraries, is covered by the ordinary
GNU General Public License. This
license, the GNU Lesser General
Public License, applies to certain designated libraries, and is quite different
from the ordinary General Public
License. We use this license for certain
libraries in order to permit linking those
libraries into non-free programs.
When a program is linked with a library,
whether statically or using a shared
library, the combination of the two is
legally speaking a combined work, a
derivative of the original library. The
ordinary General Public License therefore permits such linking only if the
entire combination fits its criteria of
freedom. The Lesser General Public
License permits more lax criteria for
linking other code with the library.
We call this license the "Lesser"
General Public License because it
does Less to protect the user's freedom than the ordinary General Public
License. It also provides other free software developers Less of an advantage
over competing non-free programs.
These disadvantages are the reason
English
12-18
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-19
SHR-4081N/P USER’S MANUAL
we use the ordinary General Public
License for many libraries. However,
the Lesser license provides advantages
in certain special circumstances.
For example, on rare occasions, there
may be a special need to encourage
the widest possible use of a certain
library, so that it becomes a de-facto
standard. To achieve this, non-free programs must be allowed to use the
library. A more frequent case is that a
free library does the same job as widely used non-free libraries. In this case,
there is little to gain by limiting the free
library to free software only, so we use
the Lesser General Public License.
In other cases, permission to use a
particular library in non-free programs
enables a greater number of people to
use a large body of free software. For
example, permission to use the GNU C
Library in non-free programs enables
many more people to use the whole
GNU operating system, as well as its
variant, the GNU/Linux operating system.
Although the Lesser General Public
License is Less protective of the users'
freedom, it does ensure that the user of
a program that is linked with the Library
has the freedom and the wherewithal to
run that program using a modified version of the Library.
The precise terms and conditions for
copying, distribution and modification
follow. Pay close attention to the difference between a "work based on the
library" and a "work that uses the
library". The former contains code
derived from the library, whereas the
latter must be combined with the library
in order to run.
TERMS AND CONDITIONS FOR
COPYING, DISTRIBUTION AND
MODIFICATION
0. This License Agreement applies to
any software library or other program
which contains a notice placed by the
copyright holder or other authorized
party saying it may be distributed under
the terms of this Lesser General Public
License (also called "this License").
Each licensee is addressed as "you".
A "library" means a collection of soft-
12-19
English
ware functions and/or data prepared so
as to be conveniently linked with application programs (which use some of
those functions and data) to form executables.
The "Library", below, refers to any such
software library or work which has
been distributed under these terms. A
"work based on the Library" means
either the Library or any derivative work
under copyright law: that is to say, a
work containing the Library or a portion
of it, either verbatim or with modifications and/or translated straightforwardly
into another language. (Hereinafter,
translation is included without limitation
in the term "modification".)
"Source code" for a work means the
preferred form of the work for making
modifications to it. For a library, complete source code means all the source
code for all modules it contains, plus
any associated interface definition files,
plus the scripts used to control compilation and installation of the library.
Activities other than copying, distribution and modification are not covered
by this License; they are outside its
scope. The act of running a program
using the Library is not restricted, and
output from such a program is covered
only if its contents constitute a work
based on the Library (independent of
the use of the Library in a tool for writing it). Whether that is true depends on
what the Library does and what the
program that uses the Library does.
1. You may copy and distribute verbatim copies of the Library's complete
source code as you receive it, in any
medium, provided that you conspicuously and appropriately publish on
each copy an appropriate copyright
notice and disclaimer of warranty; keep
intact all the notices that refer to this
License and to the absence of any warranty; and distribute a copy of this
License along with the Library.
You may charge a fee for the physical
act of transferring a copy, and you may
at your option offer warranty protection
in exchange for a fee.
2. You may modify your copy or copies
of the Library or any portion of it, thus
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-20
forming a work based on the Library,
and copy and distribute such modifications or work under the terms of
Section 1 above, provided that you also
meet all of these conditions:
l a) The modified work must itself be a
software library.
l b) You must cause the files modified
to carry prominent notices stating
that you changed the files and the
date of any change.
l c) You must cause the whole of the
work to be licensed at no charge to
all third parties under the terms of
this License.
l d) If a facility in the modified Library
refers to a function or a table of
data to be supplied by an application program that uses the facility,
other than as an argument passed
when the facility is invoked, then
you must make a good faith effort
to ensure that, in the event an
application does not supply such
function or table, the facility still
operates, and performs whatever
part of its purpose remains meaningful.
(For example, a function in a library to
compute square roots has a purpose
that is entirely well-defined independent
of the application. Therefore,
Subsection 2d requires that any application-supplied function or table used
by this function must be optional: if the
application does not supply it, the
square root function must still compute
square roots.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from
the Library, and can be reasonably
considered independent and separate
works in themselves, then this License,
and its terms, do not apply to those
sections when you distribute them as
separate works. But when you distribute the same sections as part of a
whole which is a work based on the
Library, the distribution of the whole
must be on the terms of this License,
whose permissions for other licensees
extend to the entire whole, and thus to
each and every part regardless of who
wrote it.
Thus, it is not the intent of this section
to claim rights or contest your rights to
work written entirely by you; rather, the
intent is to exercise the right to control
the distribution of derivative or collective works based on the Library.
In addition, mere aggregation of another work not based on the Library with
the Library (or with a work based on
the Library) on a volume of a storage
or distribution medium does not bring
the other work under the scope of this
License.
3. You may opt to apply the terms of
the ordinary GNU General Public
License instead of this License to a
given copy of the Library. To do this,
you must alter all the notices that refer
to this License, so that they refer to the
ordinary GNU General Public License,
version 2, instead of to this License. (If
a newer version than version 2 of the
ordinary GNU General Public License
has appeared, then you can specify
that version instead if you wish.) Do not
make any other change in these
notices.
Once this change is made in a given
copy, it is irreversible for that copy, so
the ordinary GNU General Public
License applies to all subsequent
copies and derivative works made from
that copy.
This option is useful when you wish to
copy part of the code of the Library into
a program that is not a library.
4. You may copy and distribute the
Library (or a portion or derivative of it,
under Section 2) in object code or executable form under the terms of
Sections 1 and 2 above provided that
you accompany it with the complete
corresponding machine-readable
source code, which must be distributed
under the terms of Sections 1 and 2
above on a medium customarily used
for software interchange.
If distribution of object code is made by
offering access to copy from a designated place, then offering equivalent
access to copy the source code from
the same place satisfies the requirement to distribute the source code,
English
12-20
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-21
SHR-4081N/P USER’S MANUAL
even though third parties are not compelled to copy the source along with
the object code.
5. A program that contains no derivative of any portion of the Library, but is
designed to work with the Library by
being compiled or linked with it, is
called a "work that uses the Library".
Such a work, in isolation, is not a derivative work of the Library, and therefore
falls outside the scope of this License.
However, linking a "work that uses the
Library" with the Library creates an
executable that is a derivative of the
Library (because it contains portions of
the Library), rather than a "work that
uses the library". The executable is
therefore covered by this License.
Section 6 states terms for distribution
of such executables.
When a "work that uses the Library"
uses material from a header file that is
part of the Library, the object code for
the work may be a derivative work of
the Library even though the source
code is not. Whether this is true is
especially significant if the work can be
linked without the Library, or if the work
is itself a library. The threshold for this
to be true is not precisely defined by
law.
If such an object file uses only numerical parameters, data structure layouts
and accessors, and small macros and
small inline functions (ten lines or less
in length), then the use of the object file
is unrestricted, regardless of whether it
is legally a derivative work.
(Executables containing this object
code plus portions of the Library will
still fall under Section 6.)
Otherwise, if the work is a derivative of
the Library, you may distribute the
object code for the work under the
terms of Section 6. Any executables
containing that work also fall under
Section 6, whether or not they are
linked directly with the Library itself.
6. As an exception to the Sections
above, you may also combine or link a
"work that uses the Library" with the
Library to produce a work containing
portions of the Library, and distribute
that work under terms of your choice,
12-21
English
provided that the terms permit modification of the work for the customer's
own use and reverse engineering for
debugging such modifications.
You must give prominent notice with
each copy of the work that the Library
is used in it and that the Library and its
use are covered by this License. You
must supply a copy of this License. If
the work during execution displays
copyright notices, you must include the
copyright notice for the Library among
them, as well as a reference directing
the user to the copy of this License.
Also, you must do one of these things:
■ Accompany the work with the com
plete corresponding machine- readable source code for the Library
including whatever changes were
used in the work (which must be distributed under Sections 1 and 2
above); and, if the work is an executable linked with the Library, with
the complete machine-readable
"work that uses the Library", as
object code and/or source code, so
that the user can modify the Library
and then relink to produce a modified
executable containing the modified
Library. (It is understood that the user
who changes the contents of definitions files in the Library will not necessarily be able to recompile the
application to use the modified definitions.)
■ Use a suitable shared library mechanism for linking with the Library. A
suitable mechanism is one that (1)
uses at run time a copy of the library
already present on the user's computer system, rather than copying
library functions into the executable,
and (2) will operate properly with a
modified version of the library, if the
user installs one, as long as the
modified version is interface-compatible with the version that the work
was made with.
■ Accompany the work with a written
offer, valid for at least three years, to
give the same user the materials
specified in Subsection 6a, above,
for a charge no more than the cost of
performing this distribution.
00657B(02)SHR-4081-ENG-2
7/4/07
■
3:00 PM
Page 12-22
If distribution of the work is made by
offering access to copy from a designated place, offer equivalent access
to copy the above specified materials
from the same place.
■ Verify that the user has already
received a copy of these materials or
that you have already sent this user
a copy.
For an executable, the required form of
the "work that uses the Library" must
include any data and utility programs
needed for reproducing the executable
from it. However, as a special exception, the materials to be distributed
need not include anything that is normally distributed (in either source or
binary form) with the major components (compiler, kernel, and so on) of
the operating system on which the executable runs, unless that component
itself accompanies the executable.
It may happen that this requirement
contradicts the license restrictions of
other proprietary libraries that do not
normally accompany the operating system. Such a contradiction means you
cannot use both them and the Library
together in an executable that you distribute.
7. You may place library facilities that
are a work based on the Library sideby-side in a single library together with
other library facilities not covered by
this License, and distribute such a
combined library, provided that the separate distribution of the work based on
the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:
■ Accompany the combined library with
a copy of the same work based on
the Library, uncombined with any
other library facilities. This must be
distributed under the terms of the
Sections above.
■ Give prominent notice with the combined library of the fact that part of it
is a work based on the Library, and
explaining where to find the accompanying uncombined form of the
same work.
8. You may not copy, modify, sublicense, link with, or distribute the
Library except as expressly provided
under this License. Any attempt otherwise to copy, modify, sublicense, link
with, or distribute the Library is void,
and will automatically terminate your
rights under this License. However,
parties who have received copies, or
rights, from you under this License will
not have their licenses terminated so
long as such parties remain in full compliance.
9. You are not required to accept this
License, since you have not signed it.
However, nothing else grants you permission to modify or distribute the
Library or its derivative works. These
actions are prohibited by law if you do
not accept this License. Therefore, by
modifying or distributing the Library (or
any work based on the Library), you
indicate your acceptance of this
License to do so, and all its terms and
conditions for copying, distributing or
modifying the Library or works based
on it.
10. Each time you redistribute the
Library (or any work based on the
Library), the recipient automatically
receives a license from the original
licensor to copy, distribute, link with or
modify the Library subject to these
terms and conditions. You may not
impose any further restrictions on the
recipients' exercise of the rights granted herein. You are not responsible for
enforcing compliance by third parties
with this License.
11. If, as a consequence of a court
judgment or allegation of patent
infringement or for any other reason
(not limited to patent issues), conditions are imposed on you (whether by
court order, agreement or otherwise)
that contradict the conditions of this
License, they do not excuse you from
the conditions of this License. If you
cannot distribute so as to satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as a consequence you may
not distribute the Library at all. For
example, if a patent license would not
permit royalty-free redistribution of the
Library by all those who receive copies
English
12-22
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-23
SHR-4081N/P USER’S MANUAL
directly or indirectly through you, then
the only way you could satisfy both it
and this License would be to refrain
entirely from distribution of the Library.
If any portion of this section is held
invalid or unenforceable under any particular circumstance, the balance of the
section is intended to apply, and the
section as a whole is intended to apply
in other circumstances.
It is not the purpose of this section to
induce you to infringe any patents or
other property right claims or to contest
validity of any such claims; this section
has the sole purpose of protecting the
integrity of the free software distribution
system which is implemented by public
license practices. Many people have
made generous contributions to the
wide range of software distributed
through that system in reliance on consistent application of that system; it is
up to the author/donor to decide if he
or she is willing to distribute software
through any other system and a
licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a
consequence of the rest of this
License.
12. If the distribution and/or use of the
Library is restricted in certain countries
either by patents or by copyrighted
interfaces, the original copyright holder
who places the Library under this
License may add an explicit geographical distribution limitation excluding
those countries, so that distribution is
permitted only in or among countries
not thus excluded. In such case, this
License incorporates the limitation as if
written in the body of this License.
13. The Free Software Foundation may
publish revised and/or new versions of
the Lesser General Public License from
time to time. Such new versions will be
similar in spirit to the present version,
but may differ in detail to address new
problems or concerns.
Each version is given a distinguishing
version number. If the Library specifies
a version number of this License which
applies to it and "any later version",
you have the option of following the
12-23
English
terms and conditions either of that version or of any later version published
by the Free Software Foundation. If the
Library does not specify a license version number, you may choose any version ever published by the Free
Software Foundation.
14. If you wish to incorporate parts of
the Library into other free programs
whose distribution conditions are
incompatible with these, write to the
author to ask for permission. For software which is copyrighted by the Free
Software Foundation, write to the Free
Software Foundation; we sometimes
make exceptions for this. Our decision
will be guided by the two goals of preserving the free status of all derivatives
of our free software and of promoting
the sharing and reuse of software generally.
NO WARRANTY
15. BECAUSE THE LIBRARY IS
LICENSED FREE OF CHARGE,
THERE IS NO WARRANTY FOR THE
LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT
WHEN OTHERWISE STATED IN
WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESSED OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. THE
ENTIRE RISK AS TO THE QUALITY
AND PERFORMANCE OF THE
LIBRARY IS WITH YOU. SHOULD
THE LIBRARY PROVE DEFECTIVE,
YOU ASSUME THE COST OF ALL
NECESSARY SERVICING, REPAIR
OR CORRECTION.
16. IN NO EVENT UNLESS
REQUIRED BY APPLICABLE LAW OR
AGREED TO IN WRITING WILL ANY
COPYRIGHT HOLDER, OR ANY
OTHER PARTY WHO MAY MODIFY
AND/OR REDISTRIBUTE THE
LIBRARY AS PERMITTED ABOVE, BE
LIABLE TO YOU FOR DAMAGES,
INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUEN-
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-24
TIAL DAMAGES ARISING OUT OF
THE USE OR INABILITY TO USE THE
LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA
BEING RENDERED INACCURATE OR
LOSSES SUSTAINED BY YOU OR
THIRD PARTIES OR A FAILURE OF
THE LIBRARY TO OPERATE WITH
ANY OTHER SOFTWARE), EVEN IF
SUCH HOLDER OR OTHER PARTY
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
How to Apply These Terms to Your
New Libraries
If you develop a new library, and you
want it to be of the greatest possible
use to the public, we recommend making it free software that everyone can
redistribute and change. You can do so
by permitting redistribution under these
terms (or, alternatively, under the terms
of the ordinary General Public
License).
To apply these terms, attach the following notices to the library. It is safest to
attach them to the start of each source
file to most effectively convey the
exclusion of warranty; and each file
should have at least the "copyright" line
and a pointer to where the full notice is
found.
one line to give the library's name and
an idea of what it does.
Copyright (C) year name of author
This library is free software; you can
redistribute it and/or modify it under the
terms of the GNU Lesser General
Public
License as published by the Free
Software Foundation; either version 2.1
of the License, or (at your option) any
later version.
This library is distributed in the hope
that it will be useful,
but WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR
A PARTICULAR PURPOSE. See the
GNU
Lesser General Public License for
more details.
You should have received a copy of the
GNU Lesser General Public
License along with this library; if not,
write to the Free Software
Foundation, Inc., 51 Franklin Street,
Fifth Floor, Boston, MA 02110-1301
USA
Also add information on how to contact
you by electronic and paper mail.
You should also get your employer (if
you work as a programmer) or your
school, if any, to sign a "copyright disclaimer" for the library, if necessary.
Here is a sample; alter the names:
Yoyodyne, Inc., hereby disclaims all
copyright interest in
the library `Frob' (a library for tweaking
knobs) written
by James Random Hacker.
signature of Ty Coon, 1 April 1990
Ty Coon, President of Vice
OpenSSL LICENSE
/*=============================
==============================
=========
* Copyright (c) 1998-2006 The
OpenSSL Project. All rights reserved.
*
* Redistribution and use in source and
binary forms, with or without
* modification, are permitted provided
that the following conditions
* are met:
*
* 1. Redistributions of source code
must retain the above copyright
* notice, this list of conditions and
the following disclaimer.
*
* 2. Redistributions in binary form must
reproduce the above copyright
* notice, this list of conditions and
the following disclaimer in
* the documentation and/or other
materials provided with the
* distribution.
*
* 3. All advertising materials mentioning features or use of this
* software must display the following
acknowledgment:
English
12-24
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-25
SHR-4081N/P USER’S MANUAL
* "This product includes software
developed by the OpenSSL Project
* for use in the OpenSSL Toolkit.
(http://www.openssl.org/)"
*
* 4. The names "OpenSSL Toolkit" and
"OpenSSL Project" must not be used to
* endorse or promote products
derived from this software without
* prior written permission. For written
permission, please contact
* [email protected].
*
* 5. Products derived from this software may not be called "OpenSSL"
* nor may "OpenSSL" appear in their
names without prior written
* permission of the OpenSSL
Project.
*
* 6. Redistributions of any form whatsoever must retain the following
* acknowledgment:
* "This product includes software
developed by the OpenSSL Project
* for use in the OpenSSL Toolkit
(http://www.openssl.org/)"
*
* THIS SOFTWARE IS PROVIDED BY
THE OpenSSL PROJECT ``AS IS''
AND ANY
* EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE
* IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR
* PURPOSE ARE DISCLAIMED. IN
NO EVENT SHALL THE OpenSSL
PROJECT OR
* ITS CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL,
* SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
* NOT LIMITED TO, PROCUREMENT
OF SUBSTITUTE GOODS OR SERVICES;
* LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
* HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN
CONTRACT,
12-25
English
* STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE)
* ARISING IN ANY WAY OUT OF THE
USE OF THIS SOFTWARE, EVEN IF
ADVISED
* OF THE POSSIBILITY OF SUCH
DAMAGE.
==============================
=======
*
* This product includes cryptographic
software written by Eric Young
* ([email protected]). This product
includes software written by Tim
* Hudson ([email protected]).
*
*/
Original SSLeay License
----------------------/* Copyright (C) 1995-1998 Eric Young
([email protected])
* All rights reserved.
*
* This package is an SSL implementation written
* by Eric Young ([email protected]).
* The implementation was written so
as to conform with Netscapes SSL.
*
* This library is free for commercial
and non-commercial use as long as
* the following conditions are aheared
to. The following conditions
* apply to all code found in this distribution, be it the RC4, RSA,
* lhash, DES, etc., code; not just the
SSL code. The SSL documentation
* included with this distribution is covered by the same copyright terms
* except that the holder is Tim Hudson
([email protected]).
*
* Copyright remains Eric Young's, and
as such any Copyright notices in
* the code are not to be removed.
* If this package is used in a product,
Eric Young should be given attribution
* as the author of the parts of the
library used.
* This can be in the form of a textual
message at program startup or
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-26
* in documentation (online or textual)
provided with the package.
*
* Redistribution and use in source and
binary forms, with or without
* modification, are permitted provided
that the following conditions
* are met:
* 1. Redistributions of source code
must retain the copyright
* notice, this list of conditions and
the following disclaimer.
* 2. Redistributions in binary form must
reproduce the above copyright
* notice, this list of conditions and
the following disclaimer in the
* documentation and/or other materials provided with the distribution.
* 3. All advertising materials mentioning features or use of this software
* must display the following acknowledgement:
* "This product includes cryptographic software written by
*
Eric Young ([email protected])"
* The word 'cryptographic' can be
left out if the rouines from the library
* being used are not cryptographic
related :-).
* 4. If you include any Windows specific code (or a derivative thereof) from
* the apps directory (application
code) you must include an acknowledgement:
* "This product includes software
written by Tim Hudson
([email protected])"
*
* THIS SOFTWARE IS PROVIDED BY
ERIC YOUNG ``AS IS'' AND
* ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE
* IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE
* ARE DISCLAIMED. IN NO EVENT
SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE
* FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL
* DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS
* OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS
INTERRUPTION)
* HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT
* LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY
* OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF
* SUCH DAMAGE.
*
* The licence and distribution terms for
any publically available version or
* derivative of this code cannot be
changed. i.e. this code cannot simply
be
* copied and put under another distribution licence
* [including the GNU Public Licence.]
*/
English
12-26
00657B(02)SHR-4081-ENG-2
7/4/07
3:00 PM
Page 12-27
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other
household wastes at the end of its working life. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local
government office, for details of where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
AB68-00657B-00
Was this manual useful for you? Yes No
Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Download PDF

advertisement
