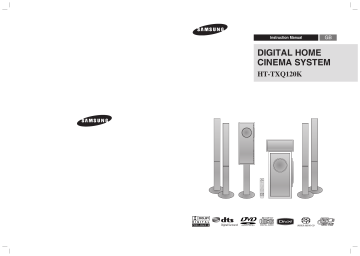

Instruction Manual
GB
DIGITAL HOME
CINEMA SYSTEM
HT-TXQ120K
COMPACT
DIGITAL AUDIO
Safety Warnings
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
GB
This symbol indicates “dangerous voltage” inside the
product that presents a risk of electric shock or
personal injury
This symbol indicates important instructions
accompanying the product.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1 LASER
product.
Use of controls, adjustments or performance of procedures other
than those specified herein may result in hazardous radi ation
exposure.
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player or subwoofer.
Install your player or subwoofer horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10cm).
Make sure the ventilation slots are not covered. Do not stack anything on top of the player or subwoofer. Do not place the player or
subwoofer on amplifiers or other equipment which may become hot. Before moving the player, ensure the disc insert hole is empty.
This player is designed for continuous use. Switching off the DVD player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left
unused for a long period of time.
PREPARATION
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE REAR COVER (or BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
Precautions
CAUTION : INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED, AVOID EXPOSURE TO
BEAM.
WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug
shall be readily operable.
CAUTION
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be
placed on the apparatus.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.
This marking shown on the product or its literature, indicates that it should not be disposed with
other household wastes at the end of its working life.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their
local government office, for details of where and how they can take this item for environmentally
safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
2
During thunderstorms, disconnect the AC main plug from the
wall outlet.
Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat
sources.
This could lead to overheating and malfunction of the unit.
Phones
Protect the player from moisture (i.e. vases) , and excess heat
(e.g.fireplace) or equipment creating strong magnetic or electric
fields (i.e.speakers...). Disconnect the power cable from the AC
supply if the player malfunctions.
Your player is not intended for industrial use.
Use of this product is for personal use only.
Condensation may occur if your player or disc has been stored
in cold temperatures.
If transporting the player during the winter, wait
approximately 2 hours until the unit has reached room
temperature before using.
The batteries used with this product contain chemicals that
are harmful to the environment.
Do not dispose of batteries in the general household trash.
3
Features
Multi-Disc Playback & FM Tuner
The HT-TXQ120K combines the convenience of multi-disc playback capability, including DVD-AUDIO, DVD-VIDEO,
SACD, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD R/RW, with a sophisticated FM tuner, all in a single player.
Experience the super high-quality audio performance of DVD-Audio. The on-board 24-bit/192kHz DAC enables this
player to deliver exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail.
USB Host Play
You can enjoy media files such as pictures, movies and tunes saved in an MP3 player, digital camera, or USB memory by
connecting the storage device to the USB port of the home theater.
SACD Play
You can listen to high quality multi-channel sound that exceeds regular CD playback.
Dolby Pro Logic II
Dolby Pro Logic II is a form of multi-channel audio signal decoding technology that improves upon existing Dolby Pro
Logic.
PREPARATION
Safety Warnings .................................................................2
Precautions.........................................................................3
Features .............................................................................4
Notes on Discs ...................................................................6
Description..........................................................................8
CONNECTIONS
Speaker Installation ..........................................................12
Installing the DVD player ..................................................13
Connecting the Speakers .................................................14
Connecting the Wireless Receiving Amplifier ...................17
Connecting the Video Out to TV .......................................19
Connecting the HDMI IN/OUT ..........................................20
HDMI Function..................................................................21
Connecting Audio from External Components .................22
Connecting the FM Antenna .............................................23
Connecting Microphone....................................................23
DTS (Digital Theater Systems)
DTS is an audio compression format developed by Digital Theater Systems Inc. It delivers full-frequency 5.1 channel
sound.
TV Screen Saver Function
The HT-TXQ120K automatically brightens and darkens your TV screen after 3 minutes in the stop mode.
The HT-TXQ120K automatically switches itself into the power saving mode after 20 minutes in the Screen Saver mode.
Power Saving Function
The HT-TXQ120K automatically shuts itself off after 20 minutes in Stop mode.
Customized TV Screen Display
The HT-TXQ120K allows you to select your favorite image during JPEG and DVD playback and set it as your
background wallpaper.
HDMI
HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture.
The 1080p resolution provides even clearer pictures.
OPERATION
Before Reading the User's Manual ...................................24
Before Using Your Home Theater ....................................25
Disc Playback ...................................................................26
SACD (Super Audio CD) Playback...................................27
MP3/WMA-CD Playback ..................................................28
JPEG File Playback ..........................................................29
DivX Playback ..................................................................30
Using the Playback Function ............................................32
Displaying Disc Information ...........................................32
Checking the Remaining Time.......................................33
Fast Playback ................................................................33
Slow Playback ...............................................................33
Skipping Scenes/Songs .................................................34
Repeat Playback............................................................35
To Select a Repeat Playback Mode in the
Disc Information Screen ................................................35
A-B Repeat Playback.....................................................36
Step Function.................................................................36
Angle Function ...............................................................37
Zoom (Screen Enlarge) Function...................................37
GB
SETUP
Settings.............................................................................44
Setting the Language.....................................................44
Setting TV Screen type ..................................................45
Setting Parental Controls (Rating Level) .......................46
Setting the Password .....................................................46
Setting the Wallpaper ....................................................47
To Select One of the 3 Wallpaper Settings
you've made...................................................................47
DVD Playback Mode......................................................48
DivX (R) registration ......................................................48
SACD Playback Mode ...................................................49
Setting the Speaker Mode .............................................49
Setting the Delay Time ..................................................50
Setting the Test Tone ....................................................51
Setting the Audio ...........................................................52
Setting the DRC (Dynamic Range Compression)..........53
Setting the AV SYNC .....................................................53
Dolby Pro Logic II Mode ...................................................54
Dolby Pro Logic II Effect ...................................................55
PREPARATION
DVD-Audio compatible
Contents
MISCELLANEOUS
Auto Sound Calibration Setup ..........................................56
Live Surround Mode .........................................................58
Listening to Radio .............................................................60
About RDS broadcasting ..................................................61
Convenient Functions .......................................................63
Operating a TV with the Remote Control..........................64
Troubleshooting ................................................................66
Cautions on Handling and Storing Discs ..........................68
Language Code List .........................................................69
USB Host Feature Supported Products............................70
Specifications ...................................................................71
Bonus Group..................................................................38
Navigating Pages...........................................................38
Audio Language Selection Function ..............................39
Subtitle Language Selection Function ...........................39
Moving Directly to a Scene/Song...................................40
Using the Disc Menu......................................................41
Using the Title Menu ......................................................41
Playing Media Files using the USB HOST feature ...........42
4
5
Notes on Discs
GB
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital
surround sound and MPEG-2 video compression technology. Now you can enjoy these
realistic effects in the home, as if you were in a movie theater or concert hall.
~ 6
DVD players and the discs are coded by region. These regional codes must match in order for the disc
to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
(Your DVD player will only play DVDs that are labeled with identical region codes.)
Playable Discs
Disc Type
Mark (Logo)
Disc Size
12cm
DVD-AUDIO
DVD-VIDEO
AUDIO-CD
Recorded Signals
Audio + Video
8cm
COMPACT
DIGITAL AUDIO
Audio
Divx
Audio + Video
Super Audio
CD
Audio
Max. Playing Time
Approx. 240 min. (single-sided)
Approx. 480 min. (double-sided)
Approx. 80 min. (single-sided)
Approx. 160 min. (double-sided)
12cm
74 min.
8cm
20 min.
12cm
74 min
8cm
20 min.
12cm
74 min.
Do not use the following types of disc!
• LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player.
If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.
• DVD discs purchased abroad may not play on this player.
If such discs are played, a <CAN'T PLAY THIS DISC PLEASE, CHECK REGION CODE> message
appears on the TV screen.
Copy Protection
• Many DVD discs are encoded with copy protection. Because of this, you should only connect your
DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture
from copy-protected DVD discs.
• This product incorporates copyright protection technology that is protected by methods claims of certain
U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by Macrovision Corporation,
and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
6
This product does not support Secure (DRM) Media files.
CD-R Discs
• Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition
of the disc.
• Use a 650MB/74 minute CD-R disc.
Do not use CD-R discs over 700MB/80 minute as they may not be playback.
• Some CD-RW (Rewritable) media, may not be playable.
• Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may
not be able to fully play the disc.
PREPARATION
1
Disc Recording Format
CD-R MP3 Discs
•
•
•
•
•
•
•
•
•
Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
Use discs recorded with a compression/decompression data rate greater than 128Kbps.
Only files with the "mp3" and extensions can be played.
Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc,
the disc can be played only up to the blank segment.
If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate
(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
A maximum of 500 tracks can be played per CD.
A maximum of 300 folders can be played per CD.
CD-R JPEG Discs
Only files with the "jpg" extensions can be played.
If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc,
the disc can be played only up to the blank segment.
• A maximum of 9,999 images can be stored on a single CD.
• When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
• Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
•
•
•
•
•
DVD R/RW, CD-R/RW DivX Discs
• Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the
usermight not play.
• Software update for incompatible formats is not supported.
(Example: QPEL, GMC, resolution higher than 720 x 480 pixels, etc.)
• Sections with a high frame rate might not be played while playing a DivX file.
• For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks.net".
7
Description
GB
Subwoofer
Main unit
<FRONT>
<REAR>
PREPARATION
<REAR>
<FRONT>
1
2
3
4
3
SPEAKERS OUT
11
4
1
5
FRONT R CENTER FRONT L
ASC IN
REAR R
REAR L
KARAOKE MIC RADIO ANT.
MIC 1
5
2
15
9
16
17
10
R
AUX IN
1. Standby indicator
7. FM 75Ω COAXIAL Jack
2. Power on indicator
8. Component Video Output
Connectors Connect a TV
with component video inputs
to these jacks.
3. Auto Sound Calibration Input
Connector
4. 5.1 Channel Speaker Output
Connector
6. MIC1, MIC2
10.Volume Control buttons
3. Eject button
11.System Connector cable
4. Display panel
5. Function button
6. Tuning Up & Skip (
) button
7. Stop ( ) button
8. Play/Pause (
8
)
) button
12.External Digital Optical Input
Connector 2
Use this to connect external
equipment capable of digital
output.
13.External Digital Optical Input
Connector 1
Use this to connect external
equipment capable of digital
output.
6
7
8
L
VIDEO OUT
9
10
11
12
5. Cooling Fan
2. Disc Insert Hole
WIRELESS
14
8
9. Tuning Down & Skip (
button
SYSTEM CONNECTOR
13
7
) button
COMPONENT OUT
12
6
1. Power (
MIC 2
9. Video Output Connector
Connect the TV's video input
jacks (VIDEO IN) to the
VIDEO OUT connector.
10.External Audio Input
Connectors
11.TX Card Connection
(WIRELESS)
12.System Connector
Accessories
14.HDMI OUT Jack
15.HDMI IN Jack
16.USB Port
17.Headphone Jack
Remote Control
Video Cable
Auto Sound Calibration
Microphone
Core (4EA)
(Toroidal Ferrite Core)
Holder Cable
(3EA)
FM Antenna
HDMI Cable
User's Manual
Screw (6EA)
Stand base
DVD KARAOKE
DISC
MIC
STAND
9
Description (Con’t)
GB
Remote Control
2
19
20
3
21
22
4
5
6
23
24
7
25
26
8
9
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
25.
TV button
DVD RECEIVER button
POWER button
Number (0~9) buttons
REMAIN button
STEP button
Tuning Preset/CD Skip button
VOLUME button
MENU button
INFO button
MOVIE button
MUSIC button
TUNER MEMORY, SD(Standard Definition)/
HD(High Definition) button
ZOOM button
PL II MODE button
SLOW, MO/ST button
PL II EFFECT button
SLEEP button
DVD button
AUX button
TUNER button
USB button
EJECT button
TV/VIDEO button
RDS Selection buttons
CANCEL button
REPEAT button
PLAY/PAUSE button
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
STOP button
SEARCH buttons
MUTE button
TUNING/CH button
RETURN button
Cursor/ENTER button
AUDIO button
SUB TITLE button
ASC (Auto Sound Calibration) button
SUPER 5.1, V-H/P (Virtual Headphone) button
SOUND EDIT button
ECHO, NT/PAL button
DIMMER, LOGO button
MIC VOL button
HDMI AUDIO SELECT button
14.
15.
16.
17.
18.
19.
27
28
29
20.
21.
22.
23.
24.
30
10
11
12
31
32
33
13
34
35
36
37
14
15
16
17
18
10
38
1
2
Remove the battery cover in the direction of the arrow.
3
Replace the battery cover.
Insert two 1.5V AAA batteries, paying attention to the correct polarities
(+ and –).
Follow these precautions to avoid leaking or cracking cells:
• Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).
• Use the correct type of batteries.Batteries that look similar may differ in voltage.
• Always replace both batteries at the same time.
• Do not expose the batteries to heat or a flame.
PREPARATION
1
Insert Remote Batteries
Operation Range of the Remote Control
The remote control can be used up to approximately 23 feet (7 meters) in a straight line. It can also be operated at
a horizontal angle of up to 30° from the remote control sensor.
11
Installing the DVD player
Speaker Installation
How to Install the Speaker and the Stand
STAND
1
STAND BASE
2
1
STAND
BASE
STAND
SPEAKER
STAND
2
Tighten 4 screws on the bottom side of the stand
base.
3
Place the stand on the floor and tighten 2 screws
on the back of the stand.
4
5
6
Mount the speaker on the stand.
2
3
BACK
COVER
Tighten 2 screws on the back of the speaker.
This is the successfully assembled speaker.
4
5
• Make sure that the speaker is installed on a flat and
stable area. Otherwise it may be easily knocked over.
6
5
Turn the stand upside down and mount it on the
stand base.
STAND
6
7
8
Speaker Packages
1
Mount the stand on the stand base and tighten 4
screws on the bottom side of the stand base.
2
3
4
Loosen 2 screws at the bottom of the back cover.
Detach the back cover by lifting it up.
Secure the main unit by aligning 4 protruding points
on the back of the main unit with the fixing holes on
the stand.
5 Tighten 2 screws in the middle of the stand.
6 Open a Toroidal Ferrite Core by pulling it upward.
Wrap it around the top of the system connection
cable so it will be next to the DVD Player. Close it
back by pressing it all the way down until you hear a
clicking sound.
7 Push the cable into the cable fixing hole in the
stand.
8 To fix the cable, insert the cable holder into the hole
on the stand.
9 Let the cable run through the hole at the bottom of
the back cover and close the back cover.
10 Tighten 2 screws at the bottom of the back cover.
11 Open another Toroidal Ferrite Core by pulling
it upward. Wrap it around the other end of the
system connection cable so it is next to the
subwoofer. Close it back by way down until you
hear a clicking sound.
CONNECTIONS
4
3
1
GB
• The Toroidal Ferrite Core is designed to
Please confirm that all the following contents are included in the package.
Toroidal
Ferrite Core
Speaker Accessories
reduce electromagnetic waves that may cause
interference.
System connection
cable - main unit
9
Stand Packages
10
Please confirm that all the following contents are included in
the package.
Center Speaker
STAND BASE
STAND BASE
BACK COVER
SPEAKER
STAND
Screw
Screw
Front/Rear Speaker (4EA)
*Front speakers and rear speakers are packaged
separately as shown in the diagram.
Subwoofer Speaker
Speaker Cable (5EA)
11
BACK COVER
Screw (6EA)
SPEAKERS OUT
FRONT R CENTER FRONT L
ASC IN
REAR R
REAR L
KARAOKE MIC RADIO ANT.
MIC 1
MIC 2
COMPONENT OUT
SYSTEM CONNECTOR
WIRELESS
R
AUX IN
L
VIDEO OUT
STAND
Holder Cable (3EA)
System connection
cable - Main Unit to Subwoofer
12
13
Connecting the Speakers
GB
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
Rear of Subwoofer
C
Rear of Main unit
SPEAKERS OUT
FRONT R CENTER FRONT L
ASC IN
REAR R
REAR L
KARAOKE MIC RADIO ANT.
MIC 1
L
SW
MIC 2
COMPONENT OUT
R
SYSTEM CONNECTOR
WIRELESS
R
AUX IN
L
VIDEO OUT
Center Speaker
SL
Front Speaker (L)
SR
Rear Speaker (R)
Position of the DVD Playerei
Selecting the Listening Position
• Place it on a stand or cabinet shelf, or under the TV
stand.
• The listening position should be located about 2.5 to 3
times the distance of the TV's screen size away from the
TV. Example :
For 32" TVs 2~2.4m (6~8feet)
For 55" TVs 3.5~4m (11~13feet)
Front Speakers f
• Place these speakers in front of your listening position,
facing inwards (about 45°) toward you.
• Place the speakers so that their tweeters will be at the
same height as your ear.
• Align the front face of the front speakers with the front
face of the center speaker or place them slightly in front
of the center speakers.
Center Speaker
• It is best to install it at the same height as the front
speakers.
• You can also install it directly over or under the TV.
Rear Speakers hj
• Place these speakers behind your listening position.
• If there isn't enough room, place these speakers so they
face each other.
• Place them about 60 to 90cm (2 to 3feet) above your
ear, facing slightly downward.
* Unlike the front and center speakers, the rear speakers
are used to handle mainly sound effects and sound will
not come from them all the time.
Subwoofer g
• The position of the subwoofer is not so critical.
Place it anywhere you like.
14
CONNECTIONS
Front Speaker (R)
Rear Speaker (L)
Connecting the Speakers
1
2
1
2
3
Press down the terminal tab on the back of the speaker.
Insert the black wire into the black terminal (–) and the
red wire into the red (+) terminal, and then release the
tab.
Connect the connecting plugs to the back of the Subwoofer.
„ Make sure the colors of the speaker terminals match the colors of the
connecting plugs.
• Do not let children play with or near the speakers. They could get hurt if a speaker falls.
• When connecting the speaker wires to the speakers, make sure that the polarity (+/–) is correct.
• Keep the speaker out of reach of children so as to prevent children from inserting their hands or alien substances into the
duct (hole) of the subwoofer speaker.
• Do not hang the subwoofer on the wall through the duck(hole)
• If you place a speaker near your TV set, screen color may be distorted because of the magnetic field generated by the
speaker. If this occurs, place the speaker away from your TV set.
15
Connecting the Speakers (Con’t)
Connecting the Wireless Receiving Amplifier
GB
To connect the rear speakers wirelessly, you have to purchase the wireless receiving module and TX card from your
Samsung retailer.
Connecting the Main Unit and Subwoofer
When you have Purchased the Wireless Receiving Module (SWA-3000)
Front Speaker (R)
Front Speaker (L)
Center Speaker
REAR R
REAR L
KARAOKE MIC RADIO ANT.
MIC 1
MIC 2
COMPONENT OUT
SYSTEM CONNECTOR
WIRELESS
R
AUX IN
L
VIDEO OUT
SPEAKERS OUT
Rear of Subwoofer
FRONT R CENTER FRONT L
ASC IN
REAR R
REAR L
KARAOKE MIC RADIO ANT.
MIC 1
MIC 2
COMPONENT OUT
SYSTEM CONNECTOR
CONNECTIONS
SPEAKERS OUT
FRONT R CENTER FRONT L
ASC IN
WIRELESS
R
AUX IN
L
VIDEO OUT
Rear of Subwoofer
Rear of Main unit
WIRELESS RECEIVER MODULE
Connect the System Connector cable from the main unit to the System Connector on the Subwoofer.
Rear Speaker (L)
Rear Speaker (R)
Subwoofer Functions
Subwoofer : With a built-in, dedicated 165W amplifier, the Subwoofer generates rich bass sounds.
Attaching the Toroidal Ferrite Core to the Power Cord of the Subwoofer
If you attach a Toroidal ferrite core to the power cord of the subwoofer, it will prevent help to prevent
RF interference from radio signals.
SPEAKERS OUT
FRONT R CENTER FRONT L
ASC IN
REAR R
REAR L
KARAOKE MIC RADIO ANT.
MIC 1
MIC 2
COMPONENT OUT
SYSTEM CONNECTOR
WIRELESS
R
AUX IN
16
L
VIDEO OUT
Connect the front and center speakers to the Subwoofer,
referring to pages 15~16.
2
With the subwoofer turned off, insert the TX card into the TX
Card Connection (WIRELESS) on the back of the subwoofer.
„ Hold the TX card so that the slanted side faces leftward and insert the card
SPEAKERS OUT
FRONT R CENTER FRONT L
ASC IN
REAR R
into the port.
REAR L
KARAOKE MIC RADIO ANT.
MIC 1
MIC 2
COMPONENT OUT
SYSTEM CONNECTOR
1
2
3
1
WIRELESS
R
AUX IN
„ The TX card enables communication between the subwoofer and the wireless
L
VIDEO OUT
Pull the fixing tab of the Toroidal ferrite core to open it.
receiver.
Make a loop in the subwoofer power cord.
Attach the Toroidal ferrite core to the subwoofer power cord
as the figure shows and press it until it clicks.
3
Connect the left and right rear speakers to the wireless receiving
module.
4
Plug the power cord of the wireless receiving module in the wall
outlet and switch the power switch <ON>.
Slanted side face left
TX card
• Do not insert a card other than the TX card dedicated for the product.
The product might be damaged or the card may not be removed easily.
• Do not insert the TX card upside down or in the reverse direction.
• If the TX Card is inserted, sound is not output from the Rear Speaker
connectors on the subwoofer.
17
Connecting the Wireless Receiving Amplifier (Con’t)
Resetting the Wireless Receiving Module
Connecting the Video Out to your TV
GB
Choose one of the three methods for connecting to a TV.
Reset the system if a communication failure occurs, or if the Link indicator (blue LED) on the wireless receiver does not
light up and the "REAR CHECK" message blinks on the main unit's display.
Reset the system while the main unit and the wireless receiver module (SWA-3000) are in Power Standby mode.
1
With the main unit turned off, press and hold the remote
control's REMAIN button for 5 seconds.
„ The STANDBY LED on the front panel of the wireless receiver module blinks.
With the wireless receiver module turned on, use a ball point pen
or a toothpick to press the RESET button on the back of the unit.
TV
CONNECTIONS
2
„ The STANDBY LED on the front panel of the wireless receiver module blinks
2 Times.
3
Turn on the main unit.
„ The LINK LED of the wireless receiver module is lit and the Reset is complet-
METHOD2
ed.
„ If Power Standby mode continues, repeat Steps 1 to 3 above.
METHOD 3
(supplied)
METHOD 1
(supplied)
SPEAKERS OUT
FRONT R CENTER FRONT L
ASC IN
REAR R
REAR L
KARAOKE MIC RADIO ANT.
MIC 1
MIC 2
COMPONENT OUT
SYSTEM CONNECTOR
WIRELESS
R
AUX IN
• When the wireless receiving module setting is complete, no audio signal is output from the Rear Speaker Output
Connector on the back of the subwoofer.
• The wireless receiving antenna is built into the wireless receiver module. Keep the unit away from water and
moisture.
• For optimal listening performance, make sure that the area around the wireless receiver module location is clear of any
obstructions.
• Sound will be heard from the wireless rear speakers in DVD 5.1-CH or Dolby Pro Logic II mode only.
• In 2-CH mode, no sound will be heard from the wireless rear speakers.
• Place the wireless receiver module at the rear of the listening position. If the wireless receiver module is too close to the
main unit, some sound interruption may be heard due to interference.
• If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment, or any other device that uses the
same frequency (2.4GHz) near the system, some sound interruption may be heard due to interference.
• The transmission distance of a radio wave is about 10m, but may vary depending on your operating environment.
If a steel-concrete wall or metallic wall is between the main unit and the wireless receiver module, the system may not
operate at all, because the radio wave cannot penetrate metal.
L
VIDEO OUT
Rear of
Subwoofer
Rear of
Main unit
METHOD 1 : HDMI ....... (Best Quality)
Connect the supplied HDMI cable from the HDMI OUT jack on the back of the main unit to the HDMI IN jack on your TV.
METHOD 2 : Component ....... (Better Quality)
If your television is equipped with Component Video inputs, connect a component video cable(not supplied) from the
Component Video Output (PR, PB and Y) Connectors on the back of the subwoofer to the Component Video Input
Connectors on your TV.
METHOD 3 : Composite Video ....... (Good Quality)
Connect the supplied video cable from the VIDEO OUT jack on the back of the subwoofer to the VIDEO IN jack on your
TV.
• This product operates in Interlace scan mode (576i, 480i) for component output.
18
19
Connecting the HDMI IN/OUT
HDMI Function
HDMI (High-Definition Multimedia Interface) is a digital interface that enables transmitting digital video and audio over a
single cable. In addition, it enables you to enjoy multi-channel digital audio.
GB
HDMI Audio ON/OFF function
The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.
Press the HDMI AUDIO SELECT button on the remote control.
„ This toggles between <ON> and <OFF> on the display.
• ON : Both video and audio signals are transmitted over the HDMI connection cable,
and audio is output through your TV speakers only.
• OFF : Video is transmitted over the HDMI connection cable only, and audio is output
through the home theater speakers only.
(supplied)
What is HDMI (High Definition Multimedia Interface)?
TV
This device transmits a DVD video signal digitally without the process of
converting to analog. You will get sharper digital pictures when using an HDMI
connection.
CONNECTIONS
• The default setting of this product is HDMI AUDIO OFF.
• HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.
• The HDMI AUDIO is not available when using the HDMI IN function.
HDMI Cable
Set-Top/Cable box
Resolution Selection
1
Connect the HDMI IN Jack of this unit to the HDMI OUT Jack of your Set-Top Box.
2
3
Connect the HDMI OUT Jack of this unit to the HDMI IN Jack of your TV.
This function allows the user to select the screen resolution for HDMI output.
In Stop mode, press and hold the SD/HD button on the remote control.
„ Resolutions available for the HDMI output are 576p(480p), 720p,1080i and 1080p
Press the AUX button on the remote control to select <HDMI>.
„ SD(Standard Definition) resolution is 576p(480p) and HD(High Definition) resolution is
„ You can also use the FUNCTION button on the main unit.
720p/1080i/1080p.
The mode switches as follows : <DVD> <USB> <HDMI> <D.IN 1> <D.IN 2> <AUX> <FM>.
• Audio from SACD discs cannot be heard via the HDMI connection. To play a DVD disk whose copyright is protected by
CPPM, use a player supporting CPPM.
• The quality of the audio output through the HDMI OUT Jack (sampling frequency and bit rate) may be limited by the performance of the connected device.
• Since HDMI connection supports both video and audio, you don’t have to connect an audio cable additionally.
• When this unit is turned off, no HDMI video or audio signal is output through this unit from a set-top box.
In the HDMI function, you cannot switch the video resolution.
• When the output from an external device is connected via DVI/HDMI to this unit, no audio will be output. In this case, you
can listen to digital audio by connecting the Optical OUT of the source device (Set-Top Box) to the Optical IN 1 or 2 of this
unit.
High-bandwidth Digital Content Protection System (HDCP) support
To play digital content through the HDMI
connection, both the connected external device
and TV must support High-bandwidth Digital
Content Protection System (HDCP).
This product supports HDCP.
20
• If the TV does not support the configured resolution, you will not be able to see the
picture properly.
• See your TV owner's manual for more information on how to select the TV's Video
Input source.
• Even when you turn on, turn off or converse the function, the resolution is set to
default setting of the TV and Home Theater automatically.
Compatibility with a TV Supporting HDMI
A TV with an HDMI jack.
Video/Audio
A TV with an DVI-D jack (TV that supports HDCP)
Video
A TV with an DVI-D jack (TV that does not support HDCP)
-
21
Connecting Audio from External Components
Connecting the FM Antenna
FM Antenna (supplied)
SPEAKERS OUT
FRONT R CENTER FRONT L
ASC IN
REAR R
GB
REAR L
KARAOKE MIC RADIO ANT.
MIC 1
MIC 2
COMPONENT OUT
SYSTEM CONNECTOR
WIRELESS
R
AUX IN
SPEAKERS OUT
L
VIDEO OUT
FRONT R CENTER FRONT L
ASC IN
MIC 1
REAR L
MIC 2
COMPONENT OUT
SYSTEM CONNECTOR
WIRELESS
R
AUX IN
Optical Cable
(not supplied)
Audio Cable (not supplied)
If the external analog component has
only one Audio Out, connect either
left or right.
1
2
L
VIDEO OUT
Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack.
Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a
wall or other rigid surface.
CONNECTIONS
REAR R
KARAOKE MIC RADIO ANT.
• This unit does not receive AM broadcasts.
Cooling Fan
Connecting an External Digital Component
The cooling fan supplies cool air to the subwoofer to prevent overheating.
Please observe the following cautions for your safety.
Digital signal components such as a Set-Top/Cable Box.
1
„ Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit may
SPEAKERS OUT
FRONT R CENTER FRONT L
rise and may damage it.
ASC IN
Connect the Digital Input (OPTICAL 1 or 2) on the Home Theater to the Digital Output of the external
digital component.
REAR R
REAR L
KARAOKE MIC RADIO ANT.
MIC 1
MIC 2
COMPONENT OUT
SYSTEM CONNECTOR
WIRELESS
R
AUX IN
2
The mode switches as follows : <DVD> <USB> <HDMI> <D.IN 1> <D.IN 2> <AUX> <FM>.
Connecting an External Analog Component
Analog signal components such as a VCR.
Connect the AUX (Audio) In on the subwoofer to the Audio Out of the external analog component.
„ Be sure to match connector colors.
2
VIDEO OUT
a newspaper or cloth, heat may build up inside the unit and fire may result.)
Press the AUX button on the remote control to select <D.IN1> <D.IN2> input.
„ You can also use the FUNCTION button on the main unit.
1
L
„ Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with
Press the AUX button on the remote control to select <AUX> input.
„ You can also use the FUNCTION button on the main unit.
The mode switches as follows : <DVD> <USB> <HDMI> <D.IN 1> <D.IN 2> <AUX> <FM>.
Connecting Microphone
You can enjoy the feeling of a karaoke bar in the comfort of your home. Watch the video and sing along the lyrics
displayed on the TV screen against the accompaniment.
1
Connect the microphone to the MIC jack.
 You can connect up to two microphones.
2
Press the MIC VOL button to adjust the voice
volume of the microphone.
3
Press the ECHO button to adjust the echo
level of the microphone.
SPEAKERS OUT
FRONT R CENTER FRONT L
KARAOKE MIC RA
ASC IN
REAR R
REAR L
KARAOKE MIC RADIO ANT.
MIC 1
MIC 1
MIC 2
MIC 2
COMPONENT OUT
SYSTEM CONNECTOR
WIRELESS
R
AUX IN
• To listen to the audio from the TV in 5.1 channel through the main unit, press the Dolby Pro Logic II or the SUPER 5.1
button.
• You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR to this
product.
22
L
VIDEO OUT
SYSTEM CO
• If you hear strange noises (squealing or howling) while using the Karaoke
feature, move the microphone away from the speakers. Turning down the
microphone volume or the speaker volume is also effective.
• Microphone doesn't work while HDMI mode and HDMI AUDIO ON.
23
Before Reading the User's Manual
The DVD Home Theater's remote can be used to control Samsung TVs.
Icons that will be used in manual
1
Term
Definition
DVD
This involves a function available with DVD or DVD-R/DVD-RW discs that have been recorded
and finalizel in Video Mode.
Super Audio CD
GB
To Operate your Samsung TV and the Home Theater with the HT-TXQ120 Remote Control
Make sure to check the following terms before reading the user manual.
Icon
Before Using Your Home Theater
This involves a function available with a Super Audio CD (Single Layer, Dual Layer, Hybrid
Layer).
Plug the subwoofer's power cord into the AC power supply.
„ Before plugging your system into a main socket, you must check the voltage setting
(OPTIONAL). If the voltage of the socket does not correspond to the setting on the rear
of the unit, you may seriously damage your system.
2
3
4
Press the TV button to set the remote to TV mode.
Press the POWER button to turn on your Samsung TV with this remote.
Press the TV/VIDEO button to select VIDEO mode on your TV.
CD
This involves a function available with a data CD (CD-R or CD-RW).
MP3
This involves a function available with CD-R/-RW discs.
DivX
This involves a function available with MPEG4 discs. (DVD±R/RW, CD-R or CD-RW)
JPEG
This involves a function available with CD-R/-RW discs.
5
Press the DVD RECEIVER button to switch to DVD RECEIVER mode to
operate the DVD Home Theater.
This involves a case where a function does not operate or settings may be cancelled.
6
Press the FUNCTION button on the main unit or DVD button on the
remote to enable DVD/CD playback.
VIDEO
Note
OPERATION
Caution
This involves tips or instructions on the page that help each function operate.
• In this manual, the instructions marked with "DVD (
)" are applicable to DVD-VIDEO, DVD-AUDIO,
and DVD-R/-RW discs that have been recorded in Video Mode and then finalized.
Where a particular DVD type is mentioned, it is indicated separately.
• If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable.
Resolution Selection
This function allows the user to select the screen resolution for HDMI output.
Press and hold the NT/PAL button on the remote controller for over 5
seconds while the power is turned off.
„ By default, the video format is set to <PAL>.
„ <NTSC> or <PAL> will appear in the display. At this time, press the NT/PAL button shortly to
select between <NTSC> and <PAL>.
„ Each country has a different video format standard.
„ For normal playback, the video format of the disc must be the same as the video format of
your TV.
24
25
Disc Playback
SACD (Super Audio CD) Playback
GB
You can listen to high quality multi-channel sound that exceeds regular CD playback.
1
Load a disc vertically into the Disc Insert Hole.
„ Insert a disc so that the label side facing forward.
„ Playback starts automatically.
2
1
Load the SACD disc.
„ The SACD menu appears and playback will start.
To eject the disc, press the EJECT button.
2
When the play is stopped, select a track using the Cursor ▲,▼ button
and press the ENTER button.
„ During the play, you cannot select a track using the Cursor ▲,▼ button.
3
Press the STOP () button to stop playback.
ALL
OPERATION
To stop playback, press the STOP button during playback.
„ If pressed once, <PRESS PLAY> is displayed and the stop position will be stored in memory.
If the PLAY/PAUSE (&) button or ENTER button is pressed, playback resumes from the stop position.
(This function works only with DVDs.)
„ If pressed twice, <STOP> is displayed, and if the PLAY/PAUSE (&) button is pressed, playback starts from the beginning.
To temporarily pause playback, press the PLAY/PAUSE (&) button during playback.
„ To resume playback, press the PLAY/PAUSE (&) button again
• Depending on the content of the disc, the initial screen may appear different.
• Any piracy could not be runnable in the player. Otherwise, it violates the CSS (Content Scrambling System : a copy
protection system) recommendations.
Disc Spec
Item
CD
SACD
DVD Audio
Number of Channels and
Play Time
2 Channels : 70 Minutes
2 Channels : 110 Minutes
5.1 Channels : 81 Minutes
2 Channels : 120 Minutes
5.1 Channels : 89 Minutes
Sampling Frequency
44.1 KHz
2822.4 KHz
(64 Times of CD)
44.1~192 KHz
(4.4 Times of CD)
Dynamic Range
96 dB
120 dB
144 dB
Play Frequency
~20 KHz
~100 KHz
~96 KHz
• SACD has three kinds of formats: Single Layer Disc that has 1 HD layer, Dual Layer Disc that has 2 HD layers and Hybrid
Disc that has both CD and HD layers. Hybrid Discs can play in regular CD players.
26
27
MP3/WMA-CD Playback
JPEG File Playback
Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played.
1
Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back
with this Home Theater.
Load the MP3/WMA disc.
„ The MP3/WMA menu screen will appear and playback will start.
„ The appearance of the menu depends on the MP3/WMA disc.
„ WMA-DRM files cannot be played.
2
GB
Load the JPEG disc.
„ Playback starts automatically. Each image is displayed for 5 seconds and then the next
image is displayed.
In Stop mode, use the Cursor ▲,▼,◄,► button to select the album, and
then press the ENTER button.
Press the #‚$ button to skip to the next slide.
„ Each time the button is pressed, the slide moves backward or forward.
„ Use the Cursor ▲,▼ button to select the track.
3
To change the album, use the Cursor ▲,▼,◄,► button to select another
album in Stop mode, and then press the ENTER button.
„ To select another album and track, repeat Steps 2 and 3 above.
4
Press the STOP button to stop playback.
Rotate/Flip Function
Press the Cursor ▲,▼,◄,►button during playback.
▲button : Flip Vertically
OPERATION
• Depending on the recording mode, some MP3/WMA-CDs may not play.
• Table of contents of a MP3/WMA-CD varies depending on the MP3/WMA track
format recorded on the disc.
• Rissian filenames are not supported.
To play a file icon in the screen,
„ Press the Cursor ▲,▼,◄,► button when it is in Stop mode and select a desired icon from the top part of the menu.
Music File Icon : To play music files only, select the
Icon.
Image File Icon : To view image files only, select the
Icon.
Movie File Icon : To view movie files only, select the
Icon.
All File Icon : To view movie files only, select the
◄button: Rotate 90°
Counterclockwise
►button : Rotate 90°
Clockwise
Original Image
▼button : Flip Horizontally
Icon.
• The maximum resolutions supported by this product are 5120 x 3480
(or 19.0 MPixel) for standard JPEG files and 2048 x 1536 (or 3.0 MPixel) for
progressive image files.
• Rissian filenames are not supported.
• In some cases, depending on JPEG files record conditions, those files may be
displayed not the full screen size or low quality.
28
29
DivX Playback
GB
The functions on this page apply to DivX disc playback.
Subtitle Display
Skip Forward/Back
Press the SUBTITLE button.
„ Each time you press the button, your selection will toggle between <SUBTITLE (1/N, 2/N
During playback, press the #,$ button.
...)> and <SUBTITLE OFF>.
„ Goes to the next file whenever you press the $ button, if there are over 2 files in the disk.
„ Goes to the previous file whenever you press the # button, if there are over 2 files in the
„ If the disc has only one subtitle file, it will be played automatically.
„ See number 2 (Caption Function) below for more details concerning Subtitle usage with DivX
discs.
disk.
Fast Playback
If the disc has more than one subtitle file
To play back the disc at a faster speed, press the  or  button during
playback.
If the disc has more than one subtitle file, the default subtitle may not match the movie
and you will have to select your subtitle language as follows:
„ Each time you press either button, the playback speed will change as follows:
2x 4x 8x 32x Normal.
5 Minute Skip function
„ Playback skips 5 minutes forward whenever you press the Cursor ► button.
„ Playback skips 5 minutes back whenever you press the Cursor ◄ button.
Zoom Function
1
Press the ZOOM button.
„ Each time you press the button, your selection will toggle between <ZOOM X2> and
<ZOOM OFF>.
2
In Stop mode, press the Cursor ▲,▼ button, select the desired subtitle
(
) from the TV screen, and then press the ENTER button.
2
When you select the desired DivX file from the TV screen, the movie will
be played normally.
DivX(Digital internet video eXpress)
DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to provide audio and
video data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at near DVD-quality
video and audio.
1
OPERATION
During playback, press the Cursor ◄,► button.
1
Supported Formats
This product only supports the following media formats. If both video and audio formats are not supported, the user may experience
problems such as broken images or no sound.
Press the Cursor ▲,▼,◄,► button to move to the area you want to
enlarge.
Supported Video Formats
• DivX file can be zoomed only in ZOOM X2 mode.
• DivX files have .Avi file extensions, however, not all .Avi files are DivX and may not
be playable in this unit.
Format
AVI
WMV
Supported Versions
DivX3.11~DivX5.1, XviD
V1/V2/V3/V7
Supported Video Formats
Audio Display
Press the AUDIO button.
MP3
Bit Rate
80~384kbps
Sampling Frequency
„ If there are multiple audio tracks on a disc, you can toggle between them.
„ Each time you press the button, your selection will toggle between <AUDIO (1/N, 2/N ...)>
and
Format
WMA
AC3
DTS
56~128kbps
128~384kbps
1.5Mbps
44.1/48khz
44.1khz
44.1khz
„ DivX files, including audio and video files, created in the DTS format can only support up to 6Mbps.
„ Aspect Ratio: Although default DivX resolution is 640x480 pixels (4:3), this product supports up to 720x480 pixels (16:9). TV
.
screen resolutions higher than 800 will not be supported.
•
„ When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on the screen
is displayed when there is one supported language in the disc.
during playback.
2
Caption Function
„ You must have some experience with video extraction and editing in order to use this feature properly.
„ To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX media file (*.avi) within the
same folder.
Example. Root
Samsung_007CD1.avi
Samsung_007CD1.smi
„ Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and Chinese) for the file name.
30
31
Using the Playback Function
GB
Displaying Disc Informatio
Checking the Remaining Time
You can view disc playback information on the TV screen.
Press the REMAIN button.
„ For checking the total and remaining time of a title or chapter being played.
Press the INFO button.
„ Each time the button is pressed, the display changes as follows:
Each time the Remain button is pressed
TITLE ELAPSED TITLE REMAIN CHAPTER ELAPSED CHAPTER REMAIN
The information
Display disappears
from the screen
GROUP ELAPSED GROUP REMAIN TRACK ELAPSED TRACK REMAIN
TRACK ELAPSED TRACK REMAIN TOTAL ELAPSED TOTAL REMAIN
TRACK REMAIN TRACK ELAPSED
Fast Playback
Press the #,$button.
„ Each time the button is pressed during playback, the playback speed changes as follows:
 2X  4X  8X  32X ► PLAY
The information
Display disappears
from the screen
The information
Display disappears
from the screen
appears on the TV
screen!
If this symbol appears
on the TV screen when
pressing a button, that
operation is not possible
with the disc currently
being played.
OPERATION
The information
Display disappears
from the screen
• Depending on the
disc, the disc
information display
may appear
different.
• Depending on
the disc, you can
also select DTS,
DOLBY DIGITAL,
or PRO LOGIC.
 2X  4X  8X  32X ► PLAY
• During fast playback of a SACD, CD or MP3-CD, sound is heard only at 2x speed,
and not at 4x, 8x, and 32x speeds.
Slow Playback
Press the SLOW button.
„ Each time the button is pressed during playback, the playback speed changes as follows:
1/2 1/4 1/8 1/2 1/4 1/8 ►PLAY
Screen Display
DVD display
TITLE display
ELAPSED TIME
display
STEREO (L/R) display
CD display
CHAPTER display
REPEAT PLAYBACK
displa
MCH 2CH/Multi CH
display
DVD
AUDIO
DVD-AUDIO
display
TRACK (FILE)
display
AUDIO LANGUAGE
display
DOLBY DIGITAL
display
SACD
SACD display
GROUP display
SUBTITLE display
ANGLE display
DVD
CD
32
1/2 1/4 1/8 ►PLAY
• No sound is heard during slow playback.
• Reverse slow playback does not work with DivX.
33
Using the Playback Function (Con’t)
GB
Skipping Scenes/Songs
Repeat Playback
Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).
Press the #‚$ button.
Press the REPEAT button.
„ Each time the button is pressed during playback, the previous or next chapter, track or
directory (file) will be played.
„ You cannot skip chapters consecutively.
„ Each time the button is pressed during playback, the repeat playback mode changes as
follows:
REPEAT : CHAPTER REPEAT : TITLE REPEAT : OFF
TITLE 01/05 CHAPTER 002/045
REPEAT : TRACK REPEAT : GROUP REPEAT : OFF
TITLE 01/05 CHAPTER 004/045
REPEAT : DISC REPEAT : TRACK REPEAT : OFF
#
$
REPEAT : TRACK REPEAT : DISC REPEAT : OFF
REPEAT : RANDOM REPEAT : TRACK REPEAT : DIR REPEAT : DISC REPEAT : OFF
#
$
CHAPTER : Repeatedly plays the selected chapter.
TITLE : Repeatedly plays the selected title.
GROUP : Repeatedly plays the selected group.
RANDOM : Plays tracks in random order.
(A track that has already been played may be played
again.)
OPERATION
Repeat Playback Options
TRACK : Repeatedly plays the selected track.
DIR : Repeatedly plays all tracks in the selected folder.
DISC : Repeatedly plays the entire disc.
OFF : Cancels Repeat Playback.
To Select a Repeat Playback Mode in the Disc Information Screen
1
2
3
Press the INFO button twice.
Press the Cursor ► button to move to the REPEAT PLAYBACK (
display.
)
Press the Cursor ▼ button to select the desired Repeat Playback mode.
„ To select another album and track, repeat Steps 2 and 3 above.
4
Press the ENTER button.
• For Divx, MP3 and JPEG discs, you cannot select Repeat Play from the information
display screen.
34
35
Using the Playback Function (Con’t)
GB
A-B Repeat Playback
Angle Function
You can repeatedly play back a designated section of a DVD.
1
2
3
4
This function allows you to view the same scene in different angles.
Press the INFO button twice.
Press the Cursor ► button to move to the REPEAT PLAYBACK (
display.
1
2
3
)
Press the Cursor ▲,▼ button to select <A-> and then press the ENTER
button at the beginning of the desired segment.
Press the INFO button.
Press the Cursor ► button to move to ANGLE (
) display.
Press the Cursor ▲,▼ or numeric buttons to select the desired angle.
„ Each time the button is pressed, the angle changes as follows:
„ When the ENTER button is pressed, the selected position will be stored in memory.
1/3
Press the ENTER button at the end of the desired segment.
2/3
„ The specified segment will be played repeatedly.
3/3
A-B
• The Angle function works only with discs on which multiple angles have been
recorded
• The A-B Repeat function does not operate with DivX, SACD, MP3 or JPEG discs.
Zoom (Screen Enlarge) Function
This function allows you to enlarge a particular area of the displayed image.
Step Function
1
2
Press the STEP button.
3
„ The picture moves forward one frame each time the button is pressed during playback.
OPERATION
To return to normal playback, press the Cursor ▲,▼ button to select
OFF.
Press the ZOOM button.
Press the Cursor ▲,▼,◄,►button to move to the area you want to
enlarge.
Press the ENTER button.
„ Each time the button is pressed, the zoom level changes as follows:
• No sound is heard during step motion playback.
ZOOM X 1.5 ZOOM X 2 ZOOM X 3 ZOOM OFF
SELECT ZOOM POSITION
36
• When a DivX disc is being played, the screen is enlarged up to twice the normal
size.
37
Using the Playback Function (Con’t)
GB
Audio Language Selection Function
Bonus Group
Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key number to access. See the disc packaging
for details and the-key number.
1
2
Press the INFO button twice.
Press the Cursor ▲,▼button or numeric buttons to select the desired
audio language.
„ Depending on the number of languages on a DVD disc, a different audio language
(ENGLISH, SPANISH, FRENCH, etc.) is selected each time the button is pressed.
When you play a DVD-Audio disc that has a bonus group, the key number
input screen appears automatically.
BONUS GROUP
KEY NUMBER :
SP 2/3
• If you eject the disc, switch the power off, or unplug the player, you will need to
re-enter the key number.
FR 3/3
Navigating Pages
„ You can select the desired image from a DVD-Audio disc containing still images.
„ With some discs, you may not be able to select images.
OPERATION
During playback, press the .,, button on the remote control.
Subtitle Language Selection Function
1
Press the INFO button twice.
2
3
Press the Cursor ► button to move to the SUBTITLE (
) display.
Press the Cursor ▼ button or numeric buttons to select the desired
subtitle.
EN 1/3
EN 01/ 03
OFF
SP 02/ 03
FR 03/ 03
OFF / 03
• To operate this function, you can also press the AUDIO or SUBTITLE buttons on
the remote control.
• Depending on the disc, the Subtitle and Audio Language functions may not be
available.
38
39
Using the Playback Function (Con’t)
GB
Moving Directly to a Scene/Song
Using the Disc Menu
You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc.
1
2
3
4
5
6
1
2
Press the INFO button.
In Stop mode, press the MENU button.
Press the Cursor ▲,▼ button to move to the <Disc Menu> and then
press the ENTER button.
Press the Cursor ▲,▼ button or numeric buttons to select the desired
title/track and then press the ENTER button.
Press the Cursor ◄,► button to move to the Chapter (
„ When you select Disc Menu and it is not supported by the disc, the <This menu is not
supported> message appears on the screen.
3
4
) display.
Press the Cursor ▲,▼ button or numeric buttons to select the desired
chapter and then press the ENTER button.
Press the Cursor ◄,► button to move to time (
0:00:37
Press the MENU button to exit the setup screen.
• The Disc menu display may be different depending on the disc.
MOVE
ENTER
EXIT
OPERATION
001/040
Press the ENTER button.
) display.
Press the numeric buttons to select the desired time and then press the
ENTER button.
01/05
Press the Cursor ▲,▼,◄,► button to select the desired item.
1/1
Using the Title Menu
Press the numeric buttons.
„ The selected file will be played.
„ When playing an MP3 or JPEG disc, you cannot use the Cursor ▲,▼ button to move to a
For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, the availability of this
feature may vary.
folder.
To move a folder, press the STOP () and then press the Cursor ▲,▼ button.
1
2
3
In Stop mode, press the MENU button.
Press the Cursor ▲,▼ button to move to the <Title Menu>.
Press the ENTER button.
„ The title menu appears.
Press the MENU button to exit the setup screen.
• The Title menu display may be different depending on the disc.
• You can press the #,$ button on the remote control to move directly to the
desired title, chapter, or track.
• Depending on the disc, you may not be able to move to the selected title or time.
MOVE
40
ENTER
EXIT
41
Playing Media Files using the USB Host Feature
You can enjoy media files such as pictures, movies and music saved in an MP3 player, USB memory or digital camera
in high quality video with 5.1 channel home theater sound by connecting the storage device to the USB port of the home
theater.
1
GB
Compatible Devices
1
USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disk in
Windows (2000 or later) without additional driver installation.)
2
3
MP3 Player: HDD and flash type MP3 players.
Connect the USB device to the USB port on the back of the unit.
Digital camera: Cameras that support USB Mass Storage v1.0.
„ Cameras that operate as a removable disk in Windows (2000 or later) without additional driver installation.
4
USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.
„ You may experience a difference in playback quality when you connect a USB1.1 device.
„ For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.
2
5
Press the FUNCTION button on the main unit or the USB button on the
remote control to select the USB mode.
„ "USB" appears on the display screen and then disappears.
„ The USB MENU screen appears on the TV screen and the saved file is played.
To stop playback, press the STOP () button.
Safe USB Removal
„ To prevent damage to the memory stored in the USB device, perform safe removal
before disconnecting the USB cable.
(1) Press the STOP ( ) button twice in a row.
The display will show REMOVE USB.
(2) Remove the USB cable.
• To listen to your music files with 5.1 channel home theater sound, you must
set the Dolby Pro Logic II mode to Matrix. (See page 54)
Skip Forward/Back
6
If you use a USB extension cable, the USB device might not be recognized.
Supported Formats
Still Picture
Music
Movie
File name
File extension
Bit rate
Version
Pixel
Sampling Frequency
JPG
JPG .JPEG
–
–
640x480
–
MP3
.MP3
80~384kbps
–
–
44.1kHz
WMA
.WMA
56~128kbps
V8
–
44.1kHz
WMV
.WMV
4Mbps
V1,V2,V3,V7
720x480
44.1KHz~48KHz
DivX
.AVI,.ASF
4Mbps
DivX3.11~DivX5.1, XviD
720x480
44.1KHz~48KHz
OPERATION
3
USB card Reader: One slot USB card reader and Multi slot USB card reader.
„ Depending on the manufacturer. the USB card reader may not be supported.
„ If you install multiple memory devices into a multi card reader, you may experience problems.
• CBI (Control/Bulk/Interrupt) is not supported.
• Digital Cameras that use PTP protocol or require additional program installation when connected to a PC
are not supported.
• A device using NTFS file system is not supported. (Only FAT 16/32 (File Allocation Table 16/32) file system
is supported.)
During playback, press the #,$ button.
„ When there is more than one file and you press the $ button, the next file is selected.
„ When there is more than one file and you press the # button, the previous file is selected.
• Some MP3 players, when connected to this product,may not operate depending on the sector size of their
file system.
• The USB HOST function is not supported if a product that transfers media files by its manufacturer-specific
program is connected.
• Does not operate with Janus enabled MTP (Media Transfer Protocol) devices.
Fast Playback
• The USB host function of this product does not support all USB devices.
For information on the supported devices, see page 70.
To play back the disc at a faster speed, press the , button during
playback.
„ Each time you press either button, the playback speed will change as follows:
2x 4x 8x 32x Normal.
42
43
Settings
GB
Setting the Language
Setting TV Screen type
OSD(On-Screen Display) language is set to English by default.
1
2
MOVE
ENTER
RETURN
EXIT
Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio.
In Stop mode, press the MENU button.
Press the Cursor ▼ button to move to <Setup> and then press the
ENTER button.
3
4
Select <Language> and then press the ENTER button.
5
Press the Cursor ▲,▼ button to select the desired language and then
press the ENTER button.
MOVE
ENTER
RETURN
EXIT
Press the Cursor ▲,▼ button to select <OSD Language> and then
press the ENTER button.
guage.
ENTER
RETURN
MOVE
EXIT
In Stop mode, press the MENU button.
3
Press the Cursor ▼ button to move to <TV DISPLAY> and then press
the ENTER button.
4
Press the Cursor ▲,▼ button to select the desired item and then press
the ENTER button.
Press the Cursor ▼ button to move to <Setup> and then press the
ENTER button.
„ Once the setup is complete, you will be taken to the previous screen.
„ Once the setup is complete, the OSD will be English if English has been selected as lanMOVE
1
2
ENTER
RETURN
EXIT
Press the RETURN button to return to the previous level.
Press the MENU button to exit the setup screen.
Press the RETURN button to return to the previous level.
Press the MENU button to exit the setup screen.
Adjusting the TV Aspect Ratio (Screen Size)
MOVE
ENTER
RETURN
OSD LANGUAGE : Selecting the OSD Language
AUDIO : Selecting the Audio Language (recorded on the disc)
SUBTITLE : Selecting the Subtitle Language (recorded on the disc)
DISC MENU : Selecting the Disc Menu Language (recorded on the disc)
If the language you selected is not recorded on the disc, menu language will not change
even if you set it to your desired language.
EXIT
The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high definition TVs is
16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust the
aspect ratio to fit your TV or monitor.
For a standard TV, select either <4:3LB> or <4:3PS> option according to personal preference. Select <16:9>
if you have a widescreen TV.
SETUP
•
•
•
•
WIDE
• OTHERS : To select another language, select OTHERS and enter the language code of your
country. (See page 69 for language codes) AUDIO, SUBTITLE and DISC MENU
language can be selected.
Select this to view a 16:9 picture in the full-screen mode on your widescreen TV.
„ You can enjoy the widescreen aspect.
4:3LB (4:3 Letterbox)
MOVE
ENTER
RETURN
EXIT
Select this to play a 16:9 picture in the letter box mode on a conventional TV.
„ Black bars will appear at the top and bottom of the screen.
4:3PS (4:3 Pan&Scan)
Select this to play a 16:9 picture in the pan & scan mode on a conventional TV.
„ You can see the central portion of the screen only (with the sides of the 16:9 picture cut off).
• If a DVD is in the 4:3 ratio, you cannot view it in widescreen.
• Since DVD discs are recorded in various image formats, they will look different depending on the software,
the type of TV, and the TV aspect ratio setting.
44
45
Settings (Con’t)
GB
Setting Parental Controls (Rating Level)
Use this to restrict playback of adult or violent DVDs you do not want children to view.
MOVE
ENTER
RETURN
While watching a DVD or JPEG CD, you can set the image you like as background wallpaper.
1
In Stop mode, press the MENU button.
1
2
Press the Cursor ▼ button to move to <Setup> and then press the ENTER
button.
2
3
EXIT
Setting the Wallpaper
4
Press the Cursor ▼ button to move to <PARENTAL> and then press the
ENTER button.
During playback, press the PLAY/PAUSE button when an image you like
appears.
Press the LOGO button.
„ <COPY LOGO DATA> will be displayed on the TV screen.
COPY LOGO DATA
3
The power will turn off and then back on.
„ The selected wallpaper will be displayed.
„ You can select up to 3 wallpaper settings.
Press the Cursor ▲,▼ button to select the desired rating level and then
press the ENTER button.
„ If you have selected Level 6, you cannot view DVDs with Level 7 or higher.
„ The higher the level, the closer the content is to violent or adult material.
5 Enter the password and then press the ENTER button.
MOVE
ENTER
RETURN
EXIT
„ The password is set to "7890" by default.
„ Once the setup is complete, you will be taken to the previous screen.
To Select One of the 3 Wallpaper Settings you've made
Press the RETURN button to return to the previous level.
Press the MENU button to exit the setup screen.
1
2
In Stop mode, press the MENU button.
3
Press the Cursor ▼ button to move to <LOGO> and then press the
ENTER button.
4
Press the Cursor ▲,▼ button to select the desired <USER>, and then
press the ENTER button.
• This function works only if a DVD disc contains the rating level information.
MOVE
ENTER
RETURN
EXIT
You can set the password for the Parental (rating level) setting.
MOVE
ENTER
RETURN
EXIT
1
In Stop mode, press the MENU button.
2
Press the Cursor ▼ button to move to <Setup> and then press the
ENTER button.
3
Press the Cursor ▼ button to move to <PASSWORD> and then press
the ENTER button.
4
5
Press the ENTER button.
SETUP
Setting the Password
Press the Cursor ▼ button to move to <Setup> and then press the
ENTER button.
„ This selects one of the 3 wallpaper screens
5 Press the MENU button to exit the setup screen.
MOVE
ENTER
RETURN
EXIT
• ORIGINAL : Select this to set the Samsung Logo image as your wallpaper.
• USER : Select this to set the desired image as your wallpaper.
Press the RETURN button to return to the previous level.
Press the MENU button to exit the setup screen.
Enter the password and then press the ENTER button.
„ Enter the old password, a new password, and confirm new password.
„ The setting is complete.
MOVE
ENTER
RETURN
EXIT
• The password is set to "7890" by default.
If you have forgotten the rating level password, do the following
• While the player is in No DIsc mode, hold the main unit's STOP() button for longer than 5 seconds. “INITIALIZE” appears on the
display and all settings will return to the default values.
• Press the POWER button.
46
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
47
Settings (Con’t)
GB
DVD Playback Mode
SACD Playback Mode
Some DVD-Audio discs contain DVD-Video as well as DVD-Audio.
To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.
MOVE
ENTER
RETURN
EXIT
1
2
Press the EJECT button and then press the MENU button.
3
Press the Cursor ▼ button to move to <DVD TYPE> and then press the
ENTER button.
4
Press the Cursor ▲,▼ button to move to <DVD VIDEO> and then press
the ENTER button.
If the SACD is a HYBRID disc, you can play the disc in CDDA MODE as well.
1
2
Press the Cursor ▼ button to move to <Setup> and then press the
ENTER button.
MOVE
ENTER
RETURN
EXIT
Press the EJECT button and then press the MENU button.
Press the Cursor ▼ button to move to <Setup> and then press the
ENTER button.
3
Press the Cursor ▼ button to move to <SACD TYPE> and then press
the ENTER button.
4
Press the Cursor ▲,▼ button to move to <SACD MODE> and then press
the ENTER button.
„ Set steps 1 ~ 4 again if you want to switch to CDDA Play mode.
„ Set steps 1 ~ 4 again if you want to switch to DVD AUDIO Play mode.
MOVE
ENTER
RETURN
EXIT
When Selecting DVD Play Mode:
• DVD VIDEO : set to play the DVD video contents contained on a DVD audio disc.
• DVD AUDIO : set to play the default DVD audio.
MOVE
ENTER
RETURN
EXIT
• SACD MODE : Set this mode to play SACD.
• CDDA MODE : Set this mode to play CDDA contents included in a disc.
• Powering off the main unit will automatically switch to the SACD mode.
• DVD Play mode is set to DVD Audio as factory default setting.
• Powering off the main unit will automatically switch to the DVD Audio mode.
DivX (R) registration
Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker
configuration and whether certain speakers are used or not.
1
2
MOVE
ENTER
RETURN
EXIT
3
4
In Stop mode, press the MENU button.
SETUP
Please use the Registration code to register this player with the DivX (R) video on demand format.
To learn more, go to www.divx.com/vod.
Setting the Speaker Mode
Press the Cursor ▼ button to move to <Audio> and then press the
ENTER button.
In the <SPEAKER SETUP>, press the ENTER button again.
Press the Cursor ▲,▼,◄,► button to move to the desired speaker and
then press the ENTER button.
„ For C, SL, and SR, each time the button is pressed, the mode switches alternately as fol-
lows : SMALL NONE.
„ For L and R, the mode is set to SMALL.
MOVE
ENTER
RETURN
EXIT
• SMALL : Select this when using the speakers.
• NONE : Select this when no speakers are connected.
• Depending on PRO LOGIC and STEREO settings, the speaker mode may vary
(see page 54).
48
49
Settings (Con’t)
GB
Setting the Delay Time
Setting the Test Tone
If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio
signals from the center and rear speakers.
1
2
MOVE
ENTER
RETURN
EXIT
3
4
5
Use the Test Tone feature to check the speaker connections.
In Stop mode, press the MENU button.
Press the Cursor ▼ button to move to <Audio> and then press the
ENTER button.
Press the Cursor ▼ button to move to <DELAY TIME> and then press
the ENTER button.
MOVE
ENTER
RETURN
EXIT
RETURN
EXIT
2
Press the Cursor ▼ button to move to <Audio> and then press the
3
Press the Cursor ▼ button to move to <TEST TONE> and then press the
ENTER button.
Press the Cursor ▲,▼,◄,► button to move to the desired speaker and
then press the ENTER button.
„ The test tone will be sent to L C R SR SL SW in order.
If the ENTER button is pressed again at this time, the test tone will stop.
Press the Cursor ◄,► button to set the Delay time.
00 and 15mSEC.
ENTER
In Stop mode, press the MENU button.
ENTER button.
Press the RETURN button to return to the previous level.
„ You can set the delay time for C between 00 and 05mSEC and for SL and SR between
MOVE
1
ENTER
EXIT
Press the MENU button to exit the setup screen.
Press the RETURN button to return to the previous level.
Press the MENU button to exit the setup screen.
Setting up the Speaker Delay Time
Ideal CENTER SPEAKER
placement
SETUP
When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is
the same.
Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust
this difference by adding a delay effect to the sound of the Center and Surround Speakers.
Setting CENTER SPEAKER
If the distance of Dc is equal to or longer than the distance of Df in the
figure, set the mode as 0ms. Otherwise, change the setting according to
the table.
Distance between Df and Dc 0.00 m 0.34 m 0.68 m 1.02 m 1.36 m 1.70 m
Delay Time
Ideal
SURROUND
SPEAKER
placement
It is desirable to place all speakers within this circle.
Df: The distance from FRONT SPEAKER
Dc: The distance from CENTER SPEAKER
Ds: The distance from SURROUND SPEAKER
50
0 ms
1 ms
2 ms
3 ms
4 ms
5 ms
Setting REAR (SURROUND) SPEAKERS
If the distance of Df is equal to the distance of Ds in the figure, set the
mode as 0ms. Otherwise, change the setting according to the table.
Distance between Df and Dc 0.00 m 1.02 m 2.04 m 3.06 m 4.08 m 5.10 m
Delay Time
0 ms
3 ms
6 ms
9 ms
12 ms
15 ms
• With 2PLII (Dolby Pro Logic II), the delay time may be
different for each mode.
• With AC-3 and DTS, the delay time can be set between 00
and 15mSEC.
• The Center channel is only adjustable on 5.1 channel discs.
51
Settings (Con’t)
Setting the Audio
Setting the DRC (Dynamic Range Compression)
You can adjust the balance and level for each speaker.
1
2
MOVE
ENTER
RETURN
EXIT
GB
3
4
This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby Digital
sound when watching movies at low volume at night.
In Stop mode, press the MENU button.
1
2
Press the Cursor ▼ button to move to <Audio> and then press the
ENTER button.
Press the Cursor ▼ button to move to <SOUND EDIT> and then press
the ENTER button.
MOVE
ENTER
EXIT
Press the Cursor ▲,▼ button to select and adjust the desired item.
Press the Cursor ◄,► button to adjust the settings.
3
4
ENTER
RETURN
Press the Cursor ▼ button to move to <Audio> and then press the
ENTER button.
Press the Cursor ▼ button to move to <DRC> and then press the
ENTER button.
Press the Cursor ▲,▼ button to adjust the DRC.
„ When the Cursor ▲ button is pressed, the effect is greater, and when the Cursor ▼ but-
Press the RETURN button to return to the previous level.
Press the MENU button to exit the setup screen.
MOVE
In Stop mode, press the MENU button.
ton is pressed, the effect is smaller.
Press the RETURN button to return to the previous level.
Press the MENU button to exit the setup screen.
EXIT
CHANGE
RETURN
EXIT
Setting the AV SYNC
Manually Adjusting the Speaker Volume and Balance with the SOUND EDIT Button.
Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to to
match the video.
1
2
MOVE
ENTER
RETURN
EXIT
In Stop mode, press the MENU button.
Press the Cursor ▼ button to move to <Audio> and then press the
ENTER button.
3
Press the Cursor ▼ button to move to <AV-SYNC> and then press the
ENTER button.
4
Press the Cursor ▲,▼ button to select the AV-SYNC Delay Time and
then press the ENTER button.
SETUP
Press the SOUND EDIT button and then press the Cursor ◄,► button.
„ You can set the audio delay time between 0 ms and 300 ms. Set it to the optimal status.
MOVE
Adjusting Front/Rear Speaker Balance
• You can select between 0, -6, and OFF.
• The volume decreases as you move closer to –6.
ENTER
RETURN
EXIT
Press the RETURN button to return to the previous level.
Press the MENU button to exit the setup screen.
Adjusting Center/Rear/Subwoofer Speaker Level
• The volume level can be adjusted in steps from +6dB to –6dB.
• The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.
52
53
Settings (Con’t)
GB
Dolby Pro Logic II Mode
You can select the desired Dolby Pro Logic II audio mode.
Press the 2 PL II MODE button.
„ Each time the button is pressed, the mode changes as follows.
Dolby Pro Logic II Effect
This function works only in Dolby Pro Logic MUSIC mode.
1
2
Press the 2 PL II MODE button to select <MUSIC> mode.
Press the 2 PL II EFFECT button to select <P> (Panorama), then
press the Cursor ◄,► button to select the desired effect setting.
„ You can select either 0 or 1.
„ This mode extends the front stereo image to include the surround speakers for an excit-
ing "wraparound" effect with side wall imaging.
3
Press the 2 PL II EFFECT button to select <C> (CENTER WIDTH),
then press the Cursor ◄,► button to select the desired effect setting.
„ You can select between 0 and 7.
„ This sets the width of the center image. The higher the setting, the less sound comes
from the center speaker.
1
STEREO : Select this to listen to sound from the front left and right speakers and the
subwoofer only.
Press the 2 PL II EFFECT button to select <D> (DIMENSION), then
press the Cursor ◄,► button to select the desired setting
„ You can select between 0 and 6.
„ Incrementally adjusts the sound field (DSP)from the front or rear.
• When playing a DVD disc encoded with two or more channels, multi-channel mode
will be selected automatically and 2PLII (Dolby Pro Logic II) button does not work.
SETUP
PRO LOGIC II
• MUSIC : When listening to music, you can experience sound effects as if you are listening to
the actual performance.
• CINEMA : Adds realism to the movie soundtrack.
• PRO LOGIC : You will experience a realistic multi-channel effect, as if using five speakers,
while using just the front left and right speakers.
• MATRIX : You will hear 5.1 channel surround sound.
• When selecting Pro Logic II mode, connect your external device to the AUDIO
INPUT jacks (L and R) on the player. If you connect to only one of the inputs
(L or R), you cannot listen to surround sound.
54
55
Auto Sound Calibration Setup
GB
This function is available only for DVD/CD playback.
Auto Sound Calibration
By setting the auto sound calibration function just once when you relocate or install the unit, you can have the unit
automatically recognize the distance between speakers, levels between channels, and frequency characteristics to create
a 5.1-channel sound field optimized for the listener's environment.
1
Connect the auto sound calibration microphone to the auto sound
calibration input connector on the subwoofer.
2
3
Place the auto sound calibration microphone at the listener's position.
* The following images are for illustrative purposes only and may
differ from the actual product.
Press the Volume Control buttons on the main unit to make adjustments
as below.
„ If the distance between the listener and the speaker is over 5 m: Set the main unit's
volume to over 25.
„ If the distance between the listener and the speaker is 3 to 5 m: Set the main unit's
volume to 25.
„ If the distance between the listener and the speaker is less than 3 m: Set the main unit's
volume to 15.
4
Press the ASC button.
„ To create the optimal 5.1 channel sound filed, the selections are in the following
sequence: L C R SR SL SW
A tone is output.
„ The auto sound calibration setup takes about 2 minutes to complete.
5
˜
`
¿ł·º–
When the message <REMOVE MIC> appears in the display, unplug the
auto sound calibration microphone.
To cancel the auto sound calibration setup, press the ASC button.
„ The tone output stops, <CANCEL ASC> appears in the display followed by <REMOVE
MIC>, and the setup is cancelled.
To listen in the auto sound calibration mode, briefly press the ASC button.
L: Front Speaker (L)
C: Center Speaker
SL: Rear Speaker (L)
R: Front Speaker (R)
SW: Subwoofer
SR: Rear Speaker (R)
„ The selection alternates between <ASC ON> and <ASC OFF> in the display.
„ If you select <ASC ON>, you will hear sound in the auto sound calibration mode.
A result for each speaker is
displayed.
If you select <ASC OFF>, you will hear sound in the mode set in the audio setting of the
setup screen.
To Turn the Sound Logo On/Off
When you turn on the power, the unit produces a sound logo after the disc is read to notify that the unit is optimized for
playback.
1
Press and hold the ASC button.
„ <S.LOGO ON> or <S.LOGO OFF> appears in the display.
2
Briefly press the ASC button.
„ Each time the button is pressed, the selection alternates between <S.LOGO ON> and
<S.LOGO OFF>.
„ If you select <S.LOGO ON>, a sound logo will be output when the disc reading is fin-
ished after power-on. If you select <S.LOGO OFF>, no sound logo will be output.
56
MISCELLANEOU
• If you have not perfomed the ASC function, pressing the Auto Sound Calibration button without connecting the auto sound
calibration microphone will display the message <PLEASE SET ASC FUNCTION> in the display.
• Because the volume level of the tone is fixed during the auto sound calibration setup, you cannot adjust the volume using
the volume control buttons.
• If the auto sound microphone is disconnected during the auto sound calibration setup, the setup will be cancelled.
• Since the ASC function does not work when a normal microphone is connected, unplug a normal microphone to use
the function.
57
Live Surround Mode
GB
Super 5.1
Virtual Headphone Function
You can reproduce a 2-channel sound source, such as CD, and radio broadcast, in 5.1-channel surround sound.
Press the SUPER5.1 button.
„ Each time the button is pressed, the selection alternates between <SUPER 5.1> and
Use headphones (3.5 ) (not supplied) for private listening pleasure. You can enjoy dynamic sound effects similar to that
of 5.1 channel surround sound using conventional stereo headphones.
1
<BYPASS>.
„ Select <SUPER 5.1> to play 2-channel sound in 5.1 channels.
Plug the headphones into the headphone jack.
„ You can purchase headphones from most Electronics stores.
Music
If you press the MUSIC button when listening to a 2-channel sound source, it will be reproduced in 4.1-channel surround
sound so that you can enjoy a dynamic sound with a sense of presence.
Press the MUSIC button.
„ Each time the button is pressed, the selection changes as follows :
CONCERT1 CONCERT2 JAZZ
CATHEDRAL BYPASS
2
Press the V-H/P button.
„ Each time the button is pressed, the selection alternates between <V-H/P ON> and
<V-H/P OFF>.
• V-H/P ON : Select to enjoy a 5.1-channel surround sound that gives the feeling of being in
a baseball park or concert hall.
• V-H/P OFF : Select to listen to a standard 2-channel stereo sound.
Movie
• Do not listen at extremely high volume levels when using headphones. Extended,
high-volume listening can lead to permanent hearing loss.
You can select from 4 different sound field modes for movies.
Press the MOVIE button.
„ Each time the button is pressed, the selection changes as follows :
VIRTUAL 9.1 EX-MOVIE CINEMA SPORTS BYPASS
VIRTUAL 9.1: Provides surround sound effect for audiences at home that simulates 9.1
channel surround sound of a movie theater.
58
MISCELLANEOU
• When you insert a DVD recorded in 2-channel or multi-channel format and press the SUPER 5.1 button, the message
<THIS FUNCTION APPLIES ONLY 2CH SOURCE> appears in the display and it will not work.
• This function does not work with SACD or DVD-AUDIO discs.
• 5.1 channel outputs are available in VIRTUAL 9.1 or EX-MOVIE mode only.
59
Listening to Radio
Remote Control
1
2
Press the TUNER button to select the FM band.
Tune in to the desired station.
About RDS broadcasting
GB
Using the RDS (Radio Data System) to receive FM stations
RDS allows FM stations to send an additional signal along with their regular program signals. For example, the stations
send their station names, as well as information about what type of program they broadcast, such as sports or music, etc.
„ Automatic Tuning 1 : When the #,$ button is pressed, a preset broadcast station is
selected.
„ Automatic Tuning 2 : Press and hold the .,, button to automatically search for active
broadcasting stations.
„ Manual Tuning : Briefly press the .,, button to increase or decrease the frequency
incrementally
Main Unit
1
2
Press the FUNCTION button to select the FM band.
Select a broadcast station.
„ Automatic Tuning 1 : Press the STOP () button to select <PRESET> and then press
the #,$ button to select the preset station.
„ Automatic Tuning 2 : Press the STOP () button to select <MANUAL> and then press
When tuned to an FM station which provides the RDS service,the RDS
indicator lights up on the display.
Description on RDS function
• PTY (Program Type) : Displays the type of programme currently being broadcast
• PS NAME (Program Service Name) : Indicates the name of broadcasting station and is composed of 8 characters.
• RT (Radio Text) : Decodes the text broadcast by a station (if any) and is composed of maximum 64 characters.
• CT (Clock Time) : Decodes the real time clock from the FM frequency.
Some stations may not transmit PTY, RT or CT information therefore this
may not be displayed in all cases.
• TA (Traffic Announcement) : When this symbol flashes it shows that the traffic announcement
is in progress.
and hold the #,$ button to automatically search the band.
„ Manual Tuning : Press the STOP () button to select <MANUAL> and then briefly press
the #,$ button to tune in to a lower or higher frequency.
• RDS may not operate correctly if the station tuned is not transmitting RDS signal
properly or if the signal strength is weak.
Press the MO/ST button to listen in Mono/Stereo.
„ Each time the button is pressed, the sound switches between <STEREO> and <MONO>.
„ In a poor reception area, select MONO for a clear, interference-free broadcast.
TO show the RDS signals
You can see the RDS signals the station sends on the display.
Presetting Stations
Press the RDS DISPLAY button while listening to an FM station.
„ Each time you press the button, the display change to show you the following information:
Example : Presetting FM 89.10 in the memory
1 Press the TUNER button to select the FM band.
2 Press the .,, button to select <89.10>.
3
Press the TUNER MEMORY button.
„ “01” flashes in the display.
Press the #,$ button to select preset number.
„ You can select between 1 and 15 presets.
5
6
About characters shown in the display
When the display shows PS,or RT signals,the following characters are used.
„ The display window cannot differentiate upper case and lower case letters and always uses
Press the TUNER MEMORY button again.
„ Press the TUNER MEMORY button before “number” disappears from the display.
„ “number” disappears from the display and the station is stored in memory.
upper case letters.
„ The display window cannot show accented letters, “A,” for instance, may stands for accented
MISCELLANEOU
4
• PS (Program Service) : While searching, "PS" appears and then the station names will be
displayed. "NO PS" appears if no signal is sent.
• RT(RadioText) : while searching, "RT" appears and then text messages the station sends will
be displayed. "NO RT" appears if no signal is sent.
• Frequency : station frequency (non-RDS service)
“A’s” like “À, Â, Ä, Á, Å and Ã.”
To preset another station, repeat steps 2 to 5.
To tune in to a preset station, press the #,$ button on the remote
control to select a channel.
• If searching finishes at once, “PS”, and “RT” will not appear on the display.
• This unit does not receive AM broadcasts.
60
61
About RDS broadcasting (Con’t)
Convenient Functions
PTY (Program Type) indication and PTY-SEARCH function
Sleep Timer Function
One of the advantages of the RDS service is that you can locate a particular kind of program from the preset channels by
specifying the PTY codes.
You can set the time that the Home Theater will shut itself off.
Press the SLEEP button.
To search for a program using the PTY codes
„ Each time the button is pressed, the preset time changes as follows :
10 20 30 60 90 120 150 OFF.
Before you start, remember...
• The PTY Search is only applicable to preset stations.
• To stop searching any time during the process, press PTY SEARCH while searching.
• There is a time limit in doing the following steps. If the setting is cancelled before you finish, start from step
1 again.
• When pressing the buttons on the primary remote control, make sure that you have selected the FM
station using the primary remote control.
1
2
Press the PTY SEARCH while listening to an FM station.
Press the PTY- or PTY+ until the PTY code you want appears on the
display.
To confirm the sleep timer setting, press the SLEEP button.
„ The remaining time before the Home Theater will shut itself off is displayed.
„ Pressing the button again changes the sleep time from what you have set earlier.
To cancel the sleep timer, press the SLEEP button until <OFF> appears
on the display.
Adjusting Display Brightness
You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing.
Press the DIMMER button.
„ The display gives you the PTY codes described to the right.
3
GB
„ Each time the button is pressed, the brightness of front display will be adjusted.
Press the PTY SEARCH again, while the PTY code selected in the
previous step is still on the display.
„ The center unit searches 15 preset FM stations, stops when it finds the one you have
selected, and tunes in that station.
Display
NEWS
AFFAIRS
Several matters including a current incident,
documentary, discussion and analysis.
INFO
Information including weights and measures,
returns and forecast, matters interesting the
customer, medical information, etc.
SPORT
EDUCATE
CULTURE
SCIENCE
Sports
Education
Display
Program Type
LIGHT M
Light classical music- Classical music and
instrumental and chorus music
CLASSICS
Heavy classical music-Orchestra music,
symphony, chamber music and opera
This is useful when answering a doorbell or telephone call.
OTHER M
Other music - Jazz, R&B country music
Press the MUTE button.
WEATHER
Weather
FINANCE
Finance
„ <MUTE> appears in the display.
„ To restore the sound, press the button again.
CHILDREN
Children’s programmes
SOCIAL A
Social affairs
Culture-National or local culture including the
religious problem, social science, language,
theater,etc.
RELIGION
Religion
PHONE IN
Phone in
TRAVEL
Travel
Natural science and technology
LEISURE
Leisure
Drama-Radio serial, etc.
Mute Function
VARIED
Others-Speech, amusing program (quiz,
game), interview, comedy and satirical play,
etc.
COUNTRY
Country Music
POP M
Pop music
NATION M
National Music
ROCK M
Rock music
OLDIES
Oldies Music
M.O.R.M
Current contemporary music considered to be
“easylistening.”
FOLK M
Folk Music
JAZZ
DOCUMENT
Jazz Music
MISCELLANEOU
DRAMA
62
Program Type
News including an announced opinion and
report
Documentary
63
Operating a TV with the Remote Control
GB
When operating a TV with the remote control
1
Press the TV button to set the remote to TV mode.
2
Press the POWER button to turn on the TV.
3
While holding down the POWER button, enter the code corresponding to
your brand of TV.
„ If there is more than one code listed for your TV in the table, enter one at a time to
determine which code works.
Example: For a Samsung TV
While holding down the POWER button, use the number buttons to enter 00, 15, 16, 17 and 40.
4
If the TV turns off, the setting is complete.
„ You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons (0~9).
• The remote control may not work on some brands of TVs. Also, some operations
may not be possible depending on your brand of TV.
• If you do not set the remote control with the code for your brand of TV, the remote
control will work on a Samsung TV by default.
TV Brand Code List
NO.
Brand
Code
NO.
Brand
1
Admiral (M.Wards)
56, 57, 58
44
MTC
18
2
A Mark
01, 15
45
NEC
18, 19, 20, 40, 59, 60
3
Anam
01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11,
12, 13, 14
46
Nikei
03
4
AOC
01, 18, 40, 48
47
Onking
03
5
Bell & Howell (M.Wards)
57, 58, 81
48
Onwa
03
6
Brocsonic
59, 60
49
Panasonic
06, 07, 08, 09, 54, 66, 67, 73, 74
7
Candle
18
50
Penney
18
8
Cetronic
03
51
Philco
03, 15, 17, 18, 48, 54, 59, 62, 69, 90
Citizen
03, 18, 25
52
Philips
15, 17, 18, 40, 48, 54, 62, 72
Cinema
97
53
Pioneer
63, 66, 80, 91
11
Classic
03
54
Portland
15, 18, 59
12
Concerto
18
55
Proton
40
13
Contec
46
56
Quasar
06, 66, 67
14
Coronado
15
57
Radio Shack
17, 48, 56, 60, 61, 75
15
Craig
03, 05, 61, 82, 83, 84
58
RCA/Proscan
18, 59, 67, 76, 77, 78, 92, 93, 94
16
Croslex
62
59
Realistic
03, 19
17
Crown
03
60
Sampo
18
Curtis Mates
59, 61, 63
61
Samsung
19
CXC
03
62
Sanyo
40
00, 15, 16, 17, 40, 43, 46, 47, 48, 49, 59,
60, 98
19, 61, 65
Daewoo
02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22,
23, 24, 25, 26, 27, 28, 29, 30, 32, 34, 35,
36, 48, 59, 90
63
Scott
03, 40, 60, 61
21
Daytron
40
64
Sears
15, 18, 19
22
Dynasty
03
65
Sharp
15, 57, 64
23
Emerson
03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85
66
Signature 2000 (M.Wards)
57, 58
24
Fisher
19, 65
67
Sony
50, 51, 52, 53, 55
25
Funai
03
68
Soundesign
03, 40
26
Futuretech
03
69
Spectricon
01
27
General Electric (GE)
06, 40, 56, 59, 66, 67, 68
70
SSS
18
28
Hall Mark
40
71
Sylvania
18, 40, 48, 54, 59, 60, 62
29
Hitachi
15, 18, 50, 59, 69
72
Symphonic
61, 95, 96
30
Inkel
45
73
Tatung
06
31
JC Penny
56, 59, 67, 86
74
Techwood
18
32
JVC
70
75
Teknika
03, 15, 18, 25
33
KTV
59, 61, 87, 88
76
TMK
18, 40
34
KEC
03, 15, 40
77
Toshiba
19, 57, 63, 71
35
KMC
15
78
Vidtech
18
36
LG (Goldstar)
01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44
79
Videch
59, 60, 69
37
Luxman
18
80
Wards
15, 17, 18, 40, 48, 54, 60, 64
38
LXI (Sears)
19, 54, 56, 59, 60, 62, 63, 65, 71
81
Yamaha
18
39
Magnavox
15, 17, 18, 48, 54, 59, 60, 62, 72, 89
82
York
40
40
Marantz
40, 54
83
Yupiteru
03
41
Matsui
54
84
Zenith
58, 79
42
MGA
18, 40
85
Zonda
01
43
Mitsubishi/MGA
18, 40, 59, 60, 75
86
Dongyang
03, 54
MISCELLANEOU
9
10
20
64
Code
65
Troubleshooting
GB
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below
or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized
dealer or Samsung Electronics Service Center.
Symptom
I cannot eject the disc.
Check/Remedy
• Is the power cord plugged securely into the outlet?
• Turn off the power and then turn it back on.
• Check the region number of the DVD.
Playback does not start.
Playback does not start
immediately when the Play/
Pause button is pressed.
DVD discs purchased from abroad may not be playable.
• CD-ROMs and DVD-ROMs cannot be played on this DVD player.
• Make sure that the rating level is correct.
Symptom
• Disc is rotating but no
picture is produced.
• Picture quality is poor and
picture is shaking.
Audio language and subtitles
do not work.
Menu screen does not
appear even when the menu
function is selected.
Aspect ratio cannot be
changed.
ized?
• Is the disc severely damaged?
only. Select "PRO LOGIC II" by pressing 2 PL II (Dolby Pro Logic II) on
the remote control to use all six speakers.
• Make sure that the DVD disc is 5.1-CH compatible.
• If you set C, SL, and SR to NONE in the speaker mode in the audio setup of
the setup screen, no sound is heard from the center speaker and the front
left and right speakers. Set C, SL, and SR to SMALL.
• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH
66
• The main unit is not
working. (Example: The
power goes out or strange
noise is heard.)
• The DVD player is not
working normally.
The password for rating level
has been forgotten.
And depending on the disc, they may work differently.
• Are you using a disc that does not contain menus?
• You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode, or
4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to
the DVD disc jacket and then select the appropriate function.
distance?
• Are the batteries exhausted?
• Have you selected the mode(TV/DVD) functions of the remote control (TV or
DVD) correctly?
• Turn off the power and hold the STOP() button on the main unit for longer
than 5 seconds.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
• While <NO DISC> message appears on the display of main unit, hold the main
unit's STOP() button for longer than 5 seconds. <INITIALIZE> appears on the
display and all settings will return to the default values.
• Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
Surround Sound is produced only if the disc is recorded with 5.1 channel
sound.
• Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in the information display?
• Is the remote control being operated within its operation range of angle and
The remote control does not
work.
• Audio language and subtitles will not work for DVDs not containing them.
Can't receive radio
broadcast.
• Is the antenna connected properly?
• If the antenna's input signal is weak, install an external FM antenna in an
Can't receive radio
broadcastç
• If the eject button is pressed while listening to TV audio using the D.IN1,
area with good reception.
MISCELLANEOU
Dolby Digital 5.1 CH
Surround Sound is not
produced.
Is the TV power on?
Are the video cables connected properly?
Is the disc dirty or damaged?
A poorly manufactured disc may not be playable.
back.
• Are the speakers connected properly? Is the speaker setup correctly custom-
• When listening to a CD or radio, sound is output to the front speakers (L/R)
Sound can be heard only
from a few speakers and not
all six.
•
•
•
•
• Are you using a deformed disc or a disc with scratches on the surface?
• Wipe the disc clean.
• No sound is heard during fast playback, slow playback, and step motion play-
Sound is not produced.
Check/Remedy
D.IN2, AUX functions, the DVD functions are turned on and this stops the TV
audio.
67
Cautions on Handling and Storing Discs
Small scratches on the disc may reduce sound and picture quality or cause skipping.
Be especially careful not to scratch discs when handling them.
Language Code List
Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle” and/or “Disc Menu” (See page 44).
Code
Handling discs
Language
Code
Language
Code
Language
Code
Language
1027
Afar
1181
Frisian
1334
Latvian, Lettish
1506
Slovenian
1028
Abkhazian
1183
Irish
1345
Malagasy
1507
Samoan
Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints will not get on the surface.
1032
Afrikaans
1186
Scots Gaelic
1347
Maori
1508
Shona
1039
Amharic
1194
Galician
1349
Macedonian
1509
Somali
Do not stick paper or tape on the disc.
1044
Arabic
1196
Guarani
1350
Malayalam
1511
Albanian
1045
Assamese
1203
Gujarati
1352
Mongolian
1512
Serbian
Disc Storage
Do not keep in direct sunlight
Keep in a cool
ventilated area
Keep in a clean Protection jacket.
Store vertically.
• Do not allow the discs to become contaminated with dirt.
• Do not load cracked or scratched discs.
Handling and Storing Discs
This is useful when answering a doorbell or telephone call.
When you get fingerprints or dirt on the disc, clean it with a mild detergent
diluted in water and wipe with a soft cloth.
„ When cleaning, wipe gently from the inside to the outside of the disc.
1051
Aymara
1209
Hausa
1353
Moldavian
1513
Siswati
1052
Azerbaijani
1217
Hindi
1356
Marathi
1514
Sesotho
1053
Bashkir
1226
Croatian
1357
Malay
1515
Sundanese
1057
Byelorussian
1229
Hungarian
1358
Maltese
1516
Swedis
1059
Bulgarian
1233
Armenian
1363
Burmese
1517
Swahili
1060
Bihari
1235
Interlingua
1365
Nauru
1521
Tamil
1069
Bislama
1239
Interlingue
1369
Nepali
1525
Tegulu
1066
Bengali; Bangla
1245
Inupiak
1376
Dutch
1527
Tajik
1067
Tibetan
1248
Indonesian
1379
Norwegian
1528
Thai
1070
Breton
1253
Icelandic
1393
Occitan
1529
Tigrinya
1079
Catalan
1254
Italian
1403
(Afan) Oromo
1531
Turkmen
1093
Corsican
1257
Hebrew
1408
Oriya
1532
Tagalog
1097
Czech
1261
Japanese
1417
Punjabi
1534
Setswan
1103
Welsh
1269
Yiddish
1428
Polish
1535
Tonga
1105
Danish
1283
Javanese
1435
Pashto, Pushto
1538
Turkish
1109
German
1287
Georgian
1436
Portuguese
1539
Tsonga
1130
Bhutani
1297
Kazakh
1463
Quechua
1540
Tatar
1142
Greek
1298
Greenlandic
1481
Rhaeto-Romance
1543
Twi
1144
English
1299
Cambodian
1482
Kirundi
1557
Ukrainian
1145
Esperanto
1300
Kannada
1483
Romanian
1564
Urdu
1149
Spanish
1301
Korean
1489
Russian
1572
Uzbek
1150
Estonian
1305
Kashmiri
1491
Kinyarwanda
1581
Vietnamese
1151
Basque
1307
Kurdish
1495
Sanskrit
1587
Volapuk
1157
Persian
1311
Kirghiz
1498
Sindhi
1613
Wolof
1165
Finnish
1313
Lingala
1501
Sangro
1632
Xhosa
1166
Fiji
1326
Lingala
1502
Serbo-Croatian
1665
Yoruba
1171
Faeroese
1327
Laothian
1503
Singhalese
1684
Chinese
1174
French
1332
Lithuanian
1505
Slovak
1697
Zulu
MISCELLANEOU
• Condensation may form if warm air comes into contact with cold parts inside the
player. When condensation forms inside the player, the player may not operate correctly. If this occurs, remove the disc and let the player stand for
1 or 2 hours with the power on.
68
GB
69
USB Host Feature Supported Products
Digital Camera
USB Flash Disk
GENERAL
GB
Power Consumption
110W
Weight
5 kg
Dimensions (W x H x D)
521 x 320 x 178 mm
Operating Temperature Range
-5°C~35 °C
Operating Humidity Range
10% ~ 75%
Usable Sensitivity
10dB
S/N Ratio
60dB
USB 2.0 128MB
Distortion
0.5%
USB 2.0 128M
Composite Video
1.0Vp-p(75Ω load)
Product
Company
Type
Product
Company
Type
Finepix-A340
Fuji
Digital Camera
Cruzer Micro
Sandisk
USB 2.0 USB Flash Drive 128M
Finepix-F810
Fuji
Digital Camera
Cruzer Mini
Sandisk
USB 2.0 128M
Finepix-F610
Fuji
Digital Camera
Cruzer Mini
Sandisk
USB 2.0 256M
Finepix-f450
Fuji
Digital Camera
SONY Micro Vault
Sony
USB 2.0 64MB
Finepix S7000
Fuji
Digital Camera
FLEX DRIVE
Serotech
USB 2.0 32MB
Finepix A310
Fuji
Digital Camera
AnyDrive
A.L tech
KD-310Z
Konica
Digital Camera
XTICK
LG
Finecam SL300R
Kyocera
Digital Camera
Micro Mini
Iomega
USB 2.0 128M
Finecam SL400R
Kyocera
Digital Camera
iFlash
Imation
USB 2.0 64M
Finecam S5R
Kyocera
Digital Camera
LG
XTICK(M)
USB 2.0 64M
Finecam Xt
Kyocera
Digital Camera
RiDATA
EZDrive
USB 2.0 64M
Dimage-Z1
Minolta
Digital Camera
FM TUNER
VIDEO
OUTPUT
MP3 Player
Dimage Z1
Minolta
Digital Camera
Dimage X21
Minolta
Digital Camera
Coolpix4200
Nikon
Digital Camera
Product
Company
Type
Coolpix4300
Nikon
Digital Camera
Creative MuVo NX128M
Creative
128 MB MP3 Player
Coolpix 2200
Nikon
Digital Camera
Iriver H320
Iriver
20G HDD MP3 Player
Coolpix 3500
Nikon
Digital Camera
YH-920
Samsung
20G HDD MP3 Player
Coolpix 3700
Nikon
Digital Camera
YP-T7
Samsung
MP3 Player
Coolpix 4100
Nikon
Digital Camera
YP-MT6
Samsung
Y : 1.0Vp-p(75Ω load)
Component Video
Pr : 0.70Vp-p(75Ω load)
HDMI
Impedance : 85~115Ω
Pb : 0.70Vp-p(75Ω load)
Front speaker output
167W x 2(3Ω)
Center speaker output
167W (3Ω)
Rear speaker output
167W x 2(3Ω)
Subwoofer speaker output
165W(3Ω)
Frequency range
20Hz~20KHz
MP3 Player
S/N Ratio
70dB
AMPLIFIER
Coolpix 5200
Nikon
Digital Camera
YP-T6
Samsung
MP3 Player
Channel separation
60dB
Stylus 410 digital
Olympus
Digital Camera
YP-53
Samsung
MP3 Player
Input sensitivity
(AUX)500mV
300-digital
Olympus
Digital Camera
YP-ST5
Samsung
MP3 Player
U300
Olympus
Digital Camera
YP-T5
Samsung
MP3 Player
X-350
Olympus
Digital Camera
YP-60
Samsung
MP3 Player
C-760
Olympus
Digital Camera
YP-780
Samsung
MP3 Player
C-5060
Olympus
Digital Camera
YP-35
Samsung
MP3 Player
X1
Olympus
Digital Camera
YP-55
Samsung
MP3 Player
U-mini
Olympus
Digital Camera
iAUDIO U2
Cowon
MP3 Player
Lumix-FZ20
Panasonic
Digital Camera
iAUDIO G3
Cowon
MP3 Player
DMC-FX7GD
Panasonic
Digital Camera
iAudio M3
Cowon
HDD MP3 Player
Lumix LC33
Panasonic
Digital Camera
SI-M500L
Sharp
256MB MP3 Player
LUMIX DMC-F1
Panasonic
Digital Camera
H10
Iriver
MP3 Player
Optio-S40
Pentax
Digital Camera
YP-T5 VB
Samsung
MP3 Player
YP-53
Samsung
256MB MP3 Player
Optio-S50
Pentax
Digital Camera
Optio 33LF
Pentax
Digital Camera
Optio MX
Pentax
Digital Camera
Digimax-420
Samsung
Digital Camera
Digital Camera
Digimax-400
Samsung
Sora PDR-T30
Toshiba
Digital Camera
Coolpix 5900
Nikon
Digital Camera
Coolpix S1
Nikon
Digital Camera
Coolpix 7600
Nikon
Digital Camera
DMC-FX7
Panasonic
Digital Camera
Dimage Xt
Minolta
Digital Camera
AZ-1
Olympus
Digital Camera
5.1ch speaker system
Speaker system
SPEAKER
Front/Center/Rear speaker
Subwoofer speaker
Impedance
3Ω
3Ω
Frequency range
120Hz ~ 20kHz
35Hz ~ 160Hz
Output sound pressure level
84dB/W/M
86dB/W/M
Rated input
167W
165W
Maximum input
334W
330W
Dimensions (W x H x D)
Front/
Rear
125 x 1311 x 81 mm
(seand base : 270)
Center
550 x 137 x 85 mm
Front/
Rear
6.3kg
Center
2.2kg
Weights
290 x 500 x 437 mm
15.8kg
MISCELLANEOU
70
Specifications
71
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.
Region
Country
Customer Care Center
Web Site
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
