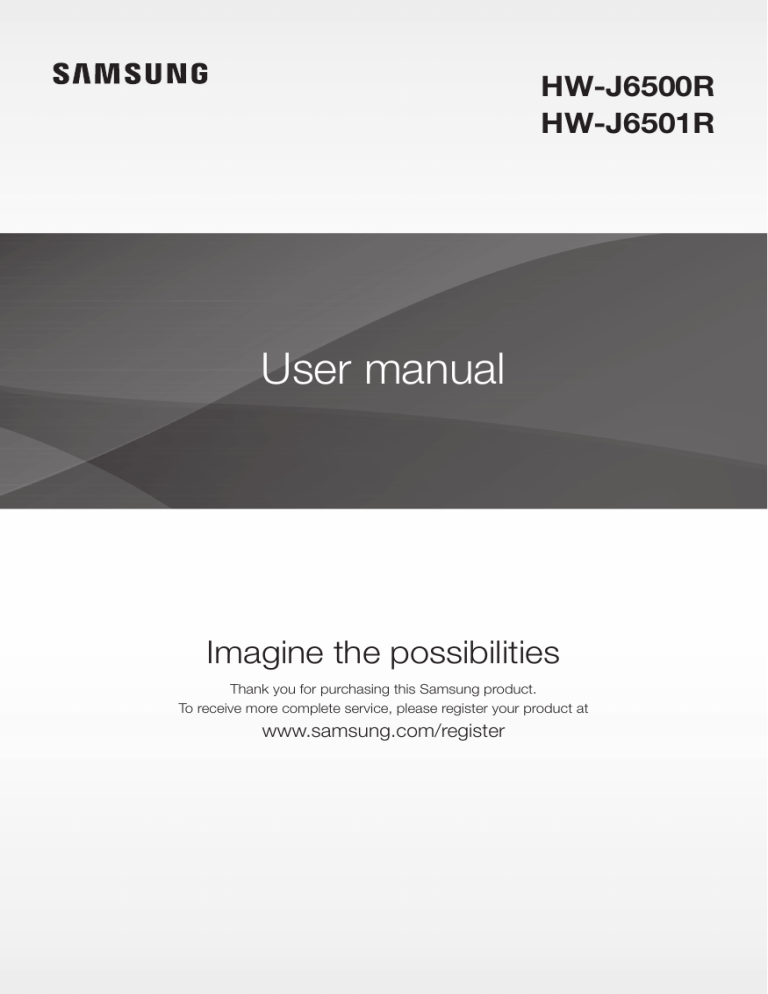

Samsung HW-J6501R User Manual

HW-J6500R
HW-J6501R
User manual
Imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register your product at
www.samsung.com/register
GETTING STARTED
GETTING STARTED
SAFETY INFORMATION
SAFETY WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that high voltage is
present inside. It is dangerous to make any kind
of contact with any internal part of this product.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
This symbol indicates that important literature
concerning operation and maintenance has
been included with this product.
Class II product : This symbol indicates that it does not require a safety connection to electrical
earth (ground).
AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC voltage.
DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC voltage.
Caution, Consult instructions for use : This symbol instructs the user to consult the user manual for
further safety related information.
WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be
readily operable.
CAUTION
• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be
easily and readily accessible at all times.
2
GETTING STARTED
PRECAUTIONS
99.1mm
ENG
68.6 mm
99.1mm
99.1mm
Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker
located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough space
around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or
other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect
the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.
During thunderstorms, disconnect the AC plug from the
wall outlet. Voltage peaks due to lightning could damage
the unit.
Do not expose the unit to direct sunlight or other heat
sources. This could lead to overheating and cause the
unit to malfunction.
Protect the product from moisture (i.e. vases), and
excess heat (e.g. a fireplace) or equipment creating
strong magnetic or electric fields. Unplug the power
cable from the AC wall socket if the unit malfunctions.
Your product is not intended for industrial use. It is for
personal use only. Condensation may occur if your
product has been stored in cold temperatures. If
transporting the unit during the winter, wait approximately
2 hours until the unit has reached room temperature
before using.
The battery used with this product contains chemicals
that are harmful to the environment. Do not dispose of
the battery in the general household trash. Do not
expose the battery to excess heat, direct sunlight, or fire.
Do not short circuit, disassemble, or overheat the battery.
Danger of explosion if the battery is replaced incorrectly.
Replace only with the same or equivalent type.
WARNING: DO NOT INGEST BATTERY. CHEMICAL BURN HAZARD. The remote control supplied with
this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause
severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from
children. If the battery compartment does not close securely, stop using the remote and make sure to
keep it away from children. If you think the battery might have been swallowed or placed inside any part of the body,
seek immediate medical attention.
3
GETTING STARTED
CONTENTS
2 GETTING STARTED
20FUNCTIONS
5
21Bluetooth
2
Safety Information
What’s Included
6DESCRIPTIONS
6
Top / Front Panel
8
Remote Control
7
Rear / Bottom Panel
10INSTALLATION
10
Installing the Soundbar
13
Placing the Soundbar on a TV stand
10
13
Installing the Wall Mount
Installing the Soundbar as a Free-Standing
Unit
20
Input Mode
23
Using the Multiroom App
26
Software Update
25
28TROUBLESHOOTING
28Troubleshooting
29APPENDIX
29Specifications
Figures and illustrations in this User Manual are
provided for reference only and may differ from
actual product appearance.
14CONNECTIONS
14
Connecting the Subwoofer
16
Connecting to a TV Using an HDMI (Digital)
Cable
16
16
17
Connecting to a TV
Connecting to a TV Using a Digital Optical
Cable
TV SoundConnect
18
Connecting to External Devices
19
Optical or Analogue Audio Cable
18
Using the Network Standby On
Function
HDMI Cable
4
GETTING STARTED
WHAT’S INCLUDED
ENG
BEFORE READING THE USER’S MANUAL
Note the following terms before reading the user manual.
++Icons used in this manual
Icon
Term
Caution
Note
Definition
Indicates a situation where a function does not operate or settings may be cancelled.
Indicates tips or instructions on the page that help you operate a function.
Check for the supplied accessories shown below.
Remote Control /
Lithium Battery (3V : CR2032)
Power Cord : 2 EA
AC/DC Adapter
HDMI Cable
430
Wall Mount Guide
Holder-Fix Mount :
2 EA
Bracket-Wall : 2 EA
●● The appearance of the accessories may differ slightly from the illustrations above.
5
DESCRIPTIONS
DESCRIPTIONS
TOP / FRONT PANEL
(Power) Button
VOL. - / +
Controls the volume level.
The numeric value of the volume level
appears in the front panel display.
Turns the power on and off.
(Source) Button
Display
Selects the D.IN, AUX, HDMI, BT, or TV input.
Displays the current mode.
●● While the unit is powered on, pressing the
button for more than 3 seconds sets
(Mute) button.
the button to act as the
(Mute) button setup,
To cancel the
button for more than
press the
3 seconds again.
●● When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.
●● When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.
●● If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup
menu of your TV. Refer to the owner's manual supplied with your TV.
6
DESCRIPTIONS
REAR / BOTTOM PANEL
HDMI IN
Connect to the Analogue output of an
external device.
Inputs digital video and audio
signals simultaneously using an
HDMI cable. Use when connecting
a supported external device.
OPTICAL IN (D.IN)
HDMI OUT (TV-ARC)
Connect to the digital
(optical) output of an
external device.
Outputs digital video and
audio signals simultaneously
using an HDMI cable.
HDMI IN
DC 14V
AUX IN
HDMI OUT
(TV-ARC)
OPTICAL IN
LAN
SERVICE
Wi-Fi SETUP
SPK ADD
LABEL
LAN
SERVICE
DC14V
Wi-Fi SETUP SPK ADD
DC 14V
(Power Supply In)
Connect the DC power
adaptor to the power
supply jack, and then
connect the AC power
adaptor plug to a wall
outlet.
ENG
AUX IN
Wi-Fi SETUP
Press this button to
connect your Soundbar
to your network using
Wi-Fi setup. (Requires a
smart device and the
Samsung Multiroom
app. See page 23.)
SPK ADD
Press the button to
connect the Soundbar
to a Samsung HUB
(purchased separately)
or a network. (Requires
a smart device and the
Samsung Multiroom
app. See page 23.)
SERVICE
To upgrade the product's
software through the USB
Port.
LAN
Lets you connect to a network
using a LAN cable.
●● When disconnecting the power cable of the AC power adaptor from a wall outlet, pull the plug.
Do not pull the cable.
●● Do not connect this unit or other components to an AC outlet until all connections between components
are complete.
●● Make sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it
is hanging with the AC cord input facing upwards, water or other foreign substances could enter the
Adapter and cause the Adapter to malfunction.
7
DESCRIPTIONS
REMOTE CONTROL
SOURCE
Press to select a source connected to the Soundbar.
Mute
You can turn the volume down to 0 with the push of a button.
Press again to restore the sound to the previous volume level.
Repeat
The Repeat function is available only when playing back music from Songs on phone
or DMS of Samsung Multiroom app.
OFF - REPEAT : Cancels Repeat Playback.
TRACK - REPEAT : Plays a track repeatedly.
ALL - REPEAT : Plays all tracks repeatedly.
Skip Forward
If there is more than one file on the device you are playing, and you press
the ] button, the next file is selected.
SOUND CONTROL
Press to select TREBLE, BASS, or AUDIO SYNC. Then, use the [,]
buttons to adjust the TREBLE or BASS volume from -3 ~ +3.
Press and hold the SOUND CONTROL button for about 5 seconds to adjust
the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz, 2.5KHz,
5KHz, and 10KHz are selectable and each can be adjusted to a setting between
-6 ~ +6.
If the Soundbar is connected to a digital TV and the video appears out of sync
with the audio, press the SOUND CONTROL button to sync the audio with the
video. Use the [,] buttons to set the audio delay between
0 ms ~ 300 ms. In TV mode, and BT mode, the Audio Sync function may not
available.
Anynet+
Press the Anynet+ button to turn the Anynet+ function on or off.
(Default : Auto Power Link OFF, ON - ANYNET+ / OFF - POWER LINK or OFF
- ANYNET+ / ON - POWER LINK). The Anynet+ function lets you control the
Soundbar with the remote from an Anynet+ compatible Samsung TV. The
Soundbar must be connected to the TV via an HDMI cable.
* Auto Power Link
Synchronizes the Soundbar to a connected Optical source via the Optical
jack so it turns on automatically when you turn on your TV. (See page 17)
Auto Power Link function is only available in the D.IN mode.
You can also activate Wi-Fi SETUP function by pressing and holding Anynet+
button on the remote for over 7 seconds.
●● Operate the TV using the TV's remote control.
8
DESCRIPTIONS
Power
Turns the Soundbar on and off.
ENG
Volume
Adjusts the volume level of the unit.
Play / Pause
Press the p button to pause a file temporarily.
Press the p button again to play the selected file.
Skip Back
If there is more than one file on the device you are playing, and you press the [
button, the previous file is selected.
SOUND EFFECT
You can select from 6 sound modes - STANDARD (Original Sound), MUSIC,
CLEAR VOICE, SPORTS, MOVIE, and NIGHT MODE - depending on the
content you want to listen to.
Select the STANDARD mode if you want to enjoy the original sound.
SOUND
Surround Sound adds depth and spaciousness to the sound. Pressing the
SOUND button repeatedly cycles through the Surround Sound settings :
ON - SURROUND SOUND, OFF - SURROUND SOUND
STREAMING MUSIC
Press STREAMING MUSIC button to listen to an Internet radio station. Each
time you press this button, the Soundbar switches to the next default station,
cycling through the 3 default stations.
To use the STREAMING MUSIC function, the Soundbar must be connected to
the Internet. (See page 25)
DRC (Dynamic Range Control) *
Lets you apply dynamic range control to Dolby Digital.
Press and hold the STREAMING MUSIC button to toggle the DRC (Dynamic
Range Control) function ON and OFF.
WOOFER
Press the WOOFER button. Then, use the [,] buttons to adjust the
Subwoofer volume from -12, -6 ~ +6.
You can also activate SPK ADD function of the Soundbar by pressing and
holding WOOFER button of the remote for over 5 seconds.
INSTALLING THE BATTERY IN THE REMOTE CONTROL
1. Use a suitable coin to turn the
remote control's battery cover
counterclockwise to remove it
as shown in the figure above.
2. Insert a 3V lithium battery. Keep the
positive (+) pole facing up when inserting
the battery. Put the battery cover on and
align the '●' marks side by side as
shown in the figure above.
9
3. Use a suitable coin to
turn the remote control
battery cover clockwise
as far as it will go to fix it
in place.
INSTALLATION
INSTALLATION
INSTALLING THE SOUNDBAR
INSTALLING THE WALL MOUNT
++Installation Precautions
●● Install on a vertical wall only.
●● For the installation, avoid a location with high temperature or humidity, or a wall that cannot sustain the weight of
the set.
●● Check the strength of the wall. If the wall is not strong enough to support the unit, reinforce the wall or install the
unit on a different wall that can support the unit's weight.
●● Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board,
wood, etc.). If possible, fix the support screws into wall studs.
●● Purchase wall mounting screws according to the type and thickness of the wall you will mount the Soundbar on.
-- Diameter : M5
-- Length: 35 mm or longer recommended.
●● Connect cables from the unit to external devices before you install it on the wall.
●● Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.
5 cm or more
1. Place the installation guide against the wall surface.
• The installation guide must be level.
• If the TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.
10
INSTALLATION
Center Line
2. Mark the location where the screws will go through on the wall, and then remove the installation guide. Next, drill
holes for the screws using an appropriately sized drill bit.
3. Fasten the 2 Bracket-Wall pieces firmly to the wall at the marked locations using the appropriate screws.
4. Attach the Soundbar to the 2 Bracket-Wall pieces as shown in the illustration.
11
ENG
Center Line
INSTALLATION
SPK ADD
OPTICAL IN
AUX IN
DC 14V
Wi-Fi SETUP
HDMI OUT
(TV-ARC)
LAN
SERVICE
HDMI IN
5. I nsert a Holder-Fix Mount into each hole on the product’s bottom side. Tighten each Holder-Fix Mount to fix
the Soundbar to the 2 Bracket-Wall pieces.
●● Do not hang onto the installed unit and avoid striking or dropping the unit.
●● Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an injury or
damage the product.
●● When the unit is installed on a wall, please make sure that children do not pull any of the connecting
cables, as this may cause it to fall.
●● For the optimal performance of a wall mount installation, install the speaker system at least 5 cm below the
TV, if the TV is mounted on the wall.
●● For your safety, if you do not mount the unit on the wall, install it on a secure, flat surface where it is unlikely
to fall.
12
PLACING THE SOUNDBAR ON A TV STAND
INSTALLATION
Place the Soundbar on a TV stand.
ENG
1. Align the Soundbar’s centre with the centre of the base of the TV, and then carefully push it onto the stand as far
as it will go, as shown in the illustration. Be careful not to unbalance the TV.
INSTALLING THE SOUNDBAR AS A FREE-STANDING UNIT
1. Centre the Soundbar on the flat area in front of the TV.
●● Install it on a level and firm surface.
13
CONNECTIONS
CONNECTIONS
●● Do not connect the power cord of this product or your TV to a wall outlet until all connections between
components are complete.
●● Before moving or installing this product, be sure to turn off the power and disconnect the power cord.
CONNECTING THE SUBWOOFER
CONNECTING TO THE SUBWOOFER AUTOMATICALLY
The Subwoofer's linking ID is preset at the factory and the main unit and subwoofer should link (connect wirelessly)
automatically when the main unit and subwoofer are turned on.
• When the subwoofer is completely connected, the blue LED Link Indicator on the subwoofer stops blinking and
glows continuously.
CONNECTING TO THE SUBWOOFER MANUALLY
If the blue LED light does not stop blinking when the main unit and subwoofer are turned on, please set the ID by
following the steps below.
●● Important: Before you begin, put the battery into the remote. See page 9 for instructions.
POWER
1. Plug the power cords of the main unit and subwoofer into an AC wall outlet.
2. Press the ID SET button on the back of the subwoofer with a small, pointed object for 5 seconds.
• The STANDBY indicator turns off and the LINK indicator (Blue LED) blinks quickly.
3. While the main unit is powered off (in STANDBY mode), press and hold the
seconds.
(Mute) on the remote control for 5
4. The ID SET message appears on the Soundbar's display.
5. To finalise the link, turn the main unit’s power on while the subwoofer’s Blue LED blinks.
• The main unit and the subwoofer should now be linked (connected).
• The LINK indicator (Blue LED) on the subwoofer should be glowing continuously and not blinking.
• If the LINK indicator is not solid blue, the linking process has failed. Turn off the main unit and start again from
Step 2.
• You can enjoy better sound from the wireless subwoofer by selecting a Sound Effect.
(See page 9)
14
CONNECTIONS
●● The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from water and
moisture.
●● For optimal listening performance, make sure that the area around the wireless subwoofer location is clear
of any obstructions.
LED INDICATOR LAMP STATUS ON SUBWOOFER
LED
Red
Status
On
On
Blue
Red and blue
Blinking
Blinking
Description
Resolution
Standby (with the Soundbar main
unit turned off)
Check the power supply to the
Soundbar main unit
Connection failed
Connect again
(refer to the instructions on manual
connection in the user manual)
Successfully connected
(normal operation)
-
Standby (with the Soundbar main
unit turned off)
Check the power supply to the
Soundbar main unit
Connection failed
Connect again
(refer to the instructions on manual
connection in the user manual)
Malfunction
Contact the service centre.
15
ENG
●● Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
●● If the main unit is powered off,the wireless subwoofer will in standy mode and the STANDBY LED on the
front will blink Red directly. (no blue LED).
●● If you use a device that uses the same frequency (2.4GHz) as the Soundbar near the Soundbar,
interference may cause some sound interruption.
●● The maximum transmission transmission distance of the wireless signal between the main unit and
subwoofer is about 10 meters, but may vary depending on your operating environment. If a steel-concrete
or metallic wall is between the main unit and the wireless subwoofer, the system may not operate at all,
because the wireless signal cannot penetrate metal.
●● If the main unit doesn't make a wireless connection, follow steps 1-5 on the previous page to re-set the
connection between the main unit and wireless subwoofer.
CONNECTIONS
CONNECTING TO A TV
●● Important: Before you begin, put the battery into the remote. See page 9 for instructions.
CONNECTING TO A TV USING AN HDMI (DIGITAL) CABLE
HDMI Cable
HDMI IN
HDMI OUT
(TV-ARC)
HDMI OUT
(TV-ARC)
HDMI IN
DC 14V
AUX IN
LAN
HDMI OUT
(TV-ARC)
OPTICAL IN
5V 0.5A
Wi-Fi SETUP
SPK ADD
1. Connect an HDMI cable from the HDMI OUT (TV-ARC) jack on the back of the product to the HDMI IN jack on
your TV.
2. Press the
button on the top panel of the Soundbar or the SOURCE button on the remote control to select
the D.IN mode.
●● HDMI is an interface that enables the digital transmission of video and audio data with just a single
connector.
●● If the TV provides an ARC port, connect the HDMI cable to the HDMI IN (ARC) port.
●● We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one whose
diameter is less than 14 mm.
●● Anynet+ must be turned on.
●● This function is not available if the HDMI cable does not support ARC.
CONNECTING TO A TV USING A DIGITAL OPTICAL CABLE
Optical Cable
(not supplied)
OPTICAL OUT
OPTICAL IN
HDMI IN
DC 14V
AUX IN
HDMI OUT
(TV-ARC)
OPTICAL IN
LAN
5V 0.5A
Wi-Fi SETUP
SPK ADD
1. Connect the OPTICAL IN (Audio) jack on the Soundbar to the OPTICAL OUT jack of the TV with a digital optical
cable.
2. Press the
button on the top panel of the Soundbar or the SOURCE button on the remote control to select
the D.IN mode.
16
CONNECTIONS
++Auto Power Link
AUTO POWER LINK
Display
ON
OFF - ANYNET+ / ON - POWER LINK
OFF
ON - ANYNET+ / OFF - POWER LINK
1. Connect the Soundbar and a TV with a digital optical cable (not supplied).
2. Press the
D.IN mode.
button on the main unit’s top panel or the SOURCE button on the remote control to select the
3. Press the Anynet+ button on the remote control to toggle the Auto Power Link function on and off.
●● Depending on the connected device, Auto Power Link may not function.
TV SOUNDCONNECT
You can enjoy TV sound through your Soundbar when it is connected to a Samsung TV that supports the
TV SoundConnect function.
Connect
1. Turn on the TV and Soundbar.
2. Press the
mode.
button on the main unit’s top panel or the SOURCE button on the remote control to select the TV
3. On the TV, a message asking whether to enable the TV SoundConnect function appears.
4. Select <Yes> using the TV's remote control to finish connecting the TV and Soundbar.
●● If the TV SoundConnect linking process fails, navigate to SoundConnect in the TV's Sound menu, select
Add New Device, and set Add New Device to ON. Then, try again.
●● Switching the Soundbar’s mode from TV to another mode automatically terminates TV SoundConnect.
●● To connect the Soundbar to another TV, the existing connection must be terminated.
●● To terminate the existing connection, press and hold the p button on the remote for 5 seconds or switch
to another mode. To connect to the other TV, follow Steps 1 through 4 above.
17
ENG
If you have connected the main unit to a TV with a digital optical cable, you can set the Auto Power function ON
to have the Soundbar turn on automatically when you turn the TV on.
CONNECTIONS
●● The TV SoundConnect (SoundShare) function is supported by some Samsung TVs released from 2012 on.
Check whether your TV supports the TV SoundConnect (SoundShare) function before you begin. (For
further information, refer to the TV’s user manual.).
●● If your Samsung TV was released before 2014, check the SoundShare setting menu.
●● If the distance between the TV and Soundbar exceeds 10 meters, the connection may not be stable or the
audio may stutter. If this occurs, relocate the TV or Soundbar so that they are within operational range, and
then re-establish the TV SoundConnect connection.
●● TV SoundConnect Operational Ranges:
-- Recommended pairing range: within 2 meters.
-- Recommended operational range: within 10 meters.
●● The Play/Pause, Next, and Prev buttons on the Soundbar or Soundbar's remote do not control the TV.
CONNECTING TO EXTERNAL DEVICES
HDMI CABLE
HDMI is the standard digital interface for connecting to TVs, projectors, DVD players, Blu-ray players, set top boxes,
and more.
HDMI prevents any degradation to the signal due to conversion to analogue and maintains the video and audio
quality of the original digital source.
HDMI Cable
Digital Devices
HDMI OUT
HDMI IN
HDMI IN
HDMI IN
DC 14V
AUX IN
HDMI OUT
(TV-ARC)
OPTICAL IN
LAN
5V 0.5A
Wi-Fi SETUP
SPK ADD
1. Connect an HDMI cable from the HDMI IN jack on the back of the product to the HDMI OUT jack on your digital
device.
2. Press the
button on the top panel of the Soundbar or the SOURCE button on the remote control to select
the HDMI mode.
18
OPTICAL OR ANALOGUE AUDIO CABLE
CONNECTIONS
Optical Cable
(not supplied)
OPTICAL OUT
BD / DVD player /
Set-top box /
Game console
OPTICAL IN
Audio Cable
(not supplied)
AUX OUT
AUX IN
HDMI IN
DC 14V
AUX IN
HDMI OUT
(TV-ARC)
OPTICAL IN
LAN
5V 0.5A
Wi-Fi SETUP
SPK ADD
++AUX Cable
1. Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the Source Device using an audio cable.
2. Press the
button on the top panel of the Soundbar or the SOURCE button on the remote control to select
the AUX mode.
++Optical Cable
1. Connect OPTICAL IN (Audio) on the main unit to the OPTICAL OUT jack of the Source Device using a digital
optical cable.
2. Press the
button on the top panel of the Soundbar or the SOURCE button on the remote control to select
the D.IN mode.
19
ENG
This unit comes equipped with one digital optical in jack and one analogue audio (AUX) in jack, giving you two
ways to connect it to external devices.
FUNCTIONS
FUNCTIONS
INPUT MODE
button on the main unit’s top panel or the SOURCE button on the remote control to select the mode
Press the
you want.
Input mode
Optical Digital input
ARC (HDMI OUT) input
AUX input
HDMI input
Display
D.IN
AUX
HDMI
BLUETOOTH mode
TV SoundConnect
BT
TV
AUTO POWER DOWN FUNCTION
The unit turns off automatically in the following situations.
●● D.IN / HDMI / BT / TV Mode
-- If there is no audio signal for 15 minutes.
●● AUX Mode
-- If the AUX cable is disconnected for 15 minutes.
-- If there is no KEY input for 8 hours when the AUX cable is connected. (Auto Power Down function can be
turned off only in that case.)
To turn off Auto Power Down function, while in AUX mode, press and hold the p button for 5 seconds.
ON - AUTO POWER DOWN / OFF - AUTO POWER DOWN appears on the display.
20
FUNCTIONS
BLUETOOTH
TO CONNECT THE SOUNDBAR TO A BLUETOOTH DEVICE
Check if the Bluetooth device supports the Bluetooth compliant stereo headset function.
Connect
1. Press the
mode.
Bluetooth device
button on the main unit’s top panel or the SOURCE button on the remote control to select the BT
• You will see BT READY on the front display of the Soundbar.
2. Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device's user
manual.)
3. Select "[Samsung] HW-Jxxxx" from the list.
• When the Soundbar is connected to the Bluetooth device, it will display [Bluetooth device name]  BT on
the front display.
• The device name can only be displayed in English. An underline " _ " will be displayed if the name is not in
English.
• If the Bluetooth device has failed to pair with the Soundbar, delete the previous "[Samsung] HW-Jxxxx"
found by the Bluetooth device and have it search for the Soundbar again.
4. Play music on the connected device.
• You can listen to the music playing on the connected Bluetooth device over the Soundbar.
• In BT mode, the Play / Pause / Next / Prev functions are not available. However, these functions are available
on Bluetooth devices supporting AVRCP.
●●
●●
●●
●●
If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
Only one Bluetooth device can be paired at a time.
The Bluetooth connection will be terminated when you turn the Soundbar off.
The Soundbar may not perform Bluetooth search or connection correctly under the following
circumstances:
-- If there is a strong electrical field around the Soundbar.
-- If several Bluetooth devices are simultaneously paired with the Soundbar.
-- If the Bluetooth device is turned off, not in place, or malfunctions.
●● Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and gas stoves use
the same frequency range as the Bluetooth device, which can cause electric interference.
21
ENG
You can connect a Bluetooth device to the Soundbar and enjoy music with stereo sound, all without wires!
FUNCTIONS
●●
●●
●●
●●
The Soundbar supports SBC data (44.1kHz, 48kHz).
Connect only to a Bluetooth device that supports the A2DP (AV) function.
You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.
Once you have paired the Soundbar to a Bluetooth device, selecting "[Samsung] HW-Jxxxx" from the
device's scanned devices list will automatically change the Soundbar to BT mode.
-- Available only if the Soundbar is listed among the Bluetooth device’s paired devices. (The Bluetooth
device and the Soundbar must have been previously paired at least once.)
●● Soundbar will appear in the Bluetooth device’s searched devices list only when the Soundbar is displaying
BT READY.
●● In the TV SoundConnect mode, the Soundbar cannot be paired to another Bluetooth device.
TO DISCONNECT THE BLUETOOTH DEVICE FROM A
SOUNDBAR
You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.
●● The Soundbar will be disconnected.
●● When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display
BT DISCONNECTED on the front display.
TO DISCONNECT THE SOUNDBAR FROM A BLUETOOTH
DEVICE
Press the SOURCE button on the remote control or the
another mode or turn off the Soundbar.
button on the product's top panel to switch from BT to
●● The connected Bluetooth device will wait a certain amount of time for a response from the Soundbar before
terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)
●● In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar
and the Bluetooth device exceeds 10 meters.
●● The Soundbar automatically turns off after 15 minutes in the Ready state.
++More About Bluetooth
Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a
short wireless connection.
●● A Bluetooth device may cause noise or malfunction, depending on usage, if:
-- A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the
Soundbar.
-- It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.
-- It is exposed to electrical interference from same frequency-band devices including medical equipment,
microwave ovens, and wireless LANs.
●● Pair the Soundbar with the Bluetooth device while they are close together.
●● The further the distance between the Soundbar and Bluetooth device, the worse the quality is.
If the distance exceeds the Bluetooth operational range, the connection is lost.
●● In poor reception areas, the Bluetooth connection may not work properly.
●● The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the
Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as
walls or doors.
●● This wireless device may cause electric interference during its operation.
22
FUNCTIONS
USING THE MULTIROOM APP
BEFORE YOU BEGIN
++Communication Basics
Internet
Wireless Router
Smart Device:
Android or iOS
(App Control)
Requirements:
1. A Wireless Router and a Smart Device
2. The wireless router must be connected to the Internet.
3. The smart device must be connected to the router via a Wi-Fi connection.
INSTALLING THE SAMSUNG MULTIROOM APP
To use the Soundbar with the Samsung Multiroom App, you must download and then install the Samsung Multiroom
App on your smart device. You can download the app from Google Play or the App Store. With the Samsung
Multiroom App installed, you can play music on your Soundbar that is stored on your smart device, located on other
connected devices, provided by other content providers, or streamed from Internet radio stations.
++Android or iOS
Download the Samsung Multiroom app from Google Play or the App Store of your smart device.
* Market search : Samsung Multiroom
or
23
ENG
The Samsung Multiroom app lets you connect the Soundbar to a smart device, your network, and the Internet. Once
the Soundbar is connected to a smart device that has the Multiroom App installed, you can also connect the
Soundbar and multiple Samsung Multiroom devices together wirelessly and play audio through them.
FUNCTIONS
++Launching the Samsung Multiroom App
To launch the Samsung Multiroom app, tap the Multiroom app icon on your smart device.
CONNECTING THE SOUNDBAR TO YOUR NETWORK
On your smart device, select the Samsung Multiroom app. Follow the directions on your smart device’s screen.
You can use the following music sources with the Samsung Multiroom app.
-- Music files stored in your mobile phone, various music sources, and Internet radio.
[Samsung] HW-Jxxxx
Music in mobile phone
Internet radio
Music service
●● Use Cat 7 (*STP Type) cable for the connection.
* Shielded Twist Pair
24
FUNCTIONS
The Network Standby On function becomes available if a wireless connection has been properly established between
a smart device and the Soundbar. This function turns on the Soundbar automatically when a smart device attempts to
connect to the Soundbar via Bluetooth or Wi-Fi. If you turn the Soundbar on via a Bluetooth connection, its input
mode is set to BT automatically. To turn the Soundbar on via Wi-Fi, you must have the Samsung Multiroom App
installed on your smart device.
1. Connect the smart device to your Soundbar.
2. Turn the Network Standby On function on by pressing the ] button on the Soundbar remote for more than
5 seconds. You can turn the function off by pressing the ] button again for more than 5 seconds.
●● Network Standby On is available only if the Soundbar is listed among the smart device’s paired devices.
(The Smart device and the Soundbar must have been previously paired at least once.)
●● Soundbar will appear in the smart device’s searched devices list only when the Soundbar is displaying [BT
READY] or [WiFi READY].
●● In the TV SoundConnect mode, the Soundbar cannot be paired to another smart device.
●● If the Network Standby On function did not work:
-- The Network Standby On is set to Off. Set it to ON.
●● The Wi-Fi connection to the Soundbar will be terminated if the Soundbar’s power cord is disconnected or
the power is cut off. If the power is cut off, turn on the Soundbar and reconnect it.
25
ENG
USING THE NETWORK STANDBY ON
FUNCTION
FUNCTIONS
SOFTWARE UPDATE
HDMI IN
DC 14V
AUX IN
HDMI OUT
(TV-ARC)
OPTICAL IN
LAN
SERVICE
Wi-Fi SETUP
SPK ADD
LAN
SERVICE
UPDATING WITH USB
Samsung may offer updates for the Soundbar's system firmware in the future.
If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it
to the USB port on your Soundbar.
Note that if there are multiple update files, you must load them onto the USB device singly and use them to update the
firmware one file at a time.
Please visit samsung.com or contact the Samsung call centre to receive more information about downloading update
files.
++Updating Procedure
1. Follow the steps below to download the product software:
Go to the Samsung website at (samsung.com/sec)  search for the model name - select the customer support
option (the option name is subject to change)
2. Save the downloaded software to a USB stick and select "Extract to the folder name" to unzip the folder.
3. Turn off the Soundbar and connect the USB stick containing the software update to the USB port.
4. Disconnect the power cord, reconnect it, and then turn on the Soundbar.
5. Turn on the Soundbar. Within 3 minutes, UPDATE is displayed and updating begins.
6. After the update is complete, the Soundbar turns off and on again.
26
FUNCTIONS
++If UPDATE was not displayed
2. Disconnect the power cord, reconnect it, and then turn on the Soundbar.
●● Insert a USB device containing the firmware update into the USB port on the main unit.
●● Updating firmware may not work properly if audio files supported by the Soundbar are stored in the USB
storage device.
●● Do not disconnect the power or remove the USB device while updates are being applied. The main unit will
turn off automatically after completing the firmware update.
●● After update is completed, the user setup in Soundbar is initialised. We recommend you write down your
settings so that you can easily reset them after the update. Note that updating firmware resets the
subwoofer connection too.
If the connection to the subwoofer is not re-established automatically after the update, refer to page 14.
If the software update fails, check that the USB stick is not defective.
●● Mac OS users should use MS-DOS (FAT) as the USB format.
●● Depending on the manufacturer, some USB devices may not be supported.
AUTO UPDATE
If the Soundbar is connected to the Internet, it will automatically check for the latest firmware and update when new
firmware becomes available, even if it is turned off.
●● The Soundbar is configured to run Auto Update by default.
●● To use the Auto Update function, the Soundbar must be connected to the Internet.
●● The Wi-Fi connection to the Soundbar will be terminated if its power cord is disconnected or the power is
cut off. If the power is cut off, turn on the Soundbar and reconnect it.
27
ENG
1. Turn off the Soundbar, connect the USB storage device that contains update files to the Soundbar’s USB port.
TROUBLESHOOTING
TROUBLESHOOTING
TROUBLESHOOTING
Before requesting service, please check the following.
The unit will not turn on.
• Is the power cord plugged into the outlet?
¼¼Connect the power plug to the outlet.
A function does not work when the button is pressed.
• Is there static electricity in the air?
¼¼Disconnect the power plug and connect it again.
Sound is not produced.
• Is the Mute function on?
• Is the volume set to minimum?
¼¼Press the
function.
(Mute) button to cancel the Mute
¼¼Adjust the volume.
The remote control does not work.
• Are the batteries drained?
• Is the distance between the remote control and main
unit too far?
¼¼Replace with new batteries.
¼¼Move closer to the unit.
The TV SoundConnect (TV pairing) failed.
• Does your TV support TV SoundConnect?
• Is your TV firmware the latest version?
• Does an error occur when connecting?
¼¼TV SoundConnect is supported by some Samsung
TVs released from 2012 on. Check your TV to see if it
supports TV SoundConnect.
¼¼Update your TV with the latest firmware.
¼¼Contact the Samsung Call Centre.
¼¼Reset TV SoundConnect and connect again.
To reset the TV SoundConnect connection, press
and hold the p button for 5 seconds.
The red LED on the subwoofer blinks and the subwoofer is not producing sound.
• Your subwoofer may not be connected to the
main unit of the product.
The subwoofer drones and vibrates noticeably.
• Try to adjust the vibration of your subwoofer.
¼¼Try to connect your subwoofer again.
(See Page 14)
¼¼Press the WOOFER button on your remote control to
adjust the subwoofer's volume level (between -12,
-6 ~ +6).
28
APPENDIX
APPENDIX
SPECIFICATIONS
GENERAL
Dimensions
(W x H x D)
Main Unit
2.7 kg
Main Unit
1078.0 x 47.5 x 129.0 mm
Subwoofer (PS-WJ6500R / PS-WJ6501R) 6.8 kg
Subwoofer (PS-WJ6500R / PS-WJ6501R) 452.0 x 335.0 x 154.0 mm
Operating Temperature Range
+5°C to +35°C
Operating Humidity Range
Rated
AMPLIFIER Output
Power
10 % to 75 %
Main Unit
22W x 6, 4 ohm, THD≦10%
Subwoofer (PS-WJ6500R / PS-WJ6501R) 168W, 3 ohm, THD≦10%
* Design, specifications and App screen are subject to change without prior notice.
* Nominal specification
-- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
-- Weight and dimensions are approximate.
-- For more information about the power supply and power consumption, refer to the label attached to the
product.
* For India Only
"This product is RoHS compliant"
aa Open Source License Notice
-- For further information on Open Sources used in this product, please visit the website:
http://opensource.samsung.com
aa
License
-- The Spotify Software is subject to third party licences found here :
www.spotify.com/connect/third-party-licenses.
-- For more information about Spotify Connect, please visit www.spotify.com/connect
29
ENG
Weight
APPENDIX
LICENCES
Manufactured under licence from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of
Dolby Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licencing Limited. DTS, the
Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0 Channel is a trademark of DTS, Inc.
© DTS, Inc. All Rights Reserved.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licencing LLC in the United States and other countries.
30
©2016 Samsung Electronics Co.,Ltd. All rights reserved
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care
Centre.
Area
Contact Centre 
` Asia Pacific
CHINA
400-810-5858
HONG KONG
3698 4698
MACAU
SINGAPORE
AUSTRALIA
NEW ZEALAND
VIETNAM
THAILAND
MYANMAR
0800 333
1800-SAMSUNG(726-7864)
1300 362 603
0800 726 786
1800 588 889
0-2689-3232, 1800-29-3232
+95-1-2399-888
1800-88-9999
603-77137477 (Overseas contact)
021-56997777
08001128888
1-800-10-726-7864 [ PLDT Toll Free ]
1-800-8-726-7864 [ Globe Landline and Mobile ]
02-422-2111 [ Standard Landline ]
0800-329999
0120-363-905
1800 3000 8282 - Toll Free
1800 266 8282 - Toll Free
0961-2300300
0800-0300300 (Toll free)
0117540540
0115900000
MALAYSIA
INDONESIA
PHILIPPINES
TAIWAN
JAPAN
INDIA
BANGLADESH
SRI LANKA
Web Site
www.samsung.com/cn/support
www.samsung.com/hk/support (Chinese)
www.samsung.com/hk_en/support (English)
www.samsung.com/support
www.samsung.com/sg/support
www.samsung.com/au/support
www.samsung.com/nz/support
www.samsung.com/vn/support
www.samsung.com/th/support
www.samsung.com/my/support
www.samsung.com/id/support
www.samsung.com/ph/support
www.samsung.com/tw/support
www.samsung.com/jp/support
www.samsung.com/in/support
www.samsung.com/support

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
