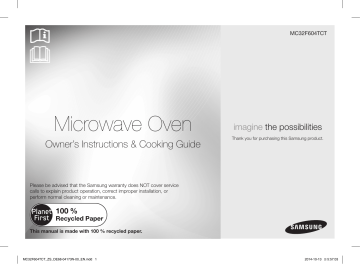

MC32F604TCT
Microwave Oven
Owner’s Instructions & Cooking Guide
imagine the possibilities
Thank you for purchasing this Samsung product.
Please be advised that the Samsung warranty does NOT cover service
calls to explain product operation, correct improper installation, or
perform normal cleaning or maintenance.
This manual is made with 100 % recycled paper.
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 1
2014-10-13 �� 5:57:03
contents
safety information
Saafety information............................................................................... 2
Quick look-up guide..............................................................................11
Oven features.........................................................................................12
Oven.....................................................................................................12
Control panel........................................................................................13
Accessories..........................................................................................13
Oven use.................................................................................................14
How a microwave oven works..............................................................14
Checking that your oven is operating correctly......................................14
Setting the time....................................................................................15
Cooking/Reheating...............................................................................15
Power levels and time variations...........................................................16
Adjusting the cooking time....................................................................16
Stopping the cooking............................................................................16
Setting the energy save mode..............................................................16
Using the auto power defrost features..................................................17
Using the auto reheat/auto cook features.............................................18
Using the slim fry cook feature..............................................................20
Using the auto fermentation feature......................................................21
Multistage cooking................................................................................22
Fast preheating the oven.......................................................................23
Cooking by convection.........................................................................23
Choosing the accessories.....................................................................24
Grilling..................................................................................................24
Combining microwaves and the grill......................................................25
Combining microwaves and convection................................................25
Switching the beeper off.......................................................................26
Safety-locking your microwave oven.....................................................26
Cookware guide....................................................................................27
Cooking guide........................................................................................28
Troubleshooting and error code..........................................................37
Troubleshooting....................................................................................37
Error code............................................................................................37
Technical specifications.......................................................................38
USING THIS INSTRUCTION BOOKLET
You have just purchased a SAMSUNG microwave oven. Your Owner’s
Instructions contains valuable information on cooking with your microwave
oven:
• Safety precautions
• Suitable accessories and cookware
• Useful cooking tips
• Cooking tips
LEGEND FOR SYMBOLS AND ICONS
WARNING
Hazards or unsafe practices that may result in severe
personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor
personal injury or property damage.
Warning; Fire hazard
Warning; Hot surface
Warning; Electricity
Warning; Explosive material
Do NOT attempt.
Do NOT touch.
Do NOT disassemble.
Follow directions explicitly.
Unplug the power plug
from the wall socket.
Make sure the machine is
grounded to prevent electric
shock.
Call the service center for
help.
Note
Important
English - 2
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 2
2014-10-13 �� 5:57:07
WARNING
(Microwave function only)
WARNING: If the door or door seals
are damaged, the oven must not be
operated until it has been repaired by a
competent person.
WARNING: It is hazardous for anyone
other than a competent person to carry
out any service or repair operation that
involves the removal of a cover which
gives protection against exposure to
microwave energy.
This appliance is intended to be used in
household only.
WARNING: Only allow children to use
the oven without supervision when
adequate instructions have been given
so that the child is able to use the oven
in a safe way and understands the
hazards of improper use.
WARNING: This appliance can be
used by children aged from 8 years
and above and persons with reduced
physical, sensory or mental capabilities
or lack of experience and knowledge
if they have been given supervision
or instruction concerning use of the
appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance. Cleaning and
user maintenance shall not be made by
children unless they are aged from 8
years and above and supervised.
Only use utensils that are suitable for use
in microwave ovens.
When heating food in plastic or paper
containers, keep an eye on the oven due
to the possibility of ignition.
01 SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR
FUTURE REFERENCE.
Make sure that these safety precautions are
obeyed at all times.
Before using the oven, confirm that the
following instructions are followed.
English - 3
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 3
2014-10-13 �� 5:57:07
The microwave oven is intended for
heating food and beverages. Drying of
food or clothing and heating of warming
pads, slippers, sponges, damp cloth and
similar may lead to risk of injury, ignition
or fire.
If smoke is emitted, switch off or unplug
the appliance and keep the door closed
in order to stifle any flames.
WARNING: Microwave heating of
beverages can result in delayed eruptive
boiling, therefore care must be taken
when handling the container.
WARNING: The contents of feeding
bottles and baby food jars shall be
stirred or shaken and the temperature
checked before consumption, in order to
avoid burns.
Eggs in their shell and whole hard-boiled
eggs should not be heated in microwave
ovens since they may explode, even
after microwave heating has ended.
The oven should be cleaned regularly
and any food deposits removed.
Failure to maintain the oven in a clean
condition could lead to deterioration of
the surface that could adversely affect
the life of the appliance and possibly
result in a hazardous situation.
The appliance is not intended for
installing in road vehicles, caravans and
similar vehicles etc.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for
their safety.
Children should be supervised to ensure
that they do not play with the appliance.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
WARNING: Liquids and other foods
must not be heated in sealed containers
since they are liable to explode;
English - 4
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 4
2014-10-13 �� 5:57:07
During use the appliance becomes hot.
Care should be taken to avoid touching
heating elements inside the oven.
WARNING: Accessible parts may
become hot during use. Young children
should be kept away.
A steam cleaner is not to be used.
WARNING: Ensure that the appliance is
switched off before replacing the lamp to
avoid the possibility of electric shock.
WARNING: The appliance and its
accessible parts become hot during use.
Care should be taken to avoid touching
heating elements.
Children less than 8 years of age shall
be kept away unless continuously
supervised.
The temperature of accessible surfaces
may be high when the appliance is
operating.
The door or the outer surface may get
hot when the appliance is operating.
Keep the appliance and its cord out of
reach of children less than 8 years.
WARNING
(Oven function only) - Optional
WARNING: When the appliance is
operated in the combination mode,
children should only use the oven
under adult supervision due to the
temperatures generated.
01 SAFETY INFORMATION
The appliance should not be cleaned
with a water jet.
This oven should be positioned proper
direction and height permitting easy
access to cavity and control area.
Before using the your oven first time,
oven should be operated with the water
during 10 minute and then used.
If the oven generates a strange noise,
a burning smell, or smoke is emitted,
unplug the power plug immediately and
contact your nearest service center.
The microwave oven has to be
positioned so that plug is accessible.
The microwave oven is intended to be
used on the counter or counter top use
only, the microwave oven shall not be
placed in a cabinet.
English - 5
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 5
2014-10-13 �� 5:57:07
This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack of
experience and knowledge if they have
been given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
involved. Children shall not play with
the appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
Do not use harsh abrasive cleaners or
sharp metal scrapers to clean the oven
door glass since they can scratch the
surface, which may result in shattering of
the glass.
Appliances are not intended to be
operated by means of an external timer
or separate remote-control system.
INSTALLING YOUR MICROWAVE OVEN
Place the oven on a flat level surface 85 cm
above the floor. The surface should be strong
enough to safety bear the weight of the oven.
1.When you install your oven,
20 cm
10 cm
above
behind
make sure there is adequate
ventilation for your oven by
85 cm of
10 cm on
leaving at least 10 cm (4 inches) the floor the side
of space behind and, on the
sides of the oven and 20 cm (8 inches) of
space above.
2.Remove all packing materials inside the oven.
3.Install the roller ring and turntable. Check
that the turntable rotates freely.
(Turntable type model only)
4.This microwave oven has to be positioned
so that plug is accessible.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
For your personal safety, plug the cable
into a proper AC earthed socket.
English - 6
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 6
2014-10-13 �� 5:57:08
CLEANING YOUR MICROWAVE OVEN
The following parts of your microwave oven
should be cleaned regularly to prevent
grease and food particles from building up:
•Inside and outside surfaces
•Door and door seals
•Turntable and Roller rings
(Turntable type model only)
ALWAYS ensure that the door seals are
clean and the door closes properly.
Failure to maintain the oven in a clean
condition could lead to deterioration of the
surface that could adversely affect the life
of the appliance and possibly result in a
hazardous situation.
1.Clean the outside surfaces with a soft cloth
and warm, soapy water. Rinse and dry.
2.Remove any splashes or stains on the
inside surfaces of oven with a soapy cloth.
Rinse and dry.
3.To loosen hardened food particles and
remove smells, place a cup of diluted
lemon juice in the oven and heat for ten
minutes at maximum power.
4.Wash the dishwasher-safe plate whenever
necessary.
DO NOT spill water in the vents. NEVER
use any abrasive products or chemical
solvents. Take particular care when
cleaning the door seals to ensure that no
particles:
•Accumulate
•Prevent the door from closing correctly
Clean the microwave oven cavity right after
each use with a mild detergent solution, but
let the microwave oven cool down before
cleaning in order to avoid injury.
When cleaning the upper
part inside the cavity, it will
be convenient to turn heater
downward by 45° and clean it.
(Swing heater model only)
01 SAFETY INFORMATION
Do not install the microwave oven in hot or
damp surroundings like next to a traditional
oven or radiator. The power supply
specifications of the oven must be respected
and any extension cable used must be
of the same standard as the power cable
supplied with the oven. Wipe the interior and
the door seal with a damp cloth before using
your microwave oven for the first time.
English - 7
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 7
2014-10-13 �� 5:57:09
STORING AND REPAIRING YOUR
MICROWAVE OVEN
A few simple precautions should be taken
when storing or having your microwave oven
serviced.
The oven must not be used if the door or
door seals are damaged:
•Broken hinge
•Deteriorated seals
•Distorted or bent oven casing
Only a qualified microwave service technician
should perform repair.
NEVER remove the outer casing from
the oven. If the oven is faulty and needs
servicing or you are in doubt about its
condition:
•Unplug it from the wall socket
•Contact the nearest after-sales service
centre
If you wish to store your oven away
temporarily, choose a dry, dustfree place.
Reason : Dust and damp may adversely
affect the working parts in the oven.
This microwave oven is not intended for
commercial use.
The Light bulb should not be replaced in
person for safety reasons.
Please contact nearest authorised
Samsung customer care centre to arrange
for a qualified engineer to replace the bulb.
WARNING
Only qualified staff should be allowed to modify or
repair the appliance.
Do not heat liquids and other food in sealed
containers for microwave function.
For your safety, do not use high-pressure water
cleaners or steam jet cleaners.
Do not install this appliance; near heater,
inflammable material; in a humid, oily or dusty
location, in a location exposed to direct sunlight and
water or where gas may leak; on un level ground.
This appliance must be properly grounded in
accordance with local and national codes.
Remove all foreign substances such as dust or
water from the power plug terminals and contact
points using a dry cloth on a regular basis.
Do not pull or excessively bend or place heavy
objecton the power cord.
In the event of a gas leak (such as propane gas, LP
gas, etc.), ventilate immediately without touching the
power plug.
Do not touch the power plug with wet hands.
Do not turn the appliance off by unplugging the
power plug while an operation is in progress.
English - 8
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 8
2014-10-13 �� 5:57:11
Do not insert fingers or foreign substances, If any
foreign substance such as water has entered the
appliance, unplug the power plug and contact your
nearest service centre.
Keep children away from the door when opening or
closing it as they may bump themselves on the door
or catch their fingers in the door.
Do not place the oven over a fragile object such as a
sink or glass object.
Do not use benzene, thinner, alcohol, steam cleaner
or high pressure cleaner to clean the appliance.
Ensure that the power voltage, frequency and
current are the same as those of the product
specifications.
Plug the power plug into the wall socket firmly. Do
not use a multiple plug adapter, an extension cord or
an electric transformer.
01 SAFETY INFORMATION
WARNING: Microwave heating of beverages can
result in delayed eruptive boiling, therefore care must
be taken when handling the container; To prevent
this situation ALWAYS allow a standing time of at
least 20 seconds after the oven has been switched
off so that the temperature can equalize. Stir during
heating, if necessary, and ALWAYS stir after heating.
In the event of scalding, follow these FIRST AID
instructions:
• Immerse the scalded area in cold water for at
least 10 minutes.
• Cover with a clean, dry dressing.
• Do not apply any creams, oils or lotions.
Do not apply excessive pressure or impact to the
appliance.
Do not put the tray or rack in water shortly after
cooking because it may cause breakage or damage
of the tray or rack.
Do not hook the power cord on a metal object,
insert the power cord between the objects or behind
the oven.
Do not operate the microwave oven for deep
fat frying because the oil temperature cannot be
controlled. This could result in a sudden boil over of
the hot liquid.
Do not use a damaged power plug, damaged power
cord or loose wall socket. When the power plug
or power cord is damaged, contact your nearest
service centre.
CAUTION
Do not pour or directly spray water onto the oven.
Only use utensils that are suitable for use in
microwave ovens; DO NOT use any metallic
containers, Dinnerware with gold or silver trimmings,
Skewers, forks, etc.
Remove wire twist ties from paper or plastic bags.
Reason: Electric arcing or sparking may occur and
may damage the oven.
Do not place objects on the oven, inside or on the
door of the oven.
Do not spray volatile material such as insecticide
onto the surface of the oven.
Do not store flammable materials in the oven. Take
special care when heating dishes or drinks that
contain alcohol as alcohol vapours may contact a
hot part of the oven.
Do not use your microwave oven to dry papers or
clothes.
English - 9
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 9
2014-10-13 �� 5:57:13
Use shorter times for smaller amounts of food to
prevent overheating and burning food.
Do not immerse the power cable or power plug in
water and keep the power cable away from heat.
Eggs in their shell and whole hard-boiled eggs
should not be heated in microwave ovens since they
may explode, even after microwave heating has
ended; Also do not heat airtight or vacuum-sealed
bottles, jars, containers, nuts inshells, tomatoes etc.
Do not cover the ventilation slots with cloth or paper.
They may catch fire as hot air escapes from the oven.
The oven may also overheat and switch itself off
automatically, and will remain off until it cools sufficiently.
Always use oven mitts when removing a dish from
the oven to avoid unintentional burns.
Stir liquids halfway during heating or after heating
ends and allow the liquid stand at least 20 seconds
after heating to prevent eruptive boiling.
Stand at arms length from the oven when opening
the door to avoid getting scalded by escaping hot air
or steam.
Do not operate the microwave oven when it is
empty. The microwave oven will automatically
shut down for 30 minutes for safety purposes. We
recommend placing a glass of water inside the oven
at all times to absorb microwave energy in case the
microwave oven is started accidentally.
Install the oven in compliance with the clearances stated
in this manual. (See installing your microwave oven.)
Take care when connecting other electrical
appliances to sockets near the oven.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY. (MICROWAVE FUNCTION ONLY)
Failure to observe the following safety precautions may result in harmful
exposure to microwave energy.
(a) Under no circumstances should any attempt be made to operate the
oven with the door open or to tamper with the safety interlocks (door
latches) or to insert anything into the safety interlock holes.
(b)Do NOT place any object between the oven door and front face or
allow food or cleaner residues to accumulate on sealing surfaces.
Ensure that the door and door sealing surfaces are kept clean by
wiping after use first with a damp cloth and then with a soft dry cloth.
(c) Do NOT operate the oven if it is damaged until it has been
repaired by a qualified microwave service technician trained by the
manufacturer. It is particularly important that the oven door closes
properly and that there is no damage to the:
(1) door (bent)
(2) door hinges (broken or loose)
(3) door seals and sealing surfaces
(d)The oven should not be adjusted or repaired by anyone other than
a properly qualified microwave service technician trained by the
manufacturer.
Samsung will charge a repair fee for replacing an accessory or repairing
a cosmetic defect if the damage to the unit and/or damage to or loss of
the accessory was caused by the customer. Items this stipulation covers
include:
(a) A Dented, Scratched, or Broken Door, Handle, Out-Panel, or Control
Panel.
(b)A Broken or missing Tray, Guide Roller, Coupler, or Wire Rack.
• Use this appliance only for its intended purpose as described in this
instruction manual. Warnings and Important Safety Instructions in this
manual do not cover all possible conditions and situations that may
occur. It is your responsibility to use common sense, caution, and
care when installing, maintaining, and operating your appliance.
English - 10
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 10
2014-10-13 �� 5:57:13
quick look-up guide
If you want to cook some food.
1. Place the food in the oven.
Press the Microwave button.
2. Press the Microwave button until the appropriate power
level is displayed.
3. Select the cooking time by turning the Dial knob as
required.
4. Press Start/+30s button.
Result: Cooking starts.
• When cooking has finished, the oven will
beep and flash “0” four times. The oven will
then beep one time per minute.
02 QUICK LOOK-UP GUIDE
• Because these following operating instructions cover various models,
the characteristics of your microwave oven may differ slightly from
those described in this manual and not all warning signs may
be applicable. If you have any questions or concerns, contact
your nearest service centre or find help and information online at
www. samsung.com.
• This microwave oven is supposed for heating food. It is intended for
domestic home-use only. Do not heat any type of textiles or cushions
filled with grains, which could cause burns and fire. The manufacturer
cannot be held liable for damage caused by improper or incorrect
use of the appliance.
• Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life of the
appliance and possible result in a hazardous situation.
If you want to add an extra 30 seconds.
1. Leave the food in the oven.
Press Start/+30s button one or more times for each extra
30 seconds that you wish to add.
English - 11
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 11
2014-10-13 �� 5:57:14
oven features
If you want to defrost some food.
OVEN
1. Place the frozen food in the oven.
Press the Power Defrost button.
2
1
3
2. Select the food category by pressing the Power Defrost
button, until the desired food category is selected.
3. Select the weight by turning the Dial knob as required.
4. Press Start/+30s button.
Result: Defrosting starts.
• When cooking has finished, the oven will
beep and flash “0” four times. The oven will
then beep one time per minute.
4
5
6
7
8
9
1. SAFETY INTERLOCK HOLES
6. COUPLER
2. HEATING ELEMENT
7. DOOR HANDLE
3. VENTILATION HOLES
8. ROLLER RING
4. DOOR LATCHES
9. DOOR
5. TURNTABLE
10. CONTROL PANEL
10
English - 12
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 12
2014-10-13 �� 5:57:15
CONTROL PANEL
ACCESSORIES
Depending on the model that you have purchased, you are supplied with several
accessories that can be used in a variety of ways.
1
1. Roller ring, to be placed in the center of the oven.
Purpose: The roller ring supports the turntable.
9
3
10
4
11
5
12
6
13
2.Turntable, to be placed on the roller ring with the center
fitting on to the coupler.
Purpose: The turntable serves as the main cooking
surface; it can be easily removed for cleaning.
3. High rack, Low rack, to be placed on the turntable.
Purpose: The metal racks can be used to cook two dishes
at the same time. A small dish may be placed
on the turntable and a second dish on the
rack. The metal racks can be used in grill,
convection and combination cooking.
7
4. Crusty plate, to be placed on the turntable.
Purpose: The crusty plate is used to brown bottom of
food by using the microwave or grill combination
cooking modes and to keep pastry and pizza
dough crispy.
14
8
03 OVEN FEATURES
2
15
DO NOT operate the microwave oven without the roller ring and turntable.
1. DISPLAY
9. FERMENTATION BUTTON
2. SLIM FRY BUTTON
10. AUTO REHEAT/AUTO COOK
BUTTON
3. POWER DEFROST BUTTON
4. CONVECTION BUTTON
5. GRILL BUTTON
6. MICROWAVE BUTTON
7. DIAL KNOB
(WEIGHT/SERVING/TIME)
8. STOP/ECO BUTTON
11. FAST PREHEAT BUTTON
12. MICROWAVE+CONVECTION
BUTTON
13. MICROWAVE+GRILL BUTTON
14. CLOCK SETTING BUTTON
15. START/+30s BUTTON
English - 13
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 13
2014-10-13 �� 5:57:16
oven use
CHECKING THAT YOUR OVEN IS OPERATING
CORRECTLY
HOW A MICROWAVE OVEN WORKS
Microwaves are high-frequency electromagnetic waves; the energy released enables
food to be cooked or reheated without changing either the form or the colour.
You can use your microwave oven to:
• Defrost
• Reheat
• Cook
The following simple procedure enables you to check that your oven is working correctly
at all times. If you are in doubt, refer to the section entitled “Troubleshooting” on the
page 37.
Open the oven door by pulling the handle on the upper side of the door.
Place a glass of water on the turntable. Close the door.
Cooking Principle.
1. The microwaves generated by the magnetron reflected at
cavity and are distributed uniformly as the food rotates on
the turntable. The food is thus cooked evenly.
2. The microwaves are absorbed by the food up to a depth of
about 1 inch (2.5 cm). Cooking then continues as the heat is
dissipated within the food.
1. Press the Start/+30s button and set the time to 4 or
5 minutes, by pressing the Start/+30s button the
appropriate number of times.
Result: The oven heats the water for 4 or 5 minutes. The
water should then be boiling.
The oven must be plugged into an appropriate wall socket. The turntable must be
in position in the oven. If a power level other than the maximum (100 % - 900 W) is
used, the water takes longer to boil.
3. Cooking times vary according to the container used and the
properties of the food:
• Quantity and density
• Water content
• Initial temperature (refrigerated or not)
As the centre of the food is cooked by heat dissipation, cooking continues even
when you have taken the food out of the oven. Standing times specified in recipes
and in this booklet must therefore be respected to ensure:
• Even cooking of the food right to the centre
• The same temperature throughout the food
English - 14
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 14
2014-10-13 �� 5:57:17
SETTING THE TIME
COOKING/REHEATING
Your microwave oven has an inbuilt clock. When power is supplied, “:0”, “88:88” or
“12:00” is automatically displayed on the display.
Please set the current time. The time can be displayed in either the 24- hour or 12-hour
notation. You must set the clock:
• When you first install your microwave oven
• After a power failure
The following procedure explains how to cook or reheat food.
ALWAYS check your cooking settings before leaving the oven unattended.
Open the door. Place the food in the centre of the turntable. Close the door.
1. Press the Microwave button.
Result: The following indications are displayed:
(microwave mode)
Do not forget to reset the clock when you switch to and from summer and winter
time.
1. To display the time in the...
24-hour notation.
12-hour notation.
Then press the Clock button once or twice.
2. Select the appropriate power level by pressing the
Microwave button again until the corresponding output
power is displayed. Refer to the power level table next page
for further details.
2. Turn the Dial knob to set the hour.
3. Set the cooking time by turning the Dial knob.
Result: The cooking time is displayed.
3. Press the Clock button.
4. Press the Start/+30s button.
Result: The oven light comes on and the turntable starts
rotating. Cooking starts and when it has finished:
• The oven beep and flash “0” four times.The
oven will then beep one time per minute.
4. Turn the Dial knob to set the minute.
5. When the right time is displayed, press the Clock button to
start the clock.
Result: The time is displayed whenever you are not
using the microwave oven.
04 OVEN USE
Never switch the microwave oven on when it is empty.
If you would like to know the current Power Level of the oven cavity, press
Microwave button once. If you would like to change the power level during
cooking, press the Microwave button twice or more times to select the desired
power level.
Quick Start:
If you wish to heat a dish for a short period of time at maximum power (900 W), you
can also simply press the Start/+30s button once for each 30 seconds of cooking
time. The oven starts immediately.
English - 15
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 15
2014-10-13 �� 5:57:18
POWER LEVELS AND TIME VARIATIONS
STOPPING THE COOKING
The power level function enables you to adapt the amount of energy dissipated and thus
the time required to cook or reheat your food, according to its type and quantity. You can
choose between six power levels.
You can stop cooking at any time so that you can:
• Check the food
• Turn the food over or stir it
• Leave it to stand
Power level
HIGH
Percentage
Output
100 %
900 W
To stop the cooking...
Then...
Temporarily
Temporarily : Open the door or Press the stop button
once.
Result: Cooking stops.
To resume cooking, close the door again and press the
Start/+30s button.
Completely
Completely : Press the stop button twice.
Result: Cooking stops.
If you wish to cancel the cooking settings, press the
Stop/Eco button again.
MEDIUM HIGH
67 %
600 W
MEDIUM
50 %
450 W
MEDIUM LOW
33 %
300 W
DEFROST
20 %
180 W
LOW
11 %
100 W
The cooking times given in recipes and in this booklet correspond to the specific power
level indicated.
If you select a...
Then the cooking time must be...
SETTING THE ENERGY SAVE MODE
Higher power level
Lower power level
Decreased
Increased
The oven has an energy save mode. This facility saves electricity when the oven is not in
use. Normal condition is standby mode and show clock when not using.
• Press the Energy Save button.
Result : Display off.
• To remove energy save mode, open the door or press the
Energy Save button and then display shows current time.
The oven is ready for use.
ADJUSTING THE COOKING TIME
You can increase the cooking time by pressing the Start/+30s button once for each
30 seconds to be added.
• Check how cooking is progressing at any time simply by opening the door
• Increase the remaining cooking time
1. To increase the cooking time of your food, press the
Start/+30s button once for each 30 seconds that you wish
to add.
• Example: To add three minutes, press the Start/+30s
button six times.
Auto energy saving function
If you do not select any function when appliance is in the middle of setting or
operating with temporary stop condition, function is canceled and clock will be
displayed after 25 minutes.
Oven Lamp will be turned off after 5 minutes with door open condition.
2. You can also increase/decrease the cooking time by turning
the dial knob.
• To increase cooking time turn the dial knob to right
• To decrease cooking time turn the dial knob to left
English - 16
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 16
2014-10-13 �� 5:57:18
USING THE AUTO POWER DEFROST FEATURES
The Power Defrost feature enables you to defrost meat, poultry, fish, bread, cake and
fruit. The defrost time and power level are set automatically. You simply select the
programme and the weight.
Use only containers that are microwave-safe.
The following table presents the various Power Defrost programmes, quantities and
appropriate Instructions. Remove all kind of package material before defrosting.
Place meat, poultry and fish on a flat glass plate or on a ceramic plate, arrange bread and
cake on kitchen paper.
Serving Size
Instructions
1
Meat
200-1500 g
2
Poultry
200-1500 g
2. Select the type of food that you are cooking by pressing the
3
Fish
200-1500 g
3. Select the weight of food by turning the Dial knob.
4
Bread/Cake
125-1000 g
5
Fruit
100-600 g
Shield the edges with aluminium foil. Turn the meat
over, when the oven beeps. This programme is
suitable for beef, lamb, pork, steaks, chops, minced
meat. Stand for 20-90 minutes.
Shield the leg and wing tips with aluminium foil.
Turn the poultry over, when the oven beeps. This
programme is suitable for whole chicken as well as
for chicken portions. Stand for 20-90 minutes.
Shield the tail of a whole fish with aluminium foil.
Turn the fish over, when the oven beeps. This
programme is suitable for whole fishes as well as for
fish fillets. Stand for 20-80 minutes.
Put bread horizontally on a piece of kitchen paper
and turn over, as soon as the oven beeps. Place
cake on a ceramic plate and if possible, turn over,
as soon as the oven beeps. (Oven keeps operating
and is stopped, when you open the door.) This
programme is suitable for all kinds of bread, sliced
or whole, as well as for bread rolls and baguettes.
Arrange bread rolls in a circle. This programme is
suitable for all kinds of yeast cake, biscuit, cheese
cake and puff pastry. It is not suitable for short/crust
pastry, fruit and cream cakes as well as for cake
with chocolate topping.
Stand for 10-60 minutes.
Spread fruits evenly into a flat glass dish. This
programme is suitable for all kind of fruits. Stand for
5-20 minutes.
1. Press the Power Defrost button.
Power Defrost button. Refer to the table on the following
page for a description of the various preprogrammed
settings.
4. Press Start/+30s button.
Result:
• Defrosting begins.
• The oven beeps through defrosting to
remind you to turn the food over.
5. Press the Stop/Eco button to finish defrosting.
Result:
When cooking has finished, the oven will beep
and flash “0” four times. The oven will then beep
one time per minute.
You can also defrost food manually. To do so, select the microwave function with
power level of 180 W. Refer to the section entitled “Defrosting” on page 32-33 for
further details.
04 OVEN USE
Code/Food
Open the door. Place the frozen food on a ceramic in the centre of the
turntable. Close the door.
English - 17
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 17
2014-10-13 �� 5:57:19
USING THE AUTO REHEAT/AUTO COOK FEATURES
The 20 Auto Reheat/Auto Cook features include/provide pre-programmed cooking
times. You do not need to set either the cooking times or the power level.
You can adjust the size of the serving by turning the dial knob.
Use only recipients that are microwave-safe.
Auto Reheat
The following table presents 8 Auto Reheat Programmes, quantities and appropriate
Instructions. Programmes no 1-3 are running with microwave energy only.
Programmes no 4-8 are running with a combination of microwaves, grill and convection.
Use only recipients that are microwave-safe.
Open the door. Place the food in the centre of the turntable. Close the door.
Code/Food
1. Press the Auto Reheat/Auto Cook button.
2. Select the type of food that you are cooking by pressing
the Auto Reheat/Auto Cook button. Refer to the table
on the following page for a description of the various
preprogrammed settings.
3. Select the type of food by turning the dial knob.
4. Select the serving size of the food by Pressing the Auto
Reheat/Auto Cook.
Serving Size
Instructions
1-1
ReadyMeal
(Chilled)
300-350 g
400-450 g
1-2
Soup
(Chilled)
200-250 g
300-350 g
400-450 g
1-3
Mini Ravioli
(Chilled)
200-250 g
300-350 g
Put on a ceramic plate and cover with microwave
cling film. This programme is suitable for meals
consisting of 3 components (e.g. meat with sauce,
vegetables and a side dish like potatoes, rice or
pasta). Stand for 2-3 minutes.
Pour into a deep ceramic soup plate or bowl and
cover with plastic lid during heating. Stir carefully
before and after standing time.
Stand for 2-3 minutes.
Put chilled ready mini ravioli in a microwave proof
plastic dish in the centre of turntable. Pierce film of
ready product or cover plastic dish with microwave
cling film. Stir carefully before and after standing
time. This programme is suitable for ravioli, as well
as for noodles in sauce. Stand for 3 minutes.
Put frozen pizza on the low rack.
5. Press the Start/+30s button.
Result:
The food is cooked according to the
preprogrammed setting selected.
• When cooking has finished, the oven will
beep and flash “0” four times. The oven will
then beep one time per minute.
1-4
Frozen
Pizza
1-5
Frozen
Pizza
Snacks
1-6
Frozen
Lasagne
300-350 g
400-450 g
100-150 g
250-300 g
Put frozen pizza snacks on the low rack.
400-450 g
800-850 g
Put frozen lasagne into a suitable sized ovenproof
dish. Put dish on low rack.
Stand for 3-4 minutes.
English - 18
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 18
2014-10-13 �� 5:57:19
Code/Food
Instructions
Serving Size
Instructions
200-250 g
300-350 g
400-450 g
2-3
Sliced
Carrots/
Fresh
Vegetables
100-150 g
200-250 g
300-350 g
1-8
Frozen
Bread Rolls
100-150 g
(2 pcs)
200-250 g
(4 pcs)
300-350 g
(6 pcs)
Put the frozen ready chicken wings or small
drumsticks (pre-cooked and spiced) on the high
metal rack with the skin-side down. Put them in a
circle and leave the centre clear. Turnover, as soon
as the oven beeps.
Stand for 2 minutes.
We recommend to preheat the oven to 180 °C for
5 minutes using the convection function. Put 2 to
6 frozen bread rolls (-18 °C) in a circle on the low
rack. This program is suitable for small frozen bakery
products as bread rolls, ciabatta rolls and small
baguettes.
Stand for 3-5 minutes.
Code/Food
2-4
Peeled
Potatoes
300-350 g
400-450 g
500-550 g
600-650 g
2-5
Jacket
Potatoes
200 g
400 g
600 g
Weigh the vegetables after washing, cleaning and
cutting into similar size. Put them into a glass bowl
with lid. Add 30 ml (2 tablespoons) water when
cooking for 100-250 g, add 45 ml (3 tablespoons)
for 300-350 g. This programme is suitable for
cauliflower. Stand for 1-2 minutes.
Wash and peel potatoes, cut into halves and put
into a glass bowl with lid. Add 15-30 ml of water
(1-2 tablespoons). Stir after cooking. When cooking
higher quantities stir once during cooking.
Stand for 3 minutes.
Use oven potatoes with a size of 200 g each. Pierce
skin and set on turntable.
Stand for 5 minutes.
The following table presents 12 Auto Cook Programmes, quantities and appropriate
Instructions. Programmes no 1-5 are running with microwave energy only. Programmes
no 6-8 are running with a combination of microwaves and grill. Programmes no 9-10
are running with a combination of microwaves and convection. Programme 11-12 are
running with convection mode. Use oven gloves when taking out food.
2-6
Roast Fish
200-300 g
400-500 g
2-7
Fish Fillet
200-300 g
400-500 g
2-8
Chicken
Pieces
300-400 g
(1 pc)
500-600 g
(2 pcs)
700-800 g
(3 pcs)
1000-1100 g
1100-1200 g
Auto Cook
Code/Food
Serving Size
Instructions
2-1
White Rice
150-200 g
200-250 g
2-2
Broccoli
Florets/
Fresh
Vegetables
200-250 g
300-350 g
400-450 g
500-550 g
Weigh parboiled white rice and add double quantity
of cold water. For example: when cooking 0.25 kg
rice, add ½ liter cold water. Use glass pyrex bowl
with lid. Put bowl in the centre of turntable. Cook
covered. Stand for 5-10 minutes.
Weigh the vegetables after washing, cleaning and
cutting into similar size. Put them into a glass bowl
with lid. Add 30 ml (2 tablespoons) water when
cooking for 200-250 g, add 45 ml (3 tablespoons)
for 300-450 g and add 60-75 ml (4-5 tablespoons)
for 500-550 g. Stir after cooking. When cooking
higher quantities stir once during cooking. Stand for
1-2 minutes.
2-9
Roast
Chicken
04 OVEN USE
Serving Size
1-7
Frozen
Chicken
Wings
Brush skin of whole fish with oil and add herbs and
spices. Put fish side by side, head to tail on the high
rack. Turnover, as soon as the beep sounds.
Stand for 3 minutes.
Put fish filets, such as salmon evenly on the high
rack. Turnover, as soon as the beep sounds.
Stand for 2 minutes.
Brush the chicken pieces with oil and spice them
with pepper, salt and paprika. Put them in a circle
on the high rack with the skin-side down. Turnover,
as soon as the beep sounds. Stand for 2 minutes.
Brush chilled chicken with oil and spices. Put
breast-side-down, in the middle of the low rack.
Turnover, as soon as the oven beeps. Push start
button to continue process. Stand for 5 minutes.
(continued)
English - 19
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 19
2014-10-13 �� 5:57:19
USING THE SLIM FRY COOK FEATURE
Code/Food
Serving Size
Instructions
2-10
Roast Beef/
Roast
Lamb
2-11
Sponge
Cake
1000-1100 g
1200-1300 g
And then put dough into a round black metal baking
tin, using baking paper on the bottom(diameter 26
cm). After beep sounds insert tin on the low rack.
Stand for 10-15 minutes.
2-12
Muffins
450-550 g
250-300 g
The ten slim fry cook features include/provide pre-programmed cooking times. You do
not need to set either the cooking times or the power level.
You can adjust the slim fry cook category by press the slim fry button.
First, place the food in the center of the turntable and close the door.
ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes
are ideal as they allow the microwaves to penetrate the food evenly. ALWAYS use
oven gloves when touching the recipients in the oven, as they will be very hot.
First, start programme. It will be indicate on the
display as “HEAT”, oven is preheating. And then put
dough into a round black metal baking tin, using
baking paper on the bottom(diameter 26 cm). After
beep sounds insert tin on the low rack. Stand for
10 minutes.
First, start programme. It will be indicate on the
display as “HEAT”, oven is preheating. And then
pour dough into 6-8 paper or silicone cups for
muffins and set on the low rack. After beep sounds
insert rack.
1. Select the type of food that you are cooking by pressing the
Slim Fry Cook button one or more times.
(Refer to the table on the side.)
2. Select the weight of food by turning the Dial knob.
3. Press the Start/+30s button.
The following table presents the 10 Slim Fry auto programmes for frying. It contains its
quantities and appropriate Instructions. You will use less oil compared to frying with oil
fryer, while you will get tasty results. Programmes are running with a combination of
convection, top heater and microwave energy.
Code/Food
Serving
Size
1
Frozen Oven
Chips
300-350
450-500
2
Frozen Prawns
(Breaded)
200-250
300-350
Instructions
Distribute frozen oven chips evenly on the crusty
plate. Set plate on low rack. Turnover after beep
sounds. Press start to continue. (The oven keeps
operating if you do not turn over).
Distribute frozen (breaded) prawns evenly on the
crusty plate. Set plate on low rack.
English - 20
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 20
2014-10-13 �� 5:57:20
Code/Food
Serving
Size
Instructions
200-250
350-400
Distribute frozen chicken nuggets evenly on the
crusty plate. Set plate on low rack. Turnover after
beep sounds. Press start to continue.
(The oven keeps operating if you do not turn over).
200-250
300-350
Distribute frozen potato croquettes evenly on the
crusty plate. Set plate on low rack.
5
Frozen Mini
Spring Rolls
200-250
350-400
Distribute frozen mini spring rolls evenly on the crusty
plate. Set plate on low rack.
6
Homemade
French Fries
300-350
450-500
Recommandations Preheat the oven up to 200 °C
using the fast preheat function. Use hard to medium
type of potatoes and wash them. Peel potatoes and
cut into sticks with a thickness of 10x10 mm. Soak
in cold water (for 30 min.). Dry them with a towel,
weigh them and brush with 5 g olive oil. Distribute
homemade fries evenly on the crusty plate. Set plate
on low rack. Turnover after beep sounds. Press start
to continue. (The oven keeps operating if you do not
turn over). Stand for 1-2 minutes.
Wash normal sized potatoes and cut them into
wedges. Brush with olive oil and spices. Put them
with the cut side on the crusty plate. Set plate on
high rack. Stand for 1-2 minutes.
Weigh drumsticks and brush with oil and spices.
Place them evenly on high rack. Turnover after
beep sounds, oven will stop process. Press start to
continue. Stand for 1-2 minutes.
Rinse and slice courgettes. Brush with 5 g olive
oil and add spices. Put slices evenly on the crusty
plate and set plate on high rack. Turnover after beep
sounds. Press start to continue. (The oven keeps
operating if you do not turn over).
7
Potato
Wedges
200-250
300-350
400-450
8
Drumsticks
200-250
300-350
400-450
9
Sliced
Courgette
100-150
200-250
Serving
Size
10
Apple Halves
300-350
400-450
Instructions
Rinse and core apples (each 150 g). Cut them into
halves horizontally. Put halves with the cut side down
on the crusty plate, add filling e.g. raisins or grated
almonds. Put plate on low rack. After cooking serve
with vanilla ice cream.
USING THE AUTO FERMENTATION FEATURE
The five auto fermentation cook features include/provide pre-programmed
cooking times. You do not need to set either the cooking times or the
power level. You can adjust the auto fermentation category by press the
auto fermentation button.
First, place the food in the center of the turntable and close the door.
04 OVEN USE
3
Frozen
Chicken
Nuggets
4
Frozen Potato
Croquettes
Code/Food
1. Select the type of food that you are cooking by pressing the
Auto fermentation button once or twice.
(Refer to the table on the next page.)
2. Select the code of food by turning the Dial knob.
3. Press the Start/+30s button.
English - 21
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 21
2014-10-13 �� 5:57:20
MULTISTAGE COOKING
The following table presents how to use the auto programme for rising yeast
dough or preparing yogurt.
1. Dough Proof
Code/Food
Serving Size
Instructions
1-1
Pizza Dough
300-500 g
Put dough in suitable sized bowl and set on the low
rack. Cover with cling film.
1-2
Cake Dough
500-800 g
Put dough in suitable sized bowl and set on the low
rack. Cover with cling film.
1-3
Bread Dough
600-900 g
Put dough in suitable sized bowl and set on the low
rack. Cover with cling film.
Your microwave oven can be programmed to cook food in up to three stages (the
Convection, Microwave+Convection and Fast Preheat mode can not be used in
Multistage cooking). Example: You wish to defrost food and cook it without having to
reset the oven after each stage. You can thus defrost and cook a 1.5 kg chicken in three
stages:
• Defrosting
• Microwave cooking for 30 minutes
• Grill for 15 minutesI
2-1
Small Dishes
2-2
Large Bowl
Serving
Size
500 g
500 g
1. Press the Power Defrost button.
2. Select the type of food that you are cooking by pressing the
Power Defrost button.
2. Homemade Yogurt
Code/Food
Defrosting must be the first stage. Combination and Grill can only be used once
during the remaining two stages. However microwave can be used twice (at two
different power levels).
Instructions
Distribute 150 g yogurt into 5 ceramic cups or small
glass jars evenly (30 g each). Add 100 ml milk into
each cup. Use long-life milk (room-temperature;
3.5 % fat). Cover each with cling film and set in a
circle on turntable.
After finish, keep 6 hours in a refrigerator.
For the first time we recommend to use dried yoghurt
bacteria ferment.
Mix 150 g natural yogurt with 500 ml long-life milk
(room-temperature; 3.5 % fat). Pour evenly into large
glass bowl. Cover with cling film and set on turntable.
After finish, keep 6 hours in a refrigerator.
For the first time we recommend to use dried yoghurt
bacteria ferment.
3. Set the weight by turning the Dial knob the appropriate
number of times.
(1500 g in the example)
4. Press the Microwave button.
5. Set the microwave power level by pressing the Microwave
button to select the appropriate Power Level (450 W in the
example).
6. Set the cooking time by turning the Dial knob.
(30 minutes in the example).
7. Press the Grill button.
English - 22
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 22
2014-10-13 �� 5:57:21
8. Set the cooking time by turning the Dial knob.
(15 minutes in the example).
• Upon arrival at the preset temperature, the
oven beeps 6 times and the temperature is
kept for 10 minutes.
• After 10 minutes, the beeps 4 times and the
operation stops.
FAST PREHEATING THE OVEN
For convection cooking, it is recommended that you preheat the oven to the appropriate
temperature before placing the food in the oven. When the oven reaches the requested
temperature, it is maintained for approximately 10 minutes; it is then switched off
automatically.
Check that the heating element is in the correct position for type of cooking that you
require.
1. Press the Fast Preheat button.
Result: The following indications are displayed:
200 °C (temperature)
2. Press the Fast Preheat button one or more times to set the
temperature.
(Temperature : 200, 180, 160, 140, 100, 40 °C)
In case the inner temperature has reached the preset temperature, the beeps
6 times when temperature and the preset temperature is kept for 10 minutes.
If you would like to know the current temperature of oven cavity, press Fast
Preheat button.
COOKING BY CONVECTION
The convection mode enables you to cook food in the same way as in a traditional
oven. The microwave mode is not used. You can set the temperature, as required, in a
range varying from 40 °C to 200 °C in Six preset levels. The maximum cooking time is
60 minutes.
If you wish to Fast Preheating the oven, see page 23.
• Always use oven gloves when touching the recipients in the oven, as they will be
very hot.
• You can get better cooking and browning, if you use the low rack.
Check that the heating element is in the horizontal position and that the turntable is in
position. Open the door and place the recipient on the low rack and set on turntable.
3. Press the Start/+30s button.
Result: The oven is preheated to the requested
temperature.
• The display times are 8 seconds for the
selected cooking mode and 2 seconds for
the preset temperature in sequence.
Ex) In fast preheat mode at 200 °C
(displayed for
8 seconds)
04 OVEN USE
9. Press Start/+30s button.
Result: Cooking starts:
• When cooking has finished, the oven will
beep and flash “0” four times. The oven will
then beep one time per minute.
1. Press the Convection button.
Result: The following indications are displayed:
(convection mode)
200 °C (temperature)
2. Press the Convection button once or more times to set the
temperature.
(Temperature : 200, 180, 160, 140, 100, 40 °C)
3. Set the cooking time by turning the Dial knob.
(continued)
(displayed for
2 seconds)
English - 23
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 23
2014-10-13 �� 5:57:23
CHOOSING THE ACCESSORIES
4. Press the Start/+30s button.
Result: Cooking starts:
• The display times are 8 seconds for the
preset cooking time and 2 seconds for the
preset temperature in sequence.
Ex) 30 minutes of cooking time at 200 °C.
(displayed for
8 seconds)
Traditional convection cooking does require cookware. You
should, however, use only cookware that you would use in your
normal oven.
Microwave-safe containers are not usually suitable for
convection cooking; don’t use plastic containers, dishes, paper
cups, towels, etc.
If you wish to select a combined cooking mode (microwave and
grill or convection), use only recipients that are microwave-safe
and oven-proof.
For further details on suitable cookware and utensils, refer to the Cookware Guide
on page 27.
(displayed for
2 seconds)
• When cooking has finished, the oven will
beep and flash “0” four times. The oven will
then beep one time per minute.
If you would like to know the current temperature of oven cavity, press Fast
Preheat button.
Be careful, Grill heater may work intermittently while the convection mode is
operating. Choosing the accessories.
GRILLING
The grill enables you to heat and brown food quickly, without using microwaves.
• Always use oven gloves when touching the recipients in the oven, as they will be
very hot.
• You can get better cooking and grilling results, if you use the high rack.
1. Open the door and place the food on the rack.
2. Press the Grill button.
Result: The following indications are displayed:
(grill mode)
• You cannot set the temperature of the grill.
3. Set the grilling time by turning the Dial knob.
• The maximum grilling time is 60 minutes.
4. Press the Start/+30s button.
Result: Grilling starts.
• When cooking has finished, the oven will
beep and flash “0” four times. The oven will
then beep one time per minute.
English - 24
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 24
2014-10-13 �� 5:57:26
COMBINING MICROWAVES AND CONVECTION
You can also combine microwave cooking with the grill, to cook quickly and brown at the
same time.
Combination cooking uses both microwave energy and convection heating. No
preheating is required as the microwave energy is immediately available.
Many foods can be cooked in combination mode, particularly:
• Roast meats and poultry
• Pies and cakes
• Egg and cheese dishes
ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes
are ideal as they allow the microwaves to penetrate the food evenly. ALWAYS use
oven gloves when touching the recipients in the oven, as they will be very hot.
Open the door. Place the food on the rack best suited to the type of food to be cooked.
Place the rack on the turntable. Close the door.
1. Press the Microwave + Grill button.
Result: The following indications are displayed:
(microwave & grill combi mode)
600 W(output power)
2. Select the appropriate power level by pressing the
Microwave + Grill button until the corresponding output
power is displayed (300-600 W).
• You cannot set the temperature of the grill.
ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes
are ideal as they allow the microwaves to penetrate the food evenly. ALWAYS use
oven gloves when touching the recipients in the oven, as they will be very hot.
You can get better cooking and browning, if you use the low rack.
04 OVEN USE
COMBINING MICROWAVES AND THE GRILL
Open the door. Place the food on the turntable or on the low rack which should then be
place on the turntable. Close the door.
3. Set the cooking time by turning the Dial knob.
• The maximum cooking time is 60 minutes.
4. Press the Start/+30s button.
Result:
• Combination cooking starts.
• When cooking has finished, the oven will
beep and flash “0” four times. The oven will
then beep one time per minute.
1. Press the Microwave+Convection button.
Result: The following indications are displayed:
(microwave & convection combi mode)
200 °C(temperature : switches to the following
temperature mode in 2 seconds)
2. Select the temperature by pressing the
Microwave+Convection button.
(Temperature : 200, 180, 160, 140, 100, 40 °C)
3. Set the cooking time by turning the Dial knob.
• The maximum cooking time is 60 minutes.
4. Set the appropriate power level by pressing the
Microwave+Convection button until the corresponding
output power is displayed (600, 450, 300, 180, 100 W).
(continued)
English - 25
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 25
2014-10-13 �� 5:57:27
SWITCHING THE BEEPER OFF
5. Press the Start/+30s button.
Result:
• Combination cooking starts.
• The oven is heated to the required
temperature and then microwave cooking
continues until the cooking time is over.
• The display times are 8 seconds for the
preset cooking time and 2 seconds for the
preset temperature in sequence.
Ex) 30 minutes of cooking time at 200 °C
(displayed for
8 seconds)
You can switch the beeper off whenever you want.
1. Press the Fast Preheat button and Microwave+Grill
buttons at the same time for 1 second.
Result:
• The following indication is displayed.
• The oven does not beep each time you
press a button.
2. To switch the beeper back on, press the Fast Preheat
button and Microwave+Grill buttons again at the same
time for 1 second.
Result:
• The following indication is displayed.
(displayed for
2 seconds)
• When cooking has finished, the oven will
beep and flash “0” four times. The oven will
then beep one time per minute.
If you would like to know the current temperature of oven cavity, press Fast
Preheat button.
• The oven operates with the beeper on again.
SAFETY-LOCKING YOUR MICROWAVE OVEN
Your microwave oven is fitted with a special Child Safety programme, which enables
the oven to be “locked” so that children or anyone unfamiliar with it cannot operate it
accidentally.
1. Press the Grill button and Microwave+Convection
buttons at the same time for 3 seconds.
Result:
• The oven is locked (no functions can be
selected).
• The display shows “L”.
2. To unlock the oven, press the Grill button and
Microwave+Convection buttons again at the same time
for 3 seconds.
Result: The oven can be used normally.
English - 26
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 26
2014-10-13 �� 5:57:29
cookware guide
Cookware
Aluminum foil
Microwavesafe
✓✗
Crust plate
China and
earthenware
✓
✓
Disposable
polyester
cardboard dishes
Fast-food
packaging
✓
• Polystyrene cups
containers
• Paper bags or
newspaper
• Recycled paper or
metal trims
✓
Cookware
Microwavesafe
Glassware
• Oven-to-tableware
✓
• Fine glassware
✓
• Glass jars
✓
Can be used, unless decorated with a metal
trim.
Can be used to warm foods or liquids.
Delicate glass may break or crack if heated
suddenly.
Must remove the lid. Suitable for warming
only.
Comments
Can be used in small quantities to protect
areas against overcooking. Arcing can occur
if the foil is too close to the oven wall or if
too much foil is used.
Do not preheat for more than 8 minutes.
Porcelain, pottery, glazed earthenware
and bone china are usually suitable, unless
decorated with a metal trim.
Some frozen foods are packaged in these
dishes.
Comments
Metal
• Dishes
• Freezer bag twist
ties
✗
✗
May cause arcing or fire.
✓
For short cooking times and warming. Also
to absorb excess moisture.
✗
May cause arcing.
• Containers
✓
• Cling film
✓
Particularly if heat-resistant thermoplastic.
Some other plastics may warp or discolour
at high temperatures. Do not use Melamine
plastic.
Can be used to retain moisture. Should not
touch the food. Take care when removing
the film as hot steam will escape.
Only if boilable or oven-proof. Should not be
airtight. Prick with a fork, if necessary.
Can be used to retain moisture and prevent
spattering.
05 COOKWARE GUIDE
To cook food in the microwave oven, the microwaves must be able to penetrate the food,
without being reflected or absorbed by the dish used.
Care must therefore be taken when choosing the cookware. If the cookware is marked
microwave-safe, you do not need to worry.
The following table lists various types of cookware and indicates whether and how they
should be used in a microwave oven.
Paper
• Plates, cups,
napkins and
kitchen paper
• Recycled paper
Plastic
✗
Can be used to warm food. Overheating
may cause the polystyrene to melt.
May catch fire.
✗
May cause arcing.
• Freezer bags
✓✗
Wax or greaseproof paper
✓
✓ : Recommended
✓✗
: Use Caution
✗ : Unsafe
English - 27
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 27
2014-10-13 �� 5:57:29
cooking guide
MICROWAVES
Cooking Guide for frozen vegetables
Microwave energy actually penetrates food, attracted and absorbed by its water, fat and
sugar content.
The microwaves cause the molecules in the food to move rapidly. The rapid movement of
these molecules creates friction and the resulting heat cooks the food.
Use a suitable glass pyrex bowl with lid. Cook covered for the minimum time – see table.
Continue cooking to get the result you prefer.
Stir twice during cooking and once after cooking. Add salt, herbs or butter after cooking.
Cover during standing time.
Food
COOKING
Cookware for microwave cooking:
Cookware must allow microwave energy to pass through it for maximum efficiency.
Microwaves are reflected by metal, such as stainless steel, aluminium and copper, but
they can penetrate through ceramic, glass, porcelain and plastic as well as paper and
wood. So food must never be cooked in metal containers.
Food suitable for microwave cooking:
Many kinds of food are suitable for microwave cooking, including fresh or frozen
vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups,
steamed puddings, preserves, and chutneys can also be cooked in a microwave oven.
Generally speaking, microwave cooking is ideal for any food that would normally be
prepared on a hob. Melting butter or chocolate, for example (see the chapter with tips,
techniques and hints).
Covering during cooking
To cover the food during cooking is very important, as the evaporated water rises as
steam and contributes to cooking process. Food can be covered in different ways: e.g.
with a ceramic plate, plastic cover or microwave suitable cling film.
Standing times
After cooking is over food the standing time is important to allow the temperature to even
out within the food.
Spinach
Broccoli
Peas
Green Beans
Mixed
Vegetables
(Carrots/Peas/
Corn)
Mixed
Vegetables
(Chinese Style)
Serving Size
Power
Time (min.)
150 g
600 W
5-6
Instructions
Add 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes.
300 g
600 W
8-9
Instructions
Add 30 ml (2 tbsp.) cold water. Stand for 2-3 minutes.
300 g
600 W
7-8
Instructions
Add 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes.
300 g
600 W
7½-8½
Instructions
Add 30 ml (2 tbsp.) cold water. Stand for 2-3 minutes.
300 g
600 W
7-8
Instructions
Add 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes.
300 g
600 W
7½-8½
Instructions
Add 15 ml (1 tbsp.) cold water. Stand for 2-3 minutes.
English - 28
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 28
2014-10-13 �� 5:57:29
Cooking Guide for fresh vegetables
Food
Broccoli
Brussels Sprouts
Carrots
Cauliflower
Courgettes
Egg Plants
Serving Size
Power
Food
Leeks
Mushrooms
Time (min.)
250 g
900 W
4½-5
500 g
7-8
Instructions
Prepare even sized florets. Arrange the stems to the centre.
Stand for 3 minutes.
250 g
900 W
6-6½
Onions
Instructions
Add 60-75 ml (5-6 tbsp.) water. Stand for 3 minutes.
250 g
900 W
4½-5
Instructions
Cut carrots into even sized slices. Stand for 3 minutes.
250 g
900 W
5-5½
500 g
7½-8½
Instructions
Prepare even sized florets. Cut big florets into halves. Arrange
stems to the centre. Stand for 3 minutes.
250 g
900 W
4-4½
Instructions
Cut courgettes into slices. Add 30 ml (2 tbsp.) water or a knob
of butter. Cook until just tender. Stand for 3 minutes.
250 g
900 W
3½-4
Instructions
Cut egg plants into small slices and sprinkle with 1 tablespoon
lemon juice. Stand for 3 minutes.
Pepper
Potatoes
Turnip Cabbage
Serving Size
Power
Time (min.)
250 g
900 W
4-4½
Instructions
Cut leeks into thick slices. Stand for 3 minutes.
125 g
900 W
1½-2
250 g
2½-3
Instructions
Prepare small whole or sliced mushrooms. Do not add any
water. Sprinkle with lemon juice. Spice with salt and pepper.
Drain before serving. Stand for 3 minutes.
250 g
900 W
5-5½
Instructions
Cut onions into slices or halves. Add only 15 ml (1 tbsp.) water.
Stand for 3 minutes.
250 g
900 W
4½-5
Instructions
Cut pepper into small slices. Stand for 3 minutes.
250 g
900 W
4-5
500 g
7-8
Instructions
Weigh the peeled potatoes and cut them into similar sized
halves or quarters. Stand for 3 minutes.
250 g
900 W
5½-6
Instructions
Cut turnip cabbage into small cubes. Stand for 3 minutes.
06 COOKING GUIDE
Use a suitable glass pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp.) for every
250 g unless another water quantity is recommended – see table. Cook covered for the
minimum time – see table. Continue cooking to get the result you prefer. Stir once during
and once after cooking. Add salt, herbs or butter after cooking.Cover during a standing
time of 3 minutes.
Hint:
Cut the fresh vegetables into even sized pieces. The smaller they are cut,
the quicker they will cook.
English - 29
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 29
2014-10-13 �� 5:57:29
REHEATING
Cooking Guide for rice and pasta
Rice:
Pasta:
Use a large glass pyrex bowl with lid - rice doubles in volume during
cooking. Cook covered.
After the cooking time is over, stir before standing time and salt or add
herbs and butter.
Remark: the rice may not have absorbed all water after the cooking time
is finished.
Use a large glass pyrex bowl. Add boiling water, a pinch of salt and stir
well. Cook uncovered.
Stir occasionally during and after cooking. Cover during standing time
and drain thoroughly afterwards.
Food
White Rice
(Parboiled)
Brown Rice
(Parboiled)
Mixed Rice
(Rice + Wild Rice)
Mixed Corn
(Rice + Grain)
Pasta
Serving Size
Power
250 g
900 W
Instructions
Add 500 ml cold water. Stand for 5 minutes.
375 g
900 W
Instructions
Add 750 ml cold water. Stand for 5 minutes.
250 g
900 W
Instructions
Add 500 ml cold water. Stand for 5 minutes.
375 g
900 W
Instructions
Add 750 ml cold water. Stand for 5 minutes.
250 g
900 W
Instructions
Add 500 ml cold water. Stand for 5 minutes.
250 g
900 W
Instructions
Add 400 ml cold water. Stand for 5 minutes.
250 g
900 W
Instructions
Add 1000 ml hot water. Stand for 5 minutes.
Time (min.)
15-16
17½-18½
20-21
22-23
16-17
17-18
10-11
Your microwave oven will reheat food in a fraction of the time that conventional ovens
hobs normally take.
Use the power levels and reheating times in the following chart as a guide. The times in
the chart consider liquids with a room temperature of about +18 to +20 °C or a chilled
food with a temperature of about +5 to +7 °C.
Arranging and covering
Avoid reheating large items such as joint of meat - they tend to overcook and dry out
before the centre is piping hot. Reheating small pieces will be more successful.
Power levels and stirring
Some foods can be reheated using 900 W power while others should be reheated using
600 W, 450 W or even 300 W.
Check the tables for guidance.
In general, it is better to reheat food using a lower power level, if the food is delicate, in
large quantities, or if it is likely to heat up very quickly (mince pies, for example).
Stir well or turn food over during reheating for best results. When possible, stir again
before serving.
Take particular care when heating liquids and baby foods. To prevent eruptive boiling
of liquids and possible scalding, stir before, during and after heating. Keep them in the
microwave oven during standing time. We recommend putting a plastic spoon or glass
stick into the liquids. Avoid overheating (and therefore spoiling) the food. It is preferable to
underestimate cooking time and add extra heating time, if necessary.
Heating and standing times
When reheating food for the first time, it is helpful to make a note of the time taken - for
future reference.
Always make sure that the reheated food is piping hot throughout.
Allow food to stand for a short time after reheating - to let the temperature even out.
The recommended standing time after reheating is 2-4 minutes, unless another time is
recommended in the chart.
Take particular care when heating liquids and baby food. See also the chapter with the
safety precautions.
REHEATING LIQUIDS
Always allow a standing time of at least 20 seconds after the oven has been switched off
to allow the temperature to even out. Stir during heating, if necessary, and ALWAYS stir
after heating. To prevent eruptive boiling and possible scalding, you should put a spoon
or glass stick into the beverages and stir before, during and after heating.
English - 30
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 30
2014-10-13 �� 5:57:30
REHEATING BABY FOOD
BABY FOOD:
Empty into a deep ceramic plate. Cover with plastic lid. Stir well after reheating! Let stand
for 2-3 minutes before serving. Stir again and check the temperature. Recommended
serving temperature: between 30-40 °C.
Stew (Chilled)
Pasta with
Sauce (Chilled)
REMARK:
Baby food particularly needs to be checked carefully before serving to prevent burns.
Use the power levels and times in the next table as a guide lines for reheating.
Reheating Liquids and Food
Filled Pasta with
Sauce (Chilled)
Use the power levels and times in this table as a guide lines for reheating.
Food
Drinks (Coffee,
Tea and Water)
Soup (Chilled)
Serving Size
Power
Time (min.)
150 ml (1 cup)
900 W
1-1½
300 ml (2 cups)
2-2½
450 ml (3 cups)
3-3½
600 ml (4 cups)
3½-4
Instructions
Pour into cups and reheat uncovered: 1 cup in the centre,
2 cups opposite of each other, 3 cups in a circle. Keep in
microwave oven during standing time and stir well.
Stand for 1-2 minutes.
250 g
900 W
2½-3
350 g
3-3½
450 g
3½-4
550 g
4½-5
Instructions
Pour into a deep ceramic plate or deep ceramic bowl. Cover
with plastic lid. Stir well after reheating. Stir again before serving.
Stand for 2-3 minutes.
Plated Meal
(Chilled)
Cheese Fondue
Ready-to-Serve
(Chilled)
Serving Size
Power
Time (min.)
350 g
600 W
4½-5½
Instructions
Put stew in a deep ceramic plate. Cover with plastic lid. Stir
occasionally during reheating and again before standing and
serving. Stand for 2-3 minutes.
350 g
600 W
3½-4½
Instructions
Put pasta (e.g. spaghetti or egg noodles) on a flat ceramic plate.
Cover with microwave cling film. Stir before serving. Stand for
3 minutes.
350 g
600 W
4-5
Instructions
Put filled pasta (e.g. ravioli, tortellini) in a deep ceramic plate.
Cover with plastic lid. Stir occasionally during reheating and
again before standing and serving. Stand for 3 minutes.
350 g
600 W
4½-5½
450 g
5½-6½
550 g
6½-7½
Instructions
Plate a meal of 2-3 chilled components on a ceramic dish.
Cover with microwave cling-film. Stand for 3 minutes.
400 g
600 W
6-7
Instructions
Put the ready-to-serve cheese fondue in a suitable sized glass
pyrex bowl with lid. Stir occasionally during and after reheating.
Stir well before serving. Stand for 1-2 minutes.
06 COOKING GUIDE
BABY MILK:
Pour milk into a sterilized glass bottle. Reheat uncovered. Never heat a baby’s bottle with
teat on, as the bottle may explode if overheated. Shake well before standing time and
again before serving ! Always carefully check the temperature of baby milk or food before
giving it to the baby. Recommended serving temperature: ca. 37 °C.
Food
English - 31
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 31
2014-10-13 �� 5:57:30
DEFROSTING
Reheating baby food and milk
Use the power levels and times in this table as guide lines for reheating.
Food
Baby Food
(Vegetables +
Meat)
Baby Porridge
(Grain + Milk +
Fruit)
Baby Milk
Serving Size
Power
Time
190 g
600 W
30 sec.
Instructions
Empty into ceramic deep plate. Cook covered. Stir after cooking
time. Before serving, stir well and check the temperature
carefully. Stand for 2-3 minutes.
190 g
600 W
20 sec.
Instructions
Empty into ceramic deep plate. Cook covered. Stir after cooking
time. Before serving, stir well and check the temperature
carefully. Stand for 2-3 minutes.
100 ml
300 W
30-40 sec.
200 ml
1 min. to 1 min.
10 sec.
Instructions
Stir or shake well and pour into a sterilized glass bottle. Place
into the centre of turntable. Cook uncovered. Shake well and
stand for at least 3 minutes. Before serving, shake well and
check the temperature carefully. Stand for 2-3 minutes.
Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost
frozen food in a short period of time. This can be of great advantage, if unexpected
guests suddenly show up.
Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and
take it out of any wrapping to allow thawed liquid to drain away.
Put the frozen food on a dish without cover. Turn over half way, drain off any liquid and
remove any giblets as soon as possible.Check the food occasionally to make sure that it
does not feel warm.
If smaller and thinner parts of the frozen food start to warm up, they can be shield by
wrapping very small strips of aluminium foil around them during defrosting.
Should poultry start to warm up on the outer surface, stop thawing and allow it to stand
for 20 minutes before continuing.
Leave the fish, meat and poultry to stand in order to complete defrosting. The standing
time for complete defrosting will vary depending on the quantity defrosted. Please refer to
the table below.
Hint:
Flat food defrosts better than thick and smaller quantities need less time
than bigger ones. Remember this hint while freezing and defrosting food.
For defrosting of frozen food with a temperature of about -18 to -20 °C, use the following
table as a guide.
Food
Meat
Minced Meat
Pork Steaks
Serving Size
Power
Time (min.)
250 g
500 g
180 W
6-7
8-13
250 g
180 W
7-8
Instructions
Place the meat on turntable. Shield thinner edges with
aluminium foil. Turn over after half of defrosting time!
Stand for 15-30 minutes.
English - 32
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 32
2014-10-13 �� 5:57:30
GRILL
Food
Poultry
Chicken Pieces
Fish
Fish Fillets
Whole fish
Fruits
Berries
Power
Time (min.)
500 g (2 pcs)
180 W
14-15
1200 g
180 W
32-34
Instructions
First, put chicken pieces first skin-side down, whole chicken
first breast-side-down on a flat ceramic plate. Shield the
thinner parts like wings and ends with aluminium foil. Turn
over after half of defrosting time! Stand for 15-60 minutes.
200 g
180 W
6-7
400 g
180 W
11-13
Instructions
Put frozen fish in the middle of a flat ceramic plate. Arrange
the thinner parts under the thicker parts. Shield narrow ends
of fillets and tail of whole fish with aluminium foil. Turn over
after half of defrosting time! Stand for 10-25 minutes.
300 g
180 W
6-7
Instructions
Spread fruit on a flat, round glass dish (with a large diameter).
Stand for 5-10 minutes.
Bread
Bread Rolls (Each
ca. 50 g)
2 pcs
4 pcs
180 W
1-1½
2½-3
Toast/Sandwich
250 g
180 W
4-4½
500 g
180 W
7-9
German Bread
(Wheat + Rye Flour)
Instructions
Arrange rolls in a circle or bread horizontally on kitchen paper
in the middle of turntable. Turn over after half of defrosting
time! Stand for 5-20 minutes.
The grill-heating element is located underneath the ceiling of the cavity. It operates while
the door is closed and the turntable is rotating. The turntable’s rotation makes the food
brown more evenly. Preheating the grill for 3-5 minutes will make the food brown more
quickly.
Cookware for grilling:
Should be flameproof and may include metal. Do not use any type of plastic cookware,
as it can melt.
Food suitable for grilling:
Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions,
sandwiches and all kinds of toast with toppings.
Important remark:
Whenever the grill only mode is used, please remember that food must be placed on the
high rack, unless another instruction is recommended.
06 COOKING GUIDE
Whole Chicken
Serving Size
MICROWAVE + GRILL
This cooking mode combines the radiant heat that is coming from the grill with the speed
of microwave cooking. It operates only while the door is closed and the turntable is
rotating. Due to the rotation of the turntable, the food browns evenly.Three combination
modes are available with this model:
600 W + Grill, 450 W + Grill and 300 W + Grill.
Cookware for cooking with microwave + grill
Please use cookware that microwaves can pass through. Cookware should be
flameproof. Do not use metal cookware with combination mode. Do not use any type of
plastic cookware, as it can melt.
Food suitable for microwave + grill cooking:
Food suitable for combination mode cooking include all kinds of cooked food which
need reheating and browning (e.g. baked pasta), as well as foods which require a short
cooking time to brown the top of the food. Also, this mode can be used for thick food
portions that benefit from a browned and crispy top (e.g. chicken pieces, turning them
over half way through cooking). Please refer to the grill table for further details.
Important remark:
Whenever the combination mode (microwave + grill) is used, the food should be placed
on the high rack, unless another instruction is recommended. Please refer to the
instructions in the following chart.
The food must be turned over, if it is to be browned on both sides.
English - 33
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 33
2014-10-13 �� 5:57:30
Grill Guide for fresh food
Preheat the grill with the grill-function for 2-3 minutes.
Use the power levels and times in this table as guide lines for grilling.
Use oven gloves when taking out.
Fresh Food
Toast Slices
Grilled
Tomatoes
Tomato-Cheese
Toast
Toast Hawaii
(Ham,
Pineapple,
Cheese Slices)
Baked Potatoes
Serving
Size
Power
1 step (min.)
Fresh Food
Baked Apples
Power
1 step (min.)
2 step (min.)
Roast Chicken
2 apples
300 W + Grill
7-8
(ca. 400 g)
Instructions
Core the apples and fill them with raisins and jam. Put some
almond slices on top. Put apples on a flat glass pyrex dish. Place
the dish directly on the low rack.
500 g (2 pcs) 300 W + Grilll
8-10
6-8
Instructions
Brush chicken pieces with oil and spices. Put them in a circle on
the high rack. After grilling stand for 2-3 minutes.
1200 g
450 W + Grill
21-23
20-22
Roast Fish
Instructions
Brush the chicken oil and spices. Put breast-side-down, in the
middle of the low rack. After grilling stand for 5 minutes.
400-500 g
300 W + Grilll
5-7
5½-6½
2 step (min.)
4 pcs
Grill only
3-4
2-3
(each 25 g)
Instructions
Put toast slices side by side on the high rack.
400 g (2 pcs) 300 W + Grill
5-6
Instructions
Cut tomatoes into halves. Put some cheese on top. Arrange in a
circle in a flat glass pyrex dish. Place it on the high rack. Stand
for 2-3 minutes.
4 pcs (300 g) 300 W + Grill
4-5
Instructions
Toast the bread slices first. Put the toast with topping on the high
rack. Stand for 2-3 minutes.
4 pcs (500 g) 300 W + Grill
5-6
Instructions
Toast the bread slices first. Put the toast with topping on the high
rack. Stand for 2-3 minutes.
500 g
600 W + Grill
7-8
Instructions
Cut potatoes into halves. Put them in a circle on the high rack
with the cut side to the grill.
450 g
450 W + Grill
9-11
-
Serving
Size
Chicken Pieces
Instructions
Brush skin of whole fish with oil and add herbs and spices. Put
two fishes side by side (head to tail) on the high rack. After grilling
stand for 2-3 minutes.
Gratin Potatoes/
Vegetables
Instructions
(Chilled)
Put the fresh gratin into a small glass pyrex dish. Put the dish on
the high rack. After cooking stand for 2-3 minutes.
English - 34
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 34
2014-10-13 �� 5:57:31
CONVECTION
Convection Guide for fresh and frozen food
Cooking with convection is the traditional and well known method of cooking food in a
traditional oven with hot air.
The heating element and the fan position is at the back-wall, so that the hot air is
circulating. This mode is supported by the top heating element.
Preheat the convection with the auto pre-heat function to the desired temperature.Use
the power levels and times in this table as guide lines for convection cooking. Use oven
gloves when taking out.
Food suitable for convection cooking:
All biscuits, individual scones, rolls and cakes should be made by this mode as well as
rich fruit cakes, choux pastry and soufflés.
Pizza
Frozen Pizza
(Ready Baked)
Pasta
Frozen Lasagne
300-400 g
1 step : 300 W + 200 °C
2 step : Only 180 °C
1 step
(min.)
2 step
(min.)
7-9
5-6
400 g
1 step : 450 W + 200 °C
2 step : Only 200 °C
16-18
3-4
Instructions
Put into a suitable sized glass pyrex dish or leave in the original
packaging (take care that this is suitable for microwaves and oven
heat). Put frozen pasta gratin on the low rack. After cooking stand
for 2-3 minutes.
Cookware for cooking with microwaves + convection:
Should be able to let the microwaves pass through. Should be ovenproof (like glass,
pottery or china without metal trims); similar to the cookware described under MW + Grill.
Food suitable for Microwave+Convection cooking:
All kinds of meats and poultry as well as casseroles and gratin dishes, sponge cakes and
light fruit cakes, pies and crumbles, roast vegetables, scones and breads.
Power
Instructions
Place the pizza on the low rack.
After baking stand for 2-3 minutes.
MICROWAVE + CONVECTION
This mode combines the microwave energy with the hot air and is therefore reducing the
cooking time while giving the food a brown and crispy surface.
Cooking with convection is the traditional and well known method of cooking food in an
oven with hot air circulated by a fan on the back-wall.
Portion
06 COOKING GUIDE
Fresh food
Cookware for convection cooking:
All conventional ovenproof cookware, baking tins and sheets – anything you would
normally use in a traditional convection oven – can be used.
Meat
Roast Beef/
Roast Lamb
(Medium)
Roast Chicken
1200-1300 g
600 W + 180 °C
20-23
10-13
Instructions
Brush beef/lamb with oil and spice it with pepper, salt and
paprika. Put it on the low rack, first with the fat side down. After
cooking wrap in aluminium foil and stand for 10-15 minutes.
1000-1200 g 1 step : 450 W + 200 °C
20-22
21-23
2 step : 450 W + Grill
Instructions
Brush chicken with oil and spices. Put chicken first breast side
down, second side breast side up on the low rack. Stand for
5 minutes.
(continued)
English - 35
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 35
2014-10-13 �� 5:57:31
TIPS AND TRICKS
Fresh food
Bread
Fresh Bread
Rolls
Garlic Bread
(Chilled,
Prebaked)
Cake
Marble Cake
(Fresh Dough)
Small Cakes
(Fresh Dough)
Cookies
(Fresh Dough)
Frozen Cake
Portion
Power
1 step
(min.)
2 step
(min.)
MELTING BUTTER
Put 50 g butter into a small deep glass dish. Cover with plastic lid.
Heat for 30-40 seconds using 900 W, until butter is melted.
MELTING CHOCOLATE
Put 100 g chocolate into a small deep glass dish.
Heat for 3-5 minutes, using 450 W until chocolate is melted.
Stir once or twice during melting. Use oven gloves while taking out!
6 pcs (350 g)
100 W + 180 °C
8-10
Instructions
Put bread rolls in a circle on the low rack. Stand 2-3 minutes.
200 g (1 pc)
180 W + 200 °C
8-10
Instructions
Put the chilled baguette on baking paper on the low rack. After
baking stand for 2-3 minutes.
MELTING CRYSTALLIZED HONEY
Put 20 g crystallized honey into a small deep glass dish.
Heat for 20-30 seconds using 300 W, until honey is melted.
500 g
Only 180 °C
38-43
Instructions
Put the fresh dough in a small rectangular black metal baking dish
(length 25 cm). Put the cake on the low rack. After baking stand
for 5-10 minutes.
12 x 28 g
Only 160 °C
28-33
Instructions
Fill the fresh dough evenly in paper cups and set on crusty plate
on the low rack. After baking stand for 5 minutes.
200-250 g
Only 200 °C
15-20
Instructions
Put the chilled croissants on baking paper on the low rack.
1000 g
180 W + 180 °C
18-20
Instructions
Put the frozen cake directly on the low rack. After defrost and
warming stand for 15-20 minutes.
MELTING GELATINE
Lay dry gelatine sheets (10 g) for 5 minutes into cold water.
Put drained gelatine into a small glass pyrex bowl.
Heat for 1 minute using 300 W. Stir after melting.
COOKING GLAZE/ICING (FOR CAKE AND GATEAUX)
Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold water. Cook
uncovered in a glass pyrex bowl for 3½ to 4½ minutes using 900 W, until glaze/icing is
transparent. Stir twice during cooking.
COOKING JAM
Put 600 g fruits (for example mixed berries) in a suitable sized glass pyrex bowl with lid.
Add 300 g preserving sugar and stir well.
Cook covered for 10-12 minutes using 900 W.
Stir several times during cooking. Empty directly into small jam glasses with twist-off lids.
Stand on lid for 5 minutes.
COOKING PUDDING
Mix pudding powder with sugar and milk (500 ml) by following the manufacturers
instructions and stir well. Use a suitable sized glass pyrex bowl with lid. Cook covered for
6½ to 7½ minutes using 900 W.
Stir several times well during cooking.
BROWNING ALMOND SLICES
Spread 30 g sliced almonds evenly on a medium sized ceramic plate.
Stir several times during browning for 3½ to 4½ minutes using 600 W.
Let it stand for 2-3 minutes in the oven. Use oven gloves while taking out!
English - 36
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 36
2014-10-13 �� 5:57:31
troubleshooting and error code
Becoming familiar with a new appliance always takes a little time. If you have any of
the problems listed below, try the solutions given. They may save you the time and
inconvenience of an unnecessary service call.
If the above guidelines do not enable you to solve the problem, then contact your
local SAMSUNG customer service centre.
Please have the following information read;
The following are normal occurrences.
• Condensation inside the oven
• Air flow around the door and outer casing
• Light reflection around the door and outer casing
• Steam escaping from around the door or vents
The food is not cooked at all
• Have you set the timer correctly and pressed the Start/+30s button?
• Is the door closed?
• Have you overloaded the electric circuit and caused a fuse to blow or a breaker to be
triggered.
The food is either overcooked or undercooked
• Was the appropriate cooking length set for the type of food?
• Was an appropriate power level chosen?
• The model and serial numbers, normally printed on the rear of the oven
• Your warranty details
• A clear description of the problem
Then contact your local dealer or SAMSUNG aftersales service.
ERROR CODE
“E-24” message indicates.
• The “E-24” message is automatically activated prior to the microwave oven
overheating. Should the “E-24” message be activated, then depress the “Stop/Eco”
key to utilize the initialization mode.
For any codes not listed above, or if the suggested solution does not solve the
problem, contact your local SAMSUNG Customer Care Centre.
Sparking and cracking occur inside the oven (arcing)
• Have you used a dish with metal trimmings?
• Have you left a fork or other metal utensil inside the oven?
• Is aluminum foil too close to the inside walls?
07 TROUBLESHOOTING AND ERROR CODE
Smoke and bad smell when initial operating.
• It’s a temporary condition by new component heating. Smoke and smell will
disappear completely after 10 minutes operation. To remove smell more quickly,
please operate microwave oven with putting lemon formation or lemon juice in the
cabinet.
TROUBLESHOOTING
The oven causes interference with radios or televisions
• Slight interference may be observed on televisions or radios when the oven is
operating. This is normal.
• Solution: install the oven away from televisions, radios and aerials.
• If interference is detected by the oven’s microprocessor, the display may be reset.
• Solution: Disconnect the power plug and reconnect it. Reset the time.
The light bulb is not working.
• The Light bulb should not be replaced in person for safety reasons. Please contact
nearest authorised Samsung customer care, to arrange for a qualified engineer to
replace the bulb.
English - 37
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 37
2014-10-13 �� 5:57:31
technical specifications
MEMO
SAMSUNG strives to improve its products at all times. Both the design specifications and
these user instructions are thus subject to change without notice.
Model
MC32F604TCT
Power source
220 V ~ 50 Hz AC
Power consumption
Maximum power
Microwave
Grill (heating element)
Convection (heating element)
2750 W
1400 W
1350 W
Max. 1900 W
Output power
100 W / 900 W - 6 levels (IEC-705)
Operating frequency
2450 MHz
Dimensions (W x D x H)
Outside
Oven cavity
523 x 506 x 309 mm
373 x 370 x 233 mm
Volume
32 liter
Weight
Net
20.0 kg approx
English - 38
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 38
2014-10-13 �� 5:57:31
MEMO
MEMO
08 TECHNICAL SPECIFICATIONS
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 39
2014-10-13 �� 5:57:31
QUESTIONS OR COMMENTS
COUNTRY
MEXICO
ARGENTINE
CALL
01-800-SAMSUNG(726-7864)
0800-333-3733
URUGUAY
000-405-437-33
PARAGUAY
009-800-542-0001
www.samsung.com/latin/support (Spanish)
www.samsung.com/latin_en/support (English)
BRAZIL
0800-124-421 (Demais cidades e regiões)
4004-0000 (Capitais e grandes centros)
www.samsung.com/br/support
CHILE
800-SAMSUNG(726-7864)
www.samsung.com/cl/support
BOLIVIA
COLOMBIA
COSTA RICA
DOMINICA
ECUADOR
EL SALVADOR
GUATEMALA
HONDURAS
JAMAICA
NICARAGUA
PANAMA
PERU
PUERTO RICO
800-10-7260
www.samsung.com/cl/support
Bogotá 600 12 72
www.samsung.com/co/support
Gratis desde cualquier parte del país 01 8000 112 112 ó
desde su celular #SAM(726)
0-800-507-7267
00-800-1-SAMSUNG (726-7864)
1-800-751-2676
1-800-10-72670
1-800-SAMSUNG (72-6786)
www.samsung.com/latin/support (Spanish)
800-6225
www.samsung.com/latin_en/support (English)
1-800-299-0013
1-800-299-0033
800-27919267
800-2791-9111
1-800-234-7267
www.samsung.com/latin_en/support (English)
1-800-SAMSUNG (726-7864)
001-800-5077267
800-7267
800-0101
0-800-777-08
1-800-682-3180
TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864)
VENEZUELA
MC32F604TCT_ZS_DE68-04173N-00_EN.indd 40
OR VISIT US ONLINE AT
www.samsung.com/mx/support
www.samsung.com/ar/support
0-800-SAMSUNG (726-7864)
www.samsung.com/latin/support (Spanish)
www.samsung.com/latin_en/support (English)
www.samsung.com/pe/support
www.samsung.com/latin/support (Spanish)
www.samsung.com/latin_en/support (English)
www.samsung.com/ve/support
DE68-04173N-00
2014-10-13 �� 5:57:32
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
