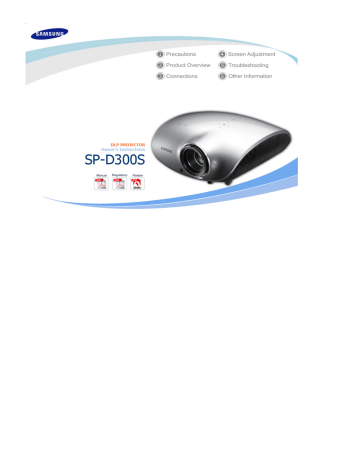

Samsung | SP-D300SR | Samsung SP-D300SR 사용자 매뉴얼

To avoid injuries or damage to property, please read the following precautions carefully and use the product
accordingly.
Failure to follow the instructions marked with this symbol may cause personal injury or even fatality.
Failure to follow the instructions marked with this symbol may cause personal injury or damage to the
product or property.
| Power Related | Installation Related | Cleaning and Use Related |
[The images here are for reference only, and are not applicable in all cases (or countries).]
Insert the power plug firmly so that it does not come loose.
z When the connection is not firm, it may cause a fire.
Do not use loose power outlets or damaged power cables.
z There is a danger of electric shock or fire.
Under no circumstances touch the power plug with wet hands.
z There is a danger of electric shock.
Do not plug multiple devices into a single wall outlet.
z There is a danger of fire.
Do not bend the power cord excessively or place heavy objects on it.
z There is a danger of electric shock or fire.
Before moving the product, make sure the power is off and remove the power cord
from the wall outlet. In addition, make sure all connection cables are disconnected
from other devices before moving it.
z Moving the product without disconnecting the power cord may damage the
power cord and cause electric shock or fire.
To disconnect the apparatus from the mains, the plug must be pulled out from the
mains socket, therefore the mains plug shall be readily operable.
z There is a danger of electric shock or fire.
Always unplug the unit by holding the power plug. Pulling the power cable may
damage the inside of it.
z There is a danger of fire.
Unplug the power plug before cleaning the product.
z There is a danger of electric shock or fire.
| Power Related | Installation Related | Cleaning and Use Related |
TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES
AWAY FROM THIS PRODUCT AT ALL TIMES.
z There is a danger of fire.
When installing the product in a cabinet or on a shelf, make sure the front end of
the base does not protrude.
z Dropping the product may damage it or cause injury.
Keep the power cord away from heaters.
z The coating of the power cord may melt and cause electric shock or fire.
Do not install the product in locations exposed to oil, smoke, moisture or water
(rainwater), or in a vehicle.
z There is a danger of electric shock or fire.
Do not install the product in locations with poor ventilation such as a bookshelf,
closet, etc.
z An increase in the internal temperature may cause a fire.
Do not install on an unstable location, or on a stand smaller than the product.
z Make sure to keep the product out of the reach of children.
The product may fall and cause personal injury.
In case of thunder/lightning, disconnect the power cord from the wall outlet.
z There is a danger of electric shock or fire.
Make sure the product's vents are not blocked by a table cloth or curtain.
z An increase in the internal temperature may cause a fire.
Place the product on the ground carefully.
z Doing so may cause damage or injury.
Do not drop the product while carrying it.
z Doing so may cause damage or injury.
Keep the product out of children’s reach.
z Make sure to keep the product out of the reach of children.
The product may fall and cause personal injury.
| Power Related | Installation Related | Cleaning and Use Related |
Do not insert metal items, such as chopsticks, steel wire, gimlets, or inflammable
objects such as matches or paper into the product through the ventilating openings
and the PC/Video and power terminals.
z This may cause electric shock or fire.
If water or an alien substance enters the product, turn the product off,
disconnect the power cord from a wall outlet and contact a Service Center.
Do not disassemble, or attempt to fix or modify the product.
z When the product requires repairs, contact a Service Center.
Do not use or keep the product near flammable sprays or other such substances.
z There is a danger of fire or explosion.
Do not place containers with water, vases, drinks, chemicals, small metal parts or
heavy objects on the product.
z If water enters the product, it may cause electric shock, or fire and when
heavy objects fall, it may cause injury.
Do not let children place objects such as toys or cookies on the product.
z If a child tries to reach for any of these objects, the product may fall and
cause harm.
Do not look directly at the light of the lamp nor project the picture onto eyes.
z This is dangerous especially for children.
When you remove batteries from the remote, be careful that they are not swallowed
by children. Keep batteries out of the reach of children.
z If swallowed, see a doctor immediately.
If the product emits smoke, unusual noise, or there is a burning smell,disconnect
the power plug immediately, and contact a Service Center.
z There is a danger of electric shock or fire.
If the power plug pin or jack is exposed to dust, water or alien substances, clean it
thoroughly.
z There is a danger of electric shock or fire.
When cleaning the product, disconnect the power cord and wipe the product using
a soft dry cloth.
z Do not use any chemicals such as wax, benzene, alcohol, thinners,
insecticide, air freshener, lubricant or detergent.
When not using the product for an extended period of time, disconnect the power
plug.
z Otherwise, this may cause heat emission from the accumulated dirt or
degraded insulation, leading to electric shock or fire.
Do not install the product in places with heavy dust, chemical substances, high or
low temperatures, high humidity, or where it will be operated for a long period
continuously etc.
If the product is dropped or the casing is damaged, turn the product off and unplug
the power cord.
z This may cause electric shock or fire. Contact a Service Center.
Make sure to place your remote control on a table or desk.
z If you step on the remote control, you may fall and hurt yourself or the
product may be damaged.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment) - Europe only
(Applicable in the European Union and other European countries with separate collection
systems)
This marking shown on the product or its literature, indicates that it should not be disposed
with other household waste at the end of its working life. To prevent possible harm to the
environment or damage to health from uncontrolled waste disposal, please separate this
from other types of waste and recycle it responsibly to promote the sustainable reuse of
material resources.
Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for
disposal.
Correct disposal of batteries in this product - alleen voor Europa
(Applicable in the European Union and other European countries with separate battery return
systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product
should not be disposed of with other household waste at the end of their working life. Where
marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury,
cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not
properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from
other types of waste and recycle them through your local, free battery return system.
| Product Features | Product Views | Remote Control | Product Specifications |
Optical engine with advanced DLP technology
- 1024 x 768 panel has been adapted.
- 4 segment color wheel to implement optimal colors.
- 220W Lamp designed to improve luminance
Vivid colors
- Quality picture tuning focused on improving color - this unit aims at realizing color coordinates that
meet broadcasting standards on video production.
Minimized fan noise and light leakage
- The airflow and fan installation structure are optimized to minimize fan noise and beam leakage.
Various Input Ports
- Connections to peripheral devices have been improved by adopting various input terminals such as
an HDMI (HDCP supported) terminal, a Component terminal, and a MONITOR OUT terminal.
User adjustments
- This unit allows adjustment of each input port.
- The unit has a reference pattern that can be used for positioning and adjustment.
| Product Features | Product Views | Remote Control | Product Specifications |
Front/Upper Side
1. Indicators
6. Zoom Knob
- STAND BY (Blue LED)
Used to enlarge or reduce image size.
- LAMP (Blue LED)
7. POWER(
- TEMP (Red LED)
※ Refer to the LED Indications.
) Button
Used to turn the projector on or off.
2. Focus Ring
8. SOURCE Button
Used for Focus Adjustment.
Used to select input signals from the external
sources.
3. Remote Control Signal Receiver
9. MENU Button
4. Lens
Use this button to enter or exit a menu or to
move forward in a menu.
5. Adjustable Feet
You can adjust the screen position by moving the 10.Select and Move Button(
/
)
Use this button to move to or select an item
adjustable feet up and down.
within a menu.
The buttons on the top of the projector are touch buttons.
Touch them lightly with your fingers to use them.
The label is attached to the bottom of the product.
Unpacking
Quick Installation Guide
Warranty Card/ Registration Card
(Not available in all locations)
User Manual CD
Power Cable
Remote Control/ 1 Batteries
Cleaning Cloth
Sold separately
D-Sub Cable
LED Indications
●:Light is On
STAND
◐:Light is Blinking
LAMP
TEMP
●
○
○
●
●
○
●
◐
○
○
◐
○
BY
○:Light is Off
Information
If you press the POWER button on the remote control or projector, the screen
appears within 30 seconds.
The projector is in normal operating condition.
This state appears when the projector is preparing an operation after the POWER button
on the projector or the remote control has been pressed.
The POWER button is pressed to turn off the projector, and the cooling system is in
operation to cool off the inside of the projector. (Lasts for about 1 minute and 30
seconds)
Refer to Action 1 below if the cooling fan inside the projector is not in normal operation
◐
○
◐
○
◐
◐
○
○
◐
●
◐
◐
A problem has occurred when operating the DDP IC in the product. Refer to Action 4.
◐
◐
◐
A problem has occurred with the operation of the lamp. Refer to Action 5.
●
◐
●
The lifetime of the lamp has expired. Refer to Action 6.
◐
◐
○
The memory in the product is not operating normally. Contact a service center.
◐
◐
●
The power for the product is not operating normally. Contact a service center.
◐
●
◐
condition.
Refer to Action 2 below if the lamp cover protecting the lamp unit is not closed
properly.
Power is turned off automatically when temperature inside of the projector goes beyond
the control limit. Refer to Action 3.
A problem has occurred when operating the color wheel in the product. Refer to Action
4.
Clearing Indicator Problems
Classification
Action 1
State
When the cooling fan
If the symptom remains even after disconnecting and then
system is not in normal
reconnecting the power cord and turning the projector on again,
operating condition.
contact your product provider or our service center.
When the lamp cover
Action 2
Measures
protecting the lamp unit is
not properly closed or the
sensor system is not in
normal operating
Check whether the screws at the bottom side of the projector are
fastened correctly. If they are abnormally fastened, contact your
product distributor or service center.
condition.
When temperature inside
Action 3
of the projector becomes
too high.
Action 4
When the color wheel fails to
operate.
Adjust the installation state of your projector by referring to the
Installation Precautions section listed above. Cool down your
projector sufficiently and then operate it again. If the same problem
occurs continually, contact your product distributor or service center.
Disconnect and reconnect the power cord and start the projector
again. If the same symptom still occurs, contact your product
distributor or service center.
The lamp
malfunctions after power
Action 5
turns off
abnormally or after
powering on right after
Turn the power off, wait for a sufficient amount of cooling time and
then turn the power on to operate. If the same problem occurs
continually, contact your product distributor or service center.
turning off the projector.
Action 6
When the screen becomes
darker
Check the lamp usage time on the Information Display screen. If you
need to replace the lamp, contact your product distributor or service
center.
This Projector uses a cooling fan system to keep the unit from overheating. Operation of the cooling fan may
cause noise, which does not affect the product performance and is part of normal operation.
Rear Side
1. RS-232C port (For service input terminals)
6. HDMI/DVI IN Input port
2. SERVICE Input port
7. MONITOR OUT terminal
3. VIDEO IN Input port
8. PC IN Input port
4. S-VIDEO IN Input port
9. COMPONENT IN Input port
5. Remote Control Signal Receiver
10.POWER Input port
| Product Features | Product Views | Remote Control | Product Specifications |
1.
ON (
2.
AUTO Button
3.
MENU (
4.
Move (▲ ▼ ◀ ▶)/(
5.
V.KEYSTONE(+/-)
) Button
) Button
) Button
(VERTICAL KEYSTONE)Button
6.
VIDEO Button
7.
S-VIDEO Button
8.
P.SIZE Button
9.
COMP Button
10. OFF (
) Button
11. RETURN (
12. EXIT (
) Button
) Button
13. INFO STILL Button
14. HDMI Button
15. INSTALL Button
16. P.MODE Button
17. PC Button
1. ON ( )
Used to turn on the projector.
2. AUTO
Adjusts the Picture automatically. (Available in PC Mode Only)
3. MENU (
)
Used to display Menu Screen.
4. Move (▲ ▼ ◀ ▶)/ ( )
Used to move to or select each menu item.
5. V.KEYSTONE(VERTICAL KEYSTONE) (+/-)
Use this when video scenes are distorted or tilted.
6. VIDEO
Used to switch to VIDEO Mode.
7. S-VIDEO
Used to switch to S-VIDEO Mode.
8. P.SIZE
Used to adjust the size of picture screen.
9. COMP
Used to switch to COMPONENT Mode.
10. OFF (
)
Used to turn off the projector.
11. RETURN (
)
Returns to the previous menu.
12. EXIT (
)
Used to make Menu Screen disappear.
13. INFO STILL
INFO: Used to check source signals, picture setup, PC screen adjustment and lamp lifespan.
STILL: Used to see still images.
14. HDMI
Used to switch to HDMI Mode.
15. INSTALL
Used to flip or reverse the projected image.
16. P.MODE
Used to select Picture Mode.
17. PC
Used to switch to PC Mode.
| Product Features | Product Views | Remote Control | Product Specifications |
Design and specifications of the product may be modified without prior notice for better performance.
Specifications
Model
Panel
Lamp
SP-D300S
Size
16.5 mm / 0.65 inch
Resolution
XGA (1024 x 768)
Manufacturer
Texas Instrument
Type
220W UHP (Theater mode : 172W)
Life Time
3,000 Hours (Theater mode : 3,250 hr)
Manufacturer
Philips
Color
18.9 M (1024 x 768 x 3 x 8bit)
Optimum
resolution
1024 x 768 @ 60Hz
Resolution
Maximum
resolution
Input video signal
1280 x 1024 @75Hz
Video, S-Video, Component, Analog PC, HDMI
Input synchronization signal
Separate H/V sync, TTL
Maximum Pixel Clock
136.75 MHz
Diagonal screen size
40 ~250 inch
Projection Range
1 ~10 m
Power
Power
Consumption
Voltage
Noise
110/220 Vac +/-10 %, 50/60 Hz +/-3 Hz
Theater : 28dB, Bright : 32dB
343.1 mm(W)x162.4 mm(H)x347.2 mm(D)
Dimensions
13.5 inches(W) x 6.4 inches(D) x 13.7 inches(H)
Weight
Key Features
Less than 280W
4.5 kg / 9.9 lb
Brightness
Max 3,000 ANSI lumen
Contrast
2,500:1
Keystone
Vertical
Operating
User
Temperature
Environment
and Humidity
Storage
Temperature 32 °F ~ 104 °F (0 °C ~ 40 °C),
Humidity (10 % ~ 80 %)
Temperature -4 °F ~ 113 °F (-20 °C ~ 45 °C) ,
Humidity (5 % ~ 95 %)
This Class B equipment is designed for home and office use. The equipment has been registered regarding
EMI for residential use. It may be used in all areas. Class A is for office use. Class A is for business while
class B emits less electromagnetic waves than class A.
The DMD Panel used in DLP Projectors consists of several hundred thousand micro mirrors. As with other
visual display elements, the DMD Panel may include a few bad pixels. Samsung and the DMD Panel
manufacturer have a rigid, bad pixel identification and limitation procedure in place and products will not
exceed the maximum number of bad pixels set by our standards. Rarely, non-displayable pixels may exist,
however it does not affect the picture quality nor the lifespan of the product.
Supported Display Modes
Input Source
Resolution
(HxV)
640X350
640X400
640X480
720X400
800X600
PC
832X624
1024X768
[kHz]
polarity
Vertical Sync
Frequency
[Hz]
polarity
Pixel
Frequency
Sync Type
[MHz]
31.47
P
70.1
N
25.18
Sep.
37.86
P
85.1
N
31.5
Sep.
37.86
N
85
P
31.5
Sep.
31.47
N
60
N
25.175
Sep.
35.00
N
66.7
N
30.24
Sep.
37.86
N
72.8
N
31.5
Sep.
37.5
N
75
N
31.5
Sep.
43.27
N
85
N
36
Sep.
31.47
N
70
P
28.322
Sep.
35.16
P
56.3
N
36
Sep.
37.88
P
60
P
40
Sep.
48.08
P
72.2
P
50
Sep.
46.87
P
75
P
49.5
Sep.
53.67
P
85
P
56.25
Sep.
49.73
N
75
N
57.28
Sep.
48.36
N
60
N
65
Sep.
56.4
N
70
N
75
Sep.
60.02
P
75
P
78.75
Sep.
68.68
P
85
P
94.5
Sep.
1152X864
67.5
P
75
P
108
Sep.
1152X870
68.68
N
75
N
100
Sep.
1280X768
47.78
N
60
P
79.5
Sep.
1280X960
60
P
60
P
108
Sep.
63.98
P
60
P
108
Sep.
79.98
P
75
P
135
Sep.
55.94
N
60
P
106.5
Sep.
70.64
N
75
P
136.75
Sep.
33.72
P
60
P
74.18
Sep.
28.125
P
50
P
74.25
Sep.
1280X1024
1440X900
1920X1080i
Component
Horizontal Sync
Frequency
1280x720p
45
P
60
P
74.25
Sep.
37.5
P
50
P
74.25
Sep.
720x480p
31.5
P
60
P
27
Sep.
720x576p
31.25
P
50
P
27
Sep.
31.47
P
70.1
N
25.18
Sep.
37.86
P
85.1
N
31.5
Sep.
37.86
N
85
P
31.5
Sep.
31.47
N
60
N
25.175
Sep.
640X350
640X400
640X480
720X400
800X600
1024X768
37.5
N
75
N
31.5
Sep.
31.47
N
70
P
28.322
Sep.
37.88
P
60
P
40
Sep.
46.87
P
75
P
49.5
Sep.
48.36
N
60
N
65
Sep.
60.02
P
1280X768
47.78
N
1280X960
60
P
63.98
P
79.98
P
33.72
1280X1024
HDMI
1920x1080i
1280x720p
75
P
78.75
Sep.
60
P
79.5
Sep.
60
P
108
Sep.
60
P
108
Sep.
75
P
135
Sep.
P
60
P
74.18
Sep.
28.125
P
50
P
74.25
Sep.
45
P
60
P
74.25
Sep.
37.5
P
50
P
74.25
Sep.
720x480p
31.5
P
60
P
27
Sep.
720x576p
31.25
P
50
P
27
Sep.
720x480i
15.73
P
60
P
13.5
Sep.
720x576i
15.63
P
50
P
13.5
Sep.
Supported Resolution/Size Modes
○ : Size & Overscan can be configured, x : Size & Overscan cannot be configured, △ : Size can be configured
Source
Input
Type
HD
HDMI
SD
PC
HD
Component
SD
VIDEO
& S-VIDEO
SD
HD
SD
PC
Picture Size
Mode
Normal
Zoom1
Zoom2
16:9
1080i
O
x
x
O
720p
O
x
x
O
576p
O
x
x
O
480p
O
x
x
O
576i
O
x
x
O
480i
O
x
x
O
VESA
△
x
x
△
1080i
O
x
x
O
720p
O
x
x
O
576p
O
x
x
O
480p
O
x
x
O
576i
O
x
x
O
480i
O
x
x
O
576i
△
△
△
△
480i
△
△
△
△
1080i
△
x
x
△
720p
△
x
x
△
576p
△
x
x
△
480p
△
x
x
△
576i
△
x
x
△
480i
△
x
x
△
△
x
x
△
△
x
x
△
16:9
PC
Mode
4:3
Mode
Picture Position Modes
Overscan : Off
The position function is not supported in HDMI, Video and S-video input.
Source
Input
Type
HD
HDMI
SD
PC
HD
Picture Size
Mode
Normal
Zoom1
Zoom2
16:9
1080i
x
x
x
x
720p
x
x
x
x
576p
x
x
x
x
480p
x
x
x
x
576i
x
x
x
x
480i
x
x
x
x
VESA
x
x
x
x
1080i
O
O
O
O
720p
O
O
O
O
576p
O
O
O
O
Component
VIDEO
& S-VIDEO
SD
SD
HD
SD
PC
480p
O
O
O
O
576i
O
O
O
O
480i
O
O
O
O
576i
x
x
x
x
480i
x
x
x
x
1080i
O
x
x
O
720p
O
x
x
O
576p
O
x
x
O
480p
O
x
x
O
576i
O
x
x
O
480i
O
x
x
O
O
x
x
O
O
x
x
O
16:9
PC
Mode
4:3
Mode
Overscan : On
The position of the screen is not moved in PC input mode.
Source
Input
Type
HD
HDMI
SD
PC
HD
Component
SD
VIDEO
& S-VIDEO
SD
HD
SD
PC
Picture Size
Mode
Normal
Zoom1
Zoom2
16:9
1080i
x
x
x
x
720p
x
x
x
x
576p
x
x
x
x
480p
x
x
x
x
576i
x
x
x
x
480i
x
x
x
x
VESA
x
x
x
x
1080i
O
O
O
O
720p
O
O
O
O
576p
O
O
O
O
480p
O
O
O
O
576i
O
O
O
O
480i
O
O
O
O
576i
x
O
O
x
480i
x
O
O
x
1080i
x
x
x
x
720p
x
x
x
x
576p
x
x
x
x
480p
x
x
x
x
576i
x
x
x
x
480i
x
x
x
x
x
x
x
x
x
x
x
x
16:9
PC
Mode
4:3
Mode
| Basic Settings | Connecting the Power | Connecting to video equipment |
Installing the Projector
Install the projector so that the beam from the projector is perpendicular to the screen.
Place the projector so that the lens is at the center of the screen.
If the screen is not vertically installed, the picture on the screen may not be a rectangle.
Do not install the screen in bright surroundings. If the screen is too bright, the picture on the screen will not be
displayed clearly.
When installing the screen in bright surroundings, use curtains.
You can install the projector in the following locations: Front-Floor / Front-Ceiling / Rear-Floor / Rear-Ceiling.
(To view the installation position settings)
To view the picture when installing the projector behind the screen,
Install a semi-transparent screen.
Select Menu > Setup > Install > Rear-Floor
To view the picture when installing the projector in the front of the screen,
Install the projector at the side where you are watching
the screen.
Select Menu > Setup > Install > Front-Floor
Zoom and Focus Adjustment
Zoom Knob
Focus Ring
You can adjust the size of image within zoom range by manipulating the
Zoom Knob.
Focus the picture on the screen using the Focus Ring.
If your product is installed at a location out of the specified projection
distance (refer to Screen Size and Projection Distance), the focus cannot
be adjusted correctly.
Leveling with Adjustable Feet
For level placing of the projector, adjust the Adjustable Feet of the projector.
You may adjust the level of the projector up to 12 mm (average 3.4°) degrees.
Depending on the position of the projector, Keystone distortion of image may appear.
Screen Size and Projection Distance
Install the projector on a flat, even surface and level the projector using the adjustable feet to realize optimal picture quality. If
images are not clear, adjust them using the Zoom Knob or Focus Ring, or move the projector forward and backward.
Screen size
Horizental
Vertical
Max
Min
Offset
(M:inch)
(X:mm)
(Y:mm)
(Z:mm)
(Z:mm)
(Y':mm)
30
609.6
457.2
1300
1110
57
40
812.8
609.6
1730
1480
76
50
1016.0
762.0
2150
1840
95
60
1219.2
914.4
2580
2210
114
70
1422.4
1066.8
3010
2570
133
80
1625.6
1219.2
3430
2940
152
90
1828.8
1371.6
3860
3300
171
100
2032.0
1524.0
4290
3670
191
110
2235.2
1676.4
4710
4040
210
120
2438.4
1828.8
5140
4400
229
130
2641.6
1981.2
5560
4770
248
140
2844.8
2133.6
5990
5130
267
150
3048.0
2286.0
6420
5500
286
160
3251.2
2438.4
6840
5860
305
170
3454.4
2590.8
7270
6230
324
180
3657.6
2743.2
7700
6600
343
190
3860.8
2895.6
8120
6960
362
200
4064.0
3048.0
8550
7330
381
210
4267.2
3200.4
8980
7690
400
220
4470.4
3352.8
9400
8060
419
230
4673.6
3505.2
9830
8420
438
240
4876.8
3657.6
10260
8790
457
250
5080.0
3810.0
10680
9160
476
This projector is designed to show images optimally on a 80 ~ 120 inch sized screen.
A. Screen
Z: Throw Distance
Y': Distance from Lens Center to Image Bottom
Setting up the PC Environment - Check the following items before connecting your PC to your projector.
1.
Click the right mouse button on the Windows desktop
and click on [Properties].
<Display Properties> tab will appear.
2.
Click on [Settings] tab and set the <Screen resolution> by
referring to <Resolution> described in the display mode table
supported by this projector.
You do not have to change <Color quality> setup.
3.
Press the [Advanced] button.
Another property window will appear.
4.
Click on [Monitor] tab and set the <Screen refresh rate> by
referring to <Vertical Frequency> described in the Supported
Resolution/Size Modes table.
Set up both the vertical and horizontal frequency instead of
<Screen refresh rate>.
5.
Click the [OK] button to close the window, and click the
[OK] button of the <Display Properties> window to close the
window.
The computer may restart automatically.
6.
Shut down the PC and connect to the projector.
Process might vary depending on your type of computer or Windows versions.
(For example, [Properties] appears instead of [Properties (R)] as shown in 1.)
This unit appliance supports up to 24 bits per pixel in Color quality when it is used as a PC monitor.
Projected images may differ from the monitor depending on monitor manufacture or Windows versions.
When connecting the projector to a PC, check that PC setup complies to display settings supported by this
projector. If not, there may be signal problems.
| Basic Settings | Connecting the Power | Connecting to video equipment |
1. Rear of Projector
Plug the power cord into the power terminal on the rear side of the projector.
When used outside of the U.S., HAR cord with fittings of an approved agency may be used.
| Basic Settings | Connecting the Power | Connecting to video equipment |
Connecting a DVD player/Cable/Satellite Box to HDMI/DVI
- Connecting using an HDMI/DVI cable
Connect the [HDMI/DVI IN] terminal on the back of the projector and the DVI output terminal of the DVD
player/Cable/Satellite box using a HDMI/DVI cable.
- Connecting using an HDMI cable
Connect the [HDMI/DVI IN] terminal on the back of the projector and the HDMI output terminal of the DVD
player/Cable/Satellite box using a HDMI cable.
When the connection is finished, connect the power of your projector and DVD player/Cable/Satellite box.
Using the Projector
Turn on the projector and press the [HDMI] button to select <HDMI>.
Connecting a DVD player/Cable/Satellite Box via Component
Connect the [COMPONENT IN (Y/PB/ PR)] input port at the back of the projector to the Component port at the back of
the DVD player/Cable/Satellite box with the Component cable.
When the connection is finished, connect the power of your projector and DVD player/Cable/Satellite box.
Using the Projector
Turn on the projector and press the [COMP] button to select <Component>.
Component Ports are marked as (Y/PB/PR), (Y, B-Y, R-Y) or (Y, Cb, Cr) depending on the manufacturer.
Connecting to VCR/Camcorder
Connect [VIDEO IN(yellow)] input port of the projector to the VIDEO (yellow) OUT port of video equipment using the
video cable.
- If the video equipment has S-VIDEO OUT port, connect it to [S-VIDEO IN] input port of the projector.
Using the S-VIDEO connection, provides a higher visual quality.
When finishing connecting the devices, connect the power of the projector and the VCR.
Using the Projector
Turn on the projector and press the [Video] button to select <Video>.
or
Press the [S-VIDEO] button to select S-Video.
Check that the projector and the video equipment are turned off before connecting cables.
This projector does not support sound. (Separate audio system is needed for sound.)
Connecting to PC
Connect [PC IN] port on the rear side of the projector to the monitor output port of the PC using a PC video cable.
When connections are all completed, connect both power cords of the projector and the PC.
This product supports plug and play, therefore you do not need to install a driver on your PC.
Using the Projector
Turn on the projector and press the [PC] button to select <PC>.
If PC Mode is not available, check PC video cable is in place.
Turn on the PC and set the PC Environment when necessary.
Adjust the screen.(Auto Adjustment)
Sound comes out from PC speakers.
Connecting Video Devices (Monitor, TV, etc.)
- When using the D-sub (analog) output through another video device (monitor, TV, etc.).
Connect the MONITOR OUT terminal of the projector and the D-sub terminal of the video device using a
D-sub cable.
After connecting them, turn on your projector and the video device (monitor, TV, etc.).
The MONITOR OUT function only operates when the projector is connected to an external device through the
[PC IN] input terminal.
| Input | Picture | Setup | Option |
* Click the Play(
Screen
) button in the table below to view the video file.
Description
Adjustment
Source List
)/Stop(
Play/Stop
You can select a device connected to the projector to display.
1) Component
4) PC
2) S-Video
5) HDMI
3) Video
Edit Name
You can edit the names of devices connected to the projector.
1) VCR
7) DVD Receiver
2) DVD
8) Game
3) Cable STB
9) Camcorder
4) HD STB
10) DVD Combo
5) Satellite STB
11) PC
6) AV Receiver
| Input | Picture | Setup | Option |
* Click the Play(
Screen
) button in the table below to view the video file.
Description
Adjustment
Mode
)/Stop(
Play/Stop
Select a screen state which is customized to your projector or change the screen mode
as required.
1) Mode
- Dynamic
Select this if you want the screen quality to be clearer than standard screen
quality.
- Standard
You can comfortably view the projection screen if the surrounding is somewhat
bright.
- Movie1, Movie2
Select this if your surroundings are dark. This saves energy and reduces eye
fatigue.
Mode
- Monitor
Select this to use your monitor as a normal monitor.
- Game
Select this when to enjoy a more vivid gaming experience.
- Sports
Provides the optimal picture quality for sports. You can enjoy more thrilling
picture.
- User
Select this if you want to view the screen in your customized screen Mode. You
can set this in Mode-Save.
▶ The initial value is set to the brightest screen level.
2) Contrast : Used to adjust the contrast between the object and the background.
3) Brightness : Used to adjust brightness of the entire picture.
4) Sharpness : Used to adjust the sharpness of the picture.
5) Color : Used to adjust color lighter or darker.
▶ You can only adjust Color in [S-Video] and [Video] modes.
Contrast
Brightness
Sharpness
Color
6) Tint : Used to obtain more natural color of objects using Green or Red enhancement.
Tint
▶ You can only adjust Tint in [S-Video] and [Video] modes.
7) Color Temperature : You can change tint of the entire screen to suit your needs.
- 5500K : Used to deliver optimal image quality for black-and-white films. Color
temperature of the picture mode of Movie2 is set to 5500K.
- 6500K : This temperature is used for most video productions. It is the default
setting for Movie1, and may deliver the most precise tint.
- 8000K : This color temperature is appropriate for very bright places and is the
Color
Temperature
defaut setting for Dynamic Picture Mode. The sharpness and brightness are
R-Gain
emphasized.
G-Gain
- 9300K : The color temperature appropriate to very bright places such as a shop.
B-Gain
R-Offset
G-Offset
1) Color Temperature
5) R-Offset
2) R-Gain
6) G-Offset
3) G-Gain
7) B-Offset
B-Offset
4) B-Gain
8) Gamma : An image compensation function that controls the settings according to the
video properties.
- Film : The best setting for watching a film.
Gamma
- Video : The best setting for watching a TV program.
- Graphic : The best setting when you have a PC connected.
9) Save : Used to save custom picture settings.
Save
10) Reset : Restores the mode settings to the factory defaults.
Reset
Size
You can select a screen size according to the type of scene.
▶ Refer to "Size Support Mode".
1) Normal
2) Zoom1
3) Zoom2
4)16:9
Position
Adjust the screen position if it is not aligned.
▶ Refer to "Position Moving Support Mode".
Digital NR
When a dotted line is displayed or the screen shakes, you can view a better visual
quality picture by enabling Noise Reduction.
Black Level
Using the Black Level function, you can set the light level of the darkest portion of the
video signal so that you can clearly see dark areas on the screen.
▶ The Black Level can only be selected in [Video], [S-Video] and [HDMI] modes.
▶ For [Video] and [S-Video] Modes
1) 0 IRE : Sets the light level of the darkest portion of the video signal to low. If the
setting does not match the input signal, the dark screen looks milky-white.
2) 7.5 IRE : Sets the light level of the darkest portion of the video signal to high. If
the setting does not match the input signal, the dark screen is saturated and may
not display properly.
▶ For [HDMI] Mode
1) HDMI-Video : Set the brightness standard for dark signals to a low setting.
If the input signal is an 'HDMI-Video' type, unclear screens are displayed
normally.
2) HDMI-PC : Set the brightness standard for dark signals to a high setting.
If the input signal is an 'HDMI-PC' type, dark screens are displayed bright.
Color Pattern
You can filter the color of the entire screen according to your taste.
1) Off : Shows the picture in the original color.
2) Monochrome : Shows the picture in black and white by filtering out all color
signals.
3) Red : Shows the picture in red by filtering out the green and blue color signals.
4) Green : Shows the picture in green by filtering out the red and blue color signals.
5) Blue : Shows the picture in blue by filtering out the red and green color signals.
Overscan
Using this function, you can cut the edge of the picture when unnecessary information,
images appear on the edge of the picture.
▶ Refer to "Size Support Mode".
1) Off
2) On
Film Mode
Using this function, you can set the display mode optimized for playing movies.
▶ Film Mode is only supported for [Video], [S-Video] and [Component] (480i, 576i).
1) Off
2) On
| Input | Picture | Setup | Option |
* Click the Play(
Screen
) button in the table below to view the video file.
Description
Adjustment
Install
)/Stop(
Play/Stop
To tailor the picture to the installation location, you can invert the projected images
vertically/horizontally.
1) Front-Floor : Normal Image
2) Front-Ceiling : Horizontally Reversed Image
3) Rear-Floor : Vertically Reversed Image
4) Rear-Ceiling : Horizontal/Vertical Reversed Image
Light Setting
Used to set the image brightness by adjusting the amount of light generated by the
lamp.
1) Theater : Using this function, you can adjust the light level of the lamp so that you
can comfortably watch pictures on the screen even when watching under dark
Theater
conditions. It also lowers power consumption and extends the life of the lamp.
2) Bright : Used to enhance the brightness in relatively bright ambient light. Since
this mode increases the light level of the lamp, you may experience more noise
which is produced when the projector is cooled down.
V-Keystone
If video scences are distorted or tilted, you can compensate for this using the vertical
Keystone function.
Test Pattern
Generated by the projector itself. Utilized as standard to optimize the installation of the
projector.
Bright
1) Crosshatch : You can check whether the picture is distorted or not.
2) Screen Size : You can refer to picture format sizes such as 1.33:1 or 1.78:1.
3) Red : Red Screen, only for color adjustment.
4) Green : Green Screen, only for color adjustment.
5) Blue : Blue Screen, only for color adjustment.
6) White : White Screen, only for color adjustment.
7) 6500K_White : White Screen, shows brightest white color possible.
▶ The Red/Green/Blue colors of the test patterns are only for the color adjustment
procedures, and may not comply with the actual colors displayed during video
playback.
PC
Eliminates or reduces noise that causes unstable screen quality, such as screen
shaking. If the noise is not removed using Fine Adjustment, adjust the frequency to the
maximum and then perform Fine Adjustment again.
Auto
Adjustment
Only activated in the PC environment.
Coarse
1) Auto Adjustment : Used to adjust frequency and phase of PC screen
automatically.
2) Coarse : Used to adjust frequency when vertical lines appear on PC screen.
Fine
3) Fine : Used to fine tune the PC screen.
Zoom
4) Zoom : Used to extend PC screen from the center.
5) Reset : Using this function, you can reset the PC menu settings to the factory
Reset
default settings.
Color Standard
You may adjust the color standard to suit the color standard of the input signal.
1) SMPTE_C : Standardized for Video Equipment by the Society of Motion Picture
and Television Engineers
2) HD : High Definition, 1125 scan lines, standard definition TV submitted to the
ITU-R by U.S., Japan and Canada, in 1986.
3) EBU : Regulations and standards for European Broadcasting Production and
Technology, standardized by the European Broadcasting Union.
Factory Default
Using this function, you can reset various settings to the factory default settings.
| Input | Picture | Setup | Option |
* Click the Play(
Screen
)/Stop(
) button in the table below to view the video file.
Description
Adjustment
Language
You can select the Language used for the menu screen.
Menu Position
You can move Menu Position up/down/left/right.
Menu
You can set the translucency of menu.
Translucency
1) Opaque
2) High
3) Medium
4) Low
Menu Display
You can set the display time of the menu.
Time
1) 5 sec
5) 90 sec
2) 10 sec
6) 120 sec
3) 30 sec
7) Stay On
4) 60 sec
LED Indicator
This function turns the LEDs On or Off. If the LEDs are affecting the brightness of the
LCD, you can turn all the LEDs off by turning off this function. Turning the function on
again will allow the LEDs to operate properly again according to the status of the
projector.
1) Off : This mode disables the operating LED. However, the LED will come on
regardless of the LED setting when the power is turned on or off or when the
projector is in an abnormal state.
2) On : This mode enables the operating LED so that it can display the current
operating state of the projector.
Blue sreen
The Blue screen function causes the screen to change to the Blue screen if there is no
signal input from the external device connected to your projector.
1) Off
2) On
Information
You can check external source signals, picture setup, PC picture adjustment and lamp
use time.
Play/Stop
| Before Contacting Service Personnel |
Installation and Connection
Symptoms
Troubleshooting
No Power.
z
Check the power cable connections.
I want to install my projector on
z
The ceiling installation support is sold separately. Contact your local product
distributor.
the ceiling.
External Source can not be
z
Be sure that the connection cable(s) (video) is properly connected to the
proper port. If the device is not connected properly, it can not be selected.
selected.
Menu and Remote Control
Symptoms
Remote control does not work.
Troubleshooting
z
Check whether your remote control is at a right angle and at the correct
distance. Remove any obstacles between your remote control and the product.
z
Direct lighting of 3-way light bulbs or other lighting device on the remote
sensor of the projector may affect the sensitivity and cause the remote control
to malfunction.
I cannot select a menu.
z
Check if the remote control battery is empty.
z
Check whether the LED indicator on the top of the projector is turned on.
z
Check if the menu is displayed in gray. A gray-colored menu is unavailable.
Screen and External Source
Symptoms
Cannot see picture images.
Troubleshooting
z
Be sure that the power cord of the projector is connected.
z
Be sure that the proper input source is selected.
z
Check that the connectors are properly connected to the ports at the back of
the projector.
z
Check the Remote Control batteries.
z
Be sure that the <Color>, <Brightness> settings are not at their lower limit.
Poor color.
z
Adjust the <Tint> and <Contrast>.
Images are not clear.
z
Adjust the focus.
z
Check that the projection distance is either too far or too near to the screen.
Strange noise.
z
If a strange sound continues, contact our service center.
The operating LED is lit up.
z
Refer to Corrective Actions According to LED Indications.
Lines appear on screen.
z
Because noise may occur when using your PC, adjust the frequency of the
screen.
No external device screen is displayed.
z
Check the operating status for the external device and check whether the
adjustment items, such as the Brightness and the Contrast have been changed
correctly in the <Mode> command screen of the Projector menu.
Only blue screen appears.
z
Be sure to properly connect the external devices. Check the connection cables
again.
Screen appears in black and white or
z
As mentioned above, check the adjustment items such as the Brightness,
odd color./ screen is too dark or
bright.
Contrast and Color in the menu.
z
If you want to restore various settings to their factory defaults, run <Factory
Default>from the menu.
| Care and Maintenance | Contact SAMSUNG WORLDWIDE | Other | Authority |
To clean the exterior and lens of the projector
Clean the projector using a soft dry cloth.
Do not clean the projector with flammable
substances such as benzene, thinners or a wet
cloth, as these may cause problems.
Do not touch the projector with a nail or any
other sharp objects, as this may scratch the
surface.
To clean the interior of the projector
For cleaning the interior of the projector, ask your
Service Center or a distributor.
Contact your distributor or a Service Center if
dust or other substances are inside the
projector.
Lamp Replacement
Cautions on Lamp Replacement
The projector lamp is an expendable item. For best operating performance, replace the lamp according to the
usage time. You can view the lamp usage time in the Information Display (INFO button).
Use the recommended lamp when replacing. Lamp specifications are defined in the user’s manual. Replace
with the same model provided with the projector.
- Lamp Model Name : 220W Philips fusion lamp
- Lamp Manufacture : Philips Lighting
- Lamp Life Time : 3000Hrs
- Lamp Type : 220W UHP
Check that the power cord is unplugged before replacing the lamp.
Even after the power cord has been disconnected, the lamp will be hot. Allow it to cool down for at least 1 hour
before changing the lamp.
The lamp is located at the left rear of your projector.
Before you turn the projector over to change the lamp, cover the projector with a soft cloth on a flat surface.
Do not leave the old lamp near inflammables or in reach of children. There is a danger of burn or injury.
Remove dirts or foreign materials around or inside the lamp unit using a proper vacuum device.
When handling the lamp, avoid touching any part of it except for the handles. If you handle the lamp
incorrectly, it may affect the screen quality and shorten its lifetime.
Contains Mercury, Dispose According to Local, State or Federal Laws
Lamp Replacement Procedure
The lamp is very hot and operates
The lamp is located at the bottom
with a high voltage. Allow it to cool
of the product.
direction of the arrow, as shown in
down for at least 1 hour after
Place the product so that its
the figure.
disconnecting the power cord
bottom looks upward and remove
before changing the lamp.
the screws that hold the lamp
Slide and open the cover in the
cover in place.
* When placing the product with
the bottom upwards, make sure to
place a soft cloth on the floor to
prevent scratches.
Remove the screw indicated in the
Hold and pull the lamp handle
figure.
slightly, as shown in the figure.
Assembling a new lamp is in the reverse order of the disassembly.
| Care and Maintenance | Contact SAMSUNG WORLDWIDE | Other | Authority |
If you have any questions or comments relating to Samsung products,
please contact a SAMSUNG customer care center.
North America
U.S.A
1-800-SAMSUNG(726-7864)
http://www.samsung.com/us
CANADA
1-800-SAMSUNG(726-7864)
http://www.samsung.com/ca
MEXICO
01-800-SAMSUNG(726-7864)
http://www.samsung.com/mx
Latin America
ARGENTINE
BRAZIL
CHILE
0800-333-3733
0800-124-421
4004-0000
800-SAMSUNG(726-7864)
http://www.samsung.com/ar
http://www.samsung.com/br
http://www.samsung.com/cl
COLOMBIA
01-8000112112
http://www.samsung.com/co
COSTA RICA
0-800-507-7267
http://www.samsung.com/latin
ECUADOR
1-800-10-7267
http://www.samsung.com/latin
EL SALVADOR
800-6225
http://www.samsung.com/latin
GUATEMALA
1-800-299-0013
http://www.samsung.com/latin
HONDURAS
800-7919267
http://www.samsung.com/latin
JAMAICA
1-800-234-7267
http://www.samsung.com/latin
NICARAGUA
00-1800-5077267
http://www.samsung.com/latin
PANAMA
800-7267
http://www.samsung.com/latin
PUERTO RICO
1-800-682-3180
http://www.samsung.com/latin
REP. DOMINICA
1-800-751-2676
http://www.samsung.com/latin
TRINIDAD & TOBAGO
1-800-SAMSUNG(726-7864)
http://www.samsung.com/latin
VENEZUELA
0-800-100-5303
http://www.samsung.com/latin
Europe
AUSTRIA
0810 - SAMSUNG (7267864, € 0.07/min)
http://www.samsung.com/at
BELGIUM
02 201 2418
http://www.samsung.com/be
CZECH REPUBLIC
800 - SAMSUNG (800-726786)
http://www.samsung.com/cz
DENMARK
8 - SAMSUNG (7267864)
http://www.samsung.com/dk
EIRE
0818 717 100
http://www.samsung.com/ie
FINLAND
30 - 6227 515
http://www.samsung.com/fi
FRANCE
3260 'dites' SAMSUNG (€ 0,15/Min)
0825 08 65 65 (€ 0.15/Min)
http://www.samsung.com/fr
GERMANY
01805 - SAMSUNG (7267864, € 0.14/Min)
http://www.samsung.de
HUNGARY
06-80-SAMSUNG (726-7864)
http://www.samsung.com/hu
ITALIA
800-SAMSUNG (726-7864)
http://www.samsung.com/it
LUXEMBURG
02 261 03 710
http://www.samsung.com/lu
NETHERLANDS
0900 - SAMSUNG (7267864, € 0.10/Min)
http://www.samsung.com/nl
NORWAY
3 - SAMSUNG (7267864)
http://www.samsung.com/no
POLAND
0 - 801 - 1SAMSUNG (172678)
022 - 607 - 93 - 33
http://www.samsung.com/pl
PORTUGAL
808 20 - SAMSUNG (7267864)
http://www.samsung.com/pt
SLOVAKIA
0800-SAMSUNG (726-7864)
http://www.samsung.com/sk
SPAIN
902 - 1 - SAMSUNG (902 172 678)
http://www.samsung.com/es
SWEDEN
075 - SAMSUNG (726 78 64)
http://www.samsung.com/se
SWITZERLAND
0848 - SAMSUNG(7267864, CHF 0.08/min)
http://www.samsung.com/ch
U.K
0845 SAMSUNG (7267864)
http://www.samsung.com/uk
CIS
ESTONIA
800-7267
http://www.samsung.ee
LATVIA
8000-7267
http://www.samsung.com/lv
LITHUANIA
8-800-77777
http://www.samsung.lt
KAZAKHSTAN
8-10-800-500-55-500
http://www.samsung.com/kz_ru
KYRGYZSTAN
00-800-500-55-500
RUSSIA
8-800-555-55-55
TADJIKISTAN
8-10-800-500-55-500
UKRAINE
8-800-502-0000
http://www.samsung.ua
UZBEKISTAN
8-10-800-500-55-500
http://www.samsung.com/kz_ru
http://www.samsung.ru
Asia Pacific
AUSTRALIA
1300 362 603
http://www.samsung.com/au
800-810-5858
400-810-5858
CHINA
http://www.samsung.com/cn
010-6475 1880
HONG KONG:3698 - 4698
http://www.samsung.com/hk
3030 8282
INDIA
1-800-3000-8282
http://www.samsung.com/in
1800 110011
INDONESIA
0800-112-8888
http://www.samsung.com/id
JAPAN
0120-327-527
http://www.samsung.com/jp
MALAYSIA
1800-88-9999
http://www.samsung.com/my
NEW ZEALAND
0800 SAMSUNG (0800 726 786)
http://www.samsung.com/nz
PHILIPPINES
1800-10-SAMSUNG(726-7864)
http://www.samsung.com/ph
SINGAPORE
1800-SAMSUNG(726-7864)
http://www.samsung.com/sg
THAILAND
1800-29-3232, 02-689-3232
http://www.samsung.com/th
TAIWAN
0800-329-999
http://www.samsung.com/tw
VIETNAM
1 800 588 889
http://www.samsung.com/vn
Middle East & Africa
SOUTH AFRICA
0860-SAMSUNG(726-7864)
http://www.samsung.com/za
TURKEY
444 77 11
http://www.samsung.com/tr
U.A.E
800-SAMSUNG(726-7864)
8000-4726
http://www.samsung.com/ae
| Care and Maintenance | Contact SAMSUNG WORLDWIDE | Other | Authority |
Glossary
Analog Broadcast
An existing broadcasting signal transmitted by a broadcasting station in accordance with the NTSC standard.
ANTENNA IN Port
This is the port for connecting a TV antenna using a coaxial cable. It is generally used to watch public broadcast
programs.
Black Level
Black Level sets the light level of the darkest portion of the video signal to match that of the display's black level
capability so that users can clearly view dark visuals. If the setting does not match the input signal, the dark screen is
saturated and may not display properly or the dark screen looks milky-white.
Cable Broadcast
Cable Broadcast broadcasts programs via cable instead of radio waves. To view cable broadcasts, you have to
subscribe to your local cable broadcast service provider and install an additional receiver.
Color Standard
A pre-determined default color standard determined by the broadcasting standard of the corresponding country or
area.
Color Temperature
Color temperature is a simplified way to characterize the spectral properties of a light source. A low color temperature
implies a warmer (more yellow/red) light while a high color temperature implies a colder (more blue) light.
COMPOSITE IN Port
A COMPOSITE IN Port is a general video input port (yellow). Both chrominance and luminance are transmitted on the
same 75-ohm cable.
Component Port (Green, Blue, Red)
The Component Port separately transmits the luminance signal.
Digital Broadcast
Digital Broadcast is a television broadcasting signal digitized and transmitted according to the United States terrestrial
digital broadcast specifications, or ATSC.
DVD (Digital Versatile Disc)
DVD is a large capacity media disk that can save multimedia content such as video, games, audio applications, etc.
using MPEG-2 video compression technology on a CD size disc.
DLP (Digital Light Processing)
DLP is a digital display technology using a DMD panel developed by TI (Texas Instruments) of the United States.
DLP HD2, DC2, DC3
This is a grade of DMD panel.
DMD (Digital Micromirror Device)
A DMD panel is an implementation of DLP technology. It consists of microscopic mirrors where each mirror represents
a pixel.
External Input
External Input is connecting video devices such as a VCR, camcorder, DTV receiver, DVD, etc. to the projector as a
video source.
Gamma Mode
Gamma Mode compensates the video signal produced for analog display devices such as a CRT (Cathode Ray Tube)
so that the video signal can be clearly displayed on a digital display device.
HDMI
▶ HDMI(High-Definition Multimedia Interface), is an interface that enables the transmission of digital audio and video
signals using a single cable.
▶ The difference between HDMI and DVI is that the HDMI device is smaller in size and has the HDCP (High Bandwidth
Digital Copy Protection) coding feature installed.
Overscan
Overscan cuts the edge of the picture when there is unnecessary information, images or noise at the edge of the
picture. For extremely poor video signals, some unnecessary video signals may be displayed on the screen.
RS-232C Port (Service Input Port)
This port is provided for service purposes. This port provides data communication in accordance with the RS-232C
communication standard.
S-Video IN Port
This is called super video. S-Video is a type of video signal which has the video brightness and color signal separated
in order to provide a better image quality.
Satellite Broadcast
Satellite Broadcast broadcasts programs via satellite so that the program can be viewed in all area in a high visual and
sound quality. Approximately 100 channels including public broadcast channels are provided. To view satellite
broadcasts, you have to install an additional receiver.
| Care and Maintenance | Contact SAMSUNG WORLDWIDE | Other | Authority |
Information in this document is subject to change without notice.
ⓒ 2008 Samsung Electronics Co., Ltd. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is strictly
forbidden.
Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential damages in
connection with the furnishing, performance, or use of this material.
Download PDF

advertising
