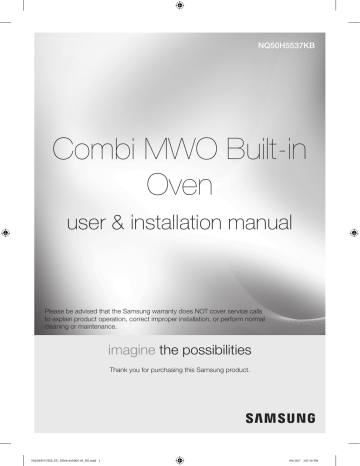

NQ50H5537KB
Combi MWO Built-in
Oven
user & installation manual
Please be advised that the Samsung warranty does NOT cover service calls
to explain product operation, correct improper installation, or perform normal
cleaning or maintenance.
imagine the possibilities
Thank you for purchasing this Samsung product.
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 1
9/6/2017 2:07:10 PM
contents
SAFETY INFORMATION
3
OVEN FEATURES
18
3
Safety Information
18 Control panel
19Oven
20Accessories
BEFORE YOU START
21
22
22
Clock settings
Setting the energy save mode
Turning the beeper on/off
OVEN USE
23
24
25
35
38
39
40
41
45
48
52
55
56
Types of heating
How a microwave oven works
Using the microwave mode
Using the oven mode
Setting the cooking time
Setting the end time
Setting the delay start
Combination mode
Using the vegetable cook mode
Using the auto menu mode
Pure steam cooking guide
Child safety lock
Using the steam clean mode
TROUBLESHOOTING AND
INFORMATION CODE
57
TECHNICAL DATA
61
21
23
57
61
Storing and repairing your microwave
oven
57Troubleshooting
60 Information codes
Technical specifications
English - 2
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 2
9/6/2017 2:07:10 PM
safety information
USING THIS INSTRUCTION BOOKLET
LEGEND FOR SYMBOLS AND ICONS
WARNING
CAUTION
Hazards or unsafe practices that may result in severe personal injury or death.
Hazards or unsafe practices that may result in minor personal injury or property
damage.
Warning; Fire hazard
Warning; Hot surface
Warning; Electricity
Warning; Explosive material
Do NOT attempt.
Do NOT touch.
Do NOT disassemble.
Follow directions explicitly.
Unplug the power plug from the wall
socket.
Make sure the machine is grounded to
prevent electric shock.
Call the service center for help.
Note
Important
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE.
Make sure that these safety precautions are obeyed at all
times.
Before using the oven, confirm that the following
instructions are followed.
WARNING
(Microwave function only)
WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
English - 3
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 3
9/6/2017 2:07:11 PM
01 SAFETY INFORMATION
You have just purchased a SAMSUNG microwave oven. Your Owner’s Instructions contains
valuable information on cooking with your microwave oven:
• Safety precautions
• Suitable accessories and cookware
• Useful cooking tips
• Cooking tips
WARNING: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
This appliance is intended to be used in household only.
WARNING: Only allow children to use the oven without
supervision when adequate instructions have been
given so that the child is able to use the oven in a safe
way and understands the hazards of improper use.
WARNING: This appliance can be used by children
aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been
given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children unless they are aged from 8 years and above
and supervised.
Only use utensils that are suitable for use in microwave
ovens.
When heating food in plastic or paper containers, keep
an eye on the oven due to the possibility of ignition.
The microwave oven is intended for heating food and
beverages. Drying of food or clothing and heating of
warming pads, slippers, sponges, damp cloth and
similar may lead to risk of injury, ignition or fire.
If smoke is emitted, switch off or unplug the appliance
and keep the door closed in order to stifle any flames.
WARNING: Microwave heating of beverages can result
in delayed eruptive boiling, therefore care must be
taken when handling the container.
WARNING: The contents of feeding bottles and baby
food jars shall be stirred or shaken and the temperature
checked before consumption, in order to avoid burns.
English - 4
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 4
9/6/2017 2:07:11 PM
English - 5
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 5
9/6/2017 2:07:11 PM
01 SAFETY INFORMATION
Eggs in their shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
The oven should be cleaned regularly and any food
deposits removed.
Failure to maintain the oven in a clean condition could
lead to deterioration of the surface that could adversely
affect the life of the appliance and possibly result in a
hazardous situation.
The appliance is not intended for installing in road
vehicles, caravans and similar vehicles etc.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
WARNING: Liquids and other foods must not be
heated in sealed containers since they are liable to
explode.
The appliance should not be cleaned with a water jet.
This oven should be positioned proper direction and
height permitting easy access to cavity and control area.
Before using the your oven first time, oven should be
operated with the water during 10 minute and then used.
If the oven generates a strange noise, a burning
smell, or smoke is emitted, unplug the power plug
immediately and contact your nearest service center.
Appliance should allow to disconnection of the
appliance from the supply after installation. The
disconnection may be achieved by having the plug
accessible or by incorporating a switch in the fixed
wiring in accordance with the wiring rules.
WARNING
(Oven function only) - Optional
WARNING: When the appliance is operated in the
combination mode, children should only use the oven
under adult supervision due to the temperatures
generated.
During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside the
oven.
WARNING: Accessible parts may become hot during
use. Young children should be kept away.
A steam cleaner is not to be used.
WARNING: Ensure that the appliance is switched off
before replacing the lamp to avoid the possibility of
electric shock.
WARNING: The appliance and its accessible parts
become hot during use.
Care should be taken to avoid touching heating
elements.
Children less than 8 years of age shall be kept away
unless continuously supervised.
This appliance can be used by children aged from
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
English - 6
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 6
9/6/2017 2:07:11 PM
Please put the bent up frame side to the
back, in order to support the restposition
when cooking big loads.
Do not use oven rack for microwave oven mode.
This product is a Group 2 Class B ISM equipment. The
definition of group 2 which contains all ISM equipment in
which radio-frequency energy is intentionally generated
and/or used in the form of electromagnetic radiation
for the treatment of material, and EDM and arc welding
equipment.
For Class B equipment is equipment suitable for use in
domestic establishments and in establishments directly
connected to a low voltage power supply network which
supplies buildings used for domestic purposes.
INSTALLATION INSTRUCTIONS
General
Technical Information
Electrical Supply: 230 V ~ 50 Hz
Dimensions (W × H × D)
Set size : 595 x 454.2 x 570 mm
Built in size: 555 x 445 x 548.8 mm
English - 7
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 7
9/6/2017 2:07:12 PM
01 SAFETY INFORMATION
Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of
the glass.
The temperature of accessible surfaces may be high
when the appliance is operating.
The door or the outer surface may get hot when the
appliance is operating.
Keep the appliance and its cord out of reach of
children less than 8 years.
Appliances are not intended to be operated by means
of an external timer or separate remote-control system.
This appliance complies with EU regulations.
Disposal of Packaging and Appliance
Packaging is recyclable.
Packaging may consist of the following materials:
- cardboard;
- polyethylene film (PE);
- CFC-free polystyrene(PS rigid foam).
Please dispose of these materials in a responsible manner
in accordance with government regulations.
The authorities can provide information on how to dispose
of domestic appliances in a responsible manner.
Safety
This appliance should only be connected by a qualified
technician. The Oven is NOT designed for use in a
commercial cooking setting. It should be used exclusively
for cooking food in a home setting. The appliance is hot
during and after use.
Exercise caution when young children are present.
Electrical Connection
The house mains to which the appliance is connected
should comply with national and local regulations.
Appliance should allow to disconnection of the appliance
from the supply after installation. The disconnection
may be achieved by having the plug accessible or by
incorporating a switch in the fixed wiring in accordance
with the wiring rules.
Install in the Cabinet
Kitchen Cabinets in contact with the oven must be heatresistant up to 100 °C.
Samsung will take no responsibility for damage of cabinets
from the heat.
English - 8
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 8
9/6/2017 2:07:12 PM
Fig1
Fig3
Fig2
Fig4
English - 9
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 9
9/6/2017 2:07:16 PM
01 SAFETY INFORMATION
Fig1.Slide the oven partly into the recess. Lead the
connection cable to the power source.
Fig2.Slide the oven completely into the recess.
Fig3.Fasten the oven using the two screws (4 x 25 mm)
provoded.
Fig4.Make the electrical connection.
Check that the appliance works.
Building-in dimensions
Min. 550
200 cm²
600
Min. 50
Min. 564~568
555
85
454.2
Min. 446
Max. 450
445
358
Space for
power outlet
(30 ¢ Hole)
549
595
21
341
200 cm²
Be sure to hold the appliance with
2 side handles and door handle
when unpacking the product.
Side
handle
Built-under Dimensions
Min.
550
Side
handle
Min. 446
Max. 450
Door handle
Min. 564
Max. 568
50
200 cm²
English - 10
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 10
9/6/2017 2:07:17 PM
WIRING INSTRUCTIONS
WARNING THIS APPLIANCE MUST BE EARTHED.
This appliance must be earthed. In the event of an
electrical short circuit, earthing reduces the risk of electric
shock providing an escape wire for the electric current. The
appliance is equipped with a mains lead which includes
an earth wire for connecting to the earth terminal of your
mains plug. The plug must be plugged into a socket that is
properly installed and earthed.
The wires in this mains lead are coloured in accordance
with the following code:
• Green and yellow : Earth
• Blue : Neutral
• Brown : Live
English - 11
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 11
9/6/2017 2:07:17 PM
01 SAFETY INFORMATION
INSTALLATION & WIRING INSTRUCTIONS
IMPORTANT NOTE :
The mains lead on this equipment is supplied with a
moulded plug incorporating a fuse.
The value of the fuse is indicated on the pin face of the
plug and, if it requires replacing, a fuse approved to
BS1363 of the same rating must be used.
Never use the plug with the fuse cover omitted if the cover
is detachable. If a replacement fuse cover is required, it
must be of the same colour as the pin face of the plug.
Replacement covers are available from your Dealer. If the
fitted plug is not suitable for the power points in your house
or the cable is not long enough to reach a power point, you
should obtain a suitable safety approved extension lead
or consult your Dealer for assistance. However, if there is
no alternative to cutting off the plug, remove the fuse and
then safely dispose of the plug. Do not connect the plug to
a mains socket, as there is a risk of shock hazard from the
bared flexible cord.
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured markings
indentifying the terminals in your plug, proceed as follows.
Connect the green and yellow wire to the terminal in the
plug marked with the letter E or the earth symbol ( ) or
coloured green or green-and-yellow.
Connect the blue wire to the terminal marked with the letter
N or coloured black.
Consult a qualified electrician or service technician if in
doubt about any of these instructions. The manufacturer
of this oven will not accept any liability for damage
to persons or material for non observance of these
requirements. There are no user-serviceable parts
inside the oven and if the mains lead of this appliance is
damaged, it must only be replaced by qualified service
personnel approved by the manufacturer because
special tools are required.
WARNING
WARNING
WARNING : Ensure that the plug and
power cord are not damaged before
use. If you have any reason to remove
the moulded plug from this appliance,
immediately remove the fuse and
dispose of the plug.
Do not connect the plug to a mains
socket under any circumstances as
there is a danger of electric shock.
CIRCUITS : Your microwave oven should be operated
on a separate circuit from other appliances. Failure to
do this may cause the circuit breaker to trip, the fuse
to blow, or the food to cook more slowly.
English - 12
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 12
9/6/2017 2:07:17 PM
English - 13
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 13
9/6/2017 2:07:18 PM
01 SAFETY INFORMATION
CLEANING YOUR MICROWAVE OVEN
The following parts of your microwave oven should be
cleaned regularly to prevent grease and food particles from
building up:
• Inside and outside surfaces
• Door and door seals
• Turntable and Roller rings (Turntable type model only)
ALWAYS ensure that the door seals are clean and the
door closes properly.
Failure to maintain the oven in a clean condition could
lead to deterioration of the surface that could adversely
affect the life of the appliance and possibly result in a
hazardous situation.
1.Clean the outside surfaces with a soft cloth and warm,
soapy water. Rinse and dry.
2.Remove any splashes or stains on the inside surfaces of
oven with a soapy cloth. Rinse and dry.
3.To loosen hardened food particles and remove smells,
place a cup of diluted lemon juice in the oven and heat
for ten minutes at maximum power.
4.Wash the dishwasher-safe plate whenever necessary.
DO NOT spill water in the vents. NEVER use any
abrasive products or chemical solvents. Take particular
care when cleaning the door seals to ensure that no
particles:
•Accumulate
• Prevent the door from closing correctly
Clean the microwave oven cavity right after each use
with a mild detergent solution, but let the microwave
oven cool down before cleaning in order to avoid injury.
When cleaning the upper part inside the cavity,
it will be convenient to turn heater downward
by 45° and clean it.
(Swing heater model only)
STORING AND REPAIRING YOUR MICROWAVE OVEN
A few simple precautions should be taken when storing or
having your microwave oven serviced.
The oven must not be used if the door or door seals are
damaged:
• Broken hinge
• Deteriorated seals
• Distorted or bent oven casing
Only a qualified microwave service technician should
perform repair.
NEVER remove the outer casing from the oven. If the
oven is faulty and needs servicing or you are in doubt
about its condition:
• Unplug it from the wall socket
• Contact the nearest after-sales service centre
If you wish to store your oven away temporarily, choose
a dry, dustfree place.
Reason : Dust and damp may adversely affect the
working parts in the oven.
This microwave oven is not intended for commercial use.
The Light bulb should not be replaced in person for
safety reasons.
Please contact nearest authorised Samsung customer
care centre to arrange for a qualified engineer to replace
the bulb.
WARNING
Only qualified staff should be allowed to modify or repair the appliance.
Do not heat liquids and other food in sealed containers for microwave
function.
For your safety, do not use high-pressure water cleaners or steam jet
cleaners.
Do not install this appliance; near heater, inflammable material; in a humid,
oily or dusty location, in a location exposed to direct sunlight and water or
where gas may leak; on un level ground.
This appliance must be properly grounded in accordance with local and
national codes.
English - 14
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 14
9/6/2017 2:07:18 PM
Remove all foreign substances such as dust or water from the power plug
terminals and contact points using a dry cloth on a regular basis.
Do not pull or excessively bend or place heavy objecton the power cord.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate
immediately without touching the power plug.
01 SAFETY INFORMATION
Do not touch the power plug with wet hands.
Do not turn the appliance off by unplugging the power plug while an
operation is in progress.
Do not insert fingers or foreign substances, If any foreign substance such as
water has entered the appliance, unplug the power plug and contact your
nearest service centre.
Do not apply excessive pressure or impact to the appliance.
Do not place the oven over a fragile object such as a sink or glass object.
Do not use benzene, thinner, alcohol, steam cleaner or high pressure cleaner
to clean the appliance.
Ensure that the power voltage, frequency and current are the same as those
of the product specifications.
Plug the power plug into the wall socket firmly. Do not use a multiple plug
adapter, an extension cord or an electric transformer.
Do not hook the power cord on a metal object, insert the power cord
between the objects or behind the oven.
Do not use a damaged power plug, damaged power cord or loose wall
socket. When the power plug or power cord is damaged, contact your
nearest service centre.
Do not pour or directly spray water onto the oven.
Do not place objects on the oven, inside or on the door of the oven.
Do not spray volatile material such as insecticide onto the surface of the
oven.
Do not store flammable materials in the oven. Take special care when
heating dishes or drinks that contain alcohol as alcohol vapours may contact
a hot part of the oven.
Keep children away from the door when opening or closing it as they may
bump themselves on the door or catch their fingers in the door.
WARNING: Microwave heating of beverages can result in delayed eruptive
boiling,therefore care must be taken when handling the container; To prevent
this situation ALWAYS allow a standing time of at least 20 seconds after the
oven has been switched off so that the temperature can equalize. Stir during
heating, if necessary, and ALWAYS stir after heating.
In the event of scalding, follow these FIRST AID instructions:
•
•
•
Immerse the scalded area in cold water for at least 10 minutes.
Cover with a clean, dry dressing.
Do not apply any creams, oils or lotions.
English - 15
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 15
9/6/2017 2:07:20 PM
Do not put the tray or rack in water shortly after cooking because it may
cause breakage or damage of the tray or rack.
Do not operate the microwave oven for deep fat frying because the oil
temperature cannot be controlled. This could result in a sudden boil over of
the hot liquid.
CAUTION
Only use utensils that are suitable for use in microwave ovens; DO NOT use
any metallic containers, Dinnerware with gold or silver trimmings, Skewers,
forks, etc.
Remove wire twist ties from paper or plastic bags.
Reason: Electric arcing or sparking may occur and may damage the oven.
Do not use your microwave oven to dry papers or clothes.
Use shorter times for smaller amounts of food to prevent overheating and
burning food.
Do not immerse the power cable or power plug in water and keep the power
cable away from heat.
Eggs in their shell and whole hard-boiled eggs should not be heated in
microwave ovens since they may explode, even after microwave heating has
ended; Also do not heat airtight or vacuum-sealed bottles, jars, containers,
nuts inshells, tomatoes etc.
Do not cover the ventilation slots with cloth or paper. They may catch fire as
hot air escapes from the oven. The oven may also overheat and switch itself
off automatically, and will remain off until it cools sufficiently.
Always use oven mitts when removing a dish from the oven to avoid
unintentional burns.
Stir liquids halfway during heating or after heating ends and allow the liquid
stand at least 20 seconds after heating to prevent eruptive boiling.
Stand at arms length from the oven when opening the door to avoid getting
scalded by escaping hot air or steam.
Do not operate the microwave oven when it is empty. The microwave
oven will automatically shut down for 30 minutes for safety purposes. We
recommend placing a glass of water inside the oven at all times to absorb
microwave energy in case the microwave oven is started accidentally.
Install the oven in compliance with the clearances stated in this manual. (See
installing your microwave oven.)
Take care when connecting other electrical appliances to sockets near the
oven.
English - 16
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 16
9/6/2017 2:07:21 PM
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY. (MICROWAVE FUNCTION ONLY)
Failure to observe the following safety precautions may result in harmful exposure to microwave energy.
Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the
damage to the unit and/or damage to or loss of the accessory was caused by the customer. Items
this stipulation covers include:
(a) A Dented, Scratched, or Broken Door, Handle, Out-Panel, or Control Panel.
(b) A Broken or missing Tray, Guide Roller, Coupler, or Wire Rack.
• Use this appliance only for its intended purpose as described in this instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution, and care when installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various models, the characteristics
of your microwave oven may differ slightly from those described in this manual and not
all warning signs may be applicable. If you have any questions or concerns, contact your
nearest service centre or find help and information online at www.samsung.com.
• This microwave oven is supposed for heating food. It is intended for domestic home-use
only. Do not heat any type of textiles or cushions filled with grains, which could cause burns
and fire. The manufacturer cannot be held liable for damage caused by improper or incorrect
use of the appliance.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that
could adversely affect the life of the appliance and possible result in a hazardous situation.
CORRECT DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL & ELECTRONIC EQUIPMENT)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their
working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
please separate these items from other types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product and its electronic accessories should not be mixed with other commercial wastes for disposal.
For information on Samsung’s environmental commitments and product specific regulatory obligations e.g.
REACH visit: samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html
English - 17
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 17
9/6/2017 2:07:21 PM
01 SAFETY INFORMATION
(a) Under no circumstances should any attempt be made to operate the oven with the door
open or to tamper with the safety interlocks (door latches) or to insert anything into the safety
interlock holes.
(b) Do NOT place any object between the oven door and front face or allow food or cleaner
residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces
are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth.
(c) Do NOT operate the oven if it is damaged until it has been repaired by a qualified microwave
service technician trained by the manufacturer. It is particularly important that the oven door
closes properly and that there is no damage to the:
(1) door (bent)
(2) door hinges (broken or loose)
(3) door seals and sealing surfaces
(d) The oven should not be adjusted or repaired by anyone other than a properly qualified
microwave service technician trained by the manufacturer.
oven features
CONTROL PANEL
1
4
2
5
6
3
7
8
9
1.
LAMP ON/OFF
5.
COOK TIME BUTTON
2.
DISPLAY
6.
DOWN BUTTON
3.
START BUTTON
7.
UP BUTTON
4.
MODE BUTTON
8.
SELECT BUTTON
9.
STOP/CANCEL BUTTON
English - 18
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 18
9/6/2017 2:07:22 PM
OVEN
Control Panel
02 OVEN FEATURES
Top Heating Elements
Level 5
Level 4
Oven
Levels
Level 3
Level 2
Microwave Level 1
Safety Door Lock
Door
Door Handle
• Shelf levels are numbered from the bottom up.
• The levels 4 and 5 are mainly used for grill function.
• The level 1 is mainly used for microwave function with the ceramic tray.
• Please refer to Cooking Guides provided throughout this booklet to determine appropriate
shelf level for your dishes.
English - 19
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 19
9/6/2017 2:07:22 PM
ACCESSORIES
The following accessories are provided with your microwave oven:
1. Ceramic tray.
(Useful for microwave mode.)
2. Baking trays.
(DO NOT use for microwave mode.)
3. Grill insert for ceramic tray.
(Useful for speed menu and grill mode.)
Grill Insert
Ceramic Tray
4. Pure steam cooker, refer to page 52 to
54.
Purpose: The plastic steam cooker when using
pure steam function.
Please refer to Cooking Guides in this manual to determine the appropriate accessory for your
dishes.
English - 20
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 20
9/6/2017 2:07:23 PM
before you start
When the appliance is first plugged in, the display lights up. After three seconds, the clock symbol
and “12:00” blink on the display.
CLOCK SETTINGS
03 BEFORE YOU START
1. Simultaneously press the UP button and SELECT
button. “12:00” blinks.
2. Press the UP or DOWN buttons to set the hour.
3. Press the SELECT button. “00” (mins) blinks.
4. Press the UP or DOWN buttons to set the minutes.
5. Press the SELECT button.
To change the clock settings, repeat step 1 above to blink the display.
Then, repeat steps 2 through 5 above to change the clock settings.
English - 21
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 21
9/6/2017 2:07:23 PM
SETTING THE ENERGY SAVE MODE
Energy save mode saves electricity when the oven is not being used.
Standby mode
The oven will default to Standby mode after 2 minutes of no activity.
ECO mode
1. Press and hold the SELECT button for 3 seconds.
When the oven is in ECO mode, the display turns off,
and the oven cannot be used.
2. To disable ECO mode, open the door or press any button.
TURNING THE BEEPER ON/OFF
1. To turn off the beeper, simultaneously press and hold
the UP and DOWN buttons for one second.
The oven will now not beep to indicate the end of a
function.
2. To turn the beeper back on, simultaneously press
and hold the UP and DOWN buttons again for one
second.
English - 22
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 22
9/6/2017 2:07:23 PM
oven use
TYPES OF HEATING
Microwave mode
Microwave energy is used to cook and defrost foods. It provides fast
efficient cooking without changing the colour or form of food. Power
level and cooking time are manually set to suit various dishes.
Oven mode
Convection
Food is heated by hot air from the back of the oven. This setting
provides uniform heating and is ideal for baking.
Suggested temperature: 180 °C
Grill
Food is heated by the top heating element.
Suggested temperature: 220 °C
Combi-functions
Microwave + Grill
This function is suitable for all kind of cooked food which need reheating
and browning(e.g. baked pasta), as well as foods which required a short
cooking time to brown the top of the food.
Also, this mode can be used for thick food portions that benefit from a
browned and crispy top(e.g. chicken pieces).
Microwave + Convection
This function is suitable for all kind of meat and poultry as well as
casseroles and gratin dishes, sponge cakes and light fruit cakes, pies
and curmbels, roast beef and chicken.
Automatic functions
Auto Menu Mode
15 pre-programmed auto cook settings can be selected for your
convenience. Time and temperature will be set automatically.
You simply select programme and weight your dish and start the auto
cooking process. (‘A’ appears in the display when Auto Menu Mode)
Vegetable Mode
10 pre-programmed auto cook settings can be selected for your
convenience. Time and temperature will be set automatically.
You simply select programme and weight your dish and start the speed
cooking process. (‘U’ appears in the display when Vegetable Mode)
English - 23
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 23
9/6/2017 2:07:24 PM
04 OVEN USE
The following chart summarizes the various heating modes and settings available on your oven. Use
the Cooking Guides in the pages that follow to determine the appropriate mode and setting for all
your recipes.
HOW A MICROWAVE OVEN WORKS
Microwaves are high - frequency electromagnetic waves; the energy released enables food to be
cooked or reheated without changing either the form or the colour.
You can use your microwave to:
• Microwave mode
• Combi-functions
Cooking principle
1. The microwaves generated by the microwave are
distributed uniformly by using a stirrer distribution
system. The food is thus cooked evenly.
2. The microwaves are absorbed by the food up to
a depth of about 1 inch (2.5 cm). Cooking then
continues as the heat is dissipated within the food.
3. Cooking times vary according to the container
used and the properties of the food:
• Quantity and density
• Water content
• Initial Temp. (Refrigerated or not)
As the center of the food is cooked by heat dissipation, cooking continues even when you
have taken the food out of the oven.
Standing times specified in recipes and in this booklet must therefore be respected to ensure.
• Even cooking of the food right to the center
• The same temperature throughout the food
English - 24
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 24
9/6/2017 2:07:24 PM
USING THE MICROWAVE MODE
Microwave cooking uses high-frequency waves to cook food. The waves cause molecules in the
food to move rapidly, creating friction and the resulting energy cooks the food.
For Microwave mode, use the ceramic tray on the first level.
Setting microwave mode
04 OVEN USE
1. Press the MODE button once.
The time and power level (default: 800 W) appear on
the display.
2. Press the UP or DOWN buttons to set the desired
cooking time. The max cooking time is 90 minutes.
3. To change the power level, press the SELECT button
and then press the UP or DOWN buttons to set the
desired power level.
4. Press the START button to start cooking.
English - 25
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 25
9/6/2017 2:07:25 PM
Guide to microwave power levels
POWER LEVEL
PERCENTAGE
(%)
OUTPUT
POWER (W)
HIGH
100
800
For heating up liquids.
HIGH LOW
83
700
For heating up and cooking
food.
MEDIUM HIGH
67
600
For heating up and cooking
food.
MEDIUM
50
450
MEDIUM LOW
33
300
DEFROST
20
180
For defrosting and continued
cooking.
LOW
11
100
For defrosting delicate foods.
REMARK
For cooking meat and
heating up delicate foods.
Microwave cookware guide
Cookware used for Microwave Mode must allow microwaves to pass through and
penetrate food. Metals such as stainless steel, aluminum and copper reflect microwaves.
Therefore, do not use cookware made of metallic materials. Cookware marked microwave
- safe is always safe for use. For additional information on appropriate cookware refer to the
following guide and place a glass of water or some food on the Ceramic tray.
Cookware
MicrowaveSafe
Comments

Can be used in small quantities to protect
areas against overcooking. Arcing can
occur if the foil is too close to the oven wall
or if too much foil is used.
China and Earthenware

Porcelain, pottery, glazed earthenware
and bone china are usually suitable, unless
decorated with a metal trim.
Disposable Polyester
Cardboard Dishes

Some frozen foods are packaged in these
dishes.
• Polystyrene cups
containers

Can be used to warm food. Overheating
may cause the polystyrene to melt.
• Paper bags or
newspaper

May catch fire.
• Recycled paper or
metal trims

May cause arcing.
Aluminium Foil
Fast – Food Packaging
English - 26
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 26
9/6/2017 2:07:25 PM
Cookware
MicrowaveSafe
Comments
Glassware

Can be used, unless decorated with a
metal trim.
• Fine glassware

Can be used to warm foods or liquids.
Delicate glass may break or crack if heated
suddenly.
• Glass jars

Must remove the lid. Suitable for warming
only.
•Dishes

May cause arcing or fire.
• Freezer bag twist ties

Metal
Paper
• Plates, cups, napkins
and Kitchen paper

For short cooking times and warming. Also
to absorb excess moisture.
• Recycled paper

May cause arcing.
•Containers

Particularly if heat-resistant thermoplastic.
Some other plastics may warp or
discolour at high temperatures. Do not use
Melamine plastic.
• Cling film

Can be used to retain moisture. Should
not touch the food. Take care when
removing the film as hot steam will escape.
Plastic
• Freezer bags
Wax or Grease-proof
Paper


Only if boilable or oven-proof. Should not
be airtight. Prick with a fork, if necessary.
Can be used to retain moisture and
prevent spattering.
Arcing is the microwave term for sparks in the oven.



: Recommended
: Use caution
: Unsafe
English - 27
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 27
9/6/2017 2:07:25 PM
04 OVEN USE
• Oven-to-table ware
Microwave cooking guide
General guidelines
Food suitable for microwave cooking
Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables,
fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups, steamed puddings,
preserves, and chutneys can also be cooked in a microwave oven.
Covering during cooking
Food should be covered during cooking, as the evaporated water rises as steam and
contributes to the cooking process. Food can be covered in different ways such as with a
ceramic plate, plastic cover or microwave suitable cling film.
Standing times
After cooking, it is important to let food stand for the recommended standing time to allow
the temperature to even out within the food.
Cooking guide for frozen vegetables
Use a suitable glass Pyrex bowl with lid. Cook covered for the minimum time (see table).
Continue cooking to get the result you prefer. Stir twice during cooking and once after
cooking. Add salt, herbs or butter after cooking. Keep covered during standing time.
Portion
(g)
Power
(W)
Time
(min.)
Standing
time
(min.)
Spinach
150
600
5-6
2-3
Add 15 ml (1 tbsp.)
cold water.
Broccoli
300
600
8-9
2-3
Add 30 ml (2 tbsp.)
cold water.
Peas
300
600
7-8
2-3
Add 15 ml (1 tbsp.)
cold water.
Green Beans
300
600
7½-8½
2-3
Add 30 ml (2 tbsp.)
cold water.
Mixed Vegetables
(Carrots/Peas/
Corn)
300
600
7-8
2-3
Add 15 ml (1 tbsp.)
cold water.
Mixed Vegetables
(Chinese Style)
300
600
7½-8½
2-3
Add 15 ml (1 tbsp.)
cold water.
Food
Instructions
English - 28
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 28
9/6/2017 2:07:25 PM
Cooking guide for fresh vegetables
Use a suitable glass Pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp.) for every
250 g unless another water quantity is recommended (see table) Cook covered for the
minimum time (see table) Continue cooking to get the result you prefer. Stir once during
and after cooking. Add salt, herbs or butter after cooking. Cover during the 3 minute
standing time.
All fresh vegetables should be cooked using full microwave power (800 W).
Portion
(g)
Time
(min.)
Standing
time (min.)
Broccoli
250
500
4-5
5-6
3
Prepare even sized florets. Arrange
the stems to the center.
Brussels
Sprouts
250
5-6
3
Add 60-75 ml (5-6 tbsp.) water.
Carrots
250
5-6
3
Cut carrots into even sized slices.
Cauliflower
250
500
5-6
7-8
3
Prepare even sized florets. Cut big
florets into halves. Arrange stems
to the center.
Courgettes
250
3-4
3
Cut courgettes into slices. Add
30 ml (2 tbsp.) water or a knob of
butter. Cook until just tender.
Egg Plants
250
3-4
3
Cut egg plants into small slices
and sprinkle with 1 tablespoon
lemon juice.
Leeks
250
3-4
3
Cut leeks into thick slices.
Mushrooms
125
250
1-2
2-3
3
Prepare small whole or sliced
mushrooms. Do not add any
water. Sprinkle with lemon juice.
Spice with salt and pepper. Drain
before serving.
Onions
250
4-5
3
Cut onions into slices or halves.
Add only 15 ml (1 tbsp.) water.
Pepper
250
4-5
3
Cut pepper into small slices.
Potatoes
250
500
4-5
7-8
3
Weigh the peeled potatoes and
cut them into similar sized halves
or quarters.
Turnip
Cabbage
250
5-6
3
Cut turnip cabbage into small
cubes.
Food
Instructions
English - 29
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 29
9/6/2017 2:07:25 PM
04 OVEN USE
Hint:Cut fresh vegetables into even sized pieces. The smaller they are cut the
quicker they are cooked.
Cooking guide for rice and pasta
Rice:
se a large glass Pyrex bowl with lid. (Note that rice doubles in volume during
U
cooking.) Cook covered. After cooking time is over, stir before letting stand.
Add salt or herbs and butter. Note that rice may not have absorbed all water
after the cooking time is finished.
Pasta:
se a large glass pyrex bowl. Add boiling water, a pinch of salt and stir well.
U
Cook uncovered. Stir occasionally during and after cooking. Cover during
standing time and drain thoroughly afterwards.
Portion
(g)
Power
(W)
Time
(min.)
Standing
time (min.)
White Rice
(Parboiled)
250
375
800
17-18
18-20
5
Add 500 ml cold
water.
Add 750 ml cold
water
Brown Rice
(Parboiled)
250
375
800
20-22
22-24
5
Add 500 ml cold
water.
Add 750 ml cold
water
Mixed Rice
(Rice + Wild
Rice)
250
800
17-19
5
Add 500 ml cold
water.
Mixed Corn
(Rice + Grain)
250
800
18-20
5
Add 400 ml cold
water.
Pasta
250
800
10-11
5
Add 1000 ml hot
water.
Food
Instructions
English - 30
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 30
9/6/2017 2:07:25 PM
Reheating
Your microwave oven will reheat food in a fraction of the time a conventional oven takes.
Arranging and covering
Avoid reheating large items such as joints of meat since they tend to overcook and dry
out before the centre is piping hot. You will have more success reheating smaller pieces.
Keeping food covered while heating will also help prevent drying.
Different power levels can be used for reheating foods.
In general, for large quantities of delicate food or foods that heat up quickly, such as mince
pies, it is better to use a lower power level.
Stirring
Stir well or turn food over during reheating for best results. When possible, stir again before
serving. Stirring is especially important when heating liquids.
Heating and standing times
When reheating food for the first time, it is helpful to make a note of the time taken for
future reference. Avoid overheating. If uncertain, it is preferable to underestimate cooking
time. Then extra heating time can be added, if necessary. Always make sure that reheated
food is piping hot throughout. Allow food to stand for a short time after reheating to let the
temperature even out. The recommended standing time after reheating is 2-4 minutes.
Reheating liquids
Take special care when heating liquids. To prevent eruptive boiling and possible scalding,
place a spoon or glass stick in the beverage. Stir during heating and always stir after
heating. Allow a standing time of at least 20 seconds after the oven has been switched off
to allow the temperature to even out.
English - 31
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 31
9/6/2017 2:07:25 PM
04 OVEN USE
Power levels
Reheating baby food
Baby food
Extra caution should also be exercised when reheating baby foods. Put food into a deep
ceramic plate. Cover with plastic lid. Stir well after reheating. Let stand for 2-3 minutes
before serving. Stir again and check temperature. Recommended serving temperature is
between 30-40 °C.
Baby milk
Pour milk into a sterilised glass bottle. Reheat uncovered. Never heat a baby’s bottle with
the nipple on, as the bottle may explode if overheated. Shake well before standing time and
again before serving. Always carefully check the temperature of baby milk or food before
serving. Recommended serving temperature is 37 °C.
Reheating baby food and milk
Use the power levels and times in this table as guide lines for reheating.
Food
Portion
Power
Time
Standing
time
(min.)
Baby Food
(Vegetable +
Meat)
190 g
600 W
30-40 sec.
2-3
Empty into ceramic
deep plate. Cook
covered. Stir after
cooking time. Stand
for 2-3 minutes.
Before serving, stir
well and check the
temperature carefully.
Baby
Porridge
(Grain + Milk
+ Fruit)
190 g
600 W
20-30 sec.
2-3
Empty into ceramic
deep plate. Cook
covered. Stir after
cooking time. Stand
for 2-3 minutes.
Before serving, stir
well and check the
temperature carefully.
Baby Milk
100 ml
200 ml
300 W
30-40 sec.
50 sec. to
1 min.
2-3
Stir or Shake well and
pour into a sterilized
glass bottle. Place
into the centre of
ceramic tray. Cook
uncovered. Shake
well and stand for
at least 3 minutes.
Before serving, Shake
well and check the
temperature carefully.
Instruction
English - 32
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 32
9/6/2017 2:07:25 PM
Reheating liquids and food
Use the power levels and times in this table as guide lines for reheating.
Portion
Power
Time
Standing
time
(min.)
250 ml
(1 mug)
500 ml
(2 mugs)
800 W
1½-2
1-2
Pour into a ceramic cup and
reheat uncovered. Place cup
in the center of ceramic tray.
Stir carefully before and after
standing time.
Soup
(Chilled)
250 g
800 W
3-4
2-3
Pour into a deep ceramic
plate. Cover with plastic lid.
Stir well after reheating. Stir
again before serving.
Stew
(Chilled)
350 g
600 W
5-6
2-3
Pour into a deep ceramic
plate. Cover with plastic lid.
Stir well after reheating. Stir
again before serving.
Pasta with
sauce
(Chilled)
350 g
600 W
5-6
2-3
Pour into a deep ceramic
plate. Cover with plastic lid.
Stir well after reheating. Stir
again before serving.
Plated meal
(Chilled)
350 g
450 g
600 W
5-6
6-7
3
Food
Drink
Plate a meal of 2-3 chilled
components on a ceramic dish.
Cover with microwave cling film.
Defrosting
Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost
frozen food in a short period of time. This can be a great advantage, if unexpected guests
suddenly show up.
Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take
it out of any wrapping to allow thawed liquid to drain away.
Put the frozen food on a dish without a cover. Turn over half way, drain off any liquid and
remove any giblets as soon as possible. Check the food occasionally to make sure that it
does not feel warm. If smaller and thinner parts of the frozen food start to warm up, they
can be shield by wrapping very small strips of aluminium foil around them during defrosting.
Should poultry start to warm up on the outer surface, press STOP/CANCEL button and
allow it to stand for 20 minutes before continuing. Leave the fish, meat and poultry to
stand in order to complete defrosting. The standing time for complete defrosting will vary
depending on the quantity defrosted. Please refer to the table on the next page.
Hint:
lat food is defrosted better than thicker items, and smaller quantities need
F
less time than bigger ones. Remember this hint while freezing and defrosting
food.
For defrosting of frozen food with a temperature of about -18 to -20 °C, use the following
table as a guide.
English - 33
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 33
9/6/2017 2:07:25 PM
04 OVEN USE
2-3
Instruction
Frozen foods should be defrosted using defrosting power level (180 W).
Place food on ceramic tray, insert ceramic tray in shelf level 1.
Portion
(g)
Time
(min.)
Standing
time (min.)
Minced Beef
250
500
6-7
8-12
15-30
Pork Steaks
250
7-8
Place the meat on the ceramic
plate. Shield thinner edges with
aluminium foil. Turn over after
half of defrosting time.
Chicken
Pieces
500
(2 pcs)
12-14
15-60
Whole
Chicken
1200
28-32
First, put chicken pieces skin
- side down, whole chicken
breast - side - down on ceramic
plate. Shield the thinner parts like
wings and ends with aluminium
foil. Turn over after half of
defrosting time.
Fish Fillets
200
6-7
10-25
Whole Fish
400
11-13
Put frozen fish in the middle
of ceramic plate. Arrange the
thinner parts under the thicker
parts. Shield narrow ends of
fillets and tail of whole fish With
aluminium foil. Turn over after
half of defrosting time.
300
6-7
5-10
Spread fruit on a flat, round glass
dish with a large diameter.
2 pcs
4 pcs
1-1½
2½-3
5-20
250
500
4-4½
7-9
Arrange rolls in a circle or bread
horizontally on kitchen paper on
the ceramic plate. Turn over after
half of defrosting time.
Food
Instructions
MEAT
POULTRY
FISH
FRUIT
Berries
BREAD
Bread Rolls
(each ca.
50 g)
Toast/
Sandwich
English - 34
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 34
9/6/2017 2:07:25 PM
USING THE OVEN MODE
To set an oven mode
1. Press the MODE button 3 times for Grill mode or
2 times for Convection mode. The oven mode and
recommended temperature are displayed.
04 OVEN USE
Grill
Convection
2. Press the SELECT button and then press the UP or
DOWN buttons to set the desired temperature.
3. Press the COOK TIME button and then press the UP
or DOWN buttons to set the desired cooking time.
Max cooking time: 10 hours
4. Press the START button.
English - 35
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 35
9/6/2017 2:07:26 PM
Grill setting
Food is heated by the top heating element.
5.
For grilling, Grill insert with Ceramic Tray on level
* Temperatures Setting: 150-230 °C
* Please ensure that glass baking dishes are suitable for 150-230 °C cooking
temperatures.
Cooking guide
Use temperatures and times in this table as guidelines for grilling.
Set 220 °C grill temperature, preheat for 5 minutes.
Shelf
level
1st side time
(h)
2nd side time
(h)
Accessory
Kebab spits
5
0:08 - 0:10
0:06 - 0:08
Grill Insert + Ceramic Tray
Pork steaks
5
0:07 - 0:09
0:05 - 0:07
Grill Insert + Ceramic Tray
Sausages
5
0:06 - 0:08
0:06 - 0:08
Grill Insert + Ceramic Tray
Chicken pieces
5
0:20 - 0:25
0:15 - 0:20
Grill Insert + Ceramic Tray
Salmon steaks
5
0:08 - 0:12
0:06 - 0:10
Grill Insert + Ceramic Tray
Sliced vegetables
5
0:15 - 0:20
-
Grill Insert + Ceramic Tray
Toast
5
0:02 - 0:03
0:01 - 0:02
Grill Insert + Ceramic Tray
Cheese toasts
5
0:03 - 0:05
-
Grill Insert + Ceramic Tray
Food item
Preheating is recommended.
If you open the door while oven is cooking, the oven stops.
To restart the oven, close the door and press START button.
English - 36
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 36
9/6/2017 2:07:26 PM
Convection setting
Food is heated by hot air from the fan and heating element, which are located in the rear
back side of the oven. This setting provides uniform heating and is ideal for baking.
Place the trays on Level
or
.
* Temperatures Setting: 40-230 °C
04 OVEN USE
* Please ensure that glass baking dishes are suitable for 40-230 °C cooking
temperatures.
Cooking guide
Use temperatures and times in this table as guidelines for baking.
We recommend to preheat the oven with Convection mode.
Shelf
level
Temp. (°C)
Time (h)
Accessory
Hazelnut cake square
mould
2
160-170
1:00 - 1:10
Grill Insert +
Ceramic Tray
Lemon cake ringshaped or bowl mould
2
150-160
0:50 - 1:00
Grill Insert +
Ceramic Tray
Sponge cake
2
150-160
0:25 - 0:35
Grill Insert +
Ceramic Tray
Fruit flan base
2
150-170
0:25 - 0:35
Grill Insert +
Ceramic Tray
Flat streusel fruit cake
(yeast dough)
3
150-170
0:30 - 0:40
Baking tray
Croissants
2
170-180
0:10 - 0:15
Baking tray
Bread rolls
2
180-190
0:10 - 0:15
Baking tray
Cookies
3
160-180
0:10 - 0:20
Baking tray
Oven chips
3
200-220
0:15 - 0:20
Baking tray
Food item
Preheating is recommended.
If you open the door while oven is cooking, the oven stops.
To restart the oven, close the door and press START button.
English - 37
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 37
9/6/2017 2:07:27 PM
SETTING THE COOKING TIME
You can set the cooking time to max. 10 hours. After cooking, the heating elements automatically
turn off.
1. Select the desired mode and function.
Set the temperature if preferred.
2. Press the COOK TIME button.
3. Press the UP or DOWN buttons to select the desired
cooking time and then press the COOK TIME
button.
4. Press the START button. When the time has elapsed,
a beep sounds and the oven turns off.
To reset the programmed cooking time, repeat steps 2 through 4 above.
To cancel the programmed cooking time, press the COOK TIME button and set the
time to zero.
English - 38
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 38
9/6/2017 2:07:27 PM
SETTING THE END TIME
You can set a specific time you would like the oven to stop cooking. End Time mode can only be
used in the Grill and Convection modes.
1. Select the desired mode and function.
Set the temperature if preferred.
04 OVEN USE
2. Press and hold the COOK TIME button for
3 seconds. The current time blinks on the display.
Example:
Current time is 13:00.
“13:00” blinks on the display.
3. Press the UP or DOWN buttons to set the desired
time you want cooking to end and then press the
COOK TIME button.
Example:
Desired time is 14:00.
4. Press the START button.
Cooking time of “1:00” is displayed.
The oven will start promptly.
When the end time is reached, a signal sounds,
“0:00” blinks on the display, and the oven turns off.
1) You can adjust the ending time if necessary. Press the COOK TIME button,
change the time using the UP or DOWN buttons, and then press the COOK
TIME button again.
2) To cancel the ending time, press the COOK TIME button, set the time to “0:00”,
and then press the COOK TIME button again.
English - 39
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 39
9/6/2017 2:07:27 PM
SETTING THE DELAY START
Use Delay Start to delay the start of the oven’s operation.
Example:
Current time: 12:00
Cooking time: 2 hours
End time: You wish to end cooking at 18:00
1. Select the desired mode and function. Set the
temperature if preferred.
2. Press the COOK TIME button, and then press the
UP or DOWN buttons to set the desired cooking
duration. (In this case, 2 hours)
3. Press and hold the COOK TIME button for
3 seconds.
• The cooking time is added to the current time.
In this case, “14:00” is displayed.
4. Press the UP or DOWN buttons to set the desired
end time.
• In this case, “18:00”. Wait 5 seconds, and the desired end time is set.
5. Press the START button.
An icon is displayed in the display, indicating Delay
Start is activated. The oven automatically starts at
the reserved time (16:00), and the cooking time is
displayed.
1) The cook time and end time can be changed before the reserved time.
2) When the cooking is complete, a signal sounds, “0:00” blinks on the display, and
the oven turns off.
Do not leave food in the oven too long, as it may spoil.
WARNING
English - 40
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 40
9/6/2017 2:07:27 PM
COMBINATION MODE
Microwave + Grill
Setting Microwave + Grill
1. Press the MODE button 4 times. The oven mode,
time and power level is displayed.
2. Press the UP or DOWN buttons to set a desired
cooking time.
3. Press the SELECT button and then press the UP or
DOWN buttons to set the desired power level.
4. Press the SELECT button and then press the UP or
DOWN buttons to set the desired temperature.
5. Press the START button.
English - 41
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 41
9/6/2017 2:07:28 PM
04 OVEN USE
This mode uses the radiant heat coming from the grill and cooks at the speed of microwave
cooking. Cooking time is decreased, and the food will have a nice browning. Suitable food
combinations include all kinds of cooked food that need reheating and browning (baked
pasta), as well as food that require a short cooking time to brown the top of the food. Also,
this mode can be used for thick food portions that benefit from a browned and crispy top.
For Microwave + Grill, ceramic tray with grill insert is
.
usually placed on Level
* Microwave Power Setting: 100-600 W
* Temperatures Setting: 40-200 °C
* Please ensure that glass baking dishes are suitable for 40-200 °C cooking
temperatures.
Cooking guide
Use power level with temperatures and times in this table as guidelines for cooking.
Preheating is not needed.
Food
item
Shelf
level
Power
level (W)
Temp. (°C)
1st side
time
(min.)
2nd side
time
(min.)
Accessory
Baked
potatoes
4
1st: 450
2nd: -
1st: 180-200
2nd: 220
10-15
2-4
Grill Insert +
Ceramic Tray
Grilled
tomatoes
4
180
160-180
10-15
-
Grill Insert +
Ceramic Tray
Vegetable
gratin
4
450
180-200
10-15
-
Grill Insert +
Ceramic Tray
Roast fish
4
300
180-200
5-8
6-10
Grill Insert +
Ceramic Tray
Chicken
pieces
4
300
180-200
13-17
13-17
Grill Insert +
Ceramic Tray
English - 42
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 42
9/6/2017 2:07:28 PM
Microwave + Convection
This mode combines hot air and microwaves and reduces the cooking time while giving
the food a brown and crispy surface. Suitable food for this mode include all kinds of meat
and poultry as well as casseroles and gratin dishes, sponge and light fruit cakes, pies and
crumbles, roasted vegetables, scones and breads.
Setting Microwave + Convection
04 OVEN USE
1. Press the MODE button 5 times. The oven mode,
time and power level is displayed.
2. Press the UP or DOWN buttons to set a desired
cooking time.
3. Press the SELECT button and then press the UP or
DOWN buttons to set the desired power level.
4. Press the SELECT button and then press the UP or
DOWN buttons to set the desired temperature.
5. Press the START button.
English - 43
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 43
9/6/2017 2:07:28 PM
For Microwave + Convection, ceramic tray with grill
.
insert is usually placed on Level
* Microwave Power Setting: 100-600 W
* Temperatures Setting: 40-200 °C
* Please ensure that glass baking dishes are suitable for 40-200 °C cooking
temperatures.
Cooking guide
Use power level with temperatures and times in this table as guidelines for cooking.
Preheating is not needed.
Shelf
level
Power
level (W)
Temp.
(°C)
1st side
time
(min.)
2nd side
time
(min.)
Accessory
Whole chicken
1.2 kg
3
1st: 450
2nd: 300
180200
20-25
23-27
Grill Insert +
Ceramic Tray
Roast beef/
Lamb (Medium)
3
300
180200
17-22
18-25
Grill Insert +
Ceramic Tray
Frozen lasagne/
Pasta gratin
3
450
180200
30-35
-
Grill Insert +
Ceramic Tray
Potato gratin
3
450
180200
15-20
-
Grill Insert +
Ceramic Tray
Fresh fruit flan
3
100
160180
45-50
-
Ceramic Tray
Food item
English - 44
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 44
9/6/2017 2:07:28 PM
USING THE VEGETABLE COOK MODE
Add 30-45 ml of cold water for every 250 g unless another water quantity is recommended (see
table). Cook covered for the minimum time (see table). Continue cooking to get the result you
prefer. Stir once during and once after cooking. Add, salt, herbs, or butter after cooking. Cover and
let stand for 3 minutes.
Cut fresh vegetables into even sized pieces. The smaller they are, the quicker they will cook.
04 OVEN USE
Setting vegetable cook mode
1. Press the MODE button 6 times.
Vegetable mode is displayed.
2. Press the UP or DOWN buttons to select the desired
vegetable mode, and then press the SELECT button.
3. Press the UP or DOWN buttons to set the weight.
If you do not set the weight, after 5 seconds, the
weight is automatically set.
4. Press the START button.
English - 45
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 45
9/6/2017 2:07:29 PM
Guide to Vegetabel menu setting
The following table presents 10 vegetable. It contains its quantities, standing times and
appropriate recommendations. These auto programmes contain special cook modes,
which have been developed for your convenience.
No
Food item
Weight
(kg)
Accessory
Shelf
level
Recommendation
U:01 Broccoli
Florets
0.2-0.3
0.3-0.4
Ceramic tray
1
Rinse and clean fresh broccoli
and prepare florets. Put them
evenly into a glass bowl with
lid. Add 30 ml (2 tablespoons)
water when cooking for 0.20.3 kg, and add 45-60 ml
(3-4 tablespoons) for 0.30.4 kg. Put bowl in the centre
of turntable. Cook covered. Stir
after cooking.
U:02 Cauliflower
Florets
0.2-0.3
0.3-0.4
Ceramic tray
1
Rinse and clean fresh Cauliflower
and prepare florets. Put them
evenly into a glass bowl with
lid. Add 30 ml (2 tablespoons)
water when cooking for 0.20.3 kg, and add 45-60 ml
(3-4 tablespoons) for 0.30.4 kg. Put bowl in the centre
of turntable. Cook covered. Stir
after cooking.
U:03 Sliced
Carrots
0.2-0.3
0.4-0.5
Ceramic tray
1
Rinse and clean carrots and
prepare even slices. Put them
evenly into a glass bowl with
lid. Add 30 ml (2 tablespoons)
water when cooking for 0.20.3 kg, and add 45-60 ml
(3-4 tablespoons) for 0.40.5 kg. Put bowl in the centre
of turntable. Cook covered. Stir
after cooking.
U:04 Jacket
Potatoes
0.3-0.4
0.7-0.8
Ceramic tray
1
Rinse and clean potatoes, Brush
with olive oil and pierce skin with
a knife. Put on ceramic tray. After
cooking, stand for 3-5 minutes.
U:05 Peeled
Potatoes
0.4-0.5
0.7-0.8
Ceramic tray
1
Rinse and peel potatoes, cut
into halves and put into an
oven-proof glass bowl with
lid. Add 15-30 ml of water
(1-2 tablespoons). Stir after
cooking. When cooking higher
quantities stir once during
cooking. Stand for 3-5 minutes.
English - 46
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 46
9/6/2017 2:07:29 PM
No
Food item
Weight
(kg)
Accessory
Shelf
level
Recommendation
0.2-0.3
0.3-0.4
Ceramic tray
1
Cut courgettes into slices. Add
30 ml (2 tablespoons) water or a
knob of butter. Put them evenly
into a glass bowl with lid. Cook
covered. Cook until just tender.
U:07 Sliced Egg
Plants
0.1-0.2
0.3-0.4
Ceramic tray
1
Cut egg plants into small
slices and sprinkle with 15 ml
(1 tablespoon) lemon juice. Put
them evenly into a glass bowl
with lid. Cook covered. Stir after
cooking.
U:08 Sliced
Onions
0.2-0.3
0.4-0.5
Ceramic tray
1
Cut onions into slices or halves.
Add only 15 ml (1 tablespoon)
water. Put them evenly into
a glass bowl with lid. Cook
covered. Stir after cooking.
U:09 Mixed
Vegetables
0.2-0.3
0.4-0.5
Ceramic tray
1
Rinse and clean fresh
vegetables. Put them evenly
into a glass bowl with lid. Add
15 ml (1 tablespoon) water when
cooking for 0.2-0.3 kg, and add
30 ml (2 tablespoons) for 0.40.5 kg. Put bowl in the centre
of turntable. Cook covered. Stir
after cooking.
U:10 White Rice
0.2-0.3
Ceramic tray
1
Use a large glass Pyrex bowl
with lid. (Note that rice doubles
in volume during cooking.) Cook
covered. After cooking time is
over, stir before letting stand.
Add salt or herbs and butter.
Note that rice may not have
absorbed all water after the
cooking time is finished.
The Speed Cook Mode uses microwave energy to heat food.
Therefore guidelines for cookware and other microwave safety precautions must be
strictly observed when using this mode.
English - 47
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 47
9/6/2017 2:07:29 PM
04 OVEN USE
U:06 Courgettes
USING THE AUTO MENU MODE
Auto Menu mode allows you to choose from 15 pre-programmed settings (10 Auto Cook and 5
Auto Defrost) to conveniently cook, roast, or bake your favorite foods. The cooking time and power
level are automatically set. Simply select one of the 15 settings and set the weight to start cooking.
Setting auto menu mode
1. Press the MODE button 7 times.
Auto Menu mode is displayed.
2. Press the UP or DOWN buttons to select the desired
Auto Menu, and then press the SELECT button.
3. Press the UP or DOWN buttons to set the weight.
If you do not set the weight, after 5 seconds, the
weight is automatically set.
4. Press the START button.
• Some of the Auto Menus require the food to be turned over.
The oven will beep to prompt you.
• The oven temperature is displayed.
• Temperatures and times cannot be changed in Auto Menu mode.
English - 48
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 48
9/6/2017 2:07:29 PM
Guide to auto cook menu setting
The following table presents 10 Auto Programmes Reheating, Cooking, Roasting and
Baking.
It contains its quantities, standing times and appropriate recommendations. These
auto programmes contain special cook modes, which have been developed for your
convenience.
Food item
Shelf
level
Weight (kg)
Accessory
Recommendation
A:01 Plated Meal
0.3-0.35
0.4-0.45
Ceramic
tray
1
Put on a ceramic plate and
cover with microwave cling
film. This programme is
suitable for meals consisting
of 3 components (e.g. meat
with sauce, vegetables and
a side dish like potatoes, rice
or pasta). After cooking stand
for 3 min.
A:02 Frozen Pizza
0.3-0.35
0.4-0.45
Grill Insert
+ Ceramic
Tray
2
Put frozen pizza on oven.
A:03 Frozen
Lasagne
0.4-0.45
0.6-0.65
Grill Insert
+ Ceramic
Tray
2
Put frozen lasagne in a
suitable glass pyrex or
ceramic dish. After reheating
let stand for 2-3 minutes.
A:04 Whole
Chicken
1.1-1.15
1.2-1.25
Grill Insert
+ Ceramic
Tray
2
Brush chilled chicken with
oil and spices. Put breastside-down, in the middle of
grill insert rack with ceramic
tray. Turnover, as soon as
the oven beeps. Put Start
button to continue process.
After cooking let stand for
5 minutes.
A:05 Chicken
Pieces
0.6-0.7
0.9-1.0
Grill Insert
+ Ceramic
Tray
4
Brush chilled chicken pieces
with oil and spices. Put on
grill insert with ceramic tray
with the skin-side down.
Turnover, as soon as the
oven beeps. After cooking let
stand for 2-3 minutes.
A:06 Roast Lamb
0.8-0.9
1.1-1.2
Grill Insert
+ Ceramic
Tray
3
Put marinated roast lamb on
grill insert rack with ceramic
tray. When beeps, turnover
and start again.
A:07 Frozen Oven
Chips
0.3-0.4
0.45-0.5
Baking tray
3
Distribute frozen oven chips
on metal baking tray.
English - 49
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 49
9/6/2017 2:07:29 PM
04 OVEN USE
No
No
Food item
Shelf
level
Weight (kg)
Accessory
Recommendation
A:08 Baked
Potato
Halves
0.4-0.5
0.6-0.7
Grill Insert
+ Ceramic
Tray
4
Cut potatoes into halves. Put
them in a circle on the tray
with the cut side to the grill.
After cooking let stand for 2-3
minutes.
A:09 Apple Pie
1.2-1.4
Baking tray
2
Put apple pie into a round
metal dish. Put on the baking
tray. The weight ranges
include apple and so on.
A:10 Dutch Loaf
Cake
0.7-0.8
Baking tray
3
Put fresh dough into suitable
sized rectangular metal
baking dish (length 25 cm).
Put dish length way to the
door on baking tray.
English - 50
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 50
9/6/2017 2:07:29 PM
Guide to auto speed defrost setting
The following table presents the various Auto Defrost programmes, quantities, standing
times and appropriate recommendations. These programmes use microwave energy
only. Remove all packaging material before defrosting. Place meat, poultry and fish on the
ceramic tray.
Food
Item
Weight
Shelf
Accessory
(kg)
Level
Recommendation
d:01 Meat
0.2-1.5
Ceramic
tray
1
Shield the edges with aluminium foil. Turn
the meat over, when the oven beeps. This
programme is suitable for beef, lamb, pork,
steaks, chops, minced meat.
d:02 Poultry
0.2-1.5
Ceramic
tray
1
Shield the leg and wing tips with aluminium
foil. Turn the poultry over, when the oven
beeps. This programme is suitable for whole
chicken as well as for chicken portions.
d:03 Fish
0.2-1.5
Ceramic
tray
1
Shield the tail of a whole fish with aluminium
foil. Turn the fish over, when the oven beeps.
This programme is suitable for whole fishes
as well as for fish fillets.
d:04 Bread/
Cake
0.1-0.8
Ceramic
tray
1
Put bread on a piece of kitchen paper and
turn over, as soon as the oven beeps. Place
cake on ceramic tray and if possible, turn
over, as soon as the oven beeps. (Oven
keeps operating and is stopped, when you
open the door.) This programme is suitable
for all kinds of bread, sliced or whole, as well
as for bread rolls and baguettes. Arrange
bread rolls in a circle. This programme is
suitable for all kinds of yeast cake, biscuit,
cheese cake and puff pastry. It is not suitable
for short / crust pastry, fruit and cream cakes
as well as for cake with chocolate topping.
d:05 Fruit
0.1-0.6
Ceramic
tray
1
Distribute frozen fruit evenly on ceramic tray.
This programme is suitable for fruits like
raspberries, mixed berries, and tropical fruits.
The Speed Defrost Mode uses microwave energy to heat food.
Therefore guidelines for cookware and other microwave safety precautions must be
strictly observed when using this mode.
English - 51
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 51
9/6/2017 2:07:29 PM
04 OVEN USE
No
PURE STEAM COOKING GUIDE
The Pure Steamer is based on the principle of steam cooking, and is designed for fast, healthy
cooking in your Samsung Microwave oven.
This accessory is ideal for cooking rice, pasta, vegetables, etc. in record time, while preserving their
nutritional values.
The Microwave Pure steamer set is made up of 3 items:
Bowl
Insert tray
Lid
All parts withstand temperatures from -10 °C to 130 °C.
Suitable for freezer storage. Can also be used separately or together.
CONDITIONS of USE:
Do not use:
• To cook foods with a high sugar or fat content.
• With the grill or rotating heat function or on a hob.
Wash all parts well in soapy water before first use.
To find out cooking times, please refer to the instructions in the table on next page.
MAINTENANCE:
Your steamer can be washed in a dishwasher.
When washing by hand, use hot water and washing-up liquid. Do not use abrasive
pads.
Some foods (such as tomato) may discolour the plastic. This is normal and not a
manufacturing fault.
DEFROSTING:
Place the frozen food in the steam bowl without the lid. The liquid will remain in the bottom
of the pot and will not harm the food.
English - 52
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 52
9/6/2017 2:07:29 PM
COOKING:
Food
Artichokes
Serving size
Power
(W)
Cooking time
(min.)
Handling
300 g
(1-2 pcs)
800 W
5-6
Bowl with Insert tray + Lid
Fresh
Vegetables
Frozen
Vegetables
Rice
300 g
800 W
4-5
Bowl with Insert tray + Lid
Instructions
Weigh the vegetables (e.g. broccoli, cauliflower, carrots, pepper) after
washing, cleaning and cutting into similar size. Put tray into bowl.
Distribute vegetables on insert tray. Add 2 tbsp water. Cover with lid.
Stand for 1-2 minutes.
300 g
600 W
8-9
Bowl with Insert tray + Lid
Instructions
Put the frozen vegetables into the steam bowl. Put insert tray into bowl.
Add 1 tbsp water. Cover with lid. Stir well after cooking and standing.
Stand for 2-3 minutes.
250 g
800 W
15-18
Bowl + Lid
Instructions
Put rice into the steam bowl. Add 500 ml cold water. Cover with lid. After
cooking let stand white rice 5 minutes, brown rice 10 minutes. Stand for
5-10 minutes.
Jacket
Potatoes
Stew
(Chilled)
Soup
(Chilled)
Frozen
Soup
500 g
800 W
7-8
Bowl + Lid
Instructions
Weigh and rinse the potatoes and put them into steam bowl. Add 3 tbsp
water. Cover with lid. Stand for 2-3 minutes.
400 g
600 W
5½-6½
Bowl + Lid
Instructions
Put stew into the steam bowl. Cover with lid. Stir well before standing.
Stand for 1-2 minutes.
400 g
800 W
3-4
Bowl + Lid
Instructions
Pour into steam bowl. Cover with lid. Stir well before standing. Stand for
1-2 minutes.
400 g
800 W
8-10
Bowl + Lid
Instructions
Put frozen soup into steam bowl. Cover with lid. Stir well before standing.
Stand for 2-3 minutes.
English - 53
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 53
9/6/2017 2:07:29 PM
04 OVEN USE
Instructions
Rinse and clean artichokes. Put insert tray into bowl. Set artichokes on
tray. Add 1 tbsp lemon juice. Cover with lid. Stand for 1-2 minutes.
Food
Frozen
Yeast
Dumpling
with Jam
Filling
Fruit
Compote
Serving size
Power
(W)
Cooking time
(min.)
Handling
150 g
600 W
1½-2½
Bowl + Lid
Instructions
Moist the top of filled dumplings with cold water. Put 1-2 frozen
dumplings side by side into the steam bowl. Cover with lid.
Stand for 2-3 minutes.
250 g
800 W
3-4
Bowl + Lid
Instructions
Weigh the fresh fruits (e.g. apples, pears, plums, apricots, mangoes or
pineapple) after peeling, washing and cutting into similar sizes or cubes.
Put into steam bowl. Add 1-2 tbsp water and 1-2 tbsp sugar.
Cover with lid. Stand for 2-3 minutes.
Handling of pure steam cooker
+
Bowl + Lid
Bowl with Insert tray + Lid
PRECAUTIONS:
Take special care when opening the lid of your steamer, because the steam escaping
may be very hot.
Use oven gloves when handling after cooking.
English - 54
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 54
9/6/2017 2:07:30 PM
CHILD SAFETY LOCK
Child Safety Lock allows you to lock the control panel to protect against unintended use.
To lock the oven
1. Simultaneously press and hold the COOK TIME
button and DOWN button for 3 seconds.
04 OVEN USE
2. A lock symbol appears on the display indicating that
all functions are locked.
To unlock the oven
1. Simultaneously press and hold the COOK TIME
button and DOWN button for 3 seconds.
2. The lock icon disappears on the display, indicating
that functions are unlocked.
English - 55
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 55
9/6/2017 2:07:30 PM
USING THE STEAM CLEAN MODE
The Steam Clean allows you to sanitize your oven in just 15 minutes.
1. Press the MODE button 8 times.
The time (15:00) is displayed.
2. Press the START button.
The oven will start automatically.
• After 15 minutes, the oven will stop automatically.
Wipe it out with a dry cloth.
• Use this feature only when oven has cooled completely to room temperature.
• DO NOT use distilled water.
• DO NOT use high-pressure water cleaners or steam jet cleaners to clean the
microwave oven.
English - 56
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 56
9/6/2017 2:07:30 PM
troubleshooting and
information code
Repairs should only be made by a qualified service technician.
If oven requires servicing, unplug the oven and contact SAMSUNG
Customer Service.
When calling, please have the following information ready:
• The model number and serial number (can be found inside the oven door)
• Warranty details
• Clear description of the problem
If oven must be temporarily stored, choose a clean dry place as dust and dampness can cause
damage.
TROUBLESHOOTING
If you have problems with your oven, try the solutions suggested below. They may save you the
time and inconvenience of an unnecessary service call.
Neither the oven’s display nor the oven operate.
• Make sure the plug is properly connected to a grounded outlet.
• If the wall outlet is controlled by a wall switch, make sure the wall switch is turned on.
• Remove the plug from the outlet, wait ten seconds, then plug it in again.
• Reset the circuit breaker or replace any blown fuse.
• Plug the oven into a different outlet.
• Plug a different appliance into the outlet. If the other appliance doesn’t work, call a
qualified electrician to repair the wall outlet.
The oven’s display works, but the power won’t come on.
• Make sure the door is closed securely.
• Check if any packaging material or anything else is stuck in the door seal.
• Check if the door is damaged.
• Press Cancel twice and enter all cooking instructions.
The oven does not start when you press the start button.
• Make sure the door is closed completely.
English - 57
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 57
9/6/2017 2:07:30 PM
05 TROUBLESHOOTING
STORING AND REPAIRING YOUR MICROWAVE OVEN
Smoke and bad smell when initial operating.
• It’s a temporary condition by new component heating. Smoke and smell will disappear
completely after 10 minutes operation.
To remove smell more quickly, please operate microwave oven with putting lemon
formation or lemon juice in the cabinet.
The power goes off before the set time has elapsed.
• It may occur a power outage. If there was a power outage, the time indicator will
display: 88:88.
• Reset the clock and any cooking instructions.
• Reset the circuit breaker or replace any blown fuse.
• Make sure the oven is placed properly in accordance with installation guide.
The food is either overcooked or undercooked.
• Make sure the cooking length is set appropriately by considering the type of food.
• Make sure the power level is set appropriately.
The food is not cooked at all.
• Make sure the door is closed securely.
• Check if timer is set correctly and/or start button is pressed.
• Reset the circuit breaker or replace any blown fuse.
Sparking and cracking occur inside the oven (arcing).
• Remove any metallic utensils, cookware, or metal ties.
• If using foil, use only narrow strips and allow at least one inch between the foil and
interior oven walls.
Operating noise is too loud.
• The oven makes noise during operation. This is normal.
If you hear an abnormal sound continuously, please contact the Samsung Call Center.
The oven causes interference with radios or televisions.
• Slight interference may be observed on televisions or radios when the oven is operating.
This is normal. To solve this problem, install the oven away from televisions, radios and
aerials.
• If interference is detected by the oven’s microprocessor, the display may be reset. To
solve this problem, disconnect the power plug and reconnect it. Reset the time.
The light bulb is not working.
• The Light bulb should not be replaced in person for safety reasons.
Please contact nearest authorised Samsung customer care, to arrange for a qualified
engineer to replace the bulb.
English - 58
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 58
9/6/2017 2:07:30 PM
The fan continues to operate after the oven has been turned off.
• This is a normal occurrence. Cooling fan may continue to operate for up to cooling
down the oven after oven has been turned off.
Condensation inside the oven.
• This is normal condition. Simply wipe away after cooking.
05 TROUBLESHOOTING
Air flow around the door and outer casing.
• This is normal condition.
Light reflection around the door and outer casing.
• This is normal condition.
Steam escaping from around the door or vents.
• This is normal condition.
English - 59
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 59
9/6/2017 2:07:30 PM
INFORMATION CODES
Code Symbol
Problem
KEY SHORT ERROR
This error occurs when a button is pressed and
held for over 60 seconds.
MICROWAVE ABNORMAL TEMP SENSING
ERROR
It occurs when the temperature of cavity inside is
over 210 °C in the Microwave Mode.
Solution
Press STOP/CANCEL
button to stop the oven.
After cooling, please
restart the oven.
OVEN has still same
problem after above
action, then contact an
authorized SAMSUNG
Customer Service.
TEMP SENSOR OPEN ERROR
It occurs due to a defective sensor, misplaced
wires, a defective PCB.
TEMP SENSOR SHORT ERROR
It occurs due to a defective sensor, misplaced
wires, a defective PCB.
ABNORMAL TEMP SENSING ERROR
It occurs when the temperature of cavity inside is
over 250 °C for 10 minutes.
Call your local
SAMSUNG Customer
Care Centre.
COMMUNICATION ERROR
English - 60
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 60
9/6/2017 2:07:31 PM
technical data
SAMSUNG strives to improve its products at all times. Both the design specifications and these
user instructions are thus subject to change without notice.
Model
NQ50H5537KB
Power Source
230 V ~ 50 Hz
Power Consumption
Maximum Power
13 A
Microwave Mode
1650 W
Grill Mode
2500 W
Convection Mode
2500 W
Output Power
100 W / 800 W (IEC-705)
- 240 V : 800 W
- 230 V : 750 W
Operating Frequency
2450 MHz
Magnetron
OM75P (21)
Cooling Method
Cooling fan motor
Dimensions (W X H XD)
Set Size (Include Handle)
595 X 454.2 X 570 mm
Built In Size
555 X 445 X 548.8 mm
Volume
Weight
06 TECHNICAL DATA
TECHNICAL SPECIFICATIONS
50 liter
Net
38.3 Kg
Shipping
45.5 Kg
English - 61
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 61
9/6/2017 2:07:31 PM
memo
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 62
9/6/2017 2:07:31 PM
memo
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 63
9/6/2017 2:07:31 PM
QUESTIONS OR COMMENTS?
COUNTRY
CALL
OR VISIT US ONLINE AT
AUSTRIA
0800-SAMSUNG (0800-7267864)
[Only for KNOX customers] 0800 400848
[Only for Premium HA] 0800-366661
[Only for Dealers] 0810-112233
www.samsung.com/at/support
BELGIUM
02-201-24-18
www.samsung.com/be/support (Dutch)
www.samsung.com/be_fr/support (French)
DENMARK
70 70 19 70
www.samsung.com/dk/support
FINLAND
030-6227 515
www.samsung.com/fi/support
FRANCE
01 48 63 00 00
www.samsung.com/fr/support
GERMANY
06196 77 555 77
www.samsung.com/de/support
ITALIA
800-SAMSUNG (800.7267864)
www.samsung.com/it/support
CYPRUS
8009 4000 only from landline, toll free
GREECE
80111-SAMSUNG (80111 726 7864)
only from land line
(+30) 210 6897691 from mobile and
land line
www.samsung.com/gr/support
LUXEMBURG
261 03 710
www.samsung.com/be_fr/support
NETHERLANDS
088 90 90 100
www.samsung.com/nl/support
www.samsung.com/no/support
NORWAY
815 56480
PORTUGAL
808 20 7267
www.samsung.com/pt/support
SPAIN
0034902172678
www.samsung.com/es/support
SWEDEN
0771 726 786
www.samsung.com/se/support
SWITZERLAND
0800 726 78 64 (0800-SAMSUNG)
www.samsung.com/ch/support (German)
www.samsung.com/ch_fr/support (French)
UK
0330 SAMSUNG (7267864)
www.samsung.com/uk/support
IRELAND (EIRE)
0818 717100
www.samsung.com/ie/support
DE68-04306N-03
NQ50H5537KB_EU_DE68-04306N-03_EN.indd 64
9/6/2017 2:07:31 PM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
