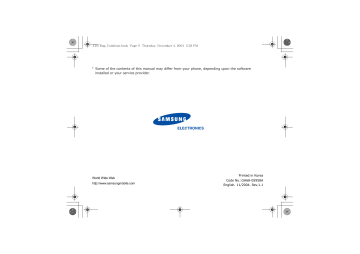

Z107Eng_Vodafone.book Page 0 Thursday, November 4, 2004 3:38 PM
* Some of the contents of this manual may differ from your phone, depending upon the software
installed or your service provider.
World Wide Web
http://www.samsungmobile.com
Printed in Korea
Code No.:GH68-05958A
English. 11/2004. Rev.1.1
Z107Eng_Vodafone.book Page 1 Thursday, November 4, 2004 3:38 PM
Samsung SGH-Z107M
User guide
Z107Eng_Vodafone.book Page 2 Thursday, November 4, 2004 3:38 PM
Welcome
Congratulations on choosing the Samsung
SGH-Z107M.
Your new Samsung SGH-Z107M uses 3G (3rd
Generation) technology, also known as UMTS.
This technology allows fast data connections
similar to broadband speeds, enabling video
capture using its built-in camcorder, and sending
and receiving video, including video calls.
The SGH-Z107M features today’s most advanced
technology including a built-in rotating digital
camera and high-quality TFT colour screen that
reproduces 260,000 different colour shades (four
times more than other colour screens). It also
features 64 polyphonic ringtones.
Copyright © 2004 By Samsung. All rights reserved.
This User’s Guide is published by Samsung.
Some of the contents in this User’s Guide may differ
from your phone, depending on your service provider or
on the software installed.
Improvements and changes to this User’s Guide due to
typographical errors, inaccuracies of current
information, or improvement of software or hardware,
may be made by Samsung without notice.
2
Z107Eng_Vodafone.book Page 3 Thursday, November 4, 2004 3:38 PM
Contents
Important Safety Precautions . . . . . . . . . . . 5
Using Menu Functions . . . . . . . . . . . . . . . . 37
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Accessing a Menu Function by Scrolling . . . . . . . . . 37
Shortcuts to Menu Functions . . . . . . . . . . . . . . . . . 39
List of Menu Functions . . . . . . . . . . . . . . . . . . . . . 40
Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Phone Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
External Light . . . . . . . . . . . . . . . . . . . . . . . . . . 12
SAT (SIM Application Toolkit) . . . . . . . . . . 42
Getting Started. . . . . . . . . . . . . . . . . . . . . . 13
Call register . . . . . . . . . . . . . . . . . . . . . . . . 46
Inserting/Removing the SIM Card . . . . . .
Installing/Removing/Charging the Battery
Switching the Phone On or Off . . . . . . . .
Selecting Functions and Options . . . . . . .
Switching Applications . . . . . . . . . . . . . .
All, Dialled, Missed or Received Calls
Data Calls (Menu 3-5) . . . . . . . . . . .
Call Costs (Menu 3-6) . . . . . . . . . . .
Call Times (Menu 3-7) . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
13
14
16
17
19
Call Functions . . . . . . . . . . . . . . . . . . . . . . . 20
Making a Call . . . . . . . . . . . . .
Ending a Call . . . . . . . . . . . . .
Answering a Call . . . . . . . . . . .
Rejecting a Call. . . . . . . . . . . .
Adjusting the Volume . . . . . . .
Accessing Options During a Call
Using Video Call Features. . . . .
Using the Headset . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
20
22
22
22
23
23
28
30
t-zones . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
(Menu 3-1~4) . 46
. . . . . . . . . . . 47
. . . . . . . . . . . 47
. . . . . . . . . . . 48
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Write (Menu 4-1) . . . . . . .
Inbox (Menu 4-2) . . . . . . .
Email Box (Menu 4-3) . . . .
Outbox (Menu 4-4) . . . . . .
Drafts (Menu 4-5) . . . . . . .
Templates (Menu 4-6) . . . .
Delete All (Menu 4-7) . . . .
Settings (Menu 4-8) . . . . .
Memory Status (Menu 4-9)
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
49
56
57
58
58
59
60
60
64
Entering Text . . . . . . . . . . . . . . . . . . . . . . . 31
My Media . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Changing the Text Input Mode
Using T9 Mode . . . . . . . . . . .
Using ABC Mode . . . . . . . . . .
Using Number Mode . . . . . . .
Using Symbol Mode . . . . . . . .
Exploring the Multimedia Files . . . . . . . . . . . . . . . . 65
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
31
33
34
35
36
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Search Contact (Menu 6-1) . . . . . . . . . . . . . . . . . . 70
. . . . . . . . . . . . . . . . . . . . . . 71
New (Menu 6-2)
Viewing Contact Information . . . . . . . . . . . . . . . . . 73
3
Z107Eng_Vodafone.book Page 4 Thursday, November 4, 2004 3:38 PM
Contents
Groups (Menu 6-3) . . . . . . . .
Speed Dial (Menu 6-4) . . . . .
My Name Card (Menu 6-5) . .
Copy All to Phone (Menu 6-6)
Service Number (Menu 6-7) .
Memory Status (Menu 6-8) . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
74
75
76
76
76
76
Organiser . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Calendar (Menu 7-1) . . . . . . . .
Today’s Event (Menu 7-2) . . . . .
Alarm (Menu 7-3) . . . . . . . . . . .
Schedule (Menu 7-4) . . . . . . . .
Anniversary (Menu 7-5) . . . . . .
Task List (Menu 7-6) . . . . . . . .
Memo (Menu 7-7) . . . . . . . . . .
Missed Event Alarm (Menu 7-8) .
World Clock (Menu 7-9) . . . . . .
Calculator (Menu 7-0) . . . . . . . .
Converter (Menu 7-*) . . . . . . . .
Media Player (Menu 7-#) . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
77
78
78
79
80
80
81
81
81
82
82
83
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Taking a Picture . . . . . . . . . . . . . . . . . . . . . . . . . 86
Recording a Video . . . . . . . . . . . . . . . . . . . . . . . . 88
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Profiles (Menu 9-1) . . . . . .
Phone (Menu 9-2) . . . . . . .
Display (Menu 9-3) . . . . . .
Call (Menu 9-4) . . . . . . . . .
Network (Menu 9-5) . . . . . .
Connections (Menu 9-6) . . .
Security (Menu 9-7) . . . . . .
Date & Time (Menu 9-8) . . .
Own Number (Menu 9-9) . .
Memory Status (Menu 9-0) .
4
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
91
93
95
96
100
101
103
105
106
106
Reset Settings (Menu 9-*) . . . . . . . . . . . . . . . . . . 107
Internet (Menu 9-#) . . . . . . . . . . . . . . . . . . . . . . . 107
Solving Problems . . . . . . . . . . . . . . . . . . . 109
Access Codes . . . . . . . . . . . . . . . . . . . . . . 111
Phone Password . . . . .
PIN. . . . . . . . . . . . . .
PIN2 . . . . . . . . . . . . .
PUK . . . . . . . . . . . . .
PUK2 . . . . . . . . . . . .
Call Barring Password .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
111
111
112
112
112
112
Health and Safety Information . . . . . . . . . 113
SAR Certification Information. . . . . .
Precautions When Using Batteries . .
Road Safety. . . . . . . . . . . . . . . . . .
Operating Environment . . . . . . . . . .
Electronic Devices . . . . . . . . . . . . .
Potentially Explosive Environments. .
Emergency Calls . . . . . . . . . . . . . .
Other Important Safety Information .
Care and Maintenance . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
113
114
115
115
115
117
117
118
118
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Z107Eng_Vodafone.book Page 5 Thursday, November 4, 2004 3:38 PM
Important Safety Precautions
Read these guidelines before using your wireless
phone. Failure to comply with them may be
dangerous or illegal.
Road Safety at All Times
Do not use a hand-held phone while driving;
park the vehicle first.
Switching Off When Refuelling
Do not use the phone at a refuelling point
(service station) or near fuels or chemicals.
Switching Off in an Aircraft
Wireless phones can cause interference. Using
them in an aircraft is both illegal and dangerous.
Interference
All wireless phones may be subject to
interference, which could affect their
performance.
Special Regulations
Meet any special regulations in force in the area
you are in and always switch off your phone
whenever it is forbidden to use it, or when it may
cause interference or danger (in a hospital for
example).
Sensible Use
Use only in the normal position (held to the ear).
Avoid unnecessary contact with the antenna
when the phone is switched on.
Switching Off in Hospitals
Switch off your phone near medical equipment.
Follow any regulations or rules in force.
5
Z107Eng_Vodafone.book Page 6 Thursday, November 4, 2004 3:38 PM
Important Safety Precautions
Emergency Call
Ensure the phone is switched on and in service.
Cancel all running applications before making an
emergency call. Key in the emergency number
for your present location, then press the
key.
Give all the necessary information as accurately
as possible. Do not end the call until given
permission to do so.
Water Resistance
Your phone is not water-resistant. Keep it dry.
Accessories and Batteries
Use only Samsung-approved accessories and
batteries.
Qualified Service
Only qualified service personnel may install or
repair your phone.
For more detailed safety information, see “Health
and Safety Information” on page 113.
6
CAUTION
RISK OF EXPLOSION IF A BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO
THE INSTRUCTIONS.
Z107Eng_Vodafone.book Page 7 Thursday, November 4, 2004 3:38 PM
Unpacking
Your package contains the following items:
In addition, you can obtain the following
accessories for your phone from your local
Samsung dealer.
• Standard / Extended Battery
• Desktop Charger
• Car Charger
Phone
Travel Charger
• Car Cradle
• Stylish Handsfree Car Kit
• PC Data Link Kit
Batteries
Data Link Cable
Owner’s Manual
Notes:
• Use only the supplied or an approved headset for
the Z107M model. The device comes with two
batteries in the package. The larger battery has a
higher capacity.
• The items supplied with your phone and available
accessories may be different, depending on your
country or service provider.
PC Link CD
Battery Holder
7
Z107Eng_Vodafone.book Page 8 Thursday, November 4, 2004 3:38 PM
Your Phone
Phone Layout
Open
The following illustrations show the main
elements of your phone:
Earpiece
Closed
Main display
Antenna
External
display
Folder
Menu/OK key
External light
Reject key
Infrared port
Navigation/
Scroll keys
Headset
jack
Soft key (left)
Send key
Volume/Menu
browse keys
Application switch
key
8
Camera module
Soft key (right)
Power On/Off /
End key
Correction/Back
key
Alphanumeric
keys
Special function
keys
Z107Eng_Vodafone.book Page 9 Thursday, November 4, 2004 3:38 PM
Your Phone
Key
Description
(soft keys)
Performs the functions indicated by
the text above them, on the
bottom line of the display.
In menu mode: scrolls through the
menu options.
In idle mode: the Up key activates
the My Media and the Down key
enters the Search Contact menu.
The Left key enters Short msg.
screen and the Right key enters the
Call register menu.
In menu mode: selects the
highlighted menu or option.
In idle mode: enters the main
menu.
Makes or answers a call.
In idle mode: accesses call records.
Key
Description (continued)
Deletes entered numbers or text.
In menu mode, returns to the
previous menu.
Ends a call.
Switches the phone on and off
when held down.
In menu mode: exits the current
screen and takes you back to idle
mode.
Enters numbers, letters, and some
special characters.
Used for various purposes in
different functions.
The
key inserts a pause when
held down while entering a number.
In idle mode: the
key enters or
exits silent mode when held down.
Lets you open the Call, Messages,
or t-zones applications without
quitting the current application.
9
Z107Eng_Vodafone.book Page 10 Thursday, November 4, 2004 3:38 PM
Your Phone
Key
Description (continued)
(on the left side of the phone)
During a call: adjusts the earpiece
volume.
In idle mode with the handset
open: adjusts the key volume.
In the idle mode with the handset
closed: turns on the external
display’s backlight when held down.
The volume keys on the left side of
the phone also turn the picture
upside down / mirror image while
in camera mode or during a video
telephone call.
(on the right side of the phone)
Rejects incoming calls when the
handset is closed.
10
Display
Display Layout
The display has three areas.
Icons
Text and
graphic area
Soft key
indicators
Area
Description
First line
Displays various icons (see
page 11).
Middle
Displays messages,
instructions, and any
information that you enter:
the number you are dialling,
for example.
Last line
Shows the current functions
assigned to the two soft keys.
Z107Eng_Vodafone.book Page 11 Thursday, November 4, 2004 3:38 PM
Your Phone
Icons
Icon
Icon
Description
Shows the received signal strength.
The greater the number of bars, the
better the signal.
Informs you which calling mode you
are in.
•
: A call is in progress.
•
: A call is impossible.
•
: A video call is in progress.
•
: A video call has been
disconnected.
Informs you whether you are in a 2.5G
or 3G (UMTS) network.
•
: You are in a 3G (UMTS) network.
•
: You are retrieving and sending
data in a 3G (UMTS) network.
This icon is animated.
•
: You are calling in a 3G (UMTS)
network.
•
: You are in a 2.5G network.
•
: You are retrieving and sending
data in a 2.5G network. This
icon is animated.
•
: You are calling in a 2.5G
network.
Description (continued)
Appears when your phone is connected
to a PC running the internet wizard or
is synchronised with a PC.
•
: You are connected to a PC.
•
: This icon is animated while
browsing on the PC.
•
: This icon is animated while
synchronising with a PC.
Appears when you set an alarm.
Appears when you are out of your
home area and have logged onto a
different network (i.e., when travelling
in other countries).
Informs you of the type of message
received.
•
: E-mail message
•
: Multimedia message
•
: Configuration message
•
: Text message
•
: Voice mail
11
Z107Eng_Vodafone.book Page 12 Thursday, November 4, 2004 3:38 PM
Your Phone
Icon
Description (continued)
Appears when the Infrared port is
actived. For detail, see page 94.
Appears when you connect the phone
to the computer by the Infrared port.
Tells you your phone’s sound profile.
•
: T-Mobile profile
•
External Display
Your phone has an external display on the folder
cover. It indicates when you have an incoming
call or message, and alerts you at the specified
time when you set an alarm.
When you hold down one of the volume keys, the
external display backlight illuminates.
: Car profile
•
: Silent profile
•
: Meeting profile
•
: Outdoor profile
When your phone’s sound profile is set
to Normal profile, no profile icons will
display.
External Light
The external light is at the front of the phone.
The light flashes when you are in a service area
and when you switch your phone on. It also
functions as a flash when you take photos.
Appears when you access a secured
web page or when you are connected
to the network using a security
protocol while loading Java MIDlets.
Shows the level of your battery. The
more bars you see, the more power
you have left.
12
External light
Z107Eng_Vodafone.book Page 13 Thursday, November 4, 2004 3:38 PM
Getting Started
Inserting/Removing the SIM Card
Your SIM Card is already loaded with your
subscription details, such as your PIN.
• Keep SIM cards out of the reach of small children.
• The SIM card and its contacts can easily be
damaged by scratches or bending, so be careful when handling, inserting, or removing the
card.
Inserting the SIM Card
1. If necessary, remove the battery by referring
to page 15.
2. Insert and slide the SIM card under the two
tabs, ensuring that the notched corner is at
the top left and the gold contacts of the card
face down into the phone.
• When installing the SIM card, always make
sure that the phone is switched off before you
remove the battery.
13
Z107Eng_Vodafone.book Page 14 Thursday, November 4, 2004 3:38 PM
Getting Started
Removing the SIM Card
Installing the Battery
To remove the SIM card, slide the card out of the
holder, as shown.
1. Insert the teeth on the bottom of the battery
into the corresponding slots on the phone.
2. Press the battery against the back of the
phone until it clicks into place.
Installing/Removing/Charging the
Battery
Your phone is powered by a rechargeable Li-ion
battery. Use only approved batteries and
chargers. Ask your local Samsung dealer for
further details.
Note: You must fully charge the battery before
using your phone for the first time. A
discharged standard battery is fully
recharged in approximately 120 minutes.
14
Make sure that the battery is properly
installed before switching the phone on.
Z107Eng_Vodafone.book Page 15 Thursday, November 4, 2004 3:38 PM
Getting Started
Removing the Battery
1. If the phone is on, switch it off first by
pressing and holding the
key until the
power-off animation is displayed.
1. Plug the travel charger connector into the
bottom of the phone. Check that the arrow on
the connector is facing up, as is the phone.
2. To remove the battery, press and hold the
catch above the battery. Lift the battery away
from the phone.
2. Plug the charger into a standard AC wall
outlet.
Charging with the Travel Charger
3. When charging is finished, unplug the charger
from the power outlet and from the phone by
pressing the grey buttons on both sides of the
connector and pulling the connector out.
Note: The phone can be used while the battery is
being charged, but this causes the battery to
charge more slowly.
15
Z107Eng_Vodafone.book Page 16 Thursday, November 4, 2004 3:38 PM
Getting Started
Low Battery Indicator
Switching the Phone On or Off
When the battery is weak and only a few minutes
of talk time remain, the battery sensor informs
you in the following ways:
1. Open the phone.
• An empty battery icon flashes (
).
• You hear a warning tone.
• A message is briefly shown on the display.
After 5 minutes, the message is again briefly
shown. The message will appear one last time
just before the phone automatically switches
off.
When the battery becomes too weak for the
phone to operate, it switches off automatically.
2. Press and hold the
switches on.
key until the phone
3. If the phone asks for a PIN, enter the PIN
code and press the Confirm soft key. For
further details, see page 122.
The phone begins searching for your network.
When it finds the network, you will see the
network operator’s name. You can make or
receive a call only when connected to a
network.
Note: To change the language, use the
Language menu (Menu 9-2-4); for
further details, see page 93.
16
Z107Eng_Vodafone.book Page 17 Thursday, November 4, 2004 3:38 PM
Getting Started
4. To switch the phone off, press and hold the
key until the power-off animation displays.
Example:
Selecting Functions and Options
You can select different functions and option
menus using the two soft keys (
and
).
The roles of the soft keys vary according to the
phone feature you're using. To see what action
will occur or which menu will be accessed by
pressing them, look at the bottom line of the
display (just above each soft key).
Press the left soft
key to access
Camera mode.
Press the right
soft key to access
t-zones.
17
Z107Eng_Vodafone.book Page 18 Thursday, November 4, 2004 3:38 PM
Getting Started
To view the various functions and options
available and to select the one you want:
1. Press the appropriate soft key.
2. To
Press the
select the:
• function displayed
• option highlighted
Select/Save soft key
or the OK key.
If it is numbered, you
can press the
corresponding
number key.
scroll up or down
through the menus
or options
Up or Down scroll key.
scroll left or right
through the menus
or options
Left or Right scroll
key.
Back soft key or the
key.
In some functions, you may be asked for a PIN or
password. Enter the code and press the Confirm
soft key or the OK key.
18
When you press the
Options soft key in a
function, a list of available
options displays.
If the display cannot show
all of the available options,
an Up or Down arrow shows
that you can scroll through
the rest of the list.
To
Press the
scroll through the list Up or Down scroll key.
Back soft key or the
move back up one
level in the structure C key.
return to idle mode
Using an Option list
select the option
highlighted
OK key, Select soft key
or the corresponding
number key.
exit the menu and
return to the
previous screen
Back soft key.
Z107Eng_Vodafone.book Page 19 Thursday, November 4, 2004 3:38 PM
Getting Started
When an option has suboptions, an arrow is shown on
the right.
Press the Select soft key or
the Right scroll key and the
sub-option list appears. You can use it in the
same way as a normal option list.
To exit the sub-option list, press the Left scroll
key or the Back soft key.
Switching Applications
When you press the
Application switch key
( ), you can quickly
switch to the Call,
Messages, or t-zones
applications – without
losing your place in
whatever other application
or menu you're using at the
time.
The coloured icon means an application is
running, and grey means it's not running. Scroll
through Call, Messages, and t-zones using the
Left and Right scroll keys and press the Select
soft key to launch the application. Choose End
all? to end the applications.
For example, you can be making an entry in the
Organiser, then use the Application switch key to
open Call to make a phone call. When you've
finished, you can then press the Back soft key to
return to your Organiser entry.
19
Z107Eng_Vodafone.book Page 20 Thursday, November 4, 2004 3:38 PM
Call Functions
Making a Call
Using Call Records
Using the Number Keypad
Your phone stores records of dialled, received,
and missed calls chronologically. The last call is
saved in the first position.
When the idle screen displays, enter the area
code and phone number, and press the
key.
To recall any of these numbers:
1. In idle mode, press the
Correcting the Number
To clear the
Press
last digit displayed
the C key.
whole display
and hold the C key for
more than one second.
Making an International Call
1. Press and hold down the 0 key for the
international prefix. The + character appears.
2. Enter the country code, area code, and phone
number and press the
key.
20
key.
2. Press the Left or Right scroll key to scroll to
the desired type of call; all, dialled calls,
missed calls, or received calls.
3. Use the Up and Down scroll keys to scroll
through the list until the number highlights.
4. To dial the number, press the
key.
You can also use the Call register menu (Menu
3). See page 46.
Z107Eng_Vodafone.book Page 21 Thursday, November 4, 2004 3:38 PM
Call Functions
Making a Call Using Contacts
To view the missed call immediately:
You can store contact information, such as
names and phone numbers that you use
regularly, in the SIM card and the phone’s
memory. This information is stored in one list,
called Contacts. For more information about
adding contacts, see page 71.
1. Open the folder. The pop-up window shows
that you have missed calls.
1. Find the number you want to dial.
To use the missed call options, see page 46.
For further details about searching for a
number, see page 70.
2. To dial the number, press the
key.
Viewing Missed Calls
The number of missed calls displays on the idle
screen immediately after a call is missed.
If you have a subscription that includes Caller
Line Identification (CLI) and you are unable to
answer a call for any reason, you can find out
who was calling you and then call the person
back.
2. If there is more than one number, select the
number you want to phone back and press
the
key.
Making a Call Using a Pause
When you call automated systems, like banking
services, you are often required to enter a
password or account number. Instead of
manually entering the numbers each time, you
can enter them before dialling, separated by a
pause.
1. In idle mode, enter the first number of a
service, such as the bank’s teleservice
number.
2. Press and hold the
key to insert a pause.
A “P” appears, meaning that a pause will
occur at that point in the dialling sequence.
21
Z107Eng_Vodafone.book Page 22 Thursday, November 4, 2004 3:38 PM
Call Functions
3. Enter the number that needs to follow the
pause, such as your account number.
Answering a Call
4. Repeat steps 2 and 3 to add more pauses and
numbers, if necessary.
When someone calls you, the phone rings and an
incoming call box displays.
5. Press the
key to dial.
6. When prompted, press the
key to send the
DTMF (Dual Tone Multi-frequency) tones of
the number that follows the pause.
The number is sent to the system.
If the caller can be identified, the caller’s phone
number, or name if stored in Contacts, displays.
If the incoming call is a restricted call (the caller
has opted to not send his/her phone number for
identification), the display shows Withheld; if it
is unknown, the display shows Anonymous.
7. Repeat Step 6, as you are prompted.
1. To answer a call, open the handset. If it is
already open, press the
key, the OK key,
or the Accept soft key.
Ending a Call
2. End the call by closing the handset or
pressing the
key.
When you want to finish your call, briefly press
the
key, or close the handset, or press the
End call option in the call options.
Note: You can answer a call while using the menu
functions. The current operation is cancelled.
Rejecting a Call
To reject an incoming call, press and hold the
key on the right side of the phone.
22
Z107Eng_Vodafone.book Page 23 Thursday, November 4, 2004 3:38 PM
Call Functions
When the phone is open, you can also press the
Reject soft key or the
key.
Adjusting the Volume
If you wish to adjust the earpiece volume during
a call, use keys on the left side of the phone.
Press the key to increase the volume level and
the key to decrease the level.
Note: When a call comes in, you can mute the call
ringer by pressing and holding the or
key.
Accessing Options During a Call
Your phone provides a number of control
functions that you can use during a call.
Putting a Call on Hold
You can place the current call on hold whenever
you want. You can make another call while you
have a call in progress if your network supports
this service. Of these two calls, one is active and
the other is on hold and you can switch between
them.
To place a call on hold, simply press the Hold
soft key. You can reactivate the call whenever
you want, by pressing the Unhold soft key.
Using these keys, you can also adjust the key
tone volume in idle mode with the handset open.
Making a Second Call
To make a call while you have a call in progress:
1. Press the Options soft key.
23
Z107Eng_Vodafone.book Page 24 Thursday, November 4, 2004 3:38 PM
Call Functions
2. Select New call and press the OK key.
3. Enter the phone number you want to dial and
press the
key, Call soft key, or OK key to
make the second call.
The first call is automatically put on hold.
Note: You can first enter a phone number and then
press the Options soft key. Then select the
New call option.
Answering a Waiting Call
You can answer an incoming call while you have
a call in progress, if this service is supported by
the network and you have activated the Waiting
menu option; see page 98. Your phone alerts you
to an incoming call by sounding a call waiting
tone.
Or alternatively:
To answer a call while you have a call in
progress:
1. Put the current call on hold by pressing the
Hold soft key.
1. Press the Accept soft key.
2. Make the second call in the normal way.
2. In the select box, select Accept to answer
the incoming call. The first call is
automatically put on hold.
To switch between the two calls, simply press the
SWAP soft key. The current call is placed on hold
and the call on hold is reactivated so that you can
continue conversing with the other person.
To end the current call, press the
key. The call
on hold is still on hold. To reactivate this call
press the Unhold soft key.
To end both calls at one time, close the folder, or
press the Options soft key and select End calls.
24
If you want to end the first call, select the
End active call or End held call. And then
you can answer the incoming call.
3. To switch between the two calls, press the
SWAP soft key.
To end the current call, press the
key. The call
on hold is automatically reactivated.
Z107Eng_Vodafone.book Page 25 Thursday, November 4, 2004 3:38 PM
Call Functions
To end both calls at one time, close the folder, or
press the Options soft key and select End calls.
Holding a Private Conversation With One
Participant
Making a Conference Call
To speak privately with one person during a
conference call:
The Conference Call feature is a network service
that allows up to five people to take part
simultaneously in a call. You can make a
conference call by making or receiving another
call while you are on an active call.
Setting up the Conference Call
1. Call the first participant in the normal way.
2. Make a second call, referring to page 23.
OR
Answer a waiting call, referring to page 24.
3. To join the first participant to the conference
call, press the Options soft key and select
Join using the Up and Down scroll keys.
4. Press the OK key.
5. To add a new person to the conference call,
repeat steps 2 to 4, as needed.
1. Press the Options soft key and select Split.
Press the OK key.
2. Press the Up or Down scroll key to scroll to
the participant you want to split off and press
the OK key.
Now you can talk privately to that person. The
other participants can continue to converse
with each other.
You can switch between the conference call
and the split call by pressing the SWAP soft
key.
3. To return to the conference call, press the
Options soft key and select Join. Press the
OK key.
All the conference call participants can now
hear each other.
Removing One Participant
25
Z107Eng_Vodafone.book Page 26 Thursday, November 4, 2004 3:38 PM
Call Functions
1. Press the Options soft key and select the
Drop option. Press the OK key.
For further details of the Contacts feature, see
page 70.
2. Press the Up or Down scroll key to scroll to
the participant you want to remove and press
the OK key.
Sending a Text Message
The call ends with that participant, but you
can continue to talk to the other participants.
You can end the conference call by closing the
phone or pressing the
key.
Searching Contacts
You can search for a number in Contacts during a
call.
1. Press the Options soft key.
2. Press the Up or Down scroll key to select
Contacts and press the OK key.
3. Enter the first few letters of the name you
want to find.
For further details about entering text, see
page 31.
26
You can send a text message during a normal call
or conference call. You can send the message to
other people as well as to your current call
participants.
1. Press the Options soft key.
2. Press the Up or Down scroll key to select
Send text msg. and press the OK key.
The list of all the call participants appears.
3. Scroll to the person to whom you want to
send the message and press the OK key.
A check mark appears in front of the selected
person. Repeat this step as needed.
4. When you have finished selecting recipients,
press the Options soft key and select the
Write option. Then press the OK key.
5. Write your message and press the Options
soft key and select the Send option. Then
press the OK key.
Z107Eng_Vodafone.book Page 27 Thursday, November 4, 2004 3:38 PM
Call Functions
For further details about entering text, see
page 31.
6. Enter any other phone number to which you
want to send the message.
If you want to add more numbers, press the
Down scroll key and enter a number. Repeat
as needed.
7. When you finish entering the numbers, press
the Options soft key and select the Send
option. And then press the OK key.
For more information on the SMS feature, refer
to page 49.
Making a memo
You can make a memo during a normal call or
conference call.
1. Press the Options soft key.
2. Press the Up or Down scroll key to select
Memo and press the OK key.
3. Enter the memo. Use the Down scroll key to
move to the date field and then enter the
date.
4. When you finish entering the memo, press
the Options soft key and select the Save
option or press the OK key.
Or,
1. Enter the number(s).
2. Press the Options soft key.
3. Press the Up or Down scroll key to select
Save to memo and press the OK key.
For further details about entering text, see
page 31.
Switching the Microphone Off (Mute)
You can temporarily switch your phone’s
microphone off, so that the person you are
talking to cannot hear you.
Example: You wish to say something to another
person in the room but do not want the
calling party to hear you.
To switch the microphone off temporarily:
1. Press the Options soft key.
2. Press the Up or Down scroll key to select
Mute and press the OK key.
27
Z107Eng_Vodafone.book Page 28 Thursday, November 4, 2004 3:38 PM
Call Functions
The Mute icon ( ) appears on the display and
your party can no longer hear you.
To switch the microphone back on:
1. Press the Options soft key.
2. Press the Up or Down scroll key to select
Unmute and press the OK key.
The Mute icon disappears.
Mute/Unmute Key Tones
You can turn the key tones off or on. If you select
Mute key tone, your phone does not transmit
any key tones, which allows you to press keys
without hearing annoying key tones during a call.
Sending DTMF Tones
You can send a number to the other person
during a call. The number sent will appear on the
display of the other person’s phone.
1. Press the Options soft key.
2. Press the Up or Down scroll key to select
Send DTMF and press the OK key.
28
3. Enter the number you want to send and press
the Send soft key.
Using Video Call Features
When in a 3G (UMTS) service area, your phone
can make or receive a video call which allows you
to see another person on the screen during a
conversation. The other person’s phone must
support the video call feature.
Note: If the other person does not turn their
camera on, you will not be able to see him or
her. You can communicate only by voice.
Making a Video Call
1. In idle mode, enter a phone number to dial.
You can also use phone numbers in call
records.
Or,
Turn on the camera by pressing the Left soft
key.
2. Press the V-Call soft key.
Z107Eng_Vodafone.book Page 29 Thursday, November 4, 2004 3:38 PM
Call Functions
When your call is connected, the other person
appears on the screen.
3. Use the Show me soft key to see the image of
yourself as the other person sees you.
4. Use the Options soft key to mute the Voice,
Camera(Video), Voice-Video all, or Keytone.
Note: The Video call service is a special feature of
the 3G (UMTS) network. You can make and
receive a video call when the 3G icon (
)
is displayed.
To change the screen mode, press the View soft
key until you see the desired status. The
following modes are available:
• See the other person only in the main frame
• See yourself only in the main frame
• See the other person in the main frame and
yourself in the sub-frame
• See yourself in the main frame and the other
person in the sub-frame
Turning Your Voice or Video On or Off
Receiving a Video Call
You can mute your voice or turn the video off
during a video call.
You can receive a video call the same as
receiving a normal call, except that you can see
the person on the screen.
During a video call, press the Options soft key to
display the option list.
See page 22 for details about answering a call.
The following options are available:
Changing View Options
Mute voice: mutes your voice. The other person
can see you, but cannot hear you.
You can change the screen mode for video calls
to PIP (Picture-in-Picture). In the PIP mode, the
display has a main and a sub-frame where you
can see yourself on the screen, as well as the
other person.
Mute camera: turns the camera off. The other
person can hear you, but cannot see you.
Mute all: mutes your voice and turns the camera
off. The other person cannot hear or see you.
29
Z107Eng_Vodafone.book Page 30 Thursday, November 4, 2004 3:38 PM
Call Functions
Mute keytone: mutes your key tones.
Flip image: turns the image on the display
upside down during video calls.
Quality control: allows you to adjust the image
quality: Normal, Good quality, or Good
motion. Good quality emphasises the picture
quality and Good motion emphasises the frame
count.
Show (Hide) brightness: displays or hides the
brightness control bar.
Effects: allows you to change the colour tone of
the picture. Sepia, Mono, Night, and Normal
are available.
Show (Hide) information: shows or hides the
information bar on the screen which contains
information such as caller ID, call time, and mute
status. This option is preset at the factory to hide
so that Show information displays unless you
change it.
End call: ends the video call.
30
Using the Headset
With the headset, you can make or answer a call
without holding the phone.
When you connect the headset to the jack on the
left side of the phone, the button on the headset
works as listed below:
To
Press
redial the last call
the button twice in idle
mode.
answer a call
and hold the button
when you receive the
call.
end a call
and hold the button
when you have finished
the call.
Z107Eng_Vodafone.book Page 31 Thursday, November 4, 2004 3:38 PM
Entering Text
You may need to enter text, when storing a
name in Contacts, creating your personal
greeting, or scheduling events in your calendar.
Your phone has the following text input modes:
• T9
mode*
This mode allows you to enter words with only
one keystroke per letter. Each key on the
keypad has more than one letter. For example,
when you press the 5 key once, J, K, or L may
be displayed. The T9 mode automatically
compares your keystrokes with an internal
linguistic dictionary to determine the correct
word, thus requiring far fewer keystrokes than
the traditional ABC mode.
• Number mode
This mode allows you to enter numbers.
• Symbol mode
This mode allows you to enter special
characters, like punctuation marks.
Changing the Text Input Mode
When you are in a field that allows characters to
be entered, the text input mode indicator
appears at the bottom of the display.
• ABC mode
This mode allows you to enter letters by
pressing the key labelled with the letter you
want once, twice, three, or four times until the
letter is displayed.
* T9 is a registered trademark of Tegic Communications, Inc.
and is licensed under U.S. Patent 5,818,437/ 5,953,541/
6,011,554.
31
Z107Eng_Vodafone.book Page 32 Thursday, November 4, 2004 3:38 PM
Entering Text
Example: When you write a memo, the following
screen displays:
Text input mode
indicator
To select the Press the Right soft key until
T9 mode
displays. See page 33.
The letter after T9 indicates
which language you are using.
ABC mode
displays. See page 34.
Number mode
displays. See page 35.
Symbol mode
displays. See page 36.
32
Shortcuts to the Text Input Modes
To switch between the Press and hold the
Number and previous
mode
key.
Symbol and previous
mode
key.
Z107Eng_Vodafone.book Page 33 Thursday, November 4, 2004 3:38 PM
Entering Text
Using T9 Mode
5. Continue entering any other words in T9
mode.
To enter a word in the T9 mode:
If Spell appears above the left soft key while you
are entering text, the word does not exist in the
T9 dictionary. To type words not found in the T9
mode, change the text input mode to ABC mode,
or proceed as follows:
1. Start entering the word by pressing the keys
2 to 9. Press each key only once for each
letter.
Example: To enter “hello” in the T9 mode,
press 4, 3, 5, 5 and 6.
The word you are entering appears on the
display. It may change with each key that you
press.
2. Enter the whole word before editing or
deleting any keystrokes.
3. If the word is correct, start entering the next
word. Otherwise, press the 0 key to display
alternative word choices for the keys that you
pressed.
Example: Both “of” and “me” have the
sequence of 6 and 3. The phone
displays the most commonly used
choice first.
1. Press the Spell soft key.
2. Enter the word you want to add using ABC
mode (see page 34) and press the Add soft
key.
The word is saved in the T9 dictionary and
inserted in the input field.
3. Continue entering other words in T9 mode.
Smart Punctuation
To enter periods, hyphens, or apostrophes, press
the 1 key. T9 mode applies rules of grammar and
inserts the correct punctuation.
4. Put a space between words by pressing the
key.
33
Z107Eng_Vodafone.book Page 34 Thursday, November 4, 2004 3:38 PM
Entering Text
Changing the Letter Case
- Twice for the second letter
To change the letter case of the next letters that
you type, press the
key. There are three cases:
- And so on
• Initial Capital (
)
• Capital Lock (
)
• Lower Case (
)
Scrolling
To move the cursor to the left or right within the
text, press the Left or Right scroll key.
Clearing Letters and Words
To delete letters, press the C key when the cursor
is immediately to the right of the letter you want
to delete. Press and hold down the C key to clear
the display.
Note: If there is no letter and you press the C key,
you will return to the previous screen.
Using ABC Mode
When entering letters in ABC mode, press the
key labelled with the letter you want:
- Once for the first letter
34
Example: To display the letter “c”, quickly press
the 2 key three times. To display the
letter “k”, press the 5 key twice. For
this reason, this method is called
Multi-tap typing.
The cursor moves to the right when you press a
different key. When entering the same letter
twice or a different letter on the same key, just
wait a few seconds for the cursor to
automatically move to the right, or press the
Right scroll key and then enter the next letter.
Refer to the table below for more information
about available characters.
Z107Eng_Vodafone.book Page 35 Thursday, November 4, 2004 3:38 PM
Entering Text
Note: When you write a text message and you
select the GSM alphabet option in
Character support (see page 61), the
following GSM alphabet characters are
available:
To insert a space between words, press the
key.
Scrolling
To move the cursor to the left or right within the
text, press the Left or Right scroll key.
Clearing Letters and Words
To delete letters, press the C key when the cursor
is immediately to the right of the letter you want
to delete. Press and hold the C key down to clear
the display.
Note: If there is no letter and you press the C key,
you can return to the previous screen.
Changing the Letter Case
To change the letter case of the next letters that
you type, press the
key. There are three
cases:
• Initial Capital (
)
• Capital Lock (
)
• Lower Case (
)
Using Number Mode
You can enter numbers in Number mode. Press
the keys corresponding to the required digits.
Inserting a Space
35
Z107Eng_Vodafone.book Page 36 Thursday, November 4, 2004 3:38 PM
Entering Text
Using Symbol Mode
You can insert symbols into a text message. The
text message you’ve entered is shown in the
symbol entering field. Move the cursor to where
you want to enter a symbol using the Left or
Right scroll key.
To
Press the
display more
symbols
Up or Down scroll key.
select a symbol
corresponding number
key. The selected symbol
displays in the input box.
36
To
Press the
clear a symbol from
the input box
C key.
insert the edited
message in the
symbol entering
field into your text
OK key or Right soft key.
Z107Eng_Vodafone.book Page 37 Thursday, November 4, 2004 3:38 PM
Using Menu Functions
Your phone offers a range of functions that allow
you to tailor the phone to your needs. These
functions are arranged in menus and sub-menus.
The menus and sub-menus can be accessed by
scrolling using the scroll keys or by using the
shortcuts.
Accessing a Menu Function by
Scrolling
1. In idle mode, press the OK key to access the
menu.
4. To
Press the
scroll through
the menus
Up or Down scroll
key.
confirm the
chosen setting
Select or Save soft
key or the OK key.
return to the
previous menu level
Back soft key.
exit the menu without
changing
the settings
key or the Back
soft key, if
available.
2. Scroll using the scroll keys to reach the
required application menu. Press the OK key
to enter the menu.
3. If the menu contains sub-menus, you can
access them by scrolling using the Up and
Down scroll keys and pressing the Select soft
key.
If the menu that you have selected contains
further options, repeat the same procedure.
37
Z107Eng_Vodafone.book Page 38 Thursday, November 4, 2004 3:38 PM
Using Menu Functions
Example: Changing the Language
Display
3. To access the Phone menu, press the Select
soft key or OK key.
1. When the idle screen is displayed, press the
OK key to access the menu.
The startup screen of the My Media menu is
displayed.
4. Scroll through the sub-menus by pressing the
Up or Down scroll key, then use either the
Select soft key or the OK key to choose your
language.
2. Scroll through the menus by pressing the
scroll keys until you reach the Settings
menu. To access the Settings menu, press
the OK key.
38
Z107Eng_Vodafone.book Page 39 Thursday, November 4, 2004 3:38 PM
Using Menu Functions
5. Press the OK key when Screen Text is
highlighted.
Shortcuts to Menu Functions
Some menus, sub-menus, and options can be
quickly accessed by using their shortcut
numbers. Simply press the OK key and enter the
number.
6. Scroll through the list of languages by
pressing the Up or Down scroll key until the
appropriate one is highlighted. Press the
Select soft key or the OK key.
Note: The numbers assigned to each menu option
are indicated on the list on the following
pages. They may not match the menu
numbers on the phone, depending on the
services supported by your SIM card.
Example: Accessing the Language menu option.
1. Press the OK key.
2. Press
for Settings.
3. Press
for Phone.
4. Press
for Language.
7. Press the Save soft key to save the setting in
the Language screen. Otherwise press the
Back soft key.
8. Press the
key to exit the menu.
39
Z107Eng_Vodafone.book Page 40 Thursday, November 4, 2004 3:38 PM
Using Menu Functions
List of Menu Functions
The following list shows the menu structure
available and indicates the:
• number assigned to each option
• page on which you can find a description of
each feature
1. SAT
(SIM Application Toolkit)
2. t-zones
(see page 42)
(see page 43)
3. Call register
3.1
3.2
3.3
3.4
3.5
3.6
3.7
*
(see page 46)
All calls
Dialled calls
Missed calls
Received calls
Data calls
Call costs
Call times
4. Messages
(see page 49)
4.1 Write
4.1.1 Short msg.
* Shown only if it is supported by your SIM card.
If your SIM card does not support this function, Profiles
menu appears.
40
4.2
4.3
4.4
4.5
4.6
4.7
4.8
4.9
4.1.2 Multimedia msg.
4.1.3 File messenger
4.1.4 Email
Inbox
Email box
Outbox
Drafts
Templates
Delete all
Settings
4.8.1 Short msg.
4.8.2 Multimedia msg.
4.8.3 Email
4.8.4 Voice mail
Memory status
5. My Media
6. Contacts
6.1
6.2
6.3
6.4
6.5
6.6
6.7
6.8
(see page 65)
(see page 70)
Search contact
New
Groups
Speed dial
My name card
Copy all to phone
Service number **
Memory status
** Shows only if supported by your SIM card.
Z107Eng_Vodafone.book Page 41 Thursday, November 4, 2004 3:38 PM
Using Menu Functions
7. Organiser
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
7.9
7.0
7.
7.#
(see page 77)
Calendar
Today’s event
Alarm
Schedule
Anniversary
Task list
Memo
Missed event alarm
World clock
Calculator
Converter
Media player
8. Camera
(see page 86)
9. Settings
9.4
9.5
9.6
9.7
(see page 91)
9.1 Profiles
9.2 Phone
9.2.1
9.2.2
9.2.3
9.2.4
9.2.5
9.2.6
9.2.7
9.3 Display
9.3.1
9.3.2
LCD brightness
Backlight
Ext. light
Language
Active folder
Anykey answer
Infrared
9.8
9.9
9.0
9.
9.#
9.3.3 Cover LCD
9.3.4 Main menu style
Call
9.4.1 Caller ID
9.4.2 Diverting
9.4.3 Barring
9.4.4 Waiting
9.4.5 Auto redial
9.4.6 Closed user group
9.4.7 Video call
Network
9.5.1 Network selection
9.5.2 Network mode
Connections
Security
9.7.1 Phone lock
9.7.2 SIM lock
9.7.3 PIN lock
9.7.4 Fixed dialling mode
9.7.5 Change phone password
9.7.6 Privacy lock
9.7.7 Change PIN code
9.7.8 Change PIN2 code
Date & time
Own number
Memory status
Reset settings
Internet
Greeting message
Wallpaper
41
Z107Eng_Vodafone.book Page 42 Thursday, November 4, 2004 3:38 PM
SAT (SIM Application Toolkit)
If you use a SAT card that provides additional
services, the SAT menu displays. For further
details, see your SIM card instructions.
This menu is shown only if it is supported by
your SIM card. If your SIM card does not support
this function, the Profiles menu (page 91)
appears.
42
Z107Eng_Vodafone.book Page 43 Thursday, November 4, 2004 3:38 PM
t-zones
The t-zones is a wide range of mobile
entertainment and information services provided
by T-Mobile. The t-zones gives you unlimited
access to the Mobile Web and your e-mail! Get
the latest music, news, sports, and weather from
leading providers, and play the latest games.
Navigating the Browser
To
Press the
scroll through
browser items
navigation keys.
You can access to t-zones using this menu
directly.
scroll up or down
pages
volume keys
Note: additional costs may occur by using that
service.
select the item
highlighted
OK key.
Launching the Browser
select a numbered
item
corresponding numeric
key.
return to the
previous page
Back soft key, or press
the Options soft key
and select History.
return to the startup
homepage
Options soft key and
select Go to
homepage.
1. Access the t-zones menu.
2. A connection is established with your service
provider and the t-zones homepage displays.
3. To scroll through the screen, use the
navigation keys.
Ending the Browser
To exit the browser, simply press the
any time.
key at
43
Z107Eng_Vodafone.book Page 44 Thursday, November 4, 2004 3:38 PM
t-zones
Entering Text in the Browser
When prompted, you can enter letters, numbers
or symbols the same way as in the phone mode.
See page 31 for more information about entering
characters.
information requiring passwords like your bank
account, you need to empty the cache. When a
warning message appears, press the Yes soft
key to clear the information.
Disconnect: disconnects from the network.
History: shows URLs previously visited.
Using the Browser Menus
In the browser, press the Options soft key to
use the following options:
Reload page: reloads the current page with
updated information.
Go to homepage: sends you back to the home
page.
Save image: saves the image of the current
page.
Settings: allows you to change the settings for
connecting to the Wireless Web. For further
details, See “Setting up the Browser” on
page 44.
Empty cache: clears information stored in the
cache, which is the phone’s temporary memory
used to store the most recently accessed web
pages. After you have accessed confidential
44
Setting up the Browser
Note: You do not need to change the settings
unless your network operator requests it.
If you change them without the operator’s
instructions, you may not be able to use
the browser.
Contact your service provider for details and
parameters for each option.
To change the WAP settings:
1. Press the Options soft key on any web page.
2. Scroll to Settings and press the OK key.
3. The access points displays.
Note: Some access points are not able to be
changed by the service provider.
Z107Eng_Vodafone.book Page 45 Thursday, November 4, 2004 3:38 PM
t-zones
4. Scroll to the access point that you want to use
and press the OK key to change current
access point.
To edit or make access points, select the setting
set you want at step 4 and then press the
Options soft key to use the following options:
Select: saves your changes.
Edit/New: edits selected Set or makes a new
Set. For more information, see “Connections
(Menu 9-6)” on page 101.
Delete: deletes the selected Set when it is not in
use.
Rename: changes the name of Set.
Note: When accessing to the internet by using tzones or soft key, bookmarks and manual
url entry are not available. If you want to
use bookmarks menu, access by using
Internet (Menu 9.#). See “Using
Bookmarks” on page 108.
45
Z107Eng_Vodafone.book Page 46 Thursday, November 4, 2004 3:38 PM
Call register
In this menu, you can view:
• missed, dialled, received calls or all calls
• cost of your calls
• length of time on calls you have made or
received
Notes:
• You can access the call list by pressing the
key in Idle mode.
• When you are not calling, but using an earmicrophone and the phone is closed, you can
see the call register on the sub LCD by
pressing the button of the ear-microphone.
You can also scroll the register by pressing the
volume keys on the left side of the phone.
All, Dialled, Missed or Received
Calls (Menu 3-1~4)
1. From the Call register screen, select the type
of calls you want to view.
46
A list of the call records appears. Your phone
records up to the last 20 calls in each
register.
If the number is saved in your contacts, the
corresponding name displays.
2. Press the Up or Down key to select the call
you want to view.
3. To
dial the number
return to Idle mode
Press the
key.
key.
When you press the Options soft key in the call
register list, the following options are available:
Details: shows detailed information about the
call.
Save to contact: allows you to save the number
in your Contacts.
V-Call: allows you to make a video call.
Z107Eng_Vodafone.book Page 47 Thursday, November 4, 2004 3:38 PM
Call register
Send message: allows you to send a text
message, multimedia message or message with
media attached.
Delete: deletes the call record from the list.
Delete all: deletes all of the call records stored
in the current call register.
Data Calls
(Menu 3-5)
This menu lets you view the total sizes of the
data calls you sent and received.
The data calls are:
• sending and receiving multimedia messages,
• sending and receiving e-mail,
• browsing WAP pages,
• downloading MIDlets(Java applications running
on mobile phones), or
• using your phone as a modem.
Press the Options soft key to use the following
options:
Reset: resets the selected size.
Reset all: resets all of the sizes
Call Costs
(Menu 3-6)
This menu lets you view the total cost, last call
cost, and cost limit.
Notes:
• This feature may not be shown depending on your
SIM card.
• This feature is not intended to be used for billing
purposes.
• AOC (Advice Of Charge) information may display
on call, depending on your SIM card or service
provider.
While viewing the call costs, press the Options
soft key to use the following options:
Reset call costs: allows you to reset the cost
counter; first, you must enter your PIN2 code
(see page 112) and then press the Confirm soft
key.
Edit cost limit: allows you to enter the
maximum cost that you authorize for your calls;
first, you must enter your PIN2 code (see
page 112) and then press the Confirm soft key.
Setup currency: allows you to set the currency
of the call cost; first, you must enter your PIN2
47
Z107Eng_Vodafone.book Page 48 Thursday, November 4, 2004 3:38 PM
Call register
code (see page 112) and then press the Confirm
soft key.
Call Times
(Menu 3-7)
This menu lets you view the timer for calls you
have made and received.
1. Press the Up or Down key to scroll through
the call timer for each call type.
•
Total dialled: total time of the voice
calls you dialled.
•
Total received: total time of the voice
calls you received.
•
Total dialled: total time of the video
calls you dialled.
•
Total received: total time of the video
calls you received.
2. While viewing the call time, press the
Options soft key to use the following options:
• Reset: resets the call timer.
• Reset all: resets all of the call timers.
48
Note: The actual time invoiced for calls by your
service provider may vary, depending on
network features, rounding-off for billing
purposes, and other factors.
Z107Eng_Vodafone.book Page 49 Thursday, November 4, 2004 3:38 PM
Messages
Using the Messages menu, you can create,
send, read and save messages with the Short
Message Service (SMS), Multimedia Message
Service (MMS), or Email.
SMS is a service which allows you to send or
receive a text message.
MMS is a messaging service very similar to a
SMS. MMS enables you to send far longer text
messages than SMS - and to add images,
graphics, voice, audio, and video clips-in any
combination, as a single multimedia message.
You can send MMS messages to phones with
MMS capability, and to any e-mail address.
Write
(Menu 4-1)
In this menu, you can write and send a text
message, a multimedia message or an e-mail.
Note: You can also press
the Write soft key to
write a new message
when the Messages
icon is highlighted in
the main menu view.
Writing and Sending Text Messages
1. After accessing the Write option from the
Messages menu, press the Select soft key
when Short msg. highlights.
Or, you can quickly enter Short msg. by
pressing the
key in Idle mode
2. Write your message.
For more information about entering
characters, see page 31.
49
Z107Eng_Vodafone.book Page 50 Thursday, November 4, 2004 3:38 PM
Messages
3. If you want to use the message options while
entering your message, press the Options
soft key. Select one of the following options:
• Use text templates: allows you to use one
of the preset message templates stored in
the Text templates menu; for further
details, see page 59.
• Input language: selects the language you
want to use.
• Save to Drafts: saves the message as a
draft. You can access it later in the Drafts
menu; for further details, see page 58.
• Add contacts: allows you to add a contact
to the message.
• Save to Drafts: saves the message as a
draft. You can access it later in the Drafts
menu; for further details, see page 58.
• Send settings: allows you to change the
setting for the message transmission.
6. To send the message to more than one
person, press the Down key to move to
another To input box.
When you want to return to the edit mode,
press the C key in an empty To input box.
7. When you have finished entering information,
press the Options soft key and select Send
to send the message.
4. When you have finished writing the message,
press the Options soft key and select Send.
Writing and Sending Multimedia
Messages
5. Enter a phone number to which you want to
send the message in the To input box.
When you send an MMS message with an image,
a video, an audio, or a text, the MMS message is
a multimedia presentation in a single file entry.
If you want to use the following options, press
the Options soft key.
• Send: allows you to send the message.
• Contacts: allows you to search your
contacts for a number. See page 70.
50
1. After accessing the Write option from the
Messages menu, select Multimedia msg.
2. Enter the subject in the Subject text field.
To use a preset message template stored in
the Text templates menu, press the
Z107Eng_Vodafone.book Page 51 Thursday, November 4, 2004 3:38 PM
Messages
Options soft key and select Use text
templates.
3. To add an image, video, or audio file, press
the navigation key to move to the Picture or
Video or Audio field and press the OK key.
Select a file from the list and press the Select
soft key or the OK key. You can also add a
picture you have taken with the phone
camera.
If you want to exchange an added image,
video, or audio file for another, you must first
delete the currently added file. Press the
Options soft key, select Delete picture/
video/sound and press the OK key. Then
add a new file as detailed above.
If you want to send the added image or file
without an accompanying text message, after
you have added the image or file, press the
OK key. Proceed directly to step 7 below.
Notes:
• When you add a video file in the message, you
can not add an audio file or write a text
message. In this case you can add an audio
file or write a text message by adding another
page to your message. If you want to send
lengthy video files of large capacity, the
Recording time has to be set accordingly
in the For message option. See page 89.
• The maximum size allowed for a multimedia
message can differ depending upon the
country.
4. Enter your message into the Text field.
5. If you want to use the message options while
entering your message, press the Options
soft key. Select one of the following options:
• Preview: shows your message as it will be
displayed on the recipient’s phone. Scroll
through the message by pressing Up or
Down key.
Press the Stop soft key and press the
Options soft key to use the following
options:
Play: plays the preview mode.
Send: allows you to send the message.
Page duration: allows you to set how long
one page of a received message displays.
After the specified time, the display
automatically scrolls to the next page.
51
Z107Eng_Vodafone.book Page 52 Thursday, November 4, 2004 3:38 PM
Messages
Colour & Font edit: allows you to set the
Font colour, Font style, and Background
colour by pressing the Up or Down key.
• Input language: selects the language you
want to use.
• Use text templates: allows you to use one
of the preset message text templates stored
in the Text templates menu; for further
details, see page 59.
• Delete picture/video/sound/text:
deletes the selected image, video, sound, or
text.
• Save to Drafts: saves the message as a
draft. You can access it later in the Drafts
menu; for further details, see page 58.
• Add page: adds a new page.
• Delete page: deletes a selected page. This
option is only available if when there is
more than one page.
• Edit page: allows you to use the following
options:
Page duration: allows you to set how long
one page of a received message displays.
After the specified time, the display
automatically scrolls to the next page.
52
Move pg fwd: moves the current page to
the previous page.
Move pg bkwd: moves the current page to
the next page.
• Save as template: saves the message as a
template. You can access it later in the
MMS templates menu, see page 59.
6. When you have finished writing the message,
press the Options soft key and select Send.
7. Enter a phone number to which you want to
send the message in the To input box.
If you want to use the following options, press
the Options soft key.
• Send: allows you to send the message.
• Contacts: allows you to search your
contacts for a number. See page 70.
• Save to Drafts: saves the message as a
draft. You can access it later in the Drafts
menu; for further details, see page 58.
• Settings: allows you to change the setting
for the message transmission.
8. To send the message to more than one
person, press the Down key to move to
another To input box.
Z107Eng_Vodafone.book Page 53 Thursday, November 4, 2004 3:38 PM
Messages
When you want to return to the edit mode,
press the C key in an empty To input box.
9. When you have finished entering information
press the Options soft key and select Send
to send the message.
Writing and Sending Messages with
Other Media Files Attached
5. Select a media file by pressing the navigation
keys and press the OK key to select it. A
check mark appears in front of the selected
file.
6. Repeat step 5 to add more files.
Note: The maximum size allowed for files can
differ depending upon the network.
When you send a message with media file(s)
attached, the recipient receives the message
with an attached file list.
7. When you have finished selecting the files,
press the Options soft key and press the OK
key when Attach highlights. You can cancel
your selection by choosing Deselect all.
1. After accessing the Write option from the
Messages menu, press the Select soft key
when File messenger highlights.
8. If you want to use the message options while
entering your message, press the Options
soft key. Select one of the following options:
2. Enter the subject of your message.
For more information about entering
characters, see page 31.
3. Press the Down key and enter your message
contents.
4. Press the Down key to attach a media file and
press the OK key. The Pictures screen
displays.
• Use text templates: allows you to use one
of the preset message templates stored in
the Text templates menu.
• Delete all attachments: removes all
selected attached files.
• Attachments: views attached file list.
• Input language: selects the language you
want to use.
53
Z107Eng_Vodafone.book Page 54 Thursday, November 4, 2004 3:38 PM
Messages
• Save to Drafts: saves the message as a
draft. You can access it later in the Drafts
menu.
12.When you have finished entering information
press the Options soft key and select Send
to send the message.
9. When you have finished writing the message,
press the Options soft key and select Send.
Writing and Sending Emails
10.Enter a phone number to which you want to
send the message in the To input box.
1. After accessing the Write option from the
Messages menu, press the Select soft key
when Email highlights.
If you want to use the following options, press
the Options soft key.
• Send: allows you to send the message.
• Contacts: allows you to search your
contacts for a number. See page 70.
• Save to Drafts: saves the message as a
draft. You can access it later in the Drafts
menu; for further details, see page 58.
• Settings: allows you to change the setting
for the message transmission.
11.To send the message to more than one
person, press the Down key to move to
another To input box.
When you want to return to the edit mode,
press the C key in an empty To input box.
54
2. Enter the subject of your message.
For more information about entering
characters, see page 31.
3. Press the Down key and enter your message
contents.
4. Press the Down key to attach a media file and
press the OK key. The Picutures screen
displays.
5. Select a media file by pressing the navigation
keys and press the OK key to select it. A
check mark appears in front of the selected
file.
6. Repeat step 5 to add more files.
Z107Eng_Vodafone.book Page 55 Thursday, November 4, 2004 3:38 PM
Messages
Note: The maximum size allowed for files can
differ depending upon the country.
7. When you have finished selecting the files,
press the Options soft key and press the OK
key when Attach highlights. You can cancel
your selection by choosing Deselect all.
8. If you want to use the message options while
entering your message, press the Options
soft key. Select one of the following options:
• Use text template: allows you to use one
of the preset message templates stored in
the Text templates menu; for further
details, see page 59.
• Delete all attachments: removes all
selected attached files.
• Attachments: views attached file list.
• Input language: selects the language you
want to use.
• Save to Drafts: saves the message as a
draft. You can access it later in the Drafts
menu.
10.Enter the e-mail address to which you want to
send the message in the To input box.
If you want to use the following options, press
the Options soft key.
• Send: allows you to send the message.
• Contacts: allows you to search your
contacts for an e-mail address. See
page 70.
• Save to Drafts: saves the message as a
draft. You can access it later in the Drafts
menu; for further details, see page 58.
• Send settings: allows you to change the
setting for the message transmission.
11.To send the message to more than one
person, press the Down key to move to
another To input box.
When you want to return to the edit mode,
press the C key in an empty To input box.
12.When you have finished entering information,
press the Options soft key and select Send
to send the message.
9. When you have finished writing the message,
press the Options soft key and select Send.
55
Z107Eng_Vodafone.book Page 56 Thursday, November 4, 2004 3:38 PM
Messages
Inbox
(Menu 4-2)
When you receive a new message, the new
message icon displays according to the type of
message.
•
: Text message
•
: Text SIM message
•
: MMS message
•
: MMS notification message
•
: Voice message
•
: Network configuration information
message. For this configuration
message, see Configuration Message on
page 56.
When you access the Inbox menu, the list of
messages received displays with the message
size, sender’s address and message subject.
Press the Options soft key to use the following
options; the options may be different depending
on the selected message type:
View: shows the message, or retrieves MMS
data if the message is MMS notification message.
56
Reply: allows you to reply to the sender by a
text or multimedia message.
Reply all: allows you to reply to the sender and
receivers by a text or multimedia message.
Forward: allows you to send the message to
other people.
Install: allows you to install the network account
settings. This option is available only for
configuration messages.
Cancel retrieving: allows you to cancel
retrieving a message.
Delete: deletes the message.
Delete all: deletes all of the messages in Inbox.
Details: shows detailed information about the
message. This option is shown only for MMS
messages.
Configuration Messages
You may sometimes receive an configuration
message containing information about the
network setting for MMS or browser from your
server. When you open an configuration
message, you can see the detail information. And
Z107Eng_Vodafone.book Page 57 Thursday, November 4, 2004 3:38 PM
Messages
then, when you press the OK key, or press the
Options soft key and select Install, a popup
message appears to ask you if you want to install
the setting in your phone. Press the Yes soft key
to update your phone’s network configuration.
You can check the new setting in the MMS or
browser setting menus.
Note: The GSM setting is not supported.
View: shows the e-mail message.
Reply: allows you to send a reply message to
the sender.
Reply all: allows you to reply message to the
sender and receivers.
Forward: allows you to send the e-mail
message to other people.
Download: receives new e-mail messages.
Email Box
(Menu 4-3)
When you receive an e-mail message, the new
message icon displays.
•
: E-mail message
•
: E-mail attach message
When you access the Email box menu, the list of
messages received displays with the message
size, sender’s address and message subject.
Delete: deletes the e-mail message.
Delete all: deletes all of the e-mail messages in
Email box.
Delete permanently: delete the e-mail
message from server.
Details: shows detailed information about the email message.
Scroll to the message you want to view and press
the OK key. The message displays.
Press the Options soft key to use the following
options; the options may be different depending
on the selected message type:
57
Z107Eng_Vodafone.book Page 58 Thursday, November 4, 2004 3:38 PM
Messages
Outbox
(Menu 4-4)
This menu stores the messages that you have
sent.
When you access the Outbox menu, the list of
messages you have sent displays with the
message subject, recipient’s address and
message size.
Press the Options soft key to use the following
options; the options may be different depending
on the selected message type:
Details: shows detailed information about the
message. This option is shown only for
multimedia and e-mail messages.
Drafts
(Menu 4-5)
In this menu, you can read, edit and send the
messages you saved as drafts.
View: shows the message.
When you access the Drafts menu, the list of
messages you have saved displays with the
recipient’s address, message subject, if you
entered it, and message size.
Send again: allows you to send the message
again if delivery failed.
Scroll to the message you want to view and press
the OK key. The message contents display.
Forward: allows you to send the message to
other people.
Press the Options soft key to use options. The
options may be different depending on the
message type:
Cancel sending: allows you to cancel sending
the message.
View: views the message.
Delete: deletes the message.
Edit: allows you to edit the message.
Delete all: deletes all of the messages in
Outbox.
Delete: deletes the message.
58
Delete all: deletes all of the messages in
Drafts.
Z107Eng_Vodafone.book Page 59 Thursday, November 4, 2004 3:38 PM
Messages
Templates
(Menu 4-6)
In this menu, you can read, edit and send MMS
templates and text templates.
When you access the MMS templates or Text
templates menu in the Templates menu, the
list of MMS templates or Text templates displays.
MMS Templates
After you have saved a multimedia message as
an MMS template message, you can use this
feature. See page 52.
Scroll to the message you want to use by
pressing the Up or Down key and press the OK
key. You can change the message. For more
information about entering characters, see
page 31.
Press the Options soft key to use the following
options:
View: views the selected MMS template.
Send: send the selected MMS template as a
multimedia message. See page 52
Edit: edits the selected MMS template the same
way you edit an MMS message. After you edit it
you can send it the same way you send an MMS
message. See page 50.
Delete: deletes the selected MMS template.
Text Templates
After you have created new text template
messages, you can add them to your message.
Scroll to the message you want to use by
pressing the Up or Down key and press the OK
key. You can change the message. For more
information about entering characters, see
page 31.
Press the Options soft key to use the following
options:
Edit: allows you to change the text template
message.
Send: allows you to send the message using the
text template message.
New: allows you to add a new text template
message. When you have saved 30 messages,
this option is disabled.
59
Z107Eng_Vodafone.book Page 60 Thursday, November 4, 2004 3:38 PM
Messages
Delete: deletes the text template message.
Delete all: deletes all of the text template
messages.
Delete All
(Menu 4-7)
This menu option allows you to delete all of the
messages in each message box. You can also
delete all of your messages at one time.
1. Scroll to a message type and place a check
mark ahead of it by pressing the OK key.
If you select All messages, check marks are
placed on all of the message boxes.
2. If necessary, repeat step 1 to check another
type.
3. When you have finished checking, press the
Delete soft key.
4. When a confirming message appears, press
the Yes soft key to delete all of the messages
in the type(s).
Otherwise, press the No soft key.
60
Settings
(Menu 4-8)
In this menu, you can set up default information
for using the messaging features.
Press the Up or Down key to scroll to a message
type and press the Select soft key.
Short Message Settings
You can have several settings. Each setting has
following options:
Centre address: allows you to view the number
of your SMS centre required when sending
messages.
Expiration: allows you to set the length of time
for which your text messages are stored at the
message server while attempts are made to
deliver them.
Default type: allows you to set the default
message type.
Name: allows you to set the setting’s name.
There are the following options in the Common
settings menu.
Z107Eng_Vodafone.book Page 61 Thursday, November 4, 2004 3:38 PM
Messages
Reply path: allows you to set your SMS centre
number as a reply path so that the recipient can
send a reply through it. The charge is billed to
you.
Automatic: if you select Automatic, the phone
selects the character set according as you use
Unicode characters or not.
Delivery report: the network informs you
whether or not your message has been delivered.
Multimedia Message Settings
Network selection: allows you to select a
preferred data transmission method.
Keep a copy: your phone leaves a copy of your
message in Outbox after sending it.
Character support: allows you to select the
character set when editing and sending
messages.
GSM alphabet: you can compose a message
using GSM characters.
Unicode: you can compose a message using
Unicode characters. All GSM characters are
included in the Unicode character set. However,
when using Unicode, the maximum number of
characters which can be entered in a message is
reduced by half.
For details on the GSM and Unicode alphabets,
see the tables on page 35
You can change the settings for sending or
receiving MMS messages.
Send settings
Priority: allows you to change the priority level
of your messages.
Expiration: allows you to specify how long your
MMS centre stores your messages after sending
them.
Delivery: allows you to set when the message
will be sent.
Hide address: allows you to prevent your
address from displaying on the recipient’s phone.
Delivery report: allows you to request
notification to each recipient whether or not your
message has been delivered.
61
Z107Eng_Vodafone.book Page 62 Thursday, November 4, 2004 3:38 PM
Messages
Read report: allows you to request report to
each recipient when your message was read by
the recipient.
Delivery report: allows the network to inform
the sender whether or not the message has been
delivered.
Keep a copy: allows you to leave a copy of your
message in Outbox after sending it.
Read report: allows your phone to send a
message to the sender to let them know when
the message was read.
Add my name card (selectable in the File
messenger menu only): allows your contact
information to be attached to your message.
Add signature (selectable in the File
messenger menu only): allows your signature
text to be attached to the end of your message.
You can enter text using up to 128 characters.
Receive settings
Home network/Roaming network: allows you
to set how to receive a message in each network.
• Auto: you can receive multimedia messages
automatically.
• Manual: you can receive a notification
message first. Then, if you choose, you can
download the multimedia message.
• Restricted (only for roaming network): If you
select the notification, there may be a possible
additional charge, depending on whether you
download the message or not.
62
Anonymous reject: allows your phone to reject
messages from callers without a caller ID.
Network settings
You can set up information about your MMS
network and select a network connection profile.
In most cases, you don’t need to change the
settings. In case of problems, please contact
your local customer services.
Note: If you change these settings without the
network operator’s instructions, you may
not be able to send or receive multimedia
messages.
You can have several network settings. You can
make changes or rename each setting by
pressing the Options soft key, but only one
setting can be active as your network setting. For
more information, see “Connections (Menu 9-6)”
on page 101.
Z107Eng_Vodafone.book Page 63 Thursday, November 4, 2004 3:38 PM
Messages
Email Settings
You can change the settings for sending or
receiving e-mail messages.
Send settings
The following options are available:
From: allows you to set the alias name.
Send Account: allows you to select the default
account that is required when you send e-mail
messages.
Priority: allows you to change the priority level
of your messages.
Keep a copy: allows your phone to keep a copy
of your message in Outbox after sending it.
Add my name card: allows your contact
information to be attached to your message.
Add signature: allow your signature text to be
attached to the end of your message. You can
enter text using up to 128 characters.
Receive settings
Receiving option: allows you to set how to
receive a message.
• Subject only : receives only the subjects of
the e-mails. You can read the contents after
downloading.
• Normal: receives the full e-mail.
Reject if over: allows you to set the maximum
size of an incoming e-mail and rejects e-mails
when they are over the size limit.
Block address: allows you to block e-mails.
Block subject: allows you to block e-mails which
contain the subjects you set.
Network settings
You can set up information about your network
and select a network connection profile. In most
cases, you don’t need to change the settings. In
case of problems, please contact your local
customer services.
Note: If you change these settings without the
network operator’s instructions, you may
not be able to send or receive multimedia
messages.
The following options are available:
63
Z107Eng_Vodafone.book Page 64 Thursday, November 4, 2004 3:38 PM
Messages
You can have several network settings. You can
make changes or rename each setting by
pressing the Options soft key, but only one
setting can be active as your network setting. For
more information, see “Connections (Menu 9-6)”
on page 101.
Use SMTP Authentication: allows you to set to
use of the SMTP authentication. For SMTP servers
that require this.
Account Settings
Voice Mail Settings
You can have 3 e-mail accounts. You can select
and edit the accounts.
You can change the number of the voice mail
service centre. When you press the 1 key to
access your voice messages, your phone dials
this number.
Scroll to one of the accounts by pressing the Up
or Down key and press the Options soft key.
Select the Edit option to change the following
options:
Account name: allows you to edit the access
name.
SMTP server: allows you to set the SMTP
(Simple Mail Transfer Protocol) server address.
POP3 server: allows you to set the POP3 server
address.
My Address: allows you to enter the e-mail
address you want replies to be sent to.
User name: allows you to set the login name of
the server.
64
Password: allows you to set the login password
of the server.
Memory Status
(Menu 4-9)
You can check the memory status of each
message box in your phone’s memory or in your
SIM card.
Z107Eng_Vodafone.book Page 65 Thursday, November 4, 2004 3:38 PM
My Media
You can enjoy various multimedia files, such as
music, sounds, videos, games, and pictures
using My Media.
View/Play/Create new: shows or plays the
selected file. Or, create a new file.
Exploring the Multimedia Files
Delete all: allows you to delete all files.
You can use up to 5 categories of multimedia
files: Photos, Pictures, Sounds, Games &
More, Videos.
When you select a category that you want to
access by pressing the Select key or the OK
key, the list of the files in the selected category
displays.
Note: You can quickly enter My Media menu by
pressing the
key in Idle mode.
Using Multimedia Options
On the file list in any category, you can use the
following options by pressing the Options soft
key:
Delete: allows you to select File, Folder or All
files option to delete.
Rename: allows you to change the file or folder
name. For further details about entering
characters, see page 31.
Move: allows you to move the selected file to
another folder.
New folder: allows you to make a new folder for
storing multimedia files.
More pictures/t-music/t-games/t-movies:
allows you to download multimedia files such as
latest music, ring-tones, pictures, wallpapers,
videos and games from the t-zones portal by
T-Mobile.
Send:
• Via multimedia msg.: allows you to send a
multimedia message using the multimedia file.
65
Z107Eng_Vodafone.book Page 66 Thursday, November 4, 2004 3:38 PM
My Media
For further details about sending multimedia
messages, see page 50.
• Via email: allows you to send an e-mail using
the multimedia file.
• Via file messenger: allows you to send a
message with the multimedia file attached.
Set for Cover LCD (available in the Photos and
Pictures category): allows you to use the image
as the background for cover LCD.
Set as ringtone (available in the Sounds
category): allows you to use the sound as your
ringtone for a voice or video call.
Set as caller ID: allows you to use the image or
sound as a caller ID indicator to be displayed or
played when a call comes in from a contact.
Lock/Unlock: allows you to protect the picture
from deletion or not.
Details: shows detailed information about the
selected file.
Memory status: shows you the amount of
memory used by the current category and the
remaining memory.
66
Using Image Files
You can use bmp, wbmp, gif, animated gif, png,
or jpg image files.
Viewing an Image
1. Press the Up or Down key to select the
Photos or Pictures category.
2. Press the Left or Right key to scroll through
the sub folders. The image list displays.
3. Press the Up or Down key to select an image
and press the OK key.
4. The image viewer shows the selected file.
Press the Left or Right key to load the
previous or next image file.
When viewing an image, you can use the
following options by pressing the Options soft
key:
Send: allows you to send the selected file. For
more information, see “Send:” on page 65.
Set as wallpaper: allows you to use the image
as your wallpaper image i.e. as the background
for your idle screen.
Z107Eng_Vodafone.book Page 67 Thursday, November 4, 2004 3:38 PM
My Media
Set for cover LCD: allows you to use the image
as the background for cover LCD.
For further details about using the camera, refer
to page 86.
Set as caller ID: allows you to use the image as
a caller ID indicator to be displayed when a call
comes in from a contact.
Using Sounds and Tones
Real size: shows you the selected image as real
size. You can scroll the image by pressing the
navigation keys.
1. Press the Up or Down key to select Sounds
category.
Slide show: allows you to view all of the images
in the selected folder using the Slide show
feature, which shows the images one by one on
full screen at 3 second intervals.
Delete: deletes the selected file.
Rename: renames the file.
Details: shows detailed information about the
file, such as file name, size, type and many
others.
Creating a New Image
From the file list of the Create folder in the
Photos category, select Create new and press
the OK key or use the Camera menu.
You can use 4-chord melodies or tones.
2. Press the Left or Right key to scroll through
the sub folders; Sounds and Create.
3. Press the Up or Down key to select a file and
press the OK key.
4. The music plays.
Press the Up or Down key or volume key to
control the volume.
Press the Left or Right key to load the
previous or next file.
While playing a sound, you can use the following
options by pressing the Options soft key:
Send: allows you to send the selected file. For
more information, see “Send:” on page 65.
67
Z107Eng_Vodafone.book Page 68 Thursday, November 4, 2004 3:38 PM
My Media
Set as ringtone: allows you to use the sound or
melody as your ringtone of the voice or video
call.
Voice Memo
You can record sound files or listen to the
recorded sound files.
Set as caller ID: allows you to use the sound as
a caller ID indicator to be played when a call
comes in from a particular contact.
Delete: deletes the selected file.
Rename: renames the file.
Details: shows detailed information about the
file, such as file name, size, type and many
others.
Record settings: allows you to set the default
name and recording time.
Creating a Sound
From the Sounds category, select Create sub
folder and select the Create new and press the
OK key or use the Voice memo application. The
Voice memo screen displays.
Press the Up or Down key to control the volume.
Press the Left or Right key to move cursors
through the buttons and press the OK key to
select the button.
: starts or resumes recording.
: pauses recording.
: stops recording and saves it.
: plays the file.
: rewinds the file.
68
Z107Eng_Vodafone.book Page 69 Thursday, November 4, 2004 3:38 PM
My Media
: forwards the file.
Using the Video Files
Press the Options soft key to use following
options.
Your phone can play video files in mp4 or 3gp
format.
Record: starts recording.
Playing a Video File
Record settings: allows you to set the
recording file name and maximum recording
time.
1. Press the Up or Down key to select Videos
category. The video list displays.
Games & More
This menu option allows you to download games,
view various information about games from the
t-zones portal by T-Mobile and enjoy games with
your phone. Downloaded applications are stored
in that folder.
2. Press the Left or Right key to scroll through
the sub folders. The video list displays.
3. Press the Up or Down key to select a video file
and press the OK key.
4. The Media Player plays the selected file.
For further details about using the Media
Player, see page 83.
Creating a Video
From the file list of the Create folder in the
Videos category, select Create new and press
the OK key, or use the Recorder menu.
For further details about recording a video, refer
to page 88.
69
Z107Eng_Vodafone.book Page 70 Thursday, November 4, 2004 3:38 PM
Contacts
You can create a phonebook by saving phone
numbers and names. Your phone gives you an
easy way to make calls by using the numbers or
names stored in Contacts.
Search Contact
(Menu 6-1)
When you access this menu, the Search contact
screen displays.
Note: You can quickly enter the menu by pressing
the
key in Idle mode.
Enter the first few letters of the name you want
to search for. The contact entries are listed
alphabetically, starting with those closest to
matching your input.
1. If necessary, press the Up or Down key to
find the contact you want.
2.
To
dial the number
70
view details of the
contact.
Press the
key.
OK key.
When you press the Options soft key from the
Contacts list, the following options are available:
Details: shows the detailed information. For the
details of the options, see page 73.
New: adds a new contact to the phone or SIM.
For more information about adding a contact,
see page 71.
Edit: allows you to edit the name or number of
the contact.
Delete: deletes the selected contact.
Video call: makes a video call to the person. For
further details, see page 28.
Search groups: searches the groups, see
page 74.
Service number: select a number from the
service number list and press the Call soft key to
call. This option may not display depending on
your SIM card.
Delete all: displays the memory location, Phone
& SIM, Phone, and SIM to delete all. Select the
Yes soft key to delete the selected memory,
otherwise select the No soft key.
Z107Eng_Vodafone.book Page 71 Thursday, November 4, 2004 3:38 PM
Contacts
New
(Menu 6-2)
You can add a new entry to your contacts saving
phone numbers and the corresponding names in
the SIM card or phone’s memory. You can save
up to 1000 names in the phone’s memory. Each
name can have up to five numbers and other
personal information.
When you add a new contact, you should select a
memory location to save by pressing the Up or
Down key.
Note: You can also access this menu by pressing
the New soft key in the startup screen of
the Contacts menu.
Adding a Contact to the Phone’s
Memory
1. Press the Up or Down key to scroll through
the input boxes and enter the corresponding
information you want to save:
• First Name/Last Name: enter the first and
the last name for the contact. For further
details about entering characters, see
page 31.
• Mobile( )/Home( )/Work( )/
Fax( )/Etc.( ): enter a number you
want to add. The icons at the left side of
each input box tell what type of number it
is.
• Email: enter the e-mail address.
• Group: press the OK key to enter one or
more groups.
• Homepage: enter the URL address of the
homepage.
• Memo: enter information you need to
remember about the person.
2. When you have finished entering the
information you want to save, press the
Options soft key and select Save.
Adding a Contact to the SIM Card
1. Press the Up or Down key through the input
boxes and enter the corresponding
information you want to save:
• Name: enter the name for the contact. For
further details about entering characters,
see page 31.
71
Z107Eng_Vodafone.book Page 72 Thursday, November 4, 2004 3:38 PM
Contacts
• Phone number/Additional phone
number: enter a phone number you want
to add.
Adding a Contact from Idle Mode
• Email: enter the email address.
2. Press the Options soft key and select Save
to contact by pressing the OK key or Right
key.
• Group: enter one or more groups.
Note: The input boxes appeared can differ
depending upon the SIM card.
2. Press the Down key to move to the location
number input box and modify a number, if
you want.
3. Press the Options soft key and select Save.
or,
1. In Idle mode, enter the number to be stored.
3. Select a memory location and press the OK
key.
4. Press the Up or Down key to scroll through
the input boxes and enter the corresponding
information you want to save. The input
boxes depend on the memory type you select
in the memory setting and refer to the
previous pages for the next steps.
1. Enter the first name for the contact.
2. Press the Down key to move to the Phone
number input box and enter a phone
number.
3. Press the Down key to move to the location
number input box and modify a number, if
you want.
4. Press the Save soft key.
72
Another Options for Phone memory
type when Adding Contacts List
When you press the Options soft key from the
Contacts list, the following options are available:
Save: saves a contact.
Special options: you can set a distinctive image
and sound for a contact. Press the Up or Down
key to move to each field.
Z107Eng_Vodafone.book Page 73 Thursday, November 4, 2004 3:38 PM
Contacts
• Picture: allows you to select an image to be
displayed when a call or message comes in
from a contact. Press the OK key. You can
select a category from icon, animation and
photo, and then choose a file from My Media.
• Ring tone: allows you to set a sound to be
played when a call comes in from a contact.
Press the OK key and select an audio file from
My Media.
• Msg. alert tone: allows you to select a sound to
be played when a message comes in from a
contact. Press the OK key and select a sound
file from My Media.
After changing the options, press the Options
soft key and select Save. If you want to reset
your changes, select Reset.
Add item: allows you to add another contact
number. Select one of the types and add a
number.
Delete item: deletes the selecting contact item
which you’ve added using the Add item option.
Change type: changes the contact type of the
selected contact item. Select one of the types.
Mark/Unmark video call: activates or
deactivates a video call to the selected contact
number item.
Viewing Contact Information
You can access the details
of a contact in the phone’s
memory and SIM card by
pressing the OK key on the
Contact list.
To
Press the
enter
OK key
scroll through the
items
Up or Down key.
dial the selected
number
key.
save change after OK key after editing each
editing information item.
73
Z107Eng_Vodafone.book Page 74 Thursday, November 4, 2004 3:38 PM
Contacts
To
Press the
return to the
Contacts list
Back soft key or C key.
When you press the Options soft key, the
following options are available:
Edit: allows you to edit the selected number and
name.
Send message: allows you to send a message
to the contact. You can write a text message,
create a miltimedia message, or write a message
to which you attach a media file using file
messenger. For more information about sending
a message, see page 49.
Special options: you can set a distinctive image
and sound for the contact. Press the Up or Down
key to move to each field.
Video call: allows you to make a video call to
the person. For further details, see page 28.
Copy to SIM/phone: makes a copy of the
contact to SIM or to phone.
74
Send name card: allows you to send a name
card via text message, via file messenger or via
Email.
Paste: allows you to paste the selected number
into the normal dialling mode.
Delete: deletes the selected contact.
Groups
(Menu 6-3)
You can manage groups. The contacts stored in
the phone’s memory or supplied by the SIM card
can be assigned to contact groups.
Editing Group from the Group List
1. When the Group list displays, if necessary
press the Up or Down key to scroll through
the Group list.
2. Press the Options soft key from the Group
list to access the following options:
• View members: views the Contacts list
saved in this group.
Z107Eng_Vodafone.book Page 75 Thursday, November 4, 2004 3:38 PM
Contacts
• Add group: enters a new group name to
add a new group. You can see the new
group name in the Group list.
• Rename group: allows you to change the
group name.
Speed Dial
(Menu 6-4)
You can set up eight speed dial numbers and
then dial them simply by pressing the associated
number key.
• Delete group: deletes the selected group.
• Delete all groups: deletes all of the
groups.
Editing Group Item
1. When you select a group, you can see the
name list enrolled in the group.
2. If necessary, press the Up or Down key to
scroll through the name list.
3. Press the Options soft key to access the
following options:
• Details: allows you to view detailed
information about the selected member.
• Edit group: allows you to change members
in the group. Mark and unmark names you
want to add or delete using the OK key and
press the Save soft key.
Editing Speed Dial from the Speed Dial
List
1. When the Speed Dial list displays, highlight
one of the Speed dials you want to edit by
pressing the navigation keys.
2. Press the Options soft key to access
following options:
• Add: allows you to add a speed dial number
at an empty slot.
• Details: allows you to view detailed
information about the selected speed dial
entry, for example, the image and phone
number of the contact.
• Change: allows you to change into another
contact.
• Remove: allows you to clear the selected
speed dial number.
75
Z107Eng_Vodafone.book Page 76 Thursday, November 4, 2004 3:38 PM
Contacts
My Name Card
(Menu 6-5)
You can store personal information, such as your
first and last name, wireless phone number,
home number, office number, fax number, email, URL, memo or etc.
Press the Options soft key to access the
following options:
Save: saves your information.
Add item: allows you to add another contact
number. Select one of the types then add the
number.
Service Number
(Menu 6-7)
Note: This feature may not be available
depending on your SIM card.
The display shows the list of the service numbers
assigned by your network provider. These
numbers include emergency numbers, directory
enquiries and voice mail numbers.
If necessary, scroll to a number by pressing the
Up or Down key and press the Call soft key to
dial the number.
Delete item: deletes the selected contact item
which you’ve added using the Add item option.
Memory Status
Change type: changes the contact type of the
selected contact item. Select one of the types.
You can check how many contact items are
stored in the phone’s memory or SIM card.
Copy All to Phone
You can see the number of existing and
remaining entries available in the SIM card or
phone’s memory.
(Menu 6-6)
You can copy all of the contacts stored in the SIM
card to the phone’s memory. When a confirming
message appears, press the Yes soft key to
copy. Otherwise, press the No soft key.
76
(Menu 6-8)
Z107Eng_Vodafone.book Page 77 Thursday, November 4, 2004 3:38 PM
Organiser
The Organiser feature allows you to view the
current month as well as the past or future
month in calendar format. You can schedule up
to 100 events in total. You can also make up to
50 anniversary, 20 task and 20 memo items.
Calendar
(Menu 7-1)
The calendar displays the
current month and
highlights the current day.
Days with any events are
marked with a coloured
symbol, green for schedule
items, red for
anniversaries, blue for
tasks, and orange for memos.
To scroll through the calendar:
• Press the Up or Down key to move to the
previous or next week.
• Press the volume keys to move to the previous
or next month. You can also press the Left,
Right or Up key when the title bar showing the
month and year highlights.
• Press the OK key to access the selected date.
You can use the following options by pressing the
Options soft key:
View: shows you the schedule of the selected
day.
New: allows you to make a new Schedule,
Anniversary, Task or Memo.
Go to today: shows the today calendar.
Go to date: enters a date you want to go and
press the Go soft key.
Delete: deletes the events the period you enter.
Delete all: deletes all of the events in your
calendar.
• Press the Left or Right key to move to the
previous or next day.
77
Z107Eng_Vodafone.book Page 78 Thursday, November 4, 2004 3:38 PM
Organiser
Today’s Event
(Menu 7-2)
When you press the Options soft key, the
following options are available; these may be
different depending on the selected event type:
View: shows you details of the event.
New: allows you to make a new Schedule,
Anniversary, Task or Memo.
Done: when you have completed a task, select
Done to insert a check mark in front of the item.
Note: If you want to remove the check mark,
select the item and press the Options soft
key. Then select To do.
Month view: returns to the calendar screen.
Change date: allows you to change an
anniversary date.
Delete all: deletes all of the events for that day.
Send schedule: allows you to send the schedule
by text message, file messenger, or e-mail.
Send task: allows you to send the task by text
message, file messenger, or e-mail.
Send memo: allows you to send the memo by
text message.
Alarm
(Menu 7-3)
You can set alarms to ring at specific times.
To set an alarm;
1. Select the type of alarm choosing Once
alarm, Daily alarm or Wake up alarm.
2. Set On by pressing the Left or Right key.
Reschedule: allows you to change the date of
an event easily. When the calendar displays,
move to a new start date using the navigationl
keys and press the OK key.
3. Move to the time field by pressing the Down
key and enter the time for the alarm to
sound.
Change due date: allows you to change the
task’s due date.
4. (Only for the Wake up alarm) Move to the
repeat field by pressing the Down key and
select the repetition type choosing None,
Delete: deletes the event.
78
Z107Eng_Vodafone.book Page 79 Thursday, November 4, 2004 3:38 PM
Organiser
Every day, Except weekend, or Except
Sunday.
5. Move to the alert tone field by pressing the
Down key. After pressing the OK key, you can
select an alarm melody
1. Scroll through the entry fields by pressing the
Up or Down key. Enter information or select
the settings you want.
• Title: enter the title of the event. See
page 31 for more information about
entering characters.
6. Press the Save soft key to save it.
• Details: enter the details about the event.
Note: When the Call alter type is not selected to
Melody or Vib & melody, the alarm tone
doesn’t sound except for the Wake up alarm.
• Start: enter the start time of the event.You
can move the cursor using the Left or Right
key.
To deactivate an alarm;
• End: enter the end time of the event the
same way as you would enter a start time.
1. Select the type of alarm choosing Once
alarm, Daily alarm or Wake up alarm.
2. Set Off by pressing the Left or Right key.
3. Press the Save soft key to save it.
Schedule
(Menu 7-4)
Press the Options soft key and select the New
option to make a new schedule. See page 78 for
the other options.
• Start date: enter the start date. You can
move the cursor using the Left or Right key.
• End date: enter the end date the same way
as you would enter a start date.
• Location: enter information about the
location for the event.
• Alarm: press the OK key to set an alarm to
remind you of the event. Then set when the
alarm will alert you; enter the number and
select a unit, min., hour, or day, using the
Left or Right key. You can move from the
number box to the time box by using the
Down key.
79
Z107Eng_Vodafone.book Page 80 Thursday, November 4, 2004 3:38 PM
Organiser
• Repeat: if you are entering a recurring
event, press the OK key and select the
repeat option using the Left or Right key.
Then enter the date that you wish the event
to stop recurring.
• Expiry: select how long the event is to be
stored in your calendar.
2. When you have finished entering the event,
press the Save soft key.
ahead of the day required, enter the desired
number and the time. You can move the
cursor using the Left or Right key.
• Repeat every year: press the OK key to
mark or unmark this option.
2. When you finish entering the anniversary
details, press the Save soft key.
Task List
Anniversary
(Menu 7-5)
Press the Options soft key and select the New
option to make a new anniversary event. See
page 78 for the other options.
1. Scroll through the entry fields by pressing the
Up or Down key. Enter information or select
the settings you want.
• Occasion: enter the information about the
occasion. See page 31 for more information
about entering characters.
• Date: enter the date. You can move the
cursor using the Left or Right key.
80
• Alarm: press the OK key to set an alarm to
remind you of the event. To set an alarm
(Menu 7-6)
Press the Options soft key and select the New
option to make a new item for the Task list.
1. Scroll through the entry fields by pressing the
Up or Down key. Enter information or select
the settings you want.
• Task: enter the information about the
occasion. See page 31 for more information
about entering characters.
• Start date: enter the start date. You can
move the cursor using the Left or Right key.
• Due date: enter the due date.
• Priority: enter the priority, choosing 1, 2 or
3.
Z107Eng_Vodafone.book Page 81 Thursday, November 4, 2004 3:38 PM
Organiser
2. When you finish entering the task, press the
Save soft key.
Missed Event Alarm
When you have completed a task from the Task
list, select the item and press the Options soft
key. Then select Done to insert a check mark in
front of the item.
When the alarm sounds, you must press the OK
soft key in the reminder window within one
minute. Otherwise the missed event alarm
window will be displayed.
Note: When you want to remove the check
mark, select the item and press the
Options soft key. Then select To do.
You can view missed events in the Missed Event
Alarm menu.
Memo
(Menu 7-7)
Press the Options soft key and select the New
option to create a new memo. See page 78 for
the other options.
1. Scroll through the entry fields by pressing the
Up or Down key. Enter information or select
the settings you want.
• Memo: enter the memo details.
• Date: enter the date.
2. When you finish entering the memo, press
the Save soft key.
(Menu 7-8)
Press the Options soft key to use the following
options:
View: allows you to view the selected alarm
details.
Delete: allows you to delete the selected alarm
event in the list.
Delete all: allows you to delete all event alarms
in the list.
World Clock
(Menu 7-9)
You can check the time difference between your
city and a selected city.
1. Select the city corresponding to your time
zone by pressing the Left or Right key.
81
Z107Eng_Vodafone.book Page 82 Thursday, November 4, 2004 3:38 PM
Organiser
The screen shows the current time and date
of several cities in the same time zone.
2. Press an appropriate navigation key for your
calculation.
2. Press the Down key to select another city and
its corresponding time zone by pressing the
Left or Right key.
3. Enter the second figure.
Press the Options soft key to use following
options.
Press the Options soft key to use the following
options:
Save: allows you to save the setting.
Recent calculation: shows the recent
calculation result.
Summer time: allows you to use the daylight
saving time.
Calculator
(Menu 7-0)
4. Press the OK key to get the result.
Recent calculation appears when the calculation
has ever performed.
Save to memory: saves the current digit or
result to memory.
You can use the phone as a 14-digit calculator.
The calculator performs basic mathematical
functions: addition, subtraction, multiplication
and division.
Recall memory: recalls the saved digit.
1. Enter the first figure using the number keys.
Converter
To use a decimal point, press the
key. And
you can enter a negative number by pressing
the Left key.
82
Clear memory: clears the memory.
(Menu 7-*)
You can convert from one type of unit to another.
Scroll to the type of converter to be performed
from Currency, Length, Weight, Volume,
Area, and Temperature and press the OK key.
Z107Eng_Vodafone.book Page 83 Thursday, November 4, 2004 3:38 PM
Organiser
1. Select the units to be converted by pressing
the Left or Right key.
2. When you enter the value to be converted,
you can see the corresponding value of each
unit.
Note: You can enter a decimal point (.) by
pressing the
key. You can also enter
(-) by pressing the
key only for
Temperature.
On the Converter screen, press the Options soft
key to use the following options:
Clear: clears the current values.
Reverse: reverses the location of the
conversion.
Currency rates: (only for Currency) sets the
currency rates.
3. Press the Options soft key and select the
Save option to save it.
To clear all the rates of each currency, select
the Clear all option.
Return to the previous screen without
changing, press the Back soft key.
Media Player
(Menu 7-#)
Media Player plays audio and video files you
download or streamed to the phone. You can
listen to the music or watch a movie with the
Media Player.
It is used when:
• you view a media file in the My Media menu.
• you want to play a sound or video in the
browser.
To change the currency rates;
1. Select the base currency by pressing the Left
or Right key.
2. Scroll through another currency by pressing
the Up or Down key and edit the rates.
83
Z107Eng_Vodafone.book Page 84 Thursday, November 4, 2004 3:38 PM
Organiser
The selected audio or video file plays on the
Media Player.
4.
Playing a File using the Media Player
1. On the screen of the Media Player, press the
Options soft key.
2. Scroll to Open play list or Open file and
press the OK key.
The screen displays showing files available in
the Media Player.
3. Press the Up or Down key to select the file
you want to play and press the OK key.
84
To
Press the
pause
OK key.
resume playing
OK key again.
stop playing
Stop soft key.
adjust the volume
level
volume keys.
exit the Media player
Back soft key.
When the control bar is shown, you can scroll the
buttons by pressing the Left or Right key and
press the OK key to select the button.
: plays or resumes (if paused).
: stops playing.
: pauses playing.
: fast rewinds while holding the OK key.
: fast forwards while holding the OK key.
Z107Eng_Vodafone.book Page 85 Thursday, November 4, 2004 3:38 PM
Organiser
When you press the Options soft key while a file
is playing, the following options are available:
2. Press the Up or Down key to scroll to Player
settings and press the OK key.
Play: resumes playing.
3. Press the Up or Down key to scroll through
the options. You can select the desired status
using the Left or Right key.
Stop: stops playing.
Pause: pauses playing.
Open play list: allows you to open another file
or make a file list you want to play.
Open file: allows you to open the stored video
files.
Hide/Show controller: hides or displays the
control bar of the Media Player.
Player settings: allows you to change the
settings of the Media Player. For further details,
see below, “Setting up the Media Player”.
VOD settings: sets the network access point for
the VOD (Video On Demand) service.
Setting up the Media Player
• Repeat: allows you to set the Media Player
to repeatedly play all of the files or only one
file. Selecting None means that the file is
played just once.
• Play order: allows you to set the order to
Random or Normal.
• Volume: allows you to adjust the volume
level. This option is available only when you
have already opened a file.
• Hide controller: hides the control bar of
the Media Player when you place a check
mark ahead of this option by pressing the
OK key. If you want to show the control bar
again, remove the check mark by pressing
OK key.
You can set several options for playing an audio
or video file on the Media Player.
1. On the screen of the Media Player, press the
Options soft key.
85
Z107Eng_Vodafone.book Page 86 Thursday, November 4, 2004 3:38 PM
Camera
Using the camera module built into your phone,
you can take pictures or record videos of people
or events. Additionally, you can send the images
to other people in a multimedia message.
2. Point the camera at the subject, rotating the
camera if necessary.
When the camera turns on, you can dial a
number to make a video call; for further details
about using the video call feature, see page 28.
Taking a Picture
1. Accessing this menu turns your camera on.
Alternatively, you can turn your camera on by
pressing the left soft key in Idle mode.
You can see the image to be captured on the
display.
86
To flip the picture over, press the Up or Down
volume key on the left side of the phone. Up
flips the picture upside down, while Down
flips the picture left to right.
3. Press the OK key. Or, press the Options soft
key and press the OK key when Capture is
highlights.
Z107Eng_Vodafone.book Page 87 Thursday, November 4, 2004 3:38 PM
Camera
4.
To
Press the
use the options
Options soft key.
For details about the
options, see below.
delete the image file
Delete soft key.
return to Capture
mode
OK key.
turn the camera off
and return to Idle
mode
key.
The photo is saved
automatically.
When you press the Options soft key in Step 4,
the following options are available:
Viewfinder: switches the screen to Capture
mode to allow you to take another picture.
Set as wallpaper: allows you to set the taken
picture as wallpaper.
Set as caller ID: allows you to use the image as
a caller ID indicator to be displayed when a call
comes in from a contact.
Open files: moves you to the Photos sub folder
in My Media. You can see the taken picture in
the Photos sub folder; see page 65.
Rename: allows you to change the image file’s
name. For more information about entering
characters, see page 31.
Camera Mode Options
Press the Options soft key in Camera mode:
Send:
Capture: takes a picture.
• Via multimedia msg.: allows you to send a
multimedia message using the taken picture.
For further details about sending multimedia
messages, see page 50.
Record video: turns to Video mode.
Open files: moves you to the Photos sub folder
in My Media.
• Via email: allows you to send an email using
the taken picture.
Multi shot: takes a rapid series of pictures (from
3 -10).
• Via file messenger: allows you to send a
message with the taken picture attached.
Flip image: selects Up-down for flipping
vertically, Left-right for flipping horizontally.
87
Z107Eng_Vodafone.book Page 88 Thursday, November 4, 2004 3:38 PM
Camera
Scroll to an item and place a check mark ahead
of it by pressing the OK key.
• Automatic: when you take a picture, the flash
will light.
Timer: sets the phone to take a picture at a
predefined time. Once you set the time, the
timer icon appears at the below of the screen.
When you press the OK key, the phone takes a
picture after the predefined time.
• Manual: to switch the camera flash on or off,
you have to press the Up key in the Navigation
key in capture mode. The flash goes on. When
you have taken a picture the flash goes out.
Effects: allows you to change the colour tone of
the picture. Sepia, Mono, Night and Normal
are available.
Recording a Video
Brightness: adjusts the brightness of the
picture.
Camera settings:
Default name allows you to define a default
name of your choice.
Capture quality allows you to adjust the quality
between Low, Normal, Fine, or Super fine.
You can also select Memory Save. The Memory
Save option gives you a lower quality image, but
takes up less memory space.
Flash mode allows you to set the camera flash to
be either always on or to be set manually.
88
You can use your phone just like a camcorder to
record what is currently displayed on the camera
screen and save it as a video file.
1. When you are in Camera mode, press the
Options soft key and select Record video.
You can see the image to be recorded on the
display.
2. Press the Options soft key.
3. Press the Up or Down key to select Record
and press the OK key.
4. Your phone starts recording. Recording time
can be set for up to 30 seconds.
Z107Eng_Vodafone.book Page 89 Thursday, November 4, 2004 3:38 PM
Camera
5. While recording video;
When you press the Options soft key in steps 4
and 5, the following options are available:
To
Press the
pause recording
Pause soft key.
Viewfinder: switches the screen to the view
Record mode to allow you to take another video.
resume paused
recording
Record soft key.
Play file: play the video.
stop recording
Stop soft key. The
video automatically
saves in the Videos
sub folder.
use the options
Options soft key. For
details about the
options, see below.
delete the video file
Delete soft key.
return to Record
mode
OK key.
turn the camera off
and return to Idle
mode
key.
6. When the recording time expires, the phone
automatically saves the video in the Videos
sub folder in My Media; see page 65.
Send
• Via multimedia msg.: allows you to send the
video as part of a multimedia message. For
further details about sending multimedia
messages, see page 50.
• Via email: allows you to send the video as
part of an e-mail.
• Via file messenger: allows you to send a
message with the video attached.
Open files: moves you to the Videos sub folder
in My Media.
Rename: allows you to change the image file’s
name.
Video Mode Options
Press the Options soft key in Video mode:
Record: records a video.
89
Z107Eng_Vodafone.book Page 90 Thursday, November 4, 2004 3:38 PM
Camera
Capture mode: turns to Camera mode.
Open files: moves you to the Videos sub folder
in My Media.
Flip image: selects Up-down for flipping
vertically, Left-right for flipping horizontally.
Scroll to an item and place a check mark next to
it pressing the OK key.
Brightness: adjusts the brightness of the video.
Video settings: allows you to define a default
name of your choice and to adjust the quality
from Very low, Normal, High or Very high. It
also allows you to set recording time. If you
select the For message option in the Recording
time box, you can send video files of large
capacity and the quality is fixed by the Normal.
90
Z107Eng_Vodafone.book Page 91 Thursday, November 4, 2004 3:38 PM
Settings
Many different features of your phone can be
customised to suit your preferences in the
Settings menu.
mode. To change back to the previous
profile mode, hold the
key down again.
Customising the Profiles
Profiles
(Menu 9-1)
In Profiles, you can adjust and customise the
phone tones for different events or situations.
There are six preset profiles: T-Mobile, Normal,
Meeting, Car, Silent, and Outdoor, which you
can customise to meet your needs.
Changing the Profiles
On the Profiles screen, select a profile by
pressing the Up or Down key and press the
Change soft key.
You can also press the Change soft key from the
startup screen of the Profiles menu, then select a
profile and press the OK key.
Note: You can quickly change to the Silent mode
by holding the
key down when in Idle
1. To modify a profile, scroll to the profile on the
Profiles list by pressing the Up or Down key,
and then press the OK key. A list of profile
settings opens. The available setting options
vary depending on the selected profile.
2. Scroll to the setting you want to change by
pressing the Up or Down key, and then
change the setting using the Left or Right
key, or the OK key.
The following options are available:
• Call alert type: allows you to select the
alert type for the call ringer. You can choose
one from Melody, Vibration, Mute (Light
only) and Vib & melody.
• Voice call/V-Call ringtone: enables you
to select a melody or tone to be used when
you select Melody or Vib & melody in the
Call alert type option. Press the OK key
and select a sound from the alert tone list.
91
Z107Eng_Vodafone.book Page 92 Thursday, November 4, 2004 3:38 PM
Settings
• Tone volume: allows you to adjust the
volume level of the voice call, video call,
ringtone, and the message alert tone.
• Msg. alert type: allows you to select the
alert type for the message ringer.
• Msg. alert tone: allows you to select the
melody or tone to be used if you select
Melody or Vib & melody in the Msg. alert
type option.
The last item on the list of tone choices is
Special tone. If you select Special tone,
you will see a list of tones that have been
downloaded, and you can select one of
those tones for your Msg. alert tone.
• Msg. alert repetition: allows you to
specify how often the phone informs you of
a new message. You can choose either
Once or Periodic.
• Effect tones: allows you to turn the
following alert sounds on or off.:
All on: enables all tones.
Popup box alerts: sets the phone to inform
you of the status.
Minute minder: lets you set the phone to
beep every minute during an outgoing call
92
to keep you informed of the length of your
call.
Call connect tone: sets the phone to beep
when the person you are calling answers
the phone.
Call end tone: sets the phone to beep when
your call ends.
Power on: sets the phone to beep when the
phone is switched on.
Effect sounds: sets the phone to beep when
you access the menu.
Folder open/close: sets the phone to beep
when you open or close the phone.
Alert on call: sets the phone to all alerts
while calling.
All off: disables all tones.
To enable an effect tone(s), press the OK
key to place a check mark in front of the
tone(s) you want. To remove a check mark,
press the OK key again. Then press the
Done soft key to save the settings.
• Key tones: allows you to select a tone
which sounds when you press a key.
• Key tone volume: allows you to adjust the
volume level of the key tones.
Z107Eng_Vodafone.book Page 93 Thursday, November 4, 2004 3:38 PM
Settings
3. When you have finished setting the options,
press the Save soft key.
Phone
(Menu 9-2)
Ext. Light
This menu allows you to select whether or not
the service light is used and what colour it is.
In this menu, you can set options for the phone.
The external light is a service availability
indicator. When you set the Service light to On,
the light flashes when you are in a service area.
LCD Brightness
If the phone is not in a service area, the light
doesn't flash.
You can adjust the brightness of the screen.
Press the Left or Right scroll key to make the
screen darker or brighter and then press the
Save soft key.
Backlight
You can set the timer to go to dimming mode
when there is no input, which consumes less
battery power. You can select the length of time
the phone waits before it dims the screen after
the last key is pressed. Once the phone goes to
dimming mode, the screen will turn off after 30
seconds.
When your phone is in another dimming mode or
the screen is off, you can wake it up by pressing
any key.
If you do not wish to use the service light, select
Off.
Language
You can select a different language for the
display text and the text input mode.
1. Press the OK key in the Screen Text field.
2. Press the Up or Down scroll key to select a
language for the display text, e.g., menu
names and warning or confirming messages,
and press the Select soft key.
Note: The SIM card determines the display
language when the Screen Text option is
set to Automatic.
93
Z107Eng_Vodafone.book Page 94 Thursday, November 4, 2004 3:38 PM
Settings
3. Press the Down scroll key to move to the
Input T9 field and press the OK key.
4. Press the Up or Down scroll key to select a
language for the T9 input mode and press the
Select soft key.
5. Press the Save soft key.
When this option is set to Off, you can only
answer by pressing the
key or the Accept
soft key.
Press the Up or Down scroll key to select On or
Off, and press the Save soft key.
Infrared
Active Folder
In this menu, you can activate or deactivate the
infrared port.
When this option is set to On, you can answer a
call by opening the phone.
The following options are available:
When it is set to Off, you must first flip the phone
open and press a key, depending on the setting
of the Anykey Answer option.
Off: deactivates the infrared feature on the
phone.
Press the Up or Down scroll key to select On or
Off, and press the Save soft key.
If there is no communication between your
phone and an Infrared-compliant device within 1
minute of activating the feature, it is
automatically deactivated.
Anykey Answer
When this option is set to On, you can answer an
incoming call by pressing any key except the
key and the Reject soft key.
94
On: activates the infrared feature on the phone.
Note: To best enjoy the high speed data connection
over UMTS, it is recommended to use the
USB data cable for a more stable connection
to the PC.
Z107Eng_Vodafone.book Page 95 Thursday, November 4, 2004 3:38 PM
Settings
Display
(Menu 9-3)
This menu allows you to customise the main
display screen by setting a greeting message,
setting a wallpaper image, or changing the
theme colour.
1. Select Wallpaper in the Display menu using
the Up or Down scroll key, and press the
Select soft key. You can also press the
Wallpaper soft key from the Settings startup
screen.
The Pictures folder from My Media opens.
Greeting Message
2. Press the Up or Down scroll key to scroll to
the image you want to use.
You can set a greeting message to be displayed
briefly when you switch the phone on.
3. Press the Select soft key.
1. When Greeting message highlights in the
Display menu, press the Select soft key.
The current message displays.
2. Press the C key to clear the message.
3. Enter a new message.
For more information about entering
characters, see page 31.
4. When you have finished entering the
message, press the Save soft key.
Wallpaper
You can select a background image (wallpaper)
to be displayed on the idle screen.
Cover LCD
You can choose one of the following options:
Clock: a clock showing the current time and date
appears on the screen.
Cover title: you can enter a greeting message.
For more information about entering characters,
see page 31.
Wallpaper: you can select an image. You can
also adjust the size and position of the image.
Main Menu Style
You can change the appearance of the main
menu.
95
Z107Eng_Vodafone.book Page 96 Thursday, November 4, 2004 3:38 PM
Settings
Call
Caller ID
1. From Voice call, Data call, and Video call,
select the type of call to be diverted by
pressing the Up or Down scroll key, and then
press the OK key.
You can prevent your phone number from being
displayed on the phone of the person being
called.
2. Select when the calls should be diverted by
pressing the Up or Down scroll key, and then
press the OK key.
(Menu 9-4)
Note: Some networks do not allow the user to
change this setting.
• Always: all calls are diverted.
The following options are available:
• Busy: calls are diverted if you are already
engaged on a call.
By network: the default setting provided by the
network is used.
• No reply: calls are diverted if you do not
answer the phone.
Send: your number is sent each time you make
a call.
• Unreachable: calls are diverted if you are
not in an area covered by your service
provider.
Hide: your number is not displayed on the other
person’s phone.
• Cancel all: all call diverting options are
cancelled.
Diverting
The phone dials your network to find whether
call diverting is possible or not.
This network service enables incoming calls to be
rerouted to the number that you specify, for
example, to your voicemail box.
After a few minutes, the current status
displays. If the option has already been set,
the numbers to which the calls are diverted
also displays.
To set your call diverting options:
96
Z107Eng_Vodafone.book Page 97 Thursday, November 4, 2004 3:38 PM
Settings
3. Press the Left or Right scroll key to select one
of the following options:
• Activate: this option activates the number.
• Deactivate: this option deactivates the
setting.
4. Press the Down scroll key and enter or
change the number to which you want your
calls diverted. Or, press the Contacts soft key
to select a stored number.
5. Press the Up scroll key and press the Req.
soft key.
The phone sends your settings to the network
and the network’s acknowledgement displays.
2. Select which calls should be barred by
pressing the Up or Down scroll key, and then
press the OK key.
• All outgoing calls: calls cannot be made.
• Outgoing int’l calls: international calls
cannot be made.
• Outgoing exc. home: when abroad, calls
can be made only to numbers within the
current country and to your home country,
which is the country where your home
network operator is located.
• All incoming calls: calls cannot be
received.
Barring
• Incoming calls when roaming: calls
cannot be received when you are using your
phone outside of your home service area.
The call barring network service allows you to
restrict your calls.
• Cancel all: all call barring options are
cancelled.
To set your call barring options:
The phone dials your network to find whether
call barring is possible or not.
1. From Voice call, Data call, and Video call,
select the type of call to be barred by pressing
the Up or Down scroll key, and then press the
OK key.
After a few minutes, the current status
displays.
3. Press the Left or Right scroll key to select one
of the following options.
97
Z107Eng_Vodafone.book Page 98 Thursday, November 4, 2004 3:38 PM
Settings
• Activate: selecting this option activates
your setting.
4. Press the Down scroll key and enter the new
password again to confirm it.
• Deactivate: selecting this option
deactivates your setting.
5. Press the Confirm soft key.
4. Press the Down scroll key and enter the call
barring password supplied by your service
provider.
5. Press the Req. soft key.
The phone sends your settings to the network
and the network’s acknowledgement displays.
Changing the Barring Password
You can change the call barring password
obtained from your service provider.
1. From the barring menu screen, press the
Options soft key and select the Change
password option.
2. Enter the current password in the Old input
box.
3. Press the Down scroll key and enter a new
password.
98
Waiting
This network service informs you when someone
is trying to reach you when you are busy with
another call.
To set your call waiting options:
1. From Voice call and Data call, select the
type of call by pressing the Up or Down scroll
key, and then press the OK key.
The phone dials your network to find whether
call waiting is possible or not.
After a few minutes, the current status
displays.
2. Press the Left or Right scroll key to select one
of the following options.
• Activate: selecting this option activates
your setting.
• Deactivate: selecting this option
deactivates your setting.
Z107Eng_Vodafone.book Page 99 Thursday, November 4, 2004 3:38 PM
Settings
3. Press the Req. soft key.
The phone sends your settings to the network
and the network’s acknowledgement displays.
Auto Redial
With this feature, the phone makes up to ten
attempts to redial a phone number when an
outgoing call fails.
Closed User Group (CUG)
This network service allows incoming and
outgoing calls to be restricted to a selected user
group. You may be a member of up to ten
groups.
Example: A company lends SIM cards to its
employees and wants to restrict outgoing
calls to members of the same team.
Activating a Closed User Group
1. Press the OK key to put a check mark on the
Use user group field.
2. Press the Down scroll key to move to the
Outside access field. Use the OK key to
enable or disable calls to numbers other than
those in the Closed User Group.
This feature depends on the nature of your
CUG subscription. Please check with your
service provider.
3. Press the Down scroll key to move to the
Group index field and select the CUG index
you want to activate.
4. Press the Save soft key.
Now, you can select the number from the
Index field.
Managing the Index List
You can add a new index and change or delete an
existing index.
1. On the Closed User Group screen, press the
Down scroll key to move to the Group index
field.
2. Press the OK key to see the Group index list.
3. Press the Up or Down scroll key to select an
index and press the Options soft key.
The following options are available:
99
Z107Eng_Vodafone.book Page 100 Thursday, November 4, 2004 3:38 PM
Settings
• Select: saves the current index list.
• New index: enter a new index name and
press the Save soft key.
• Edit index: allows you to change the
selected index.
• Delete index: deletes the selected index.
• Multimedia msg.: allows you to send a
multimedia message using video footage.
• None: no retry.
Network
(Menu 9-5)
Video call
Network Selection
This menu allows you to select whether or not
the video camera is used when a video call is
received, or when you retry a failed or
interrupted video call (for example, when back
within 3G (UMTS) reception).
The Network Selection feature enables you to
automatically or manually select the network
used when roaming outside of your home
network.
Show me: allows you to set the video camera
use parameters when receiving an incoming
video call.
• Always: allows you to use the video camera
always.
• Optionally: allows you to select whether or
not the video camera is used.
Retry with: allows you to set how to retry.
• Voice call: allows you to retry by voice call.
100
Note: You can select a network other than your
home network only if it has a valid roaming
agreement with your home network.
Press the Up or Down scroll key until the
appropriate option highlights and then press the
Select soft key.
If you select Automatic, you are connected to
the first available network when roaming.
If you select Manual, the phone scans for
available networks. Press the Up or Down scroll
key until the preferred network highlights and
Z107Eng_Vodafone.book Page 101 Thursday, November 4, 2004 3:38 PM
Settings
then press the Select soft key. You are
connected to that network.
Network Mode
The Network mode feature enables you to select
the network you use.
Press the Up or Down scroll key until the
appropriate option highlights and then press the
Select soft key. Automatic, GSM, and UMTS
are available.
If you select Automatic, the phone scans for
available networks, both UMTS and GSM, and
selects the best one.
If you select either UMTS or GSM, only the
chosen network type will be used.
Note: UMTS networks offer a higher speech quality
than on lower generation networks, as
advanced data and information services,
such as video calls. However, being a new
technology, UMTS coverage has yet to
equate the coverage of older GSM networks.
Therefore selecting UMTS only may render
the phone out of coverage in some areas
where GSM networks are available. We
recommend selecting Automatic for
enjoying both the new services of UMTS and
the more comprehensive coverage of GSM.
Connections
(Menu 9-6)
You can set up information about your network
connection. In most cases, you don’t need to
change the settings. In case of problems, please
contact customer service.
You can have several network settings. You can
make changes or rename each setting by
pressing the Options soft key.
When the Edit option is highlighted, press the
OK key to edit following options:
Set name: allows you to edit the name of the
network setting.
Access name: allows you to edit the access
point name used for the address of the GPRS
network gateway.
Auth type: allows you to choose the type of
authentication used.
User ID: allows you to edit the server login ID.
Password: allows you to edit the server
password.
101
Z107Eng_Vodafone.book Page 102 Thursday, November 4, 2004 3:38 PM
Settings
Protocol: allows you to select the protocol from
among WAP, HTTP, and Other.
Home URL: allows you to see the WAP/HTTP/
MMS server address.
Gateway address (available only with the WAP
protocol): allows you to set the gateway address.
Proxy address/Port (available only with the
HTTP protocol): allows you to set the proxy
server address and port.
Secure connection (available only with the WAP
protocol): allows you to select On or Off.
Linger time (sec.): allows you to set a time
period after which the network is disconnected if
there has been no new data traffic in that time.
Advanced settings
Static IP: you can specify if you want to manually
enter an IP address; see the Local phone IP
option. If you want the IP address to be
automatically assigned by the server, remove the
check mark.
Local phone IP: enter the IP address obtained
from the network operator, if you checked the
Static IP option.
102
Static DNS: you can specify if you want to
manually enter the DNS (Domain Name Server)
address; see the Server 1/2 option. If you want
the address to be automatically assigned by the
server, remove the check mark.
Server 1/2: enter the Domain Name Server
addresses.
Traffic class: select the traffic class, if you
selected the PS network.
Managing Connections
You can add a new connection and edit or delete
an existing connection.
On the list of connections, press the Up or Down
key to select a connection and press the Options
soft key.
The following options are available.
Edit: allows you to edit the selected connection.
New: allows you to add a new connection.
Delete: deletes the selected connection.
Rename: allows you to change the name of the
selected connection.
Z107Eng_Vodafone.book Page 103 Thursday, November 4, 2004 3:38 PM
Settings
Security
(Menu 9-7)
The Security feature enables you to restrict the
use of your phone:
• to the people of your choice
• to certain types of calls
Various codes and passwords are used to protect
the features of your phone. They are described in
the following sections; see also pages 111 to
112.
Phone Lock
When the Phone lock feature is enabled, the
phone is locked and you must enter a phone
password of between 4 and 8 digits each time
you switch the phone on.
Press the Up or Down scroll key to select
Enabled or Disabled and press the Save soft
key.
When you select Enabled, the display asks you
to enter the phone password. Enter your
password and press the Confirm soft key.
To change the password, refer to the Change
phone password menu on page 104.
SIM Lock
When the SIM lock feature is enabled, your
phone only works with the current SIM card. To
use another SIM card in your phone, you must
enter the SIM lock password set when you lock
the card.
Press the Up or Down scroll key to select
Enabled or Disabled and press the Save soft
key.
When you select Enabled, the display asks you
to set a new password. Enter a password using
four to eight digits and press the Confirm soft
key.
PIN Lock
When the PIN lock feature is enabled, you must
enter your PIN each time you switch the phone
on. Consequently, any person who does not have
your PIN cannot use your phone without your
approval.
Press the Up or Down scroll key to select
Enabled or Disabled and press the Save soft
key.
103
Z107Eng_Vodafone.book Page 104 Thursday, November 4, 2004 3:38 PM
Settings
When you select Enabled, the display asks you
to enter the PIN code. Enter your PIN code and
press the Confirm soft key.
The PIN code is supplied with your SIM card. To
change your PIN, refer to the Change PIN code
menu on page 105.
Fixed Dialling Mode
If the fixed dialling mode is supported by your
SIM card, you can restrict your outgoing calls to
the FDN (Fixed Dial Number) stored in the SIM
card memory.
Press the Up or Down scroll key to select
Enabled or Disabled and press the OK soft key.
When you select Enabled, the display asks you
to enter the PIN2 code. Enter your PIN2 code and
press the Confirm soft key.
The PIN2 code is supplied with your SIM card. To
change your PIN2, refer to the Change PIN2
code menu on page 105.
Note: Not all SIM cards have a PIN2. If your SIM
card does not, this menu option does not
display.
104
Change Phone Password
Using this menu option, you can change your
phone password to a new one.
1. Enter the current password and press the
Confirm soft key.
2. Enter a new password and press the Confirm
soft key.
3. Enter the new password again to confirm it
and press the Confirm soft key.
Privacy Lock
This feature allows you to lock or unlock the
usage of the contents, such as messages,
pictures, and sounds.
1. Scroll to an item and place a check mark next
to it by pressing the OK key.
Selecting All lock places check marks on all
of the items except All unlock. Or, selecting
All unlock removes all check marks except
All lock.
2. If necessary, repeat step 1 to check another
item.
Z107Eng_Vodafone.book Page 105 Thursday, November 4, 2004 3:38 PM
Settings
3. When you have finished checking, press the
Save soft key.
1. Enter the current PIN2 code and press the
Confirm soft key.
4. When a confirming message appears, enter
your phone password and press the Confirm
soft key to lock the content(s) selected.
2. Enter a new PIN2 code and press the
Confirm soft key.
Otherwise, press the Back soft key.
Change PIN Code
This feature allows you to change your current
PIN to a new one, provided that the PIN lock
feature is enabled.
1. Enter the current PIN code and press the
Confirm soft key.
2. Enter a new PIN code and press the Confirm
soft key.
3. Enter the new code again to confirm it and
press the Confirm soft key.
Change PIN2 Code
The Change PIN2 code feature allows you to
change your current PIN2 to a new one.
3. Enter the new code again to confirm it and
press the Confirm soft key.
Note: Not all SIM cards have a PIN2. If your SIM
card does not, this menu does not display.
Date & Time
(Menu 9-8)
This menu allows you to set the current time and
date to display on the idle screen.
You can scroll through the clock options by
pressing the Up or Down scroll key. Set the
following options:
Date: enter today’s date. You can move the
cursor back and forth between the input boxes
using the Left and Right scroll keys.
You can change the date format in the Date
format option below.
105
Z107Eng_Vodafone.book Page 106 Thursday, November 4, 2004 3:38 PM
Settings
Time: enter the current time. You can move the
cursor using the Left and Right scroll keys.
Highlight AM or PM (in 12 hour mode) and
change by pressing any of the number keys.
You can change the time format in the Time
format option below.
Time format: select the time format using the
Left and Right scroll keys. You can choose from
12H and 24H.
Date format: select the date format using the
Left and Right scroll keys. You can choose from:
- DD/MM/YYYY (day/month/year)
- MM/DD/YYYY (month/day/year)
- YYYY/DD/MM (year/day/month)
- YYYY/MM/DD (year/month/day)
1. Scroll to a number and press the Select soft
key.
2. Edit your name and number.
3. Press the Save soft key to save it.
If you want to cancel the setting, scroll to the
number field and press the Back soft key.
Memory Status
(Menu 9-0)
You can check the status of the memory in your
phone or your SIM card.
You can see the available memory space. You can
also check the memory used by several
applications.
Summer time: allows you to activate daylight
savings time.
Reset Settings
Own Number
This menu option allows you to reset your phone
to its default configuration.
(Menu 9-9)
You can store your own phone number(s) with a
name in your SIM card.
106
(Menu 9-*)
1. When the display asks you to enter the phone
password, enter it and press the Confirm soft
key.
Z107Eng_Vodafone.book Page 107 Thursday, November 4, 2004 3:38 PM
Settings
2. When you are asked to confirm your choice,
press the Yes soft key.
accordingly. Rates vary according to your service
option.
To exit the function without resetting the
settings, press the No soft key.
On the bookmark list, press the Options soft key
to use the following options:
Your phone automatically turns off and then
back on.
Go to: allows you to access the corresponding
web page.
Internet
(Menu 9-#)
This menu allows you to access the bookmark list
directly.
Using the built-in WAP (Wireless Application
Protocol) browser you can now access internet
and the Wireless Web at faster speeds than other
non-3G phones.
You can download and play the latest music,
streaming videos, polyphonic ringtones and
mobile games. You can send and receive Instant
Message with friends, get the latest news and
sporting action.
Each time you start the internet, the
or
icon animates to inform you that you are
connected to the Wireless Web. You will be billed
Go to homepage: sends you back to the home
page.
Go to URL: allows you to manually enter the
URL address of the web page you want to access.
Edit bookmark: allows you to change the title
and/or URL address of the selected bookmark
item.
Add bookmark: allows you to add a new
bookmark.
Send URL: allows you to send the URL by text
message, via file messenger or email.
Delete: deletes the selected bookmark.
Delete all: deletes all of the bookmarks.
Settings: allows you to change the settings for
connecting to the Wireless Web. For further
107
Z107Eng_Vodafone.book Page 108 Thursday, November 4, 2004 3:38 PM
Settings
details, See “Setting up the Browser” on
page 44.
3. Enter the title for the bookmark and press the
Save soft key.
Empty cache: clears information stored in the
cache, which is the phone’s temporary memory
used to store the most recently accessed web
pages. After you have accessed confidential
information requiring passwords like your bank
account, you need to empty the cache. When a
warning message appears, press the Yes soft
key to clear the information.
2. Scroll to a bookmark item and press the OK
key.
Using Bookmarks
For further details about the bookmark, see
page 107.
Bookmarks save you time by reducing the
number of steps it takes to access a web page.
You can bookmark many individual pages for
easy access at a later time.
Bookmarking a Web page
1. Go to the page that you want to bookmark
and press the Options soft key.
2. Scroll to Add bookmark and press the OK
key.
108
Accessing a Bookmarked Web Page
1. Press the Options soft key on any web page.
Scroll to View bookmarks and press the OK
key.
Note: When accessing to the internet through tzones or soft key, bookmarks and manual
url entry are not available. If you want to use
bookmarks menu, access by using
Internet (Menu 9.#).
Z107Eng_Vodafone.book Page 109 Thursday, November 4, 2004 3:38 PM
Solving Problems
Before contacting after-sales service, perform
the following simple checks. It may save you the
time and expense of an unnecessary service call.
When you switch your phone on, the
following messages may appear:
Insert SIM card
PUK Lock
• The PIN was entered incorrectly three times in
succession and the phone is now blocked.
Enter the PUK provided by your network
operator (you may need to ask them for this).
No Service
Phone Lock
• The network connection has been lost. You
may be in a weak reception area (in a tunnel
or surrounded by buildings). Move and try
again.
• The Phone lock feature is enabled. You must
enter the phone password each time you
switch the phone on. To disable this feature,
use the Phone lock menu (Menu 9-7-1).
• You are trying to access an option for which
you have not taken out a subscription with
your service provider. Contact the service
provider for further details.
PIN Lock
You have entered a number but it was
not dialled
• Check that the SIM card is correctly installed.
• You are using your phone for the first time.
You must enter the Personal Identification
Number supplied with the SIM card.
• The PIN lock feature is enabled. You must
enter the PIN each time you switch the phone
on. To disable this feature, use the PIN lock
menu (Menu 9-7-3).
• Have you pressed the
key?
• Are you accessing the right cellular network?
• You may have set an outgoing call barring
option.
109
Z107Eng_Vodafone.book Page 110 Thursday, November 4, 2004 3:38 PM
Solving Problems
The person calling cannot reach you
The audio quality of the call is poor
• Is your phone switched on (the
for more than one second)?
• Check the signal strength indicator on the
display (
); the number of bars indicates
the signal strength, from strong (
) to
weak ( ).
key pressed
• Are you accessing the right cellular network?
• You may have set an incoming call barring
option.
The person calling cannot hear you
speaking
• Have you switched off the microphone (the
Mute icon ( ) appears)?
• Are you holding the phone close enough to
your mouth? The microphone is located at the
bottom of the phone.
The phone starts beeping and “Battery
Low” flashes on the display
• The battery is insufficiently charged. Recharge
it. See page 14.
• Try moving the phone slightly or moving closer
to a window if you are in a building.
No number is dialled when you recall a
Contacts entry
• Check that the number has been stored
correctly, by using the Search contact feature.
• Edit and re-store the number, if necessary.
If the above guidelines do not help you to solve
the problem, take note of:
• The model and serial numbers of your phone
• Your warranty details
• A clear description of the problem
Then contact your local dealer or Samsung
after-sales service.
110
Z107Eng_Vodafone.book Page 111 Thursday, November 4, 2004 3:38 PM
Access Codes
There are several access codes that are used by
your phone and its SIM card. These codes help
you protect the phone against unauthorised use.
The access codes (except for the PUK and PUK2
codes) can be changed using the Security menu
(Menu 9-7). See page 103 for further details.
Phone Password
The phone password can be used to avoid
unauthorised use of your phone. The default
password “00000000” (8 zeros) is usually
supplied with the phone. Change the password
before you start using your phone. Keep the new
password secret and in a safe place, separate
from the phone.
PIN
The PIN (Personal Identification Number)
protects your SIM card against unauthorised use.
It is usually supplied with the SIM card. When
the PIN lock feature is enabled (see page 103),
you must enter the PIN each time you switch on
the phone.
If you enter an incorrect PIN three times in
succession, enter the PUK obtained from your
network operator and press the Confirm soft
key to unlock the phone. Enter a new PIN and
press the Confirm soft key. Enter the new PIN
again and press the Confirm soft key.
111
Z107Eng_Vodafone.book Page 112 Thursday, November 4, 2004 3:38 PM
Access Codes
PIN2
PUK2
The PIN2, supplied with some SIM cards, is
required to access some functions, such as
charging unit counters. These functions are only
available if supported by your SIM card.
The PUK2, supplied with some SIM cards, is
required to change a blocked PIN2.
If you enter an incorrect PIN2 three times in
succession, enter the PUK2 and press the
Confirm soft key to unlock the phone. Enter a
new PIN2 and press the Confirm soft key. Enter
the new PIN2 again and press the Confirm soft
key.
PUK
The PUK (PIN Unblocking Key) is required to
change a blocked PIN. The PUK may be supplied
with the SIM card. If not, contact your local
service provider.
If you enter an incorrect PUK ten times in
succession, the SIM card cannot be used
anymore.
Contact your service provider for a new card.
You cannot change the PUK. If you lose the code,
contact your service provider.
112
If you enter an incorrect PUK2 ten times in
succession, you cannot use the functions
requiring the PIN2. Contact your service provider
for a new card.
You cannot change the PUK2. If you lose the
code, contact your service provider.
Call Barring Password
The 4-digit call barring password is required
when you use the Call barring function. You
obtain the password from your service provider
when you subscribe to this function.
Z107Eng_Vodafone.book Page 113 Thursday, November 4, 2004 3:38 PM
Health and Safety Information
SAR Certification Information
The Highest SAR Value for this model phone was
0.630 W/kg.
This phone meets European Union (EU)
requirements concerning exposure to radio
waves.
SAR tests are conducted using standard
operating positions with the phone transmitting
at its highest certified power level in all tested
frequency bands. Although the SAR is
determined at the highest certified power level,
the actual SAR level of the phone while operating
can be well below the maximum value. This is
because the phone is designed to operate at
multiple power levels so as to use only the power
required to reach the network. In general, the
closer you are to a base station, the lower the
power output of the phone.
Your mobile phone is a radio transmitter and
receiver. It is designed and manufactured so as
not to exceed the limits for exposure to radiofrequency (RF) energy, as recommended by the
EU Council. These limits are part of
comprehensive guidelines and establish
permitted levels of RF energy for the general
population. The guidelines were developed by
independent scientific organisations through
periodic and thorough evaluation of scientific
studies. The limits include a substantial safety
margin designed to ensure the safety of all
persons, regardless of age and health.
The exposure standard for mobile phones
employs a unit of measurement known as SAR
(Specific Absorption Rate). The SAR limit
recommended by the EU Council is 2.0W/kg.*
Before a new model phone is available for sale to
the public, compliance with the European R&TTE
Directive must be shown. This directive includes
* The SAR limit for mobile phones used by the public is 2.0
watts/kilogram (W/kg) averaged over ten grams of body
tissue. The limit incorporates a substantial margin of safety to
give additional protection for the public and to account for
any variations in measurements. The SAR values may vary
depending on national reporting requirements and the
network band.
113
Z107Eng_Vodafone.book Page 114 Thursday, November 4, 2004 3:38 PM
Health and Safety Information
as one of its essential requirements the
protection of the health and safety of the user
and any other person.
Precautions When Using Batteries
Your phone is powered by a rechargeable Li-ion
standard battery.
• Never use any charger or battery that is
damaged in any way.
• Use the battery only for its intended purpose.
• If you use the phone near the network’s base
station, it uses less power; talk and standby
times are greatly affected by the signal
strength on the cellular network and the
parameters set by the network operator.
• Battery charging times depend on the
remaining battery charge, the type of battery
and the charger used. The battery can be
charged and discharged hundreds of times, but
it will gradually wear out. When the operation
time (talk time and standby time) is noticeably
shorter than normal, it is time to buy a new
battery.
114
• If left unused, a fully charged battery will
discharge itself over time.
• Use only Samsung-approved batteries and
recharge your battery only with Samsungapproved chargers. When a charger is not in
use, disconnect it from the power source. Do
not leave the battery connected to a charger
for more than a week, since overcharging may
shorten its life.
• Extreme temperatures will affect the charging
capacity of your battery: it may require cooling
or warming first.
• Do not leave the battery in hot or cold places,
such as in a car in summer or winter
conditions, as you will reduce the capacity and
life-time of the battery. Always try to keep the
battery at room temperature. A phone with a
hot or cold battery may temporarily not work,
even when the battery is fully charged. Li-ion
batteries are particularly affected by
temperatures below 0 °C (32 °F).
• Do not short-circuit the battery. Accidental
short circuiting can occur when a metallic
object (coin, clip or pen) causes a direct
connection between the + and – terminals of
the battery (metal strips on the back of the
battery), for example when you carry a spare
Z107Eng_Vodafone.book Page 115 Thursday, November 4, 2004 3:38 PM
Health and Safety Information
battery in a pocket or bag. Short-circuiting the
terminals may damage the battery or the
object causing the short-circuit.
• Dispose of used batteries in accordance with
local regulations. Always recycle. Do not
dispose of batteries in a fire.
Road Safety
Your wireless phone gives you the powerful
ability to communicate by voice, almost
anywhere, anytime. But an important
responsibility accompanies the benefits of
wireless phones, one that every user must
uphold.
When driving a car, driving is your first
responsibility. When using your wireless phone
behind the wheel of a car, make sure that you are
following the special regulations in a given area
or country.
Operating Environment
Remember to follow any special regulations in
force in any area and always switch off your
phone whenever it is forbidden to use it, or when
it may cause interference or danger.
When connecting the phone or any accessory to
another device, read its user’s guide for detailed
safety instructions. Do not connect incompatible
products.
As with other mobile radio transmitting
equipment, users are advised that for the
satisfactory operation of the equipment and for
the safety of personnel, it is recommended that
the equipment should only be used in the normal
operating position (held to your ear with the
antenna pointing over your shoulder).
Electronic Devices
Most modern electronic equipment is shielded
from radio frequency (RF) signals. However,
certain electronic equipment may not be shielded
against the RF signals from your wireless phone.
Consult the manufacturer to discuss alternatives.
115
Z107Eng_Vodafone.book Page 116 Thursday, November 4, 2004 3:38 PM
Health and Safety Information
Pacemakers
Pacemaker manufacturers recommend that a
minimum distance of 15 cm (6 inches) be
maintained between a wireless phone and a
pacemaker to avoid potential interference with
the pacemaker. These recommendations are
consistent with the independent research and
recommendations of Wireless Technology
Research.
Persons with pacemakers:
• Should always keep the phone more than 15
cm (6 inches) from their pacemaker when the
phone is switched on
interference, you may wish to consult your
hearing aid manufacturer to discuss alternatives.
Other Medical Devices
If you use any other personal medical devices,
consult the manufacturer of your device to
determine if it is adequately shielded from
external RF energy. Your physician may be able
to assist you in obtaining this information. Switch
off your phone in health care facilities when any
regulations posted in these areas instruct you to
do so. Hospitals or health care facilities may be
using equipment that could be sensitive to
external RF energy.
• Should not carry the phone in a breast pocket
• Should use the ear opposite the pacemaker to
minimise potential interference
Vehicles
If you have any reason to suspect that
interference is taking place, switch off your
phone immediately.
RF signals may affect improperly installed or
inadequately shielded electronic systems in
motor vehicles. Check with the manufacturer or
its representative regarding your vehicle.
Hearing Aids
You should also consult the manufacturer of any
equipment that has been added to your vehicle.
Some digital wireless phones may interfere with
some hearing aids. In the event of such
Obey posted instructions
116
Z107Eng_Vodafone.book Page 117 Thursday, November 4, 2004 3:38 PM
Health and Safety Information
Switch off your phone in any facility where
posted notices require you to do so.
Potentially Explosive Environments
Switch off your phone when in any area with a
potentially explosive atmosphere and obey all
signs and instructions. Sparks in such areas
could cause an explosion or fire resulting in
bodily injury or even death.
Users are advised to switch off the phone while
at a refuelling point (service station). Users are
reminded of the need to observe restrictions on
the use of radio equipment in fuel depots (fuel
storage and distribution areas), chemical plants
or where blasting operations are in progress.
Areas with a potentially explosive atmosphere
may not be clearly marked. They include below
decks on boats, chemical transfer or storage
facilities, vehicles using liquefied petroleum gas
(such as propane or butane), areas where the air
contains chemicals or particles, such as grain,
dust or metal powders, and any other area where
you would normally be advised to turn off your
vehicle engine.
Emergency Calls
This phone, like any wireless phone, operates
using radio signals, wireless and landline
networks as well as user-programmed functions,
which cannot guarantee connection in all
conditions. Therefore, you should never rely
solely on any wireless phone for essential
communications (medical emergencies, for
example).
Remember, to make or receive any calls, the
phone must be switched on and in a service area
with adequate signal strength. Emergency calls
may not be possible on all wireless phone
networks or when certain network services and/
or phone features are in use. Check with local
service providers.
To make an emergency call, proceed as follows.
1. If the phone is not on, switch it on.
2. Enter the emergency number for your present
location (for example, 112 or any other
official emergency number). Emergency
numbers vary by location.
3. Press the
key.
117
Z107Eng_Vodafone.book Page 118 Thursday, November 4, 2004 3:38 PM
Health and Safety Information
If certain features are in use (call barring, for
example), you may first need to deactivate those
features before you can make an emergency call.
Consult this document and your local cellular
service provider.
When making an emergency call, remember to
give all the necessary information as accurately
as possible. Remember that your phone may be
the only means of communication at the scene of
an accident; do not cut off the call until given
permission to do so.
Other Important Safety
Information
• Only qualified personnel should service the
phone or install the phone in a vehicle. Faulty
installation or service may be dangerous and
may invalidate any warranty applicable to the
device.
• Check regularly that all wireless phone
equipment in your vehicle is mounted and
operating properly.
• Do not store or carry flammable liquids, gases
or explosive materials in the same
118
compartment as the phone, its parts or
accessories.
• For vehicles equipped with an air bag,
remember that an air bag inflates with great
force. Do not place objects, including both
installed or portable wireless equipment in the
area over the air bag or in the air bag
deployment area. If wireless equipment is
improperly installed and the air bag inflates,
serious injury could result.
• Switch off your phone before boarding an
aircraft. The use of wireless phones in aircraft
may be dangerous to the operation of the
aircraft, and is illegal.
• Failure to observe these instructions may lead
to the suspension or denial of telephone
services to the offender, legal action, or both.
Care and Maintenance
Your phone is a product of superior design and
craftsmanship and should be treated with care.
The suggestions below will help you fulfill any
warranty obligations and allow you to enjoy this
product for many years.
Z107Eng_Vodafone.book Page 119 Thursday, November 4, 2004 3:38 PM
Health and Safety Information
• Keep the phone and all of its parts and
accessories out of the reach of small children.
• Keep the phone dry. Precipitation, humidity
and liquids contain minerals that will corrode
electronic circuits.
• Do not touch the phone with wet hands while it
is charging. Doing so may give you an electric
shock or damage the phone.
• Do not use or store the phone in dusty, dirty
areas, as its moving parts may be damaged.
• Do not store the phone in hot areas. High
temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt
certain plastics.
• Do not store the phone in cold areas. When the
phone warms up to its normal operating
temperature, moisture can form inside the
phone, which may damage the phone’s
electronic circuit boards.
• Do not paint the phone. Paint can clog the
device’s moving parts and prevent proper
operation.
• Do not put the phone in or on heating devices,
such as a microwave oven, a stove or a
radiator. The phone may explode when
overheated.
• Use only the supplied or an approved
replacement antenna. Unauthorised antennas
or modified accessories may damage the phone
and violate regulations governing radio devices.
• If the phone, battery, charger or any accessory
is not working properly, take it to your nearest
qualified service facility. The personnel there
will assist you, and if necessary, arrange for
service.
• Do not drop, knock or shake the phone. Rough
handling can break internal circuit boards.
• Do not use harsh chemicals, cleaning solvents
or strong detergents to clean the phone. Wipe
it with a soft cloth slightly dampened in a mild
soap-and-water solution.
119
Z107Eng_Vodafone.book Page 120 Thursday, November 4, 2004 3:38 PM
Glossary
To help you understand the main technical terms
and abbreviations used in this booklet and take
full advantage of the features of your mobile
phone, here are a few definitions.
3G (3rd Generation)
The collective name used to describe mobile
systems able to support a wide range of Mobile
Internet services, operating with greater
bandwidth.
Bearer
Various mechanisms the network uses to
transmit voice and data.
Call Barring
Ability to restrict outgoing and incoming calls.
Call Diverting
Ability to reroute calls to another number.
120
Call Holding
Ability to put one call on standby while answering
or making another call; you can then switch
between the two calls, as required.
Call Waiting
Ability to inform users that they have an
incoming call when engaged on another call.
Circuit-switched
A type of network in which a physical path is
obtained for and dedicated to a single connection
between two end-points in the network for the
duration of the connection. The telephone
networks are examples of circuit-switched
networks. Ordinary voice phone service is circuitswitched. The telephone company reserves a
specific physical path to the number you are
calling for the duration of your call. During that
time, no one else can use the physical lines
involved.
Z107Eng_Vodafone.book Page 121 Thursday, November 4, 2004 3:38 PM
Glossary
CLI (Caller Line Identification) Services
Services allowing subscribers to view or block the
telephone numbers of callers.
GPRS (General Packet Radio Service)
New non-voice value-added service that allows
information to be sent and received across a
mobile telephone network. GPRS guaranties
continuous connection to the Internet for mobile
phone and computer users. It is based on the
Global System for Mobile Communication (GSM)
circuit-switched cellular phone connections and
the Short Message Service (SMS).
GSM
(Global System for Mobile Communication)
International standard for cellular
communication, guaranteeing compatibility
between the various network operators. GSM
covers most European countries and many other
parts of the world.
Java
Programming language generating applications
that can run on all hardware platforms, whether
small, medium or large, without modification. It
has been promoted for and geared heavily to the
Web, both for public web sites and Intranets.
When a Java programme runs from a web page,
it is called a “Java applet.” When it is run on a
mobile phone or pager, it is called a “Midlet.”
MMS (Multimedia Message Service)
A message service for the mobile environment,
standardised by the WAP Forum and the 3rd
Generation Partnership Program (3GPP). For
phone users, MMS is similar to Short Message
Service (SMS) - it provides automatic, immediate
delivery of user-created content from phone to
phone. The message addressing used is primarily
phone numbers, thus the traffic goes from phone
to phone. MMS also provides support for e-mail
addressing, so that messages can also be sent by
e-mail. In addition to the text content of SMS,
MMS messages can contain still images, voice or
audio clips, and later also video clips and
presentation information.
Multiparty Calling
Ability to establish a conference call involving up
to five additional parties.
121
Z107Eng_Vodafone.book Page 122 Thursday, November 4, 2004 3:38 PM
Glossary
Packet-Switched
A type of network in which relatively small units
of data called packets are routed through a
network based on the destination address
contained within each packet. Today’s Internet is
fundamentally a quintessential packet-switched
network. Whereas voice requires a smooth flow
of traffic to avoid echo and breakup, data can be
cut into small packets with each being sent
across the network and reassembled at the final
destination. Packet inevitably allows a greater
amount of users because it does not require a
dedicated open circuit. PDC-P in Japan, GPRS in
Europe and all the future 3G networks will be
packet-switch.
PIN (Personal Identification Number)
Security code that protects the phone/SIM
against unauthorised use. The PIN is supplied by
the service provider with the SIM card. It may be
a four to eight-digit number and can be changed,
as required.
PUK (PIN Unblocking Key)
Security code used to unlock the phone when an
incorrect PIN has been entered three times in
122
succession. The eight-digit number is supplied by
the service provider with the SIM card.
Roaming
Use of your phone when you are outside your
home area, when travelling for example.
SIM (Subscriber Identification Module)
Card containing a chip with all the information
required to operate the phone (network and
memory information, as well as the subscriber’s
personal data). The SIM card fits into a small slot
on the back of the phone and is protected by the
battery.
SMS (Short Message Service)
Network service sending and receiving messages
to and from another subscriber without having to
speak to the correspondent. The message
created or received can be displayed, received,
edited or sent.
UMTS (Universal Mobile
Telecommunications System)
A 3rd generation (3G) mobile communications
technology that promises data transmission
speeds of up to 2 megabits per second (Mbps).
Z107Eng_Vodafone.book Page 123 Thursday, November 4, 2004 3:38 PM
Index
A
ABC mode, text input 31, 34
Access codes 111
Active folder 94
Alarm 78
Alert tone
call 91
effect 92
feedback 92
message 92
Alert type
call 91
message 92
Anniversary 80
Answering a call 22
Anykey answer 94
Applications
downloading 46
memory status 106
switching 19
Auto redial 99
B
Background image 95
Backlight 93
Barring password 112
Barring, calls 97
Battery
charging 15
installing 14
low battery indicator 16
precautions 114
removing 15
Bookmark 108
Brightness
LCD 93
picture 88
video 90
Browser
ending 43
launching 43
menus 44
navigating 43
C
Calculator 82
Calendar 77
Call costs 47
Call register
all 46
dialled 46
missed 46
received 46
Call times 48
Caller ID 96
Calls
answering 22
barring 97
diverting 96
ending 22
holding 23
making 20
rejecting 22
waiting 98
Camera
camera mode, set 87
recording videos 88
taking pictures 86
video mode, set 89
Characters, enter 31
Charging a battery 15
Clock
digital clock 95
world clock 81
Closed user group (CUG) 99
Conference call 25
Contacts
adding 71
groups 74
memory status 106
searching 70
123
Z107Eng_Vodafone.book Page 124 Thursday, November 4, 2004 3:38 PM
Index
viewing 73
Converter 82
CUG 99
D
Date, set 105
Deleting
calendar event 77
call log 47
contact 70
E-mail 57
image file 67
melody/tone 68
message 56
multimedia files 65
picture 87
today’s event 78
video 89
Dialled calls 46
Display
brightness 93
external 12
icons 11
layout 10
settings 95
Diverting, calls 96
Downloads 65
Drafts 58
DTMF tones 28
124
E
Effect tones 92
Email box 57
Emergency call 6, 117
Ending a call 22
Ext. Light 93
External display 12
setting 95
External light 12
F
FDN mode 104
Flash mode 88
Forwarding
e-mail 57
messages 56
G
Games & More 69
Greeting message 95
Groups, contacts 74
H
Health and safety 113
Holding, calls 23
I
Icons, description 11
Image files 66
Inbox 56
Infrared 94
International call 20
K
Key tone 23
Keys
description 9
location 8
L
Language 93
Locking
Phone 103
PIN 103
privacy 104
SIM 103
Low battery indicator 16
M
Maintenance 118
Media Player 83
Memo 81
Menu style 96
Menus
accessing 37
list 40
Messages
creating 49
drafts 58
Email 54
Z107Eng_Vodafone.book Page 125 Thursday, November 4, 2004 3:38 PM
Index
inbox 56
memory status 64
multimedia 50
outbox 58
settings 60
templates 59
text 49
Microphone, mute 27
Missed calls 46
MMS (Multimedia Message
Service) 49
More pictures 65
Multimedia files 65
Multimedia message 50
My Media 65
My name card 76
N
Names
searching/dialling 70
storing 71
Network selection 100
Number mode, text input 31, 35
Numbers, phone
searching/dialling 70
storing 71
O
On/Off switch 16
Outbox 58
Own number 106
P
Password
barring 98, 112
phone 104, 111
Phone
care and mainenance 118
display 10
icons 11
keys 9
layout 8
locking 103
password 104, 111
resetting 107
safety information 113
switching on/off 16
unpacking 7
Pictures, take 86
PIN 105, 111
PIN lock 103
PIN2 105, 112
Problems, solve 107
Profile 91
PUK 112
PUK2 112
R
Received calls 46
Rejecting a call 22
Reset settings 107
Resetting phone 107
Ringtone 91
Road safety 115
S
Safety
information 113
precautions 5
road 115
Schedule 79
Security 103
Settings 91
browser 44
call 96
capture mode 88
date & time 105
display 95
media player 85
message 60
network 100
phone 93
record mode 90
security 103
sounds 91
125
Z107Eng_Vodafone.book Page 126 Thursday, November 4, 2004 3:38 PM
Index
Short cuts 94
SIM card
inserting 13
locking 103
removing 14
Skin colour 95
SMS (Short Message Service) 49
Solving problems 107
Sound mode 91
Speed dial 75, 91
Swiching on/off
microphone 27
phone 16
Symbol mode, text input 31, 36
call end tone 92
effect sounds 92
folder open/close 92
key tones 92
minute minder 92
popup box alerts 92
power on 92
ringtone 91
Travel charger 15
t-zones 43
T
Video call
making 28
options 29
PIP 29
receiving 29
Video files 69
Videos, record 88
Voice mail 64
Volume, adjust
alert tones 92
earpiece 23
key tone 23, 93
T9 mode, text input 31, 33
Task list 80
Template message 59
Text input modes 31
Text message 49
Text, enter 31
t-games 65
Time, set 105
t-movies 65
t-music 65
Today’s event 78
Tone volume 92
Tones
call connect tone 92
126
U
Unpacking 7
V
W
Waiting call 24
Wake up alarm 78
Wallpaper 95
WAP browser
setting 44
Z107Eng_Vodafone.book Page 127 Thursday, November 4, 2004 3:38 PM
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
