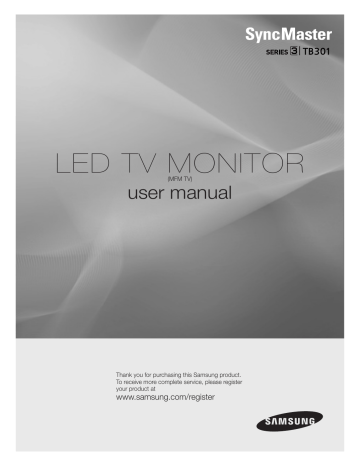

TB301
LED TV MONITOR
(MFM TV)
user manual
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
Product design and specifications may be changed without notice.
Still image warning
Avoid displaying still images (like jpeg picture files) or still image element (like LED display programme logo, panorama or 4:3 image format, stock or news
bar at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of screen, which will affect image quality. To reduce risk of
this effect, please follow below recommendations:
• Avoid displaying the same LED display channel for long periods.
• Always try do display any image on full screen, use LED display set picture format menu for best possible match.
• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.
• Frequently use all LED display features designed to reduce image retention and screen burnout, refer to proper user manual section for details.
Securing the Installation Space
Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.
✎✎ The actual appearance of the LED display may differ from the images in this manual, depending on the model.
✎✎ Be careful when you touch the LED display. Some parts can be somewhat hot.
Installation with a stand.
Installation with a wall-mount.
10 cm
10 cm
10 cm
10 cm
10 cm
10 cm
10 cm
English
2
Contents
Getting Started
4
4
11
12
13
Safety Precautions
Accessories
Viewing the Control Panel
Viewing the Remote Control
Connections
14
14
14
15
16
18
Connecting to an Antenna
Setup (Initial Setup)
Connecting to an AV Device
Connecting to a Audio device and PC
Changing the Input Source
Basic Features
18
19
19
21
21
24
26
29
How to Navigate Menus
Using the INFO button (Now & Next guide)
Using the Channel Menu
Channel Menu
Picture Menu
Sound Menu
System Menu
Support Menu
18
Advanced Features
Other Information
37
38
39
40
44
ENGLISH
30
37
30 Using the Media Play
Analogue Channel Teletext Feature
Attaching a Wall Mount/Desktop Stand
Anti-theft Kensington Lock
Troubleshooting
Specifications
Check the Symbol!
t
This function can be used by pressing the TOOLST button on the
remote control.
Note
Indicates additional information.
English
3
Getting Started
Safety Precautions
Icons used for safety precautions
Warning
Failing to follow the precautions marked with this sign may result in a serious injury or even
a fatality.
Caution
Failing to follow the precautions marked with this sign may result in a personal injury or
property damage.
Do not perform.
Must be followed.
This symbol indicates that high voltage is present
inside. It is dangerous to make any kind of contact
with any internal part of this product.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE.
REFER ALL SERVICING TO QUALIFIED PERSONNEL.
This symbol alerts you that important literature
concerning operation and maintenance has been
included with this product.
¦¦ Power Related
✎✎ The following images are for your reference and may differ depending on models and countries.
Warning
Avoid using a damaged power cord
or plug or a loose power outlet.
xx Otherwise, it may result in
electric shock or fire.
Avoid connecting multiple electric
appliances to a single wall outlet.
xx Otherwise, it may result in fire due
to overheating of the wall outlet.
Avoid plugging in or unplugging the
power supply with wet hands.
xx Otherwise, it may result in
electric shock.
Plug the power plug in firmly.
xx Otherwise, it may result in fire.
!
!
Make sure to connect the power
cord to a grounded wall outlet (for
insulation class 1 equipment only).
xx Otherwise, it may result in
electric shock or injury.
Avoid bending or twisting the power
cord excessively and avoid placing
heavy objects on the cord.
xx Otherwise, it may result in electric
shock or fire due to a damaged
power cord.
English
4
Getting Started
Keep the power cord and the
product away from a heater.
x otherwise, it may result in
electric shock or fire.
If the pins of the power plug or the
wall outlet are covered in dust, clean it
using a dry cloth.
x otherwise, it may result in fire.
!
Caution
Avoid unplugging the power plug
while the product is operating.
x otherwise, it may damage the
product due to electric shock.
!
When unplugging the power plug
from the wall outlet, make sure to
hold it by the plug and not by the
cord.
x otherwise, it may result in
electric shock or fire.
!
!
Make sure to use only the power cord
supplied by our company. In addition,
do not use the power cord of another
electric appliance.
x otherwise, it may result in electric
shock or fire.
Connect the power plug to a wall
outlet that can be easily reached.
x When a problem occurs with the
product, you must unplug the
power plug to cut the power off
completely. You cannot cut the
power off completely using only
the power button on the product.
¦ Installation Related
Warning
Avoid placing burning candles,
mosquitorepellentor cigarettes on
the product.
x otherwise, it may result in fire.
!
Avoid installing the product in a
badly-ventilated location such as
inside a bookshelf or closet.
x otherwise, it may result in fire
due to internal over-heating.
Avoid installing the product in a
location that is unstable or exposed
to excessive vibration such as on an
unstable or slanted shelf.
x The product may fall and this
may result in damage to the
product or injury.
x If you use the product in a
location exposed to excessive
vibrations, it may result in a
problem with the product or fire.
!
!
Ask an installation engineer or relevant
company to install the product onto
the wall.
x otherwise, it may result in injury.
x Make sure to use the specified
wall mount.
Keep the plastic bags used to pack
the product away from children.
x If children place the plastic
bags over their heads, they may
suffocate.
Avoid installing the product in a
location exposed to dust, moisture
(sauna), oil, smoke or water (rain
drops) and installing it within a vehicle.
x This may result in electric shock
or fire.
English
5
Getting Started
!
Avoid installing the product in a
location exposed to direct sunlight
and installing the product near a heat
source such as a fireplace or heater.
x This may shorten the product
life cycle or cause fire.
Avoid installing the product where
children may reach it.
x If a child touches the product,
the product may fall and this may
result in injury.
x Since the front part is heavier,
install the product on a flat and
stable surface.
Bend the outdoor antenna cable
downwards at the location where it
comes in the house so that rainwater
does not flow in.
x If rainwater enters the product,
it may result in electric shock
or fire.
Install the antenna far away from any
high voltage cables.
x If the antenna touches or falls
onto a high voltage cable, it may
result in electric shock or fire.
!
Caution
Do not let the product drop while
moving it.
x This may result in a problem
with the product or injury.
Do not place the product face down
on the floor.
x This may damage the panel of
the product.
When installing the product on a
console or shelf, make sure that
the front of the product does not
protrude out of the console or shelf.
x otherwise, this may cause the
product to fall off and result in a
malfunction or injury.
x Make sure to use a cabinet or
shelf suitable to the size of the
product.
When putting the product down,
handle it gently.
x otherwise, it may result in a
problem with the product or
injury.
!
SAMSUNG
!
!
If the product is installed in a location
where the operating conditions
vary considerably, a serious quality
problem may occur due to the
surrounding environment. In this
case, install the product only after
consulting one of our service
engineers about the matter.
x Places exposed to microscopic
dust, chemicals, too high or
low temperature, high humidity,
airports or stations where the
product is continuously used.
English
6
Getting Started
¦ Cleaning Related
Warning
Before cleaning the product, unplug
the power cord.
x otherwise, it may result in
electric shock or fire.
When cleaning the product, do not
spray water directly over the product
parts.
x Make sure that water does not
enter the product.
x otherwise, it may result in fire,
electric shock or a problem with
the product.
Avoid spraying cleansing agent
directly onto the product.
x This may result in discoloration
or cracking of the exterior of the
product or the panel coming off.
When cleaning the product,
disconnect the power cord and clean
the product with the supplied cleaning
cloth.
x Avoid using chemicals such as
wax, benzene, alcohol, thinner,
mosquitorepellent, fragrance,
lubrication or cleansing agent
when cleaning the product.
!
Caution
!
If you can't get the product clean
with just the supplied cloth, use a
soft, damp cloth with a "monitorexclusive cleansing agent" and wipe
the product with it.
x If no monitor-exclusive cleansing
agent is available, dilute a
cleansing agent with water at a
ratio of 1:10 before cleaning the
product.
!
This may result in the exterior
being deformed or the print being
removed.
Since the exterior of the product is
easily scratched, be sure to use the
supplied cleansing cloth.
!
¦ Usage Related
Warning
Since a high voltage runs through
the product, never disassemble,
repair or modify the product yourself.
x otherwise, it may result in fire or
electric shock.
x If the product needs to be fixed,
contact a service centre.
!
To move the product, turn the power
off and unplug the power cord, the
antenna cable and any other wires
connected to the product.
x otherwise, it may result in electric
shock or fire due to the damaged
power cord.
English
7
Getting Started
!
!
If the product generates a strange
noise, a burning smell, or smoke,
unplug the power plug immediately
and contact a service centre.
xx Otherwise, it may result in
electric shock or fire.
Avoid letting children hang or climb
onto the product.
xx Otherwise, it may result in the
product falling and this may result
in injury or death.
If you drop the product or the case
is damaged, turn the power off and
unplug the power cord. Contact a
service centre.
xx Otherwise, it may result in fire or
electric shock.
Avoid placing objects such as toys
and cookies on top of the product.
xx If a child hangs over the product
to grab an object, the object or
the product may fall and this may
result in injury or even death.
When thunder or lighting occurs,
unplug the power cord and under
no circumstance touch the antenna
cable as this is dangerous.
xx Otherwise, it may result in
electric shock or fire.
Avoid dropping an object over the
product or cause impact to the
product.
xx Otherwise, it may result in electric
shock or fire.
Avoid moving the product by pulling
the power cord or antenna cable.
xx Otherwise, it may result in
electric shock, fire or a problem
with the product due to damage
to the cable.
Avoid lifting up or moving the
product by holding only the power
cord or signal cable.
xx Otherwise, it may result in
electric shock, fire or a problem
with the product due to damage
to the cable.
Take care not to block the vent by a
table cloth or curtain.
xx Otherwise, it may result in fire
due to internal overheating.
!
GAS
!
When a gas leak occurs, do not touch
the product or the power plug and
ventilate immediately.
xx A spark may result in an
explosion or fire.
xx During a thunder or lighting
storm, do not touch the power
cord or antenna cable.
Avoid using or placing inflammable
spray or objects near the product.
xx This may result in an explosion
or fire.
!
100
Avoid inserting metal objects such
as a chopsticks, coins or hairpins, or
inflammable objects into the product
(the vents, ports, etc).
xx If water or substances enters
the product, turn the power
off, unplug the power cord and
contact a service centre.
xx Otherwise, it may result in a
problem with the product, electric
shock or fire.
English
8
Getting Started
Avoid placing a liquid container such
as a vase, flowerpot, beverage,
cosmetics or drugs, or a metal
object over the product.
x If water or substances enter
the product, turn the power
off, unplug the power cord and
contact a service centre.
x otherwise, it may result in a
problem with the product,
electric shock or fire.
Do not press down hard on the
product. The product may become
deformed or damaged.
Displaying a still image for a long
time may create a persistent image
or stain on the screen.
x If you do not use the product
for a long time, use the
power-saving mode or set the
screensaver to the moving
picture mode.
When not using the product for a
long time such as leaving your home,
unplug the power cord from the wall
outlet.
x otherwise, it may cause dust
accumulation and result in fire
caused by overheating or short
circuit or result in an electric
shock.
Caution
!
-_!
Set the appropriate resolution and
frequency for the product.
x otherwise, it may result in eye
strain.
Avoid turning the product upside
down or move the product holding
only the stand.
x This may cause the product to
fall, resulting in damage to the
product or injury.
Watching the product from too
close a distance continuously may
damage your eyesight.
Avoid using a humidifier or cooker
near the product.
x otherwise, it may result in electric
shock or fire.
It is important to give your eyes
some rest (5 minutes every hour)
when viewing the product screen for
long periods of time.
x This will alleviate any eye strain.
Since the display panel is hot after
using it for a long time, do not touch
the product.
!
!
!
English
9
Getting Started
Keep the small accessories in a
location out of the reach of children.
!
!
Take care when adjusting the angle of
the product or the height of the stand.
xx If your hand or finger is caught,
you may be injured.
xx If the product is tilted excessively,
the product may fall and this may
result in injury.
Avoid placing a heavy object over
the product.
xx Otherwise, it may result in a
problem with the product or
injury.
When using headphones or
earphones, do not turn the volume
too high.
xx Having the sound too loud may
damage your hearing.
Be careful that children do not place
the batteries in their mouths when
removed from the remote control.
Place the battery in a location that
children or infants cannot reach.
xx If children have had the battery
in their mouths, consult your
doctor immediately.
When replacing the batteries, insert
them with right polarity (+, -).
xx Otherwise, the battery may
become damaged or it may
cause fire, personal injury or
damage due to leakage of the
internal liquid.
Use only specified standard
batteries. Do not use new and used
batteries together.
xx This may cause a battery to
break or leak and may cause
fire, injury, or contamination
(damage).
!
!
The batteries (and rechargeable
batteries) are not ordinary refuse
and must be returned for recycling
purposes. The customer is
responsible for returning the used or
rechargeable batteries for recycling.
xx The customer can return used
or rechargeable batteries to a
nearby public recycling centre or
to a store selling the same type
of the battery or rechargeable
battery.
English
10
Getting Started
Accessories
✎✎Please make sure the following items are included with your LED display. If any items are missing, contact your
dealer.
✎✎The items’ colours and shapes may vary depending on the models.
✎✎Cables not included in the package contents can be purchased separately.
✎✎Check that there is no accessory hidden behind packing materials when you open the box.
xx
xx
xx
Remote Control & Batteries (AAA x 2)
Warranty Card / Safety Guide (Not available in some locations)
User Manual
yy Stand Connector
xx
xx
xx
Cleaning Cloth
Power Cord
Quick Setup Guide
yy Stand Base
Input Cables (Sold Separately)
yy HDMI to DVI Cable
yy Audio Cable
yy Component Cable
yy Stereo Cable
yy HDMI Cable
English
11
Getting Started
Viewing the Control Panel
✎✎The product colour and shape may vary depending on the model.
Control Panel
SOURCE
E
Toggles between all the available input sources. In the on-screen menu, use this button as you
would use the ENTERE button on the remote control.
MENU
Displays an on-screen menu, the OSD (on screen display) of your LED display's features.
y
z
Adjusts the volume. In the OSD, use the y buttons as you would use the
l and r buttons on the remote control.
Changes the channels. In the OSD, use the z buttons as you would use the d and
u buttons on the remote control.
P (Power)
Turns the LED display on or off.
Power Indicator
Blinks and turns off when the power is on and lights up in standby mode.
Remote control sensor
Aim the remote control towards this spot on the LED display.
Standby mode
Do not leave your LED display in standby mode for long periods of time (when you are away on a holiday, for example). A small
amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.
English
12
Getting Started
Viewing the Remote Control
✎✎This is a special remote control for the visually impaired and has Braille points on the Channel and Number buttons.
Turns the TV on and off.
Displays and selects the available video
sources.
Have direct access to channels.
Alternately select Teletext ON, Double,
Mix or OFF.
(Some channels don’t support.)
Adjusts the volume.
Displays the main on-screen menu.
Displays the Contents Home, which
includes Channel List, Guide, Media
Play, Schedule Manager, and Source.
Returns to the previous channel.
Cuts off the sound temporarily.
Changes channels.
Displays channel lists on the screen.
Displays the EPG (Electronic Programme
Guide).
Quickly select frequently used functions.
Displays information on the TV screen.
Move the cursor and select an item.
Confirm the setting.
Returns to the previous menu.
Exits the menu.
Use these buttons according to the
direction on screen.
PIP: Turns the PIP on or off.
P.SIZE: Selects the Picture Size.
AD/SUBT.: Turns the audio description
on and off (not available in some
locations). / Displays digital subtitles..
Using these buttons in Media Play
mode.
Installing batteries (Battery size: AAA)
English
13
Connections
Connecting to an Antenna
When the LED display is initially powered on, basic settings proceed automatically.
✎✎Preset: Connecting the mains and antenna.
ANT OUT
Power Input
Setup (Initial Setup)
When the LED display is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the
POWERP button. Setup is available only when the Input Source is set to TV.
✎✎Before turning on the LED display, make sure the antenna cable is connected.
1
2
3
4
P
Selecting a menu language Press the u or d button to select a menu language. Press ENTERE
button twice when done
Selecting Store Demo or Press the u or d button, then press the ENTERE button.
Home Use
x Select the Home Use mode. Store Demo Mode is for retail
environments.
x To return the unit’s settings from Store Demo to Home Use (standard):
Press the volume button on the LED display. When you see the volume
OSD, press and hold MENU for 5 sec.
x Store Demo is only for shop display. If you select it, several functions
are not able to use. Please select Home Use when you watch at home.
Selecting an area
Press the ENTERE button. Select the appropriate area by pressing the u or d button.
Press the ENTERE button to confirm your choice.
Auto Tuning
Let’s find and store channels on your TV. Do you need to search for channels?
x Yes, I need to. All the channels available will be found and stored on your TV. (Auto
Tuning necessary)
x No, I don’t need to. My set-top box provides all the channels that are available, so I don’t
need to searh for channels.
You can complete Setup by selecting it.
✎
5
Digital & Analogue / Digital / Analogue: Select the channel source to memorise.
You can check more details on page21
Set the Clock Mode automatically or manually.
x Auto: Select the time zone (depending on the country) where you are
located.
x Manual: Allows you to manually set the current date and time.
If the customer chooses "No, I don’t need to." in step 4, the clock just can be
set manually.
✎
Setting the Clock Mode
✎
6
Complete
Press the ENTERE button.
If You Want to Reset This Feature...
Select System - Setup (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0”. If you want to change the
PIN number, use the Change PIN function.
You should do Setup (MENU → System) again at home although you did in shop.
✎✎If you forget the PIN code, press the remote control buttons in the following sequence in Standby mode, which
resets the PIN to “0-0-0-0”: POWER (off) → MUTE → 8 → 2 → 4 → POWER (on).
English
14
Connections
Connecting to an AV Device
Using an HDMI or an HDMI to DVI cable (up to 1080p)
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, VCR
DVD /
Blu-ray player
HDMI OUT
DVI OUT
DVD /
Blu-ray player
R
AUDIO OUT
W
✎✎HDMI IN(DVI) / DVI AUDIO IN
xx For better picture and audio quality, connect to a digital device using an HDMI cable.
xx An HDMI cable supports digital video and audio signals, and does not require an audio cable.
–– To connect the TV to a digital device that does not support HDMI output, use an HDMI/DVI and audio cables.
xx The picture may not display normally (if at all) or the audio may not work if an external device that uses an older
version of HDMI mode is connected to the LED display. If such a problem occurs, ask the manufacturer of the
external device about the HDMI version and, if out of date, request an upgrade.
xx Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may
occur.
xx A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support the
ethernet function via HDMI.
Using a Component (up to 1080p) or Audio/Video (480i only) Cable
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
Audio Cable
(Not Supplied)
Video Cable
(Not Supplied)
Y
R
Y
PR
PB
VIDEO OUT
W
W
W
R
AUDIO OUT
COMPONENT
/ AV IN
R-AUDIO-L
Device
R
W
R
R
B
G
Audio Cable
(Not Supplied)
Component Cable
(Not Supplied)
R
R
Red
W
W
R
B
G
AUDIO OUT
White
Red
Bule
Green
R-AUDIO-L
R
R
B
G
COMPONENT OUT
PR
PB
Y
Device
R
W
Y
Red
White
Yellow
✎✎When connecting to AV IN, the color of the AV IN [Y/VIDEO] jack (green) will not match the video cable (yellow).
✎✎For better picture quality, the Component connection is recommended over the A/V connection.
English
15
Connections
Connecting to a Audio device and PC
Using an HDMI cable or an HDMI to DVI cable
✎✎Connecting through the HDMI cable may not be supported depending on the PC.
HDMI Cable
(Not Supplied)
HDMI to DVI Cable
(Not Supplied)
Stereo Cable
(Not Supplied)
English
16
Connections
Display Modes (HDMI/DVI Input)
Optimal resolution : 1920 x 1080 pixels @60Hz
Mode
IBM
VESA DMT
MAC
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
MAC
VESA DMT
VESA DMT
VESA DMT
VESA DMT
MAC
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
VESA DMT
Display Mode
Resolution
Horizontal Frequency
(kHz)
Vertical
Frequency(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
720 x 400
70Hz
31.469
70.087
28.322
-/+
640 x 480
60Hz
31.469
59.940
25.175
-/-
640 x 480
67Hz
35.000
66.667
30.240
-/-
640 x 480
72Hz
37.861
72.809
31.500
-/-
640 x 480
75Hz
37.500
75.000
31.500
-/-
800 x 600
60Hz
37.879
60.317
40.000
+/+
800 x 600
72Hz
48.077
72.188
50.000
+/+
800 x 600
75Hz
46.875
75.000
49.500
+/+
832 x 624
75Hz
49.726
74.551
57.284
-/-
1024 x 768
60Hz
48.363
60.004
65.000
-/-
1024 x 768
70Hz
56.476
70.069
75.000
-/-
1024 x 768
75Hz
60.023
75.029
78.750
+/+
1152 x 864
75Hz
67.500
75.000
108.000
+/+
1152 x 870
75Hz
68.681
75.062
100.000
-/-
1280 x 720
60Hz
45.000
60.000
74.250
+/+
1280 x 800
60Hz
49.702
59.810
83.500
-/+
1280 x 1024
60Hz
63.981
60.020
108.000
+/+
1280 x 1024
75Hz
79.976
75.025
135.000
+/+
1366 x 768
60Hz
47.712
59.790
85.500
+/+
1440 x 900
60Hz
55.935
59.887
106.500
-/+
1600 x 900RB
60Hz
60.000
60.000
108.000
+/+
1680 x 1050
60Hz
65.290
59.954
146.250
-/+
1920 x 1080
60Hz
67.500
60.000
148.500
+/+
✎✎NOTE
xx The interlace mode is not supported.
xx The set might operate abnormally if a non-standard video format is selected.
xx Separate and Composite modes are supported. SOG(Sync On Green) is not supported.
English
17
Connections
Changing the Input Source
Edit Name
Source
SOURCEs→ TOOLST → Edit Name → ENTERE
SOURCEs → Source
In the Source, press the TOOLST button, and then you can
set an external input sources name you want.
Use to select LED display or an external input
sources such as a DVD / Blu-ray player / cable box
/STB satellite receiver.
■■ VCR / DVD / Cable STB / Satellite STB / PVR STB /
AV Receiver / Game / Camcorder / PC / DVI PC / DVI
Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name
the device connected to the input jacks to make your
input source selection easier.
■■ TV / HDMI/DVI / AV / Component / USB
✎✎In the Source, connected inputs will be
✎✎When connecting a PC to the HDMI IN (DVI) port with
highlighted.
HDMI cable, you should set the LED display to PC
mode under Edit Name.
✎✎TV always stays activated.
✎✎When connecting a PC to the HDMI IN (DVI) port with
HDMI to DVI cable, you should set the LED display to
DVI PC mode under Edit Name.
✎✎When connecting an AV devices to the HDMI IN (DVI)
port with HDMI to DVI cable, you should set the LED
display to DVI Devices mode under Edit Name.
Information
SOURCEs → TOOLST→ Information → ENTERE
You can see detailed information about the selected external
device.
Basic Features
How to Navigate Menus
How to Operate the OSD (On Screen Display)
Before using the LED display, follow the steps below to learn
how to navigate the menu and select and adjust different
functions.
3
1
2
4
1 ENTERE / Direction button: Move the cursor and select
an item. Confirm the setting.
2 RETURN button: Returns to the previous menu.
The access step may differ depending on the selected menu.
1
MENU m
2
3
4
5
▲/▼
6
7
ENTER E
ENTER E
▲/▼
◄/►
EXIT e
The main menu options appear on
the screen:
Picture, Sound, Channel, System,
Support.
Select an icon with the ▲ or ▼
button.
Press ENTERE to access the
sub-menu.
Select the desired submenu with the
▲ or ▼ button.
Adjust the value of an item with the
◄ or ► button. The adjustment in
the OSD may differ depending on the
selected menu.
Press ENTERE to complete the
configuration.
Press EXIT.
3 MENU button: Displays the main on-screen menu.
4 EXIT button: Exits the on-screen menu.
English
18
Basic Features
Using the INFO button (Now & Next guide)
Using Channel View
The display identifies the current channel and
the status of certain audio-video settings.
The Now & Next guide shows daily LED
display programme information for each
channel according to the broadcasting time.
x Scroll u / d to view information for
other channels. If you want to move to
the currently selected channel, press the
ENTERE button.
DTV Air
16:55 - 17:55
IL MEDICO E LO STREGONE - 2 TEMPO
5 Coming Soon
Channel View - All
Today
17:30
1futech
No Information
2
24ore.tv
No Information
3
BBC World
No Information
4
Class News
No Information
5
Coming Soon
No Information
6
R4 DTT
IL MEDICO E LO STREGONE
18:00
TG 4
18:30
No Information
` Information k Page E Watch
• The displayed image may differ depending on the model.
576i 4:3 SD Italian
5
17:00
1
a Sche. Mgr b -24 Hours { +24 Hours } Ch. Mode
All
Coming Soon
17:00 Tue 19 Jul
IL MEDICO E LO STRGONE
DTV Air 6 R4 DTT
17.02 Tue 19 Jul
No title
Stereo
Guide
No detailed information.
a Information
• The displayed image may differ depending on the model.
x
x
x
Using the Channel Menu
Press the CONTENT button to select Contents Home, and
then select the menu you want to use. Each screen will be
displayed.
x
x
x
x
Contents Home
Channel List
Guide
Media Play
Schedule Manager
Source
R Return
• The displayed image may differ depending on the model.
a Red (Sche. Mgr) : Displays the Schedule Manager.
b green (-24 Hours): Viewing the list of programmes to be
broadcasted before 24 hours.
{ Yellow (+24 Hours): Viewing the list of programmes to
be broadcasted after 24 hours.
} Blue (Ch. Mode): Select the type of channels you want
to display on the Channel View window.
` (Information): Displays details of the selected
programme.
k (Page): Move to next or previous page.
E (Watch / Schedule)
– When selecting the current programme, you can watch
the selected programme.
– When selecting the future programme, you can reserve
to watch the selected programme. To cancel the
schedule, press the ENTERE button again and select
Cancel Schedule.
Schedule Manager
CONTENT → Contents Home → Schedule Manager →
ENTERE
Guide
You can view, modify or delete a channel you have reserved to
watch.
CONTENT → Contents Home → Guide → ENTERE
Using the Schedule Viewing
The EPg (Electronic Programme guide)
information is provided by broadcasters.
Using programme schedules provided by
broadcasters, you can specify programmes
you want to watch in advance so that
the channel automatically changes to the
selected programme channel at the specified
time. Programme entries may appear blank
or out of date depending on a channel
status.
You can set a desired channel to be displayed automatically at
the intended time. Set the current time first to use this function.
1. Press the ENTERE button to select Schedule Manager.
2.
Press the TOOLST button or a button to add
programme to schedule manually. The Schedule Viewing
screen appears.
English
19
Basic Features
3. Press the u / d / l / r buttons to set the Aerial,
Channel, Repeat, Date or Start Time.
xx
xx
xx
Aerial: Select the desired antenna source.
Channel: Select the desired channel.
Repeat: Select Once, Manual, Sat~Sun, Mon~Fri or
Everyday to set at your convenience. If you select Manual,
you can set the day you want.
✎✎ The c mark indicates the date is selected.
xx
Date: you can set desired date.
It is available when you select Once in Repeat.
xx
Start Time: You can set start time you want.
On the Information screen, you can change or
cancel a reserved information.
✎✎
xx Edit Favourites: Set channels you watch
frequently as favourites.
Select the Edit Favourites, then press the
ENTERE button.
✎✎
–– If the channel is already added to favourite
channel, Edit Favourites will be shown.
xx Lock / Unlock: Lock a channel so that the
channel cannot be selected and viewed.
This function is available only when the
Channel Lock is set to On.
✎✎
✎✎ The PIN input screen appears. Enter your
4-digit PIN, the default of which is “0-0-00”. Change the PIN using the Change PIN
option.
✎✎
xx Cancel Schedule: Cancel a show you have
reserved to watch.
xx Edit Schedule: Change a show you have
reserved to watch.
xx Return: Return to the previous screen.
xx Edit Channel Name: Assign your own channel
name.
This function may not support depending on
the region.
✎✎
xx Edit Channel Number: Edit the number by
pressing the number buttons desired.
This function may not support depending on
the region.
✎✎
Channel List
xx Delete: You can delete a channel to display the
CONTENT → Channel List → ENTERE
channels you want.
You can view all the channel searched.
xx Information: Display the channel name,
Channel List
All
1
1futech
2
24ore.tv
3
BBC World
4
Class News
5
Coming Soon
6
R4 DTT
IL MEDICO E LO STREGONE
a1
C2
a2
C4
T Tools L Ch. Mode E Watch k Page
• The displayed image may differ depending on the model.
✎✎When you press the CH LIST button on the remote
control, Channel List screen will be displayed at
once.
Using the operation buttons with the Channel List.
■■ T (Tools): Press Tools button to check the following
functions.
xx Programme View: Press the u / d buttons to
select the desired programme, then press the
ENTERE button. (Only for DIGITAL Channel)
resolution, picture mode, language and so
on.(Some just available for DTV)
xx Sort: Change the list ordered by channel name or
channel number. (Only for DIGITAL Channel)
xx Edit Mode: You can select desired channels and
edit it.
■■ l r (Ch. Mode): Move to the type of channels you want
to display on the Channel List screen.
✎✎ The option may differ depending on country.
■■ E (Watch / Information): Watches the channel you
select. / Displays details of the selected programme.
■■ k (Page): Move to next or previous page.
How to use Schedule Viewing in Channel List (Depending
on the channels)
When you set the Schedule Viewing in Channel List, you can
only set the programme in Programme View.
1. Press the CH LIST button, then select a desired digital
channel.
2. Press the TOOLST button and select Programme View.
3. Press the u / d buttons to select the desired programme,
then press the E (Information) button.
4. Select Schedule Viewing, then press the ENTERE
button when done.
✎✎If you want to cancel Schedule Viewing, follow
steps 1 through 3. Select Cancel Schedule.
English
20
Basic Features
Channel Menu
Picture Menu
¦¦ Retuning Channels
¦¦ Changing the Preset Picture Mode
MENUm → Channel → ENTERE
MENUm → Picture → Picture Mode → ENTERE
Area
Picture Mode t
You can change the area for channels.
Select your preferred picture type.
Auto Tuning
Scans for a channel automatically and stores in the TV.
xx Automatically allocated programme numbers may
not correspond to actual or desired programme
numbers. If a channel is locked using the Channel
Lock function, the PIN input window appears.
–– Digital & Analogue / Digital / Analogue: Select the
channel source to memorise.
✎✎When connecting a PC, the Picture Mode is only
available the Standard and Entertain.
■■ Dynamic: Suitable for a bright room.
■■ Standard: Suitable for a normal environment.
■■ Movie: Suitable for watching movies in a dark room.
■■ Entertain: Suitable for watching movies and games.
✎✎ It is only available when connecting a PC.
Manual Tuning
¦¦ Adjusting Picture Settings
Scans for a channel manually and stores in the LED display.
MENUm → Picture → ENTERE
✎✎If a channel is locked using the Channel Lock
function, the PIN input window appears.
■■ Digital Channel Tuning: Scans for a digital channel.
1. Press the ENTERE button to select New.Set
Channel ,Frequency,Bandwidth.
2. Press the d button to select Search. When
scanning has finnished, a channel is updated in
the channel list.
■■ Analogue Channel Tuning: Scans for a analogue
channel.
1. Press the ENTERE button to select New.
2. Set the Programme, Colour System, Sound
System, Channel and Search.
3. Press the d button to select Store. When
scanning has finnished, a channel is updated in
the channel list.
Samsung MagicAngle
Adjust screen viewing Angle to optimize screen quality according
to your viewing position.
■■ Samsung MagicAngle: When viewing the screen at an
angle from below or above by setting the appropriate
mode for each position you can obtain a similar picture
quality as viewing the screen directly from the front.
xx Off: Select when viewing from the front position.
xx Lean back mode: Select when viewing from a
slightly lower position.
xx Standing Mode: Select when viewing from the
upper position.
■■ Mode: Adjust screen viewing angle.
✎✎When Samsung MagicAngle is set to Lean back
mode or Standing Mode, Gamma is not available.
Fine Tune
(analogue channels only)
If the reception is clear, you do not have to fine tune the channel,
as this is done automatically during the search and store
operation. If the signal is weak or distorted, fine tune the channel
manually. Scroll to the left or right until the image is clear.
✎✎Settings are applied to the channel you’re currently
watching.
✎✎Fine tuned channels that have been saved are
marked with an asterisk “*” on the right-hand side of
the channel number in the channel banner
✎✎To reset the fine-tuning, select Reset.
English
21
Basic Features
Backlight / Contrast / Brightness /
Sharpness / Colour / Tint (G/R)
Your television has several setting options for picture quality
control.
✎✎NOTE
xx In analogue TV, AV modes of the PAL system, the
Tint (G/R) function is not available.
xx When connecting a PC, you can only make
changes to Backlight, Contrast, Brightness and
Sharpness.
xx Settings can be adjusted and stored for each
external device connected to the LED display.
xx Lowering picture brightness reduces power
consumption.
Screen Adjustment
■■ Picture Size: Your cable box / satellite
receiver may have its own set of screen
sizes as well. However, we highly
recommend you use 16:9 mode most of
the time.
Auto Wide: Automatically adjusts the
picture size to the 16:9 aspect ratio.
16:9: Sets the picture to 16:9 wide mode.
Wide Zoom: Magnifies the picture size
more than 4:3.
Adjusts the Position by using u / d buttons.
✎✎NOTE
xx Depending on the input source, the picture size
options may vary.
xx The available items may differ depending on the
selected mode.
xx When connecting a PC, only 16:9 and 4:3 modes
can be adjusted.
xx Settings can be adjusted and stored for each
external device connected to an input on the LED
display.
■■ Zoom / Position:You can adjust picture size and
position by u / d / l / r button.
✎✎ It's only available when picture size is set as
Zoom and Wide Zoom.
✎✎ In Wide Zoom mode, you can only use Position
adjustment.
✎✎ Reset: Reset the Zoom and Position to the
default settings.
■■ 4:3 Screen Size (16:9 / Wide Zoom / Zoom / 4:3):
Available only when picture size is set to Auto Wide.
You can determine the desired picture size at the 4:3
WSS (Wide Screen Service) size or the original size. Each
European country requires different picture size.
✎✎ Not available in HDMI , Component, and HDMI/
DVI mode.
✎✎
Zoom: Magnifies the 16:9 wide pictures vertically to fit the
screen size.
Adjusts the Zoom or Position by using u / d
button.
✎✎
4:3: Sets the picture to basic (4:3) mode.
✎✎ Do not watch in 4:3 format for a long time.
Traces of borders displayed on the left, right
and centre of the screen may cause image
retention (screen burn) which are not covered
by the warranty.
Screen Fit: Displays the full image without any cut-off when
HDMI (720p / 1080i / 1080p) or Component (720p / 1080i /
1080p) signals are inputted.
Adjusts the Position by using u / d / l / r
button.
✎✎
English
22
Basic Features
Using Your TV as a Computer (PC) Display
Setting Up Your PC Software (Based on Windows XP)
Depending on the version of Windows and the video card, the
actual screens on your PC may differ in which case the same
basic set-up information will almost always be applied. (If not,
contact your computer manufacturer or Samsung Dealer.)
1. Click on “Control Panel” on the Windows start menu.
2. Click on “Appearance and Themes” in the “Control Panel”
window and a display dialog-box will appear.
3. Click on “Display” and a display dialog box will appear.
4. Navigate to the “Settings” tab on the display dialog-box.
xx The correct size setting (resolution) [Optimum:
1920 x 1080 pixels].
xx If a vertical-frequency option exists on your display
settings dialog box, the correct value is “60” or “60
Hz”. Otherwise, just click “OK” and exit the dialog
box.
Maintaining the Correct Posture when Using this Product
¦¦ Changing the Picture Options
Advanced Settings
MENUm → Picture → Advanced Settings → ENTERE
(Advanced Settings are available in Standard / Movie mode)
Compared to previous models, new Samsung LED display have
a more precise picture.
✎✎When connecting a PC, you can only make changes
to White Balance and Gamma.
Advanced Settings
Dynamic Contrast
Black Tone
Flesh Tone
RGB Only Mode
Colour Space
High
Off
0
Off
Native
White Balance
Gamma
0
• The displayed image may differ depending on the model.
■■ Dynamic Contrast (Off / Low / Medium / High): Adjust
the screen contrast.
■■ Black Tone (Off / Dark / Darker / Darkest): Select the
black level to adjust the screen depth.
■■ Flesh Tone: Emphasize pink “Flesh Tone.”
■■ RGB Only Mode (Off / Red / Green / Blue): Displays
the Red, Green and Blue colour for making fine
adjustments to the hue and saturation.
Maintain the correct posture when using this product.
xx Straighten your back.
xx Keep a distance of 45~50 cm (15~19 inches) from your
eyes to the screen. Look down at the screen and face the
screen forwards.
xx Adjust the angle of the product so that light is not reflected
onto the screen.
xx Keep your elbow at a right angle and keep your arm level
with the back of your hand.
xx Keep your elbow at a right angle.
xx Place your heels flat on the ground while keeping your
knees at an angle of 90 degrees or higher and maintain the
position of your arm so that your arm is below your heart.
■■ Colour Space (Auto / Native): Adjust the range of
colours available to create the image.
■■ White Balance: Adjust the colour temperature for a
more natural picture.
R-Offset / G-Offset / B-Offset: Adjust each colour’s (red,
green, blue) darkness.
R-Gain / G-Gain / B-Gain: Adjust each colour’s (red,
green, blue) brightness.
Reset: Resets the White Balance to it’s default settings.
■■ Gamma: Adjust the primary colour intensity.
■■ Motion Lighting (Off / On): Reduce power consumption
by brightness control.
English
23
Basic Features
Sound Menu
Picture Options
MENUm → Picture → Picture Options → ENTERE
✎ When connecting a PC, you can only make changes
to the Colour Tone.
Standard
■
Standard: Selects the normal sound mode.
Digital Noise Filter
Auto
■
Music: Emphasizes music over voices.
MPEG Noise Filter
Auto
■
Movie: Provides the best sound for movies.
HDMI Black Level
Low
■
Clear Voice: Emphasizes voices over other sounds.
■
Amplify: Increase the intensity of high-frequency sound
to allow a better listening experience for the hearing
impaired.
Colour Tone
Film Mode
Off
• The displayed image may differ depending on the model.
Colour Tone (Cool / Standard / Warm1 / Warm2)
✎
✎
■
Warm1 or Warm2 will be deactivated when the
picture mode is Dynamic.
Settings can be adjusted and stored for each
external device connected to an input on the
LED display.
Digital Noise Filter (Off / Low / Medium / High / Auto
/ Auto Visualisation): If the broadcast signal received by
your LED display is weak, you can activate the Digital
Noise Filter feature to reduce any static and ghosting
that may appear on the screen.
✎
MPEG Noise Filter (Off / Low / Medium / High /
Auto): Reduces MPEg noise to provide improved
picture quality.
■
HDMI Black Level (Low / Normal): Selects the black
level on the screen to adjust the screen depth.
■
Available only in HDMI mode (RgB signals).
Film Mode (Off / Auto1 / Auto2): Sets the LED display
to automatically sense and process film signals from all
sources and adjust the picture for optimum quality.
✎
✎
Sound Effect
MENUm → Sound → Sound Effect → ENTERE
(standard sound mode only)
■
SRS TruSurround HD (Off / On)
This function provides a virtual 5.1 channel surround sound
experience through a pair of speakers using HRTF (Head
Related Transfer Function) technology.
■
SRS TruDialog (Off / On)
This function allows you to increase the intensity of a voice
over background music or sound effects so that dialog can
be heard more clearly.
■
Equaliser
Adjusts the sound mode.
– Balance L/R: Adjusts the balance between the right and
left speaker.
– 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth
Adjustment): Adjusts the level of specific bandwidth
frequencies.
– Reset: Resets the Equaliser to its default settings.
When bar is green, you are receiving the best
possible signal.
■
✎
¦ Adjusting Sound Settings
When the signal is weak, try other options until
the best picture is displayed.
Auto Visualisation: When changing analogue channels,
displays signal strength.
only available for analogue channels.
✎
✎
MENUm → Sound → Sound Mode → ENTERE
Sound Mode t
Picture Options
■
¦ Changing the Preset Sound Mode
¦ Sound Systems, Etc.
MENUm → Sound → ENTERE
Broadcast Audio Options
Available in TV mode, HDMI (1080i).
■
Audio Language
If the screen does not seem natural, change its
option to Off / Auto1 / Auto2 in Film Mode.
(digital channels only)
Reset Picture (Yes / No)
Change the default value for audio languages.
✎
The available language may differ depending on
the broadcast.
Resets your current picture mode to its default settings.
English
24
Basic Features
■■ Audio Format
(digital channels only)
Select the audio format.
■■ Audio Description
(not available in all locations) (digital
channels only)
This function handles the Audio Stream
for the AD (Audio Description) which is
sent along with the Main audio from the
broadcaster.
✎✎ Audio Description (Off / On):
Turn the audio description
function on or off.
✎✎ Volume: Adjust the audio description volume.
Speaker Settings
■■ Auto Volume (Off / Normal / Night): To equalize the
volume level on each channel, set to Normal.
Night: This mode provides an improved sound experience
compared to Normal mode, making almost no noise. It is
useful at night.
Reset Sound (Yes / No)
Reset all sound settings to the factory defaults.
¦¦ Selecting the Sound Mode t
When you set to Dual fg, the current sound mode is displayed
on the screen.
Additional Settings
■■ DTV Audio Level (MPEG / HE-AAC): This function
allows you to reduce the disparity of a voice signal
(which is one of the signals received during a digital TV
broadcast) to a desired level.
✎✎ According to the type of broadcast signal,
MPEG / HE-AAC can be adjusted between
-10dB and 0dB.
✎✎ To increase or decrease the volume, adjust
between the range 0 and -10 respectively.
■■ Dolby Digital Comp (Line / RF): This function minimizes
signal disparity between a dolby digital signal and a
voice signal (i.e. MPEG Audio, HE-AAC, ATV Sound).
A2
Stereo
NICAM
Stereo
Audio
Type
Mono
Stereo
Dual
Mono
Stereo
Dual
Dual f-g
Default
Mono
Stereo ↔ Mono
Dual f ↔ Dual g
Mono
Mono ↔ Stereo
Mono ↔ Dual f
 Dual g 
Automatic
change
Dual f
Automatic
change
Dual f
✎✎If the Stereo signal is weak and an automatic
switching, occurs, then switch to the Mono.
✎✎Only activated in stereo sound signal.
✎✎Only available when the input Source is set to TV.
✎✎ Select Line to obtain dynamic sound, and RF
to reduce the difference between loud and soft
sounds at night time.
Line: Set the output level for signals greater or less than
-31dB (reference) to either -20dB or -31dB.
RF: Set the output level for signals greater or less than
-20dB (reference) to either -10dB or -20dB.
English
25
Basic Features
System Menu
¦ Setting the Time
MENUm → System → ENTERE
Setting the On / Off Timer
■
On Timer
On Timer 1 / On Timer 2 / On Timer 3: Three different on
timer settings can be made. You must set the clock first.
On Timer 1
Time
■
Setup
Clock: Setting the clock is for using various timer
features of the LED display.
✎
✎
Sun
The current time will appear every time you
press the INFO button.
✎
You can set the Day, Month, Year, Hour and
Minute directly by pressing the number buttons
on the remote control.
Using the Sleep Timer
■
Sleep Timer t: Automatically shuts off the LED
display after a preset period of time. (30, 60, 90, 120,
150 and 180 minutes).
✎
0:00
DTV
1
Close
✎
✎
Sat
20
x
Clock Set: Set the Day, Month, Year, Hour and Minute
manually.
Available only when Clock Mode is set to
Manual.
Fri
TV
Channel
✎
Thu
Source
Aerial
Manual: Set the current time manually.
Depending on the broadcast station and
signal, the auto time set up may not be
correct. In this case, set the time manually.
Wed
Volume
Clock Mode (Auto / Manual)
x
Tue
Time
If you disconnect the power cord, you have to
set the clock again.
Auto: Set the current time automatically using the
time from a digital channel.
The antenna must be connected in order to
set the time automatically.
Off
Mon
R Return
• The displayed image may differ depending on the model.
Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat,
Sat~Sun or Manual to set at your convenience. If you
select Manual, you can set up the day you want to activate
the timer.
The c mark indicates the day you've selected.
✎
Time: Set the hour and minute.
Volume: Set the desired volume level.
Source: Select a desired input source when the LED
display is turned on automatically (USB can be selected
only when a USB device is connected to the LED display)
Aerial (when the Source is set to TV): Select ATV or DTV.
Channel (when the Source is set to TV): Select the desired
channel.
Music / Photo (when the Source is set to USB): Select a
folder in the USB device containing music or photo files to
be played when the LED display is turned on automatically.
To cancel Sleep Timer, select Off.
English
26
Basic Features
✎
■
NOTE
¦ Locking Programmes
x
If there is no music file on the USB device
or the folder containing a music file is not
selected, the Timer function does not operate
correctly.
x
When there is only one photo file in the USB,
the Slide Show will not play.
✎ The PIN input screen appears before the setup
x
If a folder name is too long, the folder cannot
be selected.
✎ Enter your 4-digit PIN, the default of which is “0-0-0-
x
Each USB you use is assigned its own folder.
When using more than one of the same type
of USB, make sure the folders assigned to
each USB have different names.
x
It is recommended that you use a USB
memory stick and a multi card reader when
using On Timer.
x
The On Timer function may not work
with USB devices with a built-in battery,
MP3 players, or PMPs made by some
manufacturers because these devices take a
long time to be recognized.
MENUm → System → Security → ENTERE
Security
screen.
0”. Change the PIN using the Change PIN option.
■
Channel Lock (Off / On): Lock channels in Channel
Manager, to prevent unauthorized users, such as
children, from watching unsuitable programme.
✎
■
Programme Rating Lock (depending on the country):
Prevent unauthorized users, such as children, from
watching unsuitable programme with a user-defined 4-digit
PIN code. If selected channel is locked, the “\” symbol will
be displayed.
✎
Off Timer
Off Timer 1 / Off Timer 2 / Off Timer 3: Three different off
timer settings can be made. You must set the clock first.
■
Off Timer 1
Setup
Sun
Off
Mon
Tue
Wed
Thu
Fri
Sat
Available only when the input Source is set to
TV.
The items of Programme Rating Lock differs
depending on the country.
Change PIN: The Change PIN screen will appear.
Choose any 4 digits for your PIN and enter them.
Change your personal ID number required to set up
the LED display. Re-enter the same 4 digits. When
the Confirm screen disappears, your PIN has been
memorised.
¦ Economical Solutions
Time
0:00
MENUm → System → Eco Solution → ENTERE
Close
R Return
• The displayed image may differ depending on the model.
Eco Solution
■
Energy Saving (Off / Low / Medium / High / Picture
Off): This adjusts the brightness of the LED display
in order to reduce power consumption. If you select
Picture Off, the screen is turned off, but the sound
remains on. Press any button except volume button to
turn on the screen.
■
No-Signal Power Off (Off / 15 min / 30 min / 60 min):
To avoid unnecessary energy consumption, set how long
you want the LED display to remain on if it’s not receiving
a signal.
Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat,
Sat~Sun or Manual to set at your convenience. If you
select Manual, you can set up the day you want to activate
the timer.
The c mark indicates the day you've selected.
✎
Time: Set the hour and minute.
✎
■
Disabled when the PC is in power saving mode.
Auto Power Off (Off / On): Saves power by turning
LED display off automatically when no user operation is
received for 4 hours.
English
27
Basic Features
¦¦ Other Features
xx Game Mode is not available when the input
MENUm → System → ENTERE
xx After connecting the game console, set Game
Language
■■ Menu Language: Set the menu language.
■■ Teletext Language: Set a desired language for teletext.
✎✎ English is the default in cases where the
selected language is unavailable in the
broadcast.
■■ Preferred language (Primary Audio / Secondary Audio /
Primary Subtitle / Secondary Subtitle / Primary Teletext
/ Secondary Teletext): Select a language, which will be the
default language when a channel is selected.
Subtitle
Use this menu to set the Subtitle mode.
■■ Subtitle (Off / On): Switches subtitles
on or off.
■■ Subtitle Mode (Normal / Hearing
Impaired): Sets the subtitle mode.
■■ Subtitle Language: Sets the subtitle
language.
✎✎ If the programme you are
source is set to TV.
Mode to On. Unfortunately, you may notice
reduced picture quality.
xx If Game Mode is On:
–– Picture mode is set to Standard and Sound mode is
set to Movie.
■■ Panel Lock (Off / On): Lock or unlock all the keys on
the front panel at once. When Panel Lock is on, none of
the keys on the front panel operate.
■■ Boot Logo (Off / On): Display Samsung logo when the
LED display is turned on.
¦¦ Picture In Picture (PIP)
MENUm → System → PIP → ENTERE
PIP t
You can watch the LED display tuner and one external video
source simultaneously. PIP (Picture-in-Picture) does not function
in the same mode.
✎✎NOTE
xx For PIP sound, refer to the Sound Select
instructions.
watching does not support the Hearing
Impaired function, Preferred automatically
activates even if the Hearing Impaired mode is
selected.
xx If you turn the LED display off while watching in
selected language is unavailable in the
broadcast.
xx While Programme Rating Lock is in operation,
✎✎ English is the default in cases where the
Auto Protection Time
■■ Off / 2 hours / 4 hours / 8 hours / 10 hours: If the
screen remains idle with a still image for a certain period
of time defined by the user, the screen saver is activated
to prevent the formation of ghost images on the screen.
PIP mode, the PIP window will disappear.
xx You may notice that the picture in the PIP window
becomes slightly unnatural when you use the main
screen to view a game or karaoke.
the PIP function cannot be used.
xx PIP settings
Main picture
HDMI/DVI, Component
Sub picture
TV
■■ PIP (Off / On): Activate or deactivate the PIP function.
■■ Channel: Select the channel for the sub-screen.
General
■■ Size (Õ / Ã): Select a size for the sub-picture.
■■ Game Mode (Off / On): When connecting to a game
console such as PlayStation™ or Xbox™, you can enjoy
a more realistic gaming experience by selecting game
mode.
■■ Position (à / – / — / œ): Select a position for the
sub-picture.
✎✎NOTE
xx Precautions and limitations for game mode
–– To disconnect the game console and connect another
external device, set Game Mode to Off in the setup
menu.
–– If you display the LED display menu in Game Mode,
the screen shakes slightly.
■■ Sound Select (Main / Sub): You can choose the
desired sound (Main / Sub) in PIP mode.
¦¦ DivX® Video On Demand
Shows the registration code authorized for the TV. If you connect
to the DivX web site and register, you can download the VOD
registration file. If you play the VOD registration using Media
contents, the registration is completed.
✎✎For more information on DivX® VOD,
visit “http://vod.divx.com”.
English
28
Basic Features
Support Menu
MENUm → Support → ENTERE
Self Diagnosis
✎✎Self Diagnosis might take few seconds, this is part
of the normal operation of the LED display
■■ Picture Test (Yes / No): Use to check for picture
problems.
Yes: If the test pattern does not appear or there is noise
in the test pattern, select Yes. There may be a problem
with the LED display. Contact Samsung’s Call Centre for
assistance.
No: If the test pattern is properly displayed, select No.
There may be a problem with your external equipment.
Please check your connections. If the problem persists,
refer to the external device’s user manual.
■■ Sound Test (Yes / No): Use the built-in melody sound to
check for sound problems.
Yes: If you can hear sound only from one speaker or not
at all during the sound test, select Yes. There may be a
problem with the LED display. Contact Samsung’s Call
Centre for assistance.
No: If you can hear sound from the speakers, select No.
There may be a problem with your external equipment.
Please check your connections. If the problem persists,
refer to the external device’s user manual.
Installing the Latest Version
TV Side
■■ By USB: Insert a USB
drive containing the
firmware upgrade file,
USB Drive
downloaded from
“www.samsung.com,”
into the TV. Please be careful not to disconnect the
power or remove the USB drive until upgrades are
complete. The TV will be turned off and on automatically
after completing the firmware upgrade. When software
is upgraded, video and audio settings you have made
will return to their default settings. We advise you to write
down your settings so that you can easily reset them
after the upgrade.
■■ Alternative Software: Replace the current software with
the alternative.
Contact Samsung
View this information when your LED display does not work
properly or when you want to upgrade the software. You can
find information regarding our call centres, and how to download
products and software.
Contents Home
You can enjoy useful and various contents.
■■ Signal Information: (digital channels only) An HD
channel’s reception quality is either perfect or the
channels are unavailable. Adjust your antenna to
increase signal strength.
■■ Reset: Restores all settings to factory defaults except
network settings.
Software Upgrade
Software Upgrade can be performed via a broadcasting signal
or downloading the latest firmware from “www.samsung.com,”
to a USB memory device.
Current Version the software already installed in the LED
display.
✎✎Software is represented as “Year/Month/Day_
Version”.
Software Upgrade
By USB
Alternative Software
English
29
Advanced Features
Using the Media Play
Enjoy videos, photos, music files saved on a USB Mass
Storage Class (MSC) device.
Media Play / Videos /
Cruzer Blade
3.23GB Free / 3.55GB
Videos
1. Press the CONTENT button.
2. Press the l / r button to select desired menu (Media),
then press the ENTERE button.
CONTENT → Media Play → ENTERE
Photos
Music
R Return
• The displayed image may differ depending on the model.
¦ Connecting a USB Device
1.
Turn on your TV.
2.
Connect a USB device containing photo and music files to the USB jack on the side
of the TV.
3.
When USB is connected to the TV, popup window appears. Then you can select
Device connected.
TV Side
USB Drive
✎ It might not work properly with unlicenced multimedia files.
✎ Need-to-Know List before using Media Play.
x
x
x
x
MTP (Media Transfer Protocol) is not supported.
x
x
USB (HDD) is not supported.
x
x
x
x
x
Do not disconnect the USB device while it is loading.
x
x
A USB device that requires high power (more than 500mA or 5V) may not be supported.
The file system supports FAT16, FAT32 and NTFS.
Certain types of USB Digital camera and audio devices may not be compatible with this TV.
Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-only
Transport device. Examples of MSC are Thumb drives, Flash Card Readers (USB HUB are not supported).
Devices should be connected directly to the TV’s USB port.
Before connecting your device to the TV, please back up your files to prevent them from damage or loss of
data. SAMSUNg is not responsible for any data file damage or data loss.
The higher the resolution of the image, the longer it takes to display on the screen.
The maximum supported JPEg resolution is 15360 x 8640 pixels.
For unsupported or corrupted files, the “Not Supported File Format” message is displayed.
MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights
Management (DRM) is a technology that supports the creation, distribution and management of the content
in an integrated and comprehensive way, including the protection of the rights and interests of the content
providers, the prevention of the illegal copying of contents, as well as managing billings and settlements.
If an over-power warning message is displayed while you are connecting or using a USB device, the device may
not be recognized or may malfunction.
English
30
Advanced Features
x
x
If the TV has been no input during time set in Auto Protection Time, the Screensaver will run.
x
If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be
read.
x
If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the
list is not played, connect the USB device to the PC, format the device and check the connection.
x
Media Play only supports sequential jpeg format.
The power-saving mode of some external hard disk drives may be released automatically when connected to
the TV.
¦ Screen Display
Move to the desired file using the u / d / l / r buttons and then press the ENTERE button. The file is played. Media Play
screen may differ depending on the way to enter the screen.
Information:
Displays the selected content
category (Music, for example),
device (USB drive,for example),
folder/file name and page.
Contents mode:
You can select the desired
Content Category.
Media Play / Videos /
Upper Folder
2/8
Cruzer.../Video_02.AVI
Video_01
1.Jan.2012
Video_02
Video_03
1.Jan.2012
1.Jan.2012
Video_04
Video_05
1.Jan.2012
1.Jan.2012
Video_06
Video_07
1.Jan.2012
1.Jan.2012
Video_02.AVI
1.Jan.2012
17.6MB
Displays the selected file
information.
Video_08
1.Jan.2012
πµ Page Move E Play T Tools R Return
• The displayed image may differ depending on the model.
Operation Buttons
• π Turn to the previous page.
• µ Turn to the next page.
• E Play: Play the media file.
• T Tools: Displays the option menu.
• R Return: Move to the previous step.
English
31
Advanced Features
Videos
Playing Video
1.
Press the l / r / u / d button to select the desired video in the
file list.
2.
Press the ENTERE button or ∂ (Play) button.
x
The selected file name is displayed on the top with its
playing time.
x
If video time information is unknown, play time and
progress bar are not displayed.
x
During video playback, you can search using l and r
button.
x
You can use π (REW) and µ (FF) buttons during
playback.
In this mode, you can enjoy movie clips contained
on a game, but you cannot play the game itself.
✎
• The displayed image may differ depending on the model.
Supported Subtitle Formats
– External
Name
Extension
MPEg-4 Timed text
.ttxt
SAMI
.smi
SubRip
.srt
SubViewer
.sub
Micro DVD
.sub or .txt
SubStation Alpha
.ssa
Advanced SubStation Alpha
.ass
Powerdivx
.psb
Name
Container
– Internal
Xsub
AVI
SubStation Alpha
MKV
Advanced SubStation Alpha
MKV
SubRip
MKV
MPEg-4 Timed text
MP4
English
32
Advanced Features
Supported Video Formats
File
Extension
Container
Video Codec
Resolution
Frame rate
(fps)
Bit rate
(Mbps)
DivX 3.11 / 4.x
/ 5.1 / 6.0
H.264 BP / MP
/ HP
AVI
MKV
ASF
MP4
3GP
VRO
VOB
PS
TS
1920 x 1080
20 [40]
Not Include FMO / ASO / RS
Support BP / MP / HP Level 4.1
Profile3, restricted up to SD
resolution
H.263
Motion JPEG
Audio Codec
GMC Not Support
MPEG4 SP /
ASP
*.avi
*.mkv
*.asf
*.wmv
*.mp4
*.3gp
*.vro
*.mpg
*.mpeg
*.ts
*.tp
*.trp
*.m2ts
*.mts
*.div
Comments
640 x 480
30
10
Window Media
Video v9
1920 x 1080
20 [40]
VC1 SP / MP /A P L3 Support,
L4 Not Support
Simple Profile Medium Level
Main Profile High Level
Advanced Profile Level 3
WMV9 support
MPEG2
Hight Profile High Level
MPEG1
MPEG-1 except D-picture
AC3
LPCM
ADMPCM(IMA, MS)
AAC
HE-AAC
WMA
DD+
MPEG(MP3)
DTS Core
Vorbis
English
33
Advanced Features
Other Restrictions
✎ NoTE
x
x
If there are problems with the contents of a codec, the codec will not be supported.
x
Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/
sec listed in the table above.
x
x
If the Index Table is in error, the Seek (Jump) function is not supported.
If the information for a Container is incorrect and the file is in error, the Container will not be able to play
correctly.
You may experience file stuttering while playing a video through a network connection.
Name
x
x
x
x
Format
Supports up to H.264, Level 4.1
H.264 FMo / ASo / RS, VC1 SP / MP / AP L4 and
AVCHD are not supported.
MPEg4 SP, ASP:
– Below 1280 x 720: 60 frame max
– Above 1280 x 720: 30 frame max
gMC 2 over is not supported.
x
x
x
Supports up to WMA 7, 8, 9, STD, 9, 10PRo
WMA 9 PRo does not support 2 channel excess multi
channel or lossless audio.
WMA sampling rate 22050Hz mono is not supported.
Photos
Viewing a Photo (or Slide Show)
1.
Press the u / d / l / r button to select the desired photo in the
file list.
2.
Press the ENTERE button or ∂ (Play) button.
– When a selected photo is displayed, press the ENTERE button
to start the slide show.
– During the slide show, all files in the file list will be displayed in
order.
Media Play / Photos /
Cruzer... / Photos / IMG_0008.JPG 7 / 1000
1.Jan.2012
248.9KB
1200 x 1600
Upper Folder
✎ Music files can be automatically played during the Slide
Show if the Background Music is set to On.
✎ The Background Music cannot be changed until the BgM
has finished loading.
�µ Page Move E Play T Tools R Return
• The displayed image may differ depending on the model.
Supported Picture Formats
File extension
Format
Resolution
JPEg
15360 x 8640
BMP
1920 x 1080
*.mpo
MPo
15360 x 8640
English
34
Advanced Features
Music
Playing Music
1.
2.
Press the u / d button to select the desired Music in the file
list.
Press the ENTERE button or ∂ (Play) button.
Media Play / Music /
Cruzer... / Music / Music_01.mp3
1 / 17
Upper Folder
Music_01
✎ only displays the files with the file extension in following
supported music formats list. other file extensions are
not displayed, even if they are saved on the same USB
device.
✎ If the sound is abnormal when playing MP3 files, adjust
the Equaliser in the Sound menu. (An over-modulated
MP3 file may cause a sound problem.)
Music_02
Music_03
Music_04
Music_05
Music_06
Music_07
Music_01
2012
Now That's What I Call Music 75
Pop
Music_08
2:36 / 5:00
Music_09
b{ Page Move E Play T Tools R Return
• The displayed image may differ depending on the model.
Playing selected music
1.
Press the TOOLST button to select Play Selection.
2.
Select music files.
✎
✎
The c mark will appear to the left of the selected files.
To select or deselect all files, press Select All or Deselect All.
3.
Press the ∂ button to select Play button.
4.
The selected files will be played in sequence.
Supported Music Formats
File Extension
Type
Codec
*.mp3
MPEg
MPEg1 Audio Layer 3
*.m4a
*.mpa
*.aac
*.3ga
MPEg4
AAC
*.flac
FLAC
FLAC
*.ogg
ogg
Vorbis
*.wma
WMA
WMA
English
35
Advanced Features
¦¦ Media Play - Additional Functions
Videos/Photos/Music Play Option menu
During playing a file, press the TOOLST button and select selection play.
Category
Operations
Videos
Photos
Music
Shuffle Mode
You can play the music randomly.
Repeat Mode
You can play media files repeatedly.
>
Picture Mode
You can adjust the picture setting.
>
>
Sound Mode
You can adjust the sound setting.
>
>
Start Slide Show
/ Stop Slide Show
You can start or pause a Slide Show.
Slide Show Speed
You can select the slide show speed during the slide show.
>
Background Music On
You can on/off background music when watching a Slide Show.
>
Background Music Setting
You can select background music when watching a Slide Show.
>
Zoom
You can zoom into images in full screen mode.
>
Rotate
You can rotate images in full screen mode.
Information
You can see detailed information about the played file.
>
>
>
Play Selection
You can play the items what you selected.
>
>
>
Title Search
You can move directly to another Title.
>
Time Search
You can search the movie using l and r buttons at intervals of
1 minute.
>
Picture Size
You can adjust the picture size to your preference.
>
Subtitle
You can set the subtitle On / Off.
>
Subtitle Settings
Play a video file with captions displayed. This option is available only
when the caption file name matches the video file name.
>
Audio language
View a video in a supported language of your choice. The option is
available only when a stream-type file that supports multiple audio
formats is played.
>
>
>
>
>
>
English
36
Other Information
Analogue Channel Teletext Feature
The index page of the Teletext service gives you information on how to use the service. For Teletext information to be displayed
correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.
✎✎You can change Teletext pages by pressing the numeric buttons on the remote control.
1 / (Teletext on/mix/off):
Activates the Teletext mode for the
current channel. Press the button
twice to overlap the Teletext mode
with the current broadcasting
screen. Press it one more time to
exit teletext.
2 8 (store): Stores the Teletext
pages.
3 6 (index): Displays the index
(contents) page at any time while
you are viewing Teletext.
4 4 (size): Displays the teletext
on the upper half of the screen in
double-size. To move the text to
the lower half of the screen, press
it again. For normal display, press it
once again.
5 9 (hold): Holds the display at the
current page, in the case that there
are several secondary pages that
follow automaticially. To undo, press
it again.
6 Colour buttons (red, green, yellow,
blue): If the FASTEXT system is
used by the broadcasting company,
the different topics on a Teletext
page are colour-coded and can
be selected by pressing the
coloured buttons. Press the colour
corresponding to the topic of your
choice. A new colour-coded page
is displayed. Items can be selected
in the same way. To display the
previous or next page, press the
corresponding coloured button.
7 0 (mode): Selects the Teletext
mode (LIST/ FLOF).
If pressed during LIST mode,
switches the mode to List save
mode. In List save mode, you can
save a Teletext page into a list using
the 8(store) button.
1
8 1 (sub-page): Displays the
available sub-page.
9 2 (page up): Displays the next
7
Teletext page.
0 3 (page down): Displays the
previous Teletext page.
5
(reveal): Displays the hidden
!
text (answers to quiz games, for
example). To display the normal
screen, press it again.
@ 7 (cancel): Shrinks the Teletext
display to overlap with the current
8
broadcast.
Typical Teletext page
9
2
0
3
4
5
6
!
@
Part
A
Contents
Selected page number.
B
Broadcasting channel
identity.
Current page number
or search indications.
Date and time.
Text.
Status information.
FASTEXT information.
C
D
E
F
✎✎The feature may not available in some locations.
English
37
Other Information
Attaching a Wall Mount/Desktop Stand
Preparing before installing Wall-Mount/Desktop Stand
1. Turn the product off and unplug the power cord from the wall outlet.
2. Place a soft cloth or cushion on a flat surface to protect the panel and place the product face down.
3. Hold the main body of the product with your hand. Pull the stand in the direction of the arrow as shown in the figure to separate
it.
Attaching a Wall Mount/Desktop Stand
2
1
A
3
4
B
A
A
Wall/Desktop
Stand Mount
B
B
Wall mount kit/desktop stand (not supplied)
[[ Caution
Important
For the installation of Wall-mount, please don’t use screws longer than 14mm(L14) of longitude.
4. Align wall mount/desktop stand to the Monitor/LED display and firmly fix the wall mount/desktop stand by fastening the screw.
5. Align the groove of the part of the product that is to be connected to the stand with the groove in the stand (desk-top stand, wall
mount stand or another stand) and firmly fix the stand by fastening the screw.
English
38
Other Information
✎✎NOTE
xx If you use screws that are longer than the standard specifications, the inside of the product may be damaged.
xx For wall mounts that are not compatible with the standard VESA specifications, the length of the screw may
differ depending on the corresponding specifications.
xx Avoid using screws that are incompatible with the standard VESA specifications and avoid assembling them
using excessive force. This may result in damage to the product or injury due to the product falling. Samsung
shall not be held liable for any damage or injury.
xx Samsung shall not be held liable for any damage to the product or injury caused by using a wall mount/desktop
stand that is not compatible with the specifications or due to an installation not performed by an authorized
installation engineer.
xx When installing the product using a wall mount, purchase a wall mount that provides at least 10 cm (3.93
inches) of space from the wall.
xx Use the wall mount according to the international specifications.
Anti-theft Kensington Lock
The Kensington Lock is not supplied by Samsung. It is a device used to physically fix the
system when using it in a public place. The appearance and locking method may differ
from the illustration depending on the manufacturer. Refer to the manual provided with the
Kensington Lock for additional information on proper use.
<TV Rear>
1
✎✎Please find a “K” icon on the rear of the LED display. A kensington slot is
beside the “K” icon.
To lock the product, follow these steps:
1. Wrap the Kensington lock cable around a large, stationary object such as desk or
chair.
<Optional>
2. Slide the end of the cable with the lock attached through the looped end of the
Kensington lock cable.
3. Insert the locking device into the Kensington slot on the product (1).
4. Lock the lock.
✎✎These are general instructions. For exact instructions, see the User manual supplied with the locking device.
✎✎The locking device has to be purchased separately.
✎✎The location of the Kensington slot may be different depending on the LED display model.
English
39
Other Information
Troubleshooting
If you have any questions about the LED display, first refer to this list. If none of these troubleshooting tips apply, please visit
“www.samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual.
Issues
Solutions and Explanations
Picture Quality
First of all, please perform the Picture Test and confirm that your LED display is properly displaying test
image. (go to MENU - Support - Self Diagnosis - Picture Test) If the test image is properly displayed, the
poor picture may caused by the source or signal.
The LED display image does not look as
good as it did in the store.
• If you have an analogue cable/set top box, upgrade to a digital set top box. Use HDMI to deliver HD
(high definition) picture quality.
• Cable/Satellite subscribers: Try HD stations from the channel line up.
• Antenna connection: Try HD stations after performing Auto tuning.
✎✎ Many HD channels are up scaled from SD(Standard Definition) contents.
• Adjust the Cable/Set top box video output resolution to 1080i or 720p.
• Make sure you are watching the LED display at the minimum recommended distance based on the
size and definition of the signal.
The picture is distorted: macroblock error,
small block, dots, pixelization
• Compression of video contents may cause picture distortion especially in fast moving pictures such
as sports and action movies.
• Low signal level or bad quality can cause picture distortion. This is not a LED display issue.
• Mobile phones used close to the LED display (cca up to 1m) may cause noise in picture on analogue
and digital LED display.
There is poor colour or brightness.
• Adjust the Picture options in the LED display menu. (go to Picture Mode / Colour / Brightness /
Sharpness)
• Adjust Energy Saving option in the LED display menu. (go to MENU - System - Eco Solution Energy Saving)
• Try resetting the picture to view the default picture settings. (go to MENU - Picture - Reset Picture)
There is a dotted line on the edge of the
screen.
• If the picture size is set to Screen Fit, change it to 16:9.
• Change cable/satellite box resolution.
When changing channels, the picture
freezes or is distorted or delayed.
• If connected with a cable box, please try to reset the cable box. Reconnect the AC cord and wait until
the cable box reboots. It may take up to 20 minutes.
• Set the output resolution of the cable box to 1080i or 720p.
Sound Quality
First of all, please perform the Sound Test to confirm that your LED display audio is properly operating. (go
to MENU - Support - Self Diagnosis - Sound Test)
If the audio is OK, the sound problem may caused by the source or signal.
There is no sound or the sound is too low
at maximum volume.
• Please check the volume of the device (Cable/Sat Box, DVD, Blu-ray etc) connected to your LED
display.
The picture is good but there is no sound.
• If you are using a DVI to HDMI cable, LED display set does not support audio.
• Reboot the connected device by reconnecting the device’s power cable.
• If your LED display has a headphone jack, make sure there is nothing plugged into it.
The speakers are making an inappropriate
noise.
• For antenna or cable connections, check the signal strength. Low signal level may cause sound
distortion.
No Picture, No Video
The LED display will not turn on.
• Make sure the AC power cord is securely plugged in to the wall outlet and the LED display.
• Make sure the wall outlet is working.
• Try pressing the POWER button on the LED display to make sure the problem is not the remote. If the
LED display turns on, refer to “The remote control does not work” below.
The LED display turns off automatically.
•
•
•
•
Ensure the Sleep Timer is set to Off in the Time menu.
If your PC is connected to the LED display, check your PC power settings.
Make sure the AC power cord is plugged in securely to the wall outlet and the LED display.
When watching LED display from an antenna or cable connection, the LED display will turn off after
15 ~ 60 minutes if there is no signal.
English
40
Other Information
Issues
There is no picture/video.
Solutions and Explanations
• Check cable connections (remove and reconnect all cables connected to the LED display and
external devices).
• Set your external devices’ (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the
connections to the LED display input. For example, if an external device’s output is HDMI, it should be
connected to an HDMI input on the LED display.
• Make sure your connected devices are powered on.
• Be sure to select the LED display correct source by pressing the SOURCE button on the LED display
remote.
• Reboot the connected device by reconnecting the device’s power cable.
RF(Cable/Antenna) Connection
The LED display is not receiving all
channels.
• Make sure the Antenna cable is connected securely.
• Please try Setup (Initial setup) to add available channels to the channel list. Go to MENU - System Setup (Initial setup) and wait for all available channels to be stored.
• Verify the Antenna is positioned correctly.
The picture is distorted: macro block error
small block, dots, pixelization.
• Compression of video contents may cause picture distortion, especially on fast moving pictures such
as sports and action movies.
• A low signal can cause picture distortion. This is not a LED display issue.
Others
The picture will not display in full screen.
• HD channels will have black bars on either side of the screen when displaying up scaled SD (4:3)
contents.
• Black bars on the top and bottom will appear during movies that have aspect ratios different from
your LED display.
• Adjust the picture size options on your external device or LED display to full screen.
The remote control does not work.
• Replace the remote control batteries with the poles (+/–) in the right direction.
• Clean the sensor’s transmission window on the remote.
• Try pointing the remote directly at the LED display from 5~6 feet away.
The cable/set top box remote control
doesn’t turn the LED display on or off, or
adjust the volume.
• Programme the Cable/Set top box remote control to operate the LED display. Refer to the Cable/Set
user manual for the SAMSUNG LED display code.
A “Mode Not Supported” message
appears.
• Check the supported resolution of the LED display, and adjust the external device’s output resolution
accordingly.
There is a plastic smell from the LED
display.
• This smell is normal and will dissipate over time.
The LED display Signal Information is
unavailable in the Self Diagnosis Test
menu.
• This function is only available with digital channels from an Antenna / RF / Coax connection.
LED display is tilted to the right or left side.
• Remove the stand base from the LED display and reassemble it.
There are difficulties assembling the stand
base.
• Make sure the LED display is placed on a flat surface. If you can not remove the screws from the LED
display, please use a magnetized screw driver.
The Channel menu is grey out
(unavailable).
• The Channel menu is only available when the LED display source is selected.
Your settings are lost after 30 minutes or
every time the LED display is turned off.
• If the LED display is in the Store Demo mode, it will reset audio and picture settings every 30
minutes. Change the settings from Store Demo mode to Home Use mode in the Setup (Initial setup)
procedure. Press the SOURCE button to select TV mode, and go to MENU → System → Setup
(Initial setup) → ENTERE.
You have intermittent loss of audio or
video.
• Check the cable connections and reconnect them.
• Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables
are flexible enough for long term use. If mounting the LED display to the wall, we recommend using
cables with 90 degree connectors.
You see small particles when you look
closely at the edge of the frame of the LED
display.
• This is part of the product’s design and is not a defect.
English
41
Other Information
Issues
Solutions and Explanations
The PIP menu is not available.
• PIP functionality is only available when you are using a HDMI/DVI or Component source.
There are recurrent picture/sound issues.
• Check and change the signal/source.
A reaction may occur between the rubber
cushion pads on the base stand and the
top finish of some furniture.
• To prevent this, use felt pads on any surface of the LED display that comes in direct contact with
furniture.
✎ This panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However,
there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the
product.skrhk
¦ Storage and Maintenance
✎ If you attched some stickers on the LED display screen, it remains some debris after removing the sticker. Please
clean it to watch LED display.
✎ The exterior and screen of the product can get scratched during cleaning. Be sure to wipe the exterior and screen
carefully using the cloth provided or a soft cloth to prevent scratches.
Do not spray water or a cleaning agent directly onto the product. Clean the product with a soft cloth dapped in a small amount of
Any liquid that goes into the product may cause a failure, fire, or water.
electric shock.
[ CAUTION
If the height of " A " on one side is different from the other side,
adjust the heights.
English
42
Other Information
¦¦ Licence
TheaterSound HD, SRS and the
symbol are trademarks of SRS Labs, Inc.
TheaterSound HD technology is incorporated under licence from SRS Labs, Inc.
Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
2.0 Channel
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and
worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered
trademarks & DTS 2.0 Channel is a trademarks of DTS, Inc. Product includes software. © DTS, Inc. All
Rights Reserved.
DivX Certified to play DivX video up to HD 1080p, including premium content.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays DivX video. Visit www.divx.
com for more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content.
To generate the registration code, locate the DivX VOD section in the device setup menu.
Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274
Open source licence notice
In the case of using open source software, Open Source licence are available on the product menu.
Open Source Licence Notice is written only English.
English
43
Other Information
Specifications
Environmental
considerations
Operating
Temperature : 50°F ~ 104°F (10°C ~ 40°C)
Humidity : 10 % ~ 80 %, non-condensing
Storage
Temperature : -4°F ~ 113°F (-20°C ~ 45°C)
Humidity : 5 % ~ 95 %, non-condensing
Tilt
-1°(±2°) ~ 20°(±2°)
Model Name
Screen Size (Diagonal)
VESA Mounting Interface
Display Resolution
Sound (Output)
Weight
75 mm x 75 mm (2.95 inches x 2.95 inches)
1920 x 1080 @ 60Hz
Power Consumption
Normal operation
Standby
Dimensions
(WxDxH)
T24B301
23.6 inch (59 cm)
40W
<0.5W
5Wx2
(Without Stand)
569.2 x 49 x 349.4 mm
(22.4 x 1.92 x 13.8 inches)
(With Stand)
569.2 x 195 x 428 mm
(22.4 x 7.7 x 16.9 inches)
(Without Stand)
4.25 kg (9.4 Ibs)
(With Stand)
4.5 kg (9.9 Ibs)
✎✎NOTE
xx Design and specifications are subject to change without prior notice.
xx For information about power supply, and more about power consumption, refer to the label attached to the product.
xx Some models may not be available for purchase depending on the region.
xx If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected.
English
44
Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.
Country
Customer Care Centre
Web Site
AUSTRALIA
1300 362 603
www.samsung.com
NEW ZEALAND
0800 SAMSUNG (0800 726 786)
www.samsung.com
CHINA
400-810-5858
http://www.samsung.com
HONG KONG
(852) 3698 4698
www.samsung.com/hk (Chinese)
www.samsung.com/hk_en (English)
INDIA
1800 1100 11
3030 8282
1800 3000 8282
1800 266 8282
www.samsung.com
INDONESIA
0800-112-8888
021-5699-7777
www.samsung.com
JAPAN
0120-327-527
www.samsung.com
MALAYSIA
1800-88-9999
www.samsung.com
PHILIPPINES
1-800-10-SAMSUNG(726-7864) for PLDT
1-800-3-SAMSUNG(726-7864) for Digitel
1-800-8-SAMSUNG(726-7864) for Globe
02-5805777
www.samsung.com
SINGAPORE
1800-SAMSUNG(726-7864)
www.samsung.com
THAILAND
1800-29-3232
02-689-3232
www.samsung.com
TAIWAN
0800-329-999
0266-026-066
www.samsung.com
VIETNAM
1 800 588 889
www.samsung.com
GEORGIA
0-800-555-555
www.samsung.com
ARMENIA
0-800-05-555
www.samsung.com
AZERBAIJAN
088-55-55-555
www.samsung.com
UZBEKISTAN
8-10-800-500-55-500
www.samsung.com
KYRGYZSTAN
00-800-500-55-500
www.samsung.com
TADJIKISTAN
8-10-800-500-55-500
www.samsung.com
MONGOLIA
+7-800-555-55-55
www.samsung.com
BELARUS
810-800-500-55-500
www.samsung.com
MOLDOVA
0-800-614-40
www.samsung.com
© 2012 Samsung Electronics Co., Ltd. All rights reserved.
BN46-00276A-03
Download PDF

advertising
