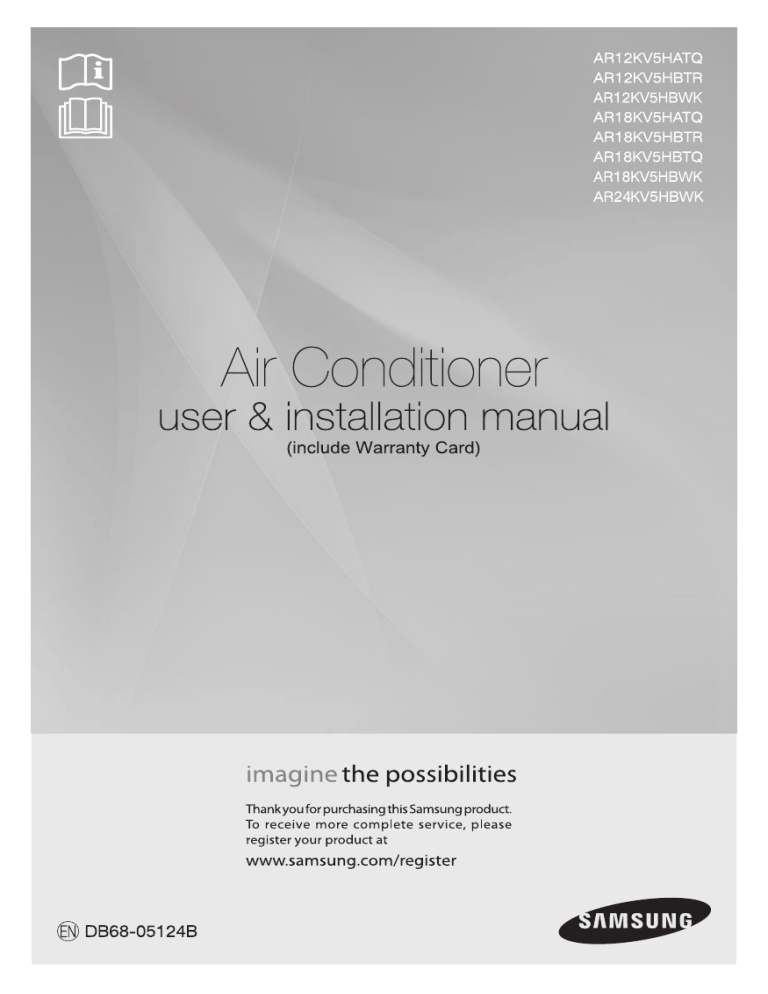

 EN DB68-05124B
imagine the possibilities
Thankyou for purchasing this Samsung product.
To receive more complete service, please
register your product at
www.samsung.com/register
AR12KV5HATQ
AR12KV5HBTR
AR12KV5HBWK
AR18KV5HATQ
AR18KV5HBTR
AR18KV5HBTQ
AR18KV5HBWK
AR24KV5HBWK
Features of your new air conditioner
| 2-Step cooling
2-Step cooling function will quickly cool the room to reach the desired temperature and then it
will adjust the fan speed and air flow direction automatically to help you stay comfortable and
refreshed.
| Fast cooling
If you want the strong and cool air, just select Fast function! It will get you the strongest air!
| Comfort cooling
If you want the comfortable and refreshing air, Comfort function will spread the cool air indirectly to
you, so that you can stay comfortable.
| Single User
Use Single User function when you are alone at home. This function will set the temperature range
limit to help you save energy while the air conditioner is operating in Cool mode.
| good’sleep function
good’sleep function will allow you to have deep, good night's sleep by adjusting the
temperature, fan speed and air flow direction.
| Smart Install
When the installation is done, your product will examine itself through trial operation to check if it
was installed properly.
| Easy Installation
It's so easy to install! You can easily hang the product on the wall and connect the pipes and wires
by opening the cover on the bottom of the product. Now you won't have to tilt the product to
connect the pipe and the wires!
Contents
Preparation
NY yo =e PL) à reee recccocc e. 4
Checking before Use ................eeeerrccscoorercococcccccccarrrer PP 11
Basic function
Checking the name ofthe parts ...............ee...essrreccsccciocccrrreooeaccrre. ee cccerrcoseeoce nana anne nanas aan ne nn 000 12
Checking the remote controller ................e....erreeccccccouccrrrececacarrreoco ccoo roca oo oocer eee. 13
572 1 Tal 1 et 1 oo eee reccoccccrr e eeeeorerecocccocrrrrero eee 15
Adjusting the air flow direction. ......................-ccocccccrrirrseooocooooccocccacerr rro eccccce ree. 17
Timer
Setting the On/Off timer .............eeeee.rerc2c0000caccccccccaciie. ooo oo aa acccccecacererrrco ooo aacccceeeee oe. 18
good'sleep MOde ............eeeeececsooroccccercacrosrocccacarecrronocaaaareorcarcacaasreorcarea reso rearesrea reee 20
Options
2-Step cooling function ..................ereeeessrcsrerocococccccoacece erro oocacecroreee e ererrrrcoccccoc eee 21
Using the Fastfunction.................wrr—r_eceerrrrsssveccoccccorooccccc cero reconocer rrrrreroo rece 22
Using the Comfort function ..................eeeeessracrcrea ooo o eran ecececaneer eee oooooaaeccececenerrrrrooorooaaaccee 22
Using the Single User function .................eecccsrsrccccsccrirsccecacrececacecerecocacee re e ccecerecocrcacereeoaace. 23
Using the Quiet function ...................-rcceoccccrrrroreoceceorrococecacacrrrrroo coo o cocoa rre 24
Setting
Using the Auto Clean function. .................eeeesrrrrcsccccrrrrcecccareos recaer oo caerreococoorrreeeccc ecc. 25
Setting the Beep sound ...................eseoocccrcorccacrerococcaseroceoceaerroocec carrer ccca o occoorroo ooo. 25
Others
Cleaning the air conditioner...................ee..esesssrcccccrceaereoccereo acero eco ooaerrecceooaaarececacrcecee ne 26
Maintaining the air conditioner..................eee.cccssccccrccccconcerreoeeacorr eee cocer recocerecesreceer eee. 29
Troubleshooting ...............ee.e.eeeesesrrreccccccrrrercecccerr ere ececerreo ooo co caorrreococcorrereocece ee 30
Installation
Safety precautions ..................eeeeeonceccscrrreooocerecoccccanarrcr PP 32
Choosing the installation location ..................eec..erecccscccercec coreo ocaso sea o caarearea eo ecarecacasrcoo cane. 33
Accessories ...........e.eeecooscorcocccocrcearrorocarcarcoarecaceaacesrreroanecarecrroarcancearrroroaeeaeas rene 37
Fixing the installation plate....................eeceerdssssccccrece ceo eocarrreeo eee rocecoce e reoecc eee 38
Connecting the assembly cable .......................00000ccccccccrrrireceo ooo eeeecoccoco erre ececccco e 39
Installing and connecting the assembly pipe of the indoor unit ...............ee.....cs00000000cccccceei reee ooo nace 41
Еуасцайтпд {Пе !ф00г ит oca a carr recerececarreocaeo acarrea eee. 42
Cutting or extending the pipe.…….…...............…..….ssseeeecese naar nec e anna s eee een nana ace annee een en nana acc c canne 42
Installing and connecting the drain hose of the indoor unit... ree, 44
Changing direction of the drain hose......................ssdeccccurcririseeeooooacececcceceeerrrre ooo aa accccccea eee 45
Evacuating the connected pipes. ..................e.ecescscsccorrcccree ccoo career ca oo ocerrascoreoecareerene cea 46
Performing the gas leaktests...................eeecsrcccccucrrrooccccacsrrrocececererrorocecree caera 48
Fixing the indoor unitin place..................ee.ee.ecsc0ucrrrcccocacrrrcoc occ reccecrr e eee ooo 49
Fixing the outdoor unitin place ................eeee..eccccc0rirecccccoerroonecccrro en ecacrroe a coareooeocearr eee 49
Smart Install mode................ee.e.eeescccccrerocereoccereeee eee oocareoecaoooarerecasrocccareoces ea acarereca e 50
Final check and trial operation. ................c.errrrreesccccrrroscercocorrrree e eccorrrooce aa cena none nee c en n acc e 000 52
Pump down procedure (when removing the product) ......................-rcocccrccrcocacioseoccarreco cocer eee 52
How to connect your extended power cables. ...................ccccescrrrcoscccccie. encore oc carrcoc eo conoce 53
Safety precautions
Before using your new air conditioner, please read this manual thoroughly to ensure
that you know how to safely and efficiently operate the extensive features and
functions of your new appliance.
Because the following operating instructions cover various models, the
characteristics of your air conditioner may differ slightly from those described in this
manual. If you have any questions, call your nearest contact center or find help and
information online at www.samsung.com.
Important safety symbols and precautions:
Hazards or unsafe practices that may result in severe
A WARNING personal injury or death.
Hazards or unsafe practices that may result in minor
A CAUTION personal injury or property damage.
о Follow directions. | © Unplu the al plug from
O Do NOT attempt. |
® Do NOT disassemble.
o Make sure the machine is grounded to prevent electric shock.
FOR INSTALLATION — |4\ WARNING
Plug the power cord into a wall socket with the power specifications of the
product or higher and use the socket for this appliance only. In addition, do
not use an extension cord.
D Sharing a wall socket with other appliances using a power strip or extending
the power cord may result in electric shock or fire.
» Do not use an electric transformer. It may result in electric shock or fire.
D If the voltage/frequency/rated current condition is different, it may cause
fire.
The installation of this appliance must be performed by a qualified
technician or service company.
» Failure to do so may result in electric shock, fire, explosion, problems with the
product, or injury.
Install a switch and circuit breaker dedicated to the air conditioner.
D Failure to do so may result in electric shock or fire.
Fix the outdoor unit firmly so that the electric part of the outdoor unit is not
exposed.
№ Failure to do so may result in electric shock or fire.
Q Do notinstall this appliance near a heater, inflammable material. Do
not install this appliance in a humid, oily or dusty location, in a location
exposed to direct sunlight and water (rain drops). Do not install this
appliance in a location where gas may leak.
№ This may result in electric shock or fire.
Never install the outdoor unit in a location such as on a high external wall
where it could fall.
» If the outdoor unit falls, it may result in injury, death or property damage.
@ This appliance must be properly grounded. Do not ground the appliance to a
gas pipe, plastic water pipe, or telephone line.
» Failure to do so may result in electric shock, fire, an explosion, or other
problems with the product.
№ Never plug the power cord into a socket that is not grounded correctly and
make sure that it is in accordance with local and national codes.
NOILYdVd3dd 10
FOR INSTALLATION ~~ |/AA CAUTION
O This appliance should be positioned in such a way that it is accessible to the
power plug.
» Failing to do so may result in electric shock or fire due to electric leakage.
Install your appliance on a level and hard floor that can support its weight.
» Failure to do so may result in abnormal vibrations, noise, or problems with the
product.
Install the draining hose properly so that water is drained correctly.
» Failure to do so may result in water overflowing and property damage.
When installing the outdoor unit, make sure to connect the draining hose
so that draining is performed correctly.
D The water generated during the heating operation by the outdoor unit may
overflow and result in property damage.
In particular, in winter, if a block of ice falls, it may result in injury, death or property
damage.
Safety precautions
FOR POWER SUPPLY |4\ WARNING
O Remove all foreign substances such as dust or water from the power plug
terminals and contact points using a dry cloth on a regular basis.
» Unplug the power plug and clean it with a dry cloth.
» Failing to do so may result in electric shock or fire.
Plug the power plug into the wall socket in the right direction so that the
cord runs towards the floor.
№ If you plug the power plug into the socket in the opposite direction, the
electric wires within the cable may be damaged and this may result in electric
shock or fire.
When the appliance or power plug or power cord is damaged, contact your
nearest service center.
Q Plug the power plug into the wall socket firmly. Do not use a damaged
power plug, damaged power cord or loose wall socket.
D> This may result in electric shock or fire.
Do not pull the power cord, when unplugging the power plug.
№ Unplug the power plug by holding the plug.
P Failing to do so may result in electric shock or fire.
Do not pull or excessively bend the power cord, Do not twist or tie the
power cord. Do not hook the power cord over a metal object, place a heavy
object on the power cord, insert the power cord between objects, or push
the power cord into the space behind the appliance.
№ This may result in electric shock or fire.
FOR POWER SUPPLY |A\ CAUTION
@ When not using the air conditioner for a long period of time or during a
thunder/lightning storm, cut the power at the circuit breaker.
» Failure to do so may result in electric shock or fire.
FOR USING | À WARNING
© Ifthe appliance is flooded, please contact your nearest service center.
» Failure to do so may result in electric shock or fire.
If the appliance generates a strange noise, a burning smell or smoke,
unplug the power plug immediately and contact your nearest service
center.
» Failure to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate
immediately without touching the power line. Do not touch the appliance
or power line.
» Do not use a ventilating fan.
D A spark may result in an explosion or fire.
To reinstall the air conditioner, please contact your nearest service center.
D> Failure to do so may result in problems with the product, water leakage,
electric shock, or fire.
» A delivery service for the product is not provided. If you reinstall the product in
another location, additional construction expenses and an installation fee will
be charged.
» Especially, when you wish to install the product in an unusual location such as
in an industrial area or near the seaside where it is exposed to the salt in the air,
please contact your nearest service center.
С) Do not touch the power plug or the circuit breaker with wet hands.
№ This may result in electric shock.
Do not unplug the power plug or turn the air conditioner off with the circuit
breaker while it is operating.
» Plugging the power plug into the wall outlet or turning the air conditioner on
from the circuit breaker may cause a spark and result in electric shock or fire.
After unpacking the air conditioner, keep all packaging materials well
out of the reach of children, as packaging materials can be dangerous to
children.
№ Ifa child places a bag over its head, it may result in suffocation.
NOILYdVd3dd 10
Safety precautions
FOR USING | À WARNING
O Donotinsert your fingers or foreign substances into the outlet when the air
conditioner is operating.
D> Take special care that children do not injure themselves by inserting their
fingers into the product.
Do not touch the air flow blade with your hands or fingers during the
heating operation.
№ This may result in electric shock or burns.
Do not insert your fingers or foreign substances into the air inlet/outlet of
the air conditioner.
№ Take special care that children do not injure themselves by inserting their
fingers into the product.
Do not strike or pull the air conditioner with excessive force.
D This may result in fire, injury, or problems with the product.
Do not place an object near the outdoor unit that allows children to climb
onto the machine.
D This may result in children seriously injuring themselves.
Do not use this air conditioner for long periods of time in badly ventilated
locations or near infirm people.
№ Since this may be dangerous due to a lack of oxygen, Open a window at least
once an hour.
® If any foreign substance such as water has entered the appliance, cut the
power by unplugging the power plug and turning the circuit breaker off
and then contact your nearest service center.
№ Failure to do so may result in electric shock or fire.
@ Do not attempt to repair, disassemble, or modify the appliance yourself.
» Do not use any fuse (such as cooper, steel wire, etc)other than the standard
fuse.
» Failure to do so may result in electric shock, fire, problems with the product, or
injury.
FOR USING | ACAUTION
@ Do not place objects or devices under the indoor unit.
» Water dripping from the indoor unit may result in fire or property damage.
Check that the installation frame of the outdoor unit is not broken at least
once a year.
№ Failure to do so may result in injury, death or property damage.
Max current is measured according to IEC standard for safety and current is
measured according to ISO standard for energy efficiency.
Q Do not stand on top of the appliance or place objects (such as laundry,
lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on
the appliance.
№ This may result in electric shock, fire, problems with the product, or injury.
Do not operate the appliance with wet hands.
» This may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the
appliance.
D As well as being harmful to humans, it may also result in electric shock, fire or
problems with the product.
Do not drink the water from the air conditioner.
D The water may be harmful to humans.
Do not apply a strong impact to the remote controller and do not
disassemble the remote controller.
Do not touch the pipes connected with the product.
№ This may result in burns or injury.
Do not use this air conditioner to preserve precision equipment, food,
animals, plants or cosmetics, or for any other unusual purposes.
D This may result in property damage.
Avoid directly exposing humans, animals or plants from the air flow from
the air conditioner for long periods of time.
D This may result in harm to humans, animals or plants.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
NOILVYVd]3dd 10
Safety precautions
FORCLEANING |AAWARNING
Q Do not clean the appliance by spraying water directly onto it. Do not use
benzene, thinner or alcohol to clean the appliance.
» This may result in discoloration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the air conditioner
from the wall socket and wait until the fan stops.
» Failure to do so may result in electric shock or fire.
FORCLEANING |ACAUTION
@ Take care when cleaning the surface of the heat exchanger of the outdoor
unit since it has sharp edges.
» To avoid cutting your fingers, wear thick cotton gloves when cleaning it.
Q Do not clean the inside of the air conditioner by yourself.
D For cleaning inside the appliance, contact your nearest service center.
D When cleaning the internal filter, refer to the descriptions in the ‘Cleaning the
air conditioner section.
№ Failure to do may result in damage, electric shock or fire.
10
Checking before use
| Operation ranges
The table below indicates the temperature and humidity ranges the air
conditioner can be operated within. Refer to the table below for efficient use. -
Моде Indoor temperature Outdoor temperature Indoor humidity :
Cooling 16°C~30°C 15°C~52°C Relative humidity 80% or less a
Dry 18°C-30°C 15°C-52°C - =
» If the air conditioner operates in cooling mode for long period of time in high humidity area, dew may be formed.
| Maintaining your air conditioner
Internal protection via the unit control system
» This internal protection operates if an internal fault occurs in the air conditioner.
Type Description
Anti-protection of internal The compressor will be off to protect internal knock when the air conditioner operates in
knock Cool mode.
Protect compressor The air conditioner does not start operating immediately to protect the compressor of
the outdoor unit after it has been started.
| Smart install
» Through Smart install function, installer can check if the installation was done properly.
» If the installation was not done properly, an error message will appear on the indoor unit display. Thus, the user will know
whether the unit was installed properly or not, and what problems may have occurred during installation.
11
Checking the name of the parts
Your air conditioner may slightly look different from illustration shown below depending on your model.
| Main parts
Room
temperature
sensor
Air filter (under the panel) Air intake
——
NS Vs
1 FN + `
м” LN Ls” Lo $ и
4
VITA —————
LA) V x
5 EN
Air flow blade Blade pin lever | isplav P b
(up and down) (left and right) Display, Power button
and Remote controller receiver
| Display
y
good’sleep indicator
Timer indicator
Remote controller receiver
Operation indicator
1)——— Power (1) button
N J
12
Checking the remote controller
e Point the remote controller towards the remote controller receiver of the indoor unit.
- When you properly press the button on the remote controller, you will hear beep sound from the indoor unit and a transmit
indicator( 4) appears on the remote controller display.
| Remote controller buttons S
o
>
7
MN
"Ti
<
<
MN
(7 N =
©
=
i Vertical air swing
\_ J
Activate/Deactivate vertical air flow
blade movement automatically
' Mode
Set one of the 4 operating modes
conditioner
AG [7
Temp +- ! emp Fan I Fanwv A
Increase/Decrease the в Ч Vv Adjust the fan speed
temperature by 1°C. J)
Options i Single User
Select options during operation q Turn on/off the Single User function
Ti = which reduces energy usage while
"mer | | operating in cool mode.
Select Timer option Settings
es Зе > Select settings
Y 1 SET
Set/Cancel the selected option or
setting
Turn on/off the air
Power ©) | ©
\
Directional <>
Move through the Timer,
Options or Settings menu to
make a selection
| * In case you wish to cancel the options or settings that you have just set, press the Options or Settings button
NOTE again, then the most recently selected item will blink and you may simply cancel it by pressing the SET button
while selected item is blinking.
13
Checking the remote controller
| Remote controller display
Ne
Operation mode -—
indicator
Set temperature/Time (for -—
Timer option) indicator
good'sleep indicator —
Options indicator FF
AER ВЕ les
Set ua ace
ne iF
:2-Step Fast enr,
Single userQuiet oe, !
:d'light Cool 000!
— Transmit indicator
— Low battery indicator
— Fan speed indicator
— Vertical air swing indicator
Settings indicator
|. Make sure that the water does not get to the remote controller.
cAUTION * Heat mode / Virus Doctor / d'light Cool / Usage / Filter Reset / Display function is displayed on the remote
controller display but not supported in this model.
« When turning off and turning on the remote controller, the Timer, Options and Settings set before turning off the
remote controller are cancelled. However, the fan direction does not change.
Low Battery warning
Inserting the batteries
When the battery is exhausted,(£Z3) will be displayed in the
remote controller display. When the icon appears, change
the batteries. The remote controller requires two 1.5V AAA
type batteries.
Storing the remote controller
2. Inserttwo AAA
3. Close the cover by place it back to its original position.
When you do not use the remote controller for long time,
remove the batteries from the remote controller and store it.
batteries.
Check and match the “+” and “-" signs accordingly. Make sure
you have inserted the batteries in correct position.
1. Push the lever as arrow indicates on the rear side of the
remote controller and pull up.
You should hear click sound when the cover is locked properly.
(= |
N
* The signal may not be received properly if electronic flourescent lamps such as inverter flourescent lamps are
NOTE operating in the same space.
* If other electrical products operate by the remote controller, call your nearest contact center.
J
E
| Your local, free battery return system.
Correct disposal of batteries in this product
(Applicable in countries with separate collection systems)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household
waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium
or lead above the reference levels in EC Directive 2006/66.
If batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through
14
N
Basic function
Basic operation is an operation mode that can be selected by pressing the Mode button.
| Auto
In Auto mode, the air conditioner will automatically set the temperature and fan speed depending on the room
temperature.
| Cool
In Cool mode, the air conditioner will cool your room. You can adjust the temperature and the fan speed to feel cooler in
hot season.
* If current outside temperature is much higher than the selected indoor temperature, it may take time to bring the inner
temperature to the desired coolness.
NOILINN1DISVA CO
Dry
The air conditioner in Dry mode acts like a dehumidifier by removing moisture from the indoor air.
Dry mode makes the air feel refreshing in a humid climate.
To activate the Dry mode, set temperature on the remote controller should be lower than indoor room temperature.
Fan
Fan mode can be selected to circulate your room. Fan mode will be helpful to refresh the stale air in your room.
15
Basic function
Dry
“==
vt
% Heat mode can be selected, displayed in the remote controller and make a beep sound when selected, but the air
conditioner is not actually operating in selected mode.
fo
Press the [| button to adjust the temperature.
Auto You can adjust the set temperature by 1 °C within the range of 16 °C~30 °C.
Cool You can adjust the set temperature by 1 °C within the range of 16 °C~30 °C.
Dry You can adjust the set temperature by 1 °C within the range of 18 °C~30 °C.
Fan Temperature adjustment is not possible.
AN
Press the |r| button to set the desired fan speed.
IV)
Auto 2 (Auto)
Cool E (Auto) E (Low, E (Med, 2 (High), 2 Turbo
Dry 2 (Auto)
Fan ab (Low), 2 (Med), + (High), $ (Turbo)
16
Adjusting the air flow direction
Air flow can be directed to your desired position.
| Vertical air flow
This function will allow you to adjust the air flow direction vertically.
» To keep the air flow direction in a constant direction, press the €) button again.
The air flow blade(s) will stop the movement.
» If you adjust the vertical air flow blade manually, it may not close completely when you
turn off the air conditioner.
NOILINN1DISVA CO
in cool mode.
BEG foe) | |. Adjusting the air flow direction is not available in good'sleep mode while it is |
МОТЕ
| Auto
Set um. ог =
LI 5
aan (=
Remote controller display
| Horizontal air flow
Move the blade pin lever left or right to keep the air flow direction in a constant
position you prefer.
I, Be extremely careful with your fingers while adjusting the
caUTION Horizontal air flow direction. There is a potential risk of personal
injury when the unit is mishandled.
17
Setting the On/Off timer
| Setting the On timer
When the air conditioner is off;
> 1. Press the Timer button to select (On).
So - (On) indicator will keep blinking and you can set the time.
2. Pressthe button to set the time.
(Timer) - You can set the time in half hour unit from 30 minutes (0.5 on the display) ~
3 hours and hour unit from 3~24 hours.
- Time can be set from minimum 30 minutes to maximum 24 hours.
3. Press the SET button to complete the On timer setting.
= - (On) indicator and the set time of the timer will be displayed on the remote
и в controller display and the Timer indicator (3) will be displayed on the indoor
Г ) unit display.
- On timer setting will be cancelled if you don't press the SET button within
10 seconds after setting the time. Therefore, check for the (On) indicator on the
remote controller display and the Timer indicator (33) on the indoor unit display.
Cancel » Press the Timer button — select (On) > press the or button
— set the timer to 111 — press the SET button.
On
\,
Remote controller display
Additional options available in On/Off time mode (When the remote controller is on)
You can select from Auto/Cool/Dry/Fan.
a
Temp You can adjust the temperature in Auto/Cool/Dry mode.
|
Fan You can adjust the fan speed in Cool/Fan mode.
\/ À
. . RR
й Г. When On timer setting is completed, the set status will be displayed for 3 seconds, and then only (On)
NOTE indicator will remain on the remote controller display thereafter.
- Ifyou press the Power () button on the indoor unit after setting the On timer from the remote controller,
Timer indicator on the indoor unit display will disappear and the On timer will be cancelled. Even though the
On timer is cancelled, (On) indicator on the remote controller will remain displayed.
- When the On timer is set while the air conditioner is off, Timer indicator (3) will be displayed and remain on
_ until the On timer turns on. В
18
| Setting the Off timer
When the air conditioner is on;
1. Press the Timer button to select (Off). &
© (5) 9 - (Off) indicator will keep blinking and you can set the time. =
2. Pressthe button to set the time. =
- You can set the time in half hour unit from 30 minutes (0.5 on the display) ~
Ш 3 hours and hour unit from 3~24 hours.
- Time can be set from minimum 30 minutes to maximum 24 hours.
3. Press the SET button to complete the Off timer setting.
- (Off) indicator and the set time of the timer will be displayed on the remote
> controller display and the Timer indicator (3) will be displayed on the indoor
to | unit display. | | | | N
- Off timer setting will be cancelled if you don't press the SET button within
Set 1 | fc — 10 seconds after setting the time. Therefore, check for the (Off) indicator on the
off = or remote controller display and the Timer indicator (3) on the indoor unit display.
Cancel ” Press the Timer button — select (Off) > press the or button
— set the timer to 11 — press the SET button.
| ) С | в
« El - Off timer may not work depending on the On/Off status of the indoor
NOTE unit and the On/Off status of the indicator on the remote controller
Remote controller display display.
* Only the latest setting timer will be applied between the On Timer/Off
Timer and good’ sleep Off timer functions.
- After setting the timer, the set time will be displayed for 3 seconds
before it disappears.
\_ J
Combining On Timer and Off Timer
When the air conditioner is off When the air conditioner is on
When set time on On timer is shorter than Off timer When set time on On timer is longer than Off timer
Ex) On timer : 3 hours, Off timer : 5 hours Ex) On timer : 3 hours, Off timer : 1 hour
- The air conditioner will turn on after 3 hours from the - The air conditioner will turn off after 1 hour from the
moment you have set the timer and the air conditioner will moment you have set the timer and turn on after 2 hours
remain on for 2 hours and then turn off automatically. from the moment it was turned off.
|
El + Set time for the On timer and the Off timer should be different from each other.
NOTE « When the On timer and the Off timer is set, setting can be cancelled by pressing the Power (D button.
19
J
good’sleep mode
For a comfortable sleep, the air conditioner will operate in 3 stages in order of Fall asleep > Sound sleep [> Wake up stage.
When the air conditioner is operating in Cool/Heat mode;
1. Press the Timer button to select (32) .
5 - (4) indicator will keep blinking and you can set the time.
1 2. Pressthe button to set the time.
- You can set the time in half hour unit from 30 minutes (0.5 on the display) ~
3 hours and hour unit from 3-12 hours.
- Time can be set from minimum 30 minutes to maximum 12 hours.
| - Default time setting for the good’sleep mode is 8 hours.
3. Press the SET button to complete the good’sleep mode setting.
С - \ В - (3) indicator and the set time of the good’sleep mode will be displayed on
Cool | the remote controller display.
Set ww ео) — - good’sleep mode setting will be cancelled if you don't press the SET button within
Off === == 10 seconds after setting the time. Therefore, check for the (:3)) indicator on the
PD Jl ® remote controller display.
Cancel Press the Timer button — select (43) > press the or button
— set the timer to 11 — press the SET button.
В | J
Remote controller display
Additional options available ingood’sleep mode
Temp You can adjust the set temperature by 1 °C within the range of 16 °C~30 °C.
Ps Fan speed will be adjusted automatically according to the good’sleep mode.
Fan > . . . . .
However, If you select good’sleep mode while heating operation is on, you can adjust fan speed.
When the good'sleep mode is on.
Air flow direction will be adjusted automatically.
Temperature and fan speed change in good'sleep mode
* Fall asleep: Eases you into sleep by dropping the temperature.
«Sound sleep: Relaxes your body and raises your temperature slightly.
«Wake up: Allows you to wake up from comfortable intermittent air and it makes you feel refreshed.
« Recommended set temperature is between 25 °C ~ 27 °C for cooling and 21 °C~23 °C for heating. a
NOTE * If the set temperature is too low, you may feel cold during sleep or catch a cold.
« Optimal operation hour of good'sleep mode is 8 hours. Therefore, if the time is set too short or long, you
may not feel as comfortable as you would expect.
* Ifthegood'sleep modeis set over 5 hours, Wake up stage will begin when 1 hour is remaining in the
operation time and the air conditioner will stop automatically.
+ When the On timer and the good'sleep function is set simultaneously, the air conditioner will only apply
the function that was set later.
N
20
2-Step cooling function
2-Step cooling function will set the air conditioner to cool the room quickly to reach the set temperature when the indoor
temperature is higher than the set temperature, and then the air conditioner will automatically operate in Dry mode when
indoor temperature reaches set temperature.
When the air conditioner is operating in Cool mode;
1. Press the Options button.
~
© E v 2. Pressthe (<), or Options button until (2-Step) indicator starts to blink.
3. Press the SET button to set the 2-Step cooling function.
- (2-Step) — (2-Step) indicator will be displayed on the remote controller display
and 2-Step cooling function will begin.
< SET >
Cancel > Press the Options button — press the (<), or Options button to
make the (2-Step) indicator blink and press the SET button.
( N
Cool |
aa
«ED
LI +
2-Step
« = J
Remote controller display
21
SNOILdO #0
Using the Fast function
You can set the Fast function to provide fast and powerful cooling.
When the air conditioner is operating in Cool mode.
1. Press the Options button.
~
© 2. Pressthe , or Options button until (Fast) indicator starts to blink.
3. Press the SET button to set the Fast function.
- (Fast) — (Fast) indicator will be displayed on the remote controller display and
za Fast function will begin.
Cancel » Press the Options button > press the (<), or Options button to
Ne make the (Fast) indicator blink and press the SET button.
, , a
Cool * Fast function is only available in Cool mode.
NOTE —* Vertical air swing can be adjusted.
* Set temperature and fan speed cannot be adjusted.
« If the Fast function is selected while 2-Step cooling / Comfort / Single
user / Quiet /good’sleep function is on, corresponding function will
be cancelled.
|
Fast
Remote controller display
Using the Comfort function
You can set the Comfort function to provide mild cooling.
When the air conditioner is operating in Cool mode.
в 1. Press the Options button.
5 2. Pressthe , or Options button until (Comfort) indicator starts to blink.
3. Press the SET button to set the Comfort function.
= - (Comfort) > (Comfort) indicator will be displayed on the remote controller
display and Comfort function will begin.
Cancel Press the Options button — press the (< J, or Options button to
Na make the (Comfort) indicator blink and press the SET button.
й ) r | — NE D
Cool | + Comfort function is only available in Cool mode.
ran Heat 14 NOTE « Vertical air swing can be adjusted.
on = HE a Set temperature can be adjusted, but fan speed cannot be adjusted.
| + « If the Comfort function is selected while 2-Step cooling / Fast / Single
user / Quiet / good'sleep function is on, corresponding function will
er « be cancelled.
Remote controller display
22
Using the Single User function
This function will reduce the energy usage while the air conditioner is operating in Cool mode.
When the air conditioner is operating in Cool mode.
~ N Press the Single user button on the remote controller.
» (Single user) indicator will be displayed on the remote controller display. Then =
"== == _ _ "will be displayed on the set temperature indicator part for few ©
seconds and Single user function will begin. =
» When the Single user function is on, vertical air swing will turn on automatically. =
» Ifthe current set temperature is lower than 24 °C in Cool mode, it will be
automatically raised to 24 °C.
, 3 Cancel » Press the Single user button once again.
| Cool | | 4 Г — — >
* Single user function is only available in Cool mode.
Set 1 | (с = NOTE - Ifthe Single user function is selected while 2-Step cooling / Fast /
и == Comfort / Quiet / good’sleep function is on, corresponding function
a= (= will be cancelled.
- Vertical air swing will remain on even after the Single user function is
Single user cancelled.
* Select or cancel the Single User function with the Options button.
y J - Press the Options button — press the (<), or Options button
\ q to make (Single user) indicator blink and press the SET button.
Remote controller display
Additional options available in Single user function
You can adjust the set temperature by 1 °C within the range of 24 °C ~ 30 °Cin Cool mode
2 (Auto), æ (Low), = (Med), <P (High), 2 (Turbo) can be selected.
Vertical air swing can be selected.
23
Using the Quiet function
You can reduce the noise generated from an indoor unit during Cool mode.
When the air conditioner is operating in Cool mode;
a | N
в
( >
Cool | |
Set 0"
11 =
(1 $
Quiet
| € J
Remote controller display
1. Press the Options button.
2. Pressthe (XJ, or Options button until (Quiet) indicator starts to blink.
3. Press the SET button to set the Quiet function.
- (Quiet) — (Quiet) indicator will be displayed on the remote controller display and
Quiet function will begin.
Cancel ” Press the Options button > press the (<), or Options button to
make the (Quiet) indicator blink and press the SET button.
Additional options available in Quiet function
sn You can adjust the set temperature by 1 *C within the range of
| 16°C~30°C.
Fan speed is set to = (Auto).
Vertical air swing can be selected.
o Quiet function is only available in Cool mode.
NOTE * |f the Quiet function is selected while 2-Step cooling / Fast / Comfort /
Single user / good'sleep function is on, corresponding function will
be cancelled.
24
Using the Auto Clean function
Auto clean function will minimise the moisture inside of the indoor unit. Activate this function to help provide you with
clean air.
When the air conditioner is operating;
a 1. Press the Settings button.
© 2. Pressthe button until (Clean) indicator starts to blink.
3. Press the SET button to set the Auto clean function.
u When the air conditioner is turned off,
» The Auto clean indicator (C1) on the indoor unit display appears and the Auto
cleaning function runs.
DNILLIS SO
When the air conditioner is turned on,
» The Auto clean indicator (C1) on the indoor unit display appears and the Auto
cleaning function runs after stopping the air conditioner operation.
| — |
L ( Auto cleaning time can vary, depending on the previously used mode.
Auto, Cool, Dry mode: approximately 30 minutes.
\, Fan mode: approximately 15 minutes.
Indoor unit display If Auto clean function is turned on, "C1" displayed in the indoor unit.
After 3 second it will go to the previous setting temperature.
Cancel » Press the Settings button — press the (<], or Settings button
to make the (Clean) indicator blink and press the SET button.
|. When the air conditioner is turned on, the Auto clean function runs after
NOTE stopping the conditioner operation.
Setting the Beep sound
Beep sound from the indoor unit can be muted.
в 1. Press the Settings button.
© 2. Pressthe , or Settings button until (Beep) indicator starts to blink.
3. Press the SET button to mute the beep sound.
- 3 seconds after setting Beep sound function, (Beep) indicator on the remote
controller display will disappear and Beep sound function will stop.
25
Cleaning the air conditioner
A ' Make sure the power is turned off and unplugged from the wall
CAUTION socket when cleaning the air conditioner.
| Cleaning the indoor unit
» Clean the product with a tepid damp cloth.
> Remove the dust accumulated in the gap of the product with a soft
brush.
|, Contact the service center when you clean the indoor unit (llustration may differ slightly
NOTE heat exchanger because it needs to be disassembled. depending on the models)
| « Do not clean the display using alkaline detergent.
CAUTION - Do not use sulfuric acid, hydrochloric acid, organic solvents (such as
thinner, kerosene and acetone etc.) to clean the surface of the product
or put any stickers on it.
They may damage the surface of the air conditioner.
26
| Cleaning the outdoor unit heat exchanger
. .
» When dust accumulates on the heat exchanger, it may decrease cooling —
CRONO RIE
. LL Кооо
performance. Therefore, clean it regularly. IN
O O
DS < SLR? 22
ооо о
» Spray water to clean the dust. DN
LR DO S
RR од ОЙ
RRE RRA
SLR AZ
AIR
RIOT RR RES
DN
OS
NN ©
SYIHLO 90
e
(2
OK
LORD
CLOS
К CDA
| Heat exchanger
(Illustration may differ slightly
depending on the models)
* Ifitis difficult to clean the outdoor unit heat exchanger on
NOTE Your own, contact service center.
Г "+ Be careful with the sharp edges on the
CAUTION outdoor unit heat exchanger.
* Do not push or kick the outdoor with your
knee (Condensor Area).
* Do not hit or touch the condersor area
with any external device.
* During installation handle with care.
* Avoid Sudden impact.
| Opening the panel
Tightly grab top of the front panel and pull it down to open.
Then slightly lift the panel up.
|. Procedure for each model is specified with model name.
NOTE Not following the procedure may lead to breaking of locks.
27
Cleaning the air conditioner
| Removing the Air filter
Grab the handle and lift it up. Then, pull the Air filter towards you
and slide it down.
(Illustration may differ slightly
depending on the models)
| Cleaning the air filter
Washable foam based air filter captures large particles from the air. The filter is cleaned with a vacuum or by hand washing.
и
Open the panel and put the Air filter out. Clean the Air filter with
В > a vacuum cleaner or soft
brush. If dust is too heavy,
rinse it with running water.
\,
w
-
( в
Insert the Air filter back in its original position and Dry the Air filter in a
close the front panel. ventilated area.
«a
|. Clean the Air filter every 2 weeks. Cleaning term may differ depending on the usage and environmental
NOTE conditions. In dusty area, clean it once a week.
+ If the Air filter dries in a confined(or humid) area, odors may generate. If it occurs, re-clean and dry it in a well-
ventilated area.
28
Maintaining the air conditioner
If the air conditioner will not be used for an extended period of time, dry the air conditioner to maintain it in best condition.
1. Dry the air conditioner thoroughly by operating in Fan mode for 3 to 4 hours
and disconnect the power plug. There may be internal damage if moisture is
left in components.
2. Before using the air conditioner again, dry the inner components of the air
conditioner again by running in Fan mode for 3 to 4 hours. This helps remove
odors which may have been generated from dampness.
| Periodical checks
Refer to the following chart to maintain the air conditioner properly.
Type Description ak ma ma Once a year
Clean the Air filter (1) e
Clean the condensate drain pan (2) e
Indoor unit | Thoroughly clean the heat exchanger (2) ©
Clean the condensate drain pipe (2) ©
Replace the remote controller batteries (1) e
Clean the heat exchanger on the outside of the unit (2) ©
Clean the heat exchanger on the inside of the unit (2) e
rer Clean the electric components with jets of air (2) o
unit Verify that all the electric components are firmly e
tightened (2)
Clean the fan (2) o
Verify that all the fan assembly is firmly tightened (2) o
0: This check mark requires checking the indoor/outdoor unit periodically.
Follow the description to maintain the air conditioner properly.
| (1) The described operations should be performed more frequently if
CAUTION the area of installation is very dusty.
(2) These operations must always be performed by qualified personnel.
For more detailed information, see the installation part in the manual.
N J
29
SYIHLO 90
Troubleshooting
Refer to the following chart if the air conditioner operates abnormally. This may save
time and unnecessary expenses.
PROBLEM SOLUTION
The air conditioner | - Check power status and then operate the air conditioner
does not work atall. | again.
« Plug in or switch on the circuit breaker and then operate
the air conditioner again.
« Check if you have set the Off Timer. Operate the air
conditioner again by pressing the Power button.
The temperature « Check if you have selected Fan/Fast mode. In these
adjustment is not
working.
modes, desired temperature is set to auto and you cannot
adjust the temperature.
Cool air does not
come out of the air
conditioner.
« Check if the set temperature is higher than the current
temperature. Press the Temp + or - button on the remote
controller to change the set temperature.
« Check if the Air filter is blocked by dirt. If there is a lot of
dust on the Air filter, cooling(heating) performance may
decrease. Clean them frequently.
« Check if the outdoor unit is covered or installed near the
obstacle. Take the cover off and take the obstacle away.
« To protect the outdoor unit from direct sunlight cover the
outdoor unit using shed, curtains etc.
* If the doors or windows are open, it may cause bad
cooling performance.
Close the doors and windows.
« Check if the air conditioner has just been turned on after
stopping cooling operation. In this case, just a fan will run
to protect the outdoor unit compressor.
« Check if the pipe length is too long. When the pipe
length exceeds maximum allowable pipe length, cooling
performance may decrease.
Air flow adjustment
is not working.
« Check if you have selected good’sleep mode. In this
mode, you cannot adjust the air flow direction.
30
PROBLEM SOLUTION
Fan speed « Check if you have selected Auto/Dry/Fast/good’sleep
adjustment is not mode. In these modes, fan speed is set to Auto and you
working. cannot adjust the fan speed.
Remote controller is | - Check if your batteries are depleted. o
° |
not working. + Make sure nothing is blocking your remote controller m
sensor. 7
Check if there are strong lighting apparatus near the air
conditioner. Strong light which comes from fluorescent
bulbs or neon signs may interrupt the electric waves.
Timer function does | + Check if you press the SET button on the remote
not set. controller after you have set the time.
The indicator - Press the Power ( button or disconnect the power plug/
is blinking switch off the auxiliary power switch.
continuously. If the indicator is still blinking, contact the service center.
Odors permeate in | - Check if the appliance is running in a smoky area.
the room during Ventilate the room or operate the air conditioner in Fan
operation. mode for 1~2 hours. (We do not use smelly components
in the air conditioner.)
Check the Drains have been cleared Regular
Maintenance.
Error is indicated. - When an indoor unit indicator blinks, contact the nearest
service center. Please ensure the error code is passed
onto the service center when booking the service call.
Noise is generated. | - Depending on the status of the air conditioner usage,
noise can be heard when refrigerant flow movement
changes. It is normal.
Smoke is generated | - If may not be a fire but it can be a steam generated by the
from the outdoor defrost operation from outdoor heat exchanger during
unit. Heat mode in winter.
Water is dropping | + Water may be generated because of the temperature
from the outdoor difference. It is normal.
unit piping
connection.
31
Safety precautions
Carefully follow the precautions listed below because they are essential to guarantee the safety of the equipment.
» Always disconnect the air conditioner from the power supply before servicing it or accessing its internal components.
* Verify that installation and testing operations are performed by qualified personnel.
* Verify that the air conditioner is not installed in an easily accessible area.
General information
>
Carefully read the content of this manual before installing the air conditioner and store the manual in a safe place in order
to be able to use it as reference after installation.
For maximum safety, installers should always carefully read the following warnings.
Store the operation and installation manual in a safe location and remember to hand it over to the new owner if the air
conditioner is sold or transferred.
This manual explains how to install an indoor unit with a split system with two SAMSUNG units.
The use of other types of units with different control systems may damage the units and invalidate the warranty.
The manufacturer shall not be responsible for damages arising from the use of non compliant units.
This product has been determined to be in compliance with the Low Voltage Directive (2006/95/EC), and the
Electromagnetic Compatibility Directive (2004/108/EC) of the European Union.
The manufacturer shall not be responsible for damage originating from unauthorized changes or the improper connection
of electric and requirements set forth in the “Operating limits” table, included in the manual, shall immediately invalidate
the warranty.
The air conditioner should be used only for the applications for which it has been designed: the indoor unit is not suitable
to be installed in areas used for laundry.
Do not use the units if damaged. If problems occur, switch the unit off and disconnect it from the power supply.
In order to help prevent electric shocks, fires or injuries, always stop the unit, disable the protection switch and contact
SAMSUNGS technical support if the unit produces smoke, if the power cable is hot or damaged or if the unit is very noisy.
Always remember to inspect the unit, electric connections, refrigerant tubes and protections regularly. These operations
should be performed by qualified personnel only.
The unit contains moving parts, which should always be kept out of the reach of children.
Do not attempt to repair, move, alter or reinstall the unit. If performed by unauthorized personnel, these operations may
cause electric shocks or fires.
Do not place containers with liquids or other objects on the unit.
All the materials used for the manufacture and packaging of the air conditioner are recyclable.
The packing material and exhaust batteries of the remote controller(optional) must be disposed of in accordance with
current laws.
The air conditioner contains a refrigerant that has to be disposed of as special waste. At the end of its life cycle, the air
conditioner must be disposed of in authorized centers or returned to the retailer so that it can be disposed of correctly and
safely.
32
Installing the unit
IMPORTANT: When installing the unit, always remember to connect first the refrigerant tubes, then the electrical lines.
Always disassemble the electric lines before the refrigerant tubes.
» Upon receipt, inspect the product to verify that it has not been damaged during transport.
If the product appears damaged, DO NOT INSTALL it and immediately report the damage to the carrier or retailer (if the
installer or the authorized technician has collected the material from the retailer.)
> After completing the installation, always carry out a functional test and provide the instructions on how to operate the air
conditioner to the user.
» Do not use the air conditioner in environments with hazardous substances or close to equipment that release free flames to
avoid the occurrence of fires, explosions or injuries.
NOILLYTIVLSNI ZO
» To help prevent injury when accidentally touching the indoor unit fan, install the indoor unit at least 2.5 m above the floor.
» The air conditioner should be used only for the applications for which it has been designed : the indoor unit is not suitable
to be installed in areas used for laundry.
» Our units must be installed in compliance with the spaces indicated in the installation manual to ensure either accessibility
from both sides or ability to perform routine maintenance and repairs. The units'components must be accessible and that
can be disassembled in conditions of complete safety either for people or things.
For this reason, where it is not observed as indicated into the Installation Manual, the cost necessary to reach and repair the
unit (in safety, as required by current regulations in force) with slings, trucks, scaffolding or any other means of elevation
won't be considered in-warranty and charged to end user.
Power supply line, fuse or circuit breaker
> Always make sure that the power supply is compliant with current safety standards. Always install the air conditioner in
compliance with current local safety standards.
> Always verify that a suitable grounding connection is available.
» Verify that the voltage and frequency of the power supply comply with the specifications and that the installed power is
sufficient to ensure the operation of any other domestic appliance connected to the same electric lines.
» Always verify that the cut-off and protection switches are suitably dimensioned.
» Verify that the air conditioner is connected to the power supply in accordance with the instructions provided in the wiring
diagram included in the manual.
» Always verify that electric connections (cable entry, section of leads, protections...) are compliant with the electric
specifications and with the instructions provided in the wiring scheme.
Always verify that all connections comply with the standards applicable to the installation of air conditioners.
Choosing the installation location
| Indoor unit
» Where airflow is not blocked.
Where cool air can be distributed throughout the room.
Install the refrigerant piping length and the height difference of both indoor and outdoor units as indicated in the
installation diagram.
Wall that prevents vibration and is strong enough to hold the product weight.
Out of the direct sunlight.
1 m or more away from the TV or radio (to prevent the screen from being distorted or noise from being generated).
As far away as possible from the fluorescent and incandescent lights (so that the remote controller can be operated well).
A place where the air filter can be replaced easily.
Don't install directly above electronics equipment as leaking water may cause damage if not serviced. (eg. Computers, TV, etc).
у У
ууу уУ ТУ У
33
Choosing the installation location
| Outdoor Unit
У
v Ñvy v v Y Y Y Y Y Y Y
Where it is not exposed to strong wind
Well ventilated and dustless places
Where possible keep out of sunlight and rain
Where neighbors are not annoyed by operation sound or hot air
Solid wall or support that prevents vibration and is strong enough to hold the product weight
Where there is no risk of flammable gas leakage
When installing the unit at a high place be sure to fix the unit legs
3 m or more away from the TV or radio (to prevent the screen from being distorted or noise from being generated)
Install the unit horizontally
Place where drained water does not become any problem.
Place with no plants (especially climbing plants) and where small animals can not access.
Outdoor unit should not be placed higher than 2.4 m or directly under eaves for accessibility for service and OH&S reasons.
ar)
« Avoid the following places to prevent malfunction of the unit
caution - Where there is machine oil - Salty environment such as seaside areas
- Where sulfide gas exists - Other special atmosphere areas
]
Ts
300mm or more
125 mm or more
125 mm or more
Wrap the refrigerant pipes and the drain hose You с an select the direction of
with the absorbent pad and vinyl tape. PA draining (left or right)
Refer to page 49 for further details.
NN
A 'l’ m as maximum pipe length
and 3 m as minimum pipe length
CAUTION (It will reduce noise and vibration)
'H' meters maximum total
'L' meters maximum total pipe height
pipe length
Model L H
AR12K****** 15 8
20 10
Make at least one round:
It will reduce noise and vibration
s The appearance of the unit may be different from the diagram depending on the model.
34
| Space Requirements for Outdoor Unit
When installing 1 outdoor unit
D Figure Description ©
Top view Side view =
à wv
Air intake =
. . . ï
Air outlet - Air intake >
~~ =|
Air outlet o
2
+ £_
* 1, Air flow direction.
(Unit: mm)
» When the air outlet is opposite » When the air outlet is towards » When 3 sides of the outdoor unit
the wall the wall are blocked by the wall
| 9 y 5
Е = | 5 ©
>| | 18 0 | Е 5 —
o
g 7 8 U
2
150 or more 600 or more
» The upper part of the outdoor > The upper part of the outdoor » When the walls are blocking front
unit and the air outlet is towards unit and the air outlet is opposite and the rear side of the outdoor
the wall the wall unit
e
e 5 1 300 or more Z о ©
2000 or more S : — y + 8 E
> — В Sy = | }
— LA)
=> К
al < 0 Se
RE
y =
35
Choosing the installation location
When installing more than 1 outdoor unit
(Unit : mm)
» When the air outlet is towards the wall » When 3 sides of the outdoor unit are blocked by the
wall
y о о | 5
Е
¿e | aa
o
0 0 J | : >| | 13
S | |
— à U U U
300 or more 600 or more 600ormore 5600 or more
» When the walls are blocking front and the rear side of the » When the upper part of the outdoor unit and
outdoor units the air outlet is opposite the wall
Eo
о о О | 85
= | 1 REF 5 #300
| | 2 or more — 5
Tn Sw 5
V U U S o о!
600 or more —-—< ~—<—600 ormorey 5 E tn a
» When front and rear side of the outdoor unit is towards the wall т
@ 300 or more — 4
ЕЁ
5 +
< Da < a
kh => k—H k——A A
1500 or 600 or 3000 or 3000 or 200 or
more more more more more
|, If installation is done in inappropriate space, unit may generate sound and cause bad effect on the product.
caution Installation must be done on a level and in a place where vibration will not cause any effect.
36
Accessories
The following accessories are supplied with the air conditioner:
|
В + The number of each accessory is indicated in parentheses.
NOTE
| Accessories in the indoor unit case
Installation Plate (1) Remote controller (1) Batteries for Remote controller (2) User's & Installation Manual (1)
>
NOILLYTIVLSNI ZO
| Accessories in the outdoor unit case
Assembly Pipe, @ 12.70 mm (1)
AR12KV5HATQ
Assembly Pipe, @ 9.52 1 A bly Pipe, 9 15.88
Assembly Pipe, 9 6.35 mm (1) ssembly Pipe, 9 mm (1) AR18KV5HATQ ssembly Pipe, @ mm
AR12KV5HBWK AR18KV5HBTR AR24KV5HBWK
AR12KV5HBTR AR18KV5HBTQ
AR18KV5HBWK
Rubber Leg (4)
©
й |. Use the flare nuts to connect evaporator pipe and service port.
NOTE ° The 3-wire assembly cable is optional. If it is not supplied, use standard cable.
+ Assembly pipe are optional, depending upon the models.
* Cable tie and drain hose are optional.
« Illustration may differ slightly depending on the models.
| Tools required for installation
General Tools
«Vacuum Pump(Backward flowing prevention) « Manifold Gauge * Stud Finder
«Torque Wrench * Pipe Cutter + Reamer * Pipe Bender « Spirit Level
« Screw Driver «Spanner e Drill * L Wrench « Measuring Tape
Tools for test operations
« Thermometer * Resistance Meter * Electroscope
37
Fixing the installation plate
You can select the direction of the drain hose depending on where you want to install the indoor unit. Therefore before fixing
the installation plate to a wall or a window frame, you must determine the position of the 65 mm hole through which the
cable, pipe and hose pass to connect the indoor unit to the outdoor unit.
When facing the wall, the pipe and cable can be connected from the:
Right (A) 3% Direction of pipe
. Left (8) MP TT 1
+ Underside_right (C) =
« Rear_right or left (О) AS B
g 5 0 = 5
|, You can install the refrigerant pipe in the left/right/bottom, or the rear side of the indoor unit.
caution * If changing the pipe direction from left to right, do not drastically bent it but slowly turn it in the opposite
direction as shown. Otherwise, the pipe may be damaged in the process.
1. Determine the position of the pipe and drain hose hole as seen in the picture and drill the hole with an inner diameter of
65 mm so that it slants slightly downwards.
(Unit: mm)
Model A B C D
|
Pipe hole y | АК12КуЖЖЖЖ
_ (@65тт) | | AR18KV5HBX%
— E IF * 27 120 68 27
< E | Фа | АК18КУ5НАЖЖ
В 51 AR2AKVK* KK
2. Fix the indoor unit.
If you fix the indoor unit on a wall
1) Fix the installation plate to the wall giving attention to the weight of the indoor unit.
y. If you mount the plate to a concrete wall using plastic anchors, make sure that
NOTE Japs between the wall and the plate, created by projected anchor, is less than
20 mm.
If you fix the indoor unit on a window frame
1) Determine the positions of the wooden uprights to be attached to the window frame.
2) Attach the wooden uprights to the window frame giving attention to the weight of the indoor unit.
3) Attach the installation plate to the wooden upright using tapping screws.
If you fix the indoor unit on a gypsum board
1) Use stud finder to find out locations of the studs.
2) Fix the plate hanger on two studs.
|. Search for other spots if there are less than two studs, or the distance between the studs are different from the
caution Plate hanger.
« Fix the installation plate without inclining to one side.
a N
|. Make sure that a wall can withstand the weight of the product. If you install the product in a place where it is not
WARNING — Strong enough to withstand the product weight, the unit could fall and cause injury.
N
J
38
Connecting the assembly cable
| Cable specification
Model Interconnection cable
XX 12/18 4G X 1.5mm’
4G X 2.5mm’
XXX mm
1 X0.75mm
И
NOILLYTIVLSNI ZO
|. Connect the power cable to the auxiliary circuit breaker. If every pole fails to connect to the power supply, it
NOTE must be incorporated in a wire with a contact opening of > 3 mm.
* For each model use specified cable only as written in blow table. Failing to do that may result to damage of
appliance, re, accident or even explosion
N
| Connecting the cable
When you install the unit, first make the refrigerant connections and then electrical connections.
Connect the air conditioner to grounding system before performing the electrical connection.
If unit is uninstalled, first disconnect electrical cables, then refrigerant connections.
If the outdoor unit is more than 5 meters away from the indoor unit, you must extend the cable.
1. Extend the assembly cable if necessary.
A |, Do not connect two or more different cables to extend the length.
caution It May Cause fire.
2. Open the front grille panel.
3. Remove the screw securing the connector cover.
4. Pass the assembly cable through the rear of the indoor unit and connect the assembly cable to terminals.
(Refer to the picture below)
2 * Each wire is labeled with the corresponding terminal number.
Pass the other end of the cable through the 65 mm hole in the wall.
Close the connector cover by tightening the screw carefully.
Close the grille panel.
Remove the terminal board cover on the side of the outdoor unit.
e “ar
39
Connecting the assembly cable
9. Connect the cables to the terminals as seen in the picture.
E * Each wire is labeled with the corresponding terminal number.
NOTE
Indoor unit ÓN
== i | TYPE 1 (4 core wire) TYPE 2 (3 core + single core)
y RRND : RR
e Indoorunit Гм) 1 |2 - №) 1 [2
- RNRINR
Ground wire - Ground wire — © О О
(Green/Yellow) : (Green/Yellow) =
Outdoor unit ; ===
= 9 O |- Ground wire : Ground wire + | © © ©
Outdoor unit STHTy IÓ (Green/Yellow) (Green/Yellow) © ST Te
Nl 1] 2 - №) 1 | 2
BRIX : 191918 D
|. End of the wire must be circular.
caution * After connecting the cables, make sure terminal numbers on the indoor/outdoor unit matches.
« Screws on terminal block must not be unscrewed with the torque less than 12 kgf-cm.
10. Connect the grounding conductor to the grounding terminals.
11. Close the terminal board cover by tightening the screw carefully.
x
| « In Russia and Europe, consult with the supply authority to determine the supply system impedance before
NOTE installation.
\ J
| . . . à
+ Connect the wires firmly so that wires cannot be pulled out easily.
warning (If they are loose, it could cause burn-out of the wires.)
+ Connect the wires according to color codes, referring to the wiring diagram.
| « The power cable and the interconnection cable should be selected according to the specification in page 39. В
Wire connecting the indoor unit terminal blocks
1. Terminal press of Ring terminal shall be set facing up before connecting wire.
Is inverted Terminal has been cut.
2. There shall be no empty space between Ring terminal and Screw after Clamp. If not, there exists a possibility of fire which
can be caused by electric heat in the connection part.
| 0,0: Good
(3): Bad: Ring terminal is connected reversely
@ : Bad: Not clamped Screw
© : Bad: In the gap between Ring terminal 8: Screw
$ $ (6): Bad: Unused Ring Terminal
© @
Installing and connecting the assembly pipe of the indoor unit =
Connect indoor and outdoor units with field-supplied copper pipes by means of flare connections. Use insulated seamless
refrigeration grade pipe only, (Cu DHP type according to 1ISO1337), degreased and deoxidized, suitable for operating pressures
of at least 4200 kPa and for burst pressure of at least 20700 kPa. Under no circumstances must sanitary type copper pipe be
used.
There are 2 refrigerant pipes of different diameters:
« The smaller one is for the liquid refrigerant
* The larger one is for the gas refrigerant
A short pipe is already fitted to the air conditioner. You may
need to extend the pipe using the assembly pipe (optional).
NOILLYTIVLSNI ZO
The connection procedure for the refrigerant pipe varies
according to the exit position of the pipe when facing the wall:
- Right(A)
* Left(B)
+ Underside(C)
* Rear
1. Cutoutthe appropriate knock-out piece (A, B, C) on the rear of the Torque
indoor unit unless you connect the pipe directly from the rear. Outer Diameter
Nem kgfecm
2. Smooth the cut edges. 96.35 mm 14-18 140-180
‚ | 29.52 mm 34~42 350~430
3. Remove the protection caps of the pipes and connect the assembly
pipe to each pipe. Tighten the nuts first with your hands, and then with __ #1270 mm 49-61 | 500~620
a torque wrench, applying the following torque: 215.88 mm 68~82 690~830
|
E e Ifyou want to shorten or extend the pipes, refer to page 42-43.
4, Cut off the remaining foam insulation.
5. If necessary, bend the pipe to fit along the bottom of the indoor unit.
Then pull it out through the appropriate hole.
> The pipe should not project from the rear of the indoor unit.
» The bending radius should be 100 mm or more.
6. Pass the pipe through the hole in the wall.
~
|, The pipe will be insulated and fixed permanently into position after finishing the installation and the gas leak test;
| NOTE refer to page 48-49 for further details. |
y
|, Tighten the flare nut with torque wrench according to specified method.
caution | Ifthe flare nut is over-tightened, the flare may break and cause refrigerant gas leakage.
* DO NOT WALL UP THE PIPE CONNECTION !
All refrigerant pipe connection must be easy accessible and serviceable. В
41
Evacuating the indoor unit
The indoor unit is supplied with inert gas (nitrogen).
Before installing the unit, check if nitrogen gas flows out of indoor unit.
If this one isn't true, DO NOT INSTALL THE UNIT since leakage could be inside the indoor unit.
1. Unscrew the caps at the end of each pipe.
» Allinert gas exhausts from the indoor unit.
\
* To prevent dirt or foreign substances from getting into the pipes during
installation, do NOT remove the caps completely until you are ready to
NOTE
connect the pipes.
J
|, The remaining air in the Refrigeration cycle, which contains moisture,
caution May cause malfunction on the compressor.
* Always contact the service center or a professional installation agency
for product installation. |
IER
...
+ *
,
Oö .
*
+
ta.
—
Pipes J \ Unscrew the caps
Cutting or extending the pipe
The length of the pipe can be:
« Extended up to: see table page 34
« Shorten up to: see page 34
CAUTION
If you need a pipe longer than 5 meters:
«You must add refrigerant to the pipes; otherwise, the indoor unit may freeze.
1. Make sure that you have all the required tools (pipe cutter, reamer, flaring tool and pipe holder).
2. Ifyou want to shorten the pipe, cut it using a pipe cutter, ensuring that the cut edge remains at 90° with the side of the
pipe (see below examples of correct and incorrect cut edges).
3. To prevent a gas leak, remove all burrs at the cut edge of the pipe using a reamer.
90,
AUTION
a
* Face the pipe down while removing the burrs to make sure that burrs do not get in to the pipe.
42
4, Puta flare nut slightly into the pipe and modify the flare.
Pipe Flare
Outer Diameter (D) Depth (A) Flaring Size (B)
26.35 mm 1.3mm 8.7~9.1 mm
29.52 mm 1.8 mM 12.8~13.2 mm
012.70 mm 2.0 mm 16.2~16.6 mm q
215.88 mm 2.2 mm 19.3~19.7 mm а
=]
>
E
=
O
=
5. Checkif you flared the pipe correctly (see examples of incorrectly flared pipes below).
Correct Inclined Damaged Cracked Uneven
Surface Thickness
6. Align the pipes to connect them easily. Tighten the flare nuts first with your hands, and then with a torque wrench,
applying the following torque:
Flare nut Outer Diameter Torque
Nem kgfecm
26.35 mm 14-18 140-180
LD ee Г 29.52 mm 34~42 350~430
212.70 mm 49~61 500~620
Indoor outlet pipe Connecting pipe 015.88 mm 68-82 690-830
|. Excessive torque can be a cause of gas leakage. If extending pipe by welding/brazing please ensure nitrogen is
NOTE used during welding/brazing process. The joint must be accessible and serviceable.
7. For further details on how to connect to the outdoor unit and evacuate the air, refer to page 46-47.
|. Tighten the flare nut with torque wrench according to specified method.
слотом К the flare nut is over-tightened, the flare may break and cause refrigerant gas leakage.
43
Installing and connecting the drain hose of the indoor unit
When installing the drain hose for the indoor unit, check if condensation draining is adequate.
When passing the drain hose through the 65 mm hole drilled in the wall, check the following:
CAN
0
Indoor unit 0
Drain hose
The drain hose must NOT The end of the drain hose must
slant upwards. NOT be placed under water.
0 No 0 sn 0 N
less E Ditch
The drain hose must not Keep a clearance of at least 5 cm Do not place the end of the
be bent. between the end of the drain drain hose in a hollow.
hose and the ground.
| Drain hose installation
1. If necessary, connect the 2 meter extension drain hose to the drain hose. Te TT |
2. Ifyou use the extension drain hose, insulate the inside of the extension drain al .
hose with a shield. gL
3. Fitthe drain hose into 1 of 2 drain hose holes, then fix the end of the drain hose N Drain hose hole /
tightly with a clamp.
| |. If you do not use the other drain hose hole, block it with a rubber )
NOTE
stopper.
4. Pass the drain hose under the refrigerant pipe, keeping the drain hose Shield
tight.
5. Pass the drain hose through the hole in the wall. Check if it slants Z ` ‚
downwards as seen in the picture. Drain hose Extension drain hose
N
* The hose will be fixed permanently into position after finishing the installation and the gas leak test;
NOTE refer to page 48~49 for further details. В
|. Make sure the installed direction of the drain hose is correct.
Inadequate installation may cause condensate water leakage.
* Ifthe drain hose is routed inside the room, insulate the hose so that dripping condensation does not damage the
furniture or floors.
+ DO NOT WALL UP THE DRAIN HOSE CONNECTION !
Drain hose connection must be easy accessible and serviceable.
CAUTION
44
Changing direction of the drain hose
Change the direction only when it is necessary.
e Screw hole
Un
SE
Drain hose
1. Detach the rubber cap with the plier.
=
sip A
LZ JE
exa! X
>
2. Detach the drain hose by pulling it and turning to the left. 7
=~
Es
FE
rs
3. Insert the drain hose by fixing it with the screw into the groove of the drain
hose and the outlet of the drain pan.
NOILVTIVLSNI ZO
4. Attach the rubber cap with a screwdriver by turning it to the right until it
fixes to the end of the groove.
5. Check for leakage on both side of the drain outlet.
Pour the water in direction of arrow. | > Direction of the drained water
| < Make sure the indoor unit is in upright position when you pour water to check for leakage.
caution Make sure that the water does not overflow onto the electrical part.
45
Evacuating the connected pipes
The outdoor unit is loaded with sufficient R-410A refrigerant. Do not vent R-410A into atmosphere: it is a fluorinated
greenhouse gas, covered by Kyoto Protocol, with a Global Warming Potential (GWP) = 2088.
You should evacuate the air in the indoor unit and in the pipe. If air remains in the refrigerant pipes, it affects the compressor.
It may cause reduction of cooling capacity and malfunction.
|. When installing, make sure there is no leakage. When recovering the refrigerant, ground the compressor first
before removing the connection pipe. If the refrigerant pipe is not properly connected and the compressor works
with the service valve open, the pipe inhales the air and it makes the pressure inside of the refrigerant cycle
abnormally high. It may cause explosion and injury.
CAUTION
1. Connect each assembly pipe to the appropriate valve on the outdoor unit and Outdoor unit 4, Indoor unit
tighten the flare nut. Gas pipe side
2. Tighten the flare nut first with your hands, and then with a torque wrench,
applying the following torque.
| LA
E * Excessive torque can be cause of gas leakage.
NOTE Outer Torque
Diameter Nem kgf-cm
+ Make the electrical connection and leave the system into 26.35mm | 14-18 | 140-180
" " h !
WARNING "stand by mode”. Do not turn on the system 29.52mm | 34-42 | 350~430
0 12.70mm | 49-61 500-620
3. Connect the charging hose of the low-pressure side of manifold gauge to a gas
. : . 915.88 тт | 68-82 | 690-830
service port as seen in the picture.
4, Open the valve of the low pressure side of manifold gauge counterclockwise.
5. Evacuate the air in the connected pipes using the vacuum pump for about Manifold gauge
15 minutes.
- Make sure that pressure gauge shows -0.1 MPa(-76 cmHg) after about
10 minutes.
This procedure is very important to avoid a gas leak.
- Close the valve of the low pressure side of manifold gauge clockwise. Gas service port
- Turn off the vacuum pump. <Low pressure>
- Check for 2 minutes if there is any pressure change. W
- Remove the hose of the low pressure side of manifold gauge.
Valve
Bt
6. Seta valve cork of liquid and gas service port to the open position. A £8
Liquid service port Pump
<High pressure> (Backward flowing
prevention)
46
| Adding Refrigerant
Add refrigerant charge according to table below:
If you use a pipe longer than 5 m,
15 g of refrigerant R-410A must be added for each extra meter.
If you use a pipe shorter than 5 m,
The evacuating time is normal.
Refer to the Service Manual for further details.
|. The remaining air in the Refrigeration cycle, which contains moisture, may cause malfunction on the compressor.
caution * Always contact the service center or a professional installation agency for product installation.
NOILLYTIVLSNI ZO
| Charging the refrigerant under conditions of liquid by using a liquid pipe
R-410A is a mixed type of refrigerant. It is necessary for recharging under conditions of liquid. When recharging refrigerant
from the refrigerant cylinder to the equipment, follow the instructions helow
1. Before recharging, check whether the cylinder has a siphon or not.
There are two ways to recharge the refrigerant.
Cylinder with siphon : Cylinder without siphon
Siphon
» Charge the refrigerant standing the cylinder : » Charge the refrigerant standing the cylinder
upright. : upright.
|. If R-410A refrigerant is charged with gas, the composition of the charged refrigerant changes and the
Note characteristics of the equipment vary.
* During the measuring operation of refrigerant quantity added use electronic scales.
If cylinder doesn't have syphon, upset it.
47
Performing the gas leak tests
Make sure to check for gas leaks before completing the installation process (connecting the assembly pipe and hose between
indoor unit and outdoor unit, insulating the cables, hose and pipe, and fixing the indoor unit to the installation plate).
C D
Test part for outdoor unit Test part for indoor unit
Tightening torque for body cap » Before inspecting the leakage, use a torque wrench
(Refer to the table) to close the cap for the service valve. (Comply with a
| tightening torque for each size of the diameter,and
= J tighten the cap firmly to prevent any leakage.).
» To check for any possible leakage, insert inert gas into
Spindle the pipes connected to indoor/outdoor units and
= check the connection part of the indoor/outdoor units
Charging PM = with soap lather or liquid for leakage test.
core | ZE
Outer Tightening torque
Diameter Charging port cap
| (mm) Body cap (Nem) (Nem)
R-22: Diameter of the screw - 7/16-20UNF
R-410A: Diameter of the screw - 1/2-20UNF 86.35 20-25
29.52 20-25
212.70 25~30 10~12
Tightening torque for charging port cap -
(Refer to the table) 015.88 30-35
2919.05 35-40
To check for gas leaks on the outdoor unit, (1 Nem =10 kgfeem)
Check the valve À and B using a leak detector.
To check for gas leaks on the indoor unit,
Check the flare nut C and D using a leak detector.
Leak test with nitrogen (before opening valves)
In order to detect basic refrigerant leaks, before recreating the vacuum and recirculating the R-410A.
Leak test (after opening valves)
Before opening valves, discharge all the nitrogen from the system and create vacuum according to page 46.
After opening valves, check leaks using a leak detector for refrigerant.
Pump down (before disconnecting the refrigerant connections for unit repair, removal or disposal)
Pump-down is an operation intended to collect all the system refrigerant in the outdoor unit.
This operation must be carried out before disconnecting the refrigerant tubing in order to avoid refrigerant loss to the
atmosphere.
» Shut off the liquid valve with the Allen wrench.
» Turn the system on in cooling with fan operating at high velocity.
(Compressor will immediately start, provided 3 minutes have elapsed since the last stop).
» After 2 minutes of operation, shut the suction valve with the same wrench.
» Тит the system off and switch mains supply off.
» Disconnect tubing. After disconnection, protect valves and tubing ends from dust.
» Compressor damage may occur if run at a negative suction pressure.
48
Fixing the indoor unit in place
Perform the following work on the area where gas leak test was done priory.
After checking for gas leaks in the system, insulate the pipe, hose and cables. Insulation
Then place the indoor unit on the installation plate.
1. To minimise condensation problems, wrap foam insulation (as shown in the © (О) ©
figure) on a part without insulation on the end of the pipes. _
=
2. Wind the pipe, assembly cable and drain hose with vinyl tape. Pipes =
=
3. Place the bundle (the pipe, assembly cable and drain hose) in the lower part >
of the indoor unit carefully so it does not project from the rear of the indoor | 9
unit, Installation —
4. Hook the indoor unit to the installation plate and move the unit to the right plate nnecting
and left until it is securely in place. Vinyl tape- и
Connecting wires
|, Make sure pipe does not move when you install the indoor unit on Drain hose 1
caution an installation plate.
5. Wrap the rest of the pipe with vinyl tape.
6. Attach the pipe to the wall using clamps (optional).
Fixing the outdoor unit in place
Install at the outdoor unit on stable base to help avoid the generation of noise and vibration,
X mm
especially when installing the unit close to a neighbor. 5 E
If you install the outdoor unit in a place exposed to strong winds or at a height, fix it with E
appropriate support (wall or ground). >
1. Place the outdoor unit as indicated on the top of the unit to let the discharged air out ==— Rubber leg
properly. Model | X | Y
. oe . . ЖЖ12ЖЖ 538 290
2. Fix the outdoor unit with appropriate support using anchor bolts. XX18/24%% | 660 | 340
3. Ifthe outdoor unit is exposed to strong winds, install shield plates around the outdoor
unit so that the fan can operate correctly.
В * Secure the rubber leg to help prevent the generation of noise and vibration.
NOTE
| Outdoor unit installed on the wall by rack
Designed to cut off residual vibration
« Ensure the wall will be able to support the weight of the rack and from outdoor unit to rack.
outdoor unit; (not supplied with product)
* Install the rack close to the column as much as possible; y
« Install proper grommet in order to help reduce noise and residual
vibration transferred by outdoor unit towards wall.
A
Soft rubber designed to cut off H—
vibration from rack to wall.
(not supplied with product)
49
Smart Install mode
This model supports Smart Install mode which checks installation status to find out if there is any problems with any of the
functions. Execute Smart Install mode after installation.
1. Check the installation status of the air conditioner through communication between indoor & outdoor.
1) Check the power supply, service valve (open/close), wiring $ piping connection of the indoor and outdoor unit and
additional refrigerant charge in case of longer pipe than design specification.
2. When the air conditioner is in standby status, use the remote controller to start the Smart Install mode.
1) Press the [SET], [Mode], [Power] button simultaneously for 4 seconds.
» Smart Install mode can be operated only with the supplied remote controller.
» During the Smart install mode procedure, remote controller cannot be operated.
N
J
V
J
\.
\.
<
o
a
D
IN
Fan Temp Fan
ye
0 |
7
70 |
©
7
© ©
% Remote controller may be different (image/functions) depending on the model.
50
2) Smart Install mode in progress
* 88 Display : Progress will be displayed in 0-99.
* LED Display : Indicator on the indoor unit display will blink in sequence and then all indicators will blink. (This will be
repeated.)
TYPE 88 Display LED Display
De Pa 3
: => > O LED1 N
Indoor unit indicator : п Jl O LED2 =
| O LED3 >
O oO E
=
O
=
% Display may be different depending on the model.
3. Smart Install Mode conclusion.
1) Smart Install mode will take approximately 7~13 minutes. (Actual time may be different depending on the model.)
2) When Installation is successful : Smart Install mode will end with ringing sound and the air conditioner will be in
standby status. (Error message will not be displayed on the indoor unit indicator and the remote controller and
buttons on the indoor unit will work normally.)
3) When installation is not successful : Smart Install mode will end and error message will be displayed on the indoor
unit display.
A |
1. Take necessary measures when error occurs.
CAUTION - Refer to the service manual for necessary measures for each error that occurs.
« 2. Use the product after taking care of the error that occurs.
Error indicator
LED Display
LED 1 LED 2 LED 3 Error Measures to take by an installer
В В Display
Erroronindoor | 1. Check the connection of the connector
i |
Ec O D O temperature sensor
Error on indoor | 1. Check the connection of the connector
{
E ec 9 D O heat exchanger
Error on indoor fan 1. Check the connection of the connector
E 154 O O dD motor 2. Remove foreign substance (Check for the
cause that restrains motor)
OB display and all 1. Re-set options
LED blinks EEPROM/Option
9 D 9 error
Е I60,E 163
1. Check if the service valve is completely
open.
2. Check if there's any blockage in the
Refrigerant flow refrigerant pipe which connects indoor
E4ec o o D blocking Error and outdoor unit.
3. Check for refrigerant leak.
4, Checkif cross wired between indoor &
outdoor unit.
* O:Off/ D:Blinking/ @:On
51
Final check and trial operation
To complete the installation, perform the following checks and tests to
ensure that the air conditioner operates correctly.
Check the followings:
* Strength of the installation site
* Tightness of pipe connection to detect gas leak
« Electric wiring connection
« Heat-resistant insulation of the pipe
« Drainage
« Grounding conductor connection
* Correct operation (follow the steps below)
1. Press the Power (!) button and check the following:
» The indicator on the indoor unit lights up.
» The airflow blade opens and the fan gears up for operation.
2. Press the Mode button to select Cool or Heat mode.
56)
©
>) ©
» In Cool mode, use Temp hr. + or - button and set the temperature at 16 °C.
> In Heat mode, use Temp hr. + or - button and set the temperature at 30 °C.
|, Approximately 3~5 minutes later, outdoor unit will start to operate and the
NOTE Cool or Warm air will blow out.
* After 12 minutes of stationary condition check the indoor unit air treatment.
Fan
D
3
5
À ©
®
Cooling mode (indoor unit check) — Inlet air temp. - Outlet air temp:
From 10 °C to 12 °C (indicative delta T)
D
=
5
Heating mode (indoor unit check) — Outlet air temp. - Inlet air temp:
From 11 °Cto 14 °C (indicative delta T)
DO
@
> QE > O,
In heating mode, the indoor fan motor can remain off to avoid cold air blown into
conditioned space.
=
D
3
о
=
y
5
3. Press the Air swing (= button and check the following:
» The airflow blades work properly.
4, Press the Power (1) button to stop the operation.
| |, When you complete the installation successfully, hand over this manual to the user for storage in a handy and safe |
МОТЕ place.
Pump down procedure (when removing the product)
1. Press the Power (!) button on the indoor unit for 5 seconds. Beep will sound immediately to let you know that the
product is ready for pump down procedure. Please let the compressor run for more than 5 minutes.
2. Release the valve caps on High and Low pressure side.
3. Use L wrench to close the valve on the high pressure side.
4, After approximately 2 minutes, close the valve on the low pressure side.
5. Stop operation of the air conditioner by pressing the power (I) button on the indoor unit or remote controller.
6. Disconnect the pipes.
52
How to connect your extended power cables
Items to prepare
(compressor and insulation tape should be prepared by an installation technician.)
Tools | Crimping pliers | Connection sleeve (mm) | Insulation tape | Contraction tube (mm)
Spec MH-14 20x97.0(HxOD) Width 18 mm [email protected](LxOD)
Shape | SO UD о
1. As shown in the figure, peel off the shields from the rubber/wire
of the power cable. Power cable
- Peel off 20 mm of the wire shields of the tube installed already.
(Unit: mm)
NOILLYTIVLSNI ZO
20 20 20
| > After peeling off the tube wire, you must insert a contraction tube.
AUTION
180
Wire tube power cable
2. Insert both sides of core wire of the power cable into the connection sleeve. —
Connection sleeve
3. Using a compressor, compress the two points and flip it over
and compress another two points in the same location.
-The compression dimension should be 8.0.
- After compressing it, pull both sides of the wire to
make sure it is firmly pressed.
Co | ess it 4 times
mpr
5mm
4, Wrap it with the insulation tape twice and position your
Insulation tape
contraction tube in the middle of the insulation tape. ESS p
5. Apply heat to the contraction tube to contract it.
40 mm
li) tube
6. After tube contraction work is completed, wrap it with the Insulation tape
insulation tape to finish. 1
Й In case of extending the electric wire, please DO NOT use a round-shaped pressing socket.
warnins | - INComplete wire connections can cause electric shock or a fire. = В
53
This page Is intentionally
left blank.
E DE. nn
This warranty is not applicable in any of the following cases :
|. The warranty card is not filled and mailed back / submitted to the nearest Authorised Service Center of the company within 2
weeks of purchase.
2. The completed warranty card is not presented to the service engineer at the time of repairs being undertaken / requested.
3. The product is not purchased from an Authorised Samsung Sales Dealer.
4. The product purchased is not used according to instructions given in the INSTRUCTION MANUAL, as determined by company
personnel.
5. Defects caused by improper use, as determined by the authorised service center / company personnel.
6. Modifications or alterations of any nature made in the circuitry by the purchaser or unauthorized personnel, as determined by the
company personnel.
7. The product is being used for commercial purpose.
8. Site (premises where the product is kept) conditions that do not confirm to the recommended operations of the machine/unit.
9, The original serial number is removed, obliterated, or altered from the product.
10. Defects due to causes beyond control like lightning, abnormal voltage, acts of God or while in transit to service center or to the
purchaser's residence.
| |, Defects caused by household pets, rats, cockroaches or any other animals or insects.
For any further information/assistance, please mail us on samsung.com/in/support
Samsung Service Network
Register for service at www.samsung.com/in Service helpline: samsung.com/in/support
Or below Contact Centre Numbers
Customer Contact Center
1800 3000 8282
1800 266 8282
* For Demonstration / Installation / Service request kindly Contact Customer Care Center at : 1800 3000 8282, 1800 266 8282
* Please mail in quaries to samsung.com/in/support
SAMSUNG DIGITaL
everyone's invitedw
CUSTOMER DETAILS CUM WARRANTY CARD
Customer copy (to be retained by customer)
Model Name
Product Serial No.
Date of purchase LL] LL] Ш
Мате
Address in full
Telephone No.
Dealer Name & Address
Dealer's signature with rubber stamp
Customer's signature & Date
(I accept the terms & condition of warranty)
Warranty Conditions “TERMS & CONDITIONS
1. The warranty is confined to the first purchaser of the product only and is not transferable.
2. Repairs under warranty period shall be carried out by the company authorized personnel only. The details of service centers /
support required are available at the company website www.samsung.com/india or in the centralised helpline (1800 3000 8282,
1800 266 8282) from mobiles.
3. For unit installed beyond municipal limits of the jurisdiction of the company's Authorised Service Center, it is the responsibility
of the purchaser to contact the nearest authorized service center and bring the unit to the authorized service center at
purchaser's cost and risk.
4. Calls registered with the Centralised Helpline / Authorised Service Center, wherein only cleaning of the unit / parts in the unit due
to dust gathering on portions of the unit, general explanations / returning, particular software not being read/installed, are not to
be construed as defects. The company does not undertake responsibility on the quality of software being used by purchasers.
5. In the event of repairs of any part/s of the unit, this warranty will thereafter continue and remain in force only for the
unexpired period of the warranty.
The time taken for repair and in transit whether under the warranty or otherwise shall not be excluded from the warranty period.
6. Any change of address by the original purchaser shall be intimated to the concerned Authorised Service Center by the purchaser,
and warranty will be applicable only after inspection of the unit and clearance of condition by Authorised Service Center
personnel.
7. In case of any damage to the product / misuse detected by the Authorised Service Center personnel, the warranty conditions are
not applicable and repairs will be done subject to availability of parts and on a chargeable basis only.
$. The company's obligation under this warranty shall be limited to repair or providing replacement of part/s only. The
maximum claim/s if entertained by the company will be subject to the maximum retail price of the product purchased or the
purchase price, whichever is lower.
9. In the event of any unforeseen circumstance, and spares not being available the company's prevailing depreciation rules
will be binding on the purchaser to accept as a commercial solution in lieu of repairs.
10. In the event of the company offering EXTENDED WARRANTY period for any specific product / period, it is the
RESPONSIBILITY OF THE PURCHASER to get the warranty card duly registered with the nearest Authorised Service Center
of the company, within 2 weeks of purchasing under such an offer, at the purchaser's cost and risk only.
SAMSUNG INDIA ELECTRONICS PVT.LTD (hereinafter referred to as “the company”) guarantees to the purchaser that this product carries a warranty for the period
mentioned above, commencing from the date of purchase. The company will repair free of charge any part or parts of the product, if the defect is due to the
faulty material or workmanship.
Product Warranty
Period Parts not covered
Colour Television 12 months N/A
Refrigerator Comprehensive: 12 months Plastic/Glassware,Gas Charging, Consumable
Compressor : 60 months Light bulb/tube
Washing Machine 24 months Outer Steel Casing * Top Lid
Room Airconditioner Comprehensive: 12 months* Air Filter * Front Grill * Gas Charging
Compressor : 60 months* Consumable
Digital Inverter Compressor : 120 months*
Audio/DVD/VCD 12 months Connector & Antenna Wires
Microwave Oven 12 months Main Door, Door Plastic.
Colour Monitors/PC Monitors 1 year PDP monitors DATA/VGA Cables
3 year TFT monitors
Laser Printers 1 year Consumables (Tone, Cartages)
Mobile Phones 1 year (6Mths. Battery)
Optical Disc Drives 1 year
Projector 1 year Lamp(180 Days after Purchasing and 600 Hours
of Use Limited Warranty Period)
Digital Photo Frame 1 year
*15 Months from date of purchase or 12 months from installation, whichever ends early. **12 Months from date of commissioning.
"In case of parts warranty, labour cost and gas charging cost (if applicable) will be chargeable as per the applicable rates.
This page Is intentionally
left blank.
This page Is intentionally
left blank.
This page Is intentionally
left blank.
7 N
X Correct Disposal of This Product
hd (Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB
cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where
and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for disposal.
For more information on safe disposal and recycling visit our website www.samsung.com/in or contact our customer care numbers.
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
1800 3000 8282 - Toll Free ,
INDIA 1800 266 8282 - Toll Eree www.samsung.com/in/support
This product is RoHS compliant
[=] [=]
DB68-05124B
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
