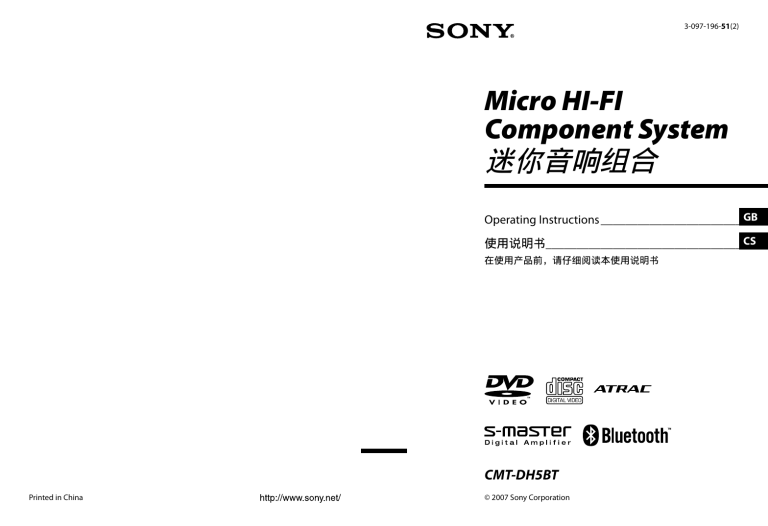

3-097-196-51(2)
Micro HI-FI
Component System
迷你音响组合
Operating Instructions________________________ GB
使用说明书________________________________ CS
在使用产品前,请仔细阅读本使用说明书
CMT-DH5BT
Printed in China
© 2007 Sony Corporation
WARNING
To reduce the risk of fire or
electric shock, do not expose
this apparatus to rain or
moisture.
To reduce the risk of fire, do not cover
the ventilation of the apparatus with
newspapers, tablecloths, curtains, etc.
And do not place lighted candles on the
apparatus.
To reduce the risk of fire or electric shock,
do not place objects filled with liquids,
such as vases, on the apparatus.
Connect the unit to an easily accessible AC
outlet. Should you notice an abnormality
in the unit, disconnect the main plug from
the AC outlet immediately.
Do not install the appliance in a confined
space, such as a bookcase or built-in
cabinet.
Do not expose the battery to excessive heat
such as direct sunlight, fire or the like.
Except for customers in the U.S.A.
and Canada
This appliance is classified as a CLASS 1
LASER product. This marking is located
on the rear exterior.
GB
GB
GB
About this manual
Icons, such as
, listed at the top
of each explanation indicate what kind
of media can be used with the function
being explained.
The English on-screen display is used
for illustration purposes only.
The Control Menu items may be
different depending on the disc.
The Setup Menu items may be different
depending on the area.
GB
Table of Contents
About this manual................................ 4
Playable discs......................................... 7
Guide to parts and controls............12
Tuner
Listening to the radio........................61
Getting Started
Bluetooth Device
Hooking up the system....................19
Hooking up the TV.............................21
Setting the clock.................................24
Performing QUICK SETUP................25
Using the THEATRE SYNC
function..................................................27
Using the Bluetooth function.........63
Disc
Playing a disc........................................28
 Normal Play
Using play mode.................................34
Searching/selecting a disc...............39
Playing MP3/JPEG discs....................42
Enjoying DivX® video files................48
Adjusting the delay between the
picture and sound..............................50
 A/V SYNC
Restricting playback of the disc.....51
 CUSTOM PARENTAL CONTROL,
PARENTAL CONTROL
Using the DVD setup menu............56
USB Device
Listening to music of
an USB device.......................................70
Creating your own program with
the USB device.....................................73
 Program Play
Sound Adjustment
Adjusting the sound..........................75
Singing along: Karaoke.....................75
Other Operations
Using the timer....................................81
Changing the display........................83
Viewing information
about the disc .....................................83
Hooking up optional
components..........................................87
Continued

GB
Additional Information
Troubleshooting..................................89
Precautions......................................... 102
Specifications.................................... 104
Guide to the Control Menu
display.................................................. 107
Language code list.......................... 111
Bluetooth wireless
technology......................................... 113
Glossary............................................... 115
Index..................................................... 119
GB
Playable discs
Type
DVD VIDEO
Characteristics
Icon used in
this manual
Logo
DVD VIDEO
DVD-R*/-RW*/+R/+RW
in DVD VIDEO format
* also in video mode
VR mode
VIDEO CD
DVD-R/-RW
in VR (Video Recording) mode
VIDEO CD
Super VCD*
CD-ROM*/-R*/-RW*
* in VIDEO CD or Super VCD format
CD
AUDIO CD*
CD-R*/-RW*
* in AUDIO CD format
DATA CD
CD-ROM/-R/-RW
in DATA CD format, containing
MP3 audio tracks1), JPEG image
files2) or DivX video files3), and
conforming to ISO 96604) Level
1 or Level 2, or Joliet (expansion
format).
Continued

GB
Type
DATA DVD
Characteristics
Icon used in
this manual
Logo
DVD-ROM/-R/-RW/+R/+RW
in DATA DVD format containing
MP3 audio tracks1), JPEG image
files2) or DivX video files3), and
conforming to UDF (Universal Disk
Format).
This system can also play back discs with the following disc logos:
MP3 (MPEG 1 Audio Layer 3) is a standard format defined by ISO/MPEG which compresses audio
data. MP3 audio tracks must be in MPEG 1 Audio Layer 3 format.
2)
JPEG image files must conform to the DCF image file format. (DCF “Design rule for Camera
File System”: Image standards for digital cameras regulated by Japan Electronics and Information
Technology Industries Association (JEITA)).
3)
DivX video files must be recorded in DivX format with the extension “.AVI” or “.DIVX”.
4)
A logical format of files and folders on CD-ROMs, defined by ISO (International Organization for
Standardization).
1)
“DVD+RW,” “DVD-RW,” “DVD+R,” “DVD VIDEO,” and the “CD” logos are trademarks.
GB
Discs that cannot be played
CD-ROMs recorded in PHOTO CD
format
DATA CDs recorded in MP3 PRO
format
Data part of CD-Extras1)
Data part of Mixed CDs2)
Super Audio CDs
DVD Audio discs
DVD-RAMs
A DVD VIDEO with a different region
code.
A disc that has a non-standard shape
(e.g., heart, square, star).
A disc that has the adhesive cellophane
tape or a sticker still left on it.
CD-Extra: This format records audio
(AUDIO CD data) on the tracks in session 1
and data on the tracks in session 2.
2)
Mixed CD: This format records data on the
first track and audio (AUDIO CD data)
on the second and subsequent tracks of a
session.
1)
Region code of DVD VIDEOs you
can play back on this system
Your system has a region code printed
on the back of the unit and will only
play back DVD VIDEOs labeled with
identical region code.
DVD VIDEOs labeled
will also be
played back on this system.
If you try to play back any other region
code DVD VIDEO, the message
“Playback prohibited by area limitations.”
will appear on the TV screen. Depending
on the DVD VIDEO, no region code
indication may be labeled even though
playing the DVD VIDEO is prohibited by
area restrictions.
Note on DualDiscs
A DualDisc is a two sided disc product
which mates DVD recorded material on
one side with digital audio material on
the other side. However, since the audio
material side does not conform to the
Compact Disc (CD) standard, playback
on this product is not guaranteed.
Continued

GB
Notes on CD-R/-RW and
DVD‑R/-RW/+R/+RW
In some cases, CD-Rs/-RWs and
DVD-Rs/-RWs/+Rs/+RWs cannot be
played back on this system due to the
recording quality or physical condition
of the disc, or the characteristics of
the recording device and authoring
software. The disc will not be played
back if it has not been correctly
finalized. For more information, see
the operation instructions for the
recording device.
Note that some playback functions
may not work with some DVD+Rs/
+RWs, even if they have been correctly
finalized. In this case, view the disc by
normal playback.
A disc created in Packet Write format
cannot be played back.
Note on playback operations of
DVD VIDEOs and VIDEO CDs
Some playback operations of DVD
VIDEOs and VIDEO CDs may be
intentionally set by software producers.
Since this system play back DVD
VIDEOs and VIDEO CDs according to
the disc contents the software producers
designed, some playback features may
not be available. Also, refer to the
instructions supplied with the DVD
VIDEOs or VIDEO CDs.
10GB
Music discs encoded with
copyright protection technologies
This product is designed to play back
discs that conform to the Compact Disc
(CD) standard. Recently, various music
discs encoded with copyright protection
technologies are marketed by some
record companies. Please be aware that
among those discs, there are some that
do not conform to the CD standard and
may not be playable by this product.
Notes on Multi Session disc
This system can play back Multi
Session discs when an MP3 audio
track, a JPEG image file or a DivX
video file is contained in the first
session. Any subsequent MP3 audio
tracks, image files or DivX video files
recorded in later sessions can also be
played back.
If the first session is recorded in
AUDIO CD or VIDEO CD format,
only the first session will be played
back.
The system will recognize a Multi
Session disc as an AUDIO CD if there
is a session recorded in AUDIO CD
format on the disc. However, the
system will only play back the disc if
the first session is recorded in AUDIO
CD format.
With DATA CD or DATA DVD, the
system will only play back DivX video
files even if it contains MP3 audio
tracks or JPEG image files.
Copyrights
This product incorporates copyright
protection technology that is protected
by U.S. patents and other intellectual
property rights. Use of this copyright
protection technology must be
authorized by Macrovision, and is
intended for home and other limited
viewing uses only unless otherwise
authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
MICROVAULT is a trademark of Sony
Corporation.
ATRAC, ATRAC3, ATRAC3plus and
their logos are trademarks of Sony
Corporation.
MPEG Layer-3 audio coding
technology and patents licensed from
Fraunhofer IIS and Thomson.
This system incorporates Dolby*
Digital and the DTS** Digital
Surround System.
* Manufactured under license from Dolby
Laboratories.
“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
**“DTS” is a registered trademark of DTS,
Inc. and “DTS 2.0 + Digital Out” is a
trademark of DTS, Inc.
U.S. and foreign patents licensed from
Dolby Laboratories.
DivX is a video file compression
technology, developed by DivX, Inc.
DivX, DivX Certified, and associated
logos are trademarks of DivX, Inc. and
are used under license.
The Bluetooth word mark and logos
are owned by the Bluetooth SIG, Inc.
and any use of such marks by Sony
Corporation is under license. Other
trademarks and trade names are those
of their respective owners.
®
11GB
Guide to parts and controls
This manual mainly explains operations using the remote, but the same operations can
also be performed using the buttons on the unit having the same or similar names.
Front panel
Top panel
12GB
Remote control

Lights up when the system is turned off.

BLUETOOTH indicator (68, 69)
Lights up when the Bluetooth function
is active.

BLUETOOTH OPR (66, 68, 69)
Press to make a connection,
disconnection, or pairing with a
Bluetooth device.
Guide to parts and controls
STANDBY indicator (89)

 (eject) (30)
Press to eject the disc.

Disc slot

+/ (27, 29, 64, 71, 74)
Press to select an album.

(USB) port (70)

Unit:  (on/standby) (24, 25,
61, 82, 98)
Remote: TV 1) (on/standby)
(23)
Connect to an optional USB device
(Digital music player or USB storage
media).
Press to turn on the system.
Press to turn on the TV.
Continued

13GB


PRESET +/ (62)
PHONES jack
Press to select the preset station.
/ (go backward/
forward) (29, 44, 49, 66, 71, 74)
Press to select a track or file.
Remote: TV CH +/1) (23)
Press to change the TV channels.
Remote: SLOW
/
(29)
Press to watch the slow‑motion play.
Remote: TUNING +/ (61)
Press to tune in the desired station.
/ (rewind/fast forward)
(29, 66, 71)
Press to find a point in a track or file.

DISPLAY (71, 83)
Press to display the disc information or
clock in the front panel display.

PROGRESSIVE (22, 88)
Press to change the output video format
(Interlace or Progressive format).

DSGX (75)
Press to reinforce the bass.

ECHO LEVEL (75)
2)
Turn to adjust the microphone echo.
MIC LEVEL (75)
Turn to adjust the microphone volume.
MIC jack (75)

IR Receptor

Unit: DVD  (play) (22, 28)
Connect to a microphone.
Press to select the DVD function.
Press to start playback of a disc.

Unit: USB  (play) (71, 74)
AUDIO IN jack (88)
Connect to an optional audio
component.
14GB
Connect the headphones.
Press to select the USB function.
Press to start playback an optional USB
device (Digital music player or USB
storage media).

Press to select the Bluetooth function.
Press to start playback of the music on
the Bluetooth device (Bluetooth mobile
phone, etc.).
DIMMER (83)
Press to adjust the brightness of the
display.
Unit: TUNER/BAND (61)
PICTURE NAVI (41)
Press to select the TUNER function.
Press to switch among FM and AM band.
Unit: AUDIO IN
Press to select the AUDIO IN function.
FUNCTION +/ (22, 28, 61, 64, 65,
67, 69, 70, 73, 75)
Press to select the function.

 (stop) (29, 61, 66, 71)
 (pause) (29, 66, 71)
Press to stop or pause playback.
Remote:  (play) (28, 35, 43,
49, 54, 65, 71, 74)
3)
Press to start playback.

VOLUME +/ (28, 66, 69, 71)
3)

Press to select the VIEWER format for
searching the chapters, titles and tracks.
Press to display the thumbnail pictures.

REPEAT/FM MODE (38, 62, 71)
Press to listen to a disc, a single track or
file repeatedly.
Press to select FM reception mode
(monaural or stereo).
Guide to parts and controls
Unit: BLUETOOTH  (64, 65)

AUDIO (31, 76, 77, 86)
Press to display the current audio signal
on the TV screen.

SUBTITLE (30)
Press to switch the language of the
subtitle (DVD VIDEO).
Press to adjust the volume.
TV VOL +/1)3) (23)
Press to adjust the TV volume.
Continued

15GB


ANGLE (30)
ADVANCE
Press to advance the current scene during
playback.

Press to replay the previous scene during
playback.
DVD/USB/TUNER MENU (39, 46,
62)
Press to display the MENU items on the
TV screen.
Press to preset the radio station.
Press to select the play mode when using
an optional USB device.

EQ (75)
Press to select the sound effect.

DISPLAY (26, 34, 39, 46, 50, 51,
56, 78, 87, 99)
REPLAY
(29)
 STEP/ STEP  (29)
Press to play one frame at a time when
playback is paused.

 RETURN (33)
Press to return to the previous menu on
the TV screen.

/// (24, 25, 34, 36, 37, 39,
43, 71, 73, 81)
Press to select the MENU items.
ENTER (24, 42, 62, 73)
Press to display the Control Menu on the
TV screen.
Press to enter the settings.

DVD TOP MENU (39)
TV1) (23)
Press to operate the TV functions.
16GB
(29)
Press to change the angle (DVD VIDEO
with multi-angles only).

Press to display the DVD title on the TV
screen.

CLEAR (35, 41, 65, 68, 74)
TIME/TEXT (83)
Press to delete a pre-programmed track
or file.
Press to erase the pairing registration
information of the Bluetooth device.
Press to change the information in the
front panel display.
-/--1)
Press to enter a single digit or double
digit number.

TV/VIDEO1) (23)
Press to switch the input sources.
SLEEP (81)
Press to set the Sleep Timer.

Numeric buttons (23, 29, 32, 39,
53, 64)

Press to select a track or file.
Press to enter a password or passcode.
Press to set the clock and the timers.
3)
10/0
1)
Press to enter a double digit number.

KEY CONTROL / (80)
Press to change the key to suit your vocal
range.
SCORE (79)
Press to select the difficulty level for
scoring mode.
KARAOKE MODE (76)
TIMER MENU (24, 81)
Guide to parts and controls


THEATRE SYNC (27)
Press to activate the THEATRE SYNC
function.
This button is used to operate a Sony TV. For
details, see “Operating a Sony TV” (page 23).
Except for European and Russian models.
3)
The numeric button 5, TV VOL +,
VOLUME +  and   buttons have a
tactile dot. Use the tactile dot as a reference
when operating the system.
1)
2)
Press to select the Karaoke mode.
KARAOKE PON (80)
Press to activate the KARAOKE PON
function.
Continued

17GB
Display
Indicates the selected function.
Indicates the selected play mode. (34)
Lights up when timer is set. (81)
Lights up when a station is tuned in.
(61)
Lights up when DSGX is turned on.
(75)
Indicates the Playback status.
Lights up when DTS is selected. (59)
Lights up when Dolby Digital is
selected. (59)
Lights up when an optional USB
device is connected. (70)
Lights up when “P AUTO” or
“P VIDEO” is selected. (22)
18GB
Lights up when the output video
signal is NTSC. (22)
Lights up when playing VIDEO CD
with PBC. (32)
Indicates the type of audio format.
Indicates the track/album
information.
Lights up when chapter or title
number is displayed.
Indicates the type of disc being played
back. (28)
Displays the text information.
Getting Started
Getting Started
Hooking up the system
or
Right speaker
Wall socket
Left speaker
 AM loop antenna
 White side for North American model
 Brown side for other regions
 FM lead antenna (Extend it horizontally.)
 FM/AM antennas
Find a location and an orientation that
provide good reception, and then set up
the antenna.
Keep the antennas away from the speaker
cords, the power cord to avoid picking
up noise.
 Speakers
Continued

19GB
 Power
Connect the power cord to a wall socket.
If the supplied adaptor on the plug does
not fit your wall socket, detach it from
the plug (only for models equipped with
an adaptor).
Attaching the speaker pads
Attach the supplied speaker pads at each
corner on the bottom of the speakers
to stabilize the speakers and to prevent
them from slipping.
Inserting two R6 (size AA)
batteries into the remote
Slide and remove the battery
compartment lid, and insert the two
supplied R6 (size AA) batteries,  side
first, matching the polarities shown
below.
When carrying this system
Perform the following procedure to
protect the DVD mechanism.
Use buttons on the unit for the
operation.
1 Press /  to turn on the
system, then press DVD  .
Note
If you do not use the remote for a long period
of time, remove the batteries to avoid possible
damage from battery leakage and corrosion.
Tip
With normal use, the batteries should last for
about six months. When the remote no longer
operates the system, replace both batteries with
new ones.
20GB
2 Make sure that no disc is loaded
in the system and check that “No
Disc” appears.
3 Press /  to turn off the
system and check that “STANDBY”
disappears.
4 Unplug the power cord.
Hooking up the TV
Connect the video deck to the TV using
a video cord (not supplied). However, do
not connect this unit to the TV through
the video deck. Otherwise, you may
experience video leakage when watching
video images from this system. Connect
this unit directly to the TV as shown
below.
TV
Video deck
Getting Started
Connect the video input jack of your
TV to the VIDEO OUT jack with the
supplied video cord.
When connecting a video deck
Unit
Do not connect
directly
Tip
For higher quality video images:
 Use the optional component video cords to
connect the COMPONENT VIDEO input
jacks on your TV to the COMPONENT
VIDEO OUT jacks of this unit. If your
TV is compatible with progressive format
file signals, use this connection and press
PROGRESSIVE  on the unit repeatedly
until “P AUTO” or “P VIDEO” appears in
the display (page 22).
 You can use an optional S Video cord to
connect the S VIDEO input jack on your
TV to the S VIDEO OUT jack of this unit.
Continued

21GB
Changing the color system
(Except for European and Russian
models)
Set the color system to PAL or NTSC
depending on the color system of your
TV.
The default setting for color system is
different depending on the area.
Each time you perform the procedure
below, the color system changes as
follows:
NTSC  PAL
1 Press FUNCTION +/–  repeatedly to
select “DVD” (or press DVD   on
the unit).
2 Press /  to turn off the system.
3 Press DISPLAY  to display the clock.
4 While the clock is displayed, hold
down   then press / .
The system turns on automatically and
the color system is changed.
“COLOR NTSC” or “COLOR PAL”
appears in the display.
Note
“––:––” appears in the display if you have not
set the clock.
Changing the format of the
video signal output from
COMPONENT VIDEO OUT jacks
Progressive is a method for displaying
TV images that reduces flickering and
sharpens the image. To use this method,
you need to connect to a TV that can
accept progressive signals.
You can output video signals from
COMPONENT VIDEO OUT jacks in
Interlace or Progressive format.
1 Press FUNCTION +/ 
repeatedly to select “DVD” (or
press DVD   on the unit).
2 Press PROGRESSIVE  on the
unit repeatedly.
Select “P AUTO” or “P VIDEO” if
your TV accepts progressive signals
and the TV is connected to the
COMPONENT VIDEO OUT jacks.
Otherwise, select “INTERLACE.”
P AUTO (PROGRESSIVE AUTO):
The system automatically detects
the software type and selects the
appropriate conversion method.
P VIDEO (PROGRESSIVE VIDEO):
The system fixes the conversion
method to PROGRESSIVE VIDEO
for video-based software.
Select this if the image is not clear
when you select “P AUTO.”
22GB
About DVD VIDEO software types and
the conversion method
Some DVD VIDEO contains both types
of software. In order for these images to
appear in your TV naturally when the
video output is in progressive format, the
progressive signals need to be converted
to match your DVD VIDEO software.
Note
There would be no image on your TV or the
image is not clear if your setting does not
match your TV or connection.
Turn on the TV and select the video
input so that you can view the pictures
from this system.
Operating a Sony TV
You can use the following buttons to
operate a Sony TV. These buttons have
been marked in orange.
To
Turn the TV on
or off
Switch the TV’s
input source
between the TV
and other input
sources
Select the TV
channels
Adjust the
volume of the TV
speaker(s)
Press
TV /  while
holding down TV
.
TV/VIDEO 
while holding down
TV .
Getting Started
The DVD VIDEO software can be
divided into 2 types:
Film-based software
Film-based software is derived from
film and displays the images at 24
frames per second.
Video-based software
Video-based software is derived from
TV, such as dramas and sitcoms and
displays images at 30 frames or 60
fields per second.
When using a TV
TV CH +/ 
or numeric
buttons * while
holding down TV
.
TV VOL +/ 
while holding down
TV .
* For double digit number, hold down TV 
and press -/-- , then press the number.
(For example, hold down TV ,
press -/-- , then 2 and 5 for entering 25.)
23GB
Setting the clock
Use buttons on the remote to set the
clock.
1 Press /  to turn on the
system.
2 Press TIMER MENU .
The hour indication flashes in the
display.
If “PLAY SET?” flashes in the
display, press  or   repeatedly
to select “CLOCK SET?,” then press
ENTER .
3 Press  or   repeatedly to set
the hour.
4 Press ENTER .
The minute indication flashes in the
display.
5 Press  or   repeatedly to set
the minutes.
6 Press ENTER .
The clock starts functioning.
24GB
Note
The clock settings are canceled when you
disconnect the power cord or if a power failure
occurs.
To display the clock when the system
is off
Press DISPLAY .
The clock is displayed for about
8 seconds.
Performing QUICK
SETUP
4 Press ENTER  without
inserting a disc.
“LANGUAGE SETUP” appears on
the TV screen.
Getting Started
Before using the system, you can make
the minimum basic adjustments in
QUICK SETUP. If you do not want
to perform QUICK SETUP, press
CLEAR  in step 3. The guide message
will disappear from the TV screen.
1 Turn on your TV and select the
video input.
2 Press /  to turn on the
system.
Note
Make sure there is no disc in the unit.
Otherwise, the guide message does not
appear. To perform QUICK SETUP, press
  on the unit to remove the disc.
3 Press FUNCTION +/ 
repeatedly to select “DVD” (or
press DVD   on the unit).
5 Press  or   repeatedly to
select a language, then press
ENTER .
The setting is selected and “SCREEN
SETUP” appears on the TV screen.
Tips
The selected language is for “OSD,”
“MENU” and “SUBTITLE.”
The selectable language is different
depending on the area.
The guide message appears at the
bottom of the TV screen.
Continued

25GB
6 Press  or   repeatedly to
select the setting that matches
your TV type.
If you have a 4:3 standard TV:
Select “4:3 LETTER BOX” or “4:3
PAN SCAN” (page 58)
If you have a wide-screen TV or a
4:3 standard TV with wide-screen
mode:
Select “16:9” (page 58)
7 Press ENTER .
The setting is selected and “QUICK
SETUP is complete.” appears on the
TV screen.
The system is ready for playback.
If you want to change each setting
individually, see “Using the DVD
setup menu” (page 56).
To quit QUICK SETUP
Press
26GB
DISPLAY .
To recall QUICK SETUP display
1 Press
DISPLAY  when playback
is stopped.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select
ENTER .
(SETUP), then press
3 Press  or   repeatedly to select
“QUICK,” then press ENTER .
Note
The guide message appears at the bottom of
the TV screen when you turn on the system
for the first time or after performing “RESET”
(page 98).
Using the THEATRE
SYNC function
Preparing to use the THEATRE
SYNC function
Register the TV’s input source connected
to this system.
To select the TV’s input
Press the following buttons while holding
down SLEEP .
Press
0
TV’s input source
No input source
(Default)
1 to 8
9
CLEAR 

VIDEO 1 to VIDEO 8
COMPONENT 1
COMPONENT 2
COMPONENT 3
+
COMPONENT 4
Keep the remote pointed in the
direction of the TV until the TV is
turned on and the input source
is changed correctly, then press
THEATRE SYNC .
If this function does not work, change the
transmission time. The transmission time
varies depending on the TV.
Getting Started
THEATRE SYNC allows you to turn on
your Sony TV and this system, changes
the system’s function to “DVD” and then
switches the TV’s input source you have
set with just one button.
Operating the THEATRE SYNC
function
To change the transmission time
Press the following buttons while holding
down  .
Press
1
2
3
4
5
6
7
8
Transmission time
0.5 (Default)
1
1.5
2
2.5
3
3.5
4
The selected TV’s input source is
memorized into the remote.
27GB
2 Insert a disc in the disc slot 
Disc
with the label side facing up.
Playing a disc
 Normal Play
If the playback does not start
automatically, press   (or DVD
  on the unit).
Depending on the DVD VIDEO or
VIDEO CD, some operations may
be different or restricted. Refer to the
operating instructions supplied with the
disc.
Example: When playing a DVD VIDEO
3 Press VOLUME +/  to adjust
the volume.
Title number
Elapsed playing time
1 Press FUNCTION +/ 
repeatedly to select “DVD” (or
press DVD   on the unit).
28GB
Notes
Depending on the system status, the volume
level may not appear on the TV screen.
When you turn on the system, the disc is not
pulled into the disc slot  until “No Disc”
appears in the display. Do not attempt to
push in the disc until “No Disc” appears.
Do not load an 8 cm disc with an adaptor.
Doing so may cause the system to
malfunction.
When you remove a disc, handle the disc by
its edge and pull it straight out of the disc slot
. Do not touch the surface.
Other operations
Press
SLOW
or
 when
SLOW
playback is paused.
Each time you
press SLOW
or
, the
SLOW
playback speed
changes.
To return to normal
playback, press  
(or DVD   on the
unit).
Play one
STEP   to go to
frame at a
the next frame when
time (Freeze
playback is paused.
6)
Frame)
Press  STEP 7)
to go to the preceding
frame when playback is
paused.
To return to normal
playback, press  
(or DVD   on the
unit).
 during
Replay the
REPLAY
previous scene playback. (Instant
Replay)7)

Briefly fast
ADVANCE
forward the
during playback.
current scene (Instant Advance)7)
Continued

Disc
To
Press
Stop playback  .
Pause playback  . Press   again
or   (or DVD
  on the unit) to
resume playback.
Select a track1),  or  
chapter or
repeatedly during
video file
playback.
Or, press the numeric
buttons  when
the Control Menu is
turned off, then press
ENTER 2).
Select an
+/  repeatedly
album3)
during playback or
when playback is
paused.
Locate a point  or  
quickly in fast during playback.
forward or fast Each time you press
reverse (Lock  or  , the
Search)4)5)
playback speed changes
cyclically.
To return to normal
playback, press  
(or DVD   on the
unit).
To
Watch frame by
frame (Slowmotion Play)6)
29GB
To
Switch to DVD
function from
another source
Remove the
disc
Press
FUNCTION +/ 
repeatedly (or press
DVD   on the
unit) (Automatic
Source Selection).
  on the unit.
You cannot select an audio track during Lock
Search operation of MP3 audio tracks.
2)
DVD VIDEO, DVD-R/-RW in VR mode,
VIDEO CD, AUDIO CD and DivX video
files only.
3)
MP3 audio tracks, JPEG image files and DivX
video files only.
4)
Except for JPEG image files.
5)
Depending on the disc, the actual speed may
differ.
6)
DVD VIDEO, DVD-R/-RW in VR mode,
DivX video files and VIDEO CD only.
7)
DVD VIDEO and DVD-R/-RW in VR mode
only.
1)
Notes
You cannot search for a still picture on a
DVD-R/-RW in VR mode.
You may not be able to use the Instant Replay
or Instant Advance function in Repeat Play
mode or with some scenes.
Displaying multi-angles and
subtitles
Changing the angles
(DVD VIDEO only)
You can change the viewing angle while
playing a DVD VIDEO on which various
angles (multi-angles) for a scene are
recorded.
Press ANGLE  repeatedly during
playback. Each time you press
ANGLE , the angle changes.
Note
Depending on the DVD VIDEO, you may not
be able to change the angle, even if multi-angles
are recorded on the DVD VIDEO.
Displaying the subtitles
(DVD VIDEO, DVD-R/-RW in VR
mode and DivX video files only)
You can turn the subtitles on or off while
playing a DVD VIDEO, DVD-R/-RW in
VR mode or DivX video files on which
subtitles are recorded. You can also
change the language of the subtitles with
DVD VIDEO, DVD-R/-RW in VR mode
or DivX video files on which multilingual
subtitles are recorded.
Press SUBTITLE  repeatedly
during playback. Each time you press
SUBTITLE , the subtitle language
changes or turns off.
30GB
Notes
Other useful functions
Changing the sound
When playing a DVD VIDEO or a DivX
video file recorded in multiple audio
formats, you can select the audio format
you want. If the DVD VIDEO is recorded
with multilingual tracks, you can also
change the language.
When playing a VIDEO CD, AUDIO
CD or MP3 audio tracks, you can select
the sound from the right or left channel
and listen to the sound of the selected
channel through both the right and left
speakers. For example, when playing a
track with the vocals on the right channel
and the instruments on the left channel,
you can hear the instruments from both
speakers by selecting the left channel.
Press AUDIO  repeatedly during
playback to select the audio signal you
want.
The default settings are underlined.
When playing a DVD VIDEO:
Depending on the DVD VIDEO, the
option of language and audio format
varies.
When a 4-digit number is displayed, the
digits represent a language code (see
“Language code list” (page 111)). When
the same language is displayed two or
more times, the DVD VIDEO is recorded
in multiple audio formats. Note that the
sound changes automatically depending
on the disc.
Disc
Depending on the DVD VIDEO, you may
not be able to change the subtitles even if
multilingual subtitles are recorded on the
DVD VIDEO. You also may not be able to
turn the subtitles off.
You can change the subtitles if the DivX
video file has an “.AVI” or “.DivX” extension
and contains subtitle information within the
same file.
When playing a DVD-R/-RW in VR
mode:
The number of audio tracks recorded on
a disc is displayed.
Example:
1: MAIN: the main sound of the audio
track 1.
1: SUB: the sub sound of the audio
track 1.
1: MAIN+SUB: the main and sub
sound of the audio track 1.
2: MAIN*: the main sound of the audio
track 2.
2: SUB*: the sub sound of the audio
track 2.
2: MAIN+SUB*: the main and sub
sound of the audio track 2.
* These items do not appear if only one audio
stream is recorded on the disc being played
back.
Continued

31GB
When playing a DivX video file:
The options for audio format differ
depending on the DivX video files.
When playing a VIDEO CD, AUDIO CD,
or MP3 audio track:
STEREO: the standard stereo sound.
1/L: the sound of the left channel
(monaural).
2/R: the sound of the right channel
(monaural).
When playing a Super VCD:
1: STEREO: the stereo sound of the
audio track 1.
1: 1/L: the sound of the left channel of
the audio track 1 (monaural).
1: 2/R: the sound of the right channel
of the audio track 1 (monaural).
2: STEREO: the stereo sound of the
audio track 2.
2: 1/L: the sound of the left channel of
the audio track 2 (monaural).
2: 2/R: the sound of the right channel
of the audio track 2 (monaural).
Playing VIDEO CDs with PBC functions
(Version 2.0)  PBC Playback
(VIDEO CD only)
You can use the PBC (Playback Control)
menus on your TV screen to enjoy
the disc’s interactive software. The
menu format and structure may differ
depending on each disc.
1 Press   (or DVD   on the
unit) to start playing a VIDEO CD with
PBC functions (Version 2.0).
The PBC menu appears on the TV
screen. Depending on the VIDEO CD,
the menu may not appear.
2 Press the numeric buttons  to
select the item number you want.
3 Press ENTER .
Depending on the VIDEO CD,
“Press ENTER” may appear as “Press
SELECT” in the operating instructions
supplied with the disc. In this case,
press   (or DVD   on the
unit).
4 Continue playback according to the
instructions on the menus.
Refer to the operating instructions
supplied with the VIDEO CD, as
the operating procedure may differ
depending on the VIDEO CD.
32GB
To return to the previous menu
Press  RETURN .
Note
PBC playback is canceled when Shuffle Play,
Program Play or Repeat Play is activated.
1 Press  or   repeatedly
or press the numeric buttons 
to select a track when playback is
stopped.
2 Press   (or DVD   on the
unit) or ENTER .
Playback starts from the selected track.
Still images, such as the menu screens,
will not be shown.
To return to PBC playback, press  
twice, then press   (or DVD 
 on the unit).
Resuming playback from the point you
stopped the disc  Resume Play
This system memorizes the point where
you stopped the disc so you can resume
playback from that point. Resume Play
is not canceled when you turn off the
system except for MP3 audio tracks,
JPEG image files and DivX video files.
stop playback.
“Resume” appears in the display.
If “Resume” does not appear, Resume
Play is not available.
2 Press   (or DVD   on the
unit).
The system starts playback from the
point you stopped the disc in step 1.
Disc
To cancel playback with PBC
functions
1 While playing a disc, press   to
Notes
You cannot perform Resume Play during
Shuffle Play or Program Play.
This function may not work properly with
some discs.
Resume Play is canceled when
 you press   when playback is stopped.
 you eject the disc.
 you change the function.
 you change the settings in the Setup
Menu.
Depending on where you stopped the disc,
the system may not resume playback from
the exact same point.
If “MULTI-DISC RESUME” is set to “ON,”
Resume Play is not canceled for DVD
VIDEO and VIDEO CD when you eject the
disc or change the function.
Tip
To play back from the beginning of the disc,
press   twice, then press   (or DVD
  on the unit).
Continued

33GB
Resuming playback of a disc that was
stopped  Multi-disc Resume
(DVD VIDEO and VIDEO CD only)
This system can store the point where
you stopped the playback of the disc
for up to 40 discs and resumes playback
when you insert the same disc again. If
you store a playback resume point for the
41st disc, the playback resume point for
the first disc will be deleted.
To activate this function, set “MULTIDISC RESUME” in “CUSTOM SETUP”
to “ON” (page 59).
Note
If “MULTI-DISC RESUME” in “CUSTOM
SETUP” is set to “ON” and you play back a
recorded disc such as DVD-R, the system may
play back other recorded disc from the same
playback resume point. To start playback from
the beginning of the disc, press   twice
and then press   (or DVD   on the
unit).
Using play mode
Creating your own program
 Program Play
You can make a program of up to 99
steps in the order you want them to be
played back.
1 Press
DISPLAY .
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select
(PROGRAM), then
press ENTER .
The options for “PROGRAM” appear
on the TV screen.
3 Press  or   repeatedly
to select “SET,” then press
ENTER .
Track number
34GB
4 Press  .
The cursor moves to the track list “T”
(in this case, “01”).
5 Select the track you want to
program.
For example, select track “02.”
Press  or   repeatedly to select
“02” under “T,” then press ENTER .
Selected track
Disc
To change a programmed step:
Press  or   repeatedly to select
the programmed step number you
want to change. Then, press  .
To delete a programmed step:
Press  or   repeatedly to select
the programmed step number
you want to change. Then, press
CLEAR .
To delete all of the programmed
steps in the program list:
Press   to select “ALL CLEAR.”
Then, press ENTER .
Total time of the programmed tracks
6 To program other tracks, repeat
steps 4 to 5.
7 Press   (or DVD   on
the unit).
Program Play starts.
When the Program Play ends, you
can restart the same program by
pressing   (or DVD   on
the unit).
Continued

35GB
To cancel Program Play
Press CLEAR  or select “OFF” in
step 3. To play back the same program
again, select “ON” in step 3 and press
ENTER .
To turn off the Control Menu
Press DISPLAY  repeatedly until
the Control Menu disappears from the
TV screen.
Notes
When Program Play is activated, the
“REPEAT” setting is automatically changed
to “ON” if the current setting is “DISC” or
“TRACK.”
You cannot perform Program Play with
VIDEO CDs during PBC playback.
Tip
The Program Play is canceled and the program
list is cleared when
 you eject the disc.
 you turn off the system.
 you change the function.
Playing in random order
 Shuffle Play
You can play back the tracks on the
current disc in random order. Each time
you perform Shuffle Play, the playing
order may differ.
1 Press
DISPLAY  during
playback.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select
(SHUFFLE), then
press ENTER .
The options for “SHUFFLE” appear
on the TV screen.
3 Press  or   repeatedly to
select the setting you want.
When playing a VIDEO CD or
AUDIO CD:
TRACK: all tracks on the disc is
played back randomly.
When Program Play is activated:
ON: all tracks in the program list is
played back randomly.
36GB
When playing a DATA CD/DVD
(except for DivX video files):
ON: all MP3 audio tracks in the
selected album on the disc are
played back randomly.
When no album is selected, the first
album is played back randomly.
Shuffle Play starts.
To cancel Shuffle Play, press
CLEAR  or select “OFF” in step 3.
To turn off the Control Menu
Press DISPLAY  repeatedly until
the Control Menu disappears from the
TV screen.
Notes
Shuffle Play is canceled when
 you eject the disc.
 you turn off the system.
 you change the function.
 you perform Track/Index Search.
You cannot perform Shuffle Play with
VIDEO CDs during PBC playback.
The same song may be played back
repeatedly for MP3 audio tracks.
 Repeat Play
You can play back all the titles, tracks,
files or a single title, chapter, track or file
on a disc repeatedly.
You can select Shuffle Play and Program
Play at the same time.
Disc
4 Press ENTER .
Playing repeatedly
1 Press
DISPLAY  during
playback.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select
(REPEAT), then
press ENTER .
The options for “REPEAT” appear on
the TV screen.
3 Press  or   repeatedly to
select the setting you want.
The default setting is underlined.
When playing a DVD VIDEO or
DVD-R/DVD-RW in VR mode:
OFF: does not play back repeatedly.
DISC: repeats all the titles on the
disc.
TITLE: repeats the current title.
CHAPTER: repeats the current
chapter.
Continued

37GB
When playing a VIDEO CD or
AUDIO CD:
OFF: does not play back repeatedly.
DISC: repeats all the tracks on the
disc.
TRACK: repeats the current track.
When playing a DATA CD or DATA
DVD:
OFF: does not play back repeatedly.
DISC: repeats all the albums on the
disc.
ALBUM: repeats the current
album.
TRACK1): repeats the current track.
FILE2): repeats the current file.
MP3 audio tracks only.
DivX video files only.
1)
2)
When Program Play or Shuffle
Play is activated:
OFF: does not play back repeatedly.
ON: repeats the Program Play or
Shuffle Play.
4 Press ENTER .
Repeat Play starts.
To cancel Repeat Play, press
CLEAR  or select “OFF” in step 3.
38GB
To turn off the Control Menu
Press DISPLAY  repeatedly until
the Control Menu disappears from the
TV screen.
Notes
You can also change the Repeat Play setting
by pressing REPEAT/FM MODE 
repeatedly.
“REP” lights up in the display when Repeat
Play is set to “DISC,” “ALBUM” or “ON.”
“REP1” lights up in the display when
Repeat Play is set to “ TITLE,” “CHAPTER,”
“TRACK” or “FILE.”
Depending on the DVD VIDEO, you cannot
perform Repeat Play.
You cannot perform Repeat Play with
VIDEO CDs during PBC playback.
When playing a DATA CD/DVD which
contains MP3 audio tracks and JPEG image
files, the audio sound will not match the
image if their playing time are different.
You cannot select “TRACK” when “MODE
(MP3, JPEG)” is set to “IMAGE (JPEG)”
(page 46).
Repeat Play is canceled when
 you eject the disc.
 you turn off the system.
 you change the function.
Searching/selecting a
disc
Some DVD VIDEOs have menus to help
you enjoy the DVD VIDEOs. You can
play back DVD VIDEOs using these
menus on the TV screen.
Using DVD TOP MENU
A DVD VIDEO contains a lot of sections
of picture or music feature called “title.”
When you play back a DVD VIDEO
which contains several titles, you can
select the title you want using DVD TOP
MENU .
Using DVD MENU
Some DVD VIDEOs allow you to select
the disc contents using a menu. When
you play back these DVD VIDEOs, you
can select items such as the language for
the subtitles and the language for the
sound using DVD/USB/TUNER MENU
.
DVD/USB/TUNER MENU .
The menu appears on the TV screen.
The contents of the menu vary
depending on the disc.
2 Press ///  or the
numeric buttons  to select
the title or item you want to
play back.
Disc
Playing DVD VIDEOs using the
menu
1 Press DVD TOP MENU  or
3 Press ENTER .
Selecting “ORIGINAL” or “PLAY
LIST” on a DVD-R/-RW in VR
mode
This function is only available for DVDRs/-RWs in VR mode with a playlist
created.
1 Press
DISPLAY  when
playback is stopped.
The Control Menu appears on the TV
screen.
Continued

39GB
2 Press  or   repeatedly to
select
(ORIGINAL/PLAY
LIST), then press ENTER .
The options for “ORIGINAL/PLAY
LIST” appear on the TV screen.
3 Press  or   repeatedly to
select the setting you want.
PLAY LIST: play back according to
the playlist created on the disc.
ORIGINAL: play back according to
the originally recorded sequence.
4 Press ENTER .
Using the on-screen display
to search for a title/chapter/
scene/track/index/album/file
1 Press
DISPLAY . (When
playing a DATA CD/DVD
with JPEG image files, press
DISPLAY  twice.)
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select the search item.
Example: when you select
(CHAPTER)
“** (**)” is selected (** refers to a
number). The number in parentheses
indicates the total number of titles,
chapters, tracks, indexes, scenes,
albums or files.
Selected row
3 Press ENTER .
You can search by different information
recorded on a disc, such as title, track,
and album. Each item is assigned a
unique number on the disc, and you can
select the numbered item you want from
the Control Menu. You can also search
for a particular point using the time code
(Time Search) (DVD VIDEO and DVDR/-RW in VR mode only).
40GB
“** (**)” change to “– – (**).”
4 Press  or   repeatedly
or the numeric buttons  to
select the title, track, album, etc.
or file number.
If you make a mistake, press
CLEAR  to cancel the number.
5 Press ENTER .
The system starts playback from the
selected title, track, album, etc.
To turn off the Control Menu
Press DISPLAY  repeatedly until
the Control Menu disappears.
When the Control Menu display is turned off,
you can search for a chapter (DVD VIDEO and
DVD-R/-RW in VR mode) or track (AUDIO
CD and VIDEO CD) or file (DivX video files
in DATA CD/DVD) by pressing the numeric
buttons  and ENTER .
To search for a particular point using
the time code  Time Search
(DVD VIDEO and DVD-R/-RW in VR
mode only)
1 Press
DISPLAY .
2 Press  or   repeatedly to select
(TIME/TEXT).
“T **:**:**” (elapsed playing time of
the current title) is selected.
3 Press ENTER .
“T **:**:**” changes to “T--:--:--.”
numeric buttons , then press
ENTER .
For example, to find the scene at 2
hours, 10 minutes, and 20 seconds
after the beginning, enter “2:10:20.”
If you make a mistake, press
CLEAR  to cancel the number.
Note
Depending on the disc, you cannot perform
Time Search.
Disc
Tip
4 Input the time code using the
Searching by scene
 Picture Navigation
1 Press PICTURE NAVI 
repeatedly to select the VIEWER
format you want to search in.
CHAPTER VIEWER (DVD
VIDEO)
TITLE VIEWER (DVD VIDEO)
TRACK VIEWER (VIDEO CD or
Super VCD)
Continued

41GB
2 Press ENTER .
The first scene of the first 9 chapters,
titles or tracks appears. If there are
more than 9 chapters, titles, or tracks,
“” appears at the bottom right of
the screen.
3 Press ///  to select a
chapter, title or track, then press
ENTER .
The system starts playing from the
selected scene.
To cancel searching
Press  RETURN  or
.
DISPLAY
Note
Depending on the disc, you may not be able to
select some items.
Tip
To display the remaining chapters, titles, or
tracks, select a scene at the bottom row and
press  . To return to the previous scene,
select a scene at the top row and press  .
42GB
Playing MP3/JPEG discs
Notes
Depending on the software you use to create
the DATA CD or DATA DVD, the playback
order may differ.
The system can play back up to 200 albums,
including albums that do not contain MP3
audio tracks and JPEG image files. The
system will not play back any albums beyond
the 200th album.
The maximum number of MP3 audio tracks
or JPEG image files on an album which this
system can recognize is:
 600 when “MODE (MP3, JPEG)” is set to
“AUDIO (MP3)” or “IMAGE (JPEG).”
 300 when “MODE (MP3, JPEG)” is set to
“AUTO.”
The system can play back MP3 audio tracks
and JPEG image files. The system will play
back any data with the extension “.MP3”,
“.JPG” or “.JPEG” even if they are not in
MP3 or JPEG format. Playing this data may
generate a loud noise which could damage
your speaker system.
Selecting an MP3 audio track
or album
1 Insert a disc in the disc slot .
The system starts playing the first
album.
2 Press DVD/USB/TUNER MENU
.
The album list appears on the TV
screen.
Disc
Depending on the encoding/writing software,
recording device, or the recording media
used to record an MP3 audio track, you may
encounter problems such as cannot play
back, sound interruptions and noise.
The following discs/situations can increase
the time it takes to start playback:
 a disc recorded with a complicated tree
structure.
 a disc recorded in Multi Session.
 a disc to which data can be added (nonfinalized disc).
 when the tracks or files in another album
have just been played back.
Some CD-Rs/-RWs or DVD-Rs/-RWs/+Rs/
+RWs cannot be played back on the system
depending on the file format.
When playing a DATA CD or DATA DVD
containing both MP3 audio tracks and JPEG
image files, select “MODE (MP3, JPEG)”
from the Control Menu after the disc’s TOC
reading is complete. If you want to play back
 both MP3 audio tracks and JPEG image
files, set “MODE (MP3, JPEG)” to
“AUTO.”
 MP3 audio tracks only, set “MODE (MP3,
JPEG)” to “AUDIO (MP3).”
 JPEG image files only, set “MODE (MP3,
JPEG)” to “IMAGE (JPEG).”
The system can play back to a depth of 8
folders only.
3 Press  or   repeatedly to
select an album.
Playing an album:
Press   (or DVD   on the
unit).
The system starts playback from the
first track of the selected album.
To stop playback, press  .
Continued

43GB
Playing a track:
1 Press ENTER .
The list of MP3 audio tracks of the
selected album appears.
To return to the album list when the
track list is displayed
Press  RETURN .
To turn on or off the album list or track
list
Press DVD/USB/TUNER MENU 
repeatedly.
2 Press  or   repeatedly to
select the MP3 audio track you
want, then press ENTER .
The system starts playing the
selected MP3 audio track.
To stop playback, press  .
To display the next or previous page of
track list or album list
Press  or   repeatedly when the
track list or album list is displayed.
To play back the next album of MP3
audio tracks
You can select the next album by pressing
  repeatedly until the last track of
the current album, then press  
once. The first track of the next album
is selected. However, you cannot select
the previous album by pressing  
repeatedly. To select the previous album,
select the album from the album list.
44GB
Selecting a JPEG image file or
album
1 Insert a disc in the disc slot .
The system starts playing the first
album.
2 Press DVD/USB/TUNER MENU
.
The album list appears on the TV
screen.
3 Press  or   repeatedly to
select an album.
Playing an album:
Press   (or DVD   on the
unit).
The system starts a slide show from
the first image file of the selected
album.
To stop playback, press  .
Playing an image file:
1 Press PICTURE NAVI .
Thumbnail picture for the first 16
JPEG image files in the selected
album is displayed.
To display the next or previous page of
album list
Press  or   repeatedly when the
album list is displayed.
To display the next or previous JPEG
image file
Disc
Press  or   repeatedly during the
slide show.
To play back the next album of JPEG
image files
If there are more than 16 image
files in the selected album, the
scroll bar appears at the right.
2 Press ///  to select the
image you want to view, then
press   (or DVD   on
the unit).
The slide show starts from the
selected image file.
To stop playback, press  .
You can select the next album by pressing
  repeatedly until the last file of the
current album, then press   once.
The first file of the next album is selected.
However, you cannot select the previous
album by pressing   repeatedly. To
select the previous album, select the
album from the album list.
To turn on or off the display of album
list
Press DVD/USB/TUNER MENU 
repeatedly.
Continued

45GB
To rotate a JPEG image file
When a JPEG image file is displayed on
the TV screen, you can rotate the image
by 90 degrees.
Press  or   repeatedly while viewing
an image.
Press CLEAR  to return to the original
view.
Notes
The PICTURE NAVI  button does not
work when “MODE (MP3, JPEG)” is set to
“AUDIO (MP3).”
When you press  or   to select the next
or previous image, the image will return to
its original view even if you have rotated the
image previously.
The slide show stops when you press  or
 .
Playing MP3 audio tracks and
JPEG image files as a slide
show with sound
You can play back a slide show with
sound by first placing both JPEG image
files and MP3 audio tracks in the same
album on a DATA CD/DVD.
1 Insert a disc in the disc slot .
The system starts playing the first
album.
46GB
2 Press   to stop playback.
3 Press DISPLAY .
The Control Menu appears on the TV
screen.
4 Press  or   repeatedly to
select
(MODE (MP3,
JPEG)), then press ENTER .
The options for “MODE (MP3,
JPEG)” appear on the TV screen.
The default setting is underlined.
AUTO: Plays back both JPEG
image files and MP3 audio tracks
in the same album as a slide show
with sound.
AUDIO (MP3): Plays back MP3
audio tracks continuously.
IMAGE (JPEG): Plays back JPEG
image files as a slide show.
5 Press  or   repeatedly
to select “AUTO,” then press
ENTER .
6 Press DVD/USB/TUNER MENU
.
The album list appears on the TV
screen.
7 Press  or   repeatedly to
select the album you want, then
press   (or DVD   on
the unit).
To turn on or off the display of album
list
Press DVD/USB/TUNER MENU 
repeatedly.
To cancel slide show with sound
Select “AUDIO (MP3)” or “IMAGE
(JPEG)” in step 4.
Notes
In some cases, you cannot change the
“MODE (MP3, JPEG)” setting when “MODE
(MP3, JPEG)” has been set to
 “IMAGE (JPEG)” and the selected disc
only contains MP3 audio tracks.
 “AUDIO (MP3)” and the selected disc
only contains JPEG image files.
If there are no MP3 audio tracks in the disc,
“No audio data” appears on the TV screen
and the disc cannot be played back.
If there are no JPEG image files in the disc,
“No image data” appears on the TV screen
and the disc cannot be played back.
If you play back a large data size of MP3
audio tracks and JPEG image files at the same
time, the sound may skip.
(JPEG image files only)
1 Press
DISPLAY  repeatedly until
the Control Menu for JPEG image
files appears on the TV screen.
2 Press  or   repeatedly to select
(INTERVAL), then press
ENTER .
The options for “INTERVAL” appear
on the TV screen.
Disc
The slide show with sound starts from
the selected album.
To stop playback, press  .
Specifying the slide show speed
3 Press  or   repeatedly to select
the transition interval you want.
The default setting is underlined.
NORMAL: Sets the duration to
about 6 to 9 seconds (Images that
are 4,000,000 pixels or more will
lengthen the duration).
FAST: Sets the duration shorter
than NORMAL.
SLOW 1: Sets the duration longer
than NORMAL.
SLOW 2: Sets the duration longer
than SLOW 1.
4 Press ENTER .
The selected setting takes effect.
Note
Some JPEG image files (especially progressive
JPEG image files or JPEG image files with
3,000,000 pixels or more) may take a longer
time to display than others, which may make
the transitions seem longer than that of the
option you selected.
Continued

47GB
Selecting a transition effect for image
files in the slide show
(JPEG image files only)
1 Press
DISPLAY  repeatedly until
the Control Menu for JPEG image
files appears on the TV screen.
2 Press  or   repeatedly to select
(EFFECT), then press
ENTER .
The options for “EFFECT” appear on
the TV screen.
3 Press  or   repeatedly to select
the setting you want.
The default setting is underlined.
MODE 1: The image sweeps in
from top to bottom of the screen.
MODE 2: The image sweeps in
from left to right of the screen.
MODE 3: The image stretches out
from the center of the screen.
MODE 4: The images randomly
cycle through the effects.
MODE 5: The next image slides
over the current image.
OFF: Turns off this function.
4 Press ENTER .
The selected setting takes effect.
48GB
Enjoying DivX® video
files
About DivX Video Files
®
DivX is a video file compression
technology, developed by DivX, Inc. This
product is an official DivX Certified
product.
This system can play back files which
have the extension “.AVI” or “.DIVX” that
contain data in DivX format.
®
Notes
The system may not play back a DivX video
file when the file has been combined from
two or more DivX video files.
The system cannot play back a DivX video
file size of more than 720 (width) × 576
(height)/2GB.
Depending on the DivX video file, the picture
may be unclear or the sound may skip.
The system cannot play back some DivX
video files that are longer than 3 hours.
Playing an album of DivX video
files or a DivX video file
1 Insert a DATA CD/DVD with DivX
Playing a DivX video file:
1 Press ENTER .
The list of DivX video files of the
selected album appears.
video files in the disc slot .
Disc
The system starts playing the first
album.
2 Press DVD/USB/TUNER MENU
.
The album list appears on the TV
screen.
2 Press  or   repeatedly to
select the DivX video file you
want, then press ENTER .
The system starts playing the
selected of DivX video files.
To stop playback, press  .
To display the next or previous page of
file list or album list
3 Press  or   repeatedly to
select an album.
Playing an album:
Press   (or DVD   on the
unit).
The system starts playing the first
DivX video file of the selected album.
To stop playback, press  .
Press  or   repeatedly when the file
list or album list is displayed.
To play back the next album of DivX
video files
You can select the next album by pressing
  repeatedly until the last file of
the current album, then press  
once. The first file of the next album is
selected. However, you cannot select
the previous album by pressing  
repeatedly. To select the previous album,
select the album from the album list.
Continued

49GB
To return to the album list when the
file list is displayed
Press  RETURN .
To turn on or off the album list
Press DVD/USB/TUNER MENU 
repeatedly.
Notes
Depending on the DivX video file, the
picture may pause or be unclear. In this case,
it is recommended that you create the file
at a lower bit rate. If the sound is still noisy,
MP3 is the recommended audio format. Note
that, this system does not conform to WMA
(Windows Media Audio) format.
Due to the compression technology used for
DivX video files, it may take some time after
you press   for the picture to appear.
Depending on the DivX video file, the sound
may not match the pictures on the screen.
Tip
If the number of viewing times has been preset,
you can play back the DivX video files as many
times as the preset number. The following
occurrences are counted:
 when the system is turned off.
 when another DivX video file is played back.
Adjusting the delay
between the picture
and sound
 A/V SYNC
When the sound does not synchronize
with the pictures on the screen, you can
adjust the delay between the picture and
sound.
A/V SYNC does not work for MP3 audio
tracks and JPEG image files in DATA
CD/DVD.
1 Press
DISPLAY  when
playback is stopped.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select
(A/V SYNC), then
press ENTER .
The options for “A/V SYNC” appear
on the TV screen.
3 Press  or   repeatedly to
select the setting you want.
The default setting is underlined.
OFF: Does not adjust.
ON: Adjusts the difference between
picture and sound.
4 Press ENTER .
Note
Depending on the input stream, this function
may not be effective.
50GB
Restricting playback of
the disc
 CUSTOM PARENTAL CONTROL,
PARENTAL CONTROL
Custom Parental Control
You can set playback restrictions so
that the system will not play back
inappropriate discs.
Parental Control
You can limit the playback of some DVD
VIDEOs according to a predetermined
level such as the age of the users. When
a limited scene is played back, that scene
may be skipped or replaced with different
scenes.
The same password is used for both
Custom Parental Control and Parental
Control.
 CUSTOM PARENTAL CONTROL
You can set the same Custom Parental
Control password for up to 40 discs.
When you set the 41st-disc, the playback
restriction for the first disc is canceled.
1 Insert the disc you want to set
Disc
You can set 2 kinds of playback
restrictions for the disc you want.
Preventing playback of specific
discs
the playback restriction.
If the disc is playing, press   to
stop playback.
2 Press
DISPLAY  when
playback is stopped.
The Control Menu appears on the TV
screen.
3 Press  or   repeatedly
to select
(PARENTAL
CONTROL), then press ENTER .
The options for “PARENTAL
CONTROL” appear on the TV screen.
4 Press  or   repeatedly
to select “ON ,” then press
ENTER .
Continued

51GB
If you have not entered a
password:
The display for registering a new
password appears.
If you make a mistake when entering
your password
Press   repeatedly to delete the
number you have entered, then re-enter
your password again.
To turn off the Custom Parental
Control function
1 Follow steps 1 through 3 of
“Preventing playback of specific
discs” (page 51).
Enter a 4-digit password using the
numeric buttons , then press
ENTER .
The display for confirming the
password appears on the TV screen.
When you have already registered
a password:
The display for entering the password
appears on the TV screen.
5 Enter or re-enter your 4-digit
password using the numeric
buttons , then press
ENTER .
“Custom parental control is set.”
appears on the TV screen and the
screen returns to the Control Menu.
52GB
2 Press  or  repeatedly to select “OFF
,” then press ENTER .
3 Enter your 4-digit password using
the numeric buttons , then press
ENTER .
To play back a disc for which Custom
Parental Control is set
1 Insert the disc for which Custom
Parental Control is set.
The “CUSTOM PARENTAL
CONTROL” display appears.
2 Enter your 4-digit password using
the numeric buttons , then press
ENTER .
The system is ready for playback.
Tip
select “PLAYER ,” then press
ENTER .
If you have not entered a
password:
The display for registering a new
password appears.
Disc
If you forget your password, enter the 6digit number “199703” using the numeric
buttons  when the “CUSTOM PARENTAL
CONTROL” display asks you for your
password, then press ENTER . The display
will ask you to enter a new 4-digit password.
3 Press  or   repeatedly to
Limiting playback for children
 PARENTAL CONTROL
(DVD VIDEO only)
You can limit the playback of some DVD
VIDEOs according to a predetermined
level such as the age of the users.
1 Press
DISPLAY  when
playback is stopped.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly
Enter a 4-digit password using the
numeric buttons , then press
ENTER .
The display for confirming the
password appears on the TV screen.
When you have already registered
a password:
The display for entering the password
appears on the TV screen.
to select
(PARENTAL
CONTROL), then press ENTER .
The options for “PARENTAL
CONTROL” appear on the TV screen.
Continued

53GB
4 Enter or re-enter your 4-digit
password using the numeric
buttons , then press
ENTER .
The display for setting the playback
limitation level appears.
7 Press  or   repeatedly
to select “LEVEL,” then press
ENTER .
The options for “LEVEL” appear on
the TV screen.
8 Press  or   repeatedly to
select the level you want, then
press ENTER .
Parental Control setting is completed.
The lower the value, the stricter the
limitation.
To turn off the Parental Control
function, set “LEVEL” to “OFF.”
5 Press  or   repeatedly to
select “STANDARD,” then press
ENTER .
The options for “STANDARD” appear
on the TV screen.
6 Press  or   repeatedly to
select a geographic area as the
playback limitation level, then
press ENTER .
The area is selected.
When you select “OTHERS ,” enter
the area code for the geographic area
you want according to the “Parental
Control area code list” (page 112) by
using the numeric buttons .
54GB
If you make a mistake when entering
your password
Press   repeatedly to delete the
number you have entered, then re-enter
your password again.
To play back a disc for which Parental
Control is set
1 Insert the disc and press   (or
DVD   on the unit).
The display for entering your password
appears on the TV screen.
2 Enter your 4-digit password using
the numeric buttons , then press
ENTER .
The system starts playback.
Notes
Tip
If you forget your password, remove the disc
and repeat steps 1 to 3 of “Limiting playback
for children.” When you are asked to enter your
password, enter “199703” using the numeric
buttons , then press ENTER . The display
will ask you to enter a new 4-digit password.
After you enter a new 4-digit password, reinsert
the disc and press  . When the display
for entering your password appears, enter your
new password.
Changing the password
1 Press
DISPLAY  when
playback is stopped.
3 Press  or   repeatedly to
select “PASSWORD ,” then
press ENTER .
The display for entering the password
appears on the TV screen.
4 Enter your 4-digit password
using the numeric buttons ,
then press ENTER .
Disc
The Control Menu display will show different
items depending on the disc type.
When you play back DVD VIDEOs which
do not have the Parental Control function,
playback cannot be limited on this system.
Depending on the DVD VIDEO, you may
be asked to change the parental control level
while playing the disc. In this case, enter your
password, then change the level. If Resume
Play is canceled, the level returns to the
original level.
5 Enter a new 4-digit password
using the numeric buttons ,
then press ENTER .
6 To confirm your password,
re-enter it using the numeric
buttons , then press
ENTER .
If you make a mistake when entering
your password
Press   repeatedly to delete the
number you have entered, then re-enter
your password again.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly
to select
(PARENTAL
CONTROL), then press ENTER .
The options for “PARENTAL
CONTROL” appear on the TV screen.
55GB
Using the DVD setup
menu
By using the DVD setup menu, you can
make various adjustments to items such
as picture and sound.
Note
Playback settings stored in the disc take
priority over the DVD setup menu settings.
Therefore, some of the DVD setup menu
settings may not be performed.
4 Press  or   repeatedly
to select the setup item from
the displayed list: “LANGUAGE
SETUP,” “SCREEN SETUP” or
“CUSTOM SETUP.” Then press
ENTER .
The setup item is selected.
Example: SCREEN SETUP
Selected item
1 Press
DISPLAY  when
playback is stopped.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select
(SETUP), then
press ENTER .
The options for “SETUP” appear on
the TV screen.
3 Press  or   repeatedly to
select “CUSTOM,” then press
ENTER .
Setup items
5 Press  or   repeatedly to
select the item you want, then
press ENTER .
The options for the selected item
appear on the TV screen.
Example: TV TYPE
The Setup menu appears on the TV
screen.
Options
56GB
6 Press  or   repeatedly to
select the setting you want,
then press ENTER .
The setting is selected and setup is
completed.
DVD setup menu item list
The default settings are underlined.
Setting the language  LANGUAGE
SETUP
Set various languages for the on-screen
display or sound track.
MENU*
(DVD VIDEO only) Select the language
for the DVD menu.
AUDIO*
(DVD VIDEO only) Switches the
language of the sound track.
When you select “ORIGINAL,” the
language given priority in the disc is
selected.
Disc
Selected setting
OSD
(On-Screen Display) Switches the
language of the on-screen display.
SUBTITLE*
(DVD VIDEO only) Switches the
language of the subtitle.
When you select “AUDIO FOLLOW,”
the language for the subtitles changes
according to the language you selected
for the sound track.
* When you select a language in “MENU,”
“SUBTITLE,” or “AUDIO” that is not
recorded on the DVD VIDEO, one of the
recorded language is automatically selected.
However, depending on the disc, the
language may not be selected automatically.
If you select “OTHERS ” in “MENU,”
“SUBTITLE,” and “AUDIO,” enter a
language code from the “Language code list”
(page 111) using the numeric buttons .
Continued

57GB
Setting the TV screen  SCREEN SETUP
Choose the settings according to the TV
you connected.
TV TYPE1)
(DVD VIDEO only)
16:9: Select this when you connect a
wide-screen TV or a TV with a wide
mode function.
4:3 LETTER BOX: Select this when you
connect a 4:3 screen TV. This setting
displays a wide picture with bands on the
upper and lower portions of the screen.
4:3 PAN SCAN2): Select this when you
connect a 4:3 screen TV. This setting
displays the wide picture on the entire
screen and cuts off the portions that do
not fit.
COLOR SYSTEM (VIDEO CD)
(Except for European and Russian
models) Select the output video signal
when you play back a VIDEO CD.
AUTO: Output the video signal
according to the color system of the disc,
either PAL or NTSC.
PAL: Change the video signal of an
NTSC disc and output it in PAL system.
NTSC: Change the video signal of a PAL
disc and output it in NTSC system.
58GB
SCREEN SAVER
The screen saver will help prevent your
display device from becoming damaged
(ghosting). Press   (or DVD  
on the unit) to turn off the screen saver.
ON: The screen saver image appears
when playback is stopped or paused for
15 minutes or when you play back an
AUDIO CD or MP3 audio tracks for
more than 15 minutes.
OFF: The screen saver does not appear.
BACKGROUND
Selects the background color or picture
to be displayed on the TV screen. The
background color or picture is displayed
when playback is stopped or while playing
an AUDIO CD and MP3 audio tracks.
JACKET PICTURE: The jacket picture
(still picture) appears in the background,
but only when the jacket picture is
already recorded on the disc (DVD
VIDEO, CD-EXTRA, etc.). If the disc
does not contain a jacket picture, the
“GRAPHICS” picture appears.
GRAPHICS: A preset picture stored in
the system appears in the background.
BLUE: The background color is blue.
BLACK: The background color is black.
4:3 OUTPUT3)
Change this setting to watch 4:3
aspect ratio progressive signals. If
you can change the aspect ratio on
your progressive format (525p/625p)
compatible TV, change the setting on
your TV.
FULL: Select this when you can change
the aspect ratio on your TV.
NORMAL: Select this when you cannot
change the aspect ratio on your TV.
Shows a 16:9 aspect ratio signal with
black bands on left and right sides of the
image.
Setting playback options  CUSTOM
SETUP
Set up playback related and other
settings.
Disc
16:9 aspect ratio TV
1)
The default setting varies depending on the
country or region.
16:9
4:3 LETTER BOX
4:3 PAN SCAN
Depending on the DVD VIDEO, “4:3
LETTER BOX” may be selected automatically
instead of “4:3 PAN SCAN” or vice versa.
3)
This setting is effective only when
 you set “TV TYPE” in “SCREEN SETUP”
to “16:9.”
 “P AUTO” or “P VIDEO” is selected
(page 22).
2)
PAUSE MODE
(DVD VIDEO and DVD-R/-RW in VR
mode only)
AUTO: The picture, including subjects
that move dynamically, is output with no
jitter. Normally select this position.
FRAME: The picture, including subjects
that do not move dynamically, is output
in high resolution.
TRACK SELECTION
(DVD VIDEO only) Gives priority to the
sound track which contains the highest
number of channels when you play back
a DVD VIDEO on which multiple audio
(PCM, DTS, MPEG audio, or Dolby
Digital) formats1) are recorded.
OFF: No priority given.
AUTO2): Priority given.
MULTI-DISC RESUME
(DVD VIDEO and VIDEO CD only)
ON: Stores the resume playback point in
the memory for up to 40 discs.
OFF: Does not store the resume playback
point in the memory. Playback starts at
the resume playback point only for the
current disc in the system.
Continued

59GB
AUDIO DRC3) (Dynamic Range
Compression)
(DVD VIDEO and DVD-R/-RW in VR
mode only)
OFF: No compression of dynamic range.
STANDARD: Reproduces the sound
track with the kind of dynamic range that
the recording engineer intended. Useful
for watching movies at low volume late
at night.
MAX: Narrows the dynamic range fully.
DivX
Display the registration code for this
system.
For more information, go to http://www.
divx.com on the Internet.
If each audio sound track has the same
number of channels, the system selects the
audio sound tracks in the order from PCM,
DTS, Dolby Digital, to MPEG.
2)
When you set “TRACK SELECTION” to
“AUTO,” the language may change. The
“TRACK SELECTION” setting has higher
priority than the “AUDIO” settings in
“LANGUAGE SETUP”. However, depending
on the disc, this function may not be
performed.
3)
AUDIO DRC can only be performed with
Dolby Digital sources.
1)
60GB
Tuner
Listening to the radio
You can listen to a radio station either by
selecting a preset station, or by manually
tuning in the station.
If “TUNED” does not appear and
the scanning does not stop, press
TUNING +/  repeatedly to tune
in the station you want.
When you tune in a station that
provides RDS services, the station
name appears on the display
(European model only).
3 Adjust the volume.
Press VOLUME +/ .
1 Press FUNCTION +/ 
repeatedly to select “TUNER FM”
or “TUNER AM” (or press TUNER/
BAND  on the unit repeatedly
to select “FM” or “AM”).
2 Press and hold TUNING +/ 
until the frequency indication
changes and then release.
Scanning stops automatically when
a station is tuned in and “TUNED”
lights up in the display. When a FM
stereo program is tuned in, “ST”
lights up in the display.
Tuner
Listening to FM or AM
To stop automatic scanning
Press  .
To change the AM tuning interval
The factory setting for AM tuning
interval is 9 kHz (or 10 kHz, for some
areas, this function is not available on the
European and Russian models).
Use buttons on the unit.
1 Press TUNER/BAND  on the unit
repeatedly to select “AM.”
2 Press /  to turn off the system.
3 Press DISPLAY  to display the clock.
4 While the clock is displayed, hold
down TUNER/BAND  and then
press /  to turn on the system.
“AM 9k Step” or “AM 10k Step”
appears in the display.
When you change the interval, all the
AM preset stations are erased.
Continued

61GB
Tips
To improve broadcast reception, adjust the
supplied antennas, or connect an external
antenna.
When an FM stereo program has static noise,
press REPEAT/FM MODE  repeatedly
until “MONO” lights up in the display. There
will be no stereo effect, but the reception will
improve.
4 Press PRESET +/  repeatedly
to select the preset number you
want.
5 Press ENTER .
“Complete!” appears in the display.
The station is stored.
6 Repeat steps 1 to 6 to store
Listening to preset radio
station
1 Tune in the desired station
(see “Listening to FM or AM”
(page 61)).
2 Press DVD/USB/TUNER MENU
.
“Memory?” flashes in the display.
3 Press ENTER .
A preset number flashes in the
display.
The stations are stored from preset
number 1.
Preset number
62GB
other stations.
You can preset up to 20 FM stations
and 10 AM stations.
The preset stations are retained for
half a day even if you unplug the
power cord or if a power failure
occurs.
7 To listen to a preset station,
press PRESET +/  repeatedly
to select the preset station you
want.
You can also press the numeric
buttons , then press ENTER  to
select a preset station.
To cancel presetting
Press DVD/USB/TUNER MENU .
Bluetooth Device
Using the Bluetooth
function
Listening to music of a
Bluetooth mobile phone or
Bluetooth device
You can listen to music from your
Bluetooth mobile phone or Bluetooth
device over a wireless connection.
Bluetooth Device
This system supports Bluetooth A2DP
and AVRCP profiles. For details on
Bluetooth wireless technology, see
“Bluetooth wireless technology”
(page 113).
Check the websites below for the latest
information about compatible devices.
<http://www.sony.com.cn/>
Follow the procedure below to listen to
music from Bluetooth devices with this
system.
Pairing this system with a Bluetooth
device

Connecting to registered devices

Playing music of a Bluetooth device
For details about the operations of
the Bluetooth device, also refer to the
operation manual supplied with your
Bluetooth device.
Continued

63GB
Pairing this system with a Bluetooth
device
Pairing is an operation where Bluetooth
devices register with each other
beforehand. Use the procedure below
to pair the system with your Bluetooth
device. Once a pairing operation is
performed, it does not need to be
performed again. If pairing is already
completed, proceed to “Playing music of
a Bluetooth device” (page 65).
1 Place the Bluetooth device to be
connected to this system within
1 meter of the system.
When establishing a connection with
this system, select the audio profile
(A2DP, AVRCP) at the Bluetooth
device. If the Bluetooth device does
not support the AVRCP profile, you
cannot perform playback or other
operations with the system (page 63).
4 Enter the passcode.
Passcode entry may be required
depending on the type of Bluetooth
device.
When “PIN?” and a countdown
appear, enter the passcode at the
system as follows:
2 Select the Bluetooth function.
Press FUNCTION +/  repeatedly
to select “BLUETOOTH” (or press
BLUETOOTH   on the unit).
3 Operate the Bluetooth device
and perform the pairing
operation.
For details about the operations of
the Bluetooth device, refer to the
operation manual supplied with your
Bluetooth device.
When searching for this system
with the Bluetooth device, a list of
the devices found may appear in the
Bluetooth device display depending
on the type of Bluetooth device.
This system appears as
“CMT-DH5BT.”
64GB
Press the numeric buttons  (or
+/  and /  on
the unit) to enter the same passcode
that was entered at the Bluetooth
device, and then press ENTER  (or
BLUETOOTH OPR  on the unit).
Once pairing is completed and the
connection is established, the system
display changes as follows:
“Connect”  Name of the Bluetooth
device
To cancel passcode entry partway
Press  .
Notes
“Passcode” may be called “Passkey,” “PIN
code,” “PIN number” or “Password,” etc.
depending on the device.
This system only supports numerical
passcodes up to 4 digits.
The pairing standby status of the system is
cancelled after about 30 seconds. If pairing is
not successful, redo the procedure from step
1.
While connected to a Bluetooth device, this
system cannot be detected and a connection
cannot be established from another
Bluetooth device.
1 Press FUNCTION +/  repeatedly
to select “BLUETOOTH” (or press
BLUETOOTH   on the unit).
When the system is connected with a
Bluetooth device (when the Bluetooth
device name or other information
appears in the system display), press
and hold BLUETOOTH OPR  on
the unit for about 2 seconds to put the
system in Bluetooth standby mode.
2 Press CLEAR .
“Delete?” appears.
3 Press ENTER .
“Complete!” appears and all the
pairing information is erased.
In order to connect with a Bluetooth device
after performing this operation, you must enter
the passcode again.
Playing music of a Bluetooth device
You can operate a Bluetooth device by
connecting the system and a Bluetooth
device using AVRCP. If the system is not
connected with a Bluetooth device using
AVRCP, “Not In Use” appears when you
operate the system.
1 Select the Bluetooth function.
Press FUNCTION +/  repeatedly
to select “BLUETOOTH” (or press
BLUETOOTH   on the unit).
2 Establish a connection from the
Bluetooth device.
For details about the operations of
the Bluetooth device, refer to the
operation manual supplied with your
Bluetooth device.
Once the connection is established,
the system display changes as follows:
“Connect”  Name of the Bluetooth
device
Bluetooth Device
To erase all the pairing registration
information
Note
3 Start playback.
Press   (or BLUETOOTH 
 on the unit).
Depending on the Bluetooth device,
you may need to start up the AV
software of the Bluetooth device
beforehand.
Continued

65GB
4 Adjust the volume.
Press VOLUME +/ .
To check the address of a connected
Bluetooth device
Press DISPLAY  while the Bluetooth
device name appears in the system
display.
The Bluetooth device address appears for
8 seconds.
To cancel the connection with a
Bluetooth device
Press and hold BLUETOOTH OPR 
on the unit for about 2 seconds until
“Disconnect” appears, or until the
information on the display (device name,
etc.) disappears.
Other operation
To
Pause playback
Stop playback
Select a file
Find a point in
a file
66GB
Press
 .
 .
/ .
Hold down /
.
Note
These operations may not be available for
certain Bluetooth devices. In addition, the
actual operations may differ depending on the
connected Bluetooth device.
Notes on connections with Bluetooth
devices
If you cannot connect with a paired
Bluetooth device, perform the pairing
operation between the system and the
Bluetooth device again.
Depending on the type of Bluetooth device,
you can adjust the volume using the controls
of the Bluetooth device.
When BLUETOOTH   on the unit
is pressed while connected to Bluetooth
headphones, it may take some time until
a connection is made to the system from
another Bluetooth device.
Listening to music on this
system using Bluetooth
headphones
You can listen to music played on this
system using your Bluetooth headphones
over a wireless connection.
Pairing this system with Bluetooth
headphones
Pairing is an operation where Bluetooth
devices register with each other
beforehand. Use the procedure below
to pair the system with your Bluetooth
headphones. Once a pairing operation
is performed, it does not need to be
performed again. If pairing is already
completed, proceed to “Playing music on
this system” (page 69).
1 Select a function other than the
Press FUNCTION +/  repeatedly.
2 Place the Bluetooth
headphones to be connected
to this system within 1 meter of
the system.
3 Put the Bluetooth headphones
Follow the procedure below to listen
to music on this system with Bluetooth
headphones.
Pairing this system with Bluetooth
headphones

Connecting to registered headphones

Playing music on this system
For details about the operations of the
Bluetooth headphones, also refer to the
operation manual supplied with your
Bluetooth headphones.
Bluetooth Device
Bluetooth function.
in pairing mode.
For details about the operations of the
Bluetooth headphones, refer to the
operation manual supplied with your
Bluetooth headphones.
Continued

67GB
4 Press and hold BLUETOOTH
OPR  on the unit for about 7
seconds until the BLUETOOTH
indicator  flashes.
Sound output from the speakers is
stopped.
5 Enter the passcode.
Follow the same procedure as in
step 4 of “Pairing this system with a
Bluetooth device” (page 64).
Once pairing is completed and the
connection is established, the system
display changes as follows:
“Connect”  Name of the Bluetooth
device
To cancel passcode entry partway
Press  .
Notes
“Passcode” may be called “Passkey,” “PIN
code,” “PIN number” or “Password,” etc.
depending on the device.
This system only supports numerical
passcodes up to 4 digits.
The pairing standby status of the system is
cancelled after about 30 seconds. If pairing is
not successful, redo the procedure from step
1.
While connected to a Bluetooth device, this
system cannot be detected and a connection
cannot be established from another
Bluetooth device.
Pairing may not be possible if other
Bluetooth devices are present around the
system. In this case, turn off the other
Bluetooth devices.
68GB
To erase all the pairing registration
information
1 Press FUNCTION +/  repeatedly
to select “BLUETOOTH” (or press
BLUETOOTH   on the unit).
When the system is connected with a
Bluetooth device (when the Bluetooth
device name or other information
appears in the system display), press
and hold BLUETOOTH OPR  on
the unit for about 2 seconds to put the
system in Bluetooth standby mode.
2 Press CLEAR .
“Delete?” appears.
3 Press ENTER .
“Complete!” appears and all the
pairing information is erased.
Note
To connect with Bluetooth headphones after
performing this operation, you must enter the
passcode again.
Playing music on this system
You can operate this system from
Bluetooth headphones by connecting the
system and Bluetooth headphones using
AVRCP.
1 Select a function other than the
Bluetooth function.
Press FUNCTION +/  repeatedly.
2 Establish a connection with the
Bluetooth headphones.
the function selected in step 1.
Depending on the type of Bluetooth
headphones, you can operate this
system (playback, volume control,
etc.) using the headphone’s controls.
For details about the operations of the
Bluetooth headphones, refer to the
operation manual supplied with your
Bluetooth headphones.
4 Adjust the volume.
Press VOLUME +/ .
To cancel the connection with
Bluetooth headphones
Press and hold BLUETOOTH OPR 
on the unit for about 2 seconds until the
BLUETOOTH indicator  turns off.
Notes
If you cannot connect with paired Bluetooth
headphones, perform the pairing operation
between the system and the Bluetooth
headphones again.
When the system is changed to a function
other than the Bluetooth function and
BLUETOOTH OPR  on the unit is pressed
while connected to a Bluetooth device, it may
take some time until a connection is made
with the Bluetooth headphones.
This system stores separate volume settings
for when listening through the speakers
or PHONES jack  on the unit, or when
listening through Bluetooth headphones.
Bluetooth Device
Press and hold BLUETOOTH OPR
 on the unit for about 2 seconds
until the BLUETOOTH indicator 
lights up, then release the button.
If more than one Bluetooth device
that has been connected in the past
is present around the system, the
system attempts to connect with up
to 3 most recently connected devices.
(Connection is attempted with up
to 3 devices in order from the most
recently connected device, and the
attempts end when a connection is
established.)
Once the connection is established,
the system display changes as follows:
“Connect”  Name of the Bluetooth
device
3 Start playback of the music for
69GB
USB Device
2 Connect an optional USB device
(Digital music player or USB
storage media) to the (USB)
port  as shown below.
Listening to music of
an USB device
You can connect a CCC-certified USB
device (Digital music player or USB
storage media) to the
(USB) port 
on the unit and listen to music stored in
the USB device.
The audio formats that can be played
back by this system are as follows:
ATRAC/MP3*/WMA*/AAC*
* Files with copyright protection (Digital
Rights Management) cannot be played by
this system.
Files downloaded from an online music store
may not be played by this system.
Note
Compatibility with CCC (China Compulsory
Certification)-certified USB devices on this
system is not fully guaranteed. This is because
the USB device specifications may differ
depending on the manufacturers.
For more information on how to use an USB
device, see the operation manual supplied with
the USB device.
1 Select the USB function.
Press FUNCTION +/  repeatedly
to select “USB”.
70GB
USB device (Digital
music player or USB
storage media)
When USB cable connection is necessary,
connect the USB cable supplied with the
USB device to be connected.
See the operation manual supplied with
the USB device to be connected for
details on the operation method.
When the USB device is connected, the
display changes as follows:
“Reading”  “ATRAC AD1)” or
“StorageDrive2)”
When connecting a digital music player.
When connecting USB storage media. The
volume label is displayed next if recorded.
1)
2)
Note
It may take about 10 seconds before “Reading”
appears depending on the type of USB device
connected.
3 Start playback.
Press   (or USB   on the
unit).
4 Adjust the volume.
Press VOLUME +/ .
Other operation
Select a track / .
Find a point in Hold down /
 during playback,
a track
and release the button
at the desired point.
Select Repeat REPEAT/FM MODE
 repeatedly until
Play
“REP” or “REP1”
appears.
Hold down   until
“No Device” appears,
then remove the USB
device.
View the
USB device
information*
DISPLAY 
repeatedly.
* For example, you can view the USB device
information such as the track number or
album name during normal play, or the total
playing time while the player is stopped.
To change the play mode
1 Press DVD/USB/TUNER MENU 
while the USB device is stopped.
“Play Mode?” appears in the display.
2 Press ENTER .
3 Press  or   repeatedly to select
the play mode.
You can select the following play
modes:
Continue (Normal Play):
Plays back the audio tracks on the
USB device in original order.
AlbmContinue:
Plays back the audio tracks in the
selected album on the USB device.
Shuffle:
Plays back the audio tracks on the
USB device in random order.
Continued

USB Device
To
Press
Stop playback  .
Pause playback  . Press   again
or   (or USB
  on the unit) to
resume playback.
Select an album
+/ .
Remove the
USB device
71GB
Albm Shuffle:
Plays back the audio tracks in the
selected album on the USB device
in random order.
Program:
Plays back the audio tracks on the
USB device in the order you want
them to be played.
Notes on the USB device
Do not connect the system and the USB
device through a USB hub.
With some connected USB devices, after an
operation is performed, there may be a delay
before it is performed by this system.
This system does not necessarily support all
the functions provided in a connected USB
device.
The playback order for the system may differ
from the playback order of the connected
USB device.
Always hold down   and make sure that
“No Device” appears before removing the
USB device. Removing the USB device while
“No Device” is not displayed may corrupt the
data on it or damage the USB device itself.
Do not save other types of files or
unnecessary folders on an USB device that
has audio files.
Folders that have no audio files are skipped.
Files are played back in the order that they
are transferred to the USB device.
72GB
The maximum numbers of albums and tracks
that can be contained on a single USB device
are as follows:
 Digital music player: 65,535 groups
(maximum 999 tracks per group)
 USB storage media: 999 files
The maximum number of tracks and album
may vary depending on the file and folder
structure.
The audio formats that you can listen to with
this system are as follows:
 MP3: file extension “.mp3”
 Windows Media Audio file: file extension
“.wma”
 AAC: file extension “.m4a”
Note that even when file names have the
above file extensions, if the actual file differs,
the system may produce noise or may
malfunction.
Compatibility with all encoding/writing
softwares, recording devices, and recording
media cannot be guaranteed. Incompatible
USB device may produce noise or interrupted
audio or may not play at all.
Notes on the display information
Characters that cannot be displayed appear
as “_.”
The following are not displayed:
 total playing time for a CD-DA disc
depending on the play mode.
 total playing time and remaining playing
time for an MP3 disc and USB device.
The following are not displayed correctly:
 folder and file names that do not follow
either the ISO 9660 Level 1, Level 2 or
Joliet in the expansion format.
The following are displayed:
 ID3 tag information for MP3 files when
ID3 version 1 and version 2 tags are used
(up to 62 characters for an MP3 disc).
 ID3 tag information for “ATRAC” files
when ID3 version 2 tags are used.
Creating your own
program with the USB
device
 Program Play
1 Select the USB function.
Press FUNCTION +/  repeatedly
to select “USB”.
2 Press DVD/USB/TUNER MENU
 while the USB device is
stopped.
“Play Mode?” appears in the display.
select “Program,” then press
ENTER .
Continued

USB Device
3 Press ENTER .
4 Press  or   repeatedly to
73GB
5 Press /  repeatedly
until the desired track number
appears.
When programming tracks, press
+/  repeatedly to select the
desired album, and then select the
desired track.
Example: When programming tracks
on a USB device
8 To play your program of tracks,
press   (or USB   on
the unit).
The program remains available until
you remove the USB device. To play
the same program again, press  
(or USB   on the unit).
To cancel Program Play
Select the play mode other than
“Program” in step 4.
To delete the last track of the program
Selected track number
6 Press ENTER  to add the track
to the program.
The total program time cannot be
displayed, so “ . ” appears.
7 Repeat steps 5 through 6 to
program additional tracks, up to
a total of 25 tracks.
74GB
Press CLEAR  while the USB device
is stopped.
Sound Adjustment
Singing along: Karaoke
Adjusting the sound
Generating a more dynamic
sound (Dynamic Sound
Generator X-tra)
You can reinforce the bass and create a
more powerful sound.
The DSGX setting is ideal for music
sources.
Press DSGX  on the unit
repeatedly.
Tip
The default setting is “DSGX ON.”
Setting the sound effect
1 Press EQ  repeatedly to select
“BASS” or “TREBLE.”
2 Press PRESET +/  repeatedly
Preparing for karaoke
(DVD VIDEO, DVD-R/-RW in VR
mode, VIDEO CD, AUDIO CD, MP3
audio tracks and DivX video files only)
1 Press FUNCTION +/ 
repeatedly to select “DVD” (or
press DVD   on the unit).
2 Turn MIC LEVEL  on the
unit to “MIN” to reduce the
microphone volume and turn
ECHO LEVEL * on the unit to
“MIN” to cancel the echo effect.
Sound Adjustment
Each time you press the button, the
display changes as follows:
DSGX ON  DSGX OFF
You can sing along with any multiplex
AUDIO CD, multiplex VIDEO CD or
DVD VIDEO in Dolby Digital Karaoke
format.
3 Connect an optional
microphone to MIC jack  on
the unit.
to adjust the level.
Continued

75GB
4 Press KARAOKE MODE .
“KARAOKE MODE: ON” appears on
the TV screen.
5 Start playing the music and
adjust the volume.
DVD VIDEO, DVD-R/-RW in VR
mode or DivX video files:
The system outputs the audio format
that you have selected.
AUDIO CD, VIDEO CD or MP3
audio tracks:
The audio setting automatically
changes to “1/L” and the system
outputs the left channel audio on both
front and surround channels.
If you want to hear vocal:
Press AUDIO  repeatedly to select
another audio channel.
6 Start singing along with the
music.
76GB
Other operations
To
Adjust the
microphone
volume
Adjust the
microphone
echo
Cancel the echo
effect
Turn
MIC LEVEL  on the
unit.
ECHO LEVEL * on
the unit.
ECHO LEVEL * on
the unit to “MIN.”
* Except for European and Russian models.
To turn off the Karaoke Mode
Disconnect the microphone or press
KARAOKE MODE . “KARAOKE
MODE: OFF” appears on the TV screen.
Notes
You cannot activate karaoke mode in step 4
when the QUICK SETUP guide message is
displayed on the TV screen.
Karaoke Mode is automatically turned off
when you:
 turn off the system.
 change the function.
 connect the headphones.
Dolby Digital Karaoke format
(DVD VIDEO only)
The Dolby Digital format, which
reproduces surround sound using
5 channels, can also contain the
“Dolby Digital Karaoke” format
which is specialized for karaoke. In
the Dolby Digital Karaoke format
discs, guide melody and guide vocal
tracks are recorded in addition to the
accompaniment. You can select them
when Karaoke Mode is turned on.
Speaker output in normal Dolby
Digital format (5.1 channel)
Center
Front (L)
Example:
2/0: Recorded only with accompaniment.
3/0: Recorded with guide melody.
3/1: Recorded with guide melody and one guide vocal.
3/2: Recorded with guide melody and two guide vocals.
Front (R)
Surround (R)
Sound Adjustment
Surround (L)
You can check the audio information by
pressing AUDIO  (page 31). When
playing a Dolby Digital Karaoke disc,
“” appears at the current audio format
(page 86).
Speaker output in Dolby Digital
Karaoke format
Accompaniment
Accompaniment
Front (L)
Center
Front (R)
Guide melody
Surround (L)
Surround (R)
Guide vocal 1
Guide vocal 2
You can select any of these.
Continued

77GB
Enjoying karaoke using the
control menu
1 Press
DISPLAY  once or
twice when Karaoke Mode is
turned on while playing a disc.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select the Karaoke item from the
displayed list, then press ENTER
.
The Karaoke item is selected.
3 Press  or   repeatedly to
select the setting you want,
then press ENTER .
78GB
Setting Karaoke Mode
The default settings are underlined.
KARAOKE PON1)
ON: Enjoy karaoke with any disc, even
if it is not a karaoke or multiplex disc by
reducing the sound of the vocal.
OFF: Cancel the “KARAOKE PON”
effect.
KEY CONTROL2)
Adjust the pitch of the music to suit your
vocal range.
Select “” to cancel the “KEY
CONTROL” effect.
VOCAL SELECT3)
(DVD VIDEO, VIDEO CD, AUDIO CD
only)
When playing a DVD VIDEO:
OFF (Turn off the Guide vocal)

1+2 (Guide vocal 1+2)

1 (Guide vocal 1)

2 (Guide vocal 2)
When playing a VIDEO CD or AUDIO
CD:
OFF (Turn off the vocal)

L+R (The same sound is output
from both speakers)

STEREO (The standard stereo
sound)
SCORE MODE5)
When Karaoke Mode is turned on, you
can select this.
Your score is calculated by comparing
your voice with the music source.
NORMAL: Advance or professional level.
EASY: Beginner or intermediate level.
DEMO: Demonstration mode.
Consistently displays a high score for
every song.
1 Press SCORE  before singing a
song in Karaoke Mode.
The previous highest score appears on
the TV screen.
2 After singing for more than a minute,
press SCORE  again to view your
score.
Your score is calculated from a scale
of 0 to 99.
Continued

Sound Adjustment
When playing a Super VCD:
OFF (Turn off the vocal)

1:L+R

1:STEREO (The stereo sound of
the audio track 1)

2:L+R

2:STEREO (The stereo sound of
the audio track 2)
GUIDE MELODY4)
(DVD VIDEO only)
ON: Turn on the guide melody.
OFF: Turn off the guide melody.
79GB
The singer’s voice may not be reduced when:
 only a few instruments are playing.
 a duet is being played back.
 the source has strong echoes or chorus.
 the singer’s voice deviates from the center.
 the voice on the source is singing in high
soprano or tenor.
You can also change the “KARAOKE PON”
setting by pressing KARAOKE PON 
when the Karaoke Mode is turned on.
The “KARAOKE PON” setting is
automatically changed to “OFF” when you
set “VOCAL” to “ON.”
2)
You can also change the “KEY CONTROL”
setting by pressing KEY CONTROL   to
reduce the key and KEY CONTROL   to
increase the key when the Karaoke Mode is
turned on.
The “KEY CONTROL” setting is
automatically changed to default setting
when you change the track or title.
Depending on the disc, you may not be able
to do the above operation.
3)
The “VOCAL” setting is automatically
changed to “OFF” when you set “KARAOKE
PON” to “ON.”
For DVD VIDEOs without guide vocal, you
cannot turn on the vocal. When playing a
DVD VIDEO, the function only works for
Dolby Digital Karaoke format. For DVD
VIDEOs with 1 guide vocal recorded, you
cannot change the vocal.
Depending on the disc, you may not be able
to change the vocal.
1)
80GB
When playing a DVD VIDEO, the function
only works for Dolby Digital Karaoke format.
For DVD VIDEOs without guide melody,
you cannot hear the guide melody even if you
set the setting to “ON.”
5)
The highest score is reset when the system is
turned off.
If you press other buttons on the remote, the
score calculating function may be canceled.
In some cases, you may not be able to use the
scoring mode.
4)
Note
Each Karaoke setting in the table above is
automatically changed to “OFF” or to the
default setting when you:
 turn off the system.
 change the function.
 connect the headphones.
 turn off the Karaoke Mode.
 eject the disc.
Other Operations
Using the timer
Falling asleep to music
 Sleep Timer
You can set the system to turn off after a
certain time, so that you can fall asleep
to music.
Press SLEEP  repeatedly.
Each time you press the button, the
minute display changes cyclically as
follows:
90min  80min  70min  … 
10min  OFF
Other operations
Cancel the
Sleep Timer
Do this
Press SLEEP  once.
Press SLEEP 
repeatedly to select the
time you want.
Press SLEEP 
repeatedly until “SLEEP
OFF” appears in the
display.
 Play Timer
You can wake up to CD, tuner or optional
USB device at a preset time. Make sure
you have set the clock (see “Setting the
clock” (page 24)).
1 Prepare the sound source.
Disc: Insert a disc.
Radio: Tune in the preset station
you want (see “Listening to the
radio” (page 61)).
USB device: Connect an optional
USB device (page 70).
2 Press VOLUME +/  to adjust
the volume.
3 Press TIMER MENU .
4 Press  or   repeatedly to
select “PLAY SET?,” then press
ENTER .
“ON” appears and the hour indication
flashes in the display.
5 Set the time to start playback.
Press  or   repeatedly to set the
hour, then press ENTER .
The minute indication flashes in the
display. Use the procedure above to
set the minute. “OFF” appears and the
hour indication flashes in the display.
Continued

Other Operations
To
Check the
remaining time
Change the
time to turn off
Waking up to music
81GB
6 Set the time to stop playback
using the same procedure as
step 5.
7 Select the sound source.
Press  or   repeatedly until the
music source you want appears in the
display, then press ENTER . This
display will show the timer settings.
8 Press   to turn off the
system.
Other operations
To
Check the
setting
Do this
1 Press TIMER
MENU .
“TIMER SEL?”
flashes in the display.
2 Press ENTER .
3 Press  or  
repeatedly to select
“PLAY SELECT?,”
then press
ENTER .
Start from step 1.
Change the
setting
Cancel the Play 1 Press TIMER
Timer
MENU .
“TIMER SEL?”
flashes in the display.
2 Press ENTER .
3 Press  or  
repeatedly to select
“TIMER OFF?,” then
press ENTER .
82GB
Notes
The Play Timer will not be activated if the
system is turned on or if “STANDBY” flashes
in the display.
The system turns on 30 seconds before the
preset time.
Before the system is turned off, if a
connection is made with the Bluetooth
headphones, sounds played by the Play Timer
may be output to the Bluetooth headphones.
Changing the display
Checking the clock
Press DISPLAY  when the system
is turned off. The clock is displayed
for 8 seconds.
Viewing information
about the disc
Viewing information about the
disc in the front panel display
Press DISPLAY .
Adjusting the brightness of the
display
Each time you press DISPLAY , the
display changes from     
…
 Disc information
 Clock display (for 8 seconds)
Press DIMMER  repeatedly while
the system is on.
Checking the elapsed playing time,
remaining time and titles
* DIMMER 2 is the darkest.
Press TIME/TEXT  during playback.
Each time you press TIME/TEXT , the
display changes from     … 
…
When playing a DVD VIDEO or DVDR/-RW in VR mode:
When the menu or the title without a
chapter is played back
 Elapsed playing time of the menu
or the current title
 Title of the disc1)
Continued

Other Operations
Each time you press the button, the
display changes cyclically as follows:
DIMMER OFF  DIMMER 1 
DIMMER 2*
83GB
When a chapter other than above
condition is played back
 Elapsed playing time of the current
title
 Remaining time of the current title
 Elapsed playing time of the current
chapter
 Remaining time of the current
chapter
 Title of the disc1)2)
When playing an AUDIO CD or VIDEO
CD without PBC function:
 Elapsed playing time of the current
track
 Remaining time of the current track
 Elapsed playing time of the current
disc3)
 Remaining time of the current disc3)
 Title of the disc1)4)
When playing a VIDEO CD/Super
VCD:
 Elapsed playing time of the current
scene/track
 Title of the disc1)4)
When playing MP3 audio tracks on a
DATA CD/DVD or DivX video files on a
DATA CD/DVD:
 Elapsed playing time of the current
track/file
 Title of the track and file5)
84GB
Checking the total playing time and
titles
Press TIME/TEXT  repeatedly when
playback is stopped.
Each time you press TIME/TEXT ,
the display changes from    
…
DVD VIDEO or DVD-R/-RW in VR
mode:
 Total number of titles on the disc
 Title of the disc1)
VIDEO CD without PBC playback or
AUDIO CD:
 Total number of the tracks on the disc
and the total playing time of the disc
 Title of the disc1)
VIDEO CD with PBC playback:
 Total number of scenes on the disc
 Title of the disc1)
“NO TEXT” appears in the display if the
DVD VIDEO is not a DVD-TEXT disc or the
VIDEO CD does not have text information.
2)
The current chapter number and the current
title number are displayed for 2 seconds
before the display returns to elapsed playing
time when you press TIME/TEXT  during
display of title of the disc.
3)
When Program Play or Shuffle Play is
turned on, the elapsed playing time and the
remaining time of the disc would be skipped.
1)
The current track number and the current
index number (for a disc without PBC) or the
current scene number (for a disc with PBC)
are displayed for 2 seconds before the display
returns to elapsed playing time when you
press TIME/TEXT  during display of the
title of disc.
5)
When playing DivX video files, the current
album number and the current file number
are displayed for 2 seconds before the display
returns to elapsed playing time when you
press TIME/TEXT  during display of title
of the file.
4)
Notes
Press TIME/TEXT .
Each time you press TIME/TEXT 
while playing the disc, the display
changes from     …  
…
The time display that you can view on the
TV screen depends on the disc you are
playing.
T: title or track
C: chapter
D: disc
Bit rate
Time information
Album Title
Disc/track/file title
When playing a DVD VIDEO or DVDR/-RW in VR mode:
 Elapsed playing time of the current
title
 Remaining time of the current title
 Elapsed playing time of the current
chapter
 Remaining time of the current chapter
 Title of the disc
Continued

Other Operations
If you play back a disc containing JPEG
image files only, “JPEG” or “No Audio”
appears in the display.
You cannot use TIME/TEXT  to change
the display of disc information when:
 a JPEG image file is played back.
 playback is stopped for DATA CD/DVD
with MP3 audio tracks and/or JPEG
image files.
 playback is stopped for DATA CD/DVD
with DivX video files.
If the MP3 audio track title contains
characters which cannot be displayed, these
characters will be displayed as “*.”
The elapsed playing time of MP3 audio tracks
and DivX video files may not be displayed
correctly.
Viewing information about the
disc in the on-screen display
85GB
When playing a VIDEO CD/Super
VCD:
 Elapsed playing time of the current
scene/track
 Title of the disc
When playing a DVD VIDEO:
For example, in Dolby Digital format,
multiple signals ranging from monaural
to 5.1 channel signals can be recorded on
a DVD VIDEO.
When playing an AUDIO CD or VIDEO
CD without PBC function:
 Elapsed playing time of the current
track
 Remaining time of the current track
 Elapsed playing time of the current
disc
 Remaining time of the current disc
 Title of the disc
Example:
For Dolby Digital 5.1 channel:
When playing a DATA CD/DVD:
Elapsed playing time of the current
track/file
Notes
Only alphabet letters, numbers and some
symbols can be displayed.
Depending on the disc, the system can only
display a limited number of characters.
For MP3 audio tracks with format other than
ISO 9660 Level 1 and Level 2, album title and
track title may not be displayed.
Displaying the audio information of
the disc
(DVD VIDEO and DivX video files only)
When you press AUDIO  repeatedly
during playback, the format of the
current audio signal is displayed on the
TV screen.
86GB
2 Surround components
2 Front components +
1 Center component
1 LFE (Low Frequency
Effect) component
When playing a DivX video file:
Example:
MP3 audio track
Bit rate
Checking the date information
of JPEG image files
You can check the date information
during playback when Exif* tag is
recorded in the JPEG image files.
Press DISPLAY  repeatedly
during playback.
The Control Menu appears.
Hooking up optional
components
To enhance your system, you can connect
optional components. Refer to the
operating instructions provided with
each component.
Front panel
Date information
Note
Other Operations
* “Exchangeable Image File Format” is a
digital camera image format defined by the
Japan Electronics & Information Technology
Industries Association (JEITA).
Rear panel
The date information format varies depending
on the area.
Continued

87GB
AUDIO IN jack
Connect the audio output jack of an
optional component (portable audio
player, etc.).
COMPONENT VIDEO OUT jacks
Connect the component video input
jacks of the TV or projector. If your
TV accept progressive format signals,
you must use this connection and
press PROGRESSIVE  on the unit
repeatedly to select “P AUTO” or “P
VIDEO.” You can enjoy higher quality
video images.
S VIDEO OUT/VIDEO OUT jacks
Connect the S Video/video input
jack of the TV. You can enjoy higher
quality video images when you select
the S VIDEO.
DIGITAL OUT jack
Connect the digital optical input jack
of an optional digital component
(such as amplifier). You can enjoy
5.1 channel sound, if the connected
amplifier equipped with Dolby Digital
or DTS decoder.
Note
Sound is output only when the system
function is set to “DVD.”
88GB
Enjoying the multi channel
sound with the optional
amplifier
1 Connect the digital optical cord.
See “Hooking up optional
components” (page 87).
2 Connect the speakers to an
optional amplifier equipped
with a decoder.
For the speakers placement, refer to
the operating instructions supplied
with the connected amplifier.
3 Start playing a multi channel
source, such as a DVD VIDEO.
4 Select the audio format you
want.
See “Changing the sound” (page 31).
Additional Information
Troubleshooting
Should you encounter a problem with
your system, do the following:
1 Make sure the power cord and
speaker cords are connected
correctly and firmly.
2 Find your problem in the
troubleshooting checklist below and
take the indicated corrective action.
If the problem persists after doing all
of the above, consult your nearest Sony
dealer.
If the STANDBY indicator flashes
The clock or timer setting is canceled.
The power cord is disconnected or a
power failure occurred. Redo “Setting
the clock” (page 24). If you have set
the timer, redo “Waking up to music”
(page 81).
“– –:– –” appears in the display.
A power failure has occurred. Set the
clock (page 24) and timer settings
(page 81) again.
There is no sound.
Press VOLUME +  repeatedly.
The headphones are connected to the
PHONES jack .
Check the speaker connections
(page 19).
The system is in pause mode, in Slowmotion Play or in Lock Search. Press
  (or DVD   on the unit) to
start the playback.
Additional Information
Immediately unplug the power cord,
and check the following items.
If your system has a voltage
selector, is the voltage selector set
to the correct voltage?
Are you using only the supplied
speakers?
Is anything blocking the ventilation
holes on the rear of the system?
General
After the STANDBY indicator 
stops flashing, reconnect the power
cord, and turn on the system. If the
issue persists, contact your nearest
Sony dealer.
Continued

89GB
If the BLUETOOTH indicator  is lit
or flashing when a function other than
the Bluetooth function is selected, no
sound is heard through the speakers
or PHONES jack . Press and hold
BLUETOOTH OPR  for about
2 seconds until the BLUETOOTH
indicator  turns off.
There is no microphone sound.
Press VOLUME +  repeatedly or
turn MIC LEVEL  on the unit
clockwise to adjust the microphone
volume.
Make sure the microphone is
connected to the MIC jack 
correctly.
There is severe hum or noise.
A TV or VCR is placed too close to the
unit. Move the unit away from the TV
or VCR.
Move the unit away from the source of
noise.
Connect the unit to a different wall
outlet.
Install a noise filter (commercially
available) to the power cord.
The timer does not function.
Check the timer setting and set the
correct time (page 81).
Cancel the Sleep Timer function
(page 81).
90GB
The remote does not function.
Remove the obstacles between the
remote and the unit.
Move the remote closer to the unit.
Point the remote at the unit’s sensor.
Replace the batteries (R6/size AA).
Locate the unit away from the
fluorescent light.
There is acoustic feedback.
Reduce the volume.
Move the microphone away from the
speakers or change the direction of the
microphone.
The color irregularity on a TV screen
persists.
Turn off the TV set once, then turn it
on after 15 to 30 minutes. If the color
irregularity still persists, place the
speakers farther away from the TV set.
THEATRE SYNC function does not
work.
If distance between the TV and this
unit is too far, this function may not
work. Install the unit near the TV.
Speakers
Sound comes from one channel or
unbalanced left and right volume.
Place the speakers as symmetrically as
possible.
Check that the speakers are connected
securely and correctly.
The source being played back is
monaural.
Disc Player
The disc does not eject.
Consult your nearest Sony dealer.
Playback does not start from the first
track.
The system is in Program Play or
Shuffle Play mode. Turn off Program
Play and Shuffle Play.
Resume Play has been selected. Press
  twice. Then, press   (or
DVD   on the unit) to start
playback (page 33).
The title of DVD VIDEO or PBC
menu automatically appears on the TV
screen.
Playback starts automatically.
The DVD VIDEO features an auto
playback function.
Playback stops automatically.
Some discs may contain an auto pause
signal. While playing such a disc, the
playback stops at auto pause signal.
Continued

Additional Information
Playback does not start.
Check whether a disc is loaded.
Wipe the disc clean (page 102).
Reinsert the disc.
Insert the disc that this system can play
back (page 7).
Insert the disc in the disc slot  with
the label side facing up.
Remove the disc and wipe away the
moisture on the disc, then leave the
system turned on for a few hours until
the moisture evaporates.
Press   (or DVD   on the
unit) to start playback.
The region code on the DVD VIDEO
does not match the system.
Cancel the Custom Parental Control
function (page 52).
The sound skips.
Wipe the disc clean (page 102).
Reinsert the disc.
Move the unit to a place without
vibration (e.g., on top of a stable
stand).
Move the speakers away from the
unit, or place them on separate stands.
When you listen to a track with bass
sounds at high volume, the speaker
vibration may cause the sound to skip.
91GB
You cannot perform some functions
such as Stop, Lock Search, Slowmotion Play, Repeat Play, Shuffle Play
or Program Play.
Depending on the disc, you may not
be able to do some of the operations
above. Refer to the operating
instructions supplied with the disc.
The DATA CD (MP3 audio track/JPEG
image file/DivX video file) cannot be
played back.
The DATA CD is not recorded in a
format that conforms to ISO 9660
Level 1, Level 2, or Joliet (expansion
format).
The DATA DVD is not recorded
in a format that conforms to UDF
(Universal Disk Format).
The MP3 audio track does not have the
extension “.MP3”.
The data is not stored in the desired
format.
The MP3 audio tracks in format other
than MPEG 1 Audio Layer 3 cannot be
played back.
The system can playback to a depth of
8 folders only.
For MP3/JPEG files, check the “MODE
(MP3, JPEG)” setting (page 42).
The disc contains more than 200
albums.
The album contains more than 600
tracks/files.
92GB
For MP3/JPEG files, the album
contains more than 300 tracks/files
when the “MODE (MP3, JPEG)” is set
to “AUTO.”
For MP3/JPEG files, the DATA CD/
DVD contains a DivX video file.
The JPEG image file does not have the
extension “.JPG” or “.JPEG”.
The JPEG image file is larger than
3,072 (width) × 2,048 (height) in
normal mode, or more than 2,000,000
pixels in Progressive JPEG mode which
is mainly used on the Internet website.
JPEG image files with a high width to
length ratio cannot be played back.
The DivX video file does not have the
extension “.AVI” or “.DIVX”.
DivX video files with a high width to
length ratio cannot be played back.
The MP3 audio tracks take longer
time to play back than others.
After the system reads all the tracks on
the disc, playback may take more time
than usual if:
 the number of albums or tracks on
the disc is very large.
 the album and track organization
structure is very complex.
The disc title, album title, track title
and DVD-TEXT characters do not
appear properly.
Use a disc that conforms to the
ISO 9660 Level 1, Level 2, or Joliet
(expansion).
The character code that can be
displayed by this system are as follows:
 Upper cases (A to Z)
 Lower cases (a to z)
 Numbers (0 to 9)
 Symbols (< > * +,  / [ ] _)
Other characters may not be displayed
correctly.
The surround effect is difficult to hear
when you are playing a Dolby Digital
or MPEG audio sound track.
Check the speaker connections
(page 19).
Depending on the DVD VIDEO, the
output signal may not be the entire 5.1
channel. It may be monaural or stereo,
even if the sound track is recorded in
Dolby Digital or MPEG audio format.
Pairing cannot be done.
Move the Bluetooth device closer to
the system.
Pairing may not be possible if other
Bluetooth devices are present around
the system. In this case, turn off the
other Bluetooth devices.
Connection is not possible.
The Bluetooth device you attempted
to connect does not support the A2DP
and AVRCP profiles, and cannot be
connected with the system.
Enable the Bluetooth function of the
Bluetooth device.
The pairing registration information
has been erased. Perform the pairing
operation again.
While connected to a Bluetooth device,
this system cannot be detected and a
connection cannot be established from
another Bluetooth device.
The sound skips or fluctuates, or the
connection is lost.
The system and the Bluetooth device
are too far apart.
If there are obstacles between the
system and your Bluetooth device,
remove or avoid the obstacles.
If there is equipment that generates
electromagnetic radiation, such as a
wireless LAN, other Bluetooth device,
or a microwave oven nearby, move
them away.
Continued

Additional Information
The sound loses stereo effect when
you play back an AUDIO CD, VIDEO
CD, MP3 audio track, DivX video file
or DVD VIDEO.
Make sure the system is connected
properly.
Unplug the microphone or press
KARAOKE MODE  repeatedly until
“KARAOKE MODE: OFF” appears on
the TV screen.
Bluetooth device
93GB
The sound of your Bluetooth device
cannot be heard on this system.
Turn up the volume on your Bluetooth
device first, and then adjust the volume
using VOLUME +/ .
Severe hum or noise
If there are obstacles between the
system and your Bluetooth device,
remove or avoid the obstacles.
If there is equipment that generates
electromagnetic radiation, such as a
wireless LAN, other Bluetooth device,
or a microwave oven nearby, move
them away.
Turn down the volume of the
connected Bluetooth device.
The sound from the Bluetooth
headphones is distorted.
Turn down the volume of the system
using VOLUME  . If your
headphones have a volume control,
also adjust the volume using the
headphone’s volume control.
Press DSGX  on the unit repeatedly
until “DSGX OFF” appears.
Press EQ  repeatedly to select
“BASS” or “TREBLE,” and then press
PRESET   repeatedly to turn down
the level.
94GB
USB device
Are you using a supported USB
device?
If you connect an unsupported USB
device, the following problems may
occur.
The USB device is not recognized.
File or folder names are not
displayed on this system.
Playback is not possible.
The sound skips.
There is noise.
“Over Current” appears.
A problem has been detected with the
level of electrical current from the
(USB) port . Turn off the system and
remove the USB device from the
(USB) port . Make sure there is no
problem with the USB device. If this
display pattern persists, contact your
nearest Sony dealer.
There is no sound.
The USB device is not connected
correctly. Turn off the system, then
reconnect the USB device and check if
“USB MEMORY” appears.
The sound is distorted.
The bit rate used when encoding the
files was low. Send files encoded with
higher bit rates to the USB device.
There is noise or the sound skips.
Turn off the system, then reconnect the
USB device.
The music data itself contains noise.
Noise may have been introduced
when creating music data due to the
conditions of the computer. Create the
music data again.
When using the USB storage media,
copy the files to your computer, format
the USB storage media in FAT16 or
FAT32 format, and copy the files to the
USB storage media again.*
The USB device cannot be connected
into the
(USB) port .
The USB device is being connected
backwards. Connect the USB device in
the correct orientation.
Erroneous display
Send the music data to the USB device
again, as the data stored in the USB
device may have been corrupted.
Play does not start.
Turn off the system, then reconnect the
USB device.
Connect the USB device that this
system can play.
Press   (or USB   on the
unit) to start play.
Play does not start from the first
track.
Set the play mode to Normal Play
mode.
Continued

Additional Information
The USB storage media which has
been used on another device does
not work.
It may be recorded in an unsupported
format. If so, first take the precaution
of backing up important files on the
USB storage media by copying them to
your computer hard disk. Next, format
the USB storage media with a FAT16
or FAT32 file system and transfer the
backed-up audio files onto the USB
storage media again.*
“Reading” is displayed for a long
time.
It may take a while to finish reading the
USB device if there are many folders
or files on it. Thus, we recommend
following these guidelines.
Total folders on USB device: 100 or
less
Total files per folder: 100 or less
95GB
Files cannot be played back.
USB storage media formatted with file
systems other than FAT16 or FAT32 are
unsupported.*
If you use partitioned USB storage
media, only files on the first partition
can be played.
Files that are encrypted or protected by
passwords, etc. cannot be played back.
* This system supports FAT16 and FAT32, but
some USB storage media may not support all
of these FAT. For details, see the operation
manual of each USB storage media or
contact the manufacturer.
There is no picture.
Press FUNCTION +/  repeatedly
to select “DVD” (or press DVD  
on the unit).
Check that the system is connected
securely.
The video cord is damaged. Replace it
with a new one.
Make sure you connect the unit to the
video input jack of your TV (page 21).
Make sure you turn on the TV and
operate the TV correctly.
96GB
Press PROGRESSIVE  on the unit
repeatedly to select “INTERLACE”
if you connect your TV to the unit’s
COMPONENT VIDEO OUT jacks
and your TV cannot accept progressive
signal.
You have set to progressive format but
your TV cannot accept the signal in
progressive format. In this case, set to
interlace format (the default setting)
(page 22).
Even if your TV is compatible with
progressive format (525p/625p)
signals, the image may be affected
when you set to progressive format. In
this case, set to interlace format (the
default setting) (page 22).
Make sure you select the video input
on the TV so that you can view the
pictures from the system.
Make sure you set the color system
correctly, according to your TV’s color
system.
Make sure you connect the unit and
your TV using only the supplied video
cord.
Picture noise appears.
Clean the disc.
If video signal from your system has to
go through your VCR to your TV, the
copy-protection applied to some DVD
VIDEO programs could affect the
picture quality. If you still experience
problems after checking your
connections, connect your unit directly
to your TV’s S Video input (page 21).
Keep the speaker cords away from the
antennas.
When you play back a VIDEO CD
recorded in a different color system
from the one you set to the system, the
picture image may be distorted.
When you connect your TV to the
COMPONENT VIDEO OUT jacks
and play back video-based software
in progressive signal format, some
sections of the image may appear
unnatural due to the conversion
process.
Set the color system to match your TV
(page 58).
Messages do not appear on the TV
screen in the language you want.
Select the language you want for the
on-screen display in “OSD” under
“LANGUAGE SETUP” in the Setup
Menu (page 57).
The subtitles language cannot be
changed.
Multilingual subtitles are not recorded
on the DVD VIDEO being played
back.
The DVD VIDEO prohibits changing
the subtitles.
The subtitles cannot be turned off.
The DVD VIDEO prohibits turning off
subtitles.
The angles cannot be changed.
Multi-angles are not recorded on the
DVD VIDEO being played back.
The DVD VIDEO prohibits changing
the angles.
Tuner
The radio presetting is canceled.
The power cord is disconnected or a
power failure occurred for longer than
half a day. Redo “Listening to preset
radio station” (page 62).
Continued

Additional Information
The aspect ratio of the TV screen
cannot be changed even though you
can set “TV TYPE” under “SCREEN
SETUP” in the Setup Menu when you
play back a wide picture.
The aspect ratio is fixed on your DVD
VIDEO.
If you connect the unit with the S
Video cord, connect directly to the TV.
Otherwise, you may not change the
aspect ratio.
Depending on the TV, you may not
change the aspect ratio.
The language for the sound track
cannot be changed.
Multilingual tracks are not recorded on
the DVD VIDEO being played back.
The DVD VIDEO prohibits changing
the language for the sound track.
97GB
There is severe hum or noise.
(“TUNED” or “ST” flashes in the
display)
Set the proper band and frequency
(page 61).
Connect the antenna properly
(page 19).
Find a place and an orientation that
provide good reception, then set up
the antenna again. If you cannot obtain
good reception, we recommend that
you connect a commercially available
external antenna.
The supplied FM lead antenna receives
signals along its entire length, so make
sure you extend it fully.
Locate the antennas as far away from
the speaker cords, power cord and the
USB cable as possible, to avoid picking
up noise.
Try turning off the surrounding
electrical equipment.
A stereo FM program cannot be
received in stereo.
Press REPEAT/FM MODE 
repeatedly until “MONO” disappears
from the display.
Optional components
There is no sound.
Refer to General item “There is no
sound.” (page 89) and check the
condition of the system.
Connect the component properly
(page 87) while checking:
 if the cords are connected properly.
 if the cord plugs are firmly inserted
all the way.
Turn on the connected component.
Refer to the operating instructions
supplied with the connected
component and start playing.
If the system still does not operate
properly after performing the
above measures or other troubles
not described above occur, reset the
system as follows:
Use buttons on the unit to reset the
system to its factory default settings.
1 Unplug the power cord.
2 Plug the power cord back in.
3 Press   to turn on the system.
4 Press  , DISPLAY  and  
at the same time.
“RESET” appears in the display.
98GB
The system is reset to the factory settings
except for DVD settings. You should set
the settings you made, such as the preset
stations, clock and timer.
To return the DVD setup to the default
settings*, perform reset as follows:
1 Press
DISPLAY  when playback
is stopped.
The Control Menu appears on the TV
screen.
2 Press  or   repeatedly to
select
ENTER .
(SETUP), then press
3 Press  or   repeatedly to select
“RESET,” then press ENTER .
4 Press  or   repeatedly to select
“YES,” then press ENTER .
It takes a few seconds to complete. Do
not press   when resetting the
system.
* Except for Parental Control settings
Self-diagnosis Function
(When letters/numbers appear in the
display)
When the self-diagnosis function
is activated to prevent the system
from malfunctioning, a 5-character
service number (e.g. C 13 50) with a
combination of a letter and 4 digits
appears on the TV screen and the front
panel display. In this case, check the
following table.
Continued

Additional Information
First 3
Cause and corrective
characters of action
the service
number
C 13
This disc is dirty.
Clean the disc with a
soft cloth (page 102).
C 31
The disc is not inserted
correctly.
Restart the system,
then re-insert the
disc correctly.
E XX
To prevent a
(XX is a
malfunction, the
number)
system has performed
the self-diagnosis
function.
Contact your nearest
Sony dealer or local
authorized Sony
service facility and
give the 5-character
service number.
Example: E 61 10
99GB
When displaying the version number
on the TV screen
When you turn on the system, the
version number [VER.X.XX] (X is a
number) may appear on the TV screen.
Although this is not a malfunction and
for Sony service use only, normal system
operation will not be possible. Turn off
the system, and then turn on the system
again to operate.
Messages
One of the following messages may
appear or flash in the front panel display
during operation.
DVD player, Tuner
Cannot Play
A disc that cannot be played back was
inserted.
A DVD VIDEO with unsupported
region code was inserted.
Data Error
The MP3 audio track, JPEG image file
and DivX video file you want to play
back is damaged.
The MP3 audio track does not conform
to MPEG 1 Audio Layer 3 format.
The JPEG image file does not conform
to DCF format.
The DivX video file does not conform
to a DivX Certified profiles.
The MP3 audio track has the extension
“.MP3” but it is not in MP3 format.
The JPEG image file has the extension
“.JPG” or “.JPEG” but it is not in JPEG
format.
The DivX video file has the extension
“.AVI” or “.DIVX” but it is not in DivX
format.
100GB
No Disc
There is no disc in the disc slot .
Not In Use
You have pressed a button whose
operation is not allowed or invalid at that
time.
OFF TIME NG!
The on time and off time of Play Timer
is the same.
PASSWORD
Custom Parental Control or Parental
Control is set.
Please Wait
The system is doing initialization process.
No Device
A pairable Bluetooth device was not
found, or connection was not possible.
Not In Use
The system is not connected with a
Bluetooth device using AVRCP.
PIN?
The system is asking for the passcode.
For details, see “Using the Bluetooth
function” (page 63).
Please Wait
The system is readying for usage of a
Bluetooth device.
USB device
ATRAC AD
An ATRAC Audio Device is connected.
Bluetooth device
Device Error
The USB device could not be recognized.
Connect
Bluetooth communication was
established.
No Device
No USB device is connected or the
connected USB device has been stopped.
Disconnect
Communication with a Bluetooth device
was cut off for some reason, or Bluetooth
communication was ended.
No Step
All of the programmed tracks or files
have been erased.
Not Connect
Connection was not possible.
Continued

Additional Information
Reading
The system is reading information of the
disc. Some buttons are not available.
101GB
No Track
No playable file is loaded in the system.
Not Supported
An unsupported USB device is
connected.
Please Wait
The system is readying for usage of an
USB device.
Reading
The system is recognizing the USB
device.
Removed
The USB device has been removed.
Step Full!
You tried to program more than 26 tracks
or files (steps).
StorageDrive
USB storage media is connected.
Precautions
Discs that this system CANNOT play
Discs of non-standard shape (for example,
heart, square, star)
Discs that have adhesive tape, paper, or
sticker attached to them
Rental or used discs with attached seals
where the glue extends beyond the seal
Discs that have labels printed using ink that
feels tacky when touched
Notes on discs
Before playing, wipe the disc with a cleaning
cloth from the center out to the edge.
Do not clean discs with solvents, such as
benzine thinner, or commercially available
cleaners or anti-static spray intended for
vinyl LPs.
Do not expose discs to direct sunlight or heat
sources such as hot air ducts, nor leave it in a
car parked in direct sunlight.
Do not use discs encircled with a protection
ring. This may cause a malfunction to the
system.
On operating voltage
Before operating the system, check that the
operating voltage of the unit is identical with
the voltage of your local power supply.
102GB
On safety
On heat buildup
The unit is not disconnected from the
AC power source (mains) as long as it is
connected to the wall socket, even if the unit
itself has been turned off.
Completely disconnect the power cord
(mains lead) from the wall socket (mains)
if it is not going to be used for an extended
period of time. When unplugging the unit,
always grip the plug. Never pull the cord
itself.
Should any solid object or liquid get into
the system, unplug the system, and have
it checked by qualified personnel before
operating it again.
The AC power cord can be changed only by a
qualified service facility.
Heat buildup on the unit during operation is
normal and is not cause for alarm.
Do not touch the cabinet if it has been used
continuously at a high volume because the
cabinet may have become hot.
Do not obstruct the ventilation holes.
On placement
The front speaker is magnetically shielded and
can be installed near a TV. Color irregularity
may still be observed, however on some types
of TV screens. In this situation, turn off the
TV, wait 15 to 30 minutes, and turn it back
on. Place the right speaker on the right side of
the unit and the left speaker on the left side of
the unit. If there is no improvement, move the
speakers far away from the TV.
IMPORTANT NOTICE
Caution: If you leave a still video image
or on-screen display image displayed on
your TV for an extended period of time via
this system, you risk permanent damage
to your TV screen. Projection TVs are
especially susceptible to this.
Cleaning the cabinet
Clean this system with a soft cloth slightly
moistened with a mild detergent solution.
Do not use any type of abrasive pad, scouring
powder, or solvent, such as thinner, benzine,
or alcohol.
Additional Information
Do not place the system in an inclined
position or in locations that are extremely
hot, cold, dusty, dirty, or humid or lacking
adequate ventilation, or subject to vibration,
direct sunlight or a bright light.
Be careful when placing the unit or speakers
on surfaces that have been specially treated
(for example, with wax, oil, polish) as
staining or discoloration of the surface may
result.
If the system is brought directly from a cold
to a warm location or is placed in a very
damp room, moisture may condense on the
lens inside the DVD player, and cause the
system to malfunction. In this situation,
remove the disc, and leave the system turned
on for about an hour until the moisture
evaporates.
On the speaker system
103GB
Specifications
Main unit
Amplifier section
DIN power output (rated)
35 W + 35 W (6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
45 W + 45 W (6 ohms at 1 kHz, 10%
THD)
Inputs:
AUDIO IN (stereo mini jack):
Impedance 47 kilohms
MIC (mini jack):
Impedance 10 kilohms
(USB) port:
Type A, maximum current 500 mA
Outputs:
DIGITAL OUT (square optical connector
jack):
Wavelength 660 nm
VIDEO OUT (phono jack):
1 Vp-p, unbalanced, Sync. negative
load impedance 75 ohms
COMPONENT VIDEO OUT:
Y: 1 Vp-p, 75 ohms
Pb/Cb: 0.7 Vp-p, 75 ohms
Pr/Cr: 0.7 Vp-p, 75 ohms
S VIDEO OUT (4-pin/mini-DIN jack):
Y: 1 Vp-p, unbalanced, Sync. negative
C: 0.286 Vp-p, load impedance
75 ohms
PHONES (stereo mini jack):
accepts headphones of 8 ohms or
more
104GB
Bluetooth section
Communication system:
Bluetooth Standard version 2.0
Output:
Bluetooth Standard Power Class 2
Frequency band:
2.4 GHz band (2.4000 GHz  2.4835
GHz)
Modulation method:
FHSS
Compatible Bluetooth profiles*:
A2DP (Advanced Audio Distribution
Profile)
AVRCP (Audio Video Remote
Control Profile)
Supported codecs:
Receive: SBC (Sub Band Codec), MP3
Transmit: SBC (Sub Band Codec)
*Bluetooth standard profiles indicate the
purpose of Bluetooth communication
between devices.
USB section
Supported bit rate:
MP3 (MPEG 1 Audio Layer-3):
32  320 kbps, VBR
ATRAC: 48  352 kbps
(ATRAC3plus), 66/105/132 kbps
(ATRAC3)
WMA: 32  192 kbps, VBR
AAC: 48  320 kbps
Sampling frequencies:
MP3 (MPEG 1 Audio Layer-3):
32/44.1/48 kHz
ATRAC: 44.1 kHz
WMA: 44.1 kHz
AAC: 44.1 kHz
Disc player section
System:
Compact disc and digital audio and
video system
Laser:
Laser Diode Properties:
Emission duration: continuous
Laser Output*: Less than 1000 µW
*This output is the value measurement
at a distance of 200 mm from the
objective lens surface on the Optical
Pick-up Block with 7 mm aperture.
Semiconductor laser:
(DVD: λ=650 nm, CD: λ=790 nm)
Video color system format:
NTSC and PAL
Tuner section
Speaker (SS-CDH5)
Speaker system:
2-way, bass-reflex type, magnetically
shielded
Speaker units:
Woofer: 12 cm, cone type
Tweeter: 2.5 cm, soft dome type
Nominal impedance:
6 ohms
Dimensions (w/h/d):
Approx. 140 × 283 × 240 mm
Mass:
Approx. 2.7 kg net per speaker
Additional Information
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range:
87.5  108.0 MHz (50 kHz step)
Antenna:
FM lead antenna
Antenna terminals:
75 ohms unbalanced
Intermediate frequency:
10.7 MHz
AM tuner section
Tuning range:
530  1,710 kHz (with the interval set
at 10 kHz)
531  1,602 kHz (with the interval set
at 9 kHz)
Antenna:
AM loop antenna
Antenna terminals:
External antenna terminal
Intermediate frequency:
450 kHz
Continued

105GB
General
Power requirements:
220  240 V AC, 50/60 Hz
Power consumption:
45 W
Dimensions (w/h/d) (Approx.):
190 × 141 × 273 mm
Mass (Approx.):
2.8 kg
Supplied accessories:
Remote Commander (1)
R6 (Size AA) batteries (2)
AM loop antenna (1)
FM lead antenna (1)
Video cord (1)
Speaker pads (8)
Design and specifications are subject to
change without notice.
• Standby power
consumption: 0.5 W
• Halogenated flame
retardants are not used in
the certain printed wiring
boards.
Please contact the following to obtain
customer support for this system.
Sony China Customer Support Center
TEL: 800-820-9000
http://www.sony.com.cn/
106GB
Guide to the Control Menu display
Use the Control Menu to select a function and to view related information. Press
DISPLAY  repeatedly to turn on, turn off or change the Control Menu display as
follows:
Control Menu display 1  Control Menu display 2 (appears for certain discs only) 
Control Menu display off  Control Menu display 1  …
Control Menu display
The Control Menu display 1 and 2 will show different items depending on the disc type.
Example: Control Menu display 1 when playing a DVD VIDEO
Currently playing title number
Currently playing chapter number
Total number of titles
Total number of chapters
Control Menu
items
Type of disc being played
back
Elapsed playing time
Current setting
Options
Function name of
selected Control
Menu item
Operation message
Continued

Additional Information
Selected item
Playback status ( Playback,
 Pause,  Stop, etc.)
107GB
List of Control Menu items
Item
Item Name, Relevant Disc Type, Function
TITLE/SCENE/TRACK
Selects the title, scene, or track to be played back.
CHAPTER/INDEX
Selects the chapter or index to be played back.
TRACK
Selects the track to be played back.
ORIGINAL/PLAY LIST
Selects the playback sequence either to the originally recorded
sequence or to the playlist created on the disc.
TIME/TEXT
Checks the elapsed playing time and the remaining time.
Inputs the time code for picture and music searching.
Displays the text information on the DVD TEXT discs and MP3 audio
tracks.
PROGRAM
Plays back the track in the order you want.
SHUFFLE
Plays back the track in random order.
REPEAT
Plays back a disc repeatedly, the entire disc (all titles/all tracks/all
albums) repeatedly or one title/chapter/track/album/file repeatedly.
108GB
Item
Item Name, Relevant Disc Type, Function
A/V SYNC
Sets the delay time between the sound and display.
PARENTAL CONTROL
Sets to prohibit playback on this system.
SETUP
QUICK Setup
Use QUICK SETUP to choose the language of the on-screen display
and the aspect ratio of the TV.
CUSTOM Setup
In addition to the QUICK SETUP setting, you can adjust other
settings.
RESET
Returns the settings in “SETUP” to the default setting.
ALBUM
Selects the album to be played back.
FILE
Selects the JPEG image file or DivX video file to be played back.
DATE
Displays the date when the picture was taken by a digital camera.
EFFECT
Selects the transition effects to be used for changing slides during a
slide show.
Continued

Additional Information
INTERVAL
Specifies the duration for which the slides are displayed on the TV
screen.
109GB
Item
Item Name, Relevant Disc Type, Function
MODE (MP3, JPEG)
Selects the data type: MP3 audio track (AUDIO), JPEG image file
(IMAGE) or both (AUTO) to be played back when playing a DATA
CD/DVD.
KEY CONTROL*
Changes the key to suit your vocal range.
SCORE MODE*
Selects the level for scoring mode.
KARAOKE PON*
Enjoys karaoke with a stereo-recorded disc by reducing the sound of
the vocals.
VOCAL SELECT*
Selects the guide vocal recorded on the Dolby Digital Karaoke Format
disc (DVD VIDEO only).
Selects the vocal type recorded on the disc (VIDEO CD, AUDIO CD
only).
Turns off the vocal (VIDEO CD, AUDIO CD only).
GUIDE MELODY*
Turns on or off the guide melody for Dolby Digital Karaoke Format
disc.
* This function is only available during karaoke mode.
110GB
Language code list
The language spellings conform to the ISO 639:1988 (E/F) standard.
Code Language
Code Language
Code Language
1027
1028
1032
1039
1044
1045
1051
1052
1053
1057
1059
1060
1061
1066
1067
1070
1079
1093
1097
1103
1105
1109
1130
1142
1144
1145
1149
1150
1151
1157
1165
1166
1171
1174
1181
1183
1186
1194
1196
1203
1209
1217
1226
1229
1233
1235
1239
1245
1248
1253
1254
1257
1261
1269
1283
1287
1297
1298
1299
1300
1301
1305
1307
1311
1313
1326
1327
1332
1334
1345
1347
1349
1350
1352
1353
1356
1357
1358
1363
1365
1369
1376
1379
1393
1403
1408
1417
1428
1435
1436
1463
1481
1482
1483
1489
1491
1495
1498
1501
1502
1503
1505
1506
1507
1508
1509
1511
1512
1513
1514
1515
1516
1517
1521
1525
1527
1528
1529
1531
1532
1534
1535
1538
1539
1540
1543
1557
1564
1572
1581
1587
1613
1632
1665
1684
1697
1703
Afar
Abkhazian
Afrikaans
Amharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bislama
Bengali; Bangla
Tibetan
Breton
Catalan
Corsican
Czech
Welsh
Danish
German
Bhutani
Greek
English
Esperanto
Spanish
Estonian
Basque
Persian
Finnish
Fiji
Faroese
French
Frisian
Irish
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
Armenian
Interlingua
Interlingue
Inupiak
Indonesian
Icelandic
Italian
Hebrew
Japanese
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean
Kashmiri
Kurdish
Kirghiz
Latin
Lingala
Laothian
Lithuanian
Latvian; Lettish
Malagasy
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Occitan
(Afan) Oromo
Oriya
Punjabi
Polish
Pashto; Pushto
Portuguese
Quechua
Rhaeto-Romance
Kirundi
Romanian
Russian
Kinyarwanda
Sanskrit
Sindhi
Sangho
Serbo-Croatian
Singhalese
Slovak
Slovenian
Samoan
Shona
Somali
Albanian
Serbian
Siswati
Sesotho
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Setswana
Tonga
Turkish
Tsonga
Tatar
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Wolof
Xhosa
Yoruba
Chinese
Zulu
Not specified
Continued

Additional Information
Code Language
111GB
Parental Control area code list
112GB
Code Area
Code Area
Code Area
Code Area
2044
2047
2046
2057
2070
2079
2090
2092
2115
2165
2174
2109
2248
2238
2254
2276
2304
2363
2362
2376
2390
2379
2427
2424
2436
2489
2501
2149
2499
2086
2528
2184
Argentina
Australia
Austria
Belgium
Brazil
Canada
Chile
China
Denmark
Finland
France
Germany
India
Indonesia
Italy
Japan
Korea
Malaysia
Mexico
Netherlands
New Zealand
Norway
Pakistan
Philippines
Portugal
Russia
Singapore
Spain
Sweden
Switzerland
Thailand
United Kingdom
Bluetooth wireless
technology
Profile refers to a standard set of
capabilities for various Bluetooth product
capabilities. This system supports the
following Bluetooth version and profiles.
Supported Bluetooth version:
Bluetooth Standard version 2.0
Supported Bluetooth profiles:
A2DP (Advanced Audio Distribution
Profile)
AVRCP (Audio Video Remote
Control Profile)
Effective communication range
Bluetooth devices should be used within
approximately 10 meters (unobstructed
distance) of each other. The effective
communication range may become
shorter under the following conditions.
When a person, metal object, wall
or other obstruction is between the
devices with a Bluetooth connection
Locations where a wireless LAN is
installed
Around microwave ovens that are in
use
Locations where other electromagnetic
waves occur
Continued

Additional Information
Bluetooth wireless technology is a shortrange wireless technology linking digital
devices, such as personal computers and
digital still cameras. Using the Bluetooth
wireless technology, you can operate the
units involved within a range of about
10 meters.
The Bluetooth wireless technology is
commonly used between two devices,
but a single device can be connected to
multiple devices.
You do not need wires to get connected
as you do with a USB connection, and
you do not need to place the devices face
to face as you do with wireless infrared
technology. You can use the technology
with one Bluetooth device in your bag
or pocket.
Bluetooth wireless technology is a global
standard supported by thousands of
companies. These companies produce
products that meet the global standard.
Supported Bluetooth version and
profiles
113GB
Effects of other devices
Bluetooth devices and wireless LAN
(IEEE 802.11b/g) use the same frequency
band (2.4 GHz). When using your
Bluetooth device near a device with
wireless LAN capability, electromagnetic
interference may occur. This could result
in lower data transfer rates, noise, or
inability to connect. If this happens, try
the following remedies:
Try connecting this system and
Bluetooth mobile phone or Bluetooth
device when you are at least 10 meters
away from the wireless LAN
equipment.
Turn off the power to the wireless LAN
equipment when using your Bluetooth
device within 10 meters.
Effects on other devices
The radio waves broadcast by this system
may interfere with the operation of some
medical devices. Since this interference
may result in malfunction, always turn
off the power on this system, Bluetooth
mobile phone and Bluetooth device in
the following locations:
In hospitals, on trains, in airplanes,
at gas stations, and any place where
flammable gasses may be present
Near automatic doors or fire alarms
114GB
Notes
This system supports security functions that
comply with the Bluetooth specification
as a means of ensuring security during
communication using Bluetooth technology.
However, this security may be insufficient
depending on the setting contents and
other factors, so always be careful when
performing communication using Bluetooth
technology.
Sony cannot be held liable in any way
for damages or other loss resulting from
information leaks during communication
using Bluetooth technology.
Bluetooth communication is not necessarily
guaranteed with all Bluetooth devices that
have the same profile as this system.
Bluetooth devices connected with this system
must comply with the Bluetooth specification
prescribed by the Bluetooth SIG, Inc., and
must be certified to comply. However, even
when a device complies with the Bluetooth
specification, there may be cases where
the characteristics or specifications of the
Bluetooth device make it impossible to
connect, or may result in different control
methods, display or operation.
Noise may occur or the audio may
cut off depending on the Bluetooth
device connected with this system,
the communications environment, or
surrounding conditions.
Glossary
Album
Section of a music or picture piece on
a DATA CD or DATA DVD containing
MP3 audio tracks, JPEG image files or
DivX image file.
Chapter
Subdivision of a title on a DVD VIDEO.
A title is composed of several chapters.
DivX®
Digital video technology created by
DivX, Inc. Videos encoded with DivX
technology are among the highest quality
with a relatively small file size.
Dolby Digital
Digital audio compression technology
that the Digital Theater Systems, Inc.
developed. This technology conforms
to 5.1-channel surround. The surround
channel is stereo and there is discrete
subwoofer channel in this format. DTS
provides the same 5.1 discrete channels
of high quality digital audio. The good
channel separation is realized because the
all channel data is recorded discrete and
processed in digital.
DVD VIDEO
A disc that contains up to 8 hours of
moving pictures even though its diameter
is the same as an AUDIO CD.
The data capacity of a single-layer and
single-sided DVD VIDEO, at 4.7 GB
(Giga Byte), is 7 times that of an AUDIO
CD. Furthermore, the data capacity of a
dual-layer and single-sided DVD VIDEO
is 8.5 GB, a single-layer and double-sided
DVD VIDEO 9.4 GB, and a dual-layer
and double-sided DVD VIDEO 17 GB.
The picture data uses the MPEG 2
format, one of the worldwide standards
for digital compression technology. The
picture data is compressed to about 1/40
of its original size. The DVD VIDEO
also uses variable rate coding technology
that changes the data to be allocated
according to the status of the picture.
Continued

Additional Information
This sound format for movie theaters is
more advanced than Dolby Surround
Pro Logic. In this format, the surround
speakers output stereo sound with
an expanded frequency range and a
subwoofer channel for deep bass is
independently provided. This format is
also called “5.1” because the subwoofer
channel is counted as 0.1 channel (since
it functions only when a deep bass effect
is needed). All six channels in this format
are recorded separately to realize superior
channel separation. Furthermore, since
all the signals are processed digitally, less
signal degradation occurs.
DTS
115GB
The audio data is recorded in Dolby
Digital as well as in PCM, allowing you to
enjoy more realistic audio presence.
Furthermore, various advanced functions
such as the multi-angle, multilingual, and
Parental Control functions are provided
with the DVD VIDEO.
DVD-RW
A DVD-RW is a recordable and
rewritable disc that is the same size as
a DVD VIDEO. The DVD-RW has two
different modes: VR mode and Video
mode. DVD-RWs created in Video
mode have the same format as a DVD
VIDEO, while discs created in VR (Video
Recording) mode allow the contents to
be programmed or edited.
DVD+RW
A DVD+RW (plus RW) is a recordable
and rewritable disc. DVD+RWs use a
recording format that is comparable to
the DVD VIDEO format.
File
A JPEG image file or a DivX video file
recorded on a DATA CD or DATA DVD.
(“File” is an exclusive definition for this
system.) A single file consists of a single
image or movie.
116GB
Film based software, Video based
software
DVD VIDEOs can be classified as Film
based or Video based software. Film
based DVD VIDEOs contain the same
images (24 frames per second) that are
shown at movie theaters. Video based
DVD VIDEOs, such as television dramas
or sitcoms, displays images at 30 frames
(or 60 fields) per second.
Interlace format (Interlaced scanning)
The Interlace format is the NTSC
standard method for displaying TV
images at 30 frames per second. Each
frame is scanned twice-alternately
between the even numbered scanning
lines and then odd numbered scanning
lines, at 60 times per second.
Multi-angle function
Various angles, or viewpoints of the video
camera, for a scene are recorded on some
DVD VIDEOs.
Multilingual function
Several languages for the sound or
subtitles in a picture are recorded on
some DVD VIDEOs.
Parental Control
A function of the DVD VIDEO to limit
playback of the disc by the age of the
users according to the limitation level in
each country. The limitation varies from
disc to disc; when it is activated, playback
is completely prohibited, violent scenes
are skipped or replaced with other scenes
and so on.
Playback Control (PBC)
Signals encoded on VIDEO CDs (Version
2.0) to control playback. By using menu
screens recorded on VIDEO CDs with
PBC functions, you can enjoy playing
simple interactive programs, programs
with search functions, and so on.
Progressive format (sequential
scanning)
This system is used to protect copyrights.
A region code is allocated on each DVD
system or DVD VIDEO according to
the sales region. Each region code is
shown on the unit as well as on the disc
packaging. The system can play back
the discs that match its region code. The
system can also play back discs with the
“
” mark. Even when the region code
is not shown on the DVD VIDEO, the
region limit may still be activated.
Scene
On a VIDEO CD with PBC functions,
the menu screens, moving pictures and
still pictures are divided into sections
called “scenes.”
Title
The longest section of a picture or a
music piece on a DVD VIDEO; a movie,
etc., for a picture piece on video software,
or the entire album in audio software.
Track
Section of a picture or a music piece on
a VIDEO CD, CD, or MP3. An album is
composed of several tracks (MP3 only).
Continued

Additional Information
In contrast to the Interlace format,
the progressive format can reproduce
50  60 frames per second by
reproducing all scanning lines (525
lines for the NTSC system, 625 lines
for PAL system). The overall picture
quality increases and still images, text
and horizontal lines appear sharper. This
format is compatible with the 525 or 625
progressive format.
Region Code
117GB
VIDEO CD
A compact disc that contains moving
pictures.
The picture data uses the MPEG 1
format, one of the worldwide standards
for digital compression technology. The
picture data is compressed to about 1/140
of its original size. Consequently, a 12 cm
VIDEO CD can contain up to 74 minutes
of moving pictures.
VIDEO CDs also contain compact audio
data.
Sounds outside the range of human
hearing are compressed while the
sounds we can hear are not compressed.
VIDEO CDs can hold 6 times the audio
information of conventional AUDIO
CDs.
There are 2 versions of VIDEO CDs.
Version 1.1: You can play back only
moving pictures and sounds.
Version 2.0: You can play back highresolution still pictures and enjoy PBC
functions.
This system conforms to both versions.
118GB
Index
Numerics
D
K
16:9 58
4:3 LETTER BOX 58
4:3 OUTPUT 58
4:3 PAN SCAN 58
DATA CD 7
DATA DVD 8
DIMMER 83
DISPLAY 24
DivX 48, 115
Dolby Digital 115
DTS 115
DVD 7
DVD+RW 7, 116
DVD-RW 7, 116
DVD’s menu 39
Karaoke 75
ECHO 75, 76
KARAOKE PON 78, 110
KEY CONTROL 78, 110
SCORE MODE 79, 110
Vocal 76
VOCAL SELECT 78, 110
A
A/V SYNC 50, 109
A2DP 63, 113
AAC 70, 72
ALBUM 109
Album 29, 115
ANGLE 30
ATRAC 70, 73
ATRAC AD 70
AUDIO 57
AUDIO DRC 60
AVRCP 63, 65, 69, 113
E
EFFECT 48, 109
F
L
Language Code List 111
LANGUAGE SETUP 25, 57
Listening to other
components 88
Listening to the radio 61
Locating a specific point by
watching the TV screen 40
BACKGROUND 58
Batteries 20
Bluetooth device address 66
BLUETOOTH OPR 64, 65,
68, 69
Fast forward 29
Fast reverse 29
FILE 109
File 116
Film based software 116
Freeze Frame 29
Front panel 87
Front panel display 18
C
H
CHAPTER 40, 108
Chapter 29, 115
Cold reset 98
COLOR SYSTEM (VIDEO
CD) 58
COMPONENT VIDEO OUT
22, 88
Continuous play 46
Controlling the TV 23
Control Menu Display 107
CUSTOM 56
CUSTOM PARENTAL
CONTROL 51
CUSTOM SETUP 59
Handling discs 28
MENU 57
Microphone 75, 76
MODE (MP3, JPEG) 110
MP3 7
Multi-angle function 30, 116
MULTI-DISC RESUME
34, 59
Multilingual function 116
Multi Session CD 10
I
O
B
ORIGINAL 39, 108
OSD 57
Other Component Hookup
87
J
JPEG 42, 44, 46
Continued

Additional Information
INDEX 108
Instant Advance 29
Instant Replay 29
INTERLACE 22
Interlace format 116
INTERVAL 109
M
119GB
P
T
Pairing 64, 65, 67, 68
PARENTAL CONTROL
53, 109
Parental Control 117
Passcode 64
Passkey 65
PAUSE MODE 59
PBC Playback 32
PICTURE NAVI 41, 45
PIN 64
Playback Control (PBC) 117
Playing a disc 28
PLAY LIST 39, 108
Play Timer 81
Program Play 34
PROGRESSIVE AUTO 22
Progressive format 117
PROGRESSIVE VIDEO 22
THEATRE SYNC 27
TIME/TEXT 108
Timer 81
TITLE 37, 108
Title 39, 117
TRACK 108
Track 7, 8
TRACK SELECTION 59
Troubleshooting 89
TV Hookup 21
TV TYPE 58
R
Radio 61
Radio Stations 62
Rear Panel 87
Region Code 117
Remote 13
Repeat Play 37
RESET 98, 109
Resume Play 33
S
Scan 26, 58
SCENE 108
Scene 117
SCREEN SAVER 58
SCREEN SETUP 25
Searching 39
Selecting 39
SETUP 109
Setup Display 25
Shuffle Play 36
SLEEP 27, 81
Sleep Timer 81
Slide Show 44, 46
Slow-motion Play 29
SUBTITLE 57
S VIDEO 88
120GB
U
Usable discs 7
USB 70
USB MEMORY 94
USB Storage 70
V
VIDEO CD 7, 118
W
WMA 70, 72
Additional Information
121GB
注意
针对中国消费者
为减少火灾或触电的危险,请不
要让本装置淋雨或受潮。
为减少火灾的危险,请勿用报纸、
桌布、窗帘等覆盖本装置的通风口。
请勿将点燃的蜡烛放在本装置上。
为减少火灾或触电的危险,请勿在
本装置上放置如花瓶等盛有液体的物
体。
将本机连接到容易插拔的交流电源
插座。 一旦发现本机有任何异常,
请立即从交流电源插座上拔下主电源
插头。
请勿将本机安放在书橱或壁橱等狭
窄封闭处。
2.不得擅自更改发射频率、加大发射
功率(包括额外加装射频功率放大
器),不得擅自外接天线或改用其
它发射天线;
3.使用时不得对各种合法的无线电通
信业务产生有害干扰;一旦发现有
干扰现象时,应立即停止使用,并
采取措施消除干扰后方可继续使
用;
请勿将电池暴露在直射阳光、火焰
或类似的过热热源附近。
4.使用微功率无线电设备,必须忍受
各种无线电业务的干扰或工业、科
学及医疗应用设备的辐射干扰;
美国和加拿大的用户除外
5.不得在飞机和机场附近使用。
本装置属于1类激光(CLASS 1
LASER)产品。本标签位于背面外壳
上。
CS
1.标明附件中所规定的技术指标和使
用范围,说明所有控制、调整及开
关等使用方法;
使用频率
2402  2480 MHz
等效全向辐射功率(EIRP)
≤20 dBm
最大功率谱密度
≤20 dBm/MHz(EIRP)
载频容限
20 ppm
CS
CS
有关本手册
列在各说明上部的
等图标表
示当前说明的功能所能够利用的媒
体种类。
英文屏幕显示仅用于图解目的。
根据光盘的不同,控制菜单项目可
能不同。
根据区域的不同,设置菜单项目可
能不同。
CS
目录
有关本手册.................. 4
可播放的光盘................ 7
部件和控制指南............. 12
收听广播................... 61
Bluetooth设备
使用前的准备工作
连接系统...................
连接电视机.................
设定时钟...................
执行QUICK SETUP............
使用THEATRE SYNC功能.......
调谐器
19
21
24
25
27
光盘
播放光盘................... 28
 正常播放
使用播放模式............... 34
搜索/选择光盘.............. 39
播放MP3/JPEG光盘........... 42
欣赏DivX®视频文件........... 48
调节图像与声音之间的迟延... 50
 A/V SYNC
限制光盘播放............... 51
 CUSTOM PARENTAL CONTROL,
PARENTAL CONTROL
使用DVD设置菜单............ 56
使用Bluetooth功能.......... 63
USB设备
收听USB设备的音乐.......... 70
使用USB设备创建自己的
程序....................... 73
 编程播放
声音调节
调节声音................... 75
伴唱:卡拉OK............... 75
其它操作
使用定时器.................
改变显示...................
查看有关光盘的信息.........
连接选购组件...............
81
83
83
87

接下页
CS
补充信息
故障排除................... 89
使用须知.................. 102
规格...................... 104
控制菜单显示指南.......... 107
语言代码列表.............. 111
Bluetooth无线技术......... 113
术语表.................... 115
索引...................... 119
CS
可播放的光盘
类型
特征
本手册中所
使用的图标
标志
DVD VIDEO DVD VIDEO
DVD-R*/-RW*/+R/+RW
DVD VIDEO格式
*还包括视频模式
VR模式
DVD-R/-RW
VR(视频录制)模式
VIDEO CD
VIDEO CD
超级VCD*
CD-ROM*/-R*/-RW*
*VIDEO CD或超级VCD格式
CD
AUDIO CD*
CD-R*/-RW*
*AUDIO CD格式
DATA CD
CD-ROM/-R/-RW
DATA CD格式,包含MP3音频曲目1)、
JPEG图像文件2)或DivX视频文件3),
并符合ISO 96604)等级1或等级2,或
Joliet(扩展格式)。

接下页
CS
类型
DATA DVD
特征
本手册中所
使用的图标
标志
DVD-ROM/-R/-RW/+R/+RW
DATA DVD格式,包含MP3音频曲
目1)、JPEG图像文件2)或DivX视频
文件3),并符合UDF(通用磁盘格
式)。
还可以在本系统上播放带有下列光盘标志的光盘:
MP3(MPEG 1 Audio Layer 3)是ISO/MPEG规定的压缩音频数据用标准格式。MP3音频曲目
必须为MPEG 1 Audio Layer 3格式。
2)
JPEG图像文件必须符合DCF图像文件格式。(DCF“Design rule for Camera File
System”:由Japan Electronics and Information Technology Industries
Association(JEITA)规定的数码相机图像标准。)
3)
DivX视频文件必须以带有扩展名“.AVI”或“.DIVX”的DivX格式录制。
4)
CD-ROM上文件和文件夹的逻辑格式,由ISO(国际标准化组织)规定。
1)
“DVD+RW”、“DVD-RW”、“DVD+R”、“DVD VIDEO”和“CD”标志是商标。
CS
不能播放的光盘
PHOTO CD格式录制的CD-ROM
MP3 PRO格式录制的DATA CD
CD-Extra1)的数据部分
Mixed CD2)的数据部分
超级音频CD
DVD音频光盘
DVD-RAM
具有不同区码的DVD VIDEO。
非标准形状的光盘(例如:心形、
方形、星形)。
上面贴有粘性透明胶带或不干胶的
光盘。
CD-Extra:本格式在第1区段的轨道上录
制音频(AUDIO CD数据),在第2区段的
轨道上录制数据。
2)
Mixed CD(混合CD):本格式在一个区段
的第一个轨道上录制数据,在第二个及后
续的轨道上录制音频(AUDIO CD数据)。
1)
可在本系统上播放的DVD
VIDEO的区码
主机背面印有本系统的区码,系统
只能播放标有相同区码的DVD VIDEO。
还可以在本系统上播放标有
的
DVD VIDEO。
如果您试图播放其它区码的
DVD VIDEO,电视机屏幕上会出
现“Playback prohibited by area
limitations.”(区域限制禁止播
放。)讯息。根据DVD VIDEO的不同,
即使没有标记区码标示,也可能因区
域限制而禁止播放DVD VIDEO。
有关DualDisc的注意事
项
DualDisc是一种双面光盘产品,它
一面含有符合录制DVD的素材,另一面
为数字音频素材。但是,由于音频素
材一面不符合Compact Disc (CD) 标
准,无法保证在本产品上播放。

接下页
CS
关于CD-R/-RW和
DVD‑R/-RW/+R/+RW
在某些情况下,由于光盘的录制品
质或物理状态,或录制设备和制作
软件的特性原因,可能无法在本系
统上播放CD-R/-RW和DVD-R/-RW/+R/
+RW。未正确进行终结化处理的光盘
也不能播放。有关详细信息,请参
见录制设备的使用说明书。
请注意,即使进行了正确的终结化
处理,某些播放功能可能在某些
DVD+R/+RW上不工作。这种情况下,
请以正常播放模式观看光盘。
无法播放以Packet Write(包写
入)格式创建的光盘。
关于DVD VIDEO和VIDEO
CD的播放操作
软件制作者可能有意设置某些DVD
VIDEO和VIDEO CD的播放操作。
由于本系统根据软件制作者设计的
光盘内容播放DVD VIDEO和VIDEO CD,
因此某些播放功能可能无效。此外,
请参阅随DVD VIDEO或VIDEO CD附带的
说明书。
10CS
用版权保护技术编码的
音乐光盘
本产品被设计用于播放符合
Compact Disc(CD)标准的光盘。 近
来,一些唱片公司在出售各种用版权
保护技术编码的音乐光盘。请注意,
这些光盘中有一些光盘不符合CD标准
而可能无法用本产品播放。
关于多区段光盘
在第1区段包含MP3音频曲目、
JPEG图像文件或DivX视频文件时,
本系统可以播放多区段光盘。还可
以播放录制在之后区段中的任何后
续MP3音频曲目、图像文件或DivX视
频文件。
如果第1区段以AUDIO CD或VIDEO
CD格式录制,将只播放第1区段。
如果多区段光盘上的某个区段以
AUDIO CD格式录制,系统将把该光
盘识别为AUDIO CD。然而,只有在
第1区段以AUDIO CD格式录制的情况
下,系统才会播放光盘。
对于DATA CD或DATA DVD,即使其中
包含MP3音频曲目或JPEG图像文件,
本系统也将只播放DivX视频文件。
版权
本产品结合了受美国专利权和其它
知识产权保护的版权保护技术。使用
此版权保护技术必须由Macrovision
授权,并规定仅供家庭和其它有限制
观看,除非Macrovision另外授权。禁
止逆向设计或拆卸。
本系统包含Dolby* Digital(杜比
数字)和DTS** Digital Surround
System(DTS数字环绕系统)。
*由Dolby Laboratories授权制造。
“杜比”、“Dolby”和双D标志是
Dolby Laboratories的商标。
**“DTS”是DTS, Inc.的注册商标,
“DTS 2.0 + Digital Out”是DTS,
Inc.的商标。
美国及他国专利许可由Dolby
Laboratories授予。
DivX 是由DivX, Inc.开发并获得
DivX认证的视频文件压缩技术,相
关标志是DivX, Inc.的商标,经授
权许可使用。
Bluetooth字标和标志属于
Bluetooth SIG, Inc.,Sony
Corporation使用此类标志均取得许
可。其它商标和品牌名称均属于各
自所有者。
MICROVAULT是Sony Corporation
(索尼公司)的商标。
ATRAC、ATRAC3、ATRAC3plus及其
标志是Sony Corporation(索尼公
司)的商标。
MPEG Layer-3音频编码技术和专利
由Fraunhofer IIS 和 Thomson 授
权。
®
11CS
部件和控制指南
本手册主要说明使用遥控器的操作,但使用主机上具有相同或相似名称的按钮
也可以进行相同的操作。
前面板
上面板
12CS
遥控器
部件和控制指南

STANDBY指示灯(89)
当系统电源关闭时点亮。

BLUETOOTH指示灯 (68, 69)
当Bluetooth功能工作时点亮。

BLUETOOTH OPR (66, 68, 69)
按下进行连接、断开连接或与
Bluetooth设备配对。

(退出)(30)
按下以退出光盘。

光盘插槽

+/ (27, 29, 64, 71, 74)
按下以选择作品集。

(USB)端口(70)
连接至选购USB设备(数码音乐播放机
或USB存储媒体)。

主机: (开/待机) (24, 25,
61, 82, 98)
遥控器:TV 1) (开/待机) (23)
按下打开系统电源。
按下打开电视机电源。

接下页
13CS

PRESET +/ (62)
按下以选择预设电台。
/(后退/前进)
(29,44,49,66,71,74)
按下以选择曲目或文件。
遥控器:TV CH +/1) (23)
按下以改变电视频道。
遥控器:SLOW
/
(29)
按下以观看慢动作播放。
遥控器:TUNING +/ (61)
按下以调入想要的电台。
/ (快倒/快进)
(29, 66, 71)
按下以找到曲目或文件中的一点。

ECHO LEVEL2) (75)
转动以调节麦克风的回音。
MIC LEVEL (75)
转动以调节麦克风的音量。
MIC插孔(75)
连接至麦克风。

AUDIO IN插孔 (88)
连接至选购音频组件。
14CS

PHONES插孔
连接耳机。

DISPLAY (71, 83)
按下以在前面板显示窗中显示光盘信
息或时钟。

PROGRESSIVE (22, 88)
按下以改变输出视频格式(隔行或逐
行格式)。

DSGX (75)
按下以增强低音。

IR接收器

主机:DVD (播放)(22,28)
按下以选择DVD功能。
按下以开始播放光盘。
主机:USB (播放)(71,74)
按下以选择USB功能。
按下以开始播放选购USB设备(数码音
乐播放机或USB存储媒体)。
主机:BLUETOOTH  (64, 65)
主机:TUNER/BAND (61)
按下以选择TUNER功能。
按下以在FM和AM波段之间切换。
主机:AUDIO IN
按下以选择AUDIO IN功能。
FUNCTION +/ (22, 28, 61, 64,
65, 67, 69, 70, 73, 75)
按下以选择功能。

 (停止) (29, 61, 66, 71)
 (暂停) (29, 66, 71)
按下以停止或暂停播放。
遥控器:3) (播放) (28, 35,
43, 49, 54, 65, 71, 74)
按下以开始播放。

DIMMER (83)
按下以调节显示窗亮度。

PICTURE NAVI (41)
按下以选择用来搜索章节、标题和曲
目的VIEWER格式。
按下以显示缩略图。
部件和控制指南
按下以选择Bluetooth功能。
按下以开始播放Bluetooth设备
(Bluetooth移动电话等)上的音乐。

REPEAT/FM MODE (38, 62, 71)
按下以反复收听光盘、单个曲目或文
件。
按下以选择FM接收模式(单声道或立
体声)。

AUDIO (31, 76, 77, 86)
按下以在电视机屏幕上显示当前的音
频信号。

SUBTITLE (30)
按下以切换字幕语言(DVD VIDEO)。

VOLUME +/3) (28, 66, 69, 71)
按下以调节音量。
TV VOL +/1)3) (23)
按下以调节电视机音量。

接下页
15CS

ANGLE (30)
按下以改变角度(仅限于带有多角度
的DVD VIDEO)。

DVD/USB/TUNER MENU (39, 46, 62)
按下以在电视机屏幕上显示MENU项
目。
按下以预设广播电台。
按下以选择使用选购USB设备期间的播
放模式。

EQ (75)
按下以选择声音效果。

DISPLAY (26, 34, 39, 46, 50,
51, 56, 78, 87, 99)
按下以在电视机屏幕上显示控制菜
单。

TV1) (23)
按下以操作电视机功能。
16CS

ADVANCE
(29)
按下以在播放期间前进当前场景。
REPLAY
(29)
按下以在播放期间重播前一个场景。
 STEP/ STEP  (29)
按下以在播放暂停时一次播放一帧。

 RETURN (33)
按下以返回电视机屏幕上的前一个菜
单。

/// (24, 25, 34, 36, 37,
39, 43, 71, 73, 81)
按下以选择MENU项目。
ENTER (24, 42, 62, 73)
按下以输入设置。

DVD TOP MENU (39)
按下以在电视机屏幕上显示DVD标题。

数字按钮3) (23,29,32,39,
53,64)
按下以选择曲目或文件。
按下以输入密码或口令。
10/01)
按下以输入两位数字。

KEY CONTROL / (80)
按下以将音调改变为适合您的嗓音范
围。
SCORE (79)
按下以选择得分模式的难度等级。
KARAOKE MODE (76)
按下以选择卡拉OK模式。
KARAOKE PON (80)
按下以激活KARAOKE PON功能。

TIME/TEXT (83)
按下以改变前面板显示窗中的信息。

TV/VIDEO1) (23)
按下以切换输入源。
SLEEP (81)
按下以设置入睡定时器。
部件和控制指南

CLEAR (35, 41, 65, 68, 74)
按下以删除预先编程的曲目或文件。
按下以消除Bluetooth设备的配对注册
信息。
-/--1)
按下以输入一位或两位数字。

TIMER MENU (24, 81)
按下以设置时钟和定时器。

THEATRE SYNC (27)
按下以激活THEATRE SYNC功能。
此按钮用于操作Sony电视机。有关详细
说明,请参见“操作Sony电视机”(第
23页)。
2)
欧洲和俄罗斯机型除外。
3)
数字按钮5、TV VOL +、VOLUME + 和
 按钮上设有触点。当操作系统时,
请将触点作为参考使用。
1)

接下页
17CS
显示
指示所选功能。
指示所选播放模式。(34)
当设定了定时器时点亮。(81)
当调入了电台时点亮。(61)
当打开了DSGX时点亮。(75)
指示播放状态。
当选择了DTS时点亮。(59)
当选择了Dolby Digital时点亮。
(59)
当连接了选购USB设备时点亮。
(70)
当选择了“P AUTO”或
“P VIDEO”时点亮。(22)
18CS
当输出视频信号为NTSC时点亮。
(22)
当播放有PBC功能的VIDEO CD时点
亮。(32)
指示音频格式类型。
指示曲目/作品集信息。
当显示章节或标题号码时点亮。
指示正在播放的光盘类型。(28)
显示文本信息。
使用前的准备工作
使用前的准备工作
连接系统
或
右扬声器
墙上电源插座
左扬声器




AM环形天线
白色侧用于北美机型
褐色侧用于其它地区
FM导线天线(将其水平延伸。)
 FM/AM天线
找到一个接收效果良好的位置和方
向,然后设置天线。
令天线远离扬声器导线和电源线,
以避免受到噪音干扰。
 扬声器

接下页
19CS
 电源
将电源线连接至墙上电源插座。
如果插头上附带的适配器不适合您的
墙上电源插座,请将其从插头上拔下
(仅限于装备有适配器的机型)。
安装扬声器垫片
在扬声器底面各角安装附带的扬声
器垫片以使扬声器稳定,并防止扬声
器滑动。
在遥控器中插入两节
R6(AA尺寸)电池
滑动并取下电池舱盖,然后插入附
带的两节R6(AA尺寸)电池,先插入
侧,使极性与下图所示一致。
在搬运本系统时
执行下列步骤以保护DVD机械
装置。
使用主机上的按钮进行操作。
1 按/
打开系统电源,然后
按DVD  。
注意
如果长时间不使用遥控器,请将电池取出,
以避免电池漏液和腐蚀可能造成的损害。
提示
通常使用情况下,电池可以使用大约6个
月。当遥控器已无法控制本系统时,请更换
两节新的电池。
20CS
2 确认本系统中没有装载光盘并查
看是否出现“No Disc”。
3 按/
关闭系统电源并查看
“STANDBY” 是否消失。
4 拔下电源线。
连接电视机
用视频导线(非附件)将录像机
连接至电视机。但是,不要经由录像
机连接主机至电视机。否则,从本系
统观看视频图像时,可能会发生视频
漏损。如下图所示,直接连接主机与
电视机。
电视机
录像机
主机
不要直接连接
使用前的准备工作
用附带的视频导线将电视机的视频
输入插孔连接至VIDEO OUT插孔。
连接录像机时
提示
为获得更高品质的视频图像:
用选购分量视频导线连接电视机上的
COMPONENT VIDEO输入插孔至主机上
的COMPONENT VIDEO OUT插孔。如果
您的电视机与逐行格式文件信号兼
容,请使用此连接并反复按主机上
的PROGRESSIVE 直到在显示窗中
出现“P AUTO”或“P VIDEO”(第
22页)。
您可以使用选购S视频导线连接电视机上
的S VIDEO输入插孔至主机上的S VIDEO
OUT插孔。

接下页
21CS
改变彩色制式
(欧洲和俄罗斯机型除外)
根据电视机的彩色制式将彩色制式
设定为PAL或NTSC。
彩色制式的默认设置根据地区而
异。
每次执行下列操作时,彩色制式会
如下改变:
NTSC  PAL
1 反复按FUNCTION +/-
选
择“DVD”(或按主机上的DVD 
)。
2 按/
关闭系统电源。
3 按DISPLAY
显示时钟。
4 在显示时钟期间,按住
,然后
按/ 。
系统自动打开电源,彩色制式改
变。
在显示窗中出现“COLOR NTSC”或
“COLOR PAL”。
注意
如果没有设定时钟,显示窗中会出现
“--:--”。
改变从COMPONENT VIDEO
OUT插孔输出的视频信号
格式
逐行是显示电视图像的方式,该方
式可以减少闪烁并使图像清晰。要使
用该方式时,需要连接一台能够接收
逐行信号的电视机。
您可以以隔行或逐行格式从
COMPONENT VIDEO OUT插孔输出视频
信号。
1 反复按FUNCTION
+/ 选
择“DVD”(或按主机上的DVD
 )。
2 反复按主机上的PROGRESSIVE
。
如果电视机可接收逐行信号并
且电视机连接在COMPONENT VIDEO
OUT插孔上,选择“P AUTO”或
“P VIDEO”。否则,选择
“INTERLACE”。
P AUTO (PROGRESSIVE AUTO):
系统自动检测软件类型并选择
适当的转换方法。
P VIDEO (PROGRESSIVE VIDEO):
系统将基于视频的软件的转换
方法固定为PROGRESSIVE VIDEO。
如果当您选择“P AUTO”时图
像不清晰,请选择此项。
22CS
有关DVD VIDEO软件类型和转换
方法
某些DVD VIDEO包含两种类型的软
件。当视频输出为逐行格式时,为了
使电视机上显示的图像自然,需要转
换逐行信号,以便与DVD VIDEO软件
相匹配。
打开电视机电源并选择视频输入,
以便可以观看来自本系统的图像。
操作Sony电视机
可以使用下列按钮操作Sony电视
机。这些按钮以橙色标记。
要
打开或关闭电视
机电源
按
在按住TV 期间
按TV / 。
在电视机和其它
输入源之间切换
电视机的输入源
在按住TV 期间
按TV/VIDEO 。
选择电视频道
在按住TV 期间
按TV CH +/ 
或数字按钮*。
调节电视机扬声
器的音量
在按住TV 期
间按TV VOL +/
。
注意
如果设置与电视机或连接不匹配,电视机上
将没有图像或图像不清晰。
使用前的准备工作
DVD VIDEO软件可以分为两种类
型:
基于电影的软件
基于电影的软件来自于电影,每秒
钟显示24帧图像。
基于视频的软件
基于视频的软件来自于电视,例如
电视剧和连续剧,每秒钟显示30帧
或60场图像。
使用电视机时
*两位数的情况下,按住TV 并按-/-,然后按数字。(例如:按住TV ,
按-/-- ,然后按2和5以输入25。)
23CS
设定时钟
使用遥控器上的按钮设定时钟。
1 按/ 打开系统电源。
2 按TIMER MENU 。
显示窗中的小时指示闪烁。
如果“PLAY SET?”在显示
窗中闪烁,反复按或 选
择“CLOCK SET?”,然后按
ENTER 。
3 反复按或 设定小时。
4 按ENTER 。
显示窗中的分钟指示闪烁。
5 反复按或 设定分钟。
6 按ENTER 。
时钟开始工作。
24CS
注意
当您断开电源线连接或发生停电时,时钟设
置将被取消。
要在系统关闭时显示时钟
按DISPLAY 。
时钟会显示约8秒钟。
执行QUICK SETUP
。
电视机屏幕上会出现“LANGUAGE
SETUP”。
1 打开电视机电源并选择视频输
入。
2 按/ 打开系统电源。
注意
确认主机内没有光盘。否则,不会出现
指南讯息。要执行QUICK SETUP时,按
主机上的 取出光盘。
3 反复按FUNCTION
+/ 选
择“DVD”(或按主机上的DVD
 )。
电视机屏幕的下方会出现指南
讯息。
5 反复按或 选择语言,然
使用前的准备工作
使用本系统之前,您可以在QUICK
SETUP中进行最基本的调节。如果不
想执行QUICK SETUP,在步骤3中按
CLEAR 。电视机屏幕上的指南讯息
会消失。
4 不插入光盘按ENTER
后按ENTER 。
设置被选择,电视机屏幕上会
出现“SCREEN SETUP”。
提示
所选语言用于“OSD”、“MENU”和
“SUBTITLE”。
根据地区的不同,可选择语言有所不
同。

接下页
25CS
6 反复按或
选择与电视机
类型匹配的设置。
如果电视机为4:3标准电视:
选择“4:3 LETTER BOX”或
“4:3 PAN SCAN”(第58页)
如果电视机为宽屏幕电视或具有宽
屏幕模式的4:3标准电视:
选择“16:9”(第58页)
7 按ENTER 。
设置被选择,电视机屏幕
上会出现“QUICK SETUP is
complete.”。
系统准备就绪,可以播放。
如果您想要单独改变各个设
置,请参见“使用DVD设置菜
单”(第56页)。
要退出QUICK SETUP时
按
26CS
DISPLAY 。
要调出QUICK SETUP显示时
1 在播放停止时按
DISPLAY 。
电视机屏幕上会出现控制菜单。
2 反复按或
选择
(SETUP),然后按ENTER 。
3 反复按或
选择“QUICK”,然
后按ENTER 。
注意
当您首次打开系统电源或在执行“RESET”
后打开系统电源时,会在电视机屏幕的下方
出现指南讯息(第98页)。
使用THEATRE SYNC功
能
准备使用THEATRE
SYNC功能
注册与本系统连接的电视输入源。
要选择电视输入源时
在按住SLEEP 期间按下列按钮。
按
0
电视输入源
无输入源
(默认)
1至8
9
CLEAR 
VIDEO 1至VIDEO 8
COMPONENT 1
COMPONENT 2
 
COMPONENT 3
+ 
COMPONENT 4
到电视机的电源打开并且输入源
正确改变为止,保持遥控器指向
电视机的方向,然后按THEATRE
SYNC 。
如果此功能不工作,改变传输时
间。 根据电视机的不同,传输时间
各异。
要改变传输时间时
在按住 期间按下列按钮。
按
1
传输时间
0.5(默认)
2
1
3
1.5
4
2
5
2.5
6
3
7
3.5
8
4
使用前的准备工作
THEATRE SYNC允许您只要用一
个按钮,便可以打开Sony电视机和
本系统的电源,将系统的功能改变
为“DVD”,并将电视输入源切换为预
先设置。
使用THEATRE SYNC功能
所选电视输入源被记忆在遥控器
中。
27CS
2 令标签侧朝上将光盘插入光盘
光盘
插槽。
如果不自动开始播放,按
(或主机上的DVD  )。
播放光盘
 正常播放
根据DVD VIDEO或VIDEO CD的不
同,某些操作可能不同或受到限制。
请参阅随光盘附带的使用说明书。
示例: 在播放DVD VIDEO时
3 按VOLUME
标题号码
已播放时间
1 反复按FUNCTION
+/ 选
择“DVD”(或按主机上的DVD
 )。
28CS
+/ 调节音量。
注意
根据本系统状态的不同,有可能不在电视
机屏幕上出现音量电平。
当您打开系统电源时,到显示窗中出
现“No Disc”为止,光盘不会被拉入光
盘插槽。到出现“No Disc”为止,不
要试图推入光盘。
不要装载带有适配器的8 cm光盘。这样做
可能会导致系统故障。
取出光盘时,请握住光盘的边缘并将其水
平地从光盘插槽中拉出。不要接触光盘
的表面。
其它操作
要
停止播放
按
 。
按
在播放暂停时按SLOW
。
或 SLOW
每次按SLOW
或
时,播放
SLOW
速度会改变。
要返回正常播放时,
按 (或主机上
的DVD  )。
一次播放一帧 在播放暂停时,按
(冻结帧)6) STEP  进入下
一帧。在播放暂停
时,按 STEP 7)
进入前一帧。
要返回正常播放时,
按 (或主机上
的DVD  )。
重放前一个场 在播放期间按REPLAY
。(即时重
景
放)7)
短暂地快进当 在播放期间按ADVANCE
。(即时快
前的场景
进)7)

光盘
 。再次按 
或 (或主机上
的DVD  )恢复
播放。
选择一个曲
在播放期间反复按
目1)、章节或 或 。
视频文件
或者在控制菜单关闭
时按数字按钮,然
后按ENTER 2)。
选择一个作品 在播放期间或播放暂
集3)
停时反复按
+/
。
在快进或快
在播放期间按或
倒中迅速地定  。每次按
位(锁定搜
或 时,播放速
索)4)5)
度会循环改变。
要返回正常播放时,
按 (或主机上
的DVD  )。
暂停播放
要
逐帧观看
(慢动作播
放)6)
接下页
29CS
要
从另一个信号
源切换为DVD
功能
按
反复按FUNCTION +/
(或按主机上的DVD
 )(自动信号
源选择)。
取出光盘
主机上的。
不能在MP3音频曲目的锁定搜索操作期间
选择音频曲目。
2)
仅限于DVD VIDEO、VR模式的DVD-R/-RW、
VIDEO CD、AUDIO CD和DivX视频文件。
3)
仅限于MP3音频曲目、JPEG图像文件和
DivX视频文件。
4)
JPEG图像文件除外。
5)
根据光盘的不同,实际速度可能有所不
同。
6)
仅限于DVD VIDEO、VR模式的DVD-R/-RW、
DivX视频文件和VIDEO CD。
7)
仅限于DVD VIDEO和VR模式的DVD-R/-RW。
1)
注意
不能在VR模式的DVD-R/-RW上搜索静止图
像。
在反复播放模式下或在某些场景下,可能
无法使用即时重放或即时快进功能。
显示多角度和字幕
改变角度
(仅限于DVD VIDEO)
在播放以不同角度(多角度)录制
了同一场景的DVD VIDEO时,可以改变
观看角度。
在播放期间反复按ANGLE 。每次
按ANGLE 时,角度会改变。
注意
根据DVD VIDEO的不同,即使DVD VIDEO以多
角度录制,也可能无法改变角度。
显示字幕
(仅限于DVD VIDEO、VR模式的
DVD-R/-RW和DivX视频文件)
在播放录制有字幕的DVD VIDEO、
VR模式的DVD-R/-RW或DivX视频文件期
间,可以打开或关闭字幕。在播放录
制有多语言字幕的DVD VIDEO、VR模式
的DVD-R/-RW或DivX视频文件期间,还
可以改变字幕语言。
在播放期间反复按SUBTITLE 。
每次按SUBTITLE 时,字幕语言会改
变或关闭。
30CS
注意
根据DVD VIDEO的不同,即使DVD VIDEO上
录制有多语言字幕,也可能无法改变字
幕。还有可能无法关闭字幕。
如果DivX视频文件具有扩展名“.AVI”或
“.DivX”,并且在同一文件内包含字幕
信息,您可以改变字幕。
改变声音
在播放以多音频格式录制的DVD
VIDEO或DivX视频文件时,可以选择您
想要的音频格式。如果DVD VIDEO录制
有多语言音轨,还可以改变语言。
在播放VIDEO CD、AUDIO CD或MP3
音频曲目时,可以从右声道或左声道
选择声音,并用左右两个扬声器同时
收听所选声道的声音。例如,在播放
右声道有歌唱、左声道有音乐伴奏的
曲目时,通过选择左声道,可以从两
个扬声器同时听到音乐伴奏。
在播放DVD VIDEO时:
根据DVD VIDEO的不同,语言选项
和音频格式会有所不同。
当显示4位数时,该数字代表语言
代码(请参见“语言代码列表”(第
111页))。当相同语言显示两次或
以上时,DVD VIDEO以多音频格式录
制。注意根据光盘的不同,声音会自
动改变。
光盘
其它有用的功能
默认设置以下划线标注。
在播放VR模式的DVD-R/-RW时:
会显示光盘上所录制的音频曲目
号码。
示例:
1: MAIN: 音频曲目1的主声音。
1: SUB: 音频曲目1的副声音。
1: MAIN+SUB: 音频曲目1的主声音
和副声音。
2: MAIN*: 音频曲目2的主声音。
2: SUB*: 音频曲目2的副声音。
2: MAIN+SUB*: 音频曲目2的主声音
和副声音。
*如果正在播放的光盘只录制有一个音频
流,不会出现这些项目。
在播放期间反复按AUDIO 选择您
想要的音频信号。

接下页
31CS
在播放DivX视频文件时:
根据DivX视频文件的不同,音频格
式的选项有所不同。
播放有PBC功能(版本2.0)的
VIDEO CD  PBC播放
在播放VIDEO CD、AUDIO CD或MP3音频
曲目时:
STEREO: 标准立体声声音。
1/L: 左声道的声音(单声道)。
2/R: 右声道的声音(单声道)。
1 按
在播放超级VCD时:
1: STEREO: 音频曲目1的立体声声
音。
1: 1/L: 音频曲目1的左声道声音
(单声道)。
1: 2/R: 音频曲目1的右声道声音
(单声道)。
2: STEREO: 音频曲目2的立体声声
音。
2: 1/L: 音频曲目2的左声道声音
(单声道)。
2: 2/R: 音频曲目2的右声道声音
(单声道)。
(仅限于VIDEO CD)
可以利用电视机屏幕上的PBC(播
放控制)菜单享用光盘上的对话式软
件。根据各个光盘的不同,菜单格式
和构造可能有所不同。
(或主机上的DVD 
)开始播放有PBC功能(版本
2.0)的VIDEO CD。
PBC菜单出现在电视机屏幕上。根
据VIDEO CD的不同,可能不显示
菜单。
2 按数字按钮选择您想要的项目
号。
3 按ENTER
。
根据VIDEO CD的不同,“Press
ENTER”可能会在随光盘附带的使用
说明书中作为“Press SELECT”出
现。这种情况下,按 (或主
机上的DVD  )。
4 根据菜单上的说明继续播放。
根据VIDEO CD的不同,操作步骤可
能有所不同,请参阅随VIDEO CD附
带的使用说明书。
32CS
要返回前一个菜单时
按 RETURN 。
注意
在任选播放时PBC播放被取消,编程播放或
反复播放被激活。
要取消PBC功能播放时
,
或者按数字按钮,以选择曲目。
2 按
(或主机上的DVD 
)或ENTER 。
从所选曲目开始播放。不会显示诸
如菜单画面之类的静止图像。
要返回PBC播放时,按两次 ,
然后按 (或主机上的DVD 
)。
从停止光盘的位置恢复播放
 恢复播放
本系统能够记忆停止光盘的位置,
因此可以从该位置恢复播放。当关闭
系统的电源时,恢复播放不会被取
消,MP3音频曲目、JPEG图像文件和
DivX视频文件除外。
停止播
放。
在显示窗中出现“Resume”。
如果不出现“Resume”,恢复播放
无效。
2 按
(或主机上的DVD 
)。
本系统从步骤1中停止光盘的位置开
始播放。
光盘
1 播放停止时反复按或
1 在播放光盘期间,按
注意
在任选播放或编程播放期间,无法执行恢
复播放。
对于某些光盘,此功能可能无法正确工
作。
下列情况时,恢复播放被取消
在播放停止时按 。
退出光盘。
改变功能。
改变设置菜单中的设置。
根据停止光盘的位置,本系统可能无法从
完全相同的位置恢复播放。
如果“MULTI-DISC RESUME”设定
为“ON”,当退出光盘或改变功能时,
DVD VIDEO和VIDEO CD的恢复播放不会被
取消。
提示
要从光盘的开始位置播放时,按两次
,然后按 (或主机上的DVD 
)。

接下页
33CS
恢复以前停止的光盘的播放
 多光盘恢复
使用播放模式
(仅限于DVD VIDEO和VIDEO CD)
本系统最多可存储40张光盘的停止
光盘播放位置,当再次插入相同的光
盘时可恢复播放。如果存储第41张光
盘的播放恢复位置,第1张光盘的播放
恢复位置将被删除。
要激活此功能时,将“CUSTOM
SETUP”中的“MULTI-DISC RESUME”
设定为“ON”(第59页)。
 编程播放
注意
1 按
如果“CUSTOM SETUP”中的“MULTI-DISC
RESUME”设定为“ON”,并且播放诸如
DVD-R之类的录制光盘时,本系统可能从
相同的播放恢复位置播放其它录制光盘。
要从光盘的开始位置开始播放时,按两次
 然后按 (或主机上的DVD 
)。
创建您自己的程序
可按照想要播放的顺序,编制最长
99步骤的程序。
DISPLAY。
控制菜单出现在电视机屏幕
上。
2 反复按或 选择
(PROGRAM),然后按ENTER
。
“PROGRAM”的选项出现在电视
机屏幕上。
3 反复按或 选择
“SET”, 然后按ENTER
。
曲目号码
34CS
4 按 。
光标移动到曲目列表“T”(这
种情况下,“01”)。
5 选择您想要编程的曲目。
例如:选择曲目“02”。
反复按或 选择“T”下面
的“02”,然后按ENTER 。
所选曲目
光盘
要改变已编程步骤时:
反复按或 选择想要改变的
已编程步骤号。然后按 。
已编程曲目的总时间
要删除已编程步骤时:
反复按或 选择想要改变的
已编程步骤号。然后按CLEAR 。
6 要对其它曲目编程时,重复步
要删除程序列表中的全部已编程
步骤时:
按 选择“ALL CLEAR”。然
后按ENTER 。
7 按 (或主机上的DVD
骤4至5。

)。
编程播放开始。
当编程播放结束时,可以通过
按 (或主机上的DVD 
)重新开始播放相同程序。

接下页
35CS
要取消编程播放时
以随机顺序播放
按CLEAR 或在步骤3中选
择“OFF”。要重新播放相同程序
时,在步骤3中选择“ON”,然后按
ENTER 。
 任选播放
要关闭控制菜单时
可以以随机顺序播放当前光盘上的
曲目。每次执行任选播放时,播放顺
序可能不同。
反复按 DISPLAY 直到控制菜
单从电视机屏幕上消失。
注意
当编程播放被激活时,如果当前设置
为“DISC”或“TRACK”,“REPEAT”设
置会自动变为“ON”。
在PBC播放期间,不能对VIDEO CD执行编
程播放。
提示
下列情况时,编程播放被取消,编程列表
被清除
退出光盘。
关闭系统电源。
改变功能。
1 在播放期间按
DISPLAY 。
控制菜单出现在电视机屏幕
上。
2 反复按或 选择
(SHUFFLE),然后按ENTER
。
“SHUFFLE” 的选项出现在电
视机屏幕上。
3 反复按或 选择您想要的
设置。
在播放VIDEO CD或AUDIO CD时:
TRACK: 随机播放光盘上的全部
曲目。
在编程播放被激活时:
ON: 随机播放编程列表中的全部
曲目。
36CS
在播放DATA CD/DVD时(DivX视频
文件除外):
ON: 随机播放光盘上所选作品集
中的全部MP3音频曲目。
没有选择作品集时,将随机播放
第一个作品集。
任选播放开始。
要取消任选播放时,按
CLEAR 或在步骤3中选
择“OFF”。
要关闭控制菜单时
反复按 DISPLAY 直到控制菜
单从电视机屏幕上消失。
注意
下列情况时,任选播放被取消
退出光盘。
关闭系统电源。
改变功能。
执行曲目/索引搜索。
在PBC播放期间,不能对VIDEO CD执行任
选播放。
对于MP3音频曲目,可以反复播放相同歌
曲。
 反复播放
可以反复播放光盘上的所有标题、
曲目、文件或单个标题、章节、曲目
或文件。
可以同时选择任选播放和编程播
放。
光盘
4 按ENTER 。
反复播放
1 在播放期间按
DISPLAY 。
控制菜单出现在电视机屏幕
上。
2 反复按或 选择
(REPEAT),然后按ENTER
。
“REPEAT”的选项出现在电视
机屏幕上。
3 反复按或 选择您想要的
设置。
默认设置以下划线标注。
播放DVD VIDEO或VR模式的DVD-R/
DVD-RW时:
OFF: 不反复播放。
DISC: 反复光盘上的所有标题。
TITLE: 反复当前的标题。
CHAPTER: 反复当前的章节。

接下页
37CS
在播放VIDEO CD或AUDIO CD时:
要关闭控制菜单时
OFF: 不反复播放。
DISC: 反复光盘上的所有曲目。
TRACK: 反复当前的曲目。
反复按 DISPLAY 直到控制菜
单从电视机屏幕上消失。
播放DATA CD或DATA DVD时:
还可以通过反复按REPEAT/FM MODE 改
变反复播放设置。
当反复播放设定为“DISC”、“ALBUM”
或“ON”时,显示窗中“REP”点亮。
当反复播放设定为“TITLE”、
“CHAPTER”、“TRACK”或“FILE”时,
显示窗中“REP1”点亮。
根据DVD VIDEO的不同不能执行反复播
放。
在PBC播放期间,不能对VIDEO CD执行反
复播放。
在播放包含MP3音频曲目和JPEG图像文件
的DATA CD/DVD时,如果播放时间不同,
音频声音将不会与图像一致。
当“MODE(MP3,JPEG)”设定为
“IMAGE(JPEG)”时,不能选择
“TRACK”(第46页)。
下列情况时,反复播放被取消
退出光盘。
关闭系统电源。
改变功能。
OFF: 不反复播放。
DISC: 反复光盘上的所有作品
集。
ALBUM: 反复当前的作品集。
TRACK1): 反复当前的曲目。
FILE2): 反复当前的文件。
1)
2)
仅限于MP3音频曲目。
仅限于DivX视频文件。
当编程播放或任选播放被激活时:
OFF: 不反复播放。
ON: 反复编程播放或任选播放。
4 按ENTER 。
开始反复播放。
要取消反复播放时,按
CLEAR 或在步骤3中选
择“OFF”。
38CS
注意
搜索/选择光盘
使用菜单播放DVD VIDEO
1 按DVD
TOP MENU 或DVD/
USB/TUNER MENU 。
菜单出现在电视机屏幕上。根
据光盘的不同,菜单的内容各不
相同。
2 按///
使用DVD TOP MENU
DVD VIDEO包含许多叫做“标
题”的图像或音乐节目部分。播放包
含有多个标题的DVD VIDEO时,可以用
DVD TOP MENU 选择您想要的标题。
使用DVD MENU
某些DVD VIDEO允许您使用菜
单选择光盘内容。在播放这些DVD
VIDEO时,可以使用DVD/USB/TUNER
MENU 选择项目(例如:字幕语言及
声音语言)。
或数字按钮
选择您想要播放的标题或项
目。
3 按ENTER
光盘
某些DVD VIDEO具有菜单,可帮助
您欣赏DVD VIDEO。可以使用电视机屏
幕上的这些菜单播放DVD VIDEO。
。
在VR模式的DVD-R/-RW上
选择“ORIGINAL”或
“PLAY LIST”
此功能只对创建有播放列表的VR模
式的DVD-R/-RW有效。
1 在播放停止时按
DISPLAY
。
控制菜单出现在电视机屏幕
上。

接下页
39CS
2 反复按或 选择
(ORIGINAL/PLAY LIST),然
后按ENTER 。
“ORIGINAL/PLAY LIST”的选
项出现在电视机屏幕上。
3 反复按或 选择您想要的
设置。
PLAY LIST: 根据光盘上创建的
播放列表进行播放。
ORIGINAL: 根据原始录制顺序进
行播放。
4 按ENTER 。
1 按
DISPLAY 。(播
放带有JPEG图像文件的
DATA CD/DVD时,按两次
DISPLAY 。)
控制菜单出现在电视机屏幕
上。
2 反复按或 选择搜索项
目。
示例: 当选择
(CHAPTER)时
“**(**)”被选择(**代表数
字)。括号中的数字表示标题、章
节、曲目、索引、场景、作品集或
文件的总数。
使用屏幕显示搜索标
题/章节/场景/曲目/索
引/作品集/文件
所选行
3 按ENTER
可以通过录制在光盘上的不同信
息,例如标题、曲目和作品集进行搜
索。光盘上的每个项目都被分配了一
个唯一的号码,可以从控制菜单中选
择您想要的编号项目。可以使用时
间代码(时间搜索)搜索一个特定
位置(仅限于DVD VIDEO和VR模式的
DVD-R/-RW)。
40CS
。
“**(**)”变为
“--(**)”。
4 反复按或 或数字按钮
选择标题、曲目、作品集等
或文件号码。
如果选择错误,按CLEAR 取
消号码。
5 按ENTER 。
系统从所选标题、曲目、作品
集等处开始播放。
要关闭控制菜单时
反复按
单消失。
DISPLAY 直到控制菜
后按ENTER 。
例如:要找到自开头起2小时10分
20秒后的场景时,输入
“2:10:20”。
如果选择错误,按CLEAR 取消
号码。
根据光盘的不同,不能执行时间搜索。
当控制菜单显示关闭时,可以通过按数字
按钮和ENTER 搜索章节(DVD VIDEO和
VR模式的DVD-R/-RW)或曲目(AUDIO CD和
VIDEO CD)或文件(DATA CD/DVD中的
DivX视频文件)。
要使用时间代码搜索特定位置时
时间搜索
(仅限于DVD VIDEO和VR模式的
DVD-R/-RW)
DISPLAY 。
2 反复按或
选择
(TIME/TEXT)。
“T **:**:**”(当前标题的已播放
时间)被选择。
3 按ENTER
光盘
注意
提示
1 按
4 使用数字按钮输入时间代码,然
以场景搜索
 图像导航
1 反复按PICTURE
NAVI 选择
您想要用于搜索的VIEWER格
式。
CHAPTER VIEWER (DVD VIDEO)
TITLE VIEWER (DVD VIDEO)
TRACK VIEWER(VIDEO CD或超级
VCD)
。
“T **:**:**”改变为
“T--:--:--”。

接下页
41CS
2 按ENTER 。
显示先头9个章节、标题或曲目
的第一场景。如果有9个以上的章
节、标题或曲目,会在屏幕的右下
方出现“”。
3 按/// 选择章节、标
题或曲目,然后按ENTER 。
系统从所选场景开始播放。
要取消搜索时
按 RETURN 或
。
DISPLAY
注意
根据光盘的不同,可能无法选择某些项目。
提示
要显示剩余章节、标题或曲目时,在底行
选择一个场景,然后按 。要返回前一
个场景时,在顶行选择一个场景,然后按
 。
42CS
播放MP3/JPEG光盘
注意
根据用来创建DATA CD或DATA DVD软件的
不同,播放顺序可能不同。
本系统最多可播放200个作品集,这其中
包括不含MP3音频曲目和JPEG图像文件的
作品集。本系统不会播放超过200个以后
的任何作品集。
本系统可识别的作品集中MP3音频曲目或
JPEG图像文件的最大数如下:
当“MODE(MP3,JPEG)”设定
为“AUDIO(MP3)”或“IMAGE
(JPEG)”时为600。
当“MODE(MP3,JPEG)”设定
为“AUTO”时为300。
本系统能够播放MP3音频曲目和JPEG图像
文件。即使数据的格式不是MP3或JPEG,
本系统也将播放任何具有“.MP3”、
“.JPG”或“.JPEG”扩展名的任何数
据。播放此类数据时可能会产生很大噪
音,有可能会损坏您的扬声器系统。
选择MP3音频曲目或作
品集
1 在光盘插槽中插入光盘。
系统开始播放第一个作品集。
2 按DVD/USB/TUNER
MENU 。
作品集列表出现在电视机屏幕
上。
光盘
根据编码/写入软件、录制设备或用于录
制MP3音频曲目的录制媒体的不同,您可
能会遇到诸如无法播放、声音中断和噪音
之类的问题。
下列光盘/情况下开始播放所需的时间会
变长:
以复杂树状结构录制的光盘。
以多区段录制的光盘。
可以添加数据的光盘(未终结化的光
盘)。
当刚刚播放完另一个作品集中的曲目
或文件时。
根据文件格式的不同,无法在本系统上播
放某些CD-R/-RW或DVD-R/-RW/+R/+RW。
在播放包含有MP3音频曲目和JPEG图像文
件的DATA CD或DATA DVD时,完成读取光
盘的TOC后,从控制菜单选择“MODE
(MP3,JPEG)”。如果想要播放
MP3音频曲目和JPEG图像文件,
将“MODE(MP3,JPEG)”设定为
“AUTO”。
仅MP3音频曲目,将“MODE(MP3,
JPEG)”设定为“AUDIO(MP3)”。
仅JPEG图像文件,将“MODE(MP3,
JPEG)”设定为“IMAGE(JPEG)”。
本系统只能播放到8层文件夹深度。
3 反复按或 选择作品集。
播放作品集:
按 (或主机上的DVD 
)。
系统从所选作品集的第一个曲
目开始播放。
要停止播放时,按 。

接下页
43CS
播放曲目:
1 按ENTER
。
出现所选作品集的MP3音频曲目
列表。
要在显示曲目列表时返回作品
集列表时
按 RETURN 。
要打开或关闭作品集列表或曲
目列表时
反复按DVD/USB/TUNER MENU 。
选择JPEG图像文件或作
品集
2 反复按或
选择您想要的
MP3音频曲目,然后按ENTER
。
系统开始播放所选MP3音频曲
目。
要停止播放时,按 。
要显示曲目列表或作品集列表的
下一页或前一页时
在显示曲目列表或作品集列表时,
反复按或 。
要播放MP3音频曲目的下一个作
品集时
可通过反复按 直到当前作
品集的最后一个曲目,然后按一次
 来选择下一个作品集。下一个
作品集的第一个曲目被选择。但是,
不能通过反复按 选择前一个作
品集。要选择前一个作品集时,请从
作品集列表选择作品集。
44CS
1 在光盘插槽中插入光盘。
系统开始播放第一个作品集。
2 按DVD/USB/TUNER
MENU 。
作品集列表出现在电视机屏幕
上。
3 反复按或 选择作品集。
播放作品集:
按 (或主机上的DVD 
)。
系统从所选作品集的第一个图像文
件开始幻灯片播放。
要停止播放时,按 。
播放图像文件:
1 按PICTURE NAVI
。
显示所选作品集中先头16个
JPEG图像文件的缩略图。
要显示作品集列表的下一页或
前一页时
在显示作品集列表时反复按或
 。
要显示下一个或前一个JPEG图
像文件时
光盘
在幻灯片播放期间反复按或
。
要播放JPEG图像文件的下一个
作品集时
如果所选作品集中的图像文件
超过16个,会在画面右侧出现
滚动条。
2 按///
选择您想要观看
的图像,然后按 (或主机
上的DVD  )。
从所选图像文件开始幻灯片播
放。
要停止播放时,按 。
可通过反复按 直到当前作品集
的最后一个文件,然后按一次 来
选择下一个作品集。下一个作品集的
第一个文件被选择。但是,不能通过
反复按 选择前一个作品集。要选
择前一个作品集时,请从作品集列表
选择作品集。
要打开或关闭作品集列表显示时
反复按DVD/USB/TUNER MENU 。

接下页
45CS
要旋转JPEG图像文件时
当JPEG图像文件显示在电视机屏幕
上时,可以将图像旋转90度。
在观看图像期间反复按或 。
按CLEAR 返回原始显示。
注意
在“MODE(MP3,JPEG)”设定为
“AUDIO(MP3)”时,PICTURE NAVI
按钮不工作。
在按或 选择下一个或前一个图像
时,即使先前旋转过图像,图像也将返回
其原始显示。
按或 时,幻灯片播放停止。
将MP3音频曲目和JPEG图
像文件作为带有声音的
幻灯片播放
2 按 停止播放。
3 按 DISPLAY 。
控制菜单出现在电视机屏幕
上。
4 反复按或 选择
(MODE(MP3,JPEG)),然后
按ENTER 。
“MODE(MP3,JPEG)”的选项
出现在电视机屏幕上。
默认设置以下划线标注。
AUTO: 将同一作品集中的JPEG图
像文件和MP3音频曲目作为带有
声音的幻灯片播放。
AUDIO (MP3): 连续播放MP3音频
曲目。
IMAGE (JPEG): 将JPEG图像文件
作为幻灯片播放。
5 反复按或 选择
通过预先将JPEG图像文件和MP3音
频曲目放在DATA CD/DVD上同一个作
品集中,可以播放带有声音的幻灯片
播放。
1 在光盘插槽中插入光盘。
系统开始播放第一个作品集。
46CS
“AUTO”,然后按ENTER 。
6 按DVD/USB/TUNER
MENU 。
作品集列表出现在电视机屏幕
上。
7 反复按或
选择您想要的
作品集,然后按 (或主
机上的 )。
从所选作品集开始带有声音的
幻灯片播放。
要停止播放时,按 。
反复按DVD/USB/TUNER MENU 。
要取消带有声音的幻灯片播放时
在步骤4中选择“AUDIO(MP3)”
或“IMAGE(JPEG)”。
注意
某些情况下,当“MODE(MP3,JPEG)”
已设定为下列内容时,不能改变“MODE
(MP3,JPEG)”设置
设定为“IMAGE(JPEG)”,而所选光
盘只包含MP3音频曲目。
设定为“AUDIO(MP3)”,而所选光
盘只包含JPEG图像文件。
如果光盘中没有MP3音频曲目,“No
audio data”会出现在电视机屏幕上并且
不能播放该光盘。
如果光盘中没有JPEG图像文件,“No
image data”会出现在电视机屏幕上并且
不能播放该光盘。
如果同时播放数据量较大的MP3音频曲目
和JPEG图像文件,声音可能会间断。
(仅限于JPEG图像文件)
1 反复按
DISPLAY 直到JPEG图像
文件的控制菜单出现在电视机屏幕
上。
2 反复按或
选择
(INTERVAL),然后按ENTER 。
“INTERVAL”的选项出现在电视机
屏幕上。
光盘
要打开或关闭作品集列表显示时
指定幻灯片播放速度
3 反复按或
选择您想要的过渡
间隔。
默认设置以下划线标注。
NORMAL: 将持续时间设定为大约
6至9秒(4000000像素或更大的
图像会使持续时间延长)。
FAST: 将持续时间设定为比
NORMAL短。
SLOW 1: 将持续时间设定为比
NORMAL长。
SLOW 2: 将持续时间设定为比
SLOW 1长。
4 按ENTER
。
所选设置生效。
注意
显示某些JPEG图像文件(特别是逐行JPEG图
像文件或3000000像素或更大的JPEG图像文
件)时可能比其它图像需要更长时间,这会
使得过渡看起来比所选选项时间要长。

接下页
47CS
为幻灯片播放的图像文件选择
过渡效果
(仅限于JPEG图像文件)
欣赏DivX®视频文件
1 反复按
DISPLAY 直到JPEG图像
文件的控制菜单出现在电视机屏幕
上。
2 反复按或
选择
(EFFECT),然后按ENTER 。
“EFFECT”的选项出现在电视机屏
幕上。
3 反复按或
选择您想要的设
置。
默认设置以下划线标注。
MODE 1: 图像从上到下进入屏
幕。
MODE 2: 图像从左到右进入屏
幕。
MODE 3: 图像从屏幕中央向周围
扩展。
MODE 4: 图像随机循环过渡效
果。
MODE 5: 下一个图像滑过当前的
图像。
OFF: 关闭此功能。
4 按ENTER
。
所选设置生效。
48CS
关于DivX视频文件
DivX®是由DivX,Inc.开发的视频
文件压缩技术。本产品是正式得到
DivX®认证的产品。
本系统可以播放带有“.AVI”或
“.DIVX”扩展名的以DivX格式容纳数
据的文件。
注意
当文件由2个或更多DivX视频文件合并而
成时,本系统可能无法播放该DivX视频文
件。
本系统不能播放尺寸大于720(宽)×576
(高)/2GB的DivX视频文件。
根据DivX视频文件的不同,图像可能不清
晰或声音可能间断。
本系统不能播放某些长于3小时的DivX视
频文件。
播放DivX视频文件作品
集或DivX视频文件
1 将带有DivX视频文件的DATA
播放DivX视频文件:
1 按ENTER
。
出现所选作品集的DivX视频文
件列表。
CD/DVD插入光盘插槽。
系统开始播放第一个作品集。
光盘
2 按DVD/USB/TUNER
MENU 。
作品集列表出现在电视机屏幕
上。
2 反复按或
选择您想要的
DivX视频文件,然后按ENTER
。
系统开始播放所选DivX视频文
件。
要停止播放时,按 。
3 反复按或
选择作品集。
播放作品集:
按 (或主机上的DVD 
)。
系统开始播放所选作品集的第
一个DivX视频文件。要停止播放
时,按 。
要显示文件列表或作品集列表的
下一页或前一页时
在显示文件列表或作品集列表时,
反复按或 。
要播放DivX视频文件的下一个
作品集时
可通过反复按 直到当前作
品集的最后一个文件,然后按一次
 来选择下一个作品集。下一个
作品集的第一个文件被选择。但是,
不能通过反复按 选择前一个作
品集。要选择前一个作品集时,请从
作品集列表选择作品集。

接下页
49CS
要在显示文件列表时返回作品
集列表时
按 RETURN 。
要打开或关闭作品集列表时
调节图像与声音之间
的迟延
 A/V SYNC
反复按DVD/USB/TUNER MENU 。
注意
根据DivX视频文件的不同,图像可能暂停
或不清晰。这种情况下,建议您创建比特
率较低的文件。如果声音仍然有杂噪,建
议使用MP3音频格式。请注意,本系统不
对应WMA(Windows Media Audio)格式。
由于DivX视频文件所采用的压缩技术的原
因,按下 后到出现图像为止,可能
需要一些时间。
根据DivX视频文件的不同,声音可能与屏
幕上的图像不一致。
提示
如果已经预设了观看次数,您最多可以播放
DivX视频文件到预设的次数。下列情况会
被计算在内:
当系统电源关闭时。
当播放另一个DivX视频文件时。
当声音与屏幕上的图像不同步时,
可以调节图像和声音之间的迟延。
A/V SYNC功能无法用于DATA CD/
DVD上的MP3音频曲目和JPEG图像文
件。
1 在播放停止时按
DISPLAY
。
控制菜单出现在电视机屏幕
上。
2 反复按或 选择
(A/V SYNC),然后按ENTER
。
“A/V SYNC”的选项出现在电
视机屏幕上。
3 反复按或 选择您想要的
设置。
默认设置以下划线标注。
OFF: 不进行调节。
ON: 调节图像与声音之间的差
异。
4 按ENTER
。
注意
根据输入流的不同,此功能可能无效。
50CS
限制光盘播放
 CUSTOM PARENTAL CONTROL,
PARENTAL CONTROL
自定义父母控制
可以设定播放限制,这样系统将不
会播放不适宜的光盘。
父母控制
可以根据预先规定的等级(例如:
用户年龄)限制某些DVD VIDEO的播
放。当播放受限制的场景时,该场景
可能被跳过或被其它场景替换。
自定义父母控制和父母控制使用相
同的密码。
 CUSTOM PARENTAL CONTROL
最多可以为40张光盘设定相同的
自定义父母控制密码。当设定第41张
光盘时,对第1张光盘的播放限制会
被取消。
1 插入您想要设定播放限制的光
盘。
光盘
可为光盘设定两种您想要的播放
限制。
防止指定光盘的播放
如果该光盘正在播放,按 
停止播放。
2 在播放停止时按
DISPLAY
。
控制菜单出现在电视机屏幕
上。
3 反复按或 选择
(PARENTAL CONTROL),然后
按ENTER 。
“PARENTAL CONTROL”的选项
出现在电视机屏幕上。
4 反复按或 选择
“ON ”,然后按
ENTER 。

接下页
51CS
如果尚未输入密码:
会出现注册新密码的显示。
如果在输入您的密码时发生失误
反复按 删除您已经输入的数
字,然后重新输入您的密码。
要关闭自定义父母控制功能时
1 按照“防止指定光盘的播放”(第
51页)中的步骤1至3进行操作。
2 反复按或选择“OFF ”,然后
用数字按钮输入4位数密码,
然后按ENTER 。
电视机屏幕上会出现确认密码
的显示。
当您已经注册了密码时:
电视机屏幕上会出现输入密码
的显示。
5 用数字按钮输入或重新输入
您的4位数密码,然后按ENTER
。
电视机屏幕上会出现“Custom
parental control is set.”,屏
幕返回控制菜单。
52CS
按ENTER 。
3 用数字按钮输入您的4位数密
码,然后按ENTER 。
要播放设定有自定义父母控制
的光盘时
1 插入设定有自定义父母控制的光
盘。
会出现“CUSTOM PARENTAL
CONTROL”显示。
2 用数字按钮输入您的4位数密
码,然后按ENTER 。
系统准备就绪,可以播放。
提示
“PLAYER ”,然后按
ENTER 。
如果尚未输入密码:
会出现注册新密码的显示。
光盘
如果您忘记密码,请在询问您的密码
的“CUSTOM PARENTAL CONTROL”显示时,
用数字按钮输入6位数数字“199703”,
然后按ENTER 。会出现请您输入新的4位
数密码的显示。
3 反复按或 选择
限制对儿童的播放
 PARENTAL CONTROL
(仅限于DVD VIDEO)
可以根据预先规定的等级(例如:
用户年龄)限制某些DVD VIDEO的播
放。
用数字按钮输入4位数密码,
然后按ENTER 。
电视机屏幕上会出现确认密码
的显示。
1 在播放停止时按
当您已经注册了密码时:
电视机屏幕上会出现输入密码
的显示。
DISPLAY
。
控制菜单出现在电视机屏幕
上。
2 反复按或
选择
(PARENTAL CONTROL),然后
按ENTER 。
“PARENTAL CONTROL”的选项
出现在电视机屏幕上。

接下页
53CS
4 用数字按钮输入或重新输入
您的4位数密码,然后按ENTER
。
会出现设定播放限制等级的显
示。
7 反复按或 选择
“LEVEL”,然后按ENTER
。
“LEVEL”的选项出现在电视机
屏幕上。
8 反复按或 选择您想要的
等级,然后按ENTER 。
完成父母控制设定。
数值越低,限制越严格。
要关闭父母控制功能时,
将“LEVEL”设定为“OFF”。
5
如果在输入您的密码时发生失误
反复按或 选择
“STANDARD”,然后按ENTER
。
“STANDARD”的选项出现在电
视机屏幕上。
6 反复按或
选择一个地理
区域作为播放限制等级,然后
按ENTER 。
该区域被选择。
当选择“OTHERS ”时,请根
据“父母控制区域代码列表”(第
112页)用数字按钮输入您想要
的地理区域的区域代码。
54CS
反复按 删除您已经输入的数
字,然后重新输入您的密码。
要播放设定了父母控制的光盘时
1 插入光盘,然后按
(或主机
上的DVD  )。
电视机屏幕上会出现输入您的密码
的显示。
2 用数字按钮输入您的4位数密
码,然后按ENTER 。
系统开始播放。
注意
提示
如果您忘记密码,请取出光盘并重复“限
制对儿童的播放”的步骤1至3。当要
求您输入密码时,请用数字按钮输
入“199703”,然后按ENTER 。会出现
请您输入新的4位数密码的显示。输入新的
4位数密码后,重新插入光盘并按 。
当出现输入密码显示时,请输入您的新密
码。
3 反复按或 选择
“PASSWORD ”,然后按
ENTER 。
电视机屏幕上会出现输入密码
的显示。
4 用数字按钮输入您的4位数
密码,然后按ENTER 。
5 用数字按钮输入新的4位数
光盘
根据光盘类型的不同,控制菜单显示会显
示不同的项目。
当播放没有父母控制功能的DVD VIDEO时,
本系统不能限制播放。
播放光盘期间,根据DVD VIDEO的不同,
可能会要求您改变父母控制的等级。这种
情况下,请输入您的密码,然后改变等
级。如果恢复播放被取消,等级会返回原
始等级。
密码,然后按ENTER 。
6 要确认您的密码时,用数字按
钮重新输入该密码,然后按
ENTER 。
如果在输入您的密码时发生失误
反复按 删除您已经输入的数
字,然后重新输入您的密码。
改变密码
1 在播放停止时按
DISPLAY
。
控制菜单出现在电视机屏幕
上。
2 反复按或
选择
(PARENTAL CONTROL),然后
按ENTER 。
“PARENTAL CONTROL”的选项
出现在电视机屏幕上。
55CS
使用DVD设置菜单
通过使用DVD设置菜单,可以对图
像和声音等项目进行多种多样的调
节。
注意
存储在光盘中的播放设置优先于DVD设置菜
单的设置。因此,可能不会执行某些DVD设
置菜单的设置。
1 在播放停止时按
4 反复按或 ,从所显示的
列表中选择设置项目:
“LANGUAGE SETUP”、
“SCREEN SETUP”或“CUSTOM
SETUP”。然后按ENTER 。
设置项目被选择。
示例:SCREEN SETUP
所选项目
DISPLAY
。
控制菜单出现在电视机屏幕
上。
2 反复按或 选择
(SETUP),然后按
ENTER 。
“SETUP”的选项出现在电视机
屏幕上。
3
反复按或 选择
“CUSTOM”,然后按ENTER
。
设置项目
5 反复按或 选择您想要的
项目,然后按ENTER 。
所选项目的选项出现在电视机
屏幕上。
示例:TV TYPE
设置菜单出现在电视机屏幕
上。
选项
56CS
6 反复按或
选择您想要的
设置,然后按ENTER 。
设置被选择,设置完成。
OSD
(屏幕显示)切换屏幕显示的语
言。
MENU*
(仅限于DVD VIDEO)选择DVD菜单
的语言。
所选设置
(仅限于DVD VIDEO)切换音轨的
语言。
当您选择“ORIGINAL”时,会选择
光盘中优先选择的语言。
光盘
AUDIO*
SUBTITLE*
DVD设置菜单项目列表
默认设置以下划线标注。
设置语言  LANGUAGE SETUP
可为屏幕显示或音轨设置各种各样
的语言。
(仅限于DVD VIDEO)切换字幕的
语言。
当您选择“AUDIO FOLLOW”时,字
幕的语言会随着您所选择的音轨语言
而改变。
*当您在 “MENU”、“SUBTITLE”或
“AUDIO”中选择没有录制在DVD VIDEO上
的语言时,所录制语言之一会被自动选
择。但是,根据光盘的不同,可能无法自
动选择语言。
如果在“MENU”、“SUBTITLE”和
“AUDIO”中选择“OTHERS ”,请
用数字按钮从“语言代码列表”(第
111页)中输入一个语言代码。

接下页
57CS
设置电视机屏幕  SCREEN
SETUP
根据您所连接的电视机选择设置。
SCREEN SAVER
屏幕保护会帮助您防止显示设备受
到损坏(重像)。按 (或主机
上的DVD )关闭屏幕保护。
ON: 当播放停止或暂停15分钟或在播
放AUDIO CD或MP3音频曲目15分钟以上
时,会出现屏幕保护图像。
OFF: 不出现屏幕保护。
BACKGROUND
有宽屏幕模式功能的电视机时选择
此项。
4:3 LETTER BOX: 当您连接了4:3屏幕
电视机时选择此项。此设置会在屏幕
上显示上方和下方带边的宽屏图像。
4:3 PAN SCAN2): 当您连接了4:3屏幕
电视机时选择此项。此设置会在整个
屏幕上显示宽屏图像,与屏幕不相符
的部分会被切除。
选择要在电视机屏幕上显示的背景
色或图像。当播放停止或在播放AUDIO
CD和MP3音频曲目期间,会显示背景色
或图像。
JACKET PICTURE: 封面图像(静止图
像)出现在背景中,但仅限于光盘
(DVD VIDEO、CD-EXTRA等)中录制有
封面图像时。如果光盘不包含封面图
像,会出现“GRAPHICS”图像。
GRAPHICS: 存储在系统中的预设图像
出现在背景中。
BLUE: 背景色为蓝色。
BLACK: 背景色为黑色。
COLOR SYSTEM (VIDEO CD)
4:3 OUTPUT3)
(欧洲和俄罗斯机型除外)选择播
放VIDEO CD时的输出视频信号。
AUTO: 根据光盘的彩色制式输出PAL或
NTSC视频信号。
PAL: 改变NTSC光盘的视频信号,以
PAL系统输出信号。
NTSC: 改变PAL光盘的视频信号,以
NTSC系统输出信号。
改变此设置以观看4:3高宽比的逐
行信号。如果能够在兼容逐行格式
(525p/625p)的电视上改变高宽比,
请改变电视机上的设置。
TV TYPE1)
(仅限于DVD VIDEO)
16:9: 当您连接了宽屏幕电视机或具
58CS
FULL: 能够在电视机上改变宽高比时
选择此项。
NORMAL: 不能在电视机上改变宽高比
时选择此项。显示左侧和右侧带黑边
的16:9宽高比信号图像。
根据国家或地区的不同,默认设置各异。
1)
16:9
4:3 LETTER BOX
设置有关播放和其它设置。
光盘
16:9宽高比电视机
设置播放选项  CUSTOM SETUP
PAUSE MODE
(仅限于DVD VIDEO和VR模式的
DVD-R/-RW)
AUTO: 无抖动地输出包含迅速移动被
摄体在内的图像。通常选择此位置。
FRAME: 以高分辨率输出包含不迅速移
动被摄体在内的图像。
TRACK SELECTION
(仅限于DVD VIDEO)在播放录
制有多种音频(PCM、DTS、MPEG音
频或Dolby Digital)格式1)的DVD
VIDEO时,优先播放声道数最高的音
轨。
OFF: 不优先。
AUTO2): 优先。
MULTI-DISC RESUME
(仅限于DVD VIDEO和VIDEO CD)
4:3 PAN SCAN
根据DVD VIDEO的不同,可能会自动选
择“4:3 LETTER BOX”以代替“4:3 PAN
SCAN”或反之。
3)
此设置仅在如下场合有效
您把“SCREEN SETUP”中的“TV
TYPE”设定为“16:9”时。
选择了“P AUTO”或“P VIDEO”时
(第22页)。
2)
ON: 最多可在内存中存储40张光盘的
恢复播放位置。
OFF: 不在内存中存储恢复播放位置。
仅从系统中当前光盘的恢复播放位置
开始播放。

接下页
59CS
AUDIO DRC3)(动态范围压缩)
(仅限于DVD VIDEO和VR模式的
DVD-R/-RW)
OFF: 不压缩动态范围。
STANDARD: 用录制工程师意图实现的
动态范围再现音轨。此项目有助于在
深夜以较低音量观看电影。
MAX: 充分缩小动态范围。
DivX
显示本系统的注册代码。
有关详细信息,请通过互联网访问
http://www.divx.com。
如果每个音频音轨都具有相同的声道
数,本系统会按照PCM、DTS、Dolby
Digital、MPEG的顺序选择音频音轨。
2)
当把“TRACK SELECTION”设定为
“AUTO”时,语言可能改变。“TRACK
SELECTION”设置比“LANGUAGE
SETUP”中的“AUDIO”设置更有优先权。
但是根据光盘的不同,可能不会执行此
功能。
3)
只能够对Dolby Digital音源执行AUDIO
DRC。
1)
60CS
调谐器
收听广播
可以通过选择预设电台或手动调入
电台的方法收听广播电台。
1 反复按FUNCTION
+/ 选
择“TUNER FM”或“TUNER
AM”(或反复按主机
上的TUNER/BAND 选
择“FM”或“AM”)。
2
按住TUNING +/ 直到频率
3 调节音量。
按VOLUME +/ 。
要停止自动扫描时
按 。
调谐器
收听FM或AM
如果不出现“TUNED”并且扫
描不停止,请反复按TUNING +/
调入您想要的电台。
当调入提供RDS服务的电台
时,电台名称会出现在显示窗中
(仅限于欧洲机型)。
要改变AM调谐间隔时
出厂时AM调谐间隔设置为9 kHz
(或在某些地区为10 kHz,在欧洲和
俄罗斯机型上此功能无效)。
使用主机上的按钮。
1 反复按主机上的TUNER/BAND
选
择“AM”。
指示改变,然后释放。
2 按/
当调入电台时扫描自动停止,
显示窗中“TUNED”点亮。当
调入FM立体声节目时,显示窗
中“ST”点亮。
3 按DISPLAY
关闭系统电源。
显示时钟。
4 在显示时钟期间,按住TUNER/BAND
,然后按/ 打开系统电源。
显示窗中出现“AM 9k Step”或
“AM 10k Step”。
改变间隔时,所有AM预设电台都会
被清除。

接下页
61CS
提示
要改善广播接收效果时,请调整附带的天
线或连接外接天线。
当FM立体声节目有静电噪音时,反
复按REPEAT/FM MODE 直到显示窗
中“MONO”点亮。虽然没有立体声效果,
但是接收效果会改善。
4 反复按PRESET
+/ 选择您
想要的预设号码。
5 按ENTER
。
显示窗中出现“Complete!”。
电台被存储。
6 重复步骤1至6存储其它电台。
收听预设广播电台
1 调入想要的电台(参见“收听
FM或AM”(第61页))。
2 按DVD/USB/TUNER
MENU 。
显示窗中“Memory?”闪烁。
3 按ENTER 。
显示窗中预设号码闪烁。
从预设号码1开始存储电台。
最多可以预设20个FM电台和
10个AM电台。
即使拔下电源线或发生停电,
预设电台仍会被保留半天时间。
7 要收听预设电台时,反复按
PRESET +/ 选择您想要的
预设电台。
还可以按数字按钮,然后按
ENTER 选择预设电台。
要取消预设时
按DVD/USB/TUNER MENU 。
预设号码
62CS
Bluetooth设备
使用Bluetooth功能
本系统支持Bluetooth A2DP和
AVRCP简档。有关Bluetooth无线技术
的详细说明,请参阅“Bluetooth无线
技术”(第113页)。
请查看下列网址以获取有关兼容设
备的最新信息。
<http://www.sony.com.cn/>
收听Bluetooth移动电话
或Bluetooth设备的音乐
可以通过无线连接收听
Bluetooth移动电话或Bluetooth设备
的音乐。
Bluetooth设备
按照下列步骤,用本系统收听
Bluetooth设备的音乐。
使本系统与Bluetooth设备配对

连接至注册设备

播放Bluetooth设备的音乐
有关Bluetooth设备操作的详细说
明,还请参阅随Bluetooth设备附带的
操作手册。

接下页
63CS
使本系统与Bluetooth设备配对
配对是Bluetooth设备预先互相注
册的操作。使用下列步骤使本系统与
Bluetooth设备配对。一旦执行了配对
操作,不需要再次执行。如果已经完
成配对,请进入“播放Bluetooth设备
的音乐”(第65页)。
1 将要与本系统连接的
Bluetooth设备放在距离本系统
1米以内的位置。
2 选择Bluetooth功能。
建立与本系统的连接时,请在
Bluetooth设备中选择音频简档
(A2DP、AVRCP)。如果Bluetooth
设备不支持AVRCP简档,则不能在
本系统上进行播放或其它操作(第
63页)。
4 输入口令。
根据Bluetooth设备的不同,可
能需要输入口令。
当出现“PIN?”和倒计时显示
时,请按照如下方法在本系统上输
入口令:
反复按FUNCTION +/ 选择
“BLUETOOTH”(或按主机上的
BLUETOOTH  )。
3 操作Bluetooth设备并执行配对
操作。
有关Bluetooth设备操作的详细
说明,请参阅随Bluetooth设备附
带的操作手册。
在用Bluetooth设备搜索本系统
时,根据Bluetooth设备类型的不
同,可能会在Bluetooth设备显示
窗中出现找到设备的列表。
本系统作为“CMT-DH5BT”
出现。
按数字按钮(或主机上的
+/ 和/ )输
入与在Bluetooth设备上所输入的
口令相同的口令,然后按ENTER
(或主机上的BLUETOOTH OPR
)。
一旦完成配对并建立连接,本
系统显示会如下改变:
“Connect” Bluetooth设
备名称
要中途取消口令输入时
按 。
64CS
注意
注意
根据设备的不同,“口令”可能被称作
“密钥键”、“PIN代码”、“PIN号码”
或“密码”等。
本系统仅支持最多4位数的数字口令。
大约30秒后,本系统的配对待机模式被
取消。如果配对没有成功,请重新从步骤
1开始操作。
在与一个Bluetooth设备连接期间,本系
统不会被其它Bluetooth设备检测到,也
不会与其它Bluetooth设备建立连接。
执行此操作后,为了连接Bluetooth设备,
您必须再次输入口令。
要消除所有配对注册信息时
选择
“BLUETOOTH”(或按主机上的
BLUETOOTH  )。
当本系统与Bluetooth设备连接时
(当Bluetooth设备名称或其它信息
出现在本系统的显示窗上时),按
住主机上的BLUETOOTH OPR 大约
2秒钟以使本系统进入Bluetooth待
机模式。
2 按CLEAR
。
出现“Delete?”。
3 按ENTER
。
出现“Complete!”,所有配对信息
被消除。
可以通过使用AVRCP连接本系统和
Bluetooth设备来操作Bluetooth设
备。如果没有使用AVRCP连接本系统和
Bluetooth设备,当您操作本系统时,
会出现“Not In Use”。
1 选择Bluetooth功能。
反复按FUNCTION +/ 选
择“BLUETOOTH”(或按主机上的
BLUETOOTH  )。
2 从Bluetooth设备建立连接。
有关Bluetooth设备操作的详细
说明,请参阅随Bluetooth设备附
带的操作手册。
一旦建立连接,本系统的显示
会如下改变:
“Connect” Bluetooth设
备名称
Bluetooth设备
1 反复按FUNCTION +/
播放Bluetooth设备的音乐
3 开始播放。
按 (或主机上的
BLUETOOTH  )。
根据Bluetooth设备的不同,可
能需要预先启动Bluetooth设备的
AV软件。

接下页
65CS
4 调节音量。
注意
要查看所连接Bluetooth设备的
地址时
关于与Bluetooth设备的连接
按VOLUME +/ 。
在本系统的显示窗中显示
Bluetooth设备名称期间按DISPLAY
。
Bluetooth设备的地址显示8秒钟。
要取消与Bluetooth设备的连
接时
按住主机上的BLUETOOTH OPR 大
约2秒钟,直到出现“Disconnect”,
或到显示窗中的信息(设备名称等)
消失为止。
其它操作
要
暂停播放
按
 。
 。
选择一个文件 / 。
找到文件中的 按住/ 。
一点
停止播放
66CS
对于某些Bluetooth设备,可能无法进行这
些操作。此外,根据所连接的Bluetooth设
备的不同,实际操作可能有所不同。
如果无法连接已配对的Bluetooth设备,
请在本系统和Bluetooth设备之间再次执
行配对操作。
根据Bluetooth设备类型的不同,某些可
以使用Bluetooth设备的控制调节音量。
在连接了Bluetooth耳机期间按下主机上
的BLUETOOTH  时,到本系统与其它
Bluetooth设备建立连接为止可能需要一
些时间。
使用Bluetooth耳机收听
本系统上的音乐
可以通过无线连接,用Bluetooth
耳机收听本系统播放的音乐。
使本系统与Bluetooth耳机配对
配对是Bluetooth设备预先互相注
册的操作。按照下列步骤使本系统与
Bluetooth耳机配对。一旦执行了配
对操作,不需要再次执行。如果配对
已完成,请进入“在本系统上播放音
乐”(第69页)。
1 选择Bluetooth功能以外的功
能。
反复按FUNCTION +/ 。
2 将要连接到本系统上的
3 使Bluetooth耳机处于配对模
式。
按照下列步骤,用Bluetooth耳机
收听本系统上的音乐。
使本系统与Bluetooth耳机配对

连接已注册的耳机

在本系统上播放音乐
有关Bluetooth耳机操作的详细说
明,还请参阅随Bluetooth耳机附带的
操作手册。
有关Bluetooth耳机操作的详细
说明,请参阅随Bluetooth耳机附
带的操作手册。

Bluetooth设备
Bluetooth耳机放在距离本系统
1米以内的位置。
接下页
67CS
4 按住主机上的BLUETOOTH
OPR
大约7秒钟,直到BLUETOOTH
指示灯闪烁。
从扬声器停止输出声音。
5 输入口令。
按照与“使本系统与
Bluetooth设备配对”(第64页)
的步骤4相同的方法进行操作。
一旦完成配对并建立连接,本
系统显示会如下改变:
“Connect” Bluetooth设
备名称
要中途取消口令输入时
按 。
注意
根据设备的不同,“口令”可能被称作
“密钥键”、“PIN代码”、“PIN号
码”或“密码”等。
本系统仅支持最多4位数的数字口令。
大约30秒后,本系统的配对待机模式被
取消。如果配对没有成功,请重新从步骤
1开始操作。
在与一个Bluetooth设备连接期间,本系
统不会被其它Bluetooth设备检测到,也
不会与其它Bluetooth设备建立连接。
如果本系统的周围存在其它Bluetooth设
备,可能无法进行配对。这种情况下,请
关闭其它Bluetooth设备。
68CS
要消除所有配对注册信息时
1 反复按FUNCTION +/
选
择“BLUETOOTH”(或按主机上的
BLUETOOTH  )。
当本系统与Bluetooth设备连接时
(当Bluetooth设备名称或其它信息
出现在本系统的显示窗上时),按
住主机上的BLUETOOTH OPR 大约
2秒钟以使本系统进入Bluetooth待
机模式。
2 按CLEAR
。
出现“Delete?”。
3 按ENTER
。
出现“Complete!”,所有配对信息
被消除。
注意
要在执行此操作后连接Bluetooth耳机时,
必须再次输入口令。
在本系统上播放音乐
可以通过使用AVRCP连接本系统和
Bluetooth耳机的方法,从Bluetooth
耳机操作本系统。
1 选择Bluetooth功能以外的功
能。
反复按FUNCTION +/ 。
2 与Bluetooth耳机建立连接。
放音乐。
根据Bluetooth耳机类型的不
同,可以使用某些耳机的控制操作
本系统(播放、音量控制等)。
有关Bluetooth耳机操作的详细
说明,请参阅随Bluetooth耳机附
带的操作手册。
4 调节音量。
按VOLUME +/ 。
要取消与Bluetooth耳机的连
接时
按住主机上的BLUETOOTH OPR 大
约2秒钟,直到BLUETOOTH指示灯熄
灭。
注意
如果无法连接已配对的Bluetooth耳机,
请在本系统和Bluetooth耳机之间再次执
行配对操作。
当本系统被改变为Bluetooth功能以外的
功能,并在连接了Bluetooth设备期间按
下主机上的BLUETOOTH OPR 时,到本系
统与Bluetooth耳机建立连接为止可能需
要一些时间。
当从扬声器收听或从主机上的PHONES插孔
收听,以及从Bluetooth耳机收听时,
本系统分别存储各自的音量设置。
Bluetooth设备
按住主机上的BLUETOOTH OPR
大约2秒钟,直到BLUETOOTH指示
灯点亮,然后释放该按钮。
如果本系统周围有一个以上过
去连接过的Bluetooth设备,本系
统最多会尝试连接最新连接的3个
设备。(本系统最多会依次尝试连
接最新连接的3个设备,当建立一
个连接时,尝试就会结束。)
一旦建立连接,本系统的显示
会如下改变:
“Connect” Bluetooth设
备名称
3 开始用在步骤1中选择的功能播
69CS
USB设备
2 按照下图所示,将选购的USB设
备(数码音乐播放机或USB存储
媒体)连接到 (USB)端口
。
收听USB设备的音乐
可将CCC认证的USB设备(数码音乐
播放机或USB存储媒体)连接到主机
上的 (USB)端口并收听存储在
USB设备中的音乐。
本系统可播放的音频格式如下:
ATRAC/MP3*/WMA*/AAC*
*本系统不能播放带有版权保护(数码权
限管理)的文件。
本系统可能无法播放从在线音乐商店下
载的文件。
注意
不完全确保本系统与CCC(中国强制性产品
认证)认证的USB设备的兼容性。这是由于
根据制造商的不同,USB设备的规格可能有
所不同。有关使用USB设备的方法的详细信
息,请参阅随USB设备附带的操作手册。
1 选择USB功能。
反复按FUNCTION +/ 选
择“USB”。
USB设备(数码
音乐播放机或
USB存储媒体)
需要USB电缆连接时,请使用附带
的USB电缆连接要连接的USB设备。
有关使用方法的详细说明,请参阅
随要连接的USB设备附带的操作手册。
连接了USB设备时,显示如下改
变:
“Reading”“ATRAC AD1)”或
“StorageDrive2)”
连接数码音乐播放机时。
连接USB存储媒体时。接下来会显示卷次
标签(如果录制有该信息的话)。
1)
2)
注意
根据所连接USB设备类型的不同,到出
现“Reading”为止,可能需要大约10秒
钟。
70CS
3 开始播放。
拔下USB设备
按住 直到出现
“No Device”,然后
拔下USB设备。
查看USB设备
信息*
反复按DISPLAY 。
按 (或主机上的USB 
)。
4 调节音量。
按VOLUME +/ 。
其它操作
要
停止播放
按
 。
暂停播放
 。再次按 
或 (或主机上
的USB  )以恢
复播放。
要改变播放模式时
1 在USB设备停止期间按DVD/USB/
TUNER MENU 。
显示窗中出现“Play Mode?”。
2 按ENTER
。
3 反复按或
选择播放模式。
可以选择下列播放模式:
Continue(正常播放):
以原始顺序播放USB设备上的音
频曲目。
AlbmContinue:
播放USB设备上所选作品集中的
音频曲目。
Shuffle:
以随机顺序播放USB设备上的音
频曲目。

USB设备
选择一个作品
+/ 。
集
选择一个曲目 / 。
找到曲目中的 在播放期间按住/
一点
 ,然后在想要
的位置释放该按钮。
选择反复播放 反复按REPEAT/FM
MODE ,直到出现
“REP”或“REP1”。
*例如,在正常播放期间,可查看诸如曲
目号码或作品集名称等USB设备信息,或
在播放机停止期间,查看总播放时间。
接下页
71CS
Albm shuffle:
以随机顺序播放USB设备上所选
作品集中的音频曲目。
Program:
按照您想要的播放顺序播放
USB设备上的音频曲目。
关于USB设备
不要经由USB集线器连接本系统和USB设
备。
对于某些连接的USB设备,执行某一操作
后到本系统执行该操作为止,可能会有一
些迟延。
本系统未必支持所连接的USB设备所提供
的全部功能。
本系统的播放顺序可能与所连接USB设备
的播放顺序不同。
拔下USB设备之前,务必按住 并确认
出现“No Device”。如果在未显示“No
Device”的时候拔下USB设备,可能会损
坏USB设备中的数据或损坏USB设备本身。
不要在含有音频文件的USB设备上保存其
它类型的文件或不必要的文件夹。
没有音频文件的文件夹会被跳过。
以文件被传输到USB设备的顺序播放文
件。
72CS
单个USB设备所能容纳的作品集和曲目最
大数如下:
数码音乐播放机:65535组(每组最大
999曲目)
USB存储媒体:999个文件
根据文件和文件夹结构的不同,最大曲目
数和最大作品集数可能有所不同。
可以用本系统收听的音频格式如下:
MP3:文件扩展名“.mp3”
Windows Media Audio文件:文件扩展
名“.wma”
AAC:文件扩展名“.m4a”
注意,即使文件名为上述文件扩展名,如
果实际文件不同,本系统可能会发出噪音
或可能发生故障。
不能保证与所有编码/写入软件、录制设
备以及录制媒体兼容。不兼容的USB设备
可能会发出噪音或发生音频中断或可能根
本无法播放。
关于显示信息
无法显示的字符作为“_”出现。
不显示下列内容:
根据播放模式的不同,不显示某些
CD-DA光盘的总播放时间。
MP3光盘和USB设备的总播放时间及剩
余播放时间。
无法正确显示下列内容:
不符合ISO 9660等级1、等级2或扩展
格式Joliet标准的文件夹和文件名。
显示下列内容:
使用ID3版本1和版本2标签时,显示
MP3文件的ID3标签信息(MP3光盘最多
62个字符)。
使用ID3版本2标签时,显示“ATRAC”
文件的ID3标签信息。
使用USB设备创建自己
的程序
 编程播放
1 选择USB功能。
反复按FUNCTION +/ 选择
“USB”。
2 在USB设备停止期间按DVD/USB/
TUNER MENU 。
显示窗中出现“Play Mode?”。
“Program”,然后按ENTER
。

USB设备
3 按ENTER 。
4 反复按或 选择
接下页
73CS
5 反复按/ 直到出现
想要的曲目号码。
在编制曲目时,反复按
+/
选择想要的作品集,然后选择想
要的曲目。
示例:在编制USB设备上的曲
目时
8 要播放编程的曲目时,按
 (或主机上的USB 
)。
到拔下USB设备为止,程序将
保持有效。要再次播放相同的编
程时,按 (或主机上的USB
 )。
要取消编程播放时
在步骤4中选择“Program”以外的
播放模式。
所选曲目号码
6 按ENTER 将曲目添加到程
序。
不能显示总编程时间,故显
示“ . ”。
7 重复步骤5至6编制其它曲目,
最多可编制25个曲目。
74CS
要删除编程的最后一个曲目时
在USB设备停止期间按CLEAR 。
伴唱:卡拉OK
声音调节
调节声音
生成更有活力的声音
(Dynamic Sound
Generator X-tra)
可以增强低音,生成更强有力的
声音。
DSGX设置适合于音乐源。
反复按主机上的DSGX 。
每次按该按钮,显示如下改变:
DSGX ON  DSGX OFF
默认设置为“DSGX ON”。
设置声音效果
1 反复按EQ
选择“BASS”或
“TREBLE”。
2 反复按PRESET
+/ 调节电
准备卡拉OK
(仅限于DVD VIDEO、VR模式的
DVD-R/-RW、VIDEO CD、AUDIO CD、
MP3音频曲目和DivX视频文件)
1 反复按FUNCTION
+/ 选
择“DVD”(或按主机上的DVD
 )。
2 将主机上的MIC
LEVEL 转动
到“MIN”以减小麦克风音量,
然后将主机上的ECHO LEVEL
*转动到“MIN”以取消回声
效果。
声音调节
提示
可伴随任何多路AUDIO CD、多路
VIDEO CD或Dolby Digital Karaoke格
式的DVD VIDEO歌唱。
3 将选购的麦克风连接到主机上
的MIC插孔。
平。

接下页
75CS
4 按KARAOKE
MODE 。
“KARAOKE MODE:ON”出现在
电视机屏幕上。
5 开始播放音乐并调节音量。
DVD VIDEO、VR模式的DVD-R/-RW或
DivX视频文件:
本系统输出您所选择的音频格
式。
AUDIO CD、VIDEO CD或MP3音频曲
目:
音频设置自动改变为“1/L”,
本系统从前声道和环绕声道输出左
声道音频。
如果您想要听到歌唱:
反复按AUDIO 选择另一个音
频声道。
6 开始伴随音乐歌唱。
76CS
其它操作
要
调节麦克风音
量
调节麦克风回
声
取消回声效果
转动
主机上的MIC LEVEL
。
主机上的ECHO LEVEL
*。
将主机上的ECHO
LEVEL *转动到
“MIN”。
*欧洲和俄罗斯机型除外。
要关闭卡拉OK模式时
断开麦克风连接或按KARAOKE MODE
。“KARAOKE MODE:OFF”出现在电
视机屏幕上。
注意
当电视机屏幕上显示QUICK SETUP指南讯
息时,不能在步骤4中激活卡拉OK模式。
下列情况时,卡拉OK模式自动关闭:
关闭本系统的电源。
改变功能。
连接耳机。
Dolby Digital Karaoke格式
(仅限于DVD VIDEO)
Dolby Digital格式使用5声道再
现环绕声音,其中还包括专用于卡拉
OK的“Dolby Digital Karaoke”格
式。在Dolby Digital Karaoke格式
的光盘中,除伴奏外,还录制有引导
旋律和领唱音轨。当卡拉OK模式打开
时,可以选择这些项目。
扬声器以正常Dolby Digital格式
(5.1声道)输出
前(左)
前(右)
中央
环绕
(左)
可通过按AUDIO 查看音频信息
(第31页)。当播放Dolby Digital
Karaoke光盘时,“”会出现在当前
音频格式上(第86页)。
示例:
2/0:仅录制了伴奏。
3/0:录制了引导旋律。
3/1:录制了引导旋律和一个领唱。
3/2:录制了引导旋律和两个领唱。
环绕
(右)
伴奏
声音调节
扬声器以Dolby Digital Karaoke格
式输出
伴奏
前(左)
前(右)
中央
引导旋律
环绕
(左)
领唱1
环绕
(右)
领唱2
可选择任意一个项目。

接下页
77CS
使用控制菜单享受卡拉
OK
1 在播放光盘期间打开卡拉
设置卡拉OK模式
默认设置以下划线标注。
KARAOKE PON1)
ON: 即使不是卡拉OK或多路光盘,也
OK模式时,按一次或两次
DISPLAY 。
可以通过减弱歌唱声音的方法,用任
何光盘享受卡拉OK。
OFF: 取消“KARAOKE PON”效果。
控制菜单出现在电视机屏幕
上。
KEY CONTROL2)
2 反复按或 从所显示的列
表中选择卡拉OK项目,然后按
ENTER 。
卡拉OK项目被选择。
调节音乐的音高,使其适合您的嗓
音范围。
选择“”取消“KEY CONTROL”效
果。
VOCAL SELECT3)
(仅限于DVD VIDEO、VIDEO CD、
AUDIO CD)
3 反复按或 选择您想要的
设置,然后按ENTER 。
78CS
在播放DVD VIDEO时:
OFF(关闭领唱)

1+2(领唱1+2)

1(领唱1)

2(领唱2)
在播放VIDEO CD或AUDIO CD时:
OFF(关闭歌唱)

L+R(从两个扬声器输出相同的
声音)

STEREO(标准立体声声音)
(仅限于DVD VIDEO)
ON: 打开引导旋律。
OFF: 关闭引导旋律。
SCORE MODE5)
打开卡拉OK模式时,可以选择此
项。
通过比较您的声音和音乐源计算
得分。
NORMAL: 高级或专业水平。
EASY: 初级或中级水平。
DEMO: 示范模式。连续为每支歌曲显
示最高分。
1 以卡拉OK模式歌唱前,按SCORE
。
以前的最高分出现在电视机屏幕
上。
2 歌唱一分钟以上后,再次按SCORE
查看您的得分。
在0到99的范围内计算您的得分。

声音调节
在播放超级VCD时:
OFF(关闭歌唱)

1:L+R

1:STEREO(音频曲目1的立体声
声音)

2:L+R

2:STEREO(音频曲目2的立体声
声音)
GUIDE MELODY4)
接下页
79CS
下列情况时歌手的声音可能不会被减弱:
只有几种乐器在演奏。
正在播放二重奏。
音源有很强的回声或合唱。
歌手的声音偏离中央。
以女高音或男高音歌唱的声音音源。
在打开卡拉OK模式时,还可以通过按
KARAOKE PON 改变“KARAOKE PON”设
置。
将“VOCAL”设定为“ON”时,“KARAOKE
PON”设置自动变为“OFF”。
2)
在打开卡拉OK模式时,还可以通过按
KEY CONTROL  使音调变低和按KEY
CONTROL  使音调变高来改变“KEY
CONTROL”设置。
当改变曲目或标题时,“KEY CONTROL”
设置自动变为默认设置。
根据光盘的不同,可能无法进行上述操
作。
3)
将“KARAOKE PON”设定为“ON”时,
“VOCAL”设置自动变为“OFF”。
对于不带领唱的DVD VIDEO,不能打开歌
唱。在播放DVD VIDEO时,本功能只对
Dolby Digital Karaoke格式工作。对于
只录制有1个领唱的DVD VIDEO,不能改
变歌唱。
根据光盘的不同,可能无法改变歌唱。
1)
80CS
在播放DVD VIDEO时,本功能只对Dolby
Digital Karaoke格式工作。
对于没有引导旋律的DVD VIDEO,即使将
设置设为“ON”,也听不到引导旋律。
5)
当关闭系统时,最高分被重设。
如果按遥控器上的其它按钮,得分计算功
能可能会被取消。
某些情况下,可能无法利用得分模式。
4)
注意
下列情况时,上表中的各个卡拉OK设置会自
动变为“OFF”或默认设置:
关闭本系统的电源。
改变功能。
连接耳机。
关闭卡拉OK模式。
退出光盘。
其它操作
使用定时器
在音乐中入睡
 入睡定时器
可将本系统设定为经过一段时间
后关闭电源,这样您可以听着音乐
入睡。
反复按SLEEP 。
每次按该按钮,分钟显示循环如
下改变:
90min  80min  70min  …
 10min  OFF
其它操作
 播放定时器
可以在预设的时间让CD、调谐器
或选购USB设备唤醒您。确保已经设
定了时钟(参见“设定时钟”(第
24页))。
1 准备音源。
光盘:插入光盘。
广播:调入您想要的预设电
台(参见“收听广播”(第
61页))。
USB设备:连接一个选购USB设备
(第70页)。
2 按VOLUME +/ 调节音量。
3 按TIMER MENU 。
4 反复按或 选择“PLAY
SET?”,然后按ENTER 。
显示窗中出现“ON”,同时小
时指示闪烁。
5 设定开始播放的时间。
其它操作
要
进行此操作
查看剩余时间 按一次SLEEP 。
改变关闭时间 反复按SLEEP 选择
您想要的时间。
取消入睡定时 反复按SLEEP 直到
器
“SLEEP OFF”出现在
显示窗中。
在音乐中起床
反复按或 设定小时,然后
按ENTER 。
显示窗中的分钟指示闪烁。使
用上述步骤设定分钟。显示窗中出
现“OFF”,同时小时指示闪烁。

接下页
81CS
6 使用与步骤5相同的方法设定停
止播放的时间。
7 选择音源。
反复按或 直到显示窗
中出现您想要的音乐源,然后按
ENTER 。此显示窗中会显示定时
器设置。
8 按 关闭系统电源。
其它操作
要
查看设置
改变设置
进行此操作
1按TIMER MENU 。
显示窗中“TIMER
SEL?”闪烁。
2按ENTER 。
3反复按或 
选择“PLAY
SELECT?”,然后按
ENTER 。
从步骤1开始。
取消播放定时 1按TIMER MENU 。
器
显示窗中“TIMER
SEL?”闪烁。
2按ENTER 。
3反复按或 
选择“TIMER
OFF?”,然后按
ENTER 。
82CS
注意
如果打开系统电源或“STANDBY”在显示
窗中闪烁,播放定时器不会被激活。
系统电源在预设时间30秒前打开。
系统电源关闭前,如果连接了
Bluetooth耳机,播放定时器所播放的声
音可能会输出到Bluetooth耳机。
改变显示
查看有关光盘的信息
查看时钟
在前面板显示窗中查看
光盘信息
在系统电源关闭时,按
DISPLAY 。时钟显示8秒钟。
调节显示窗的亮度
在系统电源打开期间反复按
DIMMER 。
每次按该按钮,显示循环如下改
变:
DIMMER OFF  DIMMER 1 
DIMMER 2*
*DIMMER 2为最暗。
按DISPLAY 。
每次按DISPLAY ,显示从 
    … 改变
 光盘信息
 时钟显示(8秒钟)
查看已播放时间,剩余时间和
标题
在播放期间按TIME/TEXT 。
每次按TIME/TEXT 时,显示从
   …    … 改变

其它操作
在播放DVD VIDEO或VR模式的DVD-R/
-RW时:
在播放菜单或没有章节的标题时
 菜单或当前标题的已播放时间
 光盘的标题1)
接下页
83CS
在播放上述条件以外的章节时
 当前标题的已播放时间
 当前标题的剩余时间
 当前章节的已播放时间
 当前章节的剩余时间
 光盘的标题1)2)
在播放AUDIO CD或无PBC功能的VIDEO
CD时:
 当前曲目的已播放时间
 当前曲目的剩余时间
 当前光盘的已播放时间3)
 当前光盘的剩余时间3)
 光盘的标题1)4)
在播放VIDEO CD/超级VCD时:
 当前场景/曲目的已播放时间
 光盘的标题1)4)
在播放DATA CD/DVD上的MP3音频曲目
或DATA CD/DVD上的DivX视频文件时:
 当前曲目/文件的已播放时间
 曲目和文件的标题5)
84CS
查看总播放时间和标题
在播放停止时反复按TIME/
TEXT 。
每次按TIME/TEXT ,显示从
     … 改变
DVD VIDEO或VR模式的DVD-R/-RW:
 光盘上的标题总数
 光盘的标题1)
无PBC播放的VIDEO CD或AUDIO CD:
 光盘上的曲目总数和光盘的总
播放时间
 光盘的标题1)
有PBC播放的VIDEO CD:
 光盘上的场景总数
 光盘的标题1)
如果DVD VIDEO不是DVD-TEXT光盘或VIDEO
CD没有文本信息,显示窗中会出现“NO
TEXT”。
2)
在显示光盘标题期间按TIME/TEXT 时,
会在返回已播放时间显示之前显示2秒钟
当前的章节号码和当前的标题号码。
3)
当打开编程播放或任选播放时,会跳过光
盘已播放时间和剩余时间显示。
1)
在显示光盘标题期间按TIME/TEXT 时,
会在返回已播放时间显示之前显示2秒钟
当前的曲目号码和当前的索引号码(无
PBC的光盘)或当前的场景号码(有PBC的
光盘)。
5)
播放DivX视频文件时,在显示文件标题期
间按TIME/TEXT 时,会在返回已播放时
间显示之前显示2秒钟当前的作品集号码
和当前的文件号码。
4)
注意
如果播放仅包含JPEG图像文件的光盘,显
示窗中会出现“JPEG”或“No Audio”。
下列情况时,不能用TIME/TEXT 改变光
盘信息显示:
播放JPEG图像文件时。
在含有MP3音频曲目和/或JPEG图像文
件的DATA CD/DVD播放停止时。
在含有DivX视频文件的DATA CD/DVD播
放停止时。
如果MP3音频曲目标题包含无法显示的字
符,这些字符会被显示为“*”。
可能无法正确显示MP3音频曲目和DivX视
频文件的已播放时间。
在屏幕显示上查看光盘
信息
按TIME/TEXT 。
在播放光盘期间,每次按TIME/
TEXT ,显示从    …
   … 改变
根据正在播放的光盘的不同,可
在电视机屏幕上查看的时间显示有所
不同。
T:标题或曲目
C:章节
D:光盘
比特率
时间信息
光盘/曲目/文件标题
其它操作
作品集标题
在播放DVD VIDEO或VR模式的DVD-R/
-RW时:
 当前标题的已播放时间
 当前标题的剩余时间
 当前章节的已播放时间
 当前章节的剩余时间
 光盘的标题

接下页
85CS
在播放VIDEO CD/超级VCD时:
 当前场景/曲目的已播放时间
 光盘的标题
在播放AUDIO CD或无PBC功能的VIDEO
CD时:
 当前曲目的已播放时间
 当前曲目的剩余时间
 当前光盘的已播放时间
 当前光盘的剩余时间
 光盘的标题
在播放DVD VIDEO时:
例如:在Dolby Digital格式下,
可在DVD VIDEO上录制范围从单声道到
5.1声道信号的多种信号。
示例:
对于Dolby Digital 5.1声道:
2环绕成分
在播放DATA CD/DVD时:
当前曲目/文件的已播放时间
注意
只能够显示英文字母、数字和某些记号。
根据光盘的不同,本系统只能够显示少数
字符。
对于ISO 9660等级1和等级2以外格式的
MP3音频曲目,可能不显示作品集标题和
曲目标题。
2前方成分 +
1中央成分
在播放DivX视频文件时:
示例:
MP3音频曲目
显示光盘的音频信息
(仅限于DVD VIDEO和DivX视频文
件)
在播放期间反复按AUDIO 时,
当前音频信号的格式会显示在电视机
屏幕上。
86CS
1 LFE(低频效
果)成分
比特率
查看JPEG图像文件的日
期信息
当JPEG图像文件上录制有Exif*标
签时,可在播放期间查看日期信息。
在播放期间反复按
DISPLAY 。
连接选购组件
要改善您的系统时,可以连接选
购组件。请参阅随各组件附带的使用
说明书。
前面板
出现控制菜单。
日期信息
*“Exchangeable Image File Format”是
由Japan Electronics & Information
Technology Industries Association
(JEITA)规定的数码相机图像格式。
后面板
其它操作
注意
根据地区的不同,日期信息格式各异。

接下页
87CS
AUDIO IN插孔
连接选购组件(便携式音频播放机
等)的音频输出插孔。
COMPONENT VIDEO OUT插孔
连接电视机或投影机的组件视频输
入插孔。如果您的电视机可接收逐
行格式信号,您必须使用此连接并
反复按主机上的PROGRESSIVE 选
择“P AUTO”或“P VIDEO”。可
欣赏更高品质的视频图像。
S VIDEO OUT/VIDEO OUT插孔
连接电视机的S视频/视频输入插
孔。当选择S VIDEO时,可欣赏更
高品质的视频图像。
DIGITAL OUT插孔
连接选购数码组件(例如放大器)
的数码光学输入插孔。如果所连接
的放大器装备有Dolby Digital或
DTS解码器,即可欣赏5.1声道声
音。
注意
仅当本系统功能设定为“DVD”时输出
声音。
88CS
用选购放大器欣赏多声
道声音
1 连接数码光缆。
参见“连接选购组件”(第
87页)。
2 将扬声器连接到装备有解码器
的选购放大器。
有关扬声器的摆放位置,请参
阅随所连接放大器附带的使用说
明书。
3 开始播放多声道源,例如DVD
VIDEO。
4 选择您想要的音频格式。
参见“改变声音”(第31页)。
总体
补充信息
故障排除
如果系统遇到问题,进行下述操
作:
1 确保电源线和扬声器导线正确且牢
固地连接。
2 从下面的故障排除清单中找出您的
问题并执行所指示的纠正措施。
如果执行所有上述操作后问题依然
存在,请向就近的Sony代理商咨询。
如果STANDBY指示灯闪烁
“- -:- -”出现在显示窗中。
发生了停电。重新设定时钟(第
24页)和定时器设置(第81页)。
没有声音。
反复按VOLUME + 。
耳机连接在PHONES插孔上。
查看扬声器的连接(第19页)。
本系统位于暂停模式、慢动作播放
或锁定搜索模式。按 (或主
机上的DVD  )开始播放。
补充信息
立即拔下电源线并查看下列项
目。
如果您的系统设有电压选择器,
电压选择器是否设定为正确的电
压?
是否只使用了附带的扬声器?
是否有物品堵塞系统背面的通风
孔?
时钟或定时器设置被取消。
电源线已断开连接或发生了停电。
重新进行“设定时钟”操作(第
24页)。如果已经设定了定时器,
重新进行“在音乐中起床”操作
(第81页)。
在STANDBY指示灯停止闪烁
后,重新连接电源线并打开系统电
源。如果仍然存在问题,请向就近
的Sony代理商咨询。

接下页
89CS
当选择了Bluetooth功能以外的功
能时,如果BLUETOOTH指示灯点
亮或闪烁,从扬声器或PHONES插孔
听不到声音。按住BLUETOOTH OPR
大约2秒钟,直到BLUETOOTH指示
灯熄灭。
遥控器不工作。
清除遥控器和主机间的障碍物。
使遥控器靠近主机。
将遥控器指向主机的感应器。
更换电池(R6/AA尺寸)。
将主机放在远离荧光灯的位置。
麦克风没有声音。
反复按VOLUME + 或顺时针转动主
机上的MIC LEVEL 调节麦克风音
量。
确保麦克风正确地连接到MIC插孔
。
发生声反馈。
减小音量。
将麦克风从扬声器旁移开或改变麦
克风的方向。
有严重的嗡嗡声或噪音。
电视机或录像机摆放得距离主机太
近。将主机从电视机或录像机附近
移开。
将主机从噪音源附近移开。
将主机连接到其它墙上电源插座。
在电源线上安装噪音滤波器(市
售)。
定时器不工作。
查看定时器的设置并设定正确的时
间(第81页)。
取消入睡定时器功能(第81页)。
90CS
电视机屏幕上持续出现色彩紊乱。
关闭一次电视机,15至30分钟后将
其打开。如果色彩紊乱仍然持续,
请将扬声器放在远离电视机的位
置。
THEATRE SYNC功能不工作。
如果电视机和主机之间的距离过
远,此功能可能不工作。将主机安
装在电视机附近。
扬声器
只有一个声道有声音,或左右音量不
均衡。
将扬声器摆放得尽可能对称。
查看扬声器是否牢固且正确地连
接。
正在播放的音源是单声道。
光盘播放机
光盘不退出。
请向就近的Sony代理商咨询。
播放不从第一个曲目开始。
本系统处于编程播放或任选播放模
式。关闭编程播放和任选播放。
已选择恢复播放。按两次 。然
后,按 (或主机上的DVD 
)开始播放(第33页)。
DVD VIDEO的标题或PBC菜单自动出
现在电视机屏幕上。
播放自动开始。
DVD VIDEO具有自动播放功能。
播放自动停止。
某些光盘可能包含自动暂停信号。
在播放此类光盘期间,播放会在自
动暂停信号处停止。
补充信息
不开始播放。
查看是否装载了光盘。
擦净光盘(第102页)。
重新插入光盘。
插入本系统能够播放的光盘(第
7页)。
将光盘标签面朝上插入光盘插槽
。
取出光盘并擦掉光盘上的湿气,然
后打开系统电源放置数小时,直到
湿气蒸发掉为止。
按 (或主机上的DVD 
)开始播放。
DVD VIDEO的区码与本系统不一致。
取消自定义父母控制功能(第
52页)。
声音间断。
擦净光盘(第102页)。
重新插入光盘。
将主机移动到没有振动的地方(例
如:稳固的架子上)。
将扬声器从主机旁移开,或将它们
摆放在分开的架子上。当以大音量
收听含有低音的曲目时,扬声器的
振动可能会导致声音间断。

接下页
91CS
不能执行诸如停止、锁定搜索、慢动
作播放、反复播放、任选播放或编程
播放等功能。
根据光盘的不同,可能无法进行上
述某些操作。请参阅随光盘附带的
使用说明书。
不能播放DATA CD(MP3音频曲目/
JPEG图像文件/DivX视频文件)。
没有以符合ISO 9660等级1、等级2
或Joliet(扩展格式)的格式录制
DATA CD。
没有以符合UDF(Universal Disk
Format)的格式录制DATA DVD。
MP3音频曲目没有扩展名“.MP3”。
没有以想要的格式存储数据。
不能播放MPEG 1 Audio Layer 3格
式以外的MP3音频曲目。
本系统只能播放到8层文件夹深度。
对于MP3/JPEG文件,请查
看“MODE(MP3,JPEG)”设置(第
42页)。
光盘包含200个以上作品集。
作品集包含600个以上曲目/文件。
92CS
对于MP3/JPEG文件,当“MODE
(MP3,JPEG)”设定为“AUTO”
时,作品集包含300个以上曲目/文
件。
对于MP3/JPEG文件,DATA CD/DVD包
含一个DivX视频文件。
JPEG图像文件没有扩展名“.JPG”
或“.JPEG”。
在正常模式下JPEG图像文件大于
3072(宽)×2048(高),或在逐
行JPEG模式(主要用于互联网网
站)下大于2000000像素。
不能播放宽长比较大的JPEG图像文
件。
DivX视频文件不包含扩展名
“.AVI”或“.DIVX”。
不能播放宽长比较大的DivX视频文
件。
MP3音频曲目比其它曲目需要更长时间
开始播放。
下列情况时,本系统读取光盘上的
全部曲目后,可能比通常花费更长
时间开始播放:
光盘上的作品集数或曲目数非常
大。
作品集和曲目的组织结构非常复
杂。
不正确显示光盘标题、作品集标题、
曲目标题和DVD-TEXT字符。
使用符合ISO 9660等级1、等级2或
Joliet(扩展)的光盘。
本系统可以显示的字符代码如下:
大写字母(A至Z)
小写字母(a至z)
数字(0至9)
符号(< > * +,  / [ ] _)
可能不正确显示其它字符。
当正在播放Dolby Digital或MPEG音频
音轨时,难以听到环绕效果。
查看扬声器的连接(第19页)。
根据DVD VIDEO的不同,输出信号可
能不是完整的5.1声道。即使音轨以
Dolby Digital或MPEG音频格式录
制,可能为单声道或立体声。
不能进行配对。
使Bluetooth设备靠近本系统。
如果本系统的周围存在其它
Bluetooth设备,可能无法进行
配对。这种情况下,请关闭其它
Bluetooth设备。
无法连接。
您试图连接的Bluetooth设备不支持
A2DP和AVRCP简档,因此无法与本系
统连接。
启动Bluetooth设备的Bluetooth功
能。
配对注册信息已被清除。再次执行
配对操作。
在与一个Bluetooth设备连接期间,
本系统不会被其它Bluetooth设备检
测到,也不会与其它Bluetooth设备
建立连接。
声音间断或波动,或连接断开。
本系统与Bluetooth设备距离太远。
如果在本系统与Bluetooth设备之间
有障碍物,请清除或避开障碍物。
如果附近有产生电磁辐射的设备,
例如无线局域网、其它Bluetooth设
备或微波炉,请将其移开。

补充信息
当播放AUDIO CD、VIDEO CD、MP3音频
曲目、DivX视频文件或DVD VIDEO时,
声音失去立体声效果。
确保正确连接系统。
拔下麦克风或反复按KARAOKE MODE
直到“KARAOKE MODE: OFF”出现
在电视机屏幕上。
Bluetooth设备
接下页
93CS
在本系统上听不到Bluetooth设备的
声音。
首先将Bluetooth设备的音量调大,
然后用VOLUME +/ 调节音量。
严重的嗡嗡声或噪音
如果在本系统与Bluetooth设备之间
有障碍物,请清除或避开障碍物。
如果附近有产生电磁辐射的设备,
例如无线局域网、其它Bluetooth设
备或微波炉,请将其移开。
调小所连接的Bluetooth设备的音
量。
来自Bluetooth耳机的声音失真。
用VOLUME  调小系统的音量。
如果耳机上有音量控制,还可以用
耳机的音量控制调节音量。
反复按主机上的DSGX 直到出
现“DSGX OFF”。
反复按EQ 选择“BASS”或
“TREBLE”,然后反复按PRESET 
调低电平。
USB设备
正在使用受支持的USB设备吗?
如果连接了不受支持的USB设备,可
能发生下列问题。
USB设备不被识别。
本系统上不显示文件或文件夹名
称。
无法播放。
声音间断。
有噪音。
出现“Over Current”。
从 (USB)端口检测到电流电
平问题。关闭本系统电源并从
(USB)端口拔下USB设备。确保
USB设备没有问题。如果该显示信息
持续存在,请向就近的Sony代理商
咨询。
没有声音。
没有正确连接USB设备。关闭本系统
电源,然后重新连接USB设备并查看
是否出现“USB MEMORY”。
声音失真。
编码文件时使用的比特率较低。发
送较高比特率编码的文件到USB设
备。
94CS
有噪音或声音间断。
关闭本系统电源,然后重新连接
USB设备。
音乐数据本身包含噪音。在制作音
乐数据时,由于计算机的状态因
素,可能混入了噪音。重新制作音
乐数据。
在使用USB存储媒体时,将文件复制
到计算机,以FAT16或FAT32格式对
USB存储媒体进行格式化,然后再将
文件复制到USB存储媒体。*
USB设备不能连接到 (USB)端口
。
反向连接了USB设备。以正确的方向
连接USB设备。
在其它设备上使用过的USB存储媒体
不工作。
可能以不受支持的格式录制。如果
是那样,首先应该将USB存储媒体上
的重要文件复制到计算机硬盘,谨
慎地予以备份。接下来,以FAT16或
FAT32文件系统对USB存储媒体进行
格式化,然后再次将已备份的音频
文件传输到USB存储媒体。*
长时间显示“Reading”。
如果USB设备上有许多文件夹或文
件,完成读取可能需要较长时间。
因此,建议您按照下列指南进行操
作。
USB设备上的文件夹总数:100个
或更少
每个文件夹的文件总数:100个或
更少
错误显示
由于存储在USB设备中的数据可能已
经损毁,请再次向USB设备发送音乐
数据。
播放不开始。
关闭本系统电源,然后重新连接
USB设备。
连接本系统能够播放的USB设备。
按 (或主机上的USB 
)开始播放。
播放不从第一个曲目开始。
将播放模式设定为正常播放模式。
补充信息

接下页
95CS
无法播放文件。
用FAT16或FAT32以外的不受支持的
文件系统对USB存储媒体进行了格式
化。*
如果使用分区的USB存储媒体,只能
播放第一个分区中的文件。
不能播放加密或受到密码保护等的
文件。
*本系统支持FAT16和FAT32,但是某些
USB存储媒体可能不支持所有这些FAT格
式。有关详细说明,请参见各个USB存储
媒体的操作手册或与制造商联系。
图像
没有图像。
反复按FUNCTION +/ 选择
“DVD”(或按主机上的DVD 
)。
查看是否牢固地连接本系统。
视频导线损坏。更换新的视频导
线。
确保将主机连接到电视机的视频输
入插孔(第21页)。
确保打开电视机电源并正确操作电
视机。
96CS
如果将电视机连接到主机的
COMPONENT VIDEO OUT插孔而您
的电视机不能接收逐行信号,反
复按主机上的PROGRESSIVE 选
择“INTERLACE”。
您设定了逐行格式,但电视机不能
接收逐行格式的信号。这种情况
下,请设定为隔行格式(默认设
置)(第22页)。
即使电视机与逐行格式(525p/
625p)信号兼容,当设定为逐行格
式时,图像可能受影响。这种情况
下,请设定为隔行格式(默认设
置)(第22页)。
确保在电视机上选择视频输入,以
便能够观看来自本系统的图像。
确保根据电视机的彩色制式正确地
设定彩色制式。
确保仅使用附带的视频导线连接主
机和电视机。
出现图像杂噪。
清洁光盘。
如果来自系统的视频信号必须经由
录像机至电视机,某些DVD VIDEO节
目的版权保护措施可能会影响图像
质量。如果在查看连接后仍然存在
问题,请将主机直接连接到电视机
的S视频输入(第21页)。
使扬声器导线远离天线。
在播放以不同于本系统的彩色制式
录制的VIDEO CD时,图像可能会失
真。
将电视机连接到COMPONENT VIDEO
OUT插孔并播放逐行信号格式的基
于视频的软件时,由于转换处理原
因,图像的某些部分可能看起来不
自然。
设置与电视机相匹配的彩色制式
(第58页)。
当播放宽屏图像时,虽然可以在设
置菜单中设置“SCREEN SETUP”下
的“TV TYPE”,但不能改变电视机屏
幕的高宽比。
高宽比被DVD VIDEO固定。
如果用S视频导线连接主机,请直接
连接至电视机。否则,可能无法改
变高宽比。
根据电视机的不同,可能无法改变
高宽比。
不能改变字幕语言。
正在播放的DVD VIDEO上没有录制多
语言字幕。
DVD VIDEO禁止改变字幕。
不能关闭字幕。
DVD VIDEO禁止关闭字幕。
不能改变角度。
正在播放的DVD VIDEO上没有录制多
角度。
DVD VIDEO禁止改变角度。
调谐器
电台预设被取消。
电源线已断开连接或停电持续半天
以上。重新进行“收听预设广播电
台”操作(第62页)。
补充信息
电视机屏幕上的讯息不以想要的语言
显示。
在设置菜单中的“LANGUAGE
SETUP”下的“OSD”中为屏幕显示
选择想要的语言(第57页)。
不能改变音轨的语言。
正在播放的DVD VIDEO上没有录制多
语言音轨。
DVD VIDEO禁止改变音轨的语言。

接下页
97CS
有严重的嗡嗡声或噪音。
(“TUNED”或“ST”在显示窗中闪
烁)
设定正确的波段和频率(第
61页)。
正确连接天线(第19页)。
寻找接收效果良好的场所和方向,
然后重新设置天线。如果无法获得
良好的接收效果,建议您连接市售
的外接天线。
所附带的FM导线天线沿着整个长度
接收信号,因此请务必将其完全伸
展开。
使天线尽可能远离扬声器导线、电
源线和USB电缆,以避免受到噪音干
扰。
试着关闭周围的电器设备。
无法以立体声接收立体声FM节目。
反复按REPEAT/FM MODE 直
到“MONO”从显示窗中消失。
选购组件
没有声音。
请参阅总体项目中的“没有声
音。”(第89页)并查看系统状
态。
一边查看下列项目,一边正确连接
组件(第87页):
是否正确连接了导线。
是否牢固地完全插入了导线插
头。
打开所连接组件的电源。
参阅随所连接组件附带的使用说明
书并开始播放。
如果采取了上述措施后系统仍然
无法正常工作或出现上面没有介
绍的故障,请按下述方法对系统
进行复位:
使用主机上的按钮将系统复位为出
厂默认设置。
1 拔下电源线。
2 插回电源线。
3 按
打开系统电源。
4 同时按
。
、DISPLAY 和
“RESET”出现在显示窗中。
98CS
除DVD设置以外,本系统复位为出
厂设置。您应该设定您所进行的设
置,如预设电台、时钟和定时器。
要将DVD设置恢复默认设置*时,
请进行如下复位操作:
1 在播放停止时按
DISPLAY 。
控制菜单出现在电视机屏幕上。
2 反复按或
选择
(SETUP),然后按ENTER 。
3 反复按或
选择“RESET”,然
后按ENTER 。
4 反复按或
选择“YES”,然后
按ENTER 。
需要数秒钟完成操作。在复位系统
时不要按 。
*父母控制设置除外
自我诊断功能
(当字母/数字出现在显示窗中
时)
当自我诊断功能被激活以防止系
统故障时,会在电视机屏幕和前面板
显示窗中出现以1个字母和4个数字组
合的5个字符服务号码(例如:C 13
50)。这种情况下,请查看下表。

补充信息
服务号码的前 原因和纠正措施
3个字符
C 13
光盘脏了。
用软布清洁光盘
(第102页)。
C 31
未正确插入光盘。
重新启动系统,然
后重新正确插入光
盘。
E XX
为了防止故障,系统
(XX代表数
执行了自我诊断功
字)
能。
请与就近的Sony代
理商或当地授权的
Sony服务处联系,
并告知5个字符服务
号码。
示例: E 61 10
接下页
99CS
在电视机屏幕上显示版本号时
打开系统的电源时,版本号[VER.
X.XX](X为数字)可能出现在电视
机屏幕上。尽管这不是故障且只用于
Sony服务,但会无法进行正常的系统
操作。请关闭系统电源,然后再次打
开系统电源进行操作。
讯息
在操作期间,可能会在前面板显示
窗中出现或闪烁下列讯息之一。
DVD播放机、调谐器
Cannot Play
插入了无法播放的光盘。
插入了区码不受支持的DVD VIDEO。
Data Error
您想要播放的MP3音频曲目、JPEG图
像文件和DivX视频文件已损坏。
MP3音频曲目不符合MPEG 1 Audio
Layer 3格式。
JPEG图像文件不符合DCF格式。
DivX视频文件不符合DivX
Certified简档。
MP3音频曲目具有“.MP3”的扩展
名,但不是MP3格式。
JPEG图像文件具有“.JPG”或
.JPEG”的扩展名,但不是JPEG格
式。
DivX视频文件具有“.AVI”或
“.DIVX”的扩展名,但不是DivX格
式。
100CS
No Disc
光盘插槽中没有光盘。
Not In Use
按下了当时不许操作或无效的按
钮。
OFF TIME NG!
播放定时器打开和关闭的时间相
同。
PASSWORD
设定了自定义父母控制或父母控
制。
Please Wait
本系统正在进行初始化处理。
Reading
本系统正在读取光盘信息。某些按
钮无效。
Bluetooth设备
Connect
建立了Bluetooth通信。
Not Connect
无法连接。
Not In Use
没有使用AVRCP连接系统和
Bluetooth设备。
PIN?
系统要求口令。有关详细说明,
请参见“使用Bluetooth功能”(第
63页)。
Please Wait
本系统正在为使用Bluetooth设备
做准备。
USB设备
ATRAC AD
连接了ATRAC音频设备(ATRAC
Audio Device)。
Device Error
无法识别USB设备。
No Device
没有连接任何USB设备或所连接的
USB设备已停止。
No Step
所有已编程曲目或文件都被清除。

补充信息
Disconnect
由于某些原因与Bluetooth设备的
通信被切断,或Bluetooth通信结束。
No Device
没有找到可配对的Bluetooth设
备,或无法连接。
接下页
101CS
No Track
本系统中没有装载可播放文件。
Not Supported
连接了不受支持的USB设备。
Please Wait
本系统正在为使用USB设备做准
备。
Reading
本系统正在识别USB设备。
Removed
已拔下USB设备。
Step Full!
您试图编制26个以上的曲目或文件
(步骤)。
StorageDrive
连接了USB存储媒体。
使用须知
本系统不能播放的光盘
非标准形状的光盘(例如:心形、方形、
星形)
贴有粘性透明胶带、纸或不干胶的光盘
贴有封条的租借光盘或旧光盘而粘胶扩展
到了封条外侧
使用摸上去感到黏的墨水印刷标签的光盘
关于光盘
播放前,请用清洁布从中央向外擦拭光
盘。
请勿使用诸如汽油、稀释剂、市售洗涤
剂、或用于乙烯基LP的防静电喷雾剂等溶
剂。
请勿将光盘暴露在直射阳光下或诸如热通
风管道一类的热源附近,也不要放在停放
在直射阳光下的汽车里。
请不要使用套有保护环的光盘。这可能会
引起系统故障。
关于操作电压
操作系统之前,请查看本机的操作电压是否
与当地电源电压一致。
102CS
安全须知
关于蓄热
即使关闭本机自身的电源,只要其电源线
仍插在墙上电源插座上,便仍未脱离交流
电源。
若长时间不使用本系统,应从墙上电源插
座完全拔下本系统的电源线。拔下本机电
源线时,务必握持其插头。切勿拉扯电线
本身。
万一有物体或液体落入系统内部,应拔下
本系统的电源线,经专业人员检查后方可
再次使用。
交流电源线仅可在特约服务处更换。
工作期间本机蓄热是正常现象,这不是故
障。
如果在大音量下连续使用本系统,机壳的
温度会升高,因此请您不要触摸机壳。
请勿堵塞通风孔。
安放须知
请勿将本系统安放在倾斜位置或极热、极
冷、多尘、肮脏、潮湿或通风不良、或有
振动、直射阳光或明亮光线之处。
当把本机或扬声器放在经过特殊处理(例
如:打蜡、涂油、抛光等)的表面上时,
可能会导致表面着色或褪色,请留意。
如果将本系统从寒冷处直接搬入温暖处或
安放在极为潮湿的房间里,湿气可能会凝
结在DVD播放机内部的透镜上,并导致系
统故障。这种情况下,请取出光盘,打开
系统电源放置大约一个小时,直到湿气蒸
发掉。
关于扬声器系统
前扬声器经过磁屏蔽处理,可以安装在电视
机附近。在某些类型的电视机屏幕上,仍然
可能会观察到色彩紊乱。这种情况下,请关
闭电视机电源,等待15至30分钟后再打开。
将右扬声器放在主机的右侧,左扬声器放在
主机的左侧。如果没有改善,请将扬声器放
在远离电视机的位置。
重要通知
警告:如果使用本系统在电视机上长时
间显示静止视频图像或屏幕显示图像,
可能会给电视机屏幕留下永久性损伤。
投影式电视机特别容易受此影响。
清洁机壳
请用沾有少许中性清洁剂的软布清洁本系
统。请勿使用任何类型的研磨片、擦洗粉或
诸如稀释剂、汽油或酒精之类的溶剂。
补充信息
103CS
规格
主机
放大器部
DIN功率输出(额定)
35 W + 35 W(1 kHz时为6 ohms,
DIN)
连续RMS功率输出(参考值)
45 W + 45 W(1 kHz时为6 ohms,
10% THD)
输入:
AUDIO IN(立体声迷你插孔):
阻抗47 kilohms
MIC(迷你插孔):
阻抗10 kilohms
(USB)端口:
类型A,最大电流500 mA
输出:
DIGITAL OUT(方形光学连接器插孔):
波长660 nm
VIDEO OUT(唱机插孔):
1 Vp-p,非平衡,负同步,载荷阻
抗75 ohms
COMPONENT VIDEO OUT:
Y: 1 Vp-p,75 ohms
Pb/Cb: 0.7 Vp-p, 75 ohms
Pr/Cr: 0.7 Vp-p, 75 ohms
S VIDEO OUT(4-芯/迷你-DIN 插孔):
Y: 1 Vp-p,非平衡,负同步
C: 0.286 Vp-p,载荷阻抗75 ohms
PHONES(立体声迷你插孔):
可插接8 ohms或以上的耳机
104CS
Bluetooth部
通信系统:
Bluetooth标准版本2.0
输出:
Bluetooth标准功率分类2
频带:
2.4 GHz带(2.4000 GHz 
2.4835 GHz)
调制法:
FHSS
兼容Bluetooth简档*:
A2DP (Advanced Audio
Distribution Profile)
AVRCP (Audio Video Remote
Control Profile)
支持的编解码器:
接收:SBC (Sub Band Codec),
MP3
发送:SBC (Sub Band Codec)
*Bluetooth标准简档说明设备间
Bluetooth通信的目的。
USB部
支持的比特率:
MP3(MPEG 1 Audio Layer-3):
32  320 kbps,VBR
ATRAC: 48  352 kbps
(ATRAC3plus), 66/105/132 kbps
(ATRAC3)
WMA: 32  192 kbps, VBR
AAC: 48  320 kbps
采样频率:
MP3(MPEG 1 Audio Layer-3):
32/44.1/48 kHz
ATRAC: 44.1 kHz
WMA: 44.1 kHz
AAC: 44.1 kHz
光盘播放机部
系统:
小型光盘和数码音频和视频系统
激光:
激光二极管特性:
放射持续时间:连续
激光输出*:低于1000 μW
*本输出为距离光学拾音单元上的物
镜表面200 mm处以7 mm开口测得的
数值。
半导体激光:
(DVD: λ=650 nm, CD: λ=790 nm)
视频彩色制式格式:
NTSC和PAL
调谐器部
扬声器(SS-CDH5)
扬声器系统:
2路,低音反射性,磁屏蔽
扬声器单元:
低音扬声器:12 cm,锥形
高音扬声器:2.5 cm,柔和拱形
标称阻抗:
6 ohms
尺寸(宽/高/深):
约140 × 283 × 240 mm
质量:
每个扬声器净重约2.7 kg
补充信息
FM立体声,FM/AM超外差式调谐器
FM调谐器部
调谐范围:
87.5  108.0 MHz(50 kHz间
隔)
天线:
FM导线天线
天线端子:
75 ohms非平衡
中频:
10.7 MHz
AM调谐器部
调谐范围:
530  1710 kHz(间隔设定为
10 kHz时)
531  1602 kHz(间隔设定为
9 kHz时)
天线:
AM环形天线
天线端子:
外接天线端子
中频:
450 kHz

接下页
105CS
总体
电源要求:
220  240 V AC, 50/60 Hz
功耗:
45 W
尺寸(宽/高/深)(约):
190 × 141 × 273 mm
质量(约):
2.8 kg
附件:
遥控器(1)
R6(AA尺寸)电池(2)
AM环形天线(1)
FM导线天线(1)
视频导线(1)
扬声器垫片(8)
设计和规格如有变更,恕不另行通知。
•待机时消费电力:0.5 W
•某些电路板没有使用卤化
阻燃剂。
请拨打如下电话号码以获得本系统的用
户支持服务。
索尼中国顾客免费咨询热线
TEL: 800-820-9000
http://www.sony.com.cn/
106CS
控制菜单显示指南
使用控制菜单选择功能并查看相关信息。反复按 DISPLAY 打开、关闭或
改变控制菜单显示如下:
控制菜单显示1控制菜单显示2(仅有某些光盘出现此显示)控制菜单显
示关闭控制菜单显示1 …
控制菜单显示
根据光盘类型的不同,控制菜单显示1和2将显示不同的项目。
示例:播放DVD VIDEO时的控制菜单显示1
当前播放的标题号码
当前播放的章节号码
标题总数
章节总数
控制菜单项目
播放状态( 播放、
 暂停、 停止等)
正在播放的光
盘类型
已播放时间
当前设置
选项
补充信息
所选项目
所选控制菜单项
目的功能名称
操作讯息

接下页
107CS
控制菜单项目列表
项目
项目名称、相关光盘类型、功能
TITLE/SCENE/TRACK
选择要播放的标题、场景或曲目。
CHAPTER/INDEX
选择要播放的章节或索引。
TRACK
选择要播放的曲目。
ORIGINAL/PLAY LIST
从原始录制顺序或光盘上创建的播放列表的顺序中选择播放顺
序。
TIME/TEXT
查看已播放时间和剩余时间。
输入图像和音乐搜索的时间代码。
显示DVD TEXT光盘和MP3音频曲目上的文本信息。
PROGRAM
以想要的顺序播放曲目。
SHUFFLE
以随机顺序播放曲目。
REPEAT
反复播放光盘,反复播放整个光盘(所有标题/所有曲目/所有作
品集)或反复一个标题/章节/曲目/作品集/文件。
108CS
项目
项目名称、相关光盘类型、功能
A/V SYNC
设定声音和显示之间的迟延时间。
PARENTAL CONTROL
设定禁止在本系统上播放。
SETUP
QUICK设置
使用QUICK SETUP选择屏幕显示语言和电视机屏幕的高宽比。
CUSTOM设置
除QUICK SETUP设置外,还可以调节其它设置。
RESET
将“SETUP”中的设置返回默认设置。
ALBUM
选择要播放的作品集。
FILE
选择要播放的JPEG图像文件或DivX视频文件。
DATE
显示使用数码相机拍摄图像的日期。
补充信息
INTERVAL
指定在电视机屏幕上显示幻灯片的持续时间。
EFFECT
选择幻灯片播放期间改变幻灯片时使用的过渡效果。

接下页
109CS
项目
项目名称、相关光盘类型、功能
MODE (MP3, JPEG)
选择数据类型: 播放DATA CD/DVD时播放的MP3音频曲目
(AUDIO)、JPEG图像文件(IMAGE)或两者(AUTO)。
KEY CONTROL*
改变音调以适合您的嗓音范围。
SCORE MODE*
选择得分模式的等级。
KARAOKE PON*
通过减小歌唱声音,使用立体声录制的光盘享受卡拉OK。
VOCAL SELECT*
选择录制在Dolby Digital Karaoke Format光盘上的领唱(仅限
于DVD VIDEO)。
选择录制在光盘上的歌唱类型(仅限于VIDEO CD、AUDIO CD)。
关闭歌唱(仅限于VIDEO CD、AUDIO CD)。
GUIDE MELODY*
打开或关闭Dolby Digital Karaoke Format光盘的引导旋律。
*此功能只在卡拉OK模式期间有效。
110CS
语言代码列表
语言拼写方法遵照ISO 639:1988(E/F)标准。
代码 语言
代码 语言
代码 语言
1027
1028
1032
1039
1044
1045
1051
1052
1053
1057
1059
1060
1061
1066
1186
1194
1196
1203
1209
1217
1226
1229
1233
1235
1239
1245
1248
1253
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
Armenian
Interlingua
Interlingue
Inupiak
Indonesian
Icelandic
1350
1352
1353
1356
1357
1358
1363
1365
1369
1376
1379
1393
1403
1408
Malayalam
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Occitan
(Afan) Oromo
Oriya
1513
1514
1515
1516
1517
1521
1525
1527
1528
1529
1531
1532
1534
1535
Siswati
Sesotho
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Setswana
Tonga
1067
1070
1079
Afar
Abkhazian
Afrikaans
Amharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bislama
Bengali;
Bangla
Tibetan
Breton
Catalan
1254
1257
1261
Italian
Hebrew
Japanese
1417
1428
1435
1538
1539
1540
Turkish
Tsonga
Tatar
1093
1097
1103
1105
1109
1130
1142
1144
1145
1149
1150
Corsican
Czech
Welsh
Danish
German
Bhutani
Greek
English
Esperanto
Spanish
Estonian
1269
1283
1287
1297
1298
1299
1300
1301
1305
1307
1311
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean
Kashmiri
Kurdish
Kirghiz
1436
1463
1481
1482
1483
1489
1491
1495
1498
1501
1502
1543
1557
1564
1572
1581
1587
1613
1632
1665
1684
1697
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Wolof
Xhosa
Yoruba
Chinese
Zulu
1151
1157
1165
1166
1171
Basque
Persian
Finnish
Fiji
Faroese
1313
1326
1327
1332
1334
1503
1505
1506
1507
1508
1703
不指定
1174
1181
1183
French
Frisian
Irish
1345
1347
1349
Latin
Lingala
Laothian
Lithuanian
Latvian;
Lettish
Malagasy
Maori
Macedonian
Punjabi
Polish
Pashto;
Pushto
Portuguese
Quechua
Rhaeto-Romance
Kirundi
Romanian
Russian
Kinyarwanda
Sanskrit
Sindhi
Sangho
SerboCroatian
Singhalese
Slovak
Slovenian
Samoan
Shona
1509
1511
1512
Somali
Albanian
Serbian

补充信息
代码 语言
接下页
111CS
父母控制区域代码列表
112CS
代码 地区
代码 地区
代码 地区
代码 地区
2044
阿根廷
2174
法国
2436
葡萄牙
2248
印度
2047
澳大利亚
2424
菲律宾
2276
日本
2238
印度尼西亚
2046
奥地利
2165
芬兰
2499
瑞典
2184
英国
2427
巴基斯坦
2304
韩国
2086
瑞士
2090
智利
2070
巴西
2376
荷兰
2528
泰国
2092
中国
2057
比利时
2079
加拿大
2149
西班牙
2115
丹麦
2363
马来西亚
2501
新加坡
2109
德国
2362
墨西哥
2390
新西兰
2489
俄罗斯
2379
挪威
2254
意大利
Bluetooth无线技术
Bluetooth无线技术是一个短距离
无线技术,它可连接诸如个人计算机
和数码相机之类的数码设备。使用
Bluetooth无线技术,可以操作大约
10米范围以内的各种设备。
Bluetooth无线技术通常用于两个
设备之间,但是单个设备也可以连接
到多个设备上。
与USB连接不同,Bluetooth无线
技术不需要使用电线进行连接,并且
不需要像无线红外技术那样面对面地
摆放设备。利用该技术,您可以将
Bluetooth设备放在您的背包或口袋
里使用。
Bluetooth无线技术是得到数千家
公司支持的国际标准技术。这些公司
生产符合国际标准的产品。
受支持的Bluetooth版本和简档
简档参照有关各种Bluetooth产品
性能的标准性能集。本系统支持下列
Bluetooth版本和简档。
支持的Bluetooth版本:
Bluetooth标准版本2.0
支持的Bluetooth简档:
A2DP (Advanced Audio
Distribution Profile)
AVRCP (Audio Video Remote
Control Profile)
有效通信范围
应在相互距离在大约10米以内
(不受阻碍的距离)的范围内使用
Bluetooth设备。下列情况时,有效通
信范围可能会变短。
当人、金属物品、墙壁或其它障碍
物位于Bluetooth连接的设备之间时
安装了无线局域网的位置
正在使用中的微波炉周围
发生电磁波的位置
补充信息

接下页
113CS
其它设备的影响
Bluetooth设备和无线局域网
(IEEE 802.11b/g)使用相同的频带
(2.4 GHz)。在具有无线局域网功能
的设备附近使用Bluetooth设备时,
可能会发生电磁干扰。这会导致数据
传输速率变慢、噪音或无法连接。如
果发生这种情况,请尝试如下纠正
方法:
在距离无线局域网设备至少10米远
处,尝试连接本系统和Bluetooth移
动电话或Bluetooth设备。
在距离无线局域网设备10米以内使
用Bluetooth设备时,请关闭无线局
域网设备的电源。
对其它设备的影响
本系统的无线电波广播可能会干扰
某些医疗设备的操作。由于此干扰可
能会导致故障,在下述位置请始终关
闭本系统、Bluetooth移动电话以及
Bluetooth设备的电源:
在医院、火车上、飞机中、加油站
以及任何可能有易燃气体的场所
靠近自动门或火灾警报器处
114CS
注意
作为确保使用Bluetooth技术通信期间的
安全措施,本系统支持符合Bluetooth规
格的安全功能。但是,根据设置内容和其
它因素,此安全措施可能不够充分,因此
在使用Bluetooth技术进行通信时请始终
小心谨慎。
Sony对使用Bluetooth技术进行通信期间
的损害或由于信息泄漏所带来的其它损失
概不负任何责任。
不保证本系统和简档与本系统相同的所有
Bluetooth设备之间的Bluetooth通信。
与本系统连接的Bluetooth设备必须
遵守Bluetooth SIG,Inc.所规定的
Bluetooth规格,并且必须证明遵守。
但是,即使设备遵守Bluetooth规格,
Bluetooth设备的特性或规格有可能使得
该设备无法连接,或导致不同的控制方
法、显示或操作。
根据与本系统连接的Bluetooth设备、通
信环境或周围条件的不同,可能会发生噪
音或音频中断。
术语表
标题
DVD VIDEO上图像或音乐片段中最
长的部分;视频软件上的图像片断中
的电影等,或音频软件上的整个作
品集。
播放控制(PBC)
VIDEO CD(版本2.0)上为了用于
控制播放而编码的信号。通过使用有
PBC功能的VIDEO CD上录制的菜单画
面,您可以欣赏播放简单的双向对话
式节目、带有搜索功能的节目等等。
场景
在有PBC功能的VIDEO CD上,菜单
画面、活动图像和静止图像均被分割
为称作“场景”的片段。
DivX®
Dolby Digital
比Dolby Surround Pro Logic更高
级的用于电影院的声音格式。在这种
格式下,环绕扬声器能够以扩展的频
率范围输出立体声声音,并单独提供
表现重低音的重低音扬声器声道。由
于重低音扬声器声道被计算为0.1声道
(因为该声道仅在需要重低音效果时
工作),此格式还被称作“5.1”。为
实现出众的声道间隔,此格式中的所
有6声道都被分别录制。此外,由于对
所有信号进行数码处理,因此信号失
真更少。
DTS
Digital Theater Systems,Inc.
开发的数码音频压缩技术。该技术对
应5.1声道环绕声。此格式中的环绕声
道为立体声,此外还有一个分离的重
低音扬声器声道。DTS提供相同的高质
量数码音频的5.1分离声道。因为所有
声道数据都被分别录制且进行数码处
理,所以能够实现很好的声道分离。
补充信息
由DivX,Inc.创建的数码视频技
术。以DivX技术编码的视频具有最高
的质量和相对较小的文件尺寸。

接下页
115CS
多角度功能
DVD+RW
某些DVD VIDEO中录制有同一场景
的多个角度或摄像机的视点。
DVD+RW(正RW)是可录制和可重写
光盘。DVD+RW使用与DVD VIDEO格式相
似的录制格式。
多语言功能
某些DVD VIDEO中录制有多种语言
的声音或在图像中录制有多种字幕。
DVD-RW
DVD-RW是可录制和可重写的光盘,
与DVD VIDEO尺寸相同。DVD-RW具有
两种不同的模式: VR模式和视频模
式。以视频模式制作的DVD-RW与DVD
VIDEO具有相同格式,而以VR(视频录
制)模式制作的光盘可以对其内容进
行编程或编辑。
116CS
DVD VIDEO
尽管光盘直径与AUDIO CD相同,但
最多可包含8小时的活动图像。
单面单层DVD VIDEO的数据容量
为4.7 GB(千兆字节),是AUDIO
CD容量的7倍。此外,双层单面DVD
VIDEO的数据容量为8.5 GB,单层双面
DVD VIDEO的数据容量为9.4 GB,双层
双面DVD VIDEO的数据容量为17 GB。
图像数据使用MPEG 2格式,这是
数码压缩技术的世界标准之一。图像
数据被压缩为原始尺寸的1/40。DVD
VIDEO还采用可变速率编码技术,可根
据图像的状态改变要分配的数据。
以PCM和Dolby Digital记录的音
频数据,允许您欣赏更真实的音频
表现。
此外,DVD VIDEO还提供诸如多角
度、多语言和父母控制之类的多种高
级功能。
父母控制
区域代码
根据各个国家的限制等级,以用户
年龄限制光盘播放的DVD VIDEO功能。
各个光盘的限制不同;当此功能被激
活时,播放被完全禁止,暴力场景被
跳过或被其它场景替换等。
该系统用于保护版权。
根据销售地区,为各DVD系统或DVD
VIDEO分配了区域代码。在主机上和光
盘包装上都标示有各自的区域代码。
本系统可播放与其区域代码相同的光
盘。本系统还可以播放带有“
”标
记的光盘。即使DVD VIDEO上不显示区
域代码,地区限制也可能被激活。
隔行格式(隔行扫描)
隔行格式为NTSC标准方式,以每
秒30帧的帧频显示电视图像。每帧各
扫描两次-以每秒钟60次的速度,在
偶数扫描线和奇数扫描线之间交互进
行扫描。
基于电影的软件、基于视频的
软件
DVD VIDEO可分为基于电影或基于
视频的软件。基于电影的DVD VIDEO包
含与电影院上映的相同的图像(每秒
24帧)。基于视频的DVD VIDEO,如
电视剧或连续剧,以每秒30帧(或
60场)显示图像。
曲目
VIDEO CD、CD或MP3上的图像或音
乐片段部分。作品集由多个曲目(仅
限于MP3)构成。
VIDEO CD

补充信息
包含活动图像的光盘。
图像数据使用MPEG 1格式,这是数
码压缩技术的世界标准之一。图像数
据被压缩为原始尺寸的1/140。因此,
12 cm VIDEO CD可包含最长74分钟的
活动图像。
VIDEO CD还包含压缩音频数据。
人耳听不到范围的声音被压缩,人
耳能够听到的声音不被压缩。VIDEO
CD能容纳普通AUDIO CD 6倍的音频
信息。
有两种版本的VIDEO CD。
版本1.1:只能播放移动图像和声
音。
版本2.0:能够播放高分辨率的静止
图像并享用PBC功能。
本系统对应两个版本。
接下页
117CS
文件
录制在DATA CD或DATA DVD上的
JPEG图像文件或DivX视频文件。
(“文件”是本系统专用的定义。)
一个单一文件由一个单一图像或电影
构成。
章节
DVD VIDEO上的标题的子部分。标
题由多个章节构成。
逐行格式(顺序扫描)
与隔行格式相比,逐行格式可再
现所有扫描线(NTSC系统为525条扫
描线,PAL系统为625条扫描线),从
而能够每秒钟再现50  60帧图像。
整体图像质量有所提高,而且能够更
加清晰地显示静止图像、文字和水
平线。此格式与525或625逐行格式
兼容。
作品集
DATA CD或DATA DVD上包含MP3音频
曲目、JPEG图像文件或DivX图像文件
的音乐或图像作品的片断。
118CS
索引
数字
D
K
16:9 58
4:3 LETTER BOX 58
4:3 OUTPUT 58
4:3 PAN SCAN 58
DATA CD 7
DATA DVD 8
电池 20
电视机连接 21
DIMMER 83
定时器 81
DISPLAY 24
DivX 48, 115
Dolby Digital 115
冻结帧 29
DTS 115
多角度功能 30, 116
多区段CD 10
多语言功能 116
DVD 7
DVD+RW 7, 116
DVD-RW 7, 116
DVD菜单 39
卡拉OK 75
ECHO 75, 76
KARAOKE PON 78, 110
KEY CONTROL 78, 110
SCORE MODE 79, 110
Vocal 76
VOCAL SELECT 78, 110
可使用光盘 7
控制菜单显示 107
控制电视机 23
口令 64
快倒 29
快进 29
E
M
A
A/V SYNC 50, 109
A2DP 63, 113
AAC 70, 72
ALBUM 109
ANGLE 30
ATRAC 70, 73
ATRAC AD 70
AUDIO 57
AUDIO DRC 60
AVRCP 63, 65, 69, 113
B
C
场景 115
CHAPTER 40, 108
Chapter 29
COLOR SYSTEM (VIDEO
CD) 58
COMPONENT VIDEO OUT
22, 88
CUSTOM 56
CUSTOM PARENTAL CONTROL
51
CUSTOM SETUP 59
EFFECT
48, 109
F
反复播放 37
FILE 109
父母控制 117
G
隔行格式
广播 61
广播电台
故障排除
117
62
89
LANGUAGE SETUP 25, 57
冷复位 98
连续播放 46
麦克风 75, 76
慢动作播放 29
MENU 57
密钥键 65
MODE (MP3, JPEG) 110
MP3 7
MULTI-DISC RESUME 34,
59
O
ORIGINAL 39, 108
OSD 57
H
P
后面板 87
幻灯片播放 44, 46
恢复播放 33
PARENTAL CONTROL 53,
109
PAUSE MODE 59
PBC播放 32
配对 64, 65, 67, 68
PICTURE NAVI 41, 45
PIN 64
PLAY LIST 39, 108
PROGRESSIVE AUTO 22
PROGRESSIVE VIDEO 22
I
INDEX 108
INTERLACE 22
INTERVAL 109
J
即时重放 29
即时快进 29
基于电影的软件 117
JPEG 42, 44, 46
补充信息
BACKGROUND 58
编程播放 34
标题 39, 115
BLUETOOTH OPR 64, 65,
68, 69
Bluetooth设备地址 66
播放定时器 81
播放光盘 28
播放控制(PBC) 115
L

接下页
119CS
Q
X
前面板 87
前面板显示窗 18
其它组件连接 87
区域代码 117
曲目 7, 8
选择
R
Z
任选播放 36
RESET 98, 109
入睡定时器 81
章节 118
逐行格式 118
作品集 29, 118
S
扫描 26, 58
SCENE 108
SCREEN SAVER 58
SCREEN SETUP 25
SETUP 109
设置显示 25
收听广播 61
收听其它组件 88
SLEEP 27, 81
搜索 39
SUBTITLE 57
S VIDEO 88
T
THEATRE SYNC 27
TIME/TEXT 108
TITLE 37, 108
通过观看电视机屏幕寻找某
一位置 40
TRACK 108
TRACK SELECTION 59
TV TYPE 58
U
USB 70
USB MEMORY 94
USB存储 70
V
VIDEO CD
7, 117
W
文件 118
WMA 70, 72
握住光盘 28
120CS
39
Y
遥控器 13
语言代码列表
111
补充信息
121CS
122CS
补充信息
123CS
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
