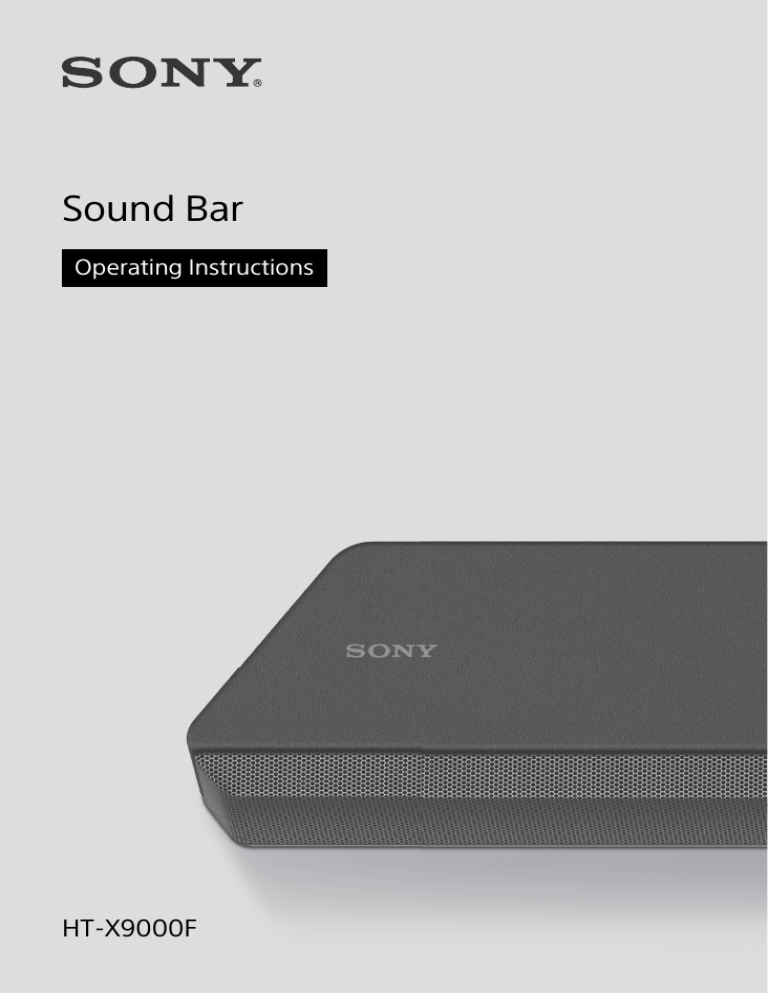

Sound Bar
Operating Instructions
HT-X9000F
WARNING
Do not install the appliance in a
confined space, such as a bookcase or
built-in cabinet.
To reduce the risk of fire, do not cover the
ventilation opening of the appliance with
newspapers, tablecloths, curtains, etc.
Do not expose the appliance to naked
flame sources (for example, lighted
candles).
To reduce the risk of fire or electric
shock, do not expose this appliance to
dripping or splashing, and do not place
objects filled with liquids, such as vases,
on the appliance.
The unit is not disconnected from the
mains as long as it is connected to the
AC outlet, even if the unit itself has been
turned off.
As the main plug is used to disconnect
the unit from the mains, connect the
unit to an easily accessible AC outlet.
Should you notice an abnormality in the
unit, disconnect the main plug from the
AC outlet immediately.
Do not expose batteries or appliances
with battery-installed to excessive heat,
such as sunshine and fire.
Indoor use only.
Recommended cables
Properly shielded and grounded cables
and connectors must be used for
connection to host computers and/or
peripherals.
For the Bar Speaker
The nameplate is located on the bottom
of the Bar Speaker.
2GB
It should be installed and operated with
at least 20 cm and more between the
radiator and person’s body (excluding
extremities: hands, wrists, feet and
ankles).
Disposal of old
electrical &
electronic
equipment
(applicable in the
European Union
and other
countries with
separate
collection systems)
It should be installed and operated with
at least 20 cm and more between the
radiator and person’s body (excluding
extremities: hands, wrists, feet and
ankles).
Table of Contents
What’s in the Box ..........................5
What You Can Do with the
System .....................................6
Guide to Parts and Controls .......... 7
About the Home Menu .................12
Connecting to a TV or AV
Device
Connecting to a
TV or AV Device
with the HDMI
Cable
Startup Guide
 (separate
document)
Connecting Sony TV with the
BLUETOOTH Function
Wirelessly .............................. 14
Connecting a TV with an Analog
Audio Cable ............................17
Connecting a 4K TV and 4K
Devices .................................. 18
Preparing to Use the System
Mounting the Bar Speaker on a
Wall .........................................21
Performing the Wireless Connection
of the Subwoofer
(SECURE LINK) ........................ 23
When the TV Remote Control does
not Work ................................ 24
Watching Images
Watching TV ................................ 25
Playing the Connected AV
Device .................................... 25
Listening to Music/Sound
Listening to Music/Sound with the
BLUETOOTH® Function .......... 26
Listening to Music on a USB
Device .................................... 28
Listening to the Device Connected
with an Analog Audio
Cable ...................................... 29
Adjusting the Sound Quality
Enjoying Immersive Surround
Experience (VERTICAL S.) ......30
Setting the Sound Effect that is
Tailored to Sound Sources
(Sound Mode) ........................ 31
Making Dialogs Clearer
(VOICE) ................................... 32
Enjoying Clear Sound with Low
Volume at Midnight
(NIGHT) .................................. 32
Adjusting the Volume of the
Subwoofer ............................. 33
Adjusting the Delay Between the
Picture and Sound ................. 33
Playing Compressed Audio Files or
CDs in Natural Sound Quality
(DSEE) .................................... 35
Enjoying Multiplex Broadcast Sound
(AUDIO) .................................. 35
Using the Control for HDMI
Function
Using the Control for HDMI
Function ................................. 37
Using the “BRAVIA” Sync
Function .................................39
Changing the Settings
Customizing the Speaker Settings
for Surround Sound ...............40
Changing the Brightness of the
Indicators (DIMMER) .............. 41
Saving Power in Standby
Mode ..................................... 41
Performing Easy Setup ................42
Performing Advanced
Settings ..................................43
Updating the Software ................46
3GB
Troubleshooting
Troubleshooting .......................... 48
Resetting the System .................. 54
Additional Information
Specifications .............................. 55
Playable Types of Audio Files ......57
Supported Input Audio
Formats ................................. 58
Supported HDMI Video
Formats ................................. 59
On BLUETOOTH
Communication .....................61
END USER LICENSE
AGREEMENT .......................... 62
Precautions ................................. 66
Index ............................................ 69
4GB
• WALL MOUNT TEMPLATE (1)
What’s in the Box
• Bar Speaker (1)
• Startup Guide
• Subwoofer (1)
Startup Guide
• Remote control (1)
• Operating Instructions
• R03 (size AAA) battery (2)
• HDMI cable (supports the specification
equal to Premium High Speed HDMI
Cable with Ethernet) (1)
5GB
What You Can Do with the System
The system supports object-based audio formats such as Dolby Atmos and
DTS:X as well as HDR video formats such as HDR10, HLG, and Dolby Vision.
“Watching TV” (page 25)
“Playing the Connected AV
Device” (page 25)
Blu-ray Disc™ player, cable
box, satellite box, etc.
Basic connection: Refer to
“Startup Guide” (separate
document).
Other connections: See
“Connecting to a TV or AV
Device” (page 14).
“Connecting Sony TV
with the BLUETOOTH
Function Wirelessly”
(page 14)
“Using the Control for HDMI
Function” (page 37)
“Using the “BRAVIA” Sync
Function” (page 39)
“Listening to Music/Sound with
the BLUETOOTH® Function”
(page 26)
“Performing the Wireless
Connection of the Subwoofer
(SECURE LINK)” (page 23)
6GB
“Listening to Music
on a USB Device”
(page 28)
Guide to Parts and Controls
Details are omitted from the illustrations.
Bar Speaker (Main Unit)
Front
  (power) button
Turns on the system or sets it to
standby mode.

(input select) button
Selects the input for playback on the
system.
 BLUETOOTH button (page 26)
 +/– (volume) buttons
 TV indicator
Lights when the TV input is selected
(page 25).
 HDMI indicator
Lights when the HDMI input is
selected (page 25).
 BLUETOOTH indicator
– Flashes quickly in blue: During
pairing standby status
– Flashes in blue: BLUETOOTH
connection is being attempted.
– Lights in blue: BLUETOOTH
connection has been established.
 ANALOG indicator
Lights when the ANALOG input is
selected (page 29).
 USB indicator
Lights when the USB input is
selected (page 28).
 Remote control sensor
Point the remote control at the
remote control sensor to operate
the system.
7GB
Rear
 HDMI IN jack
For specifications and notes on
connections, see “Supported
HDMI Video Formats” (page 59).
 HDMI OUT (TV (ARC)) jack
Connect a TV that has an HDMI
input jack with an HDMI cable.
The system is compatible with
Audio Return Channel (ARC). ARC
is the function that sends TV
sound to an AV device such as the
system from the TV’s HDMI jack.
For specifications and notes on
connections, see “Supported
HDMI Video Formats” (page 59).
8GB

(USB) port (page 28)
 ANALOG IN jack
 TV IN (OPT) jack
 IR repeater (page 24)
Transmits the remote signal of
the TV remote control to the TV.
Subwoofer
 Power indicator
– Lights in red: The subwoofer is in
standby mode.
– Lights in green: The subwoofer is
connected to the system.
– Lights in amber: The subwoofer is
connected to the system with the
Secure Link function.
– Flashes in green: The subwoofer is
attempting to connect to the
system.
– Flashes in amber: The subwoofer
is attempting to connect to the
system with the Secure Link
function.
– Turns off: The subwoofer is turned
off.
  (power) button
Turns on or off the subwoofer.
 LINK button (page 23)
 Ventilation holes
For safety, do not block the
ventilation holes.
9GB
Remote Control
  (power)
Turns on the system or sets it to
standby mode.
TV (page 25)
HDMI (page 25)
BLUETOOTH (page 27)
ANALOG (page 29)
USB (page 28)
 AUTO SOUND (page 31)
CINEMA (page 31)
MUSIC (page 31)
GAME (page 31)
NEWS (page 31)
SPORTS (page 31)
STANDARD (page 31)
VOICE (page 32)
VERTICAL S. (page 30)
NIGHT (page 32)
 DISPLAY
Displays playback information on
the TV screen.
Playback information is not
displayed for the TV input.
DIMMER (page 41)
 /// (page 12)
(enter) (page 12)
BACK (page 12)
OPTIONS (page 25, 33)
Displays the options menu on the
TV screen.
The options menu is not
displayed for the TV input.
HOME (page 12)
10GB
  (muting)
Turns off the sound temporarily.
 (volume) +*/–
Adjusts the volume.
SW  (subwoofer volume) +/–
Adjusts the volume of the
subwoofer.
 Playback operation buttons
/ (previous/next)
Selects the previous/next track or
file.
Pressing and holding searches
backward or forward (rewind/fast
forward) during playback.
 (play/pause)*
Starts, pauses, or re-starts
playback (resume play).
 AUDIO* (page 35)
* The AUDIO, , and  + buttons have
a tactile dot. Use it as a guide during
operation.
About the replacement of
batteries for the remote control
When the system does not respond by
operating with the remote control,
replace two batteries with new
batteries.
Use R03 (size AAA) manganese
batteries for replacement.
11GB
About the Home Menu
You can display the home menu on the TV screen by connecting the system and TV
with the HDMI cable (supplied). From the home menu, you can set the various
settings and select the input.
The home menu is displayed in the language that is selected in [Easy Setup]. (The
following screen is an example when English is selected.)
Categories
Category items
Using the Home Menu
///,
(enter)
HOME
BACK
1
Press HOME.
The home menu appears on the TV screen.
2
Press // to select the category that you want, then press  or
.
The items for the selected category appear under the category list on the
TV screen.
3
Press /// to select the item that you want, then press
.
The selected input or setting display appears on the TV screen.
To return to the previous screen, press BACK.
[Watch]
Selects the input of the TV or AV device that is connected to the system.
See “Watching Images” (page 25).
12GB
[Listen]
Selects the input of the audio device that is connected to the system.
See “Listening to Music/Sound” (page 26).
[Setup]
Performs the basic initial settings by using [Easy Setup] or various advanced
settings of the system.
See “Performing Easy Setup” (page 42) or “Performing Advanced Settings”
(page 43).
About the Steps Description
In these Operating Instructions, the operations are described as steps that are
operated on the home menu displayed on the TV screen by using the remote control
while the system and TV are connected with the HDMI cable (supplied).
The operating steps that select items on the TV screen by using /// and
simplified in the following way.
are
Example: Select
[Setup] - [Advanced Settings] on the home menu.
The operation that selects a category and category item by pressing /// and
is expressed as “select.” The category and category item are linked with “-.”
Example: Select [Speaker Settings] - [Manual Speaker Settings].
When repeating the operation that selects an item by pressing /// and
selected items are linked with “-.”
, the
Tips
• You can use the buttons on the main unit if they have the same or similar names as those
on the remote control.
• Characters in brackets [ ] appear on the TV screen.
13GB
Connecting to a TV or AV Device
Connecting to a TV or AV
Device with the HDMI
Cable
Refer to Startup Guide (separate
document).
For the connection to a 4K TV or 4K
Devices, see “Connecting a 4K TV and 4K
Devices” (page 18)
Connecting Sony TV with
the BLUETOOTH Function
Wirelessly
When using Sony TV* with the
BLUETOOTH function, you can listen to
sound of the TV or device that is
connected to the TV by connecting the
system and TV wirelessly.
* The TV needs to be compatible with
A2DP (Advanced Audio Distribution
Profile) of the BLUETOOTH profile.
system other than the listening function
for the sound of the TV or device that is
connected to the TV.
To use all the functions of the system,
connect the system and TV with the HDMI
cable (supplied). For details about
connections and operations to listen to
TV sound by connecting with the HDMI
cable, refer to Startup Guide (separate
document).
• This function is available only for Sony TV
that is compatible with BLUETOOTH
A2DP.
Listening to TV Sound by
Connecting the System and
TV Wirelessly
To connect the system and TV
wirelessly, you need to perform pairing
of the system and TV by using the
BLUETOOTH function.
Pairing is the process required to
mutually register the information on
BLUETOOTH devices to be connected
wirelessly in advance.

TV
Blu-ray Disc player,
cable box, satellite
box, etc.
BLUETOOTH
button
Notes
• If connecting the system and TV by using
the BLUETOOTH function, you cannot
display the operation screen for the
system such as the home menu on the TV
screen, and use the function of the
14GB
1
2
3
4
Set up the remote control.
8
Turn on the TV.
Turn on the system.
Press and hold the BLUETOOTH
button on the main unit and TV on
the remote control
simultaneously for 5 seconds.
The system enters the pairing mode
and the BLUETOOTH indicator
flashes quickly.
9
Select the program or input of the
device by using the TV remote
control.
The sound of the displayed image
on the TV screen is output from the
system.
Adjust the volume of the system
by using the TV remote control.
When pressing the muting button
on the TV remote control, the sound
is muted temporarily.
Notes
5
6
7
On the TV, search the system by
performing the pairing operation.
The list of the BLUETOOTH devices
that are searched appears on the TV
screen.
For the operation method to pair
the BLUETOOTH device to the TV,
refer to the operating instructions of
the TV.
Pair the system and TV by
selecting “HT-X9000F” from the
list on the TV screen.
Make sure that the BLUETOOTH
and TV indicators on the main unit
light.
A connection between the system
and TV has been established.
• If the TV sound is not output from the
system, press TV and check the status of
the indicators on the Bar Speaker.
– The BLUETOOTH and TV indicators light:
The system and TV are connected and
TV sound is output from the system.
– The BLUETOOTH indicator flashes
quickly: Perform pairing on the TV.
– The TV indicator lights: Perform steps
from the start.
• When you connect the system and TV
with the HDMI cable (supplied), the
BLUETOOTH connection is canceled. To
connect the system and TV with the
BLUETOOTH function again, disconnect
the HDMI cable, then perform the
connecting operation from the start.
Listening to Sound of the
Paired TV
You can turn the system on/off, adjust
the volume, and mute the sound by
using the TV remote control when
connecting the TV to the system
wirelessly.
1
Turn the TV on with the TV remote
control.
The system is turned on by
interlocking with the TV power, and
TV sound is output from the system.
15GB
2
3
Select the program or input of the
device by using the TV remote
control.
The sound of the displayed image
on the TV screen is output from the
system.
Adjust the volume of the system
by using the TV remote control.
When pressing the muting button
on the TV remote control, the sound
is muted temporarily.
Tip
When the TV is turned off, the system is
also turned off by interlocking with the TV
power.
About operations with the
remote control that is supplied
with the system
You can use the following buttons.
You can adjust the volume of the
subwoofer, and adjust sound quality in
addition to turning the system on/off
and adjusting volume that can be
operated by the TV remote control.

Sound mode
selecting buttons
VOICE
VERTICAL S.
NIGHT
 +/–
SW  +/–

16GB
Notes
• If you select the input other than TV on
the remote control supplied with the
system, the TV sound is not output from
the system. To output the TV sound, press
TV on the remote control to change to the
TV input.
• During the connecting the TV with the
BLUETOOTH function, the following
remote control buttons do not work.
///,
(enter), OPTIONS, HOME,
DISPLAY,  (play/pause), /
(previous/next)
Connecting a TV with an
Analog Audio Cable
To connect the following devices to the
system, connect them via the ANALOG
IN jack on the system.
– TVs that do not have an HDMI jack and
optical digital output jack
– Portable audio devices such as
smartphones and WALKMAN®
For listening to the connected device,
see “Listening to the Device Connected
with an Analog Audio Cable” (page 29).
Note
If the TV’s headphone jack also serves as
an audio output jack, check the audio
output settings of the TV. For details, refer
to the operating instructions of the TV.
Analog audio cable
(not supplied)
Analog
audio out
TV
Smartphone,
WALKMAN®, other
audio devices, etc.
17GB
Connecting a 4K TV and
4K Devices
When an HDCP2.2Compatible HDMI Jack on
the TV is Labeled with “ARC”
All HDMI jacks on the system support 4K
video format and HDCP2.2 (Highbandwidth Digital Content Protection
System Revision 2.2).
To watch 4K video content, connect the
4K TV and 4K devices to the system via
an HDCP2.2-compatible HDMI jack on
each device.
You can only view 4K video content
through the HDCP2.2-compatible HDMI
jack connection.
HDCP2.2compatible
HDMI jack
HDCP2.2compatible
HDMI jack
TV
Blu-ray Disc player,
cable box, satellite
box, etc.
 HDMI cable (supplied)
 HDMI cable (not supplied)
Use an HDMI cable which supports the 4K
video format that you want to watch. For
details, see “Supported HDMI Video
Formats” (page 59).
18GB
1
2
3
Check which HDMI IN jack on your
TV is compatible with HDCP2.2.
Refer to the operating instructions
of the TV.
Connect the HDCP2.2-compatible
HDMI IN jack on the TV and HDMI
OUT jack on the main unit with the
HDMI cable (supplied).
TV connection is complete.
Connect the HDCP2.2-compatible
HDMI OUT jack of the 4K device
and HDMI IN jack of the main unit
with the HDMI cable (not
supplied).
Refer to the operating instructions
of the 4K device to check that the
HDMI OUT jack of the 4K device is
compatible with HDCP2.2.
4K device connection is complete.
HDCP2.2compatible
HDMI jack
When an HDCP2.2Compatible HDMI Jack on
the TV is not Labeled with
“ARC”
If your TV’s HDCP2.2-compatible HDMI
IN jack is not compatible with ARC
(Audio Return Channel), the TV sound is
not output from the system.
In this case, connect the optical output
jack of the TV and the TV IN (OPT) jack on
the main unit with the optical digital
cable (not supplied).
TV
HDCP2.2compatible
HDMI jack
Blu-ray Disc player, cable
box, satellite box, etc.
 HDMI cable (supplied)
 HDMI cable (not supplied)
Use an HDMI cable which supports the 4K
video format that you want to watch. For
details, see “Supported HDMI Video
Formats” (page 59).
 Optical digital cable (not supplied)
19GB
Setting the HDMI Signal
Format to Watch 4K Video
Content
To watch 4K video content, select the
appropriate setting for the connected
4K TV and 4K device.
1
2
3
4
Press HOME.
The home menu appears on the TV
screen.
Select
[Setup] - [Advanced
Settings] on the home menu.
Select [HDMI Settings] - [HDMI
Signal Format].
The [HDMI Signal Format] screen
appears on the TV screen.
Select [HDMI IN], then select the
setting you want.
• [Standard format] (default
setting): Select when the
connected TV and devices support
standard bandwidth video
formats.
• [Enhanced format]: Select when
both the connected TV and
devices support high bandwidth
video formats such as 4K 60p
4:4:4 etc.
For the relation of the [HDMI Signal
Format] setting options, supported
video format signals, and HDMI
cables to be used, see “Supported
HDMI Video Formats” (page 59).
Notes
• Depending on the TV, the TV setting for
HDMI output may be required. Refer to
the operating instructions of the TV.
• When the picture is not displayed after
[HDMI Signal Format] is set to [Enhanced
format], set it to [Standard format].
20GB
1
Prepare two screws (not supplied)
that are suitable for the wall
mount holes on the rear of the Bar
Speaker.
Preparing to Use the System
Mounting the Bar
Speaker on a Wall
4 mm
You can mount the Bar Speaker on a
wall.
More than 30 mm
5.1 mm
10 mm
Hole on the rear of the Bar Speaker
2
Notes
• Prepare screws (not supplied) that are
suitable for the wall material and
strength. As a plasterboard wall is
especially fragile, attach the screws
securely in the wall beam. Install the
speakers horizontally, hung by screws in
studs in a continuous flat section of the
wall.
• Have the installation done by a Sony
dealer or licensed contractor and pay
special attention to safety during the
installation.
• Sony shall not be held responsible for
accidents or damage caused by improper
installation, insufficient wall strength,
improper screw installation or natural
disaster, etc.
Stick WALL MOUNT TEMPLATE
(supplied) on a wall.
Center of the TV
Adhesive tape,
etc.
WALL MOUNT
TEMPLATE
1
Align TV CENTER LINE () of
WALL MOUNT TEMPLATE with the
center line of your TV.
2
Align TV BOTTOM LINE () of
WALL MOUNT TEMPLATE with the
bottom of your TV, then stick
WALL MOUNT TEMPLATE on a
wall by using a commercially
available adhesive tape, etc.
21GB
3
Fasten the screws into the marks
() on SCREW LINE () of WALL
MOUNT TEMPLATE as in the
illustration below.
368.5 mm
368.5 mm
Screws
Marks ()
10.0 mm to
11.0 mm
4
5
Remove WALL MOUNT TEMPLATE.
Hang the Bar Speaker on the
screws.
Align the holes of the rear of the Bar
Speaker with the screws, then hang
the Bar Speaker on the two screws.
22GB
Notes
• When sticking WALL MOUNT TEMPLATE,
smooth it out fully.
• When you do not use WALL MOUNT
TEMPLATE, install the Bar Speaker apart
from the TV by 70 mm or more.
Performing the Wireless
Connection of the
Subwoofer (SECURE LINK)
You can specify the wireless connection
to link the system to the subwoofer
using the Secure Link function. We
recommend to perform the Secure Link
function to prevent interference if you
use multiple same products or your
neighbors use same products.
4
5
6
7
LINK
Power
indicator
1
2
3
Select [On].
The [Secure Link] screen appears on
the TV screen.
Press LINK on the rear of the
subwoofer.
The power indicator of the
subwoofer flashes in amber.
Proceed to the next step within 2
minutes.
Select [Start].
The link setting starts.
To return to the previous display,
select [Cancel].
Complete the link setting by
following the on-screen message.
The power indicator of the
subwoofer lights in amber.
Note
If the message [Cannot set Secure Link.]
appears, follow the on-screen instructions.
Press HOME.
The home menu appears on the TV
screen.
Select
[Setup] - [Advanced
Settings] on the home menu.
Select [Speaker Settings] - [Secure
Link].
23GB
When the TV Remote
Control does not Work
When the main unit obstructs the
remote control sensor of the TV, the TV
remote control may not work. In that
case, enable the IR repeater function of
the system.
You can control the TV with the TV
remote control by sending the remote
signal from the rear of the main unit.
1
2
3
4
Press HOME.
The home menu appears on the TV
screen.
Select
[Setup] - [Advanced
Settings] on the home menu.
Select [System Settings] - [IRRepeater].
The [IR-Repeater] screen appears
on the TV screen.
Select [On].
Notes
• Be sure to check that the TV remote
control cannot control the TV, and then
set [IR-Repeater] to [On]. If it is set to [On]
when the remote control can control the
TV, appropriate operation may not be
obtained because of the interference
between the direct command from the
remote control and command via the
main unit.
• On some TVs, this function may not work
correctly. In this case, place the main unit
slightly further away from the TV.
24GB
Watching Images
Watching TV
1
2
3
4
Press HOME.
The home menu appears on the TV
screen.
Playing the Connected
AV Device
1
Press HOME.
The home menu appears on the TV
screen.
2
Select
[Watch] - [HDMI] on the
home menu.
The image of the selected device
appears on the TV screen and the
sound is output from the system.
Select
[Watch] - [TV] on the
home menu.
Select the program using the TV
remote control.
The selected TV program appears
on the TV screen and the TV sound
is output from the system.
Adjust the volume.
• Adjust the volume by pressing 
+/– on the remote control.
• Adjust the subwoofer volume by
pressing SW  +/– on the remote
control (page 33).
Note
Set the speaker setting of the TV (BRAVIA)
to Audio System. Refer to the operating
instructions of your TV regarding how to
set the TV.
Tip
You can select [TV] directly by pressing TV
on the remote control.
3
Adjust the volume.
• Adjust the volume by pressing 
+/– on the remote control.
• Adjust the subwoofer volume by
pressing SW  +/– on the remote
control (page 33).
Tip
You can select [HDMI] directly by pressing
HDMI on the remote control.
To adjust the dialog volume while
streaming the DTS:X contents
By adjusting the dialog volume, you can
easily listen to dialog since it stands out
from the ambient noise. This function
does not work on some audio formats.
1
While selecting [HDMI], press
OPTIONS.
The options menu appears on the TV
screen.
2
Select [Dialog Control], then adjust
the dialog volume with /.
You can adjust from 0 dB to 6 dB in 1
dB increments.
25GB
Listening to Music/Sound
Listening to Music/
Sound with the
BLUETOOTH® Function
Listening to Music by Pairing
the Mobile Device that is
Connected for the First Time
To use the BLUETOOTH function, you
need to perform pairing of the system
and mobile device in advance.
1
You can listen to music stored on a
mobile device such as a smartphone or
tablet via a wireless connection by
connecting the system and mobile
device with the BLUETOOTH function.
When connecting to the mobile device
with the BLUETOOTH function, you can
operate by simply using the supplied
remote control without turning the TV
on.
Press and hold BLUETOOTH on the
main unit for 2 seconds.
The system enters the pairing mode
and the BLUETOOTH indicator
flashes quickly.
BLUETOOTH
2
 +/–
SW  +/–
Playback
operation buttons
BLUETOOTH
button
26GB
3
On the mobile device, search the
system by performing the pairing
operation.
The list of the BLUETOOTH devices
that are searched appears on the
screen of the mobile device.
For the operation method to pair
the BLUETOOTH device to the
mobile device, refer to the
operating instructions of the mobile
device.
Pair the system and mobile device
by selecting “HT-X9000F” from
the list on the screen of the mobile
device.
If a Passkey is requested, enter
“0000.”
4
5
6
Make sure that the BLUETOOTH
indicator on the main unit lights in
blue.
A connection between the system
and mobile device has been
established.
Start audio playback with the
music app on the connected
mobile device.
Sound is output from the main unit.
Adjust the volume.
• Adjust the volume by pressing 
+/– on the remote control.
• Adjust the subwoofer volume by
pressing SW  +/– on the remote
control (page 33).
• You can play or pause the content
by using the playback operation
buttons on the remote control.
To check the connection status of
the BLUETOOTH function
Status
BLUETOOTH indicator
During pairing
standby status
Flashes quickly in blue
Connection is
being
attempted
Flashes in blue
Connection has
been
established
Lights in blue
The BLUETOOTH
function is
turned off
Flashes slowly in blue
into pairing mode simply by changing the
input to the BLUETOOTH input.
• Perform pairing for the second and
subsequent mobile devices.
Listening to Music from the
Paired Device
1
2
3
4
5
Turn the BLUETOOTH function of
the mobile device to on.
Press BLUETOOTH.
The system automatically
reconnects to the mobile device it
was most recently connected to.
Make sure that the BLUETOOTH
indicator lights in blue.
A connection between the system
and mobile device has been
established.
Start audio playback with the
music app on the connected
mobile device.
Sound is output from the main unit.
Adjust the volume.
• Adjust the volume by pressing 
+/– on the remote control.
• Adjust the subwoofer volume by
pressing SW  +/– on the remote
control (page 33).
• You can play or pause the content
by using the playback operation
buttons on the remote control.
To disconnect the mobile device
Note
When the BLUETOOTH indicator flashes
slowly in blue, the BLUETOOTH function is
turned off. To use the BLUETOOTH
function, set [Bluetooth Mode] to
[Receiver] (page 45).
Tips
• If there is no mobile device that has been
paired (ex. immediately after the
purchase of the system), the system goes
Perform any of the following items.
• Disable the BLUETOOTH function on
the mobile device.
• Press BLUETOOTH while the
[Bluetooth Audio] screen appears on
the TV screen.
• Set [Bluetooth Mode] to [Off]
(page 45).
• Turn off the system or mobile device.
27GB
Tip
When the connection is not established,
select “HT-X9000F” on the mobile device.
Listening to Music on a
USB Device
You can play music files stored on a
connected USB device.
For playable types of files, see “Playable
Types of Audio Files” (page 57).
1
2
3
4
5
Connect the USB device to the
(USB) port.
Press HOME.
The home menu appears on the TV
screen.
Select
[Listen] - [USB
(Connected)] on the home menu.
Select the folder on which songs
are stored, then select a song.
The selected song is played and
sound is output from the system.
Adjust the volume.
• Adjust the volume by pressing 
+/– on the remote control.
• Adjust the subwoofer volume by
pressing SW  +/– on the remote
control (page 33).
Note
Do not remove the USB device during
operation. To avoid data corruption or
damage to the USB device, turn the system
off before connecting or removing the USB
device.
28GB
Listening to the Device
Connected with an
Analog Audio Cable
You can listen to sound of an audio
device such as a TV, WALKMAN®, etc
that is connected to the ANALOG IN jack
on the system.
1
2
3
Press HOME.
The home menu appears on the TV
screen.
Select
[Listen] - [Analog] on the
home menu.
The [Analog] screen is displayed on
the TV screen.
Adjust the volume.
• Adjust the volume by pressing 
+/– on the remote control.
• Adjust the subwoofer volume by
pressing SW  +/– on the remote
control (page 33).
Tip
You can also select [Analog] directly by
pressing ANALOG.
29GB
1
Adjusting the Sound Quality
Enjoying Immersive
Surround Experience
(VERTICAL S.)
You can feel immersed by the sound
from not only the horizontal direction,
but also from the upward direction by
using Vertical Surround Engine*
effectively for sound modes (page 31)
other than [News]. This function also
works for the 2.0 channel signal such as
a TV program.
* Vertical Surround Engine is a highly
precise digital sound field processing
technology developed by Sony that
produces the sound field in the height
direction virtually in addition to a sound
field in the horizontal direction by only
using front speakers and without using
top speakers.
You do not need to install speakers on a
ceiling and you can enjoy the sound with
rich presence regardless of the ceiling
height. Also, this function is hardly
affected by the shape of a room because
it does not use the sound reflected from
a wall and enables improved surround
playback.
VERTICAL S.
30GB
2
Press VERTICAL S.
The vertical surround setting
appears on the TV screen.
Press the button repeatedly to
select the setting.
Mode
Explanation
[On]
Activates the vertical
surround function.
[Off]
Deactivates the
vertical surround
function.
Notes
• The surround effect differs depending on
a sound source.
• A time gap between the sound and
picture may occur depending on the
sound source. If your TV has a function
that delays the image, use it for
adjustment.
Setting the Sound Effect
that is Tailored to Sound
Sources (Sound Mode)
You can easily enjoy pre-programmed
sound effects that are tailored to
different kinds of sound sources.
Sound Mode
selecting buttons
1
Press one of the sound mode
selecting buttons (AUTO SOUND,
CINEMA, MUSIC, GAME, NEWS,
SPORTS, STANDARD) to select the
sound mode.
The selected sound mode appears
on the TV screen.
Sound mode
Explanation
[Auto Sound]
The appropriate
sound setting is
automatically
selected for the
sound source with
ClearAudio+.
[Cinema]
You feel immersed
by the sound that
travels behind you
and surrounds your
entire body. This
mode is suitable for
watching movies.
Sound mode
Explanation
[Music]
Vividness and
glossiness of the
sound are expressed
in detail. This mode
is suitable for
enjoying music in a
way that moves you.
[Game
Studio]
You can immerse
yourself in your
game by
reproducing the
feeling of movement
and distance of
objects, as well as
clearly hearing the
dialog.
[News]
Recreates the clear
speech of newscasts.
[Sports]
You can experience
an atmosphere as if
you were watching
an event in a
stadium. However,
narrations of
commentators are
reproduced vividly.
[Standard]
The sound of a TV
program can be
heard clearly.
Notes
• The sound mode function is disabled in
the following conditions.
– [Sound Effect] is set to a setting other
than [Sound Mode On] (page 44).
– Test tone is emitted (page 40).
• A time gap between the sound and
picture may occur depending on the
sound source. If your TV has a function
that delays the image, use it for
adjustment.
31GB
Making Dialogs Clearer
(VOICE)
Enjoying Clear Sound
with Low Volume at
Midnight (NIGHT)
Sound is output at low volume with
minimum loss of fidelity and clarity of
dialog.
VOICE
NIGHT
1
2
Press VOICE.
The voice mode appears on the TV
screen.
Press the button repeatedly to
select the voice mode.
Mode
Explanation
[Up Off]
Standard
[Up 1]
Dialog is easily heard
by enhancing dialog
range.
[Up 2]
Dialog range is
enhanced, and dialog
sound may be easy to
hear for the elderly.
1
2
Press NIGHT.
The night mode appears on the TV
screen.
Press the button repeatedly to
select the night mode.
Mode
Explanation
[On]
Activates the night
mode function.
[Off]
Deactivates the night
mode function.
Note
When you turn the system off, this setting
is set to [Off] automatically.
32GB
Adjusting the Volume of
the Subwoofer
The subwoofer is designed for playback
of bass or low frequency sound.
Adjusting the Delay
Between the Picture and
Sound
When the sound does not match the
pictures on the TV screen, you can
adjust the delay between the picture
and sound.
The setting method differs depending
on the input.
SW  +/–
TV
Press SW (subwoofer volume)  +/–
to adjust the volume of the
subwoofer.
Note
///,
When the input source does not contain
much bass sound, such as in TV programs,
the bass sound from the subwoofer may
be difficult to hear.
OPTIONS
When Watching the TV
1
2
Press OPTIONS, then TV to enter
the setting mode.
The TV indicator flashes 3 times.
Adjust the delay using /, then
press
.
You can adjust from 0 msec to
300 msec in 25 msec increments.
33GB
The indicators flash according to
the adjustment time.
• 0 msec: The TV and USB indicators
flash twice.
When Watching Another
Device
1
• 25 msec to 50 msec: The TV
indicator flashes slowly twice.
• 75 msec to 100 msec: The HDMI
indicator flashes slowly twice.
• 125 msec to 150 msec: The
BLUETOOTH indicator flashes
slowly twice.
• 175 msec to 200 msec: The
ANALOG indicator flashes slowly
twice.
• 225 msec to 275 msec: The USB
indicator flashes slowly twice.
• 300 msec: The TV and USB
indicators flash twice.
The TV indicator flashes 3 times and
the setting value is decided.
34GB
2
3
Press OPTIONS.
The options menu appears on the
TV screen.
Select [A/V Sync].
Adjust the delay using /, then
press
.
You can adjust from 0 msec to
300 msec in 25 msec increments.
Playing Compressed
Audio Files or CDs in
Natural Sound Quality
(DSEE)
Enjoying Multiplex
Broadcast Sound (AUDIO)
You can enjoy multiplex broadcast
sound when the system receives a
Dolby Digital multiplex broadcast signal.
This function enhances the sound
quality of compressed audio files or CDs
by restoring high-range sound removed
in the compression process. You can
enjoy listening to sound close to its
original, natural, and spatial sound.
1
2
3
4
AUDIO
Press HOME.
The home menu appears on the TV
screen.
Select
[Setup] - [Advanced
Settings] on the home menu.
Select [Audio Settings] - [DSEE].
Select [On].
Notes
• This function is only available when [Auto
Sound]* or [Music] is selected as the
sound mode (page 31).
• This function is compatible with the
2-channel digital input signals of 44.1 kHz
or 48 kHz sampling frequency.
• The sampling frequency/bit depth after
upscaling is up to 96 kHz/24 bit.
• This function is not compatible with DSD
signals.
• This function does not work when
[Advanced Auto Volume] is set to [On]
(page 44).
1
Press AUDIO repeatedly to select
the desired audio signal.
The indicators flash according to
the setting.
• [Main]: The TV indicator flashes
once.
Sound of the main language will
be output.
• [Sub]: The USB indicator flashes
once.
Sound of the sub language will be
output.
* Only when [Music] is selected with [Auto
Sound].
• [Main/Sub]: The TV and USB
indicators flash once.
Mixed sound of both the main and
sub languages will be output.
35GB
Notes
• To receive a Dolby Digital signal, you
need to connect the TV that is compatible
with Audio Return Channel (page 38) to
the HDMI OUT (TV (ARC)) jack with the
HDMI cable (supplied), or other devices to
the HDMI IN jack with the HDMI cable (not
supplied).
• If your TV’s HDMI IN jack is not compatible
with Audio Return Channel (page 38),
connect the TV to the TV IN (OPT) jack
with the optical digital cable (not
supplied) to receive a Dolby Digital signal.
36GB
Tip
Using the Control for HDMI
Function
Using the Control for
HDMI Function
Connecting a device such as a TV or Bluray Disc player compatible with the
Control for HDMI function* by an HDMI
cable enables you to easily operate the
device by a TV remote control.
The following functions can be used
with the Control for HDMI function.
• System Power Off function
• System Audio Control function
• Audio Return Channel
• One-Touch Play function
• Menu Operation by TV Remote Control
• HDMI Standby Through power saving
setting
• Language Follow
Note
These functions may work with devices
other than those manufactured by Sony,
but operation is not guaranteed.
* Control for HDMI is a standard used by
CEC (Consumer Electronics Control) for
allowing HDMI (High-Definition
Multimedia Interface) devices to control
each other.
Preparing to Use the Control
for HDMI Function
Set
[Setup] - [Advanced Settings] [HDMI Settings] - [Control for HDMI] on
the system to [On] (page 44). The
default setting is [On].
Enable the Control for HDMI function
settings for the TV and other device
connected to the system.
If you enable the Control for HDMI
(“BRAVIA” sync) function when using a TV
manufactured by Sony, the Control for
HDMI function of the system is also
enabled automatically.
System Power Off Function
When you turn off the TV, the system
will turn off automatically.
Set
[Setup] - [Advanced Settings] [HDMI Settings] - [Standby Linked to TV]
on the system to [On] or [Auto]
(page 44). The default setting is [Auto].
Note
The connected device may not turn off
depending on the status of the device.
System Audio Control
Function
If you turn on the system while you are
watching the TV, the TV sound will be
output from the speakers of the system.
The volume of the system can be
adjusted using the TV remote control.
When you turn on the TV, the system is
turned on automatically and the TV
sound is output from the speakers of
the system.
Operations can also be made by the
TV’s menu. For details, refer to the
operating instructions of your TV.
Notes
• Depending on the settings of the TV, the
System Audio Control function may not
be available. For details, refer to the
operating instructions of your TV.
• Depending on the TV, if the TV sound was
output from the speakers of the TV the
previous time you watched the TV, the
system may not turn on by interlocking
with the TV power even if the TV is turned
on.
37GB
Audio Return Channel
If the system is connected to a TV’s
HDMI IN jack compatible with Audio
Return Channel (ARC), you can listen to
TV sound from the speakers of the
system without connecting an optical
digital cable.
On the system, set
[Setup] [Advanced Settings] - [HDMI Settings] [TV Audio Input Mode] to [Auto]
(page 45). The default setting is [Auto].
Note
If the TV is not compatible with Audio
Return Channel, the optical digital cable
(not supplied) needs to be connected (refer
to the supplied Startup Guide).
One-Touch Play Function
When you play content on a device (Bluray Disc player, “PlayStation®4,” etc.)
connected to the system, the system
and TV are turned on automatically, the
input of the system is switched to the
input for the device played, and sound is
output from the speakers of the system.
Notes
• If
[Setup] - [Advanced Settings] [HDMI Settings] - [Standby Through] on
the system is set to [On] or [Auto] and the
TV sound was output from the speakers
of the TV the previous time you watched
the TV, the system may not turn on and
the sound and picture may be output
from the TV even if device content is
played (page 45).
• Depending on the TV, the beginning part
of content being played may not play
correctly.
38GB
Menu Operation by TV
Remote Control
You can select the system using the
SYNC MENU button on the TV remote
control and operate the system.
This function can be used if the TV
supports the Sync Menu. For details,
refer to the operating instructions of
your TV.
Notes
• In the TV’s Sync Menu, the system is
recognized by the TV as “Player.”
• Some operations may not be available
with some TVs.
HDMI Standby Through
Power Saving Setting
HDMI Standby Through power saving
setting (page 45) is a function that
allows you to enjoy the sound and
picture of a connected device without
turning on the system.
Set
[Setup] - [Advanced Settings] [HDMI Settings] - [Standby Through] to
[Auto] (page 45). The default setting is
[Auto].
Note
If the picture of a device connected to the
system is not displayed on the TV, set
[Standby Through] to [On]. If you connect a
TV other than those manufactured by
Sony, we recommend you to select this
setting.
Language Follow
When you change the language for the
on-screen display of the TV, the
system’s on-screen display language is
also changed.
Using the “BRAVIA” Sync
Function
In addition to the Control for HDMI
function, you can also use the following
functions on devices compatible with
the “BRAVIA” sync function.
• Sound mode/Scene Select function
• Home Theatre Control
Note
These functions are proprietary functions
of Sony. This function cannot operate with
products other than those manufactured
by Sony.
Sound mode/Scene Select
Function
The sound mode of the system is
automatically switched according to the
setting of the TV’s Scene Select function
or sound mode. For details, refer to the
operating instructions of your TV.
Set the sound mode to [Auto Sound]
(page 31).
Home Theatre Control
Function
When using a TV compatible with the
Home Theatre Control function, setting
the system, setting the sound mode
settings, input switching, etc. can be
done without switching the TV input.
This function can be used when the TV is
connected to the Internet. For details,
refer to the operating instructions of
your TV.
39GB
[Level]
Changing the Settings
Customizing the
Speaker Settings for
Surround Sound
To obtain a good surround sound, set
the speaker distance from your listening
position and their output level, etc.
The default settings are underlined.
1
2
3
4
Press HOME.
The home menu appears on the TV
screen.
Select
[Setup] - [Advanced
Settings] on the home menu.
Select [Speaker Settings] [Manual Speaker Settings].
The [Manual Speaker Settings]
screen appears on the TV screen.
Perform the speaker settings.
Select the setting item from the
following items by pressing /
and
, then set the value in
accordance with the environment
by pressing / and
.
[Distance]
Set the distance from the listening
position to the speakers.
You can set the value from 0 meters to
10 meters (0.1 m step) (0 ft to 33 ft (1/4 ft
step)).
[Front]: Sets the front speaker distance.
[Subwoofer]: Sets the subwoofer
distance.
Tip
You can change measurement units (feet
or meters) by pressing OPTIONS.
40GB
Adjust the sound level of the speakers.
You can set the value from -6.0 dB to 6.0
dB (0.5 dB step).
[Front]: Sets the front speaker level.
[Subwoofer]: Sets the subwoofer level.
[Test Tone]
The test tone is emitted from the
speakers for checking the available
speakers.
[Off]: The test tone is not emitted from
the speakers.
[On]: The test tone is emitted from the
speaker.
Changing the Brightness
of the Indicators
(DIMMER)
You can change the brightness of the
indicators on the main unit.
Saving Power in Standby
Mode
Check that you have made the following
settings:
– [Bluetooth Standby] is set to [Off]
(page 45).
– [Standby Through] is set to [Off]
(page 45).
DIMMER
1
2
Press DIMMER.
The display mode appears on the TV
screen.
Press the button repeatedly to
select the desired display mode.
Mode
Explanation
[Bright]
All the indicators light
brightly.
[Dark]
All the indicators light
darkly.
[Off]
All the indicators are
turned off.
Note
All the indicators on the main unit are
turned off when [Off] is selected. They turn
on automatically when you press any
button, then turn off again if you do not
operate the system for about 10 seconds.
However, in some cases, the indicators
may not turn off. In this case, the
brightness of the indicators is same as
[Dark].
41GB
Performing Easy Setup
You can make basic initial settings for
the system easily by performing Easy
Setup.
1
2
3
Press HOME.
The home menu appears on the TV
screen.
Select
[Setup] - [Easy Setup]
on the home menu.
Perform settings by following the
on-screen instructions.
42GB
Performing Advanced Settings
You can make various adjustments to items such as picture and sound.
The default settings are underlined.
1
2
3
Press HOME.
The home menu appears on the TV screen.
Select
[Setup] - [Advanced Settings] on the home menu.
The [Advanced Settings] screen appears on the TV screen.
Select the setting item.
Setting item
Explanation
[Speaker Settings]
Makes the speaker and subwoofer settings for
installing and connections. (page 44)
[Audio Settings]
Makes the audio output settings. (page 44)
[HDMI Settings]
Makes the HDMI settings. (page 44)
[Bluetooth Settings]
Makes detailed settings for the BLUETOOTH
function. (page 45)
[System Settings]
Makes the system-related settings. (page 45)
[Resetting]
Resets the system to the factory default settings.
(page 46)
[Software Update]
Updates the software of the system. (page 46)
43GB
[Speaker Settings]
[Manual Speaker Settings]
You can perform the speaker settings to
obtain the best possible surround
sound. For details, see “Customizing the
Speaker Settings for Surround Sound”
(page 40).
[Secure Link]
You can make wireless connection
securely for the subwoofer. For details,
see “Performing the Wireless
Connection of the Subwoofer (SECURE
LINK)” (page 23).
[Audio Settings]
[DSEE]
This function is only available when
[Auto Sound]* or [Music] is selected as
the sound mode.
[On]: Enhances sound quality by
restoring high-range sound (page 35).
[Off]: Off
* Only when [Music] is selected with [Auto
Sound].
[Audio DRC]
You can compress the dynamic range of
the sound track.
[Auto]: Automatically compresses
sound encoded in Dolby TrueHD.
[On]: The system reproduces the dolby
and DTS sound track with the kind of
dynamic range that the recording
engineer intended.
[Off]: No compression of dynamic
range.
[Sound Effect]
You can select sound effects such as the
sound mode.
[Sound Mode On]: Vertical Surround
Engine enhances the surround and
height speaker channels to create an
44GB
immersive and enveloping virtual
surround effect such as sound mode
(page 31) and vertical surround
(page 30).
[Dolby Speaker Virtualizer]: Dolby
Speaker Virtualizer enhances the
surround and height speaker channels
to create an immersive and enveloping
virtual surround effect when you play
Dolby format. Disables sound effects
other than Dolby format.
[Off]: Disables the sound effects. Select
this when you do not want to set the
upper limit of sampling frequency.
[Advanced Auto Volume]
You can reduce the change of volume
due to the input signal. This function is
effective when the volume of a TV
commercial is louder than that of the TV
program.
[On]: Adjusts the volume automatically.
[Off]: Off
Note
This function is not suitable for listening
to music.
[HDMI Settings]
[Control for HDMI]
[On]: The Control for HDMI function is
enabled. Devices connected with an
HDMI cable can control each other.
[Off]: Off
[Standby Linked to TV]
This function is available when you set
[Control for HDMI] to [On].
[Auto]: If the input of the system is [TV]
or [HDMI], the system turns off
automatically when you turn off the TV.
[On]: The system turns off automatically
when you turn off the TV regardless of
the input.
[Off]: The system does not turn off when
you turn off the TV.
[Standby Through]
This function is available when you set
[Control for HDMI] to [On].
[Auto]: Signals are output from the
system’s HDMI OUT (ARC) jack when
the TV is turned on while the system is
not turned on. The system standby
power consumption can be reduced
more than when set to [On].
[On]: Signals are always output from the
system’s HDMI OUT (ARC) jack when
the system is not turned on. If you
connect a TV other than those
manufactured by Sony, we recommend
that you select this setting.
[Off]: Signals are not output from the
system’s HDMI OUT (ARC) jack when
the system is not turned on. Turn on the
system to enjoy on the TV content of a
device connected to the system. The
system standby power consumption
can be reduced more than when set to
[On].
[TV Audio Input Mode]
Set this function when the system is
connected to a TV’s HDMI IN jack that is
compatible with Audio Return Channel.
The Audio Return Channel function is
available when you set [Control for
HDMI] to [On].
[Auto]: You can listen to TV sound from
the speakers of the system.
[Optical]: Use this setting when an
optical digital cable is connected.
[HDMI Signal Format]
You can select the HDMI signal format
for the input signal. For details, see
“Setting the HDMI Signal Format to
Watch 4K Video Content” (page 20).
[Bluetooth Settings]
[Bluetooth Mode]
You can enjoy content from a
BLUETOOTH device by using this
system.
[Receiver]: This system is in receiver
mode, which enables it to receive and
output audio from the BLUETOOTH
device.
[Off]: The BLUETOOTH function is turned
off and you cannot select the [Bluetooth
Audio] input.
[Bluetooth Standby]
You can set the [Bluetooth Standby] so
that the system can be turned on by a
BLUETOOTH device even when the
system is in standby mode. This
function is only available when you set
[Bluetooth Mode] to [Receiver].
[On]: The system turns on automatically
when you request a BLUETOOTH
connection from a paired BLUETOOTH
device.
[Off]: Off
[Bluetooth Codec - AAC]
This function is only available when you
set [Bluetooth Mode] to [Receiver].
[On]: Enables AAC codec.
[Off]: Disables AAC codec.
Note
You can enjoy high-quality sound if AAC is
enabled and your device supports AAC.
[System Settings]
[OSD Language]
You can select the language you want
for the system on-screen display.
[IR-Repeater]
[On]: Remote signals for the TV are sent
from the rear of the main unit.
[Off]: Turns off the function.
45GB
For details, see “When the TV Remote
Control does not Work” (page 24).
[Auto Standby]
[On]: Turns on the [Auto Standby]
function. When you do not operate the
system while no signal is input for about
20 minutes, the system enters standby
mode automatically.
[Off]: Off
[Device Name Setting]
You can change the name of this system
according to your preference so that it is
more recognizable when using the
[Bluetooth Audio] function. Follow onscreen instructions and use the
software keyboard to enter the name.
[Software License Information]
You can display the Software License
Information.
[Software Version]
The software version is displayed.
[Resetting]
You can reset the system settings to the
factory default by selecting the group of
settings. All the settings within the
group will be reset.
For details, see “Resetting the System”
(page 54).
Updating the Software
By updating your software to the latest
version, you can take advantage of the
newest functions.
For information about update functions,
visit the following website:
http://www.sony-asia.com/section/support
Notes
• It may take up to 40 minutes for the
update to be completed.
• While the updating operation is in
progress, do not turn on or off the system,
disconnect the AC power cord (mains
lead), disconnect/connect the HDMI
cable, or operate the system or TV. Wait
for the software update to complete.
1
2
3
Press HOME.
The home menu appears on the TV
screen.
Select
[Setup] - [Advanced
Settings] on the home menu.
Select [Software Update].
For details of updating, refer to the
instructions displayed when
downloading the update file.
The updating proceeds as follows.
1
When a software update starts,
all the indicators on the main unit
flash 4 times quickly. Then the
system automatically reboots.
2
During a software update, the
indicators on the main unit flash.
The flashing indicators increase
from 1 to 5 associated with the
updating progress.
3
After the update is complete, all
the indicators on the main unit
flash twice quickly, then the
system automatically reboots.
[Software Update]
You can update the software of the
system. For details, see “Updating the
Software” (page 46).
46GB
Note
You can perform [Software Update] by
pressing and holding the BLUETOOTH and
 button on the main unit for 7 seconds.
47GB
The system turns off when the TV is
turned off.
Troubleshooting
Troubleshooting
If you experience any of the following
difficulties while using the system, use
this troubleshooting guide to help
remedy the problem before requesting
repairs. Should any problem persist,
consult your nearest Sony dealer.
Be sure to bring both your main unit and
subwoofer, even if it seems as though
only one has a problem, when you
request to repair.
Power
The system does not power up.
 Check that the AC power cord (mains
lead) is connected securely.
 Disconnect the AC power cord (mains
lead) from the wall outlet (mains),
and then reconnect after several
minutes.
The system does not turn on even
when the TV is turned on.
 Set
[Setup] - [Advanced Settings]
- [HDMI Settings] - [Control for HDMI]
to [On] (page 44). The TV must
support the Control for HDMI function
(page 37). For details, refer to the
operating instructions of your TV.
 Check the speaker settings of the TV.
The system power syncs with the
speaker settings of the TV. For details,
refer to the operating instructions of
your TV.
 Depending on the TV, if the sound
was output from the speakers of the
TV the previous time, the system may
not turn on by interlocking with the
TV power even when the TV is turned
on.
48GB
 Check the setting of
[Setup] [Advanced Settings] - [HDMI Settings]
- [Standby Linked to TV] (page 44).
When [Standby Linked to TV] is set to
[On] or [Auto], the system turns off
automatically when you turn off the
TV.
The system does not turn off even
when the TV is turned off.
 Check the setting of
[Setup] [Advanced Settings] - [HDMI Settings]
- [Standby Linked to TV] (page 44). To
turn the system off automatically
regardless of the input when you turn
off the TV, set [Standby Linked to TV]
to [On]. The TV must support the
Control for HDMI function (page 37).
For details, refer to the operating
instructions of your TV.
The system cannot be turned off.
 The system may be in demo mode. To
cancel demo mode, reset the system.
Press and hold  (power) and –
(volume) on the main unit for more
than 5 seconds (page 54).
There is no picture or the picture is
not output correctly.
 Select the appropriate input
(page 25).
 When there is no picture while the TV
input is selected, select the TV
channel that you want using the TV
remote control.
 When there is no picture while the
HDMI input is selected, press the
playback button of the connected
device.
 Disconnect the HDMI cable, then
connect it again. Make sure that the
cable is firmly inserted.
 When there is no picture from the
connected device or the picture from
the connected device is not output
correctly, set
[Setup] - [Advanced
Settings] - [HDMI Settings] - [HDMI
Signal Format] - [HDMI IN] to
[Standard format] (page 20).
 If you connect a device supporting
HDCP 2.2, be sure to connect the
device to the HDMI IN jack and the TV
to the HDMI OUT jack of the system.
 The system is connected to an input
device that is not HDCP (Highbandwidth Digital Content
Protection) compliant. In this case,
check the specifications of the
connected device.
Picture and sound of the device that
is connected to the system are not
output from the TV when the
system is not turned on.
3D content from the HDMI IN jack do
not appear on the TV screen.
HDR contents cannot show as highdynamic range.
 Depending on the TV or video device,
3D content may not appear. Check
the supported HDMI video format
(page 59).
4K video content from the HDMI IN
jack do not appear on the TV screen.
 Depending on the TV or the video
device, 4K video content may not
appear. Check the video capability
and settings of your TV and video
device.
 The picture may not be displayed
properly if the [HDMI Signal Format]
setting is changed. In this case,
change the setting to [Standard
format] (page 20).
 Use a Premium High Speed HDMI
Cable with Ethernet that supports
18Gbps or High Speed HDMI Cable
with Ethernet (page 59).
An image is not displayed on the
entire TV screen.
 The aspect ratio on the media is fixed.
 Set
[Setup] - [Advanced Settings]
- [HDMI Settings] - [Control for HDMI]
to [On] on the system, and then set
[Standby Through] to [Auto] or [On]
(page 45).
 Turn on the system, and then switch
the input for the device playing.
 If connected to devices other than
those manufactured by Sony that
support the Control for HDMI
function, set
[Setup] - [Advanced
Settings] - [HDMI Settings] - [Standby
Through] to [On] (page 45).
 Check the settings of the TV and
connected device. For details, refer to
the operating instructions of your TV
and the connected device.
 Some devices may convert HDR
contents to SDR if the bandwidth is
not enough. In that case, set
[Setup] - [Advanced Settings] [HDMI Settings] - [HDMI Signal
Format] - [HDMI IN] to [Enhanced
format] if the TV and the connected
device support a bandwidth of up to
18Gbps (page 20). When you select
[Enhanced format], be sure to use a
Premium High Speed HDMI Cable
with Ethernet that supports 18Gbps
(page 59).
Sound
The system cannot connect to a TV
with the BLUETOOTH function.
 When you connect the system and TV
with an HDMI cable (supplied), the
BLUETOOTH connection is canceled.
49GB
No TV sound is output from the
system.
 Check the type and connection of the
HDMI cable, optical digital cable, or
analog audio cable that is connected
to the system and the TV (refer to the
supplied Startup Guide).
 Disconnect the cables that are
connected between the TV and the
system, then connect them firmly
again. Disconnect the AC power cords
(mains leads) of the TV and the
system from the AC outlets (mains),
then connect them again.
 When the system and TV are
connected with an HDMI cable, check
the following.
– The HDMI jack of the connected TV
is labeled with “ARC.”
– The Control for HDMI function of the
TV is set to on.
– On the system, [Control for HDMI] is
set to [On] and [TV Audio Input
Mode] to [Auto] (page 45).
 If your TV is not compatible with
Audio Return Channel, connect the
optical digital cable (not supplied)
(refer to the supplied Startup Guide).
If the TV is not compatible with Audio
Return Channel, TV sound will not be
output from the system even if the
system is connected to the TV’s HDMI
IN jack.
 Switch the input of the system to the
TV input. When you connect the
system and TV with an analog audio
cable (not supplied), switch input of
the system to the ANALOG input
(page 29).
 Increase the volume on the system or
cancel muting.
 If sound of a cable box/satellite box
connected to the TV is not output,
connect the device to a HDMI IN jack
of the system and switch input of the
system to [HDMI] (refer to the
supplied Startup Guide).
50GB
 Depending on the order in which you
connect the TV and the system, the
system may be muted and the TV and
USB indicators flash slowly. If this
happens, turn on the TV first, then the
system.
 Set the speakers setting of the TV
(BRAVIA) to Audio System. Refer to
the operating instructions of your TV
regarding how to set the TV.
Picture and sound of the device that
is connected to the system are not
output from the TV when the
system is not turned on.
 Set
[Setup] - [Advanced Settings]
- [HDMI Settings] - [Control for HDMI]
to [On] on the system, and then set
[Standby Through] to [Auto] or [On]
(page 45).
 Turn on the system, and then switch
the input for the device playing.
 If connected to devices other than
those manufactured by Sony that
support the Control for HDMI
function, set
[Setup] - [Advanced
Settings] - [HDMI Settings] - [Standby
Through] to [On] (page 45).
The sound is output from both the
system and TV.
 Mute the sound of the system or TV.
The TV sound from this system lags
behind the image.
 Set [A/V Sync] to 0 msec if it is set to
the range between 25 msec and 300
msec (page 33).
 A time gap between the sound and
picture may occur depending on the
sound source. If your TV has a
function that delays the image, use it
for adjustment.
No sound or only a very low-level
sound of the device connected to
the system is heard.
 Press  + on the remote control and
check the volume level (page 10).
 Press  or  + on the remote control
to cancel the muting function
(page 10).
 Make sure the input source is
selected correctly. You should try
other input sources by pressing the
input select button on the remote
control (TV/HDMI/ANALOG/USB/
BLUETOOTH) (page 10).
 Check that all the cables and cords of
the system and connected device are
firmly inserted.
 When you play content compatible
with copyright protection technology
(HDCP), it may not be output from the
system.
 Set
[Setup] - [Advanced Settings]
- [HDMI Settings] - [HDMI Signal
Format] to [Standard format]
(page 20).
The surround effect cannot be
obtained.
 Depending on the input signal and
the sound mode setting, surround
sound processing may not work
effectively. The surround effect may
be subtle, depending on the program
or disc.
 To play multi-channel audio, check
the digital audio output setting on
the device connected to the system.
For details, refer to the operating
instructions supplied with the
connected device.
Subwoofer
No sound or only a very low-level
sound is heard from the subwoofer.
 Press SW  + on the remote control
to increase the subwoofer volume
(page 33).
 Make sure that the power indicator
on the subwoofer is lit in green or
amber.
 If the power indicator on the
subwoofer does not light, try the
following.
– Make sure the AC power cord
(mains lead) of the subwoofer is
connected properly.
– Press  (power) of the subwoofer
to turn on the power.
 If the power indicator on the
subwoofer flashes slowly in green or
amber, or lights in red, try the
following.
– Move the subwoofer to a location
near the main unit so that the power
indicator on the subwoofer lights in
green or amber.
– Follow the steps in “Performing the
Wireless Connection of the
Subwoofer (SECURE LINK)”
(page 23).
 If the power indicator on the
subwoofer flashes in red, press 
(power) of the subwoofer to turn off
the power and check whether the
ventilation holes of the subwoofer is
blocked or not.
 If the input sources contain very little
bass sound components (i.e., a TV
broadcast), the sound from the
subwoofer may be difficult to hear.
You can check the subwoofer sound
by emitting the test tone (page 40).
 Set the night mode to off. For details,
see “Enjoying Clear Sound with Low
Volume at Midnight (NIGHT)”
(page 32).
Sound skips or has noise.
 If there is a device nearby that
generates electromagnetic waves,
such as a wireless LAN or a
microwave oven in use, locate the
system apart from it.
 If there is an obstacle between the
main unit and the subwoofer, move
or remove it.
 Locate the main unit and the
subwoofer as close as possible.
51GB
 Switch the wireless LAN frequency of
any nearby wireless LAN router or PC
to 5 GHz range.
 Switch the network connection of the
TV or Blu-ray Disc player from
wireless to wired.
USB Device Connection
The USB device is not recognized.
 Try the following:
 Turn the system off.
 Remove and reconnect the USB
device.
 Turn the system on.
 Make sure that the USB device is
securely connected to the (USB)
port (page 28).
 Check to see if the USB device or a
cable is damaged.
 Make sure that the USB device is on.
 If the USB device is connected via a
USB hub, disconnect it and connect
the USB device directly to the system.
 When connecting a WALKMAN® or
smartphone, its internal storage or
external storage (such as a memory
card) may not be recognized.
Mobile Device Connection
Pairing cannot be achieved.
 Bring this system and the
BLUETOOTH device closer together.
 Make sure this system is not receiving
interference from a wireless LAN
device, other 2.4 GHz wireless
devices, or a microwave oven. If a
device that generates
electromagnetic radiation is nearby,
move the device away from this
system.
52GB
BLUETOOTH connection cannot be
completed.
 Make sure that the BLUETOOTH
indicator of the main unit is lit
(page 27).
 Make sure the BLUETOOTH device to
be connected with is turned on and
the BLUETOOTH function is enabled.
 Bring this system and the
BLUETOOTH device closer together.
 Pair this system and the BLUETOOTH
device again. You may need to cancel
the pairing with this system using
your BLUETOOTH device first.
 Pairing information may be deleted.
Perform pairing operation again
(page 26).
Sound of the connected
BLUETOOTH mobile device is not
output from the system.
 Make sure that the BLUETOOTH
indicator of the main unit is lit
(page 27).
 Bring this system and the
BLUETOOTH device closer together.
 If a device that generates
electromagnetic radiation, such as a
wireless LAN device, other
BLUETOOTH devices, or a microwave
oven is nearby, move the device away
from this system.
 Remove any obstacle between this
system and the BLUETOOTH device or
move this system away from the
obstacle.
 Reposition the connected
BLUETOOTH device.
 Switch the wireless LAN frequency of
any nearby wireless LAN router or PC
to 5 GHz range.
 Increase the volume on the
connected BLUETOOTH device.
Remote Control
The remote control of this system
does not function.
 Point the remote control at the
remote control sensor on the main
unit (page 7).
 Remove any obstacles in the path
between the remote control and the
system.
 Replace both batteries in the remote
control with new ones, if they are
weak.
 Make sure you are pressing the
correct button on the remote control.
TV remote control does not work.
 This problem might be solved by
enabling the IR repeater function
(page 24).
Others
The Control for HDMI function does
not work properly.
 Check the connection with the
system (refer to the supplied Startup
Guide).
 Enable the Control for HDMI function
on the TV. For details, refer to the
operating instructions of your TV.
 Wait a while, and then try again. If
you unplug the system, it will take a
while before operations can be made.
Wait for 15 seconds or longer, and
then try again.
 Make sure the devices connected to
the system support the Control for
HDMI function.
 Enable the Control for HDMI function
on the devices connected to the
system. For details, refer to the
operating instructions of your device.
 The type and number of devices that
can be controlled by the Control for
HDMI function is restricted by the
HDMI CEC standard as follows:
– Recording devices (Blu-ray Disc
recorder, DVD recorder, etc.): up to
3 devices
– Playback devices (Blu-ray Disc
player, DVD player, etc.): up to 3
devices (this system uses one of
them)
– Tuner-related devices: up to 4
devices
– Audio system (receiver/
headphones): up to 1 device (used
by this system)
All the indicators flash quickly and
the system is turned off.
 Disconnect the AC power cord (mains
lead) and make sure nothing is
obstructing the ventilation holes of
the system.
Sensors of the TV do not work
properly.
 The main unit may block some
sensors (such as the brightness
sensor), the remote control receiver
of your TV or the emitter for 3D
glasses (infrared transmission) of a 3D
TV that supports the infrared 3D glass
system, or wireless communication.
Move the main unit away from the TV
within a range that allow those parts
to operate properly. For the locations
of the sensors and remote control
receiver, refer to the operating
instructions supplied with the TV.
Wireless functions (the BLUETOOTH
function or subwoofer) are
unstable.
 Do not place metal objects other than
a TV around the system.
Music that you are not familiar with
suddenly plays.
 The pre-installed sample music may
have been played. Press
on the
main unit to stop playback.
53GB
The system cannot be turned off or
[Advanced Settings] cannot be
used./When pressing  (power), all
the indicators flash and the system
cannot be turned off.
 The system may be in demo mode. To
cancel demo mode, reset the system.
Press and hold  (power) and –
(volume) on the main unit for more
than 5 seconds (page 54).
The system restarts.
 When connecting to a TV with a
resolution that is different from that
of the system, the system may restart
to reset the picture output setting.
Resetting the System
If the system still does not operate
properly, reset the system as follows.
1
2
3
4
5
Press HOME.
The home menu appears on the TV
screen.
Select
[Setup] - [Advanced
Settings] on the home menu.
Select [Resetting].
Select the menu item you want to
reset.
Select [Start].
To cancel resetting
Select [Cancel] in step 5.
If You Cannot Perform
Resetting Using the Home
Menu
Press and hold  (power) and –
(volume) on the main unit for more
than 5 seconds.
The settings return to their initial
status.
Note
By resetting, the link with the subwoofer
may be lost. In this case, perform
“Performing the Wireless Connection of
the Subwoofer (SECURE LINK)” (page 23).
54GB
Additional Information
Specifications
Bar Speaker (SA-X9000F)
Amplifier section
POWER OUTPUT (rated)
Front L + Front R: 60 W + 60 W
(at 4 ohms, 1 kHz, 1% THD)
POWER OUTPUT (reference)
Front L/Front R speaker blocks: 100 W
(per channel at 4 ohms, 1 kHz)
Inputs
HDMI IN*
ANALOG IN
TV IN (OPT)
Outputs
HDMI OUT (TV (ARC))*
* HDMI IN and HDMI OUT (TV (ARC)) jacks
support HDCP 2.2 protocol. HDCP 2.2 is
newly enhanced copyright protection
technology that is used to protect
content such as 4K movies.
Modulation method
FHSS (Freq Hopping Spread Spectrum)
Compatible BLUETOOTH profiles2)
A2DP (Advanced Audio Distribution
Profile)
AVRCP (Audio Video Remote Control
Profile)
Supported Codecs3)
SBC4), AAC5)
Transmission range (A2DP)
20 Hz - 20,000 Hz (Sampling frequency
32 kHz, 44.1 kHz, 48 kHz)
1)
The actual range will vary depending on
factors such as obstacles between
devices, magnetic fields around a
microwave oven, static electricity,
cordless phone use, reception
sensitivity, the operating system,
software applications, etc.
2)
BLUETOOTH standard profiles indicate
the purpose of BLUETOOTH
communication between devices.
3)
Codec: Audio signal compression and
conversion format
4)
Abbreviation for Subband Codec
5)
Abbreviation for Advanced Audio
Coding
Front L/Front R speaker block section
Connector
Type A (19pin)
Speaker system
Full Range speaker system, Acoustic
suspension
Speaker
40 mm × 100 mm cone type
USB section
General
HDMI Section
(USB) port:
Type A (For connecting USB memory)
BLUETOOTH section
Communication system
BLUETOOTH Specification version 4.2
Output
BLUETOOTH Specification Power
Class 1
Maximum communication range
Line of sight approx. 30 m1)
Maximum number of devices to be
registered
9 devices
Frequency band
2.4 GHz band (2.4 GHz - 2.4835 GHz)
Power requirements
220 V - 240 V AC, 50 Hz/60 Hz
Power consumption
On: 38 W
[Bluetooth Standby] - [On]: Less than
2W
[Bluetooth Standby] - [Off]: Less than
0.5 W
Dimensions* (approx.) (w/h/d)
930 mm × 58 mm × 85 mm
*Not including projection portion
Mass (approx.)
2.5 kg
55GB
Subwoofer (SA-WX9000F)
POWER OUTPUT (reference)
100 W (at 4 ohms, 100 Hz)
Speaker system
Subwoofer speaker system, Bass
reflex
Speaker
160 mm cone type
Power requirements
220 V - 240 V AC, 50 Hz/60 Hz
Power consumption
On: 20 W
Standby mode: 0.5 W or less
Dimensions (approx.) (w/h/d)
190 mm × 382 mm × 387 mm (not
including projection portion)
Mass (approx.)
7.8 kg
Wireless Transmitter/
Receiver Section
Frequency band
2.4 GHz (2.4000 GHz - 2.4835 GHz)
Modulation method
FHSS (Freq Hopping Spread Spectrum)
Design and specifications are subject to
change without notice.
56GB
Playable Types of Audio
Files
Codec
Extension
MP3 (MPEG-1 Audio
Layer III)
.mp3
AAC/HE-AAC
.m4a, .aac, .mp4,
.3gp
WMA9 Standard
.wma
LPCM
.wav
FLAC
.flac
DSF
.dsf
DSDIFF*
.dff
AIFF
.aiff, .aif
ALAC
.m4a
Vorbis
.ogg
Monkey’s Audio
.ape
* The system does not play DST encoded
files.
Notes
• Some files may not play depending on
the file format, file encoding, recording
condition, or other conditions.
• Some files edited on a PC may not play.
• Fast forward or fast reverse may not be
available with some files.
• The system does not play coded files such
as DRM.
• The system cannot recognize a file/folder
depending on the name/meta-data.
• Some USB devices may not work with this
system.
• The system can recognize Mass Storage
Class (MSC) devices (such as flash
memory).
57GB
Supported Input Audio Formats
Audio formats supported by this system are as follows.
Format
Function
“HDMI”
“TV”
(ARC)
“TV”
(OPT)
LPCM 2ch



LPCM 5.1ch

–
–
LPCM 7.1ch

–
–
Dolby Digital



Dolby TrueHD

–
–
Dolby Digital Plus


–
Dolby Atmos - Dolby TrueHD

–
–
Dolby Atmos - Dolby Digital Plus


–
DTS



DTS-ES Discrete 6.1, DTS-ES Matrix 6.1



DTS 96/24



DTS-HD High Resolution Audio

–
–
DTS-HD Master Audio

–
–
DTS-HD LBR

–
–
DTS:X

–
–
DSD

–
–
: Supported format.
–: Unsupported format.
Note
The HDMI IN jack does not support audio format that contains copy protections, such as
Super Audio CD or DVD-Audio.
58GB
Supported HDMI Video Formats
Video formats supported by this system are as follows.
Resolution
Frame Rate
4K
4096 × 2160p3)
3840 × 2160p
50/59.94/60 Hz
23.98/24/25/29.97/30 Hz
50/59.94/60 Hz
4K
4096 × 2160p3)
3840 × 2160p 23.98/24/25/29.97/30 Hz
1920 × 1080p
25/29.97/30/50/
59.94/60 Hz
1920 × 1080i
50/59.94/60 Hz
3D
Color Space
Color Depth
–
RGB 4:4:4
YCbCr 4:4:4
8 bit
–
YCbCr 4:2:2
8/10/12 bit
–
YCbCr 4:2:0
10/12 bit
–
RGB 4:4:4
YCbCr 4:4:4
10/12 bit
–
YCbCr 4:2:0
8 bit
–
RGB 4:4:4
YCbCr 4:4:4
8 bit
–
YCbCr 4:2:2
8/10/12 bit
[Enhanced format]1)
–
23.98/24 Hz
1280 × 720p
[HDMI Signal
Format] setting
[Standard format]2)
RGB 4:4:4
YCbCr 4:4:4
YCbCr 4:2:2
50/59.94/60 Hz
23.98/24/29.97/30 Hz
–
720 × 480p
59.94/60 Hz
–
720 × 576p
50 Hz
–
640 × 480p
59.94/60 Hz
–
8/10/12 bit
RGB 4:4:4
: Compatible with 3D signal in Side-by-Side (Half)3) format
: Compatible with 3D signal in Frame packing and Over-Under (Top-and-Bottom)3)
format
1)
2)
3)
Use a Premium High Speed HDMI Cable with Ethernet that supports 18Gbps.
Use a Premium High Speed HDMI Cable with Ethernet or Sony High Speed HDMI Cable
with Ethernet with the Cable Type Logo.
The OPTIONS button does not work and the On-Screen Display (OSD) of the system is
not displayed.
Notes on HDMI Jack and HDMI Connections
• Use an HDMI-authorized cable.
• We do not recommend using an HDMI-DVI conversion cable.
• Audio signals (sampling frequency, bit length, etc.) transmitted from an HDMI jack
may be suppressed by the connected device.
• Sound may be interrupted when the sampling frequency or the number of channels
of audio output signals from the playback device is switched.
59GB
• When the TV input is selected, video signals via the HDMI IN jack selected last time
are output from the HDMI OUT (TV (ARC)) jack.
• This system supports “TRILUMINOS.”
• All HDMI IN and HDMI OUT jacks support bandwidth up to 18Gbps, HDCP 2.21),
BT.2020 wide color spaces2), and HDR (High Dynamic Range)3) contents passthrough.
• When connecting to a TV with a resolution that is different from that of the system,
the system may restart to reset the picture output setting.
1)
2)
3)
HDCP 2.2 is newly enhanced copyright protection technology that is used to protect
content such as 4K movies.
BT.2020 color space is new wider color standard that is defined for ultra-high definition
television systems.
HDR is an emerging video format that can display a wider range of brightness levels.
The system is compatible with HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision.
60GB
On BLUETOOTH
Communication
• BLUETOOTH devices should be used
within approximately 10 meters (33 feet)
(unobstructed distance) of each other.
The effective communication range may
become shorter under the following
conditions.
– When a person, metal object, wall or
other obstruction is between the
devices with a BLUETOOTH connection
– Locations where a wireless LAN is
installed
– Around microwave ovens that are in use
– Locations where other electromagnetic
waves occur
• BLUETOOTH devices and wireless LAN
(IEEE 802.11 b/g/n) use the same
frequency band (2.4 GHz). When using
your BLUETOOTH device near a device
with wireless LAN capability,
electromagnetic interference may occur.
This could result in lower data transfer
rates, noise, or inability to connect. If this
happens, try the following remedies:
– Use this system at least 10 meters
(33 feet) away from the wireless LAN
device.
– Turn off the power to the wireless LAN
device when using your BLUETOOTH
device within 10 meters (33 feet).
– Install this system and BLUETOOTH
device as closer to each other as
possible.
• The radio waves broadcast by this system
may interfere with the operation of some
medical devices. Since this interference
may result in malfunction, always turn off
the power on this system and
BLUETOOTH device in the following
locations:
– In hospitals, on trains, in airplanes, at
gas stations, and any place where
flammable gasses may be present
– Near automatic doors or fire alarms
• This system supports security functions
that comply with the BLUETOOTH
specification to ensure secure connection
during communication using BLUETOOTH
technology. However, this security may
be insufficient depending on the setting
content and other factors, so always be
careful when performing communication
using BLUETOOTH technology.
• Sony cannot be held liable in any way for
damages or other loss resulting from
information leaks during communication
using BLUETOOTH technology.
• BLUETOOTH communication is not
necessarily guaranteed with all
BLUETOOTH devices that have the same
profile as this system.
• BLUETOOTH devices connected with this
system must comply with the
BLUETOOTH specification prescribed by
the Bluetooth SIG, Inc., and must be
certified to comply. However, even when
a device complies with the BLUETOOTH
specification, there may be cases where
the characteristics or specifications of the
BLUETOOTH device make it impossible to
connect, or may result in different control
methods, display or operation.
• Noise may occur or the audio may cut off
depending on the BLUETOOTH device
connected with this system, the
communications environment, or
surrounding conditions.
If you have any questions or problems
concerning your system, please consult
your nearest Sony dealer.
61GB
COPYRIGHT
END USER LICENSE
AGREEMENT
BEFORE USING THE SOFTWARE, PLEASE
READ THIS END USER LICENSE
AGREEMENT (“EULA”) CAREFULLY. BY
USING THE SOFTWARE YOU ARE
ACCEPTING THE TERMS OF THIS EULA. IF
YOU DO NOT ACCEPT THE TERMS OF
THIS EULA, YOU MAY NOT USE THE
SOFTWARE.
This EULA is a legal agreement between
you and Sony Video & Sound Products
Inc. (“SONY”). This EULA governs your
rights and obligations regarding the
SONY software of SONY and/or its third
party licensors (including SONY’s
affiliates) and their respective affiliates
(collectively, the “THIRD-PARTY
SUPPLIERS”), together with any
updates/upgrades provided by SONY,
any printed, on-line or other electronic
documentation for such software, and
any data files created by operation of
such software (collectively, the
“SOFTWARE”).
Notwithstanding the foregoing, any
software in the SOFTWARE having a
separate end user license agreement
(including, but not limited to, GNU
General Public license and Lesser/
Library General Public License) shall be
covered by such applicable separate
end user license agreement in lieu of
the terms of this EULA to the extent
required by such separate end user
license agreement (“EXCLUDED
SOFTWARE”).
SOFTWARE LICENSE
The SOFTWARE is licensed, not sold. The
SOFTWARE is protected by copyright
and other intellectual property laws and
international treaties.
62GB
All right and title in and to the
SOFTWARE (including, but not limited
to, any images, photographs,
animation, video, audio, music, text and
“applets” incorporated into the
SOFTWARE) is owned by SONY or one or
more of the THIRD-PARTY SUPPLIERS.
GRANT OF LICENSE
SONY grants you a limited license to use
the SOFTWARE solely in connection with
your compatible device (“DEVICE”) and
only for your individual, noncommercial use. SONY and the THIRDPARTY SUPPLIERS expressly reserve all
rights, title and interest (including, but
not limited to, all intellectual property
rights) in and to the SOFTWARE that this
EULA does not specifically grant to you.
REQUIREMENTS AND
LIMITATIONS
You may not copy, publish, adapt,
redistribute, attempt to derive source
code, modify, reverse engineer,
decompile, or disassemble any of the
SOFTWARE, whether in whole or in part,
or create any derivative works from or of
the SOFTWARE unless such derivative
works are intentionally facilitated by the
SOFTWARE. You may not modify or
tamper with any digital rights
management functionality of the
SOFTWARE. You may not bypass,
modify, defeat or circumvent any of the
functions or protections of the
SOFTWARE or any mechanisms
operatively linked to the SOFTWARE.
You may not separate any individual
component of the SOFTWARE for use on
more than one DEVICE unless expressly
authorized to do so by SONY. You may
not remove, alter, cover or deface any
trademarks or notices on the
SOFTWARE. You may not share,
distribute, rent, lease, sublicense,
assign, transfer or sell the SOFTWARE.
The software, network services or other
products other than SOFTWARE upon
which the SOFTWARE’S performance
depends might be interrupted or
discontinued at the discretion of the
suppliers (software suppliers, service
suppliers, or SONY). SONY and such
suppliers do not warrant that the
SOFTWARE, network services, contents
or other products will continue to be
available, or will operate without
interruption or modification.
USE OF SOFTWARE WITH
COPYRIGHTED MATERIALS
The SOFTWARE may be capable of
being used by you to view, store,
process and/or use content created by
you and/or third parties. Such content
may be protected by copyright, other
intellectual property laws, and/or
agreements. You agree to use the
SOFTWARE only in compliance with all
such laws and agreements that apply to
such content. You acknowledge and
agree that SONY may take appropriate
measures to protect the copyright of
content stored, processed or used by
the SOFTWARE. Such measures include,
but are not limited to, counting the
frequency of your backup and
restoration through certain SOFTWARE
features, refusal to accept your request
to enable restoration of data, and
termination of this EULA in the event of
your illegitimate use of the SOFTWARE.
CONTENT SERVICE
PLEASE ALSO NOTE THAT THE
SOFTWARE MAY BE DESIGNED TO BE
USED WITH CONTENT AVAILABLE
THROUGH ONE OR MORE CONTENT
SERVICES (“CONTENT SERVICE”). USE OF
THE SERVICE AND THAT CONTENT IS
SUBJECT TO THE TERMS OF SERVICE OF
THAT CONTENT SERVICE. IF YOU
DECLINE TO ACCEPT THOSE TERMS,
YOUR USE OF THE SOFTWARE WILL BE
LIMITED. You acknowledge and agree
that certain content and services
available through the SOFTWARE may
be provided by third parties over which
SONY has no control. USE OF THE
CONTENT SERVICE REQUIRES AN
INTERNET CONNECTION. THE CONTENT
SERVICE MAY BE DISCONTINUED AT ANY
TIME.
INTERNET CONNECTIVITY AND
THIRD PARTY SERVICES
You acknowledge and agree that access
to certain SOFTWARE features may
require an Internet connection for which
you are solely responsible. Further, you
are solely responsible for payment of
any third party fees associated with your
Internet connection, including but not
limited to Internet service provider or
airtime charges. Operation of the
SOFTWARE may be limited or restricted
depending on the capabilities,
bandwidth or technical limitations of
your Internet connection and service.
The provision, quality and security of
such Internet connectivity are the sole
responsibility of the third party
providing such service.
EXPORT AND OTHER
REGULATIONS
You agree to comply with all applicable
export and re-export restrictions and
regulations of the area or country in
which you reside, and not to transfer, or
authorize the transfer, of the SOFTWARE
to a prohibited country or otherwise in
violation of any such restrictions or
regulations.
HIGH RISK ACTIVITIES
The SOFTWARE is not fault-tolerant and
is not designed, manufactured or
intended for use or resale as on-line
control equipment in hazardous
environments requiring fail-safe
performance, such as in the operation
63GB
of nuclear facilities, aircraft navigation
or communication systems, air traffic
control, direct life support machines, or
weapons systems, in which the failure
of the SOFTWARE could lead to death,
personal injury, or severe physical or
environmental damage (“HIGH RISK
ACTIVITIES”). SONY, each of the THIRDPARTY SUPPLIERS, and each of their
respective affiliates specifically disclaim
any express or implied warranty, duty or
condition of fitness for HIGH RISK
ACTIVITIES.
EXCLUSION OF WARRANTY ON
SOFTWARE
You acknowledge and agree that use of
the SOFTWARE is at your sole risk and
that you are responsible for use of the
SOFTWARE. The SOFTWARE is provided
“AS IS,” without warranty, duty or
condition of any kind.
SONY AND EACH OF THE THIRD-PARTY
SUPPLIERS (for purposes of this Section,
SONY and each of the THIRD-PARTY
SUPPLIERS shall be collectively referred
to as “SONY”) EXPRESSLY DISCLAIM ALL
WARRANTIES, DUTIES OR CONDITIONS,
EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY,
NONINFRINGEMENT AND FITNESS FOR A
PARTICULAR PURPOSE. SONY DOES NOT
WARRANT OR MAKE ANY CONDITIONS
OR REPRESENTATIONS (A) THAT THE
FUNCTIONS CONTAINED IN ANY OF THE
SOFTWARE WILL MEET YOUR
REQUIREMENTS OR THAT THEY WILL BE
UPDATED, (B) THAT THE OPERATION OF
ANY OF THE SOFTWARE WILL BE
CORRECT OR ERROR-FREE OR THAT ANY
DEFECTS WILL BE CORRECTED, (C) THAT
THE SOFTWARE WILL NOT DAMAGE ANY
OTHER SOFTWARE, HARDWARE OR
DATA, (D) THAT ANY SOFTWARE,
NETWORK SERVICES (INCLUDING THE
INTERNET) OR PRODUCTS (OTHER THAN
64GB
THE SOFTWARE) UPON WHICH THE
SOFTWARE’S PERFORMANCE DEPENDS
WILL CONTINUE TO BE AVAILABLE,
UNINTERRUPTED OR UNMODIFIED, AND
(E) REGARDING THE USE OR THE
RESULTS OF THE USE OF THE SOFTWARE
IN TERMS OF ITS CORRECTNESS,
ACCURACY, RELIABILITY, OR
OTHERWISE.
NO ORAL OR WRITTEN INFORMATION
OR ADVICE GIVEN BY SONY OR AN
AUTHORIZED REPRESENTATIVE OF
SONY SHALL CREATE A WARRANTY,
DUTY OR CONDITION OR IN ANY WAY
INCREASE THE SCOPE OF THIS
WARRANTY. SHOULD THE SOFTWARE
PROVE DEFECTIVE YOU ASSUME THE
ENTIRE COST OF ALL NECESSARY
SERVICING, REPAIR OR CORRECTION.
SOME JURISDICTIONS DO NOT ALLOW
THE EXCLUSION OF IMPLIED
WARRANTIES, SO THESE EXCLUSIONS
MAY NOT APPLY TO YOU.
LIMITATION OF LIABILITY
SONY AND EACH OF THE THIRD-PARTY
SUPPLIERS (for purposes of this Section,
SONY and each of the THIRD-PARTY
SUPPLIERS shall be collectively referred
to as “SONY”) SHALL NOT BE LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES FOR BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY,
BREACH OF CONTRACT, NEGLIGENCE,
STRICT LIABILITY OR UNDER ANY OTHER
LEGAL THEORY RELATED TO THE
SOFTWARE, INCLUDING, BUT NOT
LIMITED TO, ANY DAMAGES ARISING
OUT OF LOSS OF PROFITS, LOSS OF
REVENUE, LOSS OF DATA, LOSS OF USE
OF THE SOFTWARE OR ANY ASSOCIATED
HARDWARE, DOWN TIME AND USER’S
TIME, EVEN IF ANY OF THEM HAVE BEEN
ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. IN ANY CASE, EACH AND ALL
OF THEIR AGGREGATE LIABILITY UNDER
ANY PROVISION OF THIS EULA SHALL BE
LIMITED TO THE AMOUNT ACTUALLY
PAID FOR THE PRODUCT. SOME
JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL
DAMAGES, SO THE ABOVE EXCLUSION
OR LIMITATION MAY NOT APPLY TO
YOU.
AUTOMATIC UPDATE FEATURE
From time to time, SONY or the THIRDPARTY SUPPLIERS may automatically
update or otherwise modify the
SOFTWARE, including, but not limited
to, for purposes of enhancement of
security functions, error correction and
improvement of functions, at such time
as you interact with SONY’s or third
parties’ servers, or otherwise. Such
updates or modifications may delete or
change the nature of features or other
aspects of the SOFTWARE, including,
but not limited to, functions you may
rely upon. You acknowledge and agree
that such activities may occur at SONY’s
sole discretion and that SONY may
condition continued use of the
SOFTWARE upon your complete
installation or acceptance of such
update or modifications. Any updates/
modifications shall be deemed to be,
and shall constitute part of, the
SOFTWARE for purposes of this EULA. By
acceptance of this EULA, you consent to
such update/modification.
ENTIRE AGREEMENT, WAIVER,
SEVERABILITY
This EULA and SONY’s privacy policy,
each as amended and modified from
time to time, together constitute the
entire agreement between you and
SONY with respect to the SOFTWARE.
The failure of SONY to exercise or
enforce any right or provision of this
EULA shall not constitute a waiver of
such right or provision. If any part of this
EULA is held invalid, illegal, or
unenforceable, that provision shall be
enforced to the maximum extent
permissible so as to maintain the intent
of this EULA, and the other parts will
remain in full force and effect.
GOVERNING LAW AND
JURISDICTION
The United Nations Convention on
Contracts for the International Sale of
Goods shall not apply to this EULA. This
EULA shall be governed by the laws of
Japan, without regards to conflict of
laws provisions. Any dispute arising out
of this EULA shall be subject to the
exclusive venue of the Tokyo District
Court in Japan, and the parties hereby
consent to the venue and jurisdiction of
such courts.
EQUITABLE REMEDIES
Notwithstanding anything contained in
this EULA to the contrary, you
acknowledge and agree that any
violation of or non-compliance with this
EULA by you will cause irreparable harm
to SONY, for which monetary damages
would be inadequate, and you consent
to SONY obtaining any injunctive or
equitable relief that SONY deems
necessary or appropriate in such
circumstances. SONY may also take any
legal and technical remedies to prevent
violation of and/or to enforce this EULA,
including, but not limited to, immediate
termination of your use of the
SOFTWARE, if SONY believes in its sole
discretion that you are violating or
intend to violate this EULA. These
remedies are in addition to any other
remedies SONY may have at law, in
equity or under contract.
TERMINATION
Without prejudice to any of its other
rights, SONY may terminate this EULA if
you fail to comply with any of its terms.
In case of such termination, you must
cease all use, and destroy any copies, of
the SOFTWARE.
65GB
AMENDMENT
SONY RESERVES THE RIGHT TO AMEND
ANY OF THE TERMS OF THIS EULA AT ITS
SOLE DISCRETION BY POSTING NOTICE
ON A SONY DESIGNATED WEB SITE, BY
EMAIL NOTIFICATION TO AN EMAIL
ADDRESS PROVIDED BY YOU, BY
PROVIDING NOTICE AS PART OF THE
PROCESS IN WHICH YOU OBTAIN
UPGRADES/UPDATES OR BY ANY OTHER
LEGALLY RECOGNIZABLE FORM OF
NOTICE. If you do not agree to the
amendment, you should promptly
contact SONY for instructions. Your
continued use of the SOFTWARE after
the effective date of any such notice
shall be deemed your agreement to be
bound by such amendment.
THIRD-PARTY BENEFICIARIES
Each THIRD-PARTY SUPPLIER is an
express intended third-party beneficiary
of, and shall have the right to enforce,
each provision of this EULA with respect
to the SOFTWARE of such party.
Should you have any questions
concerning this EULA, you may contact
SONY by writing to SONY at applicable
contact address of each area or country.
Copyright © 2018 Sony Video & Sound
Products Inc. All rights reserved.
Precautions
On safety
• Should any solid object or liquid fall into
the system, unplug the system and have
it checked by qualified personnel before
operating it any further.
• Do not climb on the main unit and
subwoofer, as you may fall down and
injure yourself, or system damage may
result.
On power sources
• Before operating the system, check that
the operating voltage is identical to your
local power supply. The operating voltage
is indicated on the nameplate at the
bottom of the main unit.
• If you are not going to use the system for
a long time, be sure to disconnect the
system from the wall outlet (mains). To
disconnect the AC power cord (mains
lead), grasp the plug itself; never pull the
cord.
• One blade of the plug is wider than the
other for the purpose of safety and will fit
into the wall outlet (mains) only one way.
If you are unable to insert the plug fully
into the outlet, contact your dealer.
• AC power cord (mains lead) must be
changed only at a qualified service shop.
On heat buildup
Although the system heats up during
operation, this is not a malfunction. If you
continuously use this system at high
volume, the system temperature at the
rear and bottom rises considerably. To
avoid burning yourself, do not touch the
system.
On placement
• Do not place the system near heat
sources or in a place subject to direct
sunlight, excessive dust, or mechanical
shock.
• Do not place anything at the rear of the
main unit and subwoofer that might block
66GB
the ventilation holes and cause
malfunctions.
• Do not place metal objects other than a
TV around the system. Wireless functions
may be unstable.
• If the system is being used in combination
with a TV, VCR, or tape deck, noise may
result and picture quality may suffer. In
such a case, place the system away from
the TV, VCR, or tape deck.
• Use caution when placing the system on a
surface that has been specially treated
(with wax, oil, polish, etc.), as staining or
discoloration of the surface may result.
• Take care to avoid any possible injury
from the corners of the main unit and
subwoofer.
• Keep 3 cm or more space under the main
unit when you hang it on a wall.
• The speakers of this system are not of
magnetically shielded type. Do not place
magnetic cards on the system or near it.
On cleaning
Clean the system with a soft, dry cloth. Do
not use any type of abrasive pad, scouring
powder, or solvent such as alcohol or
benzine.
If you have any question or problem
concerning your system, please consult
your nearest Sony dealer.
On handling the subwoofer
Do not place your hand into the slit of the
subwoofer when lifting it. The speaker
driver may be damaged. When lifting it,
hold the bottom of the subwoofer.
On operation
Before connecting other devices, be sure
to turn off and unplug the system.
If you encounter color irregularity
on a nearby TV screen
Color irregularities may be observed on
certain types of TV sets.
If color irregularity is observed...
Turn off the TV set, then turn it on again
after 15 to 30 minutes.
If color irregularity is observed
again...
Place the system further away from the TV
set.
67GB
Copyrights and Trademarks
This system incorporates Dolby* Digital
and the DTS** Digital Surround System.
* Manufactured under license from Dolby
Laboratories. Dolby, Dolby Audio, Dolby
Atmos, Dolby Vision, and the double-D
symbol are trademarks of Dolby
Laboratories.
**For DTS patents, see http://
patents.dts.com. Manufactured under
license from DTS, Inc. DTS, the Symbol,
DTS and the Symbol together, DTS:X, and
the DTS:X logo are registered trademarks
and/or trademarks of DTS, Inc. in the
United States and/or other countries.
© DTS, Inc. All Rights Reserved.
The BLUETOOTH® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Sony
Corporation is under license. Other
trademarks and trade names are those of
their respective owners.
This system incorporates High-Definition
Multimedia Interface (HDMI™) technology.
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo
are trademarks or registered trademarks of
HDMI Licensing Administrator, Inc. in the
United States and other countries.
“BRAVIA” logo is a trademark of Sony
Corporation.
“ClearAudio+” is a trademark of Sony
Corporation.
WALKMAN® and WALKMAN® logo are
registered trademarks of Sony
Corporation.
“PlayStation” is a registered trademark or
trademark of Sony Interactive
Entertainment Inc.
MPEG Layer-3 audio coding technology
and patents licensed from Fraunhofer IIS
and Thomson.
68GB
Windows Media is either a registered
trademark or trademark of Microsoft
Corporation in the United States and/or
other countries.
This product is protected by certain
intellectual property rights of Microsoft
Corporation. Use or distribution of such
technology outside of this product is
prohibited without a license from Microsoft
or an authorized Microsoft subsidiary.
“DSEE” is a trademark of Sony Corporation.
“TRILUMINOS” and “TRILUMINOS” logo are
a registered trademark of Sony
Corporation.
All other trademarks are trademarks of
their respective owners.
Index
A
S
Advanced Auto Volume 44
Audio DRC 44
Audio Return Channel (ARC) 8, 38, 45
Audio Settings 44
Auto Standby 46
Secure Link 44
Software License Information 46
Software Update 46
Software Version 46
Sound Effect 44
Sound Mode 31
Speaker Settings 44
Standby Linked to TV 44
Standby Through 38, 41, 45
Subwoofer 23, 33, 51
System Settings 45
B
Bluetooth Codec - AAC 45
Bluetooth Mode 45
Bluetooth Settings 45
Bluetooth Standby 41, 45
BT.2020 60
C
Control for HDMI 37, 44
D
Device Name Setting 46
DIMMER 41
DSEE 44
H
T
TV Audio Input Mode 45
U
Update 46
V
VERTICAL S. 30
VOICE 32
HDCP 2.2 60
HDMI Settings 44
HDMI Signal Format 20, 45, 59
HDR 60
I
IR-Repeater 45
M
Manual Speaker Settings 44
Multiplex broadcast sound 35
N
NIGHT 32
O
OSD Language 45
R
Remote control 10
Resetting 46, 54
69GB
The software of this system may be updated in the future. To find out details on any available
updates, please visit the following URL.
http://www.sony-asia.com/section/support
http://www.sony.net/
©2018 Sony Corporation
Printed in Malaysia
4-727-535-21(1)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF

advertisement
