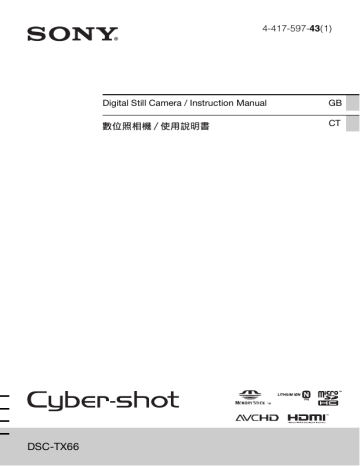

4-417-597-43(1)
Digital Still Camera / Instruction Manual
GB
CT
DSC-TX66
English
Learning more about the camera (“Cyber-shot
User Guide”)
“Cyber-shot User Guide” is an on-line manual. Refer to it for
in-depth instructions on the many functions of the camera.
1 Access the Sony support page.
http://www.sony.net/SonyInfo/Support/
2 Select your country or region.
3 Search for the model name of your camera within the
support page.
• Check the model name on the bottom of your camera.
Checking the supplied items
The number in parentheses indicates the number of pieces.
• Camera (1)
• Rechargeable battery pack NP-BN (1)
(This rechargeable battery pack cannot be used with Cyber-shot that are
supplied with the NP-BN1 battery pack.)
• Multi-use terminal USB cable (1)
• AC Adaptor AC-UB10/UB10B/UB10C/UB10D (1)
• Power cord (mains lead) (not supplied in the USA and Canada) (1)
• Paint pen (1)
• Wrist strap (1)
• Tripod adaptor (1)
• Instruction Manual (this manual) (1)
GB
2
Owner’s Record
The model and serial numbers are located on the bottom. Record the serial number in the
space provided below. Refer to these numbers whenever you call your Sony dealer
regarding this product.
Model No. DSC-TX66
Serial No. _____________________________
Model No. AC-UB10/AC-UB10B/AC-UB10C/AC-UB10D
Serial No. _____________________________
GB
WARNING
To reduce fire or shock hazard, do not expose the unit to rain or
moisture.
IMPORTANT SAFETY INSTRUCTIONS
-SAVE THESE INSTRUCTIONS
DANGER
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, CAREFULLY FOLLOW THESE
INSTRUCTIONS
If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the
proper configuration for the power outlet.
CAUTION
[ Battery pack
If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical
burns. Observe the following cautions.
• Do not disassemble.
• Do not crush and do not expose the battery pack to any shock or force such as
hammering, dropping or stepping on it.
• Do not short circuit and do not allow metal objects to come into contact with the battery
terminals.
• Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a
car parked in the sun.
• Do not incinerate or dispose of in fire.
• Do not handle damaged or leaking lithium ion batteries.
GB
3
• Be sure to charge the battery pack using a genuine Sony battery charger or a device that
can charge the battery pack.
• Keep the battery pack out of the reach of small children.
• Keep the battery pack dry.
• Replace only with the same or equivalent type recommended by Sony.
• Dispose of used battery packs promptly as described in the instructions.
[ AC Adaptor
Connect the AC Adaptor to the nearest wall outlet (wall socket).
If some trouble occurs while using the AC Adaptor, immediately shut off the power by
disconnecting the plug from the wall outlet (wall socket).
The power cord (mains lead), if supplied, is designed specifically for use with this camera
only, and should not be used with other electrical equipment.
For Customers in the U.S.A. and Canada
[ RECYCLING LITHIUM-ION BATTERIES
Lithium-Ion batteries are recyclable.
You can help preserve our environment by returning your used
rechargeable batteries to the collection and recycling location nearest
you.
For more information regarding recycling of rechargeable batteries,
call toll free
1-800-822-8837, or visit http://www.rbrc.org/
Caution: Do not handle damaged or leaking Lithium-Ion batteries.
[ Battery pack
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
GB
4
For Customers in the U.S.A.
UL is an internationally recognized safety organization.
The UL Mark on the product means it has been UL Listed.
If you have any questions about this product, you may call:
Sony Customer Information Center
1-800-222-SONY (7669).
The number below is for the FCC related matters only.
GB
[ Regulatory Information
Declaration of Conformity
Trade Name: SONY
Model No.: DSC-TX66
Responsible Party: Sony Electronics Inc.
Address:
16530 Via Esprillo,
San Diego, CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with Part15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
[ CAUTION
You are cautioned that any changes or modifications not expressly approved in this manual
could void your authority to operate this equipment.
[ Note:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
The supplied interface cable must be used with the equipment in order to comply with the
limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.
GB
5
For Customers in Europe
[ Notice for the customers in the countries applying EU Directives
The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo,
108-0075 Japan. The Authorized Representative for EMC and product safety is Sony
Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or
guarantee matters please refer to the addresses given in separate service or guarantee
documents.
This product has been tested and found compliant with the limits set out in the EMC
Directive for using connection cables shorter than 3 meters (9.8 feet).
[ Attention
The electromagnetic fields at the specific frequencies may influence the picture and sound
of this unit.
[ Notice
If static electricity or electromagnetism causes data transfer to discontinue midway (fail),
restart the application or disconnect and connect the communication cable (USB, etc.)
again.
[ Disposal of Old Electrical & Electronic Equipment (Applicable in
the European Union and other European countries with separate
collection systems)
This symbol on the product or on its packaging indicates that this product
shall not be treated as household waste. Instead it shall be handed over to
the applicable collection point for the recycling of electrical and electronic
equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste handling
of this product. The recycling of materials will help to conserve natural
resources. For more detailed information about recycling of this product,
please contact your local Civic Office, your household waste disposal service or the shop
where you purchased the product.
GB
6
[ Disposal of waste batteries (applicable in the European Union
and other European countries with separate collection systems)
This symbol on the battery or on the packaging indicates that the battery
provided with this product shall not be treated as household waste.
On certain batteries this symbol might be used in combination with a
chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are
added if the battery contains more than 0.0005% mercury or 0.004% lead.
By ensuring these batteries are disposed of correctly, you will help prevent
potentially negative consequences for the environment and human health which could
otherwise be caused by inappropriate waste handling of the battery. The recycling of the GB
materials will help to conserve natural resources.
In case of products that for safety, performance or data integrity reasons require a
permanent connection with an incorporated battery, this battery should be replaced by
qualified service staff only. To ensure that the battery will be treated properly, hand over
the product at end-of-life to the applicable collection point for the recycling of electrical
and electronic equipment.
For all other batteries, please view the section on how to remove the battery from the
product safely.
Hand the battery over to the applicable collection point for the recycling of waste batteries.
For more detailed information about recycling of this product or battery, please contact
your local Civic Office, your household waste disposal service or the shop where you
purchased the product.
Notice for customers in the United Kingdom
A moulded plug complying with BS 1363 is fitted to this equipment for your safety and
convenience.
Should the fuse in the plug supplied need to be replaced, a fuse of the same rating as the
supplied one and approved by ASTA or BSI to BS 1362, (i.e., marked with an
or
mark) must be used.
If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the
fuse cover after you change the fuse. Never use the plug without the fuse cover. If you
should lose the fuse cover, please contact your nearest Sony service station.
GB
7
Identifying parts
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
GB
8
Flash
Microphone
Lens cover
Speaker
Lens
Self-timer lamp/Smile Shutter
lamp/AF illuminator
OLED screen/Touch panel
ON/OFF (Power) button
Power/Charge lamp
Shutter button
W/T (zoom) lever
Hook for wrist strap
Thread groove
Battery insertion slot
Battery eject lever
Multi connector (Type3b)
Battery/Memory card cover
Memory card slot
Access lamp
HDMI micro jack
Inserting the battery pack
GB
Battery eject lever
1 Open the cover.
the battery pack.
2 Insert
• While sliding the battery eject lever, insert the battery pack as
illustrated. Make sure that the battery eject lever locks after insertion.
• Closing the cover with the battery inserted incorrectly may damage the
camera.
GB
9
Charging the battery pack
For customers in the USA,
Canada
Power cord
(Mains lead)
For customers in countries/regions
other than the USA and Canada
Power/Charge lamp
Lit: Charging
Off: Charging finished
Flashing:
Charging error
Charging paused due to
overheating
the camera to the AC Adaptor (supplied),
1 Connect
using the multi-use terminal USB cable (supplied).
the AC Adaptor to the wall outlet (wall socket).
2 Connect
The Power/Charge lamp lights orange, and charging starts.
• Turn off the camera while charging the battery.
• You can charge the battery pack even when it is partially charged.
• When the Power/Charge lamp flashes and charging is not finished,
remove and re-insert the battery pack.
GB
10
Notes
• If the Power/Charge lamp on the camera flashes when the AC Adaptor is
connected to the wall outlet (wall socket), this indicates that charging is
temporarily stopped because the temperature is outside the recommended range.
When the temperature gets back within the appropriate range, the charging
resumes. We recommend charging the battery pack in an ambient temperature of
between 10°C to 30°C (50ºF to 86ºF).
• The battery pack may not be effectively charged if the terminal section of the
battery is dirty. In this case, wipe any dust off lightly using a soft cloth or a cotton GB
swab to clean the terminal section of the battery.
• Connect the AC Adaptor (supplied) to the nearest wall outlet (wall socket). If
malfunctions occur while using the AC Adaptor, disconnect the plug from the wall
outlet (wall socket) immediately to disconnect from the power source.
• When charging is finished, disconnect the AC Adaptor from the wall outlet (wall
socket).
• Be sure to use only genuine Sony brand battery packs, multi-use terminal USB
cable (supplied) and AC Adaptor (supplied).
• BC-TRN2 battery charger (sold separately) is able to quick-charge the NP-BN
rechargeable battery pack supplied with this model. BC-TRN battery charger (sold
separately) is not able to quick-charge the NP-BN rechargeable battery pack
supplied with this model.
x Charging time (Full charge)
The charging time is approximately 115 min. using the AC Adaptor
(supplied).
Note
• The above charging time applies when charging a fully depleted battery pack at a
temperature of 25°C (77°F). Charging may take longer depending on conditions of
use and circumstances.
GB
11
x Charging by connecting to a computer
The battery pack can be charged by connecting the camera to a computer using
a multi-use terminal USB cable.
Note
• Note the following points when charging via a computer:
– If the camera is connected to a laptop computer that is not connected to a power
source, the laptop battery level decreases. Do not charge for an extended period
of time.
– Do not turn on/off or restart the computer, or wake the computer to resume from
sleep mode when a USB connection has been established between the computer
and the camera. The camera may cause a malfunction. Before turning on/off, or
restarting the computer or waking the computer from sleep mode, disconnect the
camera and the computer.
– No guarantees are made for charging using a custom-built computer or a
modified computer.
GB
12
x Battery life and number of images that can be
recorded and played back
Battery life
Number of images
Shooting (still images)
Approx. 125 min.
Approx. 250 images
Viewing (still images)
Approx. 180 min.
Approx. 3600 images
Shooting (movies)
Approx. 60 min.
—
GB
Notes
• The above number of images applies when the battery pack is fully charged. The
number of images may decrease depending on the conditions of use.
• The number of images that can be recorded is for shooting under the following
conditions:
– Using Sony microSD memory card (Class 4 or faster) (sold separately)
– The battery pack is used at an ambient temperature of 25°C (77°F).
– [Disp. Resolution] is set to [Standard].
• The number for “Shooting (still images)” is based on the CIPA standard, and is for
shooting under the following conditions:
(CIPA: Camera & Imaging Products Association)
– [Panel Brightness] is set to [3(Normal)].
– Shooting once every 30 seconds.
– The zoom is switched alternately between the W and T ends.
– The flash strobes once every two times.
– The power turns on and off once every ten times.
• The battery life for movies applies shooting under the following conditions:
– Movie quality: AVC HD HQ
– When continuous shooting ends because of set limits (page 24), touch
(Movie button) again and continue shooting. Shooting functions such as the
zoom do not operate.
x Supplying power
The camera can be supplied with power from the wall outlet (wall socket) by
connecting to the AC Adaptor, using the multi-use terminal USB cable
(supplied).
You can import images to a computer without worrying about draining the
battery pack by connecting the camera to a computer using the multi-use
terminal USB cable.
In addition, you can use the AC Adaptor AC-UD10 (sold separately) for
shooting to supply power when shooting.
GB
13
Notes
• Power cannot be supplied when the battery pack is not inserted in the camera.
• When the camera is connected directly to a computer or to a power outlet using the
supplied AC Adaptor, power supply is available only in playback mode. If the
camera is in shooting mode or while you are changing the settings of the camera,
power is not supplied even if you make a USB connection using the multi-use
terminal USB cable.
• If you connect the camera and a computer using the multi-use terminal USB cable
while the camera is in playback mode, the display on the camera will change from
the playback screen to the USB connection screen. Touch
(Playback) to
switch to the playback screen.
Inserting a memory card (sold separately)
“Memory Stick
microSD memory
Micro” media (M2) card
Make sure that the correct
side is facing up.
Terminal
Printing
surface
1 Open the cover.
the memory card (sold separately).
2 Insert
• With the camera lens facing upward, as illustrated, insert the memory
card straight in until it clicks into place.
• Pushing down on the microSD memory card (in the direction of the
battery insertion slot) while inserting it may damage the camera.
• Be careful when removing the microSD memory card, as it may pop out
quickly.
GB
14
3 Close the cover.
the icon displayed on the upper right screen and
4 Check
make sure the memory card is inserted correctly.
• A: The memory card is inserted
correctly.
• B: The memory card is not inserted
correctly. Confirm the direction of the
memory card and reinsert it straight into
the camera.
• Only one memory card can be inserted.
GB
x Memory cards that can be used
Memory card
A
B
For still images
For movies
Memory Stick Micro
a
Memory Stick Micro (Mark2)
a
a
microSD memory card
a
a (Class 4 or faster)
microSDHC memory card
a
a (Class 4 or faster)
—
• In this manual, products in A are collectively referred to as “Memory Stick Micro”
media, and products in B are collectively referred to as microSD memory card.
x To remove the memory card/battery pack
Memory card: Push the memory card in once to eject the memory card.
Battery pack: Slide the battery eject lever. Be sure not to drop the battery pack.
Note
• Never remove the memory card/battery pack when the access lamp (page 8) is lit.
This may cause damage to data in the memory card/internal memory.
GB
15
Setting the clock
ON/OFF (Power)
button
Lens cover
the lens cover.
1 Lower
The camera is turned on. The power lamp lights up green only when the
camera starts up.
Date & Time setting is displayed when you turn on the camera for the first
time.
• You can also turn on the camera by pressing the ON/OFF (Power)
button.
• It may take time for the power to turn on and allow operation.
2 Select a desired language.
a desired geographic location by following the
3 Select
on-screen instructions, then touch [Next].
[Daylight Savings] or [Summer Time], [Date & Time
4 Set
Format] and [Date & Time], then touch [Next].
• Midnight is indicated as 12:00 AM, and noon as 12:00 PM.
5 Touch [OK].
the instructions on the screen.
6 Follow
• If you set [Disp. Resolution] to [High], the battery charge may be
depleted faster.
GB
16
Shooting still images/movies
Shutter button
GB
Shooting still images
the shutter button halfway down to focus.
1 Press
When the image is in focus, a beep sounds and the z indicator lights.
2 Press the shutter button fully down to shoot an image.
Shooting movies
(Movie button) to start recording.
1 Touch
• Use the W/T (zoom) lever to change the zoom scale.
• Press the shutter button to shoot still images while continuing to record
the movie.
2 Touch
(Movie button) to stop recording.
Notes
• The sound of the lever operating will be recorded when the zoom function
operates while shooting a movie.
• Continuous shooting is possible for approximately 29 minutes at one time at the
camera’s default settings and when the temperature is approximately 25°C (77°F).
When movie recording is finished, you can restart recording by touching
(Movie button) again. Recording may stop to protect the camera depending
on the ambient temperature.
GB
17
Viewing images
(Playback).
1 Touch
• When images on a memory card recorded with other cameras are played
back on this camera, the registration screen for the data file appears.
x Selecting next/previous image
Touch
(Next)/
(Previous) on the screen.
• To play back movies, touch
(Playback) in the center of the screen.
• To zoom in, move the W/T (zoom) lever to the T side.
x Deleting an image
Touch
(Delete) t [This Image].
x Returning to shooting images
Touch
on the screen.
• You can also return to shooting mode by pressing the shutter button halfway
down.
GB
18
In-Camera Guide
This camera is equipped with built-in instruction guide. This allows you to
search the camera’s functions according to your needs.
GB
1 Touch MENU.
Touch (In-Camera Guide), then select the desired
2 MENU
item.
The operation guide for the selected item is displayed.
• If you touch (In-Camera Guide) when the MENU screen is not
displayed, you can search the guide using keywords or icons.
Introduction of other functions
Other functions used when shooting or playing back can be operated touching
the MENU on the screen. This camera is equipped with a Function Guide that
allows you to easily select from the functions. While displaying the guide, you
can use various functions.
GB
19
x Menu Items
Shooting
GB
20
Movie shooting
scene
Select movie recording mode.
Easy Mode
Shoot still images using minimal functions.
Photo Creativity
Change settings easily and shoot images when the
shooting mode is set to [Intelligent Auto] or [Superior
Auto].
Movie button
Shoot movies quickly from a shooting mode other than
[Movie Mode].
Flash
Sets the flash settings.
Self-Timer
Sets the self-timer settings.
Defocus Effect
Set the level of background defocus effect when
shooting in Background Defocus mode.
Still Image
Size(Dual Rec)
Sets the still image size shot while recording a movie.
Still Image Size/
Panorama Image
Size/Movie Size/
Movie Quality
Select the image size and the quality for still images,
panoramic images or movie files.
Cont. Shooting
Settings
Sets the burst shooting settings.
Macro
Shoots beautiful close-up images of small subjects.
HDR Painting
effect
When [HDR Painting] is selected in Picture Effect, sets
the effect level.
Area of emphasis
When [Miniature] is selected in Picture Effect, sets the
part to focus on.
Color hue
When [Toy camera] is selected in Picture Effect, sets the
color hue.
Extracted Color
When [Partial Color] is selected in Picture Effect, selects
the color to extract.
Watercolor Effect
When [Watercolor] is selected in Picture Effect, sets the
effect level.
Illustration Effect
When [Illustration] is selected in Picture Effect, sets the
effect level.
EV
Adjust the exposure manually.
ISO
Adjust the luminous sensitivity.
White Balance
Adjust color tones of an image.
Focus
Select the focus method.
Metering Mode
Select the metering mode that sets which part of the
subject to measure to determine the exposure.
Scene Recognition
Set to automatically detect shooting conditions.
Soft Skin Effect
Set the Soft Skin Effect and the effect level.
Smile Shutter
Set to automatically release the shutter when a smile is
detected.
Smile Detection
Sensitivity
Set the Smile Shutter function sensitivity for detecting
smiles.
Face Detection
Select to detect faces and adjust various settings
automatically.
Anti Blink
Set to automatically shoot two images and select image
in which the eyes are not blinking.
Movie SteadyShot
Sets the strength of SteadyShot in movie mode. If you
change this setting, the angle of view will change.
In-Camera Guide
Search the camera’s functions according to your needs.
GB
Viewing
Easy Mode
Increase the text size on the screen for ease of use.
Date Select
Selects the desired image to view by date.
Calendar
Selects the date to be played back on Calendar.
Image Index
Displays multiple images at the same time.
Slideshow
Select a method of continuous playback.
Delete
Delete an image.
Retouch
Retouch an image using various effects.
Picture Effect
Add various texture on images.
GB
21
Paint
Paints on a still image and saves it as a new file.
3D Viewing
Set to play back images shot in 3D mode on a 3D TV.
View Mode
Select the display format for images.
Display Cont.
Shooting Group
Select to display burst images in groups or display all
images during playback.
Protect
Protect the images.
Print (DPOF)
Add a print order mark to a still image.
Rotate
Rotate a still image to the left or right.
Volume
Adjusts the volume.
Exposure data
Sets whether or not to display the shooting data (Exif
data) of the currently displayed file on the screen.
Number of images
in index
Sets the number of images displayed in the index screen.
In-Camera Guide
Search the camera’s functions according to your needs.
x
Setting items
If you touch the MENU while shooting or during playback,
(Settings) is
provided as a final selection. You can change the default settings on the
(Settings) screen.
Shooting Settings
Main Settings
Memory Card
Tool*
Movie format/AF Illuminator/Grid Line/Clear Image
Zoom/Digital Zoom/Wind Noise Reduct./Scene Recog.
Guide/Red Eye Reduction/Blink Alert/Write Date/Disp.
Resolution
Beep/Panel Brightness/Language Setting/Display color/
Demo Mode/Initialize/CTRL FOR HDMI/Eco Mode/
USB Connect Setting/USB Power Supply/LUN Setting/
Download Music/Empty Music/Version
Format/Create REC.Folder/Change REC.Folder/Delete
REC.Folder/Copy/File Number
Area Setting/Date & Time Setting
Clock Settings
GB
22
* If a memory card is not inserted,
only [Format] can be selected.
(Internal Memory Tool) will be displayed and
Install PC application (Windows)
The built-in software “PlayMemories Home” allows you to import still images
and movies to your computer and use them.
You can shoot or play back images on this camera even if you do not install
“PlayMemories Home”, however, “PlayMemories Home” is required to
import AVCHD movies to your computer.
1 Connect the camera to a computer.
Windows 7: [Computer] t camera icon t media icon
2t
Double-click [PMHOME.EXE]
GB
Windows XP/Vista: [Computer] (in Windows XP, [My
Computer]) t [PMHOME] t Double-click
[PMHOME.EXE]
the instructions on the screen to complete the
3 Follow
installation.
Note
• “PlayMemories Home” is not compatible to Mac OS. If you play back images on a
Mac, use the applications that are installed on your Mac.
For details, see http://www.sony.co.jp/imsoft/Mac/
x Features of “PlayMemories Home”
Below are examples of the functions available when you use “PlayMemories
Home”. To take advantage of the various “PlayMemories Home” functions,
connect to the Internet and install the “Expanded Feature”.
• You can import images shot with the camera to a computer for display.
• You can display images stored on a computer by shooting date in a calendar
display.
• You can correct (Red Eye Correction, etc.) still images, print the images,
send images by e-mail, and change the shooting date and time.
• You can save and print images with the date.
• You can create a disc from AVCHD movies imported to a computer.
(Expanded Feature)
GB
23
Number of still images and recordable time of
movies
The number of still images and recordable time may vary depending on the
shooting conditions and the memory card.
x Still images
(Units: Images)
Capacity
Internal memory
Memory card
Size
Approx. 19 MB
2 GB
18M
3
295
VGA
65
6400
3
330
16:9(13M)
x Movies
The table below shows the approximate maximum recording times. These are
the total times for all movie files. Continuous shooting is possible for
approximately 29 minutes. The maximum size of an MP4-format movie file is
up to approximately 2 GB.
(h (hour), m (minute))
Capacity
Internal memory
Memory card
Approx. 19 MB
2 GB
AVC HD 24M (FX)
—
10 m
(10 m)
AVC HD 9M (HQ)
—
20 m
(15 m)
Size
MP4 12M
—
15 m
MP4 3M
—
1h5m
The number in ( ) is the minimum recordable time.
• The recordable time of movies varies because the camera is equipped with VBR
(Variable Bit Rate), which automatically adjusts image quality depending on the
shooting scene. When you record a fast-moving subject, the image is clearer but
the recordable time is shorter because more memory is required for recording.
The recordable time also varies depending on the shooting conditions, the subject
or the image quality/size settings.
GB
24
Notes on using the camera
Functions built into this camera
• This manual describes each of the functions of 1080 60i-compatible devices and
1080 50i-compatible devices.
To check whether your camera is a 1080 60i-compatible device or a 1080 50icompatible device, check for the following marks on the bottom of the camera.
1080 60i-compatible device: 60i
GB
1080 50i-compatible device: 50i
• Do not watch 3D images shot with this camera for extended periods of time on
3D-compliant monitors.
• When you view 3D images shot with this camera on a 3D-compliant monitors, you
may experience discomfort in the form of eye strain, fatigue, or nausea. To prevent
these symptoms, we recommend that you take regular breaks. However, you need
to determine for yourself the length and frequency of breaks you require, as they
vary according to the individual. If you experience any type of discomfort, stop
viewing the 3D images until you feel better, and consult a physician as necessary.
Also refer to the operating instructions supplied with the device or software you
have connected or are using with this camera. Note that a child’s eyesight is still at
the development stage (particularly children below the age of 6).
Consult a pediatrician or ophthalmologist before letting your child view 3D
images, and make sure he/she observes the above precautions when viewing such
images.
On use and care
Avoid rough handling, disassembling, modifying, physical shock, or impact such as
hammering, dropping, or stepping on the product. Be particularly careful of the lens.
Notes on recording/playback
• Before you start recording, make a trial recording to make sure that the camera is
working correctly.
• The camera is neither dust-proof, nor splash-proof, nor water-proof.
• Avoid exposing the camera to water. If water enters inside the camera, a
malfunction may occur. In some cases, the camera cannot be repaired.
• Do not aim the camera at the sun or other bright light. It may cause the
malfunction of the camera.
• If moisture condensation occurs, remove it before using the camera.
• Do not shake or strike the camera. It may cause a malfunction and you may not be
able to record images. Furthermore, the recording media may become unusable or
image data may be damaged.
GB
25
Do not use/store the camera in the following places
• In an extremely hot, cold or humid place
In places such as in a car parked in the sun, the camera body may become
deformed and this may cause a malfunction.
• Under direct sunlight or near a heater
The camera body may become discolored or deformed, and this may cause a
malfunction.
• In a location subject to rocking vibration
• Near a location that generates strong radio waves, emits radiation or is strongly
magnetic place. Otherwise, the camera may not properly record or play back
images.
• In sandy or dusty places
Be careful not to let sand or dust get into the camera. This may cause the camera to
malfunction, and in some cases this malfunction cannot be repaired.
On carrying
Do not sit down in a chair or other place with the camera in the back pocket of your
trousers or skirt, as this may cause malfunction or damage the camera.
Carl Zeiss lens
The camera is equipped with a Carl Zeiss lens which is capable of reproducing sharp
images with excellent contrast. The lens for the camera has been produced under a
quality assurance system certified by Carl Zeiss in accordance with the quality
standards of Carl Zeiss in Germany.
Note on the screen
The screen is manufactured using extremely high-precision technology so over
99.99% of the pixels are operational for effective use. However, some tiny black
and/or bright dots (white, red, blue or green) may appear on the screen. These dots
are a normal result of the manufacturing process, and do not affect the recording.
On camera’s temperature
Your camera and battery may get hot due to continuous use, but it is not a
malfunction.
On the overheat protection
Depending on the camera and battery temperature, you may be unable to record
movies or the power may turn off automatically to protect the camera.
A message will be displayed on the screen before the power turns off or you can no
longer record movies. In this case, leave the power off and wait until the camera and
battery temperature goes down. If you turn on the power without letting the camera
and battery cool enough, the power may turn off again or you may be unable to
record movies.
GB
26
On charging the battery
If you charge a battery that has not been used for a long time, you may be unable to
charge it to the proper capacity.
This is due to the battery characteristics, and is not a malfunction. Charge the battery
again.
Warning on copyright
Television programs, films, videotapes, and other materials may be copyrighted.
Unauthorized recording of such materials may be contrary to the provisions of the
copyright laws.
GB
No compensation for damaged content or recording failure
Sony cannot compensate for failure to record or loss or damage of recorded content
due to a malfunction of the camera or recording media, etc.
Cleaning the camera surface
Clean the camera surface with a soft cloth slightly moistened with water, then wipe
the surface with a dry cloth. To prevent damage to the finish or casing:
– Do not expose the camera to chemical products such as thinner, benzine, alcohol,
disposable cloths, insect repellent, sunscreen or insecticide.
GB
27
Specifications
Camera
[System]
Image device: 7.76 mm (1/2.3 type)
Exmor R CMOS sensor
Total pixel number of camera:
Approx. 18.9 Megapixels
Effective pixel number of camera:
Approx. 18.2 Megapixels
Lens: Carl Zeiss Vario-Tessar 5× zoom
lens
f = 4.7 mm – 23.5 mm (26 mm –
130 mm (35 mm film equivalent))
F3.5 (W) – F4.8 (T)
While shooting movies (16:9):
28 mm – 140 mm*
While shooting movies (4:3):
35 mm – 175 mm*
* When [Movie SteadyShot] is set
to [Standard]
SteadyShot: Optical
Exposure control: Automatic exposure,
Scene Selection (15 modes)
White balance: Automatic, Daylight,
Cloudy, Fluorescent 1/2/3,
Incandescent, Flash, One Push
Signal format:
For 1080 50i: PAL color, CCIR
standards HDTV 1080/50i
specification
For 1080 60i: NTSC color, EIA
standards HDTV 1080/60i
specification
GB
28
File format:
Still images: JPEG (DCF, Exif,
MPF Baseline) compliant, DPOF
compatible
3D still images: MPO (MPF
Extended (Disparity Image))
compliant
Movies (AVCHD format):
AVCHD format Ver. 2.0
compatible
Video: MPEG-4 AVC/H.264
Audio: Dolby Digital 2ch,
equipped with Dolby Digital Stereo
Creator
• Manufactured under license from
Dolby Laboratories.
Movies (MP4 format):
Video: MPEG-4 AVC/H.264
Audio: MPEG-4 AAC-LC 2ch
Recording media: Internal Memory
(Approx. 19 MB), “Memory Stick
Micro” media, microSD memory
cards
Flash: Flash range (ISO sensitivity
(Recommended Exposure Index)
set to Auto):
Approx. 0.08 m to 3.7 m
(3 1/4 inches to 12 ft 1 3/4 inches)
(W)
Approx. 0.6 m to 2.6 m
(1 ft 11 5/8 inches to 8 ft
6 3/8 inches) (T)
[Input and Output connectors]
HDMI connector: HDMI micro jack
Multi connector: Type3b
(AV-out/USB/DC-in)
Video output
Audio output
USB communication
USB communication: Hi-Speed USB
(USB 2.0)
[Screen]
OLED screen:
Wide (16:9), 8.3 cm (3.3 type)
Total number of dots:
1 229 760 dots equivalent
[Power, general]
Power: Rechargeable battery pack
NP-BN, 3.6 V
AC Adaptor AC-UB10/UB10B/
UB10C/UB10D, 5 V
Power consumption (during shooting):
1.0 W
Operating temperature: 0 °C to 40 °C
(32 °F to 104 °F)
Storage temperature: –20 °C to +60 °C
(–4 °F to +140 °F)
Dimensions (CIPA compliant):
92.9 mm × 54.4 mm × 13.4 mm
(3 3/4 inches × 2 1/4 inches ×
17/32 inches) (W/H/D)
Mass (CIPA compliant) (including
NP-BN battery pack, “Memory
Stick Micro” media):
Approx. 109 g (3.8 oz)
Microphone: Stereo
Speaker: Monaural
Exif Print: Compatible
PRINT Image Matching III:
Compatible
AC Adaptor AC-UB10/UB10B/
UB10C/UB10D
Power requirements: AC 100 V to
240 V, 50 Hz/60 Hz, 70 mA
Output voltage: DC 5 V, 0.5 A
Operating temperature: 0 °C to 40 °C
(32 °F to 104 °F)
Storage temperature: –20 °C to +60 °C
(–4 °F to +140 °F)
GB
Dimensions:
Approx. 50 mm × 22 mm × 54 mm
(2 inches × 7/8 inches ×
2 1/4 inches) (W/H/D)
Mass:
For the USA and Canada:
Approx. 48 g (1.7 oz)
For countries or regions other than
the USA and Canada:
Approx. 43 g (1.5 oz)
Rechargeable battery pack
NP-BN
Used battery: Lithium-ion battery
Maximum voltage: DC 4.2 V
Nominal voltage: DC 3.6 V
Maximum charge voltage: DC 4.2 V
Maximum charge current: 0.9 A
Capacity:
typical: 2.3 Wh (630 mAh)
minimum: 2.2 Wh (600 mAh)
Design and specifications are subject to
change without notice.
GB
29
Trademarks
• The following marks are trademarks
of Sony Corporation.
, “Cyber-shot,”
“Memory Stick Micro”
• “AVCHD” and “AVCHD” logotype
are trademarks of Panasonic
Corporation and Sony Corporation.
• Windows is registered trademark of
Microsoft Corporation in the United
States and/or other countries.
• Mac is registered trademark of Apple
Inc.
• microSDHC logo is a trademark of
SD-3C, LLC.
•“
” and “PlayStation” are
registered trademarks of Sony
Computer Entertainment Inc.
• In addition, system and product
names used in this manual are, in
general, trademarks or registered
trademarks of their respective
developers or manufacturers.
However, the ™ or ® marks are not
used in all cases in this manual.
• Add further enjoyment with your
PlayStation 3 by downloading the
application for PlayStation 3 from
PlayStation Store (where available.)
• The application for PlayStation 3
requires PlayStation Network
account and application download.
Accessible in areas where the
PlayStation Store is available.
GB
30
Additional information on this
product and answers to frequently
asked questions can be found at
our Customer Support Website.
Printed on 70% or more recycled paper
using VOC (Volatile Organic
Compound)-free vegetable oil based
ink.
GB
GB
31
中文 (繁體字)
關於相機的詳細資訊 (“Cyber-shot 使用者指
南”)
“Cyber-shot 使用者指南”是線上使用說明書。關於相
機各種功能的深入使用說明,請參考此書。
1 進入 Sony 服務網頁。
http://www.sony.net/SonyInfo/Support/
2 選擇您的國家與地區。
3 搜尋服務網頁內您相機的型號名稱。
• 查看您相機底部的型號名稱。
檢查附件
括號中的數字代表的是件數。
• 相機 (1)
• 充電電池 NP-BN (1)
(這個充電電池不能用於附有 NP-BN1 電池的 Cyber-shot。)
• 多功能端子 USB 電纜 (1)
• 電源適配器 AC-UB10/UB10B/UB10C/UB10D (1)
• 電源線 (美加地區非附件)(1)
• 畫筆 (1)
• 腕帶 (1)
• 三腳架轉接頭 (1)
• 使用說明書 (本說明書)(1)
CT
2
警告
為減少發生火災或電擊的危險,請勿讓本機暴露於雨中或受潮。
重要的安全指示
-請保存這些指示危險
為了降低火災或電擊的危險,請小心遵守這些指示
CT
注意
[ 電池組
如果電池組處理不當,電池組可能會爆炸,造成火災,甚至化學灼傷。請遵
循以下注意事項。
• 切勿拆解。
• 切勿擠壓,撞擊電池組或對電池組用力過度,如敲擊,跌落或踩踏在電池
組上。
• 切勿短路或讓金屬物品接觸到電池端子。
• 切勿暴露在超過 60 ℃的高溫下,例如直射陽光下,或停在太陽下的汽車
•
•
•
•
•
•
•
內。
切勿焚化或丟棄在火中。
切勿處理損壞或洩漏的鋰離子電池。
務必使用 Sony 原廠的充電器或可對電池組充電的裝置來為電池組充電。
電池組應放在幼兒不易觸及的地方。
使電池組保持乾燥。
請僅使用與 Sony 建議的相同或相等的電池類型進行更換。
請依照說明書中的說明正確丟棄舊電池組。
[ 電源供應器 / 電源適配器
將電源供應器 / 電源適配器連接到附近的牆上電源插座。如果使用電源供應
器 / 電源適配器時發生某些問題,請立即中斷插頭與牆上電源插座的連接,
以關閉電源。
如果附帶電源線,則該電源線專為本相機設計,不能用於其他電子設備。
CT
3
注意
本產品已經過測試並確定符合 EMC 規定中所提出的使用連接電纜不得超過
3 公尺的限制。
[ 注意
特定頻率的電磁場可能會影響此機的畫面和聲音。
[ 通知
如果靜電或電磁導致資料傳送中斷 (失敗),請重新啟動應用程式或斷開連
接,並重新連接通信電纜 (USB 等)。
僅適用於台灣
廢電池請回收
附屬電纜上附有鐡芯時的注意事項:USB 電纜或 A/V 連接電纜或電源適配器
之 DC 輸出線上的一個鐵芯係抑制電磁波干擾用,請勿任意拆卸。
CT
4
認識各部件
A 閃光燈
B 麥克風
C 鏡頭蓋
D 揚聲器
E 鏡頭
F 自拍定時器指示燈 / 微笑快門
指示燈 /AF 照明器
CT
G OLED 螢幕 / 觸控面板
H ON/OFF (電源)按鈕
I 電源 / 充電指示燈
J 快門按鈕
K W/T (變焦)桿
L 腕帶用掛勾
M 螺絲孔
N 電池插槽
O 電池退出桿
P 多功能接頭 (Type3b)
Q 電池 / 記憶卡蓋子
R 記憶卡插槽
S 存取指示燈
T HDMI 小型插孔
CT
5
插入電池
電池退出桿
1 打開蓋子。
2 插入電池。
• 如圖所示,在推動電池退出桿的同時將電池插入。確認電池退出
桿在插入後有鎖定。
• 電池插入不正確時關上電池蓋可能會損壞相機。
CT
6
為電池充電
美加地區的用戶
CT
電源線
美加以外的國家 / 地區的用戶
電源 / 充電指示燈
點亮:充電
關閉:充電完成
閃爍:
充電出錯
充電因為過熱而暫停
1 用多功能端子 USB 電纜 (附件)將相機連接到電源適配
器 (附件)。
2 將電源適配器連接到牆上的電源插座。
電源 / 充電指示燈點亮橘色的燈,充電開始。
• 為電池充電時關閉相機。
• 即使電力沒有完全放光,也可以為電池充電。
• 電源 / 充電指示燈閃爍而且充電未完成時,取出電池之後再插回
去。
CT
7
附註
• 電源適配器連接到牆上的電源插座時,如果相機上的電源 / 充電指示燈閃
爍,表示因為溫度超出建議範圍外而暫停充電。溫度回到適當的範圍內時,
會恢復充電。建議您在 10 ℃至 30 ℃的環境溫度下對電池充電。
• 電池的端子部分如果髒了,可能無法有效地充電。遇到這種情況時,請用
軟布或棉花棒輕輕地將所有髒東西擦掉,以清潔電池的端子部分。
• 將電源適配器 (附件)連接到最近的牆上電源插座。如果使用電源適配器
時發生故障,請立即將插頭從插座拔掉以中斷電源。
• 充電完成時,將電源適配器從牆上的電源插座拔掉。
• 務必只使用原廠的 Sony 電池、多功能端子 USB 電纜(附件)以及電源適配器
(附件)。
• BC-TRN2 電池充電器 (另售)能夠為本機型所附的 NP-BN 充電電池快速充
電。BC-TRN 電池充電器 (另售)不能夠為本機型所附的 NP-BN 充電電池快
速充電。
x 充電時間 (完全充電)
使用電源適配器 (附件)時的充電時間大約 115 分鐘。
附註
• 上述充電時間適用於在 25 ℃的溫度下為放完電的電池充電的情況。充電可
能因為使用情況或環境而需要長一點的時間。
x 連接到電腦上充電
用多功能端子 USB 電纜將相機連接到電腦可以為電池充電。
附註
CT
8
• 經由電腦充電時,請注意下列幾點:
- 如果相機是連接在沒有連接電源的到膝上型電腦,電腦的電池電量會降
低。請不要長時間充電。
- 在相機與電腦之間建立 USB 連接時,不要開 / 關或重新啟動電腦,或者是
將電腦從休眠模式中喚醒。相機可能會造成故障。開 / 關電腦或重新啟動
電腦,或者喚醒休眠模式中的電腦之前,要中斷相機與電腦的連接。
- 對於自行組裝的電腦或修改過的電腦,不保證能夠充電。
x 電池使用時間和可以記錄與播放的影像數目
電池使用時間
影像數目
拍攝 (靜態影像)
約 125 分
約 250 個影像
檢視 (靜態影像)
約 180 分
約 3600 個影像
拍攝 (動態影像)
約 60 分
—
附註
• 上述影像數目適用於電池充滿電的情況。視使用情況而定,影像的數目可
能會減少。
CT
• 可以記錄的影像數目是在下列情況下拍攝的:
- 使用 Sony microSD 記憶卡 (Class 4 或者更快)(另售)
- 在周邊溫度為 25 ℃時使用電池。
-[顯示解析度]設定為 [標準]。
• “拍攝 (靜態影像)”的數目以 CIPA 標準為根據,在下列情況下進行拍攝:
(CIPA: Camera & Imaging Products Association)
-[面板亮度]設定為 [3 (普通)]。
- 每 30 秒鐘拍一張。
- 變焦在 W 和 T 端交替轉換。
- 每拍攝兩次閃光燈閃光一次。
- 每拍攝十次打開和關閉電源一次。
• 動態影像的電池使用時間適用於下列拍攝情況:
- 動態影像的畫質:AVC HD HQ
- 連續拍攝因為設定限制而結束時 (第 19 頁),再度觸摸 (動態影像按
鈕)並繼續拍攝。不使用變焦之類的拍攝功能。
x 供電
用多功能端子 USB 電纜 (附件)連接到電源適配器,相機便可以從牆上
的電源插座供電。
用多功能端子 USB 電纜將相機連接到電腦,將影像匯入電腦時便可以不
必擔心耗盡電池的電力。
此外,您可以在拍攝時使用電源適配器 AC-UD10 (另售)供電。
附註
• 電池沒有插入相機時不能供電。
• 將相機直接連接到電腦或用隨附的電源適配器連接到電源插座時,只能在
播放模式中供電。如果相機處於拍攝模式,或者您變更過相機的設定,即
使您用多功能端子 USB 電纜進行 USB 連接,也不能供電。
• 如果用多功能端子 USB 電纜將相機連接到電腦,相機處於播放模式中時,相
機上的顯示會從播放畫面變成 USB 連接畫面。觸摸 (播放)以切換到播
放畫面。
CT
9
插入記憶卡 (另售)
請確認正確的那一面朝上。
“Memory Stick
Micro”(M2)
microSD 記憶卡
端子
印刷表面
1 打開蓋子。
2 插入記憶卡 (另售)。
• 如圖所示,相機鏡頭朝上,將記憶卡筆直插入到卡入定位為止。
• 插入 microSD 記憶卡時將其往下(往電池插槽的方向)壓,可能會
損及相機。
• 取出 microSD 記憶卡時要小心,因為它可能會突然彈出來。
3 關上蓋子。
4 察看顯示於螢幕右上角的圖示,確認記憶卡插入正確。
• A:記憶卡插入正確。
• B:記憶卡插入不正確。請確認記憶
卡的方向並重新筆直的插入相機中。
• 只能插入一片記憶卡。
CT
10
x 可以使用的記憶卡
記憶卡
A
B
適用於靜態影像 適用於動態影像
Memory Stick Micro
a
Memory Stick Micro (Mark2)
a
a
microSD 記憶卡
a
a (Class 4 以上)
microSDHC 記憶卡
a
a (Class 4 以上)
—
• 在本說明書中,A 中的產品統稱為 “Memory Stick Micro”,B 中的產品統
稱為 microSD 記憶卡。
CT
x 若要取出記憶卡 / 電池
記憶卡:將記憶卡往裡壓一下以退出記憶卡。
電池:推動電池退出桿。小心不要讓電池掉落地上。
附註
• 存取指示燈(第 5 頁)點亮時切勿取出記憶卡 / 電池。這樣可能會對記憶卡 /
內部記憶體中的資料造成損壞。
設定時鐘
ON/OFF (電源)
按鈕 鏡頭蓋
1 將鏡頭蓋往下推。
相機就會開啟。電源指示燈只會在相機開機時點亮綠燈。
日期與時間設定會在您首次開機時顯示出來。
• 您也可以用按 ON/OFF (電源)按鈕的方式開啟相機。
• 可能需要一點時間才能開啟電源並進行操作。
2 選擇要使用的語言。
CT
11
3 按照螢幕上的指示選擇您要的地理位置,然後觸摸 [下
頁]。
4 設定 [夏令時間]、[日期時間格式]和 [日期時間],
然後觸摸 [下頁]。
• 午夜會顯示為 12:00 AM,而正午則是 12:00 PM。
5 觸摸 [OK]。
6 按照螢幕上的指示進行。
• 如果將 [顯示解析度]設定為 [高],電池的電力可能會消耗得
比較快。
拍攝靜態影像 / 動態影像
快門按鈕
拍攝靜態影像
1 將快門按鈕按下一半以便對焦。
影像合焦時,會發出嗶聲,而且 z 指示會點亮。
2 將快門按鈕完全按下去以拍攝影像。
拍攝動態影像
1 觸摸
(動態影像按鈕)開始記錄。
2 觸摸
(動態影像按鈕)停止記錄。
• 用 W/T (變焦)桿變更變焦比率。
• 按快門按鈕拍攝靜態影像同時繼續記錄動態影像。
CT
12
附註
• 拍攝動態影像時,變焦桿的運作聲音會在使用變焦功能時被記錄下來。
• 在 25 ℃左右的溫度下,以相機的預設設定拍攝時,一次可以連續拍攝大約
29 分鐘。動態影像記錄完成時,可以再度觸摸 (動態影像按鈕)以便重
新開始記錄。視周遭溫度而定,記錄可能會停止以保護相機。
觀看影像
CT
1 觸摸
(播放)。
• 在本相機上播放以其他相機記錄在記憶卡上的影像時,會出現資
料檔案的登記畫面。
x 選擇下一個 / 上一個影像
觸摸螢幕上的
(下一個)/
(上一個)。
• 若要播放動態影像,請觸摸螢幕中央的 (播放)。
• 若要放大,請將 W/T (變焦)桿推向 T 端。
x 刪除影像
觸摸 (刪除) t [這個影像]。
x 恢復拍攝影像
觸摸螢幕上的
。
• 您也可以將快門按鈕按下一半以返回拍攝模式。
CT
13
相機指南
本相機配備有內建的使用指南。這樣您便可以根據需要搜尋相機的功
能。
1 觸摸 MENU。
2 觸摸 (相機指南),然後選擇要使用的 MENU 項目。
所選項目的操作指南便會顯示出來。
• 如果您在 MENU 畫面沒有顯示出來時觸摸 (相機指南),便可以用
關鍵字或圖示搜尋指南。
其他功能簡介
拍攝或播放時使用的其他功能可以用觸摸螢幕上的 MENU 的方式操作。
本相機備有功能指南,可以讓您輕鬆地從功能中選擇。顯示指南時,可
以使用各種功能。
CT
14
x 功能表項目
拍攝
動態影像拍攝場景
選擇動態影像的記錄模式。
簡單模式
用最少的功能拍攝靜態影像。
相片創造
拍攝模式設定為 [智慧式自動]或 [高級自動]
時,輕鬆地變更設定並拍攝影像。
動態影像按鈕
從 [動態影像模式]以外的拍攝模式快速地拍攝動
態影像。
閃光燈
設定閃光燈設定值。
自拍定時器
設定自拍定時器設定值。
散焦效果
以背景散焦模式拍攝時,設定背景散焦效果的等
級。
靜態影像尺寸
(Dual Rec)
設定記錄動態影像時拍攝的靜態影像尺寸。
靜態影像尺寸 / 全
景影像大小 / 動態
影像尺寸 / 動畫品
質
選擇靜態影像、全景影像或動態影像檔案的影像大
小和畫質。
連拍設定
設定連拍設定。
超近拍攝
拍攝微小被攝體的美麗特寫影像。
HDR 繪畫效果
在圖片效果中選擇 [HDR 繪畫]時,設定效果的等
級。
強調的區域
在圖片效果中選擇 [縮樣]時,設定要對焦的部
分。
色調
在圖片效果中選擇 [玩具照相機]時,設定色調。
擷取的色彩
在圖片效果中選擇 [部分色彩]時,選擇要擷取的
顏色。
水彩畫效果
在圖片效果中選擇 [水彩畫]時,設定效果的等
級。
插圖效果
在圖片效果中選擇 [插圖]時,設定效果的等級。
EV
以手動方式調整曝光。
ISO
調整感光度。
白平衡
調整影像的色調。
CT
CT
15
對焦
選擇對焦方法。
測光模式
選擇測光模式,設定要測量被攝體的哪個部分以決
定曝光值。
場景辨識
設定為自動偵測拍攝情況。
柔膚效果
設定美膚效果與效果的等級。
微笑快門
設定在偵測到微笑時自動釋放快門。
微笑靈敏度
設定微笑快門功能偵測微笑的靈敏度。
面孔偵測
選擇自動偵測面孔並調整各種設定。
閉眼減弱功能
設定自動拍攝兩張影像,並選擇沒有眨眼的那一
張。
動畫 SteadyShot
設定 SteadyShot 在動態影像模式中的強度。如果變
更這項設定,視角會改變。
相機指南
根據需要搜尋相機的功能。
觀看
CT
16
簡單模式
增加螢幕上的文字尺寸以便於使用。
日期選擇
按日期選擇要觀看的影像。
日曆
選擇日曆上要播放的日期。
影像索引
同時顯示多個影像。
循環播放
選擇一種連續播放的方法。
刪除
刪除一個影像。
修飾
用各種效果修飾影像。
相片效果
在影像上添加各種紋理。
繪製
在靜態影像上繪圖,並將其另存為新的檔案。
3D 檢視
設定為要在 3D 電視機上播放以 3D 模式拍攝的影像。
觀看模式
選擇影像的顯示格式。
顯示連拍群組
播放時可以選擇以群組顯示連拍影像或者顯示所有
影像。
保護
保護影像。
列印 (DPOF)
為一個靜態影像添加列印預訂標記。
x
轉動
將靜態影像向左或向右旋轉。
音量
調整音量。
曝光資料
設定是否顯示目前顯示在螢幕上的檔案的拍攝資料
(Exif 資料)。
索引中的影像數目
設定顯示於索引畫面中的影像數目。
相機指南
根據需要搜尋相機的功能。
設定項目
如果在拍攝或播放時觸摸 MENU, (設定)會被提供作為最後的選擇。 CT
您可以在 (設定)畫面上變更出廠設定。
拍攝設定
主要設定
記憶卡工具 *
時鐘設定
動態影像格式 /AF 照明器 / 格線 / 清晰影像縮放 /
數位變焦 / 減少風噪音 / 場景辨識指引 / 紅眼減弱
/ 眨眼警告 / 寫入日期 / 顯示解析度
嗶音 / 面板亮度 /Language Setting/ 顯示顏色 / 演
示模式 / 初始化 /HDMI 控制 / 節能模式 /USB 連接設
定 /USB 電源供給 /LUN 設定 / 下載音樂 / 清空音樂
/ 版本
格式化 / 建立記錄資料夾 / 改變記錄資料夾 / 刪除
記錄資料夾 / 複製 / 檔案序號
區域設定 / 日期時間設定
* 如果沒有插入記憶卡,會顯示
可供選擇。
(內建記憶體工具),而且只有 [格式化]
CT
17
安裝 PC 應用程式 (Windows)
內建的軟體 “PlayMemories Home”可以讓您將靜態影像與動態影像匯
入電腦並加以使用。
即使沒有安裝 “PlayMemories Home”,也可以用本相機拍攝或播放影
像,不過,必須要有 “PlayMemories Home”才能將 AVCHD 動態影像匯
入電腦。
1 將相機連接到電腦。
2 Windows 7:[電腦] t 相機圖示 t 媒體圖示 t 連按
兩下 [PMHOME.EXE]
Windows XP/Vista:[電腦](在 Windows XP 中,則是
[我的電腦]) t [PMHOME] t 按兩下
[PMHOME.EXE]
3 按照畫面上的指示完成安裝。
附註
• “PlayMemories Home”與 Mac OS 不相容。如果在 Mac 上播放影像,請使用
Mac 上安裝的應用程式。
詳情請參閱 http://www.sony.co.jp/imsoft/Mac/
x“PlayMemories Home”的功能
底下是使用 “PlayMemories Home”時的可用功能範例。若要利用
“PlayMemories Home”的各種功能,請連線至網際網路,並安裝 “擴
充功能”。
• 您可以將用相機拍攝的影像匯入電腦並加以顯示。
• 您可以在日曆顯示畫面中按拍攝日期顯示儲存於電腦上的影像。
• 您可以校正 (紅眼校正等)靜態影像、列印影像、用電子郵件傳送影
像以及變更拍攝日期和時間。
• 您可以儲存並列印有日期的影像。
• 您可以從匯入電腦的 AVCHD 動態影像製作光碟。(擴充功能)
CT
18
靜態影像的數目和可以記錄的動態影像時間
靜態影像的數目和可以記錄的動態影像時間可能會因為拍攝條件和記憶
卡而異。
x 靜態影像
(單位:影像張數)
容量
內部記憶體
記憶卡
尺寸
約 19 MB
2 GB
18M
3
295
VGA
65
6400
3
330
16:9 (13M)
CT
x 動態影像
下表顯示的是大略的最長記錄時間。這些是所有動態影像檔案的總時
間。可以持續拍攝約 29 分鐘。MP4 格式動態影像檔案最大可以高達約
2 GB。
(h (時),m (分))
容量
內部記憶體
記憶卡
約 19 MB
2 GB
AVC HD 24M (FX)
—
10 m
(10 m)
AVC HD 9M (HQ)
—
20 m
(15 m)
MP4 12M
—
15 m
MP4 3M
—
1 h 5 m
尺寸
()中的數字是最短的可記錄時間。
• 動態影像可以記錄的時間會因為相機配備有可以根據拍攝場景而自動調整
畫質的 VBR (Variable Bit Rate)而有所不同。記錄快速移動的被攝體
時,影像會比較清晰,但是可以記錄的時間會比較短,因為需要更多記憶
體來記錄。
可以記錄的時間也會因為拍攝條件、被攝體或者畫質 / 尺寸的設定而有所
不同。
CT
19
使用相機的注意事項
本相機內建的功能
• 本說明書描述 1080 60i 相容裝置與 1080 50i 相容裝置的各項功能。
若要查看您的相機是否是 1080 60i 相容裝置或 1080 50i 相容裝置,請查
看相機底部的下列標誌。
1080 60i 相容裝置:60i
1080 50i 相容裝置:50i
• 不要在符合 3D 標準的顯示器上長時間觀看以本相機拍攝的 3D 影像。
• 在符合 3D 標準的顯示器上觀看以本相機拍攝的 3D 影像時,可能會有眼睛疲
勞、倦怠或噁心之類的不適經驗。為了防止這些症狀,建議您定時休息。
不過,您得自行決定休息所需的長度和頻率,因為這些會因人而異。如果
您有任何類型的不適,請停止觀看 3D 影像,直到感覺比較好為止,並視需
要徵詢醫生意見。另請參考連接本相機或使用於本相機的裝置或軟體所附
的使用說明。請注意,孩子的視力還在發育階段 (尤其是 6 歲以下的小
孩)。
讓小孩觀看 3D 影像之前,請徵詢小兒科醫生或眼科醫生的意見,並確認孩
子在觀看這種影像時有遵守上述注意事項。
關於使用和維護
對於產品要避免粗暴的使用、拆解、修改、實體衝擊或者敲打、跌落或踐踏
之類的撞擊。對於鏡頭要特別小心。
關於記錄 / 播放的注意事項
• 開始拍攝之前,要進行試拍,以確定相機能正確的運作。
• 本相機不防塵、不防潑濺、也不防水。
• 避免讓相機接觸到水。如果有水進入相機內,可能會發生故障。在某些情
況下,相機無法修復。
• 請勿用相機朝向太陽或其它強光。那樣可能會令您的相機故障。
• 如果有濕氣凝結,要在使用相機之前將其清除。
• 請勿搖晃或撞擊本相機。那樣可能會造成故障,您可能無法記錄影像。而
且,記錄媒體可能變成無法使用,或者影像資料可能受損。
請勿在下列地方使用 / 存放相機
CT
20
• 在非常炎熱、寒冷或潮濕的地方
例如,在停在太陽底下的車廂中,相機機身可能變形而造成故障。
• 陽光直射或者靠近發熱器的地方
相機機身可能褪色或變形,而這可能會造成故障。
• 在會受到搖擺振動的地方
• 靠近會產生強烈無線電波、發出輻射或者強烈磁性的地方。否則相機可能
無法正確地記錄或播放影像。
• 在多沙或多灰塵的地方
小心不要讓沙子或灰塵進入相機中。否則可能會造成相機故障,有時候這
種故障是無法修理的。
攜帶時
不要在相機放置於褲子或裙子的後面口袋中時坐在椅子或其他地方,因為這
樣可能會造成故障或者損害相機。
Carl Zeiss 鏡頭
本相機配備有 Carl Zeiss 鏡頭,能以優越的對比再生清晰的影像。本相機的
鏡頭是根據德國 Carl Zeiss 的品質標準,在經過 Carl Zeiss 認證的品質保
證系統底下生產的。
關於螢幕的說明
螢幕利用極高精確度技術製造,所以 99.99% 以上的像素都可以有效的使用。
不過,您可能會發現細小的黑點和 / 或亮點 (白色、紅色、藍色或綠色)出 CT
現在螢幕上。這些點是生產過程中的正常結果,不會影響記錄。
關於相機的溫度
您的相機和電池可能因為持續使用而變熱,但是這並不是故障。
關於過熱保護
您可能無法記錄動態影像,或者電源可能會自動關閉以保護相機,這點要視
相機和電池溫度而定。
螢幕上會出現一個訊息,然後電源會關閉,或者您無法再記錄動態影像。遇
到這種情況時,將電源關閉,等到相機與電池溫度下降為止。如果不讓相機
與電池溫度降得夠低就開啟電源,電源可能會再度關閉或者可能會無法記錄
動態影像。
關於為電池充電
如果為很久沒用的電池充電,可能無法將其充到適當的容量。
這是因為電池特性的緣故,並不是故障。請再為電池充電。
版權警告
電視節目、影片、錄影帶及其它資料可能具有版權。未經許可錄製這些資料
將會觸犯版權法。
對於損壞的內容或記錄失敗不補償
對於因為相機或記錄媒體等的故障而造成的記錄失敗或記錄內容遺失或損
壞,Sony 不能補償。
清潔相機表面
用沾了一點水的軟布清潔相機表面,然後以乾布擦拭表面。若要防止傷害表
面塗層或外殼:
- 請不要讓相機接觸化學產品如稀釋劑、揮發油、酒精、用過即丟的清潔布、
驅蟲劑、防曬油或殺蟲劑。
CT
21
規格
相機
[系統]
CT
22
影像裝置:7.76 公釐 (1/2.3 型)
Exmor R CMOS 感應器
相機的總像素數:
約 18.9 百萬像素
相機的有效像素數:
約 18.2 百萬像素
鏡頭:Carl Zeiss Vario-Tessar
5 倍變焦鏡頭
f = 4.7 公釐- 23.5 公釐
(26 公釐- 130 公釐 (35 公釐
的底片機))
F3.5 (W)- F4.8 (T)
拍攝動態影像 (16:9)時:
28 公釐- 140 公釐 *
拍攝動態影像 (4:3)時:
35 公釐- 175 公釐 *
* 當 [動畫 SteadyShot]設為
[標準]時
SteadyShot:光學
曝光控制:自動曝光、場景選擇
(15 種模式)
白平衡:自動、日光、多雲、螢光
照明 1/2/3、白熾燈、閃光燈、
單按
訊號格式:
1080 50i:PAL 彩色、CCIR 標準
HDTV 1080/50i 規格
1080 60i:NTSC 彩色、EIA 標準
HDTV 1080/60i 規格
檔案格式:
靜態影像:符合 JPEG (DCF,
Exif, MPF Baseline)規格,相
容於 DPOF
3D 靜態影像:符合 MPO (MPF
Extended (視差影像))標準
動態影像 (AVCHD 格式):
AVCHD 格式 Ver. 2.0 相容
視訊:MPEG-4 AVC/H.264
音訊:Dolby Digital 2 聲道,
配備 Dolby Digital Stereo
Creator
• 由 Dolby Laboratories 授權製
造。
動態影像 (MP4 格式):
視訊:MPEG-4 AVC/H.264
音訊:MPEG-4 AAC-LC 2 聲道
記錄媒體:內部記憶體
(約 19 MB)、“Memory Stick
Micro”、microSD 記憶卡
閃光燈:閃光範圍 (ISO 感光度
(建議曝光指數)設定為自
動):
約 0.08 公尺至 3.7 公尺 (W)
約 0.6 公尺至 2.6 公尺 (T)
[輸入和輸出接頭]
HDMI 接頭:HDMI 小型插孔
多功能接頭:Type3b
(AV 輸出 /USB/DC 輸入)
視頻輸出
音頻輸出
USB 通訊
USB 通訊:Hi-Speed USB
(USB 2.0)
[螢幕]
OLED 螢幕:
寬 (16:9),8.3 公分 (3.3
型)
總點數:相當於 1 229 760 點
[電源,一般]
電源:充電電池
NP-BN,3.6 V
電源適配器 AC-UB10/UB10B/
UB10C/UB10D,5 V
電池消耗量 (進行拍攝時):1.0 W
操作溫度:0 ℃至 40 ℃
存放溫度:-20 ℃至 +60 ℃
尺寸 (符合 CIPA 標準):
92.9 公釐× 54.4 公釐×
13.4 公釐 (寬 / 高 / 長)
質量 (符合 CIPA 標準)
(包含 NP-BN 電池、“Memory
Stick Micro”):
約 109 公克
麥克風:立體聲
揚聲器:單聲
Exif Print:相容
PRINT Image Matching III:相容
電源供應器 / 電源適配器
AC-UB10/UB10B/UB10C/UB10D
電源要求:AC 100 V 至 240 V,
50 Hz/60 Hz,70 mA
輸出電壓:DC 5 V,0.5 A
操作溫度:0 ℃至 40 ℃
存放溫度:-20 ℃至 +60 ℃
尺寸:
約 50 公釐× 22 公釐× 54 公釐
(寬 / 高 / 長)
質量:
美國與加拿大:約 48 公克
美國與加拿大以外的國家與地
區:約 43 公克
充電電池 NP-BN
使用的電池:鋰離子電池
最大電壓:DC 4.2 V
額定電壓:DC 3.6 V
最大充電電壓:DC 4.2 V
最大充電電流:0.9 A
容量:
通常:2.3 Wh (630 mAh)
最少:2.2 Wh (600 mAh)
設計及規格如有變更,恕不另行通
知。
商標
• 下列標記是Sony Corporation的商
標。
,“Cyber-shot”,
“Memory Stick Micro”
• “AVCHD”與 “AVCHD”標誌是
Panasonic Corporation 與 Sony
Corporation 的商標。
• Windows是Microsoft Corporation
在美國和 / 或其他國家的註冊商
標。
CT
• Mac 是 Apple Inc. 的註冊商標。
• microSDHC 標誌是 SD-3C, LLC 的商
標。
•“
”和 “PlayStation”是
Sony Computer Entertainment
Inc. 的註冊商標。
• 此外,在本說明書中所使用的系統
和產品的名稱通常是他們各自的開
發商或製造商的商標或註冊商標。
但是在本説明書中並未在所有場合
使用 ™ 或 ® 標誌。
• 從 PlayStation Store (在有這些
店的地方)下載 PlayStation 3 的
應用程式,可以用您的
PlayStation 3 增添更多樂趣。
• PlayStation 3 的應用程式需要有
PlayStation Network 帳戶與應用
程式下載。只能在有 PlayStation
Store 的地方使用。
在我們的客戶支援網站可以查
到本產品新增的資訊和常見問
題的答案。
使用基於不含有 VOC (揮發性有機成
分)的植物油的油墨在 70%以上再生
紙上印刷。
CT
23
CT
24
CT
CT
25
©2012 Sony Corporation
Printed in China
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
