Sony MHC-GT7DW Operating instructions

Sony MHC-GT7DW Operating instructions

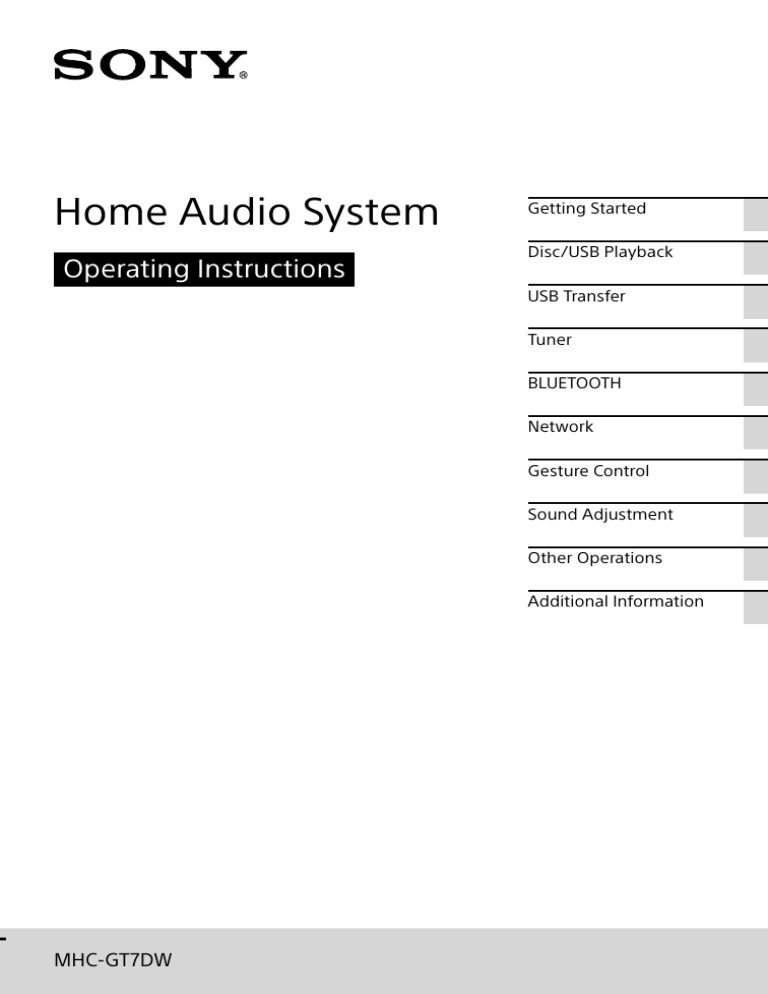

Home Audio System
Operating Instructions
Getting Started
Disc/USB Playback
USB Transfer
Tuner
BLUETOOTH
Network
Gesture Control
Sound Adjustment
Other Operations
Additional Information
MHC-GT7DW
WARNING
To reduce the risk of fire, do not
cover the ventilation opening of
the appliance with newspapers,
tablecloths, curtains, etc.
Do not expose the appliance to naked
flame sources (for example, lighted
candles).
Disposal of waste batteries
and electrical and electronic
equipment (applicable in the
European Union and other
European countries with
separate collection systems)
To reduce the risk of fire or electric
shock, do not expose this appliance
to dripping or splashing, and do not
place objects filled with liquids, such as
vases, on the appliance.
This symbol on the
product, the battery or on
the packaging indicates
that the product and the
battery shall not be
treated as household
waste. On certain batteries this symbol
might be used in combination with a
chemical symbol. The chemical
symbols for mercury (Hg) or lead (Pb)
are added if the battery contains more
than 0.0005% mercury or 0.004% lead.
By ensuring these products and
batteries are disposed of correctly, you
will help prevent potentially negative
consequences for the environment
and human health which could
otherwise be caused by inappropriate
waste handling. The recycling of the
materials will help to conserve natural
resources.
In case of products that for safety,
performance or data integrity reasons
require a permanent connection with
an incorporated battery, this battery
should be replaced by qualified service
staff only. To ensure that the battery
and the electrical and electronic
equipment will be treated properly,
hand over these products at end-oflife to the applicable collection point
for the recycling of electrical and
electronic equipment. For all other
batteries, please view the section on
how to remove the battery from the
product safely. Hand the battery over
to the applicable collection point for
the recycling of waste batteries.
As the main plug is used to disconnect
the unit from the mains, connect the
unit to an easily accessible AC outlet.
Should you notice an abnormality in
the unit, disconnect the main plug
from the AC outlet immediately.
Do not install the appliance in a
confined space, such as a bookcase or
built-in cabinet.
Do not expose batteries or appliances
with battery-installed to excessive
heat, such as sunshine and fire.
The unit is not disconnected from the
mains as long as it is connected to the
AC outlet, even if the unit itself has
been turned off.
Indoor use only.
CAUTION
The use of optical instruments with
this product will increase eye hazard.
For customers in Europe and
the United Arab Emirates
2GB
For customers in Europe
This product is classified as a Class 1
Laser product under IEC 60825-1:2007.
This label is located on rear surface of
the product.
For more detailed information about
recycling of this product or battery,
please contact your local Civic Office,
your household waste disposal service
or the shop where you purchased the
product or battery.
Notice for customers: the
following information is only
applicable to equipment sold
in countries applying EU
directives.
This product has been manufactured
by or on behalf of Sony Corporation,
1-7-1 Konan Minato-ku Tokyo, 108-0075
Japan. Inquiries related to product
compliance based on European Union
legislation shall be addressed to
the authorized representative, Sony
Deutschland GmbH, Hedelfinger
Strasse 61, 70327 Stuttgart, Germany.
For any service or guarantee matters,
please refer to the addresses provided
in the separate service or guarantee
documents.
Hereby, Sony Corp., declares that
this equipment is in compliance
with the essential requirements and
other relevant provisions of Directive
1999/5/EC.
For details, please access the following
URL:
http://www.compliance.sony.de/
The validity of the CE marking is
restricted to only those countries
where it is legally enforced, mainly in
the countries EEA (European Economic
Area).
This equipment has been tested
and found to comply with the limits
set out in the EMC regulation using
a connection cable shorter than 3
meters.
For customers in Australia and
India
Disposal of Old
Electrical & Electronic
Equipment
(Applicable in the
European Union and
other European
countries with
separate collection
systems)
For customers in Australia and
New Zealand
It should be installed and operated
with at least 20 cm and more between
the radiator and person’s body
(excluding extremities: hands, wrists,
feet and ankles).
3GB
License and Trademark Notice
••
is a trademark of DVD Format/
Logo Licensing Corporation.
•• “DVD+RW”, “DVD-RW”, “DVD+R”,
“DVD-R”, “DVD VIDEO”, and the “CD”
logos are trademarks.
•• WALKMAN® and WALKMAN® logo
are registered trademarks of Sony
Corporation.
•• MPEG Layer-3 audio coding
technology and patents licensed
from Fraunhofer IIS and Thomson.
•• Windows Media is either a
registered trademark or trademark
of Microsoft Corporation in
the United States and/or other
countries.
•• This product is protected by
certain intellectual property rights
of Microsoft Corporation. Use or
distribution of such technology
outside of this product is prohibited
without a license from Microsoft or
an authorized Microsoft subsidiary.
•• This system incorporates Dolby*
Digital.
* Manufactured under license from
Dolby Laboratories. Dolby, Dolby
Audio and the double-D symbol are
trademarks of Dolby Laboratories.
•• This system incorporates HighDefinition Multimedia Interface
(HDMI™) technology. The terms
HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI
Logo are trademarks or registered
trademarks of HDMI Licensing
LLC in the United States and other
countries.
•• “BRAVIA” is a trademark of Sony
Corporation.
•• LDAC™ and LDAC logo are
trademarks of Sony Corporation.
4GB
•• The BLUETOOTH® word mark and
logos are registered trademarks
owned by Bluetooth SIG, Inc. and
any use of such marks by Sony
Corporation is under license. Other
trademarks and trade names are
those of their respective owners.
•• The N‑Mark is a trademark or
registered trademark of NFC Forum,
Inc. in the United States and in other
countries.
•• Android, Google Play and
Chromecast are trademarks of
Google Inc.
•• Apple, the Apple logo, iPhone, and
iPod touch are trademarks of Apple
Inc., registered in the U.S. and other
countries. App Store is a service
mark of Apple Inc.
•• “Made for iPod” and “Made for
iPhone” mean that an electronic
accessory has been designed
to connect specifically to iPod
or iPhone, respectively, and has
been certified by the developer
to meet Apple performance
standards. Apple is not responsible
for the operation of this device
or its compliance with safety and
regulatory standards. Please note
that the use of this accessory with
iPod or iPhone may affect wireless
performance.
•• Wi-Fi®, Wi-Fi Protected Access® and
Wi-Fi Alliance® are registered marks
of the Wi-Fi Alliance®.
•• Wi-Fi CERTIFIED™, WPA™, WPA2™
and Wi-Fi Protected Setup™ are
marks of the Wi-Fi Alliance®.
” is a mark of the Wi-Fi Alliance.
•• “
•• DLNA™, the DLNA Logo and DLNA
CERTIFIED™ are trademarks, service
marks, or certification marks of the
Digital Living Network Alliance.
•• AOSS is a trademark of BUFFALO
INC.
•• This product incorporates Spotify
software which is subject to 3rd
party licenses found here:
https://developer.spotify.com/
esdk-third-party-licenses/
•• Spotify and Spotify logos are
trademarks of the Spotify Group.
are
•• ClearAudio+ and
trademarks of Sony Corporation.
•• DSEE HX is a trademark of Sony
Corporation.
•• “Xperia” and “Xperia Tablet”
are trademarks of Sony Mobile
Communications AB.
•• THIS PRODUCT IS LICENSED UNDER
THE MPEG-4 VISUAL PATENT
PORTFOLIO LICENSE FOR THE
PERSONAL AND NON-COMMERCIAL
USE OF A CONSUMER FOR
(i) ENCODING VIDEO IN
COMPLIANCE WITH THE MPEG-4
VISUAL STANDARD (“MPEG-4
VIDEO”)
AND/OR
(ii)DECODING MPEG-4 VIDEO THAT
WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND
NON-COMMERCIAL ACTIVITY
AND/OR WAS OBTAINED FROM
A VIDEO PROVIDER LICENSED TO
PROVIDE MPEG-4 VIDEO.
About this manual
•• This manual mainly explains
operations using the remote
control, but the same operations
can also be performed using the
keys on the touch panel of the
subwoofer having the same or
similar names.
, listed at the
•• Icons, such as
top of each explanation indicate
the type of media that can be used
with the function being explained.
•• Some illustrations are presented
as conceptual drawings, and
may be different from the actual
products.
•• The items displayed on the TV
screen may vary depending on
the area.
•• The default setting is underlined.
•• The text enclosed in brackets
([--]) appears on the TV screen,
and the text enclosed in double
quotation marks (“--”) appears on
the display.
NO LICENSE IS GRANTED OR SHALL
BE IMPLIED FOR ANY OTHER
USE. ADDITIONAL INFORMATION
INCLUDING THAT RELATING TO
PROMOTIONAL, INTERNAL AND
COMMERCIAL USES AND LICENSING
MAY BE OBTAINED FROM MPEG LA,
L.L.C.
HTTP://WWW.MPEGLA.COM
•• All other trademarks are trademarks
of their respective owners.
•• In this manual, ™ and ® marks are
not specified.
5GB
Table of Contents
About this manual.................. 5
Playable discs/files on Discs/
USB device.............................. 8
Websites for compatible
devices................................... 11
Guide to parts and
controls..................................12
Getting Started
Unpacking............................. 20
Installing the system............. 20
Hooking up the system
securely................................. 28
Deactivating the
demonstration...................... 32
Inserting batteries................ 32
Connecting the TV................ 33
Carrying the system.............. 35
Changing the color
system................................... 35
Performing the quick
setup..................................... 36
Changing the display
mode..................................... 36
Disc/USB Playback
Before using the USB
device.................................... 37
Basic playback...................... 37
Other playback
operations............................. 39
Using play mode................... 42
6GB
Restricting playback of the disc
(Parental Control).................. 43
Viewing information of a disc
and USB device.....................44
Using the Setup Menu.......... 45
USB Transfer
Before using the USB
device....................................50
Transferring music................50
Tuner
Listening to the radio............ 54
BLUETOOTH
About the BLUETOOTH
wireless technology.............. 55
Pairing this system with a
BLUETOOTH device............... 55
Listening to music on a
BLUETOOTH device............... 56
One Touch BLUETOOTH
Connection by NFC............... 57
Setting the BLUETOOTH
audio codecs......................... 58
Network
Other Operations
Selecting the network
connection method..............60
Using the Control for HDMI
function................................. 70
Connecting with a
computer...............................61
Using the Party Chain
function................................. 72
Listening to the same music
from the multiple
speakers................................ 62
Singing along: Karaoke......... 75
Listening to an Internet music
service
(Chromecast built-in)............ 63
Listening to an Internet music
service (Spotify).................... 63
Gesture Control
Enjoying the Gesture
Control.................................. 65
Using the Gesture Control
during playback.................... 65
Creating a party atmosphere
(DJ Effect)..............................66
Using the Gesture Control
during Karaoke..................... 67
Locking the audio systems in
a chain (Party Lock)............... 67
Sound Adjustment
Enjoying music with the Party
Light and Speaker Light........ 76
Using the Sleep Timer........... 76
Using optional equipment.... 77
Deactivating the touch panel
on the subwoofer
(Child Lock)........................... 77
Setting the automatic standby
function................................. 77
Setting the BLUETOOTH/
Network standby mode........ 78
Turning on or off the
BLUETOOTH/Wi-Fi signal...... 78
About the “SongPal” and
“Fiestable” applications........ 79
Updating the software..........80
Additional Information
Troubleshooting....................81
Precautions...........................94
Adjusting the sound.............68
Specifications........................96
Selecting the Virtual Football
mode.....................................68
Language code list............. 100
Adjusting the subwoofer
level....................................... 69
Creating your own sound
effect..................................... 69
7GB
Playable discs/files on
Discs/USB device
Playable Discs
•• DVD VIDEO
•• DVD-R/DVD-RW in DVD VIDEO
format or video mode
•• DVD+R/DVD+RW in DVD VIDEO
format
•• VIDEO CD (Ver. 1.0, 1.1, and 2.0
discs)
•• Super VCD
•• CD-R/CD-RW/CD-ROM in VIDEO
CD format or super VCD format
•• AUDIO CD
•• CD-R/CD-RW in AUDIO CD format
Playable files on Discs/USB
device
•• Music:
MP3 files (.mp3)*1*2, WMA files
(.wma)*2*3, AAC files (.m4a/.
mp4/.3gp)*2*3, WAV files
(.wav)*2*3, AIFF files (.aiff)*2*3,
FLAC files (.flac)*2*3, ALAC files
(.alac)*2*3, DSD (.dsf/.dsdiff)*2*3
•• Video:
MPEG4 files (.mp4/.m4v)*4, Xvid
files (.avi)
Notes
•• The discs must be in the following
format:
—— CD-ROM/-R/-RW in DATA CD format
that contains the MP3*1*2, MPEG4*4
and Xvid files, and conforms to
ISO 9660*5 Level 1/Level 2 or Joliet
(extended format).
—— DVD-ROM/-R/-RW/+R/+RW in
DATA DVD format that contains the
MP3*1*2, MPEG4*4 and Xvid files,
and conforms to UDF (Universal Disk
Format).
8GB
•• The system will attempt to play back
any data with the extensions above,
even if it is not in the supported format.
Playing this data may generate a
loud noise which could damage your
speaker system.
*1 MP3 (MPEG 1 Audio Layer 3) is a
standard format defined by ISO/
MPEG for compressed audio data. MP3
files must be in MPEG 1 Audio Layer 3
format.
*2 Files with copyright protection (Digital
Rights Management) cannot be played
back by the system.
*3 USB device only.
4
* MPEG4 files must be recorded in MP4
file format. Supported video codec and
audio codec are as follows:
—— Video codec: MPEG4 Simple Profile
(AVC is not supported.)
—— Audio codec: AAC-LC (HE-AAC is not
supported.)
*5 A logical format of files and folders
on CD-ROMs, defined by ISO
(International Organization for
Standardization).
Discs/files that cannot be played
back
•• You cannot play back the
following discs
—BDs
—
(Blu-ray Discs)
—CD-ROMs
—
recorded in PHOTO CD
format
—Data
—
part of CD-Extra or Mixed
Mode CDs*
—CD
— Graphics disc
—Super
—
Audio CDs
—DVD
—
Audio
—DATA
—
CD/DATA DVD that is
created in Packet Write format
—DVD-RAM
—
—DATA
—
CD/DATA DVD which has
not been correctly finalized
—CPRM
—
(Content Protection for
Recordable Media) compatible
DVD-R/-RW recorded in CopyOnce programs
—A
— disc that has a non-standard
shape (e.g., heart, square, star)
—A
— disc that has adhesive tape,
paper, or a sticker attached to it
•• You cannot play back the
following files
—The
—
video files which is larger
than 720 (width) × 576 (height)
pixels.
—The
—
video files with a high width
to length ratio.
—A
— WMA file in WMA DRM, WMA
Lossless, or WMA PRO format.
—An
— AAC file in AAC DRM or AAC
Lossless format.
—The
—
AAC files which is encoded
at 96 kHz.
—Files
—
that are encrypted or
protected by passwords.
—Files
—
with DRM (Digital Rights
Management) copyright
protection.
—The
—
MP3 PRO audio file can be
played back as MP3 file.
—The
—
system may not play back
an Xvid file when the file has
been combined from two or
more Xvid files.
* Mixed Mode CD: This format records
data on the first track and audio (AUDIO
CD data) on the second and subsequent
tracks of a session.
Notes on CD-R/-RW and
DVD-R/-RW/+R/+RW
•• In some cases, a CD-R/-RW and
DVD-R/-RW/+R/+RW cannot
be played back on this system
due to the recording quality or
physical condition of the disc, or
the characteristics of the recording
device and authoring software.
For more information, refer to
the operating instructions of the
recording device.
•• Some playback functions may not
work with some DVD+Rs/+RWs,
even if they have been correctly
finalized. In this case, view the disc
by normal playback.
Notes on discs
•• This product is designed to play
back discs that conform to the
Compact Disc (CD) standard.
•• DualDisc and some music discs
encoded with copyright protection
technologies do not conform to
the CD standard. Therefore, these
discs may not be compatible with
this product.
Note on multisession disc
This system can play back
continuous sessions on a disc when
they are recorded in the same
format as the first session. However,
the playback is not guaranteed.
Note on DVD VIDEO and VIDEO
CD playback operations
Some playback operations for
a DVD VIDEO or VIDEO CD may
be intentionally restricted by
software producers. Therefore,
some playback features may not
be available. Be sure to read the
operating instructions of the DVD
VIDEO or VIDEO CD.
9GB
Notes on playable files
Notes about USB devices
•• Playback may take a longer time
•• This system is not guaranteed to
to start when:
—a
— DATA CD/DATA DVD/USB
device is recorded with a
complicated tree structure.
—the
— audio files, image files, or
video files in another folder have
just been played back.
•• The system can play back a DATA
CD/DATA DVD or a USB device in
the following conditions:
—up
— to a depth of 8 folders
—up
— to 300 folders
—up
— to 999 files in a disc
—up
— to 2,000 files in a USB device
—up
— to 650 files in a folder
These numbers may vary
depending on the file or folder
configuration.
•• Folders that have no audio files,
image files, or video files are
skipped.
•• Files transferred by a device such
as a computer may not be played
back in the order in which they
were transferred.
•• The playback order may not be
applicable depending on the
software used for creating the
audio file, image file, or video file.
•• Compatibility with all encoding/
writing software of the supported
formats, recording devices,
and recording media cannot be
guaranteed.
•• Depending on the Xvid file, the
picture may be unclear or the
sound may skip.
10GB
operate with all USB devices.
•• Although there are a variety
of complex functions for USB
devices, the playable contents
of USB devices connected to the
system are music, photo, and
video contents only. For details,
refer to the operating instructions
of the USB device.
•• When a USB device is inserted,
the system reads all the files on
the USB device. If there are many
folders or files on the USB device,
it may take a long time to finish
reading the USB device.
•• Do not connect the system and
the USB device through a USB hub.
•• With some connected USB
devices, there may be a delay
before an operation is performed
by this system.
•• The playback order for the system
may differ from the playback order
of the connected USB device.
•• Before using a USB device, make
sure that no virus-ridden files are
on the USB device.
Region code
Your system has a region code and
will only play back a DVD VIDEO
labeled with an identical region
code or .
Websites for
compatible devices
Check the websites below for the
latest information about compatible
USB and BLUETOOTH devices.
For customers in Latin America:
<http://esupport.sony.com/LA>
For customers in Europe and
Russia:
<http://www.sony.eu/support>
For customers in other countries/
regions:
<http://www.sony-asia.com/
support>
About BLUETOOTH
communication for iPhone and
iPod touch
Made for
•• iPhone SE
•• iPhone 6s Plus
•• iPhone 6s
•• iPhone 6 Plus
•• iPhone 6
•• iPhone 5s
•• iPhone 5c
•• iPhone 5
•• iPhone 4s
•• iPod touch (6th generation)
•• iPod touch (5th generation)
11GB
Guide to parts and controls
You can lock the keys except  (power) on the subwoofer to prevent them
from being operated accidentally (page 67, 77).
Active Subwoofer (Top)
12GB
Active Subwoofer (Front)
Active Subwoofer (Rear)
Speaker System
13GB
Active Subwoofer (Top):
Display
 PARTY CHAIN key (page
74)
PARTY LIGHT key (page 76)
 NETWORK indicator
Indicates the current status of
the system:
——Turned off when the system is
in standby mode.
——Flashes in white while setting
the network connection.
——Lit in white while the network
connection is established.
——Lit in green while connected
to a music service via Spotify.
——Lit in blue while connected
to a music service via
Chromecast built-in.
NETWORK key
Touch to connect to a network.
WPS (Wi-Fi Protected Setup)
key
Touch and hold to set up a Wi-Fi
network.
 LIGHT MODE key (page 76)
 BLUETOOTH indicator (page
55)
BLUETOOTH key
Touch to select the BLUETOOTH
function.
PAIRING key
Touch and hold to activate
BLUETOOTH pairing in the
BLUETOOTH function.
 GESTURE ON/OFF key (page
65, 89)
 (stop) key
——Touch to stop playback.
When touched twice, resume
playback can be canceled.
——Touch to stop transfer during
music transfer.
——Touch to stop the built-in
sound demonstration.
  (play) key
Touch to start playback.
Touch and hold  for more
than 2 seconds, the built-in
sound demonstration will be
played back.
Touch  to stop the
demonstration.
 Power indicator
Indicates the current status of
the system:
——Turned off while the system is
in standby mode.
——Lit in orange while the system
is in BLUETOOTH/Network
standby mode.
——Lit in green while the system
is turned on.
——Flashes in green while the
system is starting up or going
into standby mode.
14GB
——Flashes in red quickly if
the system detects an
abnormality that cannot
be displayed with an error
message.
 (power) button
Press to turn on the system, or
set it to standby mode.
 PLAYBACK key (page 65)
DJ key (page 36, 66)

+/– (select folder) key
Touch to select a folder on a
data disc or a USB device.
 VOLUME +/– key
Touch to adjust the volume.
 MIC LEVEL +/– key (page
75)
 MEGA BASS key (page 68)
SAMPLER key (page 66)
 SOUND FIELD key (page
68)
KARAOKE key (page 67,
75)
 FIESTA indicator
 Direct source key (DVD/CD,
USB, FM, AUDIO IN, TV)
To use this button, touch
PLAYBACK, then the source key
you want.
VOCAL FADER key (page
76)
Light up when the FIESTA sound
mode is selected.
FIESTA key (page 68)
 FUNCTION key
Touch to select a function.
 GESTURE CONTROL sensor
(page 65, 89)
SCORE key (page 76)
VOICE CHANGER +/– key
(page 76)
MIC ECHO key (page 75)
  (open/close) key
Touch to open or close the disc
tray.
 / (go backward/go
forward) key
Touch to select a track or file.
TUNING +/– key (page 36,
54)
15GB

USB port (inside of the USB
REC/PLAY cover)
Use to connect a USB device.
This USB port can be used both
for playback and music transfer.
To maintain the dust and drip
proof performance, make sure
of the USB REC/PLAY cover is
securely attached.
 MIC1 jack, MIC2 jack
Use to connect the
microphone(s).
To maintain the dust and drip
proof performance, make sure
of the MIC cover is securely
attached.
Subwoofer
Active Subwoofer (Front, Rear):

(N-Mark) (page 58)
 Remote control sensor
 Disc tray
 Speaker light* (page 76)
 Party light* (page 76)
* Do not look directly at the light-emitting
parts when the Speaker Light and Party
Light are turned on.
Speaker system:
 Left speaker unit (with the
speaker grill attached)
 Right speaker unit (with the
speaker grill removed)
 Midrange speakers
Tweeter
16GB
 Speaker light* (page 76)
* Do not look directly at the light-emitting
parts when the Speaker Light and Party
Light are turned on.
Remote control:
 PARTY LIGHT button (page
76)
LIGHT MODE button (page
76)
 SOUND FIELD button (page
68)
MUSIC button (page 68)
MUSIC ARENA button (page
68)
 Numeric (0 – 9) buttons*1*2
——Press to select a track, chapter
or file with its item number.
——Press to enter numbers or
values.
SUBTITLE button (page 40)
AUDIO*2 button (page 40,
45)
ANGLE button (page 40)
DVD SETUP button (page
45)
MEDIA MODE button
Press to select the media to be
played back on a data disc or
USB device.
CLEAR button (page 40)
 DISPLAY button
Press to change the information
on the display.
DISPLAY*1 button
Press to view or hide the onscreen display.
REC TO USB button (page
51)
Press to transfer music to the
USB device connected to the
USB port.
MIC ECHO button (page 75)
SCORE button (page 76)
17GB
+/– (select folder)
Press to select a folder on a data
disc or a USB device.
 DVD TOP MENU button
Press to display the DVD title on
the TV screen.
DVD/TUNER MENU button
(page 39, 40, 54)
RETURN button (page 39)
OPTIONS button
Press to enter or exit options
menu.
/ / / button
Press to select the menu items.
button
Press to enter/confirm the
settings.
 MEGA BASS button (page
68)
 FUNCTION +/– button
Press to select a function.
 / (fast reverse/fast
forward) button (page 39)
Press to find a point in a track or
file during playback.
/ (slow back/slow
forward) button (page 39)
Press to play in slow-motion.
TUNING+/– button (page
54)
 (play)*2 button
Press to start playback.
18GB
/ (go backward/go
forward) button
Press to select a track or file.
PRESET+/– button (page
54)
 (pause) button
Press to pause playback. To
resume playback, press .
 (stop) button
——Press to stop playback.
When pressed twice, resume
playback can be canceled.
——Press to stop transfer during
music transfer.
——Press to stop the built-in
sound demonstration.
 SLEEP button (page 76)
  (power) button
Press to turn on the system, or
set it to standby mode.
 PLAY MODE button (page
42, 51)
 REPEAT/FM MODE button
(page 42, 54)
 KEY CONTROL / button
(page 76)
 SEARCH button (page 38,
39)
  (volume) +/–*2 button
Press to adjust the volume.
SHIFT*1 button
Hold down to activate the
buttons printed in pink.
*1 This button is printed in pink on the
remote control. To use this button, hold
down SHIFT () button, then press this
button.
*2 The numeric button 2/AUDIO,  and
 + buttons on the remote control
have a tactile dot. Use the tactile dot
as a reference when operating the
system.
19GB
Getting Started
Installing the system
Unpacking
The illustrations below are examples
of how to install the system.
•• Remote control (1)
•• R03 (size AAA) batteries (2)
•• Table top stands (2)
•• Tall boy stands (2)
•• Speaker pads (8)
•• FM lead antenna (1)
•• AC power cord (mains lead) (1)
•• AC plug adaptor* (1) (supplied only
•• Installing the speaker units on the
rod of the subwoofer (Line array
style) (page 22)
for certain areas)
* This plug adaptor is not for the use in
Chile, Paraguay and Uruguay. Use this
plug adaptor in the countries where it
is necessary.
The system consists of:
•• Active subwoofer: SA-WGT7DW (1)
•• Speaker system: SS-GT7DWB (2)
•• Installing the speaker units on
the speaker stands (Tall boy style)
(page 23)
Note
When unpacking the carton, be sure
that two people handle the subwoofer.
Dropping the subwoofer may cause
personal injury and/or property damage.
•• Using the supplied speaker stands
(Table top style) (page 25)
and installing the speaker units
vertically on either side of a TV on
a rack
20GB
•• Installing the speaker units in a TV
rack (Sound bar style) (page 25)
Notes
•• Do not let children or infants be near
the system.
•• Do not install the system on a slope.
•• Take following precautions when
wall (Sound bar style) (page 25)
Getting Started
•• Installing the speaker units on a
installing the speaker system and the
subwoofer.
—— Do not block the ventilation holes on
the rear panel of the subwoofer.
—— Do not place the speaker system and
the subwoofer in a metal cabinet.
—— Do not place an object such as an
aquarium between the speaker
system and the subwoofer.
—— Place the subwoofer close to the
speaker system in a same room.
•• When the speaker system is placed in
front of a TV, be sure not to obstruct
the TV screen or the TV remote control
sensor. If the TV remote control sensor
is obstructed by the speaker system,
the remote control may not be able to
control the TV.
•• Installing the speaker units on a
wall (page 26)
—To
— install the speaker units
horizontally
•• Place the subwoofer at least 8 cm
from the wall to avoid damaging the
protruding AC power cord (mains lead).
8 cm
—To
— install the speaker units
vertically
21GB
Attaching the speaker units
onto the support rod of the
subwoofer (Line array style)
2 Mount the speaker units to the
attachments.
For each speaker unit:
Open the lock lever.
1 Pull up the support rods of the
subwoofer.
Unlock the stopper, then pull up
and extend the rods while
pressing the release buttons.
Align the bracket of the speaker
unit with the bracket of the
speaker attachment, then slide
down to attach.
Stopper
Release buttons
Release the buttons and stop the
rods at the position you want.
The rods can be stopped at the
holes in the rods (positioned 370
mm and 470 mm). Then lock the
stopper.
Make sure the support rods are
securely fastened.
Close the lock lever.
Notes
•• Adjust the position of the rods
before attaching the speaker units.
•• Be careful not to get your hand
caught when putting the rods back
into the storing position.
22GB
Make sure the speaker units are
securely fastened.
To detach the speaker units
For each speaker unit, open the lock
lever, then slide the speaker unit
upward to detach it.
2 Disengage the handle base to
separate to the right and left
support rods.
Attaching the speaker units
onto the speaker stands (Tall
boy style)
Assemble the speaker stands with
using the support rods for the left
and right speaker units.
Before assembling, remove the table
top stands from the speaker units if
they are attached (page 25).
boy stand, mount the support
rod until it locks, then lock the
stopper.
The height of speaker stands is
adjustable in 2 positions.
Adjust the height to the position
you want while pressing the release
button.
Getting Started
3 Unlock the stopper on each tall
1 Unlock the stopper on the
subwoofer, pull up the handle
while pushing down the release
buttons, then fully pull out the
support rods.
Release
button
‑
Make sure the support rod is
securely fastened.
Stopper
Release buttons
23GB
4Open the lock lever on the
support rod, align the brackets
of the speaker unit and the
speaker attachment on the
support rod, then slide down
the speaker unit to attach.
To detach the speaker units
Unfold the handle part, open the
lock lever, then slide the speaker
unit upward.
To detach the speaker stand
base
5 Close the lock lever, then fold
away the handle part.
Make sure the speaker unit is
securely fastened.
24GB
Unlock the stopper, pull out the
support rod from the speaker stand
base while pushing down the
release button.
Attaching the table top stands
(Table top style)
Attach the table top stands to the
left and right speaker units if they
are detached.
1 Align the protruded part of the
Combining the speaker units
(Sound bar style)
Attach the supplied speaker pads on
the speaker units to prevent them
from slipping.
Left speaker unit
Right speaker unit
Getting Started
speaker unit with the recessed
area of the table top stand.
Make sure  marks on the speaker
unit and the table top stand are
aligned.
2 Rotate the speaker unit until it
fits tightly.
To remove the table top stands
25GB
Installing the speaker units on
a wall
Notes
•• Use screws that are suitable for the
wall material and strength. As a plaster
board wall is especially fragile, attach
the screws securely to a wall stud. Install
the speaker system on a vertical and flat
reinforced area of the wall.
•• Be sure to subcontract the installation
to Sony dealers or licensed contractors
and pay special attention to safety
during the installation.
•• Sony is not responsible for accidents
or damage caused by improper
installation, insufficient wall strength,
improper screw installation or natural
calamity, etc.
2 Drive the screws to the wall.
The screws should protrude 6 mm
to 7 mm from the wall.
——To install the speaker units
horizontally
396 mm
6 mm to 7 mm
——To install the speaker units
vertically
1 Prepare screws (not supplied)
that are suitable for the holes
on the back of the speaker
system.
4 mm
More than 25 mm
Hole on the back of the
speaker system
5 mm
5 mm
10 mm
26GB
396 mm
6 mm to 7 mm
3 Hang the speaker unit onto the
screws.
Align the holes on the back of the
speaker unit to the screws, then
hang the speaker unit onto the 2
screws.
——To install the speaker units
horizontally
Place your fingers over the parts ,
then pull the grille of the subwoofer
and speakers to remove them.
After removing the grilles, do not
touch the exposed part of the
subwoofer and speakers, and keep
the removed grilles on a flat surface
to prevent distortion.
Getting Started
——To install the speaker units
vertically
To enjoy a more dynamic
sound
27GB
Hooking up the system securely
White
Red
To wall outlet
28GB
To attach the speaker cords (Line array style)
When you install the speaker units on the rod of the subwoofer (Line array
style) (page 22), thread the speaker cords into the rubber clips attached
to the speaker cords, then plug them into the clip hole on the rear of the
subwoofer to fasten the cords. By doing this, the system can prevent water
from entering into each terminals when you accidentally splash liquid on the
system, and prevent interference of speaker cords and lightings.
Getting Started
Active Subwoofer (Rear)
29GB
 HDMI OUT (TV) jack
Use an HDMI cable (not supplied)
to connect to the HDMI IN jack of
a TV (page 33).
 VIDEO OUT jack
 Wireless LAN antenna
If you use the wireless network
function, set the antenna
as shown in the illustration
(page 60).
Use a video cord (not supplied) to
connect to the video input jack of
a TV or projector.
Note
Do not connect this system to the TV
through the video deck.
 Audio input and output jacks
Use an audio cord (not supplied)
to make either connection as
follows:
•• AUDIO OUT L/R jacks,
PARTY CHAIN OUT L/R jacks
—Connect
—
to the audio
input jacks of an optional
equipment.
—Connect
—
to another audio
system to enjoy the Party
Chain function (page 72).
•• AUDIO IN L/R jacks,
PARTY CHAIN IN L/R jacks
—Connect
—
to the audio output
jacks of a TV or an audio/
video equipment. The
sound is output through this
system.
—Connect
—
to another audio
system to enjoy the Party
Chain function (page 72).
30GB
Note
If a network (LAN) cable is
connected to the system, the system
automatically establishes a wired
LAN connection. If you wish to use
a wireless LAN connection, do not
connect a network (LAN) cable to the
system.
 LAN (100) port
Connect network equipment
with a LAN cable (not supplied)
(page 61).
 FM ANTENNA connector
Find a location and an
orientation that provide good
reception when you set up the
antennas.
Keep the antenna away from the
speaker cables, the AC power
cord (mains lead) and the USB
cable to avoid picking up noise.
Extend the FM lead
antenna horizontally
 LED SPEAKER L/R terminals
Connect the LED speaker
connector of the speaker to this
terminal. The lighting on the
subwoofer and speakers will
react according to the music
source (page 76).
Note
To disconnect the speaker
cord
While pushing down the lock
lever, pull out the connector from
the terminal. Do not pull the wire
without pushing down the lock
lever. Doing so may cause the
wire to break.
While pushing down the lock
lever, pull out the connector from
the terminal. Do not pull the wire
without pushing down the lock
lever. Doing so may cause the
wire to break.
 AC power cord (mains lead)
Connect the AC power cord
(mains lead) (supplied) to the
system, then to the wall outlet.
When the AC power cord
(mains lead) is connected, the
demonstration (page 36)
starts automatically. If you press
 to turn on the system, the
demonstration ends.
You cannot turn on the system
when “WELCOME” appears on
the display.
Getting Started
Make sure that the LED connector
of the right speaker is properly
connected to the LED SPEAKER R
terminal, and the connector of the left
speaker is properly connected to the
LED SPEAKER L terminal.
To disconnect the speaker
cord
 SPEAKERS L/R terminals
Connect the speaker connector
of the speaker unit to this
terminal.
Notes
•• Be sure to use only the supplied
speaker.
•• When connecting speaker cord,
insert the connector straight into
the terminal.
•• Make sure that the connector of the
right speaker is properly connected
to the SPEAKERS R terminal, and
the connector of the left speaker
is properly connected to the
SPEAKERS L terminal.
31GB
Deactivating the
demonstration
To deactivate the demonstration
while the system is turned off, press
DISPLAY repeatedly to select the nodisplay mode (Power Saving Mode)
(page 36).
Inserting batteries
Insert the two supplied R03 (size
AAA) batteries, matching the
polarities shown below.
Notes
•• Do not mix an old battery with a new
one or mix different types of batteries.
•• If you do not use the remote control
for a long period of time, remove the
batteries to avoid damage from battery
leakage and corrosion.
To operate the subwoofer using
the remote control
Point the remote control at the
subwoofer’s remote control sensor.
32GB
Connecting the TV
Connecting the TV
Before connecting cables, be sure to disconnect the AC power cord (mains
lead).
Select the connection methods according to the jacks on your TV.
High quality
HDMI cable*1 (not supplied)
Getting Started
To watch video
Video cable (not supplied)
Standard quality
Recommended connection
Alternative connection
*1 High Speed HDMI Cable with Ethernet
*2 You can listen to TV sound via the system if you connect the system to the TV’s HDMI
IN (ARC) jack. The Audio Return Channel (ARC) function enables the TV to output
sound through the system with an HDMI connection, without performing an audio
connection (connection  below). To set the ARC function on this system, see [AUDIO
RETURN CHANNEL] (page 49). To check the compatibility of your TV’s ARC function,
refer to the operating instructions supplied with your TV.
33GB
To listen to TV sound via the system
If you do not connect the system to the TV’s HDMI IN (ARC) jack, make this
connection.
Audio cable (not supplied)
To listen to TV sound, press FUNCTION +/– repeatedly to select “TV.”
Hints
•• You can also enjoy the sound of external equipment (DVD players, etc.) via the system
by connecting to the AUDIO IN jack as connection  above. For details, refer to the
operating instructions of your equipment.
•• If the audio output level from the system is low when connecting the external
equipment, try adjusting the audio output settings on the connected equipment. It
may improve the audio output level. For details, refer to the operating instructions of
your equipment.
If “CODE 01” and “SGNL ERR” appear on the display of the
subwoofer
When the audio input signals to the system are other than 2-channel
Linear PCM signals, the messages “CODE 01” and “SGNL ERR” (indicating
that the input audio signals are unsupported) appear on the display of the
subwoofer.
In this case, select the proper audio output mode on the TV or external
equipment in order to output 2-channel Linear PCM audio signals.
34GB
Carrying the system
The subwoofer has caster wheels
and a pull drive handle on the rod so
that you can roll it easily. Normally,
carrying the subwoofer by this
method is recommended on flat
surfaces.
Notes
•• The caster wheels can be used only
on flat surfaces. Lift the subwoofer
by two people on uneven surfaces.
Correct hand placement while carrying
the subwoofer is very important to
avoid personal injury and/or property
damage.
Getting Started
•• Exercise extreme caution when carrying
the subwoofer on a slope.
When carrying the subwoofer with
the speaker units installed (Line
array style), hold the handle part
firmly with both hands, and push the
subwoofer to move forward.
•• Do not lift the subwoofer by the pull
drive handle on the rod.
•• Do not carry the subwoofer with a
person, luggage, etc. on it.
•• Do not let children or infants be near
when carrying the system.
Changing the color
system
(Except for Latin American,
European, and Russian models)
Before carrying the subwoofer,
disconnect the AC power cord
(mains lead). When carrying the
subwoofer with the speaker units
installed (Line array style), bundle
the speaker cords to prevent them
from getting caught in the caster
wheels of the subwoofer, or yourself
from stepping on the cords. These
speaker cords do not have to be
disconnected.
Set the color system to PAL or NTSC
depending on the color system of
your TV.
Each time you perform the
procedure below, the color system
changes as follows:
NTSC  PAL
Use the keys on the touch panel
of the subwoofer to perform this
operation.
1 Press  to turn on the system.
2 Touch FUNCTION repeatedly to
select “DVD/CD.”
35GB
3 Touch and hold DJ and TUNING +
for about 2 seconds.
“NTSC” or “PAL” appears on the
display.
6Press
/ repeatedly to select
the setting that matches your
TV type, then press .
After [QUICK SETUP is complete.]
appears on the TV screen, the
system is ready for playback.
Performing the quick
setup
To change the setting manually
Before using the system, you
can make the minimum basic
adjustments in the quick setup.
To quit the quick setup
1 Turn on your TV and select the
video input.
2 Press  to turn on the system.
3 Press FUNCTION +/– repeatedly
to select “DVD/CD.”
The guide message [Press ENTER to
run QUICK SETUP.] appears at the
bottom of the TV screen.
4Press
without loading a disc
or connecting a USB device.
[LANGUAGE SETUP] appears on the
TV screen. Displayed items may vary
depending on country or region.
See “Using the Setup Menu” (page
45).
Press DVD SETUP.
Note
The guide message appears when you
turn on the system for the first time or
after performing [RESET]. (See “Resetting
the system” (page 91).)
Changing the display
mode
Press DISPLAY repeatedly while
the system is turned off.
Each time you press the button, the
display mode changes as follows.
Demonstration
Scrolls messages about the main
features of this system with the
illumination turned on.
To turn off the illumination, press
PARTY LIGHT.
No display (Power Saving Mode)
5 Press
/ repeatedly to select a
language, then press .
[VIDEO SETUP] appears on the TV
screen.
36GB
Turns off the display to conserve
power.
Disc/USB Playback
Before using the USB
device
For USB function:
Open the USB REC/PLAY cover, then
connect a USB device to the
USB
port.
Disc/USB Playback
For compatible USB devices, see
“Websites for compatible devices”
(page 11).
(You can use your Apple devices
with this system via BLUETOOTH
connection only.)
Touch  on the subwoofer again to
close the disc tray.
Do not forcibly push the disc tray to
close it as this may cause a
malfunction.
Basic playback
1 Press FUNCTION +/– repeatedly
to select “DVD/CD” or “USB.”
Alternatively, touch PLAYBACK, then
touch DVD/CD or USB on the
subwoofer.
2 Prepare the playback source.
For DVD/CD function:
Touch  on the subwoofer to open
the disc tray and load a disc with the
label facing up on the disc tray.
Note
You can use a USB adaptor (not
supplied) to connect the USB device
to the subwoofer if the USB device
cannot be plugged into the USB
port.
3 (
only)
Press MEDIA MODE repeatedly
to select the media type
([MUSIC]/[VIDEO]) you want.
4Press  to start playback.
When you play back an 8 cm disc
such as a CD single, place it on
the inner circle of the tray.
37GB
Other operations
To
Do this
Stop playback Press .
Pause
playback
Press .
Resume
playback or
return to
normal
playback
Press .
Cancel the
resume point
Press  twice.
Select a track, Press  or 
file, chapter or during playback.
scene
Or, hold down SHIFT,
press the numeric
buttons, then
press .*
(Operation might be
prohibited by disc or
USB device.)
To play from a specific video file
on the disc or USB device
1 Press MEDIA MODE repeatedly to
select [VIDEO].
2 Press SEARCH to display the
folder list.
3 Press
/ repeatedly to select
the folder you want.
4 Press
to display the file list.
* This operation is not available for audio
file playback of the USB device.
To use the Gesture Control
during playback
See page 67.
38GB
5 Press
/ repeatedly to select
the file you want, then press .
Other playback
operations
To search using the SEARCH
button
1 Press SEARCH to display the track
list.
Depending on the type of disc or file,
the function may not work.
To
Do this
View DVD
menu
Press
DVD/TUNER MENU.
Return to
Press RETURN.
folder list when
in file list
Find a point in Hold down  or 
an audio file of during playback.
USB device
Locate a point
quickly in fast
forward or fast
reverse (Lock
Search)
Watch frame
by frame
(Slow-motion
Play)
Press  or 
during playback.
Each time you press
 or , the
playback speed
changes.
Press , then press
or .
Each time you press
or , the playback
speed changes.
/ repeatedly to select
the track you want to play back,
then press .
Searching a specific title/
chapter/scene/track/index
1 Press SEARCH repeatedly during
playback to select the search
mode.
2 Hold down SHIFT, press the
numeric buttons to enter the
title, chapter, scene, track, or
index number you want, then
press .
Disc/USB Playback
View folder list Press SEARCH.
or file list
Press SEARCH again to
turn off the folder list
or file list.
2 Press
Playback starts.
Notes
•• For VIDEO CD with PBC playback, press
SEARCH to search the scene.
•• For VIDEO CD without PBC playback,
press SEARCH to search the track and
index.
To search for a particular point
using the time code
Searching a specific track
1 Press SEARCH repeatedly during
Hold down SHIFT, press the
numeric buttons to select the track
you want to play back, then
press .
playback to select the time
search mode.
39GB
2 Hold down SHIFT, press the
numeric buttons to enter the
time code, then press .
Example: To find a scene at 2 hours,
10 minutes, and 20 seconds after the
beginning, hold down SHIFT, then
press 2, 1, 0, 2, 0 ([2:10:20]).
If you make a mistake, press CLEAR
to cancel the number.
To search using the DVD menu
1 Press DVD/TUNER MENU.
2 Press / / / , or hold down
SHIFT and press the numeric
buttons, to select the title or item
you want to play back, then
press .
Changing the camera angles
Changing the language/sound
Press AUDIO repeatedly during
playback to select the audio
format or mode you want.
DVD VIDEO
You can select audio format
or language when the source
contains multiple audio formats or
multilingual audio.
When 4 digits are displayed, they
indicate a language code. See
“Language code list” (page 100)
to confirm which language the
code represents. When the same
language is displayed two or more
times, the DVD VIDEO is recorded in
multiple audio formats.
VIDEO CD/AUDIO CD/DATA CD/
DATA DVD (MP3 file)
Press ANGLE repeatedly during
playback to select the camera
angle you want.
Selecting the subtitle setting
You can change the sound output.
•• [STEREO]: The standard stereo
sound.
•• [1/L]/[2/R]: The monaural sound
of the left or right channel.
SUPER VIDEO CD
•• [1:STEREO]: The stereo sound of
audio track 1.
Press SUBTITLE repeatedly during
playback to select the subtitle
language you want or turn off the
subtitle.
40GB
•• [1:1/L]/[1:2/R]: The monaural
sound of the left or right channel
of audio track 1.
•• [2:STEREO]: The stereo sound of
audio track 2.
•• [2:1/L]/[2:2/R]: The monaural
sound of the left or right channel
of audio track 2.
Playing a VIDEO CD with PBC
functions
You can use the PBC (Playback
Control) menu to enjoy the
interactive features of VIDEO CD
(VIDEO CD Version 2.0 and Super
VCD).
with PBC functions.
The PBC menu appears on the TV
screen.
2 Hold down SHIFT, press the
numeric buttons to select the
item number you want, then
press .
This system can store playback
resume points for up to 6 discs and
resumes playback when you insert
the same disc again. If you store a
playback resume point for the 7th
disc, the resume point for the first
disc will be deleted.
To activate this function,
set [MULTI-DISC RESUME]
in [SYSTEM SETUP] to [ON]
(page 48).
Note
To play from the beginning of the disc,
press  twice, then press .
Disc/USB Playback
1 Press  to play a VIDEO CD
Multi-disc resume play
3 Continue playback according to
the instructions on the menu.
Note
PBC playback is canceled when Repeat
Play is activated.
To cancel PBC playback
1 Press  or , or hold down
SHIFT and press the numeric
buttons, to select a track when
playback is stopped.
2 Press  or
.
Playback starts from the selected
track.
To return to PBC playback
Press  twice, then press .
41GB
Using play mode
Playing in sequential order
(Normal Play)
When playback is stopped, press
PLAY MODE repeatedly.
 When playing a disc
•• [DISC]: plays the disc.
•• [FOLDER]*: plays all compatible
files in the specified folder on the
disc.
* Cannot be selected for AUDIO CD.
 When playing a USB device
•• [ONE USB DEVICE]: plays the USB
device.
•• [FOLDER]: plays all compatible
files in the specified folder on the
USB device.
•• [FOLDER (SHUFFLE)]*: shuffles all
audio files in the specified folder
on the disc.
* Cannot be selected for AUDIO CD.
 When playing a USB device
•• [ONE USB DEVICE (SHUFFLE)]:
shuffles all audio files on the USB
device.
•• [FOLDER (SHUFFLE)]: shuffles all
audio files in the specified folder
on the USB device.
Notes
•• Shuffle Play cannot be performed for
video files.
•• Shuffle Play is canceled when you:
—— open the disc tray.
—— perform Synchronized Transfer.
—— change MEDIA MODE.
•• Shuffle Play may be canceled when you
select a folder or a track to play back.
Playing repeatedly (Repeat
Play)
Notes
•• “FLDR” and “SHUF” light off on the
display when Normal Play is set to
[DISC] or [ONE USB DEVICE].
•• “FLDR” lights up on the display when
Normal Play is set to [FOLDER].
•• During audio file playback of USB
device, select the play mode you want
by viewing the indicators on the display.
Playing in random order
(Shuffle Play)
When playback is stopped, press
PLAY MODE repeatedly.
 When playing a disc
•• [DISC (SHUFFLE)]: shuffles all audio
files on the disc.
42GB
Press REPEAT repeatedly.
Depending on the type of disc or file,
some settings may not be available.
•• [OFF]: does not play back
repeatedly.
•• [ALL]: repeats all tracks or files in
the selected play mode.
•• [DISC]: repeats all contents (DVD
VIDEO and VIDEO CD only).
•• [TITLE]: repeats the current title
(DVD VIDEO only).
•• [CHAPTER]: repeats the current
chapter (DVD VIDEO only).
•• [TRACK]: repeats the current track.
•• [FILE]: repeats the current video
file.
To cancel Repeat Play
Press REPEAT repeatedly to select
[OFF].
Notes
•• “
You can restrict playback of
DVD VIDEOs according to a
predetermined level. Scenes may be
skipped or replaced with different
scenes.
1 When playback is stopped,
press DVD SETUP.
2 Press
/ repeatedly to select
[SYSTEM SETUP], then press .
3 Press
/ repeatedly to select
[PARENTAL CONTROL], then
press .
Disc/USB Playback
” lights up on the display when
Repeat Play is set to [ALL] or [DISC].
” lights up on the display when
•• “
Repeat Play is set to [TITLE], [CHAPTER],
[TRACK] or [FILE].
•• You cannot perform Repeat Play with
VIDEO CD during PBC playback.
•• Depending on the DVD VIDEO, you
cannot perform Repeat Play.
•• Repeat Play is canceled when you:
—— open the disc tray.
—— turn off the system (DVD VIDEO and
VIDEO CD only).
—— change the function (DVD VIDEO and
VIDEO CD only).
—— perform Synchronized Transfer.
—— change MEDIA MODE.
—— Play mode can only be changed in
stop mode. Repeat mode can be
changed during playback.
Restricting playback of
the disc (Parental
Control)
4Enter or re-enter your 4-digit
password using the numeric
buttons, then press .
5 Press
/ repeatedly to select
[STANDARD], then press .
6Press
/ repeatedly to select a
geographic area as the playback
limitation level, then press .
The area is selected.
When you select [OTHERS], enter
the area code for the geographic
area you want according to the
“Parental Control area code list”
(page 101) by holding down SHIFT,
then press the numeric buttons.
43GB
7 Press
/ repeatedly to select
[LEVEL], then press .
8Press
/ repeatedly to select
the level you want, then press
.
The lower the value, the stricter the
limitation.
To turn off the parental control
function
Set [LEVEL] to [OFF] in step 8.
Viewing information of
a disc and USB device
Information on the TV screen
Hold down SHIFT, then press
DISPLAY repeatedly during
playback.
To play back a disc for which the
parental control is set
1 Load the disc and press .
The display for entering your
password appears on the TV screen.
2 Enter your 4-digit password
using the numeric buttons, then
press .
The system starts playback.
If you forget your password
Remove the disc and repeat steps 1
to 3 of “Restricting playback of the
disc (Parental Control)” (page 43).
Enter a password “199703” using
the numeric buttons, then press .
Follow the on-screen instructions
and enter a new 4-digit password.
Then, reload the disc and press
. You need to enter your new
password again.
44GB
 Playback information
Playing time and remaining time
 Bit rate
 File type
 Playback status
 Title*1/track/file name*2
 Album*1/folder name*2/
chapter/index number
 Artist name*1*2
Appears when playing an audio
file.
*1 If an audio file has an ID3 tag, the
system will display an album name/
title name/artist name from the ID3 tag
information. The system can support
ID3 ver 1.0/1.1/2.2/2.3.
*2 If the file or folder contains characters
which cannot be displayed, those
characters will be displayed as “_.”
Notes
•• Depending on the source being played,
—— some information may not be
displayed.
—— some characters cannot be
displayed.
•• Depending on the play mode, the
information displayed may be different.
•• When USB function is selected, you can
view the information on the TV screen
only if MEDIA MODE is set to [VIDEO].
(DVD VIDEO and video files only)
Press AUDIO repeatedly during
playback.
Information on the display
Press DISPLAY repeatedly when
the system is on.
You can view the information as
follows:
—playing
—
time, remaining time of
track, title, chapter
—scene
—
number
—file
— name, folder name
—title,
—
artist and album information
Notes
•• The disc name or track name may
not be displayed depending on the
characters.
•• Playing time of audio files and video
files may not be displayed correctly.
•• The elapsed playing time for an audio
file encoded using a VBR (variable bit
rate) is not displayed correctly.
You can make various adjustments
to items such as picture and sound.
Displayed items vary depending on
the country or region.
Note
Playback settings stored in the disc take
priority over the setup menu settings.
Therefore, some of the setup menu
settings may not be performed.
1 When playback is stopped in
DVD/CD function, press DVD
SETUP.
The setup menu appears on the TV
screen.
2 Press
/ repeatedly to select
[LANGUAGE SETUP],
[VIDEO SETUP], [AUDIO SETUP],
[SYSTEM SETUP] or [HDMI
SETUP], then press .
Disc/USB Playback
Displaying the audio format
information in DVD VIDEOs and
video files
Using the Setup Menu
3 Press
/ repeatedly to select
the item you want, then press
.
4Press
/ repeatedly to select
the setting you want, then press
.
The setting is selected and setup is
completed.
To exit the menu
Press DVD SETUP.
45GB
S etting the language
– [LANGUAGE SETUP]
[OSD]
Sets the language of the on-screen
display.
[MENU]
S etting the TV screen
– [VIDEO SETUP]
[TV TYPE]
[16:9]: Select this when you connect
a wide-screen TV or a TV with a
wide-mode function.
Sets the language for the DVD
menu.
[AUDIO]
Switches the language of the sound
track.
When you select [ORIGINAL], the
language given priority in the disc is
selected.
[SUBTITLE]
Switches the language of the
subtitle recorded in the DVD VIDEO.
When you select [AUDIO FOLLOW],
the language for the subtitles
changes according to the language
you selected for the sound track.
Note
[4:3 LETTER BOX]: Select this
when you connect a 4:3 screen TV
that does not have a wide-mode
function. This setting displays a wide
picture with black bands on the top
and bottom.
[4:3 PAN SCAN]: Select this when
you connect a 4:3 screen TV that
does not have a wide-mode
function. This setting displays a fullheight picture on the entire screen,
with trimmed sides.
If you select [OTHERS] in [MENU],
[AUDIO], and [SUBTITLE], enter a
language code from the “Language
code list” (page 100) using the numeric
buttons.
[4:3 OUTPUT]
[FULL]: Select this when you
connect a TV with a wide mode
function.
Displays a 4:3 screen picture in 16:9
aspect ratio even on a wide-screen
TV.
46GB
[NORMAL]: Changes the picture
size to fit the screen size with the
picture’s original aspect ratio. This
setting displays black bands on the
left and right sides if you display a
4:3 screen picture.
[PAUSE MODE]
[AUTO]: The picture, including
subjects that move dynamically, is
output with no jitter. Normally select
this position.
[FRAME]: The picture, including
subjects that do not move
dynamically, is output in high
resolution.
[COLOR SYSTEM(VIDEO CD)]
Sets the color system (PAL or NTSC).
[AUTO]: Outputs the video signal
according to the color system of the
disc. Select this setting if your TV
uses a DUAL system.
[PAL]: Changes the video signal of
an NTSC disc and output it in PAL
system.
[NTSC]: Changes the video signal
of a PAL disc and output it in NTSC
system.
For details, see “Changing the color
system” (page 35).
[BLACK LEVEL]
(Latin American model only)
Selects the black level (setup level)
for the video signals output from the
VIDEO OUT jack.
[ON]: Sets the black level of the
output signal to the standard level.
[OFF]: Lowers the standard black
level. Use this when the picture
becomes too white.
S etting the audio options
– [AUDIO SETUP]
[TRACK SELECTION]
Gives priority to the sound track
which contains the highest number
of channels when you play back a
DVD VIDEO on which multiple audio
formats (PCM, MPEG audio, or Dolby
Digital) are recorded.
[OFF]: No priority given.
[AUTO]: Priority given.
Disc/USB Playback
(Except for Latin American,
European, and Russian models)
[A/V SYNC]*1*2
(Video files only)
Adjusts the delay between the
picture and sound when the sound
does not synchronize with the
displayed picture.
[OFF]: Does not adjust.
[ON]: Adjusts the delay between
picture and sound.
*1 This function may not take effect
depending on the playing content.
*2 To obtain effects of this function when
connecting the TV and subwoofer with
the HDMI cable, press DVD SETUP, then
set [HDMI SETUP] – [AUDIO (HDMI)] to
[PCM] (page 49).
47GB
[DOWNMIX]*
Selects the audio output signal for
playing a multi-channel audio.
[NORMAL]: Outputs multi-channel
audio into a 2-channel stereo signal.
[DOLBY SURROUND]: Outputs
multi-channel audio into a
2-channel surround signal.
* This function is effective only for the
output from the HDMI OUT (TV) jack.
Press DVD SETUP, then set [HDMI SETUP]
– [AUDIO (HDMI)] to [PCM] (page 49).
S etting the system
– [SYSTEM SETUP]
[SCREEN SAVER]
The screen saver will help prevent
your display device from becoming
damaged (ghosting). Press  +/– to
exit the screen saver.
[ON]: The screen saver image
appears if you do not operate the
system for about 15 minutes.
[OFF]: Turns off the function. The
screen saver image does not appear.
[BACKGROUND]
Selects the background color or
picture to be displayed on the TV
screen.
[JACKET PICTURE]: The jacket
picture (still picture) recorded on the
disc appears in the background.
[GRAPHICS]: A preset picture
stored in the system appears in the
background.
[BLUE]: The background color is
blue.
[BLACK]: The background color is
black.
[PARENTAL CONTROL]
Sets the playback restrictions. For
details, see “Restricting playback
of the disc (Parental Control)”
(page 43).
[MULTI-DISC RESUME]
[ON]: Stores the resume playback
point in the memory for up to 6
discs.
[OFF]: Playback starts at the resume
playback point only for the current
disc in the system.
48GB
.
[RESET]
[AUDIO RETURN CHANNEL]
Returns the setup menu settings to
the default settings. For details, see
“Returning the setup menu settings
to the default” (page 91).
Set this function when the system
is connected to a TV’s HDMI IN jack
that is compatible with Audio Return
Channel. This function is available
when you set [CONTROL FOR HDMI]
to [ON].
[ON]: You can listen to TV sound
from the speakers of the system.
[OFF]: Off.
S etting the HDMI options
– [HDMI SETUP]
Selects the TV output resolution
when the TV is connected via HDMI
cable.
[AUTO(1920×1080p)]: Outputs
video signals according to the
resolution of the TV.
[1920×1080i]/[1280×720p]/
[720×480p]*1/[720×480p/576p]*2:
Outputs video signals according to
the selected resolution setting.
[STANDBY LINKED TO TV]
This function is available when you
set [CONTROL FOR HDMI] to [ON].
[AUTO]: If the input of the system is
“TV,” the system turns off when you
turn off the TV.
[ON]: The system turns off when
you turn off the TV regardless of the
input.
[OFF]: The system does not turn off
when you turn off the TV.
Disc/USB Playback
[HDMI RESOLUTION]
*1 For Latin American models only.
*2 For other models.
[YCBCR/RGB(HDMI)]
[YCBCR]: Outputs YCBCR video
signals.
[RGB]: Outputs RGB video signals.
[AUDIO(HDMI)]
[AUTO]: Outputs audio signals in
original format from HDMI OUT (TV)
jack.
[PCM]: Outputs 2-channel Linear
PCM signals from HDMI OUT (TV)
jack.
[CONTROL FOR HDMI]
[ON]: The Control for HDMI function
is enabled. Depending on your TV,
you can control the system from a
TV connected with an HDMI cable,
and vice versa.
[OFF]: Off.
49GB
USB Transfer
Before using the USB
device
For compatible USB devices, see
“Websites for compatible devices”
(page 11).
(You can use your Apple devices
with this system via BLUETOOTH
connection only.)
Note on copyright-protected content
The transferred music is limited to private
use only. Use of the music beyond this
limit requires permission of the copyright
holders.
To select the bit rate
You can select a higher bit rate to
transfer music with better quality.
1 Press OPTIONS.
2 Press / repeatedly to select
“BIT RATE,” then press
.
3 Press
Transferring music
You can transfer music from a disc
(AUDIO CD or MP3 disc only) to a
USB device connected to the USB
port.
The audio format of files transferred
by this system is MP3.
Notes
•• Do not remove the USB device during
transfer or erase operations. Doing so
may corrupt the data on the USB device
or damage the USB device itself.
•• MP3 files are transferred with the same
bit rate as the original files.
•• When transferring from AUDIO CD,
you may select the bit rate before
transferring.
•• USB transfer and erase operations are
disabled while the disc tray is open.
50GB
/ repeatedly to select
the bit rate you want, then press
.
•• 128 KBPS: encoded MP3 files
have smaller file size and lower
audio quality.
•• 256 KBPS: encoded MP3 files
have bigger file size but higher
audio quality.
To exit the options menu, press
OPTIONS.
Transferring music from a disc
3 Prepare the sound source.
Synchronized Transfer:
You can transfer music to a USB
device connected to a USB port
as follows:
•• Synchronized Transfer: Transfers
all MP3 files on a disc to a USB
device.
•• REC1 Transfer: Transfers a single
track or MP3 file during playback.
1 Connect the transfer destination
USB device to the
USB port.
If the system starts playback
automatically, press  twice to stop
the playback fully.
When playback is stopped, press
PLAY MODE repeatedly to select the
play mode you want.
Note
If you start transferring in Shuffle Play
or Repeat Play, the selected play mode
changes to Normal Play automatically.
REC1 Transfer:
4Press REC TO USB.
“PUSH ENTER” appears on the
display.
5 Press
Note
You can use a USB adaptor (not
supplied) to connect the USB device
to the subwoofer if the USB device
cannot be plugged into the USB
port.
2 Press FUNCTION +/– repeatedly
to select “DVD/CD,” then load a
disc.
USB Transfer
Select the track or MP3 file you want
to transfer, then start playback.
.
The transfer starts, then “DO NOT
REMOVE” appears on the display.
Do not remove the USB device until
the transfer is complete.
When the transfer is complete, the
system performs as follows:
Synchronized Transfer:
When the transfer is complete, the
disc stops automatically.
REC1 Transfer:
The transfer is completed
automatically, but the disc
continues to play the next track or
file.
51GB
To stop transfer
Press .
Notes on transfer
•• While transferring, no sound is output.
•• CD-TEXT information is not transferred
to the created MP3 files.
•• The transfer stops automatically if:
—— the USB device runs out of space
during transfer.
—— the number of audio files or folders
on the USB device reaches the limit
that the system can recognize.
•• If a folder or file that you are trying
to transfer already exists on the
USB device with the same name, a
sequential number is added after the
name without overwriting the original
folder or file.
•• You cannot perform the following
operations during transfer:
—— Eject the disc.
—— Select another track or file.
—— Pause playback or find a point in the
track or file.
—— Change the function or tuner band.
•• When transferring music
to a WALKMAN® using
“Media Manager for WALKMAN,” be
sure to transfer in MP3 format.
•• When connecting a WALKMAN® to
the system, be sure to connect after
the display “Creating Library” or
“Creating Database” on the WALKMAN®
has disappeared.
Folder and file generation
rules
Maximum number of audio files
that can be generated
•• 298 folders
•• 650 files in a folder
•• 650 files in REC1-CD or REC1-MP3
folder.
These numbers may vary depending
on the file or folder configuration.
When transferring to a USB device,
a “MUSIC” folder is created directly
below “ROOT.” Folders and files are
generated within this “MUSIC” folder
according to the transfer method
and source as follows:
Synchronized Transfer
 When transferring CD-DA tracks
from an AUDIO CD
Folder name: “CDDA0001”*
File name: “TRACK001”*
 When transferring MP3 files
from a disc
Folder name: Same as the source
File name: Same as the source
REC1 Transfer
 When transferring a CD-DA track
from an AUDIO CD
Folder name: “REC1-CD”
File name: “TRACK001”*
 When transferring an MP3 file
from a disc
Folder name: “REC1-MP3”
File name: Same as the source
52GB
Erasing audio files or folders
on the USB device
1 Press FUNCTION +/– repeatedly
to select “USB.”
Alternatively, touch GESTURE ON/
OFF to activate the Gesture Control,
touch PLAYBACK, then touch USB
on the subwoofer.
2 Press MEDIA MODE repeatedly
Notes
•• You cannot erase audio files or folders
when Shuffle Play mode has been
selected. Set the play mode to Normal
Play before erasing.
•• You cannot erase non-MP3/WMA/AAC/
WAV format file.
•• A folder that contains non-MP3/WMA/
AAC/WAV format audio files or sub
folders cannot be erased.
•• Erase operation is prohibited when the
disc tray is opened.
to select [MUSIC].
press OPTIONS.
4Press
/ repeatedly to select
“ERASE,” then press .
The folder list is displayed on the TV
screen.
USB Transfer
3 When playback is stopped,
5 Press
/ repeatedly to select a
folder, then press .
6Press
/ repeatedly to select
an audio file you want to erase,
then press .
If you want to delete all the audio
files in the folder, select
[ALL TRACKS] on the list.
“FOLDER ERASE” or “TRACK ERASE”
and “PUSH ENTER” appear on the
display.
To cancel erase operations, press .
7 Press
.
“COMPLETE” appears on the display.
To exit the options menu, press
OPTIONS.
53GB
Tuner
Listening to the radio
You can store up to 20 FM stations
as your favorite stations.
1 Press FUNCTION +/– repeatedly
1 Tune to the station you want.
2 Press DVD/TUNER MENU.
3 Press / repeatedly to select
to select “TUNER FM.”
Alternatively, touch GESTURE ON/
OFF to activate the Gesture Control,
touch PLAYBACK, then touch FM on
the subwoofer.
2 Tune to a station.
For automatic scanning:
Hold down TUNING+/– until the
frequency begins to change on the
display.
Scanning stops automatically when
a station is tuned in. “ST” (for FM
stereo programs only) lights up on
the display.
If scanning does not stop, press 
to stop scanning. Then, perform
manual tuning (below).
For manual tuning:
Press TUNING+/– repeatedly to tune
to the station you want.
Note
When you tune to an FM station that
provides RDS services, information such
as the service name or station name is
provided by broadcasts. You can check
the RDS information by pressing DISPLAY
repeatedly.
Hint
To reduce static noise on a weak FM
stereo station, press FM MODE repeatedly
until “ST” disappears from the display. You
will lose the stereo effect, but reception
will improve.
54GB
Presetting radio stations
the preset number you want,
then press .
“COMPLETE” appears on the display
and the station is stored.
If another station is already
assigned to the selected preset
number, that station is replaced by
the new one.
To listen to the preset station
Press PRESET+/– repeatedly to
select the preset number you want.
BLUETOOTH
About the BLUETOOTH
wireless technology
BLUETOOTH wireless technology is
a short-range wireless technology
that enables wireless data
communication between digital
devices. BLUETOOTH wireless
technology operates within a range
of about 10 meters.
Supported BLUETOOTH version,
profiles and codecs
For details, see “BLUETOOTH
section” (page 97).
For details, see “Websites for
compatible devices” (page 11).
About the BLUETOOTH
indicator
The BLUETOOTH indicator on the
subwoofer lights up or flashes in
blue to show the BLUETOOTH status.
System status
Indicator status
BLUETOOTH
standby
BLUETOOTH
pairing
BLUETOOTH
connection is
established
Flashes slowly
Flashes quickly
Lights up
Pairing is an operation where
BLUETOOTH devices register with
each other beforehand. Once a
pairing operation is performed, it
does not need to be performed
again.
If your device is an NFC-compatible
smartphone, the manual pairing
procedure is not necessary. (See
“One Touch BLUETOOTH Connection
by NFC” (page 57).)
1 Place the BLUETOOTH device
within 1 meter from the system.
2 Touch BLUETOOTH on the
subwoofer to select the
BLUETOOTH function.
“BT AUDIO” appears on the display.
BLUETOOTH
Compatible BLUETOOTH devices
Pairing this system
with a BLUETOOTH
device
Hints
•• When there is no pairing information
on the system (for example, when
you use the BLUETOOTH function
for the first time after purchase),
“PAIRING” flashes on the display and
the system enters the pairing mode.
Proceed to step 4.
•• If the system is connected to
a BLUETOOTH device, press
BLUETOOTH on the subwoofer to
disconnect the BLUETOOTH device.
3 Touch and hold PAIRING on the
subwoofer for 2 seconds or
more.
“PAIRING” flashes on the display.
55GB
4Perform the pairing procedure
on the BLUETOOTH device.
For details, refer to the operating
instructions of your BLUETOOTH
device.
5 Select “MHC-GT7DW” on the
display of the BLUETOOTH
device.
Perform this step within 5 minutes,
otherwise pairing will be canceled.
In this case, repeat from step 3.
Note
If passkey is required on the
BLUETOOTH device, enter “0000.”
“Passkey” may be called “Passcode,”
“PIN code,” “PIN number,” or
“Password.”
6Perform the BLUETOOTH
connection on the BLUETOOTH
device.
When pairing is completed and the
BLUETOOTH connection is
established, BLUETOOTH device
name appears on the display.
Depending on the BLUETOOTH
device, connection may start
automatically after pairing is
completed.
You can check the BLUETOOTH
device address by pressing DISPLAY
repeatedly.
Notes
•• You can pair up to 9 BLUETOOTH
devices. If the 10th BLUETOOTH device
is paired, the oldest paired device will
be deleted.
•• If you want to pair with another
BLUETOOTH device, repeat steps 1 to 6.
To cancel the pairing operation
Touch and hold PAIRING on the
subwoofer for 2 seconds or more
until “BT AUDIO” appears on the
display.
56GB
Listening to music on a
BLUETOOTH device
You can operate a BLUETOOTH
device by connecting the system
and the BLUETOOTH device using
AVRCP.
Check the following before playing
music:
—The
—
BLUETOOTH function of the
BLUETOOTH device is turned on.
—Pairing
—
has been completed
(page 55).
Once the system and the
BLUETOOTH device are connected,
you can control playback by
pressing , ,  and /.
Use the keys on the touch panel
of the subwoofer to perform this
operation.
1 Touch BLUETOOTH on the
subwoofer to select the
BLUETOOTH function.
“BT AUDIO” appears on the display.
2 Perform a BLUETOOTH
connection with the BLUETOOTH
device.
Touch BLUETOOTH on the
subwoofer to connect to the last
connected BLUETOOTH device.
Perform the BLUETOOTH connection
from the BLUETOOTH device if the
device is not connected.
Once the connection is established,
the BLUETOOTH device name
appears on the display.
3 Touch  to start playback.
Depending on the BLUETOOTH
device,
——you may need to touch  twice.
——you may need to start playing an
audio source on the BLUETOOTH
device.
4Adjust the volume.
Adjust the volume of the
BLUETOOTH device first. If the
volume level is still too low, adjust
the volume level on the system.
Notes
•• When the system is not connected to
To use the Gesture Control
during playback
See page 67.
To terminate the BLUETOOTH
connection
Touch BLUETOOTH on the
subwoofer. “BT AUDIO” appears on
the display.
Depending on the BLUETOOTH
device, the BLUETOOTH connection
may be terminated automatically
when you stop playback.
NFC (Near Field Communication)
is a technology enabling shortrange wireless communication
between various devices, such as
smartphones and IC tags.
When you touch the system with an
NFC-compatible smartphone, the
system automatically:
—turns
—
on in the BLUETOOTH
function.
—completes
—
the pairing and
BLUETOOTH connection.
Compatible smartphones
Smartphones with a built-in NFC
function (OS: Android 2.3.3 or
later, excluding Android 3.x)
Notes
•• The system can only recognize and
BLUETOOTH
any BLUETOOTH device, the system
will connect to the last connected
BLUETOOTH device automatically
when you touch BLUETOOTH on the
subwoofer or .
•• If you try to connect another
BLUETOOTH device to the system, the
current connected BLUETOOTH device
will be disconnected.
One Touch BLUETOOTH
Connection by NFC
connect to one NFC-compatible
smartphone at a time. If you try to
connect another NFC-compatible
smartphone to the system, the currently
connected NFC-compatible smartphone
will be disconnected.
•• Depending on your NFC-compatible
smartphone, you may need to perform
the following steps on your NFCcompatible smartphone in advance.
—— Turn on the NFC function. For details,
refer to the operating instructions of
the NFC-compatible smartphone.
—— If your NFC-compatible smartphone
has an OS version that is older than
Android 4.1.x, download and start
the“NFC Easy Connect” application.
“NFC Easy Connect” is a free
application for Android smartphones
that can be obtained from Google
Play. (The application may not be
available in some countries/regions.)
57GB
1 Touch the smartphone to the
N-Mark on the subwoofer until
the smartphone vibrates.
Setting the BLUETOOTH
audio codecs
You can select a BLUETOOTH audio
codec from AAC, LDAC or SBC. AAC
can be selected only when the
BLUETOOTH device supports AAC.
Complete the connection by
following the instructions displayed
on the smartphone.
When the BLUETOOTH connection is
established, the BLUETOOTH device
name appears on the display.
2 Start playback of an audio
source on the smartphone.
For details, refer to the operating
instructions of your BLUETOOTH
device.
Hint
If pairing and the BLUETOOTH connection
fail, do the following.
—— Remove the case from the smartphone
if using a commercially available
smartphone case.
—— Touch the smartphone to the N-Mark
on the subwoofer again.
—— Relaunch the “NFC Easy Connect”
application.
To terminate the BLUETOOTH
connection
Touch the smartphone to the
N-Mark on the subwoofer again.
58GB
1 Press OPTIONS.
2 Press / repeatedly to select
“BT CODEC,” then press
.
3 Press
/ repeatedly to select
the setting, then press .
•• AUTO: Enable reception in AAC or
LDAC codec format.
•• SBC: Receive in SBC codec
format.
To exit the options menu, press
OPTIONS.
Notes
•• You can enjoy high quality sound if AAC
or LDAC is selected. If you cannot listen
to AAC or LDAC sound from your device
or the sound is interrupted, select “SBC.”
•• If you change this setting while the
system is connected to a BLUETOOTH
device, the BLUETOOTH device will
be disconnected. To connect to the
BLUETOOTH device, perform the
BLUETOOTH connection again.
Hint
LDAC is an audio coding technology
developed by Sony that enables the
transmission of High-Resolution (Hi-Res)
Audio content, even over a BLUETOOTH
connection. Unlike other BLUETOOTH
compatible coding technologies
such as SBC, it operates without any
downconversion of the Hi-Res Audio
content*1, and allows approximately
three times more data*2 than those
other technologies to be transmitted
over a BLUETOOTH wireless network
with unprecedented sound quality, by
means of efficient coding and optimized
packetization.
*1 Excluding DSD format contents.
*2 In comparison with SBC (Sub band
Coding) when the bitrate of 990 kbps
(96/48 kHz) or 909 kbps (88.2/44.1 kHz)
is selected.
BLUETOOTH
59GB
Network
Selecting the network
connection method
If you connect this system to a
network, you can enjoy this system
in various ways. Depending on
your network environment, setup
methods are different. Select the
appropriate connecting method
from the following.
Notes
•• Connecting to a Wi-Fi network and a
wired network simultaneously is not
possible. When you connect to a Wi-Fi
network, be sure to disconnect the LAN
cable from the subwoofer.
•• Depending on the function, the system
software may need to be updated.
Hint
For setting the fixed IP address, use the
screen in step 6 of “Connecting with a
computer” (page 61).
Method when using a
smartphone/iPhone
Installation of the “SongPal”
application to your smartphone/
iPhone is required.
Before making the connection, be
sure to turn on the BLUETOOTH
feature on your smartphone
or iPhone, then operate the
“SongPal” application to connect
your smartphone or iPhone to this
system via BLUETOOTH.
For details, refer to the Wi-Fi Startup
Guide (separate document).
60GB
Method when using a wireless
router with a WPS (AOSS) button
Press and hold the NETWORK/
WPS key, then press the Wi-Fi
Protected Setup™ (WPS) button of
the wireless router. For details, refer
to the Wi-Fi Startup Guide (separate
document).
Method when using computer
See “Connecting with a computer”
(page 61).
Method when using wired
network
Refer to Help Guide for details.
http://rd1.sony.net/help/has/mhcgt7dw/h_zz/
Connecting with a
computer
If a WPS (AOSS) button is not
equipped on your wireless router,
configure Wi-Fi settings on the
computer by connecting this system
with a LAN cable (not supplied).
Hint
When setting up a Wi-Fi network, the
SSID (Wi-Fi Network Name) and security
key (WEP or WPA key) may be required.
The security key (or network key) uses
encryption to limit the devices with which
communication can occur. It is used
to provide higher security for devices
communicating via a wireless router/
access point.
1 Make a note of the SSID and
password of your router.
Wait until lights up on the
display. It takes about 2 minutes (in
some cases, 4 or 5 minutes).
4Access the [Sony Network
Device Settings] screen.
Start the browser and input the
following URL into the browser’s
address bar.
http://169.254.1.1
The above URL is only for when the
PC and subwoofer are connected
with a LAN cable.
5 Select [Network Settings] from
the menu.
SSID (Wi-Fi Network Name):
Network
For details, refer to the operating
instructions of your router.
3 Press  to turn on the system.
Password (Security Key) :
2 Connect the subwoofer to the
computer with a LAN cable (not
supplied) directly.
Network Settings
6Select the SSID of your wireless
router, then enter the password.
SSID
See the password noted in step 1.
7 Select [Apply].
61GB
8When prompted, unplug the
LAN cable from the subwoofer.
When the LAN cable is unplugged
from the subwoofer, on the
display turns off. When the Wi-Fi
connection is established, lights
up on the display.
It may take more than 2 minutes to
light up.
Listening to the same
music from the multiple
speakers
For information on how to listen
to music with this system, refer to
the Wi-Fi Startup Guide (separate
document).
Note
This procedure needs to be completed
within 10 minutes. If uncompleted, reset
the system (page 91).
You can enjoy your favorite music
stored in your PCs, mobile phones,
and music from streaming services,
with ultimate sound quality in any
room via Wi-Fi.
1 Install the “SongPal” application
on your smartphone/iPhone.
2 Connect the system and
smartphone/iPhone to your
Wi-Fi network.
Connect the system and
smartphone/iPhone to the same
SSID (network) of your router.
3 When connecting multiple
devices, connect the multi-room
compatible devices to your
Wi-Fi network.
Refer to Help Guide for detailed
operation.
http://rd1.sony.net/help/has/mhcgt7dw/h_zz/
62GB
To enjoy the Party Chain function
via Wi-Fi
If you connect the multi-room
compatible speakers to your Wi-Fi
network and set them in the same
room, you can enjoy high pressure
sound like the Party Chain function
via Wi-Fi.
Listening to an Internet
music service
(Chromecast built-in)
The following instructions explain
how to use a Chromecast-enabled
music app.
4Launch the Chromecast-
enabled app, then tap the Cast
button ( ) to select [MHCGT7DW].
5 Select music to listen to on your
Chromecast-enabled app.
The music is played on the system.
Refer to Help Guide for detailed
operation.
http://rd1.sony.net/help/has/mhcgt7dw/h_zz/
1 Install the “SongPal” application
on your smartphone/iPhone.
smartphone/iPhone to your
Wi-Fi network.
Connect the system and
smartphone/iPhone to the same
SSID (network) of your router.
3 Launch “SongPal,” and
download a Chromecastenabled music app.
 Launch “SongPal,” then tap
[MHC-GT7DW]  [Settings] 
[Chromecast built-in]  [Learn
how to cast].
 See the instructions, then find
and install a Chromecastenabled app on your
smartphone/iPhone.
Listening to an Internet
music service (Spotify)
Network
2 Connect the system and
“Spotify” gives you instant access
to millions of songs. The “Spotify
Connect” feature lets you select
music on the Spotify App and
stream it on the system. To use
“Spotify Connect” feature, you need
a Premium account.
For details, visit www.spotify.com/
connect
1 Connect the system and
smartphone/iPhone to your
Wi-Fi network.
Connect the system and
smartphone/iPhone to the same
SSID (network) of your router.
63GB
2 Download the Spotify App to
your smartphone/iPhone from
Google Play or the App Store.
3 Launch the Spotify App and log
in to a Spotify Premium account.
4Select and start playing the
music.
5 Tap the Connect icon (
) and
select the system as the audio
output device.
Note
Depending on the country and region,
music services and their periods of
availability may differ.
Hint
When “Spotify Connect” is activated, the
Connect icon ( ) lights up.
64GB
Gesture Control
Enjoying the Gesture
Control
You can control the operations
for PLAYBACK, DJ, SAMPLER and
KARAOKE mode by swiping your
hand over the GESTURE CONTROL
sensor on the subwoofer.
Using the Gesture
Control during
playback
You can use the Gesture Control to
control basic playback when playing
music from a disc, USB device or
BLUETOOTH device.
Use the keys and GESTURE
CONTROL sensor on the touch panel
of the subwoofer to perform this
operation.
1 Touch GESTURE ON/OFF.
The GESTURE CONTROL sensor
lights up.
Note
Do not touch or make contact with the
GESTURE CONTROL sensor when you
perform the swiping motion.
Swiping motion
Swipe in this
direction
The PLAYBACK mode is activated.
3 Touch DVD/CD, USB, FM, AUDIO
IN, or TV to select the function
you want.
4Swipe your hand over the
Right to left
GESTURE CONTROL sensor.
Left to right
To
Bottom to top
Top to bottom
Go backward
Clockwise
Go forward
Anticlockwise
Play
Swipe in this
direction
Gesture Control
Swipe your hand over the GESTURE
CONTROL sensor as follows.
2 Touch PLAYBACK.
Stop
To activate the Gesture Control
Increase volume
Touch GESTURE ON/OFF, then touch
the mode you want (PLAYBACK, DJ,
SAMPLER, KARAOKE).
Reduce volume
To deactivate the Gesture
Control
Touch GESTURE ON/OFF.
65GB
Creating a party
atmosphere (DJ Effect)
To
Use the keys and GESTURE
CONTROL sensor on the touch panel
of the subwoofer to perform this
operation.
Output “Come On!”
1 Touch GESTURE ON/OFF.
Output Phaser
sound effect
The GESTURE CONTROL sensor
lights up.
2 Touch DJ or SAMPLER.
The DJ or SAMPLER mode is
activated.
3 Swipe your hand over the
GESTURE CONTROL sensor.
For DJ mode:
To
Swipe in this
direction
Select FLANGER*1
Select ISOLATOR*2
Select WAH*3
Select PAN*4
Increase the level of
the selected effect
Reduce the level of
the selected effect
*1 Creates a deep flanging effect that
is similar to the roar of a jet plane.
*2 Isolates a specific frequency band
by adjusting the other frequency
bands. For example, when you want
to focus on vocals.
*3 Creates a special effect of
“Wah-wah” sound by moving the
frequency of a filter up and down
automatically.
4
* Creates a feeling that the sound
is moving around the speakers
between left and right channels.
66GB
For SAMPLER mode:
Swipe in this
direction
Output “Let’s Go!”
Output Reggae Horn
sound effect
Output Scratch
sound effect
Output Audience
sound effect
To output the SAMPLER mode
sound effect
Touch SAMPLER, then touch one
of the direct function key (DVD/CD,
USB, FM, AUDIO IN, TV) to output the
sound effect you want.
To turn off the DJ Effect
Swipe your hand over the GESTURE
CONTROL sensor in the same
direction again.
Notes
•• The DJ Effect is automatically turned off
when you:
—— turn off the system
—— change the function
—— activate the Football mode
—— select “FIESTA”
—— press SOUND FIELD on the remote
or touch SOUND FIELD on the
subwoofer
—— change the mode to PLAYBACK/
SAMPLER/KARAOKE
•• If you activate the DJ Effect during
transferring, the sound effect will not be
transferred onto the USB device.
Using the Gesture
Control during Karaoke
You can adjust the key of the
off-vocal sound source and the
microphone volume by the gesture
control.
1 Touch GESTURE ON/OFF.
The GESTURE CONTROL sensor
lights up.
2 Touch KARAOKE.
The KARAOKE mode is activated.
3 Swipe your hand over the
GESTURE CONTROL sensor.
For KARAOKE mode:
To
Change the key
down ()
Swipe in this
direction
Locking the audio
systems in a chain
(Party Lock)
You can lock the systems in a chain,
except the party host system, to
prevent misoperation by accidental
contact.
Touch and hold GESTURE
CONTROL sensor on the
subwoofer for more than 5
seconds.
“PARTY LOCK ON” appears on the
display.
To turn off the Party Lock function,
touch and hold GESTURE CONTROL
sensor on the subwoofer for more
than 5 seconds until “PARTY LOCK
OFF” appears on the display.
Notes
•• The party locked state is automatically
Increase the
microphone volume
•• While in the party locked state,
Reduce the
microphone volume
Output the hand
clapping sound
effect
released in 30 seconds.
the touch panel indications of the
subwoofer are turned off.
Gesture Control
Change the key up
()
Output the booing
sound effect
67GB
Sound Adjustment
Adjusting the sound
To
Do this
Reinforce bass
sound and create
more powerful
sound (MEGA
BASS).
Press MEGA BASS
repeatedly to select
“BASS ON.” To
cancel, press MEGA
BASS repeatedly to
select “BASS OFF.”
Reproduce the
acoustic effect of
a party hall
(Fiesta).
Touch FIESTA on the
subwoofer, or set
[FIESTA] in [Sound
Field] to [On] on the
“SongPal”
application. The
FIESTA indicator
lights up.
Reproduce the
acoustic effect of
a concert hall
(Digital Music
Arena).
Press MUSIC ARENA
repeatedly to select
“MUSIC ARENA,” or
set [Digital Music
Arena] in [Sound
Field] to [On] on the
“SongPal”
application.
Select a preset
sound effect
(Preset sound
effect).
68GB
Press SOUND FIELD
repeatedly to select
the sound effect
you want.
Selecting the Virtual
Football mode
You can experience a feeling of
presence in the stadium when
watching the football match
broadcast.
Press SOUND FIELD repeatedly
while watching a football match
broadcast.
•• ON NARRATION: You can enjoy
an immersive feeling of being
in a football stadium through
enhanced stadium cheers.
•• OFF NARRATION: You can enjoy
a more immersive feeling of
being in a football stadium by
minimizing the volume level
of narration in addition to the
enhancement of cheers.
To cancel the Virtual Football
mode
Press SOUND FIELD repeatedly to
select “FLAT.”
Notes
•• We recommend you to select the
football mode when watching a football
match broadcast.
•• If you hear unnatural sounds in the
content when “OFF NARRATION”
is selected, “ON NARRATION” is
recommended.
•• This feature does not support monaural
sound.
•• You can only select the Virtual Football
mode during AUDIO IN and TV
functions.
Adjusting the
subwoofer level
1 Press OPTIONS.
2 Press / repeatedly to select
“S-WOOFER,” then press
.
3 Press
/ repeatedly to select
the subwoofer level, then press
.
To exit the options menu, press
OPTIONS.
Creating your own
sound effect
You can raise or lower the levels
of specific frequency bands, then
store the setting in the memory as
“CUSTOM EQ.”
“CUSTOM EQ,” then press
.
3 Press
/ repeatedly to adjust
the equalizer level, then press
.
4Repeat step 3 to adjust the level
Sound Adjustment
1 Press OPTIONS.
2 Press / repeatedly to select
of other frequency bands and
surround effect.
To exit the options menu, press
OPTIONS.
To select the custom equalizer
setting
Press MUSIC repeatedly to select
“CUSTOM EQ.”
69GB
Other Operations
Using the Control for
HDMI function
Connecting a TV compatible with
the Control for HDMI function* by
HDMI cable (High Speed HDMI Cable
with Ethernet, not supplied) enables
you to easily operate the device by a
TV remote control.
The following functions can be used
with the Control for HDMI function.
•• System Power Off function
•• System Audio Control function
•• Audio Return Channel
•• One-Touch Play function
•• Remote Easy Control
•• Language Follow
* Control for HDMI is a standard used
by CEC (Consumer Electronics Control)
for allowing HDMI (High-Definition
Multimedia Interface) devices to control
each other.
Note
These functions may work with devices
other than those manufactured by Sony,
but operation is not guaranteed.
Preparing to use the Control for
HDMI function
Press DVD SETUP, then set [HDMI
SETUP] – [CONTROL FOR HDMI] on
the system to [ON] (page 49). The
default setting is [ON].
Enable the Control for HDMI function
settings for the TV connected to the
system.
70GB
Hint
If you enable the Control for HDMI
(“BRAVIA” sync) function when using a
TV manufactured by Sony, the Control
for HDMI function of the system is also
enabled automatically. When settings are
completed, “COMPLETE” appears on the
display.
System Power Off function
When you turn off the TV, the system
will turn off automatically.
Press DVD SETUP, then set [HDMI
SETUP] – [STANDBY LINKED TO TV]
on the system to [ON] or [AUTO]
(page 49). The default setting is
[AUTO].
Note
The connected device may not turn off
depending on the status of the device.
System Audio Control function
If you turn on the system while you
are watching the TV, the TV sound
will be output from the system’s
speakers. The volume of the system
can be adjusted using the TV’s
remote control.
If the TV sound was output from the
system’s speakers the previous time
you watched the TV, the system will
be turned on automatically when
you turn on the TV again.
Operations can also be made by the
TV’s menu. For details, refer to the
operating instructions of your TV.
Notes
•• The system’s volume level is displayed
on the TV screen depending on the TV.
It may differ from the volume level on
the display panel.
•• Depending on the settings of the TV,
the System Audio Control function may
not be available. For details, refer to the
operating instructions of your TV.
Audio Return Channel
Language Follow
If the system is connected to a TV’s
HDMI IN jack compatible with Audio
Return Channel, you can listen to TV
sound from the system’s speakers
without connecting an audio cable
(not supplied).
On the system, press DVD SETUP,
then set [HDMI SETUP] – [AUDIO
RETURN CHANNEL] to [ON]
(page 49). The default setting is
[ON].
When you change the language
for the on-screen display of the
TV, the system’s on-screen display
language is also changed.
Note
If the TV is not compatible with Audio
Return Channel, an audio cable (not
supplied) needs to be connected
(page 34).
One-Touch Play function
When you play video content on
disc or USB device on the system,
the TV is turned on automatically.
The TV’s input is switched to the
HDMI input, to which the system is
connected.
Note
Remote Easy Control
You can select the system by the
SYNC MENU button on the TV
remote control and operate the
system.
This function can be used if the TV
supports the link menu. For details,
refer to the operating instructions of
your TV.
Other Operations
Depending on the TV, the beginning part
of content being played may not play
correctly.
Notes
•• In the TV’s link menu, the system is
recognized by the TV as “Player”.
•• Some operations may not be available
with some TVs.
71GB
Using the Party Chain function
You can connect multiple audio systems in a chain to create a more
interesting party environment and to produce higher sound output.
An activated system in the chain will be the “Party Host” and share the music.
Other systems will become “Party Guests” and play the same music as that
being played by the “Party Host.”
Setting up the Party Chain
Set up a Party Chain by connecting all the systems using audio cords (not
supplied).
Before connecting cords, be sure to disconnect the AC power cord (mains
lead).
 If all the systems are equipped with Party Chain function
Example: When connecting using this system as the first system
First system
Continue the
connection until
the last system
Second system
Last system
•• The last system must be connected to the first system.
•• Any system can become a Party Host.
•• You can change the Party Host to another system in the chain. For details,
see “To select a new Party Host (when all the systems are equipped with
Party Chain function)” (page 74).
72GB
 If one of the systems is not equipped with Party Chain function
Example: When connecting using this system as the first system
First system
Continue the
connection until
the last system
Second system
Last system*1*2
*1 Connect the system which is not equipped with Party Chain function at the last system,
otherwise the chain will stop at that system. Be sure to select the Audio In function on
the last system.
*2 If a system which is not equipped with the Party Chain function is the last in the chain,
the sound playback of that system will be delayed.
the same music when Party Chain function is activated.
Other Operations
•• The last system is not connected to the first system.
•• You must select the first system as Party Host so that all systems are playing
73GB
Enjoying the Party Chain
1 Plug in the AC power cord
(mains lead) and turn on all the
systems.
2 Adjust the volume on each
system.
3 Activate the Party Chain
function on the system to be
used as the Party Host.
Example: When using this system
as the Party Host
Press FUNCTION +/– repeatedly to
select the function you want (except
when the Audio In function is used
in connection  (page 72)). Start
playing the music, then touch
PARTY CHAIN on the subwoofer.
“PARTY CHAIN” appears on the
display. The Party Host starts the
Party Chain, and other systems
become Party Guests automatically.
All systems play the same music as
that being played by the Party Host.
Notes
•• Depending on the total unit of systems
you have connected, Party Guests may
take some time to start playing the
music.
•• Changing the volume level and sound
effect on the Party Host will not affect
the output on the Party Guests.
•• The Party Guests continue playing the
music source from the Party Host even
if you change the function on any of the
Party Guests. However, you can adjust
the volume and change the sound
effect on any of the Party Guests.
•• When you use the microphone on Party
Host, the sound will not be output from
Party Guests.
•• When one of the systems in the chain
is performing USB transfer, wait for the
system to complete or stop the transfer
before you activate the Party Chain
function.
•• For detailed operation on other
systems, refer to the operating
instructions of the systems.
To select a new Party Host (when
all the systems are equipped
with Party Chain function)
Repeat step 3 of “Enjoying the Party
Chain” on the system to be used
as a new Party Host. The current
Party Host becomes Party Guest
automatically. All systems play the
same music as that being played by
the new Party Host.
Notes
•• You can select another system as the
new Party Host only after the Party
Chain function of all the systems in the
Chain has been activated.
•• If the selected system does not become
a new Party Host after a few seconds,
repeat step 3 under “Enjoying the Party
Chain.”
74GB
To deactivate the Party Chain
Singing along: Karaoke
Touch PARTY CHAIN on the Party
Host.
Preparing for Karaoke
Note
If the Party Chain function is not
deactivated after a few seconds, touch
PARTY CHAIN on the Party Host again.
1 Touch MIC LEVEL – on the
To enjoy the Party Chain function
via Wi-Fi
If you connect the multi-room
compatible speakers to your Wi-Fi
network and set them in the same
room, you can enjoy high pressure
sound like the Party Chain function
via Wi-Fi.
Connect another optional
microphone if you want to sing in
duet.
3 Start playing the music and
You can set the sound mode when
the Party Chain function is activated.
“P CHAIN MODE”, then press
2 Connect an optional
microphone to MIC1 or MIC2
jack on the subwoofer.
Setting the Party Chain sound
mode
1 Press OPTIONS.
2 Press / repeatedly to select
subwoofer repeatedly to reduce
the microphone volume level.
adjust the microphone volume.
Touch KARAOKE, then touch
MIC ECHO repeatedly to adjust
the echo effect.
4Start singing along with the
music.
Notes
.
/ repeatedly to select
the mode you want, then press
.
•• “STEREO”: outputs the stereo
sound.
•• “RIGHT CH”: outputs the
monaural sound of the right
channel.
•• “LEFT CH”: outputs the monaural
sound of the left channel.
To exit the options menu, press
OPTIONS.
microphones are connected during
DVD/CD or USB function.
•• If howling occurs:
—— move the microphone away from the
system.
—— change the direction of the
microphone.
—— lower the microphone volume level.
—— press  – to reduce the volume level
or press MIC ECHO repeatedly to
adjust the echo level.
•• Microphone sound will not be
transferred to the USB device during
USB transfer.
Other Operations
3 Press
•• Karaoke mode is turned on when the
75GB
Using Vocal Fader
You can reduce the sound of the
vocal in stereo source.
Enjoying music with the
Party Light and Speaker
Light
Touch VOCAL FADER on the
subwoofer repeatedly to select
“ON V.FADER.”
1 Press PARTY LIGHT repeatedly
To cancel Vocal Fader effect, touch
VOCAL FADER repeatedly to select
“OFF.”
2 Press LIGHT MODE on the
Changing the key (Key Control)
Press KEY CONTROL / to suit
your vocal range in Karaoke mode.
Selecting the scoring mode
(Score Mode)
to select “LED ON.”
remote repeatedly to change
the illumination mode.
To turn off Party Light and
Speaker Light
Press PARTY LIGHT repeatedly to
select “LED OFF.”
Notes
•• Do not look directly at the light-emitting
part when the Party Light is turned on.
•• If the illumination brightness is glaring,
When Karaoke mode is turned on,
you can use the scoring function.
Your score is calculated from a scale
of 0 to 99 by comparing your voice
with the music source.
switch on the room lights or turn off the
illumination.
•• You can turn on or off the Party Light
and Speaker Light when demonstration
is turned on.
1 Start playing the music.
2 Press SCORE before singing a
Using the Sleep Timer
song in Karaoke mode.
3 After singing for more than a
minute, press SCORE again to
view your score.
Using Voice Changer
The system turns off automatically
after the preset time.
Press SLEEP repeatedly to select
the time you want.
To cancel Sleep Timer, press SLEEP
repeatedly to select “OFF.”
Hint
You can select your voice effect from
7 patterns.
Touch VOICE CHANGER +/– on the
subwoofer to change your voice
effect.
76GB
To check the remaining time before the
system turns off, press SLEEP.
Using optional
equipment
1 Press  – repeatedly until “VOL
MIN” appears on the display.
2 Connect an optional equipment
(page 30).
3 Press FUNCTION +/– repeatedly
to select the function which
corresponds to the connected
equipment.
4Start playing the connected
equipment.
5 Press  + repeatedly to adjust
the volume.
Note
The system may enter standby mode
automatically if the volume level of the
connected equipment is too low. Adjust
the volume level of the equipment.
If you turn off automatic standby
function, see “Setting the automatic
standby function” (page 77).
You can only operate the system using
the buttons on the remote control.
To turn off the Child Lock function,
touch and hold  on the subwoofer
for more than 5 seconds until
“CHILD LOCK OFF” appears on the
display.
Notes
•• Child Lock function will be turned off
automatically when you disconnect the
AC power cord (mains lead).
•• Child Lock function cannot be activated
when you open the disc tray.
Setting the automatic
standby function
The system enters standby mode
automatically in about 15 minutes
when there is no operation or audio
signal output.
By default, the automatic standby
function is turned on.
1 Press OPTIONS.
2 Press / repeatedly to select
Deactivating the touch
panel on the subwoofer
(Child Lock)
You can deactivate the keys (except
) on the touch panel of the
subwoofer to prevent misoperation,
such as child mischief.
Touch and hold  on the
subwoofer for more than 5
seconds.
.
3 Press
/ repeatedly to select
“ON” or “OFF,” then press .
To exit the options menu, press
OPTIONS.
Notes
•• “AutoSTBY” flashes on the display about
Other Operations
“AutoSTBY,” then press
2 minutes before entering standby
mode.
•• The automatic standby function does
not work in the following cases:
—— during tuner function.
—— when the Sleep Timer is activated.
—— when microphone is connected.
“CHILD LOCK ON” appears on the
display.
77GB
Setting the
BLUETOOTH/Network
standby mode
/ repeatedly to select
“RF ON,” “WIFI OFF,” or “RF OFF.”
•• RF ON: Wi-Fi signal is on/
BLUETOOTH signal is on
•• WIFI OFF: Wi-Fi signal is off/
BLUETOOTH signal is on
•• RF OFF: Wi-Fi signal is off/
BLUETOOTH signal is off
The BLUETOOTH/Network standby
mode enables the system to
turn on automatically when you
establish a BLUETOOTH connection,
a Wi-Fi connection, or a wired LAN
connection.
4Press
1 Press OPTIONS.
2 Press / repeatedly to select
•• You cannot perform the following
“NW STBY,” then press
.
3 Press
/ repeatedly to select
the setting, then press .
•• ON: The system turns on
automatically even when the
system is in standby mode.
•• OFF: Turns off this function.
To exit the options menu, press
OPTIONS.
Turning on or off the
BLUETOOTH/Wi-Fi
signal
You can connect to the system from
a linked network device or a paired
BLUETOOTH device in all functions
when the system’s BLUETOOTH/
Wi-Fi signal is set to on. The
BLUETOOTH/Wi-Fi signal is turned
on by default.
1 Press OPTIONS.
2 Press / repeatedly to select
“RF,” then press
78GB
3 Press
.
.
To exit the options menu, press
OPTIONS.
Notes
operations when BLUETOOTH/Wi-Fi
signal is set to off:
—— Pairing and/or connecting with
BLUETOOTH device
—— Erasing the pairing information
—— Using “SongPal” via BLUETOOTH
—— Change the BLUETOOTH audio
codecs
•• If you touch the N-Mark on the
subwoofer with an NFC-compatible
smartphone or set the BLUETOOTH/
Network standby mode to on, the
BLUETOOTH/Wi-Fi signal will be set to
on automatically.
About the “SongPal”
and “Fiestable”
applications
“SongPal” is an application for
controlling Sony’s “SongPal”
compatible audio devices with a
smartphone/iPhone.
“Fiestable” is an application which
controls the party features of
Sony’s Home Audio System with an
intuitive and fancy user interface.
How to download the
application
Search and download the “SongPal”
application from Google Play or the
App Store.
•• DJ control
•• Adjustment illumination
•• Karaoke
•• Motion control
Notes
•• Available operations via “SongPal” may
differ depending on the audio devices.
•• Specifications and screen design of the
software applications are subject to
change without notice.
•• For notes on using “Fiestable,” refer
to the “Notes on using the “Fiestable”
application” (separate document) for
details.
Settings on “SongPal” are available
when the “SongPal” version is 4.X
or later.
For more details on “SongPal,” refer
to the following URL.
http://info.songpal.sony.net/help/
Other Operations
Launch the “SongPal” application
and touch the “Fiestable” icon on the
upper-left corner. You can download
the “Fiestable” application from
Google Play or the App Store.
What you can do with “Fiestable”
What you can do with “SongPal”
•• Volume adjustment
•• Sound settings
79GB
Updating the software
Manual update via the Internet
You can update your system’s preinstalled software by using one of
the following 3 methods:
When the system is connected to
the Internet, “UPDATE” lights up on
the display if the system detects a
new update file.
Automatic update via the
Internet
When the system is connected to
the Internet, the system updates
the software automatically if a new
update file is detected. This feature
requires the settings to be made
by using a smartphone/iPhone
installed with “SongPal.”
Launch “SongPal” on your
smartphone/iPhone, and set [Auto
Update] in the [Settings] menu.
Refer to SongPal Help for more
details.
http://info.songpal.sony.net/help/
1 Press OPTIONS.
2 Press / repeatedly to select
“SYSTEM,” then press
.
3 Press
/ repeatedly to select
“UPDATE,” then press .
4Press
/ repeatedly to select
“VIA NW,” then press .
5 Press
/ repeatedly to select
“EXEC,” then press .
6Press
/ repeatedly to select
“YES,” then press .
To exit the options menu, press
OPTIONS.
Hint
Automatic update will start updating
the software after downloading all
the update files. Therefore, data
corruption and loss do not occur if the
network connection is unintentionally
disconnected. If a problem occurs,
perform the manual update via a USB
device.
Manual update via a USB
device
Use a computer or another device
to download the update file from
the websites below, then store it
in a USB device. Follow the online
instructions to update the software.
For customers in Latin America:
<http://esupport.sony.com/LA>
For customers in Europe and
Russia:
<http://www.sony.eu/support>
For customers in other countries/
regions:
<http://www.sony-asia.com/
support>
80GB
Additional Information
Troubleshooting
Should you encounter a problem
with your system, find your problem
in the troubleshooting checklist
below and take the corrective
action.
If the problem persists, consult your
nearest Sony dealer.
Note that if the service personnel
changes some parts during repair,
these parts may be retained.
If “PROTECTX” (X is a number)
appears on the display
Immediately unplug the AC
power cord (mains lead), and
check the following items.
•• Is anything blocking the
ventilation openings of the
subwoofer?
•• Is anything blocking the
ventilation openings of the rear
vent?
•• Is the USB port short-circuited?
The power does not turn on.
•• Check that the AC power cord
(mains lead) is connected securely.
The system cannot be turned off
even though  is pressed.
•• You may have set the display
mode to the demonstration mode
unintentionally. Press DISPLAY
repeatedly to select the no-display
mode (Power Saving Mode)
(page 36).
The system has entered standby
mode.
•• This is not a malfunction. The
system enters standby mode
automatically in about 15 minutes
when there is no operation or
audio signal output (page 77).
There is no sound.
•• Adjust the volume.
•• Check the speaker connections
(page 28).
•• Check the connection of the
optional equipment, if any
(page 28).
•• Turn on the connected equipment.
•• Unplug the AC power cord (mains
lead), then plug it in again and
turn on the system.
There is no picture/sound when
connected to the HDMI OUT (TV)
jack.
•• Change the setting in [HDMI
SETUP] – [HDMI RESOLUTION].
•• The equipment connected to
the HDMI OUT (TV) jack does
not conform to the audio signal
format. In this case, press DVD
SETUP, then set [HDMI SETUP]
– [AUDIO (HDMI)] to [PCM]
(page 49).
Additional Information
After you have checked these
above items and found no
problems, reconnect the AC
power cord (mains lead), and
turn on the system. If the issue
persists, contact your nearest
Sony dealer.
General
81GB
•• Try the following:
—Turn
—
the system off and on
again.
—Turn
—
the connected equipment
off and on again.
—Disconnect
—
then connect the
HDMI cable again.
There is no microphone sound.
•• Adjust the microphone volume
level.
•• Make sure the microphone is
connected to the MIC1 or MIC2
jack on the subwoofer correctly.
•• Make sure the microphone is
turned on.
No TV sound is heard from the
system.
“CODE 01” and “SGNL ERR” appear
on the display.
•• This system supports 2-channel
Linear PCM formats only. Check
the audio output setting on the
TV and change it to PCM output
mode if automatic mode is
selected.
•• Check that the speaker output
setting on the TV is set to use
external speakers.
There is severe hum or noise.
•• Move the system away from
sources of noise.
•• Connect the system to a different
wall outlet.
•• Install a noise filter (not supplied)
to the AC power cord (mains lead).
•• Turn off surrounding electrical
equipment.
•• The noise generated by the
cooling fans of the system may
be heard when the system is in
standby mode or during playback.
This is not a malfunction.
82GB
The remote control does not
function.
•• Remove the obstacles between
the remote control and the
subwoofer.
•• Move the remote control closer to
the subwoofer.
•• Point the remote control at the
subwoofer’s sensor.
•• Replace the batteries (R03/size
AAA).
•• Move the subwoofer away from
the fluorescent light.
There is acoustic feedback.
•• Reduce the volume.
•• Move the microphone away from
the system or change the direction
of the microphone.
The color irregularity on a TV
screen persists.
•• Turn off the TV at once, then turn
it on after 15 to 30 minutes. If the
color irregularity still persists,
place the system farther away
from the TV.
“CHILD LOCK” appears when you
touch any key on the subwoofer.
•• Set the Child Lock function to off
(page 77).
A clicking sound is heard when
turning the power on.
•• This is the operating sound and it
occurs when the power is turned
on or off, for example. This is not a
malfunction.
Disc player
The disc tray does not open and
“LOCKED” appears on the display.
•• Consult your nearest Sony dealer
or local authorized Sony service
facility.
The disc tray does not close.
•• Load the disc correctly.
The disc does not eject.
•• You cannot eject the disc during
CD-USB Synchronized Transfer or
REC1 Transfer. Press  to cancel
the transfer, then touch  on the
subwoofer to eject the disc.
•• Consult your nearest Sony dealer.
Playback does not start.
•• Wipe the disc clean (page 94).
•• Reload the disc.
•• Load the disc that this system can
play back (page 8).
•• Remove the disc and wipe away
the moisture on the disc, then
leave the system turned on for
a few hours until the moisture
evaporates.
•• The region code on the DVD VIDEO
does not match the system.
The sound skips.
•• Wipe the disc clean (page 94).
•• Reload the disc.
•• Move the subwoofer to a place
with no vibration.
You cannot perform some
functions such as Stop, Lock
Search, Slow-motion Play, Repeat
Play or Shuffle Play.
•• Depending on the disc, you may
not be able to do some of the
operations above. Refer to the
operating instructions supplied
with the disc.
The folder name, track name, file
name and ID3 tag characters do
not appear properly.
•• The ID3 version is not in Version 1
(1.0/1.1) or Version 2 (2.2/2.3).
•• The character codes that can be
displayed by this system are as
follows:
—Upper
—
cases (A to Z)
—Numbers
—
(0 to 9)
—Symbols
—
(< > * +, [ ] \ _)
Other characters appear as “_.”
The sound loses stereo effect
when you play back an AUDIO CD,
VIDEO CD, audio file, video file, or
DVD VIDEO.
•• Turn off the VOCAL FADER
(page 76).
•• Make sure the system is
connected properly.
•• Check the speaker connections
(page 28).
USB device
Transferring results in an error.
•• You are using an unsupported USB
device. Check the information on
the website about compatible USB
devices (page 11).
•• The USB device is not formatted
correctly. Refer to the operating
instructions of the USB device on
how to format.
Additional Information
Playback does not start from the
first track.
•• Set the play mode to Normal Play
(page 42).
•• Resume Play has been selected.
Press  twice, then press  to
start playback.
The DATA CD/DATA DVD (MP3,
MPEG4 or Xvid) cannot be played
back.
•• The data is not stored in the
supported format.
•• Make sure you have selected
the correct Media Mode before
playback.
83GB
•• Turn off the system and remove
the USB device. If the USB device
has a power switch, turn the USB
device off and on again after
removing it from the system. Then,
perform the transfer again.
•• If the transfer and erase
operations are repeated multiple
times, the file structure within the
USB device becomes fragmented.
Refer to the operating instructions
of the USB device on how to deal
with this problem.
•• The USB device was disconnected
or the power was turned off
during transfer. Delete the
partially-transferred file, and
perform the transfer again. If this
does not fix the problem, the USB
device may be broken. Refer to the
operating instructions of the USB
device on how to deal with this
problem.
Audio files or folders on the USB
device cannot be erased.
•• Check if the USB device is writeprotected.
•• The USB device was disconnected
or the power was turned off
during the erase operation. Delete
the partially-erased file. If this
does not fix the problem, the USB
device may be broken. Refer to the
operating instructions of the USB
device on how to deal with this
problem.
There is no sound.
•• The USB device is not connected
correctly. Turn off the system and
reconnect the USB device, then
turn on the system and check if
“USB” appears on the display.
84GB
There is noise, skipping, or
distorted sound.
•• You are using an unsupported USB
device. Check the information on
the website about compatible USB
devices (page 11).
•• Turn off the system and reconnect
the USB device, then turn on the
system.
•• The music data itself contains
noise, or the sound is distorted.
Noise may have entered during
the transfer process. Delete the
file, and try transfer again.
•• The bit rate used in encoding an
audio file was low. Send an audio
file with higher bit rate to the USB
device.
“READING” is displayed for an
extended time, or it takes a long
time before playback starts.
•• The reading process can take a
long time in the following cases.
—There
—
are many folders or files
on the USB device (page 10).
—The
—
file structure is extremely
complex.
—The
—
memory capacity is
excessive.
—The
—
internal memory is
fragmented.
“NO FILE” appears on the display.
•• The system has entered the
software update mode, and all
keys (except ) are deactivated.
Press  on the subwoofer to
cancel the software update.
“OVER CURRENT” appears on the
display.
•• A problem has been detected
with the level of electrical current
from the
USB port. Turn off
the system and remove the USB
device from the port. Make sure
there is no problem with the USB
device. If this display pattern
persists, contact your nearest Sony
dealer.
Erroneous display.
•• The data stored in the USB
device may have been corrupted,
perform the transfer again.
•• The character codes that can be
displayed by this system are as
follows:
—Upper
—
cases (A to Z)
—Numbers
—
(0 to 9)
—Symbols
—
(< > * +, [ ] \ _)
Other characters appear as “_.”
Playback does not start.
•• Turn off the system and reconnect
the USB device, then turn on the
system.
•• Check the information on the
website about compatible USB
devices (page 11).
Playback does not start from the
first file.
•• Set the play mode to Normal Play
(page 42).
* This system supports FAT16 and FAT32,
but some USB devices may not support
all of these FAT. For details, refer to the
operating instructions of each USB
device or contact the manufacturer.
There is no picture.
•• Check that the system is
connected securely.
•• If the video cable or HDMI cable
is damaged, replace it with a new
one.
•• Make sure you connect the
subwoofer to the HDMI input jack
or the video input jack of your TV
(page 33).
•• Make sure you turn on the TV and
operate the TV correctly.
•• Make sure you select the video
input on the TV so that you can
view the pictures from the system.
•• (Except for Latin American,
European, and Russian models)
Make sure you set the color
system correctly, according to your
TV’s color system.
Picture noise appears.
•• Wipe the disc clean (page 94).
•• If video signal from your system
has to go through your VCR to
your TV, the copy-protection
applied to some DVD VIDEO
programs could affect the picture
quality.
Additional Information
The USB device is not recognized.
•• Turn off the system and reconnect
the USB device, then turn on the
system.
•• Check the information on the
website about compatible USB
devices (page 11).
•• The USB device is not working
properly. Refer to the operating
instructions of the USB device on
how to deal with this problem.
Files cannot be played back.
•• Make sure you have selected
the correct Media Mode before
playback.
•• USB devices formatted with file
systems other than FAT16 or FAT32
are unsupported.*
•• If you use a partitioned USB
device, only files on the first
partition can be played back.
85GB
•• (Except for Latin American,
European, and Russian models)
When you play back a VIDEO
CD recorded in a different color
system from the one you set to the
system, the picture image may be
distorted (page 35, 47).
•• (Except for Latin American,
European, and Russian models)
Set the color system to match your
TV (page 35, 47).
The aspect ratio of the TV screen
cannot be changed.
•• The aspect ratio is fixed on your
DVD VIDEO and video file.
•• Depending on the TV, you may not
change the aspect ratio.
The language for the sound track
cannot be changed.
•• Multilingual tracks are not
recorded on the DVD VIDEO being
played back.
•• The DVD VIDEO prohibits changing
the language for the sound track.
The subtitles language cannot be
changed.
•• Multilingual subtitles are not
recorded on the DVD VIDEO being
played back.
•• The DVD VIDEO prohibits changing
the subtitles.
The subtitles cannot be turned off.
•• The DVD VIDEO prohibits turning
off subtitles.
The camera angles cannot be
changed.
•• Multi-angles are not recorded on
the DVD VIDEO being played back.
•• The DVD VIDEO prohibits changing
the angles.
86GB
Tuner*
There is severe hum or noise, or
stations cannot be received.
•• Connect the antenna properly.
•• Change antenna location and
its orientation to obtain good
reception.
•• Turn off nearby electrical
equipment.
* Radio may not be received depending
on the radio wave conditions or the
housing environment in your area.
BLUETOOTH device
Pairing cannot be performed.
•• Move the BLUETOOTH device
closer to the system.
•• Pairing may not be possible if
other BLUETOOTH devices are
present around the system.
In this case, turn off the other
BLUETOOTH devices.
•• Make sure to enter the correct
passkey when selecting the
system’s name (this system) on
the BLUETOOTH device.
Connection is not possible.
•• The BLUETOOTH device you
attempted to connect does not
support the A2DP profile, and
cannot be connected with the
system.
•• Enable the BLUETOOTH function of
the BLUETOOTH device.
•• Establish a connection from the
BLUETOOTH device.
•• The pairing registration
information has been erased.
Perform the pairing operation
again.
•• Erase the pairing registration
information of the BLUETOOTH
device (page 56) and perform
the pairing operation again
(page 55).
The sound skips or fluctuates, or
the connection is lost.
•• The system and the BLUETOOTH
device are too far apart.
•• If there are obstacles between
the system and your BLUETOOTH
device, remove or avoid the
obstacles.
•• If there is equipment that
generates electromagnetic
radiation, such as a wireless LAN,
other BLUETOOTH device, or a
microwave oven nearby, move
them away.
The sound of your BLUETOOTH
device cannot be heard on this
system.
•• Increase the volume on your
BLUETOOTH device first, then
adjust the volume using +/–.
The sound from “Voice Playback”
in the “Fiestable” application does
not output.
•• The built-in sound demonstration
is activated. Press  to stop the
demonstration, then perform the
playback again.
The system cannot connect to the
network. (Other equipment on the
network cannot find or recognize
the system.)
is lit on the display.
•• Check that
•• It takes about 2 minutes for the
system to acquire an IP address
when the system is turned on in
a communication environment
without a router.
•• When you use a fixed IP address,
the same IP address may be
used by other equipment. Use a
different IP address.
The system cannot connect to the
network via a wireless LAN
connection.
•• If a network (LAN) cable is
connected to the system, the
system automatically establishes a
wired LAN connection. If you wish
to use a wireless LAN connection,
disconnect any network (LAN)
cable from the system.
•• Check the settings of the wireless
LAN router/access point. If the
SSID stealth mode is set to “On”
on the access point, set it to “Off.”
For details on the access point
settings of the wireless router,
refer to the operating manual of
the access point.
Additional Information
There is severe hum, noise, or
distorted sound.
•• If there are obstacles between
the system and your BLUETOOTH
device, remove or avoid the
obstacles.
•• If there is equipment that
generates electromagnetic
radiation, such as a wireless LAN,
other BLUETOOTH device, or a
microwave oven nearby, move
them away.
•• Turn down the volume of the
connected BLUETOOTH device.
Network connection
87GB
The system cannot connect to the
network using WPS.
•• Set up your network after
searching the access point using
the access point scan.
•• You cannot connect to a network
using WPS when your access point
is set to WEP.
•• Update the firmware of the
wireless LAN router/access point
to the latest version.
Music Services
The system cannot connect to
Music Services.
•• Make sure the wireless LAN
router/access point is turned on.
is lit on the display.
•• Check that
If not, set up a wireless network
again. For details, see Wi-Fi
Startup Guide.
•• When the system is connected
to a wireless network, place the
wireless LAN/access point and
the system closer together and
perform the setup again.
•• Depending on the provider, only
one connection to the Internet is
allowed.
•• Turn off your mobile device
(Android, Xperia, or iPhone/iPod
touch) and wait a moment before
turning it on again. Then try to
restart the “SongPal” application.
Home Network
The controller (the operating
device) cannot find this system.
(The controller cannot browse the
contents of this system.)
•• Make sure that the controller is
connected to the home network.
•• The multicast control on the
access point is enabled.
88GB
Music starts automatically.
•• This system may be controlled
by another component. To block
such control, set the BLUETOOTH/
Network standby mode to off
(page 78).
The sound is interrupted.
•• The DLNA server is overloaded.
Quit all running applications.
•• The wireless signal has
interference. Turn off other
devices such as your microwave
oven.
•• The communication speed of the
wireless LAN may become slower
for IEEE802.11n-compliant wireless
LAN routers/access points if the
security method is set to WEP
or WPA/WPA2-PSK (TKIP). If the
speed becomes slower, change
the security method to WPA/
WPA2-PSK (AES).
The encryption (security) scheme
varies depending on the device.
For details, refer to the operating
manual of your router/access
point.
Tuning or playback cannot be
performed.
•• The audio file is damaged or has
been deleted from the server.
Refer to the operating manual of
the server.
•• The server tries to play the audio
file in an audio format that the
system does not support. Check
the audio format information on
the server.
•• Disable the multicast control on
the wireless LAN router/access
point. If it is enabled, it may take
several minutes to output the
audio. For details, refer to the
operating manual of the wireless
LAN router/access point.
•• The access from this system is not
permitted by the server. Change
the settings on the server to
allow access from this system.
For details, refer to the operating
manual of the server.
Gesture Control
The Gesture Control cannot be
activated.
•• Touch GESTURE ON/OFF
repeatedly until GESTURE
CONTROL sensor lights up.
•• Make sure the Child Lock function
is not activated (page 77).
“PARTY LOCK” appears when you
touch any key on the subwoofer.
•• Set the Party Lock function to off
(page 67).
The system does not turn on when
the TV is turned on.
•• Press DVD SETUP, then set [HDMI
SETUP] – [CONTROL FOR HDMI]
to [ON] (page 49). The TV must
support the Control for HDMI
function (page 49). For details,
refer to the operating instructions
of your TV.
•• Check the speaker settings of the
TV. The system power syncs with
the speaker settings of the TV.
For details, refer to the operating
instructions of your TV.
•• If the sound was output from the
TV’s speakers the previous time,
the system will not turn on when
the TV is turned on.
The system turns off when the TV
is turned off.
•• Check the setting of [HDMI
SETUP] – [STANDBY LINKED TO
TV] (page 49). When [STANDBY
LINKED TO TV] is set to [ON], the
system turns off automatically
when you turn off the TV
regardless of the input.
The system does not turn off when
the TV is turned off.
•• Check the setting of [HDMI
SETUP] – [STANDBY LINKED TO TV]
(page 49).
To turn the system off
automatically regardless of the
input when you turn off the TV, set
[STANDBY LINKED TO TV] to [ON].
The TV must support the Control
for HDMI function (page 49).
For details, refer to the operating
instructions of your TV.
Additional Information
The Gesture Control does not
operate properly.
•• Move your hand closer to the
GESTURE CONTROL sensor
(page 65) when you swipe.
•• Swipe more slowly.
•• Select the correct mode
(PLAYBACK, DJ, SAMPLER or
KARAOKE) before you start using
the Gesture Control (page 65,
66, 67).
•• Install a noise filter (not supplied)
to the AC power cord (mains lead).
•• Turn off nearby electrical
equipment.
Control for HDMI (“BRAVIA”
Sync)
89GB
No TV sound is output from the
system.
•• Check the type and connection of
the HDMI cable or audio cable that
is connected to the system and
the TV (page 33).
•• If your TV is compatible with Audio
Return Channel, make sure the
system is connected to an ARCcompatible HDMI IN jack of the TV
(page 33). If sound is still not
output or if sound is interrupted,
connect an audio cable (not
supplied) and press DVD SETUP,
then set [HDMI SETUP] – [AUDIO
RETURN CHANNEL] to [OFF]
(page 49).
•• If your TV is not compatible with
Audio Return Channel, TV sound
will not be output from the system
even if the system is connected to
the TV’s HDMI IN jack. To output TV
sound from the system, connect
an audio cable (not supplied)
(page 34).
•• Switch input of the system to “TV”
(page 34).
•• Increase the volume on the
system.
•• Depending on the order in
which you connect the TV and
the system, the system may be
muted and “MUTING” lights up on
the display of the system. If this
happens, turn on the TV first, then
the system.
•• Set the speakers setting of the TV
(BRAVIA) to Audio System. Refer
to the operating instructions of
your TV.
The sound is output from both the
system and the TV.
•• Mute the sound of the system or
the TV.
•• Change the speaker output on the
TV to TV speaker or Audio System.
90GB
The Control for HDMI function
does not work properly.
•• Check the connection with the
system (page 33).
•• Enable the Control for HDMI
function on the TV. For details,
refer to the operating instructions
of your TV.
•• Wait a while, then try again. If you
unplug the system, it will take
a while before operations can
be made. Wait for 15 seconds or
longer, then try again.
•• Make sure the TV connected to the
system supports the Control for
HDMI function.
•• The type and number of devices
that can be controlled by the
Control for HDMI function is
restricted by the HDMI CEC
standard as follows:
—Recording
—
devices (Blu-ray Disc
recorder, DVD recorder, etc.): up
to 3 devices
—Playback
—
devices (Blu-ray Disc
Player, DVD player, etc.): up to 3
devices
—Tuner-related
—
devices: up to 4
devices
—Audio
—
system (receiver/
headphone): up to 1 device
(used by this system)
Party Chain
Party Chain function cannot be
activated.
•• Check the connections
(page 72).
•• Make sure the audio cables are
connected correctly.
“PARTY CHAIN” is flashing on the
display.
•• You cannot select the Audio In
function if you make a connection
 (page 72) while using the
Party Chain function. Select a
function other than the Audio In
function (page 74).
•• Touch PARTY CHAIN on the
subwoofer.
•• Try turning off the system, then
turning it back on again.
Party Chain function does not
work properly.
•• Turn off the system. Then, turn it
back on again to activate the Party
Chain function.
Returning the setup menu
settings to the default
You can return the setup
menu settings (except for
[PARENTAL CONTROL] settings) to
the default settings.
1 Press DVD SETUP.
The setup menu appears on the TV.
2 Press
/ repeatedly to select
[SYSTEM SETUP], then press .
3 Press
/ repeatedly to select
[RESET], then press .
4 Press
/ repeatedly to select
[YES], then press .
It takes a few seconds to complete.
Do not press  while resetting the
system.
Resetting the system
If the system still does not operate
properly, reset the system to factory
default settings.
1 Unplug the AC power cord (mains
lead), then plug it back in.
“SYSTEM,” then press
.
5 Press
/ repeatedly to select
“RESET,” then press .
6 Press
/ repeatedly to select
“YES,” then press .
“RESET” appears on the display.
All user-configured settings, such as
preset radio stations and Sleep
Timer are reset to factory default
setting.
Additional Information
2 Press  to turn on the system.
3 Press OPTIONS.
4 Press / repeatedly to select
91GB
Self-diagnosis Function
When letters/numbers appear
on the TV screen or the display
When the self-diagnosis function
is activated to prevent the system
from malfunctioning, a service
number appears. The service
number consists of an alphabet
and numerals (e.g. C 13 50). See the
following table for the cause and
corrective action.
First 3
Cause and corrective
characters of action
the service
number
C 13
This disc is dirty.
•• Clean the disc with a
soft cloth (page 94).
C 31
The disc is not inserted
correctly.
•• Turn off the system,
then turn it back on
again. Then re-insert the
disc correctly.
E XX
(XX is a
number)
Messages
One of the following messages may
appear or flash on the display during
operation.
CANNOT PLAY
•• A disc that cannot be played back
was inserted.
•• A DVD VIDEO with unsupported
region code was inserted.
CODE 01/SGNL ERR
An unsupported audio signal is
input from the connected TV’s HDMI
IN (ARC) jack (page 34).
DATA ERROR
•• The file is created in unsupported
format.
•• The file extensions does not match
the file format.
DEVICE ERROR
The USB device could not be
recognized or an unknown device is
connected.
To prevent a
malfunction, the system
has performed the
self-diagnosis function.
DEVICE FULL
The memory of the USB device is
full.
•• Contact your nearest
ERASE ERROR
Erase of audio files or folders on the
USB device failed.
Sony dealer or local
authorized Sony service
facility and give the
5-character service
number.
Example: E 61 10
FATAL ERROR
The USB device was removed during
transfer or erase operation, and may
have been damaged.
FOLDER FULL
You cannot transfer onto the USB
device because the number of
folders has reached its maximum.
GUEST
The system has become a Party
Guest as the Party Chain function
has been activated by a Party Host.
92GB
HOST
The system activated the Party
Chain function and has become a
Party Host.
READING
The system is reading information
of the disc or USB device. Some
operations are not available.
NO DISC
There is no disc in the player.
REC ERROR
The transfer did not start, stopped
partway, or otherwise could not be
performed.
NO MUSIC
No supported audio files exist in the
playback source.
NO SUPPORT
An unsupported USB device is
connected, or the USB device is
connected through a USB hub.
TRACK FULL
You cannot transfer onto the USB
device because the number of files
has reached its maximum.
NO VIDEO
No supported video files exist in the
playback source.
NoDEVICE
No USB device is connected or
unsupported device is connected.
NOT USE
You tried to perform a specific
operation under conditions where
that operation is prohibited.
OVER CURRENT
An over current from the
port was detected.
USB
PUSH STOP
You tried to perform an operation
that can be performed only when
the playback is stopped.
Additional Information
PROTECT
The USB device is write-protected.
93GB
Precautions
changed only at the qualified service
shop.
When carrying the subwoofer
On handling the unit
To avoid damaging the disc
mechanism, perform the following
procedure before carrying the
subwoofer.
•• Do not splash liquid on the subwoofer.
Use the keys on the touch panel
of the subwoofer to perform this
operation.
1 Press  to turn on the system.
2 Touch FUNCTION repeatedly to
select “DVD/CD.”
3 Remove the disc.
Touch  to open and close the disc
tray.
Wait until “NO DISC” appears on the
display.
4 Unplug the AC power cord (mains
lead).
Notes on discs
•• Before playing, wipe the disc with a
cleaning cloth from the center outward
to the edge.
•• Do not clean discs with solvents, such
as benzine, thinner, or commercially
available cleaners or anti-static spray
intended for vinyl LPs.
•• Do not expose discs to direct sunlight
or heat sources such as hot air ducts,
nor leave them in a car parked in direct
sunlight.
On safety
•• Completely disconnect the AC power
cord (mains lead) from the wall outlet
(mains) if it is not going to be used
for an extended period of time. When
unplugging the system, always grip the
plug. Never pull the cord itself.
•• Should any solid object or liquid get
into the system, unplug the system, and
have it checked by qualified personnel
before operating it again.
94GB
•• AC power cord (mains lead) must be
Dust and drip proof performance is
improved by the flat top structure of the
subwoofer, but this is not guaranteed
for all situations. If you accidentally
splash liquid on the subwoofer, wipe off
immediately.
•• To maintain the dust and drip proof
performance, make sure of the
following:
—— The MIC cover is securely attached
(page 16).
—— The USB REC/PLAY cover is securely
closed (page 16).
On placement
•• Do not place the system in an inclined
position or in locations that are
extremely hot, cold, dusty, dirty, or
humid or lacking adequate ventilation,
or subject to vibration, direct sunlight or
a bright light.
•• Be careful when placing the system
on surfaces that have been specially
treated (for example, wax, oil, polish) as
staining or discoloration of the surface
may result.
•• If the system is brought directly from
a cold to a warm location or is placed
in a very damp room, moisture may
condense on the lens inside the
subwoofer, and cause the system to
malfunction. In this situation, remove
the disc, and leave the system turned
on for about an hour until the moisture
evaporates.
On heat buildup
•• Heat buildup on the subwoofer during
operation is normal and is not a cause
for alarm.
•• Do not touch the cabinet if it has been
used continuously at a high volume
because the cabinet may have become
hot.
•• Do not obstruct the ventilation holes.
On the speaker system
This speaker system is not magnetically
shielded, and the picture on nearby TV
sets may become magnetically distorted.
In this situation, turn off the TV, wait 15 to
30 minutes, and turn it back on. If there is
no improvement, move the speakers far
away from the TV.
IMPORTANT NOTICE
Caution: If you leave a still video
image or on-screen display image
displayed on your TV for an extended
period of time via this system, you
risk permanent damage to your TV
screen. Projection TVs are especially
susceptible to this.
Cleaning the cabinet
Clean this system with a soft cloth slightly
moistened with a mild detergent solution.
Do not use any type of abrasive pad,
scouring powder, or solvent, such as
thinner, benzine, or alcohol.
On BLUETOOTH communication
•• BLUETOOTH devices should be used
Additional Information
within approximately 10 meters
(unobstructed distance) of each
other. The effective communication
range may become shorter under the
following conditions.
—— When a person, metal object, wall
or other obstruction is between
the devices with a BLUETOOTH
connection
—— Locations where a wireless LAN is
installed
—— Around microwave ovens that are
in use
—— Locations where other
electromagnetic waves are
generated
•• BLUETOOTH devices and wireless LAN
(IEEE 802.11b/g) equipment use the
same frequency band (2.4 GHz). When
using your BLUETOOTH device near
a device with wireless LAN capability,
electromagnetic interference may
occur. This could result in lower data
transfer rates, noise, or inability to
connect. If this happens, try the
following remedies:
—— Use this system at least 10 meters
away from the wireless LAN
equipment.
—— Turn off the power of the wireless
LAN equipment when using your
BLUETOOTH device within 10 meters.
—— Use this system and BLUETOOTH
device as closer to each other as
possible.
•• The radio waves broadcast by this
system may interfere with the operation
of some medical devices. Since this
interference may result in malfunction,
always turn off the power on this
system and BLUETOOTH device in the
following locations:
—— In hospitals, on trains, in airplanes,
at gas stations, and any place where
flammable gases may be present
—— Near automatic doors or fire alarms
•• This system supports security
functions that comply with BLUETOOTH
specifications to ensure secure
connections during communication
using BLUETOOTH technology. However,
this security may be insufficient
depending on the setting contents
and other factors, so always be careful
when performing communication using
BLUETOOTH technology.
•• Sony cannot be held liable in any way
for damages or other loss resulting
from information leaks during
communication using BLUETOOTH
technology.
•• BLUETOOTH communication is not
necessarily guaranteed with all
BLUETOOTH devices that have the same
profile as this system.
•• BLUETOOTH devices connected with
this system must comply with the
BLUETOOTH specification prescribed
by the Bluetooth SIG, Inc., and must
be certified to comply. However, even
when a device complies with the
BLUETOOTH specification, there may
be cases where the characteristics or
specifications of the BLUETOOTH device
make it impossible to connect, or may
result in different control methods,
display or operation.
95GB
•• Noise may occur or the audio may
cut off depending on the BLUETOOTH
device connected with this system,
the communications environment, or
surrounding conditions.
Specifications
Active Subwoofer
(SA-WGT7DW)
Speaker section
Speaker system:
Subwoofer, Sound Pressure Horn
Speaker unit:
350 mm, cone type
Rated impedance:
8 ohms
Inputs
AUDIO IN/PARTY CHAIN IN L/R:
Voltage 2 V, impedance
47 kilohms
TV (ARC):
Supported audio signal:
2-channel Linear PCM
MIC1, MIC2:
Sensitivity 1 mV, impedance
10 kilohms
Outputs
AUDIO OUT/PARTY CHAIN OUT L/R:
Voltage 2 V, impedance 1 kilohms
VIDEO OUT:
Max. output level 1 Vp-p,
unbalanced, Sync. negative load
impedance 75 ohms
HDMI OUT (TV):
Supported audio signal:
2-channel Linear PCM (up to
48 kHz), Dolby Digital
HDMI section
Connector:
Type A (19 pin)
96GB
Disc player section
BLUETOOTH section
System:
Compact disc and digital audio
and video system
Laser Diode Properties
Emission Duration: Continuous
Laser Output*: Less than 44.6 μW
Communication system:
BLUETOOTH Standard version 4.2
Output:
BLUETOOTH Standard Power
Class 1
Maximum communication range:
Line of sight approx. 30 m*1
Frequency band:
2.4 GHz band (2.4000 GHz –
2.4835 GHz)
Modulation method:
FHSS (Freq Hopping Spread
Spectrum)
Compatible BLUETOOTH profiles*2:
A2DP (Advanced Audio
Distribution Profile)
AVRCP (Audio Video Remote
Control Profile)
SPP (Serial Port Profile)
Supported codecs:
SBC (Sub Band Codec)
AAC (Advanced Audio Coding)
LDAC
* This output is the value
measurement at a distance of
200 mm from the objective lens
surface on the Optical Pick-up
Block with 7 mm aperture.
Frequency response:
20 Hz – 20 kHz
Video color system format:
Latin American model:
NTSC
Other models:
NTSC and PAL
USB section
Supported USB device:
Mass Storage Class
Maximum current:
1 A
USB port:
Type A
FM tuner section
Network section
LAN port:
RJ-45
10BASE-T/100BASE-TX
(The communication speed may
vary depending on the
communication environment.
This system does not guarantee
the communication speed and
quality of 10BASE-T/100BASE-TX.)
Additional Information
FM stereo, FM superheterodyne tuner
Antenna:
FM lead antenna
Tuning range:
87.5 MHz – 108.0 MHz (50 kHz
step)
*1 The actual range will vary depending
on factors such as obstacles between
devices, magnetic fields around a
microwave oven, static electricity,
reception sensitivity, antenna’s
performance, operating system,
software application, etc.
2
* BLUETOOTH standard profiles
indicate the purpose of BLUETOOTH
communication between devices.
97GB
Compatible standards:
IEEE 802.11 a/b/g/n (WEP 64 bit,
WEP 128 bit, WPA/WPA2-PSK
(AES), WPA/WPA2-PSK (TKIP))
Radio frequency:
2.4/5 GHz band
Supported audio formats
Supported bit rate and sampling
frequencies:
MP3:
16/22.05/24/32/44.1/48 kHz,
16 – 320 kbps (CBR/VBR)
AAC:
16/22.05/24/32/44.1/48/88.2/
96 kHz, 16 – 320 kbps (CBR/VBR)
WMA:
32/44.1/48 kHz, 16 – 320 kbps
(CBR/VBR)
WAV:
16/22.05/24/32/44.1/48/88.2/
96/176.4/192 kHz (16/24 bit)
AIFF:
32/44.1/48/88.2/96/176.4/
192 kHz (16/24 bit)
FLAC:
16/22.05/24/32/44.1/48/88.2/
96/176.4/192 kHz (16/24 bit)
ALAC:
16/22.05/24/32/44.1/48/88.2/
96/176.4/192 kHz (16/24 bit)
PCM:
44.1/48/88.2/96/176.4/192 kHz
(16/24/32 bit)
DSD (DSF/DSDIFF):
2.8 MHz (1 bit)
Supported video formats
Xvid:
Video codec: Xvid video
Bit rate: 4.854 Mbps (MAX)
Resolution/Frame rate:
720 × 480, 30 fps
720 × 576, 25 fps (except for Latin
American model)
Audio codec: MP3
98GB
MPEG4:
File format: MP4 File Format
Video codec: MPEG4 Simple
Profile (AVC is not compatible.)
Bit rate: 4 Mbps
Resolution/Frame rate:
720 × 480, 30 fps
720 × 576, 25 fps (except for Latin
American model)
Audio codec: AAC-LC (HE-AAC is
not compatible.)
DRM: Not compatible
Speaker System
(SS-GT7DWB)
Speaker system:
2-way, bass reflex
Speaker unit (left):
Tweeter: 19 mm × 1, cone type
Midrange: 90 mm × 2, cone type
Speaker unit (right):
Tweeter: 19 mm × 1, cone type
Midrange: 90 mm × 2, cone type
Rated impedance:
4 ohms
General
* The power consumption of the system
will be less than 0.5 W when there is no
HDMI connection and “NW STBY” is set
to “OFF.”
Design and specifications are subject
to change without notice.
Additional Information
Power requirements:
AC 120 V – 240 V, 50/60 Hz
Power consumption:
370 W
Power consumption (at the Power
Saving mode):
0.5 W (When “NW STBY” is set to
“OFF” and [CONTROL FOR HDMI]
is set to [OFF].)
3 W* (When “NW STBY” is set to
“ON” and [CONTROL FOR HDMI] is
set to [ON].)
Dimensions (W/H/D) (Approx.):
Active subwoofer:
480 mm × 805 mm × 540 mm
Speaker unit (left):
600 mm × 118 mm × 145 mm
Speaker unit (right):
600 mm × 118 mm × 145 mm
Mass (Approx.):
Active subwoofer:
38.9 kg
Speaker unit (left):
4.3 kg
Speaker unit (right):
4.3 kg
Quantity:
Active subwoofer:
1 piece
Speaker unit:
2 pieces
99GB
Language code list
The language spellings conform to the ISO 639:1988 (E/F) standard.
100GB
Code Language
Code Language
Code Language
Code Language
1027
Afar
1186
Scots Gaelic
1350
Malayalam
1513
Siswati
1028
Abkhazian
1194
Galician
1352
Mongolian
1514
Sesotho
1032
Afrikaans
1196
Guarani
1353
Moldavian
1515
Sundanese
1039
Amharic
1203
Gujarati
1356
Marathi
1516
Swedish
1044
Arabic
1209
Hausa
1357
Malay
1517
Swahili
1045
Assamese
1217
Hindi
1358
Maltese
1521
Tamil
1051
Aymara
1226
Croatian
1363
Burmese
1525
Telugu
1052
Azerbaijani
1229
Hungarian
1365
Nauru
1527
Tajik
1053
Bashkir
1233
Armenian
1369
Nepali
1528
Thai
1057
Byelorussian
1235
Interlingua
1376
Dutch
1529
Tigrinya
1059
Bulgarian
1239
Interlingue
1379
Norwegian
1531
Turkmen
1060
Bihari
1245
Inupiak
1393
Occitan
1532
Tagalog
1061
Bislama
1248
1066
Bengali; Bangla 1253
Indonesian
1403
(Afan) Oromo
1534
Setswana
Icelandic
1408
Oriya
1535
Tonga
1067
Tibetan
1254
Italian
1417
Punjabi
1538
Turkish
1070
Breton
1257
Hebrew
1428
Polish
1539
Tsonga
1079
Catalan
1261
Japanese
1435
Pashto; Pushto
1540
Tatar
1093
Corsican
1269
Yiddish
1436
Portuguese
1543
Twi
Ukrainian
1097
Czech
1283
Javanese
1463
Quechua
1557
1103
Welsh
1287
Georgian
1481
Rhaeto-Romance
1564
Urdu
1105
Danish
1297
Kazakh
1482
Kirundi
1572
Uzbek
1109
German
1298
Greenlandic
1483
Romanian
1581
Vietnamese
1130
Bhutani
1299
Cambodian
1489
Russian
1587
Volapük
1142
Greek
1300
Kannada
1491
Kinyarwanda
1613
Wolof
1144
English
1301
Korean
1495
Sanskrit
1632
Xhosa
1145
Esperanto
1305
Kashmiri
1498
Sindhi
1665
Yoruba
1149
Spanish
1307
Kurdish
1501
Sangho
1684
Chinese
1150
Estonian
1311
Kirghiz
1502
Serbo-Croatian
1697
Zulu
1151
Basque
1313
Latin
1503
Singhalese
1703
Not specified
1157
Persian
1326
Lingala
1505
Slovak
1165
Finnish
1327
Laothian
1506
Slovenian
1166
Fiji
1332
Lithuanian
1507
Samoan
1171
Faroese
1334
Latvian; Lettish
1508
Shona
1174
French
1345
Malagasy
1509
Somali
1181
Frisian
1347
Maori
1511
Albanian
1183
Irish
1349
Macedonian
1512
Serbian
Parental Control area code list
Code Area
Code Area
Code Area
Code Area
2044
Argentina
2165
Finland
2362
Mexico
2149
Spain
2047
Australia
2174
France
2376
Netherlands
2499
Sweden
2046
Austria
2109
Germany
2390
New Zealand
2086
Switzerland
2057
Belgium
2248
India
2379
Norway
2528
Thailand
2184
United Kingdom
2070
Brazil
2238
Indonesia
2427
Pakistan
2079
Canada
2254
Italy
2424
Philippines
2090
Chile
2276
Japan
2436
Portugal
2092
China
2304
Korea
2489
Russia
2115
Denmark
2363
Malaysia
2501
Singapore
Additional Information
101GB
©2016 Sony Corporation Printed in Malaysia
4-593-243-16(1)
