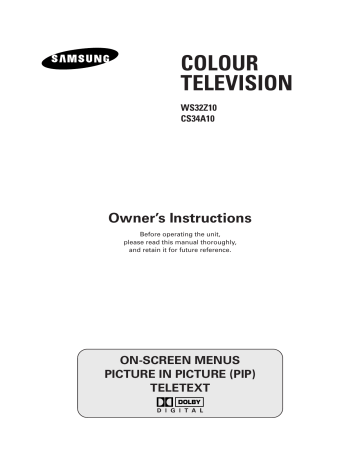

COLOUR
TELEVISION
WS32Z10
CS34A10
Owner’s Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
ON-SCREEN MENUS
PICTURE IN PICTURE (PIP)
TELETEXT
Safety Instructions
ENG
◆ Do not expose the television to extreme temperature conditions or to extreme humidity conditions.
◆ Do not expose the television to direct sunlight and other sources of heat.
◆ Do not expose the television to any liquids.
◆ Never put objects of any kind into the television, and do not place a water-containing vessel on the
television.
◆ During a storm conditions (especially when there is lightning) unplug the television from the mains
socket and aerial.
◆ Do not step on or twist the power cord.
◆ Do not overload wall outlets or extension cords as this can result in a risk of fire or electric shock.
◆ Please use a soft and dry cloth (not containing volatile matter) when you clean the TV.
◆ If the television is broken, do not try to repair it yourself. Contact qualified service personnel.
◆ If the remote control is not used for a long period of time, remove the batteries and store it in a
cool, dry place.
◆ Do not drop the remote control.
This device is not for use in industrial environments.
2
Caution
ENG
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO PREVENT ELECTRICAL SHOCK,
DO NOT REMOVE REAR COVER, NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT DAMAGE WHICH MAY RESULT
IN FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
The lightning flash and arrow head
within the triangle is a warning sign
alerting you of “dangerous voltage”
inside the product.
The exclamation point within the
triangle is a warning sign alerting
you of important instructions
accompanying the product.
☛
The main voltage is indicated on the
rear of the TV set and the frequency is
50 or 60Hz.
3
ENG
Contents (continued)
◆ FOREWORD
■
■
Safety Instructions .........................................................................................
Caution ..........................................................................................................
2
3
◆ CONNECTING AND PREPARING YOUR TELEVISION
■
■
■
■
■
■
■
■
■
■
■
Control Panel of Your Television ...................................................................
6
Connection Panel of Your Television (depending on the model) ..................
7
Infrared Remote Control (Television Functions)............................................
8
Infrared Remote Control (All Functions Except Television Functions) ..........
9
Inserting the Batteries in the Remote Control................................................
10
Connecting to an Aerial or Cable Television Network ...................................
10
Switching Your Television On and Off...........................................................
11
Placing Your Television in Standby Mode .....................................................
12
Becoming Familiar with the Remote Control .................................................
13
Plug and Play Feature ................................................................................... 14~15
Choosing Your Language..............................................................................
15
◆ SETTING THE CHANNELS
■
■
■
■
■
■
■
■
■
Storing Channels Automatically.....................................................................
16
Storing Channels Manually............................................................................ 17~18
Skipping Unwanted Channels .......................................................................
19
Sorting the Stored Channels .........................................................................
20
Assigning Names to Channels ......................................................................
21
Using the LNA (Low Noise Amplifier) Feature ..............................................
22
Activating the Child Lock ...............................................................................
23
Fine Tuning Channel Reception ....................................................................
24
Displaying Information ...................................................................................
24
◆ USING YOUR TELEVISION (continued)
■
■
■
■
■
■
■
■
■
■
■
■
4
Changing the Picture Standard .....................................................................
25
Adjusting the Picture Settings........................................................................
25
Viewing the Picture In Picture (PIP) .............................................................. 26~27
Selecting the Picture Size (depending on the model)....................................
28
Extra Picture Settings ....................................................................................
29
- Scan Mode
- Digital NR
- DNIe (Digital Natural Image engine)
- Blue Screen
- Tilt
Changing the Sound Standard ......................................................................
30
Adjusting the Sound Settings ........................................................................
30
Adjusting Your Headphone Preferences .......................................................
31
Setting the Dolby Digital ................................................................................ 32~33
Setting the Dolby Prologic II.......................................................................... 34~35
Setting the External Digital Sound.................................................................
36
Selecting the Sound Mode (depending on the model) ..................................
37
ENG
Contents
◆ USING YOUR TELEVISION
■
■
■
■
■
Setting the Current Date and Time................................................................
Setting the Sleep Timer .................................................................................
Switching the Television On and Off Automatically .......................................
Redirecting an Input to the External Output ..................................................
Viewing Pictures From External Sources ......................................................
38
39
40
41
41
◆ USING THE DVR FEATURE
■
■
■
DVR (Digital Video Recorder) Feature (depending on the model) ................ 42~43
Setting up the DVR........................................................................................
44
Easy Accessing the DVR Feature via the Remote Control ...........................
45
◆ USING THE TELETEXT FEATURE
■
■
■
■
■
Teletext Feature ............................................................................................
Displaying the Teletext Information ...............................................................
Selecting Display Options..............................................................................
Selecting the Teletext Source (depending on the model)..............................
Selecting a Teletext Page..............................................................................
46
47
48
49
50
◆ ADDITIONAL INFORMATION ON CONNECTIONS
■
■
■
■
■
■
■
■
■
Connecting to the External Input/Outputs......................................................
Connecting to the DVD or DTV Input ............................................................
Connecting to the Audio Outputs...................................................................
Connecting to the Digital Audio Inputs ..........................................................
Connecting Headphones ...............................................................................
Connecting Additional Speakers ...................................................................
Connecting to the Audio/Video Input .............................................................
Connecting to the S-Video Input....................................................................
Connecting to the PC Input ...........................................................................
51
52
53
53
54
54
55
55
56
◆ RECOMMENDATIONS FOR USE
■
■
Programming the Remote Control for Other Components ............................
- VCR Remote Control Codes ......................................................................
- Cable Box (CATV) Remote Control Codes ................................................
- DVD Remote Control Codes ......................................................................
Troubleshooting: Before Contacting Service Personnel................................
Symbols
Press
☛
Important
➢
Note
5
57
58
59
59
60
Control Panel of Your Television
➢
ENG
The actual configuration on your TV may be different, depending on
your model.
WS32Z10
1
2
4
3
6
7
5
8
9
CS34A10
9
8
1
!
@
#
$
➢
2
Input Source Selection/
Accessing to the Selected Option on the
Menu System
Menu Display
Volume Decrease
Volume Increase
3
4
5
7
6
%
Previous Channel
^
Next Channel
&
Standby & Timer Indicator
*
Remote Control Sensor
(
Power On/Off
Using the Buttons on the Panel
If the remote control no longer works or you have lost it, you can use controls on the panel of
the TV to:
◆ Switch on the TV when it is in Standby mode and select channels ( ▲ CH▼ )
◆ Adjust the volume ( + VOL - )
◆ Access the menu ( MENU )
◆ Switch among Video input modes ( TV/VIDEO ) and access to the selected option on
the menu system ( ENTER )
6
Connection Panel of Your Television (depending on the model)
➢
The actual configuration on your TV may be different, depending on
your model.
ENG
Side of the TV
Audio Input (R, L)
Video Input
S-Video Input
Headphone connector
PC Input
Rear of the TV
➢ For further details about connection, refer to pages 51~55.
format for Component Inputs
➣ Available
; 480i/480p/576p/1080i-60Hz or 50Hz (Australia & Newzealand).
you connect an audio or video system to your television, ensure that all
☛ Whenever
elements are switched off.
Refer to the documentation supplied with your equipment for detailed connection
instructions and associated safety precautions.
7
Infrared Remote Control (Television Functions)
ENG
TELEVISION STAND-BY
AUTOMATIC SWITCH-OFF
DOLBY PROLOGIC MODE SELECTION
MAKE THE REMOTE CONTROL WORK
FOR TV, VCR, CATV, DVD, STB.
➢
The remote control might not be
compatible with the TV
manufactured by another company.
DIRECT CHANNEL SELECTION
PICTURE FREEZE
NEXT CHANNEL
VOLUME INCREASE
TEMPORARY SOUND SWITCH-OFF
VOLUME DECREASE
EXTERNAL INPUT SELECTION
PREVIOUS CHANNEL
INFORMATION DISPLAY
MENU DISPLAY
EXIT FROM MENU DISPLAY/
TUNER/CABLE NETWORK
SELECTION
CONTROL THE CURSOR IN THE
MENU
CHANGE CONFIRMATION
PICTURE EFFECT SELECTION
SOUND EFFECT SELECTION
SOUND MODE SELECTION
PICTURE SIZE SELECTION
SET THE MBR CODE OF REMOTE
CONTROL FOR THE PRODUCTS
EXCEPT SAMSUNG PRODUCT
(REFER TO PAGES 56~58)
DNIe ON/OFF
INITIALIZE THE REMOTE CONTROL
SETTINGS WHEN IT HAS SOME
PROBLEMS OR DOESN'T WORK WELL
➢
➢
8
Please take off the batteries while
resetting. If not so, the remote
control will get damaged
The performance of the remote control may be affected by bright light.
Infrared Remote Control (All Functions Except Television Functions)
ENG
SUB PICTURE (PIP) FREEZE
PIP ON/OFF
TELETEXT NEXT PAGE/
TELEWEB FORWARD
SUB PICTURE (PIP) NEXT CHANNEL
TELETEXT PREVIOUS PAGE/
TELEWEB BACKWARD
TELETEXT REVEAL
TELETEXT INDEX
TELETEXT DISPLAY/
MIX BOTH TELETEXT INFORMATION
AND THE NORMAL BROADCAST
SUB PICTURE (PIP) LOCATION
SELECTION
TELEWEB DISPLAY
(OPTION)
SUB PICTURE (PIP) SIZE SELECTION
SUB PICTURE (PIP) PREVIOUS
CHANNEL
DVR SETUP MENU DISPLAY
FASTEXT TOPIC SELECTION
TELETEXT SIZE SELECTION
TELETEXT CANCEL
TELETEXT SUB PAGE/
TELEWEB HOME PAGE
DVR FUNCTIONS;
(REFER TO PAGES 46~49)
VCR, DVD, DVR OR STB FUNCTIONS:
- REWIND
- STOP
- PLAY/PAUSE
- FAST FORWARD
9
Inserting the Batteries in the Remote Control
ENG
You must insert or replace the batteries in the remote control when
you:
◆ Purchase the television
◆ Find that the remote control is no longer operating
correctly
1
Remove the cover on the rear of the remote control by pressing
the symbol ( ) downwards and then pulling firmly to remove it.
2
Insert two R03, UM4, “AAA” 1.5V or equivalent batteries taking
care to respect the polarities:
◆ + on the battery against + on the remote control
◆ - on the battery against - on the remote control
3
Replace the cover by aligning it with the base of the remote
control and pressing it back into place.
Connecting to an Aerial or Cable Television Network
To view television channels correctly, a signal must be received by
the set from one of the following sources:
◆ An outdoor aerial
◆ A cable television network
◆ A satellite network
Rear of the TV
or
Cable Television
Network
10
1
In the first three cases, connect the aerial or network input cable to
the 75Ω coaxial socket on the rear of the television.
2
If you are using an indoor aerial, you may need to turn it when
tuning your television until you obtain a picture that is both sharp
and clear.
For further details, refer to:
◆ “Storing Channels Automatically” on page 16
◆ “Storing Channels Manually” on page 17
Switching Your Television On and Off
ENG
The mains lead is attached to the rear of your television.
Front of the TV
1
Plug the mains lead into an appropriate socket.
2
Press the “
main voltage is indicated on the rear of the television
➢ The
and the frequency is 50 or 60Hz.
Result:
3
” button (On/Off) on the front of the television.
The Standby indicator on the front of the television
lights up.
Press the POWER (
television on.
Result:
) button on the remote control to switch the
The programme that you were watching last is reselected automatically.
TV
you have not yet stored any channels, No clear picture
➢ Ifappears.
Refer to “Storing Channels Automatically” on page
16 or “Storing Channels Manually” on page 17.
4
To switch your television off, press again the “
on the front of the television.
➢
” button (On/Off)
If your television isn’t turned on when the “ ” button
(On/Off) is pressed, press the SELECT button to check if
the “TV” mode has been chosen.
11
Placing Your Television in Standby Mode
ENG
Your television can be placed in Standby mode, in order to reduce
the power consumption.
TV
The Standby mode can be useful when you wish to interrupt
viewing temporarily (during a meal, for example).
1
Press the POWER (
Result:
2
) button on the remote control.
The screen is turned off and the Standby indicator on
the front of the television lights up.
To switch the television back on, simply press again the POWER
( ) button on the remote control.
➣ You can also switch on by pressing the P
☛
12
or
button.
Do not leave your television in Standby mode for long
periods of time (when you are away on holiday, for
example). Turn your television off by pressing the “ ”
button (On/Off) on the front of the television. It is best to
unplug the set from the mains and aerial.
Becoming Familiar with the Remote Control
ENG
The remote control is used mainly to:
◆ Change channels and adjust the volume
◆ Set up the television using the on-screen menu system
The following table presents the most frequently used buttons and
their functions.
Button
to
Viewing Function
Menu Function
Used to display the next
stored channel.
-
Used to display the
previous stored channel.
-
Used to display the corresponding channels.
Used to increase the
volume.
-
Used to decrease the
volume.
-
MUTE
Used to switch the sound off temporarily.
To turn the sound back on, press this button again,
or press the
or
button.
MENU
Used to display the
on-screen menu system.
EXIT/TV
/
➢
Used to return to the
previous menu or normal
viewing.
-
Used to...
◆ Display a submenu
containing selections for
the current menu option.
◆ Increase/reduce a menu
option value.
-
Used to confirm your
choice.
Used to switch the
television on when it is
in Standby mode.
Used to exit from the menu
system and return to
normal viewing directly.
13
Plug and Play Feature
ENG
When the television is initially powered on, several basic customer
settings proceed automatically and subsequently. The following
settings are available.
Plug & Play
Press ENTER to start
Plug & Play
Start
1
Exit
If the television is in Standby mode, press the POWER (
on the remote control.
Result:
Language
2
) button
The Plug & Play is displayed.
To start the Plug & Play, press the ENTER (
) button.
English
Result:
The Language menu is displayed.
Français
3
Malaysia
Select the appropriate language by pressing the † or … button.
Press the ENTER ( ) button to confirm your choice.
Result:
Move
The message Antenna input check is displayed.
Enter
4
Make sure that the antenna is connected to the TV.
Result:
After a little while, the Area menu is displayed.
Plug & Play
5
Antenna input check
Select your country by pressing the ▲ or ▼ button. Press the
ENTER ( ) button to confirm your choice.
Result:
Area
6
Asia/W.Europe
CIS/E.Europe
China
Hongkong/UK
Australia
NZ/Indonesia
South Africa
Move
The Auto Store menu is displayed.
To start the channel store, press the ENTER (
Result:
➢
) button.
The search will end automatically. Channels are sorted
and stored in an order which reflects their position in the
frequency range (with lowest first and hialghest last).
To stop the search before it has finished or return to normal
viewing, select the Exit and press the ENTER ( ) button.
Enter
7
Auto Store
Press ENTER to start
channel store.
P
Start
-----
Exit
Enjoy viewing your new TV
14
When the setting has finished all, the message Enjoy viewing
your new TV is displayed, and then the channel which has been
stored will be activated.
Plug and Play Feature
ENG
If you want to reset this feature...
Setup
1
Press the MENU (
Result:
2
) button.
The main menu is displayed.
Press the † or … button to select Setup.
Result:
The options available in the Setup group are
displayed.
Move
3
Press the ENTER (
Result:
4
Enter
Return
) button.
The Plug & Play is selected.
Press the ENTER (
Result:
√
√
√
√
√
Plug & Play
Language
: English
Time
Teletext Source : Main
AV Setup
) button again.
This feature starts with the message Plug & Play is
displayed.
Choosing Your Language
When you start using your television for the first time, you must
select the language which will be used for displaying menus and
indications.
1
Press the MENU (
Result:
2
) button.
The main menu is displayed.
Press the † or … button to select Setup.
Result:
The options available in the Setup group are
displayed.
3
Press the ENTER (
4
Press the † or … button to select Language. Press the ENTER
( ) button.
Result:
5
Setup
English
Plug & Play
Language
: English
Time
Français
Teletext Source : Main
Malaysia
AV Setup
: Main
Move
Enter
) button.
The languages available are listed.
Press the † or … button to select the appropriate language.
15
Return
√
√
√
√
√
Storing Channels Automatically
ENG
Channel
Area
Auto Store
Manual Store
Channel Edit
Fine tune
: Asia/Asia/W.Europe
W.Europe √
CIS/E.Europe √
√
China
Hongkong/UK √
Australia √
NZ/Indonesia
You can scan for the frequency ranges available to you (and
availability depends on your country). Automatically allocated
programme numbers may not correspond to actual or desired
programme numbers. However you can sort numbers manually and
clear any channels you do not wish to watch.
1
Press the MENU ( ) button.
The main menu is displayed.
Result:
2
Press the † or … button to select Channel.
The options available in the Channel group are
Result:
displayed.
3
Press the ENTER ( ) button.
The Area is selected.
Result:
4
Press the ENTER ( ) button again. Select your country by
pressing the † or … button.
The countries are displayed in the following order:
Asia/W.Europe - CIS/E.Europe - China - Hongkong/UK Australia - NZ/Indonesia - South Africa - America
5
Press the ENTER (
6
Press the † or … button to select Auto Store. Press the ENTER
( ) button.
7
Press the ENTER ( ) button again to start the search.
The channels are stored in an order which reflects
Result:
their positions in the frequency range. Finally, the
search will end automatically.
†
Move
Enter
Return
Channel
Area
Auto Store
Manual Store
Channel Edit
Fine tune
Move
: Asia/ W.Europe √
√
√
√
√
Enter
Return
Auto Store
Press ENTER to start
channel store.
P -----
Start
) button to confirm your country selected.
Exit
Auto Store
Channel store
in process.
Stop
➢
P ----108MHz
To stop the search before it has finished or return to normal
viewing, select the Exit and press the ENTER ( ) button.
Exit
8
Auto Store
Channel store
is not completed.
Continue
16
P ----108MHz
Exit
When the channels have been stored, you can:
◆ Clear a channel (refer to page 19)
◆ Sort them in the order required (refer to page 20)
◆ Assign a name to the stored channels (refer to page 21)
◆ Fine tune channel reception if necessary (refer to page 24)
Storing Channels Manually
ENG
You can store the television channels, including those received via
cable networks.
Channel
Area
Auto Store
Manual Store
Channel Edit
Fine tune
When storing channels manually, you can choose:
◆ Whether or not to store each of the channels found
◆ The programme number of each stored channel which
you wish to identify
Move
1
Press the MENU (
Result:
: Asia/ W.Europe √
√
√
√
√
Enter
Return
) button.
The main menu is displayed.
Manual Store
2
Press the † or … button to select Channel.
Result:
The options available in the Channel group are
displayed.
3
Press the ENTER (
4
Press the † or … button to select Manual Store. Press the
ENTER ( ) button.
Prog. No
Color
--
AUTO
BG
Channel
Search
Store
C--
887MHz
?
) button.
Move
Result:
5
Adjust
The Manual Store menu is displayed with the
Prog.No is selected.
6
To assign a programme number to a channel, press the † or …
button to find the correct number.
7
If necessary, select the broadcasting standard required. Press the
œ or √ button to select Color. Press the † or … button
repeatedly.
Return
Manual Store
The current channels are displayed.
Select required channel by pressing the † or … button. Press the
ENTER ( ) button.
Result:
Sound
Prog. No
Color
--
AUTO
BG
Channel
Search
Store
C--
887MHz
?
Move
Sound
Adjust
Return
Manual Store
Result:
The color standards are displayed in the following
order (depending on the model).
◆ AUTO- PAL - SECAM
Move
Prog. No
Color
--
AUTO
BG
Channel
Search
Store
C--
887MHz
?
Adjust
◆ AUTO - NTSC3.58 - NTSC4.43 - PAL60
8
Press the œ or √ button to select Sound. Press the † or … button
repeatedly.
Result:
The sound standards are displayed in the following
order.
◆ BG - DK - I - M
17
Sound
Return
Storing Channels Manually (continued)
ENG
9
Manual Store
Prog. No
Color
Sound
--
AUTO
BG
Channel
Search
Store
C--
887MHz
?
Move
Adjust
◆ Press the œ or √ button to select Channel.
◆ Press the † or … button to select C (Air channel) or S (Cable
channel).
◆ Press the √ button
Return
◆ Press the numeric buttons (0~9) to select the required
number. (The input range for numeric buttons may vary within
different regions.)
Manual Store
Prog. No
Color
Sound
--
AUTO
BG
Channel
Search
Store
C--
887MHz
?
Move
0 .. 9
Adjust
If you know the number of the channel to be stored, see the
following steps.
➢
10
Return
If you do not know the channel numbers, select Search by
pressing the œ or √ button. Press the † or … button to start the
search.
Result:
Manual Store
Prog. No
Color
--
AUTO
BG
Channel
Search
Store
C--
887MHz
?
Move
Adjust
Move
Color
Return
Sound
--
AUTO
BG
Channel
Search
Store
C--
887MHz
OK
Adjust
The tuner scans the frequency range until the first
channel or the channel that you selected is received
on your screen.
Sound
Manual Store
Prog. No
If no sound or abnormal sound, re-select the sound
standard required.
Return
11
To store the channel and associated programme number, select
Store by pressing the œ or √ button. Set to OK by pressing the †
or … button.
12
Repeat Steps 9 to 11 for each channel to be stored.
☛
Channel mode
◆ P (Programme mode): When completing tuning, the
broadcasting stations in your area have been assigned to
position numbers from P00 to max P99. You can select a
channel by entering the position number in this mode.
◆ C (Real channel mode): You can select a channel by
entering the assigned number to each air broadcasting station
in this mode.
◆ S (Cable channel mode): You can select a channel by
entering the assigned number for each cable channel in this
mode.
18
Skipping Unwanted Channels
ENG
You can exclude the channels of your choice from the channel scan
operation. When you scan through the stored channels, those that
you have chosen to skip are thus not displayed. All channels that
you do not specifically choose to skip are displayed during
scanning.
1
Press the MENU (
Result:
Channel
) button.
The main menu is displayed.
Move
2
Enter
Return
Press the † or … button to select Channel.
Result:
The options available in the Channel group are
displayed.
3
Press the ENTER (
4
Press the † or … button to select Channel Edit. Press the
ENTER ( ) button.
Result:
5
: Asia/ W.Europe √
√
√
√
√
Area
Auto Store
Manual Store
Channel Edit
Fine tune
) button.
The Channel Edit menu is displayed with the
Add/Delete selected.
Press the ENTER (
Result:
Channel Edit
√
√
√
√
√
Add/Delete
Sort
Name
LNA
Child Lock
Move
Enter
Return
) button again.
Add/Delete
The current channels are displayed.
6
Select the channel that you wish to delete by pressing the † or …
button. Press the ENTER ( ) button.
7
Select Erased or Added by pressing the † or … button. Press
the ENTER ( ) button.
Prog. No
1
2
3
4
5
Move
✽
✽
✽
✽
✽
Added
Enter
Return
Add/Delete
Prog. No
1
2
3
4
5
Move
✽
✽
✽
✽
✽
Enter
19
Erased
Return
Sorting the Stored Channels
ENG
Channel
Area
Auto Store
Manual Store
Channel Edit
Fine tune
: Asia/ W.Europe √
√
√
√
√
This operation allows you to change the programme numbers of
stored channels. This operation may be necessary after using auto
store. You can delete the channels you do not want to keep.
1
Result:
2
Move
Enter
Return
√
√
√
√
√
Enter
Press the ENTER (
4
Press the † or … button to select Channel Edit. Press the
ENTER ( ) button.
Result:
Return
Move
✽
✽
✽
✽
✽
Enter
Prog. No
1
2
3
4
5
Move
✽
✽
✽
✽
Enter
20
✽
Return
)
The current channels are displayed.
Select the channel that you wish to move by pressing the † or …
button. Press the ENTER ( ) button.
7
Select the number of the programme to which the channel is to be
moved by pressing the † or … button. Press the ENTER ( )
button.
The channel is moved to its new position and all other
Result:
channels are shifted accordingly.
8
Repeat Steps 6 to 7 until you have moved all the channels to the
required programme numbers.
Return
Sort
The Channel Edit menu is displayed.
6
Prog. No
1
2
3
4
5
) button.
Press the † or … button to select Sort. Press the ENTER (
button.
Result:
Sort
The options available in the Channel group are
displayed.
3
5
Move
) button.
The main menu is displayed.
Press the † or … button to select Channel.
Result:
Channel Edit
Add/Delete
Sort
Name
LNA
Child Lock
Press the MENU (
Assigning Names to Channels
ENG
Channel names will be assigned automatically when channel
information is broadcast. These names can be changed, allowing
you to assign new names.
1
Press the MENU (
Result:
2
) button.
The main menu is displayed.
Press the ENTER (
4
Press the † or … button to select Channel Edit. Press the
ENTER ( ) button.
Result:
Return
Name
Prog. No
1
2
3
4
5
The Channel Edit menu is displayed.
✽
✽
✽
✽
✽
)
Move
Enter
Return
The current channels are displayed.
Name
If necessary, select the channel to be assigned to a new name by
pressing the † or … button. Press the ENTER ( ) button.
Result:
Enter
) button.
Press the † or … button to select Name. Press the ENTER (
button.
Result:
Move
The options available in the Channel group are
displayed.
3
6
√
√
√
√
√
Add/Delete
Sort
Name
LNA
Child Lock
Press the † or … button to select Channel.
Result:
5
Channel Edit
Prog. No
Arrow indications are displayed around the name box.
7
Press the † or … button to select a letter (A~Z), a number (0~9)
or a symbol (-, _, space). Move on the previous or next letter by
pressing the œ or √ button.
8
When you have finished entering the name, press the ENTER (
button to confirm the name.
9
Repeat Steps 6 to 8 for each channel to be assigned to a new
name.
)
1
2
3
4
5
Move
✽
✽
✽
✽
Enter
21
✽
Return
Using the LNA (Low Noise Amplifier) Feature
ENG
Channel Edit
√
√
√
√
√
Add/Delete
Sort
Name
LNA
Child Lock
This function is very useful in the situation that the TV is used in
weak signal. LNA amplifies the TV signal in the weak signal area,
but not noise.
This feature is working only weak signal condition, and that is
memorized on current channel, additional.
1
Move
Enter
Press the MENU (
Result:
Return
2
The main menu is displayed.
Press the † or … button to select Channel.
Result:
LNA
) button.
The options available in the Channel group are
displayed.
Prog. No
1
2
3
4
5
✽
✽
✽
✽
✽
Off
3
Press the ENTER (
4
Press the † or … button to select Channel Edit. Press the
ENTER ( ) button.
Result:
Move
Enter
) button.
The Channel Edit menu is displayed.
Return
5
Press the † or … button to select LNA. Press the ENTER (
button.
)
LNA
Result:
The current channels are displayed.
Prog. No
1
2
3
4
5
Move
✽
✽
✽
✽
✽
Enter
22
6
Select the required channel by pressing the † or … button. Press
the ENTER ( ) button.
7
Select On or Off by pressing the † or … button. Press the
ENTER ( ) button.
On
Return
Activating the Child Lock
ENG
This feature allows you to lock the television so that it cannot be
switched on via the front panel. It can, however, still be switched
on via the remote control. Thus, by keeping the remote control
away from unauthorised users, such as children, you can prevent
them from watching unsuitable programme.
1
Press the MENU (
Result:
Channel Edit
) button.
The main menu is displayed.
Move
2
√
√
√
√
√
Add/Delete
Sort
Name
LNA
Child Lock
Enter
Return
Press the † or … button to select Channel.
Result:
The options available in the Channel group are
displayed.
Child Lock
Prog. No
3
Press the ENTER (
4
Press the † or … button to select Channel Edit. Press the
ENTER ( ) button.
Result:
) button.
1
2
3
4
5
Unlocked
The Channel Edit menu is displayed.
Move
5
✽
✽
✽
✽
✽
Enter
Return
Press the † or … button to select Child Lock. Press the ENTER
( ) button.
Result:
Child Lock
The current channels are displayed.
6
Select the required channel by pressing the † or … button. Press
the ENTER ( ) button.
7
Select Unlocked or Locked by pressing the † or … button. Press
the ENTER ( ) button.
Prog. No
1
2
3
4
5
Move
✽
✽
✽
✽
✽
Enter
23
Locked
Return
Fine Tuning Channel Reception
ENG
Channel
Area
Auto Store
Manual Store
Channel Edit
Fine tune
: Asia/ W.Europe √
√
√
√
√
If the reception is clear, you do not have to fine tune the channel,
as this is done automatically during the search and store operation.
If the signal is weak or distorted, you may have to fine tune the
channel manually.
1
Press the MENU (
Result:
Move
Enter
Return
2
Result:
31
Reset
Return
Move
Adjust
The main menu is displayed.
Press the † or … button to select Channel.
Fine tune
P1
) button.
The options available in the Channel group are
displayed.
3
Press the ENTER (
4
Press the † or … button to select Fine tune. Press the ENTER
( ) button.
Result:
Fine tune
P 1 is fine tuned.
) button.
The horizontal bar is displayed. Move the horizontal
bar’s cursor left or right by pressin
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
